The Effect of the Nitric Oxide Synthase Inhibitor L-NMMA on Basal CBF and Vasoneuronal Coupling in Man: A PET Study

Abstract

Nitric oxide (NO) regulates basal CBF. In a number of animal models NO has been implicated in the mediation of the regional changes in CBF (rCBF) that accompany neuronal activation (vasoneuronal coupling). However, some results in animal models have failed to confirm this finding, and the validity of extrapolation to man from animal data is uncertain. To determine the contribution of NO to basal global CBF and activation-induced changes in rCBF, the authors have performed quantitative H₂¹⁵O positron emission tomography (PET) studies before and after administration of the non-isoform-specific NO synthase inhibitor, N^G-monomethyl-l-arginine (L-NMMA), in 10 healthy male volunteers. Learning a novel sequence of finger movements was used as a paradigm to induce regional frontal cortex activation. The effect of NO synthase inhibition on the magnitude and pattern of activation was determined. Resting global CBF fell from 33.3 ± 5.3 mL·100 g⁻¹·min⁻¹ at rest before L-NMMA, to 26.5 ± 7.7 mL·100 g⁻¹·min⁻¹ after L-NMMA (P = 0.001). This fall was reversed by l-arginine administration. Learning sequential finger movements induced increases in rCBF in the left motor, right prefrontal, and bilateral premotor cortices. After NO synthase inhibition with L-NMMA, there was no change in this pattern of activation and no reduction in the magnitude of rCBF responses at the foci of maximal stimulation before and after L-NMMA. These findings confirm that NO production contributes to basal CBF regulation in man, but show that systemic NO synthase inhibition with L-NMMA does not impair regional vasoneuronal coupling.

Keywords

Nitric oxide Cerebral blood flow Positron emission tomography Cerebral activation Man

Vasoneuronal coupling describes the characteristic ability of the cerebral vasculature to match rapidly, and in a spatially restricted manner, regional CBF (rCBF) with neuronal activation. The mediator underlying this coupling process remains uncertain: it is not coupled to oxidative metabolism (Fox et al., 1984) and is not adequately explained by changes in levels of perivascular adenosine (Northington et al., 1992), tissue Po₂ (Frahm et al., 1996) or pH (Leniger-Follert, 1984), potassium shifts, or perivascular neurotransmitter release (Iadecola, 1993). Recently it has been suggested that nitric oxide (NO) plays a role (Iadecola, 1993). Nitric oxide is a rapidly diffusible relaxant mediator, generated by enzymes constitutively expressed by the endothelium and neurons (Edelman and Gally, 1997). Studies using NO synthase inhibitors in both animals and man have demonstrated the importance of NO in maintaining basal CBF (Iadecola et al., 1994). A number of studies with NO synthase inhibitors in rodents have shown inhibition of the cortical rCBF increase in response to vibrissal stimulation (Dirnagl et al., 1993) but other studies have failed to replicate this finding (Wang et al., 1993). Recent work with NO synthase isoform knockout mice suggests that neuronally derived NO is the prime mediator of vasoneuronal coupling (Ma et al., 1996).

The human circulation has unique features, which include an extensive intracranial—extracranial collateralization and the need to supply a highly developed neocortex. This makes direct extrapolation of findings from animal studies difficult. Blood flow in peripheral vascular beds in man is NO-dependent (Vallance et al., 1989), and we have recently demonstrated that human internal and common carotid artery flow is reduced by NO synthase inhibition (White et al., 1998). To test the hypothesis that NO contributes to vasoneuronal coupling we have used the non-isoform-selective NO synthase inhibitor, N^G-monomethyl-l-arginine (L-NMMA), and measured rCBF with H₂¹⁵O positron emission tomography (PET) in healthy volunteers. Learning a novel sequence of finger movements was used as a paradigm to induce motor, prefrontal, and premotor cortical activation (Jenkins et al., 1994), and statistical parametric mapping (SPM) (Friston et al., 1995b) was used to determine the effect of NO inhibition on the pattern and magnitude of frontal activation.

METHODS

Subjects

Ten healthy male volunteers were studied, 37.2 ± 4.2 years of age and weighing 85.1 ± 8.5 kg (mean ± SD). Local Hospital Ethics Committee approval was obtained for the study and all subjects gave informed written consent. Permission to administer radioactive H₂¹⁵O was given by the Administration of Radioactive Substances Advisory Committee of the Department of Health, United Kingdom.

Chemicals

N^G-Monomethyl-l-arginine hydrochloride was provided by Glaxo Wellcome PLC. (Sterenage, U.K.). as a sterile solution of 100 mg/mL and was of 99.98% purity by weight. L-Arginine was prepared by our pharmacy department from lyophilized solid as a 20-mg/mL solution (99.9% purity). Sterile 0.9% saline solution was used as a placebo and diluent.

Data acquisition and CBF measurement

Measurements of rCBF were performed using a CTI 953B PET camera (CTI/Siemens), with interplane septa retracted to acquire data in three-dimensional mode, and a low-energy window was used to measure scatter. Data were acquired simultaneously over 31 planes within the camera's 10.65-cm axial field of view. Backprojection and filtering with a Hanning filter (0.5 cycles/pixel) produced an image resolution of 8.5 × 8.5 × 4.3 mm full-width half-maximum (FWHM) after reconstruction. Images were displayed as a matrix of 128 × 128 × 31 voxels. Scans were acquired after a 20-second intravenous bolus of 11.5 mCi of oxygen-15-labeled water (H₂¹⁵O) in 3 mL of isotonic saline, given via an antecubital fossa vein. Time frames comprised a 30-second background frame, started approximately 5 seconds before the point of rise in head counts, followed by five frames of 7 seconds, two of 30 seconds, one of 90 seconds, and one of 180 seconds. Peak head counts occurred 30 to 40 seconds after head count rise. To enable quantitative rCBF analysis arterial whole blood ¹⁵O activity was continuously measured using an on-line detection system with blood withdrawn continuously through a radial artery cannula at a rate of 5 mL/min. After each rCBF measurement, 15 minutes was allowed to elapse to ensure decay of any residual ¹⁵O nuclide before the next scan. A total of six to eight dynamic CBF scans were performed for each subject.

Activation paradigm

Scans were performed under two different experimental conditions: a baseline rest condition and an activation condition during which a novel sequence of finger movements was learned by trial and error (Jenkins et al., 1994). The activation paradigm required subjects to learn sequences of keypresses eight moves long, previously programmed into a personal computer, using a keypad with four keys corresponding to the fingers of the right hand. The keypad was linked to an Amiga 2000 computer, which prompted a finger movement every 3 seconds and indicated by high and low tones whether a subject had selected the correct key in the sequence (Jenkins et al., 1994). It also monitored subject performance in terms of response time and number of errors. The preprogrammed sequences were the same for all 10 subjects.

Before the subjects were positioned within the scanner they were given an opportunity to familiarize themselves with the paradigm by learning a sequence of finger movements that was not repeated during the actual study. Subjects had either three or four activation scans interspersed with rest scans. To control for auditory input during the activation study the Amiga computer was set to generate random prompt and feedback tones during the rest condition.

The scans were performed in the following order: rest, activation, rest, activation, rest, activation. The first four scans were performed during an infusion of isotonic saline via the left antecubital fossa. Before the fifth scan 10 mg/kg L-NMMA was administered as a 30-second intravenous bolus and then a 10-mg·kg⁻¹·h⁻¹ infusion of L-NMMA was commenced via a left antecubital fossa vein. In previous studies of the administration of intravenous L-NMMA the maximal effect on systemic blood pressure and carotid artery volume flow has been found between 5 and 10 minutes after administration (White et al., 1998); therefore, the fifth scan was delayed until this time after the dose had elapsed. All subjects had six rCBF measurements, after which the effects of L-NMMA were reversed by giving a molar excess of l-arginine (30 mg/kg) as a slow intravenous injection for 60 to 90 seconds. In 7 of these 10 subjects a further paired rest and activation scan were then performed.

All scans were performed in a darkened room with the subject's eyes closed. Subjects were studied in a supine position, with head position maintained by a molded, cushioned head support. Axial positioning with a plane passing through the anterior and posterior clinoid processes was achieved by alignment of line markings drawn on the forehead and orbitomeatal lines with laser lines projected perpendicularly from the scanner gantry. Final axial head positioning to include the cerebral vertex in the field of view was performed after a short transmission scan. Before the emission data acquisition, a 20-minute transmission scan was performed to correct for tissue attenuation.

Data analysis

All calculations and image transformations were performed on a Sun SPARC 5 workstation (Sun Computers Inc.) using Analyze version 7.0 image display software (BRU, Mayo Foundation). Functional parametric images of CBF were generated essentially as described by Lammertsma et al. (1990). Integral images, formed from the summation of the counts collected in frames 2 through 10 (30 through 150 seconds, see above), were transformed to CBF using a lookup table. The lookup table was generated from the measured arterial input function with corrections for delay and dispersion during the on-line assay of radioactivity in blood. Delay and dispersion were estimated by fitting the total count rate from the scanner to a flow model with an exponential dispersion term (Lammertsma et al., 1990). Global CBF was determined from whole brain regions of interest excluding lateral ventricles, drawn on nine central transaxial planes of the CBF images. The observed estimates of global flow (see Results) were low relative to those obtained with classic methods. This may reflect a systematic bias arising from gray and white matter heterogeneity in the images, and also from the estimates of dispersion in the blood collection protocol (Lammertsma et al., 1990). It should be noted, however, that the present study was concerned with changes in regional flow and not just the absolute values.

Significant rCBF changes were localized using statistical parametric mapping software (SPM 95, Wellcome Department of Cognitive Neurology, London, U.K.), implemented in Matlab (Mathworks Inc.). Dynamic H₂¹⁵O scans for each individual were realigned on a voxel-by-voxel basis using an automated realignment program based on six-parameter rigid body transformations with a least-squares technique (Friston et al., 1995a). This generated an aligned set of images and a mean image (each of 31 planes) for each subject. For each subject, the mean image, having the most anatomic detail, was transformed into standard stereotactic space using linear, quadratic, and nonlinear three-dimensional deformation on a slice-by-slice basis (Friston et al., 1995a). The same transformations were then applied to each of the subjects' realigned images to allow intersubject averaging. Transformed scans consisted of 26 planes with voxel dimension 2 × 2 × 4 mm, corresponding to the atlas of Talairach and Tournoux (1988). Smoothing was performed using an isotropic Gaussian filter of 20 mm to increase signal-to-noise ratio and to allow for the variation in intersubject gyral anatomy. Relative differences in basal and activated rCBF before and after L-NMMA were localized after proportional scaling, which normalized mean global CBF. This procedure generated adjusted mean rCBF values for each of the conditions (rest and activation without L-NMMA; rest and activation with L-NMMA). The location of significant activity in different brain regions during performance of the motor task both before and after L-NMMA was determined by comparison of the activation with rest image using the Student's t statistic. This generated statistical parametric maps (SPM) which were subsequently converted to (SPM) maps for display. The threshold of the SPM maps was set at P < 0.01 (uncorrected) for display purposes to show areas of activation associated with each comparison in three orthogonal planes. Uncorrected thresholding was used to provide greater power to eliminate false negatives when searching for effects of L-NMMA on local activation changes. Corrected P values were applied to demonstrate the activation associated with the motor learning paradigm. In the comparison of activation with rest, significant results (P < 0.05) were displayed after corrections for multiple non-independent comparisons. The level of significance of these areas were characterized by their peak height, using estimations from the Theory of Gaussian Fields.

In two subjects an acquisition error led to the second rest scan before L-NMMA not being available for analysis. Therefore in all 10 subjects the first rest and activation scan and the post-L-NMMA rest and activation scan were analyzed; however the second rest and activation pair were only available for analysis in eight subjects. Results given in the text section are from all 10 pairs for comparisons when all 10 scans in the pair were available and for 8 pairs when comparisons included the second rest scan.

Changes in rCBF during the motor task were measured from the peak areas of activation using normalized values from the SPM matrix. Estimations of the smallest difference in the magnitude of the activation-induced rCBF change that could be detected at the 95% confidence limit were generated from a power calculation on the basis of the standard error of the contrasts in the SPM matrix and mean differences in corrected activation-induced rCBF changes before and after L-NMMA.

In addition a region-of-interest analysis was performed to compare rest before and after L-NMMA. This was performed by application of a standardized magnetic resonance imaging-based template, subdivided into regions of interest, and applied to the realigned and normalized CBF images. Regional CBF data thus generated were then proportionally scaled for changes in global CBF using the scaling factor generated within the SPM analysis, to generate a relative rCBF value. These were compared by paired t test.

Systemic hemodynamic variables

Mean arterial blood pressure was measured by an automated arm cuff (Dynamap) and pulse rate by a three-lead ECG rhythm strip. Three measures of arterial blood pressure and three 30-second rhythm strips were acquired before and after each dose or scan, and mean values are presented.

RESULTS

Global cerebral blood flow

Global CBF values during rest and activation conditions before and after L-NMMA are illustrated in Fig. 1. Infusion of L-NMMA resulted in a significant fall in global CBF: CBF fell from 33.3 ± 5.3 mL·100 g⁻¹ ·min⁻¹ during rest before L-NMMA, to 26.5 ± 7.7 mL·100 g⁻¹·min⁻¹ after L-NMMA (P = 0.001). Before L-NMMA administration there was no difference in global CBF during the rest and activation periods (33.3 ± 5.3 versus 35.3 ± 5.5 mL·100 g⁻¹·min⁻¹; P = 0.263). After L-NMMA administration, global CBF during activation was higher than that during the preceding rest period (31.4 ± 5.8 versus 26.5 ± 7.7 mL·100 g⁻¹·min⁻¹; P = 0.038).

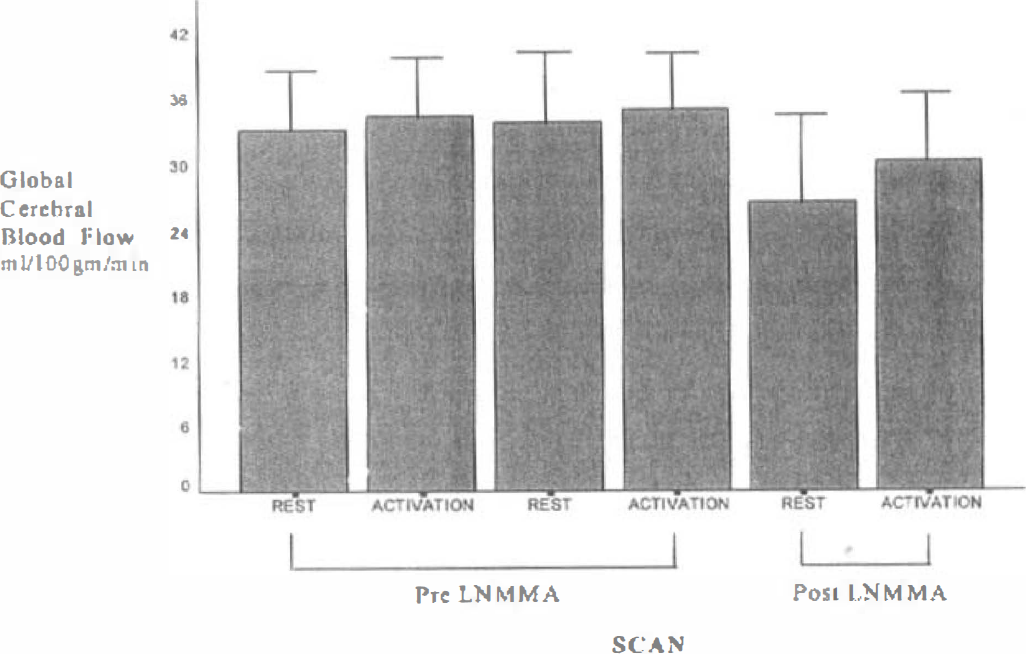

FIG. 1.

Global CBF values (mean ± SD) during rest and activation conditions before and after L-NMMA in eight subjects in whom complete data were available.

In those seven subjects who received l-arginine and then underwent further scans global CBF returned to pre-L-NMMA levels. Mean global CBF increased from 31.1 ± 6.4 mL·100 g⁻¹·min⁻¹ (activation after L-NMMA) to 34.0 ± 5.9 mL·100 g⁻·min⁻¹ (P = 0.067); this was similar to the rest CBF before L-NMMA, 35.0 ± 8.0 mL·100 g⁻¹·min⁻¹ (P = 0.549).

Activation-induced rCBF changes

The areas in which there were significant rCBF changes after activation (P < 0.05, corrected) are listed in Table 1. No significant differences in rCBF were observed before and after L-NMMA comparing the rest condition using either the SPM analysis or the region-of-interest analysis, even at an uncorrected threshold of P < 0.01. Region-of-interest CBF relative to global CBF values are given in Table 2.

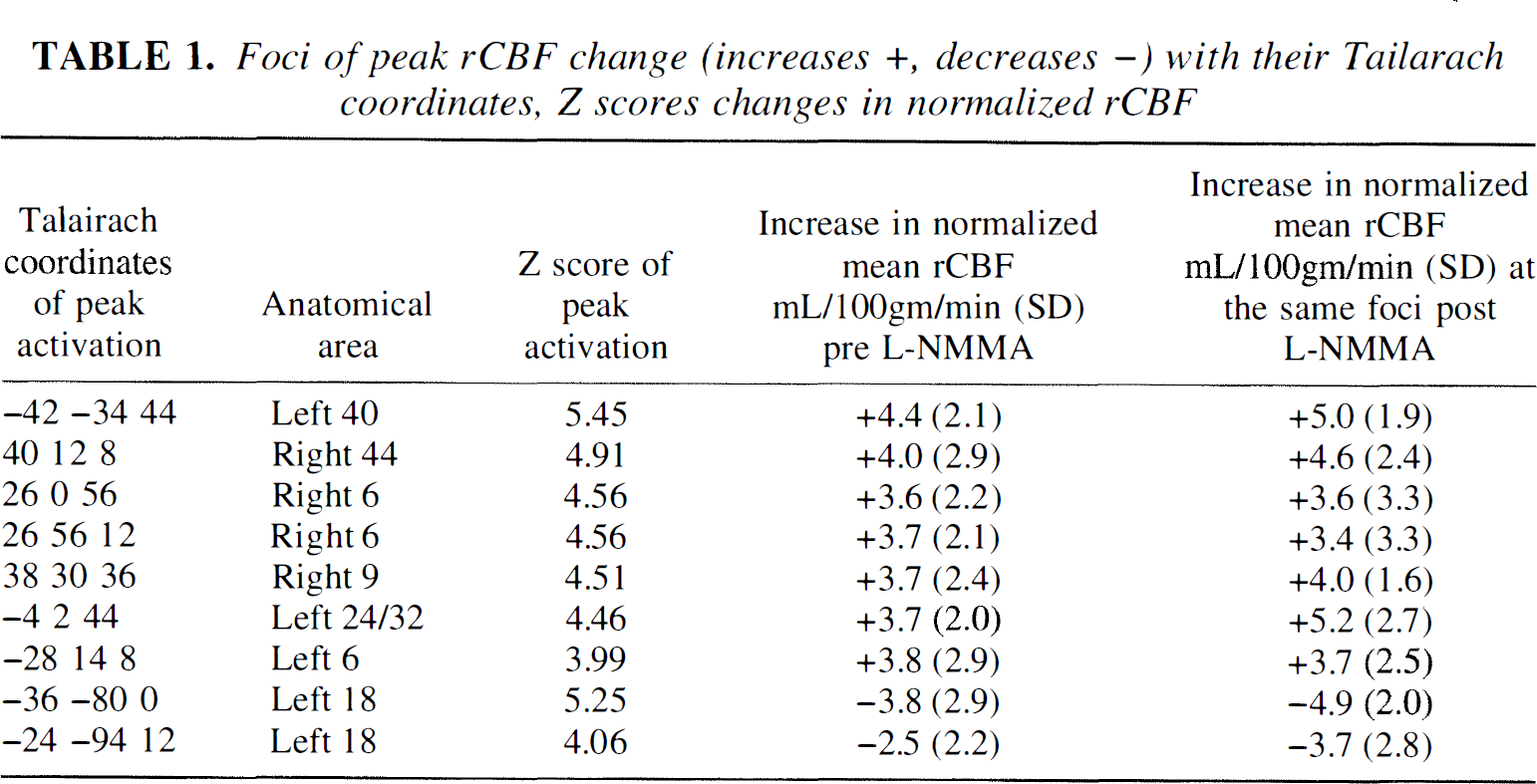

TABLE 1.

Foci of peak rCBF change (increases +, decreases –) with their Tailarach coordinates, Z scores changes in normalized rCBF

Talairach coordinates of peak activation	Anatomical area	Z score of peak activation	Increase in normalized mean rCBF mL/100gm/min (SD) pre L-NMMA	Increase in normalized mean rCBF mL/100gm/min (SD) at the same foci post L-NMMA
–42 −34 44	Left 40	5.45	+4.4 (2.1)	+5.0 (1.9)
40 12 8	Right 44	4.91	+4.0 (2.9)	+4.6 (2.4)
26 0 56	Right 6	4.56	+3.6 (2.2)	+3.6 (3.3)
26 56 12	Right 6	4.56	+3.7 (2.1)	+3.4 (3.3)
38 30 36	Right 9	4.51	+3.7 (2.4)	+4.0 (1.6)
–4 2 44	Left 24/32	4.46	+3.7 (2.0)	+5.2 (2.7)
–28 14 8	Left 6	3.99	+3.8 (2.9)	+3.7 (2.5)
–36 −80 0	Left 18	5.25	–3.8 (2.9)	–4.9 (2.0)
–24 −94 12	Left 18	4.06	–2.5 (2.2)	–3.7 (2.8)

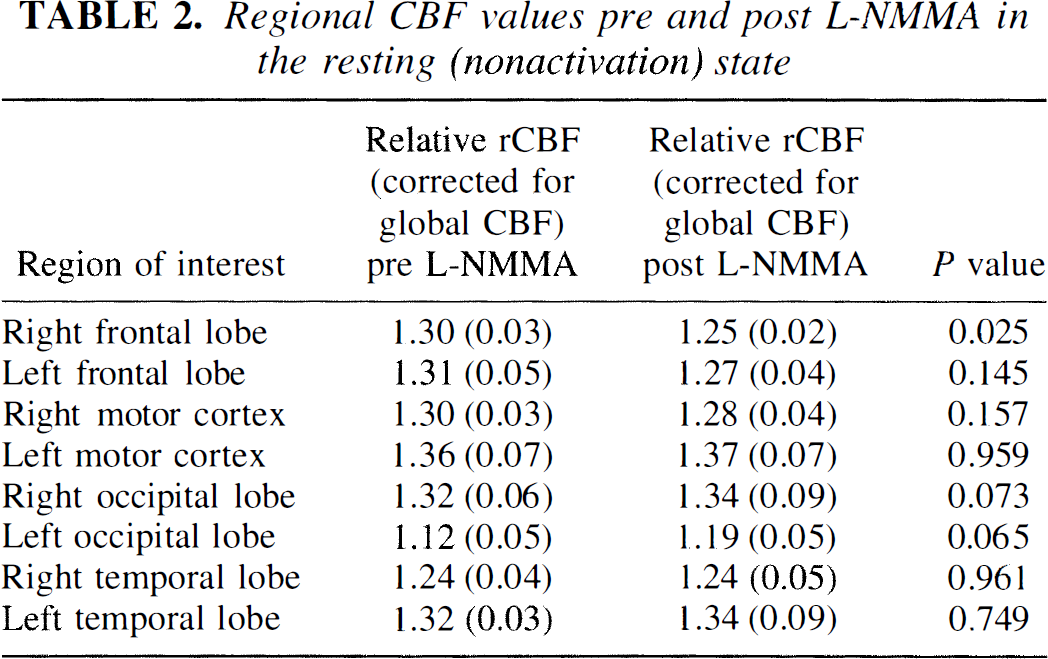

TABLE 2.

Regional CBF values pre and post L-NMMA in the resting (nonactivation) state

Region of interest	Relative rCBF (corrected for global CBF) pre L-NMMA	Relative rCBF (corrected for global CBF) post L-NMMA	P value
Right frontal lobe	1.30 (0.03)	1.25 (0.02)	0.025
Left frontal lobe	1.31 (0.05)	1.27 (0.04)	0.145
Right motor cortex	1.30 (0.03)	1.28 (0.04)	0.157
Left motor cortex	1.36(0.07)	1.37 (0.07)	0.959
Right occipital lobe	1.32 (0.06)	1.34 (0.09)	0.073
Left occipital lobe	1.12(0.05)	1.19 (0.05)	0.065
Right temporal lobe	1.24 (0.04)	1.24 (0.05)	0.961
Left temporal lobe	1.32 (0.03)	1.34 (0.09)	0.749

Increases Comparing activation versus rest before L-NMMA, the cortical areas of significantly increased blood flow were the left motor cortex, right prefrontal cortex (area 9), right and left premotor cortices (area 6), and left parietal area 40. No significant differences in activation versus rest were observed in rCBF after L-NMMA compared with before L-NMMA.

The increases or decreases in normalized rCBF after activation are given in Table 1. These are measured at the peak focus of activation. Notably, after L-NMMA, the rCBF values were consistently greater than the before L-NMMA values. Our study had 95% power at a P value of 0.05 uncorrected to detect a 5% reduction in the activation-induced rCBF increase in the left premotor cortex, and a 9% reduction in the activation-induced rCBF increase in the right premotor cortex.

Decreases A significant reduction in occipital lobe rCBF was observed during activation compared with rest before L-NMMA. Peak activation reduction in normalized rCBF was observed in left area 18. Again no difference in rCBF was observed comparing activation before L-NMMA with activation after L-NMMA.

The study had 95% power to detect a 15% reduction in the activation-induced rCBF decrease in left area 18 at a significance level of 0.05 (uncorrected).

Task performance During scanning no omissions in motor sequencing were made by the subjects. One subject managed to learn one of the sequences to the point of being able to reproduce it without errors during PET whereas a further subject managed to learn two sequences. Increased skill at performance took place across the sequences with a reduction in errors and decreased response times. No significant difference in response times (0.65 ± 0.17 and 0.65 ± 0.16 seconds) or total number of errors (21.5 ± 3.2 and 21.4 ± 4.8) was observed during task performance before and after L-NMMA, respectively.

Systemic hemodynamic response

After L-NMMA there was an increase in blood pressure: rest before L-NMMA, 84.0 ± 8.2 mm Hg versus rest after L-NMMA, 103.6 ± 12.3 mm Hg; P < 0.001. Blood pressure remained significantly elevated during activation after L-NMMA at 99.7 ± 12.6 mm Hg, but this was significantly less than the arterial blood pressure during rest after L-NMMA (P = 0.038).

After L-NMMA there was a reduction in pulse rate from 61.1 ± 9.0 beats/min (rest before L-NMMA) to 47.1 ± 7.2 beats/min (rest after L-NMMA) (P < 0.001). Pulse rate remained reduced during activation after L-NMMA at 49.1 ± 6.7 beats/min; this was not significantly different from the rest after L-NMMA pulse rate (P = 0.222).

In those 7 subjects who received l-arginine, arterial blood pressure and pulse rate were normalized. Arterial blood pressure fell from 98.3 ± 14.1 mm Hg (before l-arginine) to 90.4 ± 10.4 mm Hg (after l-arginine) (P = 0.006). Pulse rate increased from 48.2 ± 7.4 beats/min (before l-arginine) to 55.6 ± 9.1 beats/min (after l-arginine) (P = 0.001).

DISCUSSION

In this study inhibition of NO synthase with L-NMMA resulted in a 20% fall in global CBF. In those subjects who received l-arginine, basal CBF returned to normal, confirming specificity for the NO pathway. This is consistent with a large number of studies in animals (Iadecola et al., 1994) and a previous study in man (White et al., 1998). It has been suggested that there may be a regional variation in sensitivity of resting rCBF to NO synthase inhibition; in the cat, maximal rCBF reduction occurs in the pituitary and cerebellum (Kovach et al., 1992). However, for the brain regions within the field of view for this study, we did not find any regional difference in resting cortical rCBF sensitivity to NO synthase inhibition, even at a threshold of P < 0.01 uncorrected.

We found no reduction in the rCBF increase associated with a brain activation paradigm after L-NMMA administration. The sequence learning paradigm that we used in this study has been reported to result in a characteristic pattern of regional neuronal activation, with increased rCBF in the left motor, right and left premotor, and right prefrontal cortices, and reduced occipital cortex rCBF (Jenkins et al., 1994). Our results were consistent with this pattern of rCBF change. Systemic NO synthase inhibition did not alter the pattern or degree of this rCBF response. Statistical power calculations estimated that we should have been able to detect a 5% reduction in rCBF in premotor cortex activation after L-NMMA, implying that there was little likelihood of missing an effect of NO synthase inhibition on activation-induced rCBF. There was no objective change in levels of arousal or vigilance, which have been reported to fall after NO synthase inhibition (Dzoljic et al., 1997), as there was a similar frequency of errors and mean response rates recorded before and after L-NMMA.

The effect of NO synthase inhibition on vasoneuronal coupling has been examined in several animal models of regional neuronal activation. Superfusion of rat cerebral cortex with NO synthase inhibitors abolished the global, noncortical neuronal activation-dependent CBF increase observed after cerebellar fastigial stimulation in the rat (Iadecola et al., 1987), and the coordination of flow and metabolism coupling in a cat model of cortical spreading depression (Goadsby et al., 1992). The somatosensory rCBF increase after vibrissal stimulation in rats has been reported to be reduced (Dirnagl et al., 1993) or unaltered (Wang et al., 1993) after systemic or topically applied NO synthase inhibition. However, other similar experiments have failed to confirm this finding. Interpretation of the results of animal studies is made more difficult by the use of anesthetic agents. The NO synthase inhibitor, 7-nitroindazole, which has been suggested to have specificity for the neuronal isoform, has been reported to reduce both basal and stimulus-evoked flow increases without altering neuronal metabolism (Cholet et al., 1997). However, interpretation of these results is complicated by studies suggesting that 7-nitroindazole inhibits both endothelial and inducible isoforms of NO synthase as well as the neuronal isoform (Blandward and Moore, 1995). Studies in endothelial and neuronal NO synthase knockout mice implicate neuronally derived NO as the mediator of stimulus-evoked rCBF increases (Ma et al., 1996). However, interpretation of these results is complicated by the possibility of other compensatory pathways developing to subserve for any NO absence. Indeed one of the most striking features of NO synthase knockout mice is the normality of their cerebrovascular physiology (Irikura et al., 1995). The observation that the glutaminergic neurotransmitter system can increase rCBF via NO-dependent mechanisms provides for a potential link between regional neuronal activity and blood flow (Faraci and Bresse, 1993).

To ensure continuous sustained inhibition of NO synthase we followed the bolus of L-NMMA with a maintenance intravenous infusion. However, it is possible that there may have been a lesser degree of NO synthase inhibition during the post-L-NMMA activation paradigm compared with the preceding resting scan. The observation that global CBF values were higher during activation compared with rest after L-NMMA is consistent with this. Nevertheless, the resting CBF and systemic hemodynamic indices were still significantly altered at this time, suggesting that there was significant endothelial NO synthase inhibition.

A potential problem with the use of l-arginine analogs to inhibit NO synthase is blood—brain barrier penetration. After bolus L-NMMA administration in man there is a rapid increase in arterial blood pressure, which is closely mirrored by reductions in basal internal carotid artery flow (White et al., 1998), suggesting effective endothelial NO synthase inhibition. However, the degree to which L-NMMA inhibits neuronal NO synthase in man is not known. Cationic amino acid transporters have been characterized but are relatively slow (Stoll et al., 1993), and there is evidence that total brain NO synthase inhibition is dose- and time-dependent (Traystman et al., 1995). To maximize the likelihood of neuronal NO synthase inhibition, we used the largest doses of L-NMMA previously given to healthy volunteers, a dose that produces substantial changes in blood pressure. Without a specific neuronal NO synthase inhibitor, or direct quantification of either brain L-NMMA levels or the degree of brain neuronal NO synthase inhibition, it is not possible to exclude a role for neuronally derived NO in mediating vasoneuronal coupling on the basis of our data. However, our results imply that endothelial NO synthase plays little role in vasoneuronal coupling. A role for neuronal NO synthase cannot be excluded until an isoform-specific neuronal NO synthase inhibitor with good blood—brain barrier penetration is available; such an inhibitor is not currently available for use in man.

Footnotes

Acknowledgments

The authors thank Glaxo Wellcome for providing L-NMMA, David Leonard for helping prepare the l-arginine, and Matthew Brett at the MRC Cyclotron Unit for assisting with PET data analysis.

Abbreviations used

References

Blandward

Moore

(1995) 7-Nitro indazole derivatives are potent inhibitors of brain, endothelial and inducible isoforms of NO synthases. Life Sci 57:PL131–PL135

Cholet

Seylaz

Lacombe

Bonvento

(1997) Local uncoupling of the cerebrovascular and metabolic response to somatosensory stimulation after neuronal nitric oxide synthase inhibition. J Cereb Blood Flow Metab 17:1191–1201

Dirnagl

Lindauer

Villringer

(1993) Role of nitric oxide in the coupling of cerebral blood flow to neuronal activation in rats, Neurosci Lett 149:43–46

Dzoljic

Devries

Dzoljic

(1997) New and potent inhibitors of NO synthase reduce motor activity in mice. Behav Brain Res 87: 209–212

Edelman

Gaily

(1997) Nitric oxide: linking space and time in the brain. Proc Natl Acad Sci USA 89:651–652

Faraci

Bresse

(1993) Nitric oxide mediates vasodilatation in response to activation of N-methyl-D-aspartate receptors in brain. Circ Res 72:476–480

Fox

Raichle

Mintun

Dence

(1984) Non-oxidative glucose consumption during focal physiological neural activity. Science 241:462–463

Frahm

Kruger

Merboldt

Kleinschmidt

(1996) Dynamic uncoupling and recoupling of perfusion and oxidative metabolism during focal brain activation, Magn Reson Med 35:143–148

Friston

Ashburner

Frith

Poline

Heather

Frackowiak

RSJ

(1995a) Spatial registration and normalisation of images, Hum Brain Mapp 3:165–189

10.

Friston

Holmes

Worsley

Poline

Frith

Frackowiak

RSJ

(1995b) Statistical parametric maps in functional imaging: a general linear approach. Hum Brain Mapp 2:189–210

11.

Goadsby

Kaube

Hoskin

(1992) Nitric oxide synthesis couples cerebral blood flow and metabolism. Brain Res 595:167–170

12.

Iadecola

(1993) Regulation of the cerebral microcirculation during neural activity: is nitric oxide the missing link? Trends Neurosci 16:206–214

13.

Iadecola

Arneric

Baker

Tucker

Reis

(1987) The role of local neurons in cerebrocortical vasodilation elicited from cerebellum. Am J Physiol 252:R1082–R1091

14.

Iadecola

Pelligrino

Moskowitz

Lassen

(1994) Nitric oxide synthase inhibition and cerebrovascular regulation. J Cereb Blood Flow Metab 14:175–192

15.

Irikura

Huang

Lee

Dalkara

Fishman

(1995) Cerebrovascular alterations in mice lacking neuronal nitric-oxide synthase gene-expression. Proc Nat Acad Sci USA 92:6823–6827

16.

Jenkins

Brooks

Nixon

Frackowiak

RSJ

Passingham

(1994) Motor sequence learning: a study with positron emission tomography. J Neurosci 14:3775–3790

17.

Kovach

Szabo

Benyo

Csaki

Greenberg

Reivich

(1992) Effects of N^G-nitro-l-arginine and l-arginine on regional cerebral blood flow in the cat. J Physiol (Lond) 449:183–196

18.

Lammertsma

Cunningham

Deiber

M-P

Heather

Bloomfield

Nutt

(1990) Combination of dynamic and integral methods for generating reproducible functional CBF images. J Cereb Blood Flow Metab 10:675–686

19.

Leniger-Follert

(1984) Mechanisms of regulation of cerebral micro-flow during bicuculline-induced seizures in anaesthetized cats. J Cereb Blood Flow Metab 4:150–165

20.

Ayata

Huang

Fishman

Moskowitz

(1996) Regional cerebral blood flow response to vibrissal stimulation in mice lacking type I NOS gene expression. Am J Physiol 270:H1085–H1090

21.

Northington

Matherne

Coleman

Berne

(1992) Sciatic nerve stimulation does not increase endogenous adenosine production in sensory-motor cortex. J Cereb Blood Flow Metab 12:835–843

22.

Stoll

Wadhwani

Smith

(1993) Identification of the cationic amino acid transporter (system y+) of the rat blood—brain barrier. J Neurochem 60:1956–1959

23.

Talairach

Tournoux

(1988) Co-planar Stereotaxic Atlas of the Human Brain. New York, Thieme Medical Publishers

24.

Traystman

Moore

Helfaer

Davis

Banasiak

Williams

(1995) Nitro-l-arginine analogues. Dose- and time-related nitric oxide synthase inhibition in brain. Stroke 26:864–869

25.

Vallance

Collier

Moncada

(1989) Effects of endothelium-derived nitric oxide on peripheral arteriolar tone in man. Lancet 2:997–1000

26.

Wang

Kjaer

Jorgensen

Paulson

Lassen

Diemer

(1993) Nitric oxide does not act as a mediator coupling blood flow to neural activity following somatosensory stimuli in rats. Neurol Res 15:33–36

27.

White

Deane

Vallance

Markus

(1998) Nitric oxide synthase inhibition in man reduces cerebral blood flow but not the hyperaemic response to hypercapnia. Stroke 29:467–472
