Noninvasive Assessment of the Functional Neovasculature in 9L-Glioma Growing in Rat Brain by Dynamic 1 H Magnetic Resonance Imaging of Gadolinium Uptake

Abstract

Pathophysiologic parameters of the functional neovasculature and the blood-brain barrier of 9L-glioma in rat brain were measured noninvasively by dynamic ¹H magnetic resonance imaging studies of gadolinium (Gd)-DTPA uptake. Changes of apparent [Gd-DTPA] uptake in time (C_T[t]) were analyzed in a slice through the center of 10 9L-gliomas using fast T₁ measurements. The distribution of the contrast agent was spatially correlated with the distribution of perfused microvessels as determined by immunohistochemical analysis. This method permits a distinction between perfused and nonperfused microvessels with a disrupted blood-brain barrier. In transverse slices of the whole tumor, a spatial correlation was observed between C_T maps and the two-dimensional distribution of perfused microvessels. In the next step, Gd-DTPA uptake rates were spatially related to the perfused microvessel density (N_p) or vascular surface area (S_p). In tumor voxels with perfused microvessels, a linear correlation was found between Gd-DTPA uptake rate constants (k values) and N_p or S_p. No correlation was observed between k values and the total microvessel density. These are the first data that show a relation between Gd-DTPA uptake rates and parameters of the functional neovasculature in 9L-glioma growing in rat brain. Now that Gd-DTPA uptake studies can be related to parameters of the functional neovasculature, they may be used more efficiently as a prognostic tool before or during therapy.

Keywords

Fluorescence microscopy Gadolinium uptake rates 9L-Glioma Magnetic resonance imaging Perfused vascular architecture

In malignant glioma, the disruption of the blood-brain barrier (BBB) has been ascribed to a high degree of neovascularity with abnormal endothelium (Schmiedl et al., 1992). In the context of therapy, information on these pathophysiologic features plays an important role. For instance, blood perfusion and BBB permeability are of major importance for the delivery of anticancer agents during chemotherapy. Moreover, an important factor in the outcome of radiation therapy is the local oxygen tension in tissue, which is determined by the microvascular blood supply (Denekamp, 1993; Jain, 1987, 1988). In most tumors, only 20% to 80% of the microvessels are perfused at a given time (Bernsen et al., 1995), which results in considerable spatial and temporal heterogeneity of microcirculation. Therefore, techniques that reveal the spatial and temporal heterogeneity of the tumor microcirculation will help in the development of new treatment strategies and may predict treatment outcome.

Fast dynamic ¹H magnetic resonance imaging (MRI) studies of the uptake of the clinical contrast agent gadolinium (Gd)-DTPA have the potential to measure features of the perfused microvascular architecture with a high spatial and temporal resolution. Most microvessels in high-grade gliomas, which are derived from angiogenesis, are permeable to this low-molecular-weight contrast agent (Mw = 583). Hence, tumor regions with dense neovasculature are expected to enhance rapidly in MR images after its administration. The uptake rate of Gd-DTPA in tumor tissue has been related to the permeability surface area product (Larsson et al., 1990; Tofts and Kermode, 1991). Further, different groups have tried to validate Gd-DTPA-enhanced ¹H-MRI as a method of assessing microvessel density in tumors, but in most reports poor correlations were found (Buadu et al., 1996; Buckley et al.; 1997, Hulka et al., 1995, 1997). Several factors may contribute to this mismatch. First, it was not possible to correlate microvessel density spatially with Gd-DTPA uptake rates, because Gd-DTPA-enhanced MRI was not used to guide the biopsy of surgical specimens. Second, the applied microvessel density technique (Weidner et al., 1991) evaluates all microvessels, whereas dynamic Gd-DTPA-enhanced MRI senses only functional microvessels.

To improve correlation studies between the spatial distribution of Gd-DTPA in tumor slices or the uptake rate of Gd-DTPA monitored by ¹H-MRI and parameters of the functional microvascular architecture, we have developed an immunohistochemical method that permits us to distinguish between perfused and nonperfused microvessels (Bernsen et al., 1995; Rijken et al., 1995; van der Sanden et al., 1997). This is crucial in tumors where only a small percentage of the microvessels are perfused at a given time (Bernsen et al., 1995). The aim of this study is to examine whether a spatial correlation exists between local Gd-DTPA levels and the two-dimensional distribution of perfused microvessels, and between Gd-DTPA uptake rates and morphometric parameters of the perfused vascular architecture, such as the perfused microvessel density (N_p) and vascular surface area (S_p). The perfused vascular surface area has been suggested to determine Gd-DTPA uptake rates in perfused tumor regions together with other physiologic parameters, such as tumor blood perfusion (TBP) and microvessel permeability (Larsson et al., 1990; Tofts and Kermode, 1991).

As a brain tumor model, we used 9L-gliomas growing in rat brain. The changes of the apparent Gd-DTPA concentration in tumor tissue as a function of time (C_T[t]) were determined using a fast dynamic MRI T₁-weighted sequence (Rozijn et al., 1998). Next, pharmacokinetic models were fitted to C_T(t) curves to estimate Gd-DTPA uptake rates or k values or per voxel (k map) (Larsson et al., 1990; Rozijn et al., 1998; Tofts and Kermode, 1991). The distribution of apparent Gd-DTPA concentrations in MR slices and k maps was spatially correlated with immunohistochemical images showing the two-dimensional distribution of perfused microvessels, the total vascular bed, chronically hypoxic cells (Kennedy et al., 1997), and necrotic regions in whole tumor sections at comparable locations to the MR slices. In MR voxels containing functional microvessels, the morphometric parameters of the perfused vascular architecture were related to Gd-DTPA uptake rates.

METHODS

Animal model

Ten days before the MR experiments, 9L-glioma cells (kindly provided by Dr. Jeffrey A. Coderre, Brookhaven National Laboratory, Upton, NY, U.S.A.) were injected into the brains of 10 Fischer rats (CDF [F-344]/CrlBr; Charles River Laboratories, Sulzfeld, Germany). Cannulas (Insyte, 0.7/19 mm, 24G; Becton Dickinson, Erembodegem, Belgium) were inserted in a tail vein for the administration of Gd-DTPA (Magnevist; Schering AG, Berlin, Germany) solution in saline (dose 0.2 mmol/kg, duration of bolus injection 2 seconds). Rats were anesthetized by subcutaneous injection of 0.1 mL of an atropine solution (Atropini Sulfas; Pharmachemie B.V., Haarlem, The Netherlands) followed by exposure to 1.5% enflurane in an oxygen/nitrous oxide (30% O₂) mixture applied through a nose cone. Body temperature was monitored with a rectal probe (3.5 mm, Hewlett-Packard, Amstelkeen, The Netherlands) and maintained at 36.5°C to 37°C by a warm-water blanket with a feedback system. The local ethical committee for animal use approved the experimental procedures.

MR measurements

MR experiments were performed on a home-built spectrometer (6.3 T) using a single tuned ¹H-resonator with a diameter of 3 cm, well adapted to the rat head. Before the start of Gd-DTPA uptake measurements, the tumor location and size were determined in coronal, sagittal, and transverse slices using a SNAPSHOT T₁ method (Deichmann and Haase, 1992) with an interleaved EPI imaging sequence (Rozijn et al., 1998). One SNAPSHOT T₁ experiment consisted of 12 images obtained in 300 milliseconds, each with a flip angle of 5°, a time resolution of 3.6 seconds, repetition time = 20 milliseconds (per interleaf), TE = 7 milliseconds, field of view = 30 × 30 mm, resolution 90 × 90 pixels (6 echoes, 15 interleaves), and slice thickness = 2 mm. In this study, the T₁ relaxation times of water ¹H-spins in tumor regions were longer than in normal brain tissue: thus, tumor regions were clearly delineated in T₁ maps in transverse slices through the whole brain. Next, in a transverse slice through the center of the tumor, the homogeneity of the local B_o-field was optimized. The uptake of Gd-DTPA was measured in this slice using the SNAPSHOT T₁ method mentioned above. An effective T₁ value (T₁*) is obtained using this sequence (Deichmann and Haase, 1992). The Gd-DTPA uptake experiment involved 15 T₁* maps before the bolus injection (T₁₀*) and 40 T₁* maps after the bolus injection (Rozijn et al., 1998).

Measurements of Gd-DTPA uptake rates are also possible with T₁-weighted fast MRI sequences (Barentsz et al., 1996; Furman-Haran et al., 1997; Hittmair et al., 1994), but these results are less accurate than those obtained with the fast T₁ method. For instance, changes of signal intensities in T₁-weighted fast MR images depend on the pulse angle α (and thus on radio frequency inhomogeneity), the MR sequence (repetition time, radio frequency spoiling), and the T₁, T₂, and T₂* relaxation times. In reference experiments, the T₂ and T₂* relaxation times differed from those in the experiments after the Gd-DTPA injection, based on the time after injection. However, the calculation of apparent Gd-DTPA concentration changes using T₁ maps before and after tracer administration is independent of the previous acquisition parameters and T₂ and T₂* relaxation times (Rozijn, 1998).

MR data analysis

Gd-DTPA uptake rate constants (k, sec⁻¹) per voxel (k map) were obtained by the following three steps (Rozijn et al., 1998). First, 15 effective T₁ experiments before the bolus injection were averaged to obtain a high signal-to-noise T₁₀* measurement. For each voxel, a monoexponential three-parameter model function (see Eq. 1 below) was fitted to 12 phase-corrected ¹H-MR signals of a relaxation curve (M[t]) using the Marguardt least-squares nonlinear fitting algorithm (Bevington, 1969) (IDL Software 5.1; Creaso GmbH, Gilching, Germany). In this way, a T₁₀* map was generated (Deichmann and Haase, 1992). In Eq. 1, M_b is the magnetization directly after inversion and M₀* is the effective equilibrium magnetization in the repeated fast T₁ experiment:

M (t) = M_{0} * - (M_{0} * - M_{b}) \cdot {exp}^{- \frac{1}{T_{10} *}}

(1)

T₁* relaxation maps after bolus injection were obtained in a similar way. The linear relation between changes in the effective T₁ relaxation rates and the average Gd-DTPA concentration in the extravascular volume of tumor tissue was used to calculate apparent Gd-DTPA concentration (C_T) maps: C_T = 1/T₁* − 1/T₁₀*. The constant r₁ or relaxivity ([mM · s]⁻¹) depends on different tissue parameters (Rozijn et al., 1999; Strich et al., 1985). These tissue parameters were unknown; thus, only apparent Gd-DTPA concentration maps could be calculated, which was sufficient in this study.

Finally, a k map was obtained after fitting the pharmacokinetic model of Larsson (Larsson et al., 1990; Rozijn et al., 1998) to C_T(t) curves per voxel (see Appendix). The Powell minimization method was used for the least-squares nonlinear fitting (Press et al., 1992). For an estimate of k values, the arterial input function (C_p[t]) must be determined (see Appendix). C_p(t) describes the changes of the [Gd-DTPA] in plasma of the carotid artery during the Gd-DTPA uptake experiment. For measurements of arterial tracer concentrations, the carotid arteries of three rats were cannulated and 20 blood samples of 60 μL per rat were taken at 7-second intervals, directly after bolus injection of Gd-DTPA through the tail vein. Directly after sampling, blood samples were diluted in 10 μL heparin and 10 mL saline. Next, absolute Gd-DTPA concentrations were determined using inductively coupled plasma-emission spectrometry (IL Plasma-200; Instrumentation Laboratory Benelux, IJs-selstein, The Netherlands). The following parameters for the C_p(t) function of Appendix Eq. 2 were found: λ₁ = 0.015 sec⁻¹ ± 0.004 (standard deviation [SD]) and λ₂ = 0.00117 sec⁻¹ ± 3 × 10⁻⁴ (SD) and A₁/A₂ = 2.35 ± 0.2 (SD). Comparable values for the parameters of the arterial input function in the carotid artery of rats were found by Wedeking and associates (1990) for six rats, indicating that these parameters are constant within acceptable margins for different rats.

In the study of Rozijn and colleagues (1998), the effect of the bolus passage on estimates of uptake rate constants was analyzed. A mean bolus passage was measured in a transverse slice through normal rat brain at a comparable location to the 9L-gliomas in this study. When the bolus passage was included in the C_p(t) function, estimates of tracer uptake rate constants became inaccurate. These constants were not significantly different from estimates of k values when the bolus passage was not included. Therefore, the first data points of the C_T(t) curves that coincided with the bolus passage were omitted before fitting the curves.

Fluorescence microscopy

In complete transverse tumor sections, morphometric analysis of the total vascular bed, perfused microvessels, hypoxic and necrotic areas, and the extracellular volume in viable regions was performed using a computer-controlled digital image analysis system connected to a fluorescence microscope.

One day after the MR measurements, markers for the detection of hypoxic cells (pimonidazole, 20 mg in 0.1 mL saline, kindly provided by Prof. J. Raleigh, Dept. of Radiation Oncology and Toxicology, University of North Carolina School of Medicine, Chapel Hill, NC, U.S.A.) and perfused microvessels (Hoechst 33342, 3 mg in 0.1 mL saline; Sigma, St. Louis, MO, U.S.A.) were injected through a lateral tail vein 60 minutes and 1 minute, respectively, before the rats were killed. One minute after injection of the Hoechst fluorescent perfusion marker, rats were killed by cervical dislocation. After excision of the brain, the right hemisphere of the brain that did not contain tumor tissue in all cases was removed. Next, a transverse section was made that contained the entire tumor. T₁* maps after Gd-DTPA injection were used to localize the tumor in the brain. The tissue section was horizontally placed on the bottom of a box with the caudal side up to preserve the tissue orientation; this box was then frozen in liquid nitrogen. The tumor diameter was measured in sagittal images, thus 10 frozen-tissue sections could be cut halfway the tumor and mounted on glass slides. During cutting, the order and the distance between the sections were measured and noted. Tissue sections were homogeneously sampled throughout a 2-mm slice comparable with the MR slice. During cutting and mounting, the orientation of the tissue was maintained, with help of the visibility of the corpus callosum. Five sections, homogeneously distributed throughout the 2-mm slice of the MR measurements, were used for quantitative immunohistochemical analysis of the two-dimensional distribution of the total vascular bed, perfused microvessels (Hoechst), and hypoxic areas (pimonidazole).

The endothelium of all microvessels (total vascular bed) was visualized with goat anticollagen intravenous (Southern Biotechnology Associates, Birmingham, AL, U.S.A.) followed by a second antibody, TRITC-labeled donkey antigoat (Jackson ImmunoResearch Laboratories Inc., West Grove, PA, U.S.A.). For the staining of hypoxic areas (Bussink et al., 2000), sections were incubated with rabbit antipimo (kindly provided by Prof. J. Raleigh, Dept. of Radiation Oncology and Toxicology, University of North Carolina School of Medicine, Chapel Hill, NC, U.S.A.) followed by incubation with FITC-labeled donkey antirabbit immunoglobulin (Jackson ImmunoResearch Laboratories).

Three tumor sections between the previous five sections were used for conventional staining with eosin (cytoplasm) and hematoxylin (nuclei). Finally, NADH-diaphorase in the whole cytoplasm of cells was labeled in the remaining two sections using NADH and nitro-blue-tetrazolium (Sigma, St. Louis, MO, U.S.A.). Previous stainings were used to distinguish viable tumor regions from necrotic areas and to estimate the extracellular volume in viable regions.

Tumor tissue sections were processed in three steps. First, the perfused microvessels (Hoechst) were analyzed, followed by immunohistochemical staining of hypoxic areas and the endothelium of all microvessels. The distribution of necrotic areas and extracellular volume were evaluated separately. After each staining step, sections were scanned using an extended version of the digital image analysis system as described by Rijken and colleagues (1995). After processing all fields of each scan, a composite image was reconstructed from the individually processed fields, revealing the different structures. If the composite images of the tumor sections obtained after each step were combined, then the new matched image showed the two-dimensional distribution of perfused microvessels, hypoxic areas, and the total vascular bed simultaneously.

Finally, the fluorescent rim of the Hoechst dye around perfused microvessels resulting from diffusion into adjacent tissue was deleted by image processing. Thus, the perfused surface area of microvessels was not overestimated.

Data analysis

Matching of C_Tmaps with immunohistochemical images. For each tumor, a representative immunohistochemical image showing the two-dimensional distribution of perfused microvessel and hypoxic cells approximately halfway the 2-mm MR slice was used for matching with a C_T map obtained 1 minute after bolus injection. This particular map was used because rats were killed 1 minute after injection of the Hoechst fluorescent perfusion marker. During the interactive matching (shifting and rotating of the C_T maps relative to the immunohistochemical images) using IDL software, prior knowledge of the orientations of both the C_T maps obtained in Gd-DTPA uptake studies and the tumor sections during histochemical processing was used.

For further analysis, an MR lattice was generated consisting of voxels with a spatial resolution four times lower than in original C_T maps using IDL software (the new voxel volume was approximately 1 mm³). In a further study, the two-dimensional distribution of the [Gd-DTPA] in tumor slices will be spatially correlated with the distribution of metabolites as measured by spectroscopic imaging; therefore, the spatial resolution of both experiments was tuned. In addition, the spatial correlation between k values and morphometric parameters in large voxels was less sensitive to a mismatch than in small voxels.

Subsequently, each voxel of the MR lattice was labeled. With help from the representative immunohistochemical images, different categories of voxels were assigned, as follows:

Pr: voxels with perfused microvessels at the rim of the tumor

P: voxels with perfused microvessels inside the tumor

PH: voxels with perfused microvessels and hypoxic areas inside the tumor

HN: voxels with hypoxic and necrotic areas only.

The distribution of perfused microvessels and hypoxic cells may differ slightly between the representative tumor section of the MR slice and the four other sections homogeneously distributed throughout the MR slice. For instance, an MR voxel of category P, as assigned with use of the representative section, may contain hypoxic cells in the other sections. All five tumor sections were used for estimates of morphometric parameters of the perfused vessel. For each voxel of category P and PH, correlations between these morphometric parameters and Gd-DTPA uptake rate constants (k map) were analyzed. The latter is important because C_T(t) curves were fitted to pharmacokinetic models with parameters such as TBP and the permeability × S_p product, which are defined only in voxels with perfused microvessels. Voxels of category Pr were not included because a large-volume fraction in these voxels coincided with “normal” brain tissue.

Estimates of perfused microvessel density, perfused microvessel length density, and total perfused surface area. For each voxel of category P and PH, the following four morphometric parameters were estimated:

Perfused microvessel density (N_p, number per mm²)

Total microvessel density (density of perfused and nonperfused microvessels [N, number per mm²])

Perfused microvessel length density (L_p, mm/mm³)

Total perfused surface area density (S_p, cm²/mm³).

The microvessel density parameters N_p and N were defined as the mean of the perfused and total microvessel density per five tumor sections homogeneously distributed throughout a voxel. L_p and S_p were estimated using a stereologic algorithm (Adair et al., 1994). Briefly, for an estimate of L_p per voxel, the sum of the major axis (a) divided by the minor axis (b) (eccentricity of ellipse) of all cross-sectional areas of perfused microvessels in all five tumor sections was divided by the total sum of areas per section in which microvessels were analyzed (A_t): L_p = (Σa/b)/(Σ A_t). Five whole-tumor sections were used for the calculations of L_p because pilot studies revealed that the values of the latter were not significantly different when 10 or 20 tumor sections were taken. Further, a model was developed to test the stereologic algorithm for the estimate of L_p on our digital image analysis system. The SD in the estimate of L_p was approximately ±15%. In addition, analysis of L_p in different regions of the normal rat brain were comparable to estimates of L_p in previous studies (Honig, 1971).

Next, the value of S_p was estimated after determination of the median radius (r) of all perfused microvessels per five tumor sections (median of minor axis b divided by 2): S_p = (2πrL_p)/100. The perfused microvessels were approached as cylinders with uniform dimensions. For each voxel of category P and PH, the relation between N_p or S_p and k_Larsson values was analyzed using Graphpad software (Graphpad PRISM version 2, San Diego, CA, U.S.A.).

Estimates of the extracellular volume in perfused tumor regions. The following three steps resulted in an estimated distribution volume of Gd-DTPA (V_d) in perfused voxels. First, the extracellular regions were segmented from the cells stained by NADH-diaphorase applying a threshold operation in digitized images. Second, the extracellular volume (V_e) was estimated in perfused voxels using the equation V_e ≈ 1 − (surface area cells/sample area). Finally, per perfused voxel, the extracellular volume was corrected for the vascular volume (V_v) using the parameters defined in the previous paragraph (vascular volume per voxel volume is approximately V_v ≈ πr²L_p). V_d = V_e − V_v and is assumed to be a maximum estimate of the Gd-DTPA distribution volume in in vivo studies because some cell shrinkage may occur during the quick-freeze of tumors.

RESULTS

Matching of C_T maps with immunohistochemical images

An example of this matching for a tumor is shown in Fig. 1. The C_T maps obtained 1 minute after bolus injection of Gd-DTPA were matched with an immunohistochemical image showing the two-dimensional distribution of perfused tumor microvessels, the total microvessel bed, and hypoxic regions. In all tumors a positive correlation was observed between the distribution of the apparent Gd-DTPA concentration and the perfused microvessel distribution. Tumor regions with no Gd-DTPA uptake appeared to be chronically hypoxic or necrotic. Necrotic areas were found in regions enclosed by hypoxic cells. In Fig. 2, details of conventional staining with eosin (cytoplasm) and hematoxylin (nuclei) are shown, as well as immunohistochemical stainings. Different cell structures and tumor regions were clearly distinguished. At a certain distance from a perfused microvessel, chronically hypoxic cells appeared, and beyond these hypoxic cells the onset of necrosis was observed.

FIG. 1.

(A) The distribution of the apparent Gd-DTPA concentration (C_T) in a representative tumor in a transverse slice (2 mm) through the whole rat brain 1 minute after bolus injection of Gd-DTPA. The thick white line indicates the contour of the whole brain. (B) k map of the tumor area, calculated using the Larsson model. (C) Representative section of the left hemisphere at a location comparable to the MR slice showing the two-dimensional distribution of the total vascular bed (red structures), perfused microvessels (blue structures) and hypoxic areas (green structures) in the tumor area.

FIG. 2.

Histologic details of the tumor in Fig. 1. (A) Conventional staining with eosin (cytoplasm) and hematoxylin (nuclei). (B) Immunohistochemical staining. The blue Hoechst staining adjacent to a functional microvessel (V) is shown. The vascular endothelium is red and chronically hypoxic cells (H), as stained with pimonidazole, are green. Beyond these hypoxic cells, the onset of necrosis (N) is observed in (A).

Immunohistochemical images were used to assign different voxel categories. Fig. 3A is a detail of an immunohistochemical image that was overlaid with an MR lattice as determined after matching with a C_T map. All voxel categories are represented. Next, a pharmacokinetic model proposed by Larsson and associates (1990) was fitted to a C_T(t) curve in voxels with perfused microvessels, resulting in a k map (see Fig. 1B). Fig. 3B is an example a fitted C_T(t) curve as measured in a well-perfused voxel of category P.

FIG. 3.

(A) Details of an immunohistochemical image overlaid with an MR lattice. The different voxel categories (Pr, P, PH and HN) are denoted. The light-gray structures correspond to perfused microvessels (see also Fig. 1C); the dark-gray structures in PH and H voxels are hypoxic cells. (B) A C_T(t) curve (*dashed line) of voxel no. 26 (category P, black arrow) is fitted to the Larsson model (solid line). The nonlinear regression analysis resulted in a k_Larsson value of 0.012 ± 0.0026 sec⁻¹. The error bars indicate the 95% confidence interval.

Correlations between Gd-DTPA uptake rates and parameters of the perfused vascular architecture

With the help of immunohistochemical images, only voxels containing perfused microvessels (categories P and PH) were selected for a comparative study between k_Larsson values and parameters of the perfused vascular architecture (Figs. 4 and 5). In previous studies, Gd-DTPA uptake rates were related to the microvessel density (Hulka et al., 1995, 1997)). In our study, it appeared that Gd-DTPA uptake rates or k_Larsson values (sec⁻¹) have no clear relation with the microvessel density (perfused and nonperfused vessels, N) in voxels of category P and PH in transverse slices through the center of 10 9L-gliomas (see Fig. 4A). However, a linear relation was found between k_Larsson values and the density of all perfused microvessels (N_p) (see Fig. 4B).

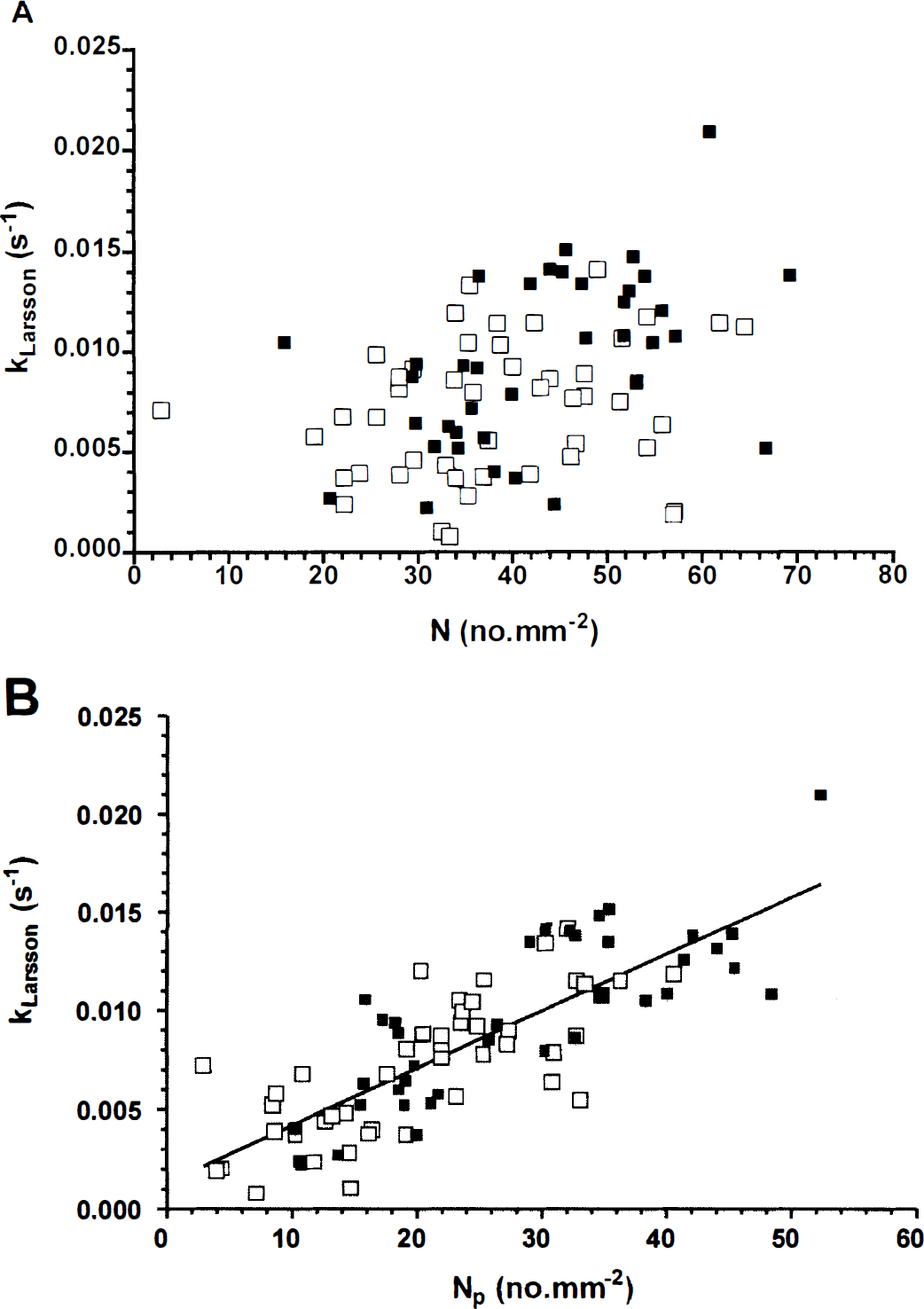

FIG. 4.

(A) Correlation between Gd-DTPA uptake rates (k_Larsson values, sec⁻¹) and the total microvessel density (perfused and nonperfused [N, no.mm⁻²]) or (B) the perfused microvessel density (N_p, no.mm⁻²) in voxels of category P (▪) and PH (□) (see Fig. 3A) of 10 9L-gliomas growing in rat brain. The solid line in Fig. 4B indicates the results of the least-squares linear regression analysis of the data (n = 86, R² = 0.65): k_Larsson (sec⁻¹) = (0.00029 ± 2.3 × 10⁻⁵) × N_p (no.mm⁻²).

FIG. 5.

Correlation between k_Larsson values (sec⁻¹) (y-axis) and the perfused vascular surface area (S_p, cm²/mm³) per voxel of categories P (▪) and PH (□) (see Fig. 3A) in 10 9L-gliomas. The solid line indicates the results of the least-squares linear regression analysis of the data (n = 86, R² = 0.72): k_Larsson (sec⁻¹) = (0.23 ± 0.02) × S_p.

In the next step, analysis of the perfused vascular density was extended to estimates of the perfused vascular surface area per voxel (S_p). The latter parameter is expected to have a stronger correlation with Gd-DTPA uptake rates, when TBP is much larger than the PS_p product (see definition of k_Tofts in Appendix). Before S_p can be calculated, the length density (L_p, mm/mm³) per voxel was estimated using a stereologic algorithm (Adair et al., 1994). The length density is comparable to the perfused microvessel density N_p when microvessels are arranged parallel to each other and perpendicular to cross-sectional areas of the voxels (Adair et al., 1994). If the microvessels are bent and twisted throughout the voxel volume, then L_p is always larger than N_p. In tumor voxels of category P and PH of all 9L-gliomas, the following linear correlation was found after least-squares regression analysis (n = 86, R² = 0.95): L_p = (4.6 ± 0.3 [SD]) × N_p. The large slope value (>1) indicates that perfused microvessels were tortuous in the different voxels.

Finally, the perfused length density (L_p) and a median radius of all perfused microvessels (r) in the five tumor sections per MR voxel were used to estimate the perfused vascular surface area density (S_p) in P and PH voxels. The k_Larsson values were found to be linearly related to the estimated perfused surface area density (S_p) (see Fig. 5). This correlation was slightly better than the correlation between Gd-DTPA uptake rates and the perfused microvessel density (N_p), as shown in Fig. 4B (see goodness of fit [R² values] in legends of Figs. 4 and 5). The median radii, which were used for the estimates of S_p, varied from 3.6 to 6.5 μm. The distribution of the perfused microvessel radii was not homogeneous, but the percentage of radii more than twice the median radius did not exceed 5%. Thus, significant groups of large microvessel radii were not observed and are not expected to influence the S_p estimates considerably.

DISCUSSION

Many forms of anticancer therapy are influenced by the poor functional vasculature in solid tumors (Denekamp, 1993). Therefore, noninvasive measurements of the physiologic and morphologic parameters of the functional neovascular architecture is important in tumor prognosis (Bosari et al., 1992; Gasparini and Harris, 1995; Weidner et al., 1996) and the evaluation of treatment efficacy (Barentsz et al., 1998; Furman-Haran et al., 1996; Kennedy et al., 1994). Fast dynamic ¹H MRI studies of the uptake of the contrast agent Gd-DTPA in tumor tissue have the potential to provide insights into the distribution of perfused microvessels in tumor tissue, the perfused vessel density, and the vascular surface area. Before dynamic Gd-DTPA-enhanced MRI can be recognized as a valid noninvasive technique for the analysis of functional microvessels, however, it needs extensive comparison with other techniques.

In the present study, Gd-DTPA uptake rate constants were compared with immunohistochemical analysis of the morphometric parameters of the perfused vascular architecture. The immunohistochemical analysis, which was applied after the MR experiments, seemed to detect nearly all functional microvessels, because in nonperfused regions chronically hypoxic cells (diffusion-limited oxygen supply) and necrotic areas were detected. Therefore, the immunohistochemical method allows a proper evaluation of the functional aspects of tumor microcirculation. Further, whole-tumor sections were analyzed using a computer-controlled image-processing system connected to a fluorescence microscope (Rijken et al., 1995). In this way, the reproducibility of the immunohistochemical analysis was improved and the quantification of morphologic parameters was independent of the pathologist's choice of tumor region.

The distribution of apparent Gd-DTPA concentrations in whole transverse tumor slices was found to be spatially correlated with the two-dimensional perfused microvessel distribution in a representative tumor section of that slice. This indicates that most microvessels had a disrupted BBB, which allowed Gd-DTPA and the Hoechst fluorescent perfusion marker to diffuse across the neovascular endothelium. Gd-DTPA uptake rates were found to be linearly related to the perfused microvessel density and the perfused microvessel surface area in voxels containing perfused microvessels. The linear relation between Gd-DTPA uptake rates and the perfused vascular surface area indicates that the Gd-DTPA uptake rate is not affected by variations in vascular permeability or TBP. In the present study, the molecular weight of Gd-DTPA was probably not large enough to discriminate between tumor microvessels with a more-or-less leaky BBB; the BBB of all microvessels was highly permeable to Gd-DTPA. The heterogeneity of the BBB permeability may be assessed by contrast agents with a molecular weight larger than 20 kD (Artemov and Bhujwalla, 1997; Demsar et al., 1997; Su et al., 1995).

In previous fast dynamic MRI studies of the Gd-DTPA uptake, two different pharmacokinetic models were used to analyze changes in the apparent Gd-DTPA concentration in time: the multicompartment model of Tofts and Kermode (1991) and the single-capillary model of Larsson and associates (1990). If the tumor blood perfusion is much larger than the diffusive transport across the BBB, then the k_Larsson may be approached by the Gd-DTPA uptake rate constant, as defined by Tofts and Kermode (k_Tofts) (Larsson and Tofts, 1992; Degani et al., 1997). The uptake rate constant k_Tofts has a linear relation with tracer transport across the vascular endothelium (PS_p product) and an inverse relation with the distribution volume of the tracer in the volume of interest. In such a case, the slope of the line in Fig. 5 equals the apparent vascular permeability (P) divided by the distribution volume of the tracer per voxel (V_d). The use of the term “apparent vascular permeability” is preferable because Gd-DTPA uptake rates were obtained from homogeneously and heterogeneously perfused voxels. In heterogeneously perfused voxels, the tracer may have arrived simultaneously from nearby capillaries and by diffusion through the extracellular volume from more distant perfused microvessels, which overestimates the vascular permeability. The distribution volume (V_d) of Gd-DTPA in perfused voxels was approximately 25 ± 1.5% and equals the extracellular volume corrected for the vascular volume, which varied from 1.5% to 2.4%. Consequently, the cellular volume fraction is close to 73%, which is comparable to mean values found by Donahue and colleagues (1995) in a mammary adenocarcinoma model. Using the estimated V_d value and the slope of the line in Fig. 5, the apparent microvessel permeability (P) in voxel categories P and PH can be calculated as 6 × 10⁻⁵ cm/sec.

The vascular permeability or the PS_p product for Gd-DTPA was measured previously in gliomas growing in the rat brain (Kenney et al., 1992; Schmiedl et al., 1992). However, the values found in these studies cannot be compared directly to estimates of the vascular permeability or PS_p product in the present study because the PS_p product was estimated using a simple graphic method by Patlak and associates (1983). The latter method assumes that the reflux of Gd-DTPA from the tumor interstitium back into the microvessels can be neglected (unidirectional two-compartment model). However, in our study, C_T(t) curves were not linear, which means that the reflux of Gd-DTPA from the tumor interstitium back into the microvessels should be taken into account (Larsson et al., 1990; Tofts and Kermode, 1991). In studies on the quantitation of BBB permeability in patients with multiple sclerosis lesions using a comparable MR method and pharmacokinetic model as in this study, permeability constants in the range of 0.4 to 1.7 × 10⁵ cm/sec were found (Tofts and Kermode, 1991). These values are smaller than our estimates of the BBB permeability in 9L-gliomas, which may be explained by differences in pathology and disruption of the BBB.

The linear relation between Gd-DTPA uptake rates and the perfused vascular surface area indicates that Gd-DTPA uptake rates are not affected by variations in TBP. It would be of interest to know which range of TBP values could affect this linear relation. For that purpose, the relations between Gd-DTPA uptake rates, PS_p product, and TBP are simulated using the single-capillary model of Larsson and colleagues (1990). Estimates of the vascular permeability in this paper and the tracer distribution volume in voxels of vital tumor regions permit simulations of these relations (Fig. 6). In these simulations, TBP varied from zero to four times the maximum PS_p product found in this study (i.e., product of the apparent vascular permeability and the maximum S_p value). In addition, information on the range of k_Larsson values was used because k_Larsson values larger than 0.021 sec⁻¹ were not detected in perfused voxels. Fig. 6 shows that the relation between k_Larsson and the PS_p product slowly becomes linear when TBP exceeds the PS_p product. Hence, the linear relation between k_Larsson and S_p can be explained only when TBP is larger than the PS_p product in the different voxels (diffusion-limited Gd-DTPA uptake). This is true for TBP values of more than 1.5 × 10⁻⁵ cm³/sec (see Fig. 6). The relation between k_Larsson values and S_p would have been exponential in Fig. 6, when the PS_p product becomes larger than TBP (perfusion-limited Gd-DTPA uptake).

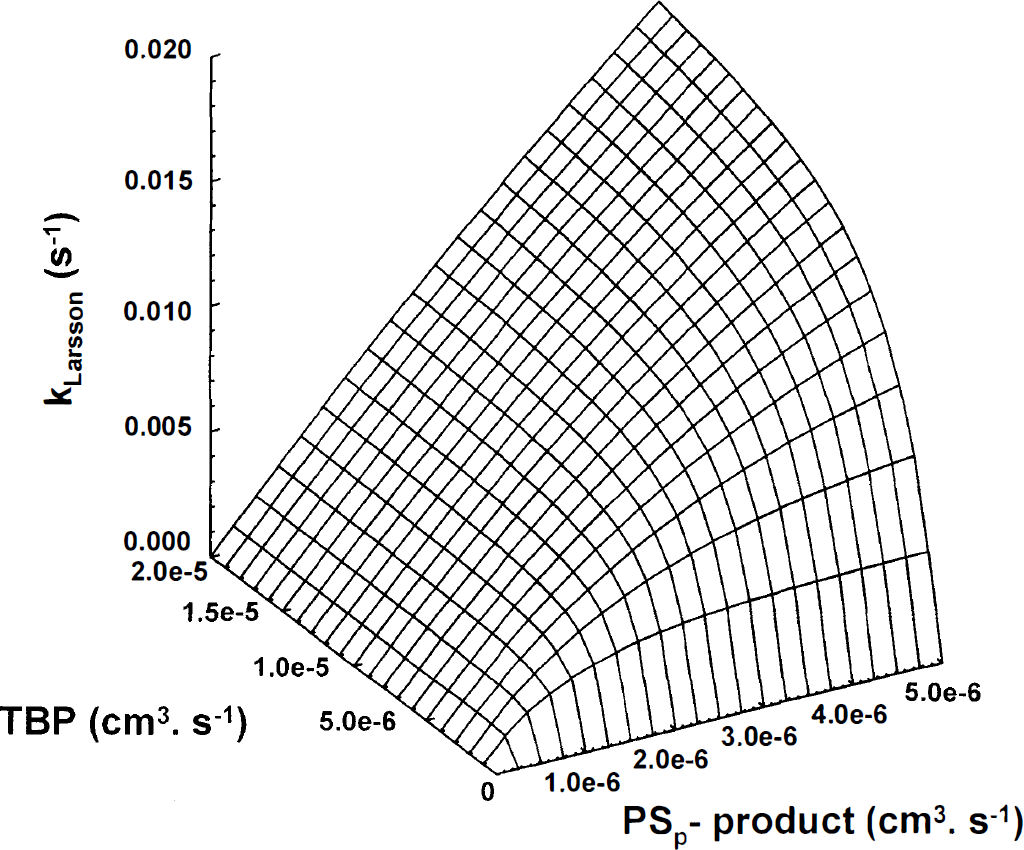

FIG. 6.

Surface plot of correlations between the permeability surface area product (PS_p product, x-axis), tumor blood perfusion (TBP, y-axis), and Gd-DTPA uptake rate constants (k_Larsson, z-axis) using the definition of the rate constant k as proposed by Larsson and associates (1990): k_Larsson = E·TBP/V_d. The distribution volume (V_d) of the tracer in the extracellular volume of perfused voxels (1 mm³) was 25% in these simulations. The range of k values is comparable to the range in Fig. 5.

If Gd-DTPA uptake rates in voxels with perfused microvessels are governed by the perfused vascular surface area or indirectly by the perfused vascular density, then quantification of these Gd-DTPA uptake rate constants may help to monitor noninvasively the effect of an antiangiogenic therapy (Brasch et al., 1997; Pass et al., 1997). The latter therapy should not decrease the TBP in such a way that it becomes equal to or less than the PS_p product, but it should affect only the number of perfused microvessels or vascular surface area. Further, the early enhancement of Gd-DTPA in C_T maps was found to correlate spatially with the perfused microvessel distribution. This information may be used in the prediction phase before radiation therapy or chemotherapy because both treatments depend on the delivery of oxygen and drugs by means of functional microvessels. Areas that are enhanced on C_T maps are more sensitive to radiation therapy or chemotherapy than nonenhanced areas, which depend on a less efficient supply of drugs and oxygen by diffusion.

In conclusion, in whole-tumor sections through the center of 9L-glioma in the rat brain, a spatial correlation was found between the apparent Gd-DTPA concentration and the two-dimensional distribution of perfused microvessels. In voxels containing perfused microvessels, the Gd-DTPA uptake rates were linearly related to the perfused microvessel density and vascular surface area. Now that Gd-DTPA uptake rates can be related to these parameters of the functional neovasculature, they can be used more efficiently as a prognostic tool before or during therapy.

Footnotes

Acknowledgments

The authors thank Rob M. W. de Waal, PhD, and Jelle O. Barentsz, MD, PhD, for critical reading of this manuscript; Joris H. N. Creyghton, Henny Borsboom, and Hans Overvest for technical assistance during the MR measurements; and A. Hanssen and colleagues for animal care.

Appendix

Changes of the apparent Gd-DTPA concentration in the extravascular volume of a tissue of interest are generally given by Eq. A1 with a scaling factor S (Rozijn et al., 1998):

In this equation, the uptake rate constant k (sec⁻¹), as proposed by Larsson and colleagues (1990), is defined as k_Larsson = TBP·E/V_d. TBP is the tumor blood perfusion (mL/sec), E (−) is the extraction fraction of the amount of tracer during bolus passage (E = 1 − exp [-PS_p/TBP]), and V_d is the distribution volume (mL) of the tracer, which equals the extracellular volume in the case of Gd-DTPA. In the extraction term (E), P is the permeability of the microvessel endothelium for the tracer (cm/sec) and S_p is the total perfused microvessel surface area (cm²) in the volume of interest. If TBP is much larger than the PS_p product, then k approaches the uptake rate constant, as proposed by Tofts and Kermode (1991)(Larsson and Tofts, 1992): k_Tofts = PS_p/V_d.

In Eq. A1, r₁[Gd]₀ is the apparent Gd-DTPA concentration at t = 0; A₁, A₂, and λ₁, λ₂ are amplitudes (mM) and rate constants (sec⁻¹), respectively, of the arterial input function C_p(t), which describes the biexponential decay of the Gd-DTPA concentration in plasma (p) in a carotid artery during the Gd-DTPA uptake experiment:

The fast phase of this biexponential decay (λ₁) is governed by Gd-DTPA exchange with the extravascular volumes in the rest of body, and the slow phase (λ₂) is determined by the Gd-DTPA clearance by means of the kidneys (Tofts and Kermode, 1991).

References

Adair

Wellis

Hang

Montani

J-P

(1994) Stereological method for the estimating length density of the arterial vascular system. Am J Physiol 266:H1424–H1438

Artemov

Bhujwalla

(1997) 3-Dimensional MRI quantitation of tumor vascular volume and permeability [abstract]. In: Proceedings of the International Society for Magnetic Resonance Medicine, 5th Meeting, Vancouver, Canada, 1997, p 491

Barentsz

Berger Hartog

Witjes

(1998) Evaluation of chemotherapy in advanced urinary bladder cancer with fast dynamic contrast-enhanced MR imaging. Radiology 207:791–797

Barentsz

Jager

van Vierzen

PBJ

(1996) Staging urinary bladder cancer after transurethral biopsy: value of fast dynamic contrast-enhanced MR imaging. Radiology 201:185–193

Bernsen

HJJA

Rijken

PFJW

Oostendorp

van der Kogel

(1995) Vascularity and perfusion of human gliomas xenografted in the athymic nude mouse. Br J Cancer 71(4):721–726

Bevington

(1969) Data Reduction and Error Analysis for the Physical Sciences. New York: McGraw-Hill, pp 237–239

Bosari

Lee

DeLellis

(1992) Microvessel quantitation and prognosis in invasive breast carcinoma. Hum Pathol 23:755–761

Brasch

Pham

Shames

(1997) Assessing tumor angiogenesis using macromolecular MR imaging contrast media. JMRI 7:68–74

Buadu

Murakami

Murayama

(1996) Breast lesions: correlation of contrast medium enhancement patterns on MR images with histopathologic findings and tumor angiogenesis. Radiology 200:639–649

10.

Buckley

Drew

Mussurakis

Monson

JRT

Horsman

(1997) Microvessel density in invasive breast cancer assessed by dynamic Gd-DTPA-DTPA-enhanced MRI. JMRI 7:461–464

11.

Bussink

Kaanders

JHAM

Rijken

PFJW

Raleigh

van der Kogel

(2000) Changes in blood perfusion and hypoxia after irradiation of a human squamous cell carcinoma xenograft tumor line. Radiat Res (in press)

12.

Degani

Gusis

Weinstein

Fields

Strano

(1997) Mapping pathophysiological features of breast tumors by MRI at high spatial resolution. Nat Med 3(7):780–782

13.

Deichmann

Haase

(1992) Quantification of T₁ values by SNAPSHOT-FLASH NMR imaging. J Magn Reson 96:608–612

14.

Demsar

Roberts

TPL

Schwickert

(1997) A MRI spatial mapping technique for microvascular permeability and tissue blood volume based on macromolecular contrast agent distribution. Magn Res Med 37:236–242

15.

Denekamp

(1993) Review article: angiogenesis, neovascular proliferation and vascular pathophysiology as targets for cancer therapy. Br J Radiol 66:181–196

16.

Donahue

Weisskoff

Parmelee

(1995) Dynamic Gd-DTPA-DTPA-Enhanced MRI measurements of tissue cell volume fraction. Magn Res Med 34:423–432

17.

Furman-Haran

Grobgeld

Degani

(1997) Dynamic contrast-enhanced imaging and analysis at high spatial resolution of MCF7 human breast tumors. J Magn Reson 128:161–171

18.

Furman-Haran

Margalit

Maretzek

Degani

(1996) Angiogenic response of MCF7 human breast cancer to hormonal treatment: assessment by dynamic Gd-DTPA-enhanced MRI at high spatial resolution. JMRI 1:195–202

19.

Gasparini

Harris

(1995) Clinical importance of the determination of tumor angiogenesis in breast carcinoma: much more than a new prognostic tool: review. J Clin Oncol 13:765–782

20.

Hittmair

Gomiscek

Langenberger

(1994) Method for the quantitative assessment of contrast agent uptake in dynamic contrast-enhanced MRI. Magn Res Med 31:567–571

21.

Honig

(1971) Dimensions and maximum diffusion distance of capillaries: vertebrate tissue. In: Respiration and circulation, biological handbooks ( Altman

Dittmer

, eds), Bethesda, MD: Federation of American Societies for Experimental Biology, p 454

22.

Hulka

Edmister

Smith

(1997) Dynamic echo-planar imaging of the breast: experience in diagnosing breast carcinoma and correlation with tumor angiogenesis. Radiology 205:837–842

23.

Hulka

Smith

Sgroi

(1995) Benign and malignant breast lesions: differentiation with echo-planar MR imaging. Radiology 197:33–38

24.

Jain

(1987) Transport of molecules across tumor vasculature. Cancer Metastasis Rev 6:559–593

25.

Jain

(1988) Determinants of tumor blood flow: a review. Cancer Res 48:1641–2658

26.

Kennedy

Raleigh

Perez

(1997) Proliferation and hypoxia in human squamous cell carcinoma of the cervix: first report of combined immunohistochemical assays. Int J Radiation Oncol Biol Phys 37:897–905

27.

Kennedy

Szczepaniak

Gibson

(1994) Quantitative MRI of Gd-DTPA uptake in tumors: response to photodynamic therapy. Magn Res Med 31:292–301

28.

Kenney

Schmiedl

Maravilla

(1992) Measurement of blood-brain barrier permeability in a tumor model using MRI with gadolinium-DTPA. Magn Res Med 27:68–75

29.

Larsson

HBW

Stubgaard

Frederiksen

(1990) Quantitation of blood-brain barrier defect by MRI and gadolinium-DTPA in patients with multiple sclerosis and brain tumors. Magn Res Med 16:117–131

30.

Larsson

HBW

Tofts

(1992) Measurements of blood-brain barrier permeability using dynamic Gd-DTPA scanning: a comparison of methods. Mag Res Med 24:174–176

31.

Pass

Bluemke

Siegelman

(1997) Tumor angiogenesis: tutorial on implications for imaging. Radiology 203:593–600

32.

Patlak

Blasberg

Fenstermacher

(1983) Graphical evaluation of blood-to-brain transfer constants from multiple-time uptake data. J Cereb Blood Flow Metab 3:1–7

33.

Press

Flannery

Teukolsky

Vetterling

(1992) Numerical recipes. In: The art of scientific computing, 2d ed ( Press

Flannery

Teukolsky

Vetterling

, eds), Cambridge: Cambridge University Press, pp 300–317

34.

Rijken

PFJW

Bernsen

HJJA

van der Kogel

(1995) Application of an image analysis system to the quantitation of tumor perfusion and vascularity in human glioma xenografts. Microvascular Res 50:141–153

35.

Rozijn

(1998) MRI techniques for tissue perfusion and vascular permeability measurements [dissertation]. Delft: University of Technology, p 151

36.

Rozijn

van der Sanden

BPJ

Heerschap

Creyghton

JHN

Bovée

WMMJ

(1998) Influence of the pharmacopharmacokinetic model on the quantification of the Gd-DTPA uptake rate in brain tumors using direct T₁ measurements. Magma 6:37–43

37.

Rozijn

van der Sanden

BPJ

Heerschap

Creyghton

JHN

Bovée

WMMJ

(1999) Determination of in vivo rat muscle Gd-DTPA relaxivity at 6.3 T. Magma 9:65–71

38.

Schmiedl

Kenney

Maravilla

(1992) Kinetics of pathologic blood-brain barrier permeability in an astrocytic glioma using contrast-enhanced MR. Am J Neuroradiol 13:5–14

39.

Strich

Hagan

Gerber

Slutsky

(1985) Tissue distribution and magnetic spin lattice relaxation effects of gadolinium-DTPA. Radiology 154:723–726

40.

M-Y

Najafi

Nalcioglu

(1995) Regional comparison of tumor vascularity and permeability parameters measured by albumin-Gd-DTPA-DTPA and Gd-DTPA-DTPA. Magn Res Med 34:402–411

41.

Tofts

Kermode

(1991) Measurement of the blood-brain barrier permeability and leakage space using dynamic MR imaging. 1. Fundamental concepts. Magn Res Med 17:357–367

42.

van der Sanden

BPJ

Rijken

PFJW

Heerschap

Bernsen

HJJA

van der Kogel

(1997) In vivo ³¹P-magnetic resonance spectroscopy and morphometric analysis of the perfused vascular architecture of human glioma xenografts in nude mice. Br J Cancer 75:1432–1438

43.

Wedeking

Eaton

Covell

(1990) Pharmacokinetic analysis of blood distribution of intravenously administered ¹⁵³Gd-labeled Gd(DTPA)^2- and ^99mTc(DTPA in rats. Magn Res Im 8:567–575

44.

Weidner

Folkman

(1999) Tumoral vascularity as a prognostic factor in cancer. In: Important advances in oncology ( Devita

Hellman

Rosenberg

, eds), Philadelphia: Lippincott-Raven, pp 167–190

45.

Weidner

Semple

Welch

Folkman

(1991) Tumor angiogenesis and metastasis correlation in invasive breast carcinoma. N Engl J Med 324:1–8
