Overexpression of Rat Heat Shock Protein 70 is Associated with Reduction of Early Mitochondrial Cytochrome c Release and Subsequent DNA Fragmentation after Permanent Focal Ischemia

Abstract

Although protective effects of heat shock protein 70 (HSP70) overproduction after ischemic injury have been shown both in vitro and in vivo in neurons, the mechanisms are not fully understood. The hypothesis of this study is that transgenic mice overexpressing HSP70 (HSP70 Tg) show reduced mitochondrial cytochrome c release into cytosol and diminished apoptotic cell death after permanent focal ischemia in comparison to wild-type (Wt) mice.

Permanent middle cerebral artery occlusion (pMCAO) was produced by intraluminal suture cannulation in HSP70 Tg and Wt mice. DNA fragmentation was evaluated with DNA gel electrophoresis and terminal deoxynucleotidyl transferase-mediated biotinylated UTP nick end labeling (TUNEL) 24 h after pMCAO. Mitochondrial cytochrome c release into cytosol was assessed with Western blotting and immunohistochemistry 4 h after pMCAO. Cytochrome c levels in the cytosolic fraction were significantly reduced and immunoreactivity of cytochrome c in both cortex and striatum was significantly less in HSP70 Tg mice compared with Wt mice after 4-h pMCAO. DNA laddering, which was clearly observed in Wt mice, was markedly attenuated in HSP70 Tg mice 24 h after pMCAO. The number of TUNEL-positive cells was significantly reduced in HSP70 Tg mice compared with Wt mice. Results are consistent with an association between overexpression of HSP70 and reduction of cytochrome c release with subsequent DNA fragmentation. This may contribute to the HSP70-mediated neuroprotective effect observed after cerebral ischemia.

Keywords

Cytochrome C Focal ischemia Heat shock protein 70 Mitochondria Apoptosis DNA fragmentation

In response to cellular stress, such as cerebral ischemia, the 70-kd heat shock protein (HSP70) is induced in brain and has been established as a stress marker (Massa et al., 1996). Although outcome in neurons expressing HSP70 after various brain injuries is controversial, neuroprotective effects of HSP70 overproduction have been clearly demonstrated after ischemic injury both in vitro (Rordorf et al., 1991; Lowenstein et al., 1991; Papadopoulos et al., 1996; Kelly et al., 2001; Lee et al., 2001) and in vivo (Yenari et al., 1998; Rajdev et al., 2000; Hoehn et al., 2001). The mechanism of neuroprotection has been attributed to the function of HSP70 as a molecular chaperone, assisting in restoration of the structure and function of denatured proteins (Pelham, 1986; Beaucamp et al., 1998). However, further details of HSP70 neuroprotective mechanisms remain to be elucidated (Sharp et al., 2000).

Apoptosis, the programmed destruction of a cell, involves a complex process. Two distinct pathways, namely, the death-receptor pathway and the mitochondrial pathway, are well characterized in various mammalian cell models (Hengartner, 2000; Hsu et al., 1996; Li et al., 1997). In the mitochondrial pathway, mitochondrial cytochrome c release into cytosol triggers caspase cascade activation and subsequent DNA fragmentation after apoptotic stimuli (Liu et al., 1996; Li et al., 1997; Srinivasula et al., 1998). Similarly, the death-receptor pathway triggers the activation of caspases through the binding of ligand to death receptors, such as CD95 (Fas/Apo-1) or tumor necrosis factor receptor-1.

In cerebral ischemia, apoptosis contributes to the spatial and temporal progression of neuronal loss after focal ischemia (Li et al., 1995; Namura et al., 1998; Velier et al., 1999). Several groups have reported that release of mitochondrial cytochrome c into cytosol occurred and resulted in subsequent DNA fragmentation after focal and global ischemia (Fujimura et al., 1998; Sugawara et al., 1999).

In nonneuronal cell lines, recent studies have shown that HSP70 inhibited apoptosis (Beere et al., 2000; Saleh et al., 2000; Creagh et al., 2000; Klein and Brune, 2002). Overproduction of HSP70 suppressed the release of cytochrome c into cytosol after apoptotic stimuli (Creagh et al., 2000; Klein and Brune, 2002). Conversely, heat shock protein synthesis did not reduce apoptosis in Fasmediated apoptosis (Creagh and Cotter, 1999).

Little is known about the antiapoptotic effect of HSP70 in the central nervous system. We hypothesized that overexpression of rat inducible HSP70 transgene would reduce mitochondrial cytochrome c release into cytosol and subsequent DNA fragmentation after focal cerebral ischemia. To test this hypothesis, HSP70 Tg and Wt mice were subjected to permanent middle cerebral artery occlusion (pMCAO). DNA fragmentation was evaluated with DNA gel electrophoresis, and TUNEL staining was performed 24 h after pMCAO. Early mitochondrial cytochrome c release into cytosol was assessed with Western blotting and immunohistochemistry 4 h after pMCAO.

MATERIALS AND METHODS

Animals

This study was conducted in accordance with the animal care guidelines issued by the National Institutes of Health. All protocols were approved by the Animal Care and Use Committee at the Veterans Affairs Medical Center, San Francisco. Transgenic (Tg) mice overexpressing rat HSP70 and transgenicnegative wild-type (Wt) littermates bred on CB6F1 background were obtained from Dr. W. H. Dillmann (University of California, San Diego) and genotyped as previously described (Rajdev et al., 2000). HSP70 Tg mice were produced using a chimeric transgene that consisted of the rat-inducible HSP70 gene inserted into a pCAGGS vector under the control of human cytomegalovirus enhancer and chicken-actin promoter. Adult male mice (28 to 34 g) were used for this experiment. Mice were given free access to food and water before and after surgery. Anesthesia was induced with 2% isoflurane in a closed chamber and maintained with 1.5% isoflurane in 30% O₂ and 70% N₂O using a face mask. Rectal temperature was monitored and maintained at 37 ± 0.3°C with a thermal blanket throughout the surgical procedure.

Focal ischemia

Permanent focal ischemia was produced using the carotid endovascular suture insertion method (Rajdev et al., 2000). Cortical perfusion was monitored before and for 30 minutes after pMCAO with laser-Doppler flowmetry (Vasamedic, St. Paul, MN, U.S.A.) to confirm appropriate endovascular suture placement in all mice. After mice were anesthetized, a 1.9-mm-diameter laser-Doppler needle probe was placed directly on the skull (1 mm posterior and 5 mm lateral to bregma). Cortical perfusion values after pMCAO were expressed as percentage change relative to baseline. Mice were then placed in the supine position, and a midline skin incision was made. The left common carotid artery and internal carotid artery were surgically isolated from the adjacent vagus nerve. A 5–0 monofilament nylon suture (Dermalon, Davis & Geck, St. Louis, MO, U.S.A.) with heat-rounded tip was advanced approximately 10 mm into the internal carotid artery through the ligated stump of the transected external carotid artery until a faint resistance was felt. After reversal of anesthesia, neurologic deficit was evaluated 45 minutes after pMCAO using a four-point deficit scoring system. While restraining the mouse by holding its tail, motor activity was observed and graded. Neurologic deficit score was defined as follows: 0: normal motor function, 1: flexion of torso and contralateral limbs, 2: leaning or circling to the contralateral side, 3: no spontaneous movement of the contralateral side.

Infarct volume

Mice were deeply anesthetized and killed 24 h after MCAO. Brains were removed, immediately frozen in dry ice, and stored at −80°C until processing. Coronal brain sections (10 μm in thickness) were obtained with a cryostat and stained with cresyl violet. Sections were analyzed with an image scanner (Epson Perfection 1650; Epson America, Inc., Long Beach, CA, U.S.A.). NIH image (version 1.62) was used to measure the infarct area in each section, and infarct volume was calculated. To minimize the effects of brain edema, infarct volume was indirectly measured by subtracting the volume of intact cortex and striatum in the ipsilateral hemisphere from that of the contralateral hemisphere (Swanson et al., 1990).

DNA laddering

Genomic DNA gel electrophoresis was performed as previously described (Velier et al., 1999). Mice were killed 24 h after MCAO. Brains were divided into ipsilateral and contralateral hemispheres. Samples were suspended in lysis buffer (100 mmol/L NaCl, 10 mmol/L Tris, pH 8, 25 mmol/L ethylenediamine tetraacetic acid (EDTA), 0.5% sodium dodecyl sulfate, and 500 μg/mL proteinase K) overnight at 55°C, and then incubated with RNase (5 mg/mL) for 1 h at room temperature. Genomic DNA was extracted with the phenol-chloroform method. DNA sample of 100 mg was loaded and subjected to electrophoresis on a 1% agarose gel containing ethidium bromide (0.5 mg/mL). DNA laddering was visualized by ultraviolet transillumination in each sample.

TUNEL

TUNEL was performed according to the manufacturer's instructions (ApopTag; Serologicals Corp., Norcross, GA, U.S.A.). Frozen sections were fixed with 4% paraformaldehyde in 0.1 mol/L phosphate buffer saline (PBS), pH 7.4 for 5 minutes followed by quenching of endogenous peroxidase activity using 3% hydrogen peroxide in 0.1 mol/L PBS for 5 minutes. Sections were then incubated with equilibration buffer for 30 minutes followed by TdT enzyme for 1 h. Anti-digoxigenin peroxidase conjugate was applied to slides and incubated for 30 minutes. 3,3′-Diaminobenzidine-tetrachloride (DAB; Sigma Chemical Co, St. Louis, MO, U.S.A.) was applied for 6 minutes. Sections were then counterstained with 0.5% methyl green for 10 minutes.

Western blot analysis

Western blotting was performed with brain samples from mice 4 h after pMCAO. Brains were divided into ipsilateral and contralateral hemispheres. Samples were then gently homogenized with a tissue grind pestle (Kontes, Vineland, NJ, U.S.A.) in suspension buffer (20 mmol/L, HEPES-KOH, pH 7.5, 250 mol/L sucrose, 10 mmol/L KCl, 1.5 mmol/L MgCl₂, 1 mmol/L EDTA, 1 mmol/L EGTA, 1 mmol/L dithiothreitol and proteinase inhibitor cocktail tablets [Boehringer, Mannheim, Germany]). Cytosolic and mitochondrial proteins were isolated as previously described (Klein and Brune, 2002). The homogenates were centrifuged at 14,000g for 30 minutes and the supernatant was used for the cytosolic fraction. The pellets were further sonicated and used for the mitochondrial fraction. Protein concentration was measured by the Bradford method (Bio-Rad, Hercules, CA, U.S.A.). An equal amount of proteins (10 μg for the cytosolic fraction, 5 μg for the mitochondrial fraction) were loaded in each lane. Samples were separated on sodium dodecyl sulfate polyacrylamide gel electrophoresis and electrotransferred onto polyvinyldifluoride membranes (Stratagene, La Jolla, CA, U.S.A.). Membranes were probed with primary antibodies including mouse anti-HSP70 monoclonal (1:4,000; Stressgen, Victoria, BC, Canada), rabbit anti–cytochrome c polyclonal (1:1,000; Santa Cruz Biotechnology, Santa Cruz, CA, U.S.A.), rabbit anti–actin polyclonal (1:1,000, Santa Cruz Biotechnology), and mouse anti–cytochrome oxidase (COX) subunit IV monoclonal (0.2 μg/mL; Molecular Probe, Eugene, OR, U.S.A). After incubation with peroxidaseconjugated secondary antibody, signals were visualized with ECL plus (Amersham, Piscataway, NJ, U.S.A.) and exposed to x-ray films. Films were scanned and optical density was determined with NIH image (version 1.62, NIH). β-Actin and COX subunit IV were used as an internal control for cytosolic and mitochondrial fraction, respectively. Purified cytochrome c from rat heart (Sigma) was used as a positive control.

Immunohistochemistry

Mice were anesthetized and perfused with 0.9% saline followed by 10% formaldehyde in 75 mmol/L PBS 4 h after MCAO. Brains were removed and postfixed overnight. Brains were then transferred to 20% sucrose solution for 48 h. Coronal brain sections 50 μm in thickness were cut with a cryostat. Sections were incubated with 1% hydrogen peroxide for 30 minutes, and then incubated for 2 h in the blocking solution (100 mmol/L PBS, 0.1% Triton-X 100, 3% bovine serum albumin and 3% donkey serum) followed by overnight incubation with primary rabbit polyclonal antibody raised against cytochrome c (Santa Cruz Biotechnology) at 1:100 dilution. Biotinylated donkey anti–rabbit immunoglobulin (1:200; Amersham Life Science, Arlington Heights, IL, U.S.A.) was used as the secondary antibody for 2 h followed by 1 h in avidinbiotin complex solution (Vector Laboratories, Youngstown, OH, U.S.A.) in 100 mmol/L PBS. The sections were then stained with 0.05% diaminobenzidine-tetrachloride (DAB Fast; Sigma).

Statistical analysis

Student's t-test was used to determine the statistical significance of differences between HSP70 Tg and Wt in infarct volume, the number of TUNEL-positive cells, and densitometric analysis of cytochrome c. The Mann-Whitney U test was used to determine the statistical significance in neurologic deficit score. A P value of less than 0.05 was considered statistically significant. All values are expressed as mean ± SD. All statistical analyses were performed on a personal computer with Stat View (Version 5.0.1, SAS Institute Inc, Cary, NC, U.S.A.).

RESULTS

Neuroprotection in HSP70 Tg mice 24 hours after permanent middle cerebral artery occlusion

Infarct volume was significantly reduced in HSP70 Tg mice compared with Wt mice 24 h after pMCAO (P = 0.013). (Figs. 1A and 1B). Infarct volumes 24 h after pMCAO in HSP70 Tg (n = 7) and Wt mice (n = 8) were 32.22 ± 2.29 mm³ and 46.18 ± 2.38 mm³, respectively (Fig. 1D). Cortical perfusion was reduced to approximately 10% of baseline immediately after suture advancement and reduction persisted at approximately 20% of baseline value for 30 minutes during occlusion (Fig. 1C). Although the SD was greater in the HSP70 Tg group, there were no significant differences in cortical perfusion values between HSP70 Tg and Wt mice at any given time point, suggesting that appropriate suture insertion was accomplished in both groups. Neurologic deficit was reduced significantly in HSP70 Tg compared with Wt mice. Scores were 1.86 ± 0.69 and 2.63 ± 0.52, respectively (P = 0.037).

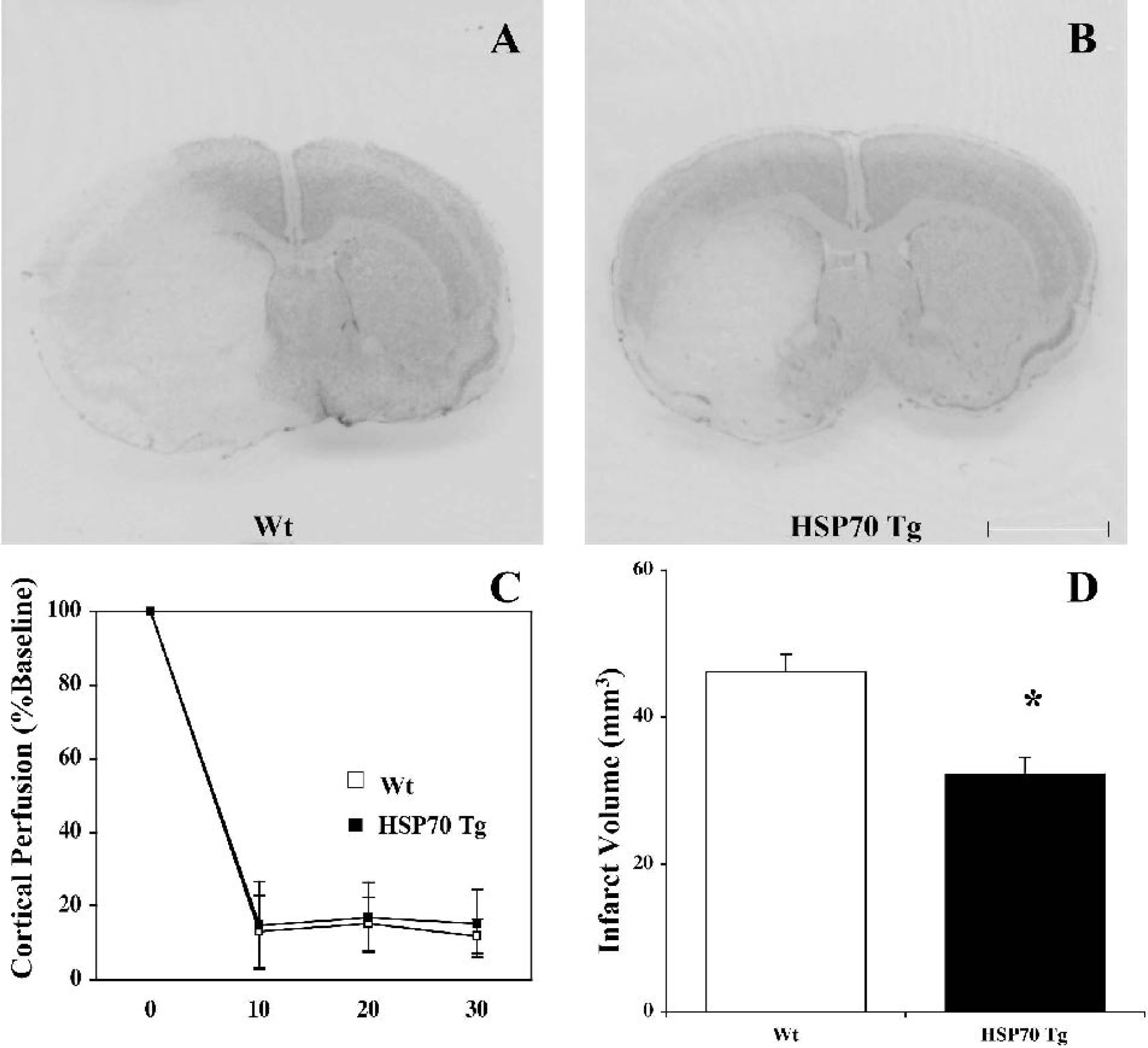

FIG. 1.

Reduced infarct size in the middle cerebral artery (MCA) territory of heat shock protein (HSP)70 transgenic (Tg) mice after permanent MCA occlusion (MCAO) without increased cortical perfusion. Representative photographs of coronal sections with cresyl violet staining 24 h after permanent MCAO in wild-type (Wt) (A) and HSP70 Tg mice (B). (C) Cortical perfusion values during occlusion in Wt and HSP70 Tg mice. There were no significant differences between Wt and HSP70 Tg at any time point. (D) Infarct volume at 24 h after pMCAO was significantly smaller in HSP70 Tg (n = 7) than in Wt (n = 8) mice (P = 0.013; 32.22 ± 2.29 mm³ and 46.18 ± 2.38 mm³, respectively).

Attenuation of DNA laddering in HSP70 Tg mice

The presence of DNA fragments with multiple integers of approximately 180 base pairs in length was used as a marker for apoptotic cell death. In Wt mice, a laddering pattern was clearly observed in the ischemic hemisphere samples. DNA laddering was attenuated in the samples from HSP70 mice, suggesting that apoptotic cell death in HSP70 Tg mice was reduced in comparison with Wt mice (Fig. 2A). In nonischemic mice, the laddering pattern was not observed in either HSP70 Tg or Wt mice (data not shown).

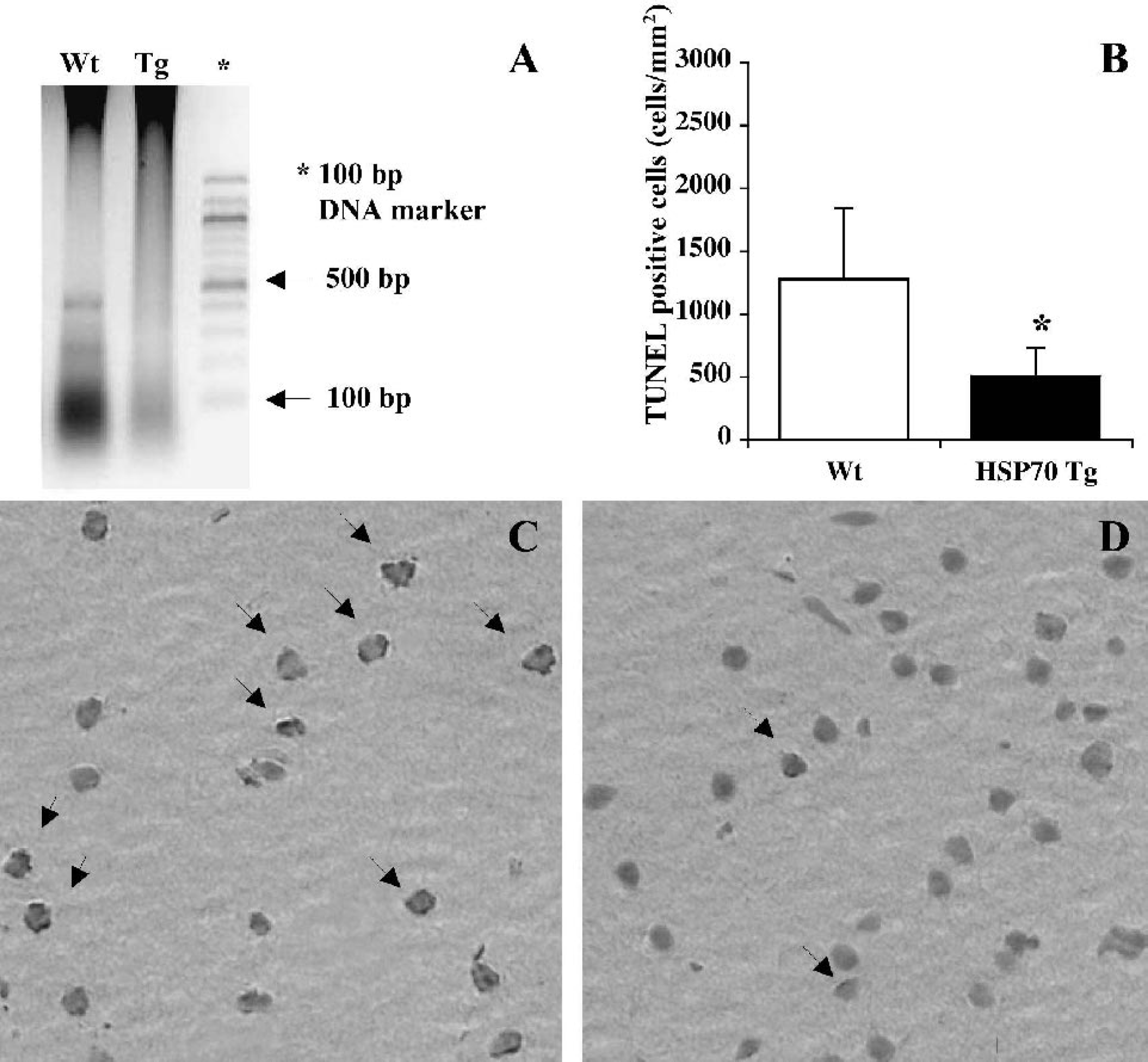

FIG. 2.

DNA laddering and terminal deoxynucleotidyl transferase-mediated biotinylated UTP nick end labeling (TUNEL)-positive cells are significantly reduced in heat shock protein (HSP)70 transgenic (Tg) mice. (A) Genomic DNA from HSP70 Tg (Tg) and wild-type (Wt) mice 24 h after permanent middle cerebral artery occlusion (pMCAO) was isolated and separated on an agarose gel. Several DNA fragments smaller than 500 bp were detected from Wt mice after pMCAO. No DNA ladder was observed in HSP70 Tg mice. (B) Number of TUNEL-positive cells in the cortex was significantly less in HSP70 Tg than in Wt mice (P = 0.019) 24 h after pMCAO. Representative photomicrographs of TUNEL counterstained with methyl green in Wt (C) and HSP70 Tg (D) mice are shown.

Reduction of TUNEL-positive cells in HSP70 Tg mice

TUNEL staining was used for analysis of spatial propagation of apoptotic cell death 24 h after pMCAO (Figs. 2B–D). For comparison, TUNEL-positive cells showing morphologically apoptotic features such as cell shrinkage, chromatin condensation in nuclei, and apoptotic bodies were counted (Figs. 2C and 2D, arrows). Cells exhibiting weakly stained, large and swollen nuclei were considered necrotic and were eliminated from counting. In the ischemic cortex, the number of TUNEL-positive cells was significantly reduced in HSP70 Tg (n = 5) compared with Wt mice (n = 6), as indicated by the cell counts of 507 ± 223 and 1,278 ± 564, respectively (P = 0.019) (Figs. 2B–D). In the lateral striatum, the number of TUNEL-positive cells in HSP70 Tg (n = 5) and Wt mice (n = 6) was 1,487 ± 773 and 1,922 ± 669, respectively (P > 0.05). Although there was a trend toward reduction of TUNEL-positive cells in lateral striatum of HSP70 Tg mice, it was not significant. The lack of statistical significance suggests that reduction of apoptosis may have occurred in HSP70 Tg mice due to the severity of ischemia and lack of collateral blood flow.

Overexpression of HSP70 in HSP70 Tg mice

To confirm HSP70 overexpression in HSP70 Tg mice, Western blots from nonischemic brain samples in HSP70 Tg and Wt mice (n = 3 each) were compared. Strong signals were detected in HSP70 Tg mice, documenting overexpression of HSP70. In Wt mice, a faint or absent HSP70 band was observed (Fig. 3).

FIG. 3.

Strong constitutive heat shock protein (HSP)70 expression in the HSP70 transgenic (Tg) mice. Western blot analysis of HSP70 and β-actin from nonischemic mice brain samples. HSP70 is strongly expressed in HSP70 Tg mice, whereas little or no expression of HSP70 was seen in wild-type (Wt) mice.

Total amount of cytochrome c expression unaltered in HSP70 Tg mice

Western blots were performed to confirm the total amount of cytochrome c expression in nonischemic HSP70 Tg and Wt mice. Cytochrome c immunoreactivity was clearly observed as a single band at 15 kd (Fig. 4A). In the cytosolic fraction, little or no signal was detected in either HSP70 Tg or Wt mice, indicating successful separation of fractions. In the mitochondrial fraction, strong signal was observed in both HSP70 Tg and Wt mice (Fig. 4B). Comparing HSP70 Tg and Wt groups, there was no difference in the expression of cytochrome c in the mitochondrial fraction, suggesting that cytochrome c expression was not altered in nonischemic HSP70 Tg mice.

FIG. 4.

Lack of cytochrome c expression in the cytosolic fraction of both normal wild-type (Wt) and heat shock protein (HSP)70 transgenic (Tg) mice. Western blot analysis of cytochrome (Cyt) c of the cytosolic (A) and mitochondrial (B) fractions of nonischemic Wt and HSP70 Tg mice. In the cytosolic fraction, little or no signal was detected in either Wt or HSP70 Tg mice. β-Actin was used as an internal control. In the mitochondrial fraction, there were no differences shown in the amount of cytochrome c expression between Wt and HSP70Tg mice. Cytochrome oxidase (COX) was used as an internal control for mitochondrial proteins.

Reduction of cytochrome c release in HSP70 Tg mice 4 hours after permanent middle cerebral artery occlusion

Mitochondrial cytochrome c release into cytosol was less in HSP70 Tg (n = 5) than in Wt mice (n = 6) 4 h after pMCAO (Fig. 5). In the cytosolic fraction, a strong signal was detected by Western blotting in the samples from Wt mice, whereas only a weak signal was seen in HSP70 Tg samples (Fig. 5A). Samples obtained from the nonischemic hemisphere showed few or no bands. The relative optical density of cytosolic cytochrome c in Wt mice (0.92 ± 0.06) (p < 0.01) was significantly greater than that in HSP70 Tg mice (0.71 ± 0.03). In the mitochondrial fraction, however, there is no apparent difference in cytochrome c expression between HSP70 Tg and Wt mice (Fig. 5C).

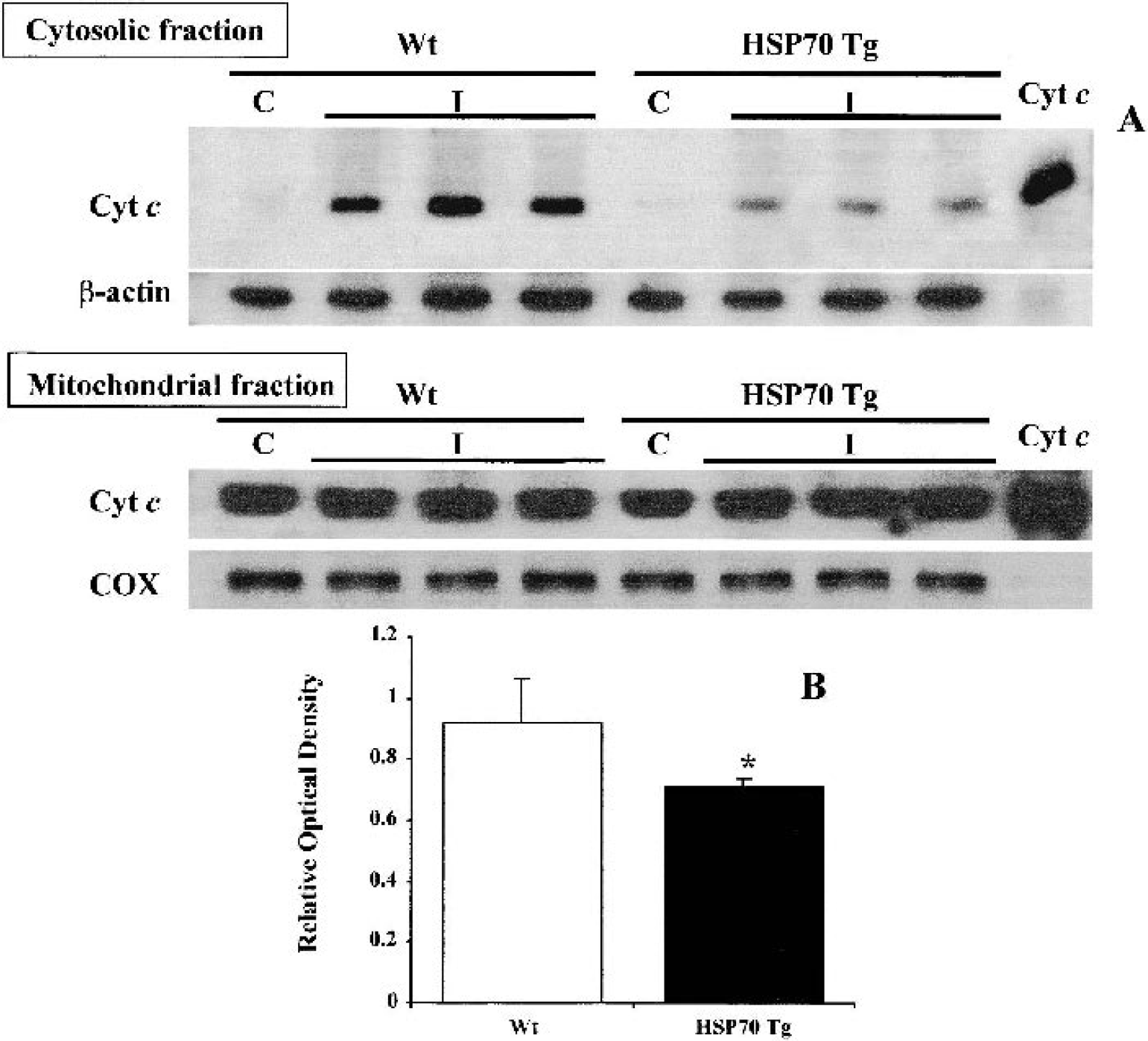

FIG. 5.

Significantly less cytochrome (Cyt) c is translocated into the cytosol of heat shock protein (HSP)70 transgenic (Tg) mice 4 h after permanent middle cerebral artery occlusion (pMCAO). Western blot analysis of cytochrome c of the cytosolic (A) and mitochondrial (B) fractions from animals after pMCAO. In the cytosolic fraction, strong signals were detected in wild-type (Wt) mice, whereas only faint bands were observed in HSP70 Tg mice. β-Actin was used as an internal control. No signal was detected from the contralateral nonischemic hemisphere in either group of mice (lanes labeled as C). In the mitochondrial fraction, strong cytochrome c expression was observed in both ischemic (I) and contralateral hemispheres (C) of Wt and HSP70 Tg mice. There is no significant difference between groups. Representative samples from three mice in each group are shown in both the cytosolic and mitochondrial fractions. (C) Densitometric analysis of cytochrome c immunoblotting of cytosolic fraction 4 h after pMCAO shows significant reduction in cytochrome c expression in HSP70 Tg mice compared with Wt mice (P = 0.003). COX, cytochrome oxidase.

Reduction of cytochrome c immunoreactivity in HSP70 Tg mice 4 hours after permanent middle cerebral artery occlusion

Cytochrome c immunohistochemistry staining was performed 4 h after pMCAO. Strong cytosolic cytochrome c immunoreactivity in neuronal cells was observed in the ischemic cortex and lateral striatum of Wt mice, whereas only weak immunostaining was observed in HSP70Tg mice (Figs. 6B, 6C, 6E, and 6F). Little or no immunoreactivity in either cortex or lateral striatum of nonischemic brain (Figs. 6A and 6D) was observed. This was possibly because of increased intensity of the tissue fixation, since antibody reacted with cytosolic but not with mitochondrial-bound protein (Fujimura et al., 1999, 2000; Noshita et al., 2001). Nissl and TUNEL staining performed on adjacent sections of HSP70 Tg mice 4 h after pMCAO showed that neither ischemic neuronal damage nor TUNEL-positive cells had developed (data not shown).

FIG. 6.

Reduced cytochrome c immunoreactivity in both cortex and striatum of heat shock protein (HSP)70 Tg mice 4 h after permanent middle cerebral artery occlusion (pMCAO). Cytochrome c immunohistochemistry with methyl green counterstaining was performed in wild-type (Wt) and HSP70 Tg mice. Representative photomicrographs of cytochrome c immunohistochemistry are shown from the cortex and striatum of nonischemic control Wt (A and D), and after pMCAO from Wt (B and E), and HSP70 Tg mice (C and F). Cytochrome c immunoreactivity was significantly less in both the cortex and striatum of HSP70 Tg (C and F) than in Wt (B and E). Little immunoreactivity was observed in nonischemic control Wt brains (A and D).

DISCUSSION

These results show that overexpression of HSP70 reduces mitochondrial cytochrome c release into cytosol 4 h after pMCAO and subsequent DNA fragmentation 24 h after pMCAO. These results suggest that overproduction of HSP70 is associated with inhibition of apoptosis, possibly due to reduction of mitochondrial cytochrome c release. This reduced release was correlated with neuroprotection manifested as reduced infarct volume and neurologic deficits after permanent focal ischemia.

Apoptosis and signal transduction pathways

Apoptosis is defined by morphologically distinct criteria, such as membrane blebbing, chromatin condensation, and fragmentation of the nucleus (Kerr et al., 1972). Most of the morphologic and biochemical changes are caused by the activation of the caspase cascade (Hengartner, 2000). Caspases are categorized as either the executioner type, such as caspase-3, or initiators, such as caspase-8 or −9. Two major pathways for transmission of the apoptotic stimuli have been established (Hengartner, 2000; Yuan and Yanker, 2000). The death-receptor pathway is triggered by binding of the ligand to death receptors such as CD95 (Fas/Apo-1) or tumor necrosis factor receptor-1, forming a death-inducing signal complex (Kischkel et al., 1995; Hsu et al., 1996). This complex cleaves caspase-8 followed by cleavage of caspase-3. The mitochondrial pathway is initiated by the release of mitochondrial cytochrome c into cytosol. Although the mechanism of cytochrome c release across the mitochondrial outer membrane is still under debate, the BCL-2 family of proteins plays a crucial role in regulating this process (Kroemer and Reed, 2000). After being released into cytosol, cytochrome c binds to apoptotic protease, activating factor-1 (Apaf-1) in the presence of dATP, promoting the oligomerization of Apaf-1 itself. Concurrently or subsequently, this complex recruits procaspase-9, forming the complex called “apoptosome.” The apoptosome assembly allows procaspase-9 to be autoactivated, and this is followed by the recruitment and activation of procaspase-3 (Li et al., 1997; Srinivasula et al., 1998). Caspase-3 cleaves the inhibitor of caspaseactivated deoxyribonuclease and activates DNase, leading to DNA fragmentation (Hengartner, 2000).

Apoptosis and focal cerebral ischemia

Apoptosis and necrosis have been identified as a mechanism of ischemic neuronal cell death that occurs in the penumbra after focal vascular occlusion. The mechanism of induction of apoptosis by focal ischemia is complex, including activation of several genes after the onset of ischemia. Among them are the apoptosis-related genes that produce caspases (Sharp et al., 2000). In cerebral ischemia, apoptosis has been considered to be important for the propagation of ischemic injury, especially in the penumbra (Yuan and Yankner, 2000). After onset of focal cerebral ischemia, the temporal profile of DNA fragmentation has been described (Li et al., 1995). Since DNA fragmentation resulting from apoptosis is not always correlated with TUNEL-positive staining, colocalization of cleaved caspase-3 immunoactivity and TUNEL-positive cells has been used to describe apoptosis induced after focal ischemia (Namura et al., 1998). Induction of caspase-8 and caspase-9 has also been documented after focal ischemia (Velier et al., 1999; Noshita et al., 2001). A recent report indicates that activity of caspase-1 and caspase-8 was increased 30 minutes after pMCAO and that increase of caspase-3 activity was observed 1 h after pMCAO in the ischemic core, confirming that apoptotic cell death contributes to the acute neuronal cell death in the core as well as the penumbra after focal ischemia (Benchoua et al., 2001). Caspase inhibitors have been shown to significantly reduce infarct volume, which further strengthens the case for a role of apoptosis in ischemic injury (Hara et al., 1997)

It has been reported that cytochrome c in mitochondria is translocated to the cytosol after focal ischemia (Noshita et al., 2001), preceding the activation of caspase-9. The spatial and temporal pattern of cytochrome c translocation has also been repeatedly shown in both rats and mice (Fujimura et al., 1999, 2000; Noshita et al., 2001; Namura et al., 2001). Cytochrome c in the cytosolic fraction was observed by Western blotting at early time points, such as 1 or 2 h after MCAO and sustained up to 24 h after MCAO (Fujimura et al., 1999, 2000; Noshita et al., 2001). Consistent with these reports, our pilot studies in Wt mice indicated that cytochrome c release was observed in the cytosolic fraction both 2 h and 24 h after pMCAO. Other focal ischemia studies indicate that cytochrome c translocation was reduced in the copper/zinc-superoxide dismutase transgenic mice (Fujimura et al., 2000) and after antioxidant drug administration in normal ICR mice (Namura et al., 2001). Mild hypothermia reduced cytochrome c release temporarily after focal ischemia (Yenari et al., 2002). Furthermore, manganese–superoxide dismutase knockout mice showed increased cytochrome c release after focal ischemia, which correlated with greater ischemic injury observed in these transgenic mice compared with their Wt counterparts (Fujimura et al., 1999).

Mechanism of neuroprotective effect of HSP70

A neuroprotective effect of HSP70 overproduction has been shown with in vitro studies after a variety of ischemic insults (Rordorf et al., 1991; Lowenstein et al., 1991; Papadopoulos et al., 1996; Kelly et al., 2001; Lee et al., 2001). Both pre- and postischemic gene therapy inducing overproduction of HSP70 in vivo showed neuroprotective effect against focal ischemic injury (Yenari et al., 1998; Hoehn et al., 2001). In our previous study, rat-inducible HSP70 Tg mice provided a potent neuroprotective effect 6 and 24 h after permanent focal ischemia (Rajdev et al., 2000). However, two other studies reported no evidence of protection after pMCAO using different strains of HSP70 overexpressing transgenic mice (Plumier et al., 1997; Lee et al., 2001). These conflicting observations may be caused by differences in the level of HSP70 expression. As previously reported, HSP70 protein level was 5- to 10-fold higher in our HSP70 Tg mice compared with Wt mice (Rajdev et al., 2000), in contrast to a 2- to 2.5-fold difference between the Tg and Wt mice used by Lee et al. (2001). Thus, higher levels of HSP70 expression may be required to confer protection against focal ischemic injury. In contrast, increased infarct volume in HSP70 knockout mice compared with Wt littermates was also reported after transient MCAO, further suggesting a possible neuroprotective role for HSP70 against focal ischemic injury (Lee et al., 2001). Studies of rats pretreated with intraventricular administration of geldanamycin to induce HSP70 in brain also show significant reduction of infarction after focal ischemia (Lu et al., 2002).

Alternative mechanisms for the neuroprotective effects of HSP70 have been investigated. HSP70 is thought to function as a molecular chaperone, providing protection to neurons against various insults (Pelham, 1986; Beaucamp et al., 1998). Recent studies in nonneuronal cell lines indicate that HSP70 inhibited the apoptotic pathway by reducing caspase activation (Beere et al., 2000). Relevant to the mitochondrial pathway, studies with human acute lymphoblastic leukemia T-cell line, and ME-180 cervix carcinoma cells as well as WEHI-S fibrosarcoma cells, showed that overproduction of HSP70 inhibited caspase-3 activation (Mosser et al., 1997; Jaattela et al., 1998). Recently, two other studies in preheated HSP70 expressing nonneuronal cells found that HSP70 interacted with Apaf-1, interfering with the formation of cytochrome c/Apf-1/procaspase-9 complex. (Beere et al., 2000; Saleh et al., 2000). HSP70 overexpression in nonneuronal cells is also associated with suppression of cytochrome c release from mitochondria after exposure to apoptotic stimuli (Creagh et al., 2000; Mosser et al., 2000; Klein and Brune, 2002). However, a contradictory finding by Li et al. (2000) showed that cytochrome c release did occur in nonneuronal cells, such as rat cardiomyocytes, myogenic cells, primary human fibroblast, human lymphoblastic leukemia T-cell line, and tumor cell line, showing overexpression of HSP70 after heat treatment. As Klein and Brune mentioned in their discussion, it may turn out that higher HSP70 concentrations are needed for blocking apoptosome assembly, whereas lower levels of cellular HSP70 are associated with alternative pathways, such as cytochrome c release, to attenuate cell death. HSP70 was also found to prevent apoptosis by interfering with apoptosis-inducing factor, a caspase-independent apoptosis effector (Ravagnan et al., 2001). Conversely, the death-receptor pathway is not known to be affected by the overexpression of HSP70 (Liossis et al., 1997; Creagh and Cotter, 1999).

In conclusion, our results provide the first in vivo evidence that HSP70 overexpression is associated with early reduction of mitochondrial cytochrome c release and subsequent DNA fragmentation, possibly contributing to a significant neuroprotective effect observed after permanent focal ischemia. Since cytochrome c is highly regulated by the BCL-2 gene family (Yuan and Yankner, 2000; Shimizu et al., 1999), future studies of proapoptotic and antiapoptotic proteins in the BCL-2 family may further clarify the relation between HSP70 and cytochrome c release.

Footnotes

Acknowledgments:

The authors thank Angelo Zegna and Theresa Marsh for the technical assistance provided.

References

Beaucamp

Harding

Geddes

Williams

Uney

(1998) Overexpression of hsp70i facilitates reactivation of intracellular proteins in neurones and protects them from denaturing stress. FEBS Lett 441:215–219

Beere

Wolf

Cain

Mosser

Mahboubi

Kuwana

Tailor

Morimoto

Cohen

Green

(2000) Heat-shock protein 70 inhibits apoptosis by preventing recruitment of procaspase-9 to the Apaf-1 apoptosome. Nat Cell Biol 2:469–475

Benchoua

Guegan

Couriaud

Hosseini

Sampaio

Morin

Onteniente

(2001) Specific caspase pathways are activated in the two stages of cerebral infarction. J Neurosci 21:7127–7134

Creagh

Cotter

(1999) Selective protection by hsp 70 against cytotoxic drug-, but not Fas-induced T-cell apoptosis. Immunology 97:36–44

Creagh

Carmody

Cotter

(2000) Heat shock protein 70 inhibits caspase-dependent and -independent apoptosis in Jurkat T cells. Exp Cell Res 257:58–66

Fujimura

Morita-Fujimura

Murakami

Kawase

Chan

(1998) Cytosolic redistribution of cytochrome c after transient focal cerebral ischemia in rats. J Cereb Blood Flow Metab 18:1239–1247

Fujimura

Morita-Fujimura

Kawase

Copin

Calagui

Epstein

Chan

(1999) Manganese superoxide dismutase mediates the early release of mitochondrial cytochrome c and subsequent DNA fragmentation after permanent focal cerebral ischemia in mice. J Neurosci 19:3414–3422

Fujimura

Morita-Fujimura

Noshita

Sugawara

Kawase

Chan

(2000) The cytosolic antioxidant copper/zinc-superoxide dismutase prevents the early release of mitochondrial cytochrome c in ischemic brain after transient focal cerebral ischemia in mice. J Neurosci 20:2817–2824

Hara

Friedlander

Gagliardini

Ayata

Fink

Huang

Shimizu-Sasamata

Yuan

Moskowitz

(1997) Inhibition of interleukin 1beta converting enzyme family proteases reduces ischemic and excitotoxic neuronal damage. Proc Natl Acad Sci U S A 94:2007–2012

10.

Hengartner

(2000) The biochemistry of apoptosis. Nature 407:770–776

11.

Hoehn

Ringer

Giffard

Sapolsky

Steinberg

Yenari

(2001) Overexpression of HSP72 after induction of experimental stroke protects neurons from ischemic damage. J Cereb Blood Flow Metab 21:1303–1309

12.

Hsu

Shu

Pan

Goeddel

(1996) TRADD-TRAF2 and TRADD-FADD interactions define two distinct TNF receptor 1 signal transduction pathways. Cell 84:299–308

13.

Jaattela

Wissing

Kokholm

Kallunki

Egeblad

(1998) Hsp70 exerts its anti-apoptotic function downstream of caspase-3-like proteases. EMBO J 17:6124–6134

14.

Kelly

Bieneman

Horsburgh

Hughes

Sofroniew

McCulloch

Uney

(2001) Targeting expression of hsp70i to discrete neuronal populations using the Lmo-1 promoter: assessment of the neuroprotective effects of hsp70i in vivo and in vitro. J Cereb Blood Flow Metab 21:972–981

15.

Kerr

Wyllie

Currie

(1972) Apoptosis: a basic biological phenomenon with wide-ranging implications in tissue kinetics. Br J Cancer 26:239–257

16.

Kischkel

Hellbardt

Behrmann

Germer

Pawlita

Krammer

Peter

(1995) Cytotoxicity-dependent APO-1 (Fas/CD95)-associated proteins form a death-inducing signaling complex (DISC) with the receptor. EMBO J 14:5579–5588

17.

Klein

Brune

(2002) Heat-shock protein 70 attenuates nitric oxide-induced apoptosis in RAW macrophages by preventing cytochrome c release. Biochem J 362:635–641

18.

Kroemer

Reed

(2000) Mitochondrial control of cell death. Nat Med 6:513–519

19.

Lee

Yenari

Sun

Emond

Cheng

Steinberg

Giffard

(2001) Differential neuroprotection from human heat shock protein 70 overexpression in in vitro and in vivo models of ischemia and ischemia-like conditions. Exp Neurol 170:129–139

20.

Nijhawan

Budihardjo

Srinivasula

Ahmad

Alnemri

Wang

(1997) Cytochrome c and dATP-dependent formation of Apaf-1/caspase-9 complex initiates an apoptotic protease cascade. Cell 91:479–489

21.

Lee

Kim

Seo

(2000) Heat shock protein 70 inhibits apoptosis downstream of cytochrome c release and upstream of caspase-3 activation. J Biol Chem 275:25665–25671

22.

Chopp

Jiang

Yao

Zaloga

(1995) Temporal profile of in situ DNA fragmentation after transient middle cerebral artery occlusion in the rat. J Cereb Blood Flow Metab 15:389–397

23.

Liossis

Ding

Kiang

Tsokos

(1997) Overexpression of the heat shock protein 70 enhances the TCR/CD3- and Fas/Apo-1/CD95-mediated apoptotic cell death in Jurkat T cells. J Immunol 158:5668–5675

24.

Liu

Kim

Yang

Jemmerson

Wang

(1996) Induction of apoptotic program in cell-free extracts: requirement for dATP and cytochrome c. Cell 86:147–157

25.

Lowenstein

Chan

Miles

(1991) The stress protein response in cultured neurons: characterization and evidence for a protective role in excitotoxicity. Neuron 7:1053–1060

26.

Ran

Parmentier-Batteur

Nee

Sharp

(2002) Geldanamycin induces heat shock proteins in brain and protects against focal cerebral ischemia. J Neurochem 81:355–364

27.

Massa

Swanson

Sharp

(1996) The stress gene response in brain. Cerebrovasc Brain Metab Rev 8:95–158

28.

Mosser

Caron

Bourget

Denis-Larose

Massie

(1997) Role of the human heat shock protein hsp70 in protection against stress-induced apoptosis. Mol Cell Biol 17:5317–5327

29.

Mosser

Caron

Bourget

Meriin

Sherman

Morimoto

Massie

(2000) The chaperone function of hsp70 is required for protection against stress-induced apoptosis. Mol Cell Biol 20:7146–7159

30.

Namura

Zhu

Fink

Endres

Srinivasan

Tomaselli

Yuan

Moskowitz

(1998) Activation and cleavage of caspase-3 in apoptosis induced by experimental cerebral ischemia. J Neurosci 18:3659–3668

31.

Namura

Nagata

Takami

Masayasu

Kikuchi

(2001) Ebselen reduces cytochrome c release from mitochondria and subsequent DNA fragmentation after transient focal cerebral ischemia in mice. Stroke 32:1906–1911

32.

Noshita

Sugawara

Fujimura

Morita-Fujimura

Chan

(2001) Manganese superoxide dismutase affects cytochrome c release and caspase-9 activation after transient focal cerebral ischemia in mice. J Cereb Blood Flow Metab 21:557–567

33.

Papadopoulos

Sun

Cao

Mivechi

Giffard

(1996) Over-expression of HSP-70 protects astrocytes from combined oxygen-glucose deprivation. Neuroreport 7:429–432

34.

Pelham

(1986) Speculations on the functions of the major heat shock and glucose-regulated proteins. Cell 46:959–961

35.

Plumier

Krueger

Currie

Kontoyiannis

Kollias

Pagoulatos

(1997) Transgenic mice expressing the human inducible Hsp70 have hippocampal neurons resistant to ischemic injury. Cell Stress Chaperones 2:162–167

36.

Rajdev

Hara

Kokubo

Mestril

Dillmann

Weinstein

Sharp

(2000) Mice overexpressing rat heat shock protein 70 are protected against cerebral infarction. Ann Neurol 47:782–791

37.

Ravagnan

Gurbuxani

Susin

Maisse

Daugas

Zamzami

Mak

Jaattela

Penninger

Garrido

Kroemer

(2001) Heat-shock protein 70 antagonizes apoptosis-inducing factor. Nat Cell Biol 3:839–843

38.

Rordorf

Koroshetz

Bonventre

(1991) Heat shock protects cultured neurons from glutamate toxicity. Neuron 7:1043–1051

39.

Saleh

Srinivasula

Balkir

Robbins

Alnemri

(2000) Negative regulation of the Apaf-1 apoptosome by Hsp70. Nat Cell Biol 2:476–483

40.

Sharp

Tang

Millhorn

(2000) Multiple molecular penumbras after focal cerebral ischemia. J Cereb Blood Flow Metab 20:1011–1032

41.

Shimizu

Narita

Tsujimoto

(1999) Bcl-2 family proteins regulate the release of apoptogenic cytochrome c by the mitochondrial channel VDAC. Nature 399:483–487

42.

Srinivasula

Ahmad

Fernandes-Alnemri

Alnemri

(1998) Autoactivation of procaspase-9 by Apaf-1-mediated oligomerization. Mol Cell 1:949–957

43.

Sugawara

Fujimura

Morita-Fujimura

Kawase

Chan

(1999) Mitochondrial release of cytochrome c corresponds to the selective vulnerability of hippocampal CA1 neurons in rats after transient global cerebral ischemia. J Neurosci 19:RC39

44.

Swanson

Morton

Tsao-Wu

Savalos

Davidson

Sharp

(1990) A semiautomated method for measuring brain infarct volume. J Cereb Blood Flow Metab 10:290–293

45.

Velier

Ellison

Kikly

Spera

Barone

Feuerstein

(1999) Caspase-8 and caspase-3 are expressed by different populations of cortical neurons undergoing delayed cell death after focal stroke in the rat. J Neurosci 19:5932–5941

46.

Yenari

Fink

Sun

Chang

Patel

Kunis

Onley

Sapolsky

Steinberg

(1998) Gene therapy with HSP72 is neuroprotective in rat models of stroke and epilepsy. Ann Neurol 44:584–591

47.

Yenari

Iwayama

Cheng

Sun

Fujimura

Morita-Fujimura

Chan

Steinberg

(2002) Mild hypothermia attenuates cytochrome c release but does not alter Bcl-2 expression or caspase activation after experimental stroke. J Cereb Blood Flow Metab 22:29–38

48.

Yuan

Yankner

(2000) Apoptosis in the nervous system. Nature 407:802–809.
