Random Access Control for M2M in LTE System

2.1. Research Background

2.1.1. LTE

Since traditional 2G/3G network cannot meet the needs of multiple terminals of wireless bandwidth resources, the 3GPP launched LTE/LTE-A. LTE is short for Long Term Evolution (Figure 1). It is not really 4G, and it can be called 3.9G. The real 4G is LTE-advanced. In the fourth-generation broadband wireless multiple access systems data rate will reach probably hundreds of megabits per second [1]. Moreover, downlink data rate target will peak at 100 Mbps and uplink target data rate will peak at 50 Mbps for a bandwidth of 20 MHz in LTE system [2]. However, [3] analyses that downlink peak data rate over 1 Gb/s and uplink peak data rate over 500 Mb/s becomes possible. To meet the need of high data rate, downlink multiple access mechanism utilizes orthogonal frequency division multiplexing (OFDM) and uplink multiple access mechanism utilizes single carrier frequency division multiple access (SC-FDMA) [4].

OPEN IN VIEWER

Figure 1

LTE system architecture diagram.

LTE supports a higher data rate and cell capacity; such a system can be better for meeting the need of IOT for broadband resources. Time delay is 10 times lower than 2G/3G in LTE system, which is better for meeting the high requirements on the system delay of M2M equipment, such as some M2M devices used in monitoring and alarm systems. The number and traffic of wireless network users will grow exponentially [5]. Furthermore, LTE is increasingly seen as a service system for real-time M2M communication [6]. Asynchronous M2M users' accesses utilize access reservation protocol in LTE system. Access reservation protocol is helpful for asynchronous communication or intermittent transmission [7]. The LTE access preambles are selected from the orthogonal preamble set which are obtained from the Zadoff-Chu sequence [8]. LTE access process includes contention phase and data phase; LTE contention phase utilizes time-sharing ALOHA [9]. This ALOHA mechanism proposes a combination model [10]. More information about this combination model is in [11]; earlier research on access reservation protocol is in [12].

2.1.3. ALOHA

The LTE system utilizes slotted ALOHA. ALOHA protocol is divided into two types, one is Pure ALOHA (Figure 2) and the other is Slot ALOHA (Figure 3). Slot ALOHA requires clock synchronization in the whole network. Users can arrive at any time, but they can send data packets until the beginning of the next slot. It may cause part conflict or complete conflict in Pure ALOHA; however, it only causes complete conflict in Slot ALOHA.

OPEN IN VIEWER

Figure 2

Pure ALOHA.

OPEN IN VIEWER

Figure 3

Slot ALOHA.

2.2. Related Works

It will have a huge impact on the LTE system when multiple M2M users access at the same time. Therefore, aiming to solve the problem of congestion, the 3GPP proposed the following schemes: (1)

introducing new barring factors for M2M equipments to avoid network congestion and control access,

A fast retrial and dynamic control of random access algorithm in LTE system was proposed [15], and then it got the possible optimal rate of random access when there were some M2M users' packets and retrial packets. However, it just considered M2M users; that is to say, all M2M users were regarded as the same level in [15]. Obviously, it is impractical. In [16], two new dynamic spectrum access schemes for secondary users were proposed which were based on continuous-time Markov chains (CTMC), and then it got the optimal probability of secondary users for random access under the premise of the collision threshold value. In [16], users were divided into two levels. Based on [16, 17], access channel got the optimal probability of secondary users for random access based on Markov in two kinds of channel states.

3.1. Access Pattern

In a mobile communication network, users need to access if they want to communicate with others. When users synchronized with uplink, they can transmit data packets. In LTE system, there are two kinds of random access patterns, one is based on contention (Figure 4) and the other is based on the noncontention (Figure 5). eNB is evolved node and UE is user equipment in the figure. The main random access pattern is contention-based pattern in LTE system, so we focus on this pattern in this paper. The process of contention-based pattern is as follows: (1)

random access initialization,

OPEN IN VIEWER

Figure 4

Contention-based.

OPEN IN VIEWER

Figure 5

Noncontention-based.

3.2. Problem Arises

It will lead to a larger chance of choosing the same preamble in the stage of choosing access resources, if numerous users access simultaneously and preambles and time-frequency resources are limited. If many users send preambles with the same time-frequency resources, this will cause the eNB to get the same RA-RNTIs according to the received time-frequency resources and to get the same PDCCHs scrambled with the same RA-RNTIs. The UL grants, preamble indexes, and TC-RNTIs also will be the same. If all of the M2M users can receive PDCCHs, which are scrambled with their own RA-RNTIs, they will send Msg3 according to UL grant's instructions. Moreover, M2M users will send Msg3 in the same position because of the same UL grants. However, the eNB just decodes the first received Msg3. It means other users will fail to access. If none of the users receive RAR or if decoded preamble index is different from their own, they will choose a random value in [0, back-off time]. The number of optional values is far less than the number of users who are choosing the back-off values at the same time, so many users will choose the same values, and these users will collide once again in the next retrial.

5.1. Two Levels

From the system model in Section 4, we can know that users will choose a channel to access from N logical channels when users want to communicate with others. By controlling the access rate α of M2M users, we want to achieve the highest success probability of random access in a channel. We come to a conclusion that the success probability of random access will achieve the highest value when  α = 1 / λ M . The proof is as follows.

The probability of i H2H users for random access in a channel in a current time slot is

p ( n H = i ) = λ H i i ! e - λ H .

(1)

The probability of j M2M users for random access in a channel in a current time slot is

p ( n M = j ) = ( α λ M ) j j ! e - α λ M .

(2)

Because H2H users' delay tolerance is lower than M2M users', H2H users can access if H2H users' data packets arrive, regardless of whether the M2M users' data packets arrive or not. The premise of access success for H2H users is that there is one and only one H2H user to access the channel in the slot, so the access success probability of H2H users is

p H , succ = p ( n H = 1 ) = λ H e - λ H .

(3)

M2M users are allowed to access when there are not any H2H users' data packets. The premise of access success for M2M users is that there is one and only one M2M user to access the channel in the slot, so the access success probability of M2M users is

p M , succ = p ( n H = 0 ) * p ( n M = 1 ) = e - λ H * α λ M e - α λ M .

(4)

The access success probability of a channel in the slot is

P success = p H , succ + p M , succ = λ H e - λ H + e - λ H * α λ M e - α λ M .

(5)

The probability of idle state of a channel in the slot is

P idle = p ( n H = 0 ) * p ( n M = 0 ) = e - λ H e - α λ M .

(6)

The probability of colliding state of a channel in the slot is

P collision = 1 - P success - P idle = 1 - ( λ H e - λ H + e - λ H * α λ M e - α λ M ) - e - λ H e - α λ M e ;

(7)

P success ′ = λ M e - λ H - α λ M ( 1 - α λ M ) .

(8)

Hypothesis (8) is equal to 0, so we can get   α = 1 / λ M , and the second derivative of (8) is

P success ′′ = λ M e - λ H - α λ M ( α λ M 2 - 2 λ M ) .

(9)

Substitute α = 1 / λ M into (9); we can get

P success ′′ = - λ M 2 e - λ H - 1 < 0 ,

(10)

so P success can be the maximum value when α = ( 1 / λ M ) ; that is to say, when α = 1 / λ M   , the random access success probability will achieve the highest value; that is,

P 2 , max = λ H e - λ H + e - λ H - 1 .

(11)

5.2. Three Levels

We divide random access users into three levels here. The primary users have the lowest delay tolerance, the secondary users have the middle delay tolerance, and the third users have the highest delay tolerance. Three levels of users arrival rates obey the Poisson random processes with parameters  λ 1 , λ 2 , and λ 3 , respectively. We allow the primary users to access when the primary users' data packets arrive, no matter whether the secondary and third users' data packets arrive or not. We allow the secondary users to access with rate   α 2 , when the secondary users' data packets arrive and there are no primary users' data packets, no matter whether the third users arrive or not. We allow the third users to access with rate α 3 when there are no primary or secondary users' data packets. By controlling the access rate α 2 of the secondary users and the access rate α 3 of the third users, we want to achieve the highest random access success probability in a channel. We come to a conclusion that the random access success probability will achieve the highest value when α 2 = ( 1 - e - 1 ) / λ 2 and α 3 = 1 / λ 3 . The proof is as follows.

The random access probability of i primary users in a channel in a current time slot is

p ( n 1 = i ) = λ 1 i i ! e - λ 1 .

(12)

The random access probability of j secondary users in a channel in a current time slot is

p ( n 2 = j ) = ( α 2 λ 2 ) j j ! e - α 2 λ 2 .

(13)

The random access probability of k third users in a channel in a current time slot is

p ( n 3 = k ) = ( α 3 λ 3 ) k k ! e - α 3 λ 3 .

(14)

The access success probability of the primary users is

P 1 , su = p ( n 1 = 1 ) = λ 1 e - λ 1 .

(15)

The access success probability of the secondary users is

P 2 , su = p ( n 1 = 0 ) p ( n 2 = 1 ) = e - λ 1 * α 2 λ 2 e - α 2 λ 2 .

(16)

The access success probability of the third-level users is

P 3 , su = p ( n 1 = 0 ) p ( n 2 = 0 ) p ( n 3 = 1 ) = e - λ 1 * e - α 2 λ 2 * α 3 λ 3 e - α 3 λ 3 .

(17)

The access success probability in a channel in the slot is

P su = P 1 , su + P 2 , su + P 3 , su = λ 1 e - λ 1 + e - λ 1 * α 2 λ 2 e - α 2 λ 2 + e - λ 1 * e - α 2 λ 2 * α 3 λ 3 e - α 3 λ 3 .

(18)

To gain the maximum value of P su , we need to get the first and second derivatives of (18); he first derivative of P su is

P 11 = ∂ P su ∂ α 2 = λ 2 e - λ 1 - α 2 λ 2 - α 2 λ 2 2 e - λ 1 - α 2 λ 2 - α 3 λ 3 λ 2 e - α 3 λ 3 = λ 2 e - λ 1 - α 2 λ 2 ( 1 - α 2 λ 2 - α 3 λ 3 e - α 3 λ 3 ) .

(19)

The first derivative of P su    is

P 12 = ∂ P su ∂ α 3 = λ 3 e - λ 1 - α 2 λ 2 - α 3 λ 3 - α 3 λ 3 2 e - λ 1 - α 2 λ 2 - α 3 λ 3 = λ 3 e - λ 1 - α 2 λ 2 - α 3 λ 3 ( 1 - α 3 λ 3 ) .

(20)

The second derivative of P su is

P 21 = ∂ 2 P su ∂ α 2 2 = ∂ P 11 ∂ α 2 = - λ 2 2 e - λ 1 - α 2 λ 2 ( 1 - α 2 λ 2 - α 3 λ 3 e - α 3 λ 3 ) - λ 2 2 e - λ 1 - α 2 λ 2 = - λ 2 2 e - λ 1 - α 2 λ 2 ( 2 - α 2 λ 2 - α 3 λ 3 e - α 3 λ 3 ) .

(21)

The second derivative of P su is

P 22 = ∂ 2 P su ∂ α 3 2 = ∂ P 12 ∂ α 3 = - λ 3 2 e - λ 1 - α 2 λ 2 - α 3 λ 3 ( 1 - α 3 λ 3 ) - λ 3 2 e - λ 1 - α 2 λ 2 - α 3 λ 3 = - λ 3 2 e - λ 1 - α 2 λ 2 - α 3 λ 3 ( 2 - α 3 λ 3 ) .

(22)

The second mixed derivative of P su is

P 23 = ∂ 2 P su ∂ α 2 ∂ α 3 = ∂ P 11 ∂ α 3 = λ 2 e - λ 1 - α 2 λ 2 ( λ 3 e - α 3 λ 3 - λ 3 2 α 3 λ 3 ) = - λ 2 e - λ 1 - α 2 λ 2 λ 3 e - α 3 λ 3 ( 1 - λ 3 α 3 ) = - λ 2 λ 3 e - λ 1 - α 2 λ 2 - α 3 λ 3 ( 1 - α 3 λ 3 ) .

(23)

α 2 = 1 - α 3 λ 3 e - α 3 λ 3 λ 2 .

(24)

α 3 = 1 λ 3 .

(25)

α 2 = 1 - e - 1 λ 2 .

(26)

P 21 = - λ 2 2 e - λ 1 - 1 + e - 1 ( 2 - 1 + e - 1 - e - 1 ) = - λ 2 2 e - λ 1 - 1 + e - 1 , P 22 = - λ 3 2 e - λ 1 - 1 + e - 1 - 1 = - λ 3 2 e - λ 1 + e - 1 - 2 , P 23 = - λ 2 λ 3 e - λ 1 - 1 + e - 1 - 1 ( 1 - α 3 λ 3 ) = 0 .

(27)

P 21 * P 22 - P 23 2 > 0 , P 21 < 0 ,

(28)

P 3 , max = λ 1 e - λ 1 + e - λ 1 * ( 1 - 1 e ) * e - 1 + 1 / e + e - λ 1 * e - 1 + 1 / e * e - 1 .

(29)

6.1. Two Levels

If there are only H2H users, we set λ H range from 0 to 200 and suppose that there are 50 preambles (logical channels), and then we can get Figure 8.

OPEN IN VIEWER

Figure 8

The average arrival number of H2H versus access probability.

Figure 8 shows that the random access success probability increases as the number of users increases when the number of H2H users is within a certain range. However, as the number of H2H users increases, the random access success probability will reduce due to collision or other reasons, when the number of users reaches a certain number (the average arrival number of H2H users per second is more than 50 in Figure 8).

When multiple M2M users and H2H users are accessing we meanwhile set the average arrival number of H2H users at 50 per second and set the average arrival number of M2M users at a range from 0 to 5000 per second; that is to say, the average of arrival number of H2H users is 1 per channel per second. When setting different access rates of M2M users, we can get Figure 9.

OPEN IN VIEWER

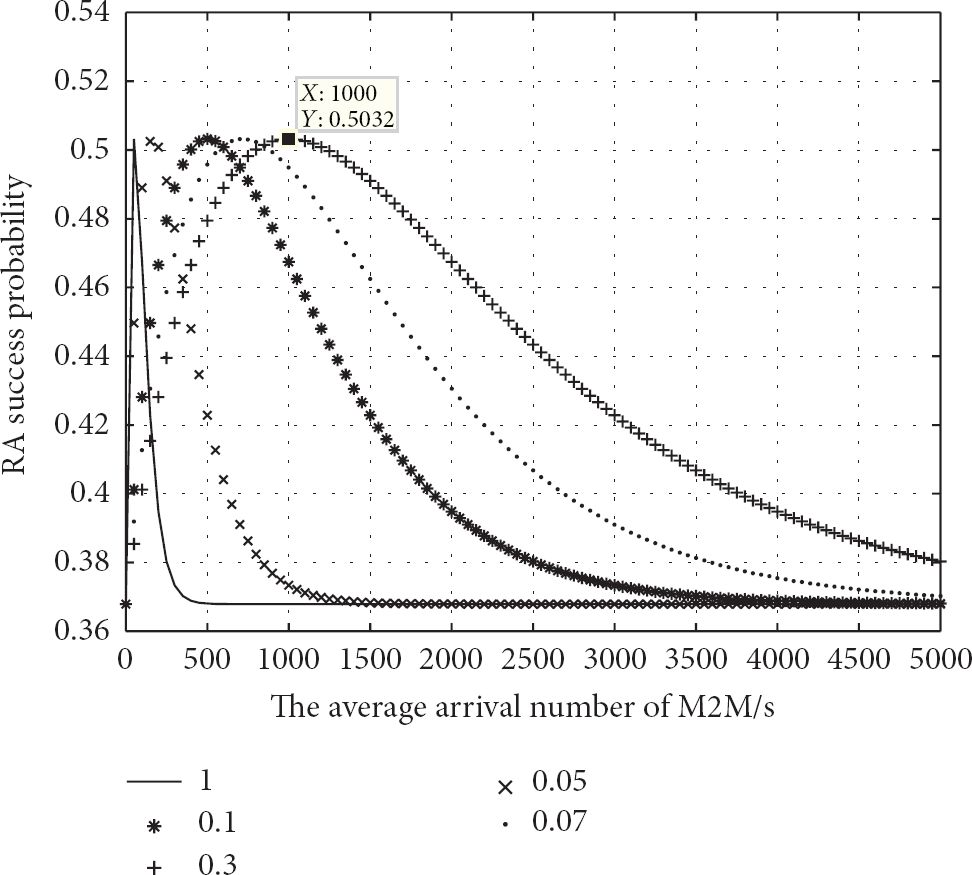

Figure 9

The average arrival number of M2M versus access probability.

From Figure 9, we can know, setting different access rates for M2M users, that the lower the access rate is, the higher the random access success probability is, when the number of users reaches a certain number (the average arrival number of M2M users is 50 per second in Figure 9); that is, controlling access rate can improve the access success probability in the same number of users.

According to P 2 , max in Section 5.1, we can get the theoretical maximum probability of random access success: P 2 , max = 1 * e - 1 + e - 2 ≈ 0.5032147244 ≈ 0.5032 . We can also know from Figure 9, when the average arrival number of M2M is 1000/s, that the maximum value of simulation is 0.5032, which is approximately equal to the theoretical value 0.5032147244. Since we assume that there are 50 logical channels, the arrival number of users should be divided by 50 per channel; that is, the arrival number of users is 1000/50 = 20. That is, it can get the maximum value when access rate is 1/20 = 0.05. The simulation result matches the theoretical result. Hence, we can come to a conclusion that we can get the maximum success probability of random access when  α = 1 / λ M .

When multiple M2M users and H2H users are accessing, setting the average arrival number of H2H users at 50 per second, allowing M2M users to access with a certain rate, we can meanwhile get Figure 10.

OPEN IN VIEWER

Figure 10

The average arrival number of M2M versus collision probability.

From Figure 10, we can know that the lower the access rate is, the higher the access success probability is, when the number of M2M users reaches a certain number (the average arrival number of M2M users is 1500 per second in Figure 10); that is to say, controlling the access rate can obviously reduce the collision probability of random access in the same number of users.

6.2. Three Levels

We also suppose that there are 50 logical channels here, the average arrival number of primary users is 50 per second, the average arrival number of secondary users is 0 ≤ λ 2 ≤ 600 ,   and the average arrival number of third users is  0 ≤ λ 3 ≤ 5000 .

When we do not control the access rate of the secondary and third users, we can get Figure 11. When we properly control the access rate of the secondary and third users (here values ​ ​of 0.5 and 0.1, resp.), we can get Figure 12. When we control the access rate of the secondary and third users with a smaller value (here values ​ ​of 0.1 and 0.05, resp.), we can get Figure 13.

OPEN IN VIEWER

Figure 11

Access rate 1.

OPEN IN VIEWER

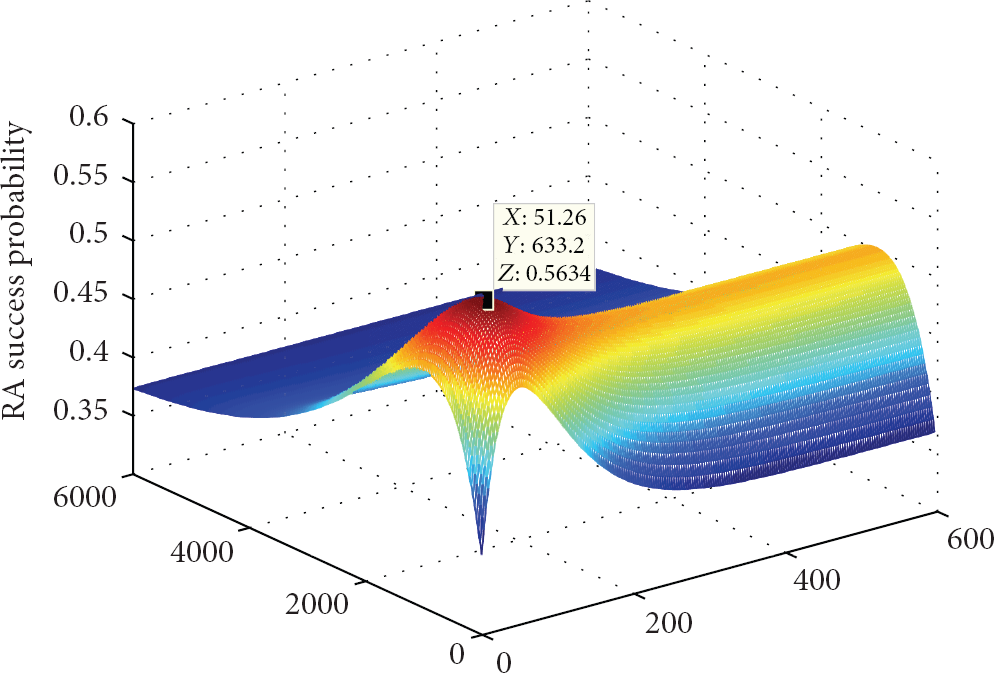

Figure 12

Access rate of 0.5 and 0.1, respectively.

OPEN IN VIEWER

Figure 13

Access rate of 0.1 and 0.05, respectively.

From Figure 11, we can know that, when we do not control the access rate of the secondary and third users, the success probability of random access increases with the number of users increasing when the number of them is small. When the number of two-level users is larger, channels become colliding due to multiple users accessing simultaneously; moreover, the success probability of random access declines sharply. When the number of the third users is constant (we assume it is 2000), the success probability of random access increases with the number of the secondary users increasing in a small range, and then it is down to a constant value.

The contrast between Figures 11 and 12 tells us, when we control the secondary and third users' access properly, that the success probability of random access can improve obviously.

According to Section 5.2, we can get the theoretical maximum success probability of random access: P 3 , max = e - 1 + e - 1 - 1 + 1 / e * ( 1 - 1 / e ) + e - 3 + 1 / e ≈ 0.56339397532 ≈ 0.5634 . In Figure 12, we set the theoretical access rate of the secondary and third users at 0.5 and 0.1, respectively. When the number of secondary and third users is 51.26/50 = 1.0252 and 633.2/50 = 12.664, respectively, the access rate of the secondary users is about 0.6 and that of the third users is about 0.08 according to (25) and (26) in Section 5.2, which are approximately equal to the simulation values 0.5 and 0.1. Hence, we can get the maximum probability 0.5634 when α 2 = ( 1 - e - 1 ) / λ 2 and   α 3 = 1 / λ 3 .

The contrast between Figures 11, 12, and 13 tells us that the smaller the access rate of the secondary and third users is, the larger the success probability of random access is in the same number of users.
