3.1. Architecture of Ontology Construction System

In this section, we provide an overview of our architecture of ontology automatic construction. We describe the construction modules and data flows among different modules in Figure 1. We first research the construction models; ontology construction can be divided into two modes: global construction and incremental construction. In global construction, it needs to use all existing domain knowledge to rebuild the ontology when adding or changing knowledge. Global construction appies to a fully developed field; the knowledge of the field is complete and relatively static, without frequently adding or changing new knowledge. In incremental construction, when adding new knowledge, construction module will supplement and repair relevant parts in existing ontology according to the new knowledge. Incremental construction applies to an emerging field and the knowledge of the field is not complete. The field will put forward new knowledge frequently. Thus it requires a frequent iteration and updating of existing ontology. Compared with the global construction, incremental construction does not need to rebuild the ontology with all existing knowledge when adding new knowledge into the field; it only needs to update the relevant part with the new knowledge in ontology. Because the IOT domain has a mass of knowledge and is growing rapidly, incremental construction will bring the advantages in computing and timeliness.

OPEN IN VIEWER

Figure 1

Architecture of ontology construction.

Our ontology construction model is an incremental construction model. We iterate the ontology through adding new knowledge tuple to existing ontology constantly. In order to guarantee the connectivity of ontology and reduce redundancy concepts, we need to calculate the similarity between concepts in new tuple and existing ontology when adding a new tuple. Through merging similar concepts, we will achieve the connection between new tuple and existing ontology. The architecture contains four modules. In order to obtain the normalized domain knowledge from information source (IS), we use the tuple extraction module to extract tuples from unstructured and structured files. Then normal module will use word stem and synonym to normalize the vocabularies in tuples. In order to make full use of the most general concepts in IOT domain and support the interoperability with other ontologies, we use upper ontology module to evaluate existing IOT domain ontologies and select SSN as our upper ontology. Then taking into account that the tuples are independent in their existence, we use the similarity module to calculate the structure similarity between concepts in new tuple and existing ontology. Then we merge the similar concepts and constitute a connected IOT ontology. (1)

In the tuple extraction module, we extract knowledge tuples with context information from unstructured IS and resource description files. Unstructured IS is a conventional form to represent the knowledge in a domain, such as thesis and related web pages. Therefore, we can use the natural language processing (NLP) algorithms to extract tuples and get the normalized knowledge in unstructured IS. Existing ontology automatic construction models extract knowledge tuples from each sentence of unstructured IS. This approach neglects the context information in paragraph and paper. Therefore, we propose the CIB tuple extraction algorithm to extract tuples with context information from unstructured files. In addition to extract triple tuples from each sentence based on NLP algorithms, we will extract the core concepts of paragraphs and papers based on the largest contiguous frequency statistics. Then we make the core concepts as the context labels and add them into triple tuples hierarchically. For example, we extract triple tuples (a)-(b)-(c); in addition the core concepts of this paper and paragraph are A and B; we can combine them and get the thorough tuple (A_B_a)-(b)-(A_B_c) (each concept in tuple is reflected with an order vector); this approach will retain the context information with concept prefix. Resource description file is another conventional information carrier in IOT domain; it is used to describe various IOT resources such as device and data. In order to get more comprehensive knowledge, we propose the RDB tuple extraction model to extract tuples from resource description files. In this model, we make use of the resource description which conforms to the tree structure and adopts the key-value model, then formulates three rules in Section 3.2.2 to extract tuples.

Therefore, a closed loop for ontology construction is formed in the proposed approach. We will expound each module and related algorithm in subsequent sections.

3.2. Knowledge-Tuple Extraction Algorithm

Knowledge tuples use concepts and relationships to describe the domain knowledge; they are the basic unit in ontology construction. The concepts in knowledge tuples will map the concepts in ontology; the loss and error of information in extraction process will be preserved permanently; thus, the tuple extraction model is an important part in ontology automatic construction. According to the structural degree of information sources in IOT environment, we divided the information sources into two categories: unstructured information and structured information. For unstructured information sources, we introduced the context information into tuples and propose the context-information-based (CIB) knowledge-tuple extraction algorithm; for structured information sources, we use the resource description as representative and propose the resource-description-based (RDB) knowledge-tuple extraction model.

3.2.1. Context-Information-Based Knowledge-Tuple Extraction

The unstructured information source refers to information that either does not have a predefined data model or is not organized in a predefined manner, such as text and web page, which is the most common type of information we contact. The unstructured information provides a knowledge source for tuple extraction. Existing ontology automatic construction models commonly use the natural language processing algorithms to extracted knowledge tuples from each sentence of information source. At the same time, they neglect the impact of the context information on tuples. Because the concepts in tuples will map the concepts in ontology, thus, the loss and error of information in extraction process will be preserved permanently. Therefore, we propose a context-information-based knowledge-tuple extraction algorithm. Our algorithm consists of two parts: obtaining the triple knowledge tuples through natural language processing algorithms and then in order to retain the context information in tuple, we extract the core concepts of paragraphs and papers based on the chapter's titles and largest contiguous frequency statistics and then we make the core concepts as the context labels and add them into triple tuples and retain the context information with concept prefix.

In the first part, we use the natural language processing algorithm from Stanford CoreNLP to carry out syntactic analysis for each sentence. We will take raw English language text input and give the base forms of words and their parts of speech, whether they are names of companies, people, and so forth or normalize dates, times, and numeric quantities and we will mark up the structure of sentences in terms of phrases and word dependencies and indicate which noun phrases refer to the same entities. Stanford CoreNLP is an integrated framework, which makes it very easy to apply a bunch of language analysis tools to a piece of text. Its analyses provide the foundational building blocks for higher-level and domain-specific text understanding applications. For example, for the sentence: “Common data formats include XML and json.” The Stanford parser produces the following representations in Figure 2.

OPEN IN VIEWER

Figure 2

Syntactic analysis and triple tuples.

Based on the syntactic analysis consequence above, we use Trunk (Trunk provide rules to extract subject-predicate-object tuple from syntactic analysis consequence) to extract triple tuples. In this example, we extract four tuples from syntactic analysis on the right of Figure 2. These tuples use the subject-predicate-object structure to carry knowledge and provide basic units for ontology construction. But each tuple in this part only carries the knowledge from one sentence, we can use the tuples in Figure 2 as examples; xml is a data format, but we will never know if this format is used in sensor or gateway. Actually, the concept of a word is determined by the entire paper; thus, we introduce the context lab to retain paper's information into tuples.

In the second part, we extract multilevel core concepts in paragraph and make them as prefix for concepts in tuples to retain context information. Here we can also use the long tuple to retain the context information in context. We use two tuples device-has-name-is-sensor and location-has-name-is-china, for example, “device” and “location” are the core concepts in two paragraphs; it has the same redundancy compared with (device_name)-is-(device_sensor) and (location_name)-is-(location_name_china), but consider the common ontology format is owl and it inherited the triple description framework from rdf, thus, it will split the long tuple “device-has-name-is-sensor” and “location-has-name-is-china” into four triple tuples: “device-has-name,” “name-is-sensor,” “location-has-name,” and “name-is-china.” Because the center concept “name,” we will get the wrong inheritance between “location” and “sensor.” Thus we give up the long tuple and use the way of concept prefix in tuples. The models to extract core concepts from unstructured documents can be divided into two types, The first type makes the original chapter titles in documents as core concepts. When a document has clear chapter titles, titles are the summary of paragraphs by author. The parent-child relationship between titles are the reflection of expert knowledge which have high reliability. At the same time, the extraction process is simple and has a small computation overhead. The second type is to extract core concepts from chapters through data mining. Because some documents do not have chapter titles, we need to use data mining to extract the core concepts. the Centrality of graph to extract the core concepts from concepts map are commonly used. We use the degree centrality to extract 62 core concepts from 5 IOT scientific papers; more than 70% core concepts are the same with the chapter titles; thus, degree centrality can be used as a supplementary means to extract the core concepts. We use these core concepts as context labs and add these labs into concepts in tuples as multilevel prefix. Through the research on IOT scientific papers and technical documents, more than 95% of the levels of document sections are less than 5. In order to obtain the complete context information of each concept, we will extract core concepts for each paragraph based on the multilevel chapters and construct multilevel prefix for each concept in tuples. At the same time, the calculated amount to maintain the maximum level is bearable (it will not cause the change in computational complexity). The titles of upper and lower sections meet the one-to-many relationship (parent-child relationship), in order to provide more information for the following similarity calculation, the concepts’ prefix can use ordered vector to retain the parent-child relationship information. Use the sentence in Figure 2 as an example; we can calculate the concept with largest contiguous frequency in second-level chapter as “sensor” and first-level chapter as “IOT.” We can extract the concepts in triple tuples as in Figure 3.

OPEN IN VIEWER Figure 3

We can achieve the CIB knowledge-tuple extraction as in Algorithm 1. At the same time, we open a test interface in our prototype system to extract tuples from unstructured information sources: http://42.121.104.18:8002/elements/show/nlpTuple.

Algorithm 1: CIB tuple extraction.

Input: text

Output: context_tuples

texts.each do paragraph i (from paragraph 1 to paragraph M )

   paragraph i .each do sentence j (from sentence 1 to sentence N )

   tuple = NLP( sentence j )

   Put tuple into tuple_ group i .

 end

 Extract core_concept as context_ lab i from tuple_ group i .

 Add context_ lab i into each tuple in tuple_ group i .

end

3.2.2. Resource-Description-Based Knowledge-Tuple Extraction

IOT environment includes various resource descriptions, which are a type of structured documents. Resource description has been used to describe various IOT resources such as device and data; we list a resource description for sensor in Figure 4; it describes various attributes and values for a Temp sensor. We use the Xively (previously Pachube, one of the most famous IOT platform) as an example; it has more than twenty thousand of resource descriptions and exceeds the number of characters in other pages in this website. This helps to obtain a more comprehensive knowledge for tuple extraction. Existing ontology automatic construction models commonly neglect this type of information source. Therefore, we propose a resource-description-based knowledge-tuple extraction model. Compared with unstructured information, resource description has a tree schema to describe the structure of documents and uses the key-value pair like “<Name>Temp sensor</Name>” in Figure 4. The tree schema has been constructed by the IOT experts and provides an explicit superior-subordinate relationship; at the same time, we can extract subject-predicate-object tuples conveniently based on the key-value pair. According to statistical analysis, the vocabularies in structured information are more concise and close to the topic. This will reduce the redundancy for ontology from uncorrelated words.

OPEN IN VIEWER

Figure 4

Resource description in IOT.

Figure 4 is a resource description file in xml format; based on the W3C's definition document, xml is a markup language with key-value model and tree structure. An xml element is everything from (including) the element's start tag to (including) the element's end tag; xml elements can have attributes in start tag. The attributes provide additional information about an element; the key-value model of xml defines the relationship between element and value; the tree structure of xml defines the parent-child and brothers relationships between elements; it determines the one-to-many relationship (parent-child relationship in data structure) between upper and lower elements in resource description. Based on the research of resource description files in existing IOT platforms, the upper and lower elements in resource description mostly have the parent-child or concept-property relations. Considering the property is a partial description of the concept, we can build parent-child relationship between upper and lower elements.

We can divide the elements of resource description into four categories: tag-name (like Sensor and Name), this kind of elements is determined by xml schema and has a tree structure; in the same xml schema, tag-name and its structure are relatively stable; tag-value (like Temp sensor and Huawei), this kind of element is determined by specific resource and often different between different xmls; tag-property (like Tags and ID), this kind of element is determined by xml schema and its structure is relatively stable in the same schema; tag-property-value (like Temp and 12), the same as tag value, the elements are determined by specific resource and are often different between different xmls.

Based on the elements category above, we can analyze the relations between elements and divide the relations into four kinds: hierarchical relations between tag-names, they have been determined by the structure of xml schema; one-to-one correspondence between tag-name and tag-value, they have been determined by specific resource; one-to-many correspondence between tag-name and tag-property, they have been determined by the structure of xml schema; one-to-one correspondence between tag-property and tag-property-value, they have been determined by specific resource. By integrating tag-name ⇔ tag-property and tag-property ⇔ tag-property-value, we can get three kinds of relations and define three rules to extract tuples from xml. (1)

The relationship between upper and lower tag-names is Subclass. For example, for the tag-name “Sensor” and tag-name “Name” in Figure 4, we can extract ternary tuple “Sensor has_subclass Name.”

(2)

The relationship between tag-name, tag-property and tag-property-value in the same level is corresponding property. For example, for the nodes “Sensor,” “Tags,” and “Temp” in Figure 4, we can extract ternary tuple “Sensor has_Tags Temp.”

(3)

The relationship between tag-name and tag-value in the same level is Value. For example, for the tag-name “Name” and tag-value “TempSensor” in Figure 4, we can extract ternary tuple “Name has_value Temp_sensor”.

Based on the extraction rules above, we can extract triple tuples from resource description files. But triple tuples only retain the relationship between two layers and give up the multilevel parent-child relationships in resource description; this results in a loss of context information. Thus we need to add the context information into triple tuples and retain the context information with concept prefix. We extract the fourteen tuples in Figure 4 as in Figure 5.

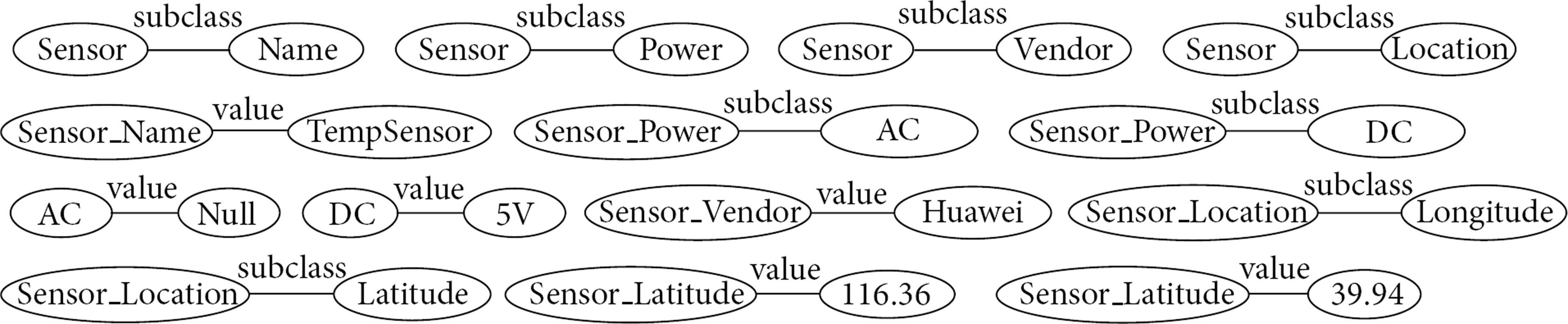

OPEN IN VIEWER Figure 5

We can achieve the RDB knowledge-tuple extraction algorithm as in Algorithm 2. At the same time, we open a test interface in our prototype system to extract tuples from XML: http://42.121.104.18:8002/elements/show/xmlTuple.

Algorithm 2: RDB tuple extraction.

Input: xml

Output: context_tuples

xml.each do element i (from element 1 to element M )

 tuple = xml_rules( element i )

 Extract context_lab into tuple.

end

3.3. Tuple Normalization

Tuple normalization converts words from tuples into normal format that can be used by the subsequent steps in ontology construction. It reduces inflected words to their stems, achieves synonyms of each word for each tuple, and finally normalizes the expression of synonyms that are the basis for further operation. In this study, the tuple normalization involves the two processes of word stem and synonym. (1)

Word stem: stemming is the process of reducing inflected (or sometimes derived) words to their stem, base, or root form. For example, measure is the stem for {measuring, measured, measurement}. Stemming of the remaining words is to remove affixes (i.e., prefixes and suffixes), such that the extraction of concepts and relations containing syntactic variations of the terms is allowed. The Porter Stemming Algorithm [19] is used in this research to stem text. We open a test interface in our prototype system: http://42.121.104.18:8002/elements/show/stem.

3.4. IOT Upper Ontology

Upper ontology (also known as a top-level ontology or foundation ontology) is an ontology which describes very general concepts that are the same across one domain. Selecting an appropriate existing domain ontology as the upper ontology will make full use of knowledge in existing domain ontology. At the same time, the different ontologies which face different systems will have a unified upper ontology. The concepts in different ontologies can be built relations based on the unified upper ontology; it realizes the knowledge sharing across different systems.

In this section we collect and collate existing IOT ontologies and formulate an assessment program and select the appropriate domain ontology as our IOT upper ontology in construction. IOT ontology has a rapid development in recent years. W3C and other organizations and individuals construct a dozen of upper ontology; all these ontologies are not for a specific IOT system; they describe IOT concepts and relationships from different angles. These ontologies generally make the “device” and “observation” as their core concepts, then expand the concepts based on the device type, capacity, properties and observation type, precision, and and so forth. We collected the famous IOT ontology in Table 1 and evaluate them in five aspects (key concepts, author, status, complexity, and cited). The “key concepts” can reflect the emphasis and scope of concepts for an ontology; we will select the upper ontology based on coincident degree between “key concepts” and our IOT system. The “author” reflects the authority of ontology. The “status” of ontology includes developing, maintaining, and ceasing; it will reflect the degree of perfection and stability for an ontology; we will select the ontology which has a high degree of perfection and stable maintenance as our upper ontology. The “complexity” reflects the amount and granularity for IOT knowledge in ontology; we hope the upper ontology has a fine-grained and hierarchical knowledge system. The “cited” will reflect the degree of recognition in IOT domain.

OPEN IN VIEWER

Table 1

IOT ontology.

Ontology name	Key concepts	Author	Status	Complexity	Cited
SSN	Stimulus, sensor, and observation	W3C Incubator	Maintained	Complicated	Yes
CSIRO	Sensor and process.	Michael Compton	Developing	Simple	None
MMI	Device, capability, and property	Luis Bermudez	Developing	Ordinary	None
CESN	Sensor and physical property.	Holger Neuhaus	Cease	Simple	None
SWAMO	Platform, process, and observation	John Graybeal	Developing	Complicated	Yes
A3ME	Device, data, service, and capability	Arthur Herzog	Maintained	Simple	None
OntoSensor	Sensor, capability, and measurand	Danh Le Phuoc	Cease	Complicated	Yes
OBOE	Observation, context, value, and measurement	Kevin Page	Maintained	Simple	None
SeReS	Feature and result and observation	Krzysztof Janowicz	Developing	Complicated	Yes
SemSOS	Observation, process, feature, and phenomenon	Cory Henson	Maintained	Ordinary	None
Sensei O and M	Observation, data, process, and service	Payam Barnaghi	Cease	Simple	None
OOSTethys	Process, system, and observation	Luis Bermudez	Developing	Ordinary	Yes
SERONTO	Abstract, physical, and reference	Laurent Lefort	Cease	Complicated	Yes

We analyze Table 1 and get conclusions as follows. These domain ontologies mostly make “sensor” and “observation” as their core concepts. In terms of author, only the SSN has been built by authoritative W3C Incubator; other ontologies all have been built by individual; there are four ontologies maintained state; they have a high degree of perfection and stable maintenance. In the aspect of complex, we tend to the ontologies with complicated ratings, these ontologies have a fine-grained description for domain knowledge and have been built with an integrated hierarchy. In the aspect of quote, there are six ontologies that have been quoted by other ontologies and systems; they have a high degree of recognition. Taking these conditions above, we choose the SSN [20] ontology which has been built by W3C Semantic Sensor Network Incubator group as our upper ontology. Central to SSN is the Stimulus-Sensor-Observation ontology design pattern. The pattern links sensors, what they sense, and the resulting observations, encompassing three of the four perspectives—the missing system perspective is more about system organization and deployments than sensing but clearly links the pattern. The SSO has been developed as minimal, common ground for heavy-weight ontologies for the Semantic Sensor Web, as well as to explicitly address the need for light-weight semantics in the Linked Data cloud.

Upper ontology will serve as the initial ontology for ontology automatic construction; we will supplement the upper ontology with normalized knowledge tuples through algorithms in the next section. Increasing the scope of ontology knowledge gradually achieves the semantic representation for IOT system finally.

3.5. Similarity Algorithm

In this section, we need to calculate the similarity between concepts in tuples and merge the similar concepts to constitute a connected IOT ontology. Because the knowledge tuples in tuple extraction module are discrete; thus, the tuples cannot constitute a knowledge network and cannot be suited for human or machines to understand the relevant knowledge of a concept. Existing approaches use the linguistic similarity of vocabularies to merge synonyms and neglect the scene that the same word in different contexts has different meanings and represents different concepts. Taking into account that we introduce multilayer context labs into concepts in Section 3.2, thus, we propose an aggregation similarity algorithm (TSB) to calculate the similarity between concepts.

Similarity (ontology alignment) is an important research point in ontology construction; it will affect the accuracy of the concepts and relations in ontology directly. In general [21], the similarity measure can be categorized in lexical, linguistic, and structural measures. (1)

In lexical measures, there are a number of string distance methods such as Levenshtein distance [22], Jaro-Winkler distance [23, 24], and smoa distance [25]. And based on [25], the smoa distance is shown to be the most performing distance for the ontology alignment problem (the smoa distance takes into account both commonalities and differences characterizing the entities at issue). We took into account the following two questions: the relations between words string similarity and words similarity, computational complexity. First the words string similarity cannot fully reflect the similarity between words, such as apply, application, and apple. With smoa distance, apple has been closer to apply. But in fact, apply and application have the same stem “apply” and they are more similar. In addition, smoa distance increases the amount of calculation in a large number. Thus based on the research of two aspects above, we used the stem treatment for all words and then with the fully matched comparison, we can get the similarity relations between lexical effective.

Our ontology construction model is an incremental construction model. We iterate the ontology through adding new knowledge tuple to existing ontology constantly. Because the SSN (upper-ontology) covers the general concepts that are the same across IOT domain, our automatic construction model makes SSN as the initialize ontology, and then expands the concepts and relations through extracting new knowledge tuples. When we expand the existing ontology, we need to identify whether the concept from new tuple can be merged with existing concepts in existing ontology or added as a new concept based on similarity calculation between concepts. In structure similarity calculation, we transform the concepts with multilevel context labs into vectors and assess the structure similarity between vectors. Before we compare the structural similarity, we need to extract contrasted concepts based on linguistics from existing ontology. Therefore, we can divide the structure similarity algorithm into the following two parts: making the linguistic similarity as metrics and extract a contrasted concept-set in existing ontology which is similar to the concepts in new tuple, and then building a contrasted vector group based on the concept-set and making the concept in new tuple as object vector and using the longest common subsequence (LCS) between object vector and contrasted vector to get structural similarity part between two vectors. Through calculating information content (IC) in structural similarity part, we can quantify the structural similarity between two vectors and provide evidence for merging similar concepts. Through merging the similar concepts and adding new concepts, we can iterate the IOT ontology constantly.

3.5.1. Contrasted Concepts Extraction

Contrasted concepts are the concepts of existing ontology which are linguistically similar to the object concept of new tuple; they will be used to calculate the structural similarity. Take into account that we add multilayer context labs into concepts in Section 3.2 and normalize the vocabularies in Section 3.3, thus, when we calculate the linguistics similarity between object concept and concepts in existing ontology, we only need to estimate whether the concepts have the same postfix. If two concepts have the same postfix, we consider that they are in linguistics similarity. Through extracting the contrasted concepts in existing ontology, we can calculate the structural similarity between object concept and contrasted concept, then merge the similar concepts or supplement new concepts into ontology.

Based on the extraction algorithm in Section 3.2, each new tuple is composed of two types of elements: concept with hierarchy labels and relationship. We use the tuple (A_B_C₁)-(P₁)-(A_B_C₂), for example; it contains two concepts “A_B_C₁” and “A_B_C₂”; each concept has two-level context lab “A” and “B.” We use the “A_B_C₁” as object concept. Because the linguistic similarity only relates to postfix “C₁”; thus, we will extract the concepts in existing ontology which have the same postfix “C₁” and construct the contrasted concept-set. (In order to support the structural similarity comparison, when we add a new concept into ontology, we need to retain the context information for this concept in ontology. Thus we will assign a unique identifier for each concept in ontology. One unique identifier could correspond several express forms and each form will have the same postfix.) In order to facilitate the structure similarity calculation, we transform the object concept and contrasted concept into ordered vectors. Because one object concept could correspond to several contrasted concepts in ontology and each contrasted concept could have several express forms, thus the contrasted concept-set can be represented by a two-dimensional vector group. We use the object concept “IOT_sensor_name” as an example, we assume that there are three concepts named “name” with different “ids” in existing ontology; each concept has several express forms and we list the vector group in Figure 6. Each row in the vector group reflects various express forms for a concept in ontology.

OPEN IN VIEWER

Figure 6

Contrasted vector group.

Through the combination and calculation above, we transform the structural similarity comparison between concepts in new tuple and existing ontology into the comparison between object vector and arbitrary vector in a contrasted vector group.

3.5.2. Vector Similarity Algorithm

Through constructing the contrasted vector in Section 3.5.1, we transform the structure similarity comparison between new tuple and existing ontology into similarity comparison between object vector and arbitrary vector in a contrasted vector group. In order to integrate structural similarity into similarity algorithm, we use the longest common subsequence (LCS) between vectors to get structural similarity part between two vectors. Through calculating information content (IC) in structural similarity part, we can quantify the structural similarity between two vectors and provide evidence for merging similar concepts in the following.

The longest common subsequence (LCS) of two vectors states the similar parts of information provided by the two vectors. A proper quantification of the LCS of vectors improves the degree of structural similarity between vectors. References [26–28] put forward their own similarity algorithm that combine LCS and information content (IC). Reference [29] proposed evaluating the IC of the least common subsumer of the compared concepts (LCS ( c 1 , c 2 ) ) as the representative of this shared information. The LCS of a pair of concepts is the most specific common ancestor that subsumes them; it is found in the taxonomy to which they belong. If the two concepts are not taxonomically connected and the LCS does not exist, they are considered maximally different. Otherwise their semantic similarity is computed as the amount of IC provided by the LCS.

Consider

sim [ 29 ] ( c 1 , c 2 ) = IC ( LCS ( c 1 , c 2 ) ) .

(1)

With [26]'s metric, any pair of concepts with the same LCS will result in exactly the same similarity value. To better differentiate concepts, both [27, 28] also consider the IC of the compared terms into the equations. Reference [27] measures the similarity as the ratio between the common information between concepts (i.e., IC(LCS)) and the information needed to fully describe them (i.e., the IC of each concept alone). Reference [28] proposed calculating the concept distance (the opposite of similarity) as the difference between the IC of each concept and the IC of their LCS.

Consider

sim [ 30 ] ( c 1 , c 2 ) = 2 × IC ( LCS ( c 1 , c 2 ) ) ( IC ( c 1 ) + IC ( c 2 ) ) , sim [ 26 ] ( c 1 , c 2 ) = ( IC ( c 1 ) + IC ( c 2 ) ) - 2 × IC ( LCS ( c 1 , c 2 ) ) .

(2)

Here we need to calculate the similarity between tuple vector and arbitrary vector in the vector group. Through LCS ( v 1 , v 2 ) , we can get the number of the same concepts directly and it reflects the same portion of two vectors. But any pair of vectors with the same LCS will result in exactly the same similarity value. Therefore we need to measure the ratio between the common information and all information. In (1) all information is a fixed value and reflects the information of universal set. But in our algorithm all information only reflects the total information of two vectors and it will be changed with vectors. We can get vector similarity algorithm as follows:

IC ( LCS ( v 1 , v 2 ) ) = - log ⁡ ⁡ ( LCS ( v 1 , v 2 ) v 1 ∪ v 2 ) .

(3)

Then we need to merge similarity concepts based on vector similarity and threshold. According to the contrasted vector group in Figure 6, each row in the vector group reflects various express forms for a concept in ontology. We can divide the similarity computation results into three types: first type, there is not a vector similar to object vector in contrasted vector group, we will add the object concept into ontology as new concept; second type, there is only one row which has vector similar to object vector in contrasted vector group, we will merge object concept with the concept which corresponding to the one row, at the same time we add the new express form into this row in group; third type, there are more than one row which have vector similar to object vector in contrasted vector group, we need to merge all similar concepts and merge the corresponding express forms.

In the third type, the new concept will change the partial structure of existing ontology. The similarity threshold defines the maximum similar distance between vectors, but each concept in ontology does not define its absolute standard express forms (centre); therefore, the similar space for a concept is a dynamic space with the change of concept's express forms. With the expanding of express forms for a concept, the similar space is also increasing. We can get the edge distance between multiple concepts based on the similar space of each concept in ontology; when the edge distance is smaller than the maximum diameter of the similar space of new express forms, the new express forms may cause the combination of multiple concepts in ontology and this is the occurrence of third type. With the extension of concepts and express forms in ontology, the edge distance between polysemous concepts will be reduced gradually. Here some noise tuples (Because of wide range of information source, it is difficult to ensure that each tuple complies with the basic knowledge of IOT domain; some artificial nonstandard information will be used as tuples to iterate IOT ontology) may cause the collapse (since the individual noise information led to the concept of the ontology polysemy merge, resulting in loss of information) of partial ontology concepts. This paper only presents this possible problem and does not make a detailed exposition. In future studies we intend to supplement the merger control factor to control the merging between polysemy concepts in ontology.

We calculate the complexity of the structure similarity algorithm (Algorithm 3). When adding a concept, we suppose that the number of concepts in ontology is m, the number of concepts’ expression is n, and the length of the expression is t. We can calculate the time complexity as O ( m * n * t log ⁡ ( t ) ) . Consider the length of the expression does not increase with the expansion of ontology; thus, t log ⁡ ( t ) can be considered as a constant, and the time complexity can be simplified as O ( m * n ) .

Algorithm 3: Structure similarity.

Input: existing_ontology, new_concept

Output: new_ontology

concepts(in existing_ontology).each do concept i (from concept₁ to concept M )

 If concept i .postfix = new_concept.postfix

   concept i .forms.each do form j (from form 1 to form N )

    similarity ( new _ concept, form j ) = - log ⁡ ( LCS ( new_concept, form j ) new_concept ∪ form j )

   If similarity(new_concept,  form j ) ≥ threshold

    Put concept i into merged_group.

    break

   end

  end

 end

end

If merged_group.size = 0

 Put new_concept into existing_ontology as new concept.

elsif merged_group.size ≥ 1

 Merge new_concept and all concepts in existing_ontology into one_concept.

 Merge all forms for one_concept.

end

4.1. Prototype System

We use ruby on rails to build the prototype system and deploy it in ubuntu environment with two 2.26 GHz Xeon processor and 4 G of memory. Prototype system includes two main modules: basic components and complete process. We have developed more than ten atomic functions in basic component. Include searching synonym, hypernym, and hyponym based on WordNet; removing stopwords; achieving stem based on [19]; segmenting Chinese Word; calculating tags based on random walk; extracting knowledge tuple based on stanford-core-nlp, XML, and ontology; building ontology in owl format based on knowledge tuples. All these functions have been open with restful API and we list them in Table 2 (detail in http://42.121.104.18:8002/api/api.pdf).

OPEN IN VIEWER

Table 2

Basic components API.

Name	URL	Method	Input	Output
Word segmentation	http://42.121.104.18:8002/elements/show/rmmseg	POST	text	words
Stem	http://42.121.104.18:8002/elements/show/stem	GET	word	stem
Synonym	http://42.121.104.18:8002/elements/show/synonym	GET	word	synonyms
Hypernym	http://42.121.104.18:8002/elements/show/hypernym	GET	word	hypernyms
Hyponym	http://42.121.104.18:8002/elements/show/hyponym	GET	text	hyponyms
Remove stop words	http://42.121.104.18:8002/elements/show/stopword	POST	text	words
XML tuple	http://42.121.104.18:8002/elements/show/xmlTuple	POST	urls	tuples
NLP tuple	http://42.121.104.18:8002/elements/show/nlpTuple	POST	text	tuples
OWL tuple	http://42.121.104.18:8002/elements/show/owlTuple	POST	urls	tuples
OWL packaging	http://42.121.104.18:8002/elements/show/owl	POST	tuples	url

By invoking the APIs in Table 2, we assembled several types of automatic construction processes which adapt to different needs in complete process module. These processes include the upper-ontology-based approach for automatic construction of IOT ontology in this paper (http://42.121.104.18:8002/services/show/two). Users can enter the url of upper ontology, xml, and text in web page; then system will build an ontology by invoking all atomic functions in Section 3.

4.2. Data Sources and Construction Result

We collect data source files which include platform introductions, technical documents, and resource descriptions from six IOT platforms. These files are expressed by text, web page, xml, or json (as a structured document, json can be converted to xml) and we classify the files based on data format and application scenarios in Table 3. The websites of six platforms are listed below the table: Xively, previously Pachube, is a web service which enables users to connect devices into platform and share data; Cloudsensing is our WOT platform; we put in various sensors, controllers, and open data in each layer; Evrythng, Thingspeak, and Yeelink are all IOT applications which store and retrieve data from things using RESTful API. Exosite has a function to generate strategy; we can formulate events and responds which have been triggered by device data in Exosite.

OPEN IN VIEWER

Table 3

Data sources.

Resource	Type	C1	C2	E1	E2	T	Y	Total
Text	Platform introduction	2	1	1	2	1		7
	Technical document	3	1	1	1	1		7
Resource description	Smart home	39	28	12	6	28	23	136
	Smart agriculture	19	2	9				30
	Energy monitor	57		8			13	78
	Air quality	64	23	17	7	12	25	148
	Ocean Observations	13						13
	Weather station	57	6	13		14	7	97

C1: Xively: https://xively.com/, C2: Cloudsensing: http://wot.cloudsensing.cn/

E1: Evrythng: https://dev.evrythng.com/, E2: Exosite: http://exosite.com/

T: Thingspeak: https://www.thingspeak.com/, Y: Yeelink: http://www.yeelink.net/.

The six IOT platforms have a similar IOT platform architecture; open resources in three levels: gateway, device, and data. We collected 14 texts and 502 resource description files from the platforms. In order to get the relations between the number of imported information sources with the IOT ontology, we divide all information sources into five parts and import them into prototype gradually. At the same time, we make the SSN as upper ontology and it will serve as initial ontology for ontology automatic construction, the concepts in SSN describes very general concepts that are the same across one domain; thus, we consider the concepts in SSN as unique (reflect the same concept in different contexts) in IOT domain, and the linguistic similarity will reflect the concept similarity. We can get the relation-table as in Table 4.

OPEN IN VIEWER

Table 4

Number of information sources and ontology.

Stage	Number of information sources		Number of elements in ontology
	Text	Resource description	Concept
1	3	100	1376
2	6	200	2197
3	9	300	2507
4	12	400	2847
5	14	502	3045

Based on Table 4, we can get the conclusions as follows. The number of concepts in ontology is increasing with the number of imported information sources, but the growth rate is reducing gradually. Because of the unceasing expansion of ontology, there are a growing number of concepts in ontology. At the same time, the probability of finding a structure-similar concept in existing ontology with the new concept in tuple is increasing constantly; therefore, the growth rate of concepts is reducing. After importing the 14 texts and 502 resource description files, the IOT ontology contains 3045 concepts totally. These concepts cover general concepts in IOT domain such as “gateway,” “device,” and “observation.” At the same time, they also reflect the features of six IOT platforms, such as “event” and “alert.” We use “device” and “observation” as centre to unfold related parts of ontology with protégé and get the views in Figures 7 and 8.

OPEN IN VIEWER

Figure 7

Construction result (device).

OPEN IN VIEWER

Figure 8

Construction result (observation).

4.3. Ontology Evaluation

In order to evaluate the performance of the construction approach, we investigate the general method of ontology evaluation and define an assessment scheme to estimate the effectiveness of IOT ontology. There are three main approaches to ontology evaluation. (1)

Gold standard evaluation: this approach compares an ontology with another ontology that is deemed to be the benchmark. Typically, this kind of evaluation is applied to an ontology that is generated (semiautomatically or according to a learning algorithm) to assess the effectiveness of the generating process. Maedche and Staab [30] give an example of a gold standard ontology evaluation and they propose ways to empirically measure similarities between ontologies both lexically and conceptually based on the overlap in relations. These measures determine the accuracy of discovered relations generated from their proposed ontology learning system compared with an existing ontology but are not so useful outside the domain of ontology learning because if a known gold standard ontology exists then there is no need to evaluate other ontologies.

Based on the above three types of evaluation methods, we can get conclusions as follows: existing ontologies describe the basic concepts of IOT in a coarse-grained way, but because of the limitations of the artificial construct speed and rapid development of IOT technology, these domain ontologies lack a description for system features and emerging concepts, and they are not suitable for direct use in our specific IOT system. Therefore they cannot support Gold standard evaluation as the Gold standard; the IOT ontology which we build contains thousands of concepts and relationships; it is too onerous for manual evaluation. And our IOT system resources are increasing rapidly with the equipments access to our IOT system; the ontology also is expanding continually. We need an automated ontology evaluation method to evaluate the existing ontology in real time; thus, criteria-based evaluation is not suitable for our assessment program; ontology can be used in many IOT scenes such as heterogeneous resource search and service development, and ontology-based semantic search is the basic task of various scenes; therefore, we can use the semantic search as the task for task-based evaluation, making precision and recall as the evaluation index, and achieving the automatic ontology evaluation. We built the task-based evaluation architecture in Figure 9. Evaluation architecture mainly contains the following three steps: importing a keyword from xml file which is to be searched, carrying out semantic expansion in IOT ontology based on the keyword, and calculating the precision and recall between semantic expansion concepts and all vocabularies in xml file which is to be searched.

OPEN IN VIEWER

Figure 9

Architecture of task-based evaluation.

(1)

In the first step, we choose the resource description files as the object to be searched. Resource description is a kind of structured xml document, widespread in the IOT systems, and is used to describe various types of open resource. The resources search in IOT systems are performed for resource description files, thus making resource description as the searched files that will conform to the IOT scene. We select 1~3 words from resource description to simulate the user's search input and put them into second step. At the same time, all vocabulary set in resource description will be imported into third step as an ontology evaluation input.

(2)

In the second step, we achieve several concepts in the ontology which are corresponding to the keywords in first step, and then get their parent-child concepts as semantic expand set. Then we make the semantic expand set as an input and import it into third step.

(3)

In the third step, we evaluate the ontology based on all vocabulary set in resource description ( G w ) and semantic expand set ( G c ) and get the precision and recall index. Consider

Precision = G w ∩ G c ( G w ∩ G c ) ∪ ( G c - G w ) , Recall = G w ∩ G c ( G w ∩ G c ) ∪ ( G w - G c ) .

(4)

In order to compare the ontology-based semantic search effects with different ontologies, we construct a contrastive ontology with traditional methods. We used the information sources in Table 3 to ensure knowledge consistency. Then we use the natural language processing algorithms to extracted triple tuples from information sources. Through merge synonyms in tuples with the linguistic similarity of vocabularies, we get the connected contrastive ontology.

We randomly select 100 resource description files from information sources and make them as searching objects. According to statistical analysis with google, the situation which users enter 1~4 keywords to search an object cover more than 95%. Therefore, we will randomly select 1~3 keywords in each resource description and import the keywords into our ontology and contrastive ontology. Through getting the parent-child concepts within 3 jump and direct properties with keywords in ontologies, we can get two semantic expand sets as G w 1 (our ontology) and G w 2 (contrastive ontology). Then we collect all vocabularies in one resource description as G w and calculate the precision and recall based on formula (4). We divide the evaluation table based on the number of keywords and two ontologies, calculate the average values of 100 resource descriptions, and get precision-recall in Table 5.

OPEN IN VIEWER

Table 5

Precision and recall.

Keywords	Precision		Recall
	Our ontology	Contrastive ontology	Our ontology	Contrastive ontology
1	87.43%	76.52%	34.43%	41.37%
2	87.36%	76.29%	54.36%	55.29%
3	87.18%	76.78%	70.29%	70.54%
4	87.74%	76.32%	78.73%	78.83%

Based on Table 5, we can get the conclusions as follows. Using the same ontology, precision remains unchanged as the keywords increase. The precision of our ontology is 11% higher than the contrastive ontology's. With the same ontology, recall is increasing with the number of keywords, but the growth rate is reducing gradually. With the same number of keywords, the recalls of two ontologies are the same. In the aspect of precision, because of the contrastive group using triple tuples and linguistic similarity to construct the ontology, some concepts inherited irrelevant upper concepts. We use a couple of tuples as example: device-has-name-is-sensor and location-has-name-is-china, if we use the way of triple tuples, we can get device-has-name, name-is-sensor, location-has-name, and name-is-china. After merging the concept “name” based on linguistics, the “sensor” will inherit “device” and “location”; this will cause the decline in precision; in the aspect of recall, with the increasing of keywords’ number, we can get more parent-child concepts within 3 jump and direct properties in ontology; thus, the recall is increasing. At the same time, with the increasing of keywords’ number, it is more possible to have an intersection between concept sets with different keywords. We reveal this situation in Figure 10; red point represents the keyword and blue point represents the relevant concept in ontology; because of the intersection between sets, the number of blue points does not have a linear growth with red point. Therefore the growth rate is reducing gradually.

OPEN IN VIEWER

Figure 10

Architecture of task-based evaluation.
