A Genetic-Algorithm-Based Approach for Task Migration in Pervasive Clouds

Abstract

Pervasive computing is converging with cloud computing which becomes pervasive cloud computing as an emerging computing paradigm. Users can run their applications or tasks in pervasive cloud environment in order to gain better execution efficiency and performance leveraging powerful computing and storage capacities of pervasive clouds through task migration. During task migration, there are possibly a number of conflicting objectives to be considered when making migration decisions, such as less energy consumption and quick response, in order to find an optimal migration path. In this paper, we propose a genetic algorithms- (GAs-) based approach which is effective in addressing multiobjective optimization problems. We have performed some preliminary evaluations of the proposed approach which shows quite promising results, using one of the classical genetic algorithms. The conclusion is that GAs can be used for decision making in task migrations in pervasive clouds.

1. Introduction

Pervasive cloud computing is a converged computing paradigm, by leveraging powerful computing and storage capacities of cloud computing [1]. In order to realize the pervasive cloud computing functionalities to improve the processing and storage capabilities of small devices, task migration [2] is an important feature of pervasive clouds which migrates computing intensive tasks or high-volume-storage-demanding tasks to backend powerful nodes.

There are a number of task migration solutions proposed so far [3], such as OSGi-PC proposed in [4, 5] and CloneCloud [6]. These approaches focus on different aspects of application execution in pervasive cloud environments, including resource and service discovery mechanism, and application partition and tasks migration. But none of these proposed solutions provide a good solution for decision making on task migration in pervasive clouds. These solutions could not provide a scalable approach for obtaining optimal migration paths while tasks migrate, especially in a possibly large problem space like a smart transportation management application.

Genetic algorithms are one of the most successful computational intelligence branch, which can potentially work for a large-scale multiobjective optimization problems. Therefore, in this paper we propose a genetic algorithms-based approach for task migration in pervasive clouds which can be used to make decisions on how to assign tasks to cloud nodes. We have performed some preliminary evaluations to our approach in terms of performance and made comparison with some other decision making strategies.

The remainder of the paper is organized as follows. We introduce task migration in pervasive clouds and the design of our GAs-based approach in Section 2. Next, Section 3 presents how genetic algorithms are used in decision making for task migration problem. Section 4 evaluates the implementation that shows our approach can perform acceptably. Related work is described in Section 5. Section 6 concludes the paper and outlines the future work.

2. Task Migration and Design of GAs-Based Approach

2.1. Task Migration Overview

Tasks may need resources that are not available to them in their current location. Task migration in pervasive clouds is to reallocate these tasks to resource-rich computing nodes in the cloud environment before their execution. During the execution period, it may adjust running nodes of some tasks according to tasks’ execution contexts. In task migration, one user application may be divided into some tasks following certain rules, so that the complex application can be executed in a distributed way. In order to ensure that the tasks can be executed correctly, task migration involves status, data and file transmission, and returning execution results back.

A further reason for migration may be that less power is used in mobile devices if tasks are offloaded. Although mobile device is becoming more powerful, the resource demanding surpasses this trend, for example, computing and resources of intensive applications including rich media applications such as photo and video editing and synthesis, scene recognition, object recognition, and image search [7]. This makes mobile applications becoming more and more complicated [8, 9], which requires enhancing user experiences and response time utilizing backend powerful devices.

2.2. Choosing Cloud Simulation Platform

Real pervasive clouds environment and tasks execution in it are very complex. Alternatively, we choose a simulation tool CloudSim [10] which makes it possible to evaluate migration strategies prior to software development. CloudSim is a generalized and extensible framework that enables seamless modeling, simulation, and experimentation of emerging Cloud computing infrastructures and application services. CloudSim framework models computing entities, cloud services, user tasks, and user tasks’ executions are simulated by CloudSim.

Using CloudSim to do simulation, we focus on tasks’ execution and obtain test data without taking into account low level details related to cloud-based infrastructures and services. There are certain computing nodes-VMs and user tasks-Cloudlets. After specific simulations, we can obtain each task's running time on all of the VMs.

2.3. Genetic Algorithms and GA Frameworks

Genetic algorithms [11] are used to obtain optimized solutions from a number of candidate solutions. GAs are inspired by evolutionary theory: weak and unfit species are faced with extinction by natural selection, and the strong ones have greater opportunity to pass their genes to future generations via reproduction [12]. Compared with other classic or optimization methods, GAs have it specific advantages in terms of its broad applicability, ease of use, and global perspective [13]. They are particularly useful to for single-objective and multiobjective problems which are difficult or impossible to get an exact solution [14]. So we choose it as our decision making algorithm.

In GA terminology, a solution is called an individual or a chromosome. A chromosome corresponds to a unique solution in the solution space. GAs operate with a collection of chromosomes, called a population, and use two operators to generate new solutions from existing ones: crossover and mutation. There are many GAs proposed, such as NSGA-II [15] and MOCell [16].

In our implemetation, we choose to use Java based GA frameworks. There are some popular implementations, such as JGap [17, 18], ECJ [19] and JMetal [20]. When compared with JMetal's counter-parts, the design of JMetal has a good separation of concerns in terms of its easiness for applying different GAs after a problem is abstracted. Therefore, JMetal is chosen as the GA framework in our approach.

The overall decision-making process is as follows: firstly CloudSim is used to model the computing nodes of the testing cloud environment and user tasks. Then some simulations are conducted to collect tasks execution information, which is the time array which shows all the time taken by each task run on all VMs. And then this time information is used in JMetal where GAs will give optimized solutions for task allocation. Figure 1 shows the overall design process, and the working flow of GAs-based decision making for task migration is shown in Figure 2.

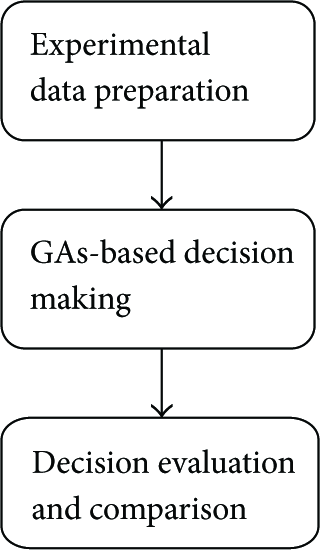

Figure 1

Overall process design of GAs-based approach.

Figure 2

Flow diagram of decision making for task migration.

In the following section we will describe how the GAs-based approach finds optimized solutions to the task migration problem. The definition of task migration problem with GAs and the algorithm execution process are explained. And we will also discuss another two decision making policies used for task assignment.

3. GAs-Based Approach Implementation

3.1. Task Migration Scenario

Suppose we have the following hypothetical scenario: there are 28 user tasks and 12 computing devices which have specific processing ability. This will be considered as one of the examples which is discussed in detail in this paper. Considering the features of CloudSim, user tasks are modeled as cloudlets and computing devices are a series of VMs which belong to specific hosts in the cloud. We assumed there are two hosts and the former 6 VMs are allocated in Host1 and the others are in Host2 which has more powerful process capability and stable network. Cloudlet characteristics include the length of the instruction set which is related to computing process time and input files’ size and output files’ size which have effect on data transfer time. VM characteristics are MIPS (million instructions per second) which describe its process speed, the number of CPUs, and the bandwidth which are related to communicate speed, RAM, VM size, and so on. Cloudlet characteristics, VM characteristics, and the network environment, the three factors, determine the initial total execution time of tasks in one VM together.

To test our decision making approach, we assume task characteristics and VM characteristics as shown in Tables 1 and 2. In Table 1, “CloudletID” is the identification of the cloudlet while “CLengt” is how many instructions in the cloudlet, “CISize” and “COSize,” are the size of input and output files for this cloudlet. In Table 2, “HostID” shows which host the vm is allocated. We can find how many million instructions in one second the vm can process with the “Mips” and “PesN” is the cpu number and “Size” indicates the size of the virtual machine.

Table 1

Cloudlets characteristics.

CID	CLen	CISize	COSize	CID	CLen	CISize	COSize
0	1000	1000	1000	14	5000	1000	1000
1	1000	1000	2000	15	5010	1000	1000
2	1000	1000	3000	16	5010	1010	1000
3	1000	1000	10000	17	5010	1010	1010
4	1000	2000	1000	18	5000	1010	1010
5	1000	4000	1000	19	10000	1000	1000
6	1000	6000	1000	20	10000	1000	2000
7	1000	2000	2000	21	10000	1000	5000
8	1000	4000	4000	22	10000	5000	5000
9	2000	1000	1000	23	10100	2000	2000
10	2000	2000	2000	24	100000	100	100
11	2000	1000	1000	25	100000	1000	100
12	2000	2000	2000	26	100000	100	1000
13	5000	100	100	27	100000	1000	1000

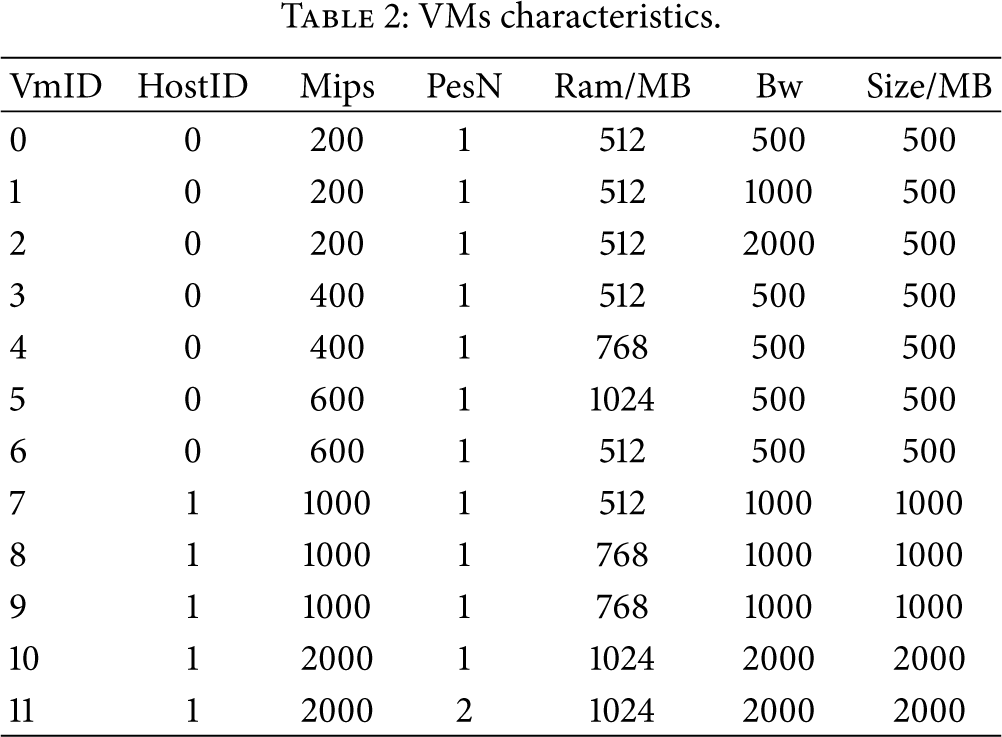

Table 2

VMs characteristics.

VmID	HostID	Mips	PesN	Ram/MB	Bw	Size/MB
0	0	200	1	512	500	500
1	0	200	1	512	1000	500
2	0	200	1	512	2000	500
3	0	400	1	512	500	500
4	0	400	1	768	500	500
5	0	600	1	1024	500	500
6	0	600	1	512	500	500
7	1	1000	1	512	1000	1000
8	1	1000	1	768	1000	1000
9	1	1000	1	768	1000	1000
10	1	2000	1	1024	2000	2000
11	1	2000	2	1024	2000	2000

Table 3 shows the two hosts information, in which “HostID” is the ID number identifying a specific host. “Datacenter” means which data center the host belongs to, and there are only one data center “HostDatacenter” we created. “Bw” stands for the bandwidth characteristic of the host. “Pes” is how many CPUs the host has and “Mips” is the total process capability.

Table 3

Hosts characteristics.

HostID	0	1
Datacenter	HostDatacenter	HostDatacenter
RAM/MB	32768	2048
Storage	1000000	100000
Bw	10000	10000
PeS	2	1
Mips	1000000	100000

As illustrated previously, we have 28 cloudlets and 12 VMs. For each cloudlet, it can be allocated to any of the 12 VMs. So there will be $1 2^{28}$ allocation schemes. And our goal for task migration is to choose the best allocation scheme from all of the possible schemes using GAs. Before we make this decision, we must know whether this cloudlet can be executed in the VM, if it can, how long it will take to finish this cloudlet, how many resources it will consume, and how much the energy consumption is. At present, we choose one important factor of execution performance: the time cost as a decision indicator. We simulate the execution of all the cloudlets in each VM of the 12 VMs. Then we get a two-dimensional time array which is shown in Table 4.

Table 4

Cloudlet to VM execution time.

time	vmid
time	0	1	2	3	4	5	6	7	8	9	10	11
cid
0	5.4	5.2	5.1	2.9	2.9	2.07	2.07	1.2	1.2	1.2	0.6	0.6
1	5.6	5.3	5.15	3.1	3.1	2.27	2.27	1.3	1.3	1.3	0.65	0.65
2	5.8	5.4	5.2	3.3	3.3	2.47	2.47	1.4	1.4	1.4	0.7	0.7
3	7.2	6.1	5.55	4.7	4.7	3.87	3.87	2.1	2.1	2.1	1.05	1.05
4	5.6	5.3	5.15	3.1	3.1	2.27	2.27	1.3	1.3	1.3	0.65	0.65
5	6	5.5	5.25	3.5	3.5	2.67	2.67	1.5	1.5	1.5	0.75	0.75
6	6.4	5.7	5.35	3.9	3.9	3.07	3.07	1.7	1.7	1.7	0.85	0.85
7	5.8	5.4	5.2	3.3	3.3	2.47	2.47	1.4	1.4	1.4	0.7	0.7
8	6.6	5.8	5.4	4.1	4.1	3.27	3.27	1.8	1.8	1.8	0.9	0.9
9	10.4	10.2	10.1	5.4	5.4	3.73	3.73	2.2	2.2	2.2	1.1	1.1
10	10.8	10.4	10.2	5.8	5.8	4.13	4.13	2.4	2.4	2.4	1.2	1.2
11	10.4	10.2	10.1	5.4	5.4	3.73	3.73	2.2	2.2	2.2	1.1	1.1
12	10.4	10.2	10.1	5.4	5.4	3.73	3.73	2.2	2.2	2.2	1.1	1.1
13	25.04	25.02	25.01	12.54	12.54	8.37	8.37	5.02	5.02	5.02	2.51	2.51
14	25.4	25.2	25.1	12.9	12.9	8.73	8.73	5.2	5.2	5.2	2.6	2.6
15	25.45	25.25	25.15	12.93	12.93	8.75	8.75	5.21	5.21	5.21	2.6	2.6
16	25.45	25.25	25.15	12.93	12.93	8.75	8.75	5.21	5.21	5.21	2.61	2.61
17	25.45	25.25	25.15	12.93	12.93	8.75	8.75	5.21	5.21	5.21	2.61	2.61
18	25.4	25.2	25.1	12.9	12.9	8.74	8.74	5.2	5.2	5.2	2.6	2.6
19	50.4	50.2	50.1	25.4	25.4	17.07	17.07	10.2	10.2	10.2	5.1	5.1
20	50.6	50.3	50.15	25.6	25.6	17.27	17.27	10.3	10.3	10.3	5.15	5.15
21	51.2	50.6	50.3	26.2	26.2	17.87	17.87	10.6	10.6	10.6	5.3	5.3
22	52	51	50.5	27	27	18.67	18.67	11	11	11	5.5	5.5
23	51.3	50.9	50.7	26.05	26.05	17.63	17.63	10.5	10.5	10.5	5.25	5.25
24	500.04	500.02	500.01	250.04	250.04	166.71	166.71	100.02	100.02	100.02	50.01	50.01
25	500.22	500.11	500.06	250.22	250.22	166.89	166.89	100.11	100.11	100.11	50.05	50.05
26	500.22	500.11	500.06	250.22	250.22	166.89	166.89	100.11	100.11	100.11	50.05	50.05
27	500.22	500.11	500.06	250.22	250.22	166.89	166.89	100.11	100.11	100.11	50.05	50.05

The decision making for task migration aims at getting the best allocation scheme which can make the system have the maximum processing efficiency, so that the cloud system can finish all the tasks with the minimum time consumption, in our case. This process may also involve the optimization for energy consumption, for security and privacy, and even all of them together. This combined optimization work will be done in our future work later on.

3.2. Problem and Optimization Objectives Formulation

In pervasive clouds environment, computing nodes are running in parallel. In other words, all the VMs in CloudSim start in the same time. And then they begin to process the tasks (cloudlets) assigned to themselves. But when more than one cloudlet is assigned to one VM, they will be executed one by one. Another important thing about task execution in pervasive clouds is that there are files transfer between VMs when task migrates which takes time. But when there are more than one cloudlet that are executed in the VM, only the first one's file transfers consume time, because the following file transfer in tasks can be done during the execution of the first cloudlet.

This process needs to calculate the predicted finish time of each VM. The time is the sum of execution time of all tasks assigned to the VM. In other words, it is the finish time of the last task allocated in the vm. For example, for a given VM i, the predicted finish time is $V T_{i} = \sum_{j = 0}^{m} C T_{j i} * E (j, i)$ . The meaning of each symbol in the formula is as follows. (i)

i represents the sequence number of a VM with the scope of $[0 - n]$ .

(ii)

$j \in [0 - m]$ represents the sequence number of a cloudlet.

(iii)

$C T_{j i}$ is the time cloudlet j consumes when running in the VM i calculated by $C T_{j i} = E T_{j i} + (CIS + COS) / B w_{j i}$ . It consists of two parts: execution time in the choosing VM j and data transfer time which are decided by input and output size of the task file and the network bandwidth of the VM.

(iv)

$E (i, j) = 1$ when cloudlet j is assigned to VM i; otherwise, $E (j, i) = 0$ .

If the start time of clouds system is 0, then at time $T = Max V T_{i}$ , the clouds system will finish the execution of all the cloudlets. In the scenario under consideration, $n = 11$ and $m = 27$ .

In order to get optimized solutions as task migration decision, we choose these solutions which have the minimum finishing time T. This is the objective of the task migration problem.

3.3. Chromosome Encoding and Fitness Evaluations

A chromosome corresponds to a unique solution in the solution space. GAs can typically make use of booleans, real numbers, and integers to encode a chromosome [20]. The representation of chromosome in our case is using integer (starting from 0) sharing the idea of [21]. That is to say, we are using a integer vector $V = [V_{0}, V_{1}, \dots, V_{i}, \dots, V_{p - 1}]$ (where p is the number of decision variables, and in our case, it is 28: the number of tasks) to represent a solution. $V_{i}$ is a natural number and acts as a pointer to the sequence of the VM to which the $i_{th}$ cloudlet is assigned. For example, a chromosome $[11,7, 2,7, 4,0, 5,1, 7,11,5, 1,3, 5,4, 4,6, 11, 11,3, 2,4, 4,5, 8,11,10,9]$ represents that a solution chooses the twelfth VM whose sequence number is 11 to execute Cloudlet 0 and chooses the eighth VM for Cloudlet 1, the tenth vm as processing node of the last task, and so on. Based on the chosen allocation strategies, the GAs then decide its fitness using the objective equations as introduced in Section 3.2.

3.4. Testing Environments and Parameter Settings for Evaluations

In our evaluations, JMetal 4.5 is used and the classical GA NSGAII is chosen as a concrete algorithm. Algorithm parameters setting in our implementation includes the maximum evaluations, the cross over probability, and the mutation operator, as shown in Table 5.

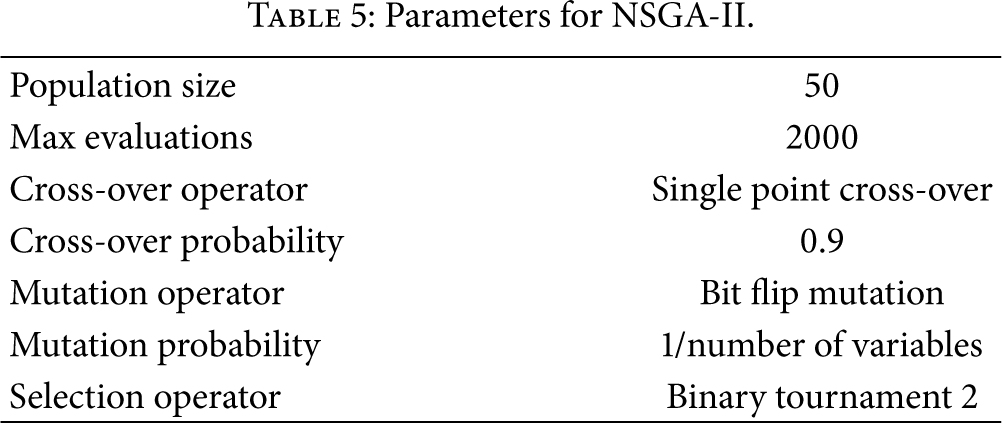

Table 5

Parameters for NSGA-II.

Population size	50
Max evaluations	2000
Cross-over operator	Single point cross-over
Cross-over probability	0.9
Mutation operator	Bit flip mutation
Mutation probability	1/number of variables
Selection operator	Binary tournament 2

As choosing integer chromosome, so Single point cross-over, Bit flip mutation, and Binary tournament2 operators are selected drawing on the experience of [22]. Reference [14] talks about how the operators work to make a change to the chromosome in GAs.

4. Evaluation and Discussion

From Table 4 we can see that time consumption is different for different cloudlets running on the same VM, and the same task takes different time to finish its execution in different VMs. Analysing the execution of tasks in vms, it is clear that the faster the VM is, the less execution time a task takes. The bigger a task (more instructs and bigger files) is, the more time it consumes. And with better network (high bandwidth), the data transfer time is reduced. This is consistent with our theoretical and actual situations.

4.1. Greedy and Simple Policies

In order to compare the performance of NSGA-II with other algorithms, we choose both greedy policy and simple allocation method for comparisons. Greedy policy is an extension to CloudSim and simple allocation method is included in the original CloudSim framework. Simple allocation method is a sequential allocation policy: all tasks are assigned to a group of virtual machine in order. The first task is assigned to the first VM, the second to the second, and so on. When all the virtual machine has been assigned one task, then the second round will start, and we assign next task to the first VM. In greedy policy, a matrix time will be defined to describe execution time for all tasks. Time $[i] [j]$ shows the execution time of task i in VM j. Before initializing the time matrix, firstly we should sort the tasks in descending order according to the instruction set length and sort all the VMs in ascending order according to the processing capacity. From the first task (after sorting), assign it to the last VM (the order is also after sorting). If this is the best option, in other words, task execution is finished with minimized time consumption compared with other assginment, the assignment for this task is finished. If not, choose another VM which can achieve best result to run this task. If more than one of allocation options are the best, allocate the task to the VM who has fewest tasks. This is a very simple load balance.

4.2. Result Evaluation

In order to verify and evaluate each allocation policy, we did simulations in CloudSim. The results are shown in Tables 6, 7, and 8, respectively.

Table 6

NSGAII-based approach.

CID	VMID	Time	STime	FTime

6	10	0.85	0.1	0.95
1	8	1.3	0.1	1.4
11	10	1	0.95	1.95
0	5	2.07	0.1	2.17
7	8	1	1.4	2.4
2	6	2.47	0.1	2.57
4	3	3.1	0.1	3.2
5	5	1.67	2.17	3.83
3	6	1.67	2.57	4.23
14	10	2.5	1.95	4.45
16	9	5.21	0.1	5.31
8	6	1.67	4.23	5.9
13	8	5	2.4	7.4
9	3	5	3.2	8.2
10	6	3.33	5.9	9.23
12	2	10.1	0.1	10.2
17	5	8.35	3.83	12.18
15	3	12.52	8.2	20.72
18	0	25.4	0.1	25.5
19	5	16.67	12.18	28.85
20	5	16.67	28.85	45.52
25	11	50.05	0.1	50.15
27	11	50.16	0.1	50.26
23	1	50.9	0.1	51
24	10	50	4.45	54.45
21	2	50	10.2	60.19
22	5	16.67	45.52	62.18
26	7	100.11	0.1	100.21

Table 7

Greedy policy based approach.

CID	VMID	Time	STime	FTime
23	7	10.5	0.1	10.6
15	3	12.92	0.1	13.02
19	6	17.07	0.1	17.17
20	5	17.27	0.1	17.37
9	3	5	13.02	18.02
21	7	10	10.6	20.6
10	7	2	20.6	22.6
11	3	5	18.02	23.02
12	7	2	22.6	24.6
13	2	25.01	0.1	25.11
14	1	25.2	0.1	25.3
18	0	25.4	0.1	25.5
0	3	2.59	23.02	25.61
1	7	1.01	24.6	25.61
16	6	8.44	17.17	25.61
17	5	8.35	17.37	25.72
2	7	1	25.61	26.61
22	4	27	0.1	27.1
3	6	1.67	25.61	27.28
4	5	1.67	25.72	27.39
5	7	1	26.61	27.61
7	3	2.5	25.61	28.11
8	7	1	27.61	28.61
6	4	2.5	27.1	29.6
24	11	50.01	0.1	50.11
25	10	50.12	0.1	50.22
26	9	100.11	0.1	100.21
27	8	100.22	0.1	100.32

Table 8

Simple allocation method.

CID	VMID	Time	STime	FTime
11	11	1.1	0.1	1.2
10	10	1.21	0.1	1.31
7	7	1.4	0.1	1.5
8	8	1.8	0.1	1.9
9	9	2.2	0.1	2.3
5	5	2.67	0.1	2.77
6	6	3.07	0.1	3.17
4	4	3.18	0.1	3.28
3	3	4.7	0.1	4.8
2	2	5.2	0.1	5.3
1	1	5.3	0.1	5.4
23	11	5.3	0.1	5.4
0	0	5.4	0.1	5.5
22	10	5	1.31	6.31
17	5	8.35	2.77	11.12
19	7	10	1.5	11.5
18	6	8.33	3.17	11.5
20	8	10	1.9	11.9
21	9	10	2.3	12.3
12	0	10	5.5	15.5
16	4	12.52	3.28	15.8
15	3	12.52	4.8	17.32
14	2	25	5.3	30.3
13	1	25.01	5.4	30.41
27	3	250	17.32	267.32
24	0	500	15.5	515.5
26	2	500	30.3	530.3
25	1	500	30.41	530.41

From these three tables, we can find that the scheme obtained from GAs-based approach takes 100.21 time units to finish all of 12 tasks while the other two schemes take 100.32.1 and 530.41 time units. So GAs-based approach can do the best decision and make the system have the fastest execution efficiency. According to the GAs-based scheme, user tasks can be finished as fast as possible and therefore users can have better experience and can be more satisfied.

In order to be more persuasive and trusted, we add another set of tasks which contains 12 cloudlet and another group of vms which consist of 7 VMs as test data as shown in Table 9 and in Table 10. So in total we can have four combinations. Except for the aforementioned scenario discussed in detail (28 cloudlets and 12 VMs), we have another three experiments: experiment one where 28 cloudlets are allocated to 7 VMs, experiment two where 12 cloudlets are allocated to 12 VMs, and experiment three where 12 cloudlets are allocated to 7 VMs. The results with 3 different allocation policies are shown in Table 11. With the total four results, we can see that GA decision can obtain better allocation scheme. This indicates that choosing genetic algorithm as decision making algorithm for task migration is efficient to some extent.

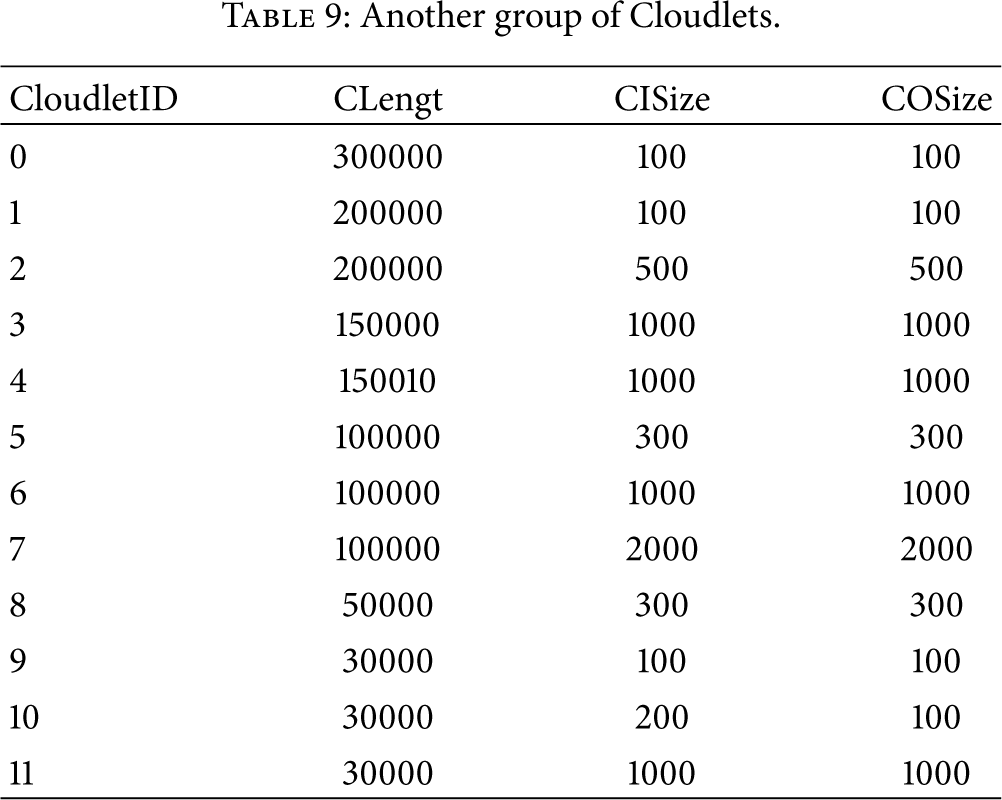

Table 9

Another group of Cloudlets.

CloudletID	CLengt	CISize	COSize
0	300000	100	100
1	200000	100	100
2	200000	500	500
3	150000	1000	1000
4	150010	1000	1000
5	100000	300	300
6	100000	1000	1000
7	100000	2000	2000
8	50000	300	300
9	30000	100	100
10	30000	200	100
11	30000	1000	1000

Table 10

Another group of VMs.

VmID	HostID	Mips	PesN	Ram/MB	Bw	Size/MB
0	0	2000	1	768	1000	1000
1	0	1000	1	512	500	1000
2	0	2000	2	1024	1000	1000
3	0	1500	1	768	500	1000
4	0	2500	1	1024	1000	1000
5	1	1000	1	512	500	1000
6	1	500	1	512	1000	1500
7	1	800	1	512	1000	500

Table 11

Another 3 experiment results.

Combination	Policy
Combination	NSGA-II	Greedy	Simple
28 Cl, 8 Vms	150.5	150.5	230.14
12 Cl, 12 Vms	200.11	200.2	1500.14
12 Cl, 8 Vms	67.17	67.17	108.73

5. Related Work

Task migration is becoming popular with the development of cloud computing. It aims at getting better execution of user applications or tasks. Reference [23] developed an offloading inference engine that can do efficient partitioning of applications. The offloading inference engine dynamically partitions the application, and offload part of the application execution with data to a powerful nearby surrogates. This allows the application to be delivered in a pervasive computing environment without significant fidelity degradation or expensive application rewriting.

MAUI (mobile assistance using infrastructure) [24] is an architecture where mobile program code can be offloaded to powerful infrastructure. MAUI decides at runtime whose methods should be remotely executed, driven by an optimization engine that achieves the best energy savings possible under the mobile device's current connectivity constrains. It uses integer linear programming to do the optimization which may incur quite some overhead as pointed by [24]. Instead the GA-based approach can be quite efficient as evaluated in [22].

CloneCloud [6] is a system automatically migrating mobile applications dynamically to cloud. It uses remote cloud resources and partitions application at thread level to obtain fine granularity and flexibility. The basic idea of CloneCloud is rewriting the program. At runtime, it will choose threads to do migration, the rest will still be executed locally. Integer linear programming is also used to obtain optimization migration paths which may have high performance overhead.

There are also some GAs-based approaches proposed in task scheduling and migration in mobile cloud computing. In [25] the author proposes a new concept “universal mobile service cell” (UMSL) as the abstraction for mobile cloud computing. And then USML is choosen as scheduling unit instead of tasks or processes in order to have high level of abstraction to shield the heterogeneity and distribution of mobile cloud compuying systems. Then GAs are selected to schedule USML cells to the adaptable nodes on the cloud in accordance with adaptable time under transaction logic constraint in order to achieve high efficiency, flexibility, and reliability.

In [26] the author proposed an improved generic algorithm as scheduling algorithm in cloud computing in which Min-Min and Max-Min scheduling methods are merged. The scheduling algorithm is used to get proper and efficient utilization of the resources in system. It also uses CloudSim as a simulator to evaluate the algorithm performance. A genetic algorithm based technique for task level scheduling in Hadoop MapReduce is described and evaluated in [27]. The tasks execution time assigned to certain processors is predicted and then GAs are used to make optimized decision for scheduling the entire group of tasks in the job queue. It aims to get a shorter make span for jobs from a holistic view.

6. Conclusion and Future Work

Decision making for task migration is one of most important issues in pervasive clouds computing. There is scarce reported work providing decision making policies, for example, considering the characteristics of user tasks and cloud environment. In this paper, we proposed a genetic algorithms based approach for obtaining optimized tasks allocation scheme. The optimized solutions can be used to enable effective allocation strategies, and then in the actual running, system can make use of the chosen allocation scheme to execute user tasks. The whole process is evaluated and it was shown that our approach is feasible with acceptable performance. Due to the limitations in CloudSim, currently the evaluation is simplified and in the future the approach will be extended with a real test bed which will be ready soon [5].

Currently we consider task execution time, input, and output data sizes of the tasks and the bandwidth of network, accordingly choose time consumption characteristic of task execution, and make tasks allocation decision on its basis. We are planning to consider other characteristics such as energy consumption, resources requirement in decision making process, and test this approach with our pervasive cloud environment [4, 5]. Pervasive cloud environment is changing continually with time and tasks’ situations are also different during the execution. In the future, we hope to make the decision dynamically according to cloud environment and user tasks’ status with the help of a context-awareness framework.

Footnotes

Conflict of Interests

The authors declare that there is no conflict of interests regarding the publication of this paper.

Acknowledgments

The research in this paper is jointly supported by the National Natural Science Foundation of China (Grant nos. 61309024 and 61402533) and also the Natural Science Foundation of Shandong Province (Grant no. ZR2014FM038), “Key Technologies Development Plan of Qingdao Technical Economic Development Area.” Weishan Zhang has been supported by the start-up funds for “Academic Top-Notch Professors in China University of Petroleum.”

References

Zhang

Hansen

K. M.

Bellavista

A research roadmap for context-awareness-based self-managed systems

Service-Oriented Computing—ICSOC 2012 Workshops 2013 7759

Berlin, Germany

Springer

275 283 Lecture Notes in Computer Science

10.1007/978-3-642-37804-1_28

Gkatzikis

Koutsopoulos

Migrate or not? Exploiting dynamic task migration in mobile cloud computing systems

IEEE Wireless Communications 2013 20 3 24 32

10.1109/MWC.2013.6549280

2-s2.0-84897768409

Kumar

Liu

Y.-H.

Bhargava

A survey of computation offloading for mobile systems

Mobile Networks and Applications 2013 18 1 129 140

10.1007/s11036-012-0368-0

2-s2.0-84878499314

Zhang

Chen

Rao

Zhou

Towards an OSGi based pervasive cloud infrastructure

Proceedings of the IEEE International Conference on Green Computing and Communications and IEEE Internet of Things and IEEE Cyber, Physical and Social Computing (GreenCom-iThings-CPSCom ′13)

August 2013

IEEE

418 425

10.1109/greencom-ithings-cpscom.2013.88

2-s2.0-84893499907

Zhang

Chen

Liu

Zhang

Yang

An OSGi-based flexible and adaptive pervasive cloud infrastructure

Science China Information Sciences 2014 57 3 1 11

10.1007/s11432-014-5070-3

2-s2.0-84897781077

Chun

B.-G.

Ihm

Maniatis

Naik

Patti

CloneCloud: elastic execution between mobile device and cloud

Proceedings of the 6th ACM EuroSys Conference on Computer Systems (EuroSys ′11)

April 2011

ACM

301 314

10.1145/1966445.1966473

2-s2.0-79955951954

Snavely

Seitz

S. M.

Szeliski

Photo tourism: exploring photo collections in 3D

ACM Transactions on Graphics 2006 25 3 835 846

Narayanan

Satyanarayanan

Predictive resource management for wearable computing

Proceedings of the 1st International Conference on Mobile Systems, Applications and Services

May 2003

San Francisco, Calif, USA

ACM

113 128

10.1145/1066116.1189041

Byung-Gon

Maniatis

Augmented smartphone applications through clone cloud execution

Proceedings of the 12th Conference on Hot Topics in Operating Systems (HotOS ′09)

2009

8 11

10.

Calheiros

R. N.

Ranjan

Beloglazov

De Rose

C. A. F.

Buyya

CloudSim: a toolkit for modeling and simulation of cloud computing environments and evaluation of resource provisioning algorithms

Software—Practice and Experience 2011 41 1 23 50

10.1002/spe.995

2-s2.0-78650777991

11.

Mitchell

An Introduction to Genetic Algorithms 1998

MIT Press

12.

Konak

Coit

D. W.

Smith

A. E.

Multi-objective optimization using genetic algorithms: a tutorial

Reliability Engineering & System Safety 2006 91 9 992 1007

10.1016/j.ress.2005.11.018

2-s2.0-33745727034

13.

Deb

An introduction to genetic algorithms

Sadhana 1999 24 4-5 293 315

10.1007/bf02823145

MR1739392

14.

Thede

S. M.

An introduction to genetic algorithms

Journal of Computing Sciences in Colleges 2004 20 1 115 123

15.

Deb

Pratap

Agarwal

Meyarivan

A fast and elitist multiobjective genetic algorithm: Nsga-ii

IEEE Transactions on Evolutionary Computation 2002 6 2 182 197

10.1109/4235.996017

2-s2.0-0036530772

16.

Nebro

A. J.

Durillo

J. J.

Luna

Dorronsoro

Alba

MOCell: a cellular genetic algorithm for multiobjective optimization

International Journal of Intelligent Systems 2009 24 7 726 746

10.1002/int.20358

2-s2.0-67650812323

17.

http://jgap.sourceforge.net/

18.

Chen

D.-Y.

Chuang

T.-R.

Tsai

S.-C.

Jgap: a java-based graph algorithms platform

Software: Practice and Experience 2001 31 7 615 635

10.1002/spe.379

2-s2.0-0035366344

19.

http://cs.gmu.edu/~eclab/projects/ecj/

20.

Durillo

J. J.

Nebro

A. J.

JMetal: a Java framework for multi-objective optimization

Advances in Engineering Software 2011 42 10 760 771

10.1016/j.advengsoft.2011.05.014

2-s2.0-79960890945

21.

Zhang

Schütte

Ingstrup

Hansen

K. M.

A genetic algorithms-based approach for optimized self-protection in a pervasive service middleware

Service-Oriented Computing 2009 5900

Berlin, Germany

Springer

404 419 Lecture Notes in Computer Science

10.1007/978-3-642-10383-4_29

22.

Zhang

Hansen

K. M.

An evaluation of the NSGA-II and MOCell genetic algorithms for self-management planning in a pervasive service middleware

Proceedings of the14th IEEE International Conference on Engineering of Complex Computer Systems (ICECCS ′09)

June 2009

192 201

10.1109/iceccs.2009.17

2-s2.0-70350044881

23.

Nahrstedt

Messer

Greenberg

Milojicic

Adaptive offloading for pervasive computing

IEEE Pervasive Computing 2004 3 3 66 73

10.1109/MPRV.2004.1321031

2-s2.0-4344691349

24.

Cuervoy

Balasubramanian

Cho

D.-K.

Wolman

Saroiu

Chandra

Bahlx

MAUI: making smartphones last longer with code offload

Proceedings of the 8th Annual International Conference on Mobile Systems, Applications and Services (MobiSys ′10)

June 2010

ACM

49 62

10.1145/1814433.1814441

2-s2.0-77954993714

25.

Qingfeng

Xie

Jicheng

Hongchen

Shanshan

An optimized solution for mobile environment using mobile cloud computing

Proceedings of the 5th International Conference on Wireless Communications, Networking and Mobile Computing (WiCOM ′09)

September 2009

IEEE

1 5

10.1109/wicom.2009.5302240

2-s2.0-73149102763

26.

Kumar

Verma

Independent task scheduling in cloud computing by improved genetic algorithm

International Journal of Advanced Research in Computer Science and Software Engineering 2012 2 5 111 114

27.

Wei

GA-based task scheduler for the cloud computing systems

Proceedings of the International Conference on Web Information Systems and Mining (WISM ′10)

October 2010

IEEE

181 186

10.1109/wism.2010.87

2-s2.0-84871490850
