Design and Verification of a High-Precision Wireless Strength Testing Node for Aircraft Structure

Abstract

Wireless sensor network provides a good solution for the state monitoring of large-scale structures. Compared to traditional approaches, it can greatly reduce the amount of devices wiring and the weight of the monitoring system. However, research of aviation structure monitoring application based wireless sensor networks is still in the initiation of the exploration stage. In particular, the developed wireless strain sensor node of WSN cannot be used in aviation structure because of low precision and other problems. In this paper, a high-precision and multichannel wireless strain sensor node of WSN is designed in detail. The wireless strain sensor node is composed of power module, multichannel strain sensing acquisition module, data-processing module, and wireless communication module. In addition, its special design of encapsulation makes it shock-proof and possess anti-interference property. To verify the functionality of the designed wireless sensor node for structural strength testing capability, several evaluation experiments are completed on a test piece of real aircraft. The experimental results show that the developed system has good performance in monitoring structural strain.

1. Introduction

Structural health monitoring plays an important role in various fields such as buildings, long span bridge, and railway. In the aerial domain, even tiny structural damage may lead to unimaginable disaster. Thus, it is particularly important in monitoring aircraft structure. Traditionally, large numbers of wires are adopted in the structural health monitoring systems for aircraft structures to realize communication among sensors and centralized data-processing systems. These wires on specimen structures bring about high installation costs and inefficient maintenance. If there are lots of testing sensors in the monitoring systems, these wires can be cumbersome and time-consuming. Therefore, using wireless sensor network (WSN) in structural health monitoring systems brings about much convenience and many advantages of high efficiency, high precision, low cost, and so on [1–8].

In recent years, WSN has been applied in many engineering fields, ranging from national defense to traffic controls, structural health monitoring, medical treatment and sanitation, and disaster monitoring. Straser and Kiremidjian [9] were the first to describe algorithms for structural health monitoring using wireless sensors network. Yin and Zhong [10] proposed a method to monitor vibration of rotating machines in power station based on WSNs. Hou and Bergmann [11] described an effective wireless sensing system to judge equipment failure. Shi et al. [12] developed an intelligent monitoring system for aquaculture using wireless sensor network based on 2.4 GHz frequency band. López-Higuera et al. [13] developed a staircase of structural health monitoring, where the higher the level, the higher the complexity and functionality. Liu et al. [14] presented distributed sensing for high-quality structural health monitoring adopting WSNs. However, there has been rarely similar research related to WSN designed for aviation structure, especially the aircraft strength testing applications. Arms et al. [15–17] produced similar wireless sensor nodes to measure micro strain for strength testing, but they are not designed for aircraft structure specially and the precision, signal channel, and other performances cannot meet the requirements of aircraft strength testing applications.

To realize aircraft strength testing applications, this paper proposed an optimized wireless strain sensor node with higher precision, multiple channels, and programmable amplifying function, which support 28 V aircraft power supply simultaneously. The wireless strain sensor node is composed of multichannel strain sensing module, digital processing module, wireless communication module, and power module. Each of the modules is designed in detail including corresponding theory, schematic, and analysis of design. To verify the functionality of the designed wireless strain sensor node for aircraft strength testing applications, a multipoint distribution testing system is developed for static tests of a real aircraft structure and several experiments to prove anti-interference are designed. The experimental results prove the effectiveness and practicability of the wireless strain sensor node.

2. Analysis of Main Challenges of the Proposed System

This paper proposed a more efficient system to realize aircraft strength test. The WSN makes the strength test more convenient and time-saving compared to traditional strength test with wire. The specially designed 28 V power supply can be provided by the aviation power handily and the optimized design supports hundreds of nodes working simultaneously, which is available for large-scale structural strength testing. Compared to the previous research [17], it is an optimized system with the following advantages: (1)

It supports 28 V aircraft power supply.

(2)

The accuracy of strain test is less than 0.2%.

Structure strain changes under different testing loads are the main testing parameter in the fatigue and static tests. Because these testing results are used to evaluate the mechanical properties of the aircraft structure, the wireless strain sensor node should have sufficient precision for strain measurement.

(3)

The maximum range of the strain test is −5000 με~5000 με, and the SPC (stored program control) is multistage adjustable.

The purpose of aircraft structural strength test is to determine the structural stiffness, stability, and maximum load. Therefore, the measuring span of the designed node should be large enough. The multistage adjustable SPC expands the measuring range and raises the accuracy simultaneously.

(4)

Each node contains at least four strain sensor channels.

For large-scale specimens or full-scale testing, the number of testing sensors could reach several hundred; therefore, every sensor node should be designed with multisensor input channels to reduce the node number; thus, the total cost of the network is reduced.

(5)

The interface of strain gauge should be simple and easy to use and support the communication standard IEEE 802.15.4 [18,19].

(6)

The integrated shell packaging design has antivibration and anti-interference property.

Those testing nodes are arranged on the plane when the plane is still in the airport before it takes off or after it lands to make structural inspection. So, the testing period is in a controlled, open environment, and there may be much electromagnetic interference from the cellphone, large power-consuming equipment, and so on, and the nodes may be arranged on vibratory airplane position; therefore, anti-EMI and shock-proof design is very important.

In addition, the node needs to meet the requirements of small size and low cost.

In response to these requirements, the hardware platform of the wireless strain sensor node designed in this paper consists of multichannel strain sensing module, digital processing module, wireless communication module, and power module. Figure1 shows the block diagram of the node. The multichannel strain sensing module is responsible for sensing, amplifying, and filtering the strain signal of the sensing structure. The analog signal is converted into digital signal in the digital processing module. The wireless communication module realizes data transmission with base station or relay node. The power module is used for providing energy for each part of the circuit nodes.

Figure 1

The overall design diagram of wireless strain sensor node.

3. Design of the Power Module in the Aircraft Application

Due to the system presented in this paper mainly being applied in the aircraft structure strength test, 28 V external power supply is easier to obtain as aviation power. Therefore, the wireless strain sensor node must be able to be supplied with 28 V power voltage directly. However, the core chips of the digital processing module and wireless communication module in the node are chosen as low cost and low power consumption chips with 3.3 V supply power. As a consequence, a power management solution to make sure the system works reliably and stably is needed.

Since the power management chip LDO is superior to other methods with low noise and high stability, it guarantees the strain measurement precision of the node. Therefore, the LDO chip is adopted to realize the voltage conversion. The multichannel strain sensing module, digital processing module, and wireless communication module draw 150 mA of current while working and the LDO chip transforms the 28 V supply voltage to 3 V. According to the working principle of LDO chip, 3.705 W heat energy will be produced in the LDO. As a result, heat dissipation of power needs to be considered in order to ensure the normal operation of the node. Because two cascaded LDO chips can reduce the requirement of heat-sinking capacity of each LDO chip, this paper adopted this method to complete voltage conversion.

By comparing the performance parameters, heat capacity, prices, and market supply volume of different LDO chips, the MC7809 of U.S. ON Company is finally chosen as the first-stage LDO chip and the REG102-3.3 of U.S. TI Company as the second-stage LDO chip. Figure2 shows the schematic circuit diagram of the power module.

Figure 2

The schematic circuit diagram of power module.

4. Design of High-Precision and Multichannel Strain Sensing Module

4.1. Selection of the Strain Bridge

As one kind of resistive sensor, strain gauge changes a little when it is in response to the change of structural strain. The corresponding resistance variation is usually less than 1% of the nominal resistance. Therefore, it is important to measure a slight variation accurately in the resistance when using the strain gauge.

As shown in Figure3, one way to measure resistance variation is to apply constant current on the strain gauge and measure the change of its output voltage value. Hence, resistance variation of strain gauge is indicated by change of voltage. It shows that a precision current source and a method of precise measurement of voltage are required.

Figure 3

Use of constant current to measure resistance.

At the same time, the bridge provides a good way to measure tiny change of resistance accurately. Figure4 demonstrates a basic Wheatstone bridge. It is composed of four connected resistors, an excitation power supply $V_{B}$ , and voltmeter $V_{O}$ . The voltmeter is adopted to measure the difference of the output voltage of two resistor dividers which is connected astride the excitation power [20].

Figure 4

Wheatstone bridge.

In the application of the strain bridge, there may be a single gauge or two or four strain gauges. Figure5 shows four common strain bridges and the corresponding equations of the output voltage of bridge, excitation voltage, and resistance value of strain gauge. $V_{B}$ is a constant excitation voltage and R is a resistance whose value is equal to the nominal value of the strain gauge resistance. In particular, because the output of bridge is proportional to $V_{B}$ , its measurement precision will not exceed the accuracy of excitation voltage.

Figure 5

Four common strain bridges and the corresponding output voltage of bridge.

As shown in Figure5, the resistance value of fixed resistances R and the nominal value of strain gauge are equal, while the strain gauge changes with $Δ R$ when in response to variation of structure. When two or four strain gauges are used in the bridge, the output voltage is few times the output with one single strain gauge in the bridge. However, application of two or four strain gauges in the structural strength test is infrequent, because it is difficult to realize installation on the complex structures.

In summary, according to the analysis above and experience of the existing structure strength test, this paper adopted single strain gauge in the bridge in the wireless strain sensor node.

4.2. Design of Strain Sensor Conditioning Channel and the Ratiometric Technique

4.2.1. Design of Strain Sensor Conditioning Channel

The main purpose of the strain sensor conditioning channel is to amplify and filter the micro output signal of the strain bridge. Figure6 shows the typical diagram of the strain sensor conditioning channel.

Figure 6

The typical diagram of the strain sensor conditioning channel.

The purpose of the preamp is to amplify the tiny strain signal to make it suitable for A/D conversion. The low-pass filter is used to filter noise out, as there are various high-frequency electromagnetic noise and power-frequency noise in the test site and these noises will affect the accuracy of measurement. In addition, the second function of the filter is used as antialiasing filter. According to Nyquist sampling theorem, sampled signal must be bandwidth-limited before being transmitted into AD converter, and its highest frequency must not exceed half of the sampling frequency of ADC.

Particularly, the amplifier must be placed before the low-pass filter in the strain sensor conditioning channel. The RC active filter is adopted as the low-pass filter in order to reduce the volume of the node and resistance element is the main source of circuit noise. In consequence, if the amplifier is placed behind the filter, output SNR (Signal-to-Noise Ratio) of the node will be reduced [21].

4.2.2. The Ratiometric Method for High-Precision Measurement

Section4.1 indicates that measurement precision of strain bridge is less than accuracy of excitation voltage because the output signal of bridge is proportional to the excitation voltage. In the circuit design, the voltage references can provide reference voltage with 0.05% precision, such as ADR3433 of the ADI Company. However, the maximum output current is 10 mA and it cannot meet the requirements of the supply current in the strain bridge. The maximum output current of LDO power management chip is usually larger, such as REG102-3.3 of the U.S. TI Company with maximum output current of 250 mA, but its maximum precision of output voltage is limited. Therefore, LDO power management chip cannot meet the accuracy requirements designed in this paper obviously.

The ratiometric method provides a good solution to implement high-precision measurement of the strain bridge. The schematic diagram of ratiometric technique is indicated in Figure7. Formulas (1) and (2) show the relationship of structural strain and output voltage of the bridge structure measured ratiometric technique. Assume that the resolution of ADC is 12, the digital output voltage of ADC is x, and K is the sensitivity ratio of strain gauge. Hence,

\begin{matrix} \frac{x}{4096} = \frac{V_{O}}{V_{B}} = \frac{(V_{B} / 4) (Δ R / (R + Δ R / 2))}{V_{B}} = \frac{1}{4} (\frac{Δ R}{R + Δ R / 2}), \end{matrix}

(1)

\begin{matrix} x = 1024 (\frac{Δ R}{R + Δ R / 2}) \approx 1024 K ε . \end{matrix}

(2)

Figure 7

The schematic diagram of ratiometric method.

As shown in Figure7 and formula (2), the output digital voltage of the ADC has nothing to do with the excitation voltage of the bridge finally by adopting the ratiometric technique.

4.3. Driver of the Strain Bridge and the “Three-Wire” Connection Method

Although the wireless strain sensor node is disposed near the measured structure in the strength test, the wiring resistance in the strain gauge exists inevitably. The wiring resistance and its appendant noise are a key problem in strain bridge application. As shown in Figure8 of “two-wire” bridge, a 350 Ω strain gauge is connected to other parts of the strain bridge by twisted-pair copper wire of 1000 ft (1 ft = 0.3048 m). The resistance of the wire is 0.105 Ω/ft at 25°C. Therefore, resistance of the twisted-pair copper wire is 21 Ω. The temperature coefficient of the copper wire is 0.385%/°C. Gain of the bridge and the offset error can be calculated when the temperature increases by 10°C (as shown in Figure8, the value in bracket is the actual value of corresponding parameters at 35°C).

Figure 8

The error analysis of wire resistance in “two-wire” strain bridge.

As shown in Figure8, the 21 Ω resistance $R_{c o m p}$ is used to compensate the wire resistance $R_{L E A D}$ and balance the bridge. If there is no $R_{c o m p}$ , output offset voltage of 145.63 mV would be produced in the bridge.

If the full-scale variation of the strain gauge resistance with nominal resistance 350 Ω is 1% (3.5 Ω), the strain gauge resistance will be 353.5 Ω, which makes change of output voltage in bridge be ±23.45 mV.

When temperature increases to 35°C, variation of total wire resistance caused by change of temperature is 0.808 Ω (10.5 Ω × 0.00385 × 10°C × 2). Due to incremental wire resistance, the bridge will produce offset voltage of +5.44 mV with no change of strain and +28.83 mV offset voltage when full-scale strain change exists. Therefore, owing to the increased temperature, error of the offset voltage is +5.44 mV (+23% of full-scale output voltage), and the gain error is 28.83 mV − 5.44 mV − 23.45 mV = −0.06 mV (−0.26% of full-scale output voltage).

Figure9 indicates the “three-wire” bridge which can reduce impact on the output of the strain bridge produced by the wire resistance to the minimum. Assume that output voltage of the strain bridge is measured by a high-impedance resistance. As a result, there is no current in the guide line. When the strain resistance increases to full-scale value (353.5 Ω), variation of output voltage in the bridge is +24.15 mV.

Figure 9

The error analysis of wire resistance in “three-wire” strain bridge.

When the temperature increases to 35°C, the two $R_{L E A D}$ in the bridge will increase by 0.404 Ω. Due to the tiny loss of the sensitivity, the full-scale output voltage of the bridge decreased to +24.13 mV. However, there is no offset error. Therefore, gain error of the three-wire strain bridge is 0.02 mV (−0.08% of the full-scale voltage) and the full-scale offset error is 0 mV when temperature increases by 10°C.

By comparison and analysis of the two bridges, it is easy to conclude that the three-wire system can reduce the measuring error well which is caused by the wire resistance of the bridge. In consequence, the “three-wire” strain bridge is adopted in the designed node in this paper.

4.4. Design of the Preamp Module

The maximum range of the multichannel strain sensing module designed in this paper requires to be −5000 με~5000 με and the multistage SPC (stored program control) is adjustable. In addition, the strain measuring accuracy needs to be less than 0.2%. When the bridge excitation voltage is 3.3 V, the fixed resistors and strain gauge are chosen to be 120 Ω, and the sensitivity coefficient of strain gauge is 2, the full-scale output voltage of the strain bridge will be 16.5 mV (−8.25 mV~8.25 mV). Such a small signal is easy to be covered up by electromagnetic noises. Therefore, in order to ensure the accuracy of the strain measurement, a precise preamplifier with low noise needs to be set after the output side of the bridge to realize output signal amplification. Meanwhile, after amplifying and filtering, the signal is converted to digital signal by the core chip of digital processing module, MSP430F1611. However, both the maximum reference voltage of the AD converter and the maximum input voltage of the sample conversion channel are 3.3 V. To make full use of range of AD converter and improve the measurement precision, amplification of the preamplifier is required to be program-controlled and adjustable.

Since integrated instrument amplifier is able to keep high accuracy of DC (direct-current) and high precision of gain in the noisy environment and condition of large common-mode signal, it is often used as preamplification of string-gauge bridge.

By comparison, AD8555 produced by the U.S. ADI Company is finally chosen. AD855 is a high-precision programmable instrumentation amplifier, including three programmable operational amplifiers and one output bias voltage DAC. It can set different magnification times and output bias voltage by different command word. Analysis of the importing error of AD8555 is as follows. Assume that value of strain gauge resistance is 120 Ω, its sensitivity is 2, excitation voltage of the bridge is 3.3 V, strain measurement range is −5000 με~5000 με, and the corresponding full-scale output voltage is 16.5 mV. Figure10 indicates the connection of bridge and instrumentation amplifier: (i)

Offset voltage: $2 μ V \div 16500 μ V = 121 p p m$ .

(ii)

Input offset current: $120 Ω \times 200 p A \div 16500 μ V = 1.5 p p m$ .

(iii)

Gain error: $0.5 % = 5000 p p m$ .

(iv)

Nonlinearity of gain: $20 p p m$ .

(v)

Common-mode error: $1.8 p p m \times 1.65 V \div 16500 μ V = 180 p p m$ .

(vi)

0.1~10 Hz 1/f noise: $1.5 μ V \div 16500 μ V = 91 p p m$ .

(vii)

All the error: 121 ppm + 1.5 ppm + 5000 ppm + 20 ppm + 180 ppm + 91 ppm = 5413.5 ppm.

(viii)

Resolution error: nonlinearity of gain +0.1~10 Hz 1/f noise = 20 ppm + 91 ppm = 121 ppm = 0.0121%.

Figure 10

Connection of the strain bridge and instrumentation amplifier.

From the analysis, a conclusion is obtained where AD8555 instrumentation amplifier is able to ensure that the wireless strain sensor node achieves goal of 0.2% measurement accuracy after calibration. Therefore, AD8555 is finally adopted as the preamplifier.

4.5. Design of the Low-Pass Filter

The second-order voltage-controlled voltage source low-pass filter circuit is selected as low-pass filter module. Figure11 shows the circuit diagram. As shown in the figure, it is made up of a second-order RC low-pass filtering circuit and a noninverting amplifier, and the voltage gain of noninverting amplifier is the passband voltage of low-pass filter. The low-pass filter is characterized by high input impedance, low output impedance, flat amplitude-frequency response curves in the passband, and rapidly declining amplitude-frequency response curves within the stop band.

Figure 11

The low-pass filter circuit of the second-order voltage-controlled voltage source.

Transfer function of the low-pass filter circuit is as follows:

\begin{matrix} A (s) = \frac{A_{V F}}{1 + (3 - A_{V F}) s C R + {(s C R)}^{2}}, \end{matrix}

(3)

where

A_{V F}

is the passband gain of the low-pass filter:

A_{V F} = 1 + R_{F} / R_{I}

The cut-off frequency of the low-pass filter is $ω_{n} = 1 / R C$ , and the quality factor is $Q = 1 / (3 - A_{V F})$ . As the strain signal is a quasi-static signal and the power frequency needs to be filtered, the cut-off frequency is designed as 10 Hz and the corresponding $R = 150$ k, $C = 0.1$ μF. Meanwhile, in order to ensure that gain of the low-pass filter decreases monotonously when frequency is greater than the cut-off frequency, the quality factor is selected to be $Q = 1 / 2$ , and $R_{F} = 0$ , $R_{I} = \infty$ . Besides, the low-noise operational amplifier OPA376 of TI Company is adopted as the operational amplifier.

5. Digital Processing, Wireless Communication, and Anti-EMI Packaging Module Design

5.1. Design of Digital Processing Module and Wireless Communication Module

In particular, the design of digital processing and wireless communication module takes the TelosB wireless sensor network node designed by University of California, Berkeley, as prototype in this paper. An MSP430F1611 microcontroller is adopted as core chip in the digital processing module and a CC2420RF chip is chosen in the wireless communication module as core [22]. The structure diagram is shown in Figure12.

Figure 12

The structure diagram of digital processing module and wireless communication module.

CC2420 is produced by Chipcon Company I²Co to realize ZigBee application as a RF transceiver. It has the characteristics of high integration, low voltage, low power consumption, and low cost. It supports the IEEE802.15.4/ZigBee protocol in the 2.4 GHz frequency band and is able to realize robust communication with data rate of 250 kbps [23]. The integrated DC voltage regulator in CC2420 converts the 2.1 V~3.8 V voltage to 1.8 V voltage. As a result, CC2420 can work normally without the extra voltage conversion circuit when extra voltage is 3.3 V.

The interface circuit of MPU and CC2420 is shown in Figure13. SFD, FIFO, FIFOP, and CAA in CC2420 are used as the indication of the wireless transceiver state of packet; the VRG_EN pin can control the DC voltage regulator in CC2420; the RESET is adopted to reset the CC2420. MSP430F1611 microcontroller sends commands to CC2420 and reads and writes the registers by SPI interface so that configuration of working state of CC2420 and data interchange is completed.

Figure 13

Interface circuit of CC2420 and MSP430F1611.

5.2. Packaging Design of Anti-EMI and Shock-Proof Integrated Shell

In order to make the WSN hardware systems lightweight and easy to be assembled and possess antivibration and anti-EMI property (electromagnetic interference), this paper designed shock-proof encapsulation for the WSN measurement in AST (aircraft strength testing) applications. Figure14(a) shows the encapsulation physical map. Figure14(b) shows the physical figure of one cross section of the designed encapsulation.

Figure 14

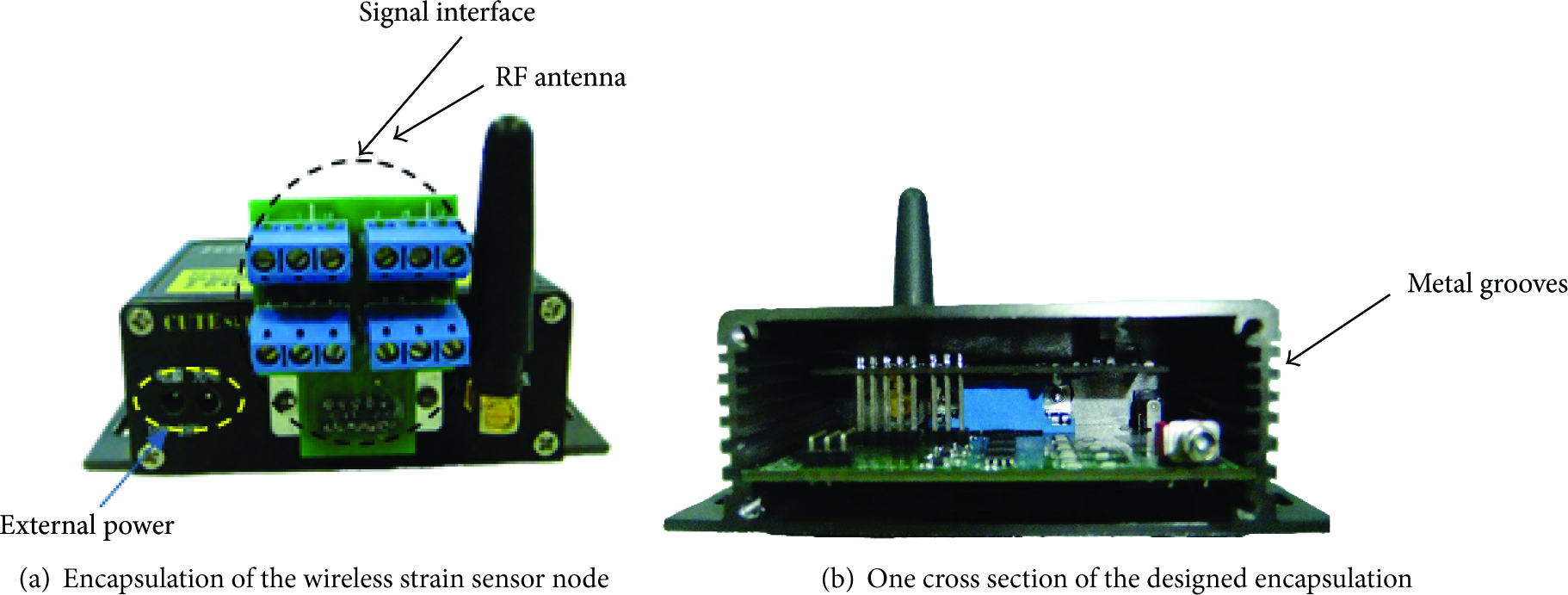

Design diagrams of anti-EMI and shock-proof integrated shell.

As shown in Figure14, the anti-EMI, shock-proof integrated shell includes several characters. Since the PCB board is fixed in the inner shell through a slot, the system is shock-proof, ensuring the hardware system is working normally in vibration. The design of all-metal package of the shell shields the electromagnetic interference effectively which guarantees the strain measurement precision. Metal grooves are advantageous to the heat dissipation of the node. Several mounting holes are designed to make the shell easy to be fixed. Besides, it is convenient to connect with external strain gauge with the specific strain interface board and the PCB is easy to assemble into the shell without connecting wire inside. What is more, all the packaging design makes the sensor node of small size and lightweight.

6. Performance Verification Experiments

6.1. The Calibration Test of the Multichannel Strain Sensing Module

In order to guarantee the effectiveness of the multichannel strain sensing module in application of structure strength test, a calibration test of the sensitivity, repeatability, hysteresis, and static error of multichannel strain sensing module is carried out.

There are many ways to calibrate the strain sensing channel; the method of parallel large resistance is used to calibrate the multichannel strain sensing module in this paper.

The strain bridge measures change of strain gauge resistance, while change of the strain gauge resistance is proportional to the structural strain. Therefore, if variation of a standard resistance is given, the strain sensing channel can be calibrated. This method can get high-precision rate of resistance change. As shown in Figure15 the five resistances are all precision resistance. Suppose that $R_{1}$ is strain gauge and $R_{B}$ is a parallel resistance. When switch S is off, $R_{B}$ and $R_{1}$ are shunt-wound. This means that $R_{B}$ produces the same strain as $R_{1}$ . Resistance change rate $Δ R / R_{1}$ produced by multiple of $R_{1}$ and $R_{B}$ is [24]

\begin{matrix} \frac{Δ R}{R_{1}} = \frac{R_{1} - R_{1} R_{B} / (R_{1} + R_{B})}{R_{1}} = \frac{R_{1}}{R_{1} + R_{B}} = k ε, \end{matrix}

(4)

where

R_{1}

and

R_{B}

of formula (4) can be measured by high-precision resistance measuring instrument. Assume that sensitivity of strain gauge k is 2, so the simulative strain value ε can be calculated.

Figure 15

Method of parallel large resistance in strain bridge calibration.

When calibrating the multichannel strain sensing module, the parallel large resistance is made up of several series resistors with different value in order to implement test of positive and negative stroke. In the positive stroke, resistances are short-circuited one by one by the wire, while, in the negative stroke, resistances are connected in the circuit one by one. Figure16 illustrates the operating diagram of the bridge calibration process.

Figure 16

Operating diagram of the bridge calibration process.

Tables1–4 show raw data of calibration of four strain sensing channels, and Figures17–20 indicate the positive and negative stroke curve of four sensing channels and their fitted curve.

Table 1

Calibration test raw data of sensing channel 1# of the strain sensor node.

Micro strain (με)	0	−212.5	−433.3	−941.7	−1666.7	−2308.3	−3000.0	−3879.2	−4862.5
Positive stroke	2067	1999	1926	1759	1520	1311	1083	794	469
Negative stroke	2067	1999	1926	1759	1520	1311	1083	793	469

Micro strain (με)	0	−212.5	−433.3	−941.7	−1666.7	−2308.3	−3000.0	−3879.2	−4862.5
Positive stroke	2067	2000	1926	1759	1519	1311	1082	793	468
Negative stroke	2066	1999	1925	1759	1519	1311	1082	794	468

Micro strain (με)	0	−212.5	−433.3	−941.7	−1666.7	−2308.3	−3000.0	−3879.2	−4862.5
Positive stroke	2066	1999	1925	1758	1519	1310	1083	794	469
Negative stroke	2067	2000	1926	1758	1520	1310	1083	794	469

Table 2

Calibration test raw data of sensing channel 2# of the strain sensor node.

Micro strain (με)	0	−212.5	−429.2	−937.5	−1662.5	−2304.2	−2991.7	−3875.0	−4854.2
Positive stroke	1886	1816	1746	1579	1342	1129	904	611	288
Negative stroke	1887	1815	1745	1578	1341	1129	903	612	288

Micro strain (με)	0	−212.5	−429.2	−937.5	−1662.5	−2304.2	−2991.7	−3875.0	−4854.2
Positive stroke	1887	1816	1746	1579	1341	1129	904	611	289
Negative stroke	1886	1815	1745	1579	1341	1129	903	611	289

Micro strain (με)	0	−212.5	−429.2	−937.5	−1662.5	−2304.2	−2991.7	−3875.0	−4854.2
Positive stroke	1886	1815	1745	1579	1341	1130	903	611	289
Negative stroke	1886	1815	1745	1579	1341	1129	903	612	289

Table 3

Calibration test raw data of sensing channel 3# of the strain sensor node.

Micro strain (με)	0	−212.5	−433.3	−941.7	−1666.7	−2308.3	−3000.0	−3883.3	−4866.7
Positive stroke	2006	1936	1865	1698	1458	1247	1020	729	404
Negative stroke	2006	1936	1864	1698	1458	1248	1020	730	404

Micro strain (με)	0	−212.5	−433.3	−941.7	−1666.7	−2308.3	−3000.0	−3883.3	−4866.7
Positive stroke	2006	1936	1864	1698	1458	1247	1020	729	403
Negative stroke	2006	1936	1864	1698	1457	1248	1020	730	403

Micro strain (με)	0	−212.5	−433.3	−941.7	−1666.7	−2308.3	−3000.0	−3883.3	−4866.7
Positive stroke	2006	1936	1865	1697	1457	1248	1021	730	404
Negative stroke	2005	1935	1865	1698	1458	1248	1020	730	404

Table 4

Calibration test raw data of sensing channel 4# of the strain sensor node.

Micro strain (με)	0	−208.3	−429.2	−933.3	−1662.5	−2300.0	−2991.7	−3870.8	−4858.3
Positive stroke	1975	1907	1835	1669	1430	1219	992	701	376
Negative stroke	1975	1908	1835	1669	1431	1220	992	702	376

Micro strain (με)	0	−208.3	−429.2	−933.3	−1662.5	−2300.0	−2991.7	−3870.8	−4858.3
Positive stroke	1975	1907	1834	1669	1430	1219	992	701	375
Negative stroke	1975	1908	1835	1669	1431	1220	992	702	375

Micro strain (με)	0	−208.3	−429.2	−933.3	−1662.5	−2300.0	−2991.7	−3870.8	−4858.3
Positive stroke	1975	1908	1835	1668	1431	1220	992	702	376
Negative stroke	1974	1908	1835	1669	1431	1220	992	702	376

Figure 17

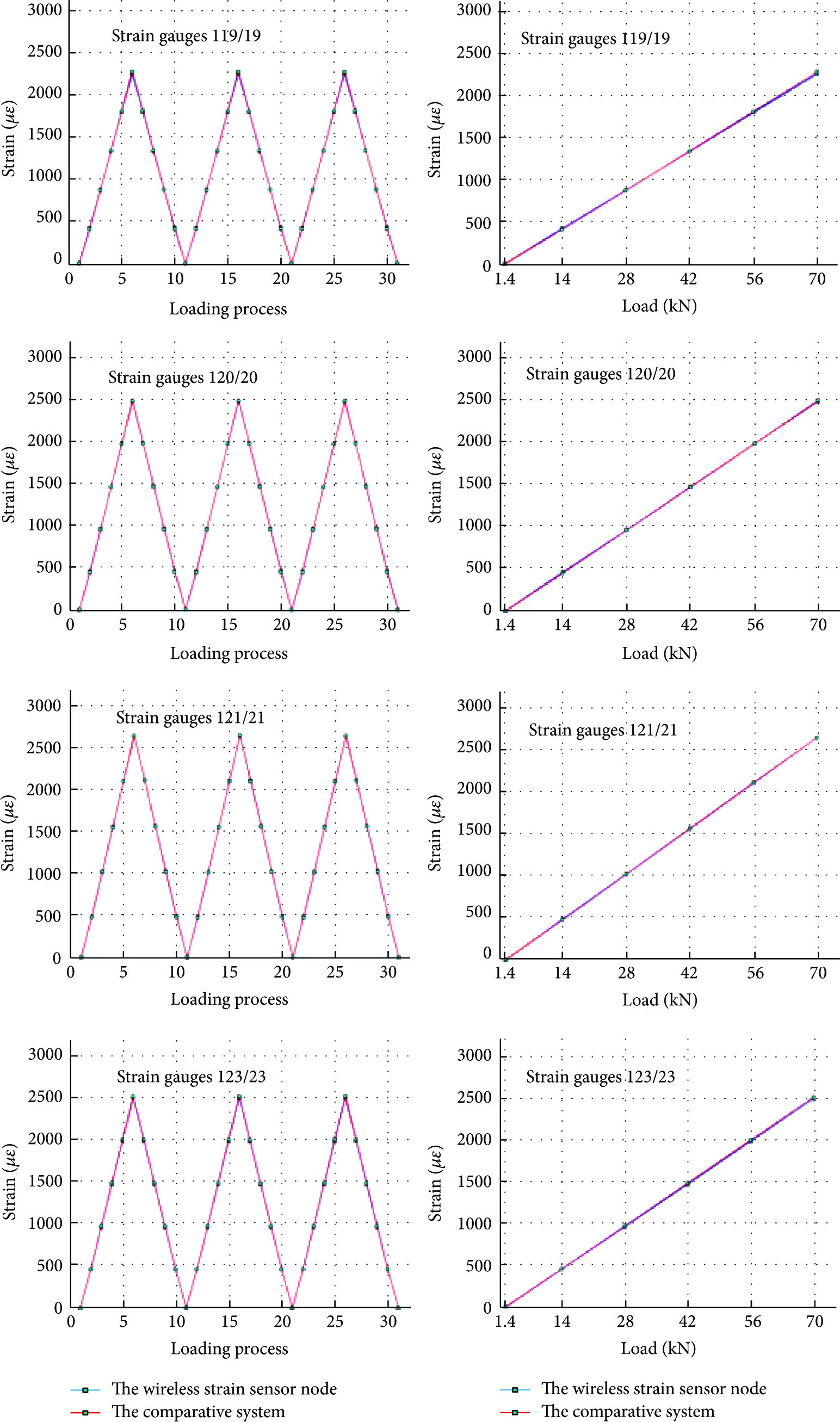

The calibrated result of sensing channel 1# of a wireless sensor node.

Figure 18

The calibrated result of sensing channel 2# of a wireless sensor node.

Figure 19

The calibrated result of sensing channel 3# of a wireless sensor node.

Figure 20

The calibrated result of sensing channel 4# of a wireless sensor node.

The main performance index of sensing channel 1# is as follows.

Repeatability. It is represented as

\begin{matrix} γ_{R} = \frac{Δ R_{m a x}}{Y_{FS}} = \frac{3.645}{3287} = 0.11 % . \end{matrix}

(5)

Hysteresis. It is represented as

\begin{matrix} γ_{H} = \frac{1}{2} \times \frac{Δ H_{m a x}}{Y_{FS}} = \frac{1}{2} \times \frac{0.026}{3287} = 0.0004 % . \end{matrix}

(6)

Static Error. It is represented as

\begin{matrix} σ = \sqrt{\frac{1}{n - 1} \sum_{i = 1}^{n} {(Δ y_{i})}^{2}} = 0.979 \\ γ = \pm (\frac{3 σ}{Y_{FS}}) = \pm (\frac{3 \times 0.979}{3287}) = \pm 0.09 % . \end{matrix}

(7)

Sensitivity. When digital output voltage changes to “1,” the corresponding micro strain variation is 3.04 με. This means sensitivity of the channel is 3.04 με per one digital voltage change, and the theoretical sensitivity is 3.05 με per 1 digital voltage change.

The main performance index of sensing channel 2# is as follows.

Repeatability. It is represented as

\begin{matrix} γ_{R} = \frac{Δ R_{m a x}}{Y_{FS}} = \frac{1.894}{3290} = 0.06 % . \end{matrix}

(8)

Hysteresis. It is represented as

\begin{matrix} γ_{H} = \frac{1}{2} \times \frac{Δ H_{m a x}}{Y_{FS}} = \frac{1}{2} \times \frac{1.140}{3290} = 0.02 % . \end{matrix}

(9)

Static Error. It is represented as

\begin{matrix} σ = \sqrt{\frac{1}{n - 1} \sum_{i = 1}^{n} {(Δ y_{i})}^{2}} = 0.935 \\ γ = \pm (\frac{3 σ}{Y_{FS}}) = \pm (\frac{3 \times 0.9350}{3290}) = \pm 0.09 % . \end{matrix}

(10)

The main performance index of sensing channel 3# is as follows.

Repeatability. It is represented as

\begin{matrix} γ_{R} = \frac{Δ R_{m a x}}{Y_{FS}} = \frac{1.453}{3290} = 0.04 % . \end{matrix}

(11)

Hysteresis. It is represented as

\begin{matrix} γ_{H} = \frac{1}{2} \times \frac{Δ H_{m a x}}{Y_{FS}} = \frac{1}{2} \times \frac{0.718}{3246} = 0.01 % . \end{matrix}

(12)

Static Error. It is represented as

\begin{matrix} σ = \sqrt{\frac{1}{n - 1} \sum_{i = 1}^{n} {(Δ y_{i})}^{2}} = 0.940 \\ γ = \pm (\frac{3 σ}{Y_{FS}}) = \pm (\frac{3 \times 0.940}{3290}) = \pm 0.09 % . \end{matrix}

(13)

The main performance index of sensing channel 4# is as follows.

Repeatability. It is represented as

\begin{matrix} γ_{R} = \frac{Δ R_{m a x}}{Y_{FS}} = \frac{1.423}{3292} = 0.04 % . \end{matrix}

(14)

Hysteresis. It is represented as

\begin{matrix} γ_{H} = \frac{1}{2} \times \frac{Δ H_{m a x}}{Y_{FS}} = \frac{1}{2} \times \frac{0.315}{3292} = 0.005 % . \end{matrix}

(15)

Static Error. It is represented as

\begin{matrix} σ = \sqrt{\frac{1}{n - 1} \sum_{i = 1}^{n} {(Δ y_{i})}^{2}} = 0.951 \\ γ = \pm (\frac{3 σ}{Y_{FS}}) = \pm (\frac{3 \times 0.951}{3292}) = \pm 0.09 % . \end{matrix}

(16)

6.2. Static Strength Test Verification

In order to validate the capability of the designed wireless strain sensor node based AST systems, in this paper, a multipoint system is developed for a test specimen of a real aircraft structure for static testing in Xian Aircraft Strength & Research Institute of China.

6.2.1. Experimental Arrangement

Test specimen used in the static strength is YL12 aluminum plate with size of 300 mm ∗ 200 mm ∗ 2 mm (length ∗ width ∗ thickness). As shown in Figure21, 72 strain gauges are pasted equally on the positive and negative sides of test specimen, with numbers 1~36 (negative side) and 101~136 (positive side), respectively. The “three-line” wiring method is adopted to connect the strain gauges and the external testing system.

Figure 21

Arrangement of 72 strain gauges on test specimen.

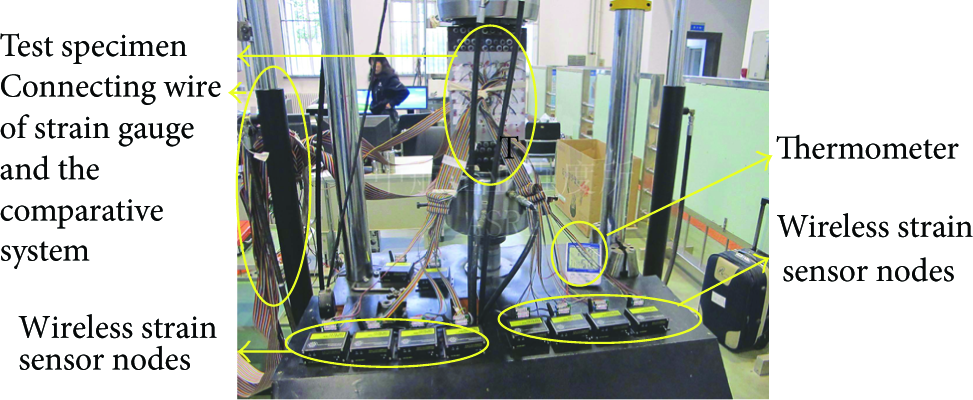

As shown in Figure22, the test specimen is clamped in a stretcher. The 36 strain gauges on negative side are connected with traditional strain measuring system (this system is regarded as a comparative system) while the other 36 strain gauges are connected to the wireless strain sensor nodes.

Figure 22

Physical map of arrangement.

6.2.2. Experimental Process

Firstly, dead load of 0.01 KN was preloaded to the test specimen and its strain value was regarded as null point of the two systems.

Then, dead loads of 1.4 KN, 14 KN, 28 KN, 42 KN, 56 KN, and 70 KN were loaded on the test specimen separately in the positive and negative stroke of static strength test. When the static load was increased to set value, all nodes collected data of strain 10 times and took their average as strain value under the corresponding load. Finally, repeat this process three times.

6.2.3. Comparison and Analysis

In the static strength test, data of the 36 strain gauges on the positive side are collected by the wireless strain sensor nodes designed in this paper. Choose test data of the four strain gauges 119, 120, 121, and 120 and data of 19, 20, 21, and 23 strain gauges in the comparative system for comparison. Figure24 indicates stress-strain curves of strain gauges 19/119, 20/120, 21/121, and 20/120 in three rounds of static strength test and the relation curve of average strain and its corresponding dead load.

By analyzing data in Figure23, the measured deviation of the two systems under the same static load is calculated. Tables5–8 show the calculation results.

Table 5

19/119 strain gauge under the same static load.

Static load(KN)	Wireless strain sensor node (με)	Comparative system (με)	Deviation(με)
1.4	1	1	0
14	422	410	12
28	879	876	3
42	1338	1342	4
56	1802	1813	11
70	2260	2285	25

Table 6

20/120 strain gauge under the same static load.

Static load(KN)	Wireless strain sensor node (με)	Comparative system (με)	Deviation(με)
1.4	1	1	0
14	461	450	11
28	964	960	4
42	1471	1468	3
56	1982	1982	0
70	2486	2495	9

Table 7

21/121 strain gauge under the same static load.

Static load(KN)	Wireless strain sensor node (με)	Comparative system (με)	Deviation (με)
1.4	0	2	2
14	488	480	8
28	1025	1018	6
42	1563	1559	5
56	2108	2104	4
70	2646	2645	1

Table 8

23/123 strain gauge under the same static load.

Static load (KN)	Wireless strain sensor node (με)	Comparative system (με)	Deviation (με)
1.4	1	4	3
14	459	461	2
28	967	975	8
42	1476	1489	13
56	1992	2008	16
70	2506	2522	16

Figure 23

Contrastive results of the static strength test.

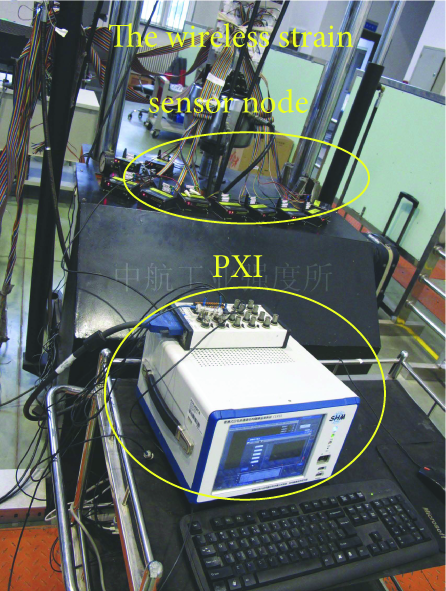

Figure 24

Arrangement of anti-EMI test.

By Tables5–8, it is concluded that the maximum deviation of strain measured by the two systems under each load is less than 25 με. This means that the wireless strain sensor node designed in this paper to test structure strength has good applicability.

6.3. Antijamming Experiment

6.3.1. Anti-EMI Experiment with High-Power Device

Anti-EMI experiment with high-power device is applied to verify ability of anti-interference of the wireless strain sensor node. During the test, the output signal of piezoelectric power amplifier based on PXI bus was connected to shell of the wireless strain sensor node directly. Then, start the power amplifier to simulate electromagnetic interference of high-power device. Anti-EMI test site is shown in Figure24. Test data is indicated in Table10. The basic unit in Table10 is με.

As shown in Table9, by comparing data under electromagnetic interference of high-power device with data without electromagnetic interference, it can be concluded that the electromagnetic interference of high-power device has no significant impact on the designed node. In summary, the wireless strain sensor node has the ability to cope with complex electromagnetic interference in engineering field.

Table 9

Data of anti-EMI test with high-power device.

Nodes	Channels	With interference (με)			Mean value	Without interference (με)			Mean value
11	101	498	501	501	500	501	495	501	499
21	105	458	456	456	457	456	452	456	455
31	109	551	552	552	552	552	551	552	552
41	113	426	416	421	421	421	418	434	424
51	116	570	570	567	569	570	569	568	569
12	120	455	450	452	452	453	455	453	454
22	124	468	469	469	469	469	468	472	470
32	128	360	360	362	361	362	359	362	361
42	131	534	530	534	533	536	537	534	536
52	135	426	424	423	424	424	426	423	424

Table 10

Data of anti-EMI test with radiofrequency equipment.

Nodes	Channels	With interference (με)			Mean value	Without interference (με)			Mean value
11	101	493	495	500	496	492	496	501	496
21	105	458	461	464	461	458	458	461	459
31	109	546	551	552	550	548	552	555	552
41	113	424	426	427	426	424	427	432	428
51	116	570	573	575	573	570	572	572	571
12	120	453	457	458	456	453	458	461	457
22	124	463	464	468	465	463	463	468	465
32	128	360	361	365	362	359	361	364	361
42	131	818	820	822	820	815	818	819	817
52	135	421	424	425	423	426	430	432	429

6.3.2. Anti-EMI Experiment with Radiofrequency Equipment

Anti-EMI experiment with radiofrequency equipment is used to prove the anti-interference ability of wireless communication of the wireless strain sensor node. In the experiment, a mobile phone in talk mode was placed near the node to simulate similar radiofrequency electromagnetic interference (2.4 GHz frequency band is used in wireless communication while 900 M/1800 MHz is adopted in mobile phone). Test data is shown in Table10. The basic unit in Table10 is με.

Table10 indicates that the radiofrequency interference has no obvious effect on the wireless communication of the wireless strain sensor node; no communication failure happened in the whole process.

7. Conclusions

A wireless strain sensor node hardware platform of WSN based aircraft strength testing system is presented in this paper. It is composed of multichannel strain sensing module, digital processing module, wireless communication module, and power module. Each of the modules is designed in detail, including the implementation method, circuit structure, and working principle. Finally, several tests to verify related performance of the designed node are carried out. The wireless strain sensor node is proved to be suitable for AST system with high-precision, multichannel, anti-interference, and shock-proof characteristics.

Footnotes

Competing Interests

The authors declare no competing interests.

Authors' Contributions

All authors have contributed to the presented work. Jian Wu and Xingmei Cui designed the whole system. Hongbing Sun and Yunpeng Xu conducted the implementation and wrote the paper. All authors have read and revised the paper.

Acknowledgments

This work is supported by the National Natural Science Foundation of China (Grants nos. 51105209, 61401211, and 51175267), Key University Science Research Project of Jiangsu Province, China (Grant no. 15KJA460004), Fundamental Research Funds for the Central Universities (Grant no. 30915118804), Jiangsu Province Science and Technology Support Program, China (Grant no. BE2012034), and Programme of Introducing Talents of Discipline to Universities (Grant no. B16025).

References

Boyle

Magno

O'Flynn

Brunelli

Popovici

Benini

Towards persistent structural health monitoring through sustainable wireless sensor networks

Proceedings of the 7th International Conference on Intelligent Sensors, Sensor Networks and Information Processing (ISSNIP '11)

December 2011

Adelaide, Australia

323 328

10.1109/issnip.2011.6146587

2-s2.0-84857933547

Yuan

S. F.

Mei

H. F.

Qiu

Ren

Y. Q.

On a digital wireless impact-monitoring network for large-scale composite structures

Smart Materials and Structures 2014 23 8 1 16

085007

10.1088/0964-1726/23/8/085007

2-s2.0-84904430748

Lim

Ferrari

Takahashi

Montón

Wireless sensor networks for structural health monitoring

International Journal of Distributed Sensor Networks 2015 2015 1

425683

10.1155/2015/425683

2-s2.0-84940731124

Yuan

S. F.

Wang

Z. L.

Qiu

Wang

Liu

M. L.

A multi-radio sink node designed for wireless SHM applications

Smart Structures and Systems 2013 11 3 261 282

10.12989/sss.2013.11.3.261

2-s2.0-84876378368

T.-H.

Song

Stiros

S. C.

Chen

Distributed sensor networks for health monitoring of civil infrastructures

Shock and Vibration 2015 2015 3

271912

10.1155/2015/271912

Magno

Polonelli

Benini

Popovici

A low cost, highly scalable wireless sensor network solution to achieve smart LED light control for green buildings

IEEE Sensors Journal 2015 15 5 2963 2973

10.1109/JSEN.2014.2383996

2-s2.0-84926483257

Yuan

S. F.

Lai

X. S.

Zhao

Zhang

Distributed structural health monitoring system based on smart wireless sensor and multi-agent technology

Smart Materials and Structures 2006 15 1 1 8

10.1088/0964-1726/15/1/029

2-s2.0-31144465333

Park

S. O.

Kim

Sim

S. H.

Koo

K. Y.

Lee

J. J.

Smart one-channel sensor node for ambient vibration test with applications to structural health monitoring of large civil infrastructures

International Journal of Distributed Sensor Networks 2015 2015 16

691565

10.1155/2015/691565

Straser

E. G.

Kiremidjian

A. S.

A modular, wireless damage monitoring system for structures

1998 128

Stanford, Calif, USA

The John A. Blume Earthquake Engineering Center, Stanford University

10.

Yin

Zhong

Vibration data fusion algorithm of auxiliaries in power plants based on wireless sensor networks

Proceedings of the International Conference on Computer Science and Service System (CSSS '11)

June 2011

Nanjing, China

935 938

10.1109/csss.2011.5974948

2-s2.0-80052310315

11.

Hou

L. Q.

Bergmann

N. W.

Novel industrial wireless sensor networks for machine condition monitoring and fault diagnosis

IEEE Transactions on Instrumentation and Measurement 2012 61 10 2787 2798

10.1109/tim.2012.2200817

2-s2.0-84866490411

12.

Shi

Zhao

Liu

X. Q.

Intelligent monitoring system for industrialized aquaculture based on wireless sensor network

Transactions of the Chinese Society of Agricultural Engineering 2011 27 9 136 139

13.

López-Higuera

J. M.

Rodriguez Cobo

Quintela Incera

Cobo

Fiber optic sensors in structural health monitoring

Journal of Lightwave Technology 2011 29 4 587 608

10.1109/jlt.2011.2106479

2-s2.0-80052596713

14.

Liu

Cao

Song

W.-Z.

Guo

Distributed sensing for high-quality structural health monitoring using WSNs

IEEE Transactions on Parallel and Distributed Systems 2015 26 3 738 747

10.1109/TPDS.2014.2312911

2-s2.0-84923174502

15.

Arms

S. W.

Townsend

C. P.

Churchill

D. L.

Augustin

Yeary

Darden

Phan

Tracking pitch link dynamic loads with energy harvesting wireless sensors

Proceedings of the 63rd American Helicopter Society International Annual Forum

May 2007

Virginia Beach, Va, USA

2139 2146

2-s2.0-84884301257

16.

Arms

S. W.

Townsend

C. P.

Churchill

D. L.

Energy harvesting wireless sensors for helicopter damage tracking

Proceedings of the International Forum 62, HUMS III Session (AHS '06)

May 2006

Phoenix, Ariz, USA

17.

Yuan

Zhou

Wang

Design and evaluation of a wireless sensor network based aircraft strength testing system

Sensors 2009 9 6 4195 4210

10.3390/s90604195

2-s2.0-67649576734

18.

IEEE-TG15.4 Part 15.4: Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs) 2003

IEEE Standards for Information Technology

19.

Zigbee-Alliance http://www.zigbee.org/

20.

Wilson

J. S.

Sensor Technical Manuals 2009

Beijing, China

Post & Telecom

21.

Sun

C. Y.

Sun

X. B.

Design and Principle of Measurement and Control System 2008

Beijing, China

Beijing University of Aeronautics and Astronautics

22.

Xie

X. H.

Lin

F. Q.

X. Y.

Theory and Practice of MSP430 2008

Beijing, China

Beijing University of Aeronautics and Astronautics

23.

Texas Instruments http://focus.ti.com/docs/prod/folders/print/cc2420.html

24.

Z. Z.

Liu

C. J.

Resistor Straining Testing Technique 1983

Beijing, China

China Building Industry

Nodes	Channels	With interference (με)			Mean value	Without interference (με)			Mean value
11	101	498	501	501	500	501	495	501	499
21	105	458	456	456	457	456	452	456	455
31	109	551	552	552	552	552	551	552	552
41	113	426	416	421	421	421	418	434	424
51	116	570	570	567	569	570	569	568	569
12	120	455	450	452	452	453	455	453	454
22	124	468	469	469	469	469	468	472	470
32	128	360	360	362	361	362	359	362	361
42	131	534	530	534	533	536	537	534	536
52	135	426	424	423	424	424	426	423	424

Nodes	Channels	With interference (με)			Mean value	Without interference (με)			Mean value
11	101	493	495	500	496	492	496	501	496
21	105	458	461	464	461	458	458	461	459
31	109	546	551	552	550	548	552	555	552
41	113	424	426	427	426	424	427	432	428
51	116	570	573	575	573	570	572	572	571
12	120	453	457	458	456	453	458	461	457
22	124	463	464	468	465	463	463	468	465
32	128	360	361	365	362	359	361	364	361
42	131	818	820	822	820	815	818	819	817
52	135	421	424	425	423	426	430	432	429

Nodes	Channels	With interference (με)			Mean value	Without interference (με)			Mean value
11	101	498	501	501	500	501	495	501	499
21	105	458	456	456	457	456	452	456	455
31	109	551	552	552	552	552	551	552	552
41	113	426	416	421	421	421	418	434	424
51	116	570	570	567	569	570	569	568	569
12	120	455	450	452	452	453	455	453	454
22	124	468	469	469	469	469	468	472	470
32	128	360	360	362	361	362	359	362	361
42	131	534	530	534	533	536	537	534	536
52	135	426	424	423	424	424	426	423	424

Nodes	Channels	With interference (με)			Mean value	Without interference (με)			Mean value
11	101	493	495	500	496	492	496	501	496
21	105	458	461	464	461	458	458	461	459
31	109	546	551	552	550	548	552	555	552
41	113	424	426	427	426	424	427	432	428
51	116	570	573	575	573	570	572	572	571
12	120	453	457	458	456	453	458	461	457
22	124	463	464	468	465	463	463	468	465
32	128	360	361	365	362	359	361	364	361
42	131	818	820	822	820	815	818	819	817
52	135	421	424	425	423	426	430	432	429

Nodes	Channels	With interference (με)			Mean value	Without interference (με)			Mean value
11	101	498	501	501	500	501	495	501	499
21	105	458	456	456	457	456	452	456	455
31	109	551	552	552	552	552	551	552	552
41	113	426	416	421	421	421	418	434	424
51	116	570	570	567	569	570	569	568	569
12	120	455	450	452	452	453	455	453	454
22	124	468	469	469	469	469	468	472	470
32	128	360	360	362	361	362	359	362	361
42	131	534	530	534	533	536	537	534	536
52	135	426	424	423	424	424	426	423	424

Nodes	Channels	With interference (με)			Mean value	Without interference (με)			Mean value
11	101	493	495	500	496	492	496	501	496
21	105	458	461	464	461	458	458	461	459
31	109	546	551	552	550	548	552	555	552
41	113	424	426	427	426	424	427	432	428
51	116	570	573	575	573	570	572	572	571
12	120	453	457	458	456	453	458	461	457
22	124	463	464	468	465	463	463	468	465
32	128	360	361	365	362	359	361	364	361
42	131	818	820	822	820	815	818	819	817
52	135	421	424	425	423	426	430	432	429
