A Strategy to Revalue a Wood Waste for Simultaneous Cadmium Removal and Wastewater Disinfection

Abstract

In this investigation, the possibility of wood waste (hardwoods such as oaks’ and alternatives’ staves from Balkan cooperage) revalorization for simultaneous cadmium removal and wastewater disinfection was examined. All samples were characterized in terms of their crystallinity index and crystallite size, amount of functional groups, and surface chemistry (determined by ATR-FTIR) as well as antibacterial activity. Mulberry is characterized by the lowest crystallinity index which can be ascribed to the highest crystallite size disabling crystallite denser packaging, while myrobalan plum has about 23% lower crystallite size that enables crystallite better packaging, thus resulting in a 42.4% higher crystallinity index compared to the mulberry. All oaks have a significantly higher amount of carboxyl groups compared to the alternatives (0.23-0.28 vs. 0.12-0.19 mmol/g). The adsorption experiments revealed that with increasing the initial cadmium concentration from 15 up to 55 mg/g, samples’ adsorption capacity increases by 89-220%. The equilibrium data fit well with the Langmuir isotherm model implying monolayer coverage of cadmium ions over a homogeneous wood surface. The relationship between the samples’ maximum adsorption capacities (ranged from 5.726 to 12.618 mg/g), their crystallinity index, and crystallite size was established. According to ATR-FTIR spectra, aldehyde, carboxyl, hydroxyl, and phenyl groups present on the wood waste surface are involved in Cd²⁺ adsorption which proceeds via the interplay of the complexation, cation-π interactions, and ion-exchange mechanisms. Mulberry and myrobalan plum showed about 89% and 80% of the total uptake capacity of cadmium within 60 min, while the equilibrium was attained after 240 min of contact time. Good compliance with pseudo-second kinetic order indicated that cadmium adsorption was mediated by chemical forces. Thermodynamic parameters revealed the spontaneous and exothermic character of cadmium ion adsorption onto mulberry and myrobalan plum. All studied samples provide maximum bacterial reduction (>99%) for E. coli and S. aureus. Wood waste from Balkan cooperage can be successfully used for simultaneous cadmium removal and wastewater disinfection.

1. Introduction

From ancient times till nowadays, wood is considered an essential part of humans’ daily lives. Among a wide variety of conventional uses, wood also represents an appreciated material for the manufacturing of casks, which are utilized in alcoholic beverage production. Even more, according to Martínez-Gil et al. [1] and Pecić et al. [2], these wood casks are esteemed as a crucial segment in the production of high-quality wines and aged alcoholic beverages such as brandy, whiskey, and cognac. The Republic of Serbia is classified as a medium forested country with more than 2.6 million ha of forest area; thus, it has a great potential for cooperage development [3]. According to Trade Map data [4], in 2019, Serbia exported casks at a value of 712 000 $, while the growth in casks’ exported value was 7% between the 2015 and 2019 year. In order to satisfy the market demands, the quantity of cut-off old woods constantly increases. Consequently, the loss of the forest area negatively influences all environmental segments of the Earth, including the hydrosphere and the water resources’ quality [5].

Moreover, human activities have a strong impact on global and local environmental processes. Namely, industrial modernization along with the domestic activities, agricultural practices, and global changes [6] contributed to the increased generation of large quantities of wastewaters presenting potential threats to entire water resources. Therefore, inadequate wastewater management could cause the contamination of the drinking water for hundreds of millions of people. The presence of heavy metals in wastewater represents a major concern since most of them are highly toxic, carcinogenic, biorecalcitrant, nondegradable, and persistent [7], and they enter our body system through water, food, and air [8]. Among different heavy metals, attention should be given to involuntary human exposure to cadmium which toxic effects were confirmed on many organs’ systems [9]. Namely, novel investigations established a connection between the long-term exposure to this toxic metal and various renal syndromes, osteoporosis and osteomalacia, endocrine-disrupting properties, and different types of cancer [9, 10]. Therefore, the World Health Organization [11] limited the amount of cadmium in drinking water to 0.003 mg/l.

The conventional methods (such as chemical precipitation, membrane filtration, ion exchange, and reverse osmosis) for heavy metal ion removal from wastewaters are ineffective at low heavy metal ions’ concentrations (i.e., trace metals); generate a toxic sludge, use high quantities of chemicals, and involve high energy inputs [12]. It has to be noted that the effects of trace metal pollution have not only harmed the plants and crops but also have posed severe health hazards in animals during recent years [13]. Nowadays, adsorption has received remarkable attention since it is very efficient for adsorbing heavy metals present in wastewaters at trace levels, i.e., below 100 mg/l [14]. Heavy metal removal during wastewater treatment via adsorption is carried out at an interfacial region between the adsorbent and the pollutant [6]. The merits of such type of wastewater treatment compared to the conventional methods are the low formation of chemical and biological sludge, high efficiency, low cost, adsorbents’ regeneration, and metal recovery, better selectivity, short processing time, and operating under a broad range of process settings [13, 15, 16]. Recent studies [12, 17, 18] highlighted wastewater treatment using lignocellulosic materials as effective and environmentally friendly adsorbents.

In the last two decades, the requirements for wood casks at the Balkan were expanded, and therefore, the amount of wood waste generated during cask production considerably increased. This wood waste has a heterogeneous chemical composition including cellulose and noncellulosic components having a high amount of functional groups capable of binding heavy metal ions. One of the possible strategies to revalue such waste is its utilization as an adsorbent for wastewater treatment, which is in agreement with the circular economy concept. Namely, permanent collection and reuse of wood waste have promising multipositive effects on the economy as well environment, including reducing its quantity, saving energy, and its utilization as raw material for profitable innovation.

Besides heavy metals, waterborne diseases contributed to raising awareness about water pollution at the highest level ever. Namely, the consumption of bacteriologically unsafe drinking water is still one of the most significant causes of morbidity and mortality [19], especially in rural areas. Smailagić et al. [20] investigated the antimicrobial activity of eleven wood extracts (oaks, mulberry, myrobalan plum, black locust, and wild cherry) against eight representative human and opportunistic pathogens. The lowest minimum inhibitory concentration (MIC) was observed against S. aureus for black locust, cherry, and mulberry wood extracts, and based on the conducted research, the usefulness of such wood waste for water disinfection is expected.

In this investigation, the possibility to revalue the wood waste (i.e., hardwoods such as oaks’ and alternatives’ staves) from Balkan cooperage will be examined. For that purpose, cadmium ion was chosen as a model ion to test the ability of wood waste for heavy metal removal from an aqueous solution. In this study, for the first time, the connection between the wood waste molecular and fine structure (i.e., the presence and amount of COOH and CHO groups as well as crystallinity index and crystallite size) and its adsorption potential for Cd²⁺ removal from aqueous solution was established. Moreover, the wood waste antibacterial activity was tested against Gram-negative bacteria E. coli and Gram-positive bacteria S. aureus to study the possibility of simultaneous cadmium removal and wastewater disinfection.

2. Materials and Methods

2.1. Material

In this experiment, six wood waste samples of different botanical species and geographical origins (see Table 1) obtained from a local cask producer (VBX-SRL. D.O.O. Kraljevo, Serbia) were used as adsorbents for cadmium ions from an aqueous solution. Before the experiments, the wood samples were ground in a mill for wood, whereby their particle size was in the range of 0.5-1.5 mm.

Table 1

Wood waste samples’ codes, botanical species, geographical origin, age, and soil type.

Sample code	Tree	Geographical origin	Wood age, years	Soil type
BL	Black locust-Robinia pseudoacacia L.	Kraljevo (Serbia)	>40	Fluvisolo
M	Mulberry-Morus alba L.	Vrnjačka Banja (Serbia)	>40	Vertisol
MP	Myrobalan plum-Prunus cerasifera Ehrh	Vrnjačka Banja (Serbia)	>40	Vertisol
SORG	Sessile oak-Quercus petraea (Matt.) L.	Ravna Gora (Serbia)	>60	Rankers
POGR	Pedunculate oak-Quercus robur L.	Gornji Radan (Serbia)	>60	Rankers
POBO	Pedunculate oak-Quercus robur L.	Olovo (Bosnia and Herzegovina)	>60	Rankers

2.2. X-Ray Diffraction Analysis

The X-ray measurements were performed on a Rigaku Ultima IV diffractometer in a Bragg-Brentano configuration using CuKα radiation. The diffraction data were acquired over the 2θ scattering angle (from 10° to 40°) with a step of 0.05° and an acquisition time of 2°/min. The obtained X-ray diffraction patterns were resolved into proportions of cellulose $I_{β}$ lattice (characteristic peaks are located at 2θ of 14.7°, 16.8°, and 22.7° corresponding to the reflections (1-10), (110), and (200), respectively [21]), and amorphous region using the Gaussian and Lorentzian distribution function. The conventional peak deconvolution involved curve fitting (by using a commercial software Peakfit v4.12) to the observed pattern with the individual visible peaks plus a very broad peak for the amorphous material. The wood waste crystallinity index (CrI) was calculated from the ratio of the area of all crystalline peaks to the total area, while the crystallite size τ (nm) perpendicular to the lattice plane—the (200) plane was calculated by the Sherrer equation [22]. Reported crystallinity index and crystallite size values are the average values of three parallel measurements, whereby the coefficients of variation were below 0.8%.

2.3. Determination of the Amount of Carboxyl and Aldehyde Groups

The amount of carboxyl and aldehyde groups was determined by a calcium-acetate method. A sample (0.5 g) was treated with 100 ml 0.01 M HCl solution for 1 h following by washing with distilled water. In the next step, 50 ml distilled water and 30 ml 0.25 M CH₃COOCa solution were added, and the mixture was stirred for 2 h. Thereafter, 30 ml portions of the liquid were titrated with 0.01 M NaOH solution, using phenolphthalein as an indicator. The amount of carboxyl groups is calculated as follows, Eq. (1): $\begin{matrix} (1) & COOH = \frac{80 / 30 ∙ 0.01 M ∙ V (NaOH)}{m} [\frac{mmol}{g} waste wood], \end{matrix}$ where 0.01 M is a concentration of NaOH, $V$ (NaOH) is the volume of NaOH solution used for titration (ml), and $m$ is the weight of an absolutely dry wood waste sample (g).

The amount of aldehyde groups was determined according to the method described by Saito and Isogai [23]. In order to selectively oxidize the sample’s aldehyde groups to carboxyl groups, 1 g of a sample was added to a mixture containing 0.905 g NaClO₂, 10 ml 5 M CH₃COOH solution, and 50 ml distilled water. Oxidation was carried out by mixture stirring at room temperature for 48 h, and thereafter, the sample was thoroughly washed with distilled water and acetone. Further, the previously described calcium acetate method for determining the amount of carboxyl groups was applied. The amount of aldehyde groups was calculated by subtracting the amount of carboxyl groups determined in the starting sample from that of chlorite oxidized one. The average of four measurements for each sample was considered, and the obtained coefficients of variation were below 1.2%.

2.4. Adsorption Experiments

The adsorption of cadmium ions was carried out from freshly prepared CdCl₂·2.5H₂O, whereby the wood waste samples (0.5 g) were immersed each in 200 ml of a cadmium chloride solution and constantly shaken. In the first step of adsorption experiments’ optimization, the effect of initial solution pH on the Cd²⁺ adsorption onto wood waste was examined, whereas the solution pH was adjusted to the values of 3-6 by stepwise addition of HNO₃ or NH₄OH. The pH value of 5.50 was used for all adsorption experiments. In further steps of adsorption optimization, the cadmium initial concentration was varied in the range of 15-55 mg/l, and the contact time was varied in the range of 5-1440 min, while the temperature was varied in the range of 25-45°C. The cadmium concentration in an aqueous solution was determined using the analytical technique of inductively coupled plasma optical emission spectrometry (ICP-OES, iCAP 6500 Duo ICP, Thermo Fisher Scientific, Cambridge, United Kingdom). The Multi-Element plasma standard solution 4, Specpure®, 1000 μg/ml (Alfa Aesar GmbH & Co KG, Germany) was used to prepare a calibration solution for ICP-OES measurement. The measurements were performed at Cd II 226.502 nm emission line. Quality control was carried out using blank samples, matrix-matched calibration solutions, and triplicate analyses of each sample. The reliability of measurements was approved by a $relative standard deviation (RSD) < 0.5 %$ .

The cadmium adsorption (q) was determined according to Eq. (2): $\begin{matrix} (2) & q (mg / g) = \frac{c_{0} - c_{t}}{m} ∙ V, \end{matrix}$ where $c_{0}$ is the initial cadmium concentration in solution (mg/l); $c_{t}$ is the cadmium concentration in the solution after a defined period (mg/l); $V$ is solution volume (l), and $m$ is the mass of a dry wood sample (g).

Langmuir and Freundlich isotherm models (Table 2) were used to fit the isotherm experimental data and further to assess the wood waste adsorption capacity toward cadmium ions. On the other hand, the pseudo-first and pseudo-second-order kinetic models (Table 3) were used to investigate the cadmium adsorption mechanism on selected wood waste. OriginPro 2015 was used as a tool for kinetic and isotherm non-linear estimation.

Table 2

Langmuir and Freundlich isotherm models’ equations and obtained isotherm parameters for cadmium adsorption on wood waste.

Adsorption isotherms
Sample code	Langmuir $q_{e} = \frac{q_{m} ∙ K_{L} ∙ C_{e}}{1 + K_{L} ∙ C_{e}}$			Freundlich $q_{e} = K_{f} ∙ C_{e}^{\frac{1}{n}}$
	Isotherm parameters
	$K_{L}$	$q_{m}$	$R^{2}$	$K_{f}$	$n$	$R^{2}$
BL	0.103	11.644	0.997	2.348	2.556	0.965
M	0.491	12.618	0.975	5.805	4.370	0.930
MP	0.049	5.726	0.993	0.694	2.164	0.973
SORG	0.257	10.723	0.964	3.802	3.568	0.985
POGR	0.047	7.571	0.997	0.820	2.038	0.982
POBO	0.159	9.170	0.979	2.684	3.254	0.967

In equations given in Table 2, $q_{e} = q_{e, \exp}$ (mg/g) is the equilibrium cadmium concentration per gram adsorbent, and $q_{m}$ (mg/g) is a maximal adsorbed cadmium per gram adsorbent; $K_{L}$ (l/mg) is the Langmuir constant. $C_{e}$ (mg/l) is the equilibrium cadmium concentration in the solution, $K_{f}$ is the Freundlich constant (mg/g)/(l/mg)1/ $n$ , and $n$ is constant related to the wood surface heterogeneity.

Table 3

Kinetic models’ equations and kinetic parameters obtained by the pseudo-first and pseudo-second-order kinetic models for Cd²⁺ ions ( $c_{0} = 55 mg / l$ ) adsorption on waste wood samples.

Sample code	Kinetic models				$q_{e},_{\exp}$
	Pseudofirst kinetic model $q_{t} = q_{e} ∙ (1 - e^{- k_{1} ∙ t})$		Pseudosecond kinetic model $q_{t} = q_{e} - {(\frac{1}{q_{e}} + k_{2} ∙ t)}^{- 1}$
	Kinetic parameters
	$q_{e, cal}$	$k_{1}$	$q_{e, cal}$	$k_{2}$
M	11.608	0.069	12.450	0.008	11.921
MP	3.673	0.087	3.920	0.032	3.994

In equations given in Table 3, $q_{e} = q_{e, \exp}$ and $q_{t}$ (mg/g) are the amounts of cadmium ions adsorbed per gram adsorbent at equilibrium and at time $t$ (min); $k_{1}$ (1/min) is a pseudofirst-order rate constant, and $k_{2}$ (g/mg min) is a pseudo-second-order rate constant.

The adsorption experiments performed at different temperatures allow calculation of the thermodynamic parameters such as standard Gibbs free energy (ΔG°), standard enthalpy (ΔH°), and standard entropy (ΔS°) by using Eqs. (3) and (4). $\begin{matrix} (3) & ∆ G^{°} = - R ∙ T ∙ \ln (K_{eq}), \\ (4) & ∆ G^{°} = ∆ H^{°} - T ∙ ∆ S^{°}, \end{matrix}$ where $R$ is the universal gas constant (8.314 J/mol K), $T$ is the temperature of the process ( $K$ ), $K_{eq}$ is the process equilibrium constant calculated as the ratio between the amount of cadmium adsorbed $q_{e}$ (mg/g), and the residual cadmium concentration in the solution C_e (mg/ml) at the equilibrium (Eq. (5)). $\begin{matrix} (5) & K_{eq} = \frac{q_{e}}{C_{e}} . \end{matrix}$

The expression of the equilibrium constant quantifies the distribution of the pollutant between the solution and the adsorbed phase. By combining Eqs. (3) and (4), the following Eq. (6) is obtained: $\begin{matrix} (6) & \ln (K_{eq}) = - \frac{∆ H^{°}}{R T} + \frac{∆ S^{°}}{R} . \end{matrix}$

The $K_{eq}$ and ΔG° were calculated for each studied temperature, while the values of $∆ H^{°}$ and $Δ S^{°}$ were estimated from the slopes and intercepts of $\ln (K_{eq})$ vs. 1/ $T$ plot, respectively.

All adsorption experiments were conducted in triplicate whereas the coefficients of variation were below 3.1%.

In order to analyze the effect of cosolutes on the Cd²⁺ adsorption onto mulberry (sample M), two real matrixes (i.e., tap water and water from River Sava, Belgrade, Republic of Serbia) were prepared by adding 55 mg/l cadmium, with and without pH adjustment. Tap and river waters were collected on June 17, 2021. According to the analysis performed by the Institute of Public Health Belgrade, Republic of Serbia, the tap water parameters were pH 7.71, 198 mg/l HCO₃ ^-, 36.73 mg/l NO₃ ^-, 0.005 mg/l NO₂ ^-, 62.12 mg/l Ca²⁺, 14.36 mg/l Mg²⁺, 8,64 mg/l Na⁺, and 1.85 mg/l K⁺. The Sava river water parameters were pH 7.78, 210 mg/l HCO₃ ^-, 1.2 mg/l NO₃ ^-, 0.006 mg/l NO₂ ^-, 49 mg/l Ca²⁺, 12 mg/l Mg²⁺, and 0.0033 mg/l Cd²⁺.

2.5. ATR-FTIR Analysis

Attenuated total reflectance Fourier transform infrared spectroscopy (ATR-FTIR) was employed to identify the wood waste surface functional groups capable of binding cadmium ions. The transmission spectra were obtained using a Shimadzu IR-Affinity spectrophotometer equipped with an attenuated total reflectance accessory (ATR) using a diamond/ZnSe crystal in the wavenumber range of 4000-600 cm^-1, at a resolution of 4 cm^-1.

2.6. Antibacterial Activity of Wood Waste Samples

The wood waste samples’ antibacterial activity was determined against Gram-negative bacteria E. coli ATCC 25922 and Gram-positive bacteria S. aureus ATCC 25923 using a standard test method (ASTM E 2149-01 (2001)). The microbial reduction ( $R$ ) was calculated according to Eq. (7): $\begin{matrix} (7) & R (%) = \frac{C_{0} - C}{C_{0}} ∙ 100, \end{matrix}$ where $C_{0}$ colony-forming units is the number of microbe colonies in the control, and $C$ is the number of microbe colonies on the wood waste sample (CFU/ml). The results are given as the mean value of two measurements per sample, while the coefficients of variation are below 5%.

3. Results and Discussion

3.1. Characterization of Adsorbents

It is well known that the adsorption of heavy metal ions onto lignocellulosic materials depends on adsorption conditions such as contact time, initial ion concentration, temperature, solution pH, adsorbent dosage, and particle size, etc. However, adsorption strongly depends on the adsorbent itself. In order to get insight into the adsorption process and to describe the different adsorption capacities of samples belonging to the same class of hardwoods (i.e., alternatives or oaks), a detailed adsorbents’ characterization is required.

First, the crystallinity index and crystallite size (see Figure 1) were determined concerning the fact that the amorphous regions are responsible for wood waste sorption properties, i.e., enable easier penetration of a higher amount of water molecules into a wood structure contributing to better sorption properties [24] including adsorption of heavy metal ions from an aqueous solution. More precisely, through adsorption and absorption onto/into the amorphous regions, the aqueous solution comes into contact with a very large surface area of different cell wall components having a high amount of functional groups capable of binding cadmium ions.

Figure 1

(a) X-ray diffraction patterns and crystallinity index (CrI). (b) Relationship between crystallinity index (CrI) and crystallite size (τ).

(b)

From Figure 1, it is evident that the crystallinity index is independent of the hardwood class (i.e., alternatives and oaks). However, there is a correlation between the crystallinity index and crystallite size. For example, mulberry (sample $M$ ) is characterized by the lowest crystallinity index ( $CrI = 0.561$ ) which can be ascribed to the highest crystallite size ( $τ = 2.939 nm$ ) disabling crystallite denser packaging. In contrast, myrobalan plum (sample MP) has about 23% lower crystallite size ( $τ = 2.254 nm$ ) that enables crystallite better packaging thus resulting in a 42.4% higher crystallinity index ( $CrI = 0.799$ ) compared to the mulberry.

Besides crystallinity index and crystallite size, the content of carboxyl (primarily present in hemicelluloses, pectin, and lignin) and aldehyde (present in lignin) groups was determined since they represent active sites for binding heavy metal ions [25]. The results listed in Table 4 revealed that all oaks (samples SORG, POGR, and POBO) have a significantly higher amount of carboxyl groups compared to the alternatives (samples BL, M, and MP). According to Alañón et al. [26] and Rowell et al. [27], such results can be explained by a higher content of hydrolyzable tannins present in the oaks, which is also in agreement with our previously published data [28]. Namely, the total content of ellagic and gallic acid (representing hydrolyzable tannins’ derivates) in the oaks’ extracts ranged from 3057 to 9416 mg/kg, while their content in the alternatives’ extracts ranged from 376 to 1190 mg/kg.

Table 4

Amount of carboxyl (COOH) and aldehyde (CHO) groups.

Sample code	COOH [mmol/g]	CHO [mmol/g]	COOH + CHO [mmol/g]
BL	0.1222	0.4129	0.5351
M	0.1884	0.4167	0.6051
MP	0.1320	0.3673	0.4993
SORG	0.2793	0.3173	0.5966
POGR	0.2325	0.3504	0.5829
POBO	0.2455	0.2258	0.4173

On the other hand, phloretin was detected in the myrobalan plum and mulberry (samples MP and M) extracts [28], where aldehyde groups are present. The absence of this compound in the oaks’ extracts might be a possible reason for the lower amount of aldehyde groups in SORG and POBO, than in the alternatives, Table 4.

3.2. Adsorption of Cadmium Ions by Wood Waste

Cadmium was chosen as a model ion to test the ability of wood waste for heavy metal ion removal from an aqueous solution. In further text, the connection between different experimental variables (i.e., initial solution pH, initial ion concentration, contact time, and temperature), wood waste structure, and adsorption capacity will be discussed in detail.

3.3. Effect of Initial Solution pH on the Cadmium Adsorption onto Wood Waste

Taking into consideration the fact that the initial solution pH affects the solubility and ionization state of investigated Cd²⁺ salt, as well as the wood waste surface charge, preliminary experiments by varying the pH value (from 3.0 up to 6.0) were conducted to determine the solution pH at which the cadmium adsorption is the highest, Figure 2.

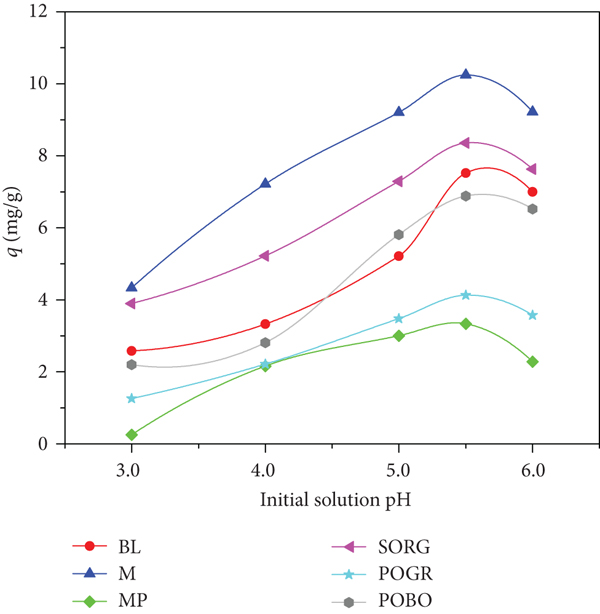

Figure 2

The influence of initial solution pH on the cadmium adsorption ( $q$ ) onto wood waste.

The presented results revealed that at the lowest studied solution pH (i.e., 3.0), the wood waste samples’ affinity for binding Cd²⁺ is low, especially in the case of samples MP and POGR. This behavior is ascribed to the presence of a high concentration of H⁺, whereby the dissociation of COOH groups is suppressed, and the competition and repulsion between H⁺ and Cd²⁺ for the wood waste active sites appeared, altogether resulting in less negative wood waste surface [29]. With further increasing the solution pH up to 5.50, the Cd²⁺ adsorption increases which could be explained by the parallel influence of functional groups’ ionization and the increased negative charge density at the wood waste surface contributing to the increased attraction of the Cd²⁺. At a solution pH of 5.50, the highest Cd²⁺ adsorption was registered for all studied wood waste samples, while above this pH, the adsorption started to decrease due to the higher concentration of the OH in the solution. In order to achieve maximum Cd²⁺ adsorption, the pH of 5.50 was chosen for further experiments.

3.4. Adsorption Isotherms

The effect of initial cadmium concentration on wood waste equilibrium adsorption (in further text: $q_{e}$ ) is given in Figure 3. As was expected, with increasing the initial ion concentration from 15 up to 55 mg/l, the samples’ $q_{e}$ increases. In other words, the driving force for cadmium ions’ adsorption is the gradient of concentration between the aqueous phase and the solid one, which overcomes the resistance to mass transfer between the two phases; the higher the gradient, the more favored the process [30]. The most prominent increase (about 2.2 times) in the $q_{e}$ was observed for the sample POGR, while the lowest increase (about 89%) in $q_{e}$ was observed for the sample POBO. It is worth mentioning that the same trend ( $M > SORG > BL > POBO > POGR > MP$ ) for $q_{e}$ was evident for all initial cadmium concentrations, Figure 3.

Figure 3

Equilibrium cadmium adsorption ( $q_{e}$ ) as a function of its initial concentration ( $c_{0}$ ).

The interaction between cadmium ions and wood waste samples can be easily described by treating the equilibrium data (see Figure 3) according to Langmuir and Freundlich adsorption equations (see Table 2). The adsorption isotherms’ plots and the nonlinear fit of the experimental data are presented in Figure 4, while the coefficients of determination ( $R^{2}$ ) are listed in Table 2. Somewhat higher values of the coefficient of determination were obtained using the Langmuir ( $R^{2} = 0.964 - 0.997$ ) than Freundlich ( $R^{2} = 0.930 - 0.985$ ) model (with the exception of sample SORG), pointing out that it could be more suitable for describing the system under study. According to Park et al. [31] and Khan et al. [32], better fitting with the Langmuir isotherm model implies monolayer coverage of cadmium ions over a homogeneous wood waste surface.

Figure 4

Adsorption isotherms and nonlinear fit of experimental adsorption data for Cd²⁺.

The isotherm parameters determined by fitting the experimental data (see Figure 3) with the Langmuir and Freundlich adsorption equations are given in Table 2. The maximal wood waste samples’ adsorption capacity ( $q_{m}$ ), derived from Langmuir modeling is in the range from 5.726 to 12.618 mg/g. Observing in parallel the results obtained for samples’ $q_{m}$ and crystallinity index (see Table 2 and Figures 1(b) and 1(a)), good linear correlation ( $r^{2} = - 0.889$ ) between them was found. Namely, the highest $q_{m}$ of mulberry (sample M) is conditioned by its highest amount of amorphous regions (i.e., lower crystallinity index) as well as the highest crystallite size. Additionally, the highest value of the Langmuir constant ( $K_{L} = 0.491 l / mg$ , Table 2) was observed for this sample indicating a strong interaction between mulberry and cadmium ions. A considerable influence of the mentioned factors on $q_{m}$ is also proved for other wood waste samples. Opposite from mulberry, myrobalan plum’s crystallites are better packaged (i.e., a sample has a higher crystallinity index) representing some kind of barrier which obstructs the diffusion of cadmium ions within the sample and consequently their adsorption. Even more, this sample possesses a weak interaction with cadmium ions ( $K_{L} = 0.049$ , Table 2).

Taking into account the results obtained for the alternatives’ $q_{m}$ (see Table 2) and the total amount of COOH and CHO groups (see Table 4), it is evident that the $q_{m}$ is also conditioned by the total amount of COOH and CHO groups (linear correlation $r^{2} = 0.838$ ). However, in the case of the oaks, the situation is different. Namely, besides the crystallinity index and crystallite size, $q_{m}$ depends on the amount of COOH groups ( $r^{2} = 0.966$ ). All mentioned indicates that governing removal Cd²⁺ mechanism proceeds via carboxyl groups, which is additionally confirmed by ATR-FTIR spectroscopy.

The ATR-FTIR spectra of wood waste samples’ that possess the highest and the lowest adsorption potential (samples M and MP, respectively) as well as the sample SORG which belongs to the class of oaks were recorded before and after cadmium adsorption, Figure 5. As it was expected, after the adsorption, the wood waste samples’ surface chemistry changed, i.e., the reduction of the certain peaks’ intensities was observed. The intensity of the peak at 1735 cm^-1 (corresponding to C=O stretching vibration of carboxyl acid or ester groups in hemicelluloses [33]) decreases, pointing out that the carboxyl groups play an important role in the cadmium adsorption process. Lower intensities of the peaks at 1505 cm^-1 and 1460 cm^-1 (aromatic ring C=C of the lignin phenylpropane group [33]), 1596 cm^-1 (aromatic skeletal vibrations and ring breathing with C-O stretching in lignin [34]), 824 cm^-1 (C-H vibration of aromatic compounds), and at 1232 cm^-1 and 1315 cm^-1 (ring breathing of guaiacyl “G” and syringyl “S,” respectively [35]) observed after the adsorption indicate cation-π interactions between the cadmium ions and mentioned functional groups located on the wood waste surface. Furthermore, after the adsorption, the peak at 3329 cm^-1 assigned to O-H stretching vibrations of hydroxyl and carboxyl groups [36] was broadened and has lower intensity confirming that the hydroxyl groups also participate in the cadmium adsorption through the formation of ion-dipole interactions. Lastly, decreased intensity of the peak with maxima at 2910 cm^-1 (functional groups of methyl, methylene, and aliphatic saturated hydrocarbons of lignin as well as polysaccharides) after the adsorption is most probably a consequence of cadmium binding.

Figure 5

ATR-FTIR spectra of wood waste samples before (M, MP, and SORG) and after cadmium adsorption (MCd²⁺, MPCd²⁺, and SORGCd²⁺): (a) 4000-600 cm^-1 and (b) 2000-600 cm^-1.

(b)

Taking into account the fact that the cadmium removal mechanism is complex and dependent on various factors such as the wood’s nature and its surface chemistry and heterogeneity, some general remarks on the interactions between wood surface functional groups and Cd²⁺ could be made. Having in mind that the adsorption trend of different wood waste samples do not correlate very well with the total amount of aldehyde and carboxyl groups ( $r^{2} = 0.838$ ), it is justified to assume that besides these groups, some other groups present on the wood waste surface, such as hydroxyl and phenyl (originating from lignin and tannins), also play an important role in Cd²⁺ binding mechanism. Namely, according to ATR-FTIR spectra, it is evident that all aforementioned functional groups are involved in Cd²⁺ adsorption which proceeds via the interplay of the complexation, cation-π interactions, and ion-exchange mechanisms (Figure 6). Carboxyl and hydroxyl groups may be involved in two different mechanisms: ion exchange (occurs between Cd²⁺ and H⁺) and surface complexation [37], while electron-rich phenyl groups participate in the cation-π interactions [38, 39]. Electrostatic interactions between carboxylate and Cd²⁺ should not be neglected in the overall mechanism since some carboxyl groups may appear as deprotonated carboxylates at a pH of 5.50. According to Harvy et al. [40], carbonyl groups may be involved in the cation- π binding mechanism of the Cd²⁺; so, the role of the aldehyde groups participating in such interactions could not be ruled out.

Figure 6

Schematic representation of a possible mechanism of binding Cd²⁺ onto wood waste.

3.5. Kinetic Study

In the next step of the current investigation, the wood waste samples that possess the highest (mulberry, sample M) and the lowest (myrobalan plum, sample MP) adsorption potential (in further text: q) were selected to study the influence of contact time on their $q$ toward cadmium ions (c₀ = 55 mg/l). As is presented in Figure 7, the adsorption of cadmium ions onto mulberry and myrobalan plum is a relatively fast process since, in the first hour of contact time, about 89% and 80% of their $q_{e}$ were reached, while the equilibrium was attained after four hours of contact time.

Figure 7

Kinetic data and nonlinear fit with pseudo-first and Pseudo-second-order kinetic for Cd²⁺ adsorption onto mulberry (M) and myrobalan plum (MP).

The kinetic data were fitted with pseudo-first and pseudo-second-order kinetic models to describe the rate of the adsorption process on the wood waste samples. The results given in Figure 7 revealed that the kinetic data obtained for myrobalan plum (sample MP) fit better with the pseudo-second-order model, while mulberry (sample M) showed a similar fit with both kinetic models. However, the calculated $q_{e}$ values ( $q_{e}$ _,cal) (see Table 3) along with the nonlinear curve fitting (Figure 7) show that the adsorption for both samples follows the pseudo-second-order kinetic model, indicating that the adsorption is mediated by chemical forces. In other words, the adsorption/binding was established through sharing or exchange of electrons between the adsorbate and the adsorbent, as ionic exchanges [41], which was previously confirmed by the ATR-FTIR spectra (i.e., decreasing the peaks’ intensities), Figure 6. Additionally, the pseudo-second rate constant ( $k_{2}$ ) values indicate that the adsorption rate is 4 times higher in the case of the myrobalan plum ( $k_{2} = 0.032 g / mg \min$ ) compared with the mulberry ( $k_{2} = 0.008$ ).

3.6. Thermodynamic Study

Besides initial solution pH, initial ion concentration, and contact time, temperature represents another important factor influencing the wood waste samples $q$ towards Cd²⁺. Therefore, the adsorption experiments for the samples M and MP were conducted at three different temperatures (25, 35, and 45 C°, i.e., 298.15, 308.15, and 318.15 K), Figure 8.

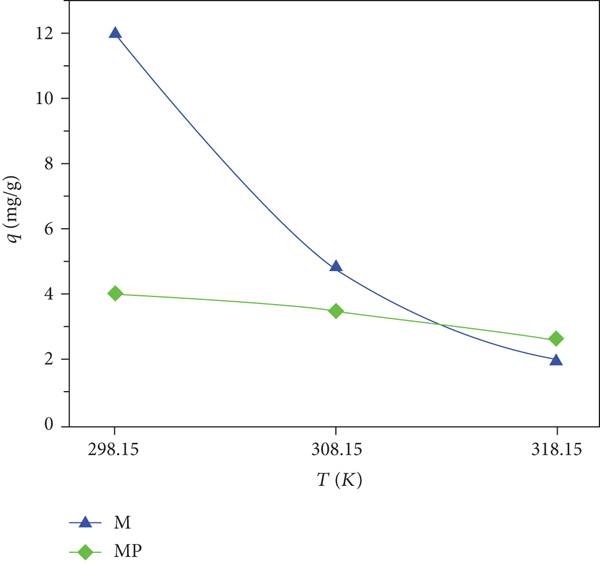

Figure 8

The effect of temperature ( $T$ ) on the cadmium adsorption ( $q$ ) onto mulberry (M) and myrobalan plum (MP).

Data obtained from adsorption experiments performed at different temperatures (Figure 8) were used to calculate the main thermodynamic parameters (i.e., standard Gibbs energy change $Δ G^{°}$ , standard enthalpy ΔH°, and standard entropy $Δ S^{°}$ ) of Cd²⁺ adsorption onto selected samples (Table 5).

Table 5

Thermodynamic parameters for the Cd²⁺ adsorption onto mulberry (M) and myrobalan plum (MP).

Sample	Temperature, K	lnK _eq	$Δ G^{°}$ , kJ/mol	$Δ H^{°}$ , kJ/mol	$Δ S^{°}$ , J/mol K
M	298.15	6.061	-15.07	-0.730	2.814
	308.15	4.716	-12.12
	318.15	3.693	-9.79
MP	298.15	4.476	-11.13	-3.595	1.406
	308.15	4.243	-10.78
	318.15	3.993	-10.59

As listed in Table 5, the positive lnK_eq values along with the negative $Δ G^{°}$ and positive $Δ S^{°}$ calculated for all considered temperatures, pointed out that the Cd²⁺ adsorption onto M and MP is spontaneous. Moreover, the negative $Δ H^{°}$ values confirm that the adsorption process is of exothermic character.

3.7. The Effect of Cosolutes on the Cd²⁺ Adsorption onto Mulberry

It is well known that the different cosolutes may influence the Cd²⁺ adsorption onto mulberry. Therefore, two real matrixes, namely, tap water and water from the Sava river (Belgrade, Republic of Serbia), were prepared by adding 55 mg/l cadmium (with and without pH adjustment).

Based on the results given in Table 6, the mulberry adsorption capacities for Cd²⁺ are somewhat lower when the real waters (tap and Sava river waters) were used as matrixes. Such results were expected since the real waters contain calcium and magnesium ions (as was given in the experimental part of the manuscript) which compete for mulberry wood waste active sites.

Table 6

Comparison between the mulberry wood waste adsorption capacities for Cd²⁺ in different matrixes.

Matrix	Without pH adjustment	At a pH of 5.50
Aqueous solution, mg/g	5.245	11.921
Tap water, mg/g	4.003	8.993
Water from Sava river, mg/g	4.296	10.921

3.8. Comparison of Wood Waste Adsorption Capacities for Cd²⁺ with the Adsorption Capacities of Other Lignocellulosic Materials

Taking into account that the Cd²⁺ adsorption conditions (such as initial metal ion concentration, solution pH, contact time, temperature, and adsorbent dosage) used in the current study differ from those presented in other studies, it is very difficult to compare the wood waste $q$ with the $q$ obtained for other lignocellulosic materials. However, similar adsorption conditions (solution pH, adsorbent dosage, and initial cadmium concentration) allow us to compare the results obtained for the $q$ of wood waste samples and hemp fibers [42]. Namely, the observed raw hemp fiber q was 6.63 mg/g ( $c_{0} = 22.5 mg / l$ ), which is about 54% lower than those of mulberry ( $q = 10.24 mg / g$ , $c_{0} = 25 mg / l$ ) and in line with those of POBO sample ( $q = 6.88 mg / g$ ), Figure 3. Loiacono et al. [14] reported two times higher maximum adsorption capacity ( $q_{\max} = 27.5$ vs. 12.62 mg/g) of hemp-based felt which could be ascribed to the three times higher adsorbent dosage and two times lower solution volume (1.5 g/100 ml vs. 0.5 g/200 ml). Langmuir maximum adsorption capacities ( $q_{\max}$ ) of chemically modified (using NaOH, HNO₃, and H₂SO₄) sugarcane bagasse and wheat straw ranged from 1.5-2.2 mg/g to 2.5-3.8 mg/g, respectively [43]. Also, significantly lower Cd²⁺ adsorption was observed by Mahmood-ul-Hassan [44] (2.87 mg/g) for Picea smithiana sawdust and Zadeh et al. [45] for eucalyptus sawdust (2.72 mg/g). In the newest published paper, Gunjal [46] studied the Cd²⁺ adsorption ( $c_{0} = 25 mg / l$ ) onto various lignocellulosic materials, whereby $q_{\max}$ of the peanut shell, corn cob, sawdust, and paddy husk was in the range of 1.80-2.07 mg/g.

3.9. Antibacterial Activity of Wood Waste Samples

Wastewater treatment processes are designed to reduce the concentration of contaminants, including heavy metal ions before their discharge to receiving water. However, in many cases, these effluents contain a significant amount of pathogenic bacteria presenting a threat to public health. In light of that, the antibacterial activity of wood waste samples was investigated against Gram-negative bacteria E. coli and Gram-positive bacteria S. aureus, Table 7.

Table 7

Antibacterial activity of wood waste samples.

Wood samples	Number of microbial colonies, CFU/ml, and microbial reduction, %
Wood samples	E. coli (CFU/ml)	E. coli (%)	S. aureus (CFU/ml)	S. aureus (%)
BL	0	99.99	0	99.99
M	0	99.99	0	99.99
MP	1 · 10³	99.92	0	99.99
SORG	0	99.99	1.5 · 10⁵	99.53
POGR	0	99.99	0	99.99
POBO	0	99.99	0	99.99

$C_{0} (E . c o l i) = 1.3 \times$ 10⁶ CFU/ml. $C_{0} (S . a u r e u s) = 3.2 \times$ 10⁷ CFU/ml.

All wood waste samples possess a very high bacterial reduction (>99%) for both tested bacteria. These results are expected having in mind the wood chemical composition, i.e., high content of lignin which polyphenolic compounds are responsible for observed antibacterial activity. Namely, they cause cell membrane damage and lysis of bacteria with subsequent release of their cell contents [47]. Based on the results presented in this section, it can be assumed that all studied wood waste samples (i.e., alternatives’ and oaks’ staves) can be used as adsorbents for heavy metal ions (such as Cd²⁺) present in effluents at trace levels as well as for water disinfection (from E. Coli and S. aureus).

4. Conclusions

In the last two decades, the requirements for wood casks at the Balkan were expanded, and therefore, the amount of wood waste (such as alternatives’ and oaks’ staves) in this geographical area considerably increased. In this investigation, the possibility to revalue the wood waste (such as alternatives’ and oaks’ staves) from Balkan cooperage was examined. Cadmium was chosen as a model ion to test the ability of wood waste for heavy metal removal from an aqueous solution, while the samples’ antibacterial activity was tested against E. coli and S. aureus to study the possibility of simultaneous wastewater disinfection. Cadmium adsorption onto wood waste increased (from 1.9-5.0 up to 4.0-11.9 mg/g) with increasing its initial concentration (from 15 up to 55 mg/l). Based on the equilibrium data, Langmuir adsorption isotherm was found as the most suitable model for describing the interaction between cadmium ions and wood waste samples. This isotherm model implies a monolayer coverage of cadmium ions over a homogeneous wood waste surface. Good connections among the samples’ maximum adsorption capacities, their crystallinity index, and crystallite sizes were found. Namely, with increasing the content of amorphous regions, crystallite size, and amount of functional groups, the wood waste samples’ adsorption capacity increases too. According to ATR-FTIR spectra, aldehyde, carboxyl, hydroxyl, and phenyl groups present on the wood waste surface are involved in Cd²⁺ adsorption which proceeds via the interplay of the complexation, cation-π interactions, and ion-exchange mechanisms. Mulberry and myrobalan plum showed about 89% and 80% of the total uptake capacity of cadmium within the first hour of contact time, while the equilibrium was attained after four hours of contact time. As indicated by the applicability of the pseudo-second-order model, cadmium adsorption was mediated by chemical forces. Thermodynamic parameters revealed the spontaneous and exothermic character of cadmium ion adsorption onto mulberry and myrobalan plum. All alternatives and oaks provide maximum bacterial reduction (>99%) for E. coli and S. aureus making them appropriate for simultaneous cadmium removal and wastewater disinfection.

Footnotes

Data Availability

Aleksandra Ivanovska (e-mail: aivanovska@tmf.bg.ac.rs) should be contacted to request the data.

Conflicts of Interest

The authors declare that there is no conflict of interest regarding the publication of this paper.

Acknowledgments

The authors thank Jelena Lađarević (Faculty of Technology and Metallurgy, University of Belgrade) for schematic representation and discussion of a possible mechanism of binding Cd²⁺ onto wood waste and Steva Lević (Faculty of Agriculture, University of Belgrade) for obtaining ATR-FTIR spectra. The authors are grateful to the Ministry of Education, Science, and Technological Development of the Republic of Serbia [Contract No. 451-03-9/2021-14/200287, 451-03-9/2021-14/200135, 451-03-9/2021-14/200026, 451-03-9/2021-14/200051, 451-03-9/2021-14/200168] for funding the study.

References

Martínez-Gil

del Alamo-Sanza

Sánchez-Gómez

Nevares

Different woods in cooperage for oenology: a review

Beverages 2018 4

3552300

4 94

10.3390/beverages4040094

Pecić

Veljović

Despotović

Leskošek-Čukalović

Jadranin

Tešević

Nikšić

Nikićević

Effect of maturation conditions on sensory and antioxidant properties of old Serbian plum brandies

European Food Research and Technology 2012 235

3552300

3 479 487

10.1007/s00217-012-1775-y

2-s2.0-84865650953

Perić

Antonijević

Komatina

Bugarski

Rakin

Life cycle assessment of wood chips supply chain in Serbia

Renewable Energy 2020 155

3552300

1302 1311

10.1016/j.renene.2020.04.026

Map

2020 December 2020, https://www.trademap.org/Index.aspx

Nichols

E. G.

Ansari

Gill

Lanza

Newman

Current and future opportunities for forest land application systems of wastewater

Phytoremediation 2016 4

3552300

Cham

Springer

153 173

10.1007/978-3-319-41811-7_9

2-s2.0-85017052314

Selvasembian

Gwenzi

Chaukura

Mthembu

Recent advances in the polyurethane-based adsorbents for the decontamination of hazardous wastewater pollutants

Journal of Hazardous Materials 2021 417, article 125960

3552300

10.1016/j.jhazmat.2021.125960

Özdemir

Kılınç

Poli

Romano

Nicolaus

Mustafov

S. D.

Şen

Extraction of Cu²⁺ and Co²⁺ by using Tricholoma populinum loaded onto Amberlite XAD-4

International journal of Environmental Science and Technology 2021 18

3552300

1 185 194

10.1007/s13762-020-02845-3

Dawodu

F. A.

Akpan

B. M.

Akpomie

K. G.

Sequestered capture and desorption of hexavalent chromium from solution and textile wastewater onto low cost Heinsia crinita seed coat biomass

Applied Water Science 2020 10

3552300

1 32

10.1007/s13201-019-1114-6

Buha

Wallace

Matovic

Schweitzer

Oluic

Micic

Djordjevic

Cadmium exposure as a putative risk factor for the development of pancreatic cancer: three different lines of evidence

Biomed Research International 2017 2017, article 1981837

3552300

10.1155/2017/1981837

2-s2.0-85042214191

29349066

10.

Djordjevic

V. R.

Wallace

D. R.

Schweitzer

Boricic

Knezevic

Matic

Grubor

Kerkez

Radenkovic

Bulat

Antonijevic

Matovic

Buha

Environmental cadmium exposure and pancreatic cancer: evidence from case control, animal and in vitro studies

Environmental International 2019 128

3552300

353 361

10.1016/j.envint.2019.04.048

2-s2.0-85065160440

31078004

11.

World Health Organization WHO

Guidelines for drinking-water quality

2008 1

3552300

December 2020, https://www.who.int/water_sanitation_health/dwq/fulltext.pdf

12.

Ivanovska

Dojcinovic

Maletic

Pavun

Asanovic

Kostic

Waste jute fabric as a biosorbent for heavy metal ions from aqueous solution

Fibers and Polymers 2020 21

3552300

9 1992 2002

10.1007/s12221-020-9639-8

13.

Sahu

Basti

Trace metal pollution in the environment: a review

International Journal of Environmental Science and Technology 2021 18

3552300

1 211 224

10.1007/s13762-020-02779-w

14.

Loiacono

Crini

Chanet

Raschetti

Placet

Morin-Crini

Metals in aqueous solutions and real effluents: biosorption behavior of a hemp-based felt

Journal of Chemical Technology and Biotechnology 2018 93

3552300

9 2592 2601

10.1002/jctb.5612

2-s2.0-85044676345

15.

Rangabhashiyam

Vijayaraghavan

Biosorption of tm(III) by free and polysulfone-immobilized Turbinaria conoides biomass

Journal of Industrial and Engineering Chemistry 2019 80

3552300

318 324

16.

Rangabhashiyam

Sayantani

Balasubramanian

Assessment of hexavalent chromium biosorption using biodiesel extracted seeds of Jatropha sp., Ricinus sp. and Pongamia sp

International journal of Environmental Science and Technology 2019 16

3552300

10 5707 5724

10.1007/s13762-018-1951-0

2-s2.0-85051671430

17.

Kovacova

Demcak

Balintova

Pla

Zinicovscaia

Influence of wooden sawdust treatments on Cu(II) and Zn(II) removal from water

Materials 2020 13

3552300

16, article 3575

10.3390/ma13163575

32823585

18.

Morin-Crini

Staelens

J. N.

Loiacono

Martel

Chanet

Crini

Simultaneous removal of Cd, Co, Cu, Mn, Ni, and Zn from synthetic solutions on a hemp-based felt. III. Real discharge waters

Journal of Applied Polymer Science 2020 137

3552300

24, article 48823

10.1002/app.48823

19.

Chu

Ryberg

E. C.

Loeb

S. K.

Suh

M.-J.

Kim

J.-H.

Water disinfection in rural areas demands unconventional solar technologies

Accounts of Chemical Research 2019 52

3552300

5 1187 1195

10.1021/acs.accounts.8b00578

2-s2.0-85066513167

30943006

20.

Smailagić

Ristivojević

Dimkić

Pavlović

Dabić Zagorac

Veljović

Fotirić Akšić

Meland

Natić

Radical scavenging and antimicrobial properties of polyphenol rich waste wood extracts

Foods 2020 9

3552300

3 319

10.3390/foods9030319

32164204

21.

French

A. D.

Idealized powder diffraction patterns for cellulose polymorphs

Cellulose 2014 21

3552300

2 885 896

10.1007/s10570-013-0030-4

2-s2.0-84897075405

22.

Nam

French

A. D.

Condon

B. D.

Concha

Segal crystallinity index revisited by the simulation of X-ray diffraction patterns of cotton cellulose Iβ and cellulose II

Carbohydrate Polymers 2016 135

3552300

1 9

10.1016/j.carbpol.2015.08.035

2-s2.0-84940782373

26453844

23.

Saito

Isogai

TEMPO-mediated oxidation of native cellulose. The effect of oxidation conditions on chemical and crystal structures of the water-insoluble fractions

Biomacromolecules 2004 5

3552300

5 1983 1989

10.1021/bm0497769

2-s2.0-5044238996

15360314

24.

Ivanovska

Cerovic

Tadic

Jankovic Castvan

Asanovic

Kostic

Sorption and dielectric properties of jute woven fabrics: effect of chemical composition

Industrial Crops and Products 2019 140, article 111632

3552300

10.1016/j.indcrop.2019.111632

2-s2.0-85070371418

25.

Ivanovska

Asanovic

Jankoska

Mihajlovski

Pavun

Kostic

Multifunctional jute fabrics obtained by different chemical modifications

Cellulose 2020 27

3552300

14 8485 8502

10.1007/s10570-020-03360-x

26.

Alañón

M. E.

Castro-Vázquez

Díaz-Maroto

M. C.

Hermosín-Gutiérrez

Gordon

M. H.

Pérez-Coello

M. S.

Antioxidant capacity and phenolic composition of different woods used in cooperage

Food Chemistry 2011 129

3552300

4 1584 1590

10.1016/j.foodchem.2011.06.013

2-s2.0-80051796482

27.

Rowell

R. M.

Pettersen

Tshabalala

M. A.

Rowell

R. M.

Cell wall chemistry

Handbook of Wood Chemistry and Wood Composites 2012

Boca Raton

CRC Press

33 72

10.1201/b12487-5

28.

Smailagić

Veljović

Gašić

Zagorac

D. D.

Stanković

Radotić

Natić

Phenolic profile, chromatic parameters and fluorescence of different woods used in Balkan cooperage

Industrial Crops and Products 2019 132

3552300

156 167

10.1016/j.indcrop.2019.02.017

2-s2.0-85061740060

29.

Rizzuti

A. M.

Mouzone

K. D.

Cosme

L. W.

Cohen

A. D.

Utilising highly characterised peats to remove cadmium from aqueous solutions

Mires and Peat 2018 21, article 21

3552300

1 10

30.

Semeraro

Fini

D’Addabbo

Rizzi

Cosma

Removal from wastewater and recycling of azo textile dyes by alginate-chitosan beads

International Journal of Environment, Agriculture and Biotechnology 2017 2

3552300

4 1835 1850

10.22161/ijeab/2.4.48

31.

Park

J. H.

Eom

J. H.

Lee

S. L.

Hwang

S. W.

Kim

S. H.

Kang

S. W.

Yun

J. J.

Cho

J. S.

Lee

Y. H.

Seo

D. C.

Exploration of the potential capacity of fly ash and bottom ash derived from wood pellet-based thermal power plant for heavy metal removal

Science of the Total Environment 2020 740

3552300

20, article 140205

10.1016/j.scitotenv.2020.140205

32.

Khan

Hussein

M. A.

Alsheri

F. M.

Alamry

A. A.

Asiri

A. M.

A new class of polyethylene glycol-grafted graphene carbon nanotube composite as a selective adsorbent for Au(III)

Waste and Biomass Valorization 2021 12

3552300

2 937 946

10.1007/s12649-020-01053-x

33.

Zhou

Huang

Yang

Wang

Liang

Study on the colorimetry properties of transparent wood prepared from six wood species

ACS Omega 2020 5

3552300

4 1782 1788

10.1021/acsomega.9b02498

32039313

34.

Ganne-Chédeville

Jääskeläinen

A. S.

Froidevaux

Hughes

Navi

Natural and artificial ageing of spruce wood as observed by FTIR-ATR and UVRR spectroscopy

Holzforschung 2011 66

3552300

163 170

10.1515/hf.2011.148

2-s2.0-84860622899

35.

Gupta

B. S.

Jelle

B. P.

Gao

Wood facade materials ageing analysis by FTIR spectroscopy

Proceedings of the Institution of Civil Engineers-Construction Materials 2015 168

3552300

5 219 231

10.1680/jcoma.13.00021

36.

Zhang

Liu

Musa

S. M.

Mai

Zhang

Dialdehyde cellulose as a bio-based robust adhesive for wood bonding

ACS Sustainable Chemistry & Engineering 2019 7

3552300

12 10452 10459

10.1021/acssuschemeng.9b00801

2-s2.0-85066426904

37.

Yang

Wan

Zheng

Huang

Wang

Y. S.

Jiang

Gao

Surface functional groups of carbon-based adsorbents and their roles in the removal of heavy metals from aqueous solutions: a critical review

Chemical Engineering Journal 2019 366

3552300

608 621

10.1016/j.cej.2019.02.119

2-s2.0-85061783974

38.

Yang

Wang

Song

Yang

Chang

An indole-based aerogel for enhanced removal of heavy metals from waterviathe synergistic effects of complexation and cation–π interactions

Journal of Materials Chemistry A 2019 7

3552300

2 531 539

10.1039/C8TA07326K

2-s2.0-85059590524

39.

Xia

Liu

Guo

Liu

Jiao

Immobilization of heavy metals in contaminated soils by modified hydrochar: efficiency, risk assessment and potential mechanisms

Science of the Total Environment 2019 685

3552300

1201 1208

10.1016/j.scitotenv.2019.06.288

2-s2.0-85067862006

40.

Harvey

O. R.

Herbert

B. E.

Rhue

R. D.

Kuo

Metal interactions at the biochar-water interface: energetics and structure-sorption relationships elucidated by flow adsorption microcalorimetry

Environmental Science and Technology 2011 45

3552300

13 5550 5556

10.1021/es104401h

2-s2.0-79959895489

21630654

41.

Akbar

N. A.

Aziz

H. A.

Alazaiza

M. Y. D.

Effectiveness of Fe, Mn, UV254 and colour removal from pre-ozonated groundwater using anthracite coal

International Journal of Environmental Research 2021 15

3552300

2 245 259

10.1007/s41742-020-00306-w

42.

Pejic

Vukcevic

Kostic

Skundric

Biosorption of heavy metal ions from aqueous solutions by short hemp fibers: effect of chemical composition

Journal of Hazardous Materials 2009 164

3552300

1 146 153

10.1016/j.jhazmat.2008.07.139

2-s2.0-61749090160

18778893

43.

Mahmood-ul-Hassan

Suthar

Rafique

Ahmad

Yasin

Kinetics of cadmium, chromium, and lead sorption onto chemically modified sugarcane bagasse and wheat straw

Environmental Monitoring and Assessment 2015 187, article 470

3552300

10.1007/s10661-015-4692-2

2-s2.0-84933042771

44.

Mahmood-ul-Hassan

Yasin

Yousra

Ahmad

Sarwar

Kinetics, isotherms, and thermodynamic studies of lead, chromium, and cadmium bio-adsorption from aqueous solution onto Picea smithiana sawdust

Environmental Science and Pollution Research 2018 25

3552300

13 12570 12578

10.1007/s11356-018-1300-3

2-s2.0-85042212172

29464606

45.

Zadeh

B. S.

Esmaeili

Foroutan

Mousavi

S. M.

Hashemi

S. A.

Removal of cd from aqueous solution using eucalyptus sawdust as a bio-adsorbent: kinetic and equilibrium studies

Journal of Environmental Treatment Techniques 2020 8

3552300

1 112 118

46.

Gunjal

Kinetics Study for the Removal of Heavy Metals by the Agroindustry by-Products

Proceedings of the Indian National Science Academy 2021 87

3552300

1 57 62

10.1007/s43538-021-00005-w

47.

Espinoza-Acosta

J. L.

Torres-Chávez

P. I.

Ramírez-Wong

López-Saiz

C. M.

Montaño-Leyva

Antioxidant, antimicrobial, and antimutagenic properties of technical lignins and their applications

BioResources 2016 11

3552300

2 5452 5481

10.15376/biores.11.2.Espinoza_Acosta

2-s2.0-84965116374

A Strategy to Revalue a Wood Waste for Simultaneous Cadmium Removal and Wastewater Disinfection

Abstract

1. Introduction

2. Materials and Methods

2.1. Material

2.2. X-Ray Diffraction Analysis

2.3. Determination of the Amount of Carboxyl and Aldehyde Groups

2.4. Adsorption Experiments

2.5. ATR-FTIR Analysis

2.6. Antibacterial Activity of Wood Waste Samples

3. Results and Discussion

3.1. Characterization of Adsorbents

3.2. Adsorption of Cadmium Ions by Wood Waste

3.3. Effect of Initial Solution pH on the Cadmium Adsorption onto Wood Waste

3.4. Adsorption Isotherms

3.5. Kinetic Study

3.6. Thermodynamic Study

3.7. The Effect of Cosolutes on the Cd2+ Adsorption onto Mulberry

3.8. Comparison of Wood Waste Adsorption Capacities for Cd2+ with the Adsorption Capacities of Other Lignocellulosic Materials

3.9. Antibacterial Activity of Wood Waste Samples

4. Conclusions

Footnotes

Data Availability

Conflicts of Interest

Acknowledgments

References

3.7. The Effect of Cosolutes on the Cd²⁺ Adsorption onto Mulberry

3.8. Comparison of Wood Waste Adsorption Capacities for Cd²⁺ with the Adsorption Capacities of Other Lignocellulosic Materials
