Experimental and Computational Approaches for the Structural Study of Novel Ca-Rich Zeolites from Incense Stick Ash and Their Application for Wastewater Treatment

Abstract

At present, chemical Si/Al sources are mainly used as precursor materials for the manufacturing of zeolites. Such precursor materials are quite expensive for commercial synthesis. Here, we have reported the synthesis of Ca-based zeolite from incense stick ash waste by the alkali-treatment method for the first time. Incense stick ash (ISA) was used as a precursor material for the synthesis of low Si zeolites by the alkali-treatment method. The as-synthesized zeolites were characterized by various instruments like particle size analyzer (PSA), Fourier transform infrared (FTIR), X-ray diffraction (XRD), field emission scanning electron microscope (FESEM), electron diffraction spectroscopy (EDS), transmission electron microscopy (TEM), and X-ray fluorescence (XRF). FTIR and XRD helped in the identification of the microstructure and crystalline nature of the zeolites and also confirmed the synthesis of Ca-based zeolite with two thetas at 25.7°. The microscopic analysis by FESEM and TEM exhibited that the size of synthesized Ca-rich zeolites varies from 200 to 700 nm and they are aggregated and cuboidal in shape. Additionally, structural, electronic, and density of states’ characteristics of gismondine (Ca₂Al₄Si₄O₁₆·₉H₂O) structures were evaluated by computational simulations (first principle, density functional theorem). The structural optimization of structures was carried out in the first stage under the lowest condition of total energy and forces acting on atoms for the lattice constant, as well as the available experimental and theoretical findings. The present research approach predicted the transformation of ISA waste into a value-added mineral, i.e., zeolite, which was further used for the removal of both heavy metals and alkali metals from fly ash-based wastewater using inductively coupled plasma-optical emission spectroscopy (ICP-OES).

1. Introduction

Zeolites are crystalline aluminosilicates having elements either from group I or II as counter ions [1]. Zeolites mainly consist of Al, Si, and O, which forms their basic framework [2]. The structure of zeolites comprises the framework of [SiO₄]^4_ and [AlO₄]⁵ tetrahedra linked to each other at the corners by sharing their oxygen [3, 4]. The tetrahedral 3D network of zeolites has a lot of voids and spaces in them [5], and these voids supplement the characteristics to the zeolites, for instance, the adsorption of molecules in the huge internal channels [6, 7]. Zeolites can be readily dehydrated and rehydrated [8] and are used as cation exchangers [9], soil decontamination [9, 10], and molecular sieves [11]. The unique and remarkable properties of zeolites viz. porous nature, negative charge, water-insoluble, higher melting point, and water trapping property [12–14] make them a potential material as an adsorbent [15] for wastewater treatment [16], as fertilizers in agriculture [17], and as an ion exchanger [18–26]. Based on their origin, zeolites can be of two types, i.e., natural or synthetic [27, 28]. Synthetic zeolites are synthesized in laboratory conditions by optimizing the conditions.

Presently, for commercial production, synthetic zeolites are preferred over natural zeolites, as they can be modified as per the need of the industry. Moreover, synthetic zeolites are more precise, ordered, crystalline, and uniform in size of the particles. However, the synthesis of zeolites from Al- and Si-rich chemical sources is not economical [29]. On the other hand, natural zeolites are present in nature in the form of volcanic ashes [30, 31], sedimentary rocks [32], clay and kaolins [33, 34], fly ash [28, 35], bauxite minerals [36], and other earthy materials which may reduce the cost of the zeolites but purity remains a major concern. Incense stick ash (ISA) being a waste material of household and religious places can act as a source of zeolites owing to its similar composition to the natural zeolites [37, 38]. Yet to date, no attempt has been made by the scientific community for the synthesis of zeolites from overlooked waste like ISA [39]. Every day, tons of incense sticks are consumed at religious places and homes in countries like China, Thailand, Japan, Burma, and India for deity purposes which in turn produces ISA. The burning of incense stick leaves behind ashes as a residue that has to be disposed of in the river or other water sources especially in India where it holds religious values and is considered holy [40, 41]. Indian incense stick ash has high Ca, Mg, Fe, Si, and Al content where Ca and Mg alone constitute 50-60% total weight of the ash [42–44], while silica is 20% and alumina is 5-10% forming 25-30% of the total weight. All these elements are essential for the synthesis of zeolites [35]. So, instead of disposing the ashes into the river, it can be utilized for the synthesis of zeolites which may have potential to treat wastewater and protect the environment.

ISA was employed in the synthesis of zeolites, by the alkali-treatment method under laboratory conditions. As per our knowledge, ISA-based synthesis of zeolites has been reported for the first time over here. The synthesized zeolites were characterized by particle size analyzer (PSA), Fourier transform infrared (FTIR), field emission scanning electron microscope (FESEM), electron diffraction spectroscopy (EDS), transmission electron microscopy (TEM), X-ray diffraction (XRD), and X-ray fluorescence (XRF). The synthesized zeolites belong to the sodalite class and are crystalline, aggregated, and cuboidal in shape with size ranging from 200 nm to 700 nm. Further, the potential of synthesized zeolites was explored for the removal of heavy metals and alkali metals from fly ash aqueous solutions with respect to time using inductively coupled plasma-optical emission spectroscopy (ICP-OES) analysis. In conclusion, the utilization of ISA for zeolites will reduce the disposal problem of ISA and water pollution.

2. Materials and Methods

2.1. Materials

Incense stick ash, Conc. HCl (RENKEM), Conc. H₂SO₄ (RENKEM), NaOH (SRL), ethanol (SRL, India), round bottom flasks, 100 ml beakers, Whatman filter paper no. 42 (Axiva, India), and reflux condenser were used.

2.2. Method

The incense stick ash was transferred in a 100 ml beaker and washed 2-3 times with distilled water to eliminate the carbon and other unburnt particles. Further, from the ISA slurry, ferrous fractions were extracted using an external neodymium magnet [44]. Removal of ferrous from ash enhances the zeolitic property as it interferes with the transformation of zeolites [45]. The nonferrous fractions were dried either at room temperature or in an oven at 60°C till complete dryness. Thereafter, the nonferrous part was treated with 2 N H₂SO₄ in a round-bottomed (RB) flask in solid to liquid ratio of 1 : 10 at room temperature (RT). The mixture was continuously stirred using a magnetic stirrer under reflux. It removes the excess of Ca in the form of chlorides from the ash. The residue was collected by centrifuging the mixture at 7000 rpm for 5 minutes and discarding the supernatant.

The dried residue was further treated with 2 N-6 N H₂SO₄ at 95°C under stirring in a reflux condenser which removes Al from the ash by dissolving it at higher temperature. Further, the residue was collected by centrifuging the mixture at 7000 rpm for 5 minutes. The supernatant was removed, and the residue was washed 2-3 times with distilled water to eliminate any acidic moieties.

Further, in a RB flask, the dried residue was treated with 4-8 M NaOH in a ratio of 1 : 5 at 95°C along with continuous stirring for 90 minutes under reflux. The residue was collected by centrifuging the mixture at 7000 rpm for 10 minutes. The residue was collected, and the supernatant was discarded. The final residue was washed 2-3 times using distilled water to eliminate any NaOH or NaCl particles from the surface and dried in a hot air oven at 60°C. The complete schematic process for synthesis of zeolites from ISA is shown in Figure 1.

Figure 1

Schematic flowchart for zeolite synthesis from ISA.

2.2.1. Preparation of 20% Fly Ash Aqueous Solutions

50-gram fly ash was weighed and mixed with the 250 ml distilled water in a plastic bottle, and the mixture was placed inside a horizontal shaker at 200 rpm for 24-48 hours. After the time interval, the mixture was allowed to settle down at RT and filtered using Whatman filter paper no. 42 where the aqueous solution was retained while the residue was discarded. The aqueous solution was stored in a glass bottle which was used as a source of heavy and alkali metals.

2.2.2. Batch Adsorption Study of Heavy and Alkali Metals from CFA Aqueous Solutions

Batch adsorption study was conducted for the remediation of heavy and alkali metals from aqueous solutions of fly ash using ISA synthesized zeolites. For this, 150 ml of CFA aqueous solution was transferred in a 250 ml Erlenmeyer flask. To this aqueous solution, 9 mg synthesized zeolites were added. The mixture was kept in an incubator shaker at 150 rpm and 25°C. An aliquot of the sample was collected initially at time 0 minute while the final sample was collected after 120 minutes. Both the samples were analyzed by the ICP-OES for the detection of the concentration of various heavy and alkali metals after the specified time.

2.3. Characterization of Ca-Rich Zeolites

X-ray fluorescence spectroscopy (XRF) was used for the analysis of major elemental oxides of Ca-rich zeolites. The analysis was done to detect the chemical content of the zeolite sample, and for that, 5 grams of Ca-rich zeolite powder sample was taken and measured with PANalytical Epsilon 5, The Netherlands, fitted with a 4 KW with 60 kV, 125 mA, Rh anode X-ray tube. FTIR analysis was carried out using PerkinElmer, “Spectrum 6500” (USA) by solidifying the samples with KBr pellets at a resolution of 2 cm^-1. The mid-IR region, i.e., from 400-4000 cm^-1, provided the transmission measurement. The particle size measurement and distribution of the ISA sample were analyzed by Malvern Zetasizer, Z-90 (UK), particle size analyzer with a detection range of 0.1 nm to 300 microns, and it was analyzed by three average runs. The FESEM-EDS helps in revealing the size and eternal features, porosity, and shape of the synthesized calcium-rich zeolites. The surface structural analysis of zeolites was analyzed by the FESEM, Nova, NANOSEM 450 (FEI, USA), besides trace and minor elements by the EDS analysis using Oxford elemental analyzer attached with it. The XRD patterns of the calcium-rich zeolites were obtained using a D-8 Advance, Bruker (Germany), instrument that analyzed the sample in powdered form to confirm the nature and class of the synthesized zeolites. The XRD patterns were recorded in the 2-theta range of 5-70, with a step size of 0.02 and a time of 2 seconds/step at 30 kV and a current of 30 mA. The HRTEM was used for the identification of morphological details of zeolites, d-spacing, and diffraction pattern. The zeolite was dispersed into the double-distilled water and sonicated for 10 minutes, and using the drop cast method, a thin layer was deposited on carbon-coated copper grids which were analyzed by FEI Model Tecnai G2 20 Twin (200 kV) (USA).

3. Results and Discussion

The basic chemical composition of ISA comprises oxides such as CaO (49.6%), SiO₂ (20.3%), Al₂O₃ (4.7%), Fe₂O₃ (4.28%), MgO (3.9%), and K₂O (8.2%), making it a suitable material for the synthesis of the zeolite [44]. The Si/Al ratio of ISA was four which indicates a higher amount of silica in the ISA. Through alkali activation and simultaneous heating, the silica phase (15-20%) existing in ISA participates in the zeolitization process by dissolving into the solution whereas quartz or mullite remains in the nonreactive mineral phase [46]. Materials with higher Ca content form calcium hydroxide in aqueous media, and owing to its lower water solubility, Ca forms calcium carbonate during zeolitization [46]. During this step, there is a rise in the pH of the solution, due to calcium hydroxide along with NaOH; moreover, Ca substitutes the native Na⁺ ions in the sodium zeolites with Ca²⁺ ions; hence, it may generate some calcium-exchanged zeolites [46, 47]. The ISA treatment with the NaOH hydrothermal method synthesizes zeolites by the following mechanism or chemical reactions: $\begin{matrix} (1) & ISA + x mol {d m}^{- 3} NaOH \underset{Time, Δ}{⟶} Zeolite + Residum \end{matrix}$

3.1. FTIR for Identification of Functional Groups of Zeolites

FTIR spectroscopy is an important analytical technique that is used for the identification of the functional groups present in the synthesized zeolites. On the basis of functional group, a zeolite can be classified into its specific class along with XRD and EDS data. Figure 2 shows a typical FTIR spectrum of ISA-based Ca-rich zeolite products like calcium carbonate which shows polymorphism [48]. The bands around 460 cm^-1 are attributed to the interstitial pore formation in the synthesized zeolites [49–52]. The bands around 1135 cm^-1 are ascribed to the silicate bond Si-O-Si [53, 54], while sharper and deeper nature of the bands indicates enhanced crystallinity of the synthesized zeolites [55]. The bands near 1600 cm^-1 are due to the -OH molecule, and another band near 3435 cm^-1 is because of the bending vibration of the water molecule in the samples [56]. Incidentally, broader transmittance bands are detected between 3450 and 3440 cm^-1 and centered at 3435 cm^-1 which can be assigned to an asymmetrical O-H- stretching linked to Na⁺, Ca²⁺, Si⁴⁺, and/or Al³⁺ [57].

Figure 2

FTIR spectra of calcium-rich zeolite particles.

This indicates that there is bridging between Si and Al tetrahedra by the –OH ion. However, hydrated aluminum silicates comprised of such OH- bonding in the end products also exist. The stretching vibrations near 3450 cm^-1 and bending vibrations at 1640-1620 cm^-1 in the end products suggest zeolite crystallization and higher cation exchange capacity (CEC) [58].

3.2. PSA for the Particle Size Distribution of Zeolites

Figure 3 shows the particle size distribution of calcium zeolite particles. The average particle size is 1568 nm while the graph displays two peaks, a major peak at 1694 nm and a minor peak near 4851 nm. The PSA shows a larger particle size as compared to the TEM (200-700 nm) due to the fact that in PSA there is a formation of hydrodynamic layer (includes core and molecules adsorbed over the surface) around the nanoparticle which gives overall larger particle size [59]. Moreover, TEM analysis requires a dry sample; however, PSA uses a sample in a solvated state where solvent molecules associate with the nanoparticle surface to form a hydration layer [60], while calculating the particle size using TEM, this hydration layer is absent over the nanoparticle surface; hence, the obtained particle size was comparatively lower [61]. The PDI of the particle is 0.210 which proves that the particles are monodispersed in the solvent.

Figure 3

Particle size distribution of calcium zeolite particles.

3.3. XRD for Phase Identification and Confirmation of Zeolite Synthesis

The XRD diffractogram in Figure 4 revealed the minerals and crystalline nature of the Ca-zeolite which shows a major intensity peak at 25° and several minor intensity peaks at 31.6, 38.9, 41.7, and 48.95°. The formation of zeolites was determined based on the peak at 25° and d-spacing values. The most common Ca-based zeolites are gismondine (Ca₂Al₄Si₄O₁₆·9H₂O) which have the characteristic peaks at 21.7°, 26.6°, and 27.9° and the peak at 32.6° could be due to calcite [62].

Figure 4

XRD diffractogram of calcium-rich zeolite particles.

3.4. XRF Analysis of Zeolites for Chemical Composition of Zeolites

XRF technique is the most reliable technique for the detection of major elemental oxides present in a sample. Figure 5 shows a typical XRF spectrum of an ISA-based zeolite material, whose elemental composition is provided in Table 1. The spectra clearly show that the zeolite has the highest amount of Ca, followed by potassium, Fe, Silica, Mg, and Al. Higher Ca content confirms the presence of Ca-based zeolites. But the lower value of Al indicates that the zeolite needs to be supplemented with Al from outsource to maintain the Si/Al ratio. Lower Al content, i.e., 5-8%, in ISA can be maintained during the zeolitization step [62]. The resultant zeolite is low Si/Al-based zeolites [63]. The Ca-based zeolite nature is also supported by the FTIR and FESEM-EDS.

Figure 5

XRF spectra of Ca-rich zeolites.

Table 1

Major chemical components of calcium-rich zeolites by XRF.

Al	Si	Fe	Ca	Mg	K
9.684	586.197	888.618	44060.21	10.112	2826.267

3.5. Morphological Analysis of ISA and Ca-Rich Zeolites by FESEM-EDS

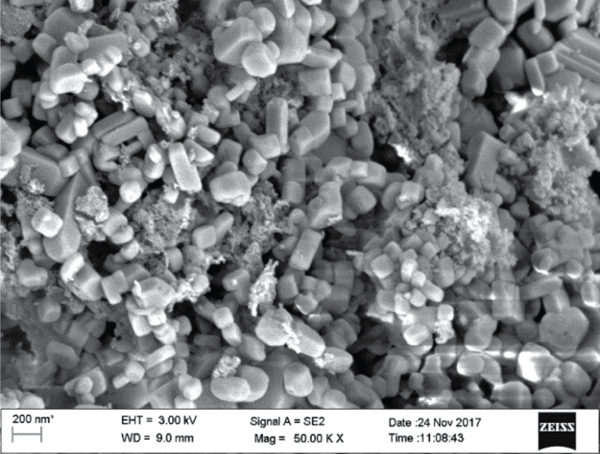

Figures 6(a) and 6(b) show the FESEM micrographs of incense stick ash which shows irregularly shaped particles displaying higher aggregation. The size of the particles is mainly in microns, i.e., 1-12 microns. The aggregated particles are carbon- and calcium-rich particles which are also evident from XRF. The ISA particles are mainly dominated by the Ca and carbon particles. The brighter regions are metal-rich regions like Al, Si, Fe, and Ca while the darker rich regions are carbon-rich regions. Figure 6(g) is the EDS spot of the zeolites while Figure 6(h) is the EDS spectra and elemental composition table of the synthesized calcium-rich zeolites from ISA. The EDS spectra are showing mainly Ca, O, C, and S while Al and Si are present in a much lesser amount. Ca, O, Si, and Al indicate the formation of Ca-based zeolites mainly gismondine [64]. C and S are present as impurities which can be attributed due to the improper washing of the zeolite sample. As ISA has high Ca and C, so the synthesized Ca-based zeolite has both the elements in higher amount.

Figure 6

FESEM images of (a, b) incense stick ash, (c–f) calcium-rich zeolites, (g) EDS spot, and (h) EDS spectra.

(b)

(c)

(d)

(e)

(f)

(g)

(h)

The absence of ferrous from EDS elemental composition analysis indicates the removal of most of the ferrous particles, which have a positive effect on the property of zeolites [65] since ferrous may interfere with the purity of the zeolites.

3.6. TEM Analysis for Morphology of Synthesized Calcium-Rich Zeolites

At the time of exposure of zeolites with the electron beams, there is a possibility of damage and charging of zeolites, so there is a requirement of sophisticated techniques such as high-resolution TEM for visualization [66]. The TEM micrographs shown in Figures 7(a)–7(d) reveal the morphology similar to the FESEM, where the cuboidal-shaped particles have lengths varying between 200 nm and 700 nm and a width ranging from 100 nm to 300 nm. Besides, there are several aggregations of smaller particles which are visible as brighter particles under the TEM field. The first three images depict Ca-rich zeolite particles in groups, while Figures 7(d) and 7(e) show two and single particle, respectively. In both, the image particles are cuboidal in shape, while in Figure 7(e), the dimension of a single particle is 250 nm wide and 700 nm long. The crystal images of zeolite are overlapping to some extent; the edges of the crystal are obvious. Moreover, the scattering area electron diffraction (SAED) pattern in Figure 7(f) shows that the particles have polycrystalline nature.

Figure 7

TEM micrographs of (a–e) calcium-rich zeolites and (f) SAED pattern.

(b)

(c)

(d)

(e)

(f)

The Ca-based or Ca-rich zeolites have several advantages over Na-based zeolites. The application of Na-based zeolite is restricted in soil and water and is not an appropriate material to be used in agricultural- and aqua-based products as higher sodium content enhances the salinity and sodicity of the soil/water [67]. The challenging problems in such situations are (a) to reduce the harsh conditions of Na-based ISA zeolites during its application in soil and water and (ii) to increase the Ca-exchanged zeolites. So the synthesized zeolites from the ISA will solve the problem associated with these issues.

3.7. Remediation of Heavy Metals and Alkali Metals by Ca-Rich Zeolites

Here, the dosage of the zeolite particles was fixed, i.e., 10 mg in 200 ml solution of the wastewater. The remediation of heavy (Cd, Mn, Zn, Pb, Al, Cu, Co, Cr, and Ni) and alkali metals (Ca, Mg, Ba, and Al) by adsorption process in a multicomponent system was performed by shake flask method in an incubator shaker. The percent removal of heavy metals was calculated by the following formula: $\begin{matrix} (2) & Removal % = [(C_{o} - C_{f}) C_{o}] \times 100, \end{matrix}$

where $C_{o}$ and $C_{f}$ are the initial and equilibrium concentration (ppm) of metal ions in solution, respectively.

The removal efficiency of all the seven heavy metals (Cu, Co, Ni, Pb, Cr, Zn, and Cd) decreased, in the solution after 2 hours as shown in Table 2, while the value of Pb reached below the detection level of ICP-OES as the Pb concentration was already less in the wastewater solution in comparison to the other heavy metals. Moreover, higher electronegativity of Pb can also be a contributing factor [68]. In the process of metal ion adsorption, the elemental property of electronegativity becomes highly significant as higher electronegativity is responsible for the stronger covalent formation of metals with O atoms situated on the surface of zeolites [69].

Table 2

Heavy metal concentration after different time intervals.

Time	Concentration (mg/l)
Minutes	Cu	Cd	Cr	Co	Ni	Pb	Zn
0	1.340	0.092	0.15	0.293	0.833	0.014	4.49
120	0.97	0.033	0.03	0.233	0.638	-0.034	2.30

As far as the remediation of the nonheavy metals (Ba, Ca, Mg, Mn, and Al) is concerned, a reduction in the value of Ba, Ca, Mg, Mn, and Al was noticed after 2 hours as shown in Table 3. All these are alkali metals that are present significantly in fly ash, and their disposal into the river or other water bodies will increase the alkalinity or hardness of water [70]. So zeolites can be an efficient and economical adsorbent for the removal of alkali metals from wastewater [70]. Here, the adsorption of both heavy metals and alkali metals takes place on the surface of zeolite particles due to the electrostatic attraction and coordination. Several investigators have also reported the remediation of numerous heavy metals from wastewater by nanoadsorbents due to electrostatic attraction and coordination [71]. The zeolite surface is positively charged at neutral or slightly acidic pH, which gives rise to PZC repulsion to cations. The coordination between CH on the zeolite surface and the bivalent metal ions is responsible for the adsorption of cations on the zeolites. Such phenomenon of adsorption and deposition was observed because the fly ash aqueous solutions are a multicomponent system where several heavy metals and nonheavy metals compete for the limited adsorption sites. Once these binding sites are occupied, there is a healthy competition among ions and nonmetallic ions, which results in desorption of the heavy metals.

Table 3

Concentration of nonheavy metals after different time intervals.

Time	Concentration (mg/l)
Minutes	Ba	Ca	Mg	Mn	Al
0	1.02	1.340	0.092	5.540	152.0
120	0.27	0.97	0.033	3.74	56.9

4. Computation Approach

A theoretical simulation to investigate the structural, electronic, and density of states’ characteristics of gismondine (Ca₂Al₄Si₄O₁₆·9H₂O) structures was carried out. Figure 8 shows the estimated theoretical models using first principles, density functional theory calculations [72] as implemented in the Quantum Espresso program [73]. Interaction of atomic cores and valence electrons utilizing the extremely soft pseudopotential technique is proposed by Vanderbil [73]. Perdew-Burke-Ernzerhof (PBE) [74] exchange correlational functional was used to solve the Kohn–Sham equation [75], using the generalized gradient approximation [76]. It has shown its ability to replicate ground state energy characteristics across a broad range of a variety of crystals that are similar to the experimental findings. An electronic wave function was added. 70 Ry energy cutoff values at particular $k$ -points were produced by the $18 \times 18 \times 18$ Monkhorst-Pack mesh in the Brillouin zone for gismondine (Ca₂Al₄Si₄O₁₆·9H₂O) structures. The energy convergence threshold between two successive steps was maintained at 10-6 eV, and the maximal Hellmann-Feynman force acting on each atom was kept to a minimum [77] less than 0.001 eV. Finally, the optimized structures were utilized to compute the electronic and density of states’ properties calculated in the present study.

Figure 8

The crystal structure of gismondine (Ca₂Al₄Si₄O₁₆·9H₂O).

4.1. Electronic and PDOS Structure Calculation

In Figure 9, the structural optimization of gismondine (Ca₂Al₄Si₄O₁₆·9H2O) structures was carried out in the first stage under the lowest condition of total energy and forces acting on atoms for the lattice constant, as well as the available experimental [78] and theoretical findings. The computed value of the lattice constant agrees well with observed values [78] and differs by less than 1% from other theoretical work [79]. The differences can be attributed to the differences in calculating methods.

Figure 9

Band structures. (a) Electronic band structure and TDOS. (b) Projection density of states (PDOS) plot of gismondine (Ca₂Al₄Si₄O₁₆·9H₂O).

(b)

To better comprehend the electronic characteristics, the density of states (DOS) and projected DOS (PDOS) are computed, since they may explain the cause for bandgap modulation and the gap of gismondine (Ca₂Al₄Si₄O₁₆·9H₂O) structures was in 4.734 eV. The DOS and PDOS of Ca, Al, Si, and O atoms are shown in Figure 9. The picture clearly shows that s, p, and d are the most contributed energy in the formation of gismondine type zeolite; the Ca and Al d orbital is the strong peak at Fermi level just above the conduction band maxima (CBM) in the range 0 to -8 eV, as well as some density contribution near the valence band minima (VBM) in the region 4 eV to 18 eV. This additional peak results from the contribution of 2s and 2p orbital electrons in Ca and Al at both CBM and VBM. The 3d orbit electron of Si and O has a little effect on the VBM between -11 and -20 eV.

5. Conclusion

Increasing global awareness towards environmental issues acts as a driving force towards the recovery of value-added minerals from waste materials. The present paper focuses on the green synthesis of zeolites using incense stick ash waste. The synthesis of zeolites from the household waste incense stick ash is justified as the waste, whose disposal causes environmental problem especially in water, is utilized. The obtained Ca-rich zeolites were cuboidal in shape with size between 200 and 700 nm as revealed by TEM analysis. The zeolites were microporous and crystalline in nature suitable as an adsorbent material for the remediation of contaminants present in water. The other analysis results such as FTIR, PSA, XRD, and XRF also confirmed the successful synthesis of zeolites from ISA. The present work effectively draws possibility to utilize the ISA for the synthesis of Ca-rich zeolites. Besides, theoretical calculations were also established for the band structure and density of states’ characteristics of gismondine (Ca₂A_l4Si₄O₁₆·9H₂O) structures. The structural optimization was carried out in the first stage under the lowest condition of total energy and forces acting on atoms for the lattice constant. The bandgap of gismondine structures was in 4.734 eV. The quality of the fabricated zeolite product strongly relies on environmental treatments and the strength of the raw materials [80]. The ISA-based zeolites have the potential to remediate both heavy and alkali metals from wastewater. Hence, the ISA-based synthesis of zeolites is an efficient, low-cost, and green chemistry-based method that opens a new possibility in the field of material science and catalysis.

Footnotes

Data Availability

The data sets used and analyzed during the current study are available within the article only.

Conflicts of Interest

The authors declare that there is no conflict of interest.

Authors’ Contributions

Virendra Kumar Yadav (V.K.Y.), G. Gnanamoorthy (G.G.), Nisha Choudhary (N.C.), Daoud Ali (D.A.), and Mohammed HA. Almarzoug (M.H.A.)Gokhlesh Kumar (G.K.) were responsible for conceptualization; V.K.Y., G.G., and N.C. were responsible for methodology; V.K.Y., D.A., and N.C. were responsible for software; V.K.Y., D.A., G.K., and N.C. were responsible for validation; V.K.Y., S.H.K., M.H.A., D.A., G.K., and N.C. were responsible for formal analysis; V.K.Y., G.G., and N.C. were responsible for investigation; V.K.Y., D.A., and N.C. were responsible for resources; G.K., D.A., M.H.A., G.G., and N.C. were responsible for data curation; D.A., V.K.Y., G.K., G.G., and N.C. were responsible for writing—original draft preparation; D.A. and V.K.Y. were responsible for writing—review and editing; V.K.Y., M.H.A., G.G., and N.C. were responsible for visualization; V.K.Y. and N.C. were responsible for supervision; V.K.Y., D.A., and N.C. were responsible for project administration; D.A. was responsible for funding acquisition. Reviewing, editing, and computational approach simulated by G.K.I. and S.H.K. and Mitesh B. Solanki. All authors have read and agree to the published version of the manuscript.

Acknowledgments

This work was funded by Researchers Supporting Project number RSP-2021/165, King Saud University, Riyadh, Saudi Arabia.

References

Grand

Awala

Mintova

Mechanism of zeolites crystal growth: new findings and open questions

CrystEngComm 2016 18

6066906

5 650 664

10.1039/C5CE02286J

2-s2.0-84977109285

Prodinger

Derewinski

M. A.

Recent progress to understand and improve zeolite stability in the aqueous medium

Petroleum Chemistry 2020 60

6066906

4 420 436

10.1134/S0965544120040143

Guida

Potter

Jefferson

Soares

Preparation and evaluation of zeolites for ammonium removal from municipal wastewater through ion exchange process

Scientific Reports 2020 10

6066906

1, article 12426

10.1038/s41598-020-69348-6

32709876

Bao

Liu

Zou

Gan

Gao

Zheng

Removal of Cu²⁺ from aqueous solutions using Na-a zeolite from oil shale ash

Chinese Journal of Chemical Engineering 2013 21

6066906

9 974 982

10.1016/S1004-9541(13)60529-7

2-s2.0-84885353095

Přech

Pizarro

Serrano

D. P.

Čejka

From 3D to 2D zeolite catalytic materials

Chemical Society Reviews 2018 47

6066906

8263 8306

10.1039/C8CS00370J

2-s2.0-85056005238

Krause

Hosono

Kitagawa

Chemistry of soft porous crystals: structural dynamics and gas adsorption properties

Angewandte Chemie International Edition 2020 59

6066906

15325 15341

10.1002/anie.202004535

Jiang

Shang

Heijman

S. G. J.

Rietveld

L. C.

High-silica zeolites for adsorption of organic micro-pollutants in water treatment: a review

Water Research 2018 144

6066906

145 161

10.1016/j.watres.2018.07.017

2-s2.0-85053068781

Mlekodaj

Olszowka

J. E.

Tokarova

Tabor

Kasparek

Novakova

Stavova

Gonsiorova

Peliskova

Brus

Pilar

Klein

Dedecek

Effect of alkali-free synthesis and post-synthetic treatment on acid sites in beta zeolites

Molecules 2020 25

6066906

15 3434

10.3390/molecules25153434

32731634

Reeve

P. J.

Fallowfield

H. J.

Natural and surfactant modified zeolites: a review of their applications for water remediation with a focus on surfactant desorption and toxicity towards microorganisms

Journal of Environmental Management 2018 205

6066906

253 261

10.1016/j.jenvman.2017.09.077

2-s2.0-85030718544

10.

Belviso

Zeolite for potential toxic metal uptake from contaminated soil: a brief review

Processes 2020 8

6066906

7 820

10.3390/pr8070820

11.

Applications of zeolites in sustainable chemistry

Chem 2017 3

6066906

928 949

10.1016/j.chempr.2017.10.009

2-s2.0-85038237435

12.

Sharma

Bhattacharya

Drinking water contamination and treatment techniques

Applied Water Science 2017 7

6066906

1043 1067

10.1007/s13201-016-0455-7

13.

Byun

Patel

H. A.

Thirion

Yavuz

C. T.

Charge-specific size-dependent separation of water-soluble organic molecules by fluorinated nanoporous networks

Nature Communications 2016 7, article 13377

6066906

10.1038/ncomms13377

2-s2.0-84994894943

14.

Georgiadis

Charisiou

Goula

Removal of hydrogen sulfide from various industrial gases: a review of the most promising adsorbing materials

Catalysts 2020 10

6066906

10.3390/catal10050521

15.

Zou

Bai

Zhao

Han

Characterization and properties of zeolite as adsorbent for removal of uranium(VI) from solution in fixed bed column

Journal of Radioanalytical and Nuclear Chemistry 2011 288

6066906

779 788

10.1007/s10967-011-1026-x

2-s2.0-79955686510

16.

Elboughdiri

The use of natural zeolite to remove heavy metals Cu (II), Pb (II) and Cd (II), from industrial wastewater

Cogent Engineering 2020 7

6066906

1 13

10.1080/23311916.2020.1782623

17.

Nakhli

S. A. A.

Delkash

Bakhshayesh

B. E.

Kazemian

Application of zeolites for sustainable agriculture: a review on water and nutrient retention

Water, Air, & Soil Pollution 2017 228

6066906

12 464

10.1007/s11270-017-3649-1

2-s2.0-85037338624

18.

Deng

Formation of NaP zeolite from fused fly ash for the removal of Cu(ii) by an improved hydrothermal method

RSC Advances 2015 5

6066906

9180 9188

10.1039/C4RA15196H

2-s2.0-84921286102

19.

Zhang

Kong

Simultaneous removal of ammonium and phosphate by zeolite synthesized from fly ash as influenced by salt treatment

Journal of Colloid and Interface Science 2006 304

6066906

300 306

10.1016/j.jcis.2006.09.011

2-s2.0-33751001311

20.

Tasić

Ž. Z.

Bogdanović

G. D.

Antonijević

M. M.

Application of natural zeolite in wastewater treatment: a review

Journal of Mining and Metallurgy A: Mining 2019 55

6066906

1 67 79

10.5937/JMMA1901067T

21.

de Gennaro

Aprea

Liguori

Galzerano

Peluso

Caputo

Zeolite-rich composite materials for environmental remediation: arsenic removal from water

Applied Sciences 2020 10

6066906

19 6939

10.3390/app10196939

22.

Tang

Wang

Shi

Removal of ammonium from swine wastewater using synthesized zeolite from fly ash

Sustainability 2020 12

6066906

10.3390/su12083423

23.

Dinis

P. A.

Cabral Pinto

M. M. S.

Garzanti

Rocha

F. T.

Detrital record of the denudation of volcanic islands under sub-tropical climate (Cape Verde)

Geochemistry 2019 79

6066906

235 246

10.1016/j.chemer.2019.02.001

2-s2.0-85063863591

24.

Cabral-Pinto

M. M. S.

Inácio

Neves

Almeida

A. A.

Pinto

Oliveira

Ferreira da Silva

E. A.

Human health risk assessment due to agricultural activities and crop consumption in the surroundings of an industrial area

Exposure and Health 2019 12

6066906

629 640

25.

Cabral Pinto

M. M. S.

Dinis

P. A.

Silva

M. M. V. G.

Ferreira da Silva

E. A.

Sediment generation on a volcanic island with arid tropical climate: a perspective based on geochemical maps of topsoils and stream sediments from Santiago Island, Cape Verde

Applied Geochemistry 2016 75

6066906

114 124

10.1016/j.apgeochem.2016.10.019

2-s2.0-85000402098

26.

Pinto

M. M. S. C.

Silva

Melo-Gonçalves

Candeias

Environmental risk assessment based on high-resolution spatial maps of potentially toxic elements sampled on stream sediments of Santiago, Cape Verde

Geosciences 2014 4

6066906

4 297 315

10.3390/geosciences4040297

2-s2.0-84919765341

27.

Król

Natural vs. synthetic zeolites

Crystals 2020 10

6066906

7 622

10.3390/cryst10070622

28.

Franus

Wdowin

Franus

Synthesis and characterization of zeolites prepared from industrial fly ash

Environmental Monitoring and Assessment 2014 186

6066906

9 5721 5729

10.1007/s10661-014-3815-5

2-s2.0-84905983916

24838802

29.

Gougazeh

Buhl

J. C.

Synthesis and characterization of zeolite A by hydrothermal transformation of natural Jordanian kaolin

Journal of the Association of Arab Universities for Basic and Applied Sciences 2014 15

6066906

1 35 42

10.1016/j.jaubas.2013.03.007

2-s2.0-84897576565

30.

Dussan

Calderón

J. A.

Quiroz

H. P.

Zeolites derived from natural minerals: solid rock and volcanic ash

Materials Today 2020 34

6066906

148 149

10.1016/j.mattod.2020.03.006

31.

Shiota

Togo

Nakahira

Synthesis of zeolites from volcanic ash and its evaluation

Journal of the Japan Society of Powder and Powder Metallurgy 2017 64

6066906

601 605

10.2497/jjspm.64.601

2-s2.0-85037151881

32.

Karakaya

M. Ç.

Karakaya

Yavuz

Geology and conditions of formation of the zeolite-bearing deposits southeast of Ankara (Central Turkey)

Clays and Clay Minerals 2015 63

6066906

85 109

10.1346/CCMN.2015.0630202

2-s2.0-84943272619

33.

Pereira

Ferreira

Oliveira

Nassar

Ciuffi

Vicente

Trujillano

Rives

Gil

Korili

de Faria

Synthesis of zeolite a from metakaolin and its application in the adsorption of cationic dyes

Applied Sciences 2018 8

6066906

4 608

10.3390/app8040608

2-s2.0-85045405467

34.

X.-Y.

Jiang

Liu

X.-Q.

Shi

L.-Y.

Zhang

D.-Y.

Sun

L.-B.

Direct synthesis of zeolites from a natural clay, attapulgite

ACS Sustainable Chemistry & Engineering 2017 5

6066906

7 6124 6130

10.1021/acssuschemeng.7b01001

2-s2.0-85022067702

35.

Yadav

V. K.

Suriyaprabha

Inwati

G. K.

Gupta

Singh

Lal

Kumar

Godha

Kalasariya

A noble and economical method for the synthesis of low cost zeolites from coal fly ash waste

Advances in Materials and Processing Technologies 2021 6

6066906

1 19

10.1080/2374068X.2021.1927640

36.

Wang

Zhou

Wang

Yang

Meng

Synthesis of zeolite X from low-grade bauxite

Journal of Chemical Technology & Biotechnology 2013 88

6066906

1350 1357

10.1002/jctb.3983

2-s2.0-84879204308

37.

Yadav

V. K.

Choudhary

Tirth

Kalasariya

Gnanamoorthy

Algahtani

Yadav

K. K.

Soni

Islam

Yadav

Jeon

B. H.

A short review on the utilization of incense sticks ash as an emerging and overlooked material for the synthesis of zeolites

Crystals 2021 11

6066906

10 1255

10.3390/cryst11101255

38.

Yadav

V. K.

Yadav

K. K.

Tirth

Gnanamoorthy

Gupta

Algahtani

Islam

Choudhary

Modi

Jeon

B.-H.

Extraction of value-added minerals from various Agricultural, Industrial and Domestic Wastes

Industrial and Domestic Wastes Materials 2021 14

6066906

21 6333

10.3390/ma14216333

39.

Yadav

V. K.

Gnanamoorthy

Cabral-Pinto

M. M. S.

Alam

Ahamed

Gupta

Singh

Choudhary

Inwati

G. K.

Yadav

K. K.

Variations and similarities in structural, chemical, and elemental properties on the ashes derived from the coal due to their combustion in open and controlled manner

Environmental Science and Pollution Research 2021 28

6066906

32609 32625

10.1007/s11356-021-12989-5

40.

Lin

T.-C.

Krishnaswamy

Chi

D. S.

Incense smoke: clinical, structural and molecular effects on airway disease

Clinical and Molecular Allergy 2008 6

6066906

1 3 3

10.1186/1476-7961-6-3

2-s2.0-43749108163

41.

Waghmode

Gunjal

Nawani

Patil

Management of floral waste by conversion to value-added products and their other applications

Waste and Biomass Valorization 2018 9

6066906

33 43

10.1007/s12649-016-9763-2

2-s2.0-85001838244

42.

Yang

C.-R.

Lin

T.-C.

Chang

F.-H.

Correlation between calcium carbonate content and emission characteristics of incense

Journal of the Air & Waste Management Association 2006 56

6066906

12 1726 1732

10.1080/10473289.2006.10464577

2-s2.0-33846076189

17195491

43.

Yadav

V. K.

Singh

Choudhary

Characterization of Indian incense stick powders for their physical, chemical and mineralogical properties

World Journal of Environmental Biosciences 2020 9

6066906

39 43

44.

Yadav

V. K.

Yadav

K. K.

Gnanamoorthy

Choudhary

Khan

S. H.

Gupta

Kamyab

Bach

Q. V.

A novel synthesis and characterization of polyhedral shaped amorphous iron oxide nanoparticles from incense sticks ash waste

Environmental Technology & Innovation 2020 20, article 101089

6066906

10.1016/j.eti.2020.101089

45.

Ren

Liu

Zhao

Song

Zheng

Gao

Synthesis of zeolites from coal fly ash for removal of harmful gaseous pollutants: a review

Aerosol and Air Quality Research 2020 20

6066906

1127 1144

10.4209/aaqr.2019.12.0651

46.

Koshy

Singh

Jha

Kadali

Patil

Characterization of Na and Ca zeolites synthesized by various hydrothermal treatments of fly ash

Advances in Civil Engineering Materials 2015 4

6066906

131 143

10.1520/ACEM20140048

2-s2.0-84949767674

47.

Tangboriboon

Wongkasemjit

Kunanuruksapong

Sirivat

An innovative synthesis of calcium zeolite type a catalysts from eggshells via the sol–gel process

Journal of Inorganic and Organometallic Polymers and Materials 2011 21

6066906

50 60

10.1007/s10904-010-9413-2

2-s2.0-79951500085

48.

Boulos

R. A.

Zhang

Tjandra

E. S.

Martin

A. D.

Spagnoli

Raston

C. L.

Spinning up the polymorphs of calcium carbonate

Scientific Reports 2014 4

6066906

3616

10.1038/srep03616

2-s2.0-84893021418

49.

Isawi

Using zeolite/polyvinyl alcohol/sodium alginate nanocomposite beads for removal of some heavy metals from wastewater

Arabian Journal of Chemistry 2020 13

6066906

5691 5716

10.1016/j.arabjc.2020.04.009

50.

Smail

Rehan

Shareef

Ramli

Nizami

A.-S.

Gardy

Synthesis of uniform mesoporous zeolite ZSM-5 catalyst for Friedel-Crafts acylation

ChemEngineering 2019 3

6066906

10.3390/chemengineering3020035

51.

Innocenzi

Infrared spectroscopy of sol–gel derived silica-based films: a spectra-microstructure overview

Journal of Non-Crystalline Solids 2003 316

6066906

309 319

10.1016/S0022-3093(02)01637-X

2-s2.0-0037303716

52.

Musyoka

N. M.

Petrik

L. F.

Balfour

Gitari

W. M.

Hums

Synthesis of hydroxy sodalite from coal fly ash using waste industrial brine solution

Journal of Environmental Science and Health, Part A 2011 46

6066906

1699 1707

10.1080/10934529.2011.623961

2-s2.0-84855801436

53.

Mozgawa

The relation between structure and vibrational spectra of zeolites

Journal of Molecular Structure 2001 596

6066906

129 137

10.1016/S0022-2860(01)00741-4

2-s2.0-0035955222

54.

Chigondo

Guyo

Shumba

Chigondo

Nyamunda

Moyo

Nharingo

Synthesis and characterisation of zeolites from coal fly ash (CFA)

Synthesis 2013 3

6066906

714 718

55.

Fernández-Jiménez

Palomo

Mid-infrared spectroscopic studies of alkali-activated fly ash structure

Microporous and Mesoporous Materials 2005 86

6066906

207 214

10.1016/j.micromeso.2005.05.057

2-s2.0-27644545778

56.

Mollah

M. Y. A.

Promreuk

Schennach

Cocke

D. L.

Güler

Cristobalite formation from thermal treatment of Texas lignite fly ash

Fuel 1999 78

6066906

1277 1282

10.1016/S0016-2361(99)00057-5

2-s2.0-0032592773

57.

Rokita

Mozgawa

Handke

The influence of Na⁺ and Ca²⁺ ions on the SiO₂–AlPO₄ materials structure — IR and Raman studies

Journal of Molecular Structure 2001 596

6066906

171 178

10.1016/S0022-2860(01)00708-6

2-s2.0-0035955195

58.

Kantiranis

Filippidis

Mouhtaris

Paraskevopoulos

Zorba

Squires

Charistos

EPI-type zeolite synthesis from Greek sulphocalcic fly ashes promoted by H₂O₂ solutions

Fuel 2006 85

6066906

360 366

10.1016/j.fuel.2005.07.015

2-s2.0-27744446647

59.

Inwati

G. K.

Kumar

Roos

W. D.

Swart

H. C.

Singh

UV-irradiation effects on tuning LSPR of Cu/Ag nanoclusters in ion exchanged glass matrix and its thermodynamic behaviour

Journal of Alloys and Compounds 2020 823, article 153820

6066906

10.1016/j.jallcom.2020.153820

60.

Mourdikoudis

Pallares

R. M.

Thanh

N. T. K.

Characterization techniques for nanoparticles: comparison and complementarity upon studying nanoparticle properties

Nanoscale 2018 10

6066906

12871 12934

10.1039/C8NR02278J

2-s2.0-85050016962

61.

Yadav

V. K.

Ali

Khan

S. H.

Gnanamoorthy

Choudhary

Yadav

K. K.

Thai

V. N.

Hussain

S. A.

Manhrdas

Synthesis and characterization of amorphous iron oxide nanoparticles by the sonochemical method and their application for the remediation of heavy metals from wastewater

Nanomaterials 2020 10

6066906

1551

10.3390/nano10081551

62.

Czarna-Juszkiewicz

Kunecki

Panek

Madej

Wdowin

Impact of fly ash fractionation on the zeolitization process

Materials 2020 13

6066906

5, article 1035

10.3390/ma13051035

32106436

63.

Klunk

M. A.

Schröpfer

S. B.

Dasgupta

Das

Caetano

N. R.

Impiombato

A. N.

Wander

P. R.

Moraes

C. A. M.

Synthesis and characterization of mordenite zeolite from metakaolin and rice husk ash as a source of aluminium and silicon

Chemical Papers 2020 74

6066906

2481 2489

10.1007/s11696-020-01095-4

64.

Stoppa

Scordari

Mesto

Sharygin

Bortolozzi

Calcium-aluminum-silicate-hydrate “cement” phases and rare Ca-zeolite association at Colle Fabbri, Central Italy

Central European Journal of Geosciences 2010 2

6066906

175 187

10.2478/v10085-010-0007-6

2-s2.0-77952017918

65.

Ferretti

Galamini

Medoro

Coltorti

Di Giuseppe

Faccini

Impact of sequential treatments with natural and Na-exchanged chabazite zeolite-rich tuff on pig-slurry chemical composition

Water 2020 12

6066906

10.3390/w12020310

66.

Ennaert

Van Aelst

Dijkmans

De Clercq

Schutyser

Dusselier

Verboekend

Sels

B. F.

Potential and challenges of zeolite chemistry in the catalytic conversion of biomass

Chemical Society Reviews 2016 45

6066906

584 611

10.1039/C5CS00859J

2-s2.0-84956933737

67.

Abbas

Saqib

Akhtar

Murtaza

Shahid

Hussain

Relationship between rhizosphere acidification and phytoremediation in two acacia species

Journal of Soils and Sediments 2016 16

6066906

1392 1399

10.1007/s11368-014-1051-9

2-s2.0-84961133430

68.

Xue

Estimation of electronegativity values of elements in different valence states

The Journal of Physical Chemistry A 2006 110

6066906

39 11332 11337

10.1021/jp062886k

2-s2.0-33750368382

17004743

69.

Zhao

Wang

Peng

Liu

Surface electronegativity as an activity descriptor to screen oxygen evolution reaction catalysts of Li–O₂ battery

ACS Applied Materials & Interfaces 2020 12

6066906

27166 27175

10.1021/acsami.0c04814

70.

Pandey

Ray

Kumar

Assessment of water-quality parameters of groundwater contaminated by fly ash leachate near Koradi Thermal Power Plant, Nagpur

Environmental Science and Pollution Research 2020 27

6066906

27422 27434

10.1007/s11356-019-06167-x

71.

Rajendran

Inwati

G. K.

Yadav

V. K.

Choudhary

Solanki

M. B.

Abdellattif

M. H.

Yadav

K. K.

Gupta

Islam

Jeon

B.-H.

Enriched catalytic activity of TiO₂ nanoparticles supported by activated carbon for noxious pollutant elimination

Nanomaterials 2021 11

6066906

11 2808

10.3390/nano11112808

72.

Solanki

M. B.

Patel

Shinde

Parekh

B. B.

Joshi

Growth and characterization of lithium chloride doped KDP crystals: a DFT and experimental approach

Ferroelectrics 2021 571

6066906

1 1 25

10.1080/00150193.2020.1853734

73.

Giannozzi

Baroni

Bonini

Calandra

Car

Cavazzoni

Ceresoli

Chiarotti

G. L.

Cococcioni

Dabo

Dal Corso

de Gironcoli

Fabris

Fratesi

Gebauer

Gerstmann

Gougoussis

Kokalj

Lazzeri

Martin-Samos

Marzari

Mauri

Mazzarello

Paolini

Pasquarello

Paulatto

Sbraccia

Scandolo

Sclauzero

Seitsonen

A. P.

Smogunov

Umari

Wentzcovitch

R. M.

QUANTUM ESPRESSO: a modular and open-source software project for quantum simulations of materials

Journal of Physics: Condensed Matter 2009 21

6066906

39, article 395502

10.1088/0953-8984/21/39/395502

2-s2.0-70349568754

21832390

74.

Perdew

J. P.

Burke

Ernzerhof

Generalized gradient approximation made simple

Physical Review Letters 1996 77

6066906

18 3865 3868

10.1103/PhysRevLett.77.3865

2-s2.0-4243943295

10062328

75.

Petretto

Dwaraknath

Miranda

H. P. C.

Winston

Giantomassi

van Setten

M. J.

Gonze

Persson

K. A.

Hautier

Rignanese

G. M.

High-throughput density-functional perturbation theory phonons for inorganic materials

Scientific Data 2018 5

6066906

1, article 180065

10.1038/sdata.2018.65

2-s2.0-85046407818

76.

Kohn

Sham

L. J.

Self-consistent equations including exchange and correlation effects

Physical Review 1965 140

6066906

4A A1133 A1138

10.1103/PhysRev.140.A1133

2-s2.0-0042113153

77.

Cococcioni

Mauri

Ceder

Marzari

Electronic-enthalpy functional for finite systems under pressure

Physical Review Letters 2005 94

6066906

14, article 145501

10.1103/PhysRevLett.94.145501

2-s2.0-18144419406

15904072

78.

Payne

M. C.

Hytha

Štich

Gale

J. D.

Terakura

First principles calculation of the free energy barrier for the reaction of methanol in a zeolite catalyst

Microporous and Mesoporous Materials 2001 48

6066906

1-3 375 381

10.1016/S1387-1811(01)00360-2

2-s2.0-0035497966

79.

Yang

Lach-hab

Vaisman

I. I.

Blaisten-Barojas

Karen

V. L.

Framework-type determination for zeolite structures in the inorganic crystal structure database

Journal of Physical and Chemical Reference Data 2010 39

6066906

3, article 033102

10.1063/1.3432459

2-s2.0-78649426499

80.

Khaleque

Alam

M. M.

Hoque

Mondal

Haider

J. B.

Johir

M. A. H.

Karmakar

A. K.

Zhou

J. L.

Ahmed

M. B.

Moni

M. A.

Zeolite synthesis from low-cost materials and environmental applications: a review

Environmental Advances 2020 2, article 100019

6066906

10.1016/j.envadv.2020.100019
