Research Progress of Adsorption and Photocatalysis of Formaldehyde on TiO 2 /AC

1. Introduction

Relevant research shows that, with the rapid development of economic society, decoration materials are emerging one after another, and most of these materials (such as man-made panels and glue paint) contain pollutants such as formaldehyde [1, 2] which is also known as ant aldehyde, chemical formula HCHO, molecular weight 30.03, formaldehyde gas relative density 1.067, liquid density 0.815 g/cm³ (-20°C), melting point -92°C, and boiling point -19.5°C. In addition to decoration materials, the bedding (such as bedclothes and pillowcases), wardrobes, carpets, and air fresheners we use every day also contain more or less [3] formaldehyde which has a long release period. Indoor air pollution [4, 5] will occur when the cumulative amount of release exceeds a certain threshold. People spend 80% of their time indoors on average every day [6], so the emission of indoor air pollutants (such as formaldehyde, benzene, and radon) will seriously endanger people’s health [7].

Low concentrations of formaldehyde which is recognized as allergen source [8] can cause diseases such as eye redness, tracheitis, and asthma, and high concentrations can induce cerebral palsy [9]. Formaldehyde has been classified as a Category 1 carcinogen by international organizations (Word Health Organization and American Red Cross). In addition, formaldehyde can also cause varying degrees of harm to the nervous system, respiratory system, and immune system of children, the elderly, and pregnant women [10]. Formaldehyde has an inhibitory effect on the immune system and causes decreased neutrophil respiratory burst activity. Formaldehyde inhalation can affect the electropsychological function of the heart, resulting in bradycardia, abnormal or missing P waves, and changes in R-T interval. Apart from health effects, formaldehyde can also reduce people’s work efficiency [11].

James et al. and Amesj et al. [12, 13] measured that the emission factors of formaldehyde in rapeseed oil, soybean oil, and fried vegetables were 20.1 mg/kg vegetables, 18.6 mg/kg vegetables, and 12.4 mg/kg vegetables, respectively. In 2018, Zhao et al. [14] explored the emission rates of formaldehyde in the kitchen in the actual cooking process by using the mass balance equation of gaseous pollutants with natural gas as fuel. The research results showed that the emission rates of formaldehyde in the kitchen during the actual cooking process were 0.876 ± 0.055 ~ 2.738 ± 0.590 mg / min . Hu et al. [15] studied the release parameters of formaldehyde in synthetic rubber, and the results are shown in Table 1. Formaldehyde release is also affected by environmental factors such as temperature and humidity. From the above hazards and emission characteristics, the treatment of formaldehyde and other indoor environmental pollutants has become research hotspot of domestic and foreign scholars.

In the table, C i stands for formaldehyde concentration, C s i stands for formaldehyde concentration in standard state, and E F is calculated as follows: (1) E F = C s i × V × A C S .

In recent years, researchers have been working on new ways to remove formaldehyde. The removal method of formaldehyde pollution can be broadly divided into two kinds, one is the source of governance that does not use decoration materials or supplies which contain formaldehyde; the method is more convenient and does not need to put a specific material or process in indoor, but the technical means for the production of decoration materials without formaldehyde are limited, so it is not realistic to remove formaldehyde from the source. The second is posttreatment, such as ventilation method, plant absorption method, plasma purification method, adsorbent adsorption method, and photocatalyst degradation method. Due to the long release cycle of formaldehyde and being easily affected by the season, it is not applicable to take ventilation to remove formaldehyde in some cold areas. Green plants such as cactus, Chlorophytum, and aloe [16] can remove low concentration of formaldehyde; however, its normal growth will be affected or even withered in high concentration of indoor, so it has little effect on absorption of formaldehyde. The low-temperature plasma method, which refers to the use of ions to undergo a complex reaction with the molecular structure of formaldehyde to catalyze the degradation of formaldehyde, is an emerging method for removing formaldehyde. Studies [17] have shown that this method has the advantages of fast and efficient and can completely degrade formaldehyde into carbon dioxide and water, but it will produce O₃ and CO and other substances, and the consumption of technology and economy is large, waiting for be further developed. The adsorption method uses the pore size distribution and surface functional groups of activated carbon fiber (ACF) [18], activated carbon (AC) [19], and other porous adsorbents to deal with pollutants such as formaldehyde, which has the advantages of easy material availability and convenient operation. Common adsorbents include alumina and zeolite molecular sieves. Photocatalytic degradation technology uses light of a certain wavelength to irradiate photocatalyst materials to produce active species, which participate in the reaction to degrade formaldehyde into carbon dioxide and water, and so produces the effect of air purification [20].

In this paper, the adsorption mechanism and modification of activated carbon, the structure of photocatalyst TiO₂, the principle of photocatalytic reaction, and the load and modification treatment were reviewed, and the adsorption and degradation properties of activated carbon and TiO₂/AC for formaldehyde were analyzed and compared, providing scientific guidance for the degradation of formaldehyde.

2. Activated Carbon and Its Modification

3. Mechanism of Photocatalytic Degradation

According to the formula [35] (2) Δ E = ℏ 2 π 2 2 R 2 1 m e + 1 m h − 1.8 e 2 ε R − 0.248 E R y ∗ , where R represents the radius of the nanocrystal, m e represents the effective mass of the electron, m h represents the effective mass of the hole, ε represents the dielectric constant, and E R y ∗ represents the effective Rydberg energy. It can be seen from the formula that the particle radius and absorption wavelength are invertically proportional to the band gap width. In order to enable TiO₂ to respond to visible light and achieve spectral redshift, it is necessary to reduce the band gap, and the particle radius increases when the band gap decreases, which may affect the catalytic performance of TiO₂. It can be seen that this is a contradictory relationship, so the smaller the gap width is not the better. Table 2 lists the band gap widths of common semiconductors, most of semiconductor photocatalyst such as nano-ZnO and SnO₂ will undergo chemical corrosion, and the noble metals have high cost, so they are not suitable for indoor photocatalyst materials. The titanium dioxide (TiO₂) is regarded as the ideal photocatalytic degradation of the material [36, 37] of the formaldehyde and enjoys the advantage of nontoxic harmless, safe and green, and high photocatalytic efficiency.

Nano-TiO₂ is a semiconductor with a discontinuous energy band structure [38] formed by the hybridization of Ti3d and O2p orbitals, which is composed of valence band (VB), condition band (CB), and energy gap (Eg).

German physicist Hertz discovered that photoelectrons will escape from the material only when λ in is greater than a certain value; otherwise, no photoelectrons will be produced regardless of the intensity of the irradiation. This is the well-known principle of photoelectric effect [39]. As shown in Figure 1 [40], electrons ( e − ) preferentially fill the valence band. According to the photoelectric effect, at this time, electrons in the low-energy valence band are excited to cross the forbidden band and enter the conduction band [41]. Accordingly, holes ( h + ) are formed in the valence band, and photogenerated electrons ( e − ) are generated in the conduction band. After the electrons in the valence band are excited, there are two forms [42]: (1)

Some of part electrons were captured by the defect site of titanium dioxide

OPEN IN VIEWER

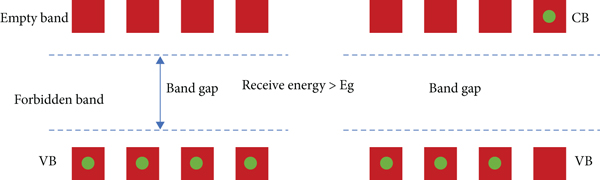

Figure 1

Energy band theory schematic.

The photocatalytic degradation mechanism is shown in Figure 2 [43]. Photogenerated carriers migrate to different positions of the semiconductor under the action of electric field force, combine with O₂, H₂O, or OH^- on the surface of TiO₂ and react as follows, producing two active species -OH and -O₂ ^-. These substances have strong oxidation capacity, equivalent to the high temperature of 3600 K. Pollutants such as formaldehyde can be catalyzed into carbon dioxide, water, or other inorganic small molecules. (I)

The formation of electrons ( e − ) and holes ( h + )

OPEN IN VIEWER

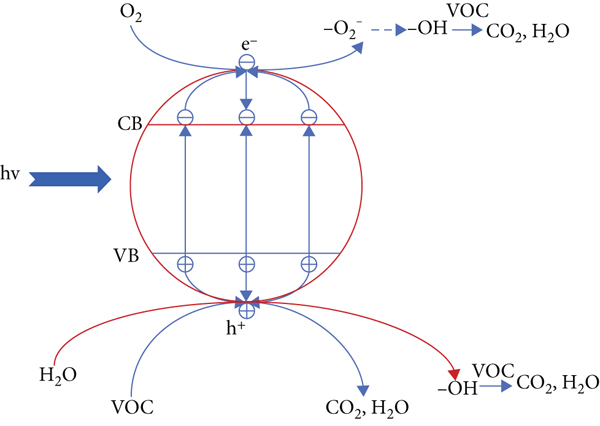

Figure 2

Photocatalytic mechanism of TiO₂.

The formation of H 2 O 2 is as follows: (6) − O 2 − + H + ⟶ − HO 2 , 2 − HO 2 ⟶ H 2 O 2 + O 2 , − O 2 − + − HO 2 ⟶ HO 2 − + O 2 , HO 2 − + H + ⟶ H 2 O 2

The formation of -OH is as follows: (7) H 2 O 2 + e − ⟶ − OH + OH − , H 2 O 2 + − O 2 − ⟶ − OH + OH − + O 2 , H 2 O 2 + h v ⟶ 2 – OH (3)

Formed by reaction with OH^-:

Yang [44] studied the intermediate species and reaction mechanism in the oxidation process of formaldehyde by physical methods such as TPD and ESR. He proposed that the reaction process of formaldehyde being oxidized into CO₂ and H₂O was as follows: (10) HCHO + − OH · CHO + H 2 O , · CHO + − OH ⟶ HCOOH , · CHO + − O 2 − ⟶ HCO 3 − + H + ⟶ HCOOOH + HCHO ⟶ HCOOH , HCOOH ⟶ HCOO − + − OH ⟶ H 2 O + − CO 2 − , 或 HCOO − + h + ⟶ H + − CO 2 − , − CO 2 − + h + ⟶ CO 2 .

In addition to exploring the photocatalytic reaction mechanism of formaldehyde in experiments, Xie et al. [45] studied the connection relationship between reactants on the reaction potential energy plane and intermediate species at the level of 6-311++G(2df,pd) by using the B3LYP method and MP2 method of the density functional theory. Simulation shows that the intermediate is the isomer form of formic acid (HCOOH) (HOCOH).

According to the study of reaction mechanism by Yang et al., e − , h + , and -OH are crucial in the oxidative degradation of formaldehyde. Ishibashi et al. [46], respectively, compared the quantum yields of -OH, h + , and photocatalysis in the reaction process, and the results showed that the yield of holes and the quantum efficiency of photocatalysis were in the same order of magnitude. In addition, the importance of holes in the photocatalytic process can be seen from the above series of reactions. Therefore, the recombination of electron-hole pairs should be inhibited as much as possible to allow more holes to participate in the reaction to form active species.

Because e − in the valence band will recombine with h + , be trapped by defect sites, or migrate to different positions in the semiconductor to react, the life of electron and hole is very short, only picoseconds. For example, Yang and Tamai [47] found that the trapping time of electrons was 260 fs, while the trapping time of holes was shorter, only 50 fs. Tamaki et al. [48] found that the shallow capture time of electrons is about 100 fs, the deep capture time is 150 fs, and from the shallow capture time to the deep capture time is 50 fs.

The charge transport capacity is also an important factor affecting the photocatalytic efficiency [49]. Hoffmann et al. [50] studied the UV excitation process of TiO₂ particles and other related issues. The photocatalytic reaction process and its characteristic time are shown in Table 3. The characteristic time of interfacial charge transfer is shorter than that of carrier generation, capture, and recombination. The characteristic time of interfacial charge transfer is shorter than that of carrier generation, capture, and recombination. Huang [51] believed that the recombination of photogenerated electrons and holes was much faster than charge transfer, which greatly reduced the number of photogenerated electrons and holes involved in the reaction. Therefore, effectively reducing the recombination of electrons and holes was also an important research content in the field of photocatalysis.

4. Properties and Structure of TiO₂

The three crystal structures of nano-TiO₂ can be divided into rutile phase, anatase and brookite. The similarity between them is that they have the same basic components which is the TiO₆ octahedron structure [52]. However, the crystal structure, arrangement, connection mode, distortion degree, band gap, and defect types are different.

Anatase TiO₂ is octahedral common edge connection, while the rutile type is common edge and common fixed point connection, as shown in Figures 3 and 4 [53]. Rutile TiO₂ is a stable crystal with fewer oxygen vacancies [54]. Anatase TiO₂ has more dislocation and defects, so its distortion degree is higher than that of rutile phase, so anatase TiO₂ has excellent catalytic performance [55]. The forbidden width of anatase TiO₂ is about 3.2 eV, and that of rutile TiO₂ is about 3.0 eV [56]. The structural parameters of anatase, titanite, and rutile TiO₂ are shown in Table 4 [57], and it can be seen that their space groups, crystal cell parameters, and Ti-O bond lengths are different.

OPEN IN VIEWER

Figure 3

Simulations of anatase and rutile nanosized titanium dioxide. (a) Anatase type. (b) Rutile type.

OPEN IN VIEWER (b)

OPEN IN VIEWER

Figure 4

A schematic diagram of nanosized titanium dioxide structure connection. (a) Coedge way. (b) Concurrent way.

OPEN IN VIEWER (b)

Under the calcination condition of about 600°C, anatase transforms into rutile phase through continuous bond breaking and atomic rearrangement, and the phase transition temperature is affected by the size of titanium dioxide particles and ion doping, etc. [58]. The mixed phase of anatase, plate titanium, or rutile has good catalytic performance. For example, P25 ( 20 % rutile + 80 % anatase ) can be used as a standard material for photocatalytic testing because of its good catalytic performance [59].

5. Modification of TiO₂

Zhu et al. [60] explored the influence of TiO₂ irradiated with different wavelengths of light on the degradation effect of formaldehyde, and the study showed that the degradation rate of formaldehyde was about 29% without UV irradiation. Titanium dioxide which is a photocatalytic material has the advantages of safety, high efficiency, energy saving, good treatment effect, and no secondary pollution, so it can degrade formaldehyde and other toxic gases or liquids. However, titanium dioxide has the following disadvantages, so it has not been applied on a large scale in industry.

The disadvantages of nanoscale titanium dioxide in the field of photocatalysis are as follows [61]: (1)

The dispersion of nanosized titanium dioxide is poor, which is prone to agglomeration. Therefore, the specific surface area and the contact area with formaldehyde molecules are reduced, affecting the photocatalytic performance

In summary, titanium dioxide has disadvantages of small particle size, poor dispersion, high electron-hole pair recombination rate, and low utilization rate of sunlight. In order to improve its catalytic performance, researchers have conducted a lot of exploration.

5.1. Deposition of Noble Metal

Zhu et al. [62] studied the effect of Au/TiO₂ photocatalytic removal for gaseous formaldehyde, and the results showed that when the relative humidity and blue light intensity were 13% and 38.5 MW/cm², respectively, the degradation rate of formaldehyde under light reaction was 77%, much higher than the conversion rate under dark reaction.

The principle of action on TiO₂ modified by noble metal [63] is as follows: (1)

Since the Fermi level of TiO₂ is different from noble metals, a noble metal-TiO₂ heterojunction can be generated when noble metals are deposited on TiO₂. After the photogenerated electrons are excited by light, they will transfer from the surface of TiO₂ to the surface of noble metals. A space charge layer will be formed when the Fermi level reaches the same level. The unbalanced charge distribution causes band bending to form the Schottky barrier, as shown in Figure 5 [64]. The excited electrons in the valence band can be captured by the Schottky barrier

(2)

Lattice distortion is formed when noble metals are doped into the TiO₂ crystal lattices, which hinders the recombination of electron-hole pairs to some extent and improves the photocatalytic performance of nano-TiO₂.

OPEN IN VIEWER

Figure 5

The schematic Schottky barrier. In the figure, Ef represents the Fermi level, VB represents valence band, CB stands for conduction band, h + denotes a hole. Φ b is the height of the Schottky barrier, and Φ s is the work function of titanium dioxide; E x stands for built-in electric field; E 0 represents the surface potential energy of the precious metal.

When the noble metal is deposited on the surface of TiO₂, it has little shielding effect on TiO₂ and does not affect the specific surface area of TiO₂. Studies have shown that when 10% Pt is deposited on the surface of titanium dioxide, the effect on nanosized titanium dioxide is only 6%. The recombination rate of electron-hole pairs will be increased if the noble metal is deposited in a large amount of titanium dioxide. According to the study [65–68], the noble metals deposited on the surface of TiO₂ are mainly Pt and Ag. Huang et al. [69] found that Pd/TiO₂ with 0.1% load of Pd could completely degrade formaldehyde into CO₂ and H₂O at room temperature.

5.2. Surface Photosensitization

Surface photosensitization [70] is a relatively simple method, and it is one of the effective ways to broaden the absorption spectrum of TiO₂ to the visible region. There are two kinds of dye sensitization and compound sensitization.

Dye sensitization refers to the adsorption of organic dyes with an excited state potential more negative than TiO₂ on the surface of TiO₂ by physical or chemical means. After light irradiation, photogenerated electrons are generated and transferred to different positions and reacted with oxygen on the surface of TiO₂. The mechanism of action is shown in Figure 6 [71]. Studies have shown that the photocatalytic activity of TiO₂ modified by photosensitizer can be improved, and the utilization efficiency of photons can be improved by 30-80% [72]. Photosensitizers with certain stability include rosin, chlorophyll, eosin B, eosin thioneine, nori, etc. [73].

OPEN IN VIEWER

Figure 6

Mechanism of dye-sensitized titanium dioxide photocatalytic reaction.

Compound sensitization uses the combination of a semiconductor with a small forbidden band width and a titanium dioxide material to form a heterojunction. According to the working principle of the heterojunction, the electrons in the valence band of the TiO₂ composite semiconductor are excited and transported to the TiO₂ conduction band, as shown in Figure 7 [74]. Generally, a semiconductor with a similar band structure and a narrow band gap is chosen to composite with titanium dioxide. For example, CdS-TiO₂, SnO₂-TiO₂, Fe₂O₃-TiO₂, WO₃-TiO₂, and other semiconductor composites have been applied. The synergistic effect between the matched band structure of two components can broaden the spectral response range of the composite catalyst and improve the life of photocarriers to a certain extent. The construction of heterojunction is a new research direction in the field of photocatalysis [75–78]. The band diagram of CdS-TiO₂ composite system is shown in Figure 8 [79]. The band gap of CdS is about 2.4 eV. CdS is excited first under illumination, and the photogenerated electrons are transported to the TiO₂ conduction band to achieve photogenerated carrier separation [80]. Studies have shown [81] that CdS-TiO₂ is usually used in experiments due to its good composite effect.

OPEN IN VIEWER

Figure 7

Schematic energy level diagram of TiO₂ and CH₃NH₃Pb I₃.

OPEN IN VIEWER

Figure 8

Energy band diagram of the CdS-TiO₂ composite system.

6. TiO₂ Loaded on Activated Carbon

Studies at home and abroad have found that nano-TiO₂ supported on the carrier (such as silicon dioxide and activated carbon) to prepare TiO₂/AC composite material can effectively solve the problem of difficult recovery of titanium dioxide powder and increase the photocatalytic activity of TiO₂. Activated carbon can increase the local concentration around the catalyst, increase the contact area between pollutants and titanium dioxide, and completely degrade the intermediate products [112].

Huang et al. [113] studied the layer-by-layer deposition of photocatalyst TiO₂ and activated carbon on electrospun fibers by electrospray and obtained the NF-P/C multilayer composite film. It was found that the reason why the composite film has a larger contact area with air pollutants is because the electrospun nanofibers with a large specific surface area serve as the carrier of the photocatalyst. At the same time, it is more convenient to access and prevent the powder from scattering. Wu [114] prepared ACF/photocatalyst-free composite materials, which combined adsorption and catalysis to accelerate the degradation of indoor pollutants such as formaldehyde. Sun et al. [115] studied the degradation effect of TiO₂/ACF adsorption catalyst materials on formaldehyde, and the results showed that the degradation rate of synergistic materials to formaldehyde can reach 94.06%, and the adsorption capacity of activated carbon for formaldehyde is 60 mg/g, which is much higher than that of the single activated carbon.

From the study on the degradation of formaldehyde by the adsorption-catalytic synergistic material prepared by Wu et al., it can be seen that the degradation rate of HCHO can be greatly increased after the adsorption-mass transfer-degradation process. While the supporting body provides a reaction environment for the catalyst, the AC can be regenerated in situ.

Chen et al. [116] explored the effect of the pore structure and specific surface area of activated carbon on the catalytic performance of the adsorption-catalytic synergistic material, and the results showed that the photocatalytic activity of the synergistic material increased with the increase of the average pore size and specific surface area of the activated carbon. At the same time, Lu et al. [117] used the sol-gel method to support activated carbon with different pore sizes and specific surface areas on titanium dioxide to degrade toluene, the degradation rate of titanium dioxide supported by activated carbon with large specific surface area could reach 97%, and the deactivation time of catalyst was significantly delayed.

It can be seen from the research of Chen and others that the specific surface area and pore size of activated carbon have a significant impact on the catalytic degradation performance of the adsorption-catalytic synergistic material. Activated carbon with mesopores and macropores supported titanium dioxide can significantly improve the photocatalytic performance.

Luo et al. [118] studied the dispersibility of TiO₂ in synergistic materials, and they found that titanium dioxide has excellent dispersibility, with an average particle size of about 40 nm, and the catalyst active sites are evenly distributed, so the synergistic performance is significantly improved. Wang [119] studied the dispersibility of titanium dioxide on the surface of TiO₂/AC materials through an electron microscopy. They found that titanium dioxide is more uniformly supported on the surface of activated carbon, but there are also a small part of titanium dioxide agglomerated particles, which they believe the particles can reduce the free energy of the system through agglomeration to improve the load stability. Xing et al. [120] effectively controlled the agglomeration of catalyst particles by controlling the times of supporting TiO₂ on the surface of activated carbon.

Ma and Li [121] explored the influence of nano-TiO₂ loading amount on the degradation of formaldehyde by wood-based activated carbon/TiO₂ composite materials. The study showed that the degradation rate of formaldehyde first increased and then decreased with the increase of nano-TiO₂ loading amount. Li et al. [122] found that when the titanium dioxide loading concentration on the surface of activated carbon increased, the light transmittance would decrease, so the degradation rate of formaldehyde would decrease. At the same time, she also studied the repeated practicability of adsorption-catalytic synergistic materials. As shown in Table 5, when the TiO₂/AC material was used for six times continuously, the degradation rate of formaldehyde still reached 92%.

Hu and Deng [123] studied the position of titanium dioxide loaded in the pore size of activated carbon by scanning electron microscopy. By comparing the electron micrographs of the activated carbon surface before and after loading, they found that when the catalyst loading reaches a certain threshold, the transition pores of activated carbon would be blocked, thus affecting the adsorption performance.

According to Hu and Deng’s research on the effect of titanium dioxide loading on the degradation of adsorbates, when the loading amount reaches a certain threshold, TiO₂ will block the macropores and mesopores of activated carbon, affecting the migration rate of pollutants and thus reducing the degradation efficiency. Therefore, the composite ratio of adsorbent and catalyst should be adjusted to achieve the best catalytic degradation activity.

Table 6 lists some previous research results. It can be seen that compared with conventional formaldehyde degradation system, TiO₂/AC has significantly improved formaldehyde degradation effect.

7. Conclusions and Outlook

According to the different adsorption modes, activated carbon adsorption can be divided into physical adsorption and chemical adsorption. Better pore gradient distribution speeds up the internal diffusion of formaldehyde in the aperture of activated carbon, improves the physical adsorption capacity, and increases the number of acidic oxygen-containing functional groups on the surface of activated carbon is conducive to improving the chemical adsorption of formaldehyde polar molecules. TiO₂/AC adsorption and catalytic comaterial prepared by TiO₂ supported on activated carbon is conducive to solving the problem of difficult recycling of catalyst. Through the absorption and concentration of formaldehyde by activated carbon, it provides a good reaction environment for photocatalysis and improves the degradation rate. In the preparation process, metal ion/nonmetal ion doping modification, on the one hand, can effectively broaden the spectral response range and, on the other hand, to a certain extent, inhibits the recombination of electrons and holes. If modified TiO₂ is loaded on the surface of activated carbon, the adsorption synergistic material will have great advantages in adsorption catalysis.

With the in-depth study of TiO₂ mechanism, TiO₂/AC materials with high removal efficiency, large adsorption capacity, low energy consumption, and selectivity will be prepared to improve the preparation level of adsorption-catalytic comaterials, and TiO₂/AC materials will have broader application prospects.
