Photocatalytic Degradation of Methylene Blue and Antibacterial Activity of Mesoporous TiO 2 -SBA-15 Nanocomposite Based on Rice Husk

Abstract

Concerns have been increased regarding the existence of pollutants in environmental water resources and their risks to the ecosystem and human society. TiO₂ photocatalyst is considered as an effective photocatalyst to remove the pollutants. Herein, the mesoporous TiO₂-SBA-15 was prepared using the rice husk extract as the silica source. The fabricated nanocomposites were characterized using FTIR, small and wide angle XRD, Raman spectroscopy, UV-vis, BET surface area analysis, and HRTEM. The photocatalytic efficiency of the composites for the degradation of methylene blue (MB) has been evaluated under UV irradiation. Interestingly, due to the excellent dispersion of TiO₂ on the wall of SBA-15 and good hydrophilicity, the nanocomposites displayed a good catalytic activity. The higher photodegradation performance was achieved by the composite containing 10 wt% TiO₂ by which the MB was fully degraded within 15-20 min of irradiation. Besides, TiO₂-SBA-15 could effectively inhibit the growth of Gram-positive and Gram-negative bacteria. These results offer a practical and economic approach in the environmental management industries.

1. Introduction

Rice husk (RH) is a byproduct of rice production [1–3]. RH contributes approximately 20-25 wt % of the whole dry weight of rice [4]. With the annual rice production of 489.1 million tons [5], about 120 million tons of RH were produced as the biomass waste. Due to its weak mechanical strength, poor nutritional value, and low bulk density, the use of RH is limited [6–8]. So far, the most popular RH disposal approach is the open field burning which leads to air pollution, greenhouse gas emissions, and a waste of energy [9]. However, RH contains a high amount of silica, which could be used as the raw material for producing value-added silicon-based materials with interesting texture and morphology. The implementations of such substances stemming from rice husks are very inclusive [10, 11]. In the past decade, this research area has been dramatically progressed and extended, driven by the worldwide emphasis on sustainable and renewable resources.

As a chemically inert material, porous silica plays a significant role in various applications including adsorption, sensing, and catalyst support and templating, owing to its high surface area, adjustable porosity, and surface properties [12–14]. Its application largely depends on its morphology and microstructure. Mesoporous silica can be artificially synthesized with a certain degree of control in its nanomorphology [15]. However, it usually involves a complicated process, for instance, high quality of the amorphous silica was produced by the multistep thermal reduction of crude silica. The need for high temperatures and high pressure under extreme acidic condition is energy-intensive with high impact on the environment [16]. Hence, it is important to develop an affordable, sustainable, and environmentally friendly technique for the fabrication of porous silica to satisfy the rising demand for its widespread applications.

With the rapid population and industrialization growth, water pollution from organic contaminants seems to have become a big worldwide problem that risks the ecological system and human health [17, 18]. To remove organic contaminants from water, several physical and biological treatment approaches have been used, including ultrafiltration, coagulation, and adsorption [19, 20]. However, their practical applications are restricted by the limited capacity to remove trace organic compounds and the costs involved in the replacement of media. Therefore, a highly efficient, environmentally friendly, and sustainable water treatment process is needed to remove organic pollutants from water.

Due to the moderate operating conditions, high catalytic activity, and environmentally safe, TiO₂ photocatalyst has been an excellent candidate for the removing of organic contaminants from air and water [21, 22]. Although the use of TiO₂ nanoparticles is valuable for scientific research, the size of the particles restricts their practical use in water treatment. It is difficult and expensive to recover and resue the TiO₂ nanoparticles from a liquid environment. Meanwhile, complex water matrices could easily interfere with the surface property of the suspended fine TiO₂ particles [23]. Therefore, the design and producing of nanoporous TiO₂ framework have attracted some attention [24–26]. In such case, porous silica, as an optically transparent material, is an ideal candidate for supporting TiO₂ used as the photocatalyst in an aqueous environment.

The primary target of the present work is to develop an effective, economical, and sustainable nanocomposite of TiO₂ supported by mesoporous nanosilica using the rice husk as the sustainable raw material. The catalytic efficiency of the composites for the photocatalytic degradation of methylene blue (MB) was evaluated under UV irradiation. The unique mesoporous nanocomposite material displayed excellent photocatalytic performance in the degradation of MB and the bacteria inhabitation tests. The immobilized TiO₂ also showed success in the recovering and reusing process with the potential for practical environmental treatment.

2. Materials and Methods

2.1. Materials

Sodium hydroxide (NaOH, ≥99%), hydrogen peroxide solution (H₂O₂, 30 wt %), titanium isopropoxide (TTIP, 99%), the nonionic surfactant of EO₂₀PO₇₀EO₂₀, (Pluronic P123), ethanol (99%), and hydrochloric acid (HCl, 37%) were procured from Sigma-Aldrich Co., USA. MB (>96%) was supplied from Central Drug House (P) Ltd., India. H₂SO₄ (96%) used for silica extraction was obtained from Fisher Scientific. Rice husk was obtained by removing rice. Deionized water was utilized in the whole experiment. All materials were used without any further treatment.

2.2. Material Fabrication

2.2.1. Extraction of Nanosilica from Rice Husk

Silica was extracted from rice husk according to the previously reported procedure [27]. Briefly, 150 g of ground husk and 60 ml of concentrated H₂SO₄ were added in a glass bottle containing 1 L of deionized water. The mixture was digested at 80°C for 4 h under mechanical stirring. The precipitate was then collected by filtration. The obtained raw silica was calcinated at 800°C for 3 h to remove residual impurity. Finally, the produced silica was bleached using 10% H₂O₂ solution at room temperature for 3 hours.

2.2.2. Preparation of SBA-15

Mesoporous SBA-15 silica was synthesized using sodium silicate solution with Pluronic 123 as the structure-directing agent under acidic conditions. The Pluronic 123 solution was made by dissolving 4 g of Pluronic 123 in 120 g of HCl (2 M), followed by stirring at 40°C until Pluronic 123 was completely dissolved. Sodium silicate solution was produced by dissolving 1 g SiO₂ from the rice husk in 230 M NaOH solution (3 M). The P-123 solution was gradually added to the sodium silicate solution at 40°C under intense stirring. The reaction between the P123 polymer micelles and the sodium silicate produced the emulsion after rapid mixing [28]. The mixture was continuously stirred for 24 h at 40°C, and the SBA-15 precipitates were formed. The solid was separated by filtration and rinsed several times with a mixture of water and ethanol. Finally, the solid sample was dried at 80°C under vacuum for 12 h. The collected SBA-15 was calcined for 6 h at 600°C to remove any organic residuals (Scheme 1).

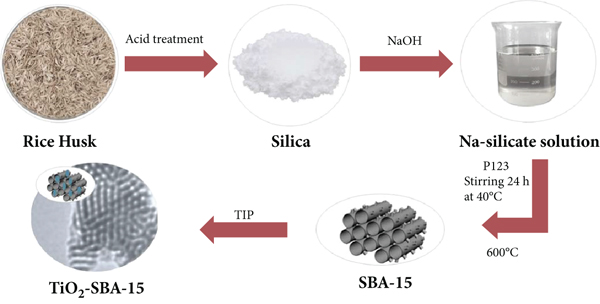

Scheme 1

The fabrication strategies for TiO₂-SBA-15 nanocomposite from rice husk.

2.2.3. Preparation of TiO₂-SBA-15 Nanocomposite

TTIP was used as the Ti precursor. In a typical synthesis, 1.0 g of dried SBA-15 was dispersed in 50 ml of ethanol followed by sonication for 60 min. Various amounts of TTIP (corresponding to 5, and 10 wt% TiO₂) were then introduced to the suspension. The mixture was mixed for another 60 min until a clear solution was formed. Then, a certain volume of deionized water (30 ml) was introduced dropwise under vigorous stirring for 4 h to hydrolyze the TTIP to Ti (OH)₄ species and to be deposited on the surface of SBA-15. The solid product was separated, rinsed several times with H₂O and ethanol, dried overnight at 120°C, and finally calcinated for 4 h at 400°C to create the TiO₂-SBA-15 nanocomposites [29, 30] (Scheme 1).

2.3. Material Characterization

Small and wide angle X-ray diffraction (XRD) measurements were carried out using an X-ray diffractometer (XPERT, PANalytical) with Cu Kα ( $λ = 0.154 nm$ ) radiation at 40 mA and 40 kV using a secondary monochromator. The surface texture and N₂-isotherms were obtained using a BET surface analyzer (NOVA 3200, Quantachrome Instruments) at 77 K. The pore size distribution was evaluated from the adsorption branch of the nitrogen isotherms employing the Barrett–Joyner–Halenda (BJH) model. The samples were activated for 3 hours prior to analysis at 250°C. The Brunauer–Emmett–Teller (BET) model was used to compute the surface areas. High-resolution images of the nanostructures were collected using a high-resolution transmission electron microscope (HRTEM, JEM-1230, JEOL) operating at 200 kV. A droplet of a colloid solution containing the sample in ethanol was applied to a carbon-coated copper grid and allowed to dry in air at ambient temperature. FT-IR spectra were recorded using a Fourier transform infrared spectrophotometer (IR Tracer-100, Shimadzu). The diffractograms were performed in the 2Ɵ range of 0.5 to 3° (low angle) and 10-80° (wide angle) with step size of 0.01° and 10 s per step. The Raman spectra were recorded on a high-performance Raman analyzer (ProRaman-L, Enwave Optronics) using a doubled Nd:YAG laser ( $λ = 532 nm$ ) as the excitation laser. With a laser power of 10 mW, the beam of laser was concentrated on a 0.10 mm diameter point on the nanocomposite.

The optical property was measured with a UV-vis spectrophotometer (UV-2600, Shimadzu) equipped with diffuse reflectance difference spectroscopy attachment (DRDS). The sample was spread on a glass slide with a certain thickness, $d$ . The measurement was performed at ambient temperature. The absorption coefficient $α (ν)$ was calculated using Eq. (1): $\begin{matrix} (1) & α (ν) = \frac{1}{d} \log (\frac{I o}{I}), \end{matrix}$ where $I_{0}$ and $I$ are the intensities of the incident and transmitted light, respectively. The optical bandgap ( $E_{g}$ ) was obtained from the absorption coefficient $α (ν)$ using Eq. (2) $\begin{matrix} (2) & α h ν = {[B (h ν - E g)]}^{r}, \end{matrix}$ where $h_{ν}$ is the photon energy of the incident light, and $B$ is the band tailing constant. The value of $r$ is ½ or 2 for direct or indirect bandgap [31]. To obtain the bandgap energy value, the Tauc plots were created by plotting ${(α h v)}^{1 / 2}$ against ( $h ν$ ).

The chemical oxygen demand (COD) was measured using an oxidation method in the presence of K₂Cr₂O₇ [32].

2.4. Photodegradation Performance Measurements

In a typical photodegradation experiment, in double wall jacket glass reactor for temperaure controler, 50 mg of TiO₂-SBA-15 photocatalyst was added in 100 ml MB solution with initial concentration ( $C_{o} = 4 \times 10^{- 5} mol / l$ ). To achieve the adsorption-desorption equilibrium, the mixture solution was stirred in the dark for 30 min before the UV irradiation. The quantity of adsorbed MB was evaluated employing Eq. (3). $\begin{matrix} (3) & q t = \frac{(C o - C e) V}{m}, \end{matrix}$ where $q_{t}$ is the adsorption capacity, and $m$ is the weight of the catalyst. $C_{o}$ and $C_{e}$ are the original and equilibrium weight volume concentrations of the MB. $V$ is the total volume of the MB solution. The suspension was then placed vertically under a UV (UVA, 365 nm, 10 W) equiped with optical transimisssion filter. The distance between the glass reactor and the lamp is 25 cm for all experiments. Every 5 min during the photoirradiation, 5 ml of MB solution was collected. The solid nanocomposite was removed by centrifuge, and the concentration of the MB was determined by the UV–vis spectrometer. The MB photodegradation performance was explored by analyzing the kinetic data from the reduction of the MB concentration. All performance measurements were carried out in triplicate.

2.5. Antibacterial Performance

The antibacterial performance of the fabricated materials was performed by the agar well diffusion approach. The bacterial isolates were cultured for 20 hours at 35°C in a medium of nutritional broth having 10 g/L NaCl, 3 g/L extract of yeast, and 8 g/L bactotryptone. Using sterile cotton buds, 100 μl of the suspensions of the cell was dispersed on a nutrient agar surface, and the agar was pierced with 8 mm diameter reservoirs and loaded with 300 μl of TiO₂-SBA-15 aqueous solutions (5 mg/ml). The plates was incubated for 24 h at 35°C. The antibacterial performance of the nanocomposite was assessed by the size of the inhibition zone (growth diameter). The antibacterial performance of TiO₂-SBA-15 nanocomposite with 10 wt % TiO₂ against Gram-positive and Gram-negative bacteria is tested, and four different bacteria were selected for testing, including B. subtilis, B. cereus, Klebsiella pneumonia, and E. coli.

3. Results and Discussion

3.1. Material Characterization

In order to examine the TiO₂ loadings in the composite of X%TiO₂-SBA-15, elemental analysis is used, and the results are reported in Table 1. The results revealed that the TiO₂ loadings in the composites range from 4.5 to 9.7 wt%.

Table 1

Unit cell parameter and texture characteristics of pristine SBA-15 and TiO₂-SBA-15 nanocomposite containing various TiO₂ contents.

Sample	TiO₂ loading^a (wt%)	TiO₂ loading^b (wt%)	$a_{0}$ /nm^a	$A_{BET}$ /(m²g^-1)^b	$V_{P}$ /(cm³/g)^c	$D_{P}$ /Ads/nm^d	$W$ /(nm) ^e	$E_{g}$ /eV
SBA-15	—	—	14.43	869	1.24	5.7	6.28	—
5%TiO₂-SBA-15	5	4.54	15.05	702	1.13	6.4	6. 40	3.09
10%TiO₂-SBA-15	10	9.73	16.51	695	0.95	5.5	7.40	3.01

^aTiO₂ concentration in the gel. ^bTiO₂ concentration in the calcined materials measured by ICP.

The small-angle XRD patterns for pristine SBA-15 and TiO₂-SBA-15 nanocomposites with different TiO₂ contents are presented in Figure 1(a). All the fabricated composites display well-defined XRD diffraction peaks related to the (1 0 0), (1 1 0), and (2 0 0) crystal planes of the SBA-15 structure with P6mm hexagonal symmetry [33]. The high intensities of these diffraction peaks indicate that good quality SBA-15 mesostructure was successfully produced. With the incorporating of TiO₂, the diffraction peaks from the SBA-15 shift towards smaller angles, representing the increased lattice constant for the SBA-15. This finding suggests that some of the Si⁴⁺ were substituted by the Ti⁴⁺ since Si⁴⁺ has a radius of 0.040 nm, smaller than that of the Ti⁴⁺ (0.061 nm). The unit cell parameter ( $a_{o} = 2 d_{100} / \sqrt 3$ ). of the prepared composite has increased upon the incorporation with TiO₂ (Table 1) and increased with increase TiO₂ content. In general, isomorphous replacement of Si⁴⁺ by Ti⁴⁺ ions helps to create an atomically tight interface between the TiO₂ and SiO₂, which is important for the stability of the composite materials. It also implies the excellent penetration of TiO₂ into the SBA-15 wall structures of the pores. The appearance of the XRD peaks from SBA-15 with similar intensities and peak width after TiO₂ coating suggests that the SBA-15 crystal structures were preserved during the TiO₂ coating. Figure 1(b) displays the wide-angle XRD patterns of pure SBA-15 and TiO₂-SBA-15 composite with 10 wt % TiO₂. The weak wide peak centered at $2 θ = 22^{°}$ is associated with the amorphous silica (ICDD # 00-001-0424 (silica phase)). No diffraction peaks belong to TiO₂ were observed (JCPDS card no. 21-1272 (anatase TiO₂)), suggesting that a well-dispersed thin layer of TiO₂ coating was formed within the SBA-15 matrix.

Figure 1

(a) Low-angle XRD and (b) wide-angle XRD patterns of pure SBA-15 and TiO₂-SBA-15 nanocomposite (JCPDS card no. 21-1272 (anatase TiO₂) and ICDD # 00-001-0424 (silica phase)).

(b)

Figure 2 shows the nitrogen adsorption/desorption isotherms and pore size distribution of pristine SBA-15 and TiO₂-SBA-15 nanocomposite with various TiO₂ contents (5 and 10 wt.%). The measured properties of the synthesized materials are summarized in Table 1, including the specific surface area ( $A_{BET}$ ), the total pore volume ( $V_{p}$ ), the average pore diameter ( $D_{p}$ ), the wall thickness ( $W$ ), and the bandgap energy ( $E_{g}$ ). The lattice constant was calculated from the XRD diffraction angle. The surface area was determined based on the BET isotherm. The pore structure was obtained using the BJH model. The wall thickness was calculated by ( $a_{o} - D_{p}$ ). The bandgap energy was calculated from the UV-vis absorption spectra, as discussed below. The isotherms in Figure 2(a) show the representative type IV, with wide H1 type hysteresis loop, which is common for the mesoporous materials [34]. Each isotherm shows a sharp increase of the adsorbed $N_{2}$ volume, and characteristic of the capillary condensation within mesopores occurs for a relative pressure $P$ / $P_{o}$ larger than 0.62. This jump is irreversible, which forms a hysteresis loop with parallel desorption and adsorption branches (type H1). The sharpness of this jump indicates the uniformity of mesopore sizes. The similar isotherm curvatures between SBA-15 and TiO₂-SBA-15 suggest that they both have the hexagonally arranged mesopores linked by smaller micropores [35]. The surface area of the TiO₂-SBA-15 with 10 wt % TiO₂ is 695 m²/g with the pore diameter of 5.5 nm and pore volume of 0.95 cm³/g (Table 1). With the increase in the TiO₂ loading, the wall thickness of TiO₂-SBA-15 was increased due to the TiO₂ that was incorporated on both inside and outside of the SiO₂ pores. Moreover, all materials have similar pore sizes with narrow pore size distributions as calculated from the adsorption branch of the nitrogen isotherms using the Barrett–Joyner–Halenda (BJH) method, shown in Figure 2(b). Hence, there is a slightly collapse of the porous SBA-15 structure during the TiO₂ incorporation. The data is consistent with the findings from the XRD and HRTEM studies.

Figure 2

(a) Nitrogen adsorption/desorption isotherms and pore size distribution of pure SBA-15 and TiO₂-SBA-15 nanocomposite containing various TiO₂ contents. (b) Pore size distributions for SBA-15 and TiO₂-SBA-15 (10 wt % TiO₂).

(b)

To verify the mesoporous structure of the SBA-15 after TiO₂ coating, HRTEM images for TiO₂-SBA-15 nanocomposite with 10 wt % TiO₂ are displayed in Figure 3. HRTEM image of 10 wt % TiO₂-SBA-15 nanocomposite with uniform one-dimensional mesochannels, parallel, and hexagona mesostructure has developed. A $d$ value 0.21 nm corresponds to the (100) lattice plane of SBA-15 that was observed, indicating that the SBA mesoporous structure was maintained after the integration of TiO₂ in the SBA-15 matrix, which is in good agreement with the XRD results.

Figure 3

(a) HRTEM images and (b) EDS of 10 wt % TiO₂-SBA-15 nanocomposite.

(b)

The FT-IR spectra of synthesized SBA-15 and TiO₂-SBA-15 nanocomposite with various TiO₂ contents are depicted in Figure 4. There are bands representative of hydroxylated silica in the FTIR spectrum of SBA-15: 1074, 943, 804, 555, and 461 cm^–1. The bands at 1074 and 804 cm^–1 ascribed to the Si–O–Si bond’s asymmetric and symmetric stretching vibrations, respectively. The bands at 943 and 461 cm^–1 relate to the Si–OH and Si–O–Si bonds’bending vibrations [36, 37]. The existence of a characteristic absorption band at 555 cm^–1 attributable to Si–O–Si symmetric modes of the silicon-oxygen tetrahedral is a distinguishing characteristic of this spectrum. Bending vibrations of coordinately attached and adsorbed water molecules are shown by the bands at 3454 and 1622 cm^–1. We find a decrease in the intensity of the absorption bands for stretching vibrations of the Si–O–Si bond in the spectrum of the composite with SBA-15 majority, and their maximum is moved toward smaller frequencies compared to the SBA-15 spectrum. We find a reduction in the intensity of the absorption bands for Si–O–Si stretching vibrations and a shift in their maximum to lower frequencies as the quantity of TiO₂ in the composite increases. Simultaneously, with a high silica content in the composite, the absorption band corresponding to Ti-O vibration of octahedraon TiO₆ vanishes. This could be linked to the transition of titanium atoms from octahedral to tetrahedral coordination when they substitute silicon in the SiO₄ ^-4 tetrahedron [37]. We can only explain the absorption in this area as a result of the distinctive vibrations of Si–O–Ti bonds following suitable thermal treatment of the materials because the absorption bands for the Si–OH and Si–O–Ti bonds are near.

Figure 4

FTIR spectra of pure SBA-15 and TiO₂-SBA-15 nanocomposite containing various TiO₂ contents.

Raman spectroscopy was performed to explore the structural changes upon TiO₂ deposition within the SBA-15 matrix and also to identify the phase of the developed titania. The Raman spectra of SBA-15 and 10 wt% TiO₂-SBA-15 nanocomposite are displayed in Figure 5. SBA-15 in Figure 5(a) displays a band about 493 cm⁻¹, which is ascribed to tetrasiloxane rings. The bands about 610 and 981 cm⁻¹ could be attributed to cyclic trisiloxane rings and the Si–OH stretching vibration, respectively. Figure 5(b) shows the Raman spectrum of 10 wt % TiO₂-SBA-15 nanocomposite. Four Raman active bands were identified at 149, 410, 510, and 633 cm^-1, respectively, which are assigned to the Eg, B1g, A1g/B1g, and Eg bands associated with the anatase phase. Furthermore, the SBA-15 band is nearly undetectable, implying the presence of highly dispersed TiO₂ species within the SBA-15.

Figure 5

Raman spectrum of (a) SBA-15 and (b) 10 wt % TiO₂-SBA-15 nanocomposite.

(b)

UV-vis absorption measurements were conducted to explore the optical properties of the TiO₂-SBA-15 composites at different TiO₂ loadings. The recorded spectra of the TiO₂-SBA-15 nanocomposite with 5 and 10 wt % TiO₂ are displayed in Figure 6. The TiO₂-SBA-15 composites mainly absorb the UV, shown in Figure 6(a). The edge of the absorption shifted to a longer wavelength at higher TiO₂ content [38, 39]. To determine the bandgap energies of the prepared nanocomposites, the corresponding Tauc’s plots are produced in Figure 6(b). Bandgap energies were obtained by extrapolating the linear part of the plot to the $x$ -axis. Their values are summarized in Table 1. It can be seen that the bandgap value was slightly larger for the sample with 5 wt % TiO₂ (3.09 eV) than that for the sample with 10 wt % of TiO₂ (3.01 eV). This observation is likely due to that at lower TiO₂ loading, and the size of the TiO₂ nanoparticles within the mesoporous is decreased as compared to that at higher TiO₂ loading. Moreover, the bandgap energy is affected by the quantum confinement and increases as the particles size decreases [40, 41].

Figure 6

UV–vis absorption spectra (a) and Tauc’s profile for the band gap determination (b) of TiO₂-SBA-15 nanocomposite containing various TiO₂ contents.

(b)

3.2. Catalytic Performance

The dark adsorption experiments of MB over pure SBA-15 and TiO₂-SBA-15 nanocomposite with 5 and 10 wt.% TiO₂ at different time intervals are displayed in Figure 7. The adsorption saturations were achieved around 30 mins for all samples with the adsorption capacities of 11.8, 7.3, and 4.1 mg/g for pure SBA-15 and TiO₂-SBA-15 nanocomposite with 5 and 10 wt.% TiO₂, respectively. Hence, the photocatalytic decomposition experiments were delayed by 30 mins after mixing, allowing the adsorption equilibrium to be achieved. Owing to the large surface area of the mesoporous silica matrix, the SBA-15 displayed the highest adsorption capacity. However, after TiO₂ incorporation, the adsorption capacity during the dark experiments was decreased compared to pure SBA-15, possibly due to the clogging and the decrease in surface area. The sample with 10 wt % of TiO₂ offered the lowest adsorption capacity.

Figure 7

Time-dependent adsorption behavior of the MB on TiO₂-SBA-15 nanocomposite containing various TiO₂ contents under dark condition.

Under the UV irradiation, the MB photocatalytic degradation by the TiO₂-SBA-15 nanocomposites with 5 and 10 wt % TiO₂ was examined. The findings are displayed in Figure 8 and Table 2. To identify the effects of UV on the MB molecule, a control experiment using 100 ml MB solution under UV irradiation without catalyst was carried out, shown in Figure 8(a). Only a limited degradation of MB (< 2%) was observed. Hence, the MB is stable under UV irradiation. The photocatalytic performance under UV irradiation of the nanocomposites with different TiO₂ loadings for the degradation of MB dye is also shown in Figure 8(a), plotted with the normalized MB concentrations as a function of reaction time. The higher photodegradation performance was achieved by the composite containing 10 wt% TiO₂ by which the MB was fully degraded within 15-20 min of irradiation. To measure the reaction rate constant, a first-order kinetic model was used. Figure 8(b) shows the logarithm of MB relative concentration as a function of time. The degradation process obeys the first-order kinetic. The TiO₂-SBA-15 photocatalyst with 10 wt % TiO₂ gives an MB degradation rate constant of 0.139 min^-1, which is about 4 times more efficient than that with 5 wt % TiO₂ loading (0.033 min⁻¹). Therefore, the rate constant was improved by the increase of the TiO₂ loading. As a control experiment, 10% TiO₂-SBA-15 was fabricated using SBA-15 (Sigma-Aldrich) as a support. A comparatively decline in the photocatalytic corresponding to rate constat ( $k = 0.114 \min^{- 1}$ ) was achieved when using commercial SBA-15 as a support. The photocatalytic performance is determined by the density of the surface catalytic center, the reactant adsorption capacity, and light absorption efficiency. At different TiO₂ loadings, there is no significant difference in the BET-specific surface area. The TiO₂-SBA-15 with 10 wt % of TiO₂ showed lower adsorption capacity for the MB than that with 5 wt % of TiO₂, which is possibly resulted from the reduced BET surface area and pore volume. Such character should result in a lower reaction rate constant, which is contradictory to the kinetic measurement results. More importantly, the bandgap energy of the TiO₂-SBA-15 with 5 wt % of TiO₂ is about 3.09 eV, which is much shorter than the wavelength of the photocatalysis excitation source (365 nm). Hence, it is expected that the TiO₂-SBA-15 with 5 wt % of TiO₂ would have much lower excitation efficiency. The smaller TiO₂ particle size in the TiO₂-SBA-15 with 5 wt % of TiO₂ also implies a higher density of surface defects, which can behave like charge recombination centers. Therefore, the dominate effects that determining the photocatalytic performance are the matching of the bandgap energy with the excitation light source, while the crystal quality also affected the charge recombination [42–46].

Figure 8

(a) Photocatalytic activity and (b) first-order kinetic curve under UV irradiation of TiO₂-SBA-15 nanocomposites.

(b)

Table 2

Chemical oxygen demand (COD) decline of MB with respect to time over the 10 wt% TiO₂-SBA-15 nanocomposite.

Physicochemical parameters	Prephotocatalytic degradation	After dark for 30 min	Postphotocatalytic degradation after
Physicochemical parameters	Prephotocatalytic degradation	After dark for 30 min	20 min	40 min	60 min	80 min	120 min
COD (mg/L)	$34.8 \pm 0.6$	$14.3 \pm 0.4$	$11.3 \pm 0.3$	$10.1 \pm 0.5$	$9.3 \pm 0.2$	$5.1 \pm 0.2$	$2.2 \pm 0.1$

Based on the abovementioned findings, TiO₂-SBA-15 nanocomposite had an uniform pore distribution and large surface area, which aided the MB uptake and diffusion by the SBA-15 mesochanel, resulting in MB accumulation surrounding the TiO₂ nanoparticles. This near vicinity between MB and the active centers is likely crucial to increasing the degradation performance. The nanocomposite particles were photoexcited that generate electron (e^-) and (h). The electron participates in the reduction processes, whereas holes participate in the oxidation processes. The following equations display the mechanism of the photocatalytic reaction [47]. $\begin{matrix} (4) & {TiO}_{2} - SBA - 15 {\underset{⟶}{UV}}^{h^{+}} VB + {e^{-}}_{CB}, \\ O_{2} + e^{-} ⟶^{.} {O_{2}}^{-}, \\ H_{2} O + h^{+} ⟶^{.} OH + H^{+}, \\ ^{.} {O_{2}}^{-} + H_{2} O ⟶^{.} {HO}_{2} + {OH}^{-}, \\ ^{.} {HO}_{2} + H_{2} O ⟶ H_{2} O_{2} +^{.} OH, \\ H_{2} O_{2} ⟶ 2^{.} OH, \\ ^{.} OH + MB ⟶ decomposition product + {CO}_{2} . \end{matrix}$

The involvement of active species was investigated using a trapping experiment to reveal the photodegradation mechanism of MB. Tertiary butyl alcohol (t-BuOH) was used to scavenge ·OH, while nitrogen bubbling was employed to scavenge ·O₂− and h+. Figure 9 demonstrates that adding t-BuOH has minimal effect on MB degradation, indicating that ·OH is not involved in the photodegradation process, whereas the $N_{2}$ bubbling dramatically reduces MB removal, suggesting that h + and ·O₂− are the key active species in MB degradation.

Figure 9

MB degradation using the 10% TiO₂-SBA-15 nanocomposite without scavenger and with scavengers under UV-light irradiation.

Furthermore, to ensure dye degradation, a chemical oxygen demand (COD) experiment was carried out. The COD test is a popular method for determining the organic strength of wastewater [32]. The test allows for waste assessment in terms of total oxygen needed for the organic matter oxidation to CO₂ and water. A significant decrease in COD indicates degradation in carbon content in the sample and so indicates the extent of mineralization. Organic carbon is converted to gaseous CO₂ as a result of degradation. The COD was substantially lowered (Table 2) as a result of the oxidative mineralization process, which involved the aromatic rings opening with the transitory synthesis of carboxylic acids, followed by the evolution of CO₂ via the “photo-Kolbe” reaction. $\begin{matrix} (5) & R - {COO}^{-} + h^{+} ⟶ R^{•} + C O_{2} . \end{matrix}$

With the use of a 10% TiO₂-SBA-15 nanocomposite, the dye molecules might be totally mineralized, based on the considerable reduction in COD values.

One of the advantages of heterogeneous catalysis is the ability to recycle and reutilize the catalysts with a relatively simple procedure at low cost if the catalytic performance of the catalysts can be maintained. To evaluate the recyclability of the TiO₂-SBA-15 with 10 wt % TiO₂, the used catalyst was collected and immediately reused in the MB degradation without further treatment. The catalytic kinetic data for the consecutive five cycles are presented in Figure 10. The results show that the degradation performance values were 95.8, 95.7, 95.8, 91.7, and 89%. After the fifth degradation run, the ICP and surface area were tested. Obvious, no remarkable TiO₂ is detected after the fifth run in reaction mixture, suggesting that the leaching process is not responsible for the decrease in the performance. However, the measured surface area after the fifth run for the nanocomposite is decreased (673 m² g^-1), which is the main reason for the decrease the catalytic degradation.

Figure 10

Durability of 10% TiO₂-SBA-15 nanocomposites towards the photodegradation activity of MB.

The antibacterial performance of TiO₂-SBA-15 nanocomposite with 10 wt % TiO₂ against Gram-positive and Gram-negative bacteria is presented in Table 3. Four different bacteria were selected for testing, including B. subtilis, B. cereus, Klebsiella pneumonia, and E. coli. For both Gram-positive and Gram-negative bacteria, to acquire a better understanding of the antibacterial performance, a few control studies were carried out. The antibacterial performance of the nanocomposite-free control sample was tested under the identical conditions and found no significant differences. Besides, the antibacterial performance of the SBA-15 was also tested to enable the comparison with the nanocomposite prepared in this work. A comparatively decline in the antibacterial activity was achieved when using SBA-15. Particularly, the highest antibacterial activity was observed for the TiO₂ deposited nanoparticles. Thanks to the presence of TiO₂, the 10 wt% TiO₂-SBA-15 nanocomposites display an enhanced antibacterial performance. Hence, the photocatalyst offered an effective universal antibacterial activity [48]. Bacteria possess enzymatic antioxidant protective mechanisms that limit lipid per oxidation as well as the impacts OH₂ ^- and ·OH radicals. When such components are surpassed, a series of redox processes can cause the death of a cell by changing many critical components likes DNA, cell membrane, cell wall, and metabolism pathways. The mechanism of antibacterial performance of TiO₂-SBA-15 nanocomposite was presented in Scheme 2.

Table 3

Antibacterial activity of SBA-15 and 10 wt% TiO₂-SBA-15 nanocomposite against Gram-positive and Gram-negative bacteria.

Bacteria	Kind	Diameter of inhibition zone (mm)
Bacteria	Kind	SBA-15	10 wt % TiO₂-SBA-15
B. subtilis	+ve	$20.3 \pm 0.67$	$26.1 \pm 0.44$
B. cereus	+ve	$17.1 \pm 0.43$	$27.2 \pm 0.51$
K. pneumoniae	-ve	$20.1 \pm 0.36$	$31.3 \pm 0.33$
E. coli	-ve	$24.3 \pm 0.17$	$30.1 \pm 0.87$

Scheme 2

The antibacterial performance-based mechanism.

4. Conclusion

Mesoporous SBA-15 nanomaterial is successfully synthesized using sustainable, low-cost, and environmentally friendly rice husk extract as the silica source and used as the support for TiO₂ nanoparticles. With 10 wt% loading of TiO₂, the TiO₂-SBA-15 nanocomposite showed higher efficiency in the reduction of MB within 15-20 min of irradiation and excellent antibacterial performance. This could be attributed to the excellent light absorption and limited density of surface defects. The degradation process of 5 and 10 wt % TiO₂-SBA-15 obeys the first-order kinetic with rate constant of 0.139 min^-1 and 0.033 min⁻¹, respectively. The TiO₂-SBA-15 nanocomposite also shows excellent recyclability with long lasting catalytic performance. Therefore, TiO₂-SBA-15 is a potential excellent photocatalyst for practical application in environmental treatment.

Footnotes

Data Availability

The data used to support the findings of this study are included within the article.

Conflicts of Interest

The authors declare that they have no conflict of interest.

Acknowledgments

The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through the project number (UB-35-1442).
