Binding of Cd(II) by Amorphous Aluminum Hydroxide-Organophosphorus Coprecipitates: From Macroscopic to Microscopic Investigation

Abstract

The mobility of Cd(II) in soils, sediments, and aquatic systems is strongly dependent on adsorption behaviors occurring at the mineral-water interface, and this process may be influenced by the presence of organic phosphorus (OP). In this study, we investigate Cd(II) adsorption onto amorphous aluminum hydroxide (AAH), both in the presence and absence of OP, represented by the widely abundant myo-inositol hexakisphosphate (IHP). Isothermal adsorption experiment coupled with attenuated total reflection Fourier transform infrared (ATR-FTIR) and ¹H solid-state NMR spectra were employed. Physiochemical characterization shows that IHP can increase the surface negative charge and the number of surface sites. Isothermal results show that high IHP loading enhances Cd(II) adsorption while no obvious increase is observed at low IHP loading. The overall effect of IHP on Cd(II) sorption depends on the extent of two positive processes, i.e., (1) IHP can form ternary complexes with adsorbed Cd(II) on AAH and (2) IHP can increase the negative surface charge of AAH, and a negative process, i.e., AAH competes with Cd(II) for AAH surface sites. ATR-FTIR results confirm the possible formation of three structurally distinct ternary complexes, i.e., the AAH-IHP-Cd, AAH-Cd-IHP, and AAH-Cd-IHP-Cd. The analysis of ¹H solid-state NMR demonstrates that IHP only increases the number of surface OH groups rather than changes their chemical environment and speciation. Cd does not bind to the AAH surface but mainly binds with the OH groups of IHP. All findings of this work suggest that the presence of high dose of OP promotes the retention of Cd(II) in soils, thereby decreasing their bioavailability to biota.

1. Introduction

Heavy metals released from industrial and agricultural activities accumulate in soil, resulting in the degradation of soil quality [1, 2]. Sorption, desorption, and precipitation reactions of heavy metals onto soil components, i.e., metal (hydr)oxides and organic constituents, determine their mobility, migration, and bioavailability, which remarkably affects crop safety [3–6]. Both iron and aluminum (hydr)oxides are widely present in soils and sediments, especially in tropical and subtropical soils with variable charges [7]. Poorly crystalline Fe/Al (hydr)oxides provide abundant active sorption sites for toxic heavy metals through precipitation [8, 9] and complexation [10]. As such, they can be a substantial sink for heavy metal pollutants, thereby governing their biogeochemical cycles in contaminated environment.

In soils, the presence of anionic compounds can enhance or suppress the surface interaction of heavy metals on Fe/Al (hydr)oxides [11, 12]. Phosphate is an ubiquitous reactive ligand in the environment, showing high reactivity to soil minerals [13, 14]. A large number of studies have shown that phosphate can significantly affect heavy metals adsorption onto mineral phases [15–17]. This can occur as the result of the following: (a) electrostatic interaction [18], (b) ternary surface complexion [19], (c) competition with heavy metals for surface adsorption sites [11, 20], and (d) formation of metal-phosphate surface precipitation [21]. Ren et al. [22] showed an enhanced adsorption of Cu(II) with coexisting phosphate on γ-Al₂O₃ at pH 5.5, which is attributed to the formation of ternary surface complexes (phosphate as bridging molecule). Recent research by Hinkle et al. [19] suggested that the synergistic adsorption behavior of phosphate and Fe(II) is probably due to electrostatic interactions and the ternary complexation formation on Fe oxide surfaces. An earlier study by Li et al. [20] found that phosphate treatment suppresses the maximum adsorption of Cd/Cu on hematite, owing to the decreased inner-sphere adsorption sites with coexisting phosphate. Singh et al. [21] also observed the formation of surface ternary complexes of goethite-phosphate-U, and U(VI)-phosphate precipitation occurred when U(VI) concentration was up to ~100 μM. As mentioned above, most studies have focused on the influences of inorganic phosphate on toxic metals binding to Fe/Al (hydr)oxide, but relatively few studies have explored the effects of organic phosphorus.

Organic phosphorus (OP) accounts for 50~80% of total P in soils, among which myo-inositol hexakisphosphate (IHP) is the most abundant one that is involved in many biogeochemical processes [23, 24]. It is well documented that IHP can strongly interact with metal (hydr)oxides, such as Al (hydr)oxide [25–27], Fe (hydr)oxide [28, 29], and metal nanoparticles [30, 31]. The coexisting IHP can significantly promote Cd(II) sorption on gibbsite and kaolinite below pH 8 [32, 33]. ATR-FTIR spectroscopy results have confirmed two structurally distinct ternary surface complexes in ternary system of IHP, Cd(II), and hematite [23]. Yan et al. [34] investigated the adsorption of Zn(II) and IHP on γ-Al₂O₃ surfaces and showed that the presorption of IHP restrains the formation of Zn−Al layered double hydroxide (LDH) precipitates. The above results have shown that the presence of IHP can remarkably affect the interaction between heavy metals and minerals. Despite this, very limited studies have investigated the reactivity of minerals-IHP coprecipitates, especially their sorption behavior towards heavy metals.

Amorphous Al hydroxide (AAH), serving as the most active Al (hydr)oxides in soils, exhibits a great number of reactive functional groups and high specific surface area [26, 27]. The adsorption processes of Cd(II) or IHP on AAH have been systematically studied before [26, 35], while the binding mechanisms of Cd(II) on AAH-IHP coprecipitates are still poorly understood. The spectroscopy technology, i.e., Fourier transform infrared spectroscopy (ATR-FTIR) and solid-state ¹H nuclear magnetic resonance spectroscopy (¹H NMR), can provide molecular-scale information for the binding characteristics of heavy metals on mineral surface and allow for the direct identification of their surface species. In the present study, we synthetized AAH-IHP coprecipitates with two different P loadings. We characterized the AAH-IHP coprecipitates in terms of mineralogy, crystallinity, surface functional groups, and surface charge. We combined batch sorption, ATR-FTIR spectroscopy, and solid-state ¹H NMR spectroscopy to explore the binding mechanisms of Cd(II) in the composite system. Our finding is helpful to understand the interaction of trace elements with Al-organophosphorus coprecipitates in Al-rich soils and sediments.

2. Materials and Methods

2.1. Synthesis of Pure AAH and AAH-IHP Coprecipitates

Myo-inositol hexakisphosphate (C₆H₁₈O₂₄P₆, IHP) was produced from Sigma-Aldrich (Shanghai, China). Amorphous Al hydroxide (AAH) was prepared according to the method reported previously [26], by adding 0.5 M NaOH to a 0.167 M AlCl₃ solution at pH ~6.0. Two kinds of AAH-IHP coprecipitates were synthesized by mixing 0.05 M aluminum nitrate with 1 mM or 10 mM of IHP under vigorous stirring. After 15 min, the pH of the suspensions was adjusted to 7.3 and then left for 20 min to obtain two different AAH-IHP coprecipitates, named as AAH-IHP_low and AAH-IHP_high, respectively. The suspensions were centrifuged at 4500 × g for 20 min, and the resulting supernatants with unadsorbed IHP were removed. Both the pure AAH and AAH–IHP coprecipitates were washed three times with deionized water and dialyzed for 2 days in the dark. The freshly synthesized AAH and AAH–IHP coprecipitates were employed for batch Cd(II) sorption experiments, and a proportion of the freeze-dried precipitates were used for TEM, XRD, ATR-FTIR, and zeta (ζ) potential measurements.

2.2. Cd(II) Adsorption Experimental Designs

Cd(II) stock solution was prepared at 1000 mg/L by dissolving Cd(NO₃)₂·4H₂O in deionized water. Potassium nitrate (KNO₃) was prepared at 0.1 M as the background electrolyte. Prior to the sorption experiment, the adsorbents were first dispersed with electrolyte (0.1 M KNO₃) and purged with N₂ to remove CO₂. Sorption experiments were performed in a series of 50 mL centrifuge tubes at room temperature (~25°C). In each tube, sorption samples contained 0.1 g/L of sorbents (AAH or AAH-IHP coprecipitates), 0~40 mg/L Cd, and background electrolyte. The sorption suspensions were immediately shaken for 24 hours at pH 6.5 and then centrifuged at 4500 × g for 10 minutes. The supernatants were filtered through 0.22 μm membrane filters and acidified with 1% HNO₃ for measurement of Cd(II) using ICP-OES (PerkinElmer Optima 8300). The residual solids were freeze-dried for selected analyses of ATR-FTIR and ¹H solid-state NMR. All the measurements were performed in three replicates, and sample blanks were conducted throughout the whole processes. The Langmuir isotherm (Eq. (1)) was used to model the results [36]: $\begin{matrix} (1) & Q_{e} = \frac{Q_{m} {K C}_{e}}{1 + {K C}_{e}}, \end{matrix}$ where $Q_{e}$ (mg/g) and $Q_{m}$ (mg/g) refer to the equilibrium adsorption capacity and maximum adsorption capacity, respectively. $K$ (L/mg) represents the Langmuir constant, and $C_{e}$ (mg/L) is the equilibrium concentration after adsorption.

2.3. Characterization of Pure AAH and AAH-IHP Coprecipitates with or without Adsorbed Cd(II)

The morphology of pure AAH and AAH-IHP coprecipitates was recorded using a transmission electron microscopy (TEM, FEI Tecnai G2 F20, US) after fixing them with 2.5% glutaraldehyde. The mineral identity was analyzed on a Bruker D8 Advance diffractometer (XRD, Shimadzu XRD-6100) equipped with a Cu Kα radiation ( $λ = 1.5406$ nm). Diffractograms were collected from 1° to 85° with a 10 s acquisition time and a step size of 0.02°. The surface charge property was determined by a zeta potential analyzer (Zetaplus90, Brookhaven). Prior to zeta potential collection, the freshly samples (0.1 g/L) were dispersed in 0.1 M KNO₃ at pH 6.5. ATR-FTIR was performed on a PerkinElmer FT-IR spectrometer equipped with an advanced 6 reflection ATR units (Specac Ltd. London, U.K.). Each spectrum was recorded in the range extending from 800 cm^–1 to 2600 cm^–1 at a resolution of 4 cm^–1. Solid-state ¹H NMR spectra were recorded on a 600 MHz Bruker spectrometer (11.74 T) equipped with a high-speed MAS probe. ¹H MAS-NMR spectra were measured with an excitation π/2 pulse of width 6 μs and a 20 s relaxation delay. Trimethylsilane solution was employed as the external standard to calibrate the chemical shift. The experimental error was ±0.1 ppm for the shift.

3. Result

3.1. Physiochemical Characteristics of AAH-IHP Coprecipitates

The results of TEM and XRD are presented in Figure 1. According to the TEM images, both pure AAH and AAH-IHP coprecipitates show networks of coalesced aggregates, which are composed of amorphous and nanosized particles. This finding indicates the formation of poorly crystalline Al hydroxide [7]. No significant differences are observed between pure AAH and AAH-IHP coprecipitates. The XRD pattern of pure AAH exhibits three broad peaks at ~0.42, 0.22, and 0.14 nm, which agrees with those of amorphous Al hydroxide [26]. By comparison, AAH-IHP coprecipitates show slightly reduced crystallinity according to the decreased peak intensity at 0.22 and 0.14 nm. The possible explanation is that the frequent reactions between AAH and IHP molecules prevent cross-linking and lead to the reduced size of coherent scattering domains [37]. Combined results of TEM and XRD analyses demonstrate that IHP can slightly alter the surface structure of AAH, which agrees with other organo–AAH composites reported previously [7, 26].

Figure 1

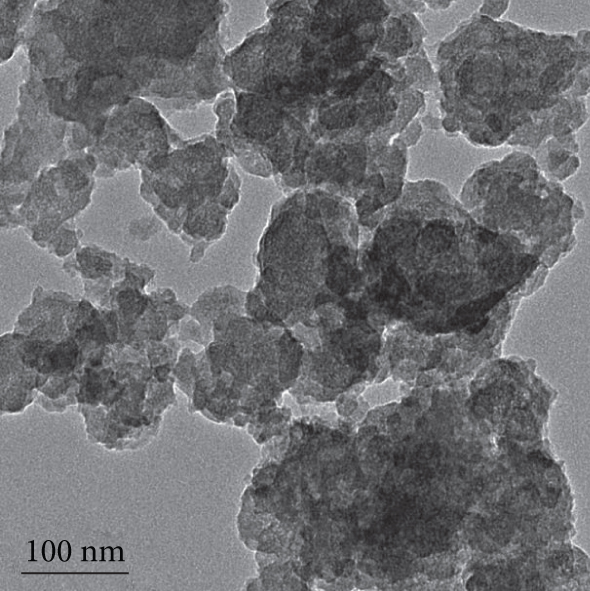

(a–c) TEM, (d) XRD, and (e) ATR-FTIR spectra of pure AAH and AAH-IHP coprecipitates (AAH-IHP_low and AAH-IHP_high).

(b)

(c)

(d)

(e)

ATR-FTIR spectra are regarded as an efficient technique to identify IR vibrations of the OP molecules and to characterize the interaction between OP and minerals by changing these vibrations [23, 34]. The ATR-FTIR spectra (800~2600 cm^–1) of IHP interacted with AAH are given in Figure 1(e). The absorbance band at ~2427 cm^–1 is assigned to the Al-OH vibration. The bands at ~1065 and 1176 cm^–1 correspond to the symmetric and asymmetric stretching vibration of P–O [25], while the bands at ~932 and 883 cm^–1 are assigned to the P-OH vibration. The characteristic peak of C–C in IHP molecule locates at ~1724 cm^–1. In general, in the range of 800~1200 cm^–1 and ~1724 cm^–1, most characteristic bands for IHP molecules are observed in high IHP-reacted samples. With the increase of initial IHP loading, the original absorbance band at ~946 cm^–1 gradually disappears, which accords with the results of Yan et al. [26]. The increased IHP loading decreases the absorbance band at ~2427 cm^–1, which may result from inner-sphere surface complex formation between AAH and IHP [38]. The intensity of the absorbance bands at ~1065 and 1176 cm^–1 is enhanced as IHP loading increases, and the spectrum of AAH-IHP_high shows the presence of characteristic peaks of C–C (~1724 cm^–1) and P–OH (~932 and 883 cm^–1) vibrations of IHP molecule. These results indicate that high OP loading plays a key role in changing the mineral surface property, and thus affecting their environmental reactivity.

Zeta potentials of AAH and AAH-IHP coprecipitates are presented in Table 1. Our results show that the IHP loading decreases the zeta potentials of AAH from 3.85 to –2.56 mV, which agrees with other mineral systems reported previously [23, 27, 39]. However, the low IHP loading only reduces the amount of surface positive change. When the IHP concentration further increases, the surface adsorption sites become increasingly negatively charged, which are favorable to attract cations such as Cd²⁺ onto mineral surfaces.

Table 1

Zeta potentials of pure AAH and AAH-IHP coprecipitates (AAH-IHP_low and AAH-IHP_high) at pH 6.5.

Materials	mV
AAH	3.85 (0.08)
AAH-IHP_low	1.54 (0.06)
AAH-IHP_high	–2.56 (0.11)

3.2. Isothermal Adsorption

Cd(II) adsorption isotherms at pH 6.5 are displayed in Figure 2. The goodness ( $R > 0.97$ , Table 2) of fits in Table 2 signifies that Langmuir model can adequately simulate Cd(II) adsorption onto pure AAH and AAH-IHP coprecipitates. The maximum Cd adsorption capacity for AAH, AAH-IHP_low, and AAH-IHP_high are 106.97, 107.63, and 204.71 mg/g, respectively. AAH-IHP_high exhibits the highest adsorption capacity. In addition, the binding affinities ( $K$ , Table 2) for Cd(II) adsorption on three samples are close to each other, which signifies that high IHP increases the number of adsorption sites rather than changes the affinity between Cd(II) and AAH. There is no obvious differences between pure AAH and AAH-IHP_low, which implies that low-dose OP treatment nearly exerts no impact on Cd(II) immobilization on Al (hydr)oxides.

Figure 2

Adsorption isotherms of Cd(II) on pure AAH and AAH-IHP coprecipitates (AAH-IHP_low and AAH-IHP_high) at pH 6.5.

Table 2

Isotherm parameters for Cd(II) adsorption on pure AAH and AAH-IHP coprecipitates (AAH-IHP_low and AAH-IHP_high) at pH 6.5.

Langmuir model
Adsorbents	$Q_{m}$ (mg/g)	$K$ (L/mg)	$R^{2}$
AAH	106.97	0.05	0.97
AAH-IHP_low	107.63	0.06	0.99
AAH-IHP_high	204.71	0.04	0.99

Note: $Q_{m}$ is the maximum adsorption capacity, and $K$ represents the Langmuir constant.

3.3. ATR-FTIR Spectroscopy

The ATR-FTIR spectra (800~2600 cm^–1) of AAH and AAH-IHP coprecipitates before and after adsorbing Cd(II) at pH 6.5 are presented in Figure 3. The characteristic peak of AAH at ~2427 cm^–1 (Al-OH vibration) decreases after adsorbing Cd(II). Exceptionally, the spectra of AAH with adsorbed Cd show no obvious differences compared to the Cd-free spectrum. When AAH is coprecipitated with IHP, the spectrum intensity of P–OH vibration at ~883 and 932 cm^–1 is reduced, and a new absorbance band at 1038 cm^–1 appears, which is associated with the P–O–Cd symmetric stretching vibration [23]. This finding suggests that the adsorbed Cd(II) replaces hydrogen of the OH groups on the surface of pure AAH and AAH-IHP_high. However, the peak intensity of Al–OH vibration (~2427 cm^–1) with or without adsorbed Cd(II) in AAH-IHP_high shows no apparent differences. This observation suggests that Cd(II) is mainly binding to the IHP molecules instead of AAH in the composites. Moreover, it is interesting that the characteristic peaks of P–O (~1176 cm^–1) and C–C (~1724 cm^–1) vibrations in AAH-IHP_high with adsorbed Cd(II) are enhanced. Possible explanation is because a part of IHP is desorbed from AAH-IHP coprecipitates in background electrolyte, and some of the free Cd ions occupy the adsorption sites of desorbed IHP on AAH, thus promoting the binding of desorbed IHP with the newly adsorbed Cd on the surface [23, 27].

Figure 3

ATR-FTIR spectra of pure AAH and AAH-IHP coprecipitates (AAH-IHP_low and AAH-IHP_high) with or without adsorbed Cd.

3.4. ¹H Solid-State NMR Spectroscopy

In order to gain a deeper insight into fundamental binding mechanisms of OP interacted with AAH and their effects on binding of Cd(II), the ¹H NMR spectra of pure AAH and AAH-IHP_high with and without adsorbed Cd(II) were analyzed and the results are given in Figure 4. The ¹H NMR spectra of pure AAH exhibit a main peak at $δ_{H - 1} = 4.7$ ppm, with two shoulders around 0.8 and 3.3 ppm, respectively. The ¹H NMR peak at 4.7 ppm corresponds to the physically adsorbed water, and those at $δ_{H - 1} = 0.8$ and 3.3 ppm are assigned to the OH groups in AAH or IHP molecule [40]. When IHP is coprecipitated with AAH, the peak intensity at $δ_{H - 1} = 0.8$ and 3.3 increases and no new peak occurs. This result indicates that the chemical environment and speciation of OH groups in IHP molecule is very similar to that in AAH, and high IHP loading increases the number of OH groups. On the other hand, the presence of adsorbed Cd(II) decreases those characteristic peaks of OH groups at $δ_{H - 1} = 0.8$ and 3.3 ppm in all samples, corresponding to the reduced spectrum intensity at ~883, 932, and 2427 cm^–1 observed in Figure 3. This finding demonstrates that Cd(II) binds to pure AAH and AAH-IHP coprecipitates by surface complexation with OH groups.

Figure 4

The ¹H NMR spectra of pure AAH and AAH-IHP coprecipitates (AAH-IHP_low and AAH-IHP_high) with or without adsorbed Cd.

4. Discussion

Sorption onto mineral surfaces plays a key role in the mobility, speciation, and bioavailability of heavy metals, thus controlling their eventual fate in soils [41, 42]. The omnipresence of organic phosphorus (OP) can strongly interact with mineral phases, resulting in a change of the surface charge and reactive surface adsorption sites, and therefore the interaction of mineral surface with many toxic metals [27, 34]. This research represents a scenario in which Cd(II) occurs in natural environments where Al (hydr)oxides are associated with OP. The isotherm adsorption results indicate that high IHP loading promotes Cd(II) adsorption onto AAH through increasing the adsorption sites, while no obvious increase is observed with low P loading (Figure 2, Table 2). Li et al. [8] demonstrated that Zn(II) adsorption on γ-Al₂O₃ in the presence of glyphosate (GPS) is directly bonded with the carboxyl group of GPS and may form Zn−Al LDH precipitates. Li et al. [20] revealed that phosphate decreases the inner-sphere adsorption sites, thus reducing Cd(II) and Cu(II) adsorption on hematite. Collins et al. [11] indicated that the enhancement of Cd(II) adsorption onto goethite with coexisting phosphate and sulphate is solely by electrostatic interaction. Therefore, from these results, it could be concluded that the OP in the form of IHP may play several different roles in the ternary systems: (1) IHP molecules are bound to AAH with phosphate groups through the formation of inner-sphere surface complexes [25, 38], which increases the amount of reactive OH groups (Figure 4), and thus, the adsorption sites are enhanced; (2) at low concentration of IHP loading, the positive charge is reduced (Table 1), but meanwhile, IHP may compete with Cd for the AAH adsorption sites [20, 43, 44]; (3) when at high IHP loading, the AAH surfaces become more negatively charged, which enhances electrostatic interaction between the minerals and free Cd(II), and the adsorbed Cd(II) is mainly bound to the OH groups in IHP molecule instead of the mineral surface [8, 23].

OP not only affects the number of adsorption sites, but also changes the metal species on the mineral surface. Yan et al. [26] revealed that IHP surface complex is formed on AAH when the reaction time is below 6 h; afterwards, the complexes are rapidly transformed to surface precipitates. Sun et al. [43] showed that less than 12% of Cd-Al LDH precipitates is emerged when Cd(II) is interacted with γ-Al₂O₃ in 18 h at 25°C. Recent researches confirmed that the preadsorbed OP hinders the formation of Zn−Al LDH precipitates on γ-Al₂O₃ [8, 34]. Therefore, in our experiment, we speculate that very few Cd−Al LDH precipitates are formed due to the limited reaction time (~35 min), and ternary surface complex is the main mechanism. To the best of our knowledge, ternary surface complexes can be further classified in general into the following: (1) a type A in which the adsorbed metal ions are near the mineral surface (i.e., S–M–L, where S, M, and L represent mineral surface, metal ions, and ligand, respectively) [8]; (2) a type B in which the adsorbed ligand is near the surface (i.e., S–L–M) [17]; or (3) a type C in which both the metal ion and ligand are near the surface (i.e., S–M–L–S) [16, 18]. It is well known that bivalent metal ions can coordinate with two phosphate groups of IHP molecules [45]. Meanwhile, our ATR-FTIR results show that the adsorbed Cd(II) reduces the characteristic peak of Al–OH vibration at 2427 cm^–1 while no corresponding reduction is observed in AAH-IHP complexes. These results suggest that the free Cd(II) possibly associates with phosphate groups of AAH-IHP, which results in the formation of type A ternary surface complexes (AAH-IHP-Cd). In addition, our ATR-FTIR results show that the addition of Cd further promotes the readsorption of desorbed IHP in high IHP treatment, in agreement with the studies reported previously [23, 27]. This may be attributed to that a small proportion of Cd(II) is adsorbed by AAH, and the desorbed IHP further binds with the newly adsorbed Cd(II) due to the increased electrostatic attraction. With this in mind, there may appear type B and C complexes (AAH-Cd-IHP and AAH-Cd-IHP-Cd) in our ternary systems. Due to the formation of the above ternary surface complexes, the coexistence of OP may exert an great impact on the mobility of Cd(II) in Al minerals and Al-rich soil. Anthropogenic activities lead to the accumulation of both OP and Cd(II) in soil systems [46]. High OP loading enhances the adsorption on Al (hydr)oxides, therefore decreasing the availability of Cd(II) to plants. However, low OP loading results in no remarkable promoting effect on adsorption. This provides a new role of OP, that is to say, high OP accumulation in soils would to some extent reduce the environmental risk of Cd(II) and thus the exposure to biota. On the other hand, our study proposes an ideal for the remediation of heavy metal contaminated soils, that is, to use mineral-organic phosphorus composite to reduce the bioavailability of heavy metals as well as increasing essential phosphorus element for biological growth. Lastly, our study shows progress in the using of ATR-FTIR and NMR to investigate the molecular binding mechanism of heavy metals to mineral-organo composite, and this approach has the potential for wide application in the area of environmental science, where adsorption process is involved.

5. Conclusions

The results of this study show that OP facilitates Cd(II) adsorption onto Al hydroxides at high-dose IHP loading (204.71 mg/g), but nearly exhibits no effect at low IHP loading (107.63 mg/g). ATR-FTIR results show that the adsorbed Cd may have a slight promoting effect on IHP sorption to AAH in high IHP treatment. IHP interacts intensively with Al hydroxides by increasing the amount of reactive OH groups instead of changing the chemical environment and speciation of OH groups. IHP promotes Cd adsorption through surface complexation via binding with OH groups, and several structurally distinct ternary complexes are possibly formed. These findings indicate that coexisting OP at high concentration lowers Cd mobility in Al (hydr)oxides or Al-rich soils, and thus the risk to crop safety and human health.

Footnotes

Data Availability

All data generated or analyzed during this study are included in this published article.

Conflicts of Interest

The authors declared that there have no potential conflicts of interest that influence the work reported in this paper.

Acknowledgments

We acknowledge the National Natural Science Foundation of China (41907015) and the Scientific Research Fund of Hunan Provincial Education Department, China (18B120), for financial support.

References

Zhao

F. J.

Zhu

Y. G.

Tang

McGrath

S. P.

Soil contamination in China: current status and mitigation strategies

Environmental Science & Technology 2015 49

9943663

2 750 759

10.1021/es5047099

2-s2.0-84921801847

25514502

Huang

Guo

Nie

Wang

Zhang

Zeng

Adsorption characteristics of Cu and Zn onto various size fractions of aggregates from red paddy soil

Journal of Hazardous Materials 2014 264

9943663

176 183

10.1016/j.jhazmat.2013.10.074

2-s2.0-84888406316

24295769

Wang

P. C.

Peng

Liu

J. L.

Zhu

Zhang

Effects of exogenous dissolved organic matter on the adsorption-desorption behaviors and bioavailabilities of Cd and Hg in a plant-soil system

Science of the Total Environment 2020 728

9943663

138252

10.1016/j.scitotenv.2020.138252

Siebecker

Khalid

Sparks

Real-time QEXAFS spectroscopy measures rapid precipitate formation at the mineral-water interface

Nature Communications 2014 5

9943663

1 5003

10.1038/ncomms6003

2-s2.0-84923367046

W. L.

Liu

Fang

L. C.

Cui

Duan

Impact of co-inoculation with plant-growth-promoting rhizobacteria and rhizobium on the biochemical responses of alfalfa-soil system in copper contaminated soil

Ecotoxicology and Environmental Safety 2019 167

9943663

218 226

10.1016/j.ecoenv.2018.10.016

2-s2.0-85054923370

30342354

Peacock

C. L.

Chen

Huang

Binding of Cd by ferrihydrite organo-mineral composites: implications for Cd mobility and fate in natural and contaminated environments

Chemosphere 2018 207

9943663

404 412

10.1016/j.chemosphere.2018.05.092

2-s2.0-85063247320

29803890

Huang

Q. Y.

Zhou

Tie

Lei

Wei

Liu

Yang

Sorption of Cu(II) by Al hydroxide organo-mineral coprecipitates: microcalorimetry and NanoSIMS observations

Chemical Geology 2018 499

9943663

165 171

10.1016/j.chemgeo.2018.09.026

2-s2.0-85053938612

Wang

Y. J.

Zhu

Fan

T. T.

Zhou

D. M.

Phillips

B. L.

Sparks

D. L.

Inhibition mechanisms of Zn precipitation on aluminum oxide by glyphosate: A ³¹P NMR and Zn EXAFS study

Environmental Science & Technology 2013 47

9943663

9 4211 4219

10.1021/es305120x

2-s2.0-84877631504

23550510

Jia

Fang

Demopoulos

G. P.

Observation of surface precipitation of arsenate on ferrihydrite

Environmental Science & Technology 2006 40

9943663

10 3248 3253

10.1021/es051872+

2-s2.0-33646722157

16749689

10.

Liu

Zhu

R. L.

Liang

X. L.

Lin

Zhu

Parker

S. C.

Molinari

Synergistic adsorption of Cd(II) with sulfate/phosphate on ferrihydrite: an in situ ATR-FTIR/2D-COS study

Chemical Geology 2018 477

9943663

12 21

10.1016/j.chemgeo.2017.12.004

2-s2.0-85037743733

11.

Collins

C. R.

Ragnarsdottir

K. V.

Sherman

D. M.

Effect of inorganic and organic ligands on the mechanism of cadmium sorption to goethite

Geochimica et Cosmochimica Acta 1999 63

9943663

19-20 2989 3002

10.1016/S0016-7037(99)00226-4

2-s2.0-0033368254

12.

Boily

J. F.

Fein

J. B.

Experimental study of cadmium-citrate co-adsorption onto α-Al₂O₃

Geochimica et Cosmochimica Acta 1996 60

9943663

16 2929 2938

10.1016/0016-7037(96)00131-7

2-s2.0-0030482985

13.

del Nero

Galindo

Barillon

Halter

Madé

Surface reactivity of α-Al₂O₃ and mechanisms of phosphate sorption: _In situ_ ATR-FTIR spectroscopy and _ζ_ potential studies

Journal of Colloid and Interface Science 2010 342

9943663

2 437 444

10.1016/j.jcis.2009.10.057

2-s2.0-72749126728

20004409

14.

Gerard

Clay minerals, iron/aluminum oxides, and their contribution to phosphate sorption in soils - a myth revisited

Geoderma 2016 262

9943663

213 226

10.1016/j.geoderma.2015.08.036

2-s2.0-84940850467

15.

Galindo

Nero

M. D.

Barillon

Halter

Made

Mechanisms of uranyl and phosphate (co)sorption: complexation and precipitation at α-Al₂O₃ surfaces

Journal of Colloid and Interface Science 2010 347

9943663

2 282 289

10.1016/j.jcis.2010.03.045

2-s2.0-77953229619

20413126

16.

Elzinga

E. J.

Kretzschmar

In situ ATR-FTIR spectroscopic analysis of the co-adsorption of orthophosphate and Cd(II) onto hematite

Geochimica et Cosmochimica Acta 2013 117

9943663

53 64

10.1016/j.gca.2013.04.003

2-s2.0-84878370310

17.

Tiberg

Sjöstedt

Persson

Gustafsson

J. P.

Phosphate effects on copper(II) and lead(II) sorption to ferrihydrite

Geochimica et Cosmochimica Acta 2013 120

9943663

140 157

10.1016/j.gca.2013.06.012

2-s2.0-84881487019

18.

Ren

Tan

Hayat

Alsaedi

Wang

Co-sequestration of Zn(II) and phosphate by γ-Al₂O₃: from macroscopic to microscopic investigation

Journal of Hazardous Materials 2015 297

9943663

134 145

10.1016/j.jhazmat.2015.04.079

2-s2.0-84929460145

25956644

19.

Hinkle

M. A. G.

Wang

Z. M.

Giammar

D. E.

Catalano

J. G.

Interaction of Fe(II) with phosphate and sulfate on iron oxide surfaces

Geochimica et Cosmochimica Acta 2015 158

9943663

130 146

10.1016/j.gca.2015.02.030

2-s2.0-84935945210

20.

Zhang

Jiang

Shan

X. Q.

Effect of phosphate on the adsorption of Cu and Cd on natural hematite

Chemosphere 2006 63

9943663

8 1235 1241

10.1016/j.chemosphere.2005.10.028

2-s2.0-33646192590

16325228

21.

Singh

Ulrich

K. U.

Giammar

D. E.

Impact of phosphate on U(VI) immobilization in the presence of goethite

Geochimica et Cosmochimica Acta 2010 74

9943663

22 6324 6343

10.1016/j.gca.2010.08.031

2-s2.0-77957878345

22.

Ren

Yang

Tan

Chen

Sheng

Wang

Mutual effects of copper and phosphate on their interaction with γ-Al₂O₃: combined batch macroscopic experiments with DFT calculations

Journal of Hazardous Materials 2012 237

9943663

199 208

10.1016/j.jhazmat.2012.08.032

2-s2.0-84866757527

23.

Wan

Yan

Y. P.

Zhu

M. Q.

Wang

X. M.

Liu

Tan

W. F.

Feng

X. H.

Quantitative and spectroscopic investigations of the co-sorption ofmyo-inositol hexakisphosphate and cadmium(II) on to haematite

European Journal of Soil Science 2017 68

9943663

3 374 383

10.1111/ejss.12424

2-s2.0-85017462917

24.

Kremer

Torres

Bianchi

Savastano

Bazzicalupi

Myo-inositol hexakisphosphate: coordinative versatility of a natural product

Coordination Chemistry Reviews 2020 419

9943663

213 403

10.1016/j.ccr.2020.213403

25.

Guan

X. H.

Shang

Zhu

Chen

G. H.

ATR-FTIR investigation on the complexation of myo-inositol hexaphosphate with aluminum hydroxide

Journal of Colloid and Interface Science 2006 293

9943663

2 296 302

10.1016/j.jcis.2005.06.070

2-s2.0-27744570312

16111695

26.

Yan

Yang

Zheng

Liu

Feng

Sparks

D. L.

Mechanism of myo-inositol hexakisphosphate sorption on amorphous aluminum hydroxide: spectroscopic evidence for rapid surface precipitation

Environmental Science & Technology 2014 48

9943663

12 6735 6742

10.1021/es500996p

2-s2.0-84902590921

24871399

27.

Yan

Y. P.

Liu

Feng

X. H.

Sparks

D. L.

Sorption and desorption characteristics of organic phosphates of different structures on aluminium (oxyhydr)oxides

European Journal of Soil Science 2014 65

9943663

2 308 317

10.1111/ejss.12119

2-s2.0-84895871840

28.

Johnson

B. B.

Quill

Angove

M. J.

An investigation of the mode of sorption of inositol hexaphosphate to goethite

Journal of Colloid and Interface Science 2012 367

9943663

1 436 442

10.1016/j.jcis.2011.09.066

2-s2.0-83355173940

22035760

29.

Celi

Prati

Magnacca

Santoro

Martin

Role of crystalline iron oxides on stabilization of inositol phosphates in soil

Geoderma 2020 374

9943663

114442

10.1016/j.geoderma.2020.114442

30.

Wan

Yan

Y. P.

Liu

Tan

Feng

Surface speciation of _myo_ -inositol hexakisphosphate adsorbed on TiO₂ nanoparticles and its impact on their colloidal stability in aqueous suspension: A comparative study with orthophosphate

Science of the Total Environment 2016 544

9943663

134 142

10.1016/j.scitotenv.2015.11.157

2-s2.0-84949492866

31.

Feng

Yan

Wan

Jaisi

D. P.

Zheng

Zhang

Liu

Enhanced dissolution and transformation of ZnO nanoparticles: the role of inositol hexakisphosphate

Environmental Science & Technology 2016 50

9943663

11 5651 5660

10.1021/acs.est.6b00268

2-s2.0-84973615692

27159895

32.

Ruyter-Hooley

Larsson

A. C.

Johnson

B. B.

Antzutkin

O. N.

Angove

M. J.

The effect of inositol hexaphosphate on cadmium sorption to gibbsite

Journal of Colloid and Interface Science 2016 474

9943663

159 170

10.1016/j.jcis.2016.04.028

2-s2.0-84963984714

27124810

33.

Ruyter-Hooley

Johnson

B. B.

Morton

D. W.

Angove

M. J.

The adsorption of myo-inositol hexaphosphate onto kaolinite and its effect on cadmium retention

Applied Clay Science 2017 135

9943663

405 413

10.1016/j.clay.2016.10.023

2-s2.0-85002169999

34.

Yan

Wan

Jaisi

D. P.

Yin

Wang

Chen

Liu

Tan

Feng

Effects of myo-inositol hexakisphosphate on Zn(II) sorption on γ-alumina: a mechanistic study

Acs Earth and Space Chemistry 2018 2

9943663

8 787 796

10.1021/acsearthspacechem.8b00051

2-s2.0-85049258200

35.

Huang

Yang

Tie

Lei

Cd sequestration by bacteria-aluminum hydroxide composites

Chemosphere 2018 198

9943663

75 82

10.1016/j.chemosphere.2018.01.128

2-s2.0-85041459949

29421763

36.

Lyu

Zhang

Cooper

Pan

Molecular-level investigations of effective biogenic phosphorus adsorption by a lanthanum/aluminum-hydroxide composite

Science of the Total Environment 2020 725

9943663

138424

10.1016/j.scitotenv.2020.138424

37.

Eusterhues

Wagner

F. E.

Häusler

Hanzlik

Knicker

Totsche

K. U.

Kögel-Knabner

Schwertmann

Characterization of ferrihydrite-soil organic matter coprecipitates by X-ray diffraction and Mössbauer spectroscopy

Environmental Science & Technology 2008 42

9943663

21 7891 7897

10.1021/es800881w

2-s2.0-55349125659

19031877

38.

Feng

X. H.

Yan

Y. P.

Sparks

D. L.

Phillips

B. L.

Solid-state NMR spectroscopic study of phosphate sorption mechanisms on aluminum (hydr)oxides

Environmental Science & Technology 2013 47

9943663

15 130725144353009 130725144358315

10.1021/es400874s

2-s2.0-84881451204

23837616

39.

Jaisi

D. P.

Yan

Y. P.

Chen

Wang

Wan

Liu

Tan

Huang

Feng

Adsorption and precipitation ofmyo‐inositol hexakisphosphate onto kaolinite

European Journal of Soil Science 2020 71

9943663

2 226 235

10.1111/ejss.12849

2-s2.0-85068926812

40.

Isobe

Watanabe

de la Caillerie JB

d.’ E.

Legrand

A. P.

Massiot

Solid-state 1H and 27Al NMR studies of amorphous aluminum hydroxides

Journal of Colloid and Interface Science 2003 261

9943663

2 320 324

10.1016/S0021-9797(03)00144-9

2-s2.0-0038745529

16256537

41.

Huang

Q. Y.

Lei

Tie

Sorption of Pb(II) by nanosized ferrihydrite organo-mineral composites formed by adsorption versus coprecipitation

Acs Earth and Space Chemistry 2018 2

9943663

6 556 564

10.1021/acsearthspacechem.8b00005

2-s2.0-85048991476

42.

Xue

Ran

Tan

Y. Z.

Peacock

C. L.

Arsenite and arsenate binding to ferrihydrite organo-mineral coprecipitate: implications for arsenic mobility and fate in natural environments

Chemosphere 2019 224

9943663

103 110

10.1016/j.chemosphere.2019.02.118

2-s2.0-85062383694

30818188

43.

Sun

Liu

Cui

Fan

Zhu

Alves

M. E.

Siebecker

M. G.

Sparks

D. L.

Zhou

Wang

Formation of Cd precipitates on γ-Al₂O₃: implications for Cd sequestration in the environment

Environment International 2019 126

9943663

234 241

10.1016/j.envint.2019.02.036

2-s2.0-85061962851

30822652

44.

Z. L.

Zhang

Peacock

C. L.

Liu

Nie

Xue

Lei

Tie

Natural organic matter decreases uptake of W(VI), and reduces W(VI) to W(V), during adsorption to ferrihydrite

Chemical Geology 2020 540, article 119567

9943663

10.1016/j.chemgeo.2020.119567

45.

Honeycutt

C. W.

Zhang

Bertsch

P. M.

Preparation and FT-IR characterization of metal phytate compounds

Journal of Environmental Quality 2006 35

9943663

4 1319 1328

10.2134/jeq2006.0008

2-s2.0-33746522836

16825451

46.

Cai

Liu

X. L.

Zhang

J. C.

Tie

Lei

Wei

Peng

Silicate-modified oiltea camellia shell-derived biochar: A novel and cost- effective sorbent for cadmium removal

Journal of Cleaner Production 2021 281

9943663

125390

10.1016/j.jclepro.2020.125390

Binding of Cd(II) by Amorphous Aluminum Hydroxide-Organophosphorus Coprecipitates: From Macroscopic to Microscopic Investigation

Abstract

1. Introduction

2. Materials and Methods

2.1. Synthesis of Pure AAH and AAH-IHP Coprecipitates

2.2. Cd(II) Adsorption Experimental Designs

2.3. Characterization of Pure AAH and AAH-IHP Coprecipitates with or without Adsorbed Cd(II)

3. Result

3.1. Physiochemical Characteristics of AAH-IHP Coprecipitates

3.2. Isothermal Adsorption

3.3. ATR-FTIR Spectroscopy

3.4. 1H Solid-State NMR Spectroscopy

4. Discussion

5. Conclusions

Footnotes

Data Availability

Conflicts of Interest

Acknowledgments

References

3.4. ¹H Solid-State NMR Spectroscopy
