Review of the Pressure Swing Adsorption Process for the Production of Biofuels and Medical Oxygen: Separation and Purification Technology

Abstract

The production of biofuels has had a great impact on climate change and the reduction of the use of fossil fuels. There are different technologies used for the separation and production of biofuels, which allow having compounds such as ethanol, methane, oxygen, and hydrogen, one of these promising technologies is the Pressure Swing Adsorption process (PSA). The objectives of this article focus on the production and purification of compounds that achieve purities of 99.5% bioethanol, 94.85% biohydrogen, 95.00% medical oxygen, and 99.99% biomethane through the PSA process; also, a significant review is contemplated to identify the different natural and synthetic adsorbents that have greater adsorption capacity, the different configurations in which a PSA operates are studied and identified, and the different mathematical models that describe the dynamic behavior of all the variables are established that interact in this PSA process, parametric studies are carried out in order to identify the variables that have the greatest effect on the purity obtained. The results obtained in this review allow facilitating the calculation of parameters, the optimization of the process, the automatic control to manipulate certain variables and to achieve the rejection of disturbances to have a recovery and production of biofuels with a high degree of purity.

1. Introduction

Currently, PSA processes are displacing other distillation technologies that aim to separate chemical compounds from a mixture at the nanomolecular level, these present a significant contribution in obtaining compounds such as oxygen (O₂), nitrogen (N₂), hydrogen (H₂), carbon dioxide (CO₂), ethanol (C₂ H₅ OH), and methane (CH₄). The PSA process contemplates at least 2 columns refilled with adsorbents (natural or synthetic), to be able to carry out the adsorption stage (production) and the regeneration stage (release of the active sites of the adsorbent) synchronously. These 2 stages are carried out through steps, which can be adsorption, depressurization, purge, equalization, and repressurization. The PSA process has a cyclical nature, therefore the pressure, temperature, and molar composition profiles will have an oscillatory dynamic generated by the pressure changes inside the columns. Pressure changes can go from a high pressure (200 kPa 4000 kPa) and down to a vacuum pressure between the ranges of 100 kPa and 10 kPa. The approach of these pressure ranges is derived from experimental tests that show that at high pressure, a greater number of molecules or atoms are adsorbed, being retained on the surfaces of the adsorbents (selectivity over the adsorbed molecules or atoms), and at low pressure that can easily break the weak bond that has formed between the adsorbent and the adsorbed molecules or atoms, resulting in a release of the active sites of the adsorbent. These adsorbents can be zeolites, silica gel, activated carbon, clays, porous glass, montmorillonite, halloysite, silicon dioxide, mesoporous silica, etc. These materials contain nanomolecular pores ranging from 1 to 24 Armstrong (Å); the more contact surface they have, the greater adsorption capacity they will present. Metal-Organic Frameworks (MOFs) have emerged as novel fabulous materials for applications in numerous fields, doing to their exceptional physicochemical characteristics such as high surface area, large porosity with tunable pore properties, presence of abundant active sites, and ease of functionalization [1, 2].

For the PSA process to work synchronously and autonomously, it is necessary to contemplate valves (on-off and proportional) that connect all the columns to achieve the operational cyclical functioning of the process, obtaining separations of chemical compounds with a high degree of purity. Likewise, it is necessary to implement pressure, temperature, flow, and purity sensors along with the columns to acquire as much information or data as possible about these important variables that influence the PSA process.

PSA processes have been involved in several alternatives; one of them is the production of biofuel from renewable raw materials and biomass. Another use of this process is the purification of oxygen, separating it from the gases that pollute the environment (CO and CO₂), which are generated by automobiles and industries. For these reasons, the PSA process is considered a solution to climate change. Currently, with what is being experienced on COVID-19, the design and development of oxygen purifiers-generators are necessary due to the demand that is currently being met and the use of this PSA process is necessary to be used as a separator and gas purifier, and to produce 99% oxygen or according to the user’s need.

One of the works found related to the PSA process is the one presented in [3], which reviewed the principles of the PSA process for the capture of carbon dioxide. Wiheeb et al. presented previous works on modeling and comparisons with experimental development of the PSA process. Mention is made of the importance of the steps that contemplate the adsorption and regeneration stages, as well as maintaining stable high temperatures since it favors the regeneration of the adsorbent.

Later in [4], advanced technologies related to hot gas carbon capture and hydrogen production from carbon-based fuels using the PSA process are reviewed. Zhu et al. presented important advances in the development of adsorption kinetic models, the study of adsorption mechanisms, synthesis of efficient CO₂ adsorbents, design, and optimization of adsorption/desorption reactor processes, and integration of purification systems, as well as main challenges and perspectives for the fundamental and pilot study. The development of the system at scale is discussed. Recent advances in the development of high temperature CO/CO₂ purification technologies for hydrogen-rich gas were summarized.

Likewise in [5], Abd et al. described the fundamentals of the PSA process by investigating the main innovative process engineering approaches that improved the performance of the PSA process. Previous research on PSA, simulation, and experimental development for biogas upgrading (biomethane purification) exists and highlights significant findings. In addition, their work analyzes the impact of some parameters on the performance of the PSA process, such as bed porosity, adsorption pressure and time, PSA unit size, and purge/feed ratio.

In [6], Luberti et al. performed a systematic review of the Polybed H₂ PSA process, which includes more than six beds and a complex cycle configuration, showing that it can maximize H₂ recovery and yield, exceeding 90%. A bespoke Polybed PSA process designed for the simultaneous production of high purity hydrogen and carbon dioxide (CO₂) was also reviewed in light of recent international directives aimed at reducing CO₂ emissions and producing blue hydrogen.

Likewise in [7], the progress made in the implementation of mathematical models, simulation, and optimization methods for the improvement of biogas with emphasis on processes based on adsorption are presented. In their work, Hosseini et al. described strategies and methodologies for the development of mathematical models and process simulations based on transport mechanisms, considering the PSA, VPSA (Vacuum Pressure Swing Adsorption), TSA (Temperature Swing Adsorption) process, and fixed adsorption beds for trace removal. Based on studies to date, these processes have offered methane purity and recovery within an adjustable range of 50 to 99% and 75 to 99.4%, respectively.

Later in [8], Zhang et al. carried out a review of the literature on the analytical part of the PSA process, focused on the numerical development to carry out the modeling, optimization, and control of the PSA process. It was determined that the combination of deep learning technology with optimization algorithms based on artificial intelligence and advanced control strategies is of great importance.

This work has several contributions, one of them focuses on providing relevant data on adsorbents for the separation and purification of bioethanol, biohydrogen, medical oxygen, and biomethane; another of the contributions is to present the current reports of parameters to configure and model a PSA process, depending on the compound to be purified. Another important contribution is the parametric study that demonstrates the possible input variables that can affect the purity obtained as a final product, which can also be defined as manipulated variables that can control the desired purity in the face of disturbances, with the aim of being able to keep the purity stable and meet international standards for the use as fuel or medical oxygen. The parametric study will allow defining optimal parameters that favor the start-up of the PSA process to have greater production and recovery. Likewise, obtaining input and output data is very useful for designing neural network structures with the aim of predicting the dynamic behavior of the PSA process.

Table 1 shows the nomenclature that will be used for this work, which has a great contribution to PSA processes for the production of biofuels and medical oxygen.

Table 1

Nomenclature.

Parameter	Description	Units
a	Specific particle surface	m²m^-3
a_Hi	Specific heat exchanger surface	m²m^-3
a_p	Specific particle surface per unit volume bed	m²m^-3
A	Area
AA	Placeholder variable used for Dubinin-Astakhov isotherm evaluation
b	Kinetic Langmuir factor	bar^-1
c_bi	Bulk gas phase concentration	kmolm^-3
c_i	Molar concentration of component i	kmolm^-3
c_msi	Macropore gas phase concentration	kmolm^-3
c_sol	Concentration of solid phase reactant	kmolkg^-1
c_pai	Specific heat capacity of adsorbed phase	MJkmol^-1K^-1
c_pcat	Specific heat capacity of catalyst	MJkg^-1K^-1
c_pg	Specific gas phase heat capacity at constant pressure	MJkmol^-1K^-1
c_ps	Specific heat capacity of adsorbent	MJkg^-1K^-1
c_pW	Specific heat capacity of column wall	MJkg^-1K^-1
c_vg	Specific gas phase heat capacity at constant volume	MJkmol^-1K^-1
D_B	Bed diameter	m
D_efc	Effective micropore diffusion coefficient	m²s^-1
D_efp	Effective macropore diffusion coefficient	m²s^-1
D_ek	Effective adsorbed phase diffusivity of component $i$	m²s^-1
D_ki	Knudsen diffusion coefficient of component $i$	m²s^-1
D_mi	Mean molecular diffusion coefficient of component $i$	MJkmol^-1
E_act	Activation energy for Arrhenius relationship	MJkmol^-1
E_ii	Radial dispersion coefficient of component $i$	m²s^-1
E_zi	Axial dispersion coefficient of component $i$	m²s^-1
H_amb	Wall-ambient heat transfer coefficient	MWm²K^-1
H_B	Height of adsorbent layer	m
H_i	Rate of change of heat of adsorbed phase	MJm^-3s^-1
H_R	Combined heats of homogenous and heterogeneous reactions	MJm^-3s^-1
H_Rcat	Heat of catalytic reaction	MJkmol^-1
H_Rgas	Gas phase heat of reaction	MJkmol^-1
H_Ti	Heat of adsorption contribution to solid phase energy balance	MJm^-3s^-1
H_W	Gas-wall heat transfer coefficient	MJm^-3s^-1
ΔH_i	Heat of adsorption of component $i$	MJkmol^-1
HTC	Gas-solid heat transfer coefficient	MJm^-3s^-1
IP	Isotherm parameter, units depend on isotherm
j	Colburn j-factor for heat or mass transfer
J_ads,i	Mass transfer rate of component $i$ owing to adsorption	kmolm^-3s^-1
J_cat,reac,i	Mass transfer rate of component $i$ owing to heterogeneous catalytic reactions	kmolm^-3s^-1
J_{gas, reac ,i}	Mass transfer rate of component $i$ owing to homogenous, gas phase reactions	kmolm^-3s^-1
J_i	Mass transfer rate of component $i$ to/from adsorbent	kmolm^-3s^-1
k_0,i	Pre-exponential factor for Arrhenius relationship	ms^-1
k_0P,i	Pre-exponential factor for pressure dependent Arrhenius relationship	ms^-1
k_fi	Film mass transfer coefficient of component $i$	ms^-1
k_fi	Gas phase thermal conductivity	MWm^-1K^-1
k_gr	Effective radial gas phase thermal conductivity	MWm^-1K^-1
k_i	Effective, lumped mass transfer coefficient of component $i$	s^-1
k_s	Solid thermal conductivity	MWm^-1K^-1
k_gs	Effective axial gas phase thermal conductivity	MWm^-1K^-1
k_sr	Effective radial solid phase thermal conductivity	MWm^-1K^-1
k_sg	Effective axial solid phase thermal conductivity	MWm^-1K^-1
k_W	Thermal conductivity of column wall	MWm^-1K^-1
K_mac	Macropore mass transfer coefficient	s^-1
K_mic	Micropore mass transfer coefficient	s^-1
K_p	Darcy’s constant	barsm^-2
K_pi	Macropore diffusion coefficient	m²s^-1
L	Length of horizontal bed	m
M	Molecular weight	kgkmol^-1
MTC_g	Gas film mass transfer coefficient	s^-1
MTC_s	Solid film mass transfer coefficient	s^-1
P	Pressure	bar
P_sat	Saturation pressure	bar
Q_Hi	Heat transfer rate to internal heat exchanger	MJm^-2s^-1
r	Radial coordinate (in packed bed or particle)	m
r_c	Microparticle (crystal) radius	m
r_p	Particle radius	m
R	Universal gas constant	barm^-3kmol^-1K^-1
R_cat	Catalytic reaction rate	kmolkg^-1s^-1
R_gas	Gas phase reaction rate	kmolm^-3s^-1
R_sol	Solid phase reaction rate	kmolkg^-1s^-1
t	Time	s
t_cycle	Adsorption cycle time	s
T	Temperature	K
T₀	Initial temperature	K
T_amb	Ambient temperature	K
T_c	Critical temperature	K
T_s	Solid phase temperature	K
T_g	Gas phase temperature	K
T_Hi	Heat exchange medium temperature	K
T_W	Wall temperature	K
Tort	Adsorbent tortuosity
v_g	Gas phase superficial velocity	ms^-1
W_i	Loading	kmolkg^-1
W_i ⁰	Pure component loading of component $i$	kmolkg^-1
y_i	Mole fraction of component $i$ in the gas phase	kmolkg^-1
z	Axial coordinate	m
Greek symbols
ϵ _i	Bed (interparticle) voidage	m³ m^-3
ϵ _p	Intraparticle voidage	m³ m^-3
μ	Dynamic viscosity	N s m^-2
Ω	Parameter in Glueckauf expression
ψ	Particle shape factor
ρ _b	Bed packing density	kg m^-3
ρ _g	Gas phase molar density	kmol km^-3
ρ _p	Particle density	kmol km^-3
ρ _s	Adsorbent bulk density	kg m^-3
Subscripts
b	Bulk or packed bed
F	Feed stream
g, s	Gas and solid phase
i	Component water ( $w$ ) or ethanol ( $e$ )
p	Particle

This work is presented as follows. In Section 2, the complete model of a PSA process is shown, which includes equations of pressure, temperature, flow, and mole fraction in function of time and space (axial and radial part). In Sections 3–6, the results of the works found on the purification and production of bioethanol, biohydrogen, medical oxygen, and biomethane are shown, and the different works that use the PSA process are visualized in comparative tables taking into account the sizing, the number of columns, the type of adsorbent, the pressure and temperature ranges, the feed composition, and the number of PDEs that are considered to obtain approximate solutions to the PSA process. Likewise, simulations and a demonstrative table (parametric study) are presented that allow defining the possible input variables that can affect the purity of bioethanol, biohydrogen, medical oxygen, and biomethane obtained as a final product.

2. Schematic and Modeling of the PSA Process

Gas-phase adsorption is currently being used to purify and separate chemical compounds, natural gas, and petrochemicals since they present better-operating conditions and reduce energy and equipment costs.

The adsorbent must have selectivity over the molecule or atom to be retained on its surface, allowing the separation and purification of the other compounds that passes through it. Adsorbents must withstand high temperatures and work under different pressure conditions (high and low).

For PSA processes, there may be variations in your mathematical model, this will depend on the need for the data that is required to be obtained, that is, the following assumptions can be considered: (1)

They can work in isothermal or nonisothermal conditions

(2)

Heat exchange with environment

(3)

Gas-solid heat transfer

(4)

Enthalpy of mixing is negligible

(5)

Include wall energy data

(6)

Heat of adsorption

(7)

Thermal conductivity of gas and thermal conductivity of solid

(8)

Compression

(9)

The system is fully mixed in the radial direction

(10)

Plug flow with axial dispersion occurs

(11)

The gas phase is ideal or nonideal

(12)

The driving force is based on a gas or solid film, and is either linear or quadratic

(13)

Gas phase pressure is either constant or the pressure varies according to a laminar or turbulent flow momentum balance

(14)

Mass transfer coefficients are either constant or vary with local conditions

(15)

Mass transfer is described using a lumped overall resistance, or by a model that accounts separately for micro- and macropore effects

(16)

Adsorption isotherms are either applicable for single or multicomponent adsorption

The cyclical nature of the PSA process and its operating conditions determine the type of model to use. For example, a separation process for producing pure oxygen from air requires a different model to that for a purification process for the production and separation of dehydrated ethanol. PSA process models use a set of partial differential equations to represent moment balance, energy balance, and material balances across the column.

From all this analysis, a general mathematical model of the PSA process is established, this involves most of the equations necessary to determine the important dynamics that characterize the PSA process, this detailed general model is shown in the following:

2.1. Mass Balance

$\begin{matrix} (1) & - ϵ_{i} E_{zi} \frac{\partial^{2} c_{i}}{\partial z^{2}} - ϵ_{i} E_{ri} \frac{1}{r} \frac{\partial}{\partial_{r}} (r \frac{\partial c_{i}}{\partial_{r}}) + \frac{\partial (c_{i} v_{g})}{\partial z} + ϵ_{i} \frac{\partial c_{i}}{\partial t} + J_{i} = 0 . \end{matrix}$

Flow over the solid surface $\begin{matrix} (2) & J = - ρ \frac{\partial W_{i}}{\partial t} . \end{matrix}$

The convection $(\partial (C_{i} V_{g}) / \partial z)$ with estimated dispersion $(- ϵ_{i} E_{z i} \partial^{2} c_{i} / \partial z^{2})$ option assumes that the dispersion coefficient varies along the length of the bed.

2.2. Solid Phase Energy Balance

$\begin{matrix} (3) & - k_{sa} \frac{\partial^{2} T_{s}}{\partial^{2} z^{2}} - k_{sr} \frac{1}{r} \frac{\partial}{\partial_{r}} (\frac{1}{r} \frac{\partial T_{s}}{\partial_{r}}) + C_{ps} ρ_{s} + ρ_{s} \frac{\partial T_{s}}{\partial t} \sum_{i = 1}^{n} (C_{pai} W_{i}) \frac{\partial T_{s}}{\partial t} + ρ_{s} \sum_{i}^{n} (Δ H_{i} \frac{\partial W_{i}}{\partial t}) - MT C_{ap} (T_{g} - T_{s}) = 0 . \end{matrix}$

The energy balance (solid phase) represents the heat of adsorption $(ρ_{s} \sum_{i}^{n} (Δ H_{i} \partial W_{i} / \partial t))$ , accumulation of heat $(C_{p s} ρ_{s} + ρ_{s} \partial T_{s} / \partial t)$ , and gas-solid heat transfer $(MT C_{ap} (T_{g} - T_{s}))$ .

2.3. Wall Energy Balance

$\begin{matrix} (4) & - k_{w} \frac{\partial^{2} T_{w}}{\partial_{z}^{2}} + ρ_{w} c_{p w} \frac{\partial T_{w}}{\partial_{t}} - H_{w} \frac{4 D_{B}}{{(D_{B} + w_{r})}^{2} - D_{B}^{2}} (T_{g} - T_{w}) + H_{amb} \frac{4 {(D_{B} + w_{r})}^{2}}{{(D_{B} + w_{r})}^{2} - D_{B}^{2}} (T_{w} - T_{amb}) = 0 . \end{matrix}$

2.4. Momentum Balance

$\begin{matrix} (5) & - \frac{\partial P}{\partial z} = - (\frac{150 x 1 0^{- 3} {(1 - ϵ_{i})}^{2}}{{(2 r_{p} Ψ)}^{2} ϵ_{i}^{2}} μ v_{g} + 1.75 \times 1 0^{- 5} M ρ_{g} \frac{(1 - ϵ_{i})}{2 r_{p} Ψ ϵ_{i}^{3}} v_{g}^{2}) . \end{matrix}$

We use the Ergun equation, which combines the description of pressure drops by the Karman-Kozeny equation $(- \partial P / \partial z = - (150 x 1 0^{- 3} {(1 - ϵ_{i})}^{2} / {(2 r_{p} Ψ)}^{2} ϵ_{i}^{2} μ v_{g})$ for laminar flow and the Burke-Plummer equation $(1.75 x 1 0^{- 5} M ρ_{g} (1 - ϵ_{i}) / 2 r_{p} Ψ ϵ_{i}^{3} v_{g}^{2})$ for turbulent flow.

2.5. Kinetic Models

(i)

Lumped resistance $\begin{matrix} (6) & \frac{\partial W_{i}}{\partial t} = MT C_{si} (W_{i}^{*} - W_{i}) \end{matrix}$

(ii)

Micro- and macropore effects $\begin{matrix} (7) & (1 - ε_{p}) ρ_{s} \frac{\partial W_{i}}{\partial_{t}} = (1 - ε_{p}) ρ_{s} K_{mic} (W_{i}^{*} - W_{i}), \\ (8) & (1 - ε_{i}) ε_{p} \frac{\partial c_{msi}}{\partial_{t}} + (1 - ε_{p}) ρ_{s} \frac{\partial W_{i}}{\partial_{t}} = (1 - ε_{p}) ρ_{s} K_{mac} (W_{i}^{*} - W_{i}) . \end{matrix}$

(iii)

Particle material balance $\begin{matrix} (9) & \frac{\partial W_{i}}{\partial_{t}} - D_{e i} (\frac{2}{r} \frac{\partial W_{i}}{\partial_{r}} + \frac{\partial W_{i}^{2}}{\partial_{r}^{2}}) = 0 . \end{matrix}$ (a)

Mass transfer coefficients: Arrhenius $\begin{matrix} (10) & MT C_{si} = k_{0 i} \exp (\frac{- E_{acti}}{RT}) . \end{matrix}$

(b)

Mass Transfer Coefficients: Lumped Resistance, Micro-, and Macropore $\begin{matrix} (11) & MT C_{si} = \frac{Ω D_{ei}}{r_{p}^{2}} . \end{matrix}$ Ω is the parameter in the Glueckauf expression $\begin{matrix} (12) & MT C_{mic} = 15 \frac{D_{mic}}{r_{m}^{2}}, \\ (13) & MT C_{mac} = 15 \frac{D_{mac}}{r_{p}^{2}} . \end{matrix}$

(c)

Mass Transfer Coefficients: Pressure Dependent Arrhenius $\begin{matrix} (14) & MT C_{si} = \frac{k_{0 pi}}{P} \exp (\frac{- E_{acti}}{RT}) . \end{matrix}$

2.6. Lumped Resistance

2.6.1. Thermodynamic Equilibrium: Langmuir as a Function of Pressure and Concentration

$\begin{matrix} (15) & W_{i}^{*} = \frac{I p_{1} P_{i}}{1 + I p_{2} P_{i}}, \\ (16) & W_{i}^{*} = \frac{I p_{1} c_{i}}{1 + I p_{2} c_{i}} . \end{matrix}$

To solve these PDEs, it is necessary to contemplate initial and boundary conditions, which will allow connecting the adsorption, depressurization, purge, equalization, and repressurization steps, that is, the results obtained in the adsorption step will become the initial and boundary conditions of the depressurization step and this methodology will be repeated for the successive steps. For the last step (repressurization) the results obtained will become the initial and boundary conditions of the first step (adsorption) to contemplate a 1 cycle of production and regeneration of the bed. This continues cyclically until the Cyclic Steady State (CSS) is reached, which is when the pressure, temperature, and mole fraction profiles have oscillatory cyclic dynamics, resulting in stable behavior at a setpoint.

It is important to mention that the initial and boundary conditions will depend on the number of variables involved in the PDEs.

There are several numerical methods (orthogonal placement, finite element, finite difference, etc.) to discretize the PDEs, which will allow the bed to be sectioned or partitioned into meshes, nodes, points, or areas; this will depend on the numerical method used. Likewise, it is necessary to define the number to be sectioned or partitioned, since the approximation obtained on the real results presented by a PSA plant will depend on that. The software used to simulate these PSA cases is Aspen Adsorption [9].

Figure 1 shows the general scheme of a PSA process contemplating pressure, temperature, flow, purity sensors, valves, metallic structure, and the PSA cycle.

Figure 1

Schematic diagram of the PSA process.

3. Bioethanol Purification by PSA

Bioethanol comes from renewable biological raw material; it is not corrosive or toxic. This product can be used in the pharmaceutical industry, alcoholic beverages, cooking, perfumery, cosmetics, solvents, and mainly as an oxygenating additive (they increase the octane number) or be used as a fuel and reduce the risk of climate change, which is caused by fuels developed from fossils. However, for bioethanol to be used as fuel, it is necessary that its water content be very low and obtains a purity of 99% by weight of ethanol, to avoid the formation of two liquid phases in the mixture and be able to meet standards set by international norms.

One of the important aspects of the study of the PSA process is the selection of the adsorbent or molecular sieves that will allow the separation and purification of an ethanol-water mixture.

3.1. Adsorption and Separation for the Ethanol-Water Mixture with Different Adsorbents

The study of the adsorption phenomenon with molecular sieves makes it possible to determine models capable of predicting the thermodynamic equilibrium of different adsorbents used for the ethanol-water mixture. The thermodynamic equilibrium of each adsorbent is represented by an adsorption isotherm at a constant temperature, which determines the maximum adsorption capacity. The adsorption isotherm is obtained from experimental data. These represent the amount of material (water in this case) adsorbed on the surface of the adsorbent, as a function of the composition of the material (water) present in the gas phase, the latter is expressed as a molar fraction or partial pressure. There are 5 types of adsorption isotherms as shown in Figure 2, they can be monomolecular isotherms (monolayers) or polymolecular isotherms (multilayers). The most common isotherms are types I, II, and III. To describe the adsorption isotherms that are obtained experimentally and can be represented in different mathematical models, each model contemplates a series of considerations.

Figure 2

Adsorption isotherms.

For the ethanol-water mixture a type I adsorption isotherm is obtained, which is represented by the Langmuir model. This model proposes a constant temperature, localized adsorption only active sites, a homogeneous surface, and the adsorption occurs in a monolayer, assuming that each adsorption site can adhere to only one adsorbate molecule, the adsorption energy is the same for all adsorption sites and there is no interaction between the adsorbed molecules [10–13]. The thermodynamic equilibrium provides a measure of adsorption efficiency during the removal of specific impurities (water molecules), as well as the maximum adsorption capacity. On the other hand, the kinetic equilibrium data are represented using breakdown curves, in these, the composition of the adsorbed phase is related to the adsorption time to reach the maximum capacity. The increase in temperature favors the adsorbent to retain the molecules or atoms and reach its maximum saturation point in less time, but it does not favor thermodynamic equilibrium since the maximum adsorption capacitance is reduced. The rate of adsorption is proportional to the rate of diffusion in the pores.

Among the adsorbents that have been used to separate the ethanol-water mixture, natural zeolites are good candidates and have an advantage over some types of membranes or natural adsorbents because they remain stable in harsh chemical environments and high temperatures [14–18]. Dehydration of ethanol through adsorption with natural zeolites is acceptable and effective in adsorbing large amount of water, but the use of synthetic zeolites has recently been suggested as a promising alternative. One of the most accepted and studied with good results is the synthetic zeolite 3A. The review of several studies allowed us to make a concentrate on works, in which different adsorbents are applied, useful to separate the ethanol-water mixture. The information is contained in Table 2, which describes the characteristics of thermodynamic equilibrium and the time it reaches its maximum saturation point at different time, these determine the maximum capacity and time with which they adsorb. The results were obtained as a function of temperature since the adsorption capacity depends significantly on this variable. Table 2 shows the different adsorbents used for the separation of the ethanol-water mixture, as well as the constants Q and K, referred to as the maximum adsorption capacity and the Langmuir constant.

Table 2

Comparison of the thermodynamic values of various adsorbents as a function of temperature.

Reference	Adsorbents	TemperatureK	Maximum adsorption capacityQ $(g_{water} g_{ads}^{‐ 1})$	Langmuir constant	Adsorption time
[19]	Cornmeal	333.15	0.029	—	—
[19]	Cornmeal	364.15	0.025	—	300 min

[20]	ZSG-1	303.15	0.1046	—	—
	ZSG-1	352.15	0.1241	—	—
	ZSG-1	357.15	0.1499	—	—
	ZSG-1	362.15	0.1511	—	—
	ZSG-1	370.15	0.1529	—	80 min

[21]	Silicalite	298	0.116	—	9 min

[10]	Clinoptilolite	373	0.198	—	—

[11]	Zeolite 3A	348	0.18	25	—
	3A	373	0.171	8	—
	3A	398	0.162	2.9	—
	3A	423	0.135	1.19	—
	3A	448	0.108	0.54	—

[12]	LTA-K	298	0.130	0.735	—
	LTA-Na	298	0.150	0.563	—
	LTA-ca	298	0.094	0.589	—
	FAU-Na	298	0.166	0.611	—
	MOR-Na	298	0.045	0.403	—

[14]	Zeolite 3A	323.15	0.1915	0.00791	200 min
	3A	343.158	0.180	0.00655	180 min
	Heulandite-Sonora	323.15	0.1	0.00925	185 min
	Heulandite-Sonora	343.158	0.097	0.00345	150 min
	Clinoptilolite-Potosí	323.15	0.097	0.00491	180 min
	Clinoptilolite-Potosí	343.158	0.094	0.00253	145 min

[13]	Clinoptilolite	293.15	0.161	—	24 h

[22]	Clinoptilolite	283	0.13428	0.0179	—
	Clinoptilolite	298	0.12618	0.0156	—
	Clinoptilolite	313	0.12402	0.0125	24 h
	Clinoptilolite	328	0.11916	0.0113	—
	Clinoptilolite	343	0.11304	0.0106	—

[23]	Sylobead 3A	373.15	0.198	—	—

[24]	Zeolite 3A	393.15	0.085	0.1006	135 min
[24]	3A	413.15	0.065	0.0828	75 min

[25]	Zeolita NaA	378	0.155	—

[15]	Philipsita	326.3	0.0432	0.76	57 min
	Philipsita 0.5 M	326.3	0.0800	0.81	34 min
	Philipsita 0.75 M	326.3	0.0770	0.83	35 min
	Philipsita 1 M	326.3	0.1054	1.2	55 min
	Philipsita 2 M (natural)	326.3	0.1016	0.93	41 min

[16]	ACF	298.15	0.1571	0.58	600 s
	ACF	308.15	0.1567	0.30	—
	ACF	318.15	0.1576	0.15	1800 s
	ACF-850	298.15	0.2266	0.22	680 s
	ACF-850	308.15	0.2244	0.12	—
	ACF-850	318.15	0.2264	0.06	700 s
	ACF-750	298.15	0.1488	0.59	200 s
	ACF-750	308.15	0.1477	0.29	—
	ACF-750	318.15	0.1456	0.16	450 s

[17]	ZIF-8	298.15	0.45661	5.30	5 min
[17]	ZIF-67	298.15	0.4633	5.35	5 min

[26]	Zeolita 4A	336.15	0.1030	—	57 min
	3A	298.15	0.249	0.317	40 min
	3A	313.15	0.238	0.153	30 min
	3A	323.15	0.220	0.090	22 min
	3A Sintética)	333.15	0.200	0.052	20 min

[18]	Clinoptilolite (1-2 mm)	298.15	0.405	2019.56	540 s
	Clinoptilolite (3 mm)	298.15	0.31	1386.20	720 s
	Clinoptilolite (5 mm)	298.15	0.29	3521.28	180 s
	LV-NENG	298.15	0.275	1353.44	720 s
	Sorbead	298.15	0.26	1053.11	540 s

Table 2 shows that natural zeolites have disadvantages over synthetic zeolites, specifically compared to 3A zeolites and ZIF, since the latter adsorb a greater amount of water. However, clinoptilolite presents large contributions with a maximum adsorption capacity, between 0.27 and 0.3 $g_{water}$ $g_{ads}^{- 1}$ .

3.2. Mathematical Models, Characteristics, and Configuration of the PSA Process for the Production of Bioethanol

There are some studies on PSA processes with columns packed with zeolite, specifically designed to dehydrate ethanol [27–29], in which advantages and disadvantages of different operational methods are compared such as the use of two beds, three beds, and multibeds (see Table 3).

Table 3

Works reported on the different configurations of PSA processes for purification of bioethanol.

Reference	Experimental /simulated	PSA cycles	Pressure swing (kPa)	Bed regeneration time (min)	Ethanol feed (% wt)
[32]	Simulated	2 beds	200 to 13	5.3	90
[32]	Simulated	4 steps	200 to 13	5.3	90
[33]	Experimental	2 beds	(200-240) to 20	7	95
[33]	Experimental	4 steps	(200-240) to 20	7	95
[34]	Experimental	2 beds	379.79 to 13.8	5.4	92
[34]	Experimental	5 steps	379.79 to 13.8	5.4	92
[35]	Experimental	2 beds	120 to 20	3.8	93.2
[35]	Experimental	4 steps	120 to 20	3.8	93.2
[36]	Experimental	3 beds	(120, 130) to 20	6.6	87
[36]	Experimental	4 steps	(120, 130) to 20	6.6	87
[37]	Experimental	2 beds	303 to 30	45	88.57
[37]	Experimental	4 steps	303 to 30	45	88.57
[14]	Simulated	2 beds	204.5 to 13.4	2.91	90
[14]	Simulated	4 steps	204.5 to 13.4	2.91	90
[30]	Simulated	2 beds	340 to 30	—	86
[30]	Simulated	2 steps	340 to 30	—	86

It is important to take into account the additional energy required to circulate the mixture, as well as the electricity required to operate the adsorption and desorption beds and the air and vacuum compressor [30, 31]. Table 3 shows the cycle times considered in different articles, regeneration takes between 3 and 45 min.

In the study of Jeong et al. [36], the two-bed process and the multibed process produced 99.5% anhydrous ethanol by weight, with a feed of 87.0% by weight ethanol. However, the multibed process presented lower energy consumption (higher energy efficiency). On the other hand, the two-bed process has the advantage of producing anhydrous ethanol from the input ethanol concentration as low as 81.3% in weight. And lastly, the three-bed process required the longest regeneration time (twice the amount of time) for zeolite, but a very stable process with higher performance was achieved due to less time lost in the change of cycle, so it was concluded that this is the most suitable for a large-scale commercial application. The process flow diagram is shown in Figure 3.

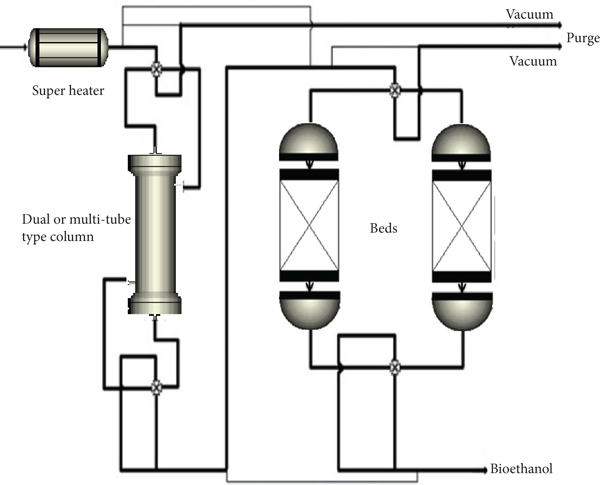

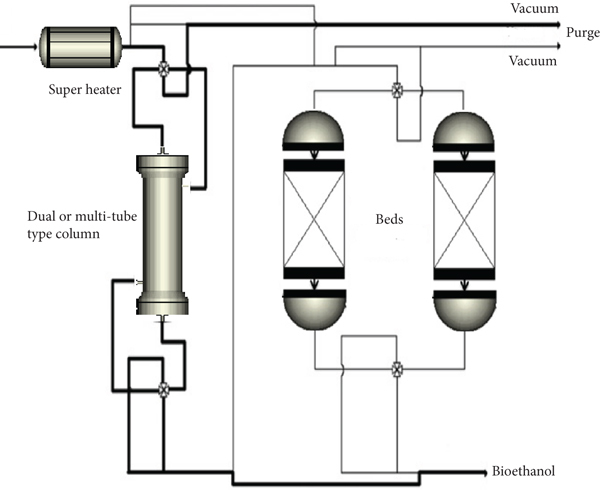

Figure 3

Schematic diagram of the PSA process using different types of connection configurations: (a) two beds, (b) multiple tubes, (c) two-pass beds, and (d) three beds.

(b)

(c)

(d)

The PSA process is more used than the TSA due to its efficiency and low energy cost, for this reason, there is interest in presenting proposals to improve the operation of PSA processes for different applications [38]. To this end, different analyzes have been carried out based on the mathematical models reported in Table 4.

Table 4

Distributed parameter models of the PSA processes for bioethanol production.

Reference	Equations governing the PSA process (nonlinear model)	Temperature effects	Pressure effects
[34]	6 PDE	Consider adsorption isotherms	Consider pressure gradient
[37]	5 PDE	Consider adsorption isotherms	Consider pressure gradient
[29]	6 PDE	Consider adsorption isotherms	No pressure gradient
[23]	3 PDE	Does not present adsorption isotherms	Consider pressure gradient
[39]	6 PDE	Consider adsorption isotherms	Consider pressure gradient
[40]	3 PDE	Does not present adsorption isotherms	Consider pressure gradient

Table 4 shows a concentration of studies in which different mathematical models for PSA processes are proposed. In this table, the number of PDEs is indicated, if it presents a model for the adsorption isotherms and if they consider pressure variations. The mathematical model of the PSA process or the numerical simulation of the same makes it possible to determine the diameter, the height of the bed, and the amount of zeolite required. On the other hand, they allow establishing nominal operating conditions. The PDEs that represent the behavior of the process, normally consider variations in the axial direction of temperature, pressure, composition, and speed, and neglect variations in other directions. Temporal variations are also considered.

In general, the models of a cyclic PSA process can be curves of the hyperbolic or parabolic type, depending on the assumptions of the modeling. The numerical methods to discretize these PDEs are finite differences, finite elements, and orthogonal placement on finite elements. An example of mathematical modeling of a PSA process is reported by Simo et al. [34] and is shown in Table 5.

Table 5

Governing equations and simplifications for production and purification of bioethanol.

Mass balance for adsorbing component	$\frac{\partial Y_{i}}{\partial t} = D_{ax} \frac{\partial^{2} Y_{i}}{\partial z^{2}} - \frac{u \partial Y_{i}}{ϵ \partial z} - \frac{(1 - ϵ)}{ϵ} ρ_{s} \frac{RT \partial q_{i}}{P \partial t} (1 - Y_{i})$
Overall mass balance	$\frac{1 \partial P}{P \partial t} - \frac{1 \partial T}{T \partial t} = - \frac{1 \partial u}{ϵ \partial z} - \frac{1 u \partial P}{ϵ P \partial t} + \frac{1 u \partial T}{ϵ T \partial t} - \frac{(1 - ϵ)}{ϵ} ρ_{s} \frac{RT}{P} \sum_{i}^{n} \frac{\partial q_{i}}{\partial t}$
LDF rate	$\frac{\partial q_{i}}{\partial t} = k_{LDF} (q_{i}^{*} - q_{i})$
Energy balance	$[ρ_{g} c_{pg} + \frac{1 - ϵ}{ϵ} ρ_{s} c_{ps}] \frac{\partial T}{\partial t} = K_{ef} \frac{\partial^{2} T}{\partial z^{2}} - \frac{u}{ϵ} C_{pg} ρ_{g} \frac{\partial T}{\partial z} + Q \frac{(1 - ϵ)}{ϵ} ρ_{s} \frac{\partial q_{i}}{\partial t}$
Pressure drop	$- \frac{\partial P}{\partial z} = (\frac{150 \times 1 0^{- 5} μ_{g} {(1 - ϵ_{i})}^{2}}{{(2 r_{p} ψ)}^{2} ϵ_{i}^{3}} v^{g} + \frac{1.75 \times 1 0^{- 5} M_{w} ρ_{g} (1 - ϵ_{i})}{(2 r_{p} ψ) ϵ_{i}^{3}} v_{g}^{2})$
Equilibrium	$q_{i}^{*} = q_{i}^{s} \frac{K (T) P_{i}}{1 + K (T) P_{i}} in (\frac{K}{K_{0}}) = \frac{Q}{R} (\frac{1}{T} - \frac{1}{T_{0}})$

Cycle steps
I. Adsorption
(i) $t = 0$	$y = W = 0, T = T_{F}, P = P_{F}, y = Y^{(IV)} W = W^{(IV)}$ $T = T^{(IV)}, P = P^{(IV)}$
(ii) $z = 0$	$y = y_{F}, T = T_{F}, P = P_{F}, F = F_{F}$
(iii) $z = L$	$\frac{\partial y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0$
II. Depressurization
(i) $t = 0$	$y = y^{(I)}, W = W^{(I)}, T = T^{(I)}, P = P^{(I)}$
(ii) $z = 0$	$\frac{\partial y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0$
(iii) $z = L$	$\frac{\partial y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0, F = F (valve)$
III. Purge
(i) $t = 0$	$y = y^{(II)}, W = W^{(II)}, T = T^{(II)}, P = P^{(II)}$
(ii) $z = 0$	$Y = Y_{P}, T = T_{P}, F = F_{P}$
(iii) $z = L$	$P = P_{P}, \frac{\partial y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0$
IV. Repressurization
(i) $t = 0$	$y = y^{(III)}, W = W^{(III)}, T = T^{(III)}, P = P^{(III)}$
(ii) $z = 0$	$y = y_{P}, T = T_{P},$ F = F(valve)
(iii) $z = L$	$\frac{\partial y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0$

To solve this type of PDE, initial and boundary conditions are needed in each step of the PSA process, as an example, the conditions established for the model of Simo et al. [34] are shown in Table 5, where the Roman numerals indicate the sequence in how they should be applied successively for each step of the process:

3.3. Parametric Study of the PSA Process for the Production of Bioethanol

To observe the dynamics of the purity achieved from the start and reach the CSS, the case of Simo et al. [34] is proposed. The parameters of this PSA process for the production and purification of bioethanol are shown in the following Table 6.

Table 6

Start-up parameters of the PSA process for the purification and production of bioethanol.

FEED
Flow	512	kmolh^-1
Ethanol	0.818	kmolkmol^-1
Water	0.182	kmolkmol^-1
Temperature	440	K
Production pressure	379	kPa
Purge pressure	13.5	kPa

SIZING
Bed height	7.3	m
Bed diameter	2.4	m
Zeolite type 3A particle radius	0.0015875	m
Bulk solid density	729.62	kg m^-3

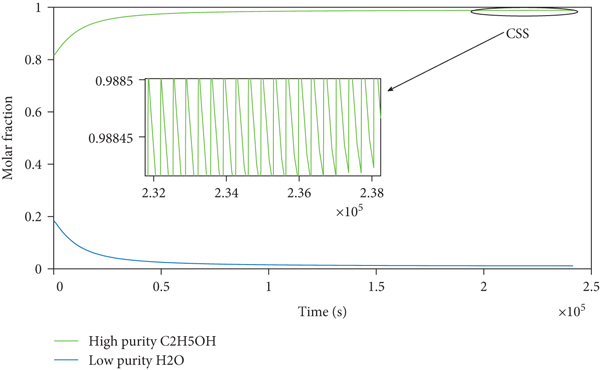

Figure 4 shows how the purity of ethanol increases and the purity of water decreases, this is due to the conditions established in Table 6 and the selective characteristics of the adsorbent to retain the greatest number of water molecules. The ethanol profile rises as the cycles pass until reaching the CSS and obtaining a purity of 99% by wt of ethanol. CSS is reached after 350 cycles (67 h).

Figure 4

Purification and production of bioethanol from the start-up.

Subsequently, Figure 5 shows the possible input variables that can have a greater and lesser effect on the purity of bioethanol. These tests were done in the CSS.

Figure 5

Sensitivity analysis applied to the PSA process for the production of bioethanol [41].

(b)

Temperature: 440 K to 462 K; Flow: 512 kmolh^-1; Pressure: 379 kPa; Molar fraction: 0.182 (water) and 0.818 (ethanol)

(c)

Flow: 512 kmolh^-1 to 486 kmolh^-1; Temperature: 440 K; Pressure: 379 kPa; Molar fraction: 0.182 (water) and 0.818 (ethanol)

(d)

Flow: 512 kmolh^-1 to 537 kmolh^-1; Temperature: 440 K; Pressure: 379 kPa; Molar fraction: 0.182 (water) and 0.818 (ethanol)

(e)

Pressure: 379 kPa to 360 kPa; Flow: 512 kmolh^-1; Temperature: 440 K; Molar fraction: 0.182 (water) and 0.818 (ethanol)

(f)

Pressure: 379 kPa to 398 kPa; Flow: 512 kmolh^-1; Temperature: 440 K; Molar fraction: 0.182 (water) and 0.818 (ethanol)

(g)

Molar fraction: 0.182 (water) and 0.818 (ethanol) to 0.2229 (water) and 0.7771 (ethanol), Pressure: 379 kPa; Flow: 512 kmolh^-1; Temperature: 440 K

(h)

Molar fraction: 0.182 (water) and 0.818 (ethanol) to 0.1411 (water) and 0.8589 (ethanol), Pressure: 379 kPa; Flow: 512 kmolh^-1; Temperature: 440 K

The results obtained with this analysis show that the temperature, flow, and composition of the feed have a greater effect on the purity of ethanol. On the other hand, the pressure variable has no effect on purity. An important difference between the variables that had the greatest effect on ethanol purity was the convergence time. Due to this criterion, it can be seen that the feed composition has the shortest time compared to the other two variables. For this reason, it is of great importance to have the composition of the feed controlled at the time of entering it at the entrance of the real PSA process, since this can cause decreases in purity, acting as a disturbance (see Table 7).

Table 7

Data obtained in the CSS from the parametric study.

Run	Temperature (K)	Flow kmolh^-1	Pressure kPa	Composition water-ethanol	Purity % wt of ethanol	Number of cycles
1	440	512	379	0.182-0.818	99.5	350
2	418	512	379	0.182-0.818	99.23	363
3	462	512	379	0.182-0.818	99.63	579
4	440	486	379	0.182-0.818	99.75	579
5	440	537	379	0.182-0.818	99.33	370
6	440	512	360	0.182-0.818	99.60	362
7	440	512	398	0.182-0.818	99.54	440
8	440	512	379	0.2229-0.7771	98.95	327
9	440	512	379	0.1411-0.8589	99.71	464

4. Biohydrogen Purification by PSA

Biohydrogen is a biologically produced gas; it is obtained from algae, bacteria, and archaea. Biohydrogen is a biofuel with great potential that can be obtained through specific cultivation or from organic waste [42, 43]. Biohydrogen can serve as the energy source for gas turbines and fuel cells, or as the raw material for chemical industries [44]. The development of a biohydrogen station system is important to the commercialization of fuel cells and fuel cell-powered vehicles. One of the key challenges for biohydrogen production is the design of an efficient purification process. In conventional hydrogen production plants, the shifted gas should first be precooled to meet the temperature requirement of CO₂ absorption units, and then be reheated after the CO₂ removal [4]. Additional purification units are needed to remove the residual trace CO because of the thermodynamically [45]. Alternatively, the elevated-temperature pressure swing adsorption process based on WGS catalysts and CO₂ and methane adsorbents are able to achieve triple functions: CO catalytic conversion, methane and CO₂ adsorption, and hydrogen purification in a single unit [46].

The main methods for hydrogen production can be categorized as follows: (i)

Fossil fuels as a source of hydrogen production

(ii)

Water as a source of hydrogen production

(iii)

Utilization of solar energy

(iv)

Biological methods of hydrogen production

(v)

Fermentative hydrogen production from organic compounds

(vi)

Hydrogen production from biomass

Our lab is focused on hydrogen production by mean dark fermentation using different consortia and agroindustrial waste as substrate. Hydrogen production by fermentative processing has been given little attention, while hydrogen production by photosynthetic microorganisms has been studied extensively. The evolution of hydrogen by fermentation has, however, several advantages for industrial production [47–49].

Fermentative bacteria have a very high evolution rate of hydrogen. They can produce hydrogen constantly, day and night, from organic substrates. They can have a growth rate adequate for the supply of microorganisms to the production systems.

Therefore, fermentative evolution is more advantageous than photochemical evolution for the mass production of hydrogen by microorganisms. Fermentative hydrogen production can be maximized through the effective coupling of the following factors: (i)

An accessible and rich source of electron and biochemical electron pump

(ii)

An active hydrogenase

4.1. Adsorption and Separation for the CO, CO₂, Nitrogen, Methane, Water, H₂S, and Hydrogen Mixture with Different Adsorbents

In the case of the separation and purification of hydrogen, it is necessary to consider adsorbents (activated carbon, zeolite, silica gel, activated alumina) that have selectivity over the components: CO, CO₂, methane, etc. This makes it possible to use multigas isotherms (without interaction parameters) for multicomponent adsorption modeling [50].

The PSA process for the purification and production of hydrogen is necessary the use of different types of adsorbents with a high degree of selectivity, for this, silica gel can remove moisture and higher hydrocarbons, and the use of activated carbon retains CH₄, CO₂, and H₂S [51]. Finally, it is known that zeolite 5A is one of the adsorbents that have a high selectivity over N₂ and CO. There are several different materials and adsorbents on the market, making it difficult to compare data from the literature.

For this, the different adsorbents that can be used to purify hydrogen have been investigated in detail; the results found are shown in Table 8.

Table 8

Comparison of the thermodynamic values of various adsorbents as a function of different temperatures and pressures.

Reference	Adsorbents	TemperatureK	Maximum adsorption capacityQ $(g g_{ads}^{- 1})$	Langmuir constant (bar^-1)	Pressure Atm
[52]	Carbon molecular sieve	293	0.1170 (CO)	0.130	16
[52]	Carbon molecular sieve	293	0.0736 (CH₄)	0.232	16

[43]	Activated carbon	289.1	0.368 (CO)	$9.867 \times 10^{6}$	—
	Activated carbon	289.1	0.350 (CH₄)	$1.916 \times 10^{7}$	—
	Activated carbon	289.1	0.411 (CO₂)	$3.526 \times 10^{7}$	—
	Zeolite 5A	289.1	0.129 (CO)	$2.828 \times 10^{7}$	—
	Zeolite 5A	289.1	0.086 (CH₄)	$2.410 \times 10^{7}$	—
	Zeolite 5A	289.1	0.150 (CO₂)	$3.229 \times 10^{8}$	—

[53]	CMS-T3A	293	0.044 (N₂)	0.105	16
	CMS-T3A	293	0.060 (O₂)	0.088	15
	CMS-T3A	293	0.140 (Ar)	0.093	16
	CMS-T3A	293	0.073 (CO)	0.179	14.85
	CMS-T3A	293	0.161 (CO₂)	0.983	15.5
	CMS-T3A	293	0.050 (CH₄)	0.351	15
	CMS-T3A	293	0.378 (SO₂)	2.253	4.5
	CMS-T3A	303	0.040 (N₂)	0.102	15
	CMS-T3A	303	0.056 (O₂)	0.076	14.6
	CMS-T3A	303	0.128 (Ar)	0.082	15
	CMS-T3A	303	0.073 (CO)	0.150	14.2
	CMS-T3A	303	0.158 (CO₂)	0.764	15.6
	CMS-T3A	303	0.045 (CH₄)	0.329	15
	CMS-T3A	303	0.365 (SO₂)	2.170	4.8
	CMS-T3A	313	0.035 (N₂)	0.097	14.5
	CMS-T3A	313	0.055 (O₂)	0.065	16
	CMS-T3A	313	0.118 (Ar)	0.079	14.4
	CMS-T3A	313	0.071 (CO)	0.137	15.8
	CMS-T3A	313	0.154 (CO₂)	0.583	15
	CMS-T3A	313	0.043 (CH₄)	0.269	15
	CMS-T3A	313	0.349 (SO₂)	2.163	4.7

[50]	PCB-activated carbon	295	0.088 (CH₄)	0.0155	68.04
	PCB-activated carbon	295	0.148 (CO)	0.0056	51.03
	PCB-activated carbon	295	0.392 (CO₂)	0.0227	37.42
	PCB-activated carbon	295	0.335 (H₂S)	0.0479	13.60

[54]	Activated carbon	293.15	0.102 (CO)	$9.075 \times 10^{6}$	20
	Activated carbon	293.15	0.080 (CH₄)	$1.812 \times 10^{7}$	18
	Activated carbon	293.15	0.308 (CO₂)	$3.356 \times 10^{7}$	10
	Activated carbon	293.15	0.014 (N₂)	$1.657 \times 10^{7}$	15
	Zeolite 5A	293.15	0.049 (CO)	$2.727 \times 10^{7}$	17
	Zeolite 5A	293.15	0.030 (CH₄)	$2.386 \times 10^{7}$	18
	Zeolite 5A	293.15	0.202 (CO₂)	$3.197 \times 10^{4}$	17
	Zeolite 5A	293.15	0.238 (N₂)	$1.055 \times 10^{7}$	20

[55]	AC5-KS	303	0.147 (CO)	$1.428 \times 10^{9}$	—
	AC5-KS	303	0.582 (CO₂)	$3.937 \times 10^{9}$	—
	AC5-KS	303	0.0116 (N₂)	$9.797 \times 10^{8}$	—
	AC5-KS	303	0.0973 (CH₄)	$2.986 \times 10^{9}$	—

[56]	CuBTC (KRICT)	303	0.022 (N₂)	0.0386	7
	CuBTC (KRICT)	303	0.019 (CO)	0.2443	1
	CuBTC (KRICT)	308	0.444 (CO₂)	0.2963	7
	CuBTC (KRICT)	308	0.056 (CH₄)	0.0861	7
	CuBTC (KRICT)	343	0.014 (N₂)	0.0216	7
	CuBTC (KRICT)	343	0.008 (CO)	0.0901	1
	CuBTC (KRICT)	343	0.290 (CO₂)	0.1185	7
	CuBTC (KRICT)	343	0.036 (CH₄)	0.0657	7
	CuBTC (KRICT)	373	0.009 (N₂)	0.0152	7
	CuBTC (KRICT)	373	0.042 (CO)	0.0491	1
	CuBTC (KRICT)	373	0.187 (CO₂)	0.0619	7
	CuBTC (KRICT)	373	0.024 (CH₄)	0.0410	7

[57]	Cu-BTC	303	0.125 (CO)	2.4433	—
	Cu-BTC	303	0.660 (CO₂)	0.3437	—
	Cu-BTC	303	0.104 (N₂)	0.0386	—
	Cu-BTC	303	0.116 (CH₄)	0.1416	—

[58]	Zeolite 5A	303	0.064 (CO)	0.2363	10
[58]	Zeolite 5A	303	0.034 (CH₄)	0.2003	10

[59]	TDA AMS-19	453.15	0.268 (CO₂)	$4.634 \times 10^{- 8}$	41
	TDA AMS-19	513.15	0.198 (CO₂)	$4.349 \times 10^{- 8}$	18
	TDA AMS-19	573.15	0.158 (CO₂)	$4.135 \times 10^{- 8}$	18

[60]	BPL 4X10 activated carbon	293.15	0.311 (CO₂)	0.4	12

[61]	MG50	623.15	0.085 (CO₂)	64.8	—

[62]	MG50	523.15	0.043 (CO₂)	$7.8 \times 10^{- 5}$	1
	MG50	623.15	0.034 (CO₂)	$7.3 \times 10^{- 5}$	1
	MG50	723.15	0.032 (CO₂)	$5.0 \times 10^{- 5}$	1

[63]	$K_{2} C O_{3} / {Mg}_{3} AI - C O_{3}$	673.15	0.019 (CO₂)	37.4	1

[64]	$K_{2} C O_{3} / {Mg}_{3} AI - C O_{3}$	673	0.027 (CO₂)	16.9	0.45
	$K_{2} C O_{3} / {Mg}_{3} AI - C O_{3}$	673	0.022 (CO₂)	17.0	0.58
	$K_{2} C O_{3} / {Mg}_{3} AI - C O_{3}$	673	0.028 (CO₂)	23.6	0.19
	$K_{2} C O_{3} / {Mg}_{3} AI - C O_{3}$	753	0.025 (CO₂)	19.3	0.19

[65]	$K_{2} C O_{3} / {Mg}_{3} AI - C O_{3}$	673.15	0.011 (CO₂)	37.4	3
[65]	$K_{2} C O_{3} / {Mg}_{3} AI - C O_{3}$	793.15	0.011 (CO₂)	21.2	3

[18]	K-MG30	723.15	0.028 (CO₂)	—	10.85
	K-MG30	673.15	0.022 (CO₂)	—	10.85
	K-MG30	623.15	0.015 (CO₂)	—	10.85
	K-MG30	573.15	0.009 (CO₂)	—	10.85

[2]	CuBTC-OMC (MOF-composite)	298.15	0.191 (CO₂)	—	1
	CuBTC/GO (MOF-composite)	295	0.135 (CO₂)	—	1.1
	CuBTC@MWCNT (MOF-composite)	298.15	0.149 (CO₂)	—	1
	Cu3(BTC)₂ (MOF-composite)	298.15	0.595 (CO₂)	—	18
	CG-9 (CuBTC-GO-9) (MOF-composite)	273	0.363 (CO₂)	—	1

Table 8 shows different types of adsorbents, however, the most outstanding are CMS-T3A, PCB-activated carbon, and activated carbon. These adsorbents show selectivity over a variety of compounds (N₂, O₂, Ar, CO, CO₂, CH₄, and H₂S) and have higher adsorption compared to other natural and synthetic adsorbents. One difference between these three defined adsorbents is the adsorption capacity from temperature change.

4.2. Mathematical Models, Characteristics, and Configuration of the PSA Process for the Production of Biohydrogen

To ensure a continuous separation process, multiple columns are required (see Table 9). H₂ purification is done with the PSA process, using an adsorption pressure of 500 to 4000 kPa and for the purge step, only 100 kPa is used. A temperature of 295 K is contemplated in the production and regeneration stages. For the production and purification of biohydrogen, a minimum of 4 columns is used (see Figure 6).

Table 9

Works reported on the different configurations of PSA processes for purification of biohydrogen.

Reference	Experimental/simulated	PSA cycles	Pressure swing (kPa)	Bed regeneration time (min)	Hydrogen feed (% molar fraction)
[55]	Simulated	2 beds	500 to 50	5	79
[55]	Simulated	10 steps	500 to 50	5	79
[67]	Simulated	10 beds	(1300-1200) to 20	—	62.57
[67]	Simulated	5 steps	(1300-1200) to 20	—	62.57
[56]	Experimental	2 beds	350 to 100	7.5	67, 68, 78, and 81
[56]	Experimental	4 steps		7.5	67, 68, 78, and 81
[57]	Experimental	2 beds	350 to 100	5.8	67, 68, and 78
[57]	Experimental	4 steps	350 to 100	5.8	67, 68, and 78
[58]	Simulated	6 beds	1100 to 100	6.6	70
[58]	Simulated	9 and 12 steps	1100 to 100	6.6	70
[68]	Experimental	4 beds	(1400-1600) to (131-50)	—	55
[68]	Experimental	8 steps	(1400-1600) to (131-50)	—	55
[59]	Simulated	4, 6, 8, and 10 beds	(3450-1730) to 100	4.6	15
[59]	Simulated	4, 6, 8, and 10 steps	(3450-1730) to 100	4.6	15
[60]	Simulated	4 beds	1600 to 100	—	25, 50, and 75
[60]	Simulated	7 steps		—	25, 50, and 75
[69]	Experimental	2 beds	(1000-4000) to 100	0.8	50
[69]	Experimental	5 steps	(1000-4000) to 100	0.8	50
[70]	Experimental	8 beds	3500 to 100	4	88.75
[70]	Experimental	12 steps	3500 to 100	4	88.75
[71]	Experimental	2 and 4 beds	(3000-3500) to 110	5 and 6.3	88
[71]	Experimental	6 and 10 steps	(3000-3500) to 110	5 and 6.3	88

Figure 6

Schematic diagram of the PSA process using 4-beds, 9-steps.

Different types of structures and configurations have been studied with respect to the PSA process, one of them presented a study of the performance of the PSA process using multiple beds to produce high purity biohydrogen from synthesis gas H₂: 72.2%, CH₄: 4.17%, CO: 2.03%, CO₂: 21.6%). In the study of Yang et al. [66], it was an experimental and theoretical work, as a result, they obtained purity of 99.999% of biohydrogen and recovery of 66% of the synthesis gas, with an oscillating pressure of 100 to 800 kPa and ambient temperature.

Table 9 shows the different configurations presented by the PSA processes for the production of biohydrogen.

It can be seen in Table 9 that more beds are used compared to bioethanol production, likewise, the number of steps is greater and the pressure values are high with oscillations between 1000 and 10000 kPa. To do the purge, it is only necessary to handle an atmospheric pressure and it is not necessary to use a vacuum pressure.

In the study of Liemberger et al. and Yang et al. [50, 66], they showed that the recovery of hydrogen increases when the linear speed and the adsorption time increase, however, the purity of the hydrogen decreases. On the other hand, the 4-bed 9-step PSA process could be optimally operated at a linear speed of 3 cms^-1, adsorption time of 50 s, and a pressure of 200 kPa in the purge step (see Figure 7).

Figure 7

Purification and production of biohydrogen from the start-up.

Table 10 shows the modeling characteristics that describe the PSA process for biohydrogen production and shows that the number of PDEs can vary, depending on the considerations to obtain a less complex model. In some works, the results and profiles of pressure and temperature are considered, and in others only one of these variables that are a function of time and space.

Table 10

Distributed parameter models of the PSA processes for biohydrogen production.

Reference	Equations governing the PSA process (nonlinear model)	Temperature effects	Pressure effects
[71]	6 PDEs	Consider adsorption isotherms	Consider pressure gradient
[68]	4 PDEs	Consider adsorption isotherms	No pressure gradient
[58]	3 PDEs	Does not present adsorption isotherms	No pressure gradient
[57]	4 PDEs	Does not present adsorption isotherms	Consider pressure gradient
[56]	5 PDEs	Consider adsorption isotherms	Consider pressure gradient
[55]	6 PDEs	Does not present adsorption isotherms	Consider pressure gradient

The base mathematical model that was taken from the works of Lee et al. and Xiao et al. [42, 43] (see Table 11). A semicomplete model is proposed since it does not contemplate the part of the equations of the wall and a general balance. It uses four steps to complete one cycle of the PSA process.

Table 11

Governing equations and simplifications for production and purification of biohydrogen.

Mass balance equation	$- D_{L} \frac{\partial^{2} c_{i}}{\partial z^{2}} + \frac{\partial (U_{z} c_{i})}{\partial z} + \frac{\partial c_{i}}{\partial t} + \frac{(1 - ϵ_{b})}{ϵ_{b}} ρ_{p} \frac{\partial n_{i}}{\partial t} = 0$
Energy balance equation	$K_{L} \frac{\partial^{2} T}{\partial z^{2}} + [ϵ_{b} c C_{pg} + (1 - ϵ_{b}) ρ_{p} C_{ps}] \frac{\partial T}{\partial t} - ϵ_{b} c C_{pg} U_{z} \frac{\partial T}{\partial z} = (1 - ϵ_{b}) ρ_{p} \sum_{j = 1}^{N} Δ H_{j} \frac{\partial n_{j}}{\partial t} + \frac{2 h_{in}}{R_{in}} (T_{w} - T)$
Ergun equation for momentum balance	$- \frac{\partial P}{\partial z} = (\frac{150 μ V_{z} {(1 - ϵ_{b})}^{2}}{4 R_{p}^{2} ϵ_{b}^{3}} + \frac{1.75 ρ_{g} (1 - ϵ_{b})}{(2 R_{p}) ϵ_{b}^{3}} v_{g}^{2})$
Adsorption isotherms and kinetics	$n_{i}^{} = n_{i}^{s} (b_{i} P_{i} / 1 + \sum_{j = 1}^{N} b_{j} P_{j}) (\partial n_{i} / \partial t) = k_{i} (n_{i}^{} - n_{i}), i = 1, \dots, N)$

Boundary and initial conditions
I. Adsorption
(i) $t = 0$	$c_{H_{2}} (z, 0) = c_{0}, c_{CO} (z, 0) = 0, c_{{CH}_{4}} (z, 0) = 0, c_{{CO}_{2}} (z, 0) = 0$ $T (z, 0) = T_{0}, T_{w} (z, 0) = T_{0}, p (z, 0) = p_{0}, η_{i} (z, 0) = η_{i}^{*}$
(ii) $z = 0$	$- D_{L} (\partial_{c_{i}} / \partial z) = u [c_{i} (0^{-}, t) - c_{i} (0^{+}, t)], p = p_{0}, U_{z} = U_{zo}$ $- K_{L} (\partial T / \partial t) = ε_{b} {c C}_{pg} U_{z} [T (0^{-}, t) - T (0^{+}, t)]$
(iii) $z = L$	$- D_{L} (\partial_{c_{i}} / \partial z) = 0, \partial U_{z} / \partial z = 0, - K_{L} (\partial T / \partial t) = 0, \partial p / \partial z = 0$
II. Depressurization
(i) $t = 0$	$c_{H_{2}} (z, 0) = c_{0}^{(I)}, c_{CO} (z, 0) = c_{CO}^{(I)}, c_{{CH}_{4}} (z, 0) = c_{{CH}_{4}}^{(I)}, c_{{CO}_{2}} (z, 0) = c_{{CO}_{2}}^{(I)}$ $T (z, 0) = T^{(I)}, T_{w} (z, 0) = T^{(I)}, p (z, 0) = p^{(I)}, η_{i} (z, 0) = η_{i^{(I)}}^{*}$
(ii) $z = 0$	$\partial_{c_{i}} / \partial z = 0, \partial p / \partial z = 0, \partial U_{z} / \partial z = 0, \partial T / \partial t = 0$
(iii) $z = L$	$\partial_{c_{i}} / \partial z = 0, \partial U_{z} / \partial z = 0, \partial T / \partial t = 0, \partial p / \partial z = 0, F = F_{valve}$
III. Purge
(i) $t = 0$	$c_{H_{2}} (z, 0) = c_{0}^{(II)}, c_{CO} (z, 0) = c_{CO}^{(II)}, c_{{CH}_{4}} (z, 0) = c_{{CH}_{4}}^{(II)}, c_{{CO}_{2}} (z, 0) = c_{{CO}_{2}}^{(II)}$ $T (z, 0) = T^{(II)}, T_{w} (z, 0) = T^{(II)}, p (z, 0) = p^{(II)}, η_{i} (z, 0) = η_{i^{(II)}}^{*}$
(ii) $z = 0$	$\partial_{c_{i}} / \partial z = 0, \partial p / \partial z = 0, \partial U_{z} / \partial z = 0, \partial T / \partial t = 0, F = F_{valve}$
(iii) $z = L$	$\partial_{c_{i}} / \partial z = 0, \partial U_{z} / \partial z = 0, \partial T / \partial t = 0, \partial p / \partial z = 0$
IV. Pressurization
(i) $t = 0$	$c_{H_{2}} (z, 0) = c_{0}^{(III)}, c_{CO} (z, 0) = c_{CO}^{(III)}, c_{{CH}_{4}} (z, 0) = c_{{CH}_{4}}^{(III)}, c_{{CO}_{2}} (z, 0) = c_{{CO}_{2}}^{(III)}$ $T (z, 0) = T^{(III)}, T_{w} (z, 0) = T^{(III)}, p (z, 0) = p^{(III)}, η_{i} (z, 0) = η_{i^{(III)}}^{*}$
(ii) $z = 0$	$\partial_{c_{i}} / \partial z = 0, \partial p / \partial z = 0, \partial U_{z} / \partial z = 0, \partial T / \partial t = 0, F = F_{valve}$
(iii) $z = L$	$\partial_{c_{i}} / \partial z = 0, \partial U_{z} / \partial z = 0, \partial T / \partial t = 0, \partial p / \partial z = 0$

The initial and boundary conditions are contemplated in Table 11, the mathematical model finds solutions of $Y$ , $c$ , $T$ , and $P$ as a function of time and space.

4.3. Parametric Study of the PSA Process for the Production of Biohydrogen

The base model of the works of Lee et al. and Xiao et al. [42, 43] was used. The parameters of this PSA process for the production and purification of biohydrogen are shown in Table 12.

Table 12

Start-up parameters of the PSA process for the purification and production of biohydrogen.

FEED
Flow	0.162	kmolkmol^-1
CO	0.02	kmolkmol^-1
CO₂	0.26	kmolkmol^-1
Hydrogen	0.69	kmolkmol^-1
Methane	0.03	kmolkmol^-1
Temperature	298.15	K
Production pressure	980	kPa
Purge pressure	100	kPa

SIZING
Bed height	1	m
Bed diameter	0.037	m
Zeolite type 5A particle radius	0.0015	m
Bulk solid density	850.0	kg m^-3

The results found from the start-up to reaching the CSS are shown in Figures 6 and 8.

Figure 8

Sensitivity analysis applied to the PSA process for the production of biohydrogen [72].

(b)

Temperature: 298.15 K to 313.05 K; Flow: 0.162 kmolh^-1; Pressure: 980 kPa; Molar fraction: 0.02 (CO), 0.26 (CO₂), 0.69 H₂, and 0.03 CH₄

(c)

Flow: 0.162 kmolh^-1 to 0.153 kmolh^-1; Temperature: 298.15 K; Pressure: 980 kPa; Molar fraction: 0.02 (CO), 0.26 (CO₂), 0.69 H₂, and 0.03 CH₄

(d)

Flow: 0.162 kmolh^-1 to 0.170 kmolh^-1; Temperature: 298.15 K; Pressure: 980 kPa; Molar fraction: 0.02 (CO), 0.26 (CO₂), 0.69 H₂, and 0.03 CH₄

(e)

Pressure: 980 kPa to 931 kPa; Flow: 0.162 kmolh^-1; Temperature: 298.15 K; Molar fraction: 0.02 (CO), 0.26 (CO₂), 0.69 H₂, and 0.03 CH₄

(f)

Pressure: 980 kPa to 1029 kPa; Flow: 0.162 kmolh^-1; Temperature: 298.15 K; Molar fraction: 0.02 (CO), 0.26 (CO₂), 0.69 H₂, and 0.03 CH₄

(g)

Molar fraction: 0.02 (CO), 0.26 (CO₂), 0.69 H₂ and 0.03 CH₄ to 0.6555 (H₂), 0.2945 (CO₂), 0.03 (CH₄), and 0.02 CO; Pressure: 980 kPa; Flow: 0.162 kmolh^-1; Temperature: 298.15 K

(h)

Molar fraction: 0.02 (CO), 0.26 (CO₂), 0.69 H₂, and 0.03 CH₄ to 0.7245 (H₂), 0.2255 (CO₂), 0.03 (CH₄), and 0.02 CO; Pressure: 980 kPa; Flow: 0.162 kmolh^-1; Temperature: 298.15 K

Figure 6 shows how the purity of hydrogen increases and the purities of CO, CO₂, and methane decreases; this is due to the selectivity of the adsorbent and the nominal star-up conditions shown in Table 12. The hydrogen profile goes up as the cycles pass until reaching the CSS and obtaining a purity of 95%. CSS is reached after 30 cycles (1.2 h).

Figure 8 shows the results obtained from variations of 0.5% on the input variables. In most cases (pressure, flow, and composition), the effects on hydrogen purity were negligible. However, the effect of the temperature variable presented important changes, defined as the main variable that can be used to control the purity of hydrogen. It is important to mention that this variable is limited in its small values since it cannot generate values less than 5° since this would generate energy costs due to the demand to use temperatures less than 0°.

Table 13 shows the detailed data of the results presented in Figure 8. It shows the cycle times, the purities, and the changes generated by each input variable.

Table 13

Analysis of the possible input variables that have the greatest effect on the purity obtained.

Run	Temperature (K)	Flow kmolh⁻¹	Pressure kPa	Composition CO-CO₂-hydrogen-methane	Purity % molar fraction of hydrogen	Number of cycles
1	298.15	0.162	980	0.02-0.26-0.69-0.03	94.85	30
2	283.24	0.162	980	0.02-0.26-0.69-0.03	98.01	2
3	313.05	0.162	980	0.02-0.26-0.69-0.03	90.02	2
4	298.15	0.153	980	0.02-0.26-0.69-0.03	94.95	1
5	298.15	0.170	980	0.02-0.26-0.69-0.03	94.75	1
6	298.15	0.162	931	0.02-0.26-0.69-0.03	95.00	1
7	298.15	0.162	1029	0.02-0.26-0.69-0.03	94.65	1
8	298.15	0.162	980	0.02-0.2945-0.6555-0.03	94.00	2
9	298.15	0.162	980	0.02-0.2255-0.7245-0.03	95.50	2

5. Medical Oxygen Purification by PSA

Medical oxygen is a mixture of gases that typically has an oxygen percentage equal to or greater than 93%, and is widely prescribed for mechanically ventilated patients in intensive care units [73]. The rest of the compounds of the mixture includes nitrogen and argon, and contain 0.03% CO₂ or 0.001% CO [74]. To achieve that percentage of oxygen, PSA processes are necessary. In them, air from the environment is subjected to filtration and compression stages before passing through a bed of zeolites. The adsorption of the molecules will depend on the pressure and temperature; these zeolites have greater selectivity over nitrogen molecules than oxygen, thus resulting in the air with a higher proportion of oxygen.

The last year has seen an increase in the demand for medical oxygen due to the pandemic generated by COVID-19. That is why it has ventured into the development of portable technologies that generate oxygen, having a resource that provides oxygen supply for anoxic environments, due to its profitability, operating flexibility, and oxygen purification. It may be used in chemical processing, fishing farms, medical applications, combustion enhancement, oxyfuel cutting operations in metal fabrication, bleaching in the paper industry, wastewater treatment, fuel cells, etc. [75, 76]. One of the technological alternatives to purify and produce medical oxygen is the adsorption process with molecular sieves using the pressure swing adsorption method. The PSA can be operated with a pressure range from 1 to 1000 kPa and room temperature for small-scale oxygen production with high purity between 90%, 95%, and 99%. In general, the separation of the air is carried out at relatively high pressure and the nitrogen molecules are retained on the natural or synthetic zeolites [77, 78].

5.1. Adsorption and Separation for the O₂, N₂, and Ar with Different Adsorbents

In the case of the nitrogen and oxygen separation isotherms, it was determined by the energetic homogeneity of the surface of the adsorbents. The isotherms for this type of separation are concave towards the axis of relative pressure or concentrations (see Figure 2), so it is assumed that they correspond to the type I isotherms, which are for adsorption of gases in microporous solids.

For this separation of compounds, there are different types of adsorbents; these can be Ca-X, CMS, LiX, 5A or 13X, NaX, or LiLSX. However, the concentration of the product is limited to 95% oxygen, because of the presence of argon in air, since these adsorbents present similar adsorption capacities for oxygen and argon.

For this reason, there are several adsorbents that can be used to adsorb and separate oxygen from argon. Some natural and synthetic zeolites are also identified in the following Table 14.

Table 14

Comparison of the thermodynamic values of various adsorbents as a function of different temperatures and pressures.

Reference	Adsorbents	Temperature K	Maximum adsorption capacity Q $(g g_{a d s}^{- 1})$	Langmuir constant (bar^-1)	Pressure Atm
[79]	5A	273	0.063 (N₂)	0.073	1.97-5.9
	5A	293	0.049 (N₂)	0.073	1.97-5.9
	5A	313	0.040 (N₂)	1.214	1.97-5.9
	5A	333	0.035 (N₂)	1.214	1.97-5.9

[80]	CMS	283	0.07 (N₂)	20.5	7.8
	CMS	298	0.0588 (N₂)	15.6	7.8
	CMS	308	0.0532 (N₂)	10.7	7.8

[81]	CMS	297	0.8430 (N₂)	$4.663 \times 10^{4}$	4-6
	CMS	297	0.4430 (Ar)	714.904	4-6
	CMS	296	0.85 (N₂)	$4.741 \times 10^{4}$	4-6
	CMS	296	0.5107 (N₂)	717.548	4-6

[82]	5A	298.15	0.1484 (N₂)	—	1.48-4.35
[82]	CMS	298.15	0.07392 (N₂)	—	2.0-6.7

[77]	Li-LSX	288	0.0392 (N₂)	0.8574	1
	Li-LSX	298	0.0308 (N₂)	0.8574	1
	Li-LSX	308	0.0252 (N₂)	0.8574	1
	Na-LSX	288	0.014 (N₂)	0.1037	1
	Na-LSX	298	0.0112 (N₂)	0.1037	1
	Na-LSX	308	0.0084 (N₂)	0.1037	1
	K-LSX	288	0.0077 (N₂)	0.00479	1
	K-LSX	298	0.0056 (N₂)	0.00479	1
	K-LSX	308	0.00378 (v)	0.00479	1

[83]	5A	298.15	0.146 (N₂)	2813.7	1
[83]	Li-ag-X	298.15	0.089 (N₂)	28613.0	1

[84]	NaX	296.15	0.083 (N₂)	$8.319 \times 10^{- 5}$	1-1.4

[85]	Oxysiv 5	293.15	0.0865 (N₂)	0.1006	3-4
	Oxysiv 5	293.15	0.123 (Ar)	0.03365	3-4
	AgLiLSX	293.15	0.0738 (N₂)	0.2581	3-4
	AgLiLSX	293.15	0.2900 (Ar)	0.0230	3-4

[86]	Mordenite	303.15	0.0532 (N₂)	—	3
	A	303.15	0.0252 (N₂)	—	2.5
	X	303.15	0.0259 (N₂)	—	3.5

[87]	LiLSX	289.15	0.0602 (N₂)	$2.418 \times 10^{- 6}$	1

[78]	LiLSX (Zeochem)	273.1	0.07 (N₂)	$2.587 \times 10^{- 5}$	1
	LiLSX (Zeochem)	303.1	0.0476 (N₂)	$2.585 \times 10^{- 5}$	1
	LiLSX (Zeochem)	338.1	0.035 (N₂)	$2.577 \times 10^{- 5}$	1
	LiLSX (Arkema)	273.1	0.063 (N₂)	$3.446 \times 10^{- 5}$	1
	LiLSX (Arkema)	303.1	0.0434 (N₂)	$3.406 \times 10^{- 5}$	1
	LiLSX (Arkema)	338.1	0.0308 (N₂)	$3.366 \times 10^{- 5}$	1

[88]	LSCF1991	773.15	0.0168 (N₂)	0.0693	1
	LSCF1991	873.15	0.014 (N₂)	0.0854	1
	LSCF1991	973.15	0.0112 (N₂)	0.1001	1
	LSCF1991	1073.15	0.0105 (N₂)	0.1082	1

[89]	LiX	288.15	0.042 (N₂)	$9.50 \times 10^{- 6}$	3.5
[89]	LiX	303.15	0.035 (N₂)	$9.39 \times 10^{- 6}$	3.5

Table 14 shows varieties of adsorbents with different adsorption capacities on the selective compounds. It will be observed that at lower temperatures, adsorbents tend to adsorb more molecules or atoms. It can be seen that zeolite type 5A and CMS have higher adsorption capacity compared to the other adsorbents. Likewise, it observes that the ranges in which the PSA process works for the production of medical oxygen range from 1 to 4 bar, which are lower compared to the other PSA processes for the production of bioethanol and biohydrogen.

The basic PSA process may be using only one bed, however up to two or three beds may be implemented. These adsorbent-packed columns can release heat energy in the adsorption step and adsorb it in the regeneration step. In this case, the PSA process for the production of medical oxygen does not contemplate very high pressures since it uses the heat produced to improve the regeneration capacity.

For the production of medical oxygen using the PSA process, there is a great variety of structures and configurations, but there is one in particular for the separation of oxygen, which is the Rapid Pressure Swing Adsorption (RPSA), this type of configuration has been shown in several works. Related to the production of medical oxygen and above 99% in purity, the times contemplated by this configuration are very short with very small columns. Table 15 shows the different works that exist.

Table 15

Works reported on the different configurations of PSA processes for purification of medical oxygen.

Reference	Experimental/simulated	PSA cycles	Pressure swing (kPa)	Bed regeneration time (min)	Oxygen feed (% molar fraction)
[83]	Experimental	1 bed4 steps	400 to 100	0.016	21
[90]	Simulated	2 beds5 steps	100 to 90	—	21
[91]	Simulated	4 beds7 steps	300 to 50	1.3	22
[79]	Experimental	2 beds6 steps	150 to 50	—	50
[75]	Simulated	6 beds9 steps	1000 to 100	—	21
[92]	Experimental	2 beds6 steps	355 to 101	0.33	90
[93]	Simulated	2 beds5 steps	150 to 100	0.1 to 2.1	—
[94]	Simulated	2 beds4 steps	250 to 75	0.666	20.8
[95]	Experimental	2 beds3 steps	250 to 100	0.166	21
[96]	Simulated	1 beds4 steps	—	0.083	20 to 50
[97]	Experimental	4 and 6 beds5 steps	250 to 101	0.5, 0.8, and 1	—

The scheme of the PSA process for the production of medical oxygen is shown in Figure 9. Two stainless steel columns with a length of 1 m are presented. Temperature sensors (RTD and PT 100) are provided along the column, providing data from the feed end to the top. Two pressure transducers placed on the flanges, the feed flow to the columns is controlled with a tank and regulating valve, concentration variations in the stages are analyzed with oxygen sensors.

Figure 9

Schematic diagram of the PSA process using 2-beds, 6-steps.

A wide variety of works that have developed numerical calculations with different simplifications or considerations applied to PSA processes for medical oxygen production.

Numerical methods techniques have been used to obtain an approximate solution of the PDEs that represent the complex model of the PSA process. Table 16 shows the different works that implement certain conditions to simplify the PSA mathematical model.

Table 16

Distributed parameter models of the PSA processes for medical oxygen production.

Reference	Equations governing the PSA process (nonlinear model)	Temperature effects	Pressure effects
[98]	4 PDEs	Does not present adsorption isotherms	Consider pressure gradient
[87]	3 PDEs	Consider adsorption isotherms	No pressure gradient
[94]	5 PDEs	Consider adsorption isotherms	Consider pressure gradient
[77]	3 PDEs	Consider adsorption isotherms	No pressure gradient
[88]	4 PDEs	Consider adsorption isotherms	Consider pressure gradient

The PSA process model used in this section is shown in Table 17. An energy balance equation is included, establishing that the temperatures in the solid and gas are constant and equal. The pressure drop is represented using the Ergun equation; Langmuir model was used to describe the adsorption isotherm. Mass transfer is represented using a linear driving force model based on solid charge. These equations represented by PDEs contemplate their initial and boundary conditions to obtain a solution in each step of the PSA process for medical oxygen production.

Table 17

Governing equations and simplifications for production and purification of medical oxygen.

Overall mass balances	$- D_{l} (\partial C_{i} / \partial_{z}^{2}) + (\partial (u c_{i}) / \partial_{z}) + (\partial c_{i} / \partial_{t}) + ρ_{p} (1 - ε / ε) (\bar{\partial} q_{i} / \partial_{t}) = 0$
Energy balance equation	$- K_{L} \frac{\partial^{2} T}{\partial_{z}^{2}} + ε ρ_{g} C_{pg} \frac{\partial (u T)}{\partial_{z}} + (ε_{t} ρ_{g} C_{pg + ρ_{B} C_{ps}}) \frac{\partial T}{\partial t} - ρ_{B} \sum_{i = 1}^{n} (\bar{-} Δ H) \frac{\bar{\partial} q_{i}}{\partial t} + \frac{2 h_{i}}{R_{B i}} (T - T_{W}) = 0$
Pressure drop	$- \frac{dP}{dz} = a μ u + b ρ u \|u\|,, a = \frac{150}{4 R_{p}^{2}} \frac{{(1 - ε)}^{2}}{ε^{2}},, b = 1.75 \frac{{(1 - ε)}^{2}}{2 R_{p}^{ε}})$
Multicomponent adsorption equilibrium	$q_{i} = \frac{q_{mi B_{i} P_{i}^{ni}}}{1 + \sum_{j = 1}^{n} B_{j} P_{j}^{nj}}$
LDF model	$\bar{\partial} q_{i} / \partial t = w_{i} (q_{i}^{*} - {\bar{q}}_{i}),, w_{i} = K D_{ei} / R_{p}^{2}$

Boundary and initial conditions
I. Pressurization
(i) $t = 0$	$c_{i} (Z, 0) = 0, {\bar{q}}_{i} (Z, 0) = 0, T_{i} = (Z, 0) = T_{0}, P_{i} (Z, 0) = P_{p}$
(ii) $z = 0$	$- (\frac{\partial c_{i}}{\partial Z}) = P e_{m} U (C_{i} \|z_{(= 0)} - C_{i}\| z_{= 0 + 1}), {\bar{q}}_{i} (0, t) = 0, T_{i} = (0, 1) = T_{0}, P_{i} (0, t) = P_{p}$
(iii) $z = L$	$(\frac{\partial c_{i}}{\partial Z}) = 0, (\frac{\partial T_{i}}{\partial Z}) = 0, (\frac{\partial P_{i}}{\partial Z}) = 0$
II. Adsorption
(i) $t = 0$	$c_{i} (Z, 0) = c_{i}^{(I)}, {\bar{q}}_{i} (Z, 0) = q_{i}^{(I)}, T_{i} = (Z, 0) = T_{i}^{(I)}, P_{i} (Z, 0) = P_{i}^{(I)}$
(ii) $z = 0$	$(\frac{\partial c_{i}}{\partial Z}) = 0, (\frac{\partial T_{i}}{\partial Z}) = 0, (\frac{\partial P_{i}}{\partial Z}) = 0$
(iii) $z = L$	$(\frac{\partial c_{i}}{\partial Z}) = 0, (\frac{\partial T_{i}}{\partial Z}) = 0, (\frac{\partial P_{i}}{\partial Z}) = 0$
III. First blowdown
(i) $t = 0$	$c_{i} (Z, 0) = c_{i}^{(I I)}, {\bar{q}}_{i} (Z, 0) = q_{i}^{(I I)}, T_{i} = (Z, 0) = T_{i}^{(I I)}, P_{i} (Z, 0) = P_{i}^{(I I)}$
(ii) $z = 0$	$(\frac{\partial c_{i}}{\partial Z}) = 0, (\frac{\partial T_{i}}{\partial Z}) = 0, (\frac{\partial P_{i}}{\partial Z}) = 0, F = F_{v a l v e}$
(iii) $z = L$	$(\frac{\partial c_{i}}{\partial Z}) = 0, (\frac{\partial T_{i}}{\partial Z}) = 0, (\frac{\partial P_{i}}{\partial Z}) = 0$
IV. Second blowdown
(i) $t = 0$	$c_{i} (Z, 0) = c_{i}^{(I I I)}, {\bar{q}}_{i} (Z, 0) = q_{i}^{(I I I)}, T_{i} = (Z, 0) = T_{i}^{(I I I)}, P_{i} (Z, 0) = P_{i}^{(I I I)}$
(ii) $z = 0$	$(\frac{\partial c_{i}}{\partial Z}) = 0, (\frac{\partial T_{i}}{\partial Z}) = 0, (\frac{\partial P_{i}}{\partial Z}) = 0, F = F_{v a l v e}$
(iii) $z = L$	$(\frac{\partial c_{i}}{\partial Z}) = 0, (\frac{\partial T_{i}}{\partial Z}) = 0, (\frac{\partial P_{i}}{\partial Z}) = 0$
V. Purge
(i) $t = 0$	$c_{i} (Z, 0) = c_{i}^{(I V)}, {\bar{q}}_{i} (Z, 0) = q_{i}^{(I V)}, T_{i} = (Z, 0) = T_{i}^{(I V)}, P_{i} (Z, 0) = P_{i}^{(I V)}$
(ii) $z = 0$	$(\frac{\partial c_{i}}{\partial Z}) = 0, (\frac{\partial T_{i}}{\partial Z}) = 0, (\frac{\partial P_{i}}{\partial Z}) = 0, F = F_{v a l v e}$
(iii) $z = L$	$(\partial c_{i} / \partial Z) = 0, (\partial T_{i} / \partial Z) = 0, (\partial P_{i} / \partial Z) = 0$

The works of Todd et al. and Webley and He [84, 99] were contemplated to structure the PSA model for medical oxygen production, this is shown in Table 17.

5.2. Parametric Study of the PSA Process for the Production of Medical Oxygen

Table 18 shows the parameters with which the process begins until reaching the CSS and obtaining a purity of medical oxygen of 95.00%.

Table 18

Start-up parameters of the PSA process for the purification and production of medical oxygen.

FEED
Flow	0.894	kmolh^-1
Nitrogen	0.78	kmolkmol^-1
Oxygen	0.22	kmolkmol^-1
Temperature	296.15	K
Production pressure	150	kPa
Purge pressure	20	kPa

SIZING
Bed height	1.8	m
Bed diameter	0.11	m
NaX zeolite
Particle radius	0.000985	m
Bulk solid density	911.72	Kg m⁻³

The results found from the start-up to reaching the CSS are shown in Figures 10 and 11.

Figure 10

Purification and production of medical oxygen from the start-up.

Figure 11

Sensitivity analysis applied to the PSA process for the production of medical oxygen.

(b)

Temperature: 296.15 K to 310.95 K; Flow: 0.89436528 kmolh^-1; Pressure: 150 kPa; Molar fraction: 0.78 (N₂) and 0.22 (O₂)

(c)

Flow: 0.89436528 kmolh^-1 to 0.849647016 kmolh^-1 Temperature: 296.15 K; Pressure: 150 kPa; Molar fraction: 0.78 (N₂) and 0.22 (O₂)

(d)

Flow: 0.89436528 kmolh^-1 to 0.939083544 kmolh^-1 Temperature: 296.15 K; Pressure: 150 kPa; Molar fraction: 0.78 (N₂) and 0.22 (O₂)

(e)

Pressure: 150 kPa to 142.5 kPa; Flow: 0.89436528 kmolh^-1; Temperature: 296.15 K; Molar fraction: 0.78 (N₂) and 0.22 (O₂)

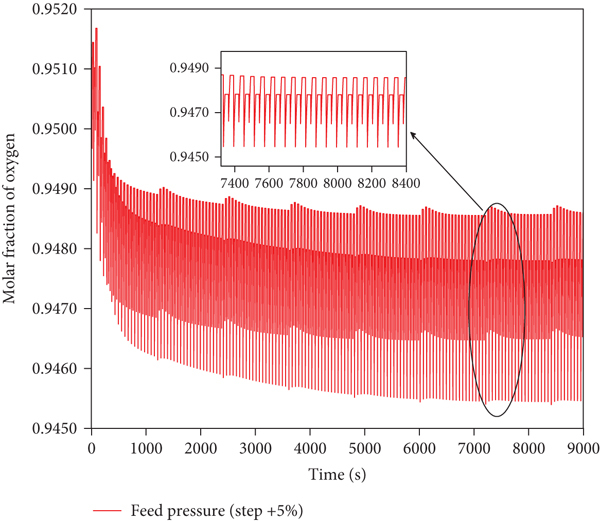

(f)

Pressure: 150 kPa to 157.5 kPa; Flow: 0.89436528 kmolh^-1; Temperature: 296.15 K; Molar fraction: 0.78 (N₂) and 0.22 (O₂)

(g)

Molar fraction: 0.78 (N₂) and 0.22 (O₂). to 0.741 (N₂) and 0.259 (O₂); Pressure: 150 kPa to 157.5 kPa; Flow: 0.89436528 kmolh^-1; Temperature: 296.15 K

(h)

Molar fraction: 0.78 (N₂) and 0.22 (O₂). to 0.819 (N₂) and 0.181 (O₂); Pressure: 150 kPa to 157.5 kPa; Flow: 0.89436528 kmolh^-1; Temperature: 296.15 K

Figure 10 shows the oxygen and nitrogen profiles. Between cycles 3 and 4, the molar fraction of oxygen experiences a drop, this is due to the fact that both beds start with atmospheric pressure, and this continues until the beds stabilize with the appropriate pressure of 150 kPa. Subsequently, the mole fraction of oxygen begins to rise, and that of nitrogen falls. These continue until reaching the CSS, which is fulfilled at 23 cycles, obtaining a medical oxygen purity of 95.00%.

Table 19 and Figure 11 show the changes made to the input variables and the results obtained on oxygen purity. The variation that was made while in the CSS was 0.5%.

Table 19

Analysis of the possible input variables that have the greatest effect on the purity obtained.

Run	Temperature (K)	Flow kmolh^-1	Pressure kPa	Composition nitrogen-oxygen	Purity % molar fraction of oxygen	Number of cycles
1	296.15	0.89436528	150	0.78-0.22	95.00	40
2	281.34	0.89436528	150	0.78-0.22	94.90	16
3	310.95	0.89436528	150	0.78-0.22	94.90	16
4	296.15	0.849647016	150	0.78-0.22	95.20	14
5	296.15	0.939083544	150	0.78-0.22	94.80	15
6	296.15	0.89436528	142.5	0.78-0.22	95.30	12
7	296.15	0.89436528	157.5	0.78-0.22	94.60	11
8	296.15	0.89436528	150	0.741-0.259	95.40	9
9	296.15	0.89436528	150	0.819-0.181	94.00	10

The results shown in Figure 11 demonstrate that all input variables have an effect on oxygen purity. However, the most outstanding variables are feed pressure and composition. A differentiator between these two variables is the purity is obtained. It is observed that by varying the feed composition, higher oxygen purity can be achieved with a shorter cycle time compared to that shown by the pressure variable. It is of great importance to be able to manipulate this variable since it can cause the purity to drop during the production and purification of medical oxygen.

Table 19 shows the detailed data of the results presented in Figure 8. It shows the cycle times, the purities, and the changes generated by each input variable.

6. Biomethane Purification by PSA

Biomethane is a gas generated from renewable resources, produced from organic matter (biomass, agricultural, industrial, urban waste, etc.). This has characteristics similar to natural gas and has great advantages over fossil fuels, which allow the reduction and dependency on external energy. This biogas can be applied in the market for the industry, domestic sector, and electricity generation. However, for this biogas to be used, it is necessary to separate it from the compound CO₂ and contaminants such as H₂S, which may be present in the gas with concentrations of CO₂ 35-50%, CH₄ 50-65%, H₂S up to 4000 ppm, and siloxanes of 0-20 mgm³. There are several technologies to produce biomethane, some of them are chemical absorption, water washing, membranes, pressure swing adsorption, and cryogenic. However, PSA has better advantages compared to the technologies mentioned, which are lower energy demand, higher biomethane recovery, separation of other possible compounds present in the biogas (N₂ and O₂), and it does not need H₂O.

6.1. Adsorption and Separation for the CH₄, CO₂ with Different Adsorbents

Isotherms for different single components of CO₂, CH₄, or CO were fitted using the BET, Langmuir, Freundlich, single or double-site isotherm. The isotherms are type I, II, and III. (see Figure 2).

There are different adsorbents to separate biogas and purify biomethane, these can be activated carbon, zeolite type 13X, clinoptilolite, etc. Table 20 simplifies the important points of each adsorbent, showing the adsorption parameters and capacities.

Table 20

Comparison of the thermodynamic values of various adsorbents as a function of different temperatures and pressures.

Reference	Adsorbents	Temperature K	Maximum adsorption capacity $Q (g g_{a d s}^{- 1})$	Langmuir constant (bar⁻¹)	Pressure Atm
[100]	Silicalite	313.15	0.125 (CO₂)	1.089	5

[5]	NaA zeolite	277	0.228(CO₂)	—	10
	ZSM/C	293	0.139(CO₂)	—	4
	T-type nanoparticles zeolite	288	0.21296(CO₂)	—	1
	13X zeolite	323	0.229(CO₂)	—	1
	SX-[bmim] [TF2N]	298	0.2234(CO₂)	—	20
	BphC18PMOP 1200	298	0.04092(CO₂)	—	1
	APTES@SHEPF	298	0.10516(CO₂)	—	1
	APTMS@PhC12PMO	298	0.03168(CO₂)	—	1

[101]	Silica gel	298.15	0.264(CO₂)	$8.609 \times 10^{- 6}$	1

[102]	CMS-3 K	323	0.1188(CO₂)	$12.74 \times 10^{- 6}$	6.5
	CMS-3 K	308	0.1012(CO₂)	$12.74 \times 10^{- 6}$	6.5
	CMS-3 K	298	0.088(CO₂)	$12.74 \times 10^{- 6}$	6.5

[103]	COSMO zeolite 13X	298	0.1936(CO₂)	0.149	3
	COSMO zeolite 13X	333	0.1364(CO₂)	0.149	3
	UOP zeolite 13X	298	0.2288(CO₂)	0.149	3
	UOP zeolite 13X	333	0.1584(CO₂)	0.149	3
	EIKME zeolite 13X	298	0.22(CO₂)	0.149	3
	EIKME zeolite 13X	333	0.132(CO₂)	0.149	3
	COSMO zeolite 5A	298	0.154(CO₂)	0.149	3
	COSMO zeolite 5A	333	0.1496(CO₂)	0.149	3
	Activated carbon	298	0.1276(CO₂)	0.149	3
	Activated carbon	333	0.0748(CO₂)	0.149	3

[104]	Potassium clinoptilolite N	573	0.00638(CO₂)	—	10
	Potassium clinoptilolite N	573	0.00286(CO₂)	—	11
	Potassium clinoptilolite N	573	0.00308(CO₂)	—	16
	Potassium clinoptilolite N	548	0.00616(CO₂)	—	10
	Potassium clinoptilolite N	548	0.00264(CO₂)	—	10
	Potassium clinoptilolite Z1	548	0.0044(CO₂)	—	10
	Potassium clinoptilolite Z1	523	0(CO₂)	—	—
	Potassium clinoptilolite Z1	523	0.002684(CO₂)	—	12.5
	Potassium clinoptilolite Z1	523	0.00484(CO₂)	—	20
	Potassium clinoptilolite Z1	498	0(CO₂)	—	10
	Potassium clinoptilolite Z2	498	0.003476(CO₂)	—	10
	Potassium clinoptilolite Z2	498	0.0044(CO₂)	—	10
	Potassium clinoptilolite Z2	473	0(CO₂)	—	10
	Potassium clinoptilolite Z2	473	0.00277(CO₂)	—	10
	Potassium clinoptilolite Z2	473	0.0044(CO₂)	—	10

[105]	MOF-508b	296.15	0.083(N₂)	0.12	5
[105]	CMS-3 K	296.15	0.080(N₂)	1.13	5

[106]	Zeolite 13X	313	0.176 (CO₂)	$2.93 \times 10^{- 10}$	1.5
[106]	Zeolite 13X	323	0.0924(CO₂)	$2.93 \times 10^{- 10}$	1.5

In Table 20, it can be seen that the adsorbents that have the highest adsorption capacity are zeolite type 13X, activated carbons and carbon molecular sieves, these zeolites are synthetic, however, clinoptilolite (natural zeolite) has good adsorption capacity despite being tested with high temperatures.

The design and configuration of the PSA for biomethane production depends largely on the properties of the adsorbent: adsorption load and diffusion, pressure, stable temperature, etc.

In Table 21, it can be seen that there are experimental and simulated works related to the production and purification of biomethane, some of them work with more than two columns; however, the classic configuration is two columns. The pressure values in which the process oscillates are above 300 kPa up to 1000 kPa. Therefore, for the production of biomethane, it is necessary to contemplate pressures above 300 kPa. Regeneration times are longer compared to PSA for the production of medical oxygen and bioethanol.

Table 21

Works reported on the different configurations of PSA processes for purification of biomethane.

Reference	Experimental/simulated	PSA cycles	Pressure swing (kPa)	Bed regeneration time (min)	Steam feed composition (% molar fraction of CH₄)
[105]	Experimental	2 bed	600-800 to 30-15	3.33-11.66	50-75
[105]	Experimental	6 steps	600-800 to 30-15	3.33-11.66	50-75
[102]	Simulated	2 beds	650	4.16667	55
[102]	Simulated	6 steps	650	4.16667	55
[103]	Simulated	1-2 beds	347-350	2.3-2.55 min	64
[103]	Simulated	3-6 steps	347-350	2.3-2.55 min	64
[101]	Experimental	2 beds	400	1.81667	55
[101]	Experimental	4 steps	400	1.81667	55
[100]	Simulated	3 beds	100	—	60
[100]	Simulated	10 steps	100	—	60

Figure 12 shows the flow diagram of the PSA process for the production of biomethane. The feed flow is compressed to a specific pressure, then it is injected into the packed columns with selective adsorbents on the CO₂ compound. As a final product, a highly pure CH₄ is obtained. Part of the flow is recirculated through the vacuum pump to purge the column being regenerated. This process continues cyclically until a biomethane purity above 99% is obtained.

Figure 12

Schematic diagram of the PSA process using 2-beds, 6-steps.

There are few works related to the production of biomethane, however, those found in the literature show a great contribution. Most of them are very complete works in describing their equations and propose models that consider both adsorption isotherms and pressure gradients. Table 22 shows some of them.

Table 22

Distributed parameter models of the PSA processes for biomethane production.

Reference	Equations governing the PSA process (nonlinear model)	Temperature effects	Pressure effects
[101]	4 PDEs	Consider adsorption isotherms	Consider pressure gradient
[102]	3 PDEs	Consider adsorption isotherms	No pressure gradient
[107]	4 PDEs	Consider adsorption isotherms	Consider pressure gradient
[103]	3 PDEs	Consider adsorption isotherms	No pressure gradient
[100]	4 PDEs	Consider adsorption isotherms	Consider pressure gradient

Table 23 shows a general model of the PSA process for biomethane production. The model was obtained from works the works of Abd et al., Ali et al., and Wu et al. [5, 101, 105]. The PSA cycle applied in this work consists of two integrated beds with four consecutive steps. The scheme of the cycle and its sequence are shown in Table 23. The Roman numerals represent the sequence of the steps, which are: (I) adsorption step; (II) blowdown step; (III) purge step; and (IV) repressurization step.

Table 23

Governing equations and simplifications for production and purification of biomethane.

The component $i$ mass balance	$- ε D_{a x} \frac{\partial y_{i}}{\partial z^{2}} + \frac{\partial (v_{g} c_{i})}{\partial z} + (ε_{b} + (1 - ε_{b}) ε_{p}) \frac{\partial c_{i}}{\partial t} + ρ_{p} (1 - ε_{b}) \frac{\partial q_{i}}{\partial t} = 0$
The energy balance	$((ε_{b} + (1 - ε_{b}) ε_{p}) \sum_{i = 1}^{N} c_{i} (C_{cpg, i} M_{i} - R) + (1 - ε_{b}) ρ_{s} C_{ps} + (1 - ε_{b}) ρ_{s} \sum_{i = 1}^{N} q_{i} (c_{pg, i} M_{i} - R)) \frac{\partial T}{\partial t} + v_{g} ρ_{g} \sum_{i = 1}^{N} C_{pg, i} M_{i} \frac{\partial T}{\partial Z} + ρ_{s} (1 - ε_{b}) \sum_{i = 1}^{N} \frac{\partial q_{i}}{\partial t} Δ H + 2 h \frac{T - T_{W}}{R_{b}} - (ε_{b} + ε_{p} (1 - ε_{b})) \frac{\partial P}{\partial t} - k_{g} \frac{\partial^{2} T}{\partial Z^{2}} = 0$
The momentum balance	$- \frac{\partial P}{\partial Z} = \frac{150 μ {(1 - ε_{p})}^{2}}{{(2 R_{p})}^{2} ε_{b}^{3}} V_{g} + 1.75 \frac{(1 - ε_{b}) ρ_{g}}{2 R_{p} ε_{b}^{3}} \|V_{g}\| V_{g}$
Extended Langmuir equation	$q_{i}^{*} = \frac{q_{m, i} b_{i} P_{i}}{1 + \sum_{i = 1}^{n} b_{i} P_{i}}, b_{i} = b_{0} ex p^{- (Δ H_{i} / R) (1 / T - (1 / 313 - 15))}$
LDF model	$\frac{\partial q_{i}}{\partial t} = 15 \frac{D_{c, i}}{R_{p}^{2}} (q_{i}^{*} - q_{i}), D_{c, i} = \frac{ε_{p} D_{k, i} D_{m}}{τ (D_{k, i} + D_{m})}$

Boundary and initial conditions
I. Adsorption step
(i) $t = 0$	$Y_{i} = inlet . Y_{i}, T = inlet . T, P = inlet . P$
(ii) $z = 0$	$V_{g} > 0, Y_{i} = inlet . Y_{i}, T = inlet . T, P = inlet . P$
(iii) $z = L$	$\frac{\partial Y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0, \frac{\partial P}{\partial z} = 0$
II. Blowdown step
(i) $t = 0$	$Y_{i} = Y_{i}^{(I)}, T = T^{(I)}, P = P^{(I)}$
(ii) $z = 0$	$\frac{\partial Y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0, \frac{\partial P}{\partial z} = 0$
(iii) $z = L$	$\frac{\partial Y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0, \frac{\partial P}{\partial z} = 0$
III. Purge step
(i) $t = 0$	$Y_{i} = Y_{i}^{(II)}, T = T^{(II)}, P = P^{(II)}$
(ii) $z = 0$	$\frac{\partial Y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0, \frac{\partial P}{\partial z} = 0$
(iii) $z = L$	$\frac{\partial Y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0, \frac{\partial P}{\partial z} = 0$
IV. Repressurization step
(i) $t = 0$	$Y_{i} = Y_{i}^{(III)}, T = T^{(III)}, P = P^{(III)}$
(ii) $z = 0$	$\frac{\partial Y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0, \frac{\partial P}{\partial z} = 0$
(iii) $z = L$	$\frac{\partial Y}{\partial z} = 0, \frac{\partial T}{\partial z} = 0, \frac{\partial P}{\partial z} = 0$

6.2. Parametric Study of the PSA Process for the Production of Biomethane

The parameters of this PSA process for the production and purification of biomethane are shown in the following Table 24.

Table 24

Start-up parameters of the PSA process for the purification and production of biomethane.

FEED
Flow	0.0719	kmolh^-1
Methane	0.65	kmolkmol^-1
CO₂	0.35	kmolkmol^-1
Temperature	298.15	T
Production pressure	1000	kPa
Purge pressure	100	kPa

SIZING
Bed height	1	m
Bed diameter	0.06	m
Zeolite 13X
Particle radius	0.00157	m
Bulk solid density	1160.0	Kg m⁻³

Figure 13 shows the methane and CO₂ profiles. The molar fraction of the methane rises in the first 3 cycles, this continues until reaching the CSS, which achieves a biomethane purity above 99%. On the other hand, the purity of CO₂ is declining.

Figure 13

Purification and production of biomethane from the start-up.

Figure 14 shows the results of the sensitivity analysis and it is observed that all the variables have the same effect taking into account a variation $of \pm 0.05 %$ . The effects shown on biomethane purity are small, but the flow variable can be taken into account as a possible variable to manipulate since it shows more outstanding profiles compared to the other variables. In order to better visualize this performance, it would be convenient to increase the variation value, in order to observe greater effects on biomethane purity.

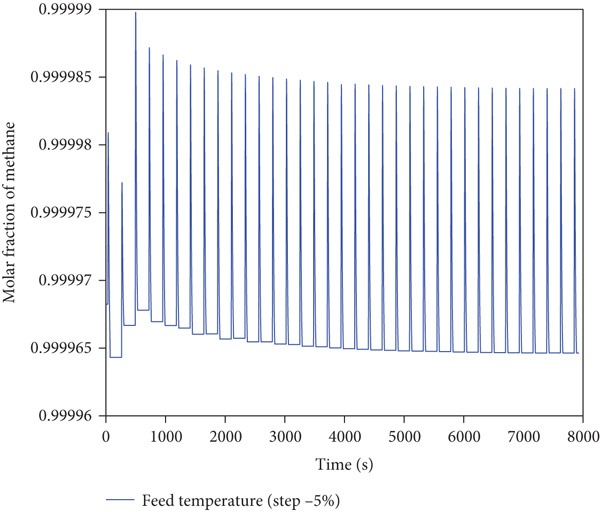

Figure 14

Sensitivity analysis applied to the PSA process for the production of biomethane.

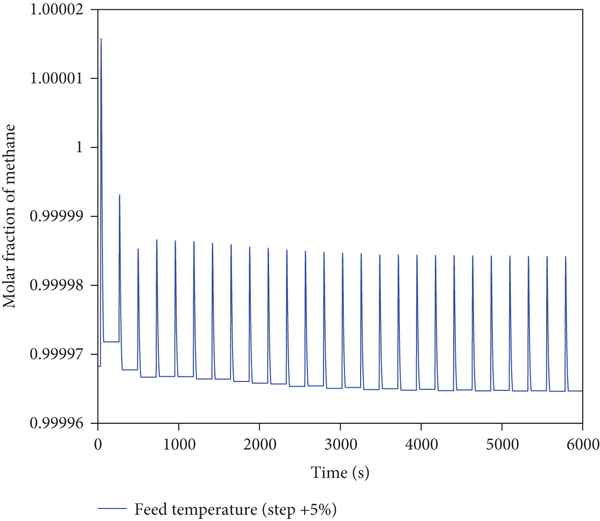

(b)

Temperature: 303.15 K to 318.30 K; Flow: 0.0719 kmolh^-1; Pressure: 400 kPa; Molar fraction: 0.65 (CH₄) and 0.35 (CO₂)

(c)

Flow: 0.0719 kmolh^-1 to 0.0683 kmolh^-1; Temperature: 303.15 K; Pressure: 400 kPa; Molar fraction: 0.65 (CH₄) and 0.35 (CO₂)

(d)

Flow: 0.0719 kmolh^-1 to 0.0755 kmolh^-1; Temperature: 303.15 K; Pressure: 400 kPa; Molar fraction: 0.65 (CH₄) and 0.35 (CO₂)

(e)

Pressure: 400 kPa to 380 kPa; Flow: 0.0719 kmolh^-1; Temperature: 303.15 K; Molar fraction: 0.65 (CH₄) and 0.35 (CO₂)

(f)

Pressure: 400 kPa to 420 kPa; Flow: 0.0719 kmolh^-1; Temperature: 303.15 K; Molar fraction: 0.65 (CH₄) and 0.35 (CO₂)

(g)

Molar fraction: 0.65 (CO₂) and 0.35 (CO₂) to 0.6175 (CH₄) and 0.3825 (CO₂); Pressure: 400 kPa; Flow: 0.0719 kmolh^-1; Temperature: 303.15 K

(h)

Molar fraction: 0.65 (CH₄) and 0.35 (CO₂) to 0.6825 (CH₄) and 0.175 (CO₂); Pressure: 400 kPa; Flow: 0.0719 kmolh^-1; Temperature: 303.15 K

Table 25 shows the detailed data of the results presented in Figure 14. It shows the cycle times, the purities, and the changes generated by each input variable.

Table 25

Analysis of the possible input variables that have the greatest effect on the purity obtained.

Run	Temperature(K)	Flow kmolh^-1	Pressure kPa	Composition CH₄-CO₂	Purity % molar fraction of CH₄	Number of cycles
1	303.15	0.0719	400	0.65-0.35	99.99	10
2	287.99	0.0719	400	0.65-0.35	99.9965	18
3	318.30	0.0719	400	0.65-0.35	99.997	13
4	303.15	0.0683	400	0.65-0.35	99.998	26
5	303.15	0.0755	400	0.65-0.35	99.996	18
6	303.15	0.0719	380	0.65-0.35	99.997	10
7	303.15	0.0719	420	0.65-0.35	99.9960	11
8	303.15	0.0719	400	0.6175-0.3825	99.9965	20
9	303.15	0.0719	400	0.6825-0.3175	99.9975	21

7. Conclusions

The phenomenon of adsorption with molecular sieves has a great contribution to separating atoms or molecules from a gas or mixture, but it has a greater impact and scope using the PSA method. In this contributing review, the importance of the PSA process to purify and produce bioethanol, biohydrogen, medical oxygen, and biomethane is demonstrated.

The tendency to use this process is referred to the scope it has to produce purities above 99%, this scope of purification that this PSA process has is of great importance since they meet international purity standards to be used as fuels.

In this review, the different adsorbents that can be used for the separation and purification of the compounds of ethanol, hydrogen, oxygen, and methane were summarized. The effects of temperature and pressure have a great effect on the adsorption capacity. Synthetic adsorbents show that they have a better adsorption capacity, but natural adsorbents can be a widely used alternative to adsorb different compounds of natural gas or mixture since they have pores of different sizes and this is a great advantage over synthetic adsorbents.

The different configurations and models of the PSA process were shown and analyzed, showing that it is of great importance to contemplate the greatest number of PDEs in order to have general balance data, mass balance moment balance, energy balance, wall balance, thermodynamic balance, and kinetic, this in relation to having an approximation of results to real plants.

A parametric study was carried out, which allowed observing the purity achieved and the cycle times that are reached by varying certain input parameters. These results show that not all variables have the same effect and that they may be insignificant in the effect that is generated on the purity obtained.

Likewise, it can be concluded that the parametric study that was carried out for each case of separation and production of compounds was a great contribution to defining one or two variables that can control the purity obtained as a final product. These variables can also be seen as disturbances since they are at the input of the PSA process and can affect it if not controlled in a secondary way.

As future works, controllers can be designed on these plants to maintain the desired purity stable and meet international standards to be used as fuel. Processes can be optimized based on the results obtained and have greater recovery and production of bioethanol, biohydrogen, medical oxygen, and biomethane.

Footnotes

Data Availability

The simulations data used to support the findings of this study are included in the article.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

Ihsanullah

Applications of MOFs as adsorbents in water purification: progress, challenges and outlook

Current Opinion in Environmental Science Health 2022 26, article 100335

3030519

10.1016/J.COESH.2022.100335

Ansone-bertina

Ozols

Arbidans

Dobkevica

Sarsuns

Vanags

Klavins

Metal–organic frameworks (MOFs) containing adsorbents for carbon capture

Energies 2022 15

3030519

3473

10.3390/EN15093473

Wiheeb

A. D.

Helwani

Kim

Othman

M. R.

Pressure swing adsorption technologies for carbon dioxide capture

Separation & Purification Reviews 2016 45

3030519

2 108 121

10.1080/15422119.2015.1047958

2-s2.0-84949482886

Zhu

Shi

Cai

Recent advances in elevated-temperature pressure swing adsorption for carbon capture and hydrogen production

Progress in Energy and Combustion Science 2019 75, article 100784

3030519

10.1016/J.PECS.2019.100784

2-s2.0-85068965504

Abd

A. A.

Othman

M. R.

Naji

S. Z.

Hashim

A. S.

Methane enrichment in biogas mixture using pressure swing adsorption: process fundamental and design parameters

Materials Today Sustainability 2021 11-12, article 100063

3030519

10.1016/J.MTSUST.2021.100063

Luberti

Ahn

Review of Polybed pressure swing adsorption for hydrogen purification

International Journal of Hydrogen Energy 2022 47

3030519

20 10911 10933

10.1016/J.IJHYDENE.2022.01.147

Hosseini

S. S.

Denayer

J. F.

Biogas upgrading by adsorption processes: mathematical modeling, simulation and optimization approach - a review

Journal of Environmental Chemical Engineering 2022 10

3030519

3, article 107483

10.1016/J.JECE.2022.107483

Shen

Tang

Zhang

A review of numerical research on the pressure swing adsorption process

Processes 2022 10

3030519

5 812

10.3390/PR10050812

Aspen plus|leading process simulation software|Aspen-tech

https://www.aspentech.com/en/products/engineering/aspen-plus

10.

González Hernández

A. J.

Avelino

García

Uscanga

Solano

Solución numérica del modelo en el proceso de adsorción para la deshidratación de etanol por medio de zeolitas

Congreso Nacional de Control Automático 2017

11.

Guan

Simulation and analysis of pressure swing adsorption: ethanol drying process by the electrical analogue, separation and purification technology

Separation And Purification Technology 2003 31

3030519

1 31 https://www-elsevier-com.web.bisu.edu.cn/locate/seppur

10.1016/S1383-5866(02)00151-X

2-s2.0-0037376466

12.

Yamamoto

Kim

Y. H.

Kim

B. C.

Endo

Thongprachan

Ohmori

Adsorption characteristics of zeolites for dehydration of ethanol: evaluation of diffusivity of water in porous structure

Chemical Engineering Journal 2012 181-182

3030519

443 448

10.1016/J.CEJ.2011.11.110

2-s2.0-84856356041

13.

Ivanova

Damgaliev

Kostova

Adsorption separation of ethanol-water liquid mixtures by natural clinoptilolite

Journal of the University of Chemical Technology and Metallurgy 2009 44

3030519

267 274

14.

Rumbo Morales

J. Y.

Perez Vidal

A. F.

Ortiz Torres

Salas Villalobo

A. U.

Sorcia Vázquez

F. D.

Brizuela Mendoza

J. A.

De-la-Torre

Valdez Martínez

J. S.

Adsorption and separation of the H2O/H2SO4 and H2O/C2H5OH mixtures: a simulated and experimental study

Processes 2020 8

3030519

290 https://www.mdpi.com/2227-9717/8/3/290/htmhttps://www.mdpi.com/2227-9717/8/3/290

10.3390/PR8030290

15.

Al-Asheh

Banat

Fara

A. A.

Dehydration of ethanol-water azeotropic mixture by adsorption through phillipsite packed-column

Separation Science and Technology 2009 44

3030519

13 3170 3188

10.1080/01496390903182479

2-s2.0-79952308768

16.

Huo

Zhang

Yang

Wei

Zhang

Yang

Zhang

Insight into the adsorption process of ethanol and water on the pore structure and surface chemistry properties engineered activated carbon fibers

Industrial Engineering Chemistry Research 2021 60

3030519

30 11141 11150

10.1021/acs.iecr.1c02005

17.

Son

Y. R.

Ryu

S. G.

Kim

H. S.

Rapid adsorption and removal of sulfur mustard with zeolitic imidazolate frameworks ZIF-8 and ZIF-67

Microporous and Mesoporous Materials 2020 293, article 109819

3030519

10.1016/J.MICROMESO.2019.109819

18.

Leo-Avelino

Urrea-Garcia

Gómez-Rodríguez

Perez-Correa

Aguilar-Uscanga

Natural Mexican clinoptilolite for ethanol dehydration: adsorption–regeneration experimental parameter determination and scaling–up at pilot plant

Revista Mexicana de Ingeniería Química 2021 20

3030519

3 1 11 http://www.rmiq.org/ojs311/index.php/rmiq/article/view/2358

10.24275/RMIQ/PROC2358

19.

Chang

Yuan

X. G.

Tian

Zeng

A. W.

Experimental study on the adsorption of water and ethanol by cornmeal for ethanol dehydration

Industrial and Engineering Chemistry Research 2006 45

3030519

11 3916 3921

10.1021/ie051043x

2-s2.0-33745761632

20.

Wang

Gong

Sun

Gao

Zheng

Separation of ethanol/water azeotrope using compound starch-based adsorbents

Bioresource Technology 2010 101

3030519

15 6170 6176

10.1016/J.BIORTECH.2010.02.102

2-s2.0-77951092485

20304634

21.

Delgado

J. A.

Uguina

M. A.

Sotelo

J. L.

Águeda

V. I.

García

Roldán

Separation of ethanol-water liquid mixtures by adsorption on silicalite

Chemical Engineering Journal 2012 180

3030519

137 144

10.1016/J.CEJ.2011.11.026

2-s2.0-84455169430

22.

Karimi

Ghobadian

Omidkhah

M. R.

Towfighi

Tavakkoli Yaraki

Experimental investigation of bioethanol liquid phase dehydration using natural clinoptilolite

Journal of Advanced Research 2016 7

3030519

3 435 444

10.1016/j.jare.2016.02.009

2-s2.0-84961590461

27222748

23.

Kupiec

Rakoczy

Zieliński

Georgiou

Adsorption-desorption cycles for the separation of vapour phase ethanol/water mixtures

Adsorption Science Technology 2008 26

3030519

3 209 224

10.1260/026361708786036098

2-s2.0-57749178822

24.

Ricardo

Soto

Síntesis, caracterización y evaluación de un tamiz molecular para la deshidratación de etanol azeotrópico, Ph. D. thesis 2012

Institutional Repository of Universidad Nacional de Columbia

25.

Kristóf

Csányi

É.

Rutkai

Merényi

Prediction of adsorption equilibria of water–methanol mixtures in zeolite NaA

Molecular Simulation 2007 32

3030519

10-11 869 875

10.1080/08927020600934179

2-s2.0-33750508317

26.

Carmo

Gubulin

Ethanol-water adsorption on commercial 3A zeolites: kinetic and thermodynamic data

Brazilian Journal of Chemical Engineering 1997 14

3030519

3 217 224 http://www.scielo.br/j/bjce/a/XnGLp8855JYfV7ckCLvsjzS/?lang=en

10.1590/S0104-66321997000300004

2-s2.0-0031223740

27.

Chaibi

Boucheffa

Bendjaballah-Lalaoui

TGA investigation of water and ethanol adsorption over LTA zeolites

Microporous and Mesoporous Materials 2021 324, article 111285

3030519

10.1016/J.MICROMESO.2021.111285

28.

Huang

H. J.

Ramaswamy

Tschirner

U. W.

Ramarao

B. V.

A review of separation technologies in current and future biorefineries

Separation and Purification Technology 2008 62

3030519

1 1 21

10.1016/J.SEPPUR.2007.12.011

2-s2.0-44749091074

29.

Simo

Sivashanmugam

Brown

C. J.

Hlavacek

Adsorption/desorption of water and ethanol on 3A zeolite in near-adiabatic fixed bed

Industrial and Engineering Chemistry Research 2009 48

3030519

20 9247 9260

10.1021/IE900446V

2-s2.0-70350318934

30.

Ebrahimiaqda

Ogden

K. L.

Simulation and cost analysis of distillation and purification step in production of anhydrous ethanol from sweet sorghum

ACS Sustainable Chemistry and Engineering 2017 5

3030519

8 6854 6862

10.1021/ACSSUSCHEMENG.7B01082

2-s2.0-85027238264

31.

Morales

J. Y.

López

G. L.

Martínez

V. M.

Vázquez

F. D.

Mendoza

J. A.

García

M. M.

Parametric study and control of a pressure swing adsorption process to separate the waterethanol mixture under disturbances

Separation and Purification Technology 2020 236, article 116214

3030519

10.1016/J.SEPPUR.2019.116214

32.

Rumbo-Morales

J. Y.

Lopez-Lopez

Alvarado

V. M.

Valdez-Martinez

J. S.

Sorcia-Vázquez

F. D.

Brizuela-Mendoza

J. A.

Simulation and control of a pressure swing adsorption process to dehydrate ethanol

Revista Mexicana de Ingeniera Quimica 2018 17

3030519

3 1051 1081

10.24275/UAM/IZT/DCBI/REVMEXINGQUIM/2018V17N3/RUMBO

2-s2.0-85053019076

33.

Pruksathorn

Vitidsant

Production of pure ethanol from azeotropic solution by pressure swing adsorption

Korean Journal of Chemical Engineering 2009 26

3030519

4 1106 1111

10.1007/S11814-009-0184-9

2-s2.0-84894046190

34.

Simo

Brown

C. J.

Hlavacek

Simulation of pressure swing adsorption in fuel ethanol production process

Computers and Chemical Engineering 2008 32

3030519

7 1635 1649

10.1016/J.COMPCHEMENG.2007.07.011

2-s2.0-42949146421

35.

Jeong

J.-S.

Jang

B.-U.

Kim

Y.-R.

Chung

B.-W.

Choi

G.-W.

Production of dehydrated fuel ethanol by pressure swing adsorption process in the pilot plant

Korean Journal of Chemical Engineering 2009 26

3030519

5 1308 1312

10.1007/S11814-009-0226-3

2-s2.0-77951560932

36.

Jeong

J. S.

Jeon

K. M.

Chung

Choi

G. W.

Production of anhydrous ethanol using various PSA (pressure swing adsorption) processes in pilot plant

Renewable Energy 2012 42

3030519

41 45

10.1016/J.RENENE.2011.09.027

2-s2.0-84855553409

37.

Gutiérrez-González

Urrea-García

Luna-Solano

Cantú-Lozano

Gómez-Rodriguez

Numerical solution of adsorption cycle in ethanol dehydration process

Procedia Manufacturing 2020 49

3030519

32 37

10.1016/j.promfg.2020.06.007

38.

Kang

K. E.

Jeong

J. S.

Kim

Min

Moon

S. K.

Development and economic analysis of bioethanol production facilities using lignocellulosic biomass

Journal of Bioscience and Bioengineering 2019 128

3030519

4 475 479

10.1016/j.jbiosc.2019.04.004

2-s2.0-85064647189

31031196

39.

Morales

J. Y.

Mendoza

J. A.

Torres

G. O.

Vázquez

F. D.

Rojas

A. C.

Vidal

A. F.

Fault-tolerant control implemented to Hammerstein-Wiener model: application to bio-ethanol dehydration

Fuel 2022 308, article 121836

3030519

10.1016/J.FUEL.2021.121836

40.

Zhang

Sui

Yang

Liu

Adsorption–desorption behaviors of methanol and ethyl acetate on silica gel: modeling and experimental tests

Industrial Engineering Chemistry Research 2021 60

3030519

4 1829 1838

10.1021/ACS.IECR.0C05205

41.

Renteria-Vargas

E. M.

Zuniga Aguilar

C. J.

Rumbo Morales

J. Y.

Vazquez

F. D. J. S.

De-La-Torre

Cervantes

J. A.

Bustos

E. S.

Calixto Rodriguez

Neural network-based identification of a PSA process for production and purification of bioethanol

IEEE Access 2022 10

3030519

27771 27782

10.1109/ACCESS.2022.3155449

42.

Lee

J.-J.

Kim

M.-K.

Lee

D.-G.

Ahn

Kim

M.-J.

Lee

C.-H.

Heat-exchange pressure swing adsorption process for hydrogen separation

AICHE Journal 2008 54

3030519

8 2054 2064

10.1002/aic.11544

2-s2.0-49049103732

43.

Xiao

Peng

Bénard

Chahine

Thermal effects on breakthrough curves of pressure swing adsorption for hydrogen purification

International Journal of Hydrogen Energy 2016 41

3030519

19 8236 8245

10.1016/J.IJHYDENE.2015.11.126

2-s2.0-84950335895

44.

Zhu

Wang

Shi

Cai

Layered double oxide/activated carbon-based composite adsorbent for elevated temperature H₂/CO₂ separation

International Journal of Hydrogen Energy 2015 40

3030519

30 9244 9253

10.1016/j.ijhydene.2015.05.116

2-s2.0-84937517552

45.

Zhu

Shi

Cai

Yang

Techno-economic evaluation of an elevated temperature pressure swing adsorption process in a 540 MW IGCC power plant with CO₂ capture

Energy Procedia 2014 63

3030519

2016 2022

10.1016/J.EGYPRO.2014.11.216

2-s2.0-84922936161

46.

Zhu

Shi

Cai

Anthony

E. J.

CHAPTER 5: system and processes of pre-combustion carbon dioxide capture and separation

Pre-combustion Carbon Dioxide Capture Materials 2018 281 334

10.1039/9781788013390-00281

47.

Kothari

Buddhi

Sawhney

Sources and technology for hydrogen production: a review

International Journal of Global Energy Issues 2004 21

3030519

1/2 154 178

10.1504/IJGEI.2004.004707

48.

Akhlaghi

Najafpour-Darzi

A comprehensive review on biological hydrogen production

International Journal of Hydrogen Energy 2020 45

3030519

43 22492 22512

10.1016/j.ijhydene.2020.06.182

49.

Balachandar

Varanasi

J. L.

Singh

Das

Biological hydrogen production via dark fermentation: a holistic approach from lab-scale to pilot-scale

International Journal of Hydrogen Energy 2020 45

3030519

8 5202 5215

10.1016/j.ijhydene.2019.09.006

2-s2.0-85072404695

50.

Liemberger

Groß

Miltner

Harasek

Experimental analysis of membrane and pressure swing adsorption (PSA) for the hydrogen separation from natural gas

Journal of Cleaner Production 2017 167

3030519

896 907

10.1016/j.jclepro.2017.08.012

2-s2.0-85028319795

51.

Sircar

Golden

T. C.

Purification of hydrogen by pressure swing adsorption

Separation Science and Technology 2006 35

3030519

5 667 687

10.1081/SS-100100183

2-s2.0-0034117529

52.

Kim

M.-B.

Bae

Y.-S.

Ahn

Lee

C.-H.

Comparison of adsorption dynamics in kinetic and equilibrium beds in hydrogen ternary system

Separation science and technology 2010 39

3030519

13 2951 2976

10.1081/SS-200035947

2-s2.0-5444243720

53.

Bae

Y. S.

Lee

C. H.

Sorption kinetics of eight gases on a carbon molecular sieve at elevated pressure

Carbon 2005 43

3030519

1 95 107

10.1016/j.carbon.2004.08.026

2-s2.0-9444223888

54.

Zhang

Bénard

Chahine

Yang

Xiao

Optimization of pressure swing adsorption for hydrogen purification based on box-Behnken design method

International Journal of Hydrogen Energy 2021 46

3030519

7 5403 5417

10.1016/J.IJHYDENE.2020.11.045

55.

Tao

Xiao

Bénard

Chahine

Simulation and optimization for hydrogen purification performance of vacuum pressure swing adsorption

Energy Procedia 2019 158

3030519

1917 1923

10.1016/J.EGYPRO.2019.01.441

2-s2.0-85063868050

56.

Silva

Solomon

Ribeiro

A. M.

Lee

U. H.

Hwang

Y. K.

Chang

J. S.

Loureiro

J. M.

Rodrigues

A. E.

H2 purification by pressure swing adsorption using CuBTC

Separation and Purification Technology 2013 118

3030519

744 756

10.1016/J.SEPPUR.2013.08.024

2-s2.0-84883811706

57.

Xiao

Fang

Bénard

Chahine

Parametric study of pressure swing adsorption cycle for hydrogen purification using cu-BTC

International Journal of Hydrogen Energy 2018 43

3030519

30 13962 13974

10.1016/J.IJHYDENE.2018.05.054

2-s2.0-85047820118

58.

Yavary

Ebrahim

H. A.

Falamaki

The effect of number of pressure equalization steps on the performance of pressure swing adsorption process

Chemical Engineering and Processing: Process Intensification 2015 87

3030519

35 44

10.1016/J.CEP.2014.11.003

2-s2.0-84911367871

59.

Subraveti

S. G.

Pai

K. N.

Rajagopalan

A. K.

Wilkins

N. S.

Rajendran

Jayaraman

Alptekin

Cycle design and optimization of pressure swing adsorption cycles for pre- combustion CO₂ capture

Applied Energy 2019 254, article 113624

3030519

10.1016/J.APENERGY.2019.113624

2-s2.0-85073706313

60.

Ohs

Falkenberg

Wessling

Optimizing hybrid membrane-pressure swing adsorption processes for biogenic hydrogen recovery

Chemical Engineering Journal 2019 364

3030519

452 461

10.1016/J.CEJ.2019.01.136

2-s2.0-85060979419

61.

Moreira

R. F.

Soares

J. L.

Casarin

G. L.

Rodrigues

A. E.

Adsorption of CO2 on hydrotalcite-like compounds in a fixed bed

Separation Science And Technology 2007 41

3030519

2 341 357

10.1080/01496390500496827

2-s2.0-33244455878

62.

Harale

Hwang

H. T.

Liu

P. K.

Sahimi

Tsotsis

T. T.

Experimental studies of a hybrid adsorbent-membrane reactor (HAMR) system for hydrogen production

Chemical Engineering Science 2007 62

3030519

15 4126 4137

10.1016/J.CES.2007.04.023

2-s2.0-34347366232

63.

Hufton

J. R.

Mayorga

Sircar

Sorption-enhanced reaction process for hydrogen production

AICHE Journal 1999 45

3030519

2 248 256

10.1002/AIC.690450205

2-s2.0-0033082355

64.

Ding

Alpay

Equilibria and kinetics of CO₂ adsorption on hydrotalcite adsorbent

Chemical Engineering Science 2000 55

3030519

17 3461 3474

10.1016/S0009-2509(99)00596-5

2-s2.0-0034685599

65.

Lee

K. B.

Verdooren

Caram

H. S.

Sircar

Chemisorption of carbon dioxide on potassium-carbonate-promoted hydrotalcite

Journal of Colloid and Interface Science 2007 308

3030519

1 30 39

10.1016/J.JCIS.2006.11.011

2-s2.0-33846826617

17250846

66.

Yang

S.-I.

Choi

D.-Y.

Jang

S.-C.

Kim

S.-H.

Choi

D.-K.

Hydrogen separation by multi-bed pressure swing adsorption of synthesis gas

Adsorption 2008 14

3030519

4 583 590

10.1007/s10450-008-9133-x

2-s2.0-51849083348

67.

Jiang

Dai

Ruan

Pressure swing adsorption/membrane hybrid processes for hydrogen purification with a high recovery

Frontiers of Chemical Science and Engineering 2016 10

3030519

2 255 264

10.1007/S11705-016-1567-1

2-s2.0-84963706213

68.

Hao

Shi

Zhu

Cai

Correlations between adsorbent characteristics and the performance of pressure swing adsorption separation process

Fuel 2018 230

3030519

9 17

10.1016/J.FUEL.2018.05.030

2-s2.0-85046748987

69.

Schell

Casas

Marx

Mazzotti

Precombustion CO2Capture by pressure swing adsorption (PSA): comparison of laboratory PSA experiments and simulations

Industrial and Engineering Chemistry Research 2013 52

3030519

24 8311 8322

10.1021/ie3026532

2-s2.0-84879342090

70.

Moon

D. K.

Park

H. T.

Kim

S. H.

Lee

C. H.

Performance analysis of an eight-layered bed PSA process for H₂ recovery from IGCC with pre-combustion carbon capture

Energy Conversion and Management 2018 156

3030519

202 214

10.1016/J.ENCONMAN.2017.11.013

2-s2.0-85033560428

71.

Moon

D. K.

Lee

D. G.

Lee

C. H.

H₂ pressure swing adsorption for high pressure syngas from an integrated gasification combined cycle with a carbon capture process

Applied Energy 2016 183

3030519

760 774

10.1016/J.APENERGY.2016.09.038

2-s2.0-84988422740

72.

Martínez García

Rumbo Morales

J. Y.

Torres

G. O.

Rodríguez Paredes

S. A.

Vázquez Reyes

Sorcia Vázquez

F. D.

Pérez Vidal

A. F.

Valdez Martínez

J. S.

Pérez Zúñiga

Renteria Vargas

E. M.

Simulation and state feedback control of a pressure swing adsorption process to produce hydrogen

Mathematics 2022 10

3030519

10 1762

10.3390/MATH10101762

73.

Suzuki

Eastwood

G. M.

Glassford

N. J.

Peck

Young

Garcia-Alvarez

Schneider

A. G.

Bellomo

Conservative oxygen therapy in mechanically ventilated patients

Critical Care Medicine 2014 42

3030519

6 1414 1422 https://okayama.pure.elsevier.com/en/publications/conservative-oxygen-therapy-in-mechanica-\lly-ventilated-patients-a

10.1097/CCM.0000000000000219

2-s2.0-84901495902

74.

Munro

L. A.

A modification of the pyrogallol method for determining the amount of oxygen in the air

Journal of Chemical Education 1928 5

3030519

6 741 742

10.1021/ed005p741

75.

Todur

Chaudhuri

Eeshwar

Teckchandani

Venkateswaran

Oxygen sources and delivery devices: essentials during COVID-19

Indian Journal of Respiratory Care 2021 10

3030519

2 171

10.4103/IJRC.IJRC_63_21

76.

Chai

S. W.

Kothare

M. V.

Sircar

Rapid pressure swing adsorption for reduction of bed size factor of a medical oxygen concentrator

Industrial and Engineering Chemistry 2011 50

3030519

14 8703 8710

10.1021/IE2005093

2-s2.0-79960374602

77.

Qadir

Yuan

Zhao

Wang

Experimental and numerical analysis on the enhanced separation performance of a medical oxygen concentrator through two-bed rapid pressure swing adsorption

Industrial and Engineering Chemistry Research 2021 60

3030519

16 5903 5913

10.1021/acs.iecr.1c00420

78.

C. W.

Vemula

R. R.

Kothare

M. V.

Sircar

Experimental study of a novel rapid pressure-swing adsorption based medical oxygen concentrator: effect of the adsorbent selectivity of N2 over O2

Industrial and Engineering Chemistry Research 2016 55

3030519

16 4676 4681

10.1021/acs.iecr.5b04570

2-s2.0-84966394815

79.

Banaszkiewicz

Chorowski

Energy consumption of air-separation adsorption methods

Entropy 2018 20

3030519

4 232

10.3390/E20040232

2-s2.0-85045845972

80.

Jin

Malek

Farooq

Production of argon from an oxygen-argon mixture by pressure swing adsorption

Industrial and Engineering Chemistry Research 2006 45

3030519

16 5775 5787

10.1021/ie060113c

2-s2.0-33748324874

81.

Kim

M. B.

Jee

J. G.

Bae

Y. S.

Lee

C. H.

Parametric study of pressure swing adsorption process to purify oxygen using carbon molecular sieve

Industrial and Engineering Chemistry Research 2005 44

3030519

18 7208 7217

10.1021/ie049032b

2-s2.0-24944464244

82.

Ruthven

D. M.

Farooq

Air separation by pressure swing adsorption

Gas Separation Purification 1990 4

3030519

3 141 148

10.1016/0950-4214(90)80016-E

2-s2.0-0342730255

83.

Rama Rao

Farooq

Krantz

W. B.

Design of a two-step pulsed pressure-swing adsorption-based oxygen concentrator

AICHE Journal 2009 56

3030519

2 354 370

10.1002/AIC.11953

2-s2.0-74349117271

84.

Todd

R. S.

Webley

P. A.

Beh

Wilson

Lloyd

M. A.

Fast finite-volume method for PSA/VSA cycle simulation experimental validation

Industrial and Engineering Chemistry Research 2001 40

3030519

14 3217 3224

10.1021/ie0008070

2-s2.0-0035844951

85.

Santos

J. C.

Cruz

Regala

Magalhães

F. D.

Mendes

High-purity oxygen production by pressure swing adsorption

Industrial and Engineering Chemistry Research 2007 46

3030519

2 591 599

10.1021/ie060400g

2-s2.0-33847099242

86.

Sircar

Kratz

W. C.

A pressure swing adsorption process for production of 23–50 air

Separation Science and Technology 2006 23

3030519

4-5 437 450

10.1080/01496398808060715

2-s2.0-0023995416

87.

Zhu

Liu

Yang

Liu

Study of a novel rapid vacuum pressure swing adsorption process with intermediate gas pressurization for producing oxygen

Adsorption 2017 23

3030519

1 175 184

10.1007/S10450-016-9843-4

2-s2.0-84996497500

88.

H. C.

Lin

Y. S.

Deng

Simulation and optimization of pressure swing adsorption process for high-temperature air separation by perovskite sorbents

Chemical Engineering Journal 2018 354

3030519

62 74

10.1016/J.CEJ.2018.07.080

2-s2.0-85051000215

89.

Zheng

Liu

Two-dimensional modeling of the transport phenomena in the adsorber during pressure swing adsorption process

Industrial and Engineering Chemistry Research 2010 49

3030519

22 11814 11824

10.1021/ie100474n

2-s2.0-78449295498

90.

Chang

C. S.

S. H.

Yang

H. S.

Chou

C. T.

Simulation study of separating oxygen from air by pressure swing adsorption process with semicylindrical adsorber

Journal of the Taiwan Institute of Chemical Engineers 2021 120

3030519

67 76

10.1016/J.JTICE.2021.03.027

91.

Chou

C. T.

Huang

W. C.

Simulation of a four-bed pressure swing adsorption process for oxygen enrichment

Industrial and Engineering Chemistry Research 1994 33

3030519

5 1250 1258

10.1021/ie00029a022/asset/ie00029a022

92.

Jee

J. G.

Kim

M. B.

Lee

C. H.

Pressure swing adsorption processes to purify oxygen using a carbon molecular sieve

Chemical Engineering Science 2005 60

3030519

3 869 882

10.1016/J.CES.2004.09.050

2-s2.0-10044238889

93.

Liu

Zhang

Cao

Yang

Liu

Habyarimana

J. B.

Cui

Wang

Yang

R. T.

Effect of intermittent purge on O2 production with rapid pressure swing adsorption technology

Adsorption 2020 27

3030519

2 181 189

10.1007/S10450-020-00284-7

94.

Skvortsov

S. A.

Akulinin

E. I.

Golubyatnikov

O. O.

Dvoretsky

D. S.

Dvoretsky

S. I.

Mathematical modelling of cyclic pressure swing adsorption processes

Journal of Physics: Conference Series 2018 1015

3030519

3, article 032002

10.1088/1742-6596/1015/3/032002

2-s2.0-85047776352

95.

Santos

J. C.

Portugal

A. F.

Magalhães

F. D.

Mendes

Simulation and optimization of small oxygen pressure swing adsorption units

Industrial and Engineering Chemistry Research 2004 43

3030519

26 8328 8338

10.1021/ie049701l

96.

Sircar

Hanley

B. F.

Production of oxygen enriched air by rapid pressure swing adsorption

Adsorption 1995 1

3030519

4 313 320

10.1007/bf00707354

2-s2.0-0029476722

97.

Zhu

Liu

Yang

R. T.

Effects of operating temperature on the performance of small scale rapid cycle pressure swing adsorption air separation process

Adsorption 2020 27

3030519

2 205 212

10.1007/S10450-020-00266-9

98.

Urich

M. D.

Vemula

R. R.

Kothare

M. V.

Multi-model predictive control of a novel rapid pressure swing adsorption system

Proceedings of the American Control Conference

2017

Seattle, WA, USA

4392 4397

10.23919/ACC.2017.7963631

2-s2.0-85027080104

99.

Webley

P. A.

Fast solution-adaptive finite volume method for PSA/VSA cycle simulation; 1 single step simulation

Computers Chemical Engineering 2000 23

3030519

11-12 1701 1712

10.1016/S0098-1354(99)00320-8

2-s2.0-0034606581

100.

Yin

Sun

Yang

Zhang

Optimization of three-bed VPSA system for biogas upgrading

Chemical Engineering Science 2015 135

3030519

100 108

10.1016/J.CES.2015.06.022

2-s2.0-84948716714

101.

Ali Abd

Roslee Othman

Biogas upgrading to fuel grade methane using pressure swing adsorption: parametric sensitivity analysis on an industrial scale

Fuel 2022 308, article 121986

3030519

10.1016/J.FUEL.2021.121986

102.

Kottititum

Srinophakun

Phongsai

Phung

Q. T.

Optimization of a six-step pressure swing adsorption process for biogas separation on a commercial scale

Applied Sciences 2020 10

3030519

14 4692 https://www.mdpi.com/2076-3417/10/14/4692/htmhttps://www.mdpi.com/2076-3417/10/14/4692

10.3390/APP10144692

103.

Chen

Y. F.

Lin

P. W.

Chen

W. H.

Yen

F. Y.

Yang

H. S.

Chou

C. T.

Biogas upgrading by pressure swing adsorption with design of experiments

Processes 2021 9

3030519

1325 https://www.mdpi.com/2227-9717/9/8/1325/htmhttps://www.mdpi.com/2227-9717/9/8/1325

10.3390/PR9081325

104.

García Franco

Hernández

M. Á.

Portillo Reyes

Petranovskii

Rubio

Quiroz Estrada

K. F.

García Franco

Hernández

M. Á.

Portillo Reyes

Petranovskii

Rubio

Quiroz Estrada

K. F.

Adsorciód de CO2, H2 y CH4 en zeolitas naturales de poro agosto

Revista Internacional De Contaminación Ambiental 2018 34

3030519

4 685 696 http://www.scielo.org.mx/scielo.php?script=sci_arttextpid=S0188-49992018000400685lng=esnrm=isotlng=eshttp://www.scielo.org.mx/scielo.php?script=sci_abstractpid=S0188-49992018000400685 lng=es nrm=isotlng=es

10.20937/RICA.2018.34.04.10

2-s2.0-85056303285

105.

Zhang

Bao

Zhang

Assessment of the energy consumption of the biogas upgrading process with pressure swing adsorption using novel adsorbents

Journal of Cleaner Production 2015 101

3030519

251 261

10.1016/J.JCLEPRO.2015.03.082

2-s2.0-84930375592

106.

Patrícia

Santos

Alírio

Grande

Advanced modelling of PSA processes for biogas upgrading Ph.D. thesis 2011

Faculdade de Engenharia Universidade do Porto

107.

Norani

A. A.

Ahmad

Abdullah

T. A.

Ripin

Parametric study of CO2 separation using carbon molecular sieve, zeolite and silica gel

IOP Conference Series: Materials Science and Engineering 2020 808

3030519

1, article 012041

10.1088/1757-899X/808/1/012041

Review of the Pressure Swing Adsorption Process for the Production of Biofuels and Medical Oxygen: Separation and Purification Technology

Abstract

1. Introduction

2. Schematic and Modeling of the PSA Process

2.1. Mass Balance

2.2. Solid Phase Energy Balance

2.3. Wall Energy Balance

2.4. Momentum Balance

2.5. Kinetic Models

2.6. Lumped Resistance

2.6.1. Thermodynamic Equilibrium: Langmuir as a Function of Pressure and Concentration

3. Bioethanol Purification by PSA

3.1. Adsorption and Separation for the Ethanol-Water Mixture with Different Adsorbents

3.2. Mathematical Models, Characteristics, and Configuration of the PSA Process for the Production of Bioethanol

3.3. Parametric Study of the PSA Process for the Production of Bioethanol

4. Biohydrogen Purification by PSA

4.1. Adsorption and Separation for the CO, CO2, Nitrogen, Methane, Water, H2S, and Hydrogen Mixture with Different Adsorbents

4.2. Mathematical Models, Characteristics, and Configuration of the PSA Process for the Production of Biohydrogen

4.3. Parametric Study of the PSA Process for the Production of Biohydrogen

5. Medical Oxygen Purification by PSA

5.1. Adsorption and Separation for the O2, N2, and Ar with Different Adsorbents

5.2. Parametric Study of the PSA Process for the Production of Medical Oxygen

6. Biomethane Purification by PSA

6.1. Adsorption and Separation for the CH4, CO2 with Different Adsorbents

6.2. Parametric Study of the PSA Process for the Production of Biomethane

7. Conclusions

Footnotes

Data Availability

Conflicts of Interest

References

4.1. Adsorption and Separation for the CO, CO₂, Nitrogen, Methane, Water, H₂S, and Hydrogen Mixture with Different Adsorbents

5.1. Adsorption and Separation for the O₂, N₂, and Ar with Different Adsorbents

6.1. Adsorption and Separation for the CH₄, CO₂ with Different Adsorbents
