Adsorption-Desorption Surface Bindings,Kinetics,and Mass Transfer Behavior of Thermally and Chemically Treated Great Millet Husk towards Cr(VI) Removal from Synthetic Wastewater

Abstract

This study reports the efficacy of adsorbents synthesized by thermal (TT-GMH) and chemical (CT-GMH) modification of great millet husk (GMH) for the treatment of synthetic wastewater containing Cr(VI). The chemical modification of raw GMH was done by concentrated H₂SO₄ to increase the porosity and heterogeneity on the surface. The comparative investigations of physicochemical properties of synthesized adsorbents were examined by point of zero charge (pH_pzc), BET surface area, SEM-EDX, FTIR, and XRD analyses. The results revealed that CT-GMH had around three times higher surface area and more porous structure as compared to TT-GMH. The adsorption experiments were executed in batch mode to examine the impact of parameters governing the adsorption process. For Cr(VI) solution of 25 mg/L, adsorbent dose of 4 g/L, temperature of 25 $^{°} C$ , and shaking speed of 150 RPM, the maximum removal for TT-GMH was attained at pH 1 and contact time 150 min, while for CT-GMH, maximum removal was attained at pH 2 and contact time 120 min. The experimental results fitted to the rate kinetic equations showed that for both TT-GMH and CT-GMH, adsorbents followed the quasi-second-order kinetic model during the adsorption process. Further, results revealed that the adsorption process was endothermic and Sips isotherm model was followed for both TT-GMH and CT-GMH. Based on the Sips isotherm, maximum uptake capacity for TT-GMH and CT-GMH was noted to be 16 and 22.21 mg/g, respectively. Among the tested mass transfer models, liquid film diffusion model was followed during the adsorption process of both the adsorbents. The desorption study revealed that TT-GMH and CT-GMH give 69.45% and 74.48% removal, respectively, up to six cycles.

1. Introduction

Toxic heavy metals and dyes pertaining to water pollution have been a serious concern for environmental and ecological researchers. Rapid industrialization and regular human activities are mainly responsible for the increment of these pollutants in the environment and cause side effects and severe health issues to humans, live animals, and plant development [1]. Chromium, a heavy and d-block metal, exists in the trivalent (Cr(III)) and hexavalent (Cr(VI)) state in wastewater. Compared to Cr(VI), Cr(III) is insoluble and also an essential nutrient in small quantities required by microorganisms and humans to control the insulin, sugar, and lipid metabolism [2], while amounts of Cr(VI) are highly lethal because of its carcinogenic, mutagenic, and teratogenic effects [3–5]. The Cr(VI) is present in the effluents from alloy making processes, tanneries, wood preservation paint and pigments, electroplating, and stainless steel industries [4, 6]. The permissible limit for Cr(VI) in industrial effluents is limited to 2 mg/L, and in potable water, it is restricted to 0.05 to 0.1 mg/L by Indian Standards (IS), World Health Organization (WHO), and United States Environmental Protection Agency (USEPA) [2, 7]. The industries must treat their effluent by an economical water treatment technology to reduce Cr(VI) concentrations up to the tolerance limit. Then, the treated effluent is discharged into the aquatic ecosystem or environment.

The technologies such as chemical precipitation [7], electrochemical precipitation [8], chemical coagulation [9], adsorption [2, 4], photocatalysis [10], solvent extraction [11], ion exchange [12], and membrane separation [13] are advance technologies that are used for the treatment of Cr(VI) from industrial wastewater. Except for adsorption, other technologies cannot be used for industrial-scale operation due to low removal efficiency towards Cr(VI), low selectivity for target pollutant species, high operational cost, and the probability of generation of by-product which may be toxic [2, 14]. Adsorption process is an attractive alternative treatment process to effectively remove Cr(VI) ions from wastewater due to low cost of operation, lesser consumption of hazardous chemicals, and minimum production of treated waste [2, 4, 15, 16].

Several low-cost adsorbents have been used to remove pollutant ions from wastewater; these include nonliving biomass, waste biomass, algal biomass, or microbial biomass [17]. Also, activated carbon, nanoporous activated carbon, biochar, and chemically modified biochar prepared from aloe vera waste [18], garlic stem [19], and coconut shell [20] were also used for adsorption of pollutant species from wastewater. For reducing the Cr(VI) ion concentration from the aqueous solution, adsorbents such as waste tea [21], raw straw [22], rice husk [23], orange peel [24], walnut shell [25], Ziziphus jujuba cores as waste lignocellulosic material [26], and eggshell membranes of different birds [27] had been investigated. In the present study, abundantly available agricultural waste of sorghum bicolor (great millet husk, (GMH)) husk has been used as a raw material for producing cost-effective adsorbent by thermal and chemical treatment. The physicochemical properties of prepared adsorbents were examined by point of zero charge (pH_pzc), Brunauer-Emmett-Teller (BET) surface area, scanning electron microscopy coupled with energy dispersive X-ray (SEM-EDX), Fourier transform infrared spectroscopy (FTIR), and X-ray diffraction (XRD) analyses. The influence of the initial pH of Cr(VI) solution and adsorbent dose was examined to obtained the optimum value of pH and dose for Cr(VI) uptake onto TT-GMH and CT-GMH adsorbents. The kinetic and isotherm models for the removal of Cr(VI) by TT-GMH and CT-GMH were studied through experimental data of time and concentration parameters, respectively. Thermodynamic modeling for energy parameters such as Gibbs energy ( $∆ G^{o}$ ), entropy ( $∆ S^{o}$ ), and enthalpy ( $∆ H^{o}$ ) was calculated by influences of temperature for the removal of Cr(VI) by TT-GMH and CT-GMH adsorbents. Besides, the mechanism governing the mass transfer operation during adsorption was examined.

2. Material and Methods

2.1. Adsorbent Preparation

Great millet husk (GMH) was collected from the nearby villages of Varanasi. It was then washed with distilled water to remove dirt and dried in a thermostatically controlled oven at 105°C for 12 h. Two types of adsorbent were prepared from the husk. Thermally treated adsorbent (TT-GMH) was prepared by vigorous boiling of GMH until the color was removed. Chemically treated adsorbent (CT-GMH) was prepared by adding concentrated H₂SO₄ to the husk in 1 : 1 weight ratio; then, the blend was agitated with the help of a magnetic stirrer. After mixing, the blend was filtered, and the filtrate was washed repeatedly with double distilled water till the pH of the filtrate reached to 7. Particles were then subjected to drying for 24 h in an oven, pulverized into fine powder, and sieved for different sizes.

2.2. Reagents and Solutions

All the AR grade chemicals (K₂Cr₂O₇, H₂SO₄, NaOH, HCl, diphenyl carbazide, and acetone) were used during experiments and purchased from Merck and SRL India. Distilled water was used to prepare 1000 mg/L stock solution of Cr(VI) by dissolving 2.828 g of K₂Cr₂O₇. The desired concentration of Cr(VI) solution was obtained by diluting the stock solution. Carbazide solution was prepared by dissolving 500 mg of 1,5-diphenyl carbazide in 100 mL acetone, and sulfuric acid (6 N) was synthesized by dilution using double distilled water.

2.3. Analytical Methods and Instruments Used

The adsorbent prepared from thermally and chemically treated great millet husk (TT-GMH and CT-GMH) was characterized using BET surface area, SEM-EDX, FTIR, and XRD analyses. The instruments used during batch adsorption process were a pH meter measuring the pH of solution, a shaking incubator, an oven for drying of adsorbent, and a UV–visible spectrophotometer for measuring the concentration of Cr(VI). The detailed specification (Table S1) and procedure (Procedure S1) for analytical instruments have been given in supplementary material, the absorbance at which Cr(VI) concentration finds maximum absorption.

2.4. Batch Adsorption Studies

Experiments in batch mode operation were performed for removal of Cr(VI) from aqueous solution. Excluding the impact of temperature, the rests of the experiments were performed at ambient temperature. The impact of various operating parameters like initial Cr(VI) concentration (5–100 mg/L), pH of the adsorbate (1–10), temperature (25–40°C), contact time (0–180 min), and adsorbent dose (2–10 g/L) was examined during adsorption onto adsorbents TT-GMH and CT-GMH. The 50 mL solution of predetermined concentration was used to perform the experiments is 100 mL flasks. The desired solution pH was obtained with 0.1 N H₂SO₄ and 0.1 N NaOH solutions. The solution with varying adsorbent doses and at constant temperature was placed in a shaking incubator running at a constant speed of 150 rpm. The flasks were taken out at regular interval of time, and the adsorbent was separated by using centrifuge. The Cr(VI) ion concentration in aqueous solution was measured by employing a spectrophotometer by measuring the deep red-violet-colored complex. This complex was formed in an acidic medium by the reaction of Cr(VI) and 1,5-diphenylcarbazide, and the maximum absorbance of Cr(VI) was measured at 540 nm [28]. The removal percentage was enumerated by employing $\begin{matrix} (1) & % Removal of Cr (VI) = \frac{(C_{0} - C_{t}) \times 100}{C_{o}} . \end{matrix}$

The uptake capacity was determined by employing $\begin{matrix} (2) & Uptake capacity (q) = \frac{(C_{0} - C_{t}) V}{W}, \end{matrix}$ where $q_{e}$ denotes as uptake capacity in milligram/gram. $C_{o}$ denotes initial concentration of Cr(VI), while $C_{t}$ denotes concentration of Cr(VI) at time $t$ in (mg/L). $V$ denotes volume of Cr(VI) solution in litre, and $W$ denotes weight of adsorbent in grams.

3. Results and Discussion

3.1. Physicochemical Characteristics of the Adsorbent

The pH_pzc of the adsorbents TT-GMH and CT-GMH was found to be 5.9 and 4, respectively, (Figure 1). At pH, less than pHpzc, the adsorbents have higher density of positively charged ions. Strong attraction force on anions is exerted by these surface positive functional groups [18, 29]. The essential information about adsorption limit can be obtained from the surface area of the adsorbent which is an intrinsic property. The BET surface area of TT-GMH was noted to be 9.00280 m²/g with a total pore volume of 0.00536 cm³/g. The BET surface area of 26.7815 m²/g with total pore volume 0.03085 cm³/g was seen for CT-GMH. It was found that chemical treatment with H₂SO₄ enhanced the specific surface area and total pore volume [18]. The analysis surface morphology of the adsorbent by SEM revealed that before, adsorption surface was rough with some pores for both TT-GMH and CT-GMH as can be seen from Figures 2(a) and 2(e). The SEM micrographs of TT-GMH and CT-GMH after adsorption (Figures 2(c) and 2(g)) showed smooth surface covering of the pores. The EDX analysis was performed for the elemental composition of the sample. Chemical composition of TT-GMH and CT-GMH before and after adsorption is summarized in Table 1. Figures 2(d) and 2(h) showed Cr(VI) peaks associated with adsorbents TT-GMH and CT-GMH after Cr(VI) adsorption while no Cr(VI) peaks for the bare adsorbents were detected (Figures 2(b) and 2(f)). These results confirmed the adsorption of Cr(VI) ions on the surface TT-GMH and CT-GMH. The FTIR spectra for TT-GMH and CT-GMH were recorded in the range of 4000–400 cm^-1 wave number. For both the adsorbents, presence of stretching for -OH can be confirmed from peaks of 3376.5 cm^-1 for TT-GMH and 3392.5 cm^-1 for CT-GMH because of inter- and intramolecular hydrogen bonding [22]. The O-H groups associated with adsorbents were observed in a broad range of wavenumbers attributing the existence of bare and carboxylic acid bonded O-H groups. Additionally, peaks at 2915.1 cm^-1 for TT-GMH plot and 2923.8 cm^-1 for CT-GMH plot showed the presence of H-C-H stretching. Peaks at 1640 cm^-1 and 1608 cm^-1 correspond to vibrations of C=O bonds of carboxylic groups and ester groups, correspondingly. The peak at 1608 cm^-1 for CT-GMH was attributed to the N-H bond. A shift in the peaks of Cr(VI) adsorbed TT-GMH and CT-GMH shown in Figure 3 confirmed the active participation in adsorption by hydroxyl, alkyl, and ketone groups. In the case of TT-GMH as an adsorbent, O-H, C-H, C=C, and C=O peaks shifted from 3475 to 3467, 2926 to 2918, 1620 to 1639, and 1120 to 1093 cm^-1, respectively, while in case of CT-GMH as an adsorbent, O-H, C-H, C=C, and C=O peaks shifted from 3490 to 3485, 2938 to 2922, 1612 to 1635, and 1130 to 1099 cm^-1, respectively. Apart from those, new peaks at 452 cm^-1 for TT-GMH and at 452 cm^-1 for CT-GMH appeared after adsorption. XRD analysis of TT-GMH and CT-GMH before and after adsorption is presented in Figure 4. In the case of TT-GMH before adsorption, a broad peak at $2 θ = {22.5}^{°}$ corresponds to crystalline peak associated with cellulosic carbon of GMH [28]. After adsorption, a slight increase in peak intensity and marginal shift in 2 $θ$ were observed. This might be due to surface adsorption of Cr(VI) onto TT-GMH. In the case of CT-GMH before adsorption, three sharp peaks at $2 θ = 18^{°}$ , 22.5 $^{°}$ , and 25 $^{°}$ were observed. The sharp peak in the case of CT-GMH before might be due to intensification of crystalline cellulose because of decomposition of hemicellulose during chemical treatment [28, 30]. After adsorption, a slight increase in peak intensity and marginal shift in 2 $θ$ were also observed in the case of CT-GMH. Similar XRD pattern was also reported by Narayan et al. [29].

Figure 1

Point of zero charge of adsorbents TT-GMH and CT-GMH.

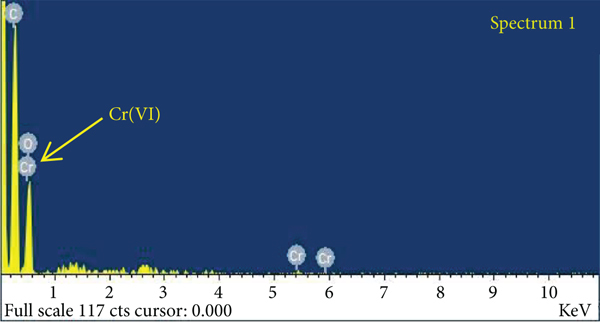

Figure 2

SEM-EDX analysis of (a, b) TT-GMH before adsorption, (c, d) TT-GMH after adsorption, (e, f) CT-GMH before adsorption, and (g, h) CT-GMH after adsorption.

(b)

(c)

(d)

(e)

(f)

(g)

(h)

Table 1

Chemical composition of TT-GMH and CT-GMH before and after adsorption of Cr(VI).

Elements (wt%)	TT-GMH	TT-GMH	CT-GMH	CT-GMH
Elements (wt%)	Before adsorption	After adsorption	Before adsorption	After adsorption
C	56.65	64.08	65.09	57.98
O	43.35	35.87	34.91	41.63
Cr	0.00	0.05	0.00	0.39

Figure 3

FTIR spectrum of raw GMH and adsorbents TT-GMH and CT-GMH before and after adsorption of Cr(VI).

Figure 4

XRD spectrum of adsorbents TT-GMH and CT-GMH before and after adsorption of Cr(VI).

3.2. Batch Adsorption Experiments

3.2.1. Impact of Contact Time

The impact of contact time on Cr(VI) adsorption on TT-GMH and CT-GMH was explored by changing the time from 0 to 150 min. The experiment was performed at pH 2 for TT-GMH and CT-GMH, keeping the dose of adsorbent constant at 4 g/L (Figure 5(a)). The saturation level for Cr(VI) adsorption on adsorbents was reached at 150 min for TT-GMH and 120 min for CT-GMH. Thus, chemical modification of GMH imparts lower equilibrium time and higher removal (%) for Cr(VI) ions [22]. After the equilibrium is attained, the removal efficiency remained almost constant. Initially, the number of vacant site for the adsorption process is large; however, once the equilibrium is attained, the possibility of repulsion between adsorbed Cr(VI) and Cr(VI) present in aqueous solution prevails [18]. This might be the reason for saturation in removal once the equilibrium is attained.

Figure 5

Effect of (a) contact time, (b) initial pH, (c) adsorbent dose, (d) concentration of Cr(VI), (e) temperature, and (f) RPM of batch adsorption process.

(b)

(c)

(d)

(e)

(f)

3.2.2. Impact of Initial pH

Figure 5(b) depicts the impact of initial pH on removal of Cr(VI). The pH of the adsorbate solution has proven importance in the adsorption process [18, 21]. The tendency of metal ion solubility, the strength of functional groups associated with adsorbent, and strength of ionization of adsorbent during the adsorption process are governed by pH of solution [22]. Therefore, pH of solution is very crucial during the adsorption process. The impact of initial pH on removal of Cr(VI) was perceived between 1 and 10. It was witnessed that the removal (%) decreased from 98.64 to 12.84% for TT-GMH with an increase in the pH from 1 to 10; however, for CT-GMH, percentage removal increased from 97.75 to 99.5% when pH was increased from 1 to 2, after pH 2 removal decreased all the way up to 20.48% at pH 10. Higher removal percentage at low pH is due to the presence of anions such as ${HCrO}_{4}^{-}$ , $Cr O_{4}^{-}$ , and Cr₂O₇ ^-2, in an acidic environment. Hence, with lower initial pH of adsorbate solution, increased Cr(VI) removal occurred [31]. However, at higher pH, removal (%) decreases because of upsurge in the hydroxyl ion concentration on the adsorbent surface which builds up a repulsive force between the anions and the negatively charged surface [32].

3.2.3. Impact of Adsorbent Dose

A decisive parameter for analyzing the adsorption process is the dose of the adsorbent. The impact of dose of adsorbent on adsorption process is presented in Figure 5(c). Results showed that removal (%) of Cr(VI) improved with upsurge in the dose of adsorbent varying from 2 to 10 g/L. With an increase in adsorbent dose, the number of fresh and bare active sites of adsorbent for Cr(VI) increased, resulting in upsurge in removal (%) [33, 34]. As the adsorbent dose increases, the uptake capacity reflected the contrasting nature. For both adsorbents (TT-GMH and CT-GMH), the uptake capacity decreases with increase in dose from 2 to 10 g/L due to existence of unadsorbed active sites.

3.2.4. Impact of Initial Cr(VI) Concentration

Figure 5(d) depicts the impact of Cr(VI) concentration on the removal (%) of adsorbents, TT-GMH and CT-GMH. The concentration of the solution provides the driving force for Cr(VI) ions to mitigate the mass transfer limitations among the adsorbate and adsorbent phase [35]. Moreover, high concentrations of Cr(VI) solution facilitate the accumulation of adsorbate particles at adsorbent surface and occupy more adsorption site during the adsorption process. Meanwhile, it was perceived that uptake capacity decreased with upsurge in concentration from 5 to 200 mg/L. This appears due to the increase in the ratio of Cr(VI) ion to adsorbent, since the higher ratio of Cr(VI) ion to adsorbent can saturate high-energy active sites and initiate the adsorption at lower energy sites of adsorbent causing decrease in uptake capacity [36, 37].

3.2.5. Impact of Temperature

Temperature of the medium imparts critical impact on the adsorption process. The temperature during the adsorption using TT-GMH and CT-GMH as adsorbents was varied from 25 to 40°C, and results are depicted in Figure 5(e). The maximum adsorption of Cr(VI) which was 99.56% using TT-GMH and 99.82% using CT-GMH at 40°C was obtained. With the increase in temperature, the removal (%) increased for both the adsorbents (TT-GMH and CT-GMH). With the rise in temperature, there might be rupture of chemical bonds associated with adsorbent leading to enhanced adsorption because of more numbers of active adsorption sites. Additionally, with the increase in temperature, the uptake capacity also increased due to increase in collision frequency among adsorbent and adsorbate [38].

3.2.6. Impact of RPM

In an adsorption study, it is crucial to study the impact of shaking speed since it is an energy-intensive process and affects the adsorption capacity. The shaking speed was varied from 90 to 180 RPM keeping the rest of the parameters at optimum condition. The impact of shaking speed of removal of Cr(VI) is presented in Figure 5(f). It can be observed that with an increase in shaking speed, the % removal of Cr(VI) increases up to 150 RPM thereafter that it starts decreasing for both the adsorbents (TT-GMH and CT-GMH). The decrease in removal % after 150 RPM might be due to extra energy possessed by the adsorbent resulting in cleavage of bonds formed between adsorbent molecules and Cr(VI) ions [39]. These results are in line with the results obtained by Gupta et al. [40].

3.3. Adsorption Kinetics

The adsorption kinetics examines the uptake rate of solute on the adsorbent surface during adsorption. This uptake rate decides the retention time of adsorbate at the solid-liquid interface and thus determines the rate-controlling mechanism. To evaluate the adsorption kinetics of Cr(VI) ions, the pseudo-first-order (Eq. S1) (Table S2 supplementary material), pseudo-second-order (Eq. S2), and Elovich models (Eq. S3) were tested. The results obtained for adsorption were fitted to Eqs. (S1), (S2), and (S3) and the kinetic results are shown in Figure 6. The calculated parameters for kinetics are tabulated in Table 2. The $R^{2}$ for quasi-second-order model for TT-GMH and CT-GMH was noted to be 0.9868 and 0.968, respectively, which was higher than other tested models for both the adsorbents. Additionally, the error function ( $χ$ ) was minimal for the quasi-second-order model, which validated that the model was best fitted with experimental data. Also, the experimental uptake capacity and uptake capacity ( $q_{e}$ ) obtained by the quasi-second-order model were closest. Thus, based on the value of correlation coefficient ( $R^{2}$ ) and the vicinity of uptake capacity, the quasi-second-order kinetic model was best supported to the experimental data for both TT-GMH and CT-GMH adsorbents [41].

Figure 6

Nonlinear kinetic modeling for both the adsorbents.

Table 2

Kinetic parameters for adsorption of Cr(VI) onto TT-GMH and CT-GMH.

Parameters	Pseudo-first-order model		Pseudo-second-order model		Elovich model
Parameters	TT-GMH	CT-GMH	TT-GMH	CT-GMH	TT-GMH	CT-GMH
$q_{\exp}$	6.580	6.418	6.580	6.418	6.580	6.418
$k_{1}$	0.038	0.068
$q_{e}$	5.947	6.064	6.740	6.539
$k_{2}$			0.008	0.017
$α$					1.078	4.419
$β$					0.804	1.045
$R^{2}$	0.9391	0.8706	0.9868	0.9688	0.9893	0.9516
$χ$	0.11	0.06	0.02	0.01	0.29	0.33

$χ = |q_{e, \exp} - q_{e, the}| / q_{e, the}$ , where $q_{e, \exp}$ and $q_{e, the}$ are the equilibrium and theoretical adsorption capacity of adsorbents according the model, respectively [46].

3.4. Adsorption Isotherm

Adsorption isotherms were studied to understand the phenomenon of adsorption. At fixed temperature, adsorption isotherms represent the equilibrium relation between the amount adsorbed per unit mass of adsorbent and the concentration of adsorbate. The experimental results were examined by three equilibrium isotherms such as Langmuir isotherm, Freundlich isotherm, and Sips isotherm to assess the most suitable equilibrium model for Cr(VI) adsorption onto great millet husk. The nonlinear equations of isotherms are given in supplementary material (Table S3). The results are shown in Figure 7(a) for TT-GMH and Figure 7(b) for CT-GMH. The parameters calculated for isotherms are presented in Table 3.

Figure 7

Adsorption isotherms for (a) TT-GMH and (b) CT-GMH.

(b)

Table 3

Isotherm parameters for adsorption of Cr(VI) onto TT-GMH and CT-GMH.

Parameters	Langmuir isotherm		Freundlich isotherm		Sips isotherm
Parameters	TT-GMH	CT-GMH	TT-GMH	CT-GMH	TT-GMH	CT-GMH
$q_{m}$ (mg/g)	14.33	19.418			16.001	22.212
$K_{L}$ (L/mg)	1.918	1.396
$K_{f}$			7.462	9.903
$N$			6.196	5.847
$K_{s}$					1.034	0.9619
$m_{s}$					0.5648	0.5276
$R^{2}$	0.9616	0.9388	0.8958	0.9100	0.9902	0.9883
$χ$	1.03	4.89	1.32	3.38	0.81	0.76

Langmuir isotherm is one of the simplest models of physical adsorption that is based on the assumption that only one molecule of adsorbate adsorbed at distinct active sites of the adsorbent and the adsorbed molecules are free from interaction among them [41]. Freundlich isotherm shows a nonlinear function between the amount adsorbed at equilibrium and some power of concentration of the solute. The Sips isotherm is derived as a combination and based on limiting behavior of both Langmuir and Freundlich isotherms [41–43]. The correlation coefficient ( $R^{2}$ ) for Langmuir, Freundlich, and Sips model for TT-GMH was noted to be 0.9616, 0.8958, and 0.9902, respectively. And, for CT-GMH, the value of correlation coefficient was noted to be 0.9388, 0.9100, and 0.9883 for Langmuir, Freundlich, and Sips isotherms, respectively. Thus, based on the correlation coefficient ( $R^{2}$ ) and low error function ( $χ$ ) values, the Sips model was found to be followed during adsorption of both TT-GMH and CT-GMH. The maximum uptake capacity based on Sips isotherm for TT-GMH and CT-GMH at temperature at 303 K was found to be 16.00 mg/g and 22.21 mg/g, respectively, for concentration of Cr(VI) in the range of 5-200 mg/L and at a fixed dose of adsorbents (4 g/L).

3.5. Thermodynamic Parameters

Thermodynamic studies help us to determine the nature of adsorption of Cr(VI) onto TT-GMH and CT-GMH. For the adsorption process, the change in standard free energy ( $∆ G$ ), enthalpy ( $∆ H$ ), and entropy ( $∆ S$ ) was calculated by using Eqs. (S7)-(S10) mentioned in Table S4 (supplementary material). The negative estimation of $∆ G$ listed in Table 4 indicates the spontaneous adsorption of Cr(VI) onto the adsorbent and thermodynamic feasibility of the adsorption process [44]. A positive value of $∆ H$ indicates that the process is endothermic in nature. Further, a positive value of $Δ S$ refers to the increased randomness at the adsorbent-adsorbate interface during the adsorption of the Cr(VI) on both TT-GMH and CT-GMH [20].

Table 4

Thermodynamic parameters at different temperatures for adsorption of Cr(VI) on TT-GMH and CT-GMH.

Adsorbent	Thermodynamic parameters	Temperature
Adsorbent	Thermodynamic parameters	298	303	308	313
TT-GMH	$∆ G^{0}$ (kJ/mol)	$-$ 11.03	$-$ 11.78	$-$ 12.76	$-$ 14.16
	$∆ H^{0}$ (kJ/mol)		50.90
	$∆ S^{0}$ (kJ/mol·K)		207.31
CT-GMH	$∆ G^{0}$ (kJ/mol)	$-$ 13.14	$-$ 13.75	$-$ 14.46	$-$ 16.33
	$∆ H^{0}$ (kJ/mol)		47.87
	$∆ S^{0}$ (kJ/mol·K)		203.80

3.6. Mass Transfer Study

The equations of three different mass transfer models are shown in supplementary data (Table S5). The Weber and Morris model was generally known as the intraparticle diffusion model and normally used to understand the mechanism for mass transfer controlling steps involved in the adsorption of bulk Cr(VI) liquid to solid adsorbent (TT-GMH and CT-GMH) material (Prajapati & Mondal, 2019). The nonlinear equation of the Weber and Morris model can be represented by Eq. (S11) (Supplementary material). The intraparticle diffusion constants ( $K_{id}$ ) and intercept ( $C$ ) were calculated by plotting a graph between $q_{t}$ and $t^{0.5}$ ; and if the plot was linear and passed through the origin of the axis (0, 0), then the rate-controlling step was intraparticle diffusion. Otherwise, if the plot was linear but did not pass through the origin, the adsorption process involved some additional rate-control steps. It is clear from Figure 8(a) that the multilinearity plot did not pass through the origin and was divided into two sections for both TT-GMH and CT-GMH adsorbents, which confirmed that two or more controlling steps were involved in the mass transfer mechanism of Cr(VI) from bulk to solid [45], such as boundary layer diffusion and pore diffusion. The first section in the Weber-Morris plot described the film diffusion/pore diffusion, where Cr(VI) ions were migrated from the solution to the outer solid surface of the both adsorbents (TT-GMH and CT-GMH). In the second section, the adsorption process attains equilibrium in the case of both adsorbents. Table 5 shows the values of the overall and sectional intraparticle rate constant, boundary layer thickness, and $R^{2}$ for both adsorbents. The boundary layer thickness ( $C$ ) values are higher for CT-GMH adsorbent (Table 5), which confirmed that the boundary-layer diffusion mechanism was encouraged in CT-GMH adsorbent for adsorption of Cr(VI).

Figure 8

Mass transfer studies for adsorbents TT-GMH and CT-GMH: (a) Weber and Morris model, (b) Bangham and Burt model, and (c) layer/film diffusion model.

(b)

(c)

Table 5

Mass transfer parameters for adsorption of Cr(VI) on TT-GMH and CT-GMH.

Mass transfer model	Adsorbents
Mass transfer model	Parameters		TT-GMH	CT-GMH
(1) Weber & Morris model	First stage	$K_{id (1)}$ (mg/g·min^1/2)	0.449	0.386
		$C_{1}$	1.274	2.369
		${R^{2}}_{1}$	0.942	0.939
		$K_{id (2)}$ (mg/g·min^1/2)	$2.21 \times 10^{- 3}$	$7.92 \times 10^{- 4}$
	Second stage	$C_{2}$	6.147	6.211
		${R^{2}}_{2}$	0.928	0.964
		$K_{id (O)}$ (mg/g·min^1/2)	0.331	0.247
	Overall stage	$C_{O}$	2.01	3.22
	Overall stage	${R^{2}}_{O}$	0.888	0.805
(2) Bangham’s model		$K_{o}$ (mL/(g/L))	-1.359	-1.145
		$α$	0.709	0.679
		$R^{2}$	0.962	0.971
(3) Liquid film diffusion model		$K_{FD}$	-0.0220	-0.0365
		$C$	-0.3184	-0.3257
		$R^{2}$	0.983	0.975

If pore diffusion phenomena were involved during the adsorption process, then the Bangham and Burt model was employed to determine the rate-determining step [41]. The equation of the Bangham model is shown by Eq. (S12). Figure 8(b) shows the linear plots of Bangham’s model for the TT-GMH and CT-GMH adsorbent. Table 5 shows the value of Bangham’s constants and $R^{2}$ for TT-GMH and CT-GMH adsorbents. According to the $R^{2}$ values, Bangham’s model was not solely a rate-governing stage for Cr(VI) adsorption onto TT-GMH and CT-GMH adsorbents; therefore, both surface and pore diffusion may control it. Additionally, the $R^{2}$ value for CT-GMH is much higher than the TT-GMH adsorbent that indicates CT-GMH shows more pore diffusion rate than TT-GMH due to the large number of pores on the surface of CT-GMH due to acid treatment.

The two-section curve of the Weber–Morris model indicated that liquid film/layer diffusion could have been the major factor for the adsorption of Cr(VI) by TT-GMH and CT-GMH adsorbents in the present study. Therefore, the film/layer diffusion model was employed to equilibrium time data for both adsorbents. Eq. (S13) denoted the layer film diffusion model. According to the layer diffusion mass transfer model, if the plot between $\ln (1 - f)$ and $t$ was linear and passes through the origin (0, 0) axis, then liquid film diffusion was the only rate-controlling step in the adsorption of Cr(VI) by TT-GMH and CT-GMH adsorbents. Figure 8(c) and Table 5 show the linear fitted plot and estimated values of layer diffusion constants, respectively, for layer film diffusion. The liquid film diffusion plot for Cr(VI) adsorption by TT-GMH and CT-GMH adsorbents gave the linear plot for both adsorbents with high $R^{2}$ values compared to Weber–Morris and Bangham’s model with negative diffusion constant and intercept values. This outcome confirmed that liquid film diffusion was a dominant factor for the rate-controlling step in the mass transfer of Cr(VI) into TT-GMH and CT-GMH adsorbents. According to $R^{2}$ (Table 5) values from three mass transfer models, the order of rate-controlling models was $liquid film diffusion model > Bangha m^{’} s model > intraparticle diffusion model$ .

3.7. Possible Mechanism of Cr(VI) Adsorption onto TT-GMH and CT-GMH

The possible mechanism of Cr(VI) removal using TT-GMH and CT-GMH at pH lower pH_pzc is shown in Figure 9. The initial adsorption process might occur due to electrostatic attraction between anionic ions of Cr(VI) and protonated surface of TT-GMH and CT-GMH at pH lower than pH_pzc. The FTIR results confirmed the association of C-O bonds with both the adsorbents. There can be possibility of ion exchange and hydrogen bonding for uptake of Cr(VI) ions on the surface of adsorbents. Moreover, intraparticle pore diffusion also plays an important role in adsorption process. The groups associated with adsorbents such as O-H, C-H, and C-C can acts as electron donors and effectively reduce Cr(VI) to Cr(III) (Li et al., 2017). At low pH, chromium exists in the form of ${HCrO}_{4}^{-}$ , $Cr O_{4}^{2 -}$ , and Cr₂O₇ ^-2. The reduction of Cr(VI) to Cr(III) can occur due to following reactions [18, 45]: $\begin{matrix} (3) & {HCrO}_{4}^{-} + 7 H^{+} + 3 e^{-} ⟶ C r^{3 +} + 4 H_{2} O \\ {CrO}_{4}^{2 -} + 8 H^{+} ⟶ {Cr}^{3 +} + 4 H_{2} O \\ Cr_2 O_{7}^{2 -} + 14 H^{+} + 6 e^{-} 2 ⟶ {Cr}^{3 +} + 7 H_{2} O \end{matrix}$

Figure 9

Adsorption and desorption study of adsorbents TT-GMH and CT-GMH.

The released Cr(III) ions are present in the solution. The adsorption of Cr(VI) was also confirmed by EDX analysis where chromium was detected on the surface of adsorbent (TT-GMH and CT-GMH) after adsorption. The adsorption in the case of CT-GMH is also supported by higher functionality of adsorbent due to chemical treatment.

3.8. Desorption Study

A desorption study for adsorbent is very crucial for reusability and ultimate disposal of used adsorbent. The desorption and readsorption study for Cr(VI) was performed using 0.1 M NaOH followed by 0.1 M HCl solution. The results are shown in Figure 10. It can be observed that TT-GMH and CT-GMH gives 69.45% and 74.48% removal, respectively, up to six cycles. In addition, desorption for TT-GMH and CT-GMH was observed to be 65.48% and 71.68%, respectively, up to six cycles.

Figure 10

Adsorption and desorption study of adsorbents TT-GMH and CT-GMH.

3.9. Comparison of Adsorption Capacities

Further adsorption capacities of different adsorbents reported in literature which are compared with the two adsorbents prepared from great millet husk are presented in Table 5. From Table 6, adsorption capacities of the present study are comparable with some of the values reported in literature. The equilibrium uptake of different adsorbents depends upon its characteristics. However, the present study was done to check the application of great millet husk for Cr(VI) removal.

Table 6

Comparison of adsorption capacities of different adsorbents for the removal of Cr(VI).

Adsorbent	Conc. (mg/L)	Temp. ( $^{°} C$ )	pH	Adsorption capacity (mg/g)	References
Magnetic biochar composite	100	25	3	8.35	[47]
Oak bark char	1-100	45	2	7.51	[48]
Biochar from Eucalyptus bark	1-240	30	2	21.3	[49]
Biochar from wheat straw	1-600	25	2	28.1	[50]
Rice husk biochar (surface modified)	0.25-5	50	7	4.54	[51]
Iron industry waste (dolochar)	10-50	35-70	1	2.1	[52]
Wheat bran (calcined)	50	25	2	7.6	[53]
Biochar from pyrolysis of biomass	5-75	25	1.5	3.53-6.08	[54]
TT-GMH	5-200	25	1	16.00	This study
CT-GMH	5-200	25	2	22.21	This study

4. Conclusion

This study presents the efficacy of two adsorbents prepared by thermally and chemically activated great millet husk for Cr(VI) removal. The maximum removal efficiency obtained for TT-GMH and CT-GMH was 98.84 and 99.50%, respectively. The maximum adsorption capacity obtained for TT-GMH was 16 mg/g whereas for CT-GMH, it was 22.21 mg/g at an adsorbent dose of 4 g/L. The effect of pH variation demonstrated that for both the adsorbents (TT-GMH and CT-GMH), the adsorption process is highly pH dependent. Results showed that chemical modification of great millet husk is more effective than the thermal treatment. The higher surface area, pore volume, and functionality of CT-GMH favor the higher uptake capacity towards Cr(VI) removal. Less equilibrium time for adsorption in the case of CT-GMH facilitates a cost-effective process at a large industrial scale. Comparison with uptake capacity of different adsorbents for Cr(VI) removal, reported in literature, showed that TT-GMH and CT-GMH of great millet husk can be considered one of the effective adsorbents for Cr(VI) removal. Experimental data designated the capability of TT-GMH and CT-GMH for removal of Cr(VI) from wastewater. These adsorbents might be considered a valuable material for cost-effectiveness in the adsorption process.

Footnotes

Data Availability

Data are available on request to the corresponding author.

Conflicts of Interest

The authors declare that they have no competing interest.

Authors’ Contributions

Anuj Kumar Prajapati was responsible for methodology and writing the original draft. Pushkar Verma was responsible for review and editing. Satyansh Singh was responsible for formal analysis, investigations, and editing. Monoj Kumar Mondal was responsible for the resources, supervision, and editing.

Acknowledgments

The authors are thankful to the Indian Institute of Technology (Banaras Hindu University), India, for providing all necessary facilities to undertake the work.
