Adsorption Mechanism and Electrochemical Characteristic of Methyl Blue onto Calcium Ferrite Nanosheets

Abstract

A rapid combustion process was applied to prepare CaFe₂O₄ nanomaterials using CaBr₂·xH₂O and Fe(NO₃)₃·9H₂O as raw materials and CaFe₂O₄ nanomaterials were characterized by SEM, TEM, VSM, XRD, and FTIR techniques. The results showed that the prepared nanomaterials had a sheet-like structure, and for larger adsorption capacity of dyes, CaFe₂O₄ nanosheets prepared at 700°C for 2 h with average grain size was 93.3 nm, a thickness of 8.4 nm, and the saturation magnetization of 8.15 emu/g were employed as adsorbate for the removal of methyl blue (MB). The adsorption performance of MB onto CaFe₂O₄ nanosheets was investigated; CaFe₂O₄ nanosheets displayed favorable adsorption capacity, and the adsorption conformed to the pseudo-second-order model and the Freundlich model, which demonstrated that the adsorption process of MB on CaFe₂O₄ nanosheets belonged to multilayer chemisorption process. When the pH value reached 3, the adsorption capacity of MB by CaFe₂O₄ nanosheets kept maximum value of 478.07 mg/g; and after 5 regenerations, the removal efficiency of MB was reduced to 59.06% of the first time. The electrochemical behavior of MB onto the nanosheets was evaluated through CV in conjunction with EIS. The CaFe₂O₄ nanosheets revealed a promising prospect for the adsorption of dyes.

1. Introduction

Magnetic materials have widespread applications, such as electronics, automotive, environmental protection, and new energy sources [1–8]. Magnetic materials are divided into categories by nature: metallic and nonmetallic, the former mainly having metallic magnets such as Nd₂Fe₁₄B and nickel-based alloys [9–12], the latter mainly being ferrite nanomaterials [13, 14]. Compared to metallic materials, ferrite, as a nonmetallic material, is cheap, technical maturity and stable performance, and is, therefore, used in a significant amount. In the realm of magnetic nanomaterials, ferrite nanomaterials are composite oxide consisting of iron in combination with one or more other suitable metallic elements. The most applied ferrite is the spinel type with the chemical formula MFe₂O₄ or MO·Fe₂O₃ ( $M = Mg$ , Mn, Co, Zn, Cu, Ca, etc.). M is composed of a divalent mental ion or a plurality of mental ions whose average valence is divalent [15, 16]. Among them, CaFe₂O₄ have received extensive attention because Ca²⁺ is not a heavy metal [17].

CaFe₂O₄ is $p$ -type semiconductor material, which has the advantages of nontoxicity, environmental friendliness, and good biocompatibility [18–20]. At present, there are many methods for preparing CaFe₂O₄ nanomaterials, such as solid-phase reaction [21], coprecipitation [22], one-step hydrothermal [23], sol-gel [24], and electrospun [25]. The above methods, however, prepare ferrite products with poor homogeneity, high costs, and complex reactions. Rapid combustion process is a convenient and effective way to prepare polymetallic and monometallic oxides [26]. Compared with the other methods, it has the advantages of cheaper cost, simple manipulation, and controllable particle size.

Today, there is an increasing demand for dyes and the discharge of dye wastewater is gaining widespread attention. Dye wastewater contains harmful chemicals and is highly toxic, posing a serious risk to human health and safety, [27–29] such as methyl blue (MB) can cause skin irritation, profuse sweating, and cancer, [30]. The removal of dyes from wastewater is therefore urgent. The current methods of treating dyes are adsorption [31], photodegradation [32], and advanced oxidation [33]. Of these, adsorption method is the simplest and most effective technique due to its simplicity of operation, the variety of adsorbents, and environmental friendliness [34–36]. Ferrite nanomaterials have received a lot of attention from researchers as emerging adsorption materials. With a large specific surface area and many active sites, ferrite can quickly achieve solid-liquid separation under the action of an applied magnetic field, effectively avoiding secondary contamination [37].

In this work, an environmentally friendly adsorbent was obtained experimentally with the concept of regeneration and environmentally friendly utilization. CaFe₂O₄ nanomaterials were prepared by a rapid combustion approach and characterized, and the adsorption mechanism of MB removal from simulated dye wastewater onto CaFe₂O₄ nanosheets was investigated. The prepared CaFe₂O₄ nanomaterials could efficiently remove MB from the solutions, which provided a reference for the application of ferrite nanomaterials in the treatment of dye wastewater, and had certain research significance.

2. Materials and Methods

2.1. Preparation and Characterization of CaFe₂O₄ Nanomaterials

Analytical grade calcium bromide hydrate (CaBr₂·xH₂O, 96%) and ferric nitrate nonahydrate (Fe(NO₃)₃·9H₂O, AR) along with ethyl alcohol (C₂H₆O, AR) were used as raw materials without further purification. Under magnetic agitation, 1.93 g CaBr₂·xH₂O, 7.66 g Fe(NO₃)₃·9H₂O, and 50 mL absolute ethanol were blended. Then the mixed solution was burned and put into the programmed temperature-control furnace after the fire was extinguished. The calcination was carried out at 400-800°C, respectively. Finally, the nanomaterials after calcination were ground to get the powders.

Analyzing the characteristic of nanomaterial morphology by scanning and transmission electron microscopy (SEM, JSM-7001F, JEOL Ltd., Japan; TEM, JEM-2100, JEOL Ltd., Japan), X-ray diffraction (XRD, D8 ADVANCE, Germany) was applied to research the physical phase analysis and crystallinity with Cu-Kα and the diffraction angles range from 20-80°. The saturation magnetization was measured by the vibrating sample magnetometer (VSM, HH-15, Physcience Opto-electronics Co., Ltd., Beijing, China). Analysis of the functional groups and chemical bonds of the nanomaterials before and after adsorption by Fourier transform infrared spectra (FTIR, FTIR-370, Nicolet Avatar, America).

2.2. Adsorption Experiment

CaFe₂O₄ nanomaterials were added to MB (BS, 99%) solution for adsorption experiments to research the effects of different adsorbent times (10-180 min), various pH values (1-9), different initial mass concentrations (800-3000 mg/L), and regeneration times on adsorbent adsorption performance. After the adsorption was completed by centrifugation at 10000 rpm, the supernatant was taken to measure the absorbance using ultraviolet spectrophotometer (UV), and then the remaining concentration was calculated from the MB standard curve, and the corresponding capacity of adsorption was calculated by $\begin{matrix} (1) & q = \frac{V (C_{0} - C)}{m}, \end{matrix}$

where $C_{0}$ and $C$ (mg/L) were the solution concentrations before and after the adsorption of MB, respectively; $V$ (mL) was the MB solution volume; $m$ (g) was the mass of the adsorbent.

2.3. Electrochemical Experiments

An electrochemical workstation was employed to research the electrochemical behavior of CaFe₂O₄ nanosheets. Glassy carbon electrode, Ag/AgCl electrode, and platinum wire electrode with good electrical conductivity and chemical stability were employed as experimental electrodes, which play the roles of working, reference, and auxiliary. Cyclic voltammetry (CV) was observed at voltages of −0.2-0.7 V and 100 mV/s scan rate. Electrochemical impedance spectroscopy (EIS) was obtained for signal amplitudes for 5 mV and frequencies in the range 0.1-10000 Hz.

3. Results and Discussion

3.1. Characterizations of Magnetic CaFe₂O₄ Nanomaterials

The characteristics of as-prepared CaFe₂O₄ nanomaterials were shown in Figure 1. SEM morphology (Figure 1(a)) showed that CaFe₂O₄ nanomaterials were irregularly flaky textures. The average grain size of 40.2 nm for CaFe₂O₄ nanosheets, but the actual average grain size was 93.3 nm, which indicated that superposition occurred during the preparation process. The average grain size was calculated by the Scherrer formula [13]: $\begin{matrix} (2) & D = \frac{0.89 λ}{β \cos θ} . \end{matrix}$ Where $D$ was the average size of CaFe₂O₄ nanosheets (nm); $λ$ was the wavelength of the nanosheets for XRD measurements; $β$ was the half-height width of the diffraction peak of the nanosheets; $θ$ was the Bragg diffraction angle. The TEM image showed that CaFe₂O₄ consisted of irregular sheets of nanostructures and had a stacking phenomenon (Figure 1(b)), which was consistent with the SEM morphology. XRD pattern of CaFe₂O₄ nanosheets were shown in Figure 1(c). The presence of characteristic peaks located at $2 θ = 33.53$ °, 35.38°, 40.18°, 49.57°, 60.08°, and 61.22° matched well diffraction peaks of (320), (201), (131), (401), (600), and (161) planes of CaFe₂O₄ standard card (JCPDS. NO. 32-0168), which indicated that the CaFe₂O₄ was successfully prepared. The Ms value of CaFe₂O₄ (Figure 1(d)) was 8.15 emu/g, which was beneficial to the subsequent solid-liquid separation.

Figure 1

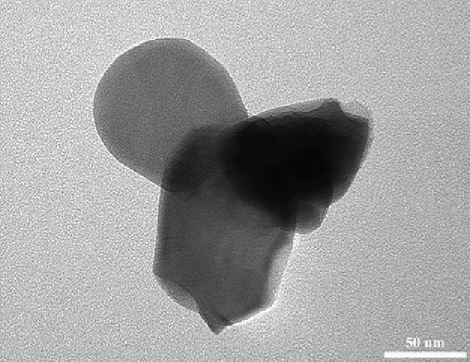

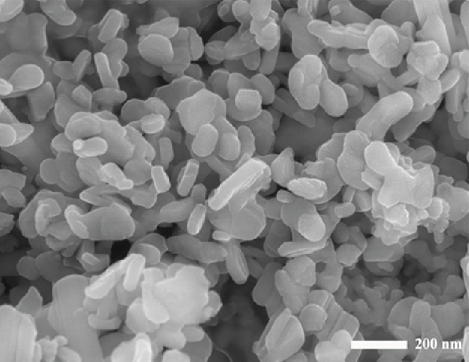

SEM morphology (a) and TEM image (b), XRD pattern (c), and VSM analysis (d) of CaFe₂O₄ nanosheets.

(b)

(c)

(d)

As could be seen from Figure 2(a), the CaFe₂O₄ was not formed at 400-500°C. When the calcination temperature reached 600°C, the CaFe₂O₄ begin to form gradually, but the crystallinity was very poor. With the calcination temperature was further risen to 700-800°C, the intensity of diffraction peaks was enhanced and the crystallinity was fine. Figure 2(b) showed the relationship between different calcination temperatures and saturation magnetizations. The saturation magnetization decreased with the calcination temperature increasing from 400 to 500°C. When the calcination temperature was between 600 and 700°C, CaFe₂O₄ started to form gradually and therefore the saturation magnetization began to rise. The saturation magnetization of CaFe₂O₄ decreased and the coercivity increased at 800°C. This might be due to the excessive calcination temperature causing disorganization of the internal structure of the CaFe₂O₄ nanomaterials, which limited the growth of grain size. According to the Scherrer formula, the grain size of CaFe₂O₄ nanomaterials at 800°C was calculated to be 28.9 nm smaller than 700°C, which verified the above explanation. Therefore, the highest saturation magnetization was 8.15 emu/g at 700°C. In summary, CaFe₂O₄ with the calcination temperature of 700°C was selected for the subsequent experiments.

Figure 2

XRD patterns (a) and hysteresis loops (b) of CaFe₂O₄ nanomaterials.

(b)

3.2. Adsorption Kinetics

Figure 3 showed adsorption kinetics curves of CaFe₂O₄ nanosheets with different MB concentrations. It could be seen that with the beginning of adsorption, the adsorption capacity increased rapidly, and after a certain time, the adsorption capacity gradually slowed down until the adsorption achieved equilibrium. The reason was that at the beginning of the adsorption process, the material surface had many vacant adsorption and binding sites, and the greater the concentration of dye was, the stronger the mass transfer drive, resulted in a greater chance of contact between the MB molecules and the material. As the concentration of dye decreased, the driving force decreased and the adsorption sites were largely occupied, and the adsorption slowly reached equilibrium. The largest adsorption amount was 436.01 mg/g with the initial concentration of 1100 mg/L. The adsorption time was 60 min to reach adsorption equilibrium.

Figure 3

Adsorption kinetics model of CaFe₂O₄ nanosheets for MB with different initial concentrations.

To further investigate the effect of adsorption time on adsorption capacity, the kinetics models were adopted to the data for fitting. The fitted curves for different kinetics models were shown in Figure 4. The correlation coefficients (R ²) of the pseudo-second-order kinetics model were the largest compared with the pseudo-first-order kinetics and intraparticle diffusion models, which indicated that the pseudo-second-order kinetics model could better describe the adsorption of on MB. According to the mechanism of the pseudo-second-order kinetics model, the adsorption of CaFe₂O₄ nanosheets on MB was chemisorption with electron gain and loss. The arguments fitted to three kinetics models were summarized as Table 1.

Figure 4

Fitted curves of kinetics models for different concentrations 800 mg/L (a), 900 mg/L (b), 1000 mg/L (c), and 1100 mg/L (d).

(b)

(c)

(d)

Table 1

Adsorption kinetics parameters of magnetic CaFe₂O₄ nanosheets with concentrations of MB solutions.

Kinetics model	Parameter	Initial MB concentration (mg/L)
Kinetics model	Parameter	800	900	1000	1100
Pseudo-first-order model	R ²	0.6987	0.7326	0.7438	0.7495
	k ₁	0.4245	0.4442	0.3871	0.2220
	Adj. R-square	0.6686	0.7059	0.7182	0.7245

Pseudo-second-order model	R ²	0.9924	0.9878	0.9940	0.9898
	k ₂	0.0171	0.0190	0.0097	0.0160
	Adj. R-square	0.9916	0.9866	0.9935	0.9888

Intraparticle diffusion model	R ²	0.7103	0.6476	0.7120	0.7369
	k_i	0.3957	0.3417	0.6932	3.8120
	C_i	0.5	0.5	0.5	0.5
	Adj. R-square	0.6813	0.6123	0.6833	0.7106

3.3. Adsorption Isotherms

The adsorption behaviors of the adsorbent for the dye can be evaluated with the adsorption isotherm model (Figure 5). The fitted parameters for the three models were displayed from Table 2. A comparison of the correlation coefficients (R ²) showed that the Freundlich model had the largest correlation coefficient of 0.9907. This suggested that the Freundlich model was consistent with isothermal adsorption processes. According to Freundlich theory, the adsorption between the dye molecules and the surface of the CaFe₂O₄ nanosheets was nonuniform. 1/ $n$ was in the range of 0.1-0.5, which indicated that the adsorption performance of CaFe₂O₄ nanosheets was excellent.

Figure 5

Langmuir, Freundlich, and Temkin isotherms for the adsorption of MB by CaFe₂O₄ nanosheets.

Table 2

Isotherm parameters of CaFe₂O₄ nanosheets for MB adsorption.

Isotherms model	R ²	Adj. R-square	Parameter	Parameter’s value
Langmuir	0.8936	0.8803	q _max	1126.8135
Langmuir	0.8936	0.8803	K_L	2.0191

Freundlich	0.9907	0.9895	1/n	0.2403
Freundlich	0.9907	0.9895	K_F	689.1913

Temkin	0.9892	0.9862	A_T	41.0518
Temkin	0.9892	0.9862	b_T	191.9073

The maximum capacity was investigated by comparing the MB adsorption with other articles, it was observed that the CaFe₂O₄ nanosheets adsorption capacity of MB was much larger than those of the other adsorbents, which reflected that the superior adsorption performance of CaFe₂O₄ nanosheets, and the relevant data were listed in Table 3.

Table 3

Comparison of the maximum adsorption capacity of different adsorbents.

Adsorbent	Dye	q _max (mg/g)	References
Ni-MCM-41	Methyl blue	189.04	[38]
MnFe₂O₄		497.51	[39]
Co_0.5Zn_0.5Fe₂O₄		189.10	[40]
Sr_3xBa_3x(PO₄)₃/Fe₃O₄		702.00	[41]
CaFe₂O₄		1126.81	In this article

3.4. Adsorption Mechanism

3.4.1. Effect of pH and Thermal Regeneration Performance

The experiment kept the constants of CaFe₂O₄ nanosheets mass and MB concentration, and then the pH effect on the CaFe₂O₄ nanosheets adsorption of MB was explored, the results were shown in Figure 6(a). When the pH of the solution was below 3.0, the CaFe₂O₄ nanosheets exhibited an enhanced adsorption of MB as the pH value enhanced. The excellent capacity was observed at pH 3.0 with the adsorption capacity of CaFe₂O₄ nanosheets was 478.1 mg/g. This might be due to the fact that the CaFe₂O₄ nanosheets and dye molecules had positively charged at the same time when the pH was less than 3.0, which led to the strong electrostatic repulsion between CaFe₂O₄ nanosheets and dye molecules, thus the adsorption capacity of the CaFe₂O₄ nanosheets was decreased. With the increase of pH value, the positive charge held by the dye molecules progressively dropped, and the electrostatic repulsion also dropped, resulted in a gradual improvement in the capacity of adsorption of CaFe₂O₄ nanosheets. The adsorption of MB capacity by the adsorbent remained largely unchanged when pH was greater than 3, mainly attributable to the electrostatic attraction of the negatively charged dye and the positively charged CaFe₂O₄ and the saturation adsorption capacity of the CaFe₂O₄ nanosheets [36, 42].

Figure 6

Effect of pH (a) and thermal regeneration (b) on the adsorption performance of CaFe₂O₄ nanosheets.

(b)

To research the regeneration performance of the CaFe₂O₄ nanosheets, the adsorbed CaFe₂O₄ nanosheets were regenerated by calcination treatment at 400°C for 2 h, and the readsorption results were shown in Figure 6(b). After five regenerations of CaFe₂O₄ nanosheets, the removal efficiency of MB was reduced to 59.06% of the first time. This was due to the increased crystallinity of the CaFe₂O₄ nanosheets and caused the collapse of the internal pores as the number of regenerations increased. These factors could cause the decrease of the specific surface area of CaFe₂O₄ nanosheets, resulted in a reduction in the surface area of contact from the MB molecules to the CaFe₂O₄ nanosheets and a consequent reduction in the adsorption capacity.

3.4.2. FTIR Analysis

FTIR spectrum of CaFe₂O₄ nanosheets, MB, CaFe₂O₄ nanosheets after adsorption, and regenerated CaFe₂O₄ nanosheets were shown in Figure 7. The peak appeared at 582 cm⁻¹ corresponds to Fe-O bond and the bands at 3429 cm⁻¹ was associated with −OH stretching vibration, indicated that the presence of residual water in CaFe₂O₄ nanosheets (Figure 7(a)). Figure 7(b) showed the FTIR spectrum of MB, the spectrum described some characteristic peaks at 1172 cm⁻¹, 1126 cm⁻¹, 1033 cm⁻¹, and 1002 cm⁻¹. The characteristic peaks of MB appeared on the FTIR spectrum of the adsorbed CaFe₂O₄ nanosheets indicated that MB was successfully adsorbed onto the CaFe₂O₄ nanosheets (Figure 7(c)). The regeneration results of the adsorbed CaFe₂O₄ nanosheets were presented in Figure 7(d). After calcination, the characteristic peak of MB disappeared completely, which indicated that the nanosheets could be regenerated by the mean of calcination.

Figure 7

FTIR spectrum of CaFe₂O₄ nanosheets (a), MB (b), CaFe₂O₄ nanosheets after adsorption (c), and the regenerated CaFe₂O₄ nanosheets (d).

3.4.3. Electrochemical Performance

The adsorption behavior of CaFe₂O₄ nanosheets on MB was further investigated by CV and EIS (Figure 8) [43–45]. The current formation was compared to that of the bare electrode by modifying CaFe₂O₄ on the surface of the glassy carbon electrode (MGCE/CaFe₂O₄) and the adsorbed CaFe₂O₄ nanosheets (MGCE/postadsorption nanosheets), the results were shown in Figure 8(a), where the bare MGCE had the highest peak current. The peak currents decreased sequentially with material and material modifications on the glassy carbon electrode. Ferrite nanomaterials were semiconductor materials with a high resistivity. When the materials were modified on the electrode surface, a certain spatial potential resistance was created, making it difficult for [Fe(CN)₆]^3-/4- to approach the electrode surface, resulted in a decrease in peak current. After adsorption of MB, the nanomaterial was modified on the electrode surface and the negative charge carried by the MB and the [Fe(CN)₆]^3-/4- were mutually repelled in the electrolyte, prevented it from approaching the surface of the electrode for electron switching and led to a peak current that was further reduced.

Figure 8

CV (a) and EIS (b) results of bare MGCE, MGCE/CaFe₂O_4, and MGCE/postadsorption nanosheets.

(b)

The electrochemical impedance spectrum consists of two parts, the semicircular part and the linear part. The electron transfer resistance can be obtained from the half-circle at high frequencies, and the linear at low frequencies corresponds to the diffusion process. As can be seen in Figure 8(b), the impedance of the bare electrode was lower compared to the impedance of the material and the material after adsorption of MB, and the impedance of the material after adsorption of MB was the highest. The results obtained were consistent with the CV plots.

4. Conclusions

CaFe₂O₄ nanosheets were prepared via a rapid combustion process. The CaFe₂O₄ nanosheets were formed under the conditions of calcination temperature of 700°C and ethanol volume of 50 mL, showed a lamellar morphology with an average grain size of 93.3 nm, a thickness of 8.4 nm, and a saturation magnetization of 8.15 emu/g.

The adsorption of MB by CaFe₂O₄ nanosheets was eligible for the pseudo-second-order model and Freundlich model, which suggested that the adsorption process was multimolecular layer chemisorption and easy to adsorb. When the pH value was 3.0, the maximum adsorption capacity of CaFe₂O₄ nanosheets for MB was 478.07 mg/g. After five regenerations, the CaFe₂O₄ nanosheets still had a relative removal rate of 59.06%, which indicated excellent recyclability. This demonstrates that the prepared CaFe₂O₄ nanosheets were an adsorbent for dye wastewater with practical applications.

Footnotes

Data Availability

The research data used to support the finding of this study are included within the article.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Authors’ Contributions

Shaoshuai Zhang and Shuping Xu contributed equally to this work.

Acknowledgments

This work was supported by the Jiangsu Provincial Postgraduate Scientific Practice and Innovation Project (SJCX21_1722) and the Science and Technology Innovation Project of CHN Energy (GJNY-20-109).

Supplementary Materials

References

Tang

J. Y.

Wang

F. X.

X. G.

Wang

X. Z.

Recent advances in two-dimensional ferromagnetism: strain-, doping-, structural- and electric field-engineering toward spintronic applications

Science and Technology of Advanced Materials 2022 23

6999213

1 140 160

10.1080/14686996.2022.2030652

35185390

Yang

Liu

Y. G.

Yang

Liao

Wang

Shi

Ferrite ceramic filled poly-dimethylsiloxane composite with enhanced magnetic- dielectric properties as substrate material for flexible electronics

Ceramics International 2021 47

6999213

13 18246 18251

10.1016/j.ceramint.2021.03.144

Motaung

D. E.

Tshabalala

Z. P.

Makgwane

P. R.

Mahmoud

F. A.

Oosthuizen

D. N.

Cummings

F. R.

Leshabane

Hintsho-Mbita

Ray

S. S.

Swart

H. C.

Multi-functioning of CeO₂-SnO₂ heterostructure as room temperature ferromagnetism and chemiresistive sensors

Journal of Alloys and Compounds 2022 906, article 164317

6999213

10.1016/j.jallcom.2022.164317

X. K.

Wang

Z. Y.

Liu

Sun

Tian

Wang

Sang

Shi

Xiong

Enhanced performance of Bi₂Te₃-based thermoelectric materials by incorporating Bi₂Fe₄O₉ magnetic nanoparticles

Journal of Alloys and Compounds 2022 904, article 163933

6999213

10.1016/j.jallcom.2022.163933

Kim

Efe

Torlakcik

Terzopoulou

Veciana

Siringil

Mushtaq

Franco

Arx

Sevim

Puigmartí-Luis

Nelson

Spaldin

N. A.

Gattinoni

Chen

X. Z.

Pané

Magnetoelectric effect in hydrogen harvesting: magnetic field as a trigger of catalytic reactions

Advanced Materials 2022 34

6999213

19, article 2110612

10.1002/adma.202110612

35276030

Tian

D. L.

Shi

Wang

Liu

Wang

X. D.

Magnetic field-assisted acceleration of energy storage based on microencapsulation of phase change material with CaCO₃/Fe₃O₄ composite shell

Journal of Energy Storage 2022 47, article 103574

6999213

10.1016/j.est.2021.103574

Padma

Nuthalapati

Pantangi

U. S.

Synthesis and rheological characterization of nano-magnetorheological fluid using inverse spinel ferrite (NiFe₂O₄)

International Journal of Applied Ceramic Technology 2022 19

6999213

4, article 14031 1870 1878

10.1111/ijac.14031

Jamolov

Maizza

Integral methodology for the multiphysics design of an automotive eddy current damper

Energies 2022 15

6999213

3 1147

10.3390/en15031147

Morishita

Kohashi

Yamamoto

Kuwahara

Improvement of type-I method for observing magnetic contrast using scanning electron microscope under tilting-deceleration condition

Journal of Magnetism and Magnetic Materials 2022 546, article 168733

6999213

10.1016/j.jmmm.2021.168733

10.

Y. K.

Helm

Soldatov

Schneider

Pohl

Srivastava

A. K.

Sharma

A. K.

Kroder

Schnelle

Schaefer

Rellinghaus

Fecher

G. H.

Parkin

S. S. P.

Felser

Nanoscale magnetic bubbles inNd2Fe14Bat room temperature

Physical Review B 2022 105

6999213

6, article 064426

10.1103/PhysRevB.105.064426

11.

Liu

L. P.

Cao

Guo

Wang

C. Y.

Spin and spin–orbit coupling effects in nickel-based superalloys: a first-principles study on Ni₃Al doped with ta/W/re

Chinese Physics B 2022 31

6999213

1, article 016105

10.1088/1674-1056/ac4024

12.

Thanikaikarasan

Kanimozhi

Saravannan

Perumal

Electrochemical deposition and characterization of CoNi alloy thin films

Materials Today: Proceedings 2021 46

6999213

10248 10251

10.1016/j.matpr.2020.11.843

13.

Ahmad

Raina

Thakur

Bamzai

K. K.

Magnesium and yttrium doped superparamagnetic manganese ferrite nanoparticles for magnetic and microwave applications

Journal of Magnetism and Magnetic Materials 2022 552, article 169178

6999213

10.1016/j.jmmm.2022.169178

14.

Sun

Y. X.

Zhou

J. B.

Liu

Liang

Enhanced catalytic performance of Cu-doped MnFe₂O₄ magnetic ferrites: tetracycline hydrochloride attacked by superoxide radicals efficiently in a strong alkaline environment

Chemosphere 2022 297, article 134154

6999213

10.1016/j.chemosphere.2022.134154

35245595

15.

Vishwakarma

A. K.

Sen Yadav

Singh

Sharma

Kumar

Antibacterial activity of PANI coated CoFe₂O₄ nanocomposite for gram- positive and gram-negative bacterial strains

Materials Today Communications 2022 31, article 103229

6999213

10.1016/j.mtcomm.2022.103229

16.

J. J.

Liu

Meng

Y. B.

Tang

Wang

Bian

Chen

Xiao

Meng

Yang

CoFe2O4nanoparticles dispersed on carbon rods derived from cotton for high-efficiency microwave absorption

Nanotechnology 2022 33

6999213

21, article 215603

10.1088/1361-6528/ac50ee

35105828

17.

Syed

Bahkali

A. H.

Elgorban

A. M.

Enhanced antibacterial and visible light driven photocatalytic activity of CaFe₂O₄ doped CdO heterojunction nanohybrid particles prepared by sono-chemical method

Optical Materials 2021 113, article 110595

6999213

10.1016/j.optmat.2020.110595

18.

Guo

L. F.

Okinaka

Zhang

L. H.

Watanabe

Molten salt-assisted shape modification of CaFe₂O₄ nanorods for highly efficient photocatalytic degradation of methylene blue

Optical Materials 2021 119, article 111295

6999213

10.1016/j.optmat.2021.111295

19.

Sugawara

Kamata

Ishikawa

Tateyama

Yamaguchi

Efficient oxygen evolution electrocatalysis on CaFe2O4and its reaction mechanism

ACS Applied Energy Materials 2021 4

6999213

4 3057 3066

10.1021/acsaem.0c02710

20.

A. L.

Zhou

Zhang

E. J.

Synthesis, magnetic and optical properties and photocatalytic activity of the polyacrylamide decorated CaFe2O4microspheres for photocatalytic degradation of organic wastewater

Materials Research Express 2019 6

6999213

7, article 075525

10.1088/2053-1591/ab1865

2-s2.0-85065821710

21.

Wei

R. R.

X. W.

Yang

M. R.

Effect of ultrasonic vibration treatment on solid-state reactions between Fe₂O₃ and CaO

Ultrasonics Sonochemistry 2017 38

6999213

281 288

10.1016/j.ultsonch.2017.03.023

2-s2.0-85015457290

28633827

22.

Sulaiman

N. H.

Ghazali

M. J.

Yunas

Rajabi

Majlis

B. Y.

Razali

Synthesis and characterization of CaFe₂O₄ nanoparticles via co- precipitation and auto-combustion methods

Ceramics International 2018 44

6999213

1 46 50

10.1016/j.ceramint.2017.08.203

2-s2.0-85031320450

23.

Huang

L. L.

Fan

Z. H.

X. D.

Wang

Guo

W. W.

Facile synthesis of CaFe₂O₄ nanocubes for formaldehyde sensor

Materials Letters 2021 288, article 129351

6999213

10.1016/j.matlet.2021.129351

24.

Hua

W. J.

Kang

Pulsed discharge plasma on water surface coupled with CaFe₂O₄/Bi₂O₃ composites for synergistic degradation of aqueous tetracycline hydrochloride

Separation and Purification Technology 2021 279, article 119691

6999213

10.1016/j.seppur.2021.119691

25.

Das

A. K.

Srinivasan

Structural transition and associated magnetic properties of heat treated electrospun one-dimensional CaFe₂O₄

Chemical Physics Letters 2022 786, article 139169

6999213

10.1016/j.cplett.2021.139169

26.

Wang

T. C.

Zhang

S. S.

Zhang

Y. L.

L. L.

Liu

R. J.

Adsorption and electrochemical behavior investigation of methyl blue onto magnetic nickel-magnesium ferrites prepared via the rapid combustion process

Journal of Alloys and Compounds 2021 885, article 160969

6999213

10.1016/j.jallcom.2021.160969

27.

Qiu

L. Y.

Phule

A. D.

Wen

S. B.

Zhang

Chen

Zhang

Z. X.

Multifunctional adsorbent: oleophobic latex sponge for removing dyes and Cu2+ from sewage waste

Macromolecular Materials and Engineering 2021 306

6999213

7, article 2100096

10.1002/mame.202100096

28.

Zhao

H. T.

Yang

X. H.

Xiong

S. X.

Han

D. Z.

X. Z.

Adsorption and photocatalytic performance of Au nanoparticles decorated porous Cu₂O nanospheres under simulated solar light irradiation

Applied Surface Science 2021 545, article 149014

6999213

10.1016/j.apsusc.2021.149014

29.

Afshar

E. A.

Taher

M. A.

New fabrication of CuFe2O4/PAMAM nanocomposites by an efficient removal performance for organic dyes: kinetic study

Environmental Research 2022 204

6999213

Part B, article 112048

10.1016/j.envres.2021.112048

34536375

30.

Sun

S. C.

Sun

H. M.

Guo

Zhu

Liu

Sun

Malachite green adsorption onto Fe₃O₄@SiO₂-NH₂: isotherms, kinetic and process optimization

RSC Advances 2015 5

6999213

16 11837 11844

10.1039/C4RA13402H

2-s2.0-84922202194

31.

Kumar

Smita

Galeas

Sharma

Guerrero

V. H.

Debut

Cumbal

Characterization and application of biosynthesized iron oxide nanoparticles using Citrus paradisi peel: A sustainable approach

Inorganic Chemistry Communications 2020 119, article 108116

6999213

10.1016/j.inoche.2020.108116

32.

Poolwong

Kiatboonyarit

Achiwawanich

Butburee

Khemthong

Kityakarn

Three-dimensional hierarchical porous TiO₂ for enhanced adsorption and photocatalytic degradation of remazol dye

Nanomaterials 2021 11

6999213

7 1715

10.3390/nano11071715

34209736

33.

Yang

Y. S.

Zhao

Zong

Zhang

Feng

Wei

Ren

Activation of peroxymonosulfate by α-MnO₂ for Orange I removal in water

Environmental Research 2022 210, article 112919

6999213

10.1016/j.envres.2022.112919

35157919

34.

Talbot

Queiros Campos

Checa-Fernandez

B. L.

Marins

J. A.

Lomenech

Hurel

Godeau

G. D.

Raboisson-Michel

Verger-Dubois

Obeid

Kuzhir

Adsorption of organic dyes on magnetic iron oxide nanoparticles. part I: mechanisms and adsorption-induced nanoparticle agglomeration

ACS Omega 2021 6

6999213

29 19086 19098

10.1021/acsomega.1c02401

34337247

35.

D. S.

Fan

C. Y.

Huang

Tang

Guo

Huang

Wang

Lin

Gold nanoparticles adsorbed on graphene as nanozymes for the efficient elimination of dye pollutants

ACS Applied Nano Materials 2022 5

6999213

1 94 100

10.1021/acsanm.1c03287

36.

Kapoor

R. T.

Salvadori

M. R.

Rafatullah

Siddiqui

M. R.

Khan

M. A.

Alshareef

S. A.

Exploration of microbial factories for synthesis of nanoparticles - a sustainable approach for bioremediation of environmental contaminants

Frontiers in Microbiology 2021 12, article 658294

6999213

10.3389/fmicb.2021.658294

34149647

37.

L. L.

Pan

Huang

Liu

R. J.

Adsorption mechanisms and electrochemical properties of methyl blue onto magnetic Ni_xMg_yZn_(1-x-y)Fe₂O₄ nanoparticles fabricated via the ethanol-assisted combustion process

Water Air and Soil Pollution 2020 231

6999213

6 316

10.1007/s11270-020-04686-9

38.

Shu

Y. H.

Shao

Y. M.

Wei

X. Y.

Wang

Sun

Zhang

Synthesis and characterization of Ni-MCM-41 for methyl blue adsorption

Microporous and Mesoporous Materials 2015 214

6999213

88 94

10.1016/j.micromeso.2015.05.006

2-s2.0-84929649149

39.

Yang

L. J.

Zhang

Y. Y.

Liu

X. Y.

Jiang

Zhang

The investigation of synergistic and competitive interaction between dye Congo red and methyl blue on magnetic MnFe₂O₄

Chemical Engineering Journal 2014 246

6999213

88 96

10.1016/j.cej.2014.02.044

2-s2.0-84896055797

40.

Deng

Liu

Z. X.

Adsorption mechanism of methyl blue onto magnetic Co_0.5Zn_0.5Fe₂O₄nanoparticles synthesized via the nitrate-alcohol solution combustion process

AIP Advances 2020 10

6999213

9, article 095005

10.1063/5.0011573

41.

Zhang

Yin

X. J.

Zhang

W. H.

Y. F.

Optimizing decolorization of methyl blue solution by two magnetic hydroxyapatite nanorods

Journal of the Taiwan Institute of Chemical Engineers 2016 65

6999213

269 275

10.1016/j.jtice.2016.05.019

2-s2.0-84969909599

42.

Hamd

Shaban

AlMohamadi

Dryaz

A. R.

Ahmed

S. A.

Abu Al-Ola

K. A.

Abd El-Mageed

H. R.

Soliman

N. K.

Novel wastewater treatment by using newly prepared green seaweed–zeolite nanocomposite

ACS Omega 2022 7

6999213

13 11044 11056

10.1021/acsomega.1c06998

35415323

43.

Liu

Qiu

Jiang

D. M.

Gan

Zhu

Pan

Wan

Wang

Covalently grafting first-generation PAMAM dendrimers onto MXenes with self- adsorbed AuNPs for use as a functional nanoplatform for highly sensitive electrochemical biosensing of cTnT

Microsystems & Nanoengineering 2022 8

6999213

1 35

10.1038/s41378-022-00352-8

35450327

44.

Fahmy

H. M.

Abu Serea

E. S.

Salah-Eldin

R. E.

al-Hafiry

S. A.

Ali

M. K.

Shalan

A. E.

Lanceros-Méndez

Recent progress in graphene- and related carbon-nanomaterial-based electrochemical biosensors for early disease detection

ACS Biomaterials Science & Engineering 2022 8

6999213

3 964 1000

10.1021/acsbiomaterials.1c00710

35229605

45.

Zhang

Y. L.

Liu

Pan

L. L.

Zhang

S. S.

Liu

R. J.

A magnetically induced self-assembled and label-free electrochemical aptasensor based on magnetic Fe₃O₄/Fe₂O₃@Au nanoparticles for VEGF₁₆₅ protein detection

Applied Surface Science 2022 580, article 152362

6999213

10.1016/j.apsusc.2021.152362

Adsorption Mechanism and Electrochemical Characteristic of Methyl Blue onto Calcium Ferrite Nanosheets

Abstract

1. Introduction

2. Materials and Methods

2.1. Preparation and Characterization of CaFe2O4 Nanomaterials

2.2. Adsorption Experiment

2.3. Electrochemical Experiments

3. Results and Discussion

3.1. Characterizations of Magnetic CaFe2O4 Nanomaterials

3.2. Adsorption Kinetics

3.3. Adsorption Isotherms

3.4. Adsorption Mechanism

3.4.1. Effect of pH and Thermal Regeneration Performance

3.4.2. FTIR Analysis

3.4.3. Electrochemical Performance

4. Conclusions

Footnotes

Data Availability

Conflicts of Interest

Authors’ Contributions

Acknowledgments

Supplementary Materials

References

2.1. Preparation and Characterization of CaFe₂O₄ Nanomaterials

3.1. Characterizations of Magnetic CaFe₂O₄ Nanomaterials
