Removal of Reactive Black Dye in Water by Magnetic Mesoporous Carbon from Macadamia Nutshell

Abstract

The novel and intriguing role of Fe(NO₃)₃ as a chemical activator in carbonization of macadamia nutshell is introduced in this work. Magnetic mesoporous carbon was achieved by chemical activation of macadamia nutshell with Fe(NO₃)₃ under nitrogen atmosphere at 850°C (MMC-850). Porosity of MMC-850 included S _BET 317 m²/g with V _micro 0.0796 cm³/g and considerably high V _meso 0.4318 cm³/g. Not only did MMC-850 possesses good magnetic properties with saturation magnetization and coercive force of 31.48 emu/g and 506.6 O_e, respectively, but MMC-850 also showed high-removal efficiency of reactive black dye (RB5) with maximum adsorption capacity at 123.51 mg/g. The experimental data fit the Langmuir isotherm and Elovich model. Thermal regeneration was effective in degrading RB5 and removal ability was above 90% after two regeneration cycles. RB5 removal from water by MMC-850 as an adsorbent is considered a facile and inexpensive method since macadamia nutshell is a food by-product which is a green and renewable carbon precursor. MMC-850 is a potential adsorbent because it can be separated from wastewater treatment system using magnetic force. Besides, MMC-850 particle is not brittle compared to other porous biochar/activated carbon with similar size; therefore, it is an excellent candidate for column packing or scaling up for wastewater treatment facilities in the future.

1. Introduction

Water pollution and water shortages are major global crises caused by expansion of the industrial sectors and rise of population [1]. Textile industries consume a large amount of water and chemicals [2, 3]. Reactive black 5 (RB5) is an azo dye which is one of the most widely used dye in textile industries due to its bright color and good colorfastness [4, 5]. Approximately, 10-15 percent of RB5 dye is lost in effluent wastewater during dyeing and finishing process [6, 7]. Since RB5 has intense dark hue, a minute amount of RB5 tremendously disturbs water clarity. In addition, chromophores in azo dyes cause mutagenicity and carcinogenicity in humans and animals [8, 9].

In general, there are several methods to remove dyes from wastewater, including physical or chemical processes such as coagulation-flocculation [10–12], membrane filtration [13, 14], ozonation [15], advanced oxidation process (e.g., photocatalysis, Fenton and photo-Fenton, electrochemical, and sonolysis) [16–20], as well as biological process like anaerobic/aerobic process [21–23], or activated sludge process [24]. Most dye removal processes are complicated, expensive, and environment unfriendly while biological processes are green but time-consuming. However, most reactive dyes especially RB5 are not biodegradable, resulting in poor removal efficiency by biological techniques [25]. Adsorption is one of the most acceptable processes for dye-contaminated water treatment due to its simplicity, high efficiency, and low investment [26, 27]. Activated carbon is commonly used as an adsorbent due to its large surface area, high degree of microporosity, and desired surface functionalization [28]. Adsorption of RB5 in water with commercial-activated carbon and activated carbon prepared from coal, agricultural, and industrial wastes, including granular-activated carbon: FILTRASORB 400 [29], granular-activated carbon: DARCO®, granular-activated carbon: Norit® PK 1-3 [30], powdered-activated carbon [31], and activated carbon from H₃PO₄-bamboo [29], activated H₃PO₄-sawdust [32], activated carbon from textile sludge [33], activated carbon from palm shell [34], and activated carbon from walnut wood [35] have been thoroughly studied. Generally, commercial-activated carbon with specific or tailor-made properties is rather expensive.

Renewable and sustainable agricultural by-products such as tree nut shells, coconut shells, peanut shells, and rice husks and straw mainly consist of lignocellulose (cellulose, hemicellulose, and lignin) [36–40]. Porous properties of activated carbon strongly depend on lignocellulosic composition of raw materials. Carbon precursor with high-lignin content tends to have high yield and large number of mesopores [41, 42]. There are several macadamia plantations located at high-altitude area in northern part of Thailand. Macadamia nutshell (MNS) with approximately 50% lignin content [37, 38] is a food by-product from macadamia nut-cracking process in which about 60-70% by weight of MNS is generated [43, 44]. Since MNS exhibits unique properties such as high carbon and lignin contents with excellent hardness [45] which are crucial for preparation of tailor-made mesoporous carbon. Thus, MNS is a promising carbon precursor for adsorbents used in practical application such as column packing for scale up in the future.

In general, physicochemical properties of porous carbon (e.g., porous properties, functional groups, and magnetic properties) can be improved by physical activation (e.g., CO₂ and steam) or chemical activation (e.g., acids, alkali, oxidizing agents, and metal ions). Application of nitric acid (HNO₃) [46, 47], sodium hydroxide (NaOH) [46], phosphoric acid (H₃PO₄) [47], and sulfuric acid (H₂SO₄) [48] as chemical activators for carbonization of MNS were studied. In order to conveniently separate spent adsorbent from the system after wastewater treatment, magnetic adsorbents are considered to be attractive options. In general, magnetic porous carbon is obtained by impregnation of transition metal salts such as FeSO₄·nH₂O [49], FeCl₃·nH₂O [50, 51], Fe(NO₃)₃·nH₂O [52], NiCl₂·nH₂O [53], and MnCl₂·nH₂O [54] to carbon precursor. Unlike other iron compounds, Fe(NO₃)₃ creates not only good magnetic property but also high-mesopore volume. Effortless, green, sustainable, and economical ways of RB5 removal by magnetic mesoporous carbon adsorbent is introduced for the first time in this work.

2. Materials and Methods

2.1. Materials and Chemicals

Macadamia nutshell (MNS) was collected from Pong Yang agriculture, Chiang Mai, Thailand. Iron (III) nitrate nonahydrate (Fe(NO₃)₃·9H₂O, (KemAus, ≥ 98%) was used. The commercial adsorbent was a granular-activated carbon (CAC) derived from bituminous coal, purchased from CARBOKARN Company Limited (I₂ number 1000). The anionic dyes, reactive black 5 (RB5, Sigma-Aldrich, > 50%), were purchased from Sigma-Aldrich. Molecular structure of RB5 is shown in Figure 1.

Figure 1

Molecular structure of the reactive black 5.

2.2. Preparation of Magnetic Mesoporous Carbon (MMC) and Macadamia Nutshell Carbon (MNSC)

Macadamia nutshell (MNS) was immersed in 0.1 M of Fe(NO₃)₃ and continuously stirred at 80°C for 2 hours, followed by oven drying at 80°C for 24 hours. Magnetic mesoporous carbons (MMCs) were fabricated by the carbonization under nitrogen atmosphere. Immersed macadamia nutshells were carbonized at 650°C and 850°C with a heating rate of 10°C/min with 2-hour holding time. Macadamia nutshell carbon (MNSC) was carbonized without chemical activation at 850°C. The samples were denoted as MMC-650, MMC-850, and MNSC-850, as listed in Table 1.

Table 1

Synthesis conditions of samples.

Samples	Raw material	Chemical activation	Carbonization temperature (°C)
MNSC-850	Macadamia nutshell	No	850
MMC-650	Macadamia nutshell	0.10 M Fe(NO₃)₃	650
MMC-850	Macadamia nutshell	0.10 M Fe(NO₃)₃	850
Commercial grade	Bituminous coal	No	NR

Remark: NR: no report.

2.3. Characterization

Surface area and pore volume were investigated by N₂ adsorption-desorption apparatus at 77 K (Autosorb-1-MP, Quantachrome). Morphology and surface features were demonstrated via scanning electron microscopy/energy dispersive X-ray spectroscopy (SEM, Hitachi S-3700 N). Crystalline structure and phase transformation were analyzed by powder X-ray diffraction with an X-ray diffractometer (D8 Advance, Bruker). Magnetic properties of magnetic porous carbon were studied by vibrating sample magnetometer (VSM; model-73098, Lank Shore). Iron content was determined by atomic absorption spectrophotometer (AAS; Analytik Jena ZEEnit 700P). The point of zero charge (pH_pzc) was determined by pH drift method [55].

2.4. Adsorption Experiments

Adsorption was performed in batch experiment. Firstly, for each carbon, 50 mg of sample was added to 100 mL of RB5 solution with different concentrations in the range of 5-300 mg/L. The mixtures were shaken at 200 rpm at 30°C until the appropriate time was reached. The concentration of RB5 was measured by an ultraviolet-visible spectrophotometer at maximum absorbance wavelength of 599 nm. The effect of pH on RB5 removal was performed in the range of pH3 to 11, adjusted by a buffer solution of acetic acid/sodium acetate and ammonium hydroxide/ammonium chloride at an initial concentration of 100 mg/L. Further, the stability of the adsorbent after RB5 adsorption was studied. The amounts of adsorbed RB5 at equilibrium (q_e ) were calculated by Equation (1) $\begin{matrix} (1) & q_{e} = \frac{(C_{0} - C_{e}) V}{W} . \end{matrix}$ The removal percentage of RB5 was expressed by Equation (2) $\begin{matrix} (2) & % removal = \frac{(C_{0} - C_{e})}{C_{0}} \times 100, \end{matrix}$ where $C_{0}$ is the initial concentrations of RB5 (mg/L) and $C_{e}$ is the equilibrium concentrations of RB5 (mg/L); $V$ is the solution volume (L) and $W$ are the weight of adsorbent (g).

2.4.1. Adsorption Isotherm Model

Adsorption isotherm is used to describe the phenomena that occur during transportation of adsorbate in bulk solution to the adsorbent surface at a constant temperature and pH. Moreover, the maximum adsorption capacity as well as adsorption mechanisms that involve the interaction between adsorbate and adsorbent at adsorption equilibrium was described [56, 57]. Langmuir, Freundlich, and Dubinin-Radushkevich (D-R) models were used for data analysis.

Langmuir model is used for monolayer adsorption on an equivalent surface site with an equal sorption activation energy of each molecule, resulting in homogeneous adsorption [58]. Langmuir isotherm model is determined by Equation (3) $\begin{matrix} (3) & q_{e} = \frac{Q_{\max}^{0} {b C}_{e}}{1 + {b C}_{e}}, \end{matrix}$ where ${Q^{0}}_{\max}$ is the maximum monolayer adsorption capacity (mg/g), $q_{e}$ is the amount of RB5 uptake at equilibrium (mg/g), and $b$ is a constant related to the affinity between an adsorbent and adsorbate (L/mg).

Freundlich model is an empirical equation based on assumption that the adsorption occurs on heterogeneous surfaces of adsorbent. Freundlich isotherm model [59] is calculated by Equation (4): $\begin{matrix} (4) & q_{e} = K_{F} C_{e}^{n}, \end{matrix}$ where $q_{e}$ is the amount of RB5 uptake at equilibrium (mg/g), $K_{F}$ is the Freundlich constant (mg/g)/(mg/L), and $n$ is the intensity parameter (dimensionless), which the magnitude of the surface heterogeneity is indicated.

D-R model is a semiempirical equation that is generally applied for an explanation of adsorption mechanism with Gaussian energy distribution onto heterogeneous surfaces [57, 60]. D-R model is expressed as follows in Equations (5)–(7): $\begin{matrix} (5) & q_{e} = q_{DR} e^{- K_{RD} ε^{2}}, \\ (6) & ε = RT \ln (1 + \frac{1}{C_{e}}), \\ (7) & E = \frac{1}{\sqrt{2 K_{DR}}}, \end{matrix}$ where $q_{RD}$ is the adsorption capacity (mg/g), $K_{RD}$ is a constant related to the adsorption energy (mol²/kJ²), $ɛ$ is the Polanyi potential, $E$ is the free energy adsorption (kJ/mol), $R$ is the gas constant (J/mol K), and $T$ is the temperature (K).

2.4.2. Kinetic Adsorption Model

The pseudo-first-order (PFO) model, the pseudo-second-order (PSO), and the Elovich model are the most widely applied to describe kinetic process of adsorption and to calculate kinetic constant.

The PFO rate expression by Lagergren [61] is presented in Equation (8) $\begin{matrix} (8) & q_{t} = q_{e} (1 - e^{- k_{1} t}), \end{matrix}$ where $q_{e 1}$ and $q_{t}$ are the amount of RB5 uptake at equilibrium and at any time ( $t$ ) (mg/g), respectively; and $k_{1}$ is the PFO rate constant (1/min), and $t$ is the time (min).

The PSO model [62] is determined by Equations (9) and (10) $\begin{matrix} (9) & q_{t} = \frac{q_{e}^{2} k_{2} t}{1 + k_{2} q_{e} t}, \\ (10) & h = k_{2} q_{e}^{2}, \end{matrix}$ where $q_{e 2}$ and $q_{t}$ are the amount of RB5 uptake at equilibrium and at any time $t$ (mg/g), respectively; $k_{2}$ is the rate constant of the PSO equation (g/mg·min), h is the initial rate constant (mg/g·min).

Elovich model is widely used to evaluate chemisorption [63, 64] indicated by Equation (11) $\begin{matrix} (11) & q_{t} = \frac{1}{β} \ln (1 + α β t), \end{matrix}$ where $q_{t}$ is the amount of RB5 uptake at any time $t$ (mg/g), respectively; $α$ is the initial rate constant (mg/g·min). $β$ is the desorption constant during any one experiment (mg/g).

Meanwhile, intraparticle diffusion (IPD) model is often used to describe the mechanism of diffusion process and to predict the rate-limiting step of the adsorption process [65]. The adsorption dynamics can be explained by the following three steps: (1) film or surface diffusion of solute from the bulk solution through to the external surface of adsorbent, (2) transportation of solute into the interior of adsorption (intraparticle or pore diffusion), and (3) adsorption on the interior surface of the adsorbent [66–68]. The last step is rapid, so it was not considered a rate-limiting step. The IPD model [69] is calculated by Equation (12) $\begin{matrix} (12) & q_{t} = k_{p} \sqrt{t} + C, \end{matrix}$ where $k_{p}$ is the rate constant of the intraparticle diffusion model (mg/g·min^1/2) and $C$ is a constant associated with the thickness of the boundary layer (mg/g).

2.4.3. Thermodynamic Adsorption Models

The thermodynamic parameters of RB5 adsorption consisted of standard enthalpy change ( $Δ H^{0}$ ), standard entropy change (ΔS⁰), and standard Gibb’s free energy change ( $Δ G^{0}$ ). The relationship of $Δ G °$ to $Δ H °$ and $Δ S °$ is described as follows: $\begin{matrix} (13) & Δ G^{0} = Δ H^{0} - T Δ S^{0} . \end{matrix}$

These parameters can be estimated by the thermodynamic laws stated and the van’t Hoff equation [55] in Equations (14)–(16) $\begin{matrix} (14) & Δ G^{0} = - RT \ln K_{c}, \\ (15) & \ln K_{c} = - (\frac{Δ H^{0}}{RT}) + \frac{Δ S^{0}}{R}, \\ (16) & K_{c} = \frac{{bMW}_{A}}{γ_{A}} \times 55.5 \times 1000, \end{matrix}$ where $6$ is dimensionless obtained by Langmuir constant ( $b$ ); $M W_{A}$ is molecular weight of RB5; $γ_{A}$ is solution density; and the factor 55.5 is the number of moles of pure water per liter (1,000 g/L divided by 18 g/mol).

3. Results and Discussion

3.1. Preparation of Magnetic Mesoporous Carbon and Macadamia Nutshell Carbon

3.1.1. Effect of Fe(NO₃)₃ and Carbonization Temperature on Porous Properties

Porous properties of all samples were investigated by nitrogen adsorption-desorption isotherms as shown in Figure 2(a). MMC-650 demonstrated type II isotherm according to the International Union of Pure and Applied Chemistry (IUPAC) classification [70, 71] indicating nonporous adsorption. While macadamia nutshell carbonized at 850°C (MMC-850), exhibits type I and type IV isotherms, which suggests a combination of microporous and mesoporous structure. On the contrary, MMC-650 and MNSC-650 shared type II isotherm. The BET surface area and pore volume of all samples are presented in Table 2. MMC-650 and MNSC-850 exhibited small surface area at approximately 8 m²/g and 49 m²/g, respectively. As for the MMC-850, high-mesopore volumes were obviously generated in carbon structure where specific surface area, micropore volume, and mesopore volume were 317 m²/g, 0.0796 cm³/g, and 0.4318 cm³/g, respectively. The preliminary results suggested that Fe(NO₃)₃ chemical activator together with carbonization at 850°C were crucial factors in generating pores structure especially mesopores [72, 73].

Figure 2

N₂ adsorption-desorption isotherms (77 K) of MMC-650, MMC-850, and MNSC-850 (a) and CAC (b).

(b)

Table 2

The specific surface area, total pore volume, micropore volume, and mesopore volume of MMC-650, MMC-850, MNSC-850, and CAC.

Samples	Type of isotherm	S _BET [m²/g]	V_p [cm³/g]	V _micro [cm³/g]	V _meso [cm³/g]
MMC-650	II	8	0.0010	0.0010	N/D
MMC-850	I+IV	317	0.4546	0.0796	0.4318
MNSC-850	II	49	0.0544	0.0047	N/D
CAC	I+IV	1103	0.5861	0.3040	0.1160

Remark: N/D: not determined.

3.1.2. Effect of Fe(NO₃)₃ on Surface Morphology

Surface morphologies of MNSC-850, MMC-650, and MMC-850 are presented in Figure 3. Surface morphologies of MNSC-850, MMC-650, and MMC-850 were totally different. SEM micrographs clearly emphasized the role of Fe(NO₃)₃ on the tremendous increase of surface area for MMC-650 and MMC-850 compared to MNSC-850.

Figure 3

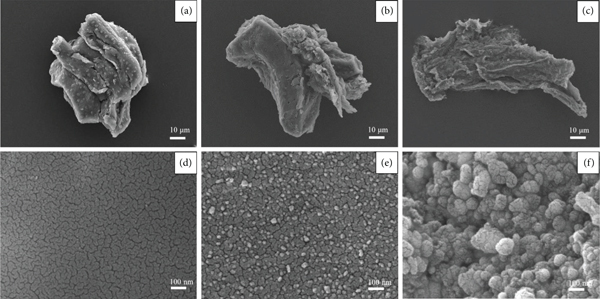

Scanning electron microscope (SEM) images of MNSC-850 (a, d), MMC-650 (b, e), and MMC-850 (c, f).

3.1.3. Effect of Fe(NO₃)₃ on Crystalline Arrangement and Phase Transformation

The crystalline arrangement and phase transformation of MMC-850, MMC-650, and MNSC-850 were determined from X-ray diffraction patterns, as shown in Figure 4. Both MMC-650 and MMC-850 exhibited peak at 2θ around 45°, which corresponded to metallic Fe (JCPDS no. 03-065-4899) [74, 75]. MNSC-850 and MMC-650 revealed broad diffraction peaks at 2θ around 26° and 44°, indicating amorphous carbon (low graphitization degree) [76]. As regards MMC-850 presented a shape peak at 2θ around 26°, suggesting crystalline structure of graphite (JCPDS no. 01-075-1621). The presence of iron compounds in amorphous carbon at high temperatures can cause catalytic graphitization process, transformation of amorphous carbon into the graphitic structure [40]. Besides, only XRD pattern of MMC-850 demonstrated peaks at 2θ around 30.4°, 35.3°, 43.2°, 53.2°, 57.1°, and 62.6°, which corresponded to the characteristic peaks of magnetite (Fe₃O₄) (JCPDS no. 01-075-0499) [75]. Carbonization temperature of Fe(NO₃)₃ impregnated macadamia nutshell obviously played an important role for full formation of Fe₃O₄ phase. Complete magnetite phase was obtained when the suitable temperature (850°C) was reached.

Figure 4

X-ray diffraction (XRD) patterns of MMC-850, MMC-650, and MNSC-850.

3.1.4. Magnetic Properties of Magnetic Mesoporous Carbon

Magnetization curves of MMC-650 and MMC-850 are shown in Figure 5. The saturation magnetization ( $M_{s}$ ) of MMC-650 was 1.493 emu/g, while the $M_{s}$ of MMC-850 was up to 31.48 emu/g as shown in Table 3. It can be explained that the increase in carbonization temperature resulted in an increase in Fe₃O₄ content [72] corresponding to higher MS value. Furthermore, the magnetic hysteresis loop indicated ferromagnetic materials with a strong magnetic response to the external magnetic field [36, 77]. Consequently, it can easily be separated from aqueous solutions (as shown in the inset image of Figure 5). As a result, MMC can be recycled as an environmentally friendly adsorbent. In addition, SEM-EDS results were conducted to confirm the presence of iron compounds. From Table 3, the weight percentages of C, O, and Fe were 92.97, 5.87, and 1.21 for MMC-650 and 91.48, 1.52, and 6.99, respectively, for MMC-850. These results validated the presence of magnetite and metallic Fe in MMC-650 and MMC-850.

Figure 5

Vibrating sample magnetometer (VSM) curves of MMC-850 and MMC-650.

Table 3

Magnetic properties of MMC-650 and MMC-850 and chemical composition of all samples.

Samples	M_s (emu/g)	H_c (Oe)	Chemical composition
			Atomic%			Weight%
			C	O	Fe	C	O	Fe
MMC-650	1.49	149	87.37	7.38	5.28	92.97	5.87	1.21
MMC-850	31.48	506.6	72.59	1.61	25.80	91.48	1.52	6.99
MNSC-850	—	—	92.32	7.68	—	94.12	5.88	—

3.2. Adsorption of Reactive Black 5 Dye

The adsorption efficiency of MNSC-850, MMC-850, and CAC was investigated in batch adsorption tests. CAC was intentionally selected as an example of activated carbon adsorbents for general removal of organic contaminants in wastewater treatment process. Large specific surface area and high micropore volume of CAC are shown in Table 2.

3.2.1. Effect of Carbon Dosage on RB5 Removal and Adsorption Efficiency

RB5 adsorption efficiency was investigated using different amounts of carbon (0.25, 0.50, 1.0, 2.0, and 3.0 g/L) with an initial concentration of 20 mg/L at 30°C for 48 hours. In Figure 6, the more carbon dosage, the higher RB5 removal percentage (from 0.00 to 18.55 percent for MNSC-850, 63.04 to 99.99 for MMC-850, and 9.00 to 74.14 percent for CAC, respectively) becomes. In contrast, the adsorption capacity ( $q_{e}$ ) of RB5 decreased while the dosage of adsorbents increased (from 1.56 to 0.00 mg/g for MNSC-850, 63.69 to 8.41 mg/g for MMC-850, and 8.46 to 5.80 mg/g for CAC, respectively) [37]. The results preliminarily suggest that mesoporous structure played a key role in RB5 adsorption from the aqueous solution. At carbon dosage of 3.0 g/L, commercial-activated carbon (CAC) provided a removal percentage of 74.14, despite the large specific surface area and large micropore structure (small mesopore structure). MMC-850 with a large mesopore structure showed high performance for RB5 removal, which was 97.04% at 0.50 g/L adsorbent. Therefore, adsorption experiment would be conducted with 0.5 g/L carbon dosage of MMC-850 for the rest of this study because of high-removal percentage (97.04 percent), and reasonable $q_{e}$ value (48.35 mg/g).

Figure 6

Effect of carbon dosage on RB5 removal (a) and adsorption efficiency (b) of MNSC-850, MMC-850, and CAC.

(b)

3.2.2. Effect of Initial Concentration on the RB5 Removal

Effect of initial concentration on RB5 removal percentage was examined by initial concentration in the range of 5 to 300 mg/L, 0.5 g/L carbon dosage for 72 hours. Figure 7 shows that MNSC-850 had poor removal efficiency (from 4.04 to 0.00 percent), while MMC-850 and CAC showed decreases in the uptake of RB5 as the initial concentration increased (from 99.99 to 19.44 percent for MMC-850 and 43.52 to 2.81 for CAC). When the ratio between RB5 and active site on adsorbent surface is high as a result the removal percentage was decreased. The greater removal percentage at all concentrations and higher removal efficiency of MMC-850 compared to CAC were presumably due to the number of mesopores in MMC-850.

Figure 7

Effect of initial concentration on the adsorption of RB5 onto MNSC-850, MMC-850, and CAC.

3.2.3. Effect of Adsorption pH on the RB5 Removal

The adsorption pH is an important factor in determining the surface charge of the adsorbent. Figure 8 shows the adsorption efficiency at pH range 3-11. MMC-850 under acidic conditions showed relatively high adsorption efficiency of 126.70 mg/g and 131.80 mg/g for pH 3 and pH 5, respectively. As the pH increased, the adsorption efficiency decreased due to the electrostatic interaction force. At adsorption $pH < p H_{pzc}$ (6.8), the adsorbent surface was positively charged (protonation of acidic groups on the adsorbent surface [38]), and RB5 is negatively charged (deprotonate sulphonate groups; -SO₃ ^- [39]); thus, affinity was formed between the adsorbent and the adsorbate through electrostatic interaction [41]. At $pH > p H_{pzc}$ , adsorption efficiency is reduced due to repulsion between the negative charge on the adsorbent surface and RB5. Furthermore, RB5 adsorption efficiency of CAC and MNSC-850 was slightly changed with pH, approximately 11.13 mg/g for CAC and 0.58 mg/g for MNSC-850, respectively. Therefore, it can be concluded that the electrostatic interaction mechanism played insignificant role in RB5 adsorption [42].

Figure 8

Effect of pH on the adsorption of RB5 solution onto MNSC-850, MMC-850, and CAC.

3.2.4. Adsorption Equilibrium and Thermodynamics Adsorption

Table 4 displays parameters from Langmuir ( ${Q^{0}}_{\max}$ and $K_{L}$ ), Freundlich ( $K_{F}$ and $n$ ), and D-R ( $q_{D R}$ and $E$ ) models and $R^{2}$ values. The experimental data of RB5 adsorption on MMC-850 at 30°C, 40°C, and 50°C were fitted with the Langmuir model, as shown in Figures 9(b)–9(d), and the coefficients of linear regression ( $R^{2}$ ) were 0.9648, 0.9372, and 0.9509, respectively. CAC was also consistent with the Langmuir model ( $R^{2}$ 0.9915) at 30 C°. The results suggested a monolayer adsorption mechanism between the absorbent and the adsorbate.

Table 4

Isotherm parameters of Langmuir, Freundlich, and D-R models for RB5 adsorption.

Sample	Langmuir			Freundlich			D-R
Sample	${Q^{0}}_{\max}$ (mg/g)	$K_{L}$ (L/mg)	$R^{2}$ (-)	$K_{f}$ (mg/g)(L/mg)^1/n	$n$ (-)	$R^{2}$ (-)	$q_{DR}$ (mg/g)	$E$ (kJ/mol)	$R$ ² (-)
MMC-850 (at 30°C)	123.51	0.64	0.9648	53.70	6.09	0.7696	$1.39 E - 04$	11.96	0.9072
MMC-850 (at 40°C)	102.29	0.55	0.9372	49.29	7.03	0.8459	$1.15 E - 04$	12.32	0.9675
MMC-850 (at 50°C)	105.25	0.46	0.9509	52.11	7.50	0.8681	$1.13 E - 04$	13.81	0.9535
CAC (at 30°C)	12.25	0.22	0.9915	5.28	5.82	0.8723	$1.34 E - 05$	12.02	0.9646

Figure 9

Adsorption isotherm models for RB5 adsorption onto (a) CAC, (b) MMC-850 at 30°C, (c) MMC-850 at 40°C, and (d) MMC-850 at 50°C.

(b)

(c)

(d)

D-R model can determine whether the adsorption mechanism was physisorption, ion exchange, or chemisorption through free energy of adsorption ( $E$ ) calculations. Physisorption, ion-exchange adsorption, and chemisorption are represented by $E$ values <8 kJ/mol, 8-16 kJ/mol, >16 kJ/mol, respectively [78]. In Table 4, the mean adsorption energy of MMC-850 was 11.96 kJ/mol, 12.32 kJ/mol, and 13.81 kJ/mol at 30°C, 40°C, and 50°C, respectively; whereas $E$ of CAC was 12.02 kJ/mol at 30°C. The results showed that the adsorption mechanism of MMC-850 and CAC was an ion-exchange adsorption process.

The Langmuir model was used to calculate the maximum monolayer adsorption capacity ( $Q^{0} \max$ ). MMC-850 and CAC had $Q^{0} \max$ values of 123.51 mg/g and 12.25 mg/g at 30°C, respectively. The RB5 adsorption efficiency of MMC-850 (micropores and mesopores) was significantly higher than that of CAC (micropores without mesopores). The RB5 molecule has a dimension of $2.990 nm x 0.857 nm$ (Figure 1), which is larger than the micropore diameter (<2 nm), so the mesopores’ role on RB5 adsorption cannot be overlooked [30]. The effect of temperature on RB5 adsorption was studied. The adsorption capacity of MMC-850 decreased as the temperature increased from 30 to 40°C, with $Q^{0} \max$ values of 123.51 mg/g and 102.29 mg/g, respectively. Then, when the temperature increased from 40°C to 50°C, the adsorption efficiency did not significantly change. (from 102.29 to 105.25 mg/g).

Table 5 presents thermodynamics parameters for RB5 adsorption on MMC-850 at 30°C, 40°C, and 50°C. The negative value of $∆ H °$ (-10.88 kJ/mol) suggested an exothermic adsorption process. Additionally, the type of adsorption was determined by $∆ H °$ . The adsorption process was physical if $∆ H °$ was less than 42 kJ/mol. However, $∆ H °$ was higher than 42 kJ/mol implying the chemical adsorption process. The positive value of $Δ S$ ° indicated the increase in randomness at the adsorbent-adsorbate boundary during the adsorption process. Finally, the negative values of $Δ G °$ suggested that RB5 adsorption on MMC-850 was a spontaneous process at 30°C, 40°C, and 50°C.

Table 5

Thermodynamics parameter for RB5 adsorption onto MMC-850.

$∆ H °$ (kJ/Mol)	$∆ S °$ (kJ/mol K)	$Δ G °$ (kJ/mol K)
$∆ H °$ (kJ/Mol)	$∆ S °$ (kJ/mol K)	30°C	40°C	50°C
-10.88	0.11	-43.79	-44.85	-45.94

3.2.5. Adsorption Kinetic of RB5

The adsorption kinetic and dynamic of RB5 on MMC-850 were investigated by kinetic rate models, pseudo-first-order (PFO), pseudo-second-order (PFO), and Elovich models. $R^{2}$ value and parameters calculated by the PFO ( $k_{1}$ and $q_{e 1}$ ), the PSO ( $k_{2}$ , $q e_{2}$ , and $h$ ), and Elovich (α and β) model are listed in Table 6. A plot of the amount of RB5 adsorbed (mg/g) versus contact time at 100 mg/L and constant temperature of 30°C is presented in Figure 10(a). At the initial 1.0260 mg/g min adsorption rate ( $h$ ), the amount of RB5 uptake (mg/g) increases with increasing contact time. In Figure 10(a), the experimental data was well-fitted with the Elovich model, with the $R^{2}$ value of 0.9745.

Table 6

Kinetic parameters of pseudo-first-order (PFO), pseudo-second-order (PSO), and Elovich model for RB5 adsorption.

Sample	Pseudo-first-order (PFO)			Pseudo-second-order (PSO)				Elovich
Sample	$k_{1}$ (min^-1)	$q_{e 1}$ (mg/g)	$R^{2}$ (-)	$k_{2}$ (g/mg·min)	$q_{e 2}$ (mg/g)	$h$ (mg/g·min)	$R^{2}$ (-)	α (mg/g·min)	β (mg/g)	$R^{2}$ (-)
MMC-850	0.0091	67.47	0.8628	0.0002	71.76	1.0260	0.9263	8.03	0.11	0.9753

Figure 10

(a) Adsorption kinetic models for RB5 adsorption onto MMC-850; (b) intraparticle diffusion model for RB5 adsorption onto MMC-850.

(b)

3.2.6. Intraparticle Diffusion Model

The intraparticle diffusion model is used for describing the adsorption mechanism and rate-limiting step. According to Weber and Morris [69]; when the regression of $q_{t}$ versus $t^{1 / 2}$ is a straight line and passes through the origin, intraparticle diffusion is the rate-limiting step. Figure 10(b) reveals 2 straight lines, implying that adsorption occurred in two steps. The first and second steps were surface or film diffusion and adsorption, respectively. Although intraparticle diffusion was not the rate-limiting step, RB5 adsorption process was controlled by film diffusion and intraparticle diffusion [65]. $R^{2}$ value and other parameters ( $K_{id}$ , $C$ ) are listed in Table 7.

Table 7

Intraparticle diffusion parameter for RB5 adsorption.

Sample	$K_{p, 1}$ (mg/g·min^1/2)	$C_{1}$ (mg/g)	$R^{2}$ (-)	$K_{p, 2}$ (mg/g·min^1/2)	$C_{2}$ (mg/g)	$R^{2}$ (-)
MMC-850	2.53	8.47	0.9757	0.46	50.16	0.9830

3.2.7. Adsorption Mechanisms of RB5 Adsorption

Mechanisms for cationic dye adsorption included electrostatic attraction, hydrogen bonding formation, $n - π$ interaction, pore filling, and $π - π$ interaction [30, 42, 79, 80]. MMC-850 was examined for changes in porosity properties after RB5 adsorption. Subsequently, the dominant mechanism of RB5 adsorption was pore filling, which was observed by the decrease in porosity. The V _meso of MMC-850 drastically decreased after RB5 adsorption (from 0.4318 to 0.1743 cm³/g) as well as the S _BET (from 317 to 62.57 m²/g), while V _micro was slightly reduced. (from 0.0796 to 0.0200 cm³/g). This evidence supported the idea that mesopore structure plays a key role in RB5 adsorption. Therefore, it can be concluded that pore filling was dominant mechanism for RB5 adsorption.

From Section 3.2.3, RB5 adsorption efficiency of MMC-850 slightly changed when the solution pH changed. Therefore, it was suggested that the electrostatic interaction mechanism was negligible in RB5 adsorption. In addition, $π - π$ interactions between the aromatic ring in the RB5 structure, as shown in Figure 1, and C=C in the graphite structure was supported by prior studies in adsorption of RB5 onto activated carbon adsorbents and adsorption of methylene green (MG5) onto CAC (Norit RB4C) [30, 42].

3.2.8. MMC-850 as RB5 Adsorbent Compared to Others

RB5 adsorbents consisting of commercial-activated carbon, activated carbon from waste materials, and magnetic iron oxide as well as polyethyleneimine and cellulose on magnetic nanoparticles (MNPs) are listed in Table 8. However, carbon precursor of magnetic mesoporous carbon (MMC-850) is made from agricultural waste, providing them both inexpensive and renewable adsorbent. Besides, MMC-850 is considered as high potential as RB5 adsorbent in term of low cost, sustainability, facile, and green preparations by using only one Fe(NO₃)₃ chemical activator. Furthermore, RB5 adsorption by MMC-850 was conducted at pH 7 which is considered environment friendly process since no added chemical is required for pH adjustment. Moreover, MMC-850 can be easily separated from wastewater treatment afterward. The future scale up of RB5 adsorption by MMC-850 by column packing is highly possible due to the strength of macadamia nutshell.

Table 8

Adsorbents for RB5 adsorption.

Adsorbents	$Q^{0} \max$ (mg/g)	pH	Magnetic responsibility	Reference
Granular-activated carbon FILTRASORB 400 (F400)	197.50	NR	No	[29]
Granular-activated carbon Darco® 12x20, from lignite	348.00	10	No	[30]
Granular-activated carbon Norit® PK 1-3, from peat	394.00	10	No	[30]
Powdered-activated carbon (Merck)	58.82	NR	No	[31]
Activated carbons from bamboo	441.70	NR	No	[29]
Activated carbon from textile sludge	11.98	NR	No	[33]
Activated carbon from palm shell	25.12	2	No	[34]
Activated carbon from walnut wood	19.34	5	No	[35]
Activated carbon from Acacia nilotica	41.01	6.5	No	[81]
Magnetic-cellulose-PEI (MCPEI)	330.00	7	Yes	[82]
Magnetic iron oxide	18.00	NR	Yes	[83]
MMC-850	106.07	7	Yes	This work
CAC	12.25	7	No	This work

Remark: NR: no report.

3.3. Stability of Adsorbent after Adsorption Process

The stability of MMC-850 after RB5 adsorption was quantified by the amount of iron leached into solution during the adsorption process and crystalline structure of iron compounds in the adsorbent structure after the adsorption process. The result showed that the leaching content of iron was less than 0.50 mg/L in solution. Furthermore, the XRD patterns of MMC-850 after RB5 adsorption were identical to MMC-850 before RB5 adsorption, as illustrated in Figure 11. Therefore, magnetite and iron in the MMC-850 structure had negligible loss.

Figure 11

X-ray diffraction (XRD) patterns of MMC-850 before and after RB5 adsorption.

3.4. Thermal Regeneration of Spent Magnetic Mesoporous Carbon

The reversibility of adsorption was examined using a thermal regeneration experiment [84]. The spent magnetic mesoporous carbon was pyrolyzed under a nitrogen atmosphere at 400°C for 2 hours to decompose RB5 within the structure. For each cycle, the regenerated carbon was retested for adsorption efficiency at a RB5 concentration of 10 mg/L and 30°C. According to Figure 12, the removal percentage of RB5 decreased slightly from 99.47% in the first cycle to 98.95% in the second cycle. By the third cycle of the experiment, the RB5 removal percentage rapidly reduced to 77.48%, possibly due to a change in the pore structure within the absorbent material. At the end of the fourth cycle, the percentage of RB5 removed declined continuously from 77.48 to 68.92. It was observed that thermal regeneration was effective in degrading RB5.

Figure 12

Thermal regeneration of RB5 onto MMC-850 at four cycles (condition: initial concentration 10 mg/L, carbon dosage 0.5 g/L, temperature 30°C, and time 72 hours.).

4. Conclusion

Magnetic mesoporous carbon from macadamia nutshell (MMC-850) is a promising adsorbent in terms of facile preparation, low cost, and sustainability. Fe(NO₃)₃ and high-lignin content macadamia nutshell were carbonized at 850°C to generate magnetic mesoporous carbon that can be easily separated from RB5 adsorption system. It can be preliminarily concluded that mesopores on MMC-850 played a crucial role for RB5 adsorption. The isotherm and kinetics adsorption models of RB5 removal by MMC-850 were Langmuir and Elovich, respectively. The intraparticle diffusion model suggested that RB5 adsorption onto MMC-850 was influenced by multisteps, film diffusion, and intraparticle diffusion. Thermodynamic studies described RB5 adsorption on MMC-850 as a spontaneous process and an exothermic adsorption process. The dominant mechanism of RB5 removal on MMC-850 was pore filling. MMC-850 is not only an effective adsorbent for RB5 removal, but it can also be easily regenerated through thermal regeneration.

Footnotes

Abbreviations

Data Availability

The supporting data used to support the findings of this study are available from the corresponding author upon request.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Acknowledgments

The authors would like to acknowledge Dr. Chanchana Thanachayanont from National Center for Metal and Materials Technology Center (MTEC) who provided insight and expertise that greatly assisted the research. This research work was partially supported by Chiang Mai University. The authors would also like to thank Assistant Professor Dr. Yothin Chimupala from the Department of Industrial Chemistry, Faculty of Science, Chiang Mai University, for comments that greatly improved the manuscript. This work was supported by the Industry Academia Partnership Programme-18/19, Royal Academy of Engineering and Office of the Higher Education Commission (IAPP18-19\119), and Thai Graduate Institute of Science and Technology (TGIST), National Science and Technology Development Agency (SCA-CO-2562-9657-TH).

References

Boretti

Rosa

Reassessing the projections of the World Water Development Report

npj Clean Water 2019 2

9884474

1 2

10.1038/s41545-019-0039-9

Shaikh

M. A.

Water conservation in textile industry

Pakistan Textile Journal 2009 58

9884474

48 51

Samanta

K. K.

Pandit

Samanta

Basak

Muthu

S. S.

3 - Water consumption in textile processing and sustainable approaches for its conservation

Water in Textiles and Fashion 2019

Woodhead Publishing

41 59

10.1016/B978-0-08-102633-5.00003-8

El Bouraie

El Din

W. S.

Biodegradation of reactive black 5 by _Aeromonas hydrophila_ strain isolated from dye-contaminated textile wastewater

Sustainable Environment Research 2016 26

9884474

5 209 216

10.1016/j.serj.2016.04.014

2-s2.0-84989327824

Balarak

al-Musawi

T. J.

Mohammed

I. A.

Abasizadeh

The eradication of reactive black 5 dye liquid wastes using Azolla filiculoides aquatic fern as a good and an economical biosorption agent

SN Applied Sciences 2020 2

9884474

6 1015

10.1007/s42452-020-2841-x

Sarkar

Banerjee

Halder

Biswas

Bandopadhyay

Degradation of synthetic azo dyes of textile industry: a sustainable approach using microbial enzymes

Water Conservation Science and Engineering 2017 2

9884474

4 121 131

10.1007/s41101-017-0031-5

Chequer

F. M. D.

de Oliveira

G. A. R.

Ferraz

E. R. A.

Carvalho

Zanoni

M. V. B.

de Oliveir

D. P.

Textile dyes: dyeing process and environmental impact

Eco-Friendly Textile Dyeing and Finishing 2013 6

9884474

151 176

Hadibarata

Adnan

L. A.

Yusoff

A. R. M.

Yuniarto

Rubiyatno Zubir

M. M. F. A.

Khudhair

A. B.

Teh

Z. C.

Naser

M. A.

Microbial decolorization of an azo dye reactive black 5 using white-rot fungus Pleurotus eryngii F032

Water, Air, & Soil Pollution 2013 224

9884474

6 1595

10.1007/s11270-013-1595-0

2-s2.0-84877889938

Dutta

Gupta

Srivastava

S. K.

Gupta

A. K.

Recent advances on the removal of dyes from wastewater using various adsorbents: a critical review

Materials Advances 2021 2

9884474

14 4497 4531

10.1039/D1MA00354B

10.

Guibal

Roussy

Coagulation and flocculation of dye-containing solutions using a biopolymer (chitosan)

Reactive and Functional Polymers 2007 67

9884474

1 33 42

10.1016/j.reactfunctpolym.2006.08.008

2-s2.0-33845670031

11.

Morshedi

Mohammadi

Akbar Boojar

M. M.

Aliakbari

Using protein nanofibrils to remove azo dyes from aqueous solution by the coagulation process

Colloids and Surfaces. B, Biointerfaces 2013 112

9884474

245 254

10.1016/j.colsurfb.2013.08.004

2-s2.0-84883410081

23999142

12.

Furlan

F. R.

de Melo da Silva

L. G.

Morgado

A. F.

de Souza

A. A. U.

Guelli Ulson de Souza

S. M. A.

Removal of reactive dyes from aqueous solutions using combined coagulation/flocculation and adsorption on activated carbon

Resources, Conservation and Recycling 2010 54

9884474

5 283 290

10.1016/j.resconrec.2009.09.001

2-s2.0-74149089836

13.

Semiz

Removal of reactive black 5 from wastewater by membrane filtration

Polymer Bulletin 2020 77

9884474

6 3047 3059

10.1007/s00289-019-02896-8

14.

Rashidi

H. R.

Sulaiman

N. M. N.

Hashim

N. A.

Hassan

C. R. C.

Ramli

M. R.

Synthetic reactive dye wastewater treatment by using nano-membrane filtration

Desalination and Water Treatment 2015 55

9884474

1 86 95

10.1080/19443994.2014.912964

2-s2.0-84930867095

15.

Colindres

Yee-Madeira

Reguera

Removal of reactive black 5 from aqueous solution by ozone for water reuse in textile dyeing processes

Desalination 2010 258

9884474

1-3 154 158

10.1016/j.desal.2010.03.021

2-s2.0-77953610360

16.

Lucas

M. S.

Peres

J. A.

Decolorization of the azo dye reactive black 5 by Fenton and photo-Fenton oxidation

Dyes and Pigments 2006 71

9884474

3 236 244

10.1016/j.dyepig.2005.07.007

2-s2.0-30744473946

17.

Hsueh

C. L.

Huang

Y. H.

Wang

C. C.

Chen

C. Y.

Degradation of azo dyes using low iron concentration of Fenton and Fenton-like system

Chemosphere 2005 58

9884474

10 1409 1414

10.1016/j.chemosphere.2004.09.091

2-s2.0-15944378177

15686759

18.

Zhou

Wang

Wong

F. S.

Rapid decolorization and mineralization of simulated textile wastewater in a heterogeneous Fenton like system with/without external energy

Journal of Hazardous Materials 2009 165

9884474

1-3 193 199

10.1016/j.jhazmat.2008.09.100

2-s2.0-64549090642

18992989

19.

Vasconcelos

V. M.

Ribeiro

F. L.

Migliorini

F. L.

Alves

S. A.

Steter

J. R.

Baldan

M. R.

Ferreira

N. G.

Lanza

M. R. V.

Electrochemical removal of reactive black 5 azo dye using non-commercial boron-doped diamond film anodes

Electrochimica Acta 2015 178

9884474

484 493

10.1016/j.electacta.2015.07.133

2-s2.0-84939818199

20.

Valadez-Renteria

Oliva

Rodriguez-Gonzalez

Photocatalytic materials immobilized on recycled supports and their role in the degradation of water contaminants: a timely review

Science of the Total Environment 2022 807, Part 2, article 150820

9884474

10.1016/j.scitotenv.2021.150820

34627879

21.

Işik

Sponza

D. T.

Anaerobic/aerobic treatment of a simulated textile wastewater

Separation and Purification Technology 2008 60

9884474

1 64 72

10.1016/j.seppur.2007.07.043

2-s2.0-39849087693

22.

Sponza

D. T.

Işik

Decolorization and azo dye degradation by anaerobic/aerobic sequential process

Enzyme and Microbial Technology 2002 31

9884474

1-2 102 110

10.1016/S0141-0229(02)00081-9

2-s2.0-0036644133

23.

You

S.-J.

Teng

J.-Y.

Anaerobic decolorization bacteria for the treatment of azo dye in a sequential anaerobic and aerobic membrane bioreactor

Journal of the Taiwan Institute of Chemical Engineers 2009 40

9884474

5 500 504

10.1016/j.jtice.2009.01.007

2-s2.0-67651172807

24.

Gulnaz

Kaya

Dincer

The reuse of dried activated sludge for adsorption of reactive dye

Journal of Hazardous Materials 2006 134

9884474

1-3 190 196

10.1016/j.jhazmat.2005.10.050

2-s2.0-33646499667

16343754

25.

Khalid

Arshad

Crowley

D. E.

Biodegradation potential of pure and mixed bacterial cultures for removal of 4-nitroaniline from textile dye wastewater

Water Research 2009 43

9884474

4 1110 1116

10.1016/j.watres.2008.11.045

2-s2.0-60549107864

19114284

26.

Ali

Gupta

V. K.

Advances in water treatment by adsorption technology

Nature Protocols 2006 1

9884474

6 2661 2667

10.1038/nprot.2006.370

2-s2.0-34548838541

27.

De Gisi

Lofrano

Grassi

Notarnicola

Characteristics and adsorption capacities of low-cost sorbents for wastewater treatment: a review

Sustainable Materials and Technologies 2016 9

9884474

10 40

10.1016/j.susmat.2016.06.002

2-s2.0-84992229236

28.

Nille

O. S.

Patil

A. S.

Waghmare

R. D.

Naik

V. M.

Gunjal

D. B.

Kolekar

G. B.

Gore

A. H.

Bhat

Chapter 11 - valorization of tea waste for multifaceted applications: a step toward green and sustainable development

Valorization of Agri-Food Wastes and by-Products 2021

Academic Press

219 236

10.1016/B978-0-12-824044-1.00046-5

29.

A. W. M.

Barford

J. P.

McKay

A comparative study on the kinetics and mechanisms of removal of reactive black 5 by adsorption onto activated carbons and bone char

Chemical Engineering Journal 2010 157

9884474

2-3 434 442

10.1016/j.cej.2009.12.003

2-s2.0-76449111362

30.

Giannakoudakis

D. A.

Kyzas

G. Z.

Avranas

Lazaridis

N. K.

Multi-parametric adsorption effects of the reactive dye removal with commercial activated carbons

Journal of Molecular Liquids 2016 213

9884474

381 389

10.1016/j.molliq.2015.07.010

2-s2.0-84961752921

31.

Eren

Acar

F. N.

Adsorption of reactive black 5 from an aqueous solution: equilibrium and kinetic studies

Desalination 2006 194

9884474

1-3 1 10

10.1016/j.desal.2005.10.022

2-s2.0-33747182789

32.

Patabandige

Wadumethrige

Wanniarachchi

H₃PO₄-activated sawdust and rice husk as effective decolorizers for textile wastewater containing reactive black 5

International journal of Environmental Science and Technology 2019 16

9884474

12 8375 8388

10.1007/s13762-019-02394-4

2-s2.0-85065502321

33.

Wong

Yac'cob

N. A. N.

Ngadi

Hassan

Inuwa

I. M.

From pollutant to solution of wastewater pollution: synthesis of activated carbon from textile sludge for dye adsorption

Chinese Journal of Chemical Engineering 2018 26

9884474

4 870 878

10.1016/j.cjche.2017.07.015

2-s2.0-85035221592

34.

Tze

M. W.

Aroua

M. K.

Szlachta

Palm Shell-based activated carbon for removing reactive black 5 dye: equilibrium and kinetics studies

BioResources 2016 11

9884474

1432 1447

10.15376/biores.11.1.1432-1447

2-s2.0-84981287393

35.

Heibati

Rodriguez-Couto

Amrane

Rafatullah

Hawari

al-Ghouti

M. A.

Uptake of reactive black 5 by pumice and walnut activated carbon: chemistry and adsorption mechanisms

Journal of Industrial and Engineering Chemistry 2014 20

9884474

5 2939 2947

10.1016/j.jiec.2013.10.063

2-s2.0-84903552271

36.

Huang

Xian

Tsang

E. P.

Cheng

Fang

Magnetic biochar for environmental remediation: a review

Bioresource Technology 2020 298, article 122468

9884474

10.1016/j.biortech.2019.122468

31839494

37.

Wang

Zhang

Liu

Chen

Preparation and application of magnetic biochar in water treatment: a critical review

Science of the Total Environment 2020 711, article 134847

9884474

10.1016/j.scitotenv.2019.134847

31812432

38.

Fan

Yang

Shi

Kan

Preparation and properties of hydrochars from macadamia nut shell via hydrothermal carbonization

Royal Society Open Science 2018 5

9884474

10, article 181126

10.1098/rsos.181126

2-s2.0-85056800246

30473856

39.

Pengthamkeerati

Satapanajaru

Singchan

Sorption of reactive dye from aqueous solution on biomass fly ash

Journal of Hazardous Materials 2008 153

9884474

3 1149 1156

10.1016/j.jhazmat.2007.09.074

2-s2.0-41449084068

17981394

40.

Wang

Qiao

Catalytic graphitization of coal-based carbon materials with light rare earth elements

Langmuir 2016 32

9884474

34 8583 8592

10.1021/acs.langmuir.6b02000

2-s2.0-84984845686

27482724

41.

Igwegbe

C. A.

Oba

S. N.

Aniagor

C. O.

Adeniyi

A. G.

Ighalo

J. O.

Adsorption of ciprofloxacin from water: a comprehensive review

Journal of Industrial and Engineering Chemistry 2021 93

9884474

57 77

10.1016/j.jiec.2020.09.023

42.

Tran

H. N.

Wang

Y. F.

You

S. J.

Chao

H. P.

Insights into the mechanism of cationic dye adsorption on activated charcoal: the importance of

π - π

interactions

Process Safety and Environmental Protection 2017 107

9884474

168 180

10.1016/j.psep.2017.02.010

2-s2.0-85013763134

43.

Cortat

L. O.

Zanini

N. C.

Barbosa

R. F. S.

de Souza

A. G.

Rosa

D. S.

Mulinari

D. R.

A sustainable perspective for macadamia nutshell residues revalorization by green composites development

Journal of Polymers and the Environment 2021 29

9884474

10 3210 3226

10.1007/s10924-021-02080-y

44.

Samaksaman

Pattaraprakorn

Neramittagapong

Kanchanatip

Solid fuel production from macadamia nut shell: effect of hydrothermal carbonization conditions on fuel characteristics

Biomass Conversion and Biorefinery 2021

10.1007/s13399-021-01330-2

45.

Liang

Yang

Zhang

Convenient preparation of nitrogen-doped activated carbon from macadamia nutshell and its application in supercapacitor

Journal of Materials Science: Materials in Electronics 2017 28

9884474

18 13880 13887

10.1007/s10854-017-7236-4

2-s2.0-85020109700

46.

Nchoe

O. B.

Ntuli

T. D.

Klink

M. J.

Mtunzi

F. M.

Pakade

V. E.

A comparative study of acid-treated, base-treated, and Fenton-like reagent- treated biomass for Cr(VI) sequestration from aqueous solutions

Water Environment Research 2021 93

9884474

3 370 383

10.1002/wer.1421

32735759

47.

Poinern

G. E. J.

Senanayake

Shah

Thi-le

X. N.

Parkinson

G. M.

Fawcett

Adsorption of the aurocyanide, Au(CN)2- complex on granular activated carbons derived from macadamia nut shells - a preliminary study

Minerals Engineering 2011 24

9884474

15 1694 1702

10.1016/j.mineng.2011.09.011

2-s2.0-80855143737

48.

Wongcharee

Aravinthan

Erdei

Mesoporous activated carbon-zeolite composite prepared from waste macadamia nut shell and synthetic faujasite

Chinese Journal of Chemical Engineering 2019 27

9884474

1 226 236

10.1016/j.cjche.2018.06.024

2-s2.0-85051361815

49.

Cai

Wei

Liu

Zhou

Han

Preparation of amino-functionalized magnetic biochar with excellent adsorption performance for Cr(VI) by a mild one-step hydrothermal method from peanut hull

Colloids and Surfaces A: Physicochemical and Engineering Aspects 2019 563

9884474

102 111

10.1016/j.colsurfa.2018.11.062

2-s2.0-85057613741

50.

Liu

Sohi

S. P.

Liu

Guan

Zhou

Chen

Adsorption and reductive degradation of Cr(VI) and TCE by a simply synthesized zero valent iron magnetic biochar

Journal of Environmental Management 2019 235

9884474

276 281

10.1016/j.jenvman.2019.01.045

2-s2.0-85060941436

51.

Dong

Shen

Shan

Liu

Gao

Optimizing magnetic functionalization conditions for efficient preparation of magnetic biochar and adsorption of Pb(II) from aqueous solution

Science of the Total Environment 2022 806, Part 4, article 151442

9884474

10.1016/j.scitotenv.2021.151442

34742966

52.

Zhang

Qin

Jia

Chen

Removal of aqueous Cr(VI) by a magnetic biochar derived from Melia azedarach wood

Bioresource Technology 2018 256

9884474

1 10

10.1016/j.biortech.2018.01.145

2-s2.0-85041385744

29427861

53.

Yao

Guo

Cai

Wang

Song

Zhang

Magnetic activated biochar nanocomposites derived from wakame and its application in methylene blue adsorption

Bioresource Technology 2020 302, article 122842

9884474

10.1016/j.biortech.2020.122842

32006925

54.

Yin

Zhang

Sun

Wang

Feng

Zhang

Dai

Tang

Apium-derived biochar loaded with MnFe₂O₄@C for excellent low frequency electromagnetic wave absorption

Ceramics International 2020 46

9884474

9 13641 13650

10.1016/j.ceramint.2020.02.150

55.

Tran

H. N.

You

S. J.

Hosseini-Bandegharaei

Chao

H. P.

Mistakes and inconsistencies regarding adsorption of contaminants from aqueous solutions: a critical review

Water Research 2017 120

9884474

88 116

10.1016/j.watres.2017.04.014

2-s2.0-85018357195

28478298

56.

Al-Ghouti

M. A.

Da'ana

D. A.

Guidelines for the use and interpretation of adsorption isotherm models: a review

Journal of Hazardous Materials 2020 393, article 122383

9884474

10.1016/j.jhazmat.2020.122383

32369889

57.

Foo

K. Y.

Hameed

B. H.

Insights into the modeling of adsorption isotherm systems

Chemical Engineering Journal 2010 156

9884474

1 2 10

10.1016/j.cej.2009.09.013

2-s2.0-72049131056

58.

Langmuir

The constitution and fundamental properties of solids and liquids

Journal of the Franklin Institute 1917 183

9884474

1 102 105

10.1016/S0016-0032(17)90938-X

2-s2.0-50749120100

59.

Freundlich

H. M. F.

über die adsorption in losungen (adsorption in solution)

Zeitschrift für Physikalische Chemie 1906 57

9884474

385 490

60.

Dubinin

M. M.

The equation of the characteristic curve of activated charcoal

Proceedings of the USSR Academy of Sciences 1947 55

9884474

327 329

61.

Y.-S.

Porter

McKay

Equilibrium isotherm studies for the sorption of divalent metal ions onto peat: copper, nickel and lead single component systems

Water Air and Soil Pollution 2002 141

9884474

1/4 1 33

10.1023/A:1021304828010

2-s2.0-0036874989

62.

Y.-S.

Review of second-order models for adsorption systems

Journal of Hazardous Materials 2006 136

9884474

3 681 689

10.1016/j.jhazmat.2005.12.043

2-s2.0-33746672575

16460877

63.

Wang

Guo

Adsorption kinetic models: physical meanings, applications, and solving methods

Journal of Hazardous Materials 2020 390, article 122156

9884474

10.1016/j.jhazmat.2020.122156

32006847

64.

Chien

Clayton

Application of Elovich equation to the kinetics of phosphate release and sorption in soils

Soil Science Society of America Journal 1980 44

9884474

2 265 268

10.2136/sssaj1980.03615995004400020013x

65.

Vimonses

Lei

Jin

Chow

C. W. K.

Saint

Kinetic study and equilibrium isotherm analysis of Congo red adsorption by clay materials

Chemical Engineering Journal 2009 148

9884474

2-3 354 364

10.1016/j.cej.2008.09.009

2-s2.0-61649086921

66.

Boparai

H. K.

Joseph

O’Carroll

D. M.

Kinetics and thermodynamics of cadmium ion removal by adsorption onto nano zerovalent iron particles

Journal of Hazardous Materials 2011 186

9884474

1 458 465

10.1016/j.jhazmat.2010.11.029

2-s2.0-79551556859

21130566

67.

Unuabonah

E. I.

Adebowale

K. O.

Olu-Owolabi

B. I.

Kinetic and thermodynamic studies of the adsorption of lead (II) ions onto phosphate-modified kaolinite clay

Journal of Hazardous Materials 2007 144

9884474

1-2 386 395

10.1016/j.jhazmat.2006.10.046

2-s2.0-34248142205

17156914

68.

Vadivelan

Kumar

K. V.

Equilibrium, kinetics, mechanism, and process design for the sorption of methylene blue onto rice husk

Journal of Colloid and Interface Science 2005 286

9884474

1 90 100

10.1016/j.jcis.2005.01.007

2-s2.0-17644407711

15848406

69.

Weber

W. J.

Morris

J. C.

Kinetics of adsorption on carbon from solution

Journal of the Sanitary Engineering Division 1963 89

9884474

2 31 59

10.1061/JSEDAI.0000430

70.

Alothman

A review: fundamental aspects of silicate mesoporous materials

Materials 2012 5

9884474

2874 2902

71.

Donohue

M. D.

Aranovich

G. L.

Classification of Gibbs adsorption isotherms

Advances in Colloid and Interface Science 1998 76-77

9884474

137 152

10.1016/S0001-8686(98)00044-X

2-s2.0-0032123738

72.

Siyasukh

Chimupala

Tonanon

Preparation of magnetic hierarchical porous carbon spheres with graphitic features for high methyl orange adsorption capacity

Carbon 2018 134

9884474

207 221

10.1016/j.carbon.2018.03.093

2-s2.0-85047436590

73.

Liu

W.-J.

Tian

Y. R.

Jiang

H. Q.

High-yield harvest of nanofibers/mesoporous carbon composite by pyrolysis of waste biomass and its application for high durability electrochemical energy storage

Environmental Science & Technology 2014 48

9884474

23 13951 13959

10.1021/es504184c

2-s2.0-84918528224

25372400

74.

Zhu

Qian

Liu

Matera

Zhang

Chen

Controllable synthesis of magnetic carbon composites with high porosity and strong acid resistance from hydrochar for efficient removal of organic pollutants: an overlooked influence

Carbon 2016 99

9884474

338 347

10.1016/j.carbon.2015.12.044

2-s2.0-84959373813

75.

Feng

Yuan

Wang

Chen

Zhou

Chen

Preparation of magnetic biochar and its application in catalytic degradation of organic pollutants: a review

Science of the Total Environment 2020 765, article 142673

9884474

10.1016/j.scitotenv.2020.142673

76.

Liu

X.-Y.

Huang

H. L.

Zhang

Z. Q.

Gao

J. M.

Zhu

Y. L.

Han

X. J.

Guo

X. Y.

Preparation of a carbon-based solid acid catalyst by sulfonating activated carbon in a chemical reduction process

Molecules 2010 15

9884474

10 7188 7196

10.3390/molecules15107188

2-s2.0-78149454840

20956883

77.

Fiorillo

Appino

Pasquale

Chapter 1 - Hysteresis in Magnetic Materials

The Science of Hysteresis 2006 1 190

78.

Youssef

A. M.

El-Khouly

El-Nabarawy

T. H.

Removal of Pb (II) and cd (II) from aqueous solution using oxidized activated carbons developed from pecan shells

Carbon Letters 2008 9

9884474

1 8 16

10.5714/CL.2008.9.1.008

79.

Hayati

Mahmoodi

N. M.

Modification of activated carbon by the alkaline treatment to remove the dyes from wastewater: mechanism, isotherm and kinetic

Desalination and Water Treatment 2012 47

9884474

1-3 322 333

10.1080/19443994.2012.696429

2-s2.0-84866464096

80.

Zhou

Yan

Yang

Adsorption removal of cationic dyes from aqueous solutions using ceramic adsorbents prepared from industrial waste coal gangue

Journal of Environmental Management 2019 234

9884474

245 252

10.1016/j.jenvman.2019.01.009

2-s2.0-85060033094

30634117

81.

Amin

Alazba

Comparative study of the absorptive potential of raw and activated carbon Acacia nilotica for reactive black 5 dye

Environmental Earth Sciences 2017 76

9884474

16 581

10.1007/s12665-017-6927-8

2-s2.0-85028320202

82.

Nordin

A. H.

Wong

Ngadi

Mohammad Zainol

Abd Latif

N. A. F.

Nabgan

Surface functionalization of cellulose with polyethyleneimine and magnetic nanoparticles for efficient removal of anionic dye in wastewater

Journal of Environmental Chemical Engineering 2021 9

9884474

1, article 104639

10.1016/j.jece.2020.104639

83.

Chang

Shih

Y. H.

Shih

Y.-H.

Synthesis and application of magnetic iron oxide nanoparticles on the removal of reactive black 5: reaction mechanism, temperature and pH effects

Journal of Environmental Management 2018 224

9884474

235 242

10.1016/j.jenvman.2018.07.021

2-s2.0-85053042938

30055456

84.

Salvador

Martin-Sanchez

Sanchez-Hernandez

Sanchez-Montero

M. J.

Izquierdo

Regeneration of carbonaceous adsorbents. Part I: thermal regeneration

Microporous and Mesoporous Materials 2015 202

9884474

259 276

10.1016/j.micromeso.2014.02.045

2-s2.0-84926163770

Removal of Reactive Black Dye in Water by Magnetic Mesoporous Carbon from Macadamia Nutshell

Abstract

1. Introduction

2. Materials and Methods

2.1. Materials and Chemicals

2.2. Preparation of Magnetic Mesoporous Carbon (MMC) and Macadamia Nutshell Carbon (MNSC)

2.3. Characterization

2.4. Adsorption Experiments

2.4.1. Adsorption Isotherm Model

2.4.2. Kinetic Adsorption Model

2.4.3. Thermodynamic Adsorption Models

3. Results and Discussion

3.1. Preparation of Magnetic Mesoporous Carbon and Macadamia Nutshell Carbon

3.1.1. Effect of Fe(NO3)3 and Carbonization Temperature on Porous Properties

3.1.2. Effect of Fe(NO3)3 on Surface Morphology

3.1.3. Effect of Fe(NO3)3 on Crystalline Arrangement and Phase Transformation

3.1.4. Magnetic Properties of Magnetic Mesoporous Carbon

3.2. Adsorption of Reactive Black 5 Dye

3.2.1. Effect of Carbon Dosage on RB5 Removal and Adsorption Efficiency

3.2.2. Effect of Initial Concentration on the RB5 Removal

3.2.3. Effect of Adsorption pH on the RB5 Removal

3.2.4. Adsorption Equilibrium and Thermodynamics Adsorption

3.2.5. Adsorption Kinetic of RB5

3.2.6. Intraparticle Diffusion Model

3.2.7. Adsorption Mechanisms of RB5 Adsorption

3.2.8. MMC-850 as RB5 Adsorbent Compared to Others

3.3. Stability of Adsorbent after Adsorption Process

3.4. Thermal Regeneration of Spent Magnetic Mesoporous Carbon

4. Conclusion

Footnotes

Abbreviations

Data Availability

Conflicts of Interest

Acknowledgments

References

3.1.1. Effect of Fe(NO₃)₃ and Carbonization Temperature on Porous Properties

3.1.2. Effect of Fe(NO₃)₃ on Surface Morphology

3.1.3. Effect of Fe(NO₃)₃ on Crystalline Arrangement and Phase Transformation
