Abstract
Multilevel data are a reality for many disciplines. Currently, although multiple options exist for the treatment of multilevel data, most disciplines strictly adhere to one method for multilevel data regardless of the specific research design circumstances. The purpose of this Monte Carlo simulation study is to compare several methods for the treatment of multilevel data specifically when there is random coefficient variation in small samples. The methods being compared are fixed effects modeling (the industry standard in business and managerial sciences), multilevel modeling using restricted maximum likelihood (REML) estimation (the industry standard in the social and behavioral sciences), multilevel modeling using the Kenward–Rogers correction, and Bayesian estimation using Markov Chain Monte Carlo. Results indicate that multilevel modeling does have an advantage over fixed effects modeling when Level 2 slope parameter variance exists. Bayesian estimation of multilevel effects can be advantageous over traditional multilevel modeling using REML, but only when prior probabilities are correctly specified. Results are presented in terms of Type I error, power, parameter estimation bias, empirical parameter estimate standard error, and parameter 95% coverage rates, and recommendations are presented.
Introduction
Multilevel data arise when lower level sampling units (e.g., students) are nested within higher level sampling units (e.g., schools). This multilevel structure can occur at more than two levels, for example, when students are nested in classrooms, which are in turn nested within schools. Such structure needs to be accounted for in data analysis, otherwise model parameters, particularly standard errors, will be biased (Snijders & Bosker, 2012). Multilevel data is a reality for many different areas of research, including the social, behavioral, educational, medical, and managerial sciences. Given the prevalence of this issue across disciplines, it is interesting that there appear to be differences in terms of how researchers from different fields choose to analyze multilevel data. For example, researchers in the social, educational, and behavioral sciences frequently use a family of methods called multilevel modeling (MLM) for such analyses, whereas those working in business and management research often use fixed effects models (FEM) for analysis of multilevel data (McNeish & Stapleton, 2016). Recent work has discussed the theoretical differences between MLM and FEM, and their application to multilevel data structures (Chaplin, 2003; Galbraith, Daniel, & Vissel, 2010; Huang, 2016; McNeish, Stapleton, & Silverman, 2017; Setodji & Shwartz, 2013).
An issue that has not been completely resolved with respect to multilevel data modeling involves the best approach for dealing with situations where higher level sample sizes are relatively small. In studies that have addressed this issue (e.g., McNeish & Stapleton, 2016), two alternative approaches for MLM have been described, a variant for MLM allowing for smaller Level 2 cluster sizes known as the Kenward–Roger (KR) correction and Bayesian estimation using a Markov Chain Monte Carlo (MCMC) approach.
The purpose of the present study was to compare standard MLM estimation with several alternative estimation approaches, including FEM, MLM with the KR correction, and MCMC, when there is random slope variation, particularly when samples are small. Although FEM is not subject to the assumption of endogeneity and thus does not need all predictors present to be unbiased, it is unclear how FEM will compare with more complex models when random slope variation is indeed present. MLM would generally be the method of choice as it allows for direct modeling of random slope variation; however, it is unknown how it will compare to FEM or other complex methods when higher level samples are small. Following are descriptions of each method included in the present simulation study.
Multilevel Modeling (Using REML Estimation)
In the social, educational, and behavioral sciences, when multilevel/nested data are encountered, the standard analysis involves fitting MLMs using restricted maximum likelihood (REML) estimation. As described by Raudenbush and Bryk (2002), this approach accounts for the multilevel structure of data by allowing for predictors at all levels of analysis to be used. In order to accomplish this, prediction equations are created for each level of the nested structure. The Level 1 equation involves simple prediction of the outcome from Level 1 (e.g., student) characteristics much like the prediction equation of a traditional regression model. This relationship is demonstrated in Equation (1), where Yij is the outcome for individual i in group j, β00 is the intercept of the Level 1 equation, β10 is a slope for a Level 1 predictor variable, and rij is the Level 1 error term.
In order to account for variance from higher levels of analysis, Level 2 (and higher) prediction equations can be used to obtain estimates of the intercept and slope coefficients from the Level 1 model. As can be seen in Equations (2) and (3), γ00 is the intercept for the prediction equation for β00 (which in most cases is interpreted as the grand mean), γ10 and γ01 are slope coefficients for the prediction of the Level 1 coefficients, and u0j and u1j are unique or random effects associated with the Level 1 intercept and slope, respectively.
Considering Equations (2) and (3), it is evident that MLM provides a very flexible framework for understanding nested effects by allowing for predictors at multiple levels of analysis, accounting for multiple levels of data structure (sample size permitting), and accommodating model customization such as cross-level interactions, variation in coefficients (β00, β10) at higher data levels, or use with categorical outcomes. MLM generally requires relatively larger sample sizes (Hox, 2010) and is subject to reasonably strict assumptions about the sample and data distributions (Raudenbush & Bryk, 2002). Given these potential limitations with respect to sample size, it seems important to consider other possible options for the analysis of multilevel data.
The Kenward–Roger Correction
The KR correction is described in detail in Kenward and Roger (2009), and thus the interested reader is referred there for a more in-depth discussion of the calculations. The purpose of the correction is twofold, namely, to address problems of negative bias in the standard errors of Level 1 model parameter estimates and to correctly approximate the denominator degrees of freedom in the hypothesis tests used to assess statistical significance for these estimates. These issues are not typically problematic in the context of sufficiently large Level 2 sample sizes, because of the asymptotic properties associated with the test statistics, and the sufficient amount of information in the sample necessary for accurate estimation (Kenward & Roger, 2009). However, with a small number of Level 2 units these desirable properties are no longer available. Kenward and Roger proposed their correction to the coefficient standard errors, using a modified Taylor Series expansion first described by Kackar and Harville (1984). In addition, they also developed a technique to approximate the denominator degrees of freedom for the hypothesis tests that is based on the commonly used Satterthwaite approach (Satterthwaite, 1946). Taken together, these methods have been shown to yield more accurate hypothesis testing results in the context of small number of units at Level 2 (e.g., McNeish & Stapleton, 2016).
Fixed Effects Models
While MLM has historically been the gold standard for analysis of multilevel data in the social, educational, and behavioral sciences, it is not as frequently used in the fields of business and econometrics. When researchers in these fields encounter multilevel data, they are quite likely to use FEM. Allison (2009) noted that FEMs provide the data analyst with a simpler model to account for the influence of higher levels in the data structure by including dummy variables for each Level 2 unit as fixed effects in a regression model. For example, if a researcher were dealing with a dataset containing students nested within schools, in the context of FEM the variance associated with schools would be accounted for by assigning a dummy variable to each of the schools. Regarding the dummy coding of Level 2 units, dummy variables can either be created as absolute, meaning all Level 2 units have a dummy variable and the intercept is omitted, or reference, meaning one Level 2 unit is left out and the intercept is retained. Using an absolute coding scheme, the FEM model can be represented as shown in Equation (4) where bn are regression coefficients for Level 1 model covariates (X) and ck are regression coefficients for Level 2–unit dummy variables (α).
Regardless of dummy coding scheme, when the FEM is used, the focus is on the interpretation of the relevant Level 1 covariates. The dummy variable context effects are generally not interpreted and are included in order to account for Level 2 variance. Representing Level 2 context effects in this manner allows for such variance to be accounted for, thereby yielding unbiased estimates of standard errors for Level 1 parameter estimates (Allison, 2009). FEM does not, however, allow for the specific effects of Level 2 covariates to be examined.
Markov Chain Monte Carlo
Bayesian estimation using the MCMC estimator has been suggested as being advantageous for small sample cases, including in the context of multilevel data (Gelman, 2006). Given space limitations, and the plethora of literature describing MCMC estimation, we will not delve deeply into this topic here. Readers who would like to learn more about the details of Bayesian estimation using MCMC are referred to Kaplan (2014) and Congdon (2003) for a general treatment of the topic. With regard to MLM specifically, Browne and Draper (2006) provide discussion of the topic as well. Very briefly, the use of MCMC estimation requires that the researcher select a prior distribution for each of the model parameters, which are themselves conceptualized as distributions rather than as single values as in the frequentist analysis paradigm that underlies REML estimation. The MCMC algorithm combines this prior information with information taken from the data in order to estimate the distribution of the parameter, which is referred to as the posterior distribution. When samples are small, the selection of these priors is very important because they will have a relatively large impact on the nature of the posterior distributions (Kaplan, 2014). In other words, in the absence of much observed data, the posterior will rely more heavily on the prior distribution. McNeish and Stapleton (2016) addressed this issue by comparing MCMC using several different prior distributions and found that the inverse gamma and the half-Cauchy prior distributions for the Level 2 variances both performed best among the options that they examined. Given these results, the inverse gamma distribution was used as the prior for the variance components of the Level 1 parameters in the current study.
Prior Research on Small Samples and Multilevel Analysis
The majority of research comparing different types of multilevel analysis has focused on MLM compared with FEM as these are the “industry standards.” Much of this discussion has revolved around a comparison of the assumptions for these methods. Due to its more complex structure, MLM has more strict assumptions than FEM. One major point of difference between the two modeling paradigms is that MLM assumes all relevant predictors and all relevant random effects are included in the model, and that all covariance structures (i.e., the covariance structure of the within-cluster residuals and the covariance structure of the random effects) are properly specified. Thus, in order for MLM to produce unbiased estimates, the model needs to be properly specified both in terms of variables chosen and model structure. Any omitted Level 2 variables can bias the Level 1 slope estimates, a problem that does not occur in FEM (Chaplin, 2003). The inclusion of Level 2 dummy variables in FEM already ensures that all Level 2 variance is accounted for without requiring specific modeling (Allison, 2009). This relates closely to the assumption of MLM known as endogeneity. The assumption of endogeneity requires there to be a lack of correlation between within-cluster residuals and both the random effects and the predictor variables at any level. The assumption of endogeneity is often violated when necessary predictor variables are omitted (Raudenbush & Bryk, 2002). Thus, FEM is often suggested as an alternative when the assumption of endogeneity is questionable.
Within the last decade, there has been an increased focus in empirical research on the estimation for multilevel data with small samples at Levels 1 and 2, and extending beyond FEM and traditional MLM. The goal of several of these simulation studies has been to identify estimators and adjustments to estimators that yield efficient and unbiased parameter estimates with a small number of clusters at Level 2. Among other findings, several of these studies have found that when the standard REML estimator is employed it is necessary to have at least 30 Level 2 units in order to obtain unbiased estimates with standard errors that are in control (e.g., Bell, Morgan, Schoeneberger, Kromrey, & Ferron, 2014; Maas & Hox, 2005). Kenward and Roger (2009) demonstrated that their correction for small sample MLM estimation could lower the required number of Level 2 clusters to as few as 10 in some cases when the goal was to accurately estimate the random intercept and error variance components. Bayesian estimation based on the MCMC algorithm has also been suggested for use with small sample multilevel data and has been shown to be quite effective for estimating the random intercept and error variances, if correct informative priors are selected (Browne & Draper, 2006; Ferron, Bell, Hess, Rendina-Gobioff, & Hibbard, 2009; Gelman, 2006; Hox, van de Schoot, & Matthijsse, 2012).
One of the limitations of the work cited above is that these various methods for estimating multilevel models were not compared directly with one another in the context of a small number of Level 2 units. Recently, McNeish and Stapleton (2016) addressed this gap in the literature by conducting an extensive Monte Carlo simulation study in which they compared these approaches with small Level 2 samples. This study was the first to examine the performance of several methods together, including MLM using REML, MLM using REML with the KR, MCMC using three different prior distributions for the variance components, as well as generalized estimating equations, and FEMs. The outcomes of interest were parameter estimate relative bias, coverage, and power rates for the Level 1 regression coefficient, the Level 1 residual variance estimate, and the Level 2 intercept variance estimate. The results of the McNeish and Stapleton (2016) study revealed that multiple approaches can be used to obtain accurate estimates of the parameters in question, with reasonable coverage and power rates. For example, with regard to the Level 1 regression parameter estimate, FEM was found to yield estimates with low levels of bias, and with higher power for identifying non-0 values in the population than was true for the other methods. Bias in the regression coefficients for KR was also low across conditions. With regard to the variance component estimates, REML performed poorly for fewer than 10 clusters, with lower than nominal coverage rates for the parameter estimate. However, KR was able to address this problem for the most part, with the exception of the 4 clusters condition, for which coverage was nearly as low as for the uncorrected REML approach. Among the Bayesian estimation techniques, MCMC using the inverse gamma(0.01, 0.01) prior distribution, and MCMC with a Half-Cauchy(0,4) prior for the model variance components yielded low parameter estimation bias, and high coverage and power rates. The final recommendations from McNeish and Stapleton were to consider the use of MCMC with the inverse gamma prior, and FEM, if the primary goal of the analysis is to estimate a Level 1 regression relationship and not the variance components.
Study Goals
As noted above, the purpose of the current study is to build on earlier research examining the impact of sample size, at both Levels 1 and 2, on the performance of several estimators for multilevel models in the context of random coefficient effects. The methods that were used in this study include FEM, REML, KR, MCMC with noninformative inverse gamma priors for the variance components, and MCMC with informative inverse gamma priors. Prior work, which was reviewed above, has found that the number of Level 2 units (clusters), as well as the total sample size (clusters × sample per cluster) will have an impact on the estimation of the random intercept and Level 1 residual components in MLMs. Specifically, as noted above, the FEM and KR approaches were found to be particularly promising for use when there are a small number of clusters at Level 2 and the interest is in obtaining accurate estimates and coverage rates for the Level 1 regression coefficients and variance component values using KR (McNeish & Stapleton, 2016). The current study extends this line of research by comparing the most promising estimators identified in the earlier research, for models where the coefficient relating a Level 1 predictor and the outcome variable has a random component, that is, a random coefficients model. Based on the earlier studies cited above, several hypotheses regarding the current study are suggested.
Method
A Monte Carlo simulation study was used to address the research goals outlined above. A total of 1,000 replications were generated for each combination of the manipulated conditions, which are described here. All the manipulated study conditions were completely crossed with one another, with the exception of the FEM estimator, as is discussed below. Data were generated using Mplus version 7.11 (Muthén & Muthén, 1998-2017), and data analyses were conducted using SAS version 9.3 (SAS Institute, 2015). The intraclass correlation was set at 0.2 across manipulated study conditions. This value has been used in prior research (e.g., French & Finch, 2013; McNeish & Stapleton, 2016) and represents a moderate level of correlation within the Level 2 clusters. A number of conditions were manipulated in this study and were selected in order to build on prior research in this area as well as to reflect conditions that are seen in practice.
Data Generating Models
Two data generating models were used in the current study. Model 1 included only a single Level 1 predictor (which served as the target of the simulation study), with both a random intercept and random slope term, and took the form:
where
Model 2 was simulated to include the target predictor from Model 1 as well as a second Level 1 predictor and a Level 2 predictor. The purpose of including Model 2 was to investigate the performance of the various estimators with more complex models, for which the burden of the small samples could potentially be greater. Model 2 took the following form:
where
Number of Clusters and Sample Size Per Cluster
The number of Level 2 units was set at 5, 10, 15, or 20, taking values in the range of those that have been used in previous research focusing on estimation of Level 2 intercept variance (e.g., Kenward & Roger, 2009; Maas & Hox, 2005; McNeish & Stapleton, 2016; Schoenberger, 2016). These values are also representative of a number of studies that take place in educational research contexts where researchers gather data from a relatively small number of schools or classrooms. The sample size per cluster (i.e., number of Level 1 units) was set at 10, 20, 30, and 40, again falling within the range of other research in the area of small sample MLM estimation. Thus, the total sample sizes ranged from 50 to 800.
Magnitude of the Level 1 Slope
The fixed effects portion of the target predictor coefficient was set at 0, 0.2, 0.4, 0.6, and 0.8. Given that the data were generated from a standard normal distribution, these values can be interpreted as representing no relationship between the predictor and the outcome variable (0), a small relationship (0.2), a moderate relationship (0.4 and 0.6), and a large relationship (0.8). In other words, a large relationship was operationalized as being 0.8 of a standard deviation of the dependent variable, and a small relationship was operationalized as being 0.2 of a standard deviation.
Magnitude of the Level 2 Slope Variance Component
The magnitudes of the Level 2 variance component for the Level 1 coefficient (i.e., random coefficient effect) were 0.25, 0.5, and 0.75. These values were selected so as to represent relatively low between-group variation in the relationship between the target predictor and the dependent variable (0.25), a moderate level of between-group variance (0.50), and a relatively large amount of between-group variance (0.75). These results are based on prior educational research in which random coefficient models have been employed (e.g., Escobar et al., 2013; Morgan & Sideridis, 2006 ; Timmermans, Kuyper, & van der Werf, 2015).
Estimation Methods
The estimation methods examined in this study were FEM, MLM using REML, MLM using REML with the KR correction, MCMC with noninformative inverse gamma(0.01, 0.01) priors for the Level 2 variance components, and MCMC with informative inverse gamma priors for the Level 2 variance components. For the informative gamma priors, values for the parameters (α and β) were selected so that the prior location value was equal to the parameter value, and the variance was 0.01. These were manipulated in the Mplus software using methods outlined in Asparouhov and Muthén (2010). The priors for the random intercept and Level 1 error were taken from the noninformative gamma(0.01, 0.01), and the noninformative prior for the fixed effect coefficient was taken from the normal (0, infinity) distribution. FEM, MCMC, REML, and KR were carried out using SAS version 9.3. The estimation methods included in this study were selected based on findings in prior studies, coupled with the focus of the current research on the estimation of the random coefficient parameter. Therefore, no GEE approaches were included in the study. McNeish and Stapleton (2016) found that GEE was relatively less effective for estimating the fixed effects parameters than were FEM, REML, or MCMC. In addition, GEE will not provide an estimate of the random coefficient variance, as will MCMC or REML. FEM will also not provide such an estimate; however, its superior performance in estimating the fixed portion of the coefficient, as reported in prior research, led us to include it in the current study. Finally, for Model 2, which included a Level 2 predictor, FEM was fit using only the Level 1 predictors, under the assumption that the Level 2 predictor effect would be captured in the cluster variable effect, as described by Allison (2009). When convergence was not obtained for a replication of a particular estimation method, then additional replications were run in the simulation until a total of 1,000 successful replications were obtained for each method across all combinations of study conditions.
Outcomes
As noted above, the goal of this study was to investigate the impact of small Level 2 sample sizes on the estimation of the fixed and particularly the Level 2 variance component of the regression coefficient relating a target variable to a continuous dependent variable (γ10 and U1j from Models 5 and 6, respectively). The outcomes of interest in this study included convergence rates, parameter estimation bias, empirical parameter estimate standard error, parameter 95% coverage rates, and Type I error/power rates for the Level 1 regression coefficient, and the Level 2 variance component estimate for the coefficient. The empirical standard error was calculated as the standard deviation of the parameter estimates across simulation replications. The nominal Type I error was set at 0.05 for both the coefficient and variance component estimates. In order to identify study factors that were related to each of the outcomes, analysis of variance (ANOVA) was used with the independent model terms being the main effects and interactions of the manipulated variables described above. For the Type I error and coverage rates, values were summarized across the 1,000 replications for each combination of study conditions, and then subjected to the ANOVA. In addition to tests of significance, the η2 effect size was used to identify ANOVA model terms that accounted for at least 10% of the variance in each outcome variable. Thus, in order to warrant further investigation, a main effect or interaction had to be statistically significant (α= .05) and had to account for at least 10% of the variance in the outcome variable. The use of α= .05) is commonly used in simulation research (e.g., McNeish & Stapleton, 2016). An η2 effect size criterion of 0.1 for identifying an important effect was selected both because it corresponds to the ANOVA model term accounting for 10% of the variance in the outcome variable, and because it falls within the moderate effect size range, as recommended by Cohen (1988).
Results
Convergence Rates
Convergence rates by method, sample size per cluster, and number of cluster appear in Figure 1. These results show that FEM and the two MCMC estimators had coverage rates at or near 1.00 across simulated conditions. Conversely, the REML and KR estimators had lower convergence rates for fewer Level 2 units, as well as for fewer Level 1 units. Convergence rates for these two approaches were lowest for the smallest total sample sizes (e.g., 5 Level 2 units and 10 individuals per units). When the sample size per cluster was 30 or 40, and the number of Level 2 units was 10 or more, the convergence rates for REML and KR were comparable to those for FEM, and the two MCMC methods.

Convergence rates by estimation method, number of clusters, and sample size per cluster.
Coefficient Parameter Estimate
ANOVA results identified the interactions of estimation method by number of clusters by sample size (

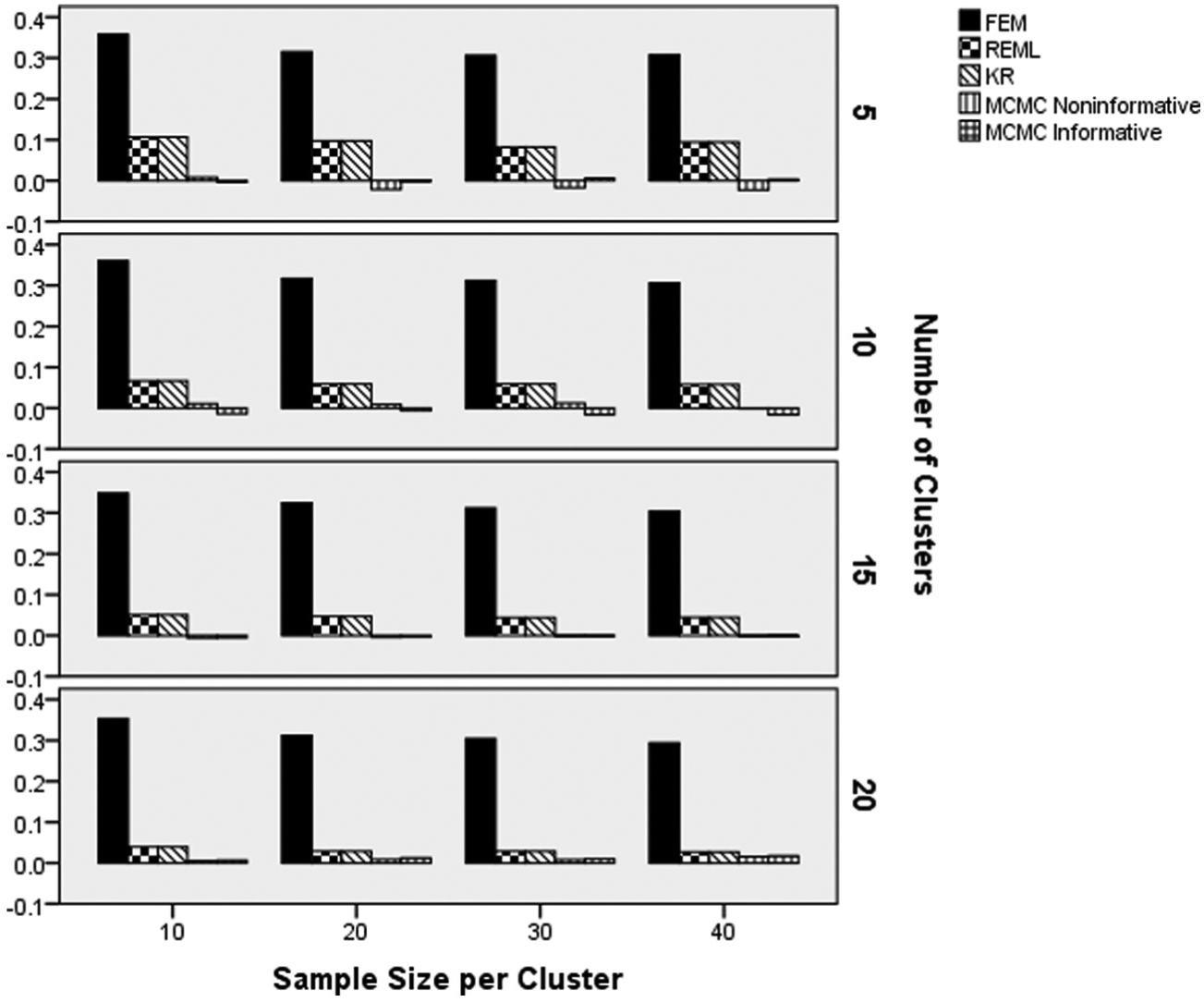

Slope parameter estimation bias by estimation method, number of clusters, and sample size per cluster.
Figure 3 displays the slope parameter estimation bias by the slope variance, slope magnitude, and estimation method. It is clear from the figure that estimation bias for FEM, as well as REML and KR increases concomitantly with increased slope variance, for the lower magnitudes of the slope in the population. This increase in the slope estimation bias was more pronounced for the FEM approach, as compared with the REML and KR. In contrast to these three techniques, the estimation bias for the two MCMC techniques remained below that of the other methods, with values all less than 0.01. When the slope magnitude was 0.6 or 0.8, the bias of REML and KR was comparable to that of both MCMC approaches. However, for lower such magnitudes the MCMC methods both yielded lower estimation bias than any of the other methods.

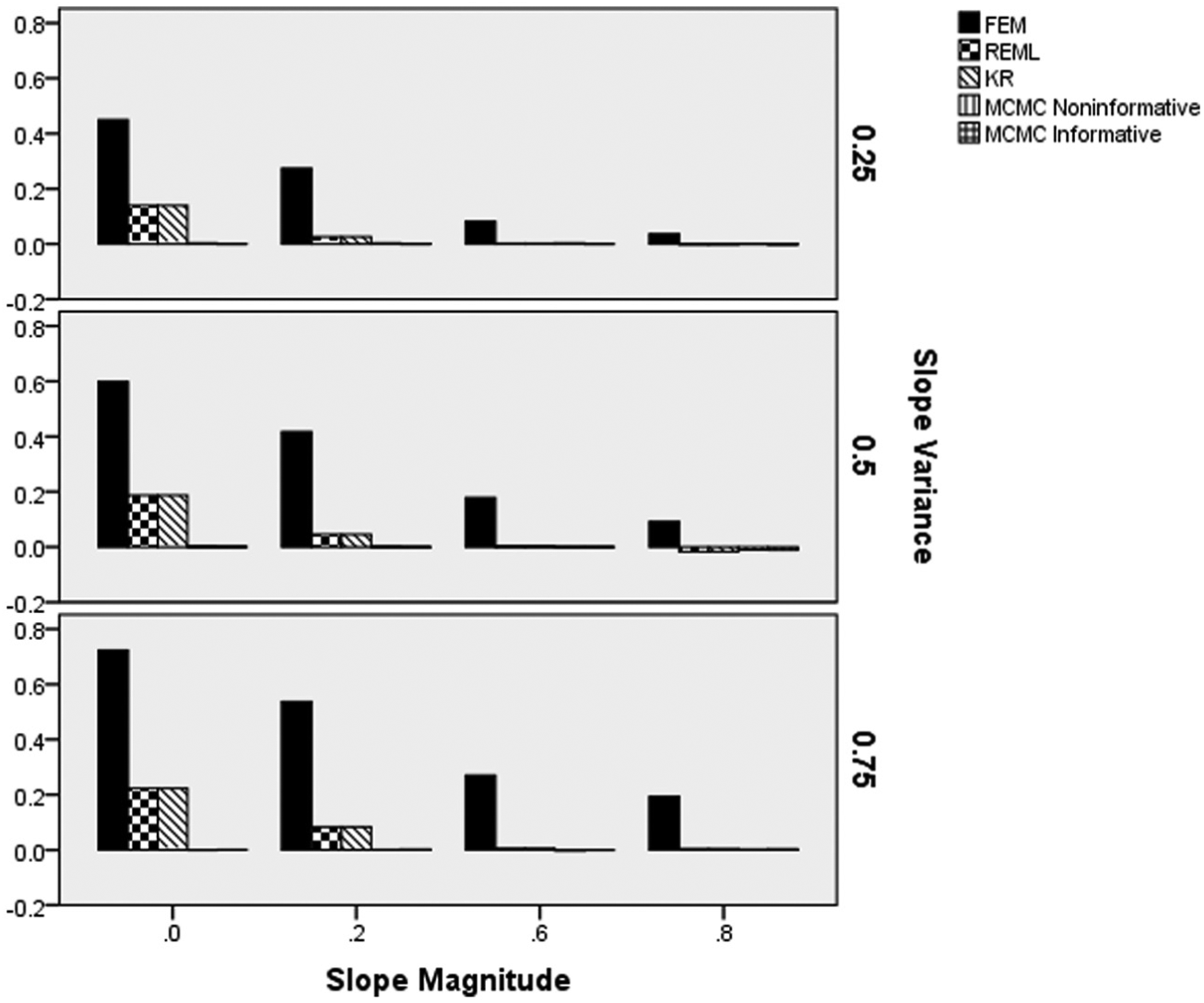

Slope parameter estimation bias by estimation method, slope magnitude, and population slope variance.
Slope Estimate Standard Errors
The results of the ANOVA indicated that the interaction of estimation method by population slope magnitude by population slope variance (

Slope parameter empirical standard error by estimation method, slope magnitude, and slope variance.
Table 1 includes the empirical standard errors by method, number of clusters, and sample size per cluster. As noted above, FEM had the largest standard errors of the methods studied here and varied little across conditions (between .50 and .55). For each of the other methods, the standard error declined with increases in the number of clusters and the sample size per cluster. In addition, REML and KR had the lowest standard errors (between .26 and .14), with the gap between these techniques and the two MCMC estimators narrowing with increases in the number of clusters and the sample size per cluster.
Empirical Standard Error by Estimation Method, Number of Clusters, and Sample Size per Cluster.
Note. FEM = fixed effects modeling; REML = multilevel modeling using restricted maximum likelihood estimation; KR = Kenward–Rogers correction for multilevel modeling; MCMC = Markov chain Monte Carlo with informative or noninformative priors.
Slope Parameter Estimate Coverage
ANOVA identified that, as with the standard error estimate, the interaction of estimation method by the population slope magnitude by the population slope variance (

Slope parameter coverage rates by estimation method, slope magnitude, and slope variance.

Slope parameter coverage rates by estimation method, number of clusters, and sample size per cluster.
Slope Parameter Type I Error and Power Rates
With respect to the Type I error rate of the test for the null hypothesis that the slope is 0 in the population, the interaction of estimation method by number of clusters, and sample size per cluster (

Type I error rate for the slope parameter by estimation method, number of clusters, and sample size per cluster.

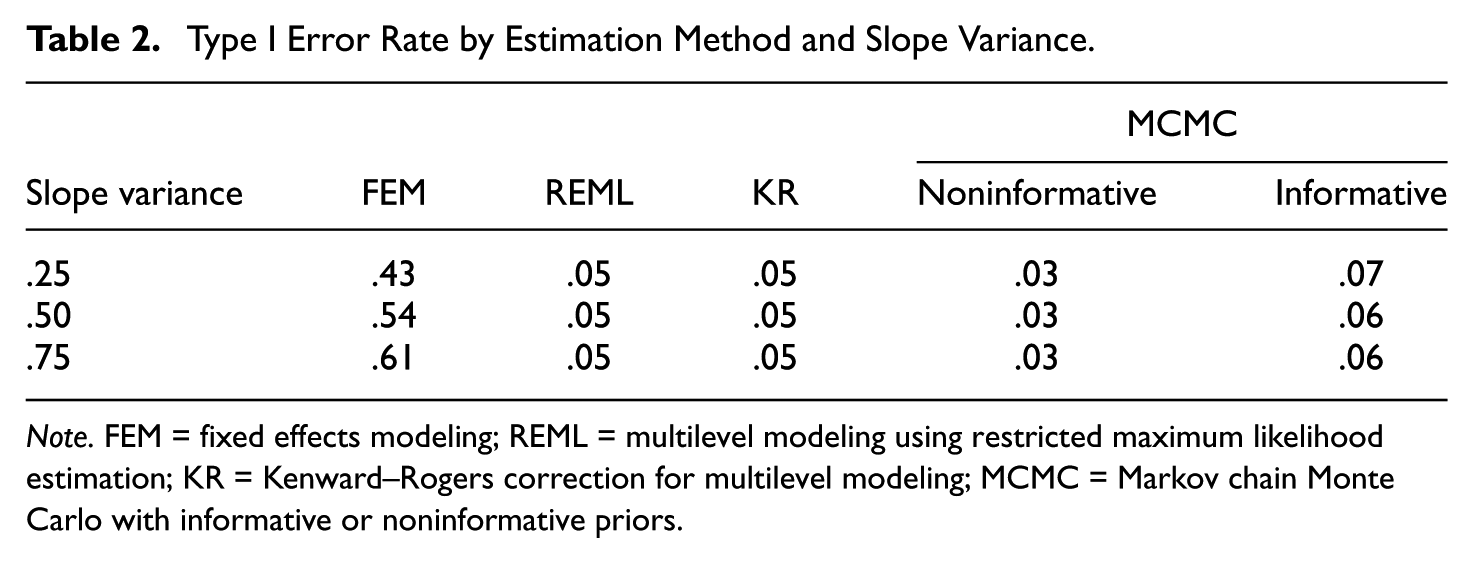

Type I Error Rate by Estimation Method and Slope Variance.
Note. FEM = fixed effects modeling; REML = multilevel modeling using restricted maximum likelihood estimation; KR = Kenward–Rogers correction for multilevel modeling; MCMC = Markov chain Monte Carlo with informative or noninformative priors.
Results of the ANOVA revealed that the interactions of estimation method by slope variance and slope magnitude (

Power for the slope parameter by estimation method, number of clusters, and sample size per cluster.
Figure 9 includes power for the slope parameter by estimation method, slope magnitude, and slope variance. As before, given its elevated Type I error rate across conditions, power results for FEM will not be interpreted here. Similar to the results reported above with respect to the number of clusters and sample size per cluster, the informative MCMC estimator yielded slightly higher power rates than did the other methods, and the noninformative MCMC had slightly lower power. Power for all methods were larger for larger slope magnitude values and for smaller slope variances.

Power for the slope parameter by estimation method, slope variance, and slope magnitude.
Summary of Coefficient Estimate Results
The preceding results demonstrated several patterns with regard to the various estimators being compared in this study. In the presence of random Level 2 variance, the MCMC-based approaches yielded the least biased estimates of the relationship between the target Level 1 predictor and the outcome variable, regardless of the combination of conditions. In addition, their estimation accuracy was largely unaffected by the number of clusters or sample size per cluster. FEM yielded the most biased slope estimate results across all conditions. In addition to yielding the most biased estimates, FEM also had the largest empirical standard errors of the methods studied here, along with the lowest coverage rates, and the most inflated Type I error rates. In terms of standard errors for the other methods, REML and KR generally had the lowest values, particularly for smaller slope magnitudes. The coverage and Type I error rates for the non-FEM estimators were all comparable to one another, and generally at or near the nominal rates that would be expected (i.e., 0.95 for coverage and 0.05 for Type I error). Finally, the noninformative MCMC estimator yielded lower power than did the other methods, particularly for smaller numbers of clusters.
Coefficient Variance Component Estimate
As with the coefficient parameter estimate itself, ANOVA was also used to identify manipulated study factors that were associated with the estimate of the slope variance. Results of the ANOVA revealed that the interaction of the estimation method, number of clusters, and sample size per cluster (

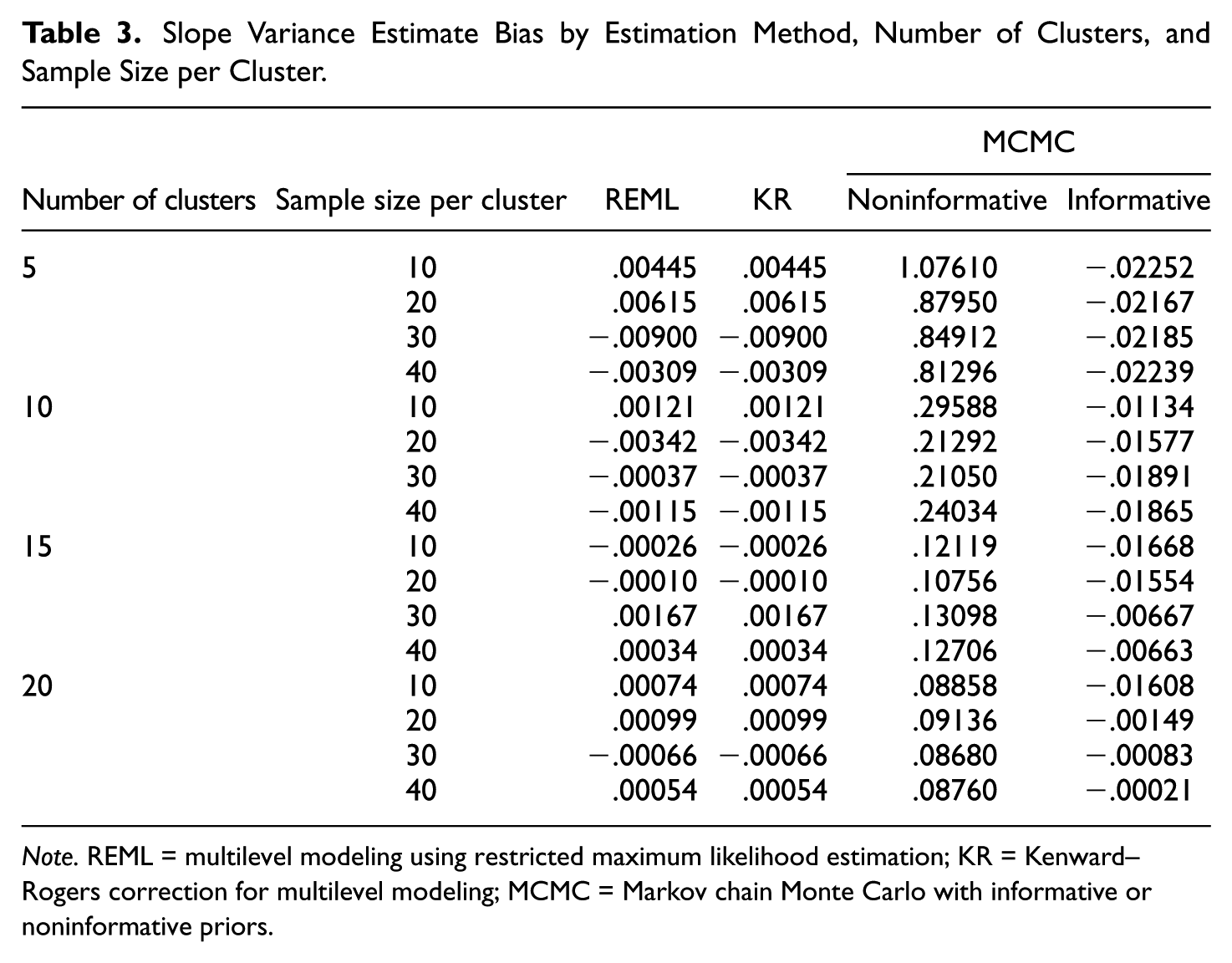

Slope Variance Estimate Bias by Estimation Method, Number of Clusters, and Sample Size per Cluster.
Note. REML = multilevel modeling using restricted maximum likelihood estimation; KR = Kenward–Rogers correction for multilevel modeling; MCMC = Markov chain Monte Carlo with informative or noninformative priors.
Table 4 contains the slope variance component bias results by the number of clusters, the population slope variance value, and the estimation method. From these results, it can be seen that bias for the noninformative MCMC estimator was uniformly the highest (ranging from 0.05 to 1.30), whereas slope variance estimate bias for the REML and KR was consistently the lowest (all bias <.01). Across all estimators, the amount of bias was smaller for a larger number of clusters and increased with increasing values of the population slope variance for REML, KR, and noninformative MCMC. Table 5 includes the slope variance component estimate bias by method and underlying model. For all four estimators, the bias was greater for the model containing the Level 2 covariate (Model 2) as opposed to the simpler model without the Level 2 covariate (Model 1).
Slope Variance Estimate Bias by Estimation Method, Number of Clusters, and Population Slope Variance.
Note. REML = multilevel modeling using restricted maximum likelihood estimation; KR = Kenward–Rogers correction for multilevel modeling; MCMC = Markov chain Monte Carlo with informative or noninformative priors.
Slope Variance Estimate Bias by Estimation Method and Underlying Model.
Note. REML = multilevel modeling using restricted maximum likelihood estimation; KR = Kenward–Rogers correction for multilevel modeling; MCMC = Markov chain Monte Carlo with informative or noninformative priors. Model 1 = random coefficients multilevel model with one Level 1 predictor. Model 2 = random coefficients multilevel model with two Level 1 predictors and one Level 2 predictor.
Slope Variance Component Standard Error
ANOVA identified the interactions of estimation method by underlying model by number of clusters (

Empirical standard error of random slope variance by estimation method, number of clusters, and sample size per cluster.

Empirical standard error of random slope variance by estimation method, number of clusters, and underlying model.
Slope Variance Component Coverage
The ANOVA results identified the interaction of estimation method by Underlying Model and Number of Clusters as the highest order statistically significant term with respect to the coverage rates of the random slope variance estimate (

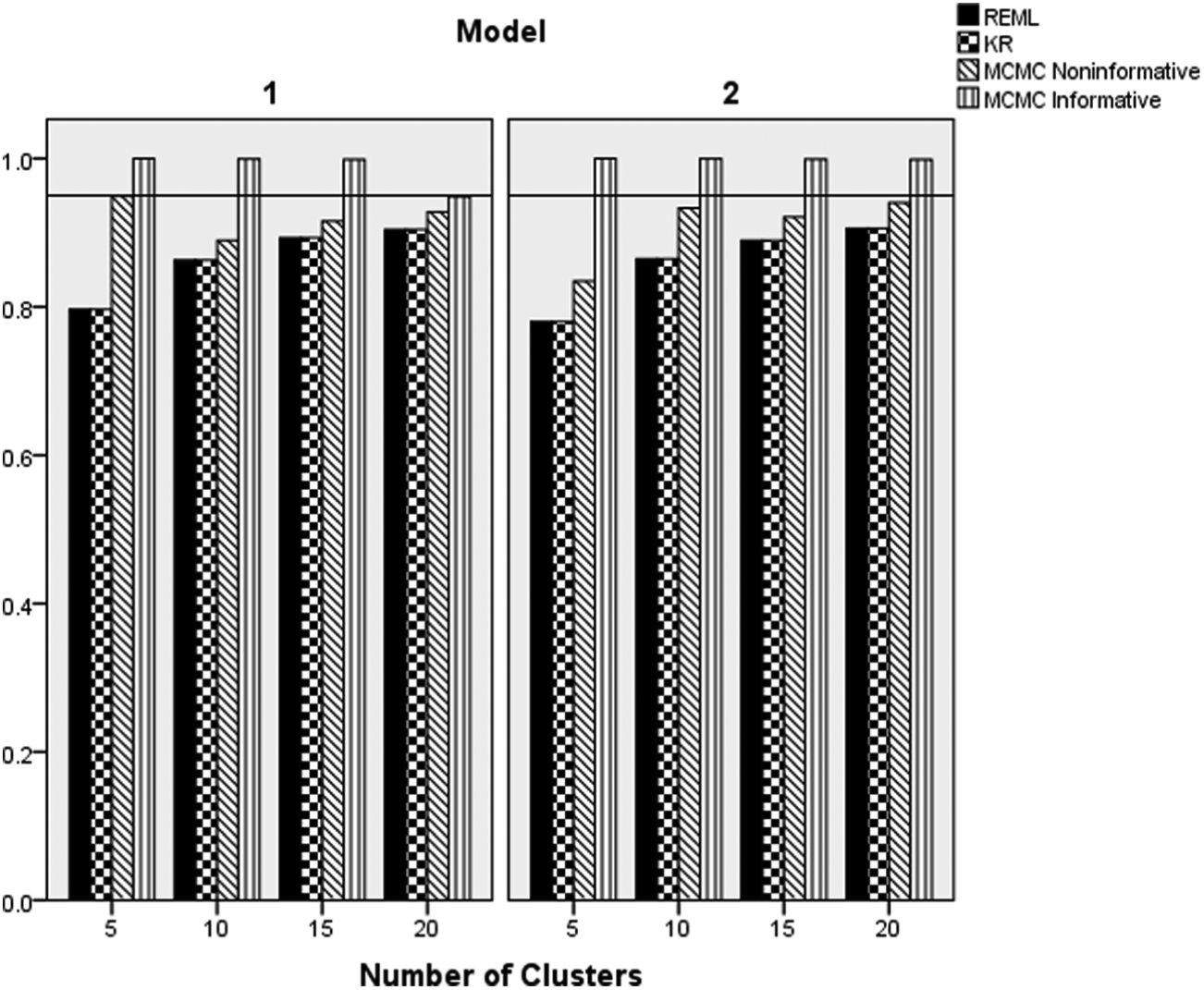

Coverage rates of random slope variance by estimation method, underlying model, and number of clusters.
Slope Variance Power Rates
The ANOVA results revealed that the interactions of estimation method by slope variance magnitude in the population (

Power by estimation method and population slope variance magnitude.
Figure 14 includes power by estimation method, number of clusters, and sample size per cluster. For five clusters, power rates for REML and KR were below 0.10, whereas those for the two MCMC estimators were 1.0. Power for REML and KR was higher for more clusters. In addition, with the exception of the 5 clusters condition, power increased for REML and KR with increased in the sample size per cluster. Finally, power rates for REML and KR were comparable to those for the two MCMC estimators in the 15 and 20 clusters conditions with 20 or more individuals per cluster.

Power by estimation method, number of clusters, and sample size per cluster.
Summary of Slope Variance Estimate Results
Taken together, the results presented above demonstrated that the REML and KR estimators provide the least biased estimates of the slope variance value across conditions, whereas the largest amount of bias was associated with the noninformative MCMC estimator. In addition, all of the methods studied here yielded less biased estimates in the presence of more clusters and when the underlying model did not include a Level 2 predictor. The standard errors of the estimates were lowest for the informative MCMC estimator and highest for the noninformative MCMC. Coverage and power rates were superior for both MCMC estimators when compared with either REML or KR. Indeed, the power rates of the two MCMC methods were 1.0 across conditions.
Discussion
Several important results emerge from this set of simulations. First and foremost, results indicate that correct modeling of Level 2 slope variance is indeed important when Level 2 slope variation does exist in the population. Thus, although FEM does allow for the explanation of Level 2 variance in the dependent variable, the inability to specifically model random slope variation appears to introduce bias into the slope parameter estimates, while also increasing the empirical standard error, drastically increasing the Type I error rate, and reducing the confidence interval coverage. This result builds on the findings of McNeish and Stapleton (2016) who found that FEM used with small numbers of clusters tended to produce downward biased variance estimates and that use of REML should alleviate this issue. Taken together, these results demonstrate the importance of modeling Level 2 variation in multilevel models, particularly when samples and numbers of clusters are small. McNeish and Stapleton (2016) suggested the use of the Kenward–Rogers correction or Bayesian estimation as other potential options for small numbers of clusters. Building on this suggestion, the present study found traditional MLM using REML estimation, the Kenward–Rogers correction, and MCMC methods all to provide more favorable results than FEM, with the MCMC methods providing the least biased Level 1 coefficient estimates. It is also interesting to note that the only time model complexity arises as a statistically significant factor is when looking at slope parameter bias. For all estimation methods, slope parameter bias was larger for the more complex model (Model 2). In all other outcomes measured, however, model complexity did not factor in.
Second, when looking specifically at estimation of slope variance, MCMC with informative priors was superior to the REML and KR methods in terms of power, confidence interval coverage, and standard error. However, the MLM methods produced the least biased estimates of slope variance estimation. It is also important to note that MCMC with noninformative priors yielded the most biased results across all conditions for estimation of slope variance. This is important to consider from a practical standpoint. If a researcher is capable of using informative priors, this is obviously a very useful method for a variety of outcomes. Many fields, however (social and behavioral sciences, in particular) are likely not going to have information to generate informative priors. In these circumstances, when estimation of slope variation is desired, it appears to be more harmful to use MCMC with noninformative priors than to use a traditional MLM technique.
Third, the importance of having informative or noninformative priors for MCMC seems to depend on the outcome of interest. In terms of overall slope estimation, it did not seem to matter whether the priors were informative or not, as both methods produced similar results. However, as discussed above, with regard to estimating slope variation, noninformative priors produced the most biased results. Thus, when choosing an estimation method it is important to carefully consider your desired outcome.
Last, and not surprisingly, larger cluster size and more clusters were associated with more favorable results across conditions. Although the Kenward–Rogers correction for MLM using REML is designed to allow for smaller numbers of clusters to be used for model estimation, particularly with respect to standard errors, no differences were found for either slope parameter or slope variation estimation. Any differences in study outcomes were only apparent at the third or fourth decimal point.
Considering these results together suggests that choice of multilevel analysis technique should not be a decision based on convention or “industry standard” but rather a choice based on the following considerations:
The design of the model. Does the model focus on Level 1, Level 2, or a combination of both? Will the researcher be modeling random slope variation? If the focus is on Level 1 information and slopes are known (or strongly believed) not to vary among Level 2 units, then FEM may be a viable technique. However, when Level 1 coefficients do vary at Level 2 FEM is not a viable option, and MLM (i.e., REML, KR) or MCMC methods should be considered instead.
The purpose for the analysis. Is the researcher interested in slope parameter estimation or slope variance estimation? Is bias or power for detecting non-0 effects more important? Results of this study indicate that MLM methods tend to produce the least biased estimates for slope and slope variance parameters, but MCMC tends to yield higher power for the variance parameter estimates.
Information available. Does the researcher have the information necessary in order to provide accurate informative priors for Bayesian analysis? If so, then this would be the estimator of choice. If not, however, then it is important to remember that the use of noninformative priors may be detrimental to analysis, particularly for slope variance parameter estimation.
Directions for Future Research
The results of the current study suggest a number of directions that future research in the area of MLM estimation in the context of a small number of Level 2 units could take. For example, future research should continue this line of questioning to look further into the performance of FEM and MLM when the Level 2 coefficient variance value is very small, but not 0 (e.g., 0.05, 0.1). This study also set the intraclass correlation to 0.2. Although a plausible value that is representative of what is seen in practice, other values will certainly appear in applied settings. Therefore, future research should consider the impact on performance of multilevel techniques of other intraclass correlation values, both larger and smaller than 0.2. In addition, future work should examine the performance of the REML and KR methods when Level 2 coefficient variance is not 0, but the models are fit assuming it is. With regard to the MCMC estimator, future work needs to examine the impact of using incorrect informative priors on parameter estimation. In other words, if informative priors are used, and the mean is not equal to the actual parameter value, what is the impact on parameter estimation, standard errors, coverage rates, and hypothesis test results? How incorrect do the priors need to be in order to see a degradation in these outcomes? Finally, given the flexibility of FEM for modeling when researchers may not know, or have access to important Level 2 covariates, it would seem worthwhile to examine alternative methods for fitting these models that might account for the random coefficient variation that caused this approach such problems in the current study. Looking further into these methods as well as continuing to develop and promote new methods will hopefully lead to some very promising methods and recommendations for future use.
Footnotes
Declaration of Conflicting Interests
The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.
Funding
The author(s) received no financial support for the research, authorship, and/or publication of this article.
