Variable step control to improve scanning speed of gene sequencing stage

Description of step-scanning gene sequencing

Gene sequencing is a process of determining the base sequence of genomic DNA. On the sequencing, a silicon flow cell containing lots of etched and grid-patterned pit in the array is used to bind the DNBs. Each DNB is formed by replicating a DNA fragment into hundreds with biochemical reactions, which includes the bases to be recognized. After the ligation reaction, different types of bases will emit different wave-length fluorescence under the illumination of laser, which is detected by the microscopic imaging system with a specific wave-length response camera to determine the base type. After multiple rounds of ligation and detection, the base sequence of DNBs will be recognized.

On each round of detection, the stage carries the silicon flow cell to step through the microscopic imaging system, as shown in Figure 1(a). Firstly, the stage keeps the silicon flow cell stationary in the X direction, and steps along the Y direction. After each step motion, the stage should be stabilized to the stationary state for a while, allowing each pixel of the camera to be exposed on the corresponding DNBs fluorescence, as shown in Figure 1(b). Once the exposure is completed, the image of the DNBs is read out and the stage steps again to detect the next field of view. After scanning a column of the flow cell in the Y direction, the stage moves forward one step in the X direction and then continues scanning back in the Y direction. The step scanning path is shown in Figure 1(c). Also, it is worth noting that some marker lines are arranged on the flow cell, as shown in Figure 1(d). These marker lines can be detected in each frame of the DNBs image, and are used to assist in aligning the image pixel points with the DNBs points accurately in the following image calibration process. Therefore, the stage does not require a very accurate step size for each step motion so that the pixel point is precisely aligned with the desired DNBs point, and just needs to be stabilized to a highly stationary state. The idea of the VSC in this paper is based on the characteristics of this scene.

OPEN IN VIEWER

Figure 1.

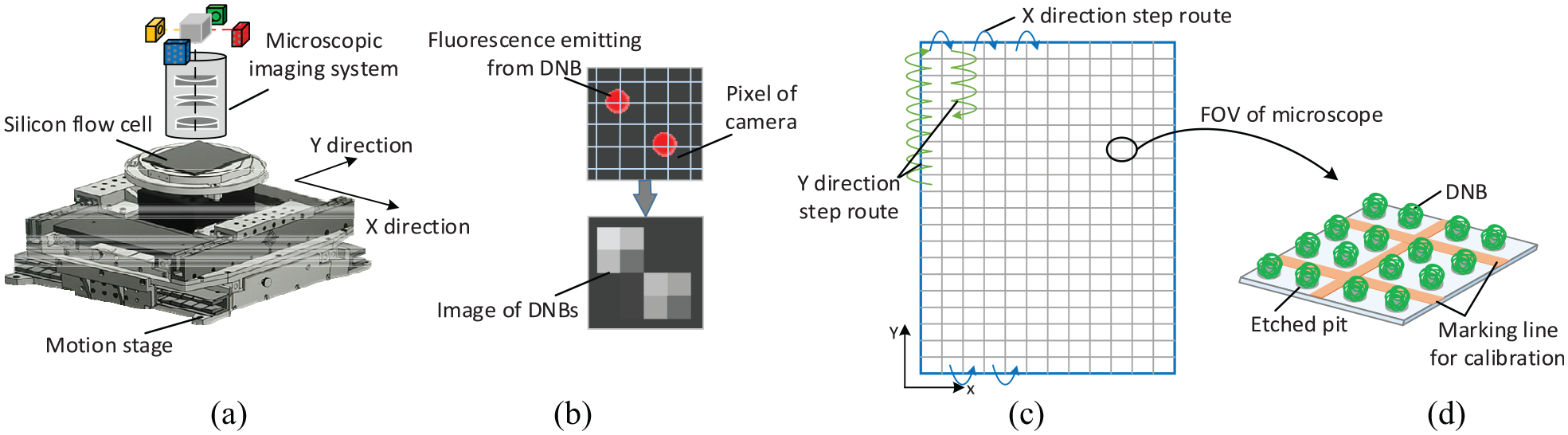

Step-scanning process of the stage for gene sequencing: (a) motion stage carrying flow cell for fluorescent detection, (b) imaging the fluorescence from DNBs after each step motion, (c) silicon flow cell, and (d) DNBs array.

When we define the step scanning speed as the ratio of the sequencing field of view and the step scanning time, it is clear that a higher step scanning speed means a larger amount of sequencing data obtained at the same time. In the entire flow cell scanning path, the Y-direction step occupies the vast majority, and the Y-direction step length determines the sequencing field of view size. Therefore, the step speed in the Y-direction of the stage, that is, the ratio of the step length and the step time, determines the step scanning speed of the entire stage. So the subsequent content of this paper only discusses the control method of the stage for the Y-direction movement.

Dynamic model of gene sequencing stage

The motion of the stage is propelled by a surface-mounted slotless permanent magnet synchronous motor (PMSM). A high-performance power driver is employed to drive the motor, and a high accuracy scale is equipped to provide the position feedback of the stage. The error caused by the motor driver and the scale is so small that we ignore the influence on the control accuracy in this paper. Here we build the dynamic model with current closed-loop control of the stage in the d-q coordinate system, as shown in Figure 2.

OPEN IN VIEWER

Figure 2.

Dynamic model with current closed-loop control of the stage.

In Figure 2, the q-axis reference current i q * is used as the current control input and the d-axis reference current i d * is set to zero. f_E represents the electromagnetic force, and f_D is the external perturbation force which mainly comes from the elastic force of cables and the friction of guide. f represents the driving force of the mechanical load, and f = f_E + f_D. p is the displacement of mechanical load motion.

This conversion is from control current to electromagnetic force under the current closed-loop control, which is composed of the current-loop controller, power driver, and PMSM. The current-loop controller usually adopts the combination of PI control and feed-forward compensation control. ¹⁷ The PI current controllers of q-axis and d-axis often use the same parameters, namely:

G iq ( s ) = G id ( s ) = k p + k i s

(1)

Where k_p and k_i are proportional and integral coefficients respectively. ¹⁸ The d-axis feed-forward term represented as G fd ( · ) , compensates the q-axis current coupling. The q-axis feed-forward term represented as G fq ( · ) , compensates the d-axis current coupling and the back EMF voltage drop. The formulas are:

G fd ( · ) = − v E L q i q

(2)

G fq ( · ) = v E ( ψ f + L d i d )

(3)

Where v E is the electric speed of the motor; ψ f is the permanent magnet flux linkage; L_d and L_q are the d-axis and q-axis coil inductance respectively, and L d ≈ L q = L for surface-mounted PMSM. The transfer function of the current-electromagnetic force transformation in the linear range can be obtained as follows ¹⁹ :

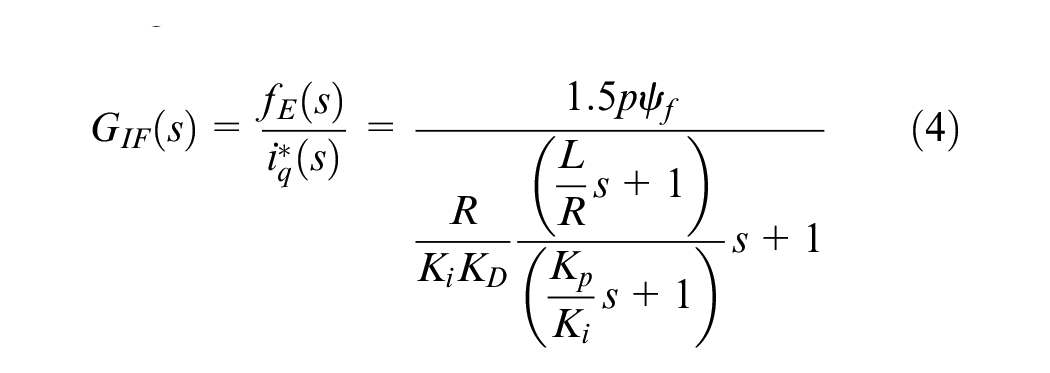

G IF ( s ) = f E ( s ) i q * ( s ) = 1 . 5 p ψ f R K i K D ( L R s + 1 ) ( K p K i s + 1 ) s + 1

(4)

Where R is the coil resistance; p is the number of pole pairs; K_D the power driver amplification factor. If we design k_p/k_i = L/R, G_IF(s) is further simplified to first-order form:

G IF ( s ) = K I τ s + 1

(5)

Where τ = R K i K D is the current-loop inertia time constant; K I = 1 . 5 p ψ f is the current-loop gain.

Under the action of the driving force, the stage does not move according to a pure rigid body. On the contrary, the mechanical parts of the stage always have elastic connection with each other. The motion load can be approximately equivalent to a multi-freedom degree damping system, and the displacement response of load exists multi-order vibration components. The driving force f and the displacement p measured by the high accuracy scale operate on the same single point of the load approximately. According to the vibration theory, the relationship between the force and displacement can be described by the transfer function as follows ²⁰ :

G FP ( s ) = p ( s ) f ( s ) = 1 m s 2 + ∑ i = 1 n λ i s + σ i s 2 + 2 ζ Ri ω Ri s + ω Ri 2 = K M s 2 Π i = 1 n s 2 + 2 ζ Ai ω Ai s + ω Ai 2 s 2 + 2 ζ Ri ω Ri s + ω Ri 2

(6)

Where m is the load mass; λ i and σ i are the weight coefficient of the i-th order vibration mode; ω Ri and ζ Ri are the resonance frequency and damping factor of the i-th order vibration mode respectively; ω Ai and ζ Ai are the anti-resonant frequency and anti-resonant damping factor of the i-th order vibration mode; K_M is expressed as the gain in the product type. Practically, the low-order vibration mode parameters are usually analyzed and identified in practical application, while higher-order vibration mode effects are ignored.

Idea of the VSC

For the implementation of step motion, we usually draw up a shortest time state transition trajectory in advance and control the stage to follow it. Due to the existence of response lag, model errors, and unknown perturbation terms, the stage always deviates from the trajectory in the early phase of step. In FSC, the final position and step length of each step is determined, so in the late phase of step, the control goal is not only to make the stage reach the desired final position, but also keep a still state afterward. For VSC proposed here, the final position of each step is an arbitrary value within a specific range. The control goal is just to make the stage quickly enter the restraint range and then keep a stationary state. The control goal of VSC is looser, which needs less adjusting time in the late phase of the step.

Of course, the VSC will probably cause larger static error than FSC, and the static error may increase the step length of the next step. However, the early phase of step motion is usually a large acceleration and deceleration movement, and the average speed is much larger than the late phase of step motion which is convergence and stabilization. The step increment brought by the static error of VSC is covered in the large acceleration and deceleration phase of the next step, which takes less time than FSC to reduce it in the late phase of step motion. As a whole, the step motion efficiency of VSC will be higher than that of FSC.

PID control system for the VSC

As the control structure of PID with feed-forward is commonly used in FSC, we also propose a VSC based on PID with feed-forward here to facilitate comparison, as shown in Figure 3.

OPEN IN VIEWER

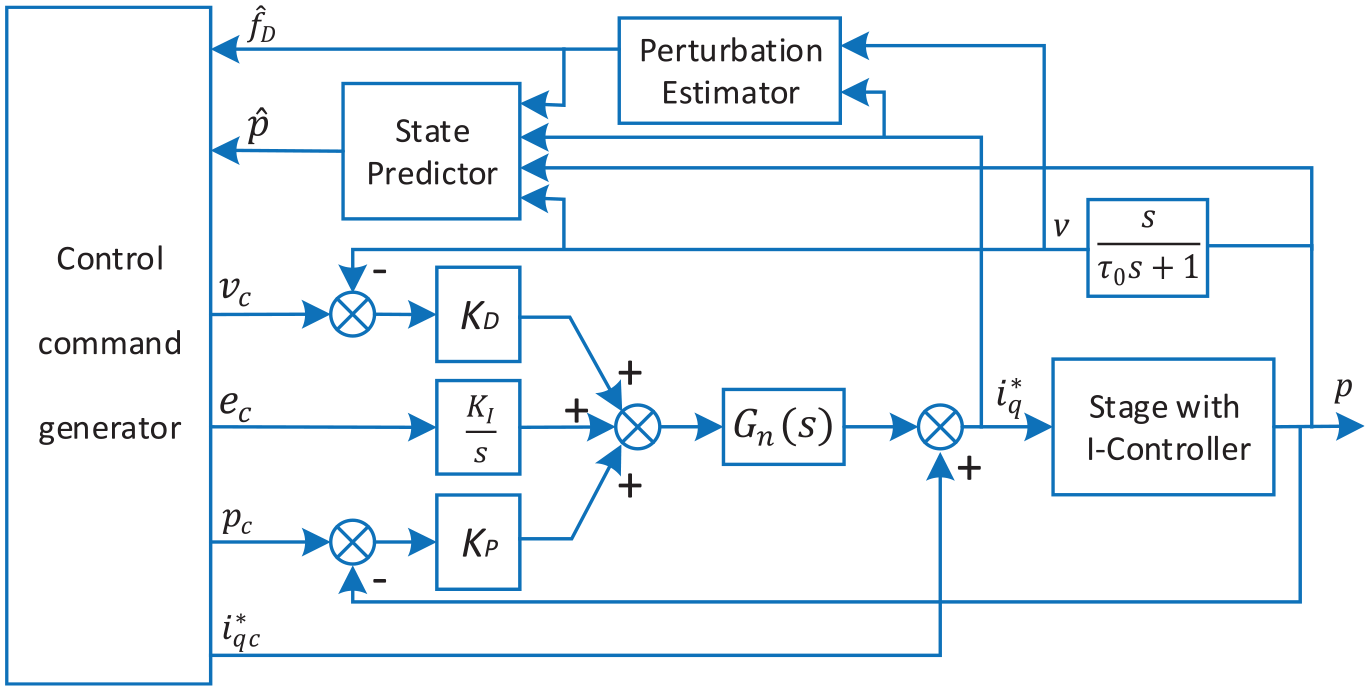

Figure 3.

Block diagram of variable step PID with feed-forward control structure.

In Figure 3, the controlled object is the stage with the current loop. G_n(s) is the notch filter. The position closed-loop proportional controller K_P, the speed closed-loop proportional controller K_D, and the integral controller K I s together constitute a PID controller. As same as the FSC, the parameters of the notch filter and PID controller can be determined by the frequency domain correction method, so that the closed-loop system has enough phase and gain margin. However, the trajectory of VSC is different on each step motion and the controlling goal of VSC is to make the controlled object quickly enter into the constraint region and maintain nearly stationary state, so the input commands of the controller are generated according to different phases of the step motion. The state predictor and perturbation estimator provide reference information for the control command generator.

In the early phase of step motion, the goal of VSC is to move the stage from the present scanning position to the vicinity of the next scanning position in the shortest time. For the force-displacement conversion model described in equation (6), if we ignore the multi-order vibration mode term, the model degenerates into a double integral system. According to the optimal control theory, to transfer the double integral system from one stable position to another stable position, the minimum-time control amount should be taken at the boundary and the sign changed once. Without loss of generality, when the increment of the state transfer position is positive, the minimum-time control amount f_m is shown as follows:

f m = { F p if 0 < t ≤ t p F n if t p < t ≤ t p + t n 0 if t > t p + t n

(7)

Where F_p and F_n are the positive and negative boundary values of control amount; t_p is the action time of positive control amount; t_n is the action time of the negative control amount. However, when the square-wave period of positive and negative control amount is close to the fundamental-frequency period of the microscopic imaging system, the impulse of the control amount will cause slight shaking of the microscopic imaging system, which deteriorates the imaging clarity. To avoid this adverse effect, the cut-off time of positive and negative control amount is often staggered from one fundamental-frequency period of the microscopic imaging system. The oscillating response caused by the positive and negative impulse will be canceled each other. At this time, the control amount f_m becomes:

f m = { F p if 0 < t ≤ t p 0 if t p < t ≤ t 0 F n if t 0 < t ≤ t p + T B 0 if t > t p + T B

(8)

Where T_B is the fundamental-frequency period of microscopic imaging system; t 0 = t p + T B − t n .The control amount f_m is controlled by q-axis reference current. Not considering the current-loop inertia function temporarily, the minimum-time control current should be taken as:

i qm * = { ( F p − f D ) / K I if 0 < t ≤ t p − f D K I if t p < t ≤ t 0 ( F n − f D ) / K I if t 0 < t ≤ t p + T B − f D K I if t > t p + T B

(9)

The control current usually has the same positive and negative boundary values, ²¹ so we have:

{ F p = K I I max + f D F n = − K I I max + f D

(10)

Where I_max is the maximum allowable control current. If the external disturbance f D is constant during the stepping motion, the speed and position of the stepping motion can be further deduced as:

v m = { 1 m ( K I I max + f D ) t if 0 < t ≤ t p 1 m ( K I I max + f D ) t p if t p < t ≤ t 0 1 m [ ( − K I I max + f D ) ( t − t 0 ) + ( K I I max + f D ) t p ] if t 0 < t ≤ t p + T B v m ( t p + T B ) if t > t p + T B

(11)

p m = { 1 2 m ( K I I max + f D ) t 2 + p ( 0 ) if 0 < t ≤ t p 1 m ( K I I max + f D ) t p t − 1 2 m ( K I I max + f D ) t p 2 + p ( 0 ) if t p < t ≤ t 0 1 2 m [ ( − K I I max + f D ) ( t − t 0 ) 2 + ( K I I max + f D ) t p ( 2 t − t p ) ] + p ( 0 ) if t 0 < t ≤ t p + T B v m ( t p + T B ) ( t − t p − T B ) + p m ( t p + T B ) if t > t p + T B

(12)

Where p ( 0 ) is the initial state position, it is the real position of the stage at the start time of step motion. The square-wave control amount f_m contains abundant high-frequency components, which will generate an oscillation response after passing through the multi-order vibration mode. It is not conducive to the stability of the system final state. Therefore, we usually add a low-pass filter on the control amount f_m to attenuate the high-frequency components. If the impulse response of a low-pass filter is h(t) and ∫ h ( t ) dt = 1 , convolution with i qm * obtains:

i qc * = i qm * ( t ) * h ( t )

(13)

The driving force becomes:

f c = f m ( t ) * h ( t ) * h I ( t )

(14)

Where h_I(t) is the impulse response of current-loop inertia function in (5). At this time, the stepping speed and displacement become:

v c = v m ( t ) * h ( t ) * h I ( t )

(15)

p c = p m ( t ) * h ( t ) * h I ( t )

(16)

Where the final stable values of v_c and p_c are the same as those of v_m and p_m. Equations (13), (15), and (16) give the feed-forward command i qc * and the closed-loop control commands v_c, p_c in the early phase of step motion. In these equations, the parameter f_D is replaced by the estimation value f ^ D ( 0 ) of the perturbation force in the step initial state, and the parameters t_p and t_n are solved by the condition that v m ( t p + T B ) is zero and p m ( t p + T B ) is the expected position P_e. The value of control instruction e_c is:

e c = { p c − p if | p c − p | ≤ ρ ρ SIG ( p c − p ) if | p c − p | > ρ

(17)

Where ρ is the threshold parameter to avoid integral saturation; SIG ( ) is the symbolic operator.

Suppose that the length of the convolution function h(t) is NT, then at the time of t_p + T_B + NT, the feed-forward command i qc * becomes a constant perturbation compensation term, and v_c and p_c are close to zero and constant values respectively. At this time, the step motion is considered to enter the later phase. The goal of the VSC is to quickly stabilize the stage to the stationary state, and the deviation between a steady position and desired position is within the allowable range. The control commands are generated as follows:

Step1: Start the state predictor. If the absolute deviation between expected position P_e and predicted steady-state position p ^ is less than the allowable threshold ε , that is | P e − p ^ | < ε , it is transferred to Step 2. Otherwise, continue to use the command generation method in the early stage of step motion until the condition is met.

Step2: Set v c = 0 , i qc * = − f ^ D ( t ) K I . Use the speed closed-loop proportional control with zero input to quickly stabilize the speed of stage to zero, and at the same time estimate the external perturbation term and compensate it.

Step3: During the process toward steady-state, the position closed-loop proportional control becomes the auxiliary adjustment function so that the steady-state position of the stage does not deviate from the allowable neighborhood range of the expected position. Concurrently, the integral controller is canceled gradually to speed up the steady-state process. After entering the steady-state, the position closed-loop proportional control, the speed closed-loop proportional control and the integral controller work together to form a high gain PID controller to improve the anti-perturbation ability. p_c and e_c are set as:

p c = { p if | P e − p ^ | < ε and t < t z P e − p ^ − ε + p if P e − p ^ > ε and t < t z P e − p ^ + ε + p if P e − p ^ < − ε and t < t z p ( t z ) if t ≥ t z

(18)

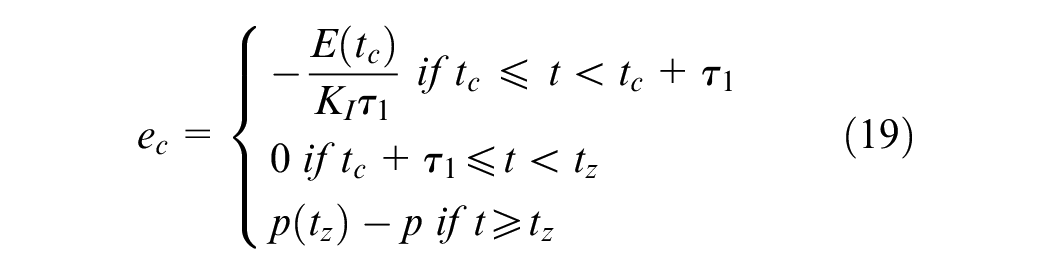

e c = { − E ( t c ) K I τ 1 if t c ≤ t < t c + τ 1 0 if t c + τ 1 ≤ t < t z p ( t z ) − p if t ≥ t z

(19)

Where t z is the moment of zero velocity. When the control process enters step 2 and | v ( t ) | ≤ ϵ occurs for the first time, set t z = t and ϵ is a small positive value. t c is the moment to enter step2; E is the output of the integral controller; τ 1 is the elimination time of integral action; p ^ is the predicting steady-state position.

The external perturbation force is estimated by the current value i q * and the velocity value v. ²² Suppose that the perturbation force is approximately constant in a short time, we ignore the influence of the multi-order vibration mode, then:

mv ( t ) − K I ∫ [ i q * ( t ) * h I ( t ) ] dt = f D t + mv ( 0 )

(20)

Set y ( t ) = mv ( t ) − K I ∫ [ i q * ( t ) * h I ( t ) ] dt , c = mv ( 0 ) , then:

y ( t ) = f D t + c

(21)

This formula is a time linear function with f_D and c as parameters. At any sampling time kT, the corresponding y(kT) value can be calculated according to the current value i q * and the velocity value v. The least-squares fit of the time series data {y(kT), y(kT-T), …, y(kT-NT)} is performed to obtain the estimated disturbance force f ^ D ( kT ) at that moment.

The state predictor predicts the steady-state position of the stage under the action of single-speed closed-loop proportional control. On the condition of ignoring the influence of multi-order vibration mode, the system state equation with i q * as the control value is established as follows ²³ :

x · = [ 0 1 0 0 0 0 1 / m 1 / m 0 0 − 1 / τ 0 0 0 0 0 ] x + [ 0 0 K I / τ 0 ] i q *

(22)

p = [ 1 0 ∑ i = 1 n σ i / ω Ri 2 ∑ i = 1 n σ i / ω Ri 2 ] x

(23)

Where x = [ p 0 v f E f D ] T . When the single-speed loop works, the control amount i q * = − K D v − f D / K I . At this time, the state equation becomes:

x · = [ 0 1 0 0 0 0 1 / m 1 / m 0 − K D K I / τ − 1 / τ − 1 / τ 0 0 0 0 ] x

(24)

After discretizing equation (24), from the current state we can recursively calculate the predicting state x ^ until the condition | v ^ | ≤ ϵ is met. Then the predicting position p ^ is obtained from equation (23). For each element in the current state vector, the velocity v adopts the position differential value, and f D = f ^ D , f E = K I i q * * h I , p 0 = p − ( f D + f E ) ∑ i = 1 n σ i / ω Ri 2 .

Parameters and evaluation metrics

To justify the control performance of VSC, a motion model is well constructed based on the features of the existing gene sequencing stage which has been used in the IMA6000 gene sequencer prototype. The parameters are listed in Table 1.

OPEN IN VIEWER

Table 1.

System parameters.

Component	Parameter	Value	Unit
System model	K I	53.2	N/A
	τ	0.1	ms
	m	25.6	kg
	ω R 1	2200	rad/s
	ζ R 1	0.01	–
	σ 1	0.005	–
	λ 1	0	–
Controller	Kp	6.08 × 104	–
	KI	2.43 × 106	–
	KD	380	–
	Gn(s)	s 2 + 2 × 0 . 01 × 2200 s + 2200 2 s 2 + 2 × 0 . 1 × 2200 s + 2200 2	–
Controlcommandgenerator	τ 1	1.0	ms
	ϵ	0.5	µm/s
	I max	6.8	A
	TB	10.0	ms
	T	25	µs
	h(n)	T 0 . 997 1 2 π σ e − ( nT − 3 σ ) 2 2 σ 2 , n = 0 , 1 , … , 480 , σ = 2 ms	–
	h I(n)	T 0 . 95 τ e − nT τ , n = 0 , 1 , … , 11	–

Also, we choose two typical FSC controllers, that is, PID-ACC and VG-PID, and compare them with VSC through simulation. Among them, the PID controller of FSC is the same as VSC, and other relevant parameters are set in Table 2.

OPEN IN VIEWER

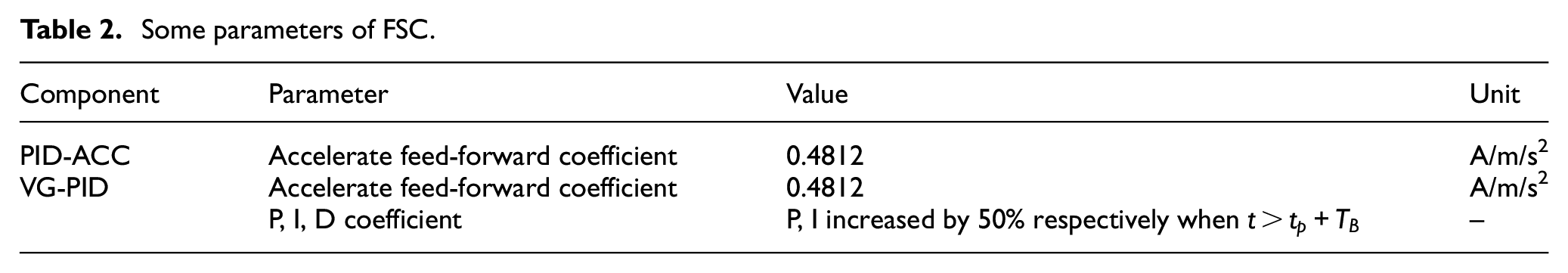

Table 2.

Some parameters of FSC.

Component	Parameter	Value	Unit
PID-ACC	Accelerate feed-forward coefficient	0.4812	A/m/s2
VG-PID	Accelerate feed-forward coefficient	0.4812	A/m/s2
	P, I, D coefficient	P, I increased by 50% respectively when t > t p + T B	–

In the simulation, the expected step length is 1.512 mm, and the steady-state interval of VSC is −1 to 1 µm. The allowable threshold ε is chosen less than steady-state interval, it is 0.5 µm here. The step command of FSC is also generated by equations (13), (15), and (16), except that the initial position p ( 0 ) is no longer the actual position at the start time, but the final position command of the last step, and f D = 0 . The stepping period is set 0.2 s. The performance comparison index is selected as follows:

Simulation analysis

In the application of the real gene sequencer, the parameters of the control object will have changes or errors owing to the limitation of instrument measurement accuracy, the change of the test environment or the constraint of the identification method. Here, according to the boundary range of the parameter variation, the different models are selected to analysis the influence of the different possible errors on the system performance. Eight models are exemplified, that is, the model parameters are accurate, the model parameters are not accurate with different deviation, the model structure are not accurate with different deviation, the model parameters and structure are not accurate. The comparative simulation of FSC and VSC is carried out on eight different models and parameters, which are shown in Table 3.

OPEN IN VIEWER

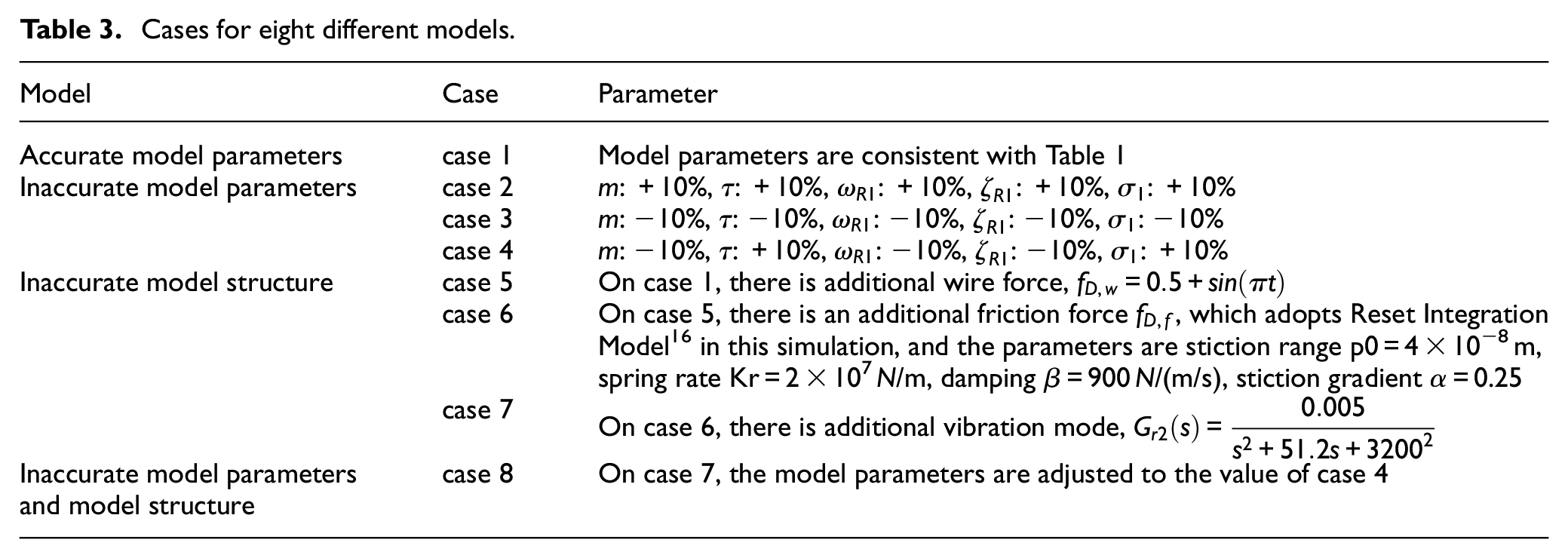

Table 3.

Cases for eight different models.

Model	Case	Parameter
Accurate model parameters	case 1	Model parameters are consistent with Table 1
Inaccurate model parameters	case 2	m : +10%, τ : +10%, ω R 1 : +10%, ζ R 1 : +10%, σ 1 : +10%
	case 3	m : −10%, τ : −10%, ω R 1 : −10%, ζ R 1 : −10%, σ 1 : −10%
	case 4	m : −10%, τ : +10%, ω R 1 : −10%, ζ R 1 : −10%, σ 1 : +10%
Inaccurate model structure	case 5	On case 1, there is additional wire force, f D , w = 0 . 5 + sin ( π t )
	case 6	On case 5, there is an additional friction force f D , f , which adopts Reset Integration Model 16 in this simulation, and the parameters are stiction range p0 = 4 × 10−8 m,spring rate Kr = 2 × 107 N/m, damping β = 900 N/(m/s), stiction gradient α = 0.25
	case 7	On case 6, there is additional vibration mode, G r 2 ( s ) = 0 . 005 s 2 + 51 . 2 s + 3200 2
Inaccurate model parametersand model structure	case 8	On case 7, the model parameters are adjusted to the value of case 4

The step motion curves of VSC and FSC are shown in Figure 4. It can be observed that the starting and ending positions of each step motion for VSC are uncertain, but VSC outperforms FSC in terms of settling time. Specifically, Figure 4(a) shows the stepping curve of case 1. Although the SSE of VSC is more than FSC, it can reach a steady-state in a shorter time, where the cross marks the moment of entering a steady-state. Moreover, FSC will still approach the given position at a very slow speed even if enters a steady-state, while VSC can stabilize at the steady-state position with higher stability precision. Figure 4(b) to (d) show the case 2–4 where the parameters of the system model are inaccurate. The settling time of VSC and FSC increase compared with case 1, but the increment of FSC is more significant. The main reason is that the parameter values required for step command generation are not consistent with the actual model so that the ability of the feed-forward controller is weakened. It should utilize the closed-loop function of the controller and take more time to make the system stable. Besides, the SSE of VSC becomes larger because of the state prediction error caused by the inaccuracy of model parameters, but it does not exceed the preset steady-state interval, which contributes to the position-loop auxiliary adjustment in VSC. For the case 5–7 where exist model structural error, the stepping curves are shown in Figure 4(e) to (g). We can find that the settling time and SSE of VSC and FSC have slight changes in comparison with case 1. It shows that the VSC has the same anti-perturbation ability as FSC. For higher-order vibration model terms, the extra oscillation responses will occur in VSC and FSC during the process of approaching a steady-state. If the oscillation is small enough, just as shown in this simulation, it usually does not require further processing. When the structure and parameters of the system model have changed, we also find that the settling time of VSC is still less than FSC, as shown in Figure 4(h).

OPEN IN VIEWER

Figure 4.

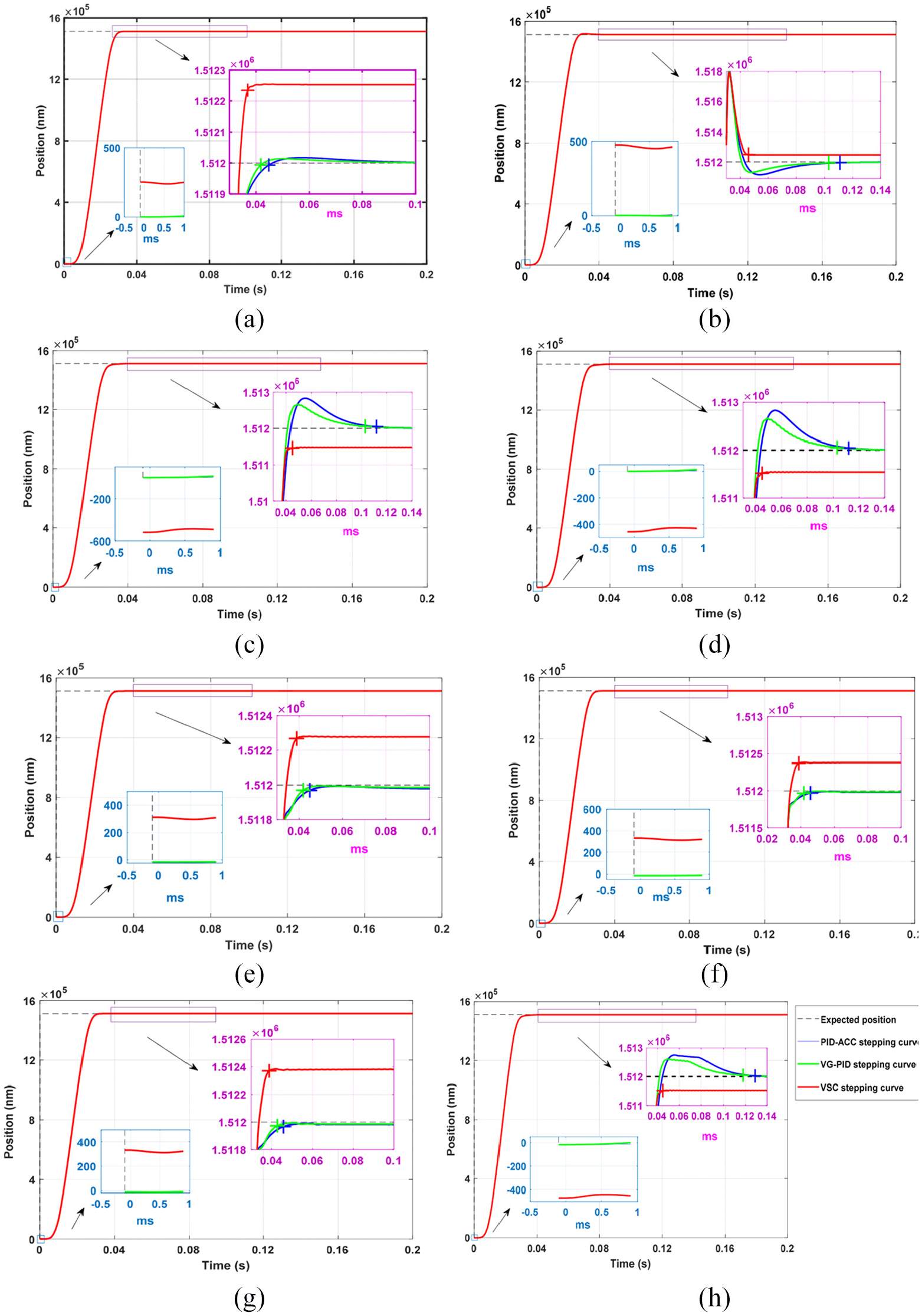

Stepping curves of VSC and FSC: (a) case 1, (b) case 2, (c) case 3, (d) case 4, (e) case 5, (f) case 6, (g) case 7, and (h) case 8.

Furtherly, we investigate the data of the 5000 steps in each case and calculate the average of settling time, SSE and scanning speed. Firstly, settling time, SSE and scanning speed of each step in each case are calculated according to the specification and calculation method of the performance index (a) (b) (c) at the above Section 4.1, and then the same index calculation is done for the data of the 5000 steps. Finally, the settling time, SSE and scanning speed of 5000 steps are averaged respectively. The statistical curves of the performance comparison index are shown in Figure 5. It can be observed that VSC makes improvement in settling time and scanning speed, especially the settling time is almost unchanged. This feature is much suitable for practical applications, which usually consider that the stage will be in a steady-state at a constant moment. Admittedly, the SSE of VSC increases greatly during the step-scan motion compared with the FSC, but it is always smaller than the set tolerance of steady-state interval. Indeed, the scanning speed of the VSC is still increased by nearly 8% in the case of accurate model parameters. Normally it takes a long time to complete the whole test in the actual working process of the gene sequencer. Although the scanning speed is only slightly improved, it is very meaningful in practical application.

OPEN IN VIEWER

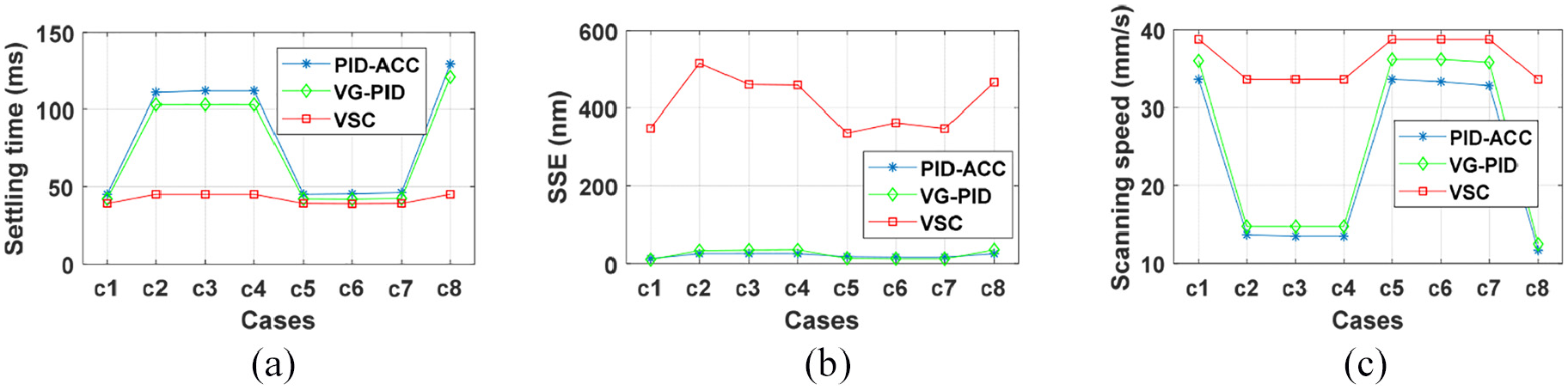

Figure 5.

Performance comparison curves in all cases (the average of 5000 steps): (a) settling time (b) steady-state error, and (c) scanning speed.

Implementation on gene sequencing stage

We have applied the proposed VSC to a self-designed X/Y/Z 3D-motion gene sequencing stage used in the IMA6000 gene sequencer prototype, as shown in Figure 6. The Y-axis movement of the stage is jointly driven by two identical surface-mounted slotless PMSM. Each motor is controlled by an independent current loop for commutation, but the q-axis control current is the same. Therefore, the parameters of the dual-motor drive are exactly similar to the single-motor drive except the equivalent gain of the current loop is doubled. A high accuracy linear scale with a 20 μm pitch is used for position feedback. Each pitch signal is divided into 8000 equal parts and the corresponding position resolution is 2.5 nm. The control operation runs on the TI-TMS320F28377D dual-core microcontroller, the sampling frequency is 40 kHz, and the motor drive mode adopts three-level SVPWM inverter.

OPEN IN VIEWER

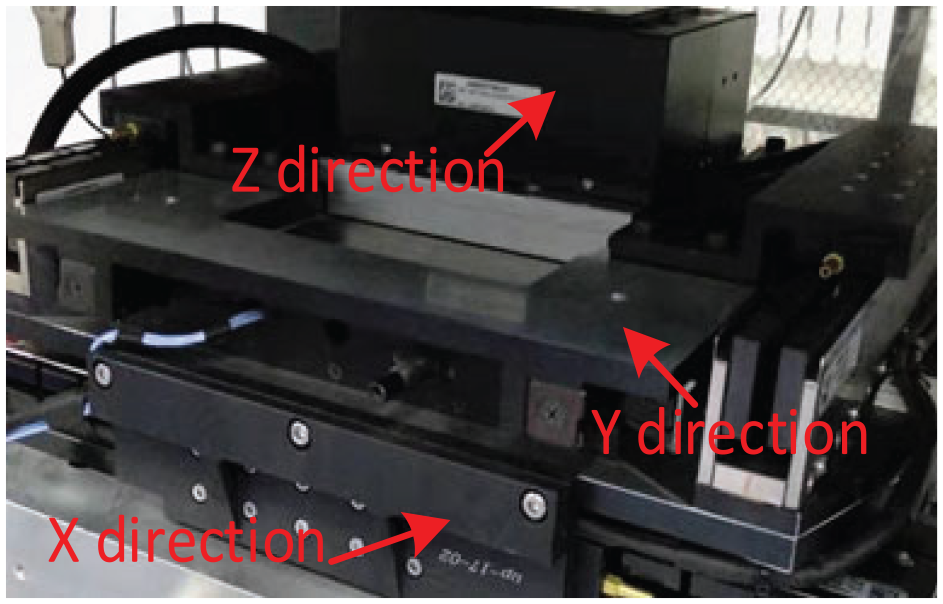

Figure 6.

X/Y/Z 3D-motion gene sequencing stage.

The experiment is carried out according to the requirements of gene sequencer. The expected step length of VSC is set as 1.512 mm, and the allowable range of step change is ±1‰ step length, that is, −1.5 to 1.5 μm. According to scanning speed requirements, we choose 60 ms as one step cycle, in which 50–60 ms is defined as the steady-state period and the camera is exposed to the DNBs fluorescence. The data comes from the feedback position of the stage’s own linear scale. The expected position and the feedback position of the scale are recorded with 0.1 ms sampling period, and the curve for some data is shown in Figure 7. Furthermore, counting all the recorded data during the steady-state period, we can obtain the distribution of some performance metrics in Figure 8, that is, SSE, the peak-peak value of feedback position and the standard deviation of feedback position. It can step 1.54 mm in 50 ms period in the analyses of data. For most steps, the SSE is less than 0.8 μm in Figure 8(a), the peak-peak value of feedback position is less than 120 nm in Figure 8(b), and the standard deviation of the feedback position is less than 30 nm in Figure 8(c), which can meet the sequencing accuracy requirements.

OPEN IN VIEWER

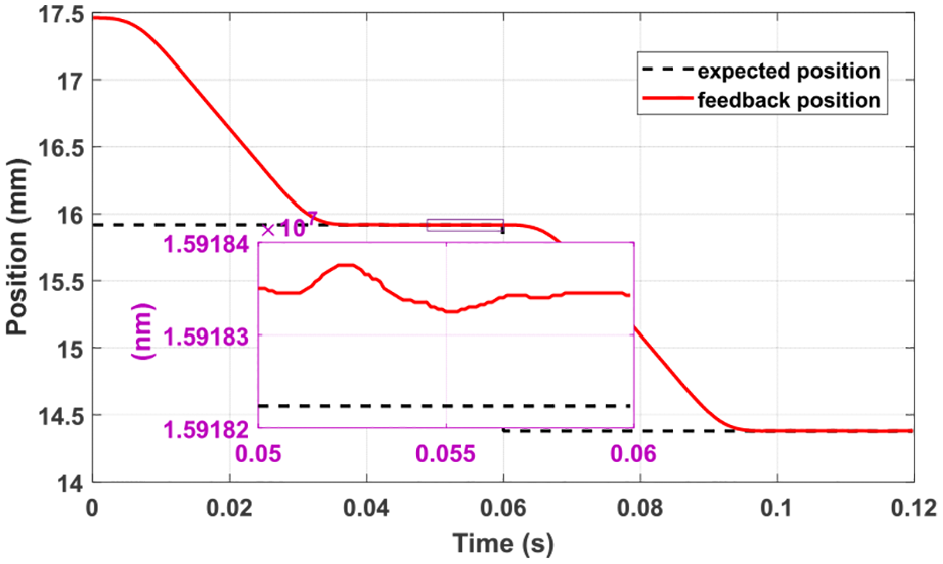

Figure 7.

Recorded position curve from the linear scale.

OPEN IN VIEWER

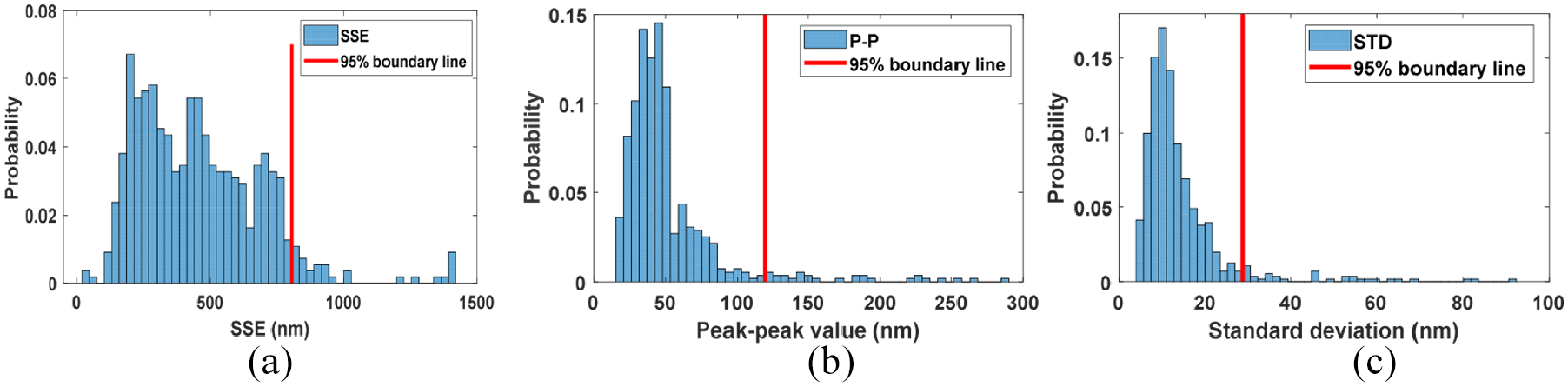

Figure 8.

Distribution of the performance metrics from the linear scale: (a) SSE, (b) peak-peak value, (c) standard deviation of feedback position.

In addition, we choose a laser interferometer to measure the position of the stage, and the data collected by the interferometer are analyzed. The test platform for the gene sequencing stage is shown in Figure 9. The expected position and the feedback position of the laser interferometer are recorded with 0.2 ms sampling period, and the curve for some data is shown in Figure 10. Then, the data from 90 to 100 ms are counted. In the stable period of 10 ms, the peak to peak value of the steady-state error of most steps is less than 170 nm in Figure 11(a) and (b), and the standard deviation is less than 55 nm in Figure 11(c) and (d), which can meet the application requirements. It should be noted that there is the step errors, as shown in Figure 7 and Figure 10, which is allowed in practical applications. Compared with the existing errors, the stable shooting and clear imaging are more important in practical applications. Moreover, the step errors can be easily eliminated by the mark line alignment method in the subsequent image processing process.

OPEN IN VIEWER

Figure 9.

Test platform for the gene sequencing stage.

OPEN IN VIEWER

Figure 10.

Recorded position curve from the laser interferometer: (a) 0 s-60 s, (b) 40 s-40.2 s, (c) 40.11 s-40.12 s.

OPEN IN VIEWER

Figure 11.

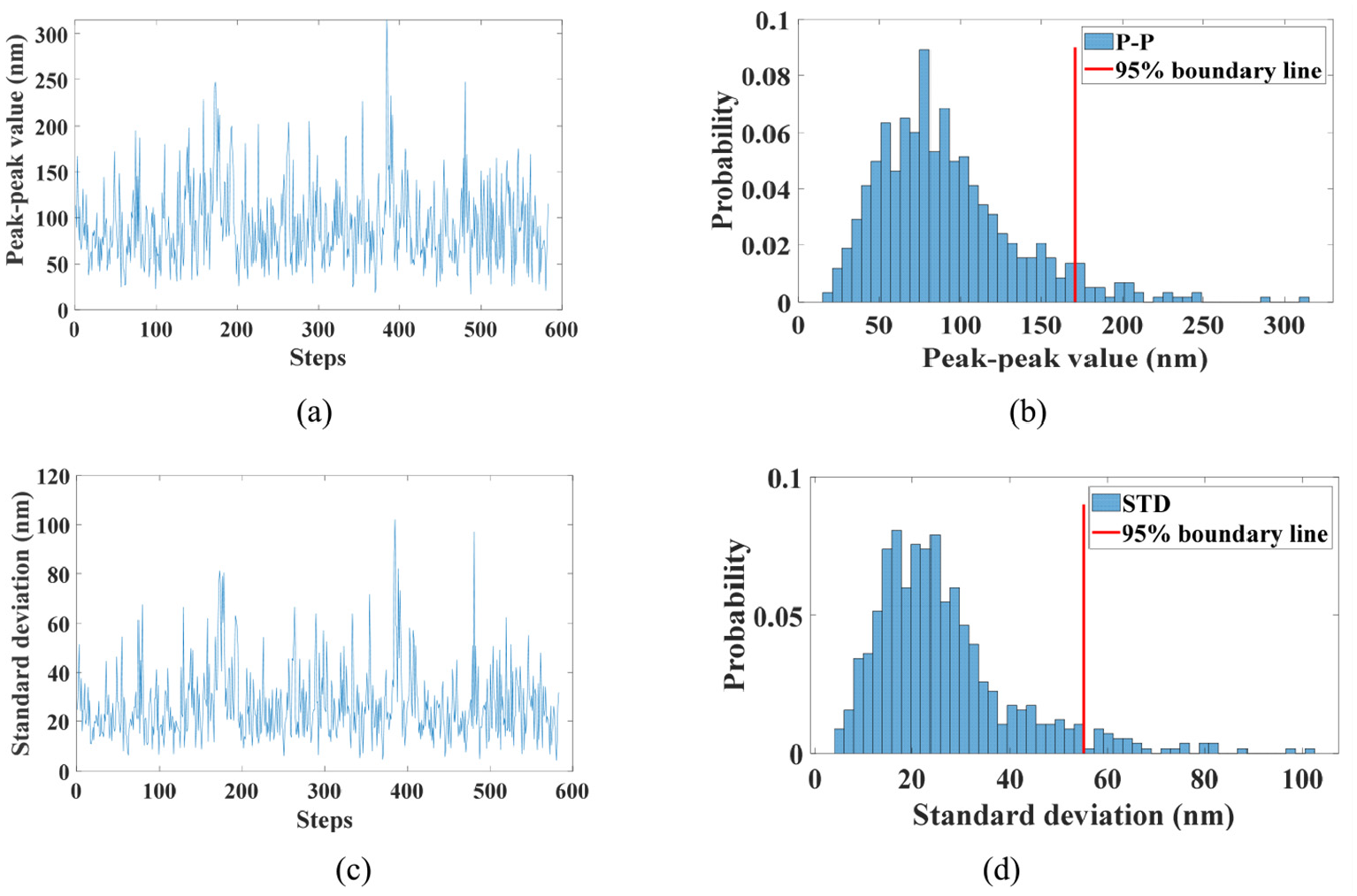

Distribution of the performance metrics from the laser interferometer: (a) peak-peak value of different steps, (b) distribution of peak-peak value, (c) standard deviation of different steps, (d) distribution of standard deviation.
