Research on velocity measurement and relative positioning method of maglev train based on multi-sensor information fusion

Abstract

This paper focuses on the optimal method of the non-contact velocity measurement and relative positioning system for medium and low speed maglev trains. By analyzing the working principle of the velocity measurement method based on counting sleepers and analyzing the speed system error and random error model, it is shown that the velocity measurement accuracy based on the counting sleeper speed measurement method needs to be further improved. Therefore, a method of using multi-sensor information fusion is proposed to improve the accuracy of velocity measurement and relative positioning. Firstly, aiming at the disturbance problem of traction, braking and suspension vibration in the attitude angle calculation and the cumulative error problem of attitude angle, a posture solution method combining the optimized second-order complementary filter and the velocity adaptation Unscented Kalman filter with maximum noise reduction is proposed; Then, in order to further reduce the accumulated error of the attitude angle and the high performance requirements of the gyroscope, the bias instability of the gyroscope is analyzed, and an adaptive wavelet de-noising algorithm based on threshold optimization is proposed; Finally, to weaken the colored noise interference caused by the suspension vibration and to weaken the velocity accumulation error, a fusion velocity measurement and positioning algorithm of multi-loop Kalman filter with acceleration fusion correction and velocity accumulation error correction is researched. The effectiveness of the proposed fusion method is verified through simulation comparison analysis and on-board engineering test. Compared with the velocity measurement method based on counting sleepers, the velocity measurement accuracy is improved by an order of magnitude, and its accuracy is comparable to the high-precision velocity measurement method based on the induction loop and GPS/INS. It has certain engineering applicability and application value.

Keywords

Maglev train multi information fusion bias instability adaptive optimal estimation wavelet threshold de-noising

Introduction

The non-contact velocity measurement and relative positioning system is one of the key systems in the maglev train system. The improvement of velocity measurement and relative positioning accuracy plays an important role in reducing the switching speed of electric braking and mechanical braking, low energy consumption control of traction and improving the accuracy of fixed-point parking of trains, which is related to the reliable and efficient operation of maglev trains. Since the maglev train has no contact with the track, it brings great challenge to the high-precision velocity measurement and positioning system. At present, the non-contact velocity measurement methods adopted by maglev trains at home and abroad mainly include the velocity measurement and positioning method based on electromagnetic sensor induction sleeper (counting sleeper),^1,2 velocity measurement and positioning method based on the fusion of relative positioning and absolute positioning,^3,4 velocity measurement and positioning method based on induction loop line^3,4 and velocity measurement method based on radar.

The German technology Shanghai TR high-speed maglev relative position sensor has high velocity measurement accuracy. Due to necessary to lay long stator cores with cogging structure on the entire track, which has strict requirements on the track, large amount of engineering and high cost, so it is not suitable for medium and low speed maglev systems. Based on the cross-induction loop velocity measurement system, it has been successfully-applied in the demonstration operation lines of Japan’s high-speed magnetic levitation (ML), low-speed magnetic levitation (HSST) and Korean maglev trains. The velocity measurement and positioning system in the Yamanashi Maglev Test Line in Japan has a positioning accuracy of 7 cm.⁵ Since this velocity measurement method must lay loops along the entire track, the induction loops generally need to be controlled in sections. The ground loop drive system is more complex and costly, which is not conducive to the popularization and application of low-speed maglev. In the application of Doppler radar velocity measurement, Changsha Maglev and South Korea Maglev application radar are used as auxiliary equipment for velocity measurement. Because radar speed measurement is greatly affected by rain and snow, and the Doppler frequency is low at low speeds, the velocity measurement accuracy is reduced.

In China, the National University of Defense Technology first proposed a velocity measurement method based on counting sleepers. This method uses the distance between adjacent sensors as the velocity measurement reference, which can avoid the influence of sleeper laying distance, improve velocity measurement accuracy, strong engineering adaptability, and low cost, which is convenient for promotion and application. It has been successfully applied to the operation of Beijing S1 line and Changsha Maglev Express Line, The Beijing S1 line maglev train is showed in Figure 1.

Figure 1.

Maglev train of Beijing S1 line.

The velocity measurement method based on counting sleepers (VMCS) uses the principle of electromagnetic induction to detect the time difference Δt used by adjacent sensors to pass the same sleeper, and calculates the average speed $\bar{v}$ by the equation $\bar{v}$ = s/Δt.⁵ According to electromagnetic analysis, the distance between adjacent proximity switch sensors should not be less than the standard value, so the speed system error will increase when the train is running at low speed, and there are also the problems of false triggering and random interference of the proximity switches caused by the suspension fluctuation. It has an adverse effect on reducing the switching speed of electric braking and mechanical braking, low energy consumption control of traction and improving the accuracy of fixed-point parking of trains. Therefore, on the basis of this velocity measurement method, a new velocity measurement method based on multi-sensor information fusion is proposed.

In response to the problem of speed system error at low speed, the current velocity measurement system of the Changsha Maglev Express uses accelerometers for speed compensation, but the accelerometers are greatly affected by vibration, so its speed compensation ability is limited. Aiming at the problem of random velocity error, Dou et al.⁶ proposed a new type of speed sensor based on the eddy current induction principle to overcome the influence of suspension vibration, but the stability remains to be improvement. From the perspective of signal analysis, the velocity measurement method based on the counting sleeper(VMCS) is a typical second-order differential system, which can amplify interference noise like suspension vibration. And, the VMCS has the characteristics of the same frequency of the signal and the interference, which is difficult to handle. For the second-order differential system, Han⁷ proposed the idea of using the tracking differentiator (TD) to solve the problem of jitter near the switching curve, but Han’s tracking differentiator needs to further consider the disturbance suppression problem that the signal and the disturbance are in the same frequency or the disturbance is discontinuous and the disturbance amplitude is greater than the signal strength. Research on high-performance tracking differentiators with fastness, chattering suppression and high stability is a hot spot of current research.^8–10 Aiming at the contradiction between fast convergence and chattering throughout the entire process, Liu¹¹ eliminated the solution of complex number to achieve rapid convergence no matter whether it is far from the equilibrium point or close to the equilibrium point. However, the complex dynamic characteristics and the signal characteristics of high-amplitude interference are not analyzed. Aiming at the problem of parameter adjustment, Gao et al.¹² proposed a tracking differentiator that can adjust parameters adaptively. The frequency information is used to realize the trade-off between noise suppression and phase lag, which improves the High-frequency signal tracking ability. However, it needs to utilize the frequency characteristics of the signal, and the applicability to interference with the same frequency remains to be improved. So, further research is needed for the high-performance tracking differentiator with fastness, stability and small jitter. Due to the complex amplitude-frequency characteristics of the electromagnetic speed sensor for maglev trains, extremely high requirements are placed on the tracking differentiator and adaptive filter. At present, there are few research literatures on tracking differentiator applied to the velocity measurement system based on counting sleepers.

Aiming at the problem of the same frequency of signal and interference in the velocity measurement method based on counting sleepers, multi-information fusion is one of the effective methods to solve this problem.

In Ref. 13 reviewed data fusion, and mainly reviewed and studied the methods of data fusion for the underlying specific data. Kokar et al.¹⁴ proposed a completely general and abstract fusion framework scheme. This scheme is based on classification theory and can fully capture and fuse various data, such as data fusion, feature fusion, and decision fusion. Aiming at the problems of nonlinearity, multi-mode, deep coupling, networking, high dimension and unknown disturbance input in complex target tracking system, Pan et al.¹⁵ gave a general description of the algorithm in multi-path and multi-mode multi-target tracking scenario, and discussed the problems and research directions of the variation Bayes theory in the target tracking field. GPS/INS is a multi-level fusion. The loose combination and the tight combination have the problem of poor positioning accuracy or even divergence when the GPS signal is weak or completely lost. At present, in domestic and foreign, it is mainly concentrated on combining other information or optimization algorithms to improve the accuracy of positioning and speed measurement. Tang¹⁶ designed a fusion model based on sparse signal representation theory, which fused inertial navigation system(INS) and WLAN received signal strength (RSS) information. In view of the uncertainty, high noise and long-term interruption of GPS signal of inertial navigation sensor, extreme learning machine (ELM) is used in Ref. 17 to improve positioning speed and accuracy, and fuzzy logic system is used to deal with the uncertainty in GPS/INS data. To solve the problem of decreased accuracy of GPS and Doppler velocity (DL) due to bad weather and related noise, Mostafa et al.¹⁸ proposed a Data Sharing Factor-Combination Filter integration method based on GPS/DV/MEMS-INS, which used a reference source with an accurate system (GPS or DV) to correct navigation errors while avoiding the lowest precision systems. Weide et al.¹⁹ used an unscented Kalman filter to achieve multi-sensor fusion, and proposed an indoor positioning method combining inertial measurement unit and ultra-wideband (UWB) to suppress the accumulation of IMU errors. Fusion Kalman filter has been widely used in integrated navigation, but for positioning and velocity measurement systems with different data rates and different noise levels, the algorithm needs to be optimized. S. Han²⁰ uses a two-speed Kalman filter to deal with the rate difference problem. Xiong et al.²¹ proposed a parallel model adaptive Kalman filter algorithm, which incorporates the noise statistical estimator into the framework of multi-model adaptive estimation, thereby reducing the complexity of the estimator. L. Tan²² studied the satellite lock-out and indoor pedestrian navigation models in outdoor sheltered areas, but they were greatly affected by other interference signals.

Another research method is to correct the accumulated error of inertial sensor by combining the kinematic characteristics, such as the start and stop characteristics of human foot when walking. The DLR Laboratory of Germany proposed a position estimation framework based on shoe bound inertial sensor; Nilsson of Signal Processing Laboratory of Royal Institute of technology of Sweden proposed the inertial navigation system based on shoe bound zero speed correction, which is a local decentralized system of step-by-step inertial navigation and dead reckoning. This kind of algorithm can assist positioning when satellite signal is poor and ensure the connection of navigation and positioning Continuous, finally achieve seamless positioning.²³

Therefore, based on the idea of learning from each other’s strengths, this paper proposed a fusion velocity measurement and positioning method combining 5-channel electromagnetic velocity sensor and 6-DOF MEMS-IMU inertial measurement unit, which has the advantages of acceleration fusion correction and velocity accumulation error correction. The fusion design is carried out at the three levels of data fusion, feature fusion and decision fusion. Compared with the GPS integrated navigation system, it overcomes the problem of being limited by geographical location, and can work stably in the station and the depot for a long time. Secondly, velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF) and the wavelet transform algorithm based on threshold noise reduction are used to reduce the high performance requirements of the gyroscope and improve the accuracy of attitude angle calculation.

Error analysis and model establishment

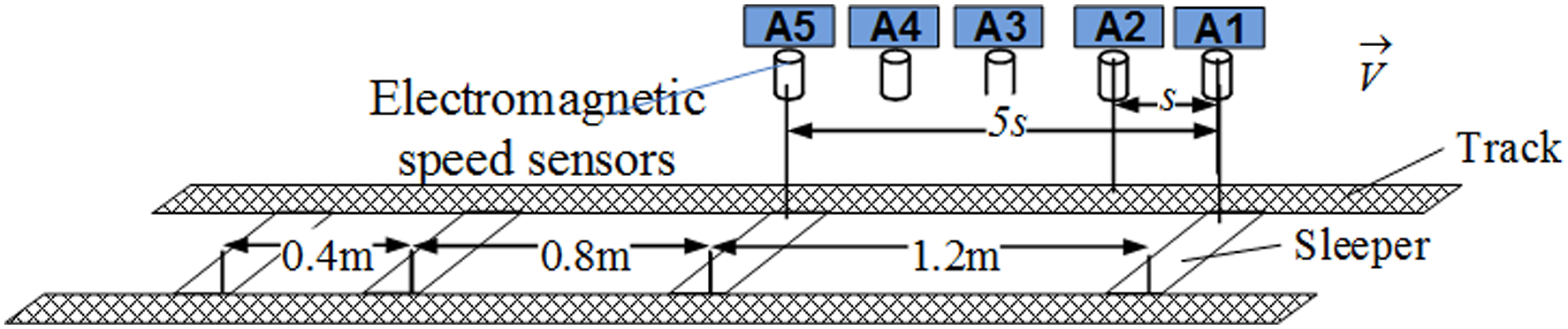

Figure 2 is the schematic diagram of the scheme of existing velocity measurement and positioning system. Among them, A1∼A5 are inductive proximity switch sensors, and the sensor spacing is s. The velocity measurement method based on counting sleepers uses the principle of electromagnetic induction to detect the time difference Δt used by adjacent sensors to pass the same sleeper, and calculates the average speed $\bar{v}$ by the equation $\bar{v}$ = s/Δt. Therefore, it is necessary to analyze the velocity error of the velocity measurement method based on counting sleepers.

Figure 2.

The composition of the Multi-information fusion system.

Error model analysis

System error analysis of the VMCS

Assuming that the train acceleration is a and the running time is t, the actual velocity $v$ is $v = a t$ . The Average velocity $\bar{v}$ calculated based on the velocity measurement method of counting sleepers (VMCS) is the ratio of the sensor distance s to the time difference $Δ t$ of the adjacent sensors passing the same sleeper, which is the sensor Average velocity within the interval s. The system error models of velocity and relative positioning can be deduced as shown in (1). It can be seen that the greater the acceleration, the greater the sensor spacing, and the smaller the initial velocity, the greater the system error

{\begin{cases} Δ v = {\begin{cases} a t, t < Δ t_{0} (Δ t_{0} = \sqrt{2 s / a}) \\ \frac{a s}{2 \bar{v}} + a (t - t_{n - 1}), t > Δ t_{0} (Δ t_{n} = t_{n} - t_{n - 1}) \end{cases} \\ t_{n} = \sqrt{t_{n - 1}^{2} - \frac{2 s}{a}}, \bar{v} = \frac{s}{Δ t_{n - 1}} \end{cases}

(1)

where,

Δ t_{n - 1}

and

Δ t_{n}

are the time difference between the two groups of adjacent sensors passing through the same sleeper respectively,

t

is the continuous running time,

t_{n - 1}

and

t_{n}

are the nth and the n-1th trigger time respectively,

Δ v

is the speed system error,

Δ t_{0}

is the time difference between two adjacent sensors being triggered successively when the vehicle starts,

\bar{v}

is the average speed output based on the velocity measurement method of counting sleepers (VMCS).

Random error analysis of the VMCS

The random error caused by suspension fluctuation is mainly analyzed. Assuming that the working conditions of each sensor probe are the same, the horizontal positions $x_{H}$ and $x_{L}$ triggered by the sensor are the function of height, and the relationship is shown in Figure 3, where the working height $h_{1}$ is greater than $h_{2}$ .

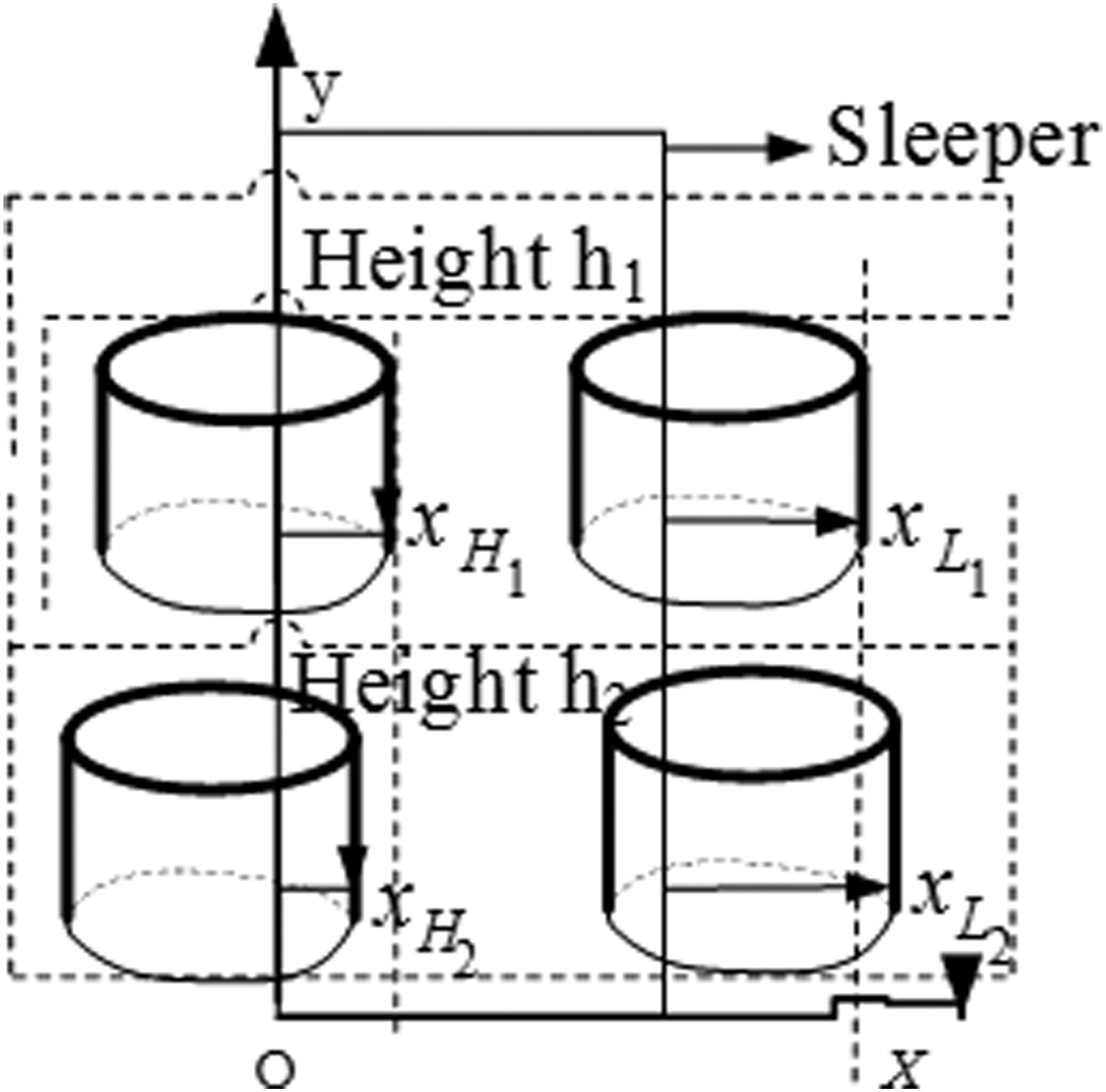

Figure 3.

Relationship between different heights and sensor trigger position.

As a result, the detected time value will change. From the formula $v = s / t$ , it can be seen that the random error is closely related to the amplitude-frequency characteristics of the suspension fluctuation.

Velocity measurement and positioning scheme based on multi-information fusion

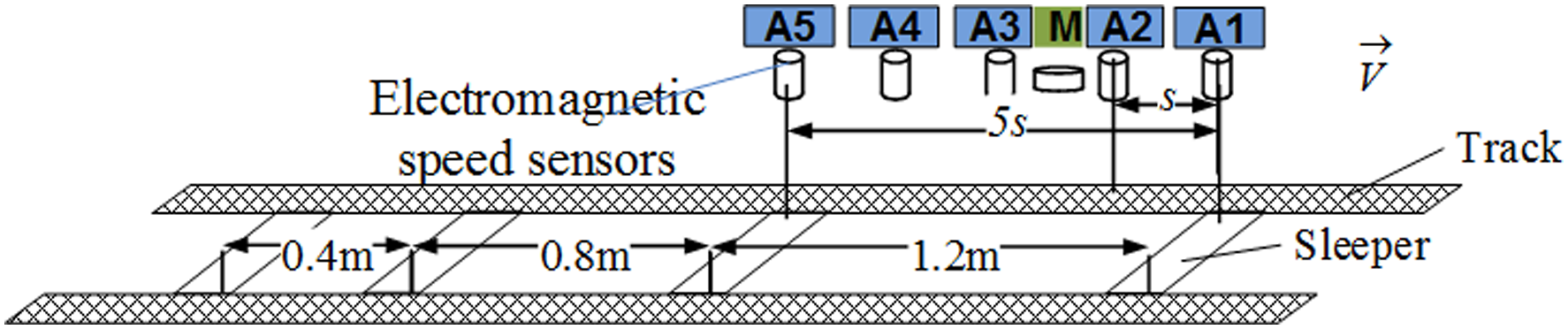

The network topology diagram of the multi-sensor fusion structure is shown in Figure 4. Among them, A1∼A5 are inductive proximity switch sensors, and the sensor spacing is s, and M is the MEMS-IMU inertial measurement unit, which contains a 3-axis accelerometer and a 3-axis gyroscope.

Figure 4.

Topological diagram of sensor fusion structure.

The rail panel of medium and low speed maglev track is composed of F rail and sleeper. The sleeper is a steel structure, and the inductive proximity switch can be used as a speed sensor probe. The use of multiple sensor fusion can achieve a speed output within the same distance, and the speed accuracy is high at a uniform speed. The multi-information fusion method based on MEMS-IMU gives the train acceleration and speed increment in real time. The resolution is not affected by the train speed, and it is complementary to the speed measurement method of counting sleepers. And by analyzing the random interference of the gyroscope and the model of the velocity sensor affected by the suspension vibration, and designing a suitable fusion velocity measurement positioning algorithm, high-precision velocity measurement and relative positioning can be realized.

Model establishment of fusion speed measurement and positioning system

Rotation transformation matrix and Euler equation model establishment

The X, Y and Z axes in the navigation coordinate system are selected according to the geographical North, East and ground directions, and the three axes in the carrier coordinate system are selected according to the front, right and bottom directions of the carrier. The course angle ψ is defined as the angle between the longitudinal axis and the north axis n, the pitch angle θ is the angle between the longitudinal axis and the horizontal plane, and the roll angle is the angle between the transverse axis and the horizontal plane. Then the navigation coordinate system NED to the carrier coordinate system b can be rotated around the x, y and z axes to obtain the transformation matrix as shown in (2)

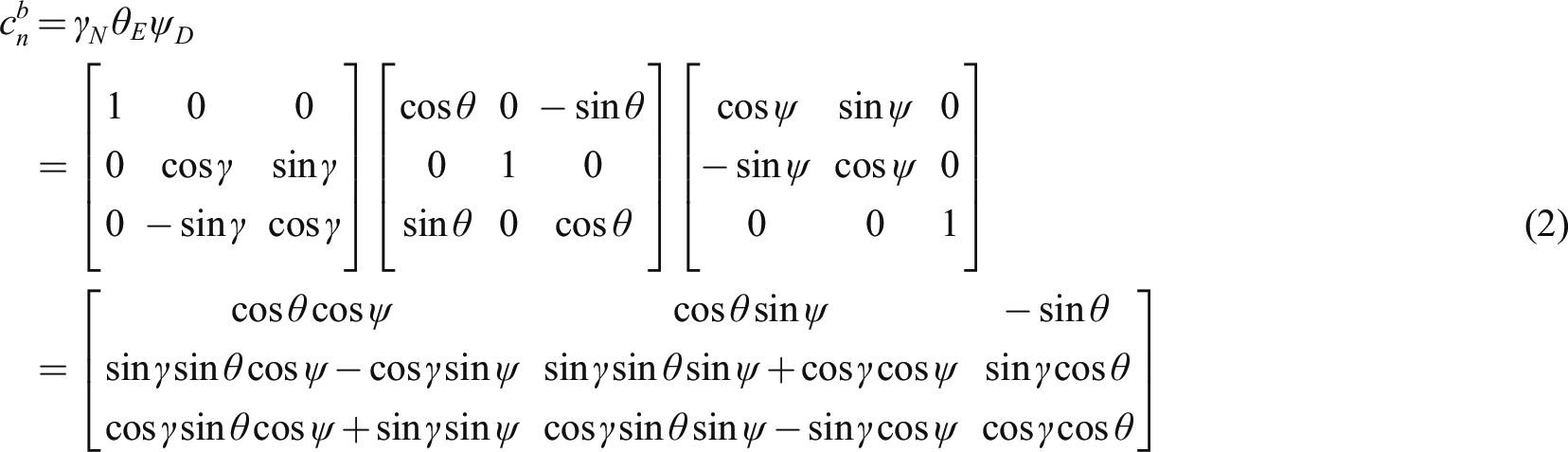

\begin{array}{l} c_{n}^{b} = γ_{N} θ_{E} ψ_{D} \\ = [\begin{matrix} 1 & 0 & 0 \\ 0 & \cos γ & \sin γ \\ 0 & - \sin γ & \cos γ \end{matrix}] [\begin{matrix} \cos θ & 0 & - \sin θ \\ 0 & 1 & 0 \\ \sin θ & 0 & \cos θ \end{matrix}] [\begin{matrix} \cos ψ & \sin ψ & 0 \\ - \sin ψ & \cos ψ & 0 \\ 0 & 0 & 1 \end{matrix}] \\ = [\begin{matrix} \cos θ \cos ψ & \cos θ \sin ψ & - \sin θ \\ \sin γ \sin θ \cos ψ - \cos γ \sin ψ & \sin γ \sin θ \sin ψ + \cos γ \cos ψ & \sin γ \cos θ \\ \cos γ \sin θ \cos ψ + \sin γ \sin ψ & \cos γ \sin θ \sin ψ - \sin γ \cos ψ & \cos γ \cos θ \end{matrix}] \end{array}

(2)

$d θ$ , $d γ$ are the differentials of the pitch angle and roll angle respectively; and $ω_{x}$ , $ω_{y}$ , $ω_{z}$ are the angular velocity in the carrier coordinate system. According to Zhang et al.,²⁵ the Euler angle differential equations is shown in (3)

[\begin{matrix} d θ \\ d γ \end{matrix}] = [\begin{matrix} 0 & \cos γ & - \sin γ \\ 1 & \sin γ \tan θ & \cos γ \tan θ \end{matrix}] [\begin{matrix} ω_{x} \\ ω_{y} \\ ω_{z} \end{matrix}]

(3)

The maglev track has a large radius of curvature and the angle is not greater than 10°, so there is no locking phenomenon. Therefore, the carrier’s full attitude Euler angle method is suitable for the velocity measurement and positioning system of the maglev train.

Attitude angle calculation model based on three-axis acceleration fusion

When the pitch angle and roll angle are respectively θ and γ, the calculation formula for pitch angle and roll angle is shown in (4), and train acceleration is obtained according to (5)

{\begin{cases} θ = \sin^{- 1} (\frac{a_{x}}{g}) \\ γ = \tan 2^{- 1} (\frac{a_{y}}{a_{z}}) \end{cases}

(4)

a_{c} = a_{x} - g \sin θ

(5)

where,

a_{x}

contains error of

ξ a

, and gyroscope angular velocity contains error of

ξ ω

, g is the acceleration of gravity.

The attitude angle calculated by Euler differential equation (angular velocity integral) is fused with the attitude angle calculated by three-axis acceleration, the train acceleration $a_{c}$ is obtained according to equation (5).

Velocity measurement and positioning method based on multi-information fusion

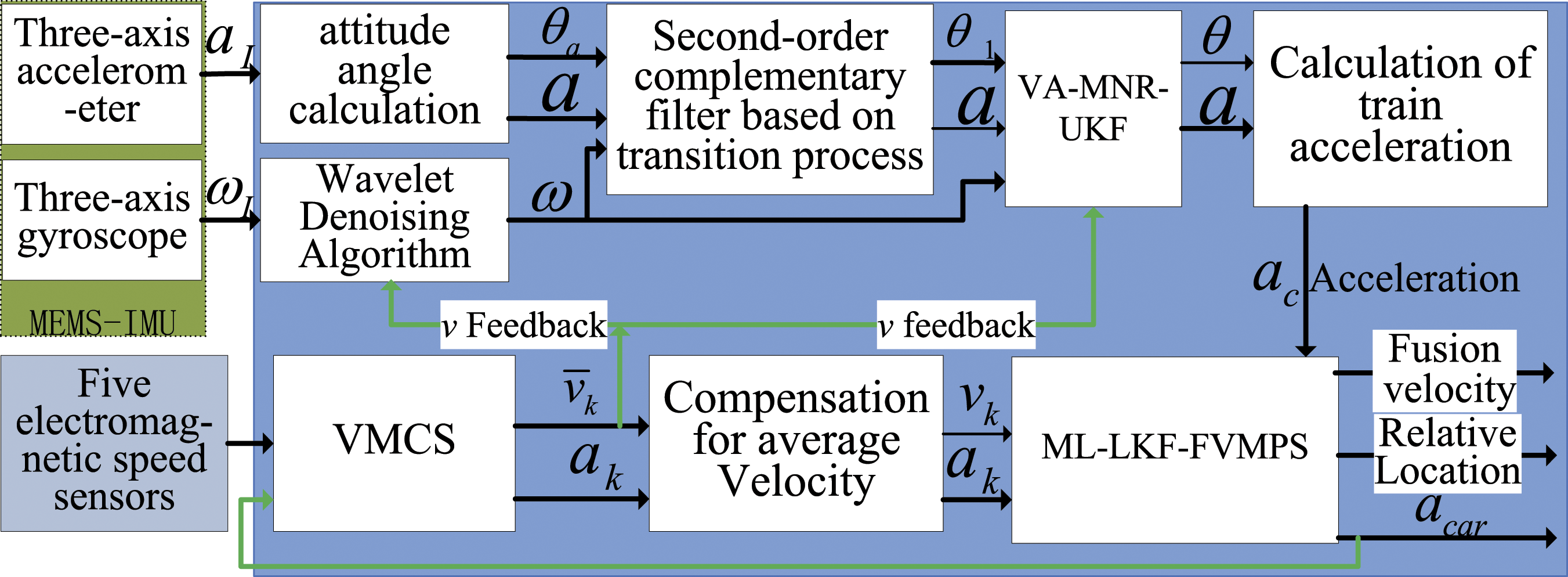

The principle diagram of the velocity measurement and positioning algorithm based on multi-sensor information fusion (MF-VMPS) is shown in Figure 5. From the error model analysis, it is shown that the velocity based on the velocity measurement method of counting sleepers (VMCS) has systematic errors and random errors, and the acceleration and angle calculated by MEMS-IMU have cumulative errors and random errors, especially at the bogie of a maglev vehicle with high suspension vibration. It is not advisable to simply compensate the velocity through acceleration integration. Considering these issues, firstly, the second-order complementary filtering based on the four-element method and the velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF) is used to accurately obtain the vehicle attitude angle and running acceleration. Secondly, the fusion velocity measurement and positioning algorithm with multi-loop Kalman filtering with acceleration fusion correction and velocity accumulation error correction (ML-LKF-FVMPS) is used to realize the acceleration and velocity fusion of the two systems, and improve the recognition accuracy of train acceleration. In addition, the adaptive wavelet noise reduction algorithm based on threshold optimization is used to reduce the high precision requirements of inertial sensors. The innovation of this paper is to make full use of the complimentarily of the two velocity measurement methods. In the acceleration and deceleration phase, the velocity of the MEMS-IMU can be fully utilized for compensation, and the velocity value can be corrected in real time at the trigger time of the electromagnetic velocity sensor or the uniform velocity phase, and reduce the error caused by signal drift.

Figure 5.

The principle of MF-VMPS.

Analysis of Velocity Measurement and Positioning Algorithm Based on Multi-information Fusion

Analysis of attitude calculation algorithm based on multi-information fusion

The pitch angle and roll angle of the train can be obtained based on the fusion of the three-axis accelerometer, but the accelerometer has a slow dynamic response and is susceptible to the interference of train vibration and motion acceleration; while the angular velocity of gyroscope signal has various random interferences and is greatly affected by temperature, so long-term integration will cause large drift errors. It is proposed that the two kinds of information are fused and switched through the velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF) algorithm, which is, the weight of the attitude angle calculated by the accelerometer is increased in the case of partial static, and the attitude angle integrated by the gyroscope is more trusted when the dynamic performance is high and the vibration is large. In order to further reduce the drift error caused by the random interference of acceleration and angular velocity, the output of the second-order complementary filter based on the four-element method is used as the observation of the VA-MNR-UKF, and the wavelet de-noising algorithm based on the threshold optimization is used to deal with the bias instability of the gyroscope before sending it to the VA-MNR-UKF. The MEMS-IMU attitude calculation algorithm based on multi-information fusion is shown in Figure 6.

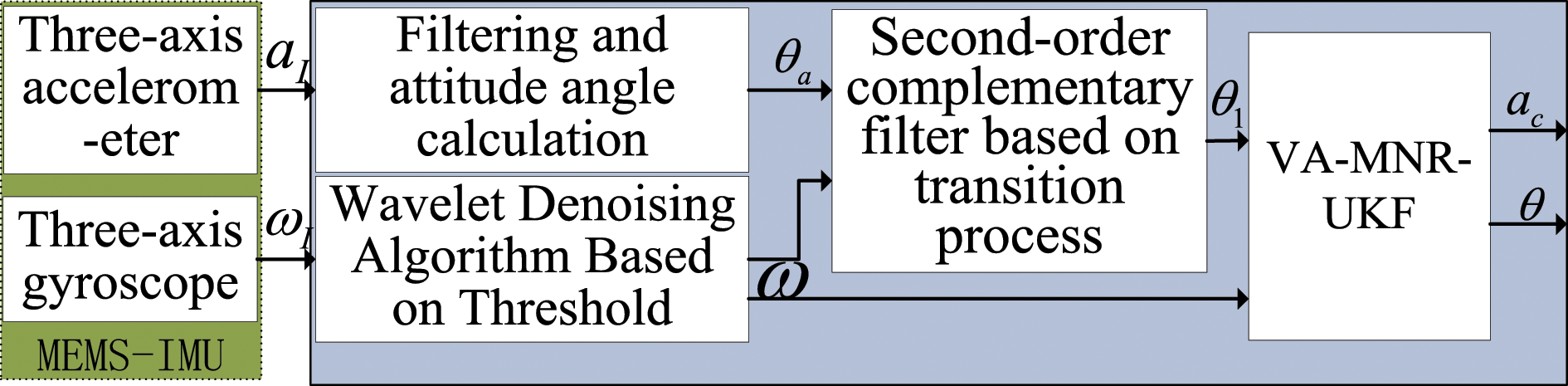

Figure 6.

Posture calculation algorithm based on multi-information fusion.

The complementary filtering algorithm was first proposed by Wirkler in 1951. It has good dynamics, but its ability to suppress noise is limited. Anderson et al. used improved complementary filtering to fuse the low-frequency noise heading signal and the high-frequency noise radio deviation signal to obtain accurate rate signal estimation.^24,25 The second-order complementary filter is shown in (6), which adds a PI regulator, but it is easy to overshoot and needs to be adjusted

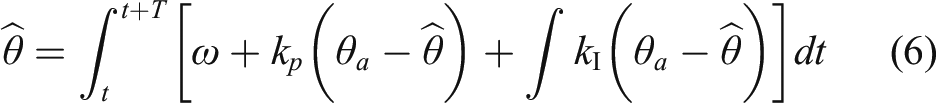

\hat{θ} = \int_{t}^{t + T} [ω + k_{p} (θ_{a} - \hat{θ}) + \int k_{I} (θ_{a} - \hat{θ})] dt

(6)

where,

\hat{θ}

is the output of the second-order complementary filter,

ω

is the angular velocity signal,

θ_{a}

is the attitude angle calculated by acceleration fusion, and

k_{p}

k_{I}

are the amplification coefficients of the PI regulator respectively.

In order to overcome the balance between the dynamics and over modulation of the second-order complementary filter, this paper optimizes the second-order complementary filter, that is, when the attitude angle calculated by the accelerometer has a large sudden change of $Δ θ_{a}$ , the transition process is arranged for the signal.

Arrange the transition process $f s (T_{0}, t)$ for $θ_{a}$ , and the transition function is

f s (T_{0}, t) = {\begin{cases} \frac{1}{2} (1 - \cos (\frac{t}{T_{0}} π)), t \leq T_{0} \\ 1, t > T_{0} \end{cases}

(7)

θ_{a}^{*} = θ_{a} + Δ θ_{a} f s (T_{0}, t)

(8)

where,

T_{0}

is the excessive time,

f s (T_{0}, t)

is transition function.

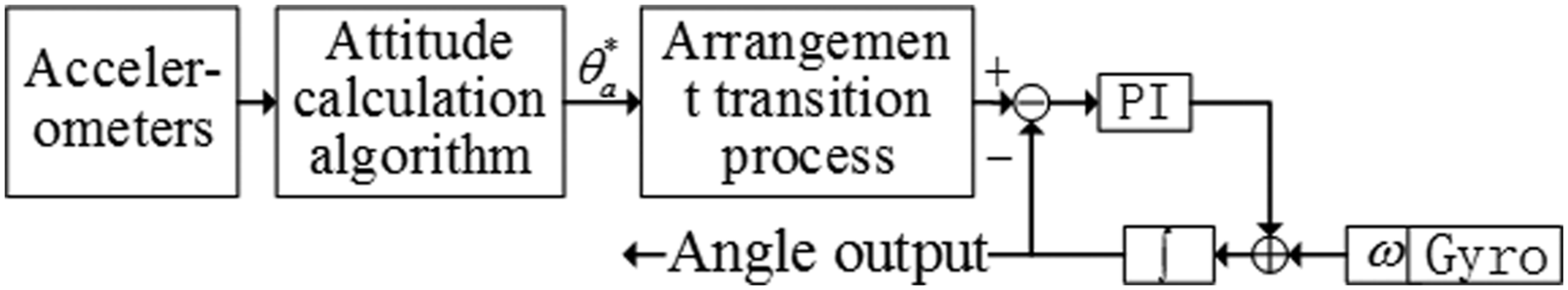

Figure 7 is the principle diagram of the optimized second-order complementary filter algorithm arranged through the degree process. Because the four-element method is adopted, it is actually an excessive process arrangement for the gravity error of each axis.

Figure 7.

Optimized second-order complementary filter.

The posture calculation algorithm based on multi-sensor fusion is deduced and analyzed below.

Derivation of the second-order complementary filter based on the four-element method

The Euler angle matrix can be converted into a four-element matrix by (4), and the four elements are taken as ${[\begin{matrix} q_{0} & q_{1} & q_{2} & q_{3} \end{matrix}]}^{T}$ , then the conversion matrix of the four-element transformation is shown in (9)

C_{n}^{b} = [\begin{matrix} q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} & q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} & q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} \\ q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} & q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} & q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} \\ q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} & q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} & q_{0}^{2} + q_{1}^{2} - q_{2}^{2} - q_{3}^{2} \end{matrix}]

(9)

1) First, perform transition processing on the acceleration signal according to (7) and (8); then perform normalization processing;

2) Combining (9), DCM matrix rotation transformation

[\begin{matrix} v_{x} \\ v_{y} \\ v_{z} \end{matrix}] = C_{n}^{b} . [\begin{matrix} 0 \\ 0 \\ 1 \end{matrix}] = [\begin{matrix} 2 (q_{1} q_{3} - q_{0} q_{2}) \\ 2 (q_{0} q_{1} + q_{2} q_{3}) \\ q_{0}^{2} - q_{1}^{2} - q_{2}^{2} + q_{3}^{2} \end{matrix}]

(10)

3) Perform vector cross product to compensate in the body coordinate system

[\begin{matrix} e_{x} \\ e_{y} \\ e_{z} \end{matrix}] = [\begin{matrix} a_{y} \times v_{z} - a_{z} \times v_{y} \\ a_{z} \times v_{x} - a_{x} \times v_{z} \\ a_{x} \times v_{y} - a_{y} \times v_{x} \end{matrix}]

(11)

4) According to the optimized PI regulator with transition process, the error is adjusted to compensate the angular velocity

[\begin{matrix} g_{x} \\ g_{y} \\ g_{z} \end{matrix}] = [\begin{matrix} g_{x} + k_{p} e_{x} + \int k_{I} e_{x} \\ g_{y} + k_{p} e_{y} + \int k_{I} e_{y} \\ g_{z} + k_{p} e_{z} + \int k_{I} e_{z} \end{matrix}]

(12)

According to the critical damping standard system of the second-order system, $k_{p} = 2 r$ , $k_{I} = r^{2}$ can be roughly taken, even if there is a problem with the transition process arrangement, the system can be kept stable.

5) The quaternion is updated by first-order Bika method

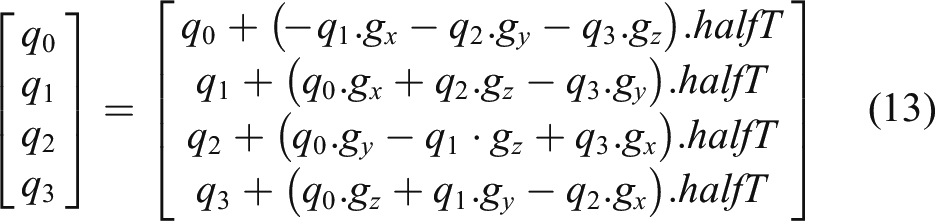

[\begin{matrix} q_{0} \\ q_{1} \\ q_{2} \\ q_{3} \end{matrix}] = [\begin{matrix} q_{0} + (- q_{1} . g_{x} - q_{2} . g_{y} - q_{3} . g_{z}) . h a l f T \\ q_{1} + (q_{0} . g_{x} + q_{2} . g_{z} - q_{3} . g_{y}) . h a l f T \\ q_{2} + (q_{0} . g_{y} - q_{1} \cdot g_{z} + q_{3} . g_{x}) . h a l f T \\ q_{3} + (q_{0} . g_{z} + q_{1} . g_{y} - q_{2} . g_{x}) . h a l f T \end{matrix}]

(13)

6) Normalizing the four elements;

7) Output attitude angle

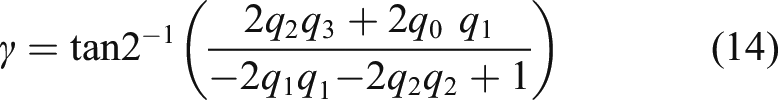

γ = \tan 2^{- 1} (\frac{2 q_{2} q_{3} + 2 q_{0} q_{1}}{- 2 q_{1} q {}_{1}- 2 q_{2} q_{2} + 1})

(14)

θ = \sin^{- 1} (- 2 q_{1} q_{3} + 2 q_{0} q_{2})

(15)

where, v _x, v _y, v _z are the transformed gravity components of each axis respectively; e _x, e _y, e _z are the gravity component errors of each axis caused by the error angle respectively;

a_{x}

a_{v}

a_{z}

are the normalized components of the acceleration of each axis respectively; HalfT is half of the update period of the state estimation; roll angle γ, pitch angle θ;

g_{x}

g_{y}

and

g_{z}

are the angular velocities of each axis, respectively.

Derivation and optimization analysis of the algorithm of velocity adaptation Unscented Kalman filter with maximum noise reduction

According to (3) and (4), it can be seen that the attitude angle conversion formula solved by Euler differential equation and accelerometer contains trigonometric function and inverse trigonometric function, which is a nonlinear system. Unscented Kalman filter is a nonlinear filtering method proposed by S.Julier et al. It uses unscented transformation to determine sampling points near the estimated point, and uses a series of determined samples to approximate the posterior probability density function of the state to solve the mean value and the non-linear transfer problem of covariance thus effectively overcoming the shortcomings of EKF estimation accuracy and stability. Due to suspension fluctuations and traction braking, there is colored noise interference in angular velocity and acceleration, resulting in fluctuations in the mean and variance estimated by UKF through sample points, and the estimation accuracy is reduced. So, based on this, this paper proposed to calculate the attitude angle based on the velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF) to solve the problem of contradictory dynamics and filtering accuracy of UKF nonlinear prediction. And used the output of the second-order complementary filter as the observation of the VA-MNR-UKF to realize the fusion of the complementary filter and the UKF.

Set the estimated state variable of the attitude angle: $X_{k} = {[\begin{matrix} θ_{k} & γ_{k} \end{matrix}]}^{T}$ , set the state variable observed by the second-order complementary observer: $Z_{k} = {[\begin{matrix} θ_{c k} & γ_{c k} \end{matrix}]}^{T}$ , and According to (3), the equation of state and the observation equation of VA-MNR-UKF are established:

It can be seen that the state equation is nonlinear, and the observation equation is linear

\begin{array}{l} X_{k + 1} = f (X_{k}) + W_{k} \\ = X_{k} + [\begin{matrix} 0 & \cos γ_{k} & - \sin γ_{k} \\ 1 & \sin γ_{k} \tan θ_{k} & \cos γ_{k} \tan θ_{k} \end{matrix}] [\begin{matrix} ω_{x k} \\ ω_{y k} \\ ω_{z k} \end{matrix}] T + [\begin{array}{l} W_{x k} \\ W_{y k} \end{array}] \end{array}

(16)

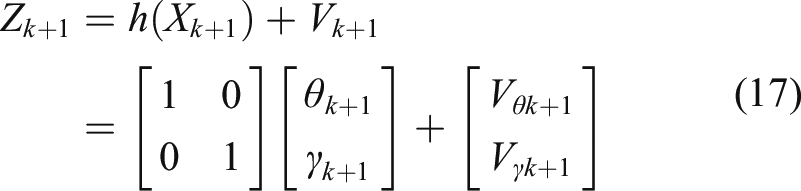

\begin{array}{l} Z_{k + 1} = h (X_{k + 1}) + V_{k + 1} \\ = [\begin{matrix} 1 & 0 \\ 0 & 1 \end{matrix}] [\begin{matrix} θ_{k + 1} \\ γ_{k + 1} \end{matrix}] + [\begin{matrix} V_{θ k + 1} \\ V_{γ k + 1} \end{matrix}] \end{array}

(17)

Among them, $W_{k}$ and $V_{k + 1}$ are process noise and observation noise respectively, $ω_{x k}$ , $ω_{y k}$ and $ω_{z k}$ are the measured values of the angular velocity of each axis, respectively.

The process of VA-MNR-UKF algorithm is as follows:

1) Determine the initial mean $\bar{X}$ and variance $P_{0}$

P_{1 | 1} = P_{0}, {\hat{X}}_{1 | 1} = \bar{X}

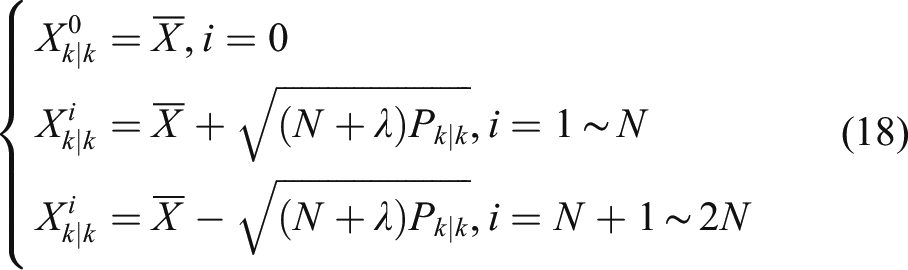

2) Calculate 2N + 1 Sigma points $X_{k | k}^{i}$ , N = 2

{\begin{cases} X_{k | k}^{0} = \bar{X}, i = 0 \\ X_{k | k}^{i} = \bar{X} + \sqrt{(N + λ) P_{k | k}}, i = 1 \sim N \\ X_{k | k}^{i} = \bar{X} - \sqrt{(N + λ) P_{k | k}}, i = N + 1 \sim 2 N \end{cases}

(18)

3) Calculate the weight corresponding to the Sigma point in step 2)

{\begin{matrix} W_{m}^{0} = \frac{λ}{λ + N} \\ W_{c}^{0} = \frac{λ}{λ + N} + (1 - α^{2} + β^{2}) \\ {\hat{W}}_{m}^{i} = {\hat{W}}_{c}^{i} = {\begin{cases} \frac{λ}{2 (λ + N)} \frac{v + 1}{v_{\max}}, σ_{a} > ξ \\ \frac{λ}{2 (λ + N)}, σ_{a} \leq ξ \end{cases}, i = 1 \sim 2 N \end{matrix}

(19)

Appropriate adjustment of α and λ can improve the mean estimation accuracy, and adjustment of β can improve the variance estimation accuracy.

4) Calculate the one-step prediction $X_{k + 1 | k}^{i}$ of 2N+1 Sigma points

X_{k + 1 | k}^{i} = f (k, X_{k | k}^{i}), i = 1 \sim 2 N

(20)

5) One-step prediction ${\hat{X}}_{k + 1 | k}$ and covariance matrix $P_{k + 1 | k}$ of state variables

{\hat{X}}_{k + 1 | k} = \sum_{i = 0}^{2 N} W_{m}^{i} X_{k + 1 | k}^{i}

(21)

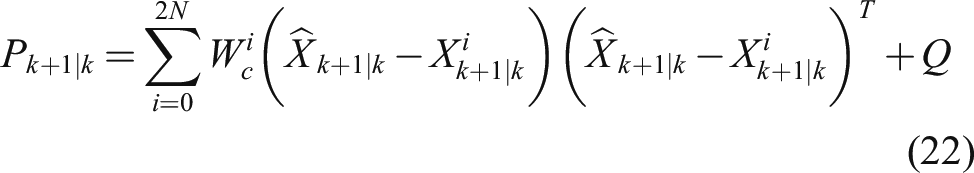

P_{k + 1 | k} = \sum_{i = 0}^{2 N} W_{c}^{i} ({\hat{X}}_{k + 1 | k} - X_{k + 1 | k}^{i}) {({\hat{X}}_{k + 1 | k} - X_{k + 1 | k}^{i})}^{T} + Q

(22)

6) According to the one-step predicted value, UT transform again to generate a new sigma point set $X_{k + 1 | k}^{i}$

X_{k + 1 | k}^{i} = [\begin{array}{l} {\hat{X}}_{k + 1 | k} & {\hat{X}}_{k + 1 | k} + \sqrt{(N + λ) P_{k | k}} & {\hat{X}}_{k + 1 | k} - \sqrt{(N + λ) P_{k | k}} \end{array}]

(23)

7) Substitute 6) into the observation equation to obtain the predicted observation value $Z_{k + 1 | k}^{i}$ , and obtain the predicted mean value ${\hat{Z}}_{k + 1 | k}$ and covariance $P_{X_{k} Z_{k}}$ , $P_{Z_{k} Z_{k}}$ by weighted summation

Z_{k + 1 | k}^{i} = h (X_{k + 1 | k}^{i})

(24)

{\begin{cases} {\hat{Z}}_{k + 1 | k} = \sum_{i = 0}^{2 N} W_{m}^{i} Z_{k + 1 | k}^{i} \\ P_{Z_{k} Z_{k}} = \sum_{i = 0}^{2 N} W_{c}^{i} (Z_{k + 1 | k}^{i} - {\hat{Z}}_{k + 1 | k}) {(Z_{k + 1 | k}^{i} - {\hat{Z}}_{k + 1 | k})}^{T} + R \\ P_{X_{k} Z_{k}} = \sum_{i = 0}^{2 N} W_{c}^{i} (X_{k + 1 | k}^{i} - {\hat{Z}}_{k + 1 | k}) {(Z_{k + 1 | k}^{i} - {\hat{Z}}_{k + 1 | k})}^{T} \end{cases}

(25)

8) Calculate the Kalman gain matrix $K_{k + 1}$

K_{k + 1} = P_{X_{k} Z_{k}} P_{_{Z_{k} Z_{k}}}^{- 1}

(26)

9) Update state ${\hat{X}}_{k + 1 | k + 1}$ and covariance $P_{k + 1 | k + 1}$

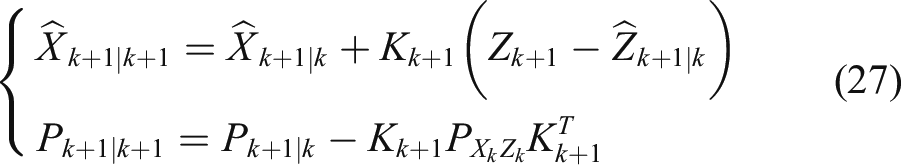

{\begin{cases} {\hat{X}}_{k + 1 | k + 1} = {\hat{X}}_{k + 1 | k} + K_{k + 1} (Z_{k + 1} - {\hat{Z}}_{k + 1 | k}) \\ P_{k + 1 | k + 1} = P_{k + 1 | k} - K_{k + 1} P_{X_{k} Z_{k}} K_{k + 1}^{T} \end{cases}

(27)

where,

v_{m a x}

is set according to the maximum operating speed of the train,

v

is the train speed, and

ξ

is selected according to the variance of the signal interference, and the value in this paper is 0.005; the coefficient of m subscript is the mean weight coefficient, the coefficient of c subscript is the covariance weight coefficient, the parameter

λ = α^{2} (N + κ) - N

is the scaling factor,

α

controls the distribution of sigma points, and

κ

controls the degree of separation of points, N is the dimension of the equation of state,

W_{c}^{i}

and

W_{m}^{i}

are the weight coefficients for calculating variance and mean, respectively, and β is the state distribution parameter.

The velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF) algorithm optimization analysis:

The weight coefficient of the ordinary UKF algorithm does not change when the parameters are fixed, and the signal-to-noise ratio of the sensor installed at the bogie is easily affected by suspension vibration and resonance. The use of a unified filter noise reduction weight coefficient is not conducive to the noise reduction effect at parking or low velocity, and the velocity measurement method of counting sleepers (VMCS) has systematic errors in the low velocity stage. In addition, there is colored noise interference in angular velocity and acceleration caused by suspension fluctuation, traction and braking, and its update frequency is a function of the train running speed. The mean and variance estimated by the unoptimized UKF filter through sample points have fluctuations, and the estimation accuracy is reduced. Therefore, it is proposed to restrict the weight coefficient according to the speed. The constraint equation is shown in (19). The smaller the speed, the smaller the weight coefficient, which can overcome the disturbance caused by vibration.

To improve the stability of The velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF), the weight coefficient of the UT transform sigma mean point remains unchanged, and only the weight coefficient of the mean symmetric sigma point is changed. The (19) shows that the lower the speed, the smaller the weight coefficient, which weakens the influence of variance, and the noise reduction effect obviously. Considering that when the angle calculated by the accelerometer converges to a normal value and the variance of the signal is small, the angle obtained by VA-MNR-UKF cannot converge in time because the weight coefficient is limited by the velocity. Therefore, it is further proposed to switch the weight coefficients according to the variance $σ_{a}$ of the signal, and obtain the variance ${\hat{σ}}_{a}$ of the signal slope according to the least square method with forgetting factor to improve the detection accuracy of the noise variance. The formula is shown in (28). The noise reduction effect is greatly improved, and the dynamic characteristics of rapid convergence are also satisfied

σ_{a} = σ_{a ξ} - {\hat{σ}}_{a}

(28)

where,

σ_{aξ}

is the total variance,

v

is the train velocity.

Analysis of Fusion Velocity Measurement and Positioning Algorithm Based on Multi-loop Kalman Filter

Due to the influence of suspension fluctuation, random vibration of traction and braking, there is colored noise interference in the calculated attitude angle and train acceleration. And, the velocity measurement method of counting sleepers (VMCS) has a velocity accumulation error. Therefore, it is necessary to fuse the information of the two speed measurement methods to obtain High-precision velocity and relative positioning information. For this reason, the Fusion velocity measurement and positioning algorithm with multi-loop Kalman filter with acceleration correction and velocity accumulation error correction (ML-LKF-FVMPS) is adopted to obtain accurate train acceleration and velocity, and a fusion velocimetry localization algorithm based on extended state Kalman filter is derived. The fusion speed measurement and positioning algorithm is shown in Figure 8, where $a_{c}$ is the acceleration calculated by VA-MNR-UKF, and $a_{k}$ is the acceleration based on VMCS.

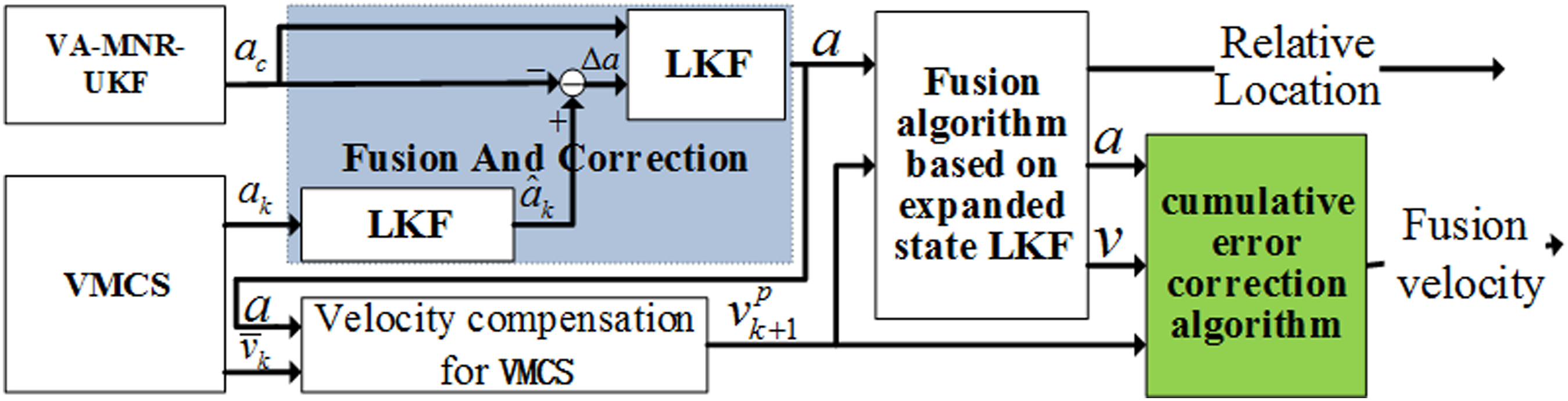

Figure 8.

Fusion velocity measurement and positioning algorithm with multi-loop Kalman filter.

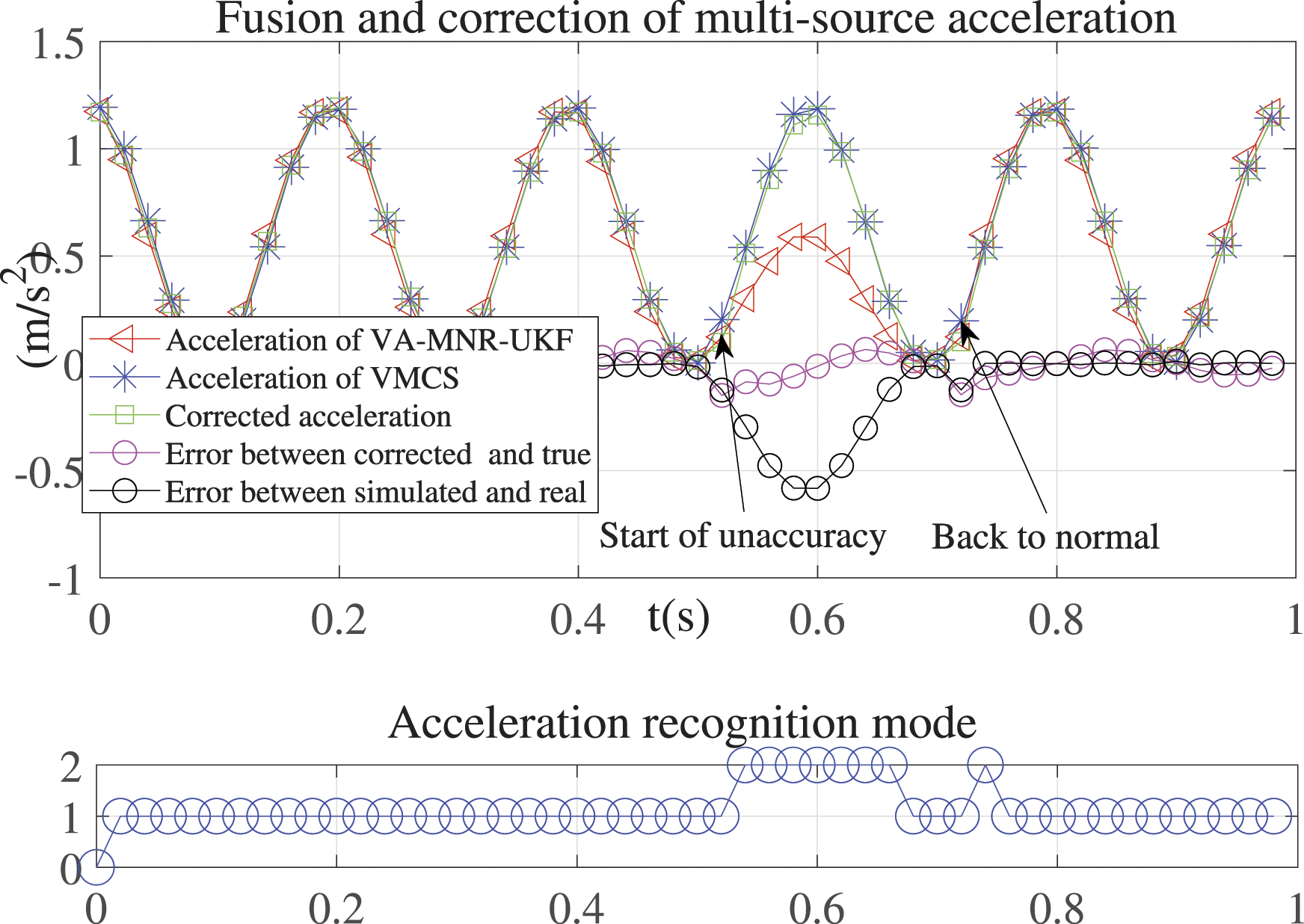

The multi-source acceleration fusion correction algorithm fuse the train running acceleration of the two velocity measurement systems.

System state and observation equation

{\begin{cases} X_{(k + 1)} = X_{(k)} + W_{(k)} \\ a_{(k)} = X_{(k)} + η_{(k)} \end{cases}

(29)

where, the variances of

W_{(k)}

and

η_{(k)}

are Q and R respectively, and they are uncorrelated noises.

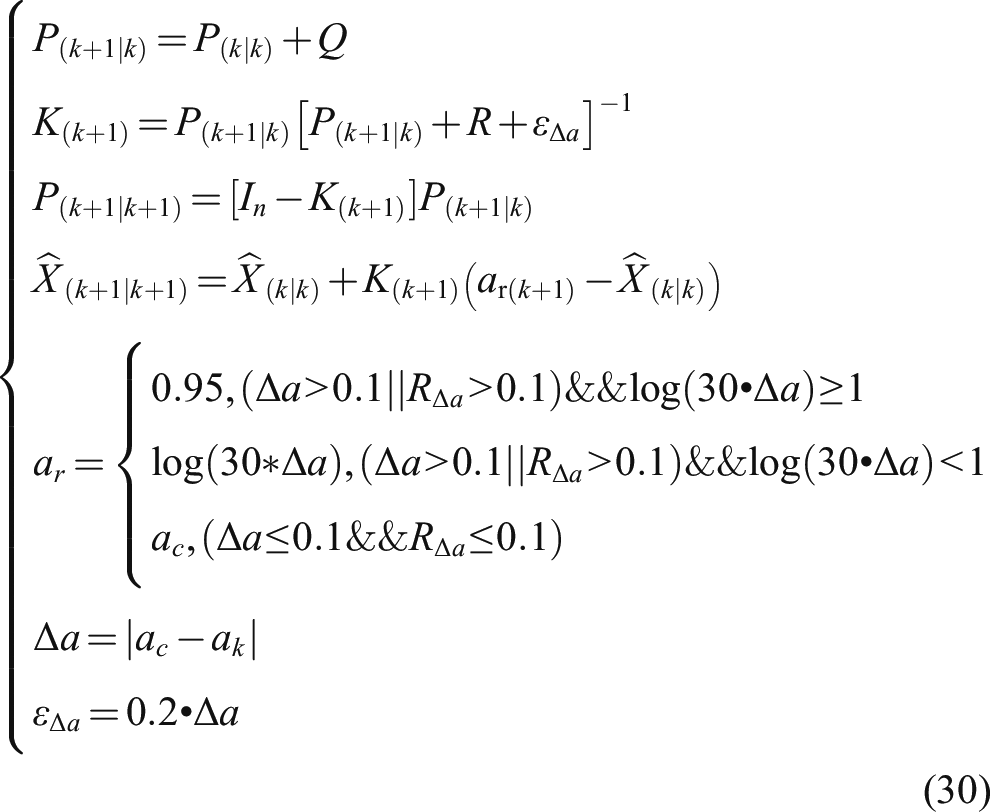

LKF filtering process of multi-source acceleration fusion and correction algorithm

{\begin{cases} P_{(k + 1 | k)} = P_{(k | k)} + Q \\ K_{(k + 1)} = P_{(k + 1 | k)} {[P_{(k + 1 | k)} + R + ε_{Δ a}]}^{- 1} \\ P_{(k + 1 | k + 1)} = [I_{n} - K_{(k + 1)}] P_{(k + 1 | k)} \\ {\hat{X}}_{(k + 1 | k + 1)} = {\hat{X}}_{(k | k)} + K_{(k + 1)} (a_{r (k + 1)} - {\hat{X}}_{(k | k)}) \\ a_{r} = {\begin{cases} 0.95, (Δ a > 0.1 | | R_{Δ a} > 0.1) & & \log (30 • Δ a) \geq 1 \\ \log (30 * Δ a), (Δ a > 0.1 | | R_{Δ a} > 0.1) & & \log (30 • Δ a) < 1 \\ a_{c}, (Δ a \leq 0.1 & & R_{Δ a} \leq 0.1) \end{cases} \\ Δ a = | a_{c} - a_{k} | \\ ε_{Δ a} = 0.2 • Δ a \end{cases}

(30)

where,

Δ a

and

R_{Δ a}

are the absolute value and variance of the multi-source acceleration difference,

P_{(k | k)}

is the covariance of the acceleration deviation,

K_{(k + 1)}

is the Kalman gain;

{\hat{X}}_{(k | k)}

is the optimal estimator of acceleration;

{\hat{X}}_{(0 | 0)} = a_{c (0)}

P_{(0 | 0)}

is the statistical variance of

a_{c (0)}

Where, the core formula is the method for obtaining $a_{r}$ , K, and R, which used the mean and variance of the acceleration of the two velocity measurement systems to synthesize the gain function; $a_{r}$ is obtained by the difference and variance of $a_{c}$ and $a_{k}$ , and R is the variance of the difference between $a_{r}$ and $a_{k}$ , and by using $ε_{Δ a}$ to improve the noise reduction effect when the acceleration mode is switched.

The average velocity ${\bar{v}}_{_{k + 1}}$ calculated by VMCS is compensated at the moment when the electromagnetic speed sensor senses the sleeper trigger. The compensation formula is as in (31), which can be corrected once every s meter (distance between adjacent sensors) to overcome the accumulative error of the speed obtained by the acceleration integration. Where, $v_{k + 1}^{p}$ is the velocity after compensation, $a_{c}$ is the acceleration output by the acceleration fusion correction algorithm

v_{_{k + 1}}^{p} = {\bar{v}}_{_{k + 1}} + \frac{a s}{2 {\bar{v}}_{_{k + 1}}}

(31)

The velocity (v) obtained by acceleration (a) integration and its correction

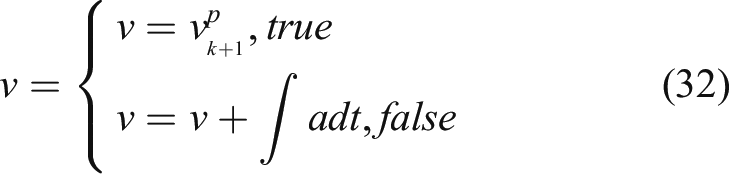

v = {\begin{array}{l} v = v_{_{k + 1}}^{p}, t r u e \\ v = v + \int a d t, f a l s e \end{array}

(32)

where, true means that the speed sensor senses the speed calculation time when the sleeper is triggered, and false means that it is not triggered.

The derivation process of the fusion velocity measurement and positioning algorithm based on the extended state Kalman filter is as follows:

The velocity $v_{c}$ of this system is taken as the observation measurement, and the velocity and positioning are taken as the state variables

x_{k} = ϕ_{k, k - 1} x_{k - 1} + B a_{c}_{k - 1} + Γ w_{k - 1}

(33)

The acceleration signal has colored noise due to the suspension vibration, so the acceleration $a$ colored noise $w_{k}$ is expanded into a state variable, and the colored noise is whitened

w_{k} = ψ w_{k - 1} + ξ_{k - 1}

(34)

That is, the new state variable is

x_{k}^{*} = [{s v w}_{k}]

, and the state equation and observation equation are established as (35)

{\begin{cases} x_{k}^{*} = [\begin{array}{l} ϕ_{k, k - 1} & Γ \\ 0 & ψ \end{array}] x_{k - 1} + B a_{c}_{k - 1} + [\begin{array}{l} \begin{array}{l} 0 \\ 0 \end{array} \\ I \end{array}] ξ_{k - 1} \\ z_{k} = [\begin{array}{l} c_{k} & 0 \end{array}] x_{k}^{*} + μ_{k} \end{cases}

(35)

where,

ϕ_{k, k - 1} = [\begin{array}{l} 1 & T_{0} \\ 0 & 1 \end{array}]

B = Γ = [\begin{array}{l} 0.5 T_{0}^{2} \\ T_{0} \end{array}]

c_{k} = [\begin{array}{l} 0 & 1 \end{array}]

ψ = [1]

;

ξ_{k - 1}

and

μ_{k}

are the state and the observed white noise respectively, and they are independent of each other.

So, the filtering problem has been transformed into a standard Kalman filtering problem. The specific derivation formula can be seen in the relevant references and will not be repeated here.

By whitening the colored noise of the acceleration signal, it is helpful to reduce the random error caused by the suspension vibration and the influence of the colored noise of the MEMS-IMU sensor itself. The advantage of this method is that by fusing the Kalman filter algorithm, it can achieve interpolation compensation and further filter the noise.

Analysis of Adaptive Wavelet De-Noising Algorithm Based on Threshold Optimization

The performance of MEMS-IMU plays an important role in improving the velocity measurement accuracy of the system. From the nature of the MEMS-IMU error source, it can be seen that the error sources of the MEMS-IMU signal are mainly divided into two categories: system error and random error. System errors mainly include sensor installation error, scale factor error, misalignment error, and constant drift. The constant zero deviation can be processed by the software to calculate the average value of the data, and it will not be analyzed here. In references 20 and 22, the error model of MEMS-IMU can be approximately simplified as

{\begin{cases} ξ a = S_{a x} \times a_{x} + B_{a x} + n_{a x} \\ ξ ω = S_{ω z} \times ω_{I} + B_{ω z} + n_{ω z} \end{cases}

(36)

where,

S_{a x}

is the scale factor error,

ξ a

is the MEMS-IMU acceleration measurement,

B_{a x}

is the zero point drift,

a_{x}

is the real input acceleration,

n_{a x}

is the Gaussian white noise;

ω_{I}

is the real input angular velocity,

n_{ω z}

is Gaussian white noise the z-axis

ξ ω

is the gyroscope measured value,

S_{ω z}

is Scale factor error.

Considering that the maglev vehicle runs smoothly and the running time between stations is short, the angle can be corrected in time. Therefore, this paper ignores the scale factor error.²⁶ The error model is further simplified as follows

{\begin{cases} ξ a = B_{a x} + n_{a x} \\ ξ ω = B_{ω z} + n_{ω z} \end{cases}

(37)

It is difficult to model the colored noise with bias instability and the signal denoising algorithm is complicated. Therefore, in this paper, a wavelet denoising method that does not need to establish a model is used to deal with this problem. To reduce the high-precision dependence of the gyroscope and the accumulated error of the angular velocity integral of the gyroscope, an adaptive wavelet noise reduction algorithm based on threshold optimization is proposed to deal with the zero-bias instability of the gyroscope. In this way, the long-term measurement accuracy of the gyroscope and the applicability of the velocity measurement method are improved.

In this paper, the Mallat wavelet transform algorithm is used to analyze the gyroscope signal.²⁷ Here, only the proposed improvement method based on the threshold function is described, analyzed and improved.

The improvement methods for wavelet denoising mainly include the improvement of wavelet basis and the improvement of threshold and threshold function. Denobo proposed hard threshold function and soft threshold function noise reduction methods.^28,29 Because the hard threshold function is discontinuous, local oscillations will occur. The soft threshold function has good continuity, but the wavelet coefficients have systematic errors. In view of the problems of soft threshold function, domestic and foreign researchers analyzed methods such as modular square root threshold function, soft and hard compromise threshold function and half threshold function, and further proposed adaptive threshold function methods; On the other hand, the threshold noise reduction method proposed by related scholars based on the difference between signal and noise characteristics has obvious noise reduction effect for specific objects. B. Yu³⁰ constructed an adaptive threshold function with adjustable parameters. At the same time, in order to suppress Gibbs visual distortion, a dual-input wavelet transform with translation invariance was introduced; Alyasseri et al.³¹ used the mean square error (MSE) function in advance To measure the optimality of the control parameter combination, five powerful heuristic algorithms are proposed to find the best wavelet transform parameters; El-Dahsha³² used genetic algorithms to select the best wavelet noise reduction parameters to maximize the filtering performance; In reference to the problem of low signal-to-noise ratio or poor filtering effect when the frequency overlaps, Wu et al.³³ proposed a double wavelet de-noising method, which uses the difference in wavelet coefficient distribution and forces the de-noising signals in the two wavelet domains to be the same. Realize more details retention; Chen and Bui³⁴ proposes to use the ratio of the bias instability of each layer to the corresponding mean value to adjust the threshold; Peng et al.²⁶ associated the threshold function with the maximum wavelet coefficient during static floating and the bias instability at the highest decomposition scale. The noise reduction effect is good, but it has the disadvantage of a hard threshold function.

In this method, the gyroscope data collected during the static floating of horizontal position is used for Allan analysis, which is used as the reference value of wavelet threshold optimization and noise reduction. The Allan variance parameters corresponding to zero bias instability are shown in Table 1.

Table 1.

Allan variance parameter of bias instability.

Type of noise	Variance	Slope	unit
Bias instability (B_S)	$2 B_{S}^{2} \ln 2 / π$	0	°/h

Due to the smoothness of the medium and low-speed maglev transportation track, the angular velocity frequency is generally less than 2 Hz during normal operation, and the useful signals are basically distributed in the high-level decomposition scale. Therefore, this paper proposed to reconstruct the signal components of the high-level four-level decomposition scale, and select the weight coefficient of each layer according to the speed, which reduces the complexity of the wavelet algorithm.

Since the velocity measurement method based on counting sleepers has the characteristics of higher speed and higher velocity measurement accuracy, this paper proposes to optimize the threshold function according to the speed signal, and then combines the characteristics of zero bias instability with the threshold value to improve the noise reduction effect of zero bias instability. The optimized threshold and threshold function are shown in (38), and a local threshold method based on bias instability, noise mean square deviation and decomposition scale correlation is adopted; and an adaptive soft threshold function with adjustable parameters is constructed. The higher the speed, the closer the threshold function is to the modulus square threshold function, and the lower the speed is, especially when the parking state is close to the hard threshold function, and more noise will be filtered Except.

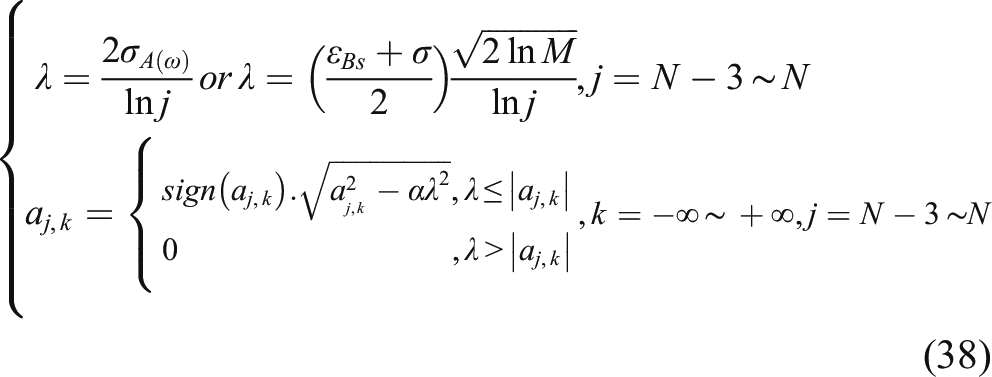

{\begin{cases} λ = \frac{2 σ_{A (ω)}}{\ln j} o r λ = (\frac{ε_{B s} + σ}{2}) \frac{\sqrt{2 \ln M}}{\ln j}, j = N - 3 \sim N \\ a_{j, k} = {\begin{cases} s i g n (a_{j, k}) . \sqrt{a_{_{j, k}}^{2} - α λ^{2}}, λ \leq | a_{j, k} | \\ 0, λ > | a_{j, k} | \end{cases}, k = - \infty \sim + \infty, j = N - 3 \sim N \end{cases}

(38)

where,

λ

is the wavelet threshold, j and N are the j-th layer and the highest decomposition scale respectively. M is the signal length,

ε_{B s}

is the zero-bias instability obtained by the Allan variance analysis method in the horizontal position and floating,

σ

is the noise mean square error,

σ_{A (ω)}

is the largest wavelet coefficient at the highest decomposition scale,

v_{max}

is the maximum train speed,

α = \frac{v}{v_{\max}}

is the threshold coefficient determined by the train speed,

a_{j, k}

is the wavelet coefficient at the j-th layer scale, and finally the approximate wavelet coefficients of the highest four layers are reconstructed.

The specific process of wavelet noise reduction algorithm based on threshold optimization is shown in Figure 9.

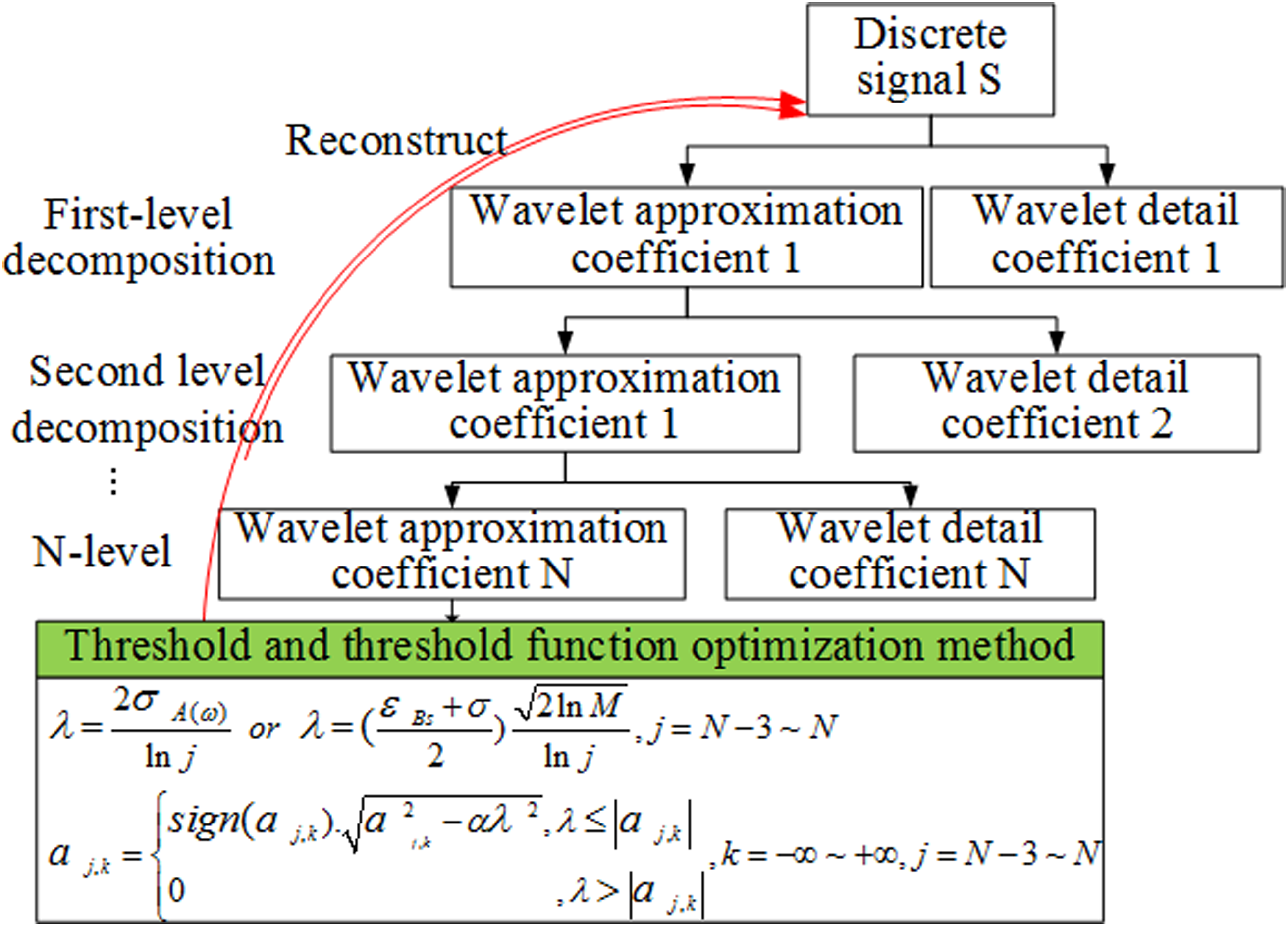

Figure 9.

Wavelet noise reduction algorithm based on threshold optimization.

Experimental results and analysis

The velocity measurement method based on the induction loop has been described in the introduction. The relative positioning resolution based on the induction loop is 15 mm, while the positioning resolution based on the velocity measurement method of counting sleepers (VMCS) is 300 mm. Therefore, compared with VMCS, the positioning accuracy and speed measurement The accuracy is an order of magnitude higher. Therefore, comparing the results of the velocity measurement and position method based on the induction loop with the fusion velocity measurement and position method proposed in this paper can reflect the superiority of this method. At the same time, the GPS/INS integrated navigation system with high speed measurement accuracy (0.108 km/h) is used as the performance comparison system for attitude angle and velocity measurement accuracy to further verify the effectiveness of the proposed multi-information fusion method. The results are compared with the velocity measurement results of the existing velocity measurement method based on counting sleepers, which directly highlights the effectiveness of this method. The advantages of each optimization algorithm are compared through simulation analysis and static experimental analysis the engineering experiment test is shown in (Figure 10).

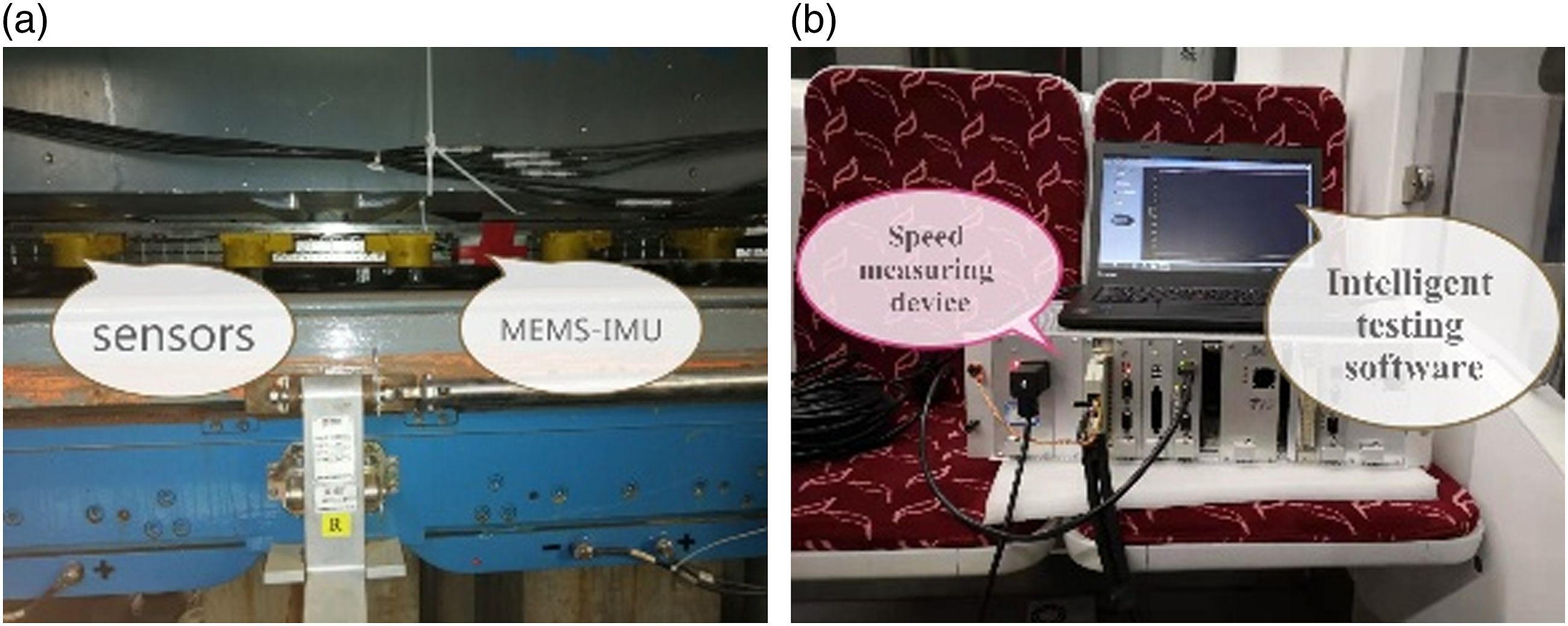

Figure 10.

Sensors and velocity measurement and positioning host installed on maglev trains.

Experimental program design

The fusion velocity measurement and positioning algorithm is analyzed and verified by the experimental program combining software simulation and vehicle experiment.

1) First, use simulation computing software to verify the performance of each algorithm, and compare and analyze the processing effects of optimized algorithms and non-optimized algorithms;

2) Install the designed new fusion sensor on the bogie of the medium-speed maglev train, and install the velocity measurement host in the maglev train;

3) Carry out tracking experiments on the attitude angle, acceleration and speed of the train when the vehicle is in static floating and dynamic operation, and compare and analyze the velocity measurement results of the GPS/INS integrated navigation system and the induction loop;

4) Compare the relative positioning value with the positioning value of the medium-speed maglev vehicle based on the induction loop, and analyze the positioning accuracy of the method proposed in this article.

Analysis and comparison of simulation results

Analysis of the fusion algorithm of second-order complementary filtering and VA-MNR-UKF

The transition time in Figure 11 is 0.5 s, and the value of r ranges from 8 to 80, which spans an order of magnitude, so the adaptability of the parameters is greatly improved. Figure 12 is the optimized velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF) algorithm estimation angle and its estimation error compared with the EKF algorithm.

Figure 11.

Optimized complementary filtering algorithm based on second-order.

Figure 12.

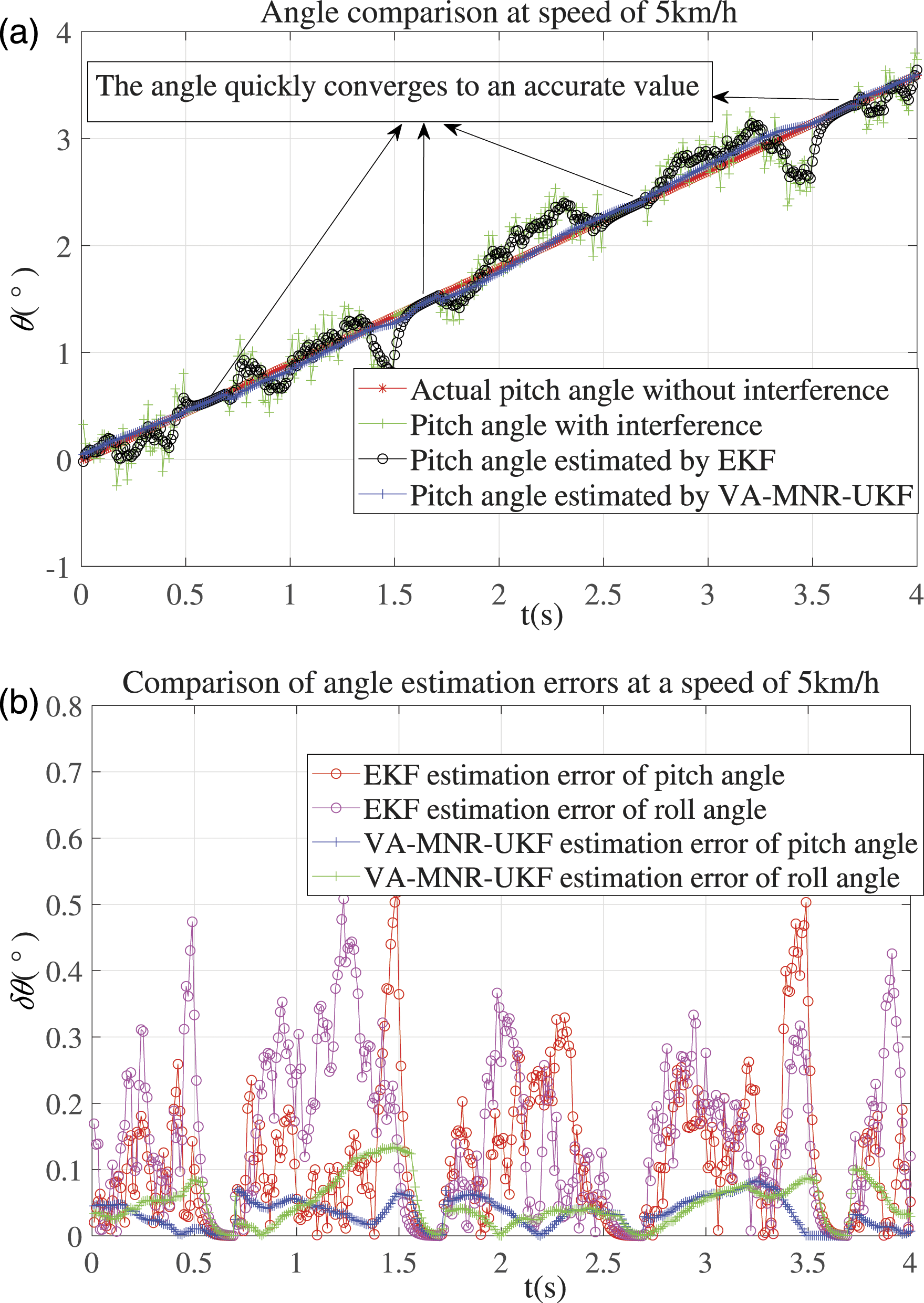

VA-MNR-UKF algorithm based on optimization.

Where, the VA-MNR-UKF parameters are: $v_{m a x}$ is 80 km/h, $v$ is 5 km/h, system variance is 0.05, measurement variance is 0.2, step T is 0.01s, α is 1, $κ$ is 0.5, and $β$ is 2. When the velocity increases, the effect of VA-MNR-UKF estimation is close to that of EKF, and the tracking dynamics is significantly improved at this time.

The optimized second-order complementary filter based on transition process prevents the angle that calculated by accelerometer from oscillating, and improves the stability of the signal at the input of the VA-MNR-UKF. The fusion algorithm can effectively improve the accuracy of solving nonlinear equations, and the noise reduction effect at low speed is improved by an order of magnitude, which further improves the accuracy of angle calculation.

Analysis of ML-LKF-FVMPS algorithm

Figure 13 is a simulation diagram of the acceleration fusion and correction algorithm. The simulation parameters are: the acceleration frequency is 5 Hz; the random interference is 0.1 m/s²; the acceleration given by velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF) is misaligned at t = 0.5 s and at 0.7 s Back to normal. It shows that when the acceleration calculated by VA-MNR-UKF is not accurate, the fusion system can still output reliable operating acceleration. The 2 indicates that the acceleration mixed mode is selected.

Figure 13.

Allan variance curve of angular velocity of three-axis gyroscope.

The simulation parameters of the fusion velocity measurement and positioning algorithm are: the distance between speed sensors is 0.3 m, the velocity noise is 0.14 m/s, $a = 0.6 + 0.1 * \cos (t / 2 π) + 0.005 t$ , the linear interference slope is 0.005, and the noise variance is 0.05; the frequency of colored noise caused by vibration is a sine wave of 0.25 Hz with amplitude of 0.1. Figure 14 is a partially enlarged fusion velocity measurement effect comparison chart, the maximum error is 0.22 km/h, and the integrated velocity error reaches 1.178 km/s. It shows that the fusion velocity is well corrected at the time the speed sensor calculates the velocity, which overcomes the integral velocity divergence problem, and the noise suppression effect is good.

Figure 14.

Performance comparison chart based on fusion velocity measurement algorithm.

Experimental results and analysis of static suspension conditions

Experimental results and analysis of wavelet noise reduction based on threshold optimization

The MEMS-IMU sampling rate was set to 6.4 Hz, and the data was collected for 2 h in a suspended state and analyzed. Figure 15 is the variance curve of each parameter after Allan variance analysis, and Table 2 and 3 is the analyzed zero-bias instability parameters. It can be seen from Figure 15 that the error of the angular velocity signal of the gyroscope within a few hundred seconds is mainly caused by the instability of the offset.

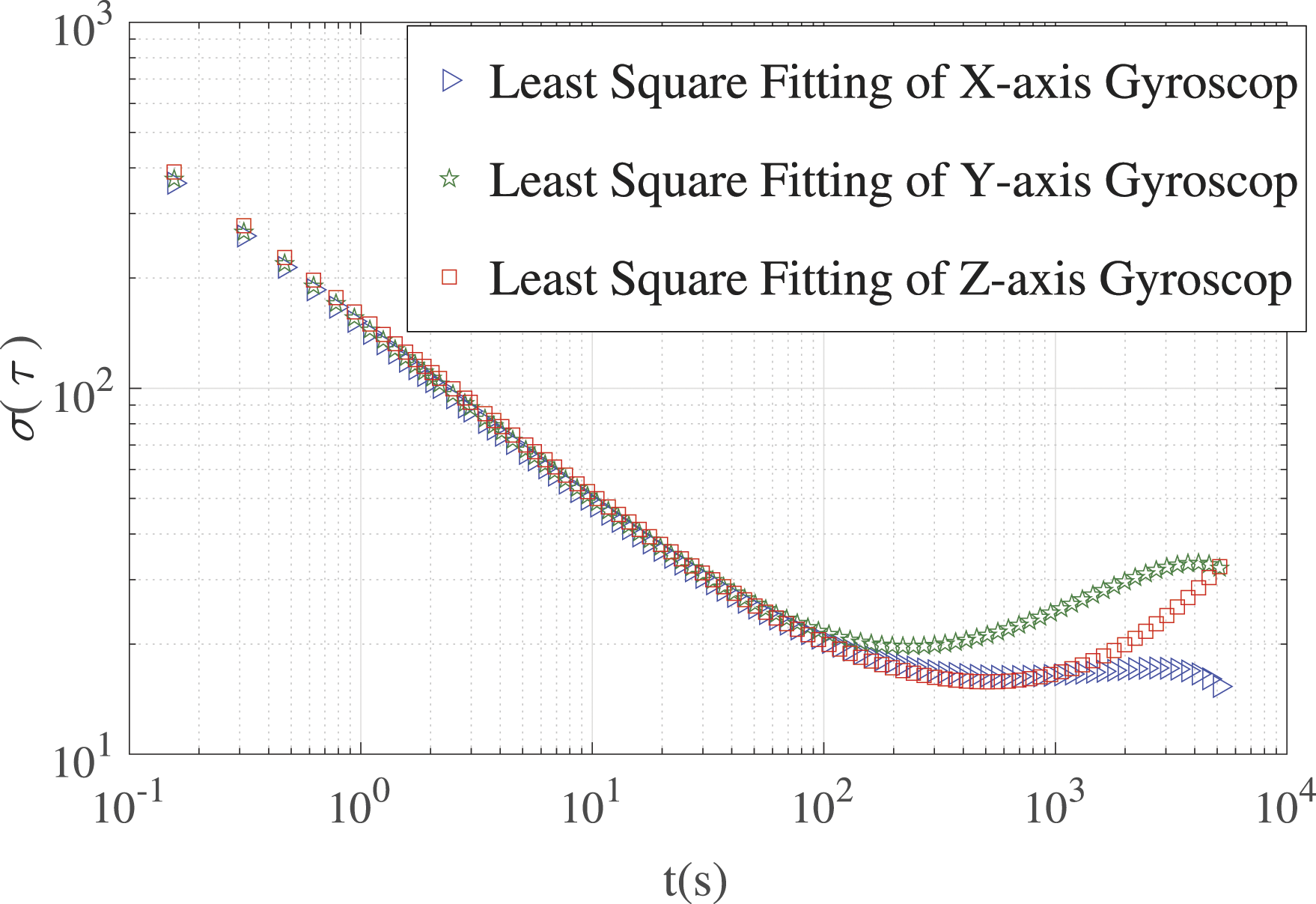

Figure 15.

Allan variance curve of angular velocity of three-axis gyroscope.

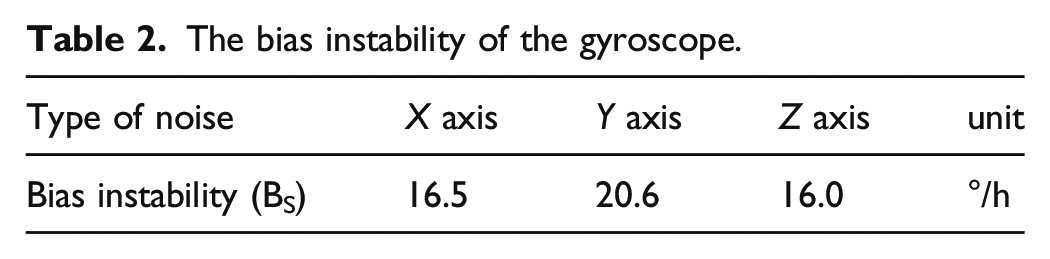

Table 2.

The bias instability of the gyroscope.

Type of noise	X axis	Y axis	Z axis	unit
Bias instability (B_S)	16.5	20.6	16.0	°/h

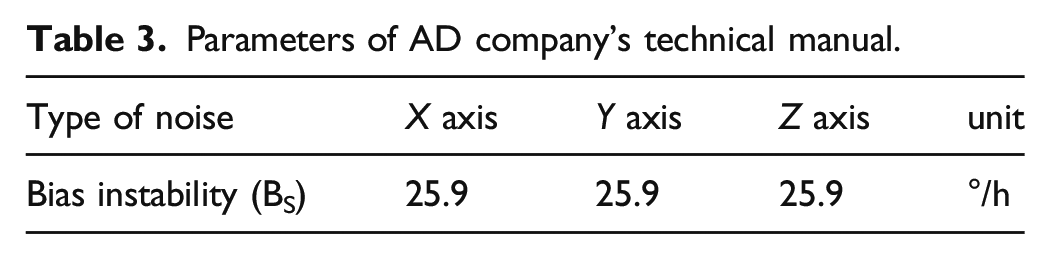

Table 3.

Parameters of AD company’s technical manual.

Type of noise	X axis	Y axis	Z axis	unit
Bias instability (B_S)	25.9	25.9	25.9	°/h

The angular velocity frequency is taken as 2 Hz. According to the sampling theorem, the sampling time for a signal with a sampling rate of 819 Hz needs to be greater than 4s. According to the wavelet transform theory and the analysis function combined with matlab, it can be known that the gyroscope signal can be decomposed by 8-layer wavelet. The experiment uses the one-dimensional Mallat algorithm. Because the angular velocity curve is similar to db4, db4 is used as the wavelet base of wavelet transforms.²⁶ Figure 16 shows the original signals of angular velocity in the horizontal position and static floating conditions.

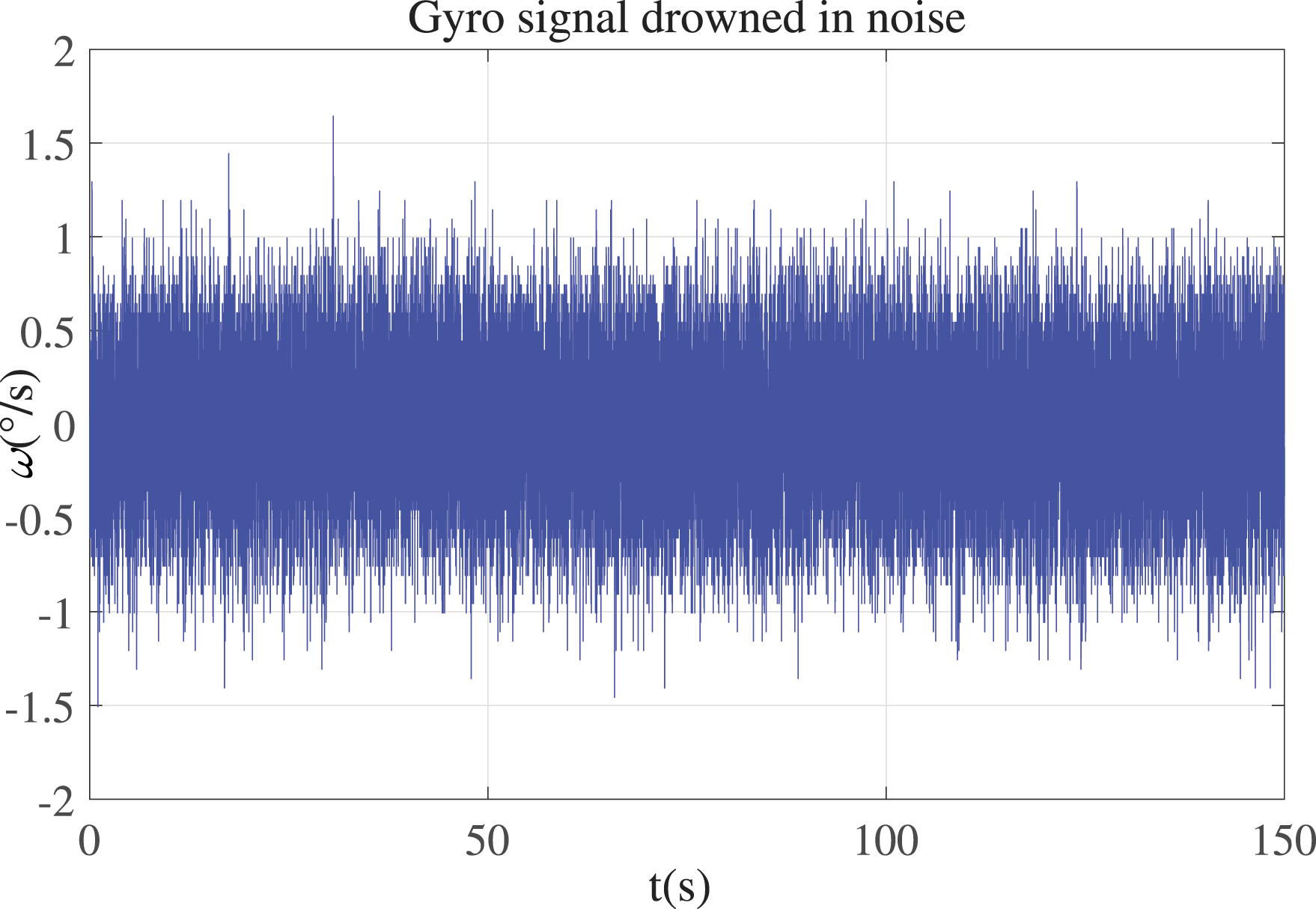

Figure 16.

MEMS-IMU original signal in static suspension state.

The wavelet approximation coefficients of the decomposition scale of the 8th layer are shown in Figure 17

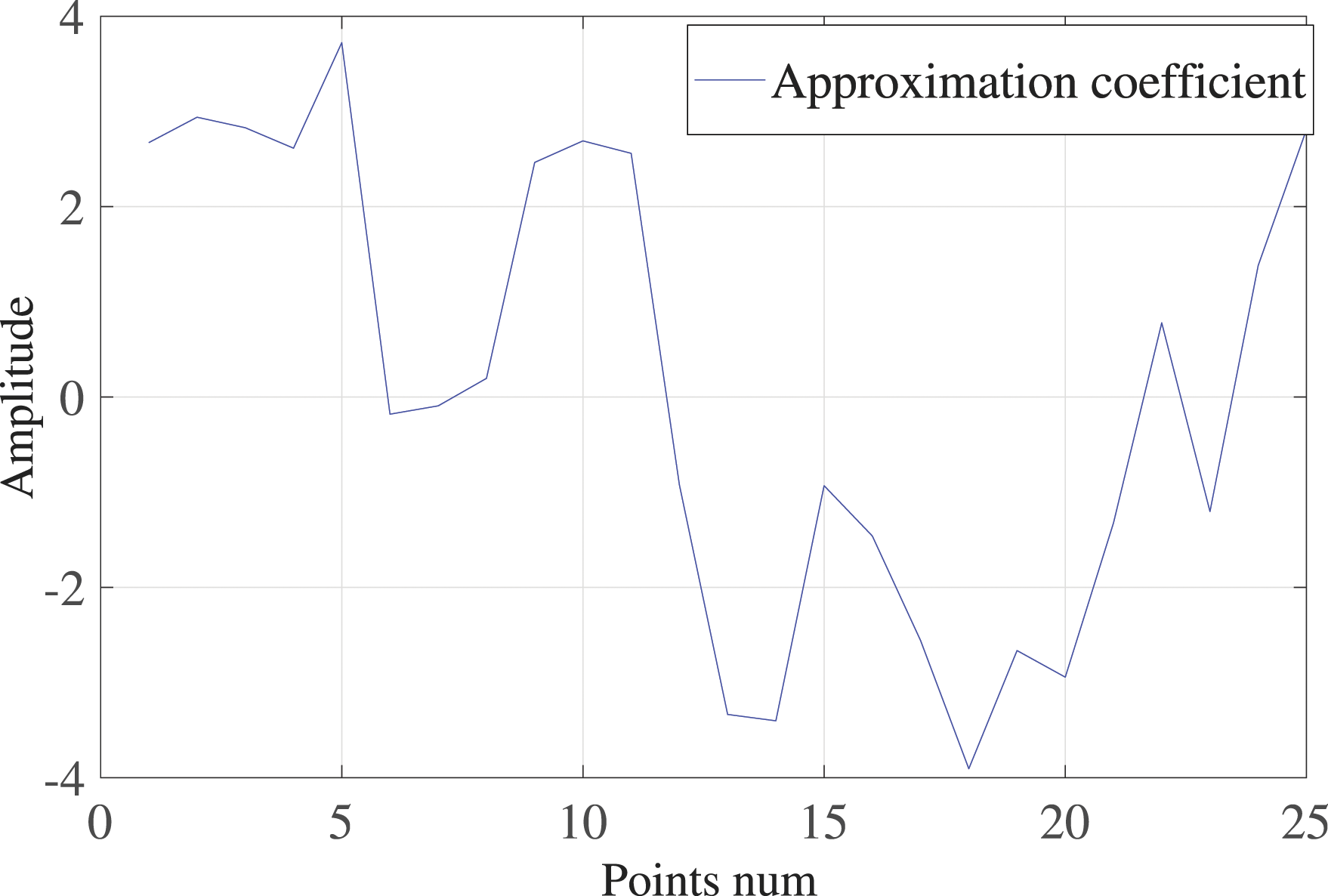

Figure 17.

Low-frequency wavelet coefficients of the 8th layer decomposition scale.

In order to analyze the performance of the wavelet noise reduction algorithm based on threshold optimization, a low-performance sensor was selected to process the data of its horizontal position and static floating conditions, and the processing effects of each algorithm were compared. The results are shown in Figures 18 and 19.

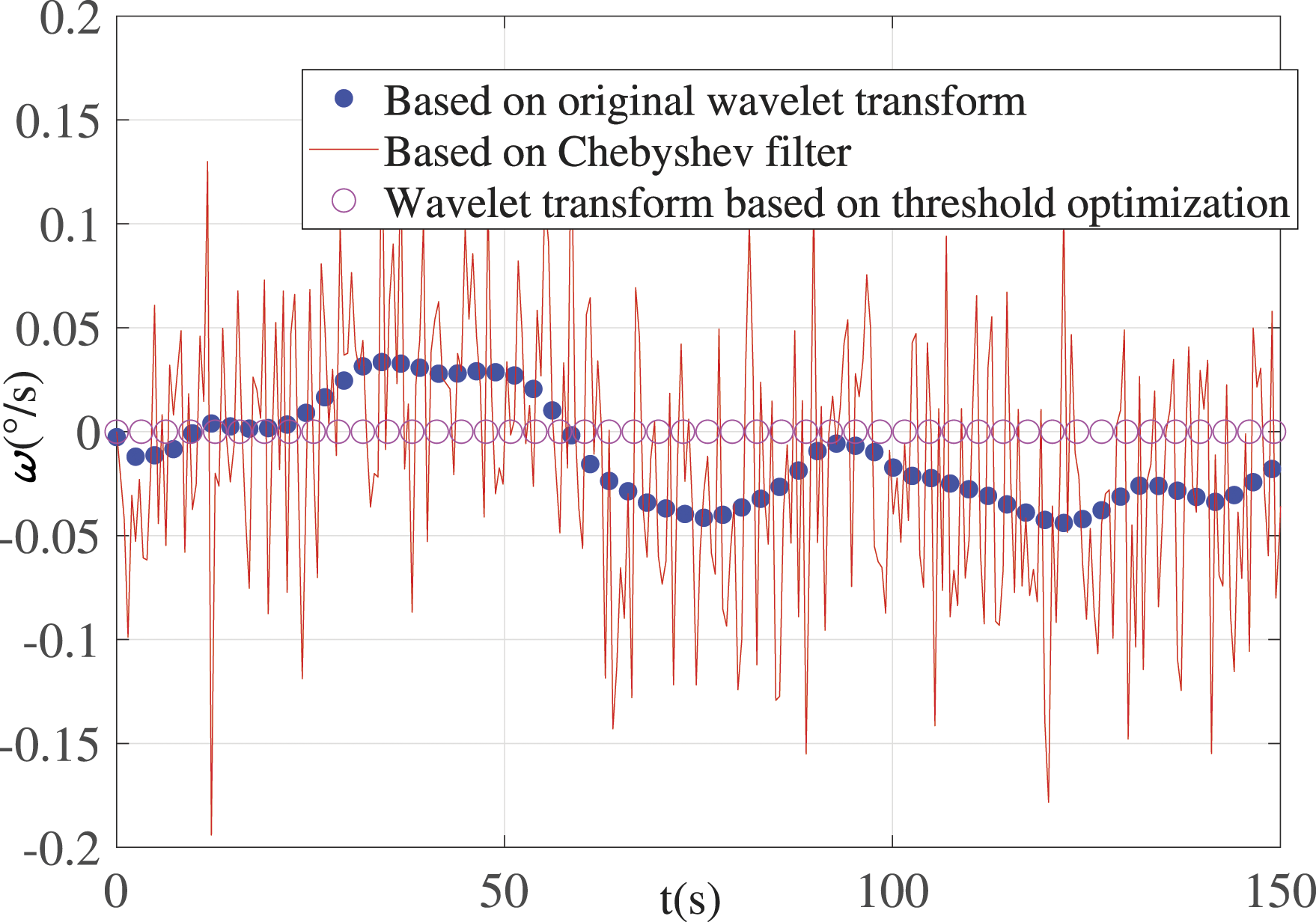

Figure 18.

The y-axis angular velocity waveform in static suspension state.

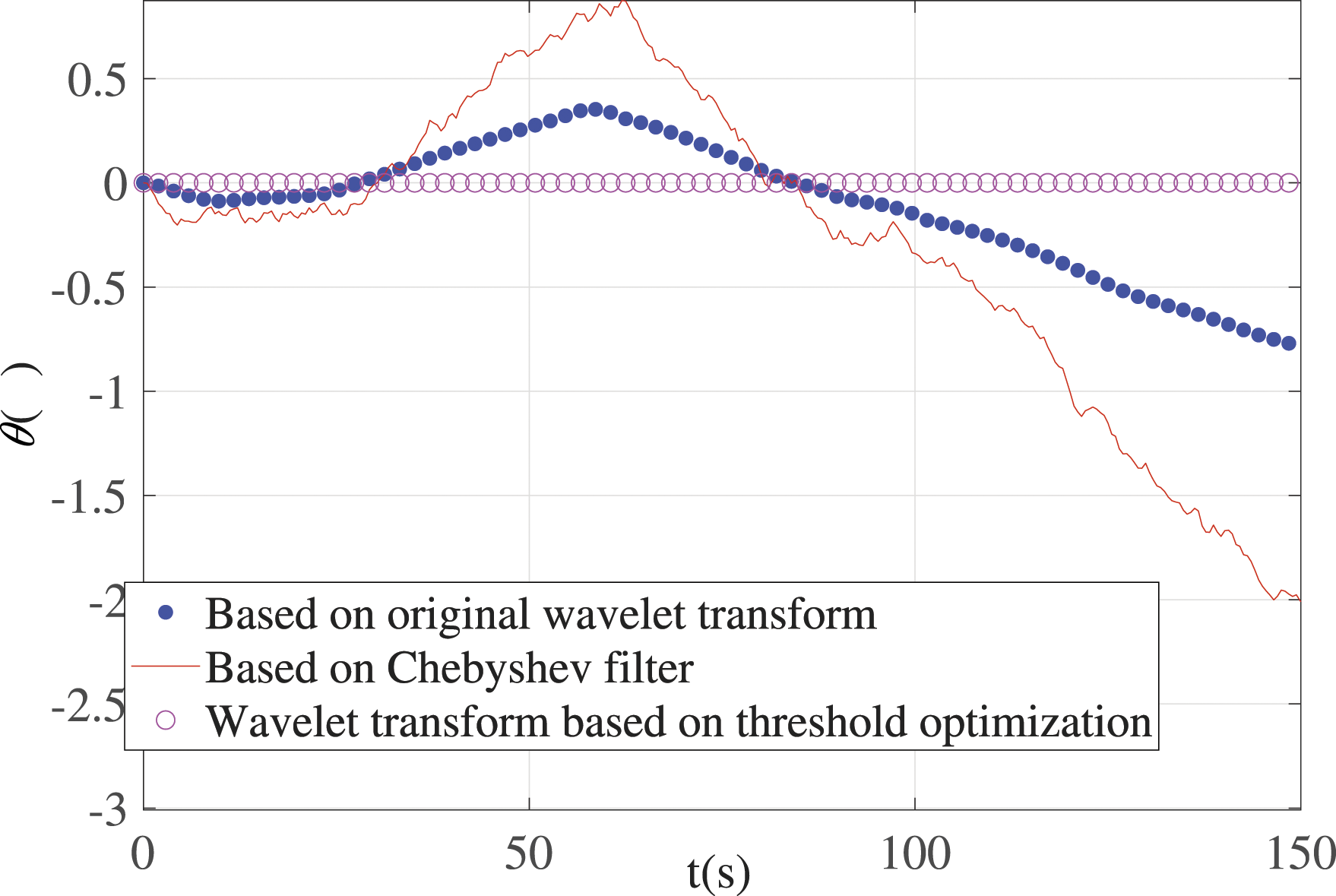

Figure 19.

The y-axis angle waveform in static suspension state.

From Figures 18 and 19, it can be seen that the maximum angle of the angular velocity drift of the wavelet noise reduction algorithm optimized by the threshold is 0.05, and the integral angle is kept at zero for the length of time, which can well suppress the slow time-varying random interference; Low-frequency slow-time-varying random interference signals still exist after wavelet transform noise reduction, and the integral angle diverges to 0.85° in 150 s; The Chebyshev filtering effect is the worst, and the angle diverges to 2°; Therefore, the threshold function becomes a hard threshold when parking, and its noise reduction effect is obvious. Among them, the wavelet transform algorithm refers to the use of threshold function $λ = σ \sqrt{2 \ln N}$ (N is the signal length) to reduce the noise of each layer, and then reconstruct all the layers; the cut-off frequency of low-pass filtering is 1 Hz.

Experimental results and analysis of optimized fusion algorithm of attitude calculation and velocity measurement and positioning

The velocity measurement positioning host adopts the fusion attitude calculation optimization algorithm based on the second-order complementary filter and velocity adaptation Unscented Kalman filter with maximum noise reduction (VA-MNR-UKF) algorithm proposed in this article, and the Fusion velocity measurement and positioning algorithm with multi-loop Kalman filter with acceleration correction and velocity accumulation error correction (ML-LKF-FVMPS) algorithm. The vehicle-mounted working condition is that the maglev vehicle floats in the warehouse for half an hour. The angle, acceleration and speed sent by the speed measurement host are collected in real time through Ethernet communication. The experimental results are shown in Figures 20 and 21. It can be seen that the acceleration and speed of the train mentioned in this article are always zero, and the maximum fluctuation angle of the pitch angle is 0.09°. The angle divergence problem caused by long time integration is solved. The GPS/INS system’s attitude angle and velocity have fluctuations of 0.2° and 0.15 km/h, respectively.

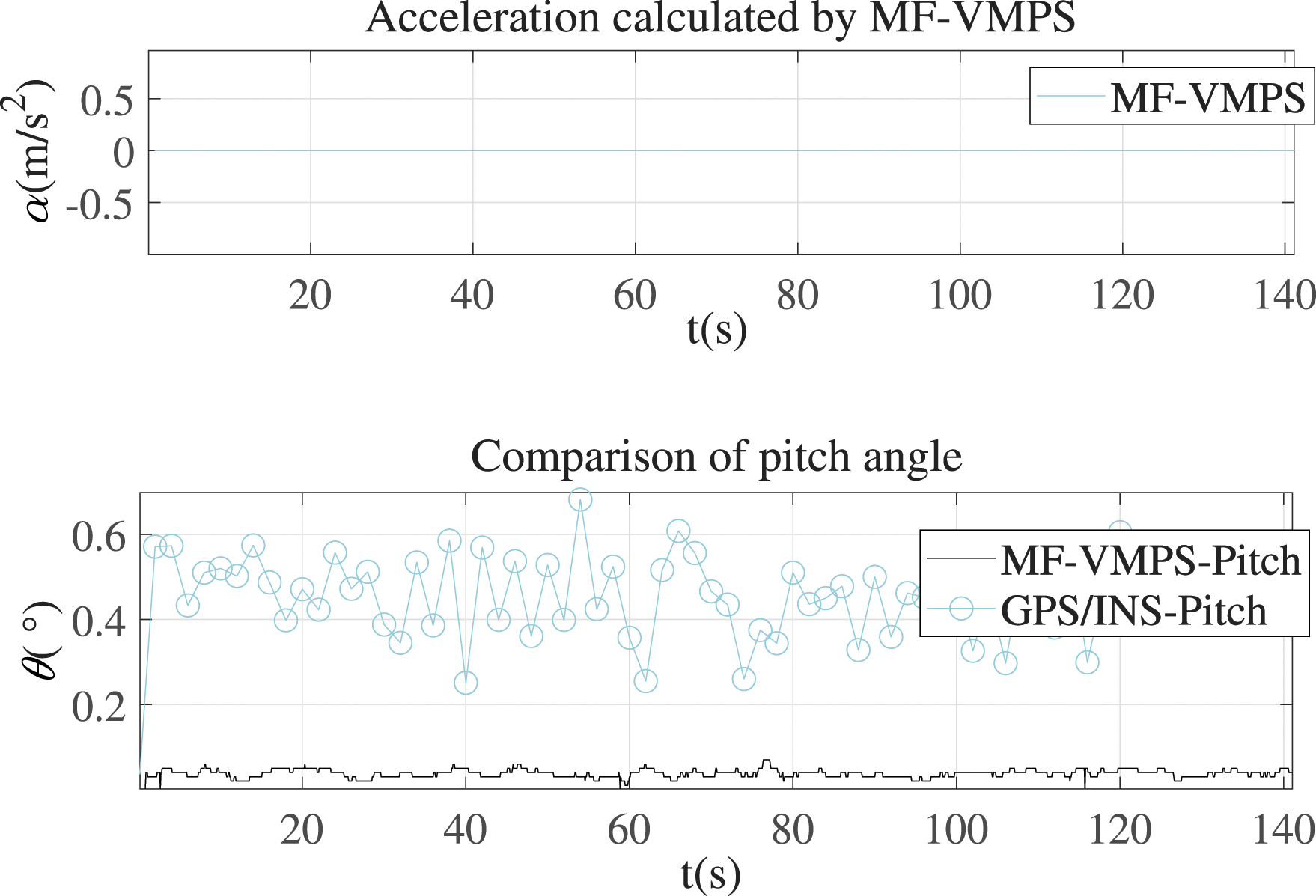

Figure 20.

Horizontal position and static suspension state in the garage.

Figure 21.

Velocity of maglev trains in static suspension state in the garage.

Experimental results and analysis of dynamic operation of maglev train

The designed fusion velocity measurement and positioning system is installed on a medium-speed maglev train. The train is equipped with an induction loop velocity measurement and positioning system and a GPS/INS system is installed. The test line is 204 m long, with garages, flat sections, climbing and bends, and has all the working conditions for the performance verification of the velocity measurement and positioning system. On the condition that the GPS satellite signal is intact, the vehicle dynamic operation test is carried out, and the data given by the fusion system, GPS/INS system and its induction loop line are recorded respectively. The experimental results are shown in Figures 22–24 respectively. It can be seen that when there is a large acceleration and deceleration, the maximum pitch angle deviation is 0.32°, and other conditions are less than 0.08°. It needs to point out that GPS/INS is isolated by air springs, and the damping effect is much better than that of MEMS-IMU on the bogie.

Where, II-VMPS is a velocity measurement and positioning system based on an induction loop with a relative positioning resolution of 15 mm. The velocity measurement method of counting sleepers (VMCS) is a velocity measurement system based on counting sleepers.

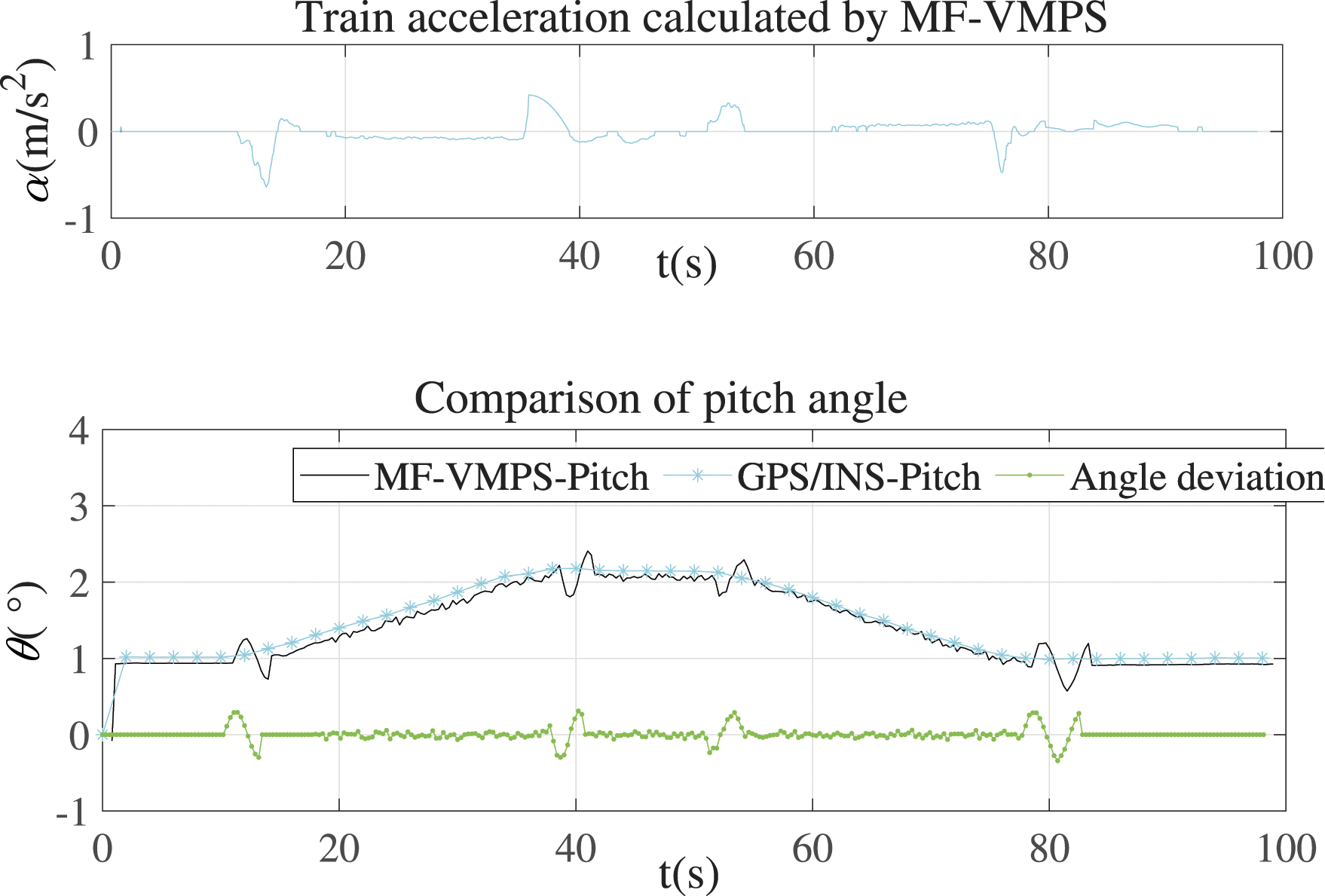

Figure 22.

Comparison and deviation of pitch angle.

Figure 23.

Velocity comparison and deviation of maglev train.

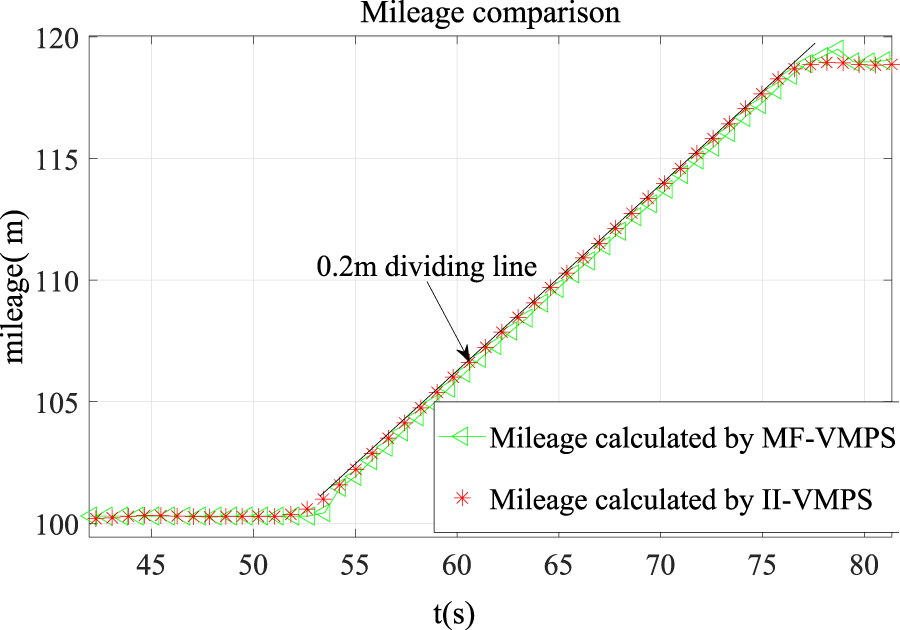

Figure 24.

Relative positioning (Mileage) comparison charts.

It can be seen from Figure 23 that the velocity measurement accuracy of this fusion velocity measurement positioning system in the uniform speed section is better than that of the induction loop, and the maximum deviation in the acceleration section is less than 0.43 km/h. Since the velocity measurement accuracy of the GPS/INS integrated navigation system is 0.108 km/h, it shows that the velocity measurement accuracy of the fusion system has reached the level of 0.5 km/h. Compared with the speed error of 2 km/h of the velocity measurement system based on counting sleepers, the velocity measurement accuracy is increased one order of magnitude.

It can be seen from Figure 24 and Table 4 that the maximum deviation of relative positioning is 0.19 m.

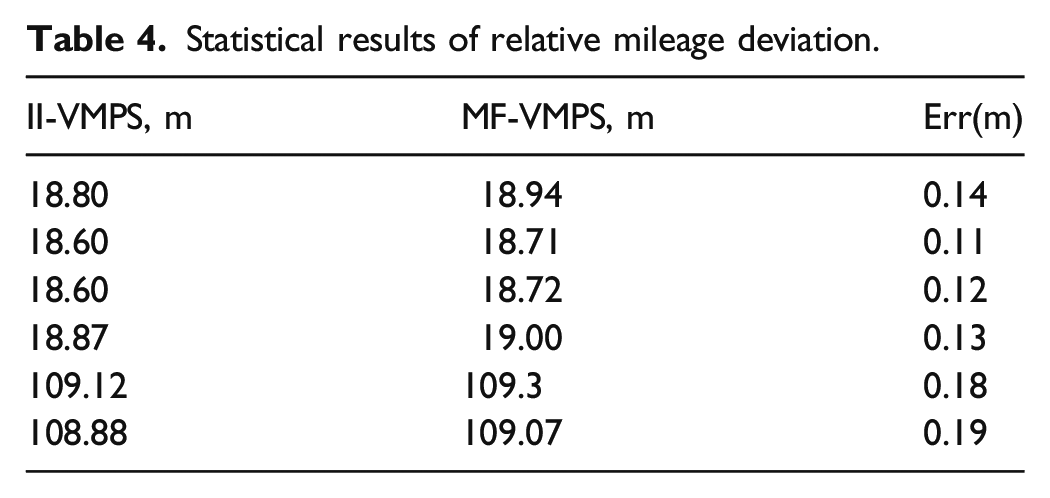

Table 4.

Statistical results of relative mileage deviation.

II-VMPS, m	MF-VMPS, m	Err(m)
18.80	18.94	0.14
18.60	18.71	0.11
18.60	18.72	0.12
18.87	19.00	0.13
109.12	109.3	0.18
108.88	109.07	0.19

Conclusion

On the basis of the method of multi-sensor information fusion, this paper firstly proposes a posture solution method combining the second-order complementary filter based on the transition process and the velocity adaptation Unscented Kalman filter with maximum noise reduction. Compared with the UKF-based filter, the filtering effect in the low-speed stage is improved, and the defect of the contradiction between the dynamics and the filtering accuracy of the UKF nonlinear prediction is solved. Compared with the second-order complementary filter, it avoids the high dynamic oscillation problem and solves the problem of parameter adjustment. Secondly, the wavelet noise reduction algorithm based on threshold optimization is used to weaken the random error of the zero bias instability, the angle accumulation error is further reduced, and the performance of the gyroscope is improved. And innovatively proposed a multi-loop Kalman filter fusion velocity measurement and positioning algorithm with acceleration fusion correction and velocity accumulation error correction, which solved the colored noise interference caused by suspension fluctuations and weakened the velocity accumulation error.

According to the simulation comparative analysis and the results of vehicle engineering test, the attitude angle and acceleration remain zero for a long time in the static floating garage, and the maximum deviations of pitch angle, velocity and relative positioning are 0.32°, 0.43 km/h and 0.19 m respectively, which improved the accuracy of velocity measurement and positioning of maglev train. Compared with the velocity measurement method based on counting sleepers, the velocity measurement accuracy in the low velocity stage is improved by an order of magnitude, which is comparable to the velocity measurement accuracy based on the induction loop and GPS/INS with high precision. Therefore, it is of great significance to reduce the switching velocity of the electric brake and the mechanical brake. So it improves the engineering adaptability of the medium and low speed maglev velocity measurement and positioning system to a certain extent, and reduces the maintenance cost.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the 13th Five-Year National Key R&D Program of China under Grant 2016YFB1200600. This research work is grateful to the teachers of the Maglev Engineering Research Center and the support of engineers such as Changchen Jiang, JinSong Yang and Wentao Xia, and thanks to the support of Beijing Maglev Transportation Development Co., Ltd and CRRC TANGSHAN CO., LTD.

ORCID iDs

Zengde Peng

Fengshan Dou

References

Peng

Dou

Long

. Research on multi-information fusion velocity measurement algorithm based on optimal estimation and pattern recognition. In: Proceedings of 2018 Chinese automation congress, Xian, China, 2 December 2018. IEEE, pp. 3434–3439.

Guo

Wang

, et al. Location and speed detection system for high-speed maglev vehicle. J Southwest Jiaotong Univ 2004; 39(4): 455–459.

Wang

Liu

Long

, et al. Survey on speed measuring and locating method of maglev train. J Automatic Measu 2008; 27(1): 69–72.

Zhang

. The research of position and speed measurement and communication technology based on the new loop-cable for maglev train. Master thesis. China: National Defense Univ, 2015.

Peng

Long

Dou

, et al. Research on speed measurement algorithm based on LMS adaptive filtering and d-step prediction. In: Proceedings of the 31th CCDC2019, Nanchang, China, 3–5 June 2019. IEEE, pp. 2072–2077.

Dou

Dai

Long

. A new speed measurement sensor using difference structure. In: Proceedings of 19th IFAC, Cape Town, South Africa, IEEE, 2014 August 24, pp. 8451–8456.

Han

Yuan

. The discrete form of tracking differentiator. J Syst Sci Math Sci 1999; 9(3): 268–273.

Zhang

, et al. Tracking differentiator design for the robust back stepping control of a flexible air-breathing hypersonic vehicle. J Franklin Inst Appl Math 2015; 352(4): 1739–1765.

Shao

Wang

. Back-stepping robust trajectory linearization control for hypersonic reentry vehicle via novel tracking differentiator. J Franklin Inst Appl Math 2016; 353(9): 1957–1984.

10.

Xie

Y-G

Long

Z-Q

, et al. Discrete second-order nonlinear tracking differentiator based on boundary characteristic curves and variable characteristic points and its application to velocity and position detection system. J Acta Automation Sinica 2014; 40(50): 952–964.

11.

Liu

. Design of a modified tracking differentiator. J Navigation And Control 2018; 17(4): 61–65.

12.

Gao

Tian

Wang

. Fuzzy self-tuning tracking differentiator for motion measurement sensors and application in wide-bandwidth high-accuracy servo control. J Sensors(Basel) 2020; 20(3): 948–961.

13.

Smith

Singh

. Approaches to multisensor data fusion in target tracking: a survey. J IEEE Trans Data Eng 2006; 18(12): 1696–1710.

14.

Kokar

Tomasik

Weyman

. Formalizing classes of information fusion Systems. J Inf Fusion 2004; 5(3): 189–202.

15.

Pan

Lan

, et al. Information fusion progress: joint optimization based on variational Bayesian theory. J Acta Automatica Sinica 2019; 45(7): 1207–1223.

16.

Tang

. Indoor positioning algorithm fusing multi-source information. J Wireless Personal Commun 2019; 109(1): 2541–2560.

17.

Abdolkarimi

Abaei

Selamat

, et al. A hybrid type-2 fuzzy logic system and extreme learning machine for low-cost INS/GPS in high-speed vehicular navigation system. J Appl Soft Comput J 2020; 94: 106366–106379.

18.

Mostafa

Khater

Rizk

, et al. A novel GPS/DVL/MEMS-INS smartphone sensors integrated method to enhance autonomous navigation, guidance and control system of AUSVs based on ADSF Combined Filter. J Meas 2019; 146: 590–605.

19.

Weide

Fanbiao

Liqing

, et al. Fusion of UWB and IMU Based on unscented kalman filter for indoor localization of quadrotor UAV. J IEEE Access 2020; 8: 64971–64981.

20.

Han

. Novel GPS/SINS integration architechture and systematic error compensation methods. PhD Thesis. ChangSha, China: National Defense Univ, 2010.

21.

Xiong

Wei

Zhang

. Parallel model adaptive Kalman filtering for autonomous navigation with line-of-sight measurements. J Proc Institu Mech Eng Aerosp Eng 2019; 233(11): 4017–4031.

22.

Tan

. Research on improved model of inertial navigation aided seamless positioning. PhD Thesis. China: China University of Mining and Technology, 2014.

23.

Nilsson

Skog

Händel

, et al. (eds) Foot-mounted INS for everybody-an open-source embedded implementation. In: Proceedings of PLANS, Myrtle Beach, SC. IEEE, 2012, pp. 140–145.

24.

Lin

Min

Wei

. Inertial measurement unit-based iterative pose compensation algorithm for low-cost modular manipulator. J Adv Mech Eng 2016; 8(1): 1–11.

25.

Zhang

Jiao

Liu

, et al. Fused attitude estimation algorithm based on complementary filtering and Kalman filtering. J Trans Microsystem Tech 2017; 36(3): 62–65.

26.

Peng

Dou

Long

. Research on optimized speed measurement algorithm based on error correction. In: Proceedings of 2019 Chinese automation congress, Hangzhou, China, 22-24 November 2019. IEEE, pp. 1882–1887.

27.

Mallat

. A wavelet tour to signal processing, the sparse way. J Elsevier 2009: 205–535.

28.

Donoho

. De-noising by soft-thresholding. J IEEE Trans Actions Inf Theor 1995; 41(3): 613–627.

29.

Donoho

Johnstone

. Adapting to unknown smooth- ness via wavelet shrinkage. J Am Statistic Assoc 1995; 90(432): 1200–1224.

30.

. An improved infrared image processing method based on adaptive threshold denoising. J EURASIP J Ima Video Proc 2019; 1: 1–12.

31.

Alyasseri

ZAA

Khader

Al-Betar

, et al. EEG signals denoising using optimal wavelet transform hybridized with efficient metaheuristic methods. J IEEE Access 2020; 8: 10584–10605.

32.

El-Dahshan

E-SA

. Genetic algorithm and wavelet hybrid scheme for ECG signal denoising. J Telecommuni Syst 2011; 46(3): 209–215.

33.

Gao

Cui

. Improved wavelet denoising by non-convex sparse regularization under double wavelet domains. J IEEE Access 2019; 7: 30659–30671.

34.

Chen

Bui

. Multiwavelets denoising using neighboring coefficients. J IEEE Signal Process Lett 2003; 10(7): 211–214.
