Full-order adaptive observer for interior permanent-magnet synchronous motor based on novel fast super-twisting algorithm

Abstract

To improve the accuracy of speed estimation strategy over a wide speed range in the sensorless speed control system of an interior permanent – magnet synchronous motor (IPMSM), a full-order adaptive observer based on a novel fast super-twisting algorithm (NFSTA-AO) is proposed. The conventional model reference adaptive system (MRAS) takes the linear compensation matrix of the unit matrix, which can only achieve speed discrimination within a certain speed range. Therefore, in this paper, a new linear compensation matrix is first derived using Popov’s super stability theory, and then, a new tachograph – adaptive law is obtained. A feedback correction link is also added to the adjustable model to improve the convergence speed of the error between the reference and adjustable model outputs. To further improve the accuracy of the tachograph estimation strategy, a novel fast super-twisting algorithm (NFSTA) convergence law is introduced in place of the adaptive law in the full-order adaptive observer, combining the advantages of both algorithms. The NFSTA added the inverse hyperbolic sine function based on system state variables to the integral term of the fast super-twisting algorithm (FSTA) to effectively suppress the torque pulsation of the system. A soft switching function is also designed to replace the symbolic switching function in order to reduce the system jitter caused by the sliding mode variable structure control. The simulation experiments show that the system using the NFSTA-AO estimation strategy is more resistant to disturbances and robust; additionally, it has better dynamic following than the conventional MRAS in the presence of added load disturbances and sudden speed changes.

Keywords

Full-order adaptive observer speed estimation strategy fast super-twisting algorithm inverse hyperbolic sine function variable speed convergence law

Introduction

Interior permanent-magnet synchronous motors (IPMSM) are widely used in industrial speed control systems due to their high power/weight ratio, high torque/inertia ratio, high efficiency and robustness.^1–3 However, given that the IPMSM is a complex non-linear system with time-varying parameters, strong coupling, uncertainty and external disturbances, the control system design is relatively complex. The complexity of the permanent magnet synchronous motor model can be overcome by using magnetic field directional control to decouple the torque and flux of the motor.⁴ In high performance control systems for permanent magnet synchronous motors, accurate information on rotor position and speed of the motor is a key factor for stable operation of the system.⁵ The rotor position and speed information are generally measured by mechanical sensors; yet, their limitations are high cost, relatively complex installation, maintenance difficulties, increased system size and reduced system reliability.⁶ Therefore, in order to solve the above problems, the use of position sensors needs to be abandoned. Then, speed sensor-free control technology is used to obtain the motor rotor position and speed, which has the advantages of adaptability, wide range of applications, cost efficiency and easy maintenance.⁷ However, the instability of the system in the low speed region, and especially near zero synchronous speed, can limit the operating range of the drive system as well as its applications.

In recent years, scholars in China and abroad have proposed a number of methods to control permanent magnet synchronous motors without speed sensors. These methods can be classified into two categories according to their scope of application. The first is to inject high frequency signals into the motor and use the convex polarity of the motor to calculate the rotor position, such as the rotating high frequency signal injection method, high frequency pulse vibration signal injection method and high frequency square-wave injection method.^8,9 This type of algorithm is usually designed to ignore the effect of the motor counter-electromotive force; however, as the motor speed increases, the counter-electromotive force will increase as well. Secondly, high frequency signal processing requires filters, resulting in lag when the rotor position is estimated. Moreover, the high frequency response signal is mixed with other high frequency harmonic signals, which are more difficult to separate and require complex signal processing methods.¹⁰ As a result, this not only increases the complexity of the control system, but also reduces the dynamic response speed. Therefore, this type of scheme is suitable for rotor position estimation in the zero and low speed range. In the study presented in Hu and Yuan,¹¹ the low frequency signal injection method was proposed. The angle error of rotor position was obtained by injecting a low frequency stator current signal, and then, the motor speed was estimated. Although the inherent shortcoming of the high frequency signal injection method was avoided, the error signal construction of this method was too complicated.

Another class of algorithms is based on the fundamental wave excitation motor model and uses the relevant physical quantities to estimate the speed and rotor position information. Common schemes in this category include the magnetic chain estimation method, model reference adaptive control method, sliding mode observer method and extended Kalman filter method. This type of algorithm is more suitable for medium and high speed applications due to the low signal-to-noise ratio of the motor during low speed operation, interference from noise and difficulty in obtaining valid physical quantities from the motor.¹² Among them, high-order sliding mode control is a new sliding mode control method that can retain the strong robustness of the traditional sliding mode, while effectively suppressing chattering.^13,14 The adaptive full-order observer proposed in Liu and Yu³ has a linear feedback term, which makes the system run stably through zero-pole configuration, and has good control effect at low speed. However, the IPMSM itself is a nonlinear, multi-variable, strongly coupled complex system and the conventional linear observer method has poor robustness. The sliding mode observer proposed in Bensalem et al.¹⁵ has the advantages of order reduction, simple implementation and strong robustness; yet, it also has some problems such as chattering and slow convergence speed. In Repecho et al.¹⁶ the reduced order extended Kalman filter is proposed, which reduces the complexity of the calculation of the extended Kalman filter method on the premise of ensuring the estimation accuracy; however, its engineering application is difficult. The model reference adaptive method proposed in Badini and Verma¹⁷ uses the rotor flux error between the reference and adjustable models to estimate the speed, which has good control performance at medium-high speed; however, the speed estimation is inaccurate at low speed. The reason is that the rotor flux estimation in the system model is equivalent to open-loop calculation and lacks the error feedback adjustment mechanism. It also depends on the accuracy of motor parameters, and especially stator resistance. In Zaky et al.¹⁰ a novel super-twisting sliding mode observer is proposed based on the concept of equivalent feedback, which does not effectively improve the convergence speed; nevertheless, it improves the control accuracy at low speeds without speed sensors.¹³

The stator current-based model reference adaptive system (MRAS) is widely used in IPMSM sensorless speed control systems due to its simple structure, easy tuning of reference and possibility to estimate speed over a wide speed range.^4,18 The estimated speed and rotor position can only converge to their corresponding actual values when the difference between the outputs of the reference and adjustable models converges to zero. At the same time, the speed estimates need to be involved in the adjustment of the adjustable models, and the above process will take some time. The dynamic performance of MRAS-based estimation methods can therefore be further improved.^19,20 In addition, the adaptive mechanism within MRAS can be considered as a proportional integral (PI) controller, which is not very robust. Thus, the accuracy of the MRAS-based estimation method for speed estimation will be reduced when the motor parameters are perturbed. For this reason,^21,22 in order to improve the robustness of the traditional MRAS estimation strategy, the theory of sliding mode variable structure control is introduced; additionally, the PI adaptive mechanism in the traditional MRAS is replaced by a sliding mode variable structure algorithm, which improves the robustness of MRAS.²³ However, the traditional sliding mode has an inherent jitter problem, and its direct introduction into MRAS for speed estimation can affect the smooth operation of the motor. For this reason, a low-pass filter is typically introduced to filter the speed estimate in order to mitigate the effects of slipform jitter. Still, the low-pass filter can lead to problems such as phase lag and reduced estimation accuracy.^24–26

To address the shortcomings of the above traditional MRAS speed estimation methods and most of the current speed observers, this paper combines the advantages of the MRAS and fast super-twisting algorithm (FSTA) and a full-order adaptive observer based on a novel fast super-twisting algorithm (NFSTA-AO) is proposed. The adaptive law in the full-order adaptive observer is replaced by the convergence law of the NFSTA-AO, and the reference and adjustable models of the full-order adaptive observer are retained; this solves the problem that the conventional MRAS is not robust and cannot achieve accurate speed identification in a wide speed domain. The simulation results verify that the NFSTA-AO can achieve high accuracy speed estimation in both cases of load perturbation and sudden speed change within a wide speed range.

Mathematical model of lPMSM

The IPMSM stator voltage equation is⁷:

{\begin{matrix} u_{d} = R_{s} i_{d} + \frac{d}{dt} ψ_{d} - ω_{r} ψ_{q} \\ u_{q} = R_{s} i_{q} + \frac{d}{dt} ψ_{q} + ω_{r} ψ_{d} \end{matrix}

(1)

where $u_{d}$ and $u_{q}$ are the stator voltages in the $d - q$ reference frame, $i_{d}$ and $i_{q}$ are the stator currents in the $d - q$ reference frame, $ψ_{d}$ and $ψ_{q}$ are the $d - q$ axis components of stator flux linkage; $R_{s}$ is the stator resistance and $ω_{r}$ is the rotor electrical pulsation.

The equation for the magnetic chain is⁷:

{\begin{matrix} ψ_{d} = L_{d} i_{d} + ψ_{f} \\ ψ_{q} = L_{q} i_{q} \end{matrix}

(2)

where $ψ_{f}$ is the magnetic flux; $L_{d}$ and $L_{q}$ represent the stator inductance components in the $d - q$ reference frame. The electromagnetic torque equation is⁸:

T_{e} = \frac{3}{2} p_{n} i_{q} ψ_{f} + \frac{3}{2} p_{n} (L_{d} - L_{q}) i_{d} i_{q}

(3)

where $p_{n}$ is the number of pole pairs, and $T_{e}$ is the electromagnetic torque.

Design of full-order adaptive observer

Design approach for MRAS based on Popov’s super stability theory

The system studied by Popov can be equated to a nonlinear feedback system as shown in Figure 1.

Figure 1.

Block diagram of structure of non-linear feedback system.

When analysing the stability problem of the nonlinear feedback system shown in Figure 1, the general assumptions for the purpose of this study are $r (t) = 0$ . Then, we have $u (t) = - w (t)$ , and the linear constant forward channel of this system can be described as⁹:

{\begin{matrix} \frac{d}{dt} x (t) = Ax (t) + Bu (t) = Ax (t) - Bw (t) \\ y (t) = Cx (t) + Du (t) = Cx (t) - Dw (t) \end{matrix}

(4)

where $x (t)$ is the state variable, $u (t)$ is the input variable, $y (t)$ is the output variable, $A$ is the system matrix, $B$ is the input matrix, $C$ is the output linear compensation matrix and $D$ is the direct transfer matrix. It is also required that $A$ and $B$ are fully controllable, and $C$ and $A$ are fully observable. Matrix $C$ is specially selected by the forward path to ensure the stability of the system. We assume that the non-linear feedback channel equation is:

w (t) = ψ [y (t), t, τ]

(5)

where $τ$ represents the delay time, indicating that there is a delay between the feedback channel output and input. The input $y (t)$ and output $w (t)$ of the non-linear feedback channel should satisfy the Popov integral inequality expressed as:

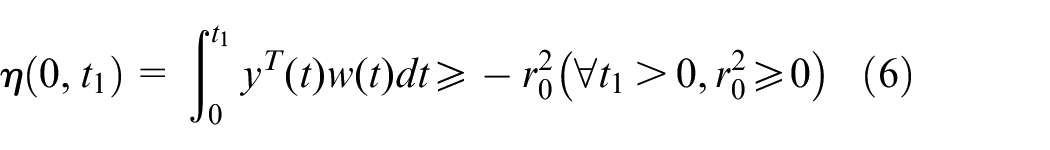

η (0, t_{1}) = \int_{0}^{t_{1}} y^{T} (t) w (t) d t \geq - r_{0}^{2} (\forall t_{1} > 0, r_{0}^{2} \geq 0)

(6)

The necessary and sufficient condition for the asymptotic stability of the system is that the transfer function matrix $G (s)$ of equation (4) is a strictly positive real matrix expressed as:

G (s) = D + C (sI - A)^{- 1} B

(7)

Based on the above presentation, the steps for applying Popov’s superstability theory to the design of MRAS are described as follows:

MRAS is equated to a non-linear feedback system consisting of a linear constant forward channel and a non-linear feedback channel.

The transfer function matrix $G (s)$ of the linear forward channel satisfies the condition of being a strictly positive real function.

The non-linear feedback channel has to satisfy the Popov integral inequality.

Based on the original system, the final adaptive law is found.

Improved MRAS observer

We substitute equations (2) into (1) to obtain the mathematical model of the IPMSM in the $d - q$ coordinate system:

[\begin{matrix} \frac{d i_{d}}{dt} \\ \frac{d i_{q}}{dt} \end{matrix}] = [\begin{matrix} - \frac{R_{s}}{L_{d}} & ω_{r} \frac{L_{q}}{L_{d}} \\ - ω_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}] [\begin{matrix} i_{d} \\ i_{q} \end{matrix}] + [\begin{matrix} \frac{u_{d}}{L_{d}} \\ \frac{u_{q}}{L_{q}} - ω_{r} \frac{ψ_{f}}{L_{q}} \end{matrix}]

(8)

To obtain an adjustable model, the above equation is transformed into:

\begin{matrix} \frac{d}{dt} [\begin{matrix} i_{d} + \frac{ψ_{f}}{L_{d}} \\ i_{q} \end{matrix}] = [\begin{matrix} - \frac{R_{s}}{L_{d}} & ω_{r} \frac{L_{q}}{L_{d}} \\ - ω_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}] [\begin{matrix} i_{d} + \frac{ψ_{f}}{L_{d}} \\ i_{q} \end{matrix}] \\ + [\begin{matrix} \frac{1}{L_{d}} u_{d} + \frac{R_{s}}{L_{d}^{2}} ψ_{f} \\ \frac{1}{L_{q}} u_{q} \end{matrix}] \end{matrix}

(9)

From equation (9), it can be deduced that:

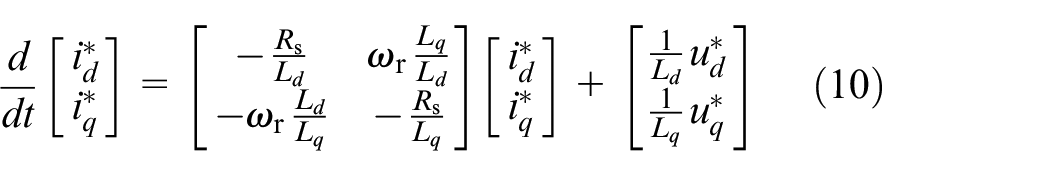

\frac{d}{dt} [\begin{matrix} i_{d}^{*} \\ i_{q}^{*} \end{matrix}] = [\begin{matrix} - \frac{R_{s}}{L_{d}} & ω_{r} \frac{L_{q}}{L_{d}} \\ - ω_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}] [\begin{matrix} i_{d}^{*} \\ i_{q}^{*} \end{matrix}] + [\begin{matrix} \frac{1}{L_{d}} u_{d}^{*} \\ \frac{1}{L_{q}} u_{q}^{*} \end{matrix}]

(10)

where $i_{d}^{*} = i_{d} + \frac{ψ_{f}}{L_{d}}, i_{q}^{*} = i_{q}, u_{d}^{*} = u_{d} + \frac{R_{s}}{L_{d}} ψ_{f}, u_{q}^{*} = u_{q}$ .

The rotation speed and current in equation (10) are replaced with estimated values to obtain an adjustable model:

\frac{d}{dt} [\begin{matrix} {\hat{i}}_{d}^{*} \\ {\hat{i}}_{q}^{*} \end{matrix}] = [\begin{matrix} - \frac{R_{s}}{L_{d}} & {\hat{ω}}_{r} \frac{L_{q}}{L_{d}} \\ - {\hat{ω}}_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}] [\begin{matrix} {\hat{i}}_{d}^{*} \\ {\hat{i}}_{q}^{*} \end{matrix}] + [\begin{matrix} \frac{1}{L_{d}} u_{d}^{*} \\ \frac{1}{L_{q}} u_{q}^{*} \end{matrix}]

(11)

where ${\hat{i}}_{d}^{*} = {\hat{i}}_{d} + \frac{ψ_{f}}{L_{d}}, {\hat{i}}_{q}^{*} = {\hat{i}}_{q}, u_{d}^{*} = u_{d} + \frac{R_{s}}{L_{d}} ψ_{f}, u_{q}^{*} = u_{q}$ . ${\hat{i}}_{d}$ , ${\hat{i}}_{q}$ and ${\hat{ω}}_{r}$ are estimated values.

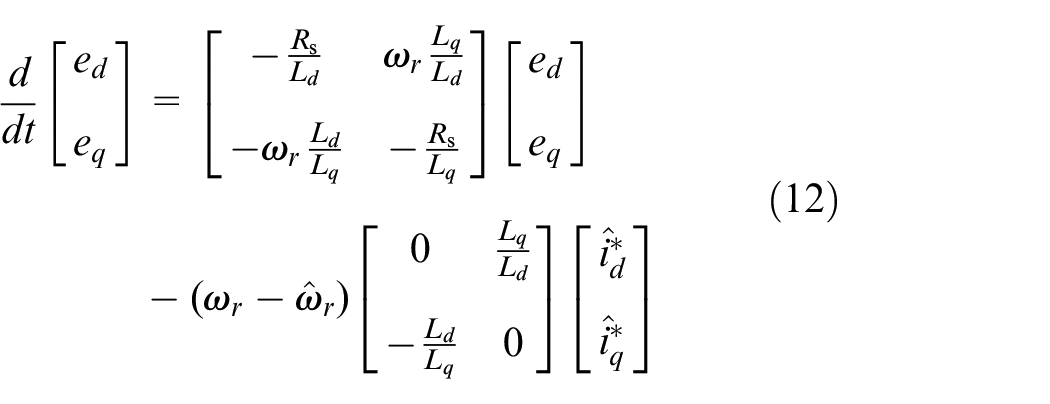

We let $A = [\begin{matrix} - \frac{R_{s}}{L_{d}} & ω_{r} \frac{L_{q}}{L_{d}} \\ - ω_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}]$ and $\hat{A} = [\begin{matrix} - \frac{R_{s}}{L_{d}} & {\hat{ω}}_{r} \frac{L_{q}}{L_{d}} \\ - {\hat{ω}}_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}]$ . Since both $A$ and $\hat{A}$ contain rotor speed information, we use equation (8) as the reference model, equation (11) as the adjustable model and $ω_{r}$ as the adjustable parameter. Equation (11) can be subtracted from equation (8):

\begin{matrix} \frac{d}{dt} [\begin{matrix} e_{d} \\ e_{q} \end{matrix}] = [\begin{matrix} - \frac{R_{s}}{L_{d}} & ω_{r} \frac{L_{q}}{L_{d}} \\ - ω_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}] [\begin{matrix} e_{d} \\ e_{q} \end{matrix}] \\ - (ω_{r} - {\hat{ω}}_{r}) [\begin{matrix} 0 & \frac{L_{q}}{L_{d}} \\ - \frac{L_{d}}{L_{q}} & 0 \end{matrix}] [\begin{matrix} {\hat{i}}_{d}^{*} \\ {\hat{i}}_{q}^{*} \end{matrix}] \end{matrix}

(12)

where $[\begin{matrix} e_{d} \\ e_{q} \end{matrix}] = [\begin{matrix} i_{d}^{*} - {\hat{i}}_{d}^{*} \\ i_{q}^{*} - {\hat{i}}_{q}^{*} \end{matrix}]$ .

From equation (12), we obtain:

\frac{d}{dt} e = Ae - (ω_{r} - {\hat{ω}}_{r}) J {\hat{i}}_{s}^{*} = Ae - W

(13)

where $W = (ω_{r} - {\hat{ω}}_{r}) J {\hat{i}}_{s}^{*}, A = [\begin{matrix} - \frac{R_{s}}{L_{d}} & ω_{r} \frac{L_{q}}{L_{d}} \\ - ω_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}], J = [\begin{matrix} 0 & \frac{L_{q}}{L_{d}} \\ - \frac{L_{d}}{L_{q}} & 0 \end{matrix}],$ $e = [\begin{matrix} e_{d} \\ e_{q} \end{matrix}], {\hat{i}}_{s}^{*} = [\begin{matrix} {\hat{i}}_{d}^{*} \\ {\hat{i}}_{q}^{*} \end{matrix}]$ .

The error system created by equations (13) and (4) can be expressed as an equation of state in the form of:

{\begin{matrix} \frac{d}{dt} e = Ae - W \\ y = Ce \end{matrix}

(14)

According to equation (14), a block diagram of the structure of the error system is obtained and shown in Figure 2. The solid line is a linear time-invariant (LTI) system. Since the relationship between the output quantity $y$ and feedback quantity $W$ is uncertain, a non-linear time-varying (LTV) feedback system is used here to represent their relationship, as shown in the dashed box in Figure 2.

Figure 2.

Block diagram of error system architecture.

For the system shown above to be asymptotically stable, it is necessary to satisfy both equations (6) and (7). For the conventional MRAS, the linear compensation matrix $C$ is set to the unit matrix $E$ . To achieve better speed discrimination over a wide speed domain, the matrix $C$ needs to be redesigned and a new speed adaptive law needs to be derived.

Selection of linear compensation matrix C

The transfer function matrix is shown in equation (14). A sufficient condition for the transfer function matrix $G (s)$ to be strictly positive real is the existence of a symmetric positive definite matrix $P$ and real matrices $K$ , $L$ , positive real number $λ$ or a symmetric positive definite matrix $Q$ , satisfying⁹:

{\begin{matrix} PA + A^{T} P = - L L^{T} - 2 λ P = - Q \\ B^{T} P + K^{T} L^{T} = C \\ K^{T} K = D + D^{T} \end{matrix}

(15)

From equation (14), it can be seen that the $B$ matrix is equal to the unit matrix, and the $D$ matrix is equal to the zero matrix. Hence, equation (15) can be deduced to:

{\begin{matrix} PA + A^{T} P = - Q \\ P = C \end{matrix}

(16)

Therefore, by choosing the positive definite matrices $P$ and $Q$ , we can obtain a linear compensation matrix $C$ that makes $G (s)$ strictly positive. We assume that $P = [\begin{matrix} a_{11} & a_{12} \\ a_{21} & a_{22} \end{matrix}], Q = [\begin{matrix} b_{11} & b_{12} \\ b_{21} & b_{22} \end{matrix}]$ , where $a_{12} = a_{21}$ , $b_{12} = b_{21}$ . After substituting them into equation (16), we obtain:

\begin{matrix} - Q = PA + A^{T} P = \\ [\begin{matrix} - 2 a_{11} \frac{R_{s}}{L_{d}} - 2 a_{12} ω_{r} \frac{L_{d}}{L_{q}} & a_{11} ω_{r} \frac{L_{q}}{L_{d}} - a_{12} (\frac{R_{s}}{L_{q}} + \frac{R_{s}}{L_{d}}) - a_{22} ω_{r} \frac{L_{d}}{L_{q}} \\ a_{11} ω_{r} \frac{L_{q}}{L_{d}} - a_{21} (\frac{R_{s}}{L_{q}} + \frac{R_{s}}{L_{d}}) - a_{22} ω_{r} \frac{L_{d}}{L_{q}} & - 2 a_{22} \frac{R_{s}}{L_{q}} + 2 a_{12} ω_{r} \frac{L_{q}}{L_{d}} \end{matrix}] \end{matrix}

(17)

We prove the positivity of $Q$ by means of the trace and determinant of the matrix. The following equation needs to be satisfied:

{\begin{matrix} tr (Q) = b_{11} + b_{22} > 0 \\ det (Q) = b_{11} b_{22} - b_{12} b_{21} > 0 \end{matrix}

(18)

To fully consider the influence of the motor parameters $L_{d}$ and $L_{q}$ in speed identification, it is assumed that $P = C = [\begin{matrix} 1 & 0 \\ 0 & \frac{L_{q}^{2}}{L_{d}^{2}} \end{matrix}]$ , that is, $a_{12} = a_{21} = 0, a_{11} = 1, a_{22} = \frac{{L_{q}}^{2}}{{L_{d}}^{2}}$ . Then, equation (17) can be deduced to:

- Q = [\begin{matrix} - 2 * \frac{R_{s}}{L_{d}} & 0 \\ 0 & - 2 * \frac{L_{q}}{{L_{d}}^{2}} * R_{s} \end{matrix}]

(19)

From equation (18), we obtain:

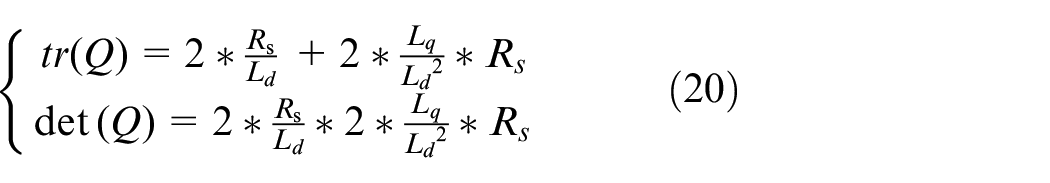

{\begin{matrix} tr (Q) = 2 * \frac{R_{s}}{L_{d}} + 2 * \frac{L_{q}}{{L_{d}}^{2}} * R_{s} \\ det (Q) = 2 * \frac{R_{s}}{L_{d}} * 2 * \frac{L_{q}}{{L_{d}}^{2}} * R_{s} \end{matrix}

(20)

From equation (20), it is clear that $tr (Q)$ is greater than zero, and $det (Q)$ is greater than zero and constant. Therefore, $Q$ is a positive definite matrix.

Thus, the assumption holds and it is desirable to have:

C = P = [\begin{matrix} 1 & 0 \\ 0 & \frac{{L_{q}}^{2}}{{L_{d}}^{2}} \end{matrix}]

(21)

In this manner, it is guaranteed that $G (s)$ is strictly positive real.

Design of adaptive law

After substituting $y = Ce$ and $W = ({\hat{ω}}_{r} - ω_{r}) J {\hat{i}}_{s}^{*}$ into equation (6), we obtain:

η (0, t_{1}) = \int_{0}^{t_{1}} ({\hat{ω}}_{r} - ω_{r}) {(J {\hat{i}}_{s}^{*})}^{T} * Cedt

(22)

The MRAS speed estimation is in the form of a PI and will be expressed at ${\hat{ω}}_{r}$ as:

{\hat{ω}}_{r} = \int_{0}^{t} F_{1} (y, t, τ) d τ + F_{2} (y, t) + {\hat{ω}}_{r} (0)

(23)

where ${\hat{ω}}_{r} (0)$ is the initial value. We substitute equation (23) into equation (22) to obtain:

\begin{matrix} η (0, t_{1}) = \int_{0}^{t_{1}} [\int_{0}^{t} F_{1} (y, t, τ) d τ + {\hat{ω}}_{r} (0) - ω_{r}] \\ {(J {\hat{i}}_{s}^{*})}^{T} Cedt + \int_{0}^{t_{1}} F_{2} (y, t) {(Jy {\hat{i}}_{s}^{*})}^{T} Cedt \\ = η_{1} (0, t_{1}) + η_{2} (0, t_{1}) \end{matrix}

(24)

To make equation (24) valid, it is necessary to prove separately that:

η_{1} (0, t_{1}) \geq - {r_{1}}^{2}

(25)

η_{2} (0, t_{1}) \geq - {r_{2}}^{2}

(26)

For equation (24), we construct a function $f (t)$ satisfying:

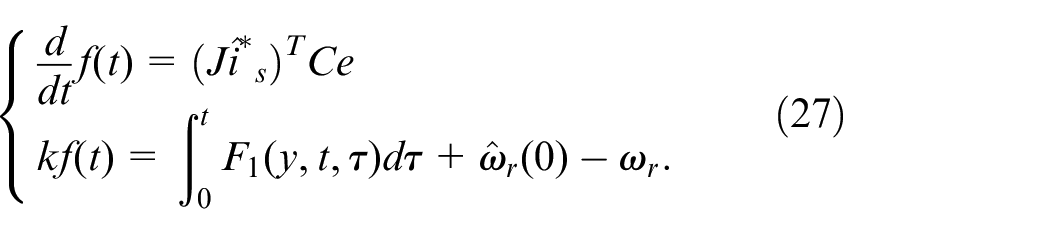

{\begin{matrix} \frac{d}{dt} f (t) = {(J {\hat{i}}^{*}_{s})}^{T} Ce \\ kf (t) = \int_{0}^{t} F_{1} (y, t, τ) d τ + {\hat{ω}}_{r} (0) - ω_{r} \end{matrix}

(27)

where $k > 0$ . After substituting equation (27) into equation (25), we obtain:

\begin{matrix} η_{1} (0, t_{1}) = \int_{0}^{t_{1}} kf (t) \frac{df (t)}{dt} dt = \frac{k}{2} [f^{2} (t_{1}) - f^{2} (0)] \\ \geq - \frac{k}{2} f^{2} (0) \geq - r_{1}^{2} \end{matrix}

(28)

After taking the derivatives of both sides of equation (27), we obtain:

k \frac{d}{dt} f (t) = F_{1} (y, t, τ)

(29)

We substitute equation (27) into equation (29), and we obtain:

F_{1} (y, t, τ) = K_{i} {(J {\hat{i}}_{s}^{*})}^{T} C e (K_{i} > 0)

(30)

For equation (24), the inequality must hold if the product function is positive; thus, we take:

F_{2} (y, t) = K_{p} {(J {\hat{i}}_{s}^{*})}^{T} C e (K_{p} > 0)

(31)

After substituting equation (31) into equation (26), we obtain:

η_{2} (0, t_{1}) = \int_{0}^{t_{1}} K_{p} {(J {\hat{i}}_{s}^{*})}^{T} C e {(J {\hat{i}}_{s}^{*})}^{T} C e d t \geq 0 \geq - r_{2}^{2}

(32)

After substituting equations (30) and (31) into equation (23), we obtain:

{\hat{ω}}_{r} = \int_{0}^{t} K_{i} {(J {\hat{i}}_{s}^{*})}^{T} C e d t + K_{p} {(J {\hat{i}}_{s}^{*})}^{T} C e + {\hat{ω}}_{r} (0)

(33)

where

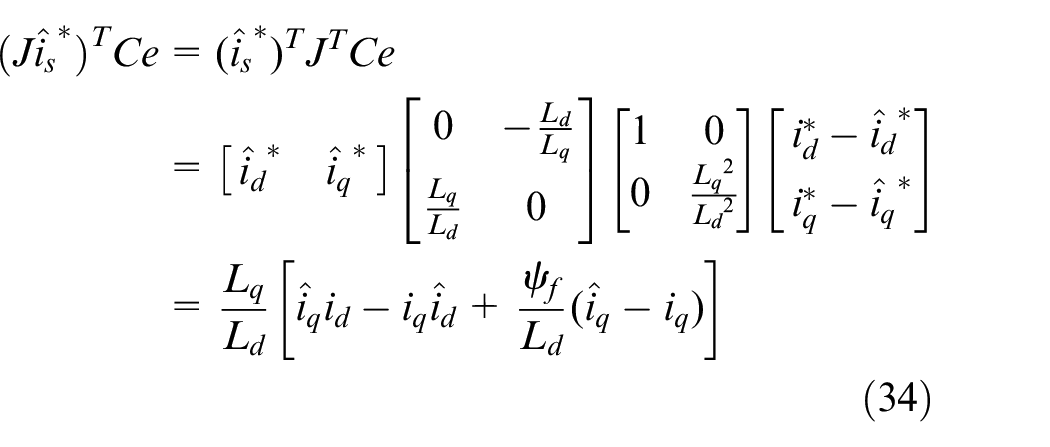

\begin{array}{l} {(J {\hat{i}}_{s}^{*})}^{T} C e = {({\hat{i}}_{s}^{*})}^{T} J^{T} C e \\ = [\begin{matrix} {\hat{i}}_{d}^{*} & {\hat{i}}_{q}^{*} \end{matrix}] [\begin{matrix} 0 & - \frac{L_{d}}{L_{q}} \\ \frac{L_{q}}{L_{d}} & 0 \end{matrix}] [\begin{matrix} 1 & 0 \\ 0 & \frac{{L_{q}}^{2}}{{L_{d}}^{2}} \end{matrix}] [\begin{matrix} i_{d}^{*} - {\hat{i}}_{d}^{*} \\ i_{q}^{*} - {\hat{i}}_{q}^{*} \end{matrix}] \\ = \frac{L_{q}}{L_{d}} [{\hat{i}}_{q} i_{d} - i_{q} {\hat{i}}_{d} + \frac{ψ_{f}}{L_{d}} ({\hat{i}}_{q} - i_{q})] \end{array}

(34)

Thus, the new speed adaptive law is derived as follows:

{\hat{ω}}_{r} = (K_{p} + \frac{K_{i}}{s}) \frac{L_{q}}{L_{d}} [{\hat{i}}_{q} i_{d} - i_{q} {\hat{i}}_{d} + \frac{ψ_{f}}{L_{d}} ({\hat{i}}_{q} - i_{q})] + {\hat{ω}}_{r} (0)

(35)

In summary, the improved MRAS observer is shown in Figure 3

Figure 3.

Improved MRAS observer.

MRAS speed observer with feedback correction term

To further improve the convergence speed of the output error between the reference and adjustable models in the above MRAS, this paper improves its structure by introducing the current error $({\hat{i}}_{s} - i_{s})$ as the error feedback correction link. This is fed back to the reconstructed adjustable model through the gain matrix $Z$ to build a full-order adaptive observer, thereby accelerating the convergence speed of the output error. The block diagram of the improved adaptive observer structure is shown in Figure 4.

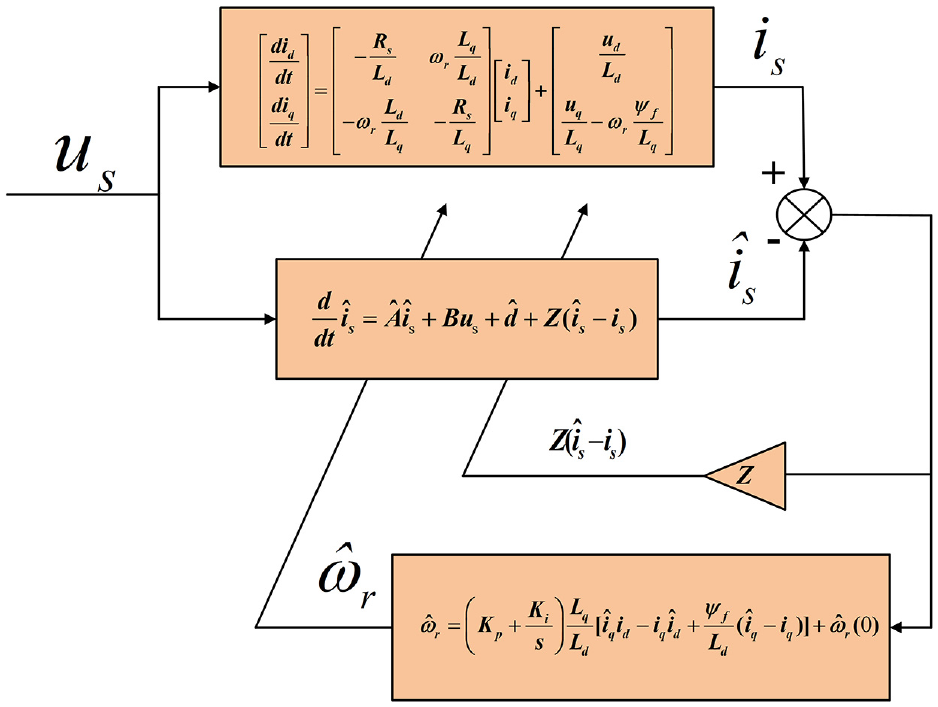

Figure 4.

Block diagram of full-order adaptive observer structure.

First, we take equation (8) again as the reference model, and rewrite it as:

\begin{matrix} [\begin{matrix} \frac{d i_{d}}{dt} \\ \frac{d i_{q}}{dt} \end{matrix}] = [\begin{matrix} - \frac{R_{s}}{L_{d}} & ω_{r} \frac{L_{q}}{L_{d}} \\ - ω_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}] [\begin{matrix} i_{d} \\ i_{q} \end{matrix}] + [\begin{matrix} \frac{1}{L_{d}} & 0 \\ 0 & \frac{1}{L_{q}} \end{matrix}] [\begin{matrix} u_{d} \\ u_{q} \end{matrix}] \\ + [\begin{matrix} 0 \\ - ω_{r} \frac{ψ_{f}}{L_{q}} \end{matrix}] \end{matrix}

(36)

From equation (36), we obtain:

\frac{d}{dt} i_{s} = A i_{s} + B u_{s} + d

(37)

where $A = [\begin{matrix} - \frac{R_{s}}{L_{d}} & ω_{r} \frac{L_{q}}{L_{d}} \\ - ω_{r} \frac{L_{d}}{L_{q}} & - \frac{R_{s}}{L_{q}} \end{matrix}], B = [\begin{matrix} \frac{1}{L_{d}} & 0 \\ 0 & \frac{1}{L_{q}} \end{matrix}], d = [\begin{matrix} 0 \\ - ω_{r} \frac{ψ_{f}}{L_{q}} \end{matrix}],$ $i_{s} = [\begin{matrix} i_{d} \\ i_{q} \end{matrix}], u_{s} = [\begin{matrix} u_{d} \\ u_{q} \end{matrix}]$ .

By replacing the corresponding variables in equation (36) with estimated values and adding the error correction matrix $Z$ , the adjustable model expressed in the form of state observer can be obtained:

\frac{d}{dt} {\hat{i}}_{s} = \hat{A} {\hat{i}}_{s} + B u_{s} + \hat{d} + Z ({\hat{i}}_{s} - i_{s})

(38)

After subtracting equations (37) and (38) we obtain:

\begin{matrix} \frac{d}{dt} [\begin{matrix} e_{d} \\ e_{q} \end{matrix}] = (A + Z) [\begin{matrix} e_{d} \\ e_{q} \end{matrix}] - J (ω_{r} - {\hat{ω}}_{r}) [\begin{matrix} {\hat{i}}_{d} \\ {\hat{i}}_{q} \end{matrix}] \\ - \frac{ψ_{f}}{L_{q}} [\begin{matrix} 0 \\ ω_{r} - {\hat{ω}}_{r} \end{matrix}] \end{matrix}

(39)

where $J = [\begin{matrix} 0 & \frac{L_{q}}{L_{d}} \\ - \frac{L_{d}}{L_{q}} & 0 \end{matrix}], [\begin{matrix} e_{d} \\ e_{q} \end{matrix}] = [\begin{matrix} i_{d} - {\hat{i}}_{d} \\ i_{q} - {\hat{i}}_{q} \end{matrix}]$ .

To meet the observer stability requirements, the feedback correction gain matrix $Z$ can be chosen to combine it with the pole configuration principle as³⁰:

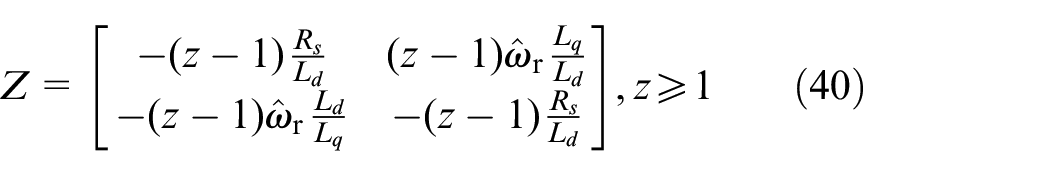

Z = [\begin{matrix} - (z - 1) \frac{R_{s}}{L_{d}} & (z - 1) {\hat{ω}}_{r} \frac{L_{q}}{L_{d}} \\ - (z - 1) {\hat{ω}}_{r} \frac{L_{d}}{L_{q}} & - (z - 1) \frac{R_{s}}{L_{d}} \end{matrix}], z \geq 1

(40)

where $z$ is a constant greater than or equal to 1. In this case, we obtain:

A + Z = [\begin{matrix} - z \frac{R_{s}}{L_{d}} & z ω_{r} \frac{L_{q}}{L_{d}} \\ - z ω_{r} \frac{L_{d}}{L_{q}} & - z \frac{R_{s}}{L_{q}} \end{matrix}]

(41)

From equation (41), it can be seen that the main diagonal elements of the matrix are all negative, satisfying the stability requirement. Further, after comparing equations (12) and (39) in the matrices $A$ and $(A + Z)$ , it can be seen that the adaptive observer used in this paper speeds up the convergence of the error between the reference and adjustable model outputs due to the inclusion of the feedback correction term, which forms a closed-loop state estimate. To avoid introducing too much noise, which in turn affects the smooth operation of the system, $z$ should not be chosen to have a very large value. Afterwards, the speed adaptive law based on the full-order adaptive observer is derived based on the Popov super stability theory described previously and has the same expression as equation (35):

{\hat{ω}}_{r} = (K_{p} + \frac{K_{i}}{s}) \frac{L_{q}}{L_{d}} [{\hat{i}}_{q} i_{d} - i_{q} {\hat{i}}_{d} + \frac{ψ_{f}}{L_{d}} ({\hat{i}}_{q} - i_{q})] + {\hat{ω}}_{r} (0)

(42)

Design of full-order adaptive observer based on novel fast super-twisting algorithm (NFSTA-AO)

Principle of second order sliding mode

Sliding mode control is simple in terms of structure and insensitive to external perturbations and changes in the system’s parameters, thus providing strong robustness.³¹ The second order sliding mode not only retains the advantages of the traditional sliding mode, but also makes the trajectory of the uncertain control variable on the sliding mode surface approach the origin, and can be effectively controlled in a limited range, so as to weaken the chattering of the system. For a dynamic non-linear system,^13,32 we have:

{\begin{matrix} \frac{d}{dt} x = f (x) + g (x) u \\ y = s (x, t) \end{matrix}

(43)

where $x \in χ \subset R^{n}$ is the state variable, and $u \in U \subset R$ is the input to the control function such that $χ = {x \in R^{n} | | x_{i} | < x_{i max}, 1 < i < n}$ , and $U = {u \in R | | u | \leq u_{i max}}$ . $f (x)$ and $g (x)$ are the uncertain smooth functions, and $s (x, t)$ is the output function, that is, the slip modulus.

The first and second order derivatives of the sliding mode variables are as follows³²:

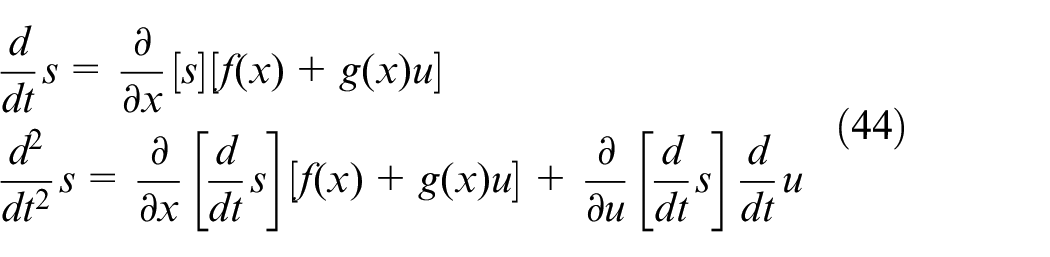

\begin{matrix} \frac{d}{dt} s = \frac{\partial}{\partial x} [s] [f (x) + g (x) u] \\ \frac{d^{2}}{d t^{2}} s = \frac{\partial}{\partial x} [\frac{d}{dt} s] [f (x) + g (x) u] + \frac{\partial}{\partial u} [\frac{d}{dt} s] \frac{d}{dt} u \end{matrix}

(44)

Definition 1: We know that $s (x, t)$ has a ‘second order slip mode manifold’ of the form³²:

\sum^{2} = {x \in χ | s (x, t) = \frac{d}{dt} s (x, t) = 0}

(45)

Definition 2: If equation (45) is locally producible in the Filippov sense, it consists mainly of discontinuous dynamical system Filippov trajectories satisfying equations (43) and (44), and it is defined as a ‘second order sliding mode’ of $s (x, t)$ . This means that if there is a trajectory of equation (43) in the intersection of $s (x, t) = 0$ and $\frac{d}{dt} s (x, t) = 0$ , it can then be called the second-order sliding mode of $s (x, t)$ .

To ensure the rigour of the theory, the following conditions apply³²:

(1) If $u$ is continuous and bounded, the system has a solution for all $t$ only if $u (t) \in U$ and it is continuous.

(2) $u_{1} \in (0, 1)$ exists and for any continuous function $u (t) (u (t) > u_{1})$ , $t_{1}$ exists such that $\forall t > t_{1}$ and $s (t) u (t) > 0$ . Thus, $u (t) = - sign (s (t_{0}))$ can reach the sliding manifold in finite time and $t_{0}$ denotes the initial time.

(3) The normal number $s_{0}, u_{0} < 1, Γ_{m}, Γ_{M}$ , if $| s (t, x) | < s_{0}$ , then:

0 < Γ_{m} \leq \frac{\partial}{\partial u} \frac{d}{d t} s (t, x, u) \leq Γ_{M}, \forall u \in U, x \in χ

(46)

And $\frac{ds}{dt} u > 0$ guarantees $| u | > u_{0}$ .

(4) There are positive constants $Φ$ within $| s (t, x) | < s_{0}$ , and for $\forall t, x \in χ, u \in U$ , the following inequality holds:

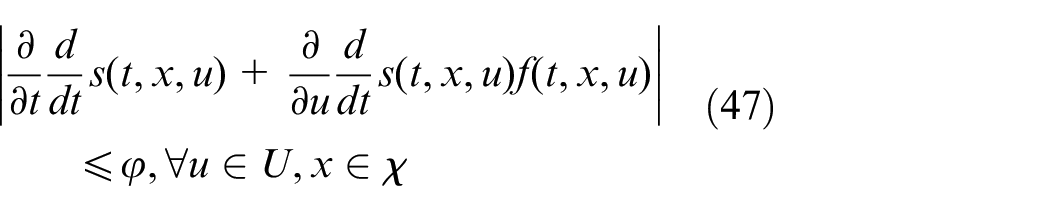

\begin{matrix} | \frac{\partial}{\partial t} \frac{d}{dt} s (t, x, u) + \frac{\partial}{\partial u} \frac{d}{dt} s (t, x, u) f (t, x, u) | \\ \leq φ, \forall u \in U, x \in χ \end{matrix}

(47)

Super-twisting algorithm (STA)

The super-twisting algorithm (STA) is a second-order sliding mode designed to eliminate jitter in a sliding mode system. It consists of a continuous function and a discontinuous differential with respect to the sliding mode variables, with the continuous function acting at the state arrival stage of the system. It does not require information on the derivatives of the sliding mode variables, avoiding the risk of introducing noise and disturbances and the control law is simpler to design. Its basic form is^22,33:

{\begin{matrix} u = \frac{d}{dt} s = - k_{1} {| s |}^{0.5} sign (s) + v \\ \frac{d}{dt} v = - k_{2} sign (s) \end{matrix}

(48)

A sufficient condition for finite time convergence is¹⁴:

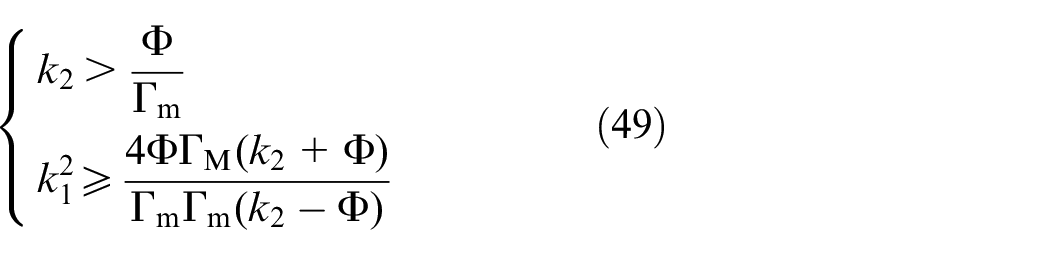

{\begin{matrix} k_{2} > \frac{Φ}{Γ_{m}} \\ k_{1}^{2} \geq \frac{4 Φ Γ_{M} (k_{2} + Φ)}{Γ_{m} Γ_{m} (k_{2} - Φ)} \end{matrix}

(49)

where $k_{1}$ and $k_{2}$ are sliding mode gains; $sign$ is the sign function, and $Φ$ , $Γ_{m}$ and $Γ_{M}$ are all positive constants. The symbolic function $sign$ is a discontinuous function, which leads to chattering problem in sliding mode control. However, it can be seen from equation (48) that STA alleviates the chattering problem of traditional sliding mode to a certain extent because a continuous term is added before $sign$ , and $sign$ is added to the higher-order derivative.

Design of NFSTA-AO

The adaptive mechanism in equation (42) is derived in the form of PI. When the motor parameters fluctuate, the accuracy of speed estimation will change, and the robustness is not strong. Therefore, it is necessary to replace the adaptive law in the substitution formula (42) with the STA approach law to construct a new speed observer. However, at low speeds, chattering will be more obvious with the STA observer. Thus, a novel super-twisting algorithm (STA) is needed to better suppress chattering.

Firstly, the FSTA can be constructed by adding a proportional sliding mode term to equation (48), which can effectively improve the convergence rate of the system; its expression is:

u = k_{1} | s |^{0.5} sign (s) + \int k_{2} sign (s) dt + k_{3} s

(50)

where $k_{1}, k_{2}, k_{3}$ are the constant gains of the controller. Usually, the jitter problem in the sliding mode is caused to a large extent by non-continuous sign functions. However, from equation (50), FSTA adds a continuous term before the symbolic function and places the symbolic function into the higher order derivatives (i.e. $k_{1}$ and $k_{2}$ ) to ensure that the system is stable in finite time, largely alleviate the jitter problems associated with conventional sliding modes and resist the effects of uncertainty. $k_{3}$ is used to increase the convergence rate of the system.

To better suppress the jitter of FSTA in the wide speed domain, reduce the tracking error, accelerate the convergence speed and enhance the dynamic following performance, the inverse hyperbolic sine function of the system state quantity $n_{1} = n_{ref} - n_{r}$ ( $n_{ref}$ is the given speed and $n_{r}$ is the estimated speed) is introduced so that the convergence speed and degree of jitter are related to the system state $| n_{1} |$ in a modified form as follows:

{\begin{matrix} u = \frac{d}{dt} s = - k_{1} {| s |}^{\frac{1}{2}} sign (s) - k_{3} s + v \\ \frac{d}{dt} v = - \arcsin h (b | n_{1} |) * k_{2} sign (s) b > 0 \end{matrix}

(51)

where $\arcsin h (b | n_{1} |)$ is the inverse hyperbolic sine function. It has the property of quickly eliminating the high frequency tremor of velocity. At medium and high speeds, in the approaching motion stage, the speed error is relatively large; this makes the inverse hyperbolic sine function value relatively large, which increases the time constant of the integral term and makes the sliding mode surface approach rapidly. When the system state is close to 0, the exponential reaching law quickly approaches 0, and the inverse hyperbolic sine function also approaches 0 quickly (the more $| n_{1} |$ approaches 0, the faster its value decreases and the narrower the system switching band will be). However, since $k_{2}$ is a large value, the integral term still plays a role, which can better suppress system chattering. At low speed, the error between rotational speeds is small, and the inverse hyperbolic sine function can make the integral coefficient not too large and reduce chattering. Therefore, the improved FSTA can improve the convergence rate of the system and suppress chattering better when approaching the sliding mode surface.

We choose the sliding surface $s = s (e)$ , when the system reaches the sliding surface $s (e) = 0$ . The principle for selecting the switching surface is described as follows: when the system slips $\frac{d}{dt} s (e) = 0$ , the sliding motion is asymptotically stable and has good dynamic properties. By combining equation (42) of the new adaptive law, we construct the sliding mode surface as follows:

s = s (e) = \frac{L_{q}}{L_{d}} [{\hat{i}}_{q} i_{d} - i_{q} {\hat{i}}_{d} + \frac{ψ_{f}}{L_{d}} ({\hat{i}}_{q} - i_{q})]

(52)

From equation (52), the derivation yields:

\begin{matrix} u = \frac{d}{dt} s = (ω_{r} - {\hat{ω}}_{r}) \frac{L_{d}}{L_{q}} \\ [\frac{L_{d}}{L_{q}} i_{d} {\hat{i}}_{d} + \frac{L_{q}}{L_{d}} i_{q} {\hat{i}}_{q} + \frac{ψ_{f}}{L_{q}} {\hat{i}}_{d} + \frac{ψ_{f}}{L_{d}} i_{d} + \frac{ψ_{f}^{2}}{L_{d} L_{q}}] + \\ \frac{L_{d}}{L_{q}} [- \frac{2 R_{s}}{L_{q}} i_{d} {\hat{i}}_{q} + \frac{2 R_{s}}{L_{q}} {\hat{i}}_{d} i_{q} + \frac{u_{q}}{L_{q}} (i_{d} - {\hat{i}}_{d}) \\ + (\frac{R_{s} ψ_{f}}{L_{d} L_{q}} - \frac{u_{d}}{L_{d}}) (i_{q} - {\hat{i}}_{q})] \end{matrix}

(53)

We obtain ${\begin{cases} f_{1} = \frac{L_{d}}{L_{q}} i_{d} {\hat{i}}_{d} + \frac{L_{q}}{L_{d}} i_{q} {\hat{i}}_{q} + \frac{ψ_{f}}{L_{q}} {\hat{i}}_{d} + \frac{ψ_{f}}{L_{d}} i_{d} + \frac{ψ_{f}^{2}}{L_{d} L_{q}} \\ f_{2} = - \frac{2 R_{s}}{L_{q}} i_{d} {\hat{i}}_{q} + \frac{2 R_{s}}{L_{q}} {\hat{i}}_{d} i_{q} + \frac{u_{q}}{L_{q}} (i_{d} - {\hat{i}}_{d}) + (\frac{R_{s} ψ_{f}}{L_{d} L_{q}} - \frac{u_{d}}{L_{d}}) (i_{q} - {\hat{i}}_{q}) \end{cases}$ .

According to the basic idea of sliding mode variable structure control, when the system enters the sliding mode (i.e. it enters the sliding mode surface), then $s = \overset{\cdot}{s} = 0$ ; the equivalent velocity expression can be derived as follows:

{\hat{ω}}_{r} = ω_{r} + \frac{f_{2}}{f_{1}}

(54)

From equation (54), it can be seen that the equivalent velocity converges to the actual true velocity when the estimated current converges to the reference current, that is, when ${\hat{i}}_{s} = i_{s}$ and ${\hat{ω}}_{r} = ω_{r}$ .

Based on the obtained switching function and equivalent speed, the speed observer is designed, where the above switching control law is used and the speed estimation expression is:

\begin{matrix} {\hat{ω}}_{r} = u (s) = k_{1} | s |^{0.5} sign (s) + \int \arcsin h (b | n_{1} |) \\ * k_{2} sign (s) dt + k_{3} s \end{matrix}

(55)

The use of a symbolic switching function ( $sign$ ) introduces jitter and instability into the system. To enhance the stability of the system, a hyperbolic tangent function $Sigmoid$ is used instead of the symbolic switching function (i.e. $\begin{matrix} H (s) = \frac{2}{1 + e^{- α s}} - 1 & α > 0 \end{matrix}$ ); this reduces the jitter and phase delay link in the system, that is,

\begin{matrix} {\hat{ω}}_{r} = u (s) = k_{1} | s |^{0.5} sign (s) + \int \arcsin h (b | n_{1} |) \\ * k_{2} H (s) dt + k_{3} s . \end{matrix}

Stability proof of the NFSTA

For the system shown in equation (51), we select the $Lyapunov$ function expressed as:

V (u, v) = ξ^{T} Q ξ

(56)

where $ξ^{T} = [\begin{matrix} ξ_{1} & ξ_{2} & ξ_{3} \end{matrix}] = [\begin{matrix} {| u |}^{0.5} sign (u) & u & v \end{matrix}]$ , and $Q$ are real symmetric positive definite matrices.

We take $Q = \frac{1}{2} [\begin{matrix} 4 b_{2} + k_{1}^{2} & k_{1} k_{3} & - k_{1} \\ k_{1} k_{3} & k_{3}^{2} & - k_{3} \\ - k_{1} & - k_{3} & 2 \end{matrix}]$ , where $b_{2} = \arcsin h (b | n_{1} |) k_{2}$ . Then, $V (u, v)$ is a positive definite matrix. We take the derivative of equation (56) and substitute in equation (51):

\begin{matrix} \frac{d}{dt} V (u, v) = - k_{1} (b_{2} + \frac{1}{2} k_{1}^{2}) {| u |}^{0.5} - k_{3} (b_{2} + 2 k_{1}^{2}) | u | \\ - (\frac{1}{2} k_{1} {| u |}^{- 0.5} + k_{3}) v^{2} + 3 k_{1} k_{3} {| u |}^{0.5} sign (u) v \\ + k_{1}^{2} {| u |}^{0} sign (u) v - k_{3}^{3} u^{2} - k_{1} (\frac{5}{2} k_{3}^{2}) u^{1.5} + 2 k_{3}^{2} uv \end{matrix}

(57)

After transforming equation (57), the deformation yields:

\frac{d}{dt} V (u, v) = - | u | \frac{- 1}{2} ξ^{T} Q_{1} ξ - ξ^{T} Q_{2} ξ

(58)

where $Q_{1} = \frac{k_{1}}{2} [\begin{matrix} 2 b_{2} + k_{1}^{2} & 0 & - k_{1} \\ 0 & 5 k_{3}^{2} & - 3 k_{3} \\ - k_{1} & - 5 k_{3} & 1 \end{matrix}]$ , $Q_{2} = k_{3} [\begin{matrix} b_{2} + 2 k_{1}^{2} & 0 & 0 \\ 0 & k_{3}^{2} & - k_{3} \\ 0 & - k_{3} & 1 \end{matrix}]$ .

The parameters should meet the following conditions:

0 > (8 b_{2} + 9 k_{1}^{2}) k_{3}^{2} = (8 \arcsin h (b | n_{1} |) k_{2} + 9 k_{1}^{2}) k_{3}^{2}

(59)

$Q_{1}$ and $Q_{2}$ are both positive definite matrices and are substituted into equation (58); thus, we obtain $\frac{d}{dt} V (u, v)$ as a negative definite matrix expressed as:

\frac{d}{dt} V (u, v) \leq - {| u |}^{- 0.5} λ_{min} {Q_{1}} ‖ ξ ‖^{2} - λ_{min} {Q_{2}} ‖ ξ ‖^{2}

(60)

where $λ_{min} {Q_{1}}$ and $λ_{min} {Q_{2}} ‖ ξ ‖^{2}$ are the minimum eigenvalues for $Q_{1}$ and $Q_{2}$ , respectively.

According to the stability theory of $Lyapunov$ , $\frac{d}{dt} V (u, v)$ is a negative definite matrix, the representation equation (51) is asymptotically stable, and the NFSTA can converge on the sliding mode surface in finite time.

Results and discussion

To verify the performance of the NFSTA-AO proposed in this paper, the IPMSM sensorless speed control system was built on the Matlab/Simulink platform; the overall block diagram of the system is shown in Figure 5. The various parameters of the motor are shown in Table 1. (nref is the given speed, nr is the estimated MRAS speed and nw is the response speed).

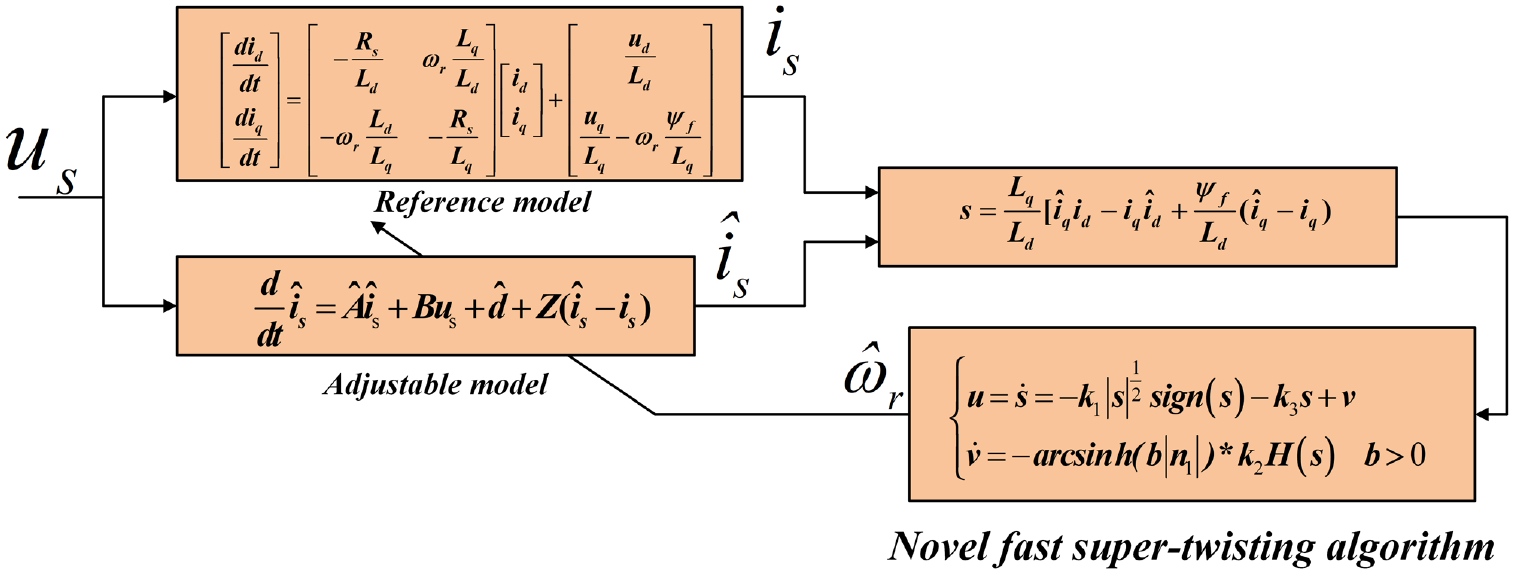

Figure 5.

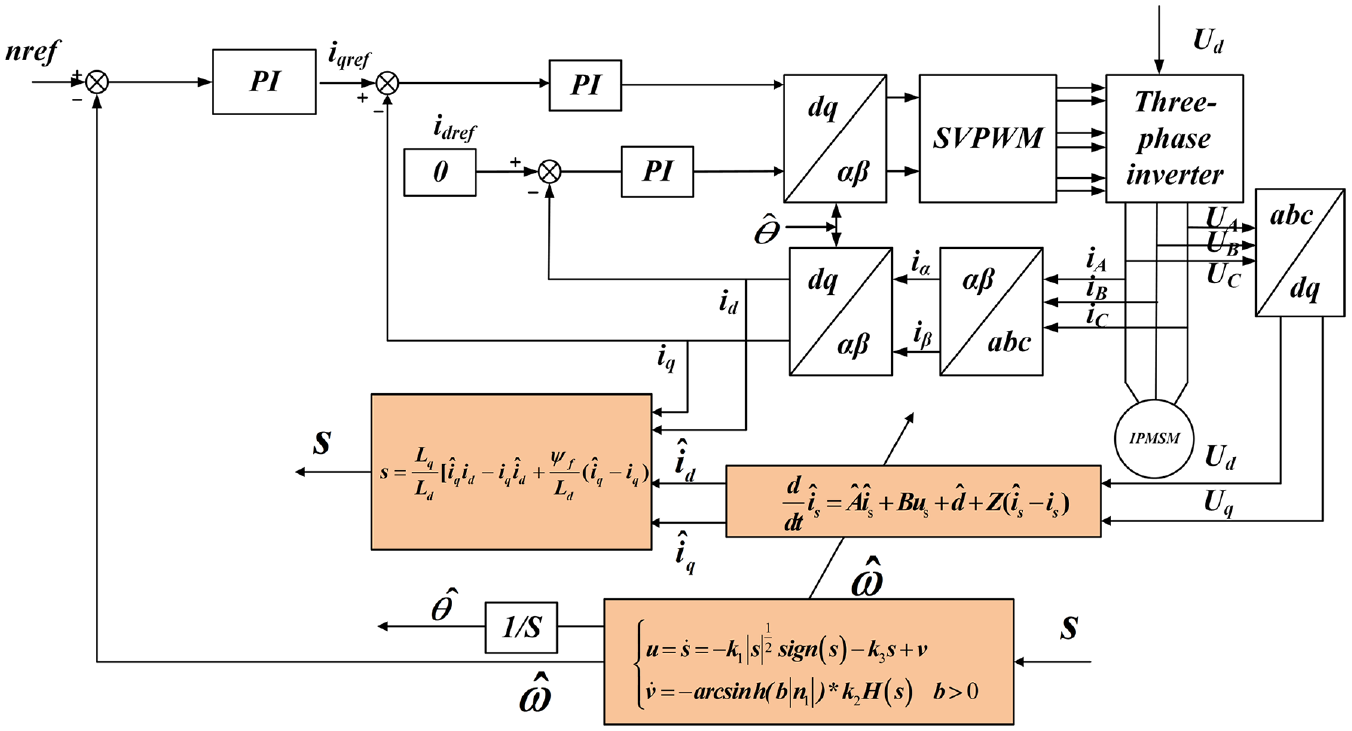

Block diagram of NFSTA-AO structure.

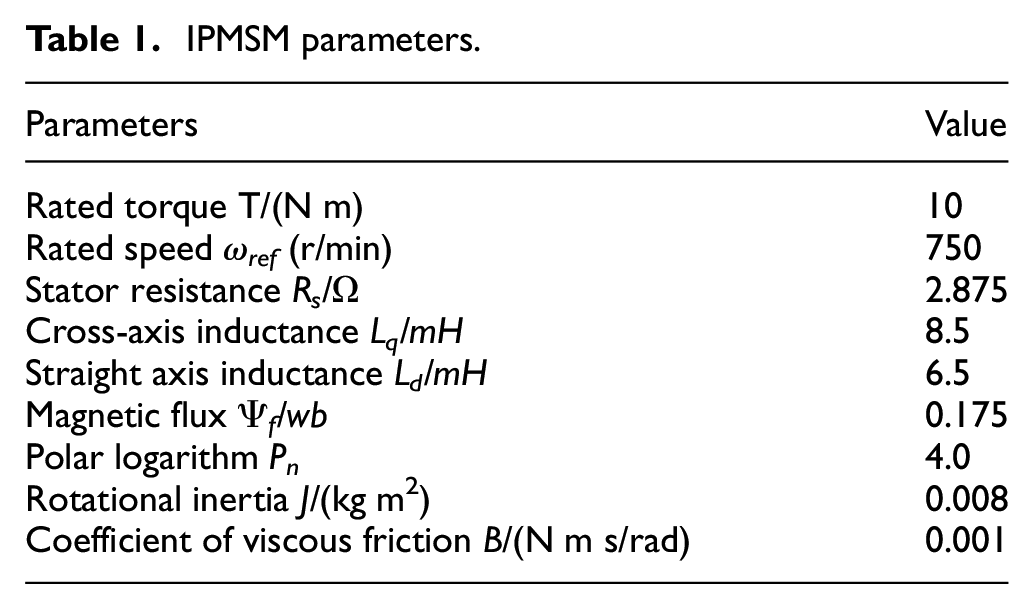

Table 1.

IPMSM parameters.

Parameters	Value
Rated torque T/(N m)	10
Rated speed ω_ref (r/min)	750
Stator resistance R_s/Ω	2.875
Cross-axis inductance L_q/mH	8.5
Straight axis inductance L_d/mH	6.5
Magnetic flux Ψ_f/wb	0.175
Polar logarithm P_n	4.0
Rotational inertia J/(kg m²)	0.008
Coefficient of viscous friction B/(N m s/rad)	0.001

Test of system dynamic following

To verify the improvement of the NFSTA-AO estimation strategy proposed in this paper in terms of system dynamic following, the speed error of NFSTA-AO was compared with that of the model reference adaptive system observer based on super-twisting algorithm (STA-AO),³⁴ model reference adaptive system observer based on sliding mode (SM-MRAS)³⁵ and conventional MRAS.¹¹ Figures 6 and 7 show the error between the estimated speed and motor response speed for the four speed estimation strategies for different bandwidths of the given sinusoidal speed. There are two scenarios for the given sinusoidal speed described as follows: (i) the peak is 300 r/min, the trough is 200 r/min and the frequency is 5 Hz and (ii) the peak is 100 r/min, the trough is −100 r/min and the frequency is 15 Hz.

Figure 6.

IPMSM speed control system without speed control.

Figure 7.

Error between estimated and actual speeds in the first sine case.

When the sinusoidal speed is given as the first case, the performance comparison is shown in Figure 8, and the performance is shown in Table 2. The STA-AO estimation strategy has a tracking error between −0.15 and 0.15 r/min, and the tracking error converges to zero after approximately 0.03 s. However, the estimated and response speeds are not stable under the influence of the given sinusoidal signal, and the dynamic following is poor. In contrast, the tracking error of the NFSTA-AO estimation strategy proposed in this paper is between −0.047 and 0.047 r/min, and the jitter of the estimated speed is well suppressed; it only takes 0.01 s for the estimated speed to basically follow the response speed strictly, and the dynamic following is very good.

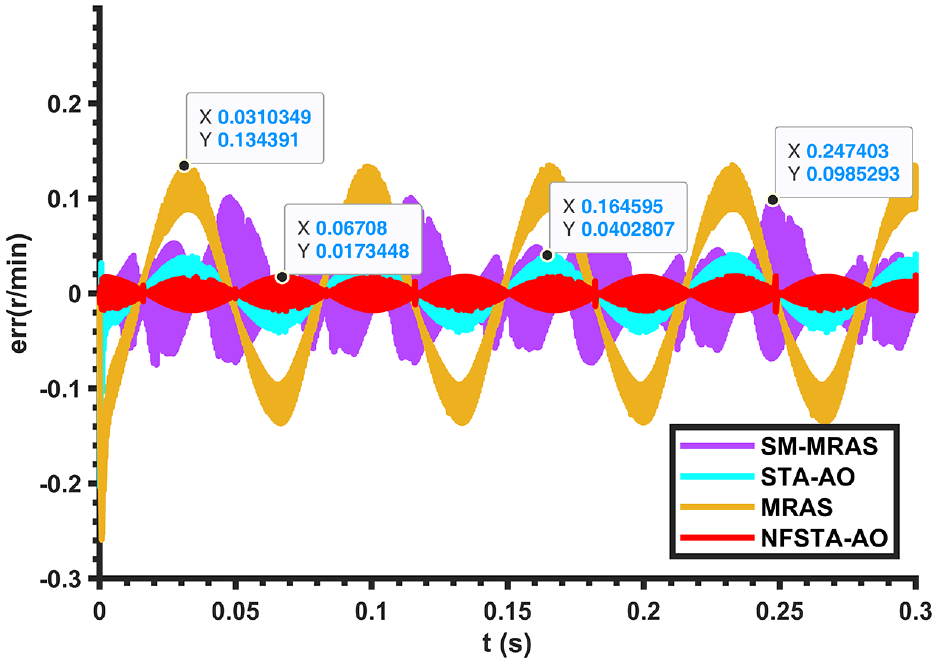

Figure 8.

Error between estimated and actual speeds in the second sine case.

Table 2.

Performance comparison at a peak of 300 r/min, a trough of 200 r/min and a frequency of 5 Hz.

Estimation strategy	Tracking error (r/min)	Adjustment time (s)	Chatter
NFSTA-AO	−0.047 to 0.047	0.01	Basically no
MRAS	−0.9 to 0.3	0.05	None
SM-MRAS	−0.6 to 0.6	0.06	Serious
STA-AO	−0.15 to 0.15	0.06	Yes

When the given sinusoidal speed is the second case, as shown in Figure 5, the performance comparison is shown in Table 3. The tracking error under the MRAS estimation strategy ranges from −0.28 to 0.135 r/min; it is larger at the moment of motor start, and after approximately 0.025 s, it is around 0. However, the tracking error fluctuates more and the dynamic following is poor. The tracking error under the SM-MRAS estimation strategy is between −0.099 and 0.099 r/min, and the jitter in the estimated speed is relatively large. The tracking error under the STA-AO estimation strategy is between −0.041 and 0.041 r/min, and although some of the jitter is suppressed, the tracking error fluctuates. In contrast, the tracking error of the NFSTA-AO estimation strategy proposed in this paper is in the range of −0.017 to 0.017 r/min, and the jitter of the estimated speed is well suppressed; the estimated speed can basically follow the response speed strictly at the start-up, and the dynamic following is very good.

Table 3.

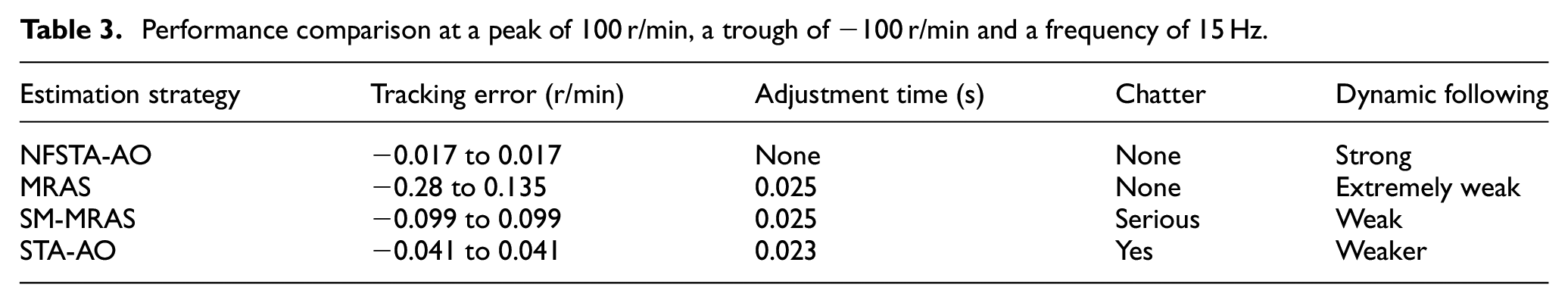

Performance comparison at a peak of 100 r/min, a trough of −100 r/min and a frequency of 15 Hz.

Estimation strategy	Tracking error (r/min)	Adjustment time (s)	Chatter	Dynamic following
NFSTA-AO	−0.017 to 0.017	None	None	Strong
MRAS	−0.28 to 0.135	0.025	None	Extremely weak
SM-MRAS	−0.099 to 0.099	0.025	Serious	Weak
STA-AO	−0.041 to 0.041	0.023	Yes	Weaker

It can be verified that the NFSTA-AO estimation strategy has strong dynamic following and can estimate the response speed faster and more accurately; this can effectively improve the response bandwidth of the system speed loop.

Test of system immunity

To verify the advantages of the NFSTA-AO estimation strategy in terms of resistance to external load disturbances, the speed error of NFSTA-AO was compared with that of STA-AO, SM-MRAS and MRAS through sudden load addition and removal at rated speed.

Figure 9 shows a comparison of the speed tracking error for four speed estimation strategies at rated speed with a sudden load of 15 N m at 0.1 s. The performance comparison is shown in Table 4. The estimated speed under the MRAS estimation strategy tracked up to the response speed after 0.05 s. The tracking error was 0.7 r/min at the instant of sudden load application and tracked up to the response speed after 0.0055 s. The jitter of the estimated speed under the SM-MRAS estimation strategy was obvious, with tracking errors of −1 to 1 r/min, and the speed error did not change much at the instant of sudden load application. The STA-AO estimation strategy has an estimated speed of 0.004 s to track the upper response speed; its tracking error is 1 r/min at the moment of sudden load application, and the estimated speed tracks the upper response speed after 0.004 s. In contrast, the NFSTA-AO estimation strategy has a tracking error of ±0.05 r/min, and the tracking error is essentially zero after 0.03 s; its speed tracking error is 0.3 r/min at the moment of sudden load application, but the instantaneous estimated speed follows the response speed strictly.

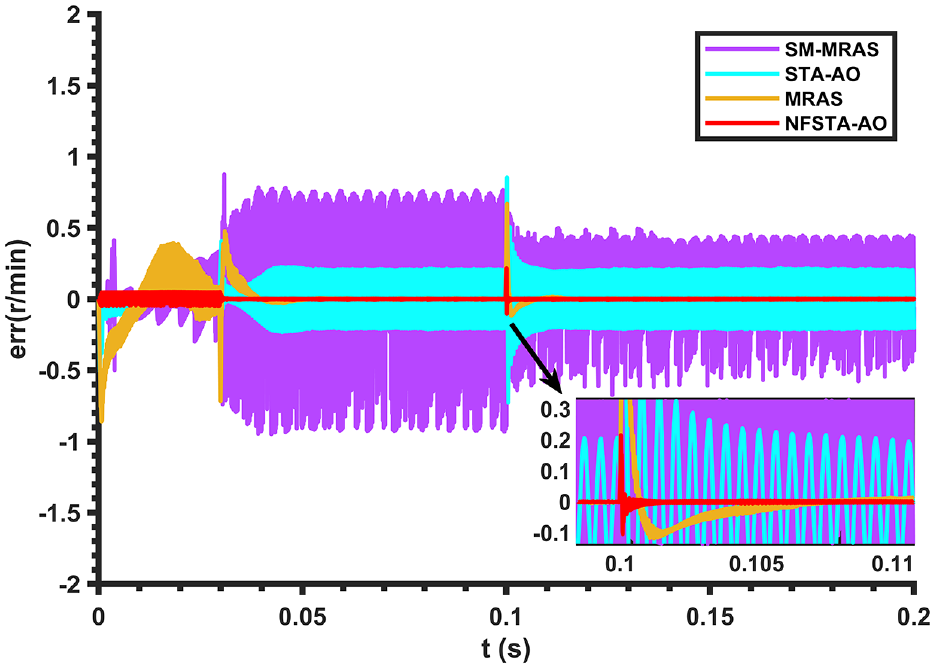

Figure 9.

Error between estimated and actual speeds when a sudden load is applied.

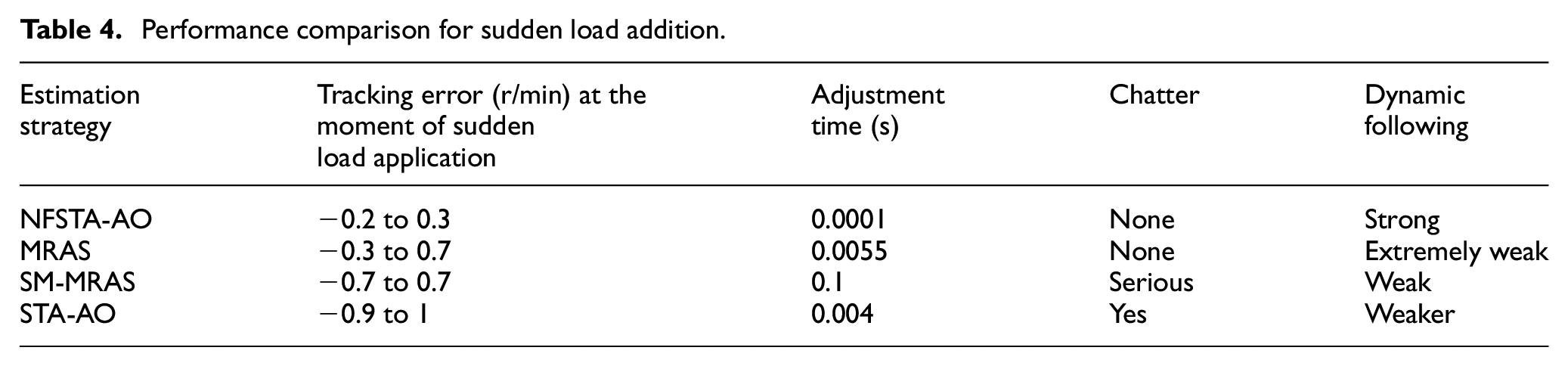

Table 4.

Performance comparison for sudden load addition.

Estimationstrategy	Tracking error (r/min) at themoment of suddenload application	Adjustmenttime (s)	Chatter	Dynamicfollowing
NFSTA-AO	−0.2 to 0.3	0.0001	None	Strong
MRAS	−0.3 to 0.7	0.0055	None	Extremely weak
SM-MRAS	−0.7 to 0.7	0.1	Serious	Weak
STA-AO	−0.9 to 1	0.004	Yes	Weaker

Figure 10 shows a comparison of the speed tracking error for the four speed estimation strategies when running with a load of 15 N m at rated speed and a sudden unloading of 5 N m at 0.2 s. The performance comparison is shown in Table 5. Under the MRAS estimation strategy, the tracking error is 0.5 r/min at the moment of sudden unloading, and the speed is estimated to track up to the corresponding speed after 0.003 s. In the STA-AO estimation strategy, the tracking error is 0.6 r/min at the moment of sudden unloading, and the speed is estimated to track the corresponding speed after 0.004 s. For the NFSTA-AO estimation strategy, the tracking error is 0.2 r/min at the moment of sudden unloading, and the speed is estimated to track the corresponding speed after 0.001 s.

Figure 10.

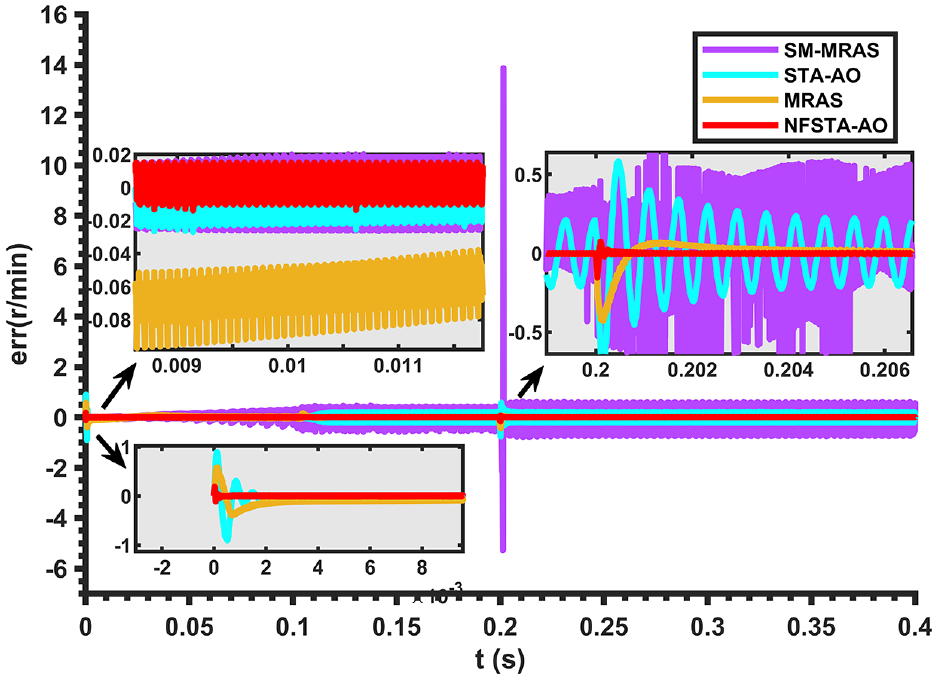

Error between estimated and actual speeds when suddenly unloading a load.

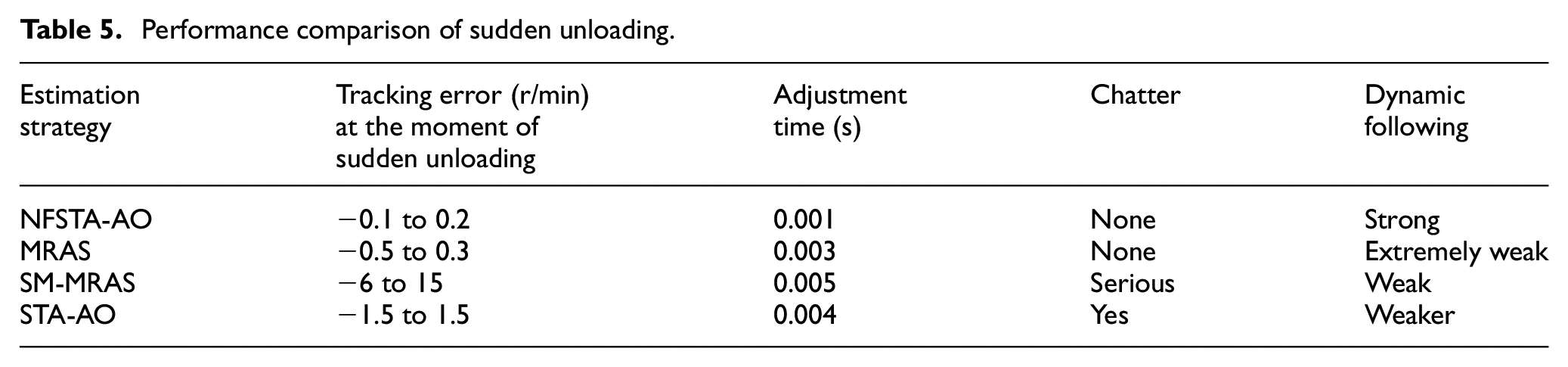

Table 5.

Performance comparison of sudden unloading.

Estimation strategy	Tracking error (r/min)at the moment ofsudden unloading	Adjustmenttime (s)	Chatter	Dynamicfollowing
NFSTA-AO	−0.1 to 0.2	0.001	None	Strong
MRAS	−0.5 to 0.3	0.003	None	Extremely weak
SM-MRAS	−6 to 15	0.005	Serious	Weak
STA-AO	−1.5 to 1.5	0.004	Yes	Weaker

It can be verified that the NFSTA-AO estimation strategy is highly immune to disturbances, allowing the speed estimates to converge to the corresponding actual values more quickly and with less fluctuation in the estimation error. Moreover, the steady-state recovery time of the tracking error is significantly reduced compared to the other three control strategies.

Test of system robustness

To further verify that the NFSTA-AO estimation strategy has better robustness, the performance of the four estimation strategies is simulated and compared when the IPMSM parameters are regenerated, as shown in Figures 11 to 14. The performance comparisons are shown in Tables 6 and 7. A total of three sets of simulations were carried out to simulate the motor parameter ingress. In the first set of tests, the stator resistance value Rs of the IPMSM was set to 1.2 times the original value for operation at rated speed, taking into account the effect of temperature variations on the stator resistance value. In test group 2, the Rs of the IPMSM was set to 0.8 times the original value for operation at rated speed. To further validate the robustness of the STA-AO based estimation strategy proposed in this paper, the d and q axis inductances of the IPMSM were changed to 0.8 times the original value for the third comparison test at rated speed.

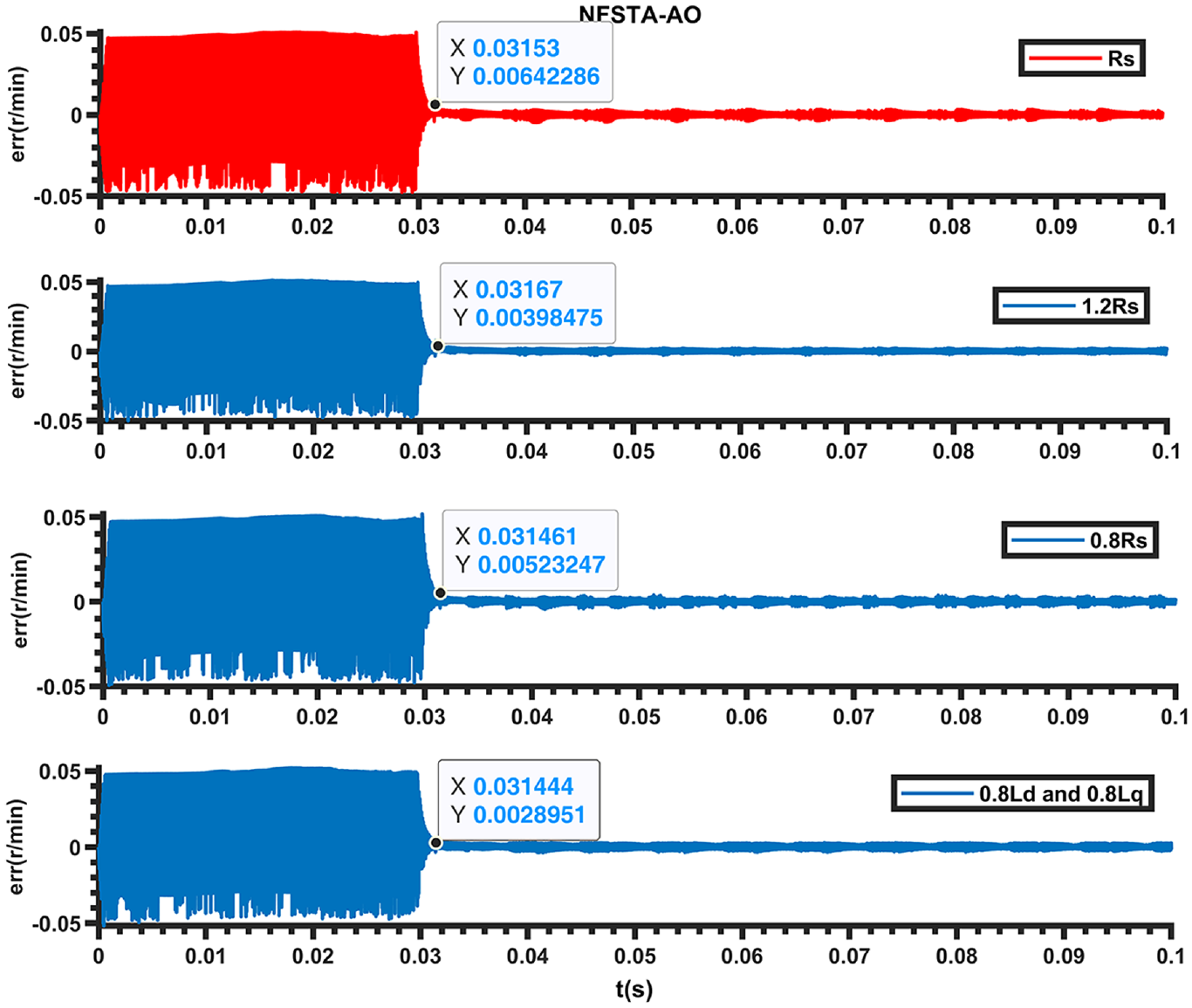

Figure 11.

NFSTA-AO error comparison between estimated and actual speeds for parameter ingress.

Figure 12.

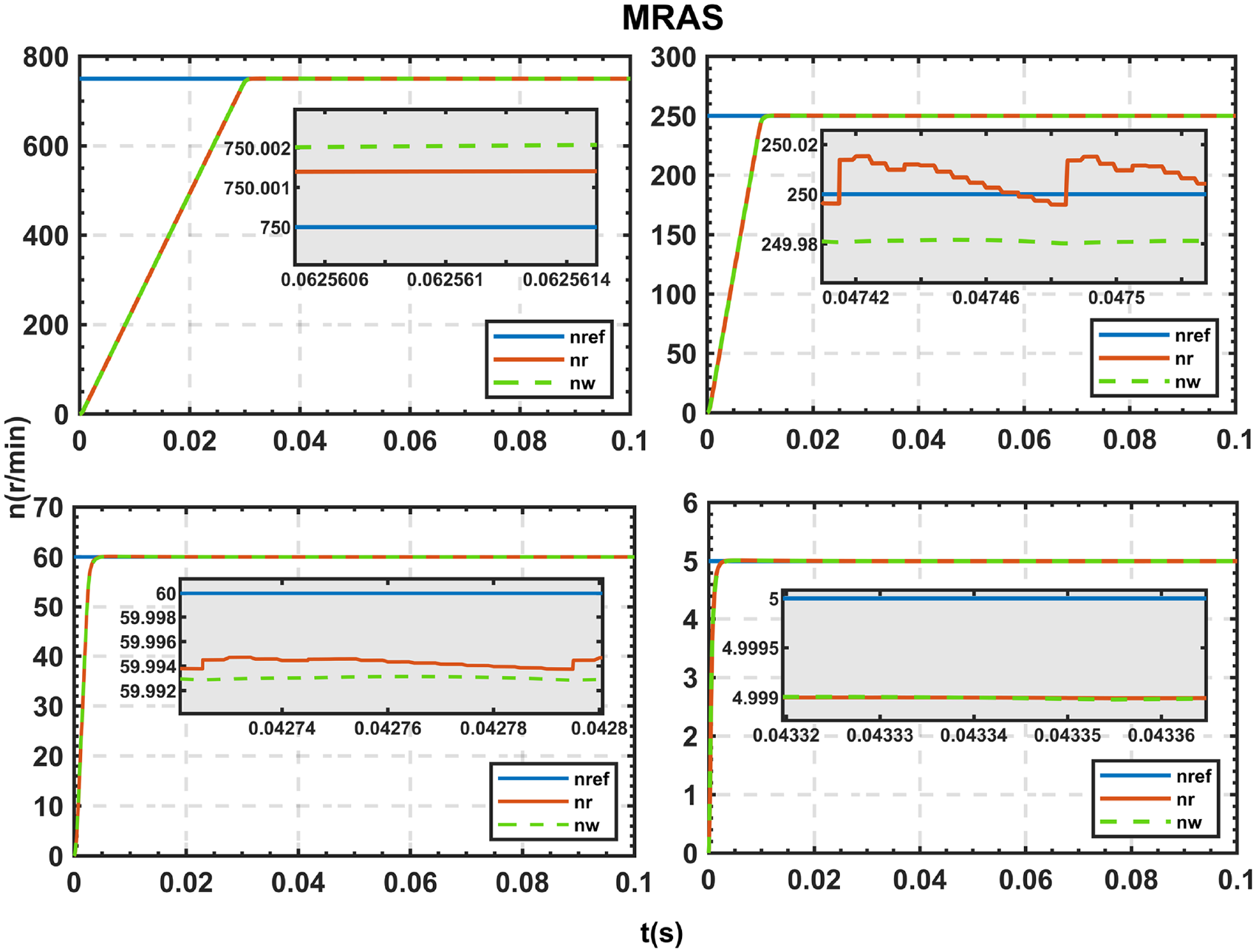

MRAS error between estimated and actual speeds for parameter ingress.

Figure 13.

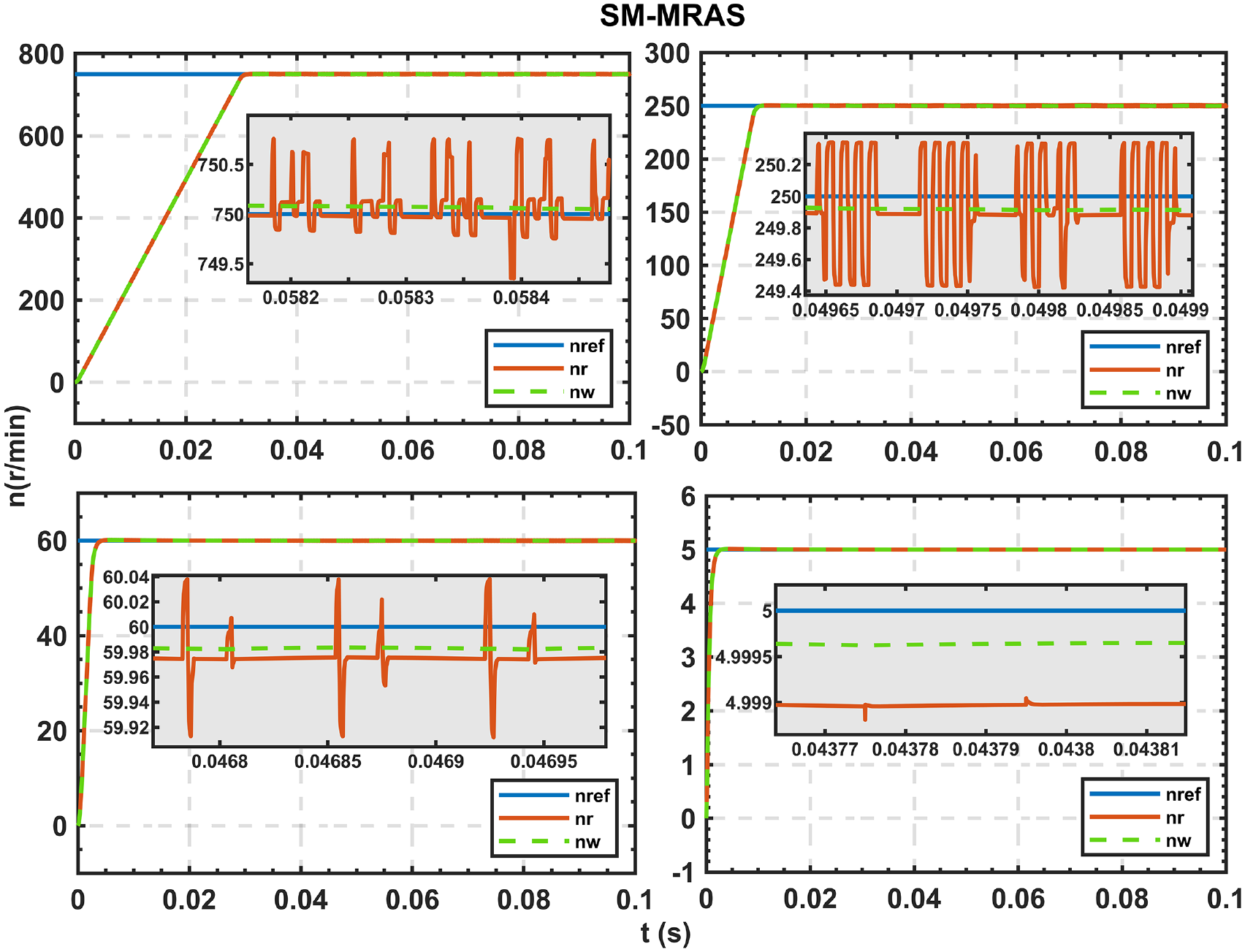

SM-MRAS error comparison between estimated and actual speeds for parameter ingress.

Figure 14.

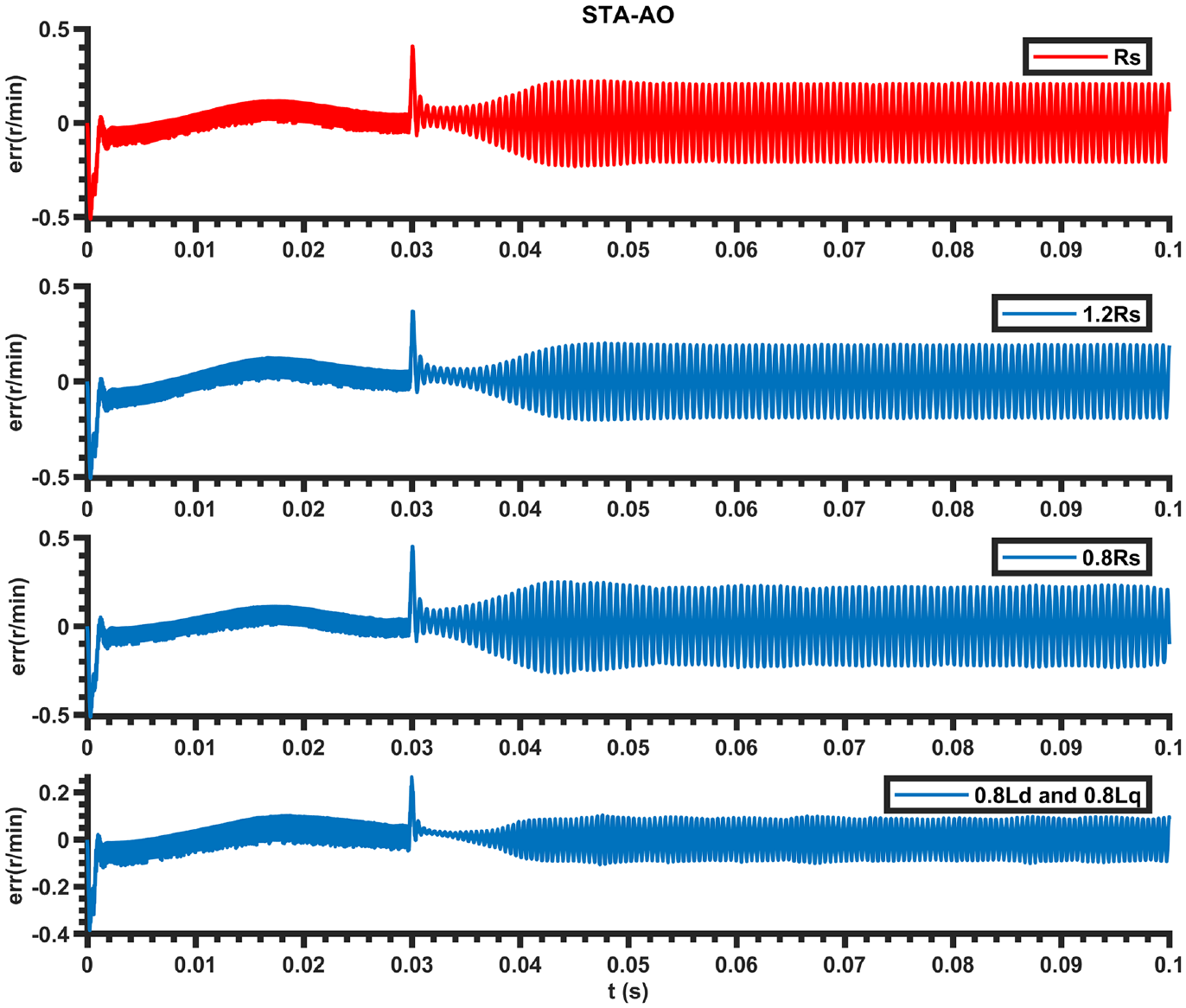

Error comparison between estimated and actual speeds for STA-AO for parameter ingress.

Table 6.

Comparison of regulation times (s) after reaching a given speed during motor parameter ingress.

Estimationstrategy	Adjustmenttime (Rs)	Adjustmenttime (1.2 Rs)	Adjustmenttime (0.8 Rs)	Adjustment time(0.8 Ld and 0.8 Lq)
NFSTA-AO	0.0315	0.0315	0.0315	0.0315
MRAS	0.0411	0.0454	0.0482	0.0431
SM-MRAS	0.0423	0.0453	0.0462	0.0435
STA-AO	0.0435	0.0426	0.0453	0.0422

Table 7.

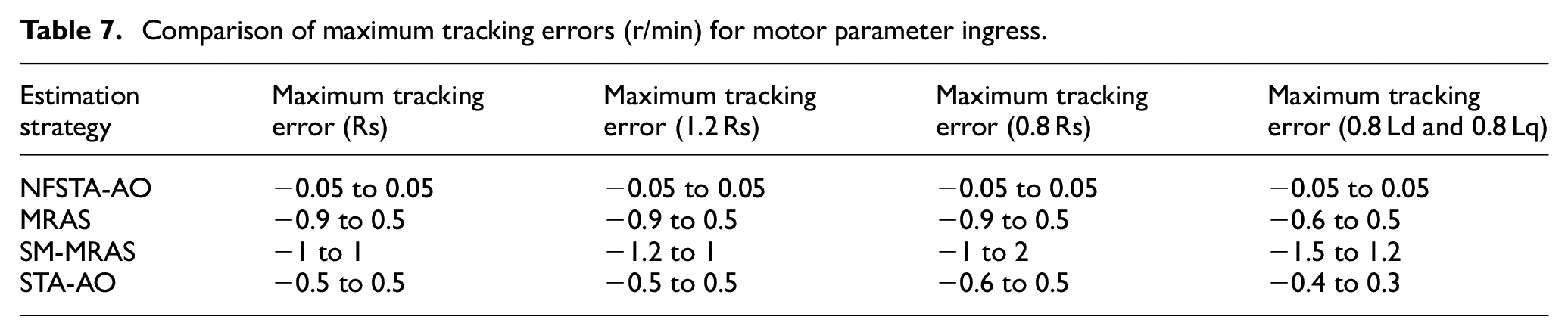

Comparison of maximum tracking errors (r/min) for motor parameter ingress.

Estimation strategy	Maximum trackingerror (Rs)	Maximum trackingerror (1.2 Rs)	Maximum trackingerror (0.8 Rs)	Maximum trackingerror (0.8 Ld and 0.8 Lq)
NFSTA-AO	−0.05 to 0.05	−0.05 to 0.05	−0.05 to 0.05	−0.05 to 0.05
MRAS	−0.9 to 0.5	−0.9 to 0.5	−0.9 to 0.5	−0.6 to 0.5
SM-MRAS	−1 to 1	−1.2 to 1	−1 to 2	−1.5 to 1.2
STA-AO	−0.5 to 0.5	−0.5 to 0.5	−0.6 to 0.5	−0.4 to 0.3

The MRAS estimation strategy takes 0.004 s for different cases to converge to the corresponding estimated value when the motor parameters are perturbed, with a tracking error of −0.9 to 0.5 r/min; after reaching the given speed, it takes approximately another 0.015 s for different cases to bring the tracking error close to zero. The tracking error increases slowly as the response speed approaches the given speed, and becomes stable at the maximum value after the given speed is reached. In the NFSTA-AO estimation strategy, the speed estimation converges to the corresponding response speed with a tracking error of ±0.05 r/min during the start-up phase, while the tracking error converges to zero after the given speed is reached.

It can be verified that the NFSTA-AO estimation strategy is more robust than the other three estimation strategies and has less impact on the accuracy of speed estimation when parameter ingestion occurs, which in turn makes the IPMSM operation smoother.

Test of wide speed domain

To verify that the NFSTA-AO estimation strategy has better speed estimation accuracy in the wide speed domain of the system, the high and low estimated speeds under the NFSTA-AO estimation strategy were compared with those of the STA-AO, SM-MRAS and MRAS estimation strategies. The nref, nw and nr for the four estimation strategies at 5, 65, 250 and 750 r/min speeds are shown in Figures 15 to 18. The performance comparison is shown in Table 8.

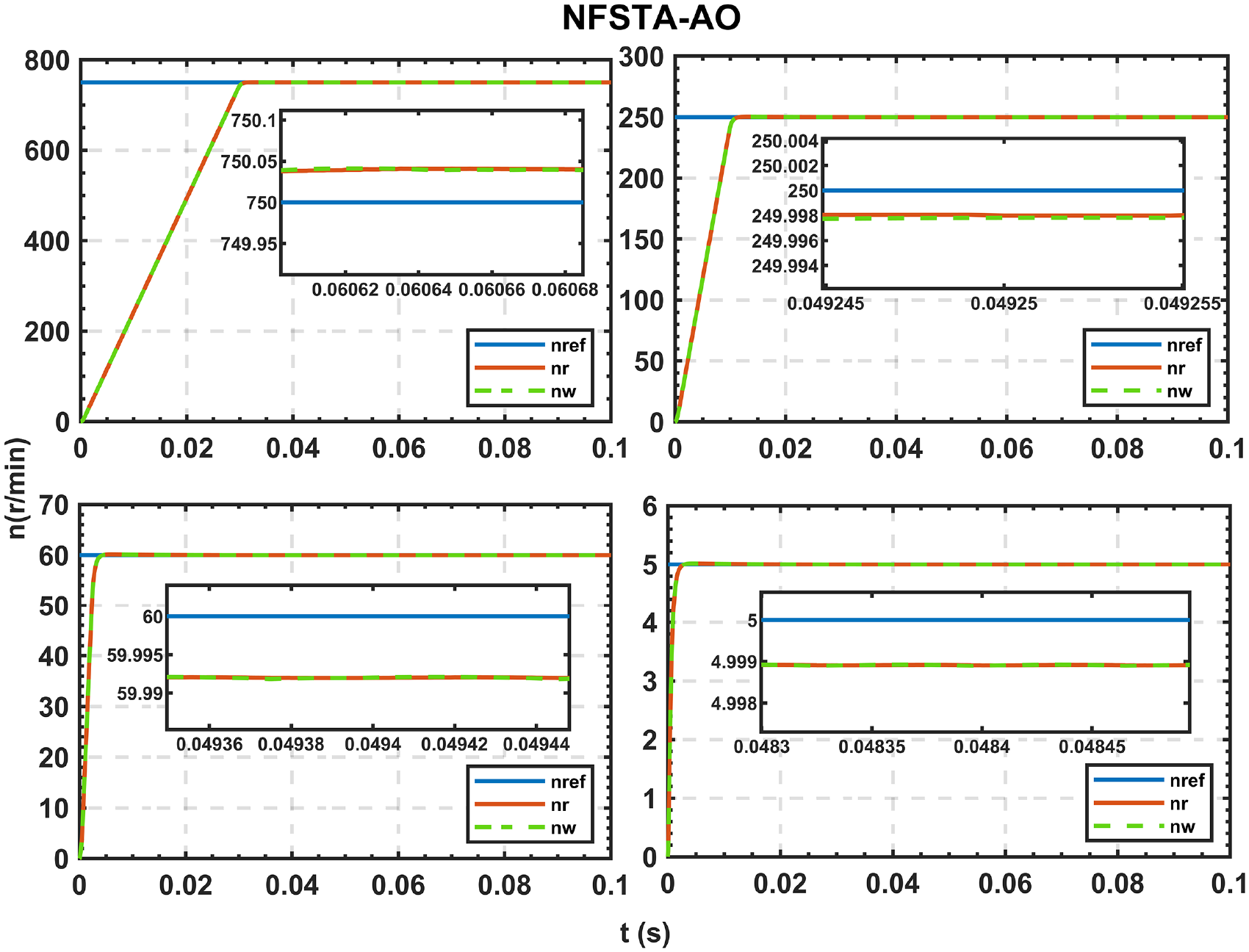

Figure 15.

Comparison of given, estimated and response speeds for different speed intervals (NFSTA-AO).

Figure 16.

Comparison of given, estimated and response speeds for different speed intervals (MRAS).

Figure 17.

Comparison of given, estimated and response speeds for different speed intervals (SM-MRAS).

Figure 18.

Comparison of given, estimated and response speeds for different speed intervals (STA-AO).

Table 8.

Performance comparison (r/min) over a wide speed range.

Estimation strategy	High speed (750 r/min)	Medium speed (250 r/min)	Low speed (65 r/min)	Very low speed (5 r/min)
NFSTA-AO	Accuracy	Accuracy	Accuracy	Accuracy
MRAS	0.001	0.02 (fluctuating)	0.002 (fluctuating)	Accuracy
SM-MRAS	0.4 (jitter)	0.4 (jitter)	0.05 (jitter)	0.0005
STA-AO	0.1 (jitter)	0.07 (jitter)	0.08 (jitter)	0.2 (jitter)

The MRAS estimation strategy has a tracking error of 0.002 r/min and a fluctuation in the estimated speed, while the SM-MRAS estimation strategy has a significant jitter in the estimated speed with a tracking error of 0.04 r/min. The STA-AO estimation strategy suppresses the jitter, but the jitter is still present, especially at low speeds, making the response speed also jitter. With the NFSTA-AO estimation strategy, the estimated speed can strictly follow the response speed at different speed segments, and there is no jitter or fluctuation in the estimated speed.

It can be verified that the NFSTA-AO estimation strategy is better than the other three estimation strategies; it can suppress the jitter caused by the sliding mode variable structure, achieve high performance and high accuracy control of IPMSM, as well as realise the wide speed domain without static difference estimation.

Test of sudden speed change under constant load torque

To verify the stability of the NFSTA-AO estimation strategy during sudden changes in speed, the estimated speed and tracking error under the NFSTA-AO estimation strategy were compared with those of the STA-AO, SM-MRAS and MRAS estimation strategies, as shown in Figures 19 and 20. The performance comparisons are shown in Table 9. Figure 21 shows the comparison of the sliding surface for the three estimation strategies for sudden changes in speed. The motor is started at no load, initially at a given speed of 300 r/min, stepping from the given speed to the rated speed at 0.2 s and dropping from the rated speed ramp (with a slope of −1250) to 500 r/min at 0.3 s and stepping down to 400 r/min at 0.5 s.

Figure 19.

Comparison of estimated rotational speed for the four estimation strategies for sudden changes.

Figure 20.

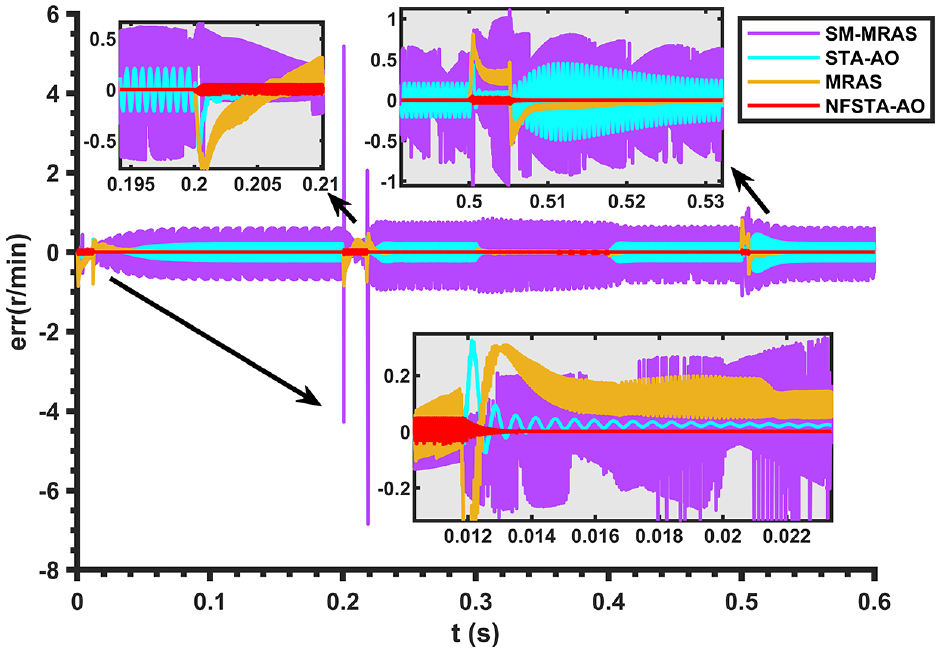

Comparison of tracking error of the four estimation strategies for sudden changes in speed.

Table 9.

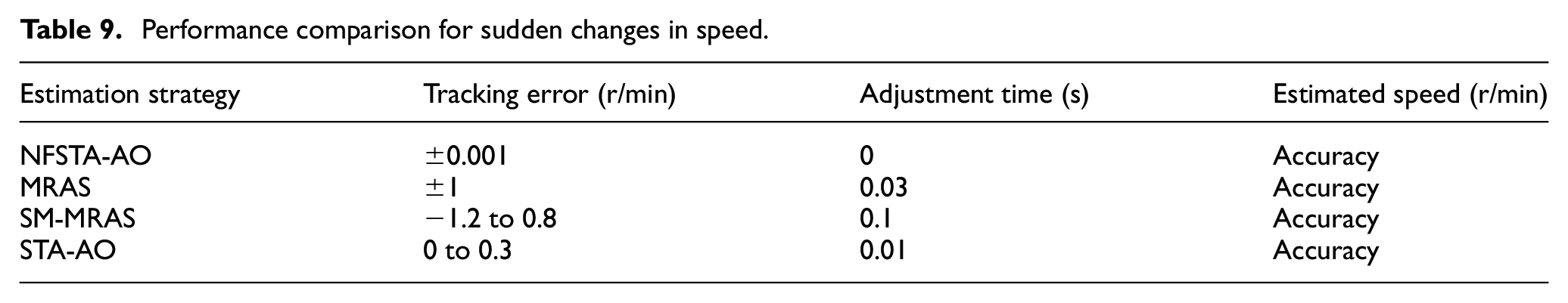

Performance comparison for sudden changes in speed.

Estimation strategy	Tracking error (r/min)	Adjustment time (s)	Estimated speed (r/min)
NFSTA-AO	±0.001	0	Accuracy
MRAS	±1	0.03	Accuracy
SM-MRAS	−1.2 to 0.8	0.1	Accuracy
STA-AO	0 to 0.3	0.01	Accuracy

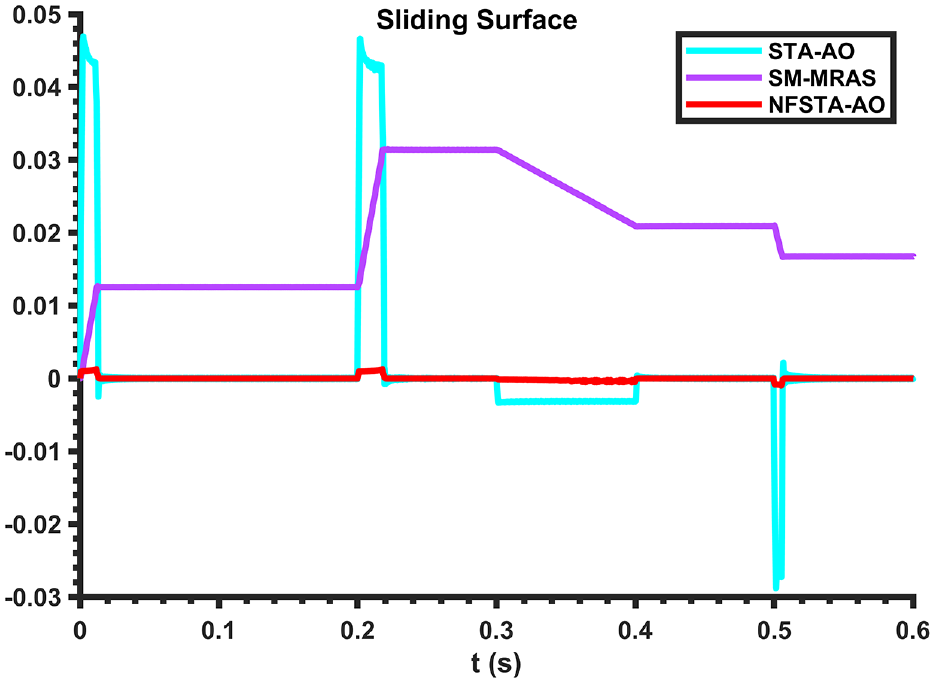

Figure 21.

Sliding surface ratios for the three estimation strategies for sudden changes in speed.

As it can be seen from Figure 19, all four estimation strategies can achieve accurate estimation of the response speed. From Figure 20, the MRAS estimation strategy has a tracking error of −1 to 1 r/min and a regulation time of 0.03 s. The SM-MRAS estimation strategy has little effect on the sudden change in speed, with a maximum tracking error of −1.2 to 0.8 r/min. The STA-AO estimation strategy has a tracking error of 0 to 0.3 r/min and a regulation time of 0.01 s at the moment of sudden change in speed. In contrast, the NFSTA-AO estimation strategy can always strictly follow the response speed when the speed changes abruptly, which has better dynamic characteristics than the other three estimation strategies. As it can be seen from Figure 21, although the estimated speed of SM-MRAS can follow the given speed, the sliding surface never converges to zero. STA-AO has a relatively large jitter on the sliding surface when the speed changes abruptly. In contrast, the sliding surface of NFSTA-AO is always close to zero. This proves that NFSTA-AO has better convergence in finite time.

Conclusions

In this paper, a full-order adaptive observer based on a novel fast super-twisting algorithm (NFSTA-AO) is proposed to address the problem that the traditional model reference adaptive system (MRAS) can only achieve speed discrimination and estimate speed with low accuracy in a certain speed range. To extend the speed discrimination interval of MRAS, a new linear compensation matrix is designed instead of the conventional unit matrix using Popov’s super stability theory. To further improve the speed and accuracy of convergence of the error between the adjustable and reference model outputs in the MRAS, an error correction link is introduced in the adjustable model and a full-order adaptive observer is constructed so that the output of the adjustable model is continuously corrected in a feedback manner. Moreover, to improve the accuracy of the full-order adaptive observer, resistance to load disturbance and robustness when the motor parameters are perturbed so that the estimated speed is approaching faster the response speed, the approach law of the novel fast super-twisting algorithm (NFSTA) was introduced to replace the adaptive law of the full-order adaptive observer, and the NFSTA-AO was constructed. This allows the NFSTA-AO to combine the advantages of both algorithms.

The simulation results verify that the NFSTA-AO observer proposed in this paper has lower tracking error, better immunity and robustness compared to the MRAS, SM-MRAS and STA-AO. Also, it suppresses better the sliding mode jitter, and has higher estimation accuracy and better dynamic following performance. Thus, it provides a new method for studying the speed estimation strategy of high performance permanent magnet synchronous motor speed control systems without speed sensors.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the Jilin Province Science and Technology Development Plan Project under Grant 20210204116YY.

ORCID iD

Weidong Feng

References

Kommuri

Defoort

Karimi

, et al. A robust observer-based sensor fault-tolerant control for PMSM in electric vehicles. IEEE Trans Ind Electron 2016; 63(12): 7671–7681.

Zhou

Zhang

Mao

. Robust sliding mode control of PMSM based on a rapid nonlinear tracking differentiator and disturbance observer. Sensors 2018; 18(4): 1031.

Liu

. Continuous adaptive integral-type sliding mode control based on disturbance observer for PMSM drives. Nonlinear Dyn 2021; 104(2): 1429–1441.

Liu

Deng

. Torque ripple minimization of PMSM based on robust ILC via adaptive sliding mode control. IEEE Trans Power Electron 2018; 33(4): 3655–3671.

Wang

, et al. Disturbance rejection control for PMSM using integral sliding mode based composite nonlinear feedback control with load observer. ISA Trans 2021; 116(3): 203–217.

Agrawal

Bodkhe

. Speed sensorless vector controlled SMPMSM drive based on modified MRAS with single current sensor. IETE J Res 2022; 68(2): 902–916.

Anwer

AMO

Omar

Kulaksiz

. Design of a fuzzy logic-based MPPT controller for a PV system employing sensorless control of MRAS-based PMSM. Int J Control Autom Syst 2020; 18(11): 2788–2797.

Dai

, et al. Disturbance-observer based prescribed-performance fuzzy sliding mode control for PMSM in electric vehicles. Eng Appl Artif Intell 2021; 104(8): 1952–1976.

Sun

Jiang

. Observability analysis for speed sensorless induction motor drives with and without virtual voltage injection. IEEE Trans Power Electron 2019; 34(9): 9236–9246.

10.

Zaky

Metwally

Azazi

, et al. A new adaptive SMO for speed estimation of sensorless induction motor drives at zero and very low frequencies. IEEE Trans Ind Electron 2018; 65(9): 6901–6911.

11.

Zhao

. Sensorless speed estimation of permanent magnet synchronous motor. Mechatronics 2014; 20(11): 20–24.

12.

Kim

Son

Lee

. A high-speed sliding-mode observer for the sensorless speed control of a PMSM. IEEE Trans Ind Electron 2011; 58(9): 4069–4077.

13.

Rakhtala

. Adaptive gain super twisting algorithm to control a knee exoskeleton disturbed by unknown bounds. Int J Dyn Control 2021; 9: 711–726.

14.

Mirrashid

Rakhtala

Ghanbari

. Robust control design for air breathing proton exchange membrane fuel cell system via variable gain second-order sliding mode. Energy Sci Eng 2018; 6(3): 126–143.

15.

Bensalem

Kouzou

Abbassi

, et al. Sliding-mode-based current and speed sensors fault diagnosis for five-phase PMSM. Energies 2021; 15(1): 71–1441.

16.

Repecho

Biel

Arias

. Fixed switching period discrete-time sliding mode current control of a PMSM. IEEE Trans Ind Electron 2018; 65(3): 2039–2048.

17.

Badini

Verma

. Parameter independent speed estimation technique for PMSM drive in electric vehicle. Int Trans Electr Energy Syst 2021; 31(11): 13071–13077.

18.

Zhang

Sun

Zhao

, et al. Nonlinear speed control for PMSM system using sliding-mode control and disturbance compensation techniques. IEEE Trans Power Electron 2013; 28(3): 1358–1365.

19.

Zhao

Leng

Zhou

, et al. Demagnetization fault reconstruction for six-phase permanent magnet synchronous motor by improved super-twisting algorithm-based sliding-mode observer. Measurement 2021; 172(4): 2241–2263.

20.

Wang

Yang

Zhang

, et al. Comparative investigation of pseudorandom high-frequency signal injection schemes for sensorless IPMSM drives. IEEE Trans Power Electron 2017; 32(3): 2123–2132.

21.

Wang

Zhao

, et al. Speed-sensorless induction machine control in the field-weakening region using discrete speed-adaptive full-order observer. IEEE Trans Power Electron 2016; 31(8): 5759–5773.

22.

Belkhier

Achour

Ullah

, et al. Intelligent energy-based modified super twisting algorithm and factional order PID control for performance improvement of PMSG dedicated to tidal power system. IEEE Access 2021; 9: 57414–57425.

23.

Zhou

Xiao

, et al. Sensorless vector control of permanent magnet synchronous linear motor based on self-adaptive super-twisting sliding mode controller. IEEE Access 2019; 7: 44998–45011.

24.

Zhang

Cao

Nan

, et al. An adaptive PID-type sliding mode learning compensation of torque ripple in PMSM position servo systems towards energy efficiency. ISA Trans 2021; 110(3): 258–270.

25.

Tuovinen

Hinkkanen

. Adaptive full-order observer with high-frequency signal injection for synchronous reluctance motor drives. IEEE J Emerg Sel Top Power Electron 2014; 2(2): 181–189.

26.

Song

Zheng

Niu

. Self-triggered sliding mode control for networked PMSM speed regulation system: a PSO-optimized super-twisting algorithm. IEEE Trans Ind Electron 2022; 69(1): 763–773.

27.

. Output predictor-based active disturbance rejection control for a wind energy conversion system with PMSG. IEEE Access 2017; 5: 5205–5214.

28.

Dao

Meng

Zhang

, et al. Improvement and modeling simulation of combined wind speed in the wind power system by Rayleigh probability distribution. ReNovelable Energy 2014; 32(4): 461–465.

29.

Min

. Position sensorless control method for PMSM based on super-twisting sliding mode MRAS. Qingdao University, 2021.

30.

Tsai

Huo

Yang

, et al. Variable feedback gain control design based on particle swarm optimizer for automatic fighter tracking problems. Appl Soft Comput 2013; 13: 58–75.

31.

Rakhtala

Noei

Ghaderi

, et al. Design of finite-time high-order sliding mode state observer: a practical insight to PEM fuel cell system. J Process Control 2014; 24(1): 203–224.

32.

Yang

. Research on the control method of permanent magnet synchronous motor based on second-order sliding mode algorithm. Zhejiang: Zhejiang Sci-Tech University, 2017.

33.

Rakhtala

Casavola

. Real-time voltage control based on a cascaded super twisting algorithm structure for DC–DC converters. IEEE Trans Ind Electron 2022; 69(1): 633–641.

34.

Sun

Yao

, et al. A strategy for speed estimation of permanent magnet synchronous motor based on a novel super-twisting adaptive observer. High Voltage Technol 2019; 46(11): 3771–3781.

35.

Teng

Bai

Zhu

, et al. Model predictive torque control of three-phase permanent magnet synchronous motor without speed sensor based on sliding mode model reference adaptive observer. Control Theory Appl 2015; 32(2): 150–161.
