Development of the robotic motion controller for a wheeled manipulator

Abstract

For many years, wheeled manipulator (WM) becomes an effective solution in many aspects of our economics such that it assists to maintain the highly manufacturing production. In this work, the proposed design of motion controller for WM to handle an object is introduced. The hardware of this WM consists of two components, mobile platform and robotic manipulator. Our concept is to design the structure of differential drive for mobile base while the configuration of on-board manipulator is the parallelogram mechanism. Owing to this architecture, the system modelling of whole body is then established to identify related constraints. To ensure the sustainable movement, the system state is asymptotically stable according to Lyapunov candidate function. Both numerical simulation and practical experiment are validated in various test scenarios. With 20 demonstrations for each task, the proposed approach reaches to success rate over 90% of test cases which well-track the desired trajectory and precisely complete the robotic manipulation.

Keywords

Mobile manipulation asymptotic stability Lyapunov method parallelogram mechanism autonomous robot

Introduction

MOBILITY has become one of the key specifications for various applications in the robotic field. For many years, developers discovered the issues of WM by placing the robotic arm on the wheeled platform. This design brings several significant benefits in the practical applications such as automatic production in small and medium sized enterprises,¹ retail business,² assisted-living care,³ construction,⁴ or catering service.⁵ In the context of economical growth, the needs of wheeled manipulator still upsurge significantly.

Across many applications, WM has demonstrated the feasibility and effectiveness in practice. However, it must be improved continuously to meet the challenges of complex tasks. Given any less structured scenario or dynamic environment, it requires the sensitive or cognitive abilities to perform actions correctly. For instance, investigators in Štibinger et al.⁶ delivered an excellent solution from localization and picking to transportation on uneven terrain with different lighting conditions. The other challenges of WM are possibly the motion planning, group formation or stability control. Since the architecture of WM is redundant, there are several pros and cons such as flexible in harsh environment but difficult to generate the planning process due to the inverse kinematic troubles. In Zafar and Mohanta,⁷ WM was classified into two sub-systems and managed two planners, that is, one for mobile base⁸ and one for manipulator.^9,10 The separate planning is better if the requirements of this system is soft real-time, less computation and single target. Reversely, manipulation planning for whole robot is always hard to check the motion constraints, potential collision, and globally optimal path.

Reaching to goal, cooperative formation is one of the main topics for multi-agent system.¹¹ In a case that path planning is completed in the configuration space, goal state must be mentioned in the same domain. A hierarchical approach of the cooperative spatial payload manipulation^12,13 was launched to estimate collision-free trajectory in the formation of multi-robot system. It required virtual configuration of load to define a convex workspace as well as the decentralized model-predictive controller for each robot.

Precise tracking path and stability control are the typical challenges and should be guaranteed simultaneously, especially under the circumstance with complicated road conditions. There are many interferences of the interactive forces between robot and external environment. In Pankert and Hutter¹⁴ and Li et al.,¹⁵ robotic awareness of working environment was firstly revealed to recognize and evaluate forces. Some constraints for mechanical stability and limitations of links were added to certify the smooth motion of whole body.

The contributions of this paper are to (i) launch the platform of wheeled manipulator comprising the differential drive (DDR) structure for mobile base, robotic arm with parallelogram mechanism, (ii) design the motion controller based on Lyapunov approach and (iii) exemplify the proposed method in both numerical simulations and experimental validations.

Literature review

In recent years, many variants of the WM structure have been developed successfully. Basically, it derives from the driving mechanism of base platform or the mounted manipulator. Mobile base could track the reference trajectory in freeway^16–18 or rail while the configuration of robot arm should be serial or parallel articulation.

Generally, WM could be classified along with its applications and technical implementation. One of typical issues in driving WM is motion control and free-collision planning. There are various developments in both static and dynamic scenario. Secondly, many control strategies have been invested to enhance the autonomous performance of WM.¹⁹ Thirdly, assisted-living technique or interactive communication with human is also an interesting subject. Table 1 summarizes the state-of-the-art for related studies.

Table 1.

Review of related researches in the field of mobile manipulator.

Category	Author (s)	Technique	Specification (s)	Benefit	Weakness
Path planning and collision avoidance	Pardi et al.²⁰	RRT-star- planner for mobile manipulation task	This study focused on multi-objective planner which enabled the end-effector to traverse an observed surface with constrained orientation between given origin and target location	It certified the incorporation of nonholonomic constraints, maximum manipulability, and minimum traveling distance	Their reliance depends on a partial point cloud of the surrounding without prior knowledge of surface shape
	Mbakop et al.²¹	Collision-free for soft manipulator	The algorithms for smooth motion generation and obstacle avoidance were successfully developed owing to the potential field of velocity	The stability of whole body could be ensured in term of sliding mode theory	The trajectory planning may be not optimized because the length of curvature is varying
	Pankert and Hutter¹⁴	Dynamic window with virtual model	This method generated path candidates in different speeds modified by virtual model of mobile manipulator	It can predict locations of both static and dynamic obstacles	The increasing number of design parameters takes a lot of costs when its configuration changes
Control and autonomy	Tung et al.²²	Manual	Inspectors must drive a four-axis manipulator system on a mobile vehicle while two on-board CCD cameras are used to examine cracks	Comparing to traditional methods, it decreases the danger of accidents	This solution was not envisioned to completely replace human for all inspection works
	Sutter et al,²³ and Karumanchi et al.²⁴	Semi-autonomous	To increase the maneuverability of robot, its configuration includes four hydraulic actuated wheels, an automatic brake, tracking slider, digital camera and manipulator	Very small effect on bridge traffic, low risk when working next to high-speed train	Potential oscillation due to the console structure of robot, and be difficult to detect internal defects
	Yuan et al.²⁵	Fully autonomous	Using model predictive control and fuzzy scheme, a nonholonomic mobile manipulator was effectively executed for tracking trajectory	There is no need of the precisely known system information	It might be complicated to program in the real-world applications
Human-robot interaction	Park et al.²⁶	Meal-service for home care	To support disabilities, actively-oriented feeding robot was invented to deliver meal inside a mouth of human	Safer assistance and high-level execution could be reached by using general-purpose hardware platform	It lacks of social spatio-temporal constraints and friendly interface
	Kim et al.²⁷	Collaborative robot for industrial task	A collaborative robot was invented to autonomously work in close proximity to humans via social interface and hand gesture recognition	Robotic framework to handle successfully the co-manipulation task could lessen the efforts of worker	This method was not verified in the complex manipulation such as human-like tasks
	Xing et al.²⁸	Walking assistance robot for elderly	Mobile manipulator using omni wheels was implemented with force exertion ability enhancement to guarantee stable movements	Reasonable tolerances of stiffness and force might be proper for practices	It is driven passively by user and unable to adapt with various motions

CCD: Charge Coupled Device, RRT-star-CRMM: Rapidly-exploring random trees.

Preliminaries

Mobile platform

The DDR structure of mobile platform as Figure 1 consists of two driving wheels (side-by-side), two omnidirectional wheels (front-rear), one electrical cylinder and four linear sliders. With this design, robot could move flexibly and smoothly while the nonholonomic specifications are preserved. The tracking point C is placed in the center of mobile platform which is represented by $q = {[x y θ]}^{T}$ , $v$ and $ω$ are linear velocity and angular velocity of robot respectively. The coordinate of robot in cartesian workspace is $(x, y)$ and its angular movement is $θ$ .

Figure 1.

3D design of mobile platform.

The motion of this mobile robot is described as

\overset{\cdot}{q} = Su

(1)

where $u = {[u_{1} u_{2}]}^{T} = {[v ω]}^{T}$ : vector of velocity of robot

S = [\begin{matrix} \cos θ & 0 \\ \sin θ & 0 \\ 0 & 1 \end{matrix}]

Hence, velocities of right wheel $v_{R}$ and left wheel $v_{L}$ are as below

v_{R} = v + \frac{ω L}{2}

(2)

v_{L} = v - \frac{ω L}{2}

(3)

where $L$ : distance between two driving wheels

Gripper

In practice, there are many types of grippers used and classified by contact type and grasping principle. In this topic, a clamping-type gripper as Figure 2(a) combined with linear transformation is elected since it is easy to compute the traveling distance so that this gripper can pick up an object.

Figure 2.

Theoretical modeling of dual-finger gripper (a) and grasping object (b).

With the task requirement of picking up an object (40 × 40 mm), this gripper has a minimum opening distance D between two fingers. Its distance is greater than 40 mm and the length of the gripper must also be greater than or equal to 40 mm. Moreover, when two fingers are in touch, the boundary values of both length and width must be satisfied as $H \leq 150 mm; B \leq 60 mm$ .

$d_{1}, d_{2}, d_{3}, d_{4} :$ relative distance between A-B, C-D, A-D, and B-C respectively

$L_{1}, L_{2}, L_{3} :$ lengths of links 1, 2, and 3 correspondingly

$α$ : angle between AD-DC

For the analysis of grasping object model as Figure 2(b), a light layer of rubber which as the friction coefficient $μ = 0.6 \div 0.7$ covers the surface of finger. It is assumed that there is the gravity force $P$ , pressing force $F$ and friction force $F_{ms}$ . Hence, we have

{\begin{matrix} \vec{P} = {\vec{F}}_{ms} \\ \vec{N} = \vec{F} \end{matrix} \Rightarrow N = F = \frac{Mg S_{F}}{n μ}

(4)

where $m$ : mass of load

$N$ : reaction force from the object to finger

$g$ : gravitational acceleration

$n$ : number of fingers

$S_{F}$ : coefficient of safety

For more details, the interactive forces at point D’ are synthesized as Figure 3(a). ${\vec{F}}_{1}, {\vec{F}}_{2}$ are the reaction forces from link D’D and D’A’. To maintain the stability of an object,²⁹ we obtain

{\vec{F}}_{1} + {\vec{F}}_{2} + \vec{N} + {\vec{F}}_{ms} = \vec{0}

(5)

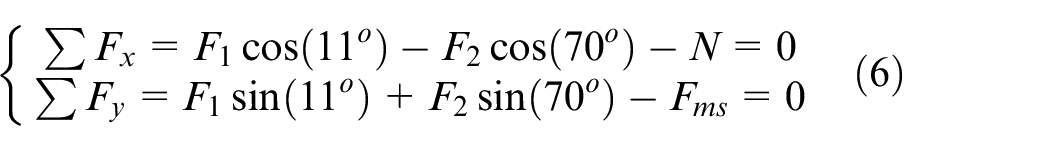

In the xOy, it becomes

{\begin{matrix} \sum F_{x} = F_{1} \cos (11^{o}) - F_{2} \cos (70^{o}) - N = 0 \\ \sum F_{y} = F_{1} \sin (11^{o}) + F_{2} \sin (70^{o}) - F_{ms} = 0 \end{matrix}

(6)

At point A, the driving moment is

\sum M_{A} = F_{2} ℓ_{AD} - M = 0 \Leftrightarrow M = F_{2} ℓ_{AD}

(7)

Figure 3.

Analysis of the interactive forces at point D’ (a) and 3D design of the proposed gripper.

Manipulator and base

In this work, the proposed model for industrial manipulator is depicted as Figure 4. There are three links which the bottom one is base link. The lowest point of this manipulator in the workspace is horizontal with the base link. According to the x direction, the shortest distance from the motor shaft to the lowest limit of the manipulator is $X_{min} = 201, 37 mm$ . To reach to the farthest point, base link must manipulate an angle α₁ in order to maintain the reasonable moment. Similarly, the angle of second link α₂ is to provide the sufficient moment while third link stretches horizontally to grasp an object. As a result, the farthest position is demonstrated as Figure 5.

Figure 4.

3D design of industrial manipulator.

Figure 5.

Evaluation of the farthest position for our manipulator.

To hold this system, it must satisfy

M_{hold 2} \geq F'_{x} O_{1} O'_{2} \sin α_{min} - F'_{y} O_{1} O'_{2} \cos α_{min}

(8)

where

$M_{hold 2}$ : the driving moment at rated current of driver for the second link

From equation (8), it means that the maximum reach of this manipulator occurs when second link is in a horizontal position as Figure 5. Presently, distance from O₁ to location of gripper in the x axis is

X_{max} = l_{1} \cos α_{min} + l_{2} + l_{3}

(9)

System modeling

From the proposed design in mechanical framework, several mathematical symbols have been defined as Table 2. In the model of this robot,³⁰ the dynamic equation is

M (q) \overset{\cdot\cdot}{q} + C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + G (q) + f = E (q) τ

(10)

where

$q = {[q_{b}^{T}; q_{a}^{T}]}^{T} \in R^{n}; n = n^{b} + n^{a}$ : state variable of system

$M (q) \in R^{n \times n}$ : inertial matrix

$C (q, \overset{\cdot}{q}) \in R^{n \times n}$ : Coriolis matrix

$G (q) \in R^{n}$ : gravity matrix

$f$ : matrix to indicate the system constraints

$E (q) \in R^{n \times m}$ : transformation matrix between control input τ and the other components

$τ \in R^{m}$ : torque control

With $q_{b} = {[\begin{matrix} x_{b} & y_{b} & θ_{b} \end{matrix}]}^{T}$ and $q_{a} = {[\begin{matrix} q_{L} & θ_{1} & θ_{2} \end{matrix}]}^{T}$ , the state variable $q = {[\begin{matrix} x_{b} & y_{b} & \begin{matrix} θ_{b} & q_{L} & \begin{matrix} θ_{1} & θ_{2} \end{matrix} \end{matrix} \end{matrix}]}^{T}$ is identified. Then, we have

\Rightarrow {\overset{\cdot}{q}}_{b} = [\begin{matrix} \cos θ_{b} & 0 \\ \sin θ_{b} & 0 \\ 0 & 1 \end{matrix}] [\begin{matrix} v \\ ω \end{matrix}]

(11)

where

a \in R^{2}; a = {[\begin{matrix} a^{T} & {\overset{\cdot}{q}}_{a}^{T} \end{matrix}]}^{T}

$v$ , $ω$ : linear velocity and angular velocity of base respectively

Table 2.

List of mathematical symbols for our model.

Parameter	Description
$λ$	Lagrange coefficient
$θ_{R}; θ_{L}$	Rotational angles of two active wheels
$θ_{b}$	Relative rotation angles of the robot with respect to the linear direction
$θ_{1}; θ_{2}$	Angles from link 1 and 2 to the others
$x_{b}; y_{b}$	Location of central point of robot
$q_{L}$	Linear displacement of lifting table
$s_{1}; s_{2}$	$\sin θ_{1}; \sin θ_{2}$
$c_{1}; c_{2}$	$\cos θ_{1}; \cos θ_{2}$
$s_{12}; c_{12}$	$\sin (θ_{1} + θ_{2}); \cos (θ_{1} + θ_{2})$
${\overset{\cdot}{θ}}_{12}$	${\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2}$

We get $η = {[\begin{matrix} a^{T} & {\overset{\cdot}{q}}_{a}^{T} \end{matrix}]}^{T}$ . Owing to the geometric structure, this system has some nonholonomic constraints as below

η = {[\begin{matrix} {\overset{\cdot}{θ}}_{R} & {\overset{\cdot}{θ}}_{R} & \begin{matrix} {\overset{\cdot}{q}}_{L} & {\overset{\cdot}{θ}}_{1} & {\overset{\cdot}{θ}}_{2} \end{matrix} \end{matrix}]}^{T}

(12)

The first derivative of state variable is described as

\overset{\cdot}{q} = H (q) η

\Rightarrow \overset{\cdot\cdot}{q} = \overset{\cdot}{H} (q) η + H (q) \overset{\cdot}{η}

(13)

where $H = [\begin{matrix} \frac{R}{2} c o s θ_{b} & \frac{R}{2} c o s θ_{b} & \begin{matrix} 0 & 0 & 0 \end{matrix} \\ \frac{R}{2} s i n θ_{b} & \frac{R}{2} s i n θ_{b} & \begin{matrix} 0 & 0 & 0 \end{matrix} \\ \begin{matrix} 0 \\ 0 \\ \begin{matrix} 0 \\ 0 \end{matrix} \end{matrix} & \begin{matrix} 1 \\ 0 \\ \begin{matrix} 0 \\ 0 \end{matrix} \end{matrix} & \begin{matrix} \begin{matrix} 0 & 0 & 0 \end{matrix} \\ \begin{matrix} 1 & 0 & 0 \end{matrix} \\ \begin{matrix} \begin{matrix} 0 & 1 & 0 \end{matrix} \\ \begin{matrix} 0 & 0 & 1 \end{matrix} \end{matrix} \end{matrix} \end{matrix}]$

The dynamic equation could be re-written as

\bar{M} (q) \overset{\cdot}{η} + \bar{C} (q, \overset{\cdot}{q}) η + \bar{G} (q) = \bar{τ}

(14)

where

\begin{matrix} \bar{M} (q) = H^{T} (q) M (q) H (q) \\ \bar{C} (q, \overset{\cdot}{q}) = H^{T} (q) [M (q) H (q) + C (q, \overset{\cdot}{q}) H (q)] \\ \bar{G} (q) = H^{T} (q) G (q) \\ \bar{τ} = H^{T} (q) E (q) τ \end{matrix}

Assumption 1: The inertia matrix $\bar{M} (q)$ is a matrix symmetric in respect to its diagonal, and is a positive definite matrix

λ_{\min} \bar{M} (q) I \leq \bar{M} (q) \leq λ_{\max} \bar{M} (q)

(15)

Assumption 2: The symmetric relation in respect to its diagonal between inertia matrix $\bar{M} (q)$ and Coriolis matrix $\bar{C} (q, \overset{\cdot}{q})$

X^{T} [\bar{\overset{\cdot}{M}} (q) - 2 \bar{C} (q, \overset{\cdot}{q})] X = 0

(16)

Assumption 3: The dynamic equation is linearized with the vector of uncertainties $p$ and the regression matrix $Y$ containing the unknown parameters.

\bar{M} (q) \overset{\cdot}{η} + \bar{C} (q, \overset{\cdot}{q}) η + \bar{G} (q) = Y (q, \overset{\cdot}{q}, η, \overset{\cdot}{η}) p

(17)

According to the system configuration as Figure 6, it includes

{\begin{matrix} 0 < θ_{1} \leq 90^{0} \\ 0 < θ_{2} \leq 180^{0} \\ 0 < θ_{3} \leq 180^{0} \end{matrix}

(18)

For the base of mobile manipulator, the kinematic constraints should be

{\begin{matrix} x_{b} \\ y_{b} \\ z_{b} = 0 \end{matrix}

(19)

The constraints of lifting table are

{\begin{matrix} x_{n} = x_{b} \\ y_{n} = y_{b} \\ z_{n} = z_{b} + q_{L} \end{matrix}

(20)

Link 1:

{\begin{matrix} x_{1} = x_{b} + \frac{L_{1} \cos θ_{1}}{2} \\ y_{1} = y_{b} \\ z_{1} = z_{b} + \frac{L_{1} \sin θ_{1}}{2} \end{matrix}

(21)

Link 2:

{\begin{matrix} x_{2} = x_{1} - \frac{L_{2}}{2} \cos (θ_{1} + θ_{2}) + \frac{L_{1}}{2} \cos (θ_{1}) \\ y_{2} = y_{b} \\ z_{2} = z_{1} + \frac{L_{1}}{2} \sin θ_{1} + \frac{L_{2}}{2} \sin (θ_{1} + θ_{2}) \end{matrix}

(22)

To conduct the system parameter, kinetic energy for each component is analyzed as below

T_{base} = \frac{1}{2} m_{b} ({\overset{\cdot}{x}}_{b}^{2} + {\overset{\cdot}{y}}_{b}^{2} + {\overset{\cdot}{z}}_{b}^{2}) + \frac{1}{2} I_{b} {\overset{\cdot}{θ}}_{b}^{2}

(23)

T_{n} = \frac{1}{2} m_{ban} ({\overset{\cdot}{x}}_{n}^{2} + {\overset{\cdot}{y}}_{n}^{2} + {\overset{\cdot}{z}}_{n}^{2})

(24)

T_{1} = \frac{1}{2} m_{1} ({\overset{\cdot}{x}}_{1}^{2} + {\overset{\cdot}{y}}_{1}^{2} + {\overset{\cdot}{z}}_{1}^{2}) + \frac{1}{2} I_{1} {\overset{\cdot}{θ}}_{1}^{2}

(25)

T_{2} = \frac{1}{2} m_{2} ({\overset{\cdot}{x}}_{2}^{2} + {\overset{\cdot}{y}}_{2}^{2} + {\overset{\cdot}{z}}_{2}^{2}) + \frac{1}{2} I_{2} {({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2})}^{2}

(26)

Totally, kinetic energy of this system is

T_{total} = T_{base} + T_{n} + T_{1} + T_{2}

(27)

It is assumed that the origin of potential energy is located at the center of robotic platform. By some geometric computations, we have

P_{\min} = m_{ban} g q_{L}

(28)

P_{arm 1} = m_{1} g (q_{L} + \frac{L_{1}}{2} \sin θ_{1})

(29)

P_{arm 2} = m_{2} g (q_{L} + L_{1} \sin θ_{1} - \frac{L_{2}}{2} \sin (θ_{1} + θ_{2}))

(30)

Using the Lagrange method, we obtain

L = T_{total} - P_{total}

(31)

Later, the inertia matrix must be determined as below

M (q) = [\begin{matrix} \begin{matrix} a_{11} & a_{12} & a_{13} \\ a_{21} & a_{22} & a_{23} \\ a_{31} & a_{32} & a_{33} \end{matrix} & \begin{matrix} a_{14} & a_{15} & a_{16} \\ a_{24} & a_{25} & a_{26} \\ a_{34} & a_{35} & a_{36} \end{matrix} \\ \begin{matrix} a_{41} & a_{42} & a_{43} \\ a_{51} & a_{52} & a_{53} \\ a_{61} & a_{62} & a_{63} \end{matrix} & \begin{matrix} a_{44} & a_{45} & a_{46} \\ a_{54} & a_{55} & a_{56} \\ a_{64} & a_{65} & a_{66} \end{matrix} \end{matrix}]

(32)

where

\begin{matrix} a_{11} & = m_{1} + m_{2} + m_{ban} + m_{b} a_{16} = \frac{L_{2} m_{2} s_{12}}{2} \\ a_{12} & = a_{12} = a_{14} = 0 a_{22} = m_{1} + m_{2} + m_{ban} + m_{b} \\ a_{15} & = \frac{m_{2} (L_{2} s_{12} - 2 L_{1} s_{1}) - L_{1} m_{1} s_{1}}{2} \\ a_{21} & = 0 a_{23} = a_{24} = a_{25} = a_{26} = 0 \\ a_{31} & = a_{32} = 0 a_{33} = I_{b} \\ a_{34} & = a_{35} = a_{36} = 0 a_{41} = a_{42} = a_{43} = 0 \\ a_{44} & = m_{1} + m_{2} + m_{ban} \\ a_{45} & = \frac{L_{1} m_{1} c_{1}}{2} - \frac{m_{2} (L_{2} c_{12} - 2 L_{1} c_{1})}{2} \\ a_{46} & = - \frac{L_{2} m_{2} c_{12}}{2} a_{52} = a_{53} = 0 \end{matrix}

\begin{array}{l} a_{51} = \frac{m_{2} (L_{2} s_{12} - 2 L_{1} s_{1})}{2} - \frac{L_{1} m_{1} s_{1}}{2} \\ a_{54} = \frac{L_{1} m_{1} c_{1}}{2} - \frac{m_{2} (L_{2} c_{12} - 2 L_{1} c_{1})}{2} \\ a_{61} = \frac{L_{2} m_{2} s_{12}}{2} a_{62} = a_{63} = 0 \\ a_{64} = - \frac{L_{2} m_{2} c_{12}}{2} a_{65} = a_{56} \\ a_{55} = I_{1} + I_{2} \frac{m_{1} L_{1}^{2}}{4} \frac{m_{2} ((L_{2} s_{12} - 2 L_{1} s_{1}) (\frac{L_{2} s_{12}}{2} - L_{1} s_{1})}{2} \frac{+ (L_{2} c_{12} - 2 L_{1} c_{1}) (\frac{L_{2} c_{12}}{2} - L_{1} c_{1}))}{2} \\ a_{56} = I_{2} + \frac{m_{2} (\frac{L_{2} c_{12} (L_{2} c_{12} - 2 L_{1} c_{1})}{2} + \frac{L_{2} s_{12} (L_{2} s_{12} - 2 L_{1} s_{1})}{2}}{2} \\ a_{66} = I_{2} + \frac{m_{2} L_{2}^{2}}{4} \end{array}

Similarly, we have

C (q) = [\begin{matrix} \begin{matrix} C_{11} & C_{12} & C_{13} \\ C_{21} & C_{22} & C_{23} \\ C_{31} & C_{32} & C_{33} \end{matrix} & \begin{matrix} C_{14} & C_{15} & C_{16} \\ C_{24} & C_{25} & C_{26} \\ C_{34} & C_{35} & C_{36} \end{matrix} \\ \begin{matrix} C_{41} & C_{42} & C_{43} \\ C_{51} & C_{52} & C_{53} \\ C_{61} & C_{62} & C_{63} \end{matrix} & \begin{matrix} C_{44} & C_{45} & C_{46} \\ C_{54} & C_{55} & C_{56} \\ C_{64} & C_{65} & C_{66} \end{matrix} \end{matrix}]

(33)

\begin{matrix} G (q) = \frac{\partial P_{total}}{\partial q} = [\begin{matrix} \begin{matrix} 0 \\ 0 \\ 0 \end{matrix} \\ \begin{matrix} 9.81 (m_{1} + m_{2} + m_{ban}) \\ 9.81 \frac{L_{1} m_{1} c_{1}}{2} - 9.81 m_{2} (\frac{L_{2} c_{12}}{2} - L_{1} c_{1}) \\ - 9.81 \frac{L_{2} m_{2} c_{12}}{2} \end{matrix} \end{matrix}] \end{matrix}

(34)

where

\begin{matrix} C_{11} = C_{12} = C_{13} = C_{14} = 0 C_{65} = - \frac{L_{1} L_{2} m_{2} s_{2} {\overset{\cdot}{θ}}_{1}}{2} \\ C_{15} = \frac{m_{2} (L_{2} c_{12} {\overset{\cdot}{θ}}_{12} - 2 L_{1} {\overset{\cdot}{θ}}_{1} c_{1})}{2} - \frac{L_{1} m_{1} {\overset{\cdot}{θ}}_{1} c_{1}}{2} \\ C_{16} = \frac{L_{2} m_{2} c_{12} {\overset{\cdot}{θ}}_{12}}{2} C_{56} = \frac{L_{1} L_{2} m_{2} s_{2} {\overset{\cdot}{θ}}_{2}}{2} \\ C_{21} = C_{22} = C_{23} = C_{24} = C_{25} = C_{26} = 0 \\ C_{31} = C_{32} = C_{33} = C_{34} = C_{35} = C_{36} = 0 \\ C_{41} = C_{42} = C_{43} = C_{44} = 0 \\ C_{45} = - \frac{m_{2} (2 L_{1} {\overset{\cdot}{θ}}_{1} s_{1} - L_{2} s_{12} {\overset{\cdot}{θ}}_{12})}{2} - \frac{L_{1} m_{1} {\overset{\cdot}{θ}}_{1} s_{1}}{2} \\ C_{51} = C_{52} = C_{53} = C_{54} = 0 C_{66} = 0 \\ C_{55} = \frac{m_{2} ((L_{2} s_{12} - 2 L_{1} s_{1}) (L_{2} c_{12} {\overset{\cdot}{θ}}_{12} - 2 L_{1} {\overset{\cdot}{θ}}_{1} c_{1})}{2} \\ + \frac{(2 L_{1} {\overset{\cdot}{θ}}_{1} s_{1} - L_{2} s_{12} {\overset{\cdot}{θ}}_{12}) (L_{2} c_{12} - 2 L_{1} c_{1}))}{2} \\ C_{61} = C_{62} = C_{63} = C_{64} = 0 \end{matrix}

To compute Jacobian matrix $J$ , our system is modeled with angular displacements and coordinates as Figure 7. This end-effector has vector of linear velocity $\overset{\cdot}{X}$ and vector of angular velocity $η$ as below

\overset{\cdot}{X} = [\begin{matrix} \overset{\cdot}{x} & \overset{\cdot}{y} & \begin{matrix} {\overset{\cdot}{x}}_{EE} & {\overset{\cdot}{y}}_{EE} & {\overset{\cdot}{z}}_{EE} \end{matrix} \end{matrix}]

(35)

η = {[\begin{matrix} {\overset{\cdot}{θ}}_{R} & {\overset{\cdot}{θ}}_{L} & \begin{matrix} {\overset{\cdot}{q}}_{L} & {\overset{\cdot}{θ}}_{1} & {\overset{\cdot}{θ}}_{2} \end{matrix} \end{matrix}]}^{T}

(36)

\overset{\cdot}{X} = J η

(37)

Therefore, location of end-effector could be expressed as

\begin{matrix} {\begin{matrix} {\overset{\cdot}{x}}_{EE} = \overset{\cdot}{x} - L_{1} {\overset{\cdot}{θ}}_{1} \sin θ_{1} + L_{2} ({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2}) \sin (θ_{1} + θ_{2}) \\ {\overset{\cdot}{y}}_{EE} = \overset{\cdot}{y} \\ {\overset{\cdot}{z}}_{EE} = {\overset{\cdot}{q}}_{L} + L_{1} {\overset{\cdot}{θ}}_{1} \cos θ_{1} - L_{2} ({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2}) \cos (θ_{1} + θ_{2}) \end{matrix} \\ \Rightarrow {\begin{matrix} {\overset{\cdot}{x}}_{EE} = vcos θ_{b} - L_{1} {\overset{\cdot}{θ}}_{1} \sin θ_{1} + L_{2} ({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2}) \sin (θ_{1} + θ_{2}) \\ {\overset{\cdot}{y}}_{EE} = vsin θ_{b} \\ {\overset{\cdot}{z}}_{EE} = {\overset{\cdot}{q}}_{L} + L_{1} {\overset{\cdot}{θ}}_{1} \cos θ_{1} - L_{2} ({\overset{\cdot}{θ}}_{1} + {\overset{\cdot}{θ}}_{2}) \cos (θ_{1} + θ_{2}) \end{matrix} \end{matrix}

(38)

Or,

[\begin{matrix} \overset{\cdot}{x} \\ \overset{\cdot}{y} \\ \begin{matrix} {\overset{\cdot}{x}}_{EE} \\ {\overset{\cdot}{y}}_{EE} \\ {\overset{\cdot}{z}}_{EE} \end{matrix} \end{matrix}] = [\begin{matrix} J_{11} & J_{12} & \begin{matrix} J_{13} & J_{14} & J_{15} \end{matrix} \\ J_{21} & J_{22} & \begin{matrix} J_{23} & J_{24} & J_{25} \end{matrix} \\ \begin{matrix} J_{31} \\ J_{41} \\ J_{51} \end{matrix} & \begin{matrix} J_{32} \\ J_{42} \\ J_{52} \end{matrix} & \begin{matrix} \begin{matrix} J_{33} & J_{34} & J_{15} \end{matrix} \\ \begin{matrix} J_{43} & J_{44} & J_{45} \end{matrix} \\ \begin{matrix} J_{53} & J_{54} & J_{55} \end{matrix} \end{matrix} \end{matrix}] [\begin{matrix} {\overset{\cdot}{θ}}_{R} \\ {\overset{\cdot}{θ}}_{L} \\ \begin{matrix} {\overset{\cdot}{q}}_{L} \\ {\overset{\cdot}{θ}}_{1} \\ \begin{matrix} {\overset{\cdot}{θ}}_{2} \\ {\overset{\cdot}{θ}}_{3} \end{matrix} \end{matrix} \end{matrix}]

(39)

where

\begin{matrix} J_{11} = \frac{R}{2} \cos θ_{b} J_{12} = \frac{R}{2} \cos θ_{b} \\ J_{13} = J_{14} = J_{15} = 0 J_{21} = \frac{R}{2} \sin θ_{b} \\ J_{22} = \frac{R}{2} \sin θ_{b} J_{23} = J_{24} = J_{25} = 0 \\ J_{31} = \frac{R}{2} \cos θ_{b} J_{31} = \frac{R}{2} \cos θ_{b} \\ J_{33} = 0 J_{34} = - L_{1} \sin θ_{1} + L_{2} \sin (θ_{1} + θ_{2}) \\ J_{35} = L_{2} \sin (θ_{1} + θ_{2}) J_{41} = \frac{R}{2} \sin θ_{b} \\ J_{42} = \frac{R}{2} \sin θ_{b} J_{43} = J_{44} = J_{45} = 0 \\ J_{51} = J_{52} = 0 J_{53} = 1 \\ J_{54} = L_{1} \cos θ_{1} \\ - L_{2} \cos (θ_{1} + θ_{2}) J_{55} = - L_{2} \cos (θ_{1} + θ_{2}) \end{matrix}

Figure 6.

Modeling of the proposed system, (a) side view and (b) top-bottom view.

Figure 7.

Modeling of the proposed system with angular displacement and coordinates.

The proposed motion controller

Design of velocity controller

Number equations

\overset{\cdot}{q} = H (q) η

(40)

The output variables of mobile manipulator are

Ψ = f (q)

(41)

With the reference trajectory $Ψ_{d}$ , the tracking error $e$ and its derivative $\overset{\cdot}{e}$ are

e = Ψ_{d} - Ψ

(42)

\overset{\cdot}{e} = {\overset{\cdot}{Ψ}}_{d} - \overset{\cdot}{Ψ}

(43)

Then,

\overset{\cdot}{Ψ} = \frac{\partial f (q)}{\partial q} \overset{\cdot}{q} = \frac{\partial f (q)}{\partial q} H (q) η = Δ η

(44)

Jacobian matrix $Δ$ is expanded as

Δ = \frac{\partial f (q)}{\partial q} H (q)

(45)

From (4) and (5), we have

\overset{\cdot}{e} = {\overset{\cdot}{Ψ}}_{d} - Δ η

(46)

In the case that the virtual control signal $η = η_{c}$ is set, we obtain

\overset{\cdot}{e} = {\overset{\cdot}{Ψ}}_{d} - Δ η_{c}

(47)

The Lyapunov candidate function could be chosen as

V_{1} = \frac{1}{2} e^{T} e

(48)

Deriving above equation, we also have

{\overset{\cdot}{V}}_{1} = e^{T} \overset{\cdot}{e} = e^{T} ({\overset{\cdot}{Ψ}}_{d} - Δ η_{c})

(49)

The control law $η_{c}$ should be selected as

η_{c} = Δ^{- 1} ({\overset{\cdot}{Ψ}}_{d} + Ke)

(50)

where

K > 0

Hence,

\overset{\cdot}{e} = - Ke

(51)

When $lim_{t \to \infty} e (t) = 0$ , we achieve ${\overset{\cdot}{V}}_{1} \leq - K ‖ e ‖^{2}$

Design of torque controller

We choose Lyapunov candidate function as below

V_{2} = \frac{1}{2} η_{e}^{T} \bar{M} η_{e}

(52)

where $η_{e}$ is the state error of this system

η_{e} = η - η_{c}

(53)

Deriving equation (42), it becomes

\begin{matrix} {\overset{\cdot}{V}}_{2} = \frac{1}{2} η_{e}^{T} [\overset{\cdot}{\bar{M}} η_{e} + 2 \bar{M} {\overset{\cdot}{η}}_{e}] \\ \Leftrightarrow {\overset{\cdot}{V}}_{2} = η_{e}^{T} [\frac{1}{2} \overset{\cdot}{\bar{M}} (η - η_{c}) + \bar{M} (\overset{\cdot}{η} - {\overset{\cdot}{η}}_{c})] \end{matrix}

(54)

From the dynamic equation, we have

\begin{matrix} {\overset{\cdot}{V}}_{2} = η_{e}^{T} [\frac{1}{2} \overset{\cdot}{\bar{M}} (η - η_{c}) + \bar{M} [{\bar{M}}^{- 1} (\bar{τ} - \bar{C} η - \bar{G}) - {\overset{\cdot}{η}}_{c}]] \\ = η_{e}^{T} [\frac{1}{2} \overset{\cdot}{\bar{M}} η - \frac{1}{2} \overset{\cdot}{\bar{M}} η_{c} + \bar{τ} - \bar{C} η - \bar{G} - \bar{M} {\overset{\cdot}{η}}_{c}] \end{matrix}

(55)

Then,

\begin{matrix} {\overset{\cdot}{V}}_{2} = η_{e}^{T} \\ [(\frac{1}{2} \overset{\cdot}{\bar{M}} η - \bar{C} η) - (\frac{1}{2} \overset{\cdot}{\bar{M}} η_{c} - \bar{C} η_{c}) - \bar{C} η_{c} + \bar{τ} - \bar{G} - \bar{M} {\overset{\cdot}{η}}_{c}] \end{matrix}

= η_{e}^{T} [\bar{τ} - \bar{M} {\overset{\cdot}{η}}_{c} - \bar{C} η_{c} - \bar{G}]

(56)

Using equation in previous section, we obtain

{\overset{\cdot}{V}}_{2} = η_{e}^{T} [\bar{τ} - Y (q, \overset{\cdot}{q}, η_{c}, {\overset{\cdot}{η}}_{c}) p]

(57)

Later, the control law $\bar{τ}$ should be designed as

\bar{τ} = Y (q, \overset{\cdot}{q}, η_{c}, {\overset{\cdot}{η}}_{c}) p - K_{1} η_{e}

(58)

where $K_{1}$ is positive definite gain

This controller is stable since equation (57) is re-written as

{\overset{\cdot}{V}}_{2} = - η_{e}^{T} K_{1} η_{e} \leq - λ_{min} (K_{1}) ‖ η_{e} ‖^{2}

(59)

However, $p$ is the unknown vector. It is essential to design the adaptive control rule to predict its values. Hence, the predictive vector of this controller is $\bar{p}$ . The error of prediction is defined as

e_{p} = p - \bar{p}

(60)

Therefore,

\begin{matrix} \bar{p} = - (Γ^{- 1})^{T} Y {(q, \overset{\cdot}{q}, η_{c}, {\overset{\cdot}{η}}_{c})}^{T} η_{e} \\ = - Γ^{- 1} Y {(q, \overset{\cdot}{q}, η_{c}, {\overset{\cdot}{η}}_{c})}^{T} η_{e} \end{matrix}

(61)

where $Γ$ is the gain matrix to ensure that $V_{3}$ is the positive definite

V_{3} = V_{2} + \frac{1}{2} e_{p}^{T} Γ e_{p}

(62)

Its derivative could be achieved as

\begin{matrix} {\overset{\cdot}{V}}_{3} = η_{e}^{T} [\bar{τ} - Y (q, \overset{\cdot}{q}, η_{c}, {\overset{\cdot}{η}}_{c}) p] + {\overset{\cdot}{e}}_{p}^{T} Γ e_{p} \\ = η_{e}^{T} [\bar{τ} - Y (q, \overset{\cdot}{q}, η_{c}, {\overset{\cdot}{η}}_{c}) p] + (- \overset{\cdot}{\bar{p}})^{T} Γ (p - \bar{p}) \end{matrix}

(63)

Substituting above controller, ${\overset{\cdot}{V}}_{3}$ is

\begin{matrix} {\overset{\cdot}{V}}_{3} = η_{e}^{T} [\bar{τ} - Yp] + (η_{e}^{T}) Y (Γ^{- 1} Γ) (p - \bar{p}) \\ = η_{e}^{T} [\bar{τ} - Yp + Yp - Y \bar{p}] \\ = η_{e}^{T} [\bar{τ} - Y \bar{p}] \leq η_{e}^{T} K_{1} η_{e} \leq - λ_{min} (K_{1}) ‖ η_{e} ‖^{2} \end{matrix}

(64)

Using Barbalat lemma²³, $\begin{matrix} L_{s} & f : R^{+} \to R \end{matrix}$ is defined as

‖ f (t) ‖_{s} = {(\int_{0}^{\infty} {| f (τ) |}^{s} d τ)}^{\frac{1}{s}}

(65)

$\forall s = [1, \infty)$ , we have

\begin{matrix} {‖ f (t) ‖}_{s} = max | f (t) | & t \geq 0 \end{matrix}

(66)

Thus, $η_{e} \in L_{\infty}$

\begin{matrix} V_{2} (t) \leq V_{2} (0) - λ_{min} K_{1} \int_{0}^{t} {‖ η_{e} ‖}^{2} dt \\ \Rightarrow \int_{0}^{t} {‖ η_{e} ‖}^{2} dt \leq \frac{V_{2} (0) - V_{2} (t)}{λ_{min} K_{1}} \end{matrix}

(67)

$V_{2} (0)$ is determined and $V_{2} (t) \in L_{\infty}$ . As a result, $η_{e} \in L_{2}$ and $λ_{min} (K_{1})$ is the smallest eigenvalue of control gain $K_{1}$ . According to Barbalat lemma, we achieve

\underset{t \to \infty}{lim η_{e}} = 0 \Rightarrow \underset{t \to \infty}{lim η} = η_{c}

(68)

It means that the tracking error of this system would be zero when $t \to \infty$ .

Results of study

To verify the effectiveness and feasibility of the proposed approach, both numerical simulation and real-world experiment must be conducted. Hence, practical test scenario comprises hardware platform of WM, dual-finger of gripper, sensing devices and host computer. To complete the handling task, WM should move to target object, pick it up, then travel to destination and place this object as its desire. The structure of our controller is illustrated as Figure 8. There are four main blocks such as velocity controller, adaptive controller, plant model of mobile manipulator and inverse kinematic. In the simulation test, these controllers are presentative to distinguish by functional blocks and wiring connections. On the other hand, they are embedded in different software programming.

Figure 8.

Block diagram of the proposed controller.

Simulation

This numerical simulation is validated in Simulink/Matlab software. The technical specifications of host computer are with Intel(R) Core(TM) i7-6600U CPU (Central Processing Unit) 2,60 GHz, 8 GB RAM (Random Access Memory), Windows OS (Operating System) 10 Pro, x64-based processor. In the setting stage, the initial parameters of this system are defined as Table 3. Those values are elected from the physical dimensions of our WM as well as the desired performance.

Table 3.

List of parameters in simulation.

Symbol	Value	Symbol	Value	Symbol	Value
$m_{b}$	35	$\overset{\cdot}{x}$	5	$v$	0
$m_{1}$	1	$\overset{\cdot}{y}$	5	$ω$	0
$m_{2}$	1	$x_{EEd}$	0	${\overset{\cdot}{q}}_{L}$	0
$m_{ban}$	7	$y_{EEd}$	0	${\overset{\cdot}{θ}}_{1}$	0
$I_{b}$	1	$z_{EEd}$	0	${\overset{\cdot}{θ}}_{2}$	0
$I_{1}$	1	$x$	0	$k$	1.01
$I_{2}$	1	$y$	0	$K$	50
$R$	0.073	$θ_{b}$	0	$K_{1}$	$800 I_{5 \times 5}$
$L_{1}$	0.249	$q_{L}$	0	$Γ$	$- 10 I_{7 \times 7}$
$L_{2}$	0.25	$θ_{2}$	0	$θ_{1}$	0

To imitate the variations of practical scenario, our reference signals are considered as ${\overset{\cdot}{x}}_{d} = 0, 1 + 0, 05 \sin t$ ; ${\overset{\cdot}{y}}_{d} = 0, 1 + 0, 05 \cos t$ ; $x_{EEd} = 0, 1 t - 0, 05 \cos t + 0, 05 \sin t + 1$ ; $y_{EEd} = 0, 1 t + 0, 05 \sin t + 1$ ; $z_{EEd} = 1$ . These results of tracking positions in x, y, and z axis are simulated as Figure 9(a), Figure 9(b) and (c) correspondingly while its tracking errors of positions are obtained as Figure 9(d). It is reasonable and feasible for this WM to follow the reference trajectory.

Figure 9.

Simulation results of tracking position for the end-effector by using the proposed controller on (a) x axis, (b) y axis, (c) z axis, and (d) the tracking errors.

Additionally, the response of our system is prompt and has instantaneous effect on the output signals. In detail, actual velocity of mobile platform could immediately track its reference as Figure 10(a) and (b) when this system is activated. Observing Figure 10(c), it can be stated obviously that the system parameters are well-tuned to adapt with many variations during its operation. The output torques to drive servo motors could be shown as Figure 10(d). Since the system stability is warranted, driving torque maintains at a constant value. For the reason that it requires to handle robotic gripper at a specified location, its torque at link two might be larger.

Figure 10.

Simulation results of tracking velocity for the mobile platform by using the proposed controller on (a) x axis, (b) y axis, (c) velocity error and (d) output torque for each driving motor.

Experiment

According to the proposed design, hardware platform of our WM as Figure 11 is built to prove the efficiency and practicality of technical specifications as Table 4. In the indoor environment, robot autonomously moves toward to an object, then drive robotic manipulator to pick it. After that, WM turns its direction and travel to destination and place an object.

Figure 11.

Practical experiments of picking and placing an object by using the proposed controller.

Table 4.

List of parameters in experiment.

Item	Value	Item	Value
Diameter of driving wheel	120 mm	Strobe of load	50 mm
Material for tire of driving wheel	Rubber	Type of passive wheel	Castor
Material for manipulator	Aluminum	Max current for driving motor	2500 mA
Material for mobile base	Steel	Rated current for driving motor	0–10 A
Length of mobile base	800 mm	Max speed of driving motor	388 rpm
Width of mobile base	600 mm	Power supply for driving motor	24 V
Height of mobile base	320 mm	Power of driving motor	1,5 kW

In the real platform, data acquisition from various sensing sources is measured by our controller. To estimate the traveling angle of each joint, DC servo motor feedbacks its signal to compute the angular rotation. In the mobile base, two positioning sensors in both active wheels are directly attached to the shafts of driving motors. They are utilized to measure the location of this robot in the surrounding environment. For loading an object, it is necessary to assign the force sensing unit in the inside surface of gripper. This sensor is very thin, sensitive and measurable by forwarding the electric signal to main controller. With these mechanisms to collect data, WM has enough information to work well in the setting situation.

Besides, the tracking performance of end-effector is depicted as Figure 12. Owing to the pre-determined trajectory, WM handles its manipulator to follow although it may suffer some uncertainties or errors in the real environment. In Figure 12(d), torque sensors are attached in two fingers of gripper so that robot could sustain the grasping force. Moreover, the tracking velocity of mobile platform is recorded in Figure 13. From these results, the motion control of WM still preserves stably and sustainably.

Figure 12.

Practical results of tracking position for the end-effector by using the proposed controller on (a) x axis, (b) y axis, (c) z axis, and (d) interactive force when grasping an object.

Figure 13.

Practical results of tracking velocity for mobile platform by using the proposed controller on (a) x axis and (b) y axis.

To summarize our validations in both numerical simulation and experiment, Table 5 represents the max, min and average values of tracking performance such as positioning error and velocity error. While robot is handling the pick-and-place task, the lifting table which is directly connected to the base of manipulator, is not activated. Since WM locates in front of an object, it spends a lot of efforts to reach target. As a result, the fluctuations of tracking performance on x axis might be larger than y axis. For simulation tests, the average values of tracking positions on x and y axis are 0.013 and 0.009 separately. In detail, the changes in position are also greater on x axis because it needs to track the reference velocity simultaneously. In the experimental verifications, the tracking velocity on x axis is 0.037 in average while the other one on y axis is 0.025. Although max value of tracking velocity on y axis is higher, its min value is still lower owing to the effect of our controller.

Table 5.

Results of simulation and experiment.

Validation	Item	Axis	Max	Min	Average
Simulation	Tracking position	X	1.08	0.003	0.013
		Y	0.94	0.002	0.009
	Tracking velocity	X	0.04	0.006	0.025
		Y	0.03	0.002	0.011
Experiment	Tracking position	X	0.15	0.063	0.088
		Y	0.10	0.042	0.074
	Tracking velocity	X	0.06	0.008	0.037
		Y	0.09	0.002	0.025

Conclusion

In this paper, the systematic design of motion controller for WM was presented. Mobile platform included the DDR structure of driving mechanism while upper manipulator was attached. Dual-finger gripper with force sensors was implemented to grasp an object in target location. Due to the dynamical analysis, both velocity controller and torque controller were designed. By using Lyapunov theory, the proposed system is asymptotically stable. Based on our design, numerical simulation and real-world experiment are accomplished to validate the properness and feasibility of this approach. The practical results indicate that the maximum values of tracking errors in x and y axis are 12.5% and 8.1% in respect to the desired ones correspondingly. In the tracking velocity, these errors are 16.3% and 13.7% in x axis and y axis respectively. Comparing to the others, this design is beneficial to carry heavier object because of parallelogram mechanism as well as provides more flexible motion and stable movement due to the proposed controller.

For further developments, the advanced control strategies such as machine learning or deep learning could be embedded in order to enhance the high performance of our system. Furthermore, WM integrated the digital camera system can be possibly navigated in the unknown environment. In addition, two or three WMs could collaborate in a group which perform a specific task. Some algorithms for instance swarm optimization or decentralized control can be proper to implement.

Footnotes

Acknowledgements

We acknowledge Ho Chi Minh City University of Technology (HCMUT), VNU-HCM for supporting this study.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Ha Quang Thinh Ngo

Data availability statement

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.

References

Zhou

Fürsterling

, et al. Learning-based object detection and localization for a mobile robot manipulator in SME production. Rob Comput Integr Manuf 2022; 73: 102229.

Garcia Ricardez

Okada

Koganti

, et al. Restock and straightening system for retail automation using compliant and mobile manipulation. Adv Rob 2020; 34(3–4): 235–249.

Johnson

Sefcik

, et al. Task and design requirements for an affordable mobile service robot for elder care in an all-inclusive care for elders assisted-living setting. Int J Social Rob 2020; 12: 989–1008.

Rivera

Alvarado

Martínez-Rocamora

, et al. A comprehensive performance evaluation of different mobile manipulators used as displaceable 3D printers of building elements for the construction industry. Sustainability 2020; 12(11): 4378.

Sakai

Katsumata

Miki

, et al. A mobile dual-arm manipulation robot system for stocking and disposing of items in a convenience store by using universal vacuum grippers for grasping items. Adv Rob 2020; 34(3–4): 219–234.

Štibinger

Broughton

Majer

, et al. Mobile manipulator for autonomous localization, grasping and precise placement of construction material in a semi-structured environment. IEEE Rob Autom Lett 2021; 6(2): 2595–2602.

Zafar

Mohanta

. Methodology for path planning and optimization of mobile robots: a review. Procedia Comp Sci 2018; 133: 141–152.

Ngo

HQT

Nguyen

. Approaching to the stable transportation based on motion profile phases for material handling system. J Cleaner Prod 2022; 371: 133257.

Laith

Jaleel

Hassan

. A comparison study and real-time implementation of path planning of two arm planar manipulator based on graph search algorithms in obstacle environment. ICIC Express Lett 2023; 17(01): 61.

10.

Muhammed

Humaidi

Flaieh

. Towards comparison and real time implementation of path planning methods for 2R planar manipulator with obstacles avoidance. Math Modell Eng Problems 2022; 9(2): 379–389.

11.

Ren

Sosnowski

Hirche

. Fully distributed cooperation for networked uncertain mobile manipulators. IEEE Trans Rob 2020; 36(4): 984–1003.

12.

Tallamraju

Salunkhe

Rajappa

, et al. Motion planning for multi-mobile-manipulator payload transport systems. In: 2019 IEEE 15th international conference on automation science and engineering (CASE), 2019, pp. 1469–1474. IEEE.

13.

Korayem

Dehkordi

. Motion equations of cooperative multi flexible mobile manipulator via recursive Gibbs–Appell formulation. Appl Math Modell 2019; 65: 443–463.

14.

Pankert

Hutter

. Perceptive model predictive control for continuous mobile manipulation. IEEE Rob Autom Lett 2020; 5(4): 6177–6184.

15.

Wang

Peng

, et al. Fuzzy-torque approximation-enhanced sliding mode control for lateral stability of mobile robot. IEEE Trans Syst Man Cybern Syst 2021; 52(4): 2491–2500.

16.

Ngo

HQT

Nguyen

. Fenceless collision free avoidance driven by visual computation for an intelligent cyber physical system employing both single and double S trajectory. IEEE Trans Consum Electron 2023; 69: 622.

17.

Al-Dujaili

Cocquempot

Najjar

MEBE

, et al. Adaptive fault-tolerant control design for multi-linked two-wheel drive mobile robots. In: Mobile robot: motion control and path planning. Cham: Springer International Publishing, 2023, pp. 283–329.

18.

Al-Dujaili

Cocquempot

Najjar

MEE

, et al. Fault diagnosis and fault tolerant control for n-linked two wheel drive mobile robots. In: Azar

Kasim Ibraheem

Jaleel Humaidi

(eds) Mobile robot: motion control and path planning. studies in computational intelligence. Cham: Springer, 2023, vol. 1090.

19.

Nguyen

Ngo

HQT

. Developing and evaluating the context-aware performance of synchronization control in the real-time network protocol for the connected vehicle. Mobile Netw Appl 2023: 1–22.

20.

Pardi

Maddali

Ortenzi

, et al. Path planning for mobile manipulator robots under non-holonomic and task constraints. In: 2020 IEEE/RSJ international conference on intelligent robots and systems (IROS), 2020, pp. 6749–6756. IEEE.

21.

Mbakop

Tagne

Lakhal

, et al. Path planning and control of mobile soft manipulators with obstacle avoidance. In: 2020 3rd IEEE international conference on soft robotics (RoboSoft), 2020, pp. 64–69. IEEE.

22.

Tung

Hwang

. The development of a mobile manipulator imaging system for bridge crack inspection. Autom Constr 2020; 11(6): 717–729.

23.

Sutter

Lelevé

Pham

, et al. A semi-autonomous mobile robot for bridge inspection. Autom Constr 2018; 91: 111–119.

24.

Karumanchi

Edelberg

Baldwin

, et al. Team RoboSimian: semi-autonomous mobile manipulation at the 2015 DARPA robotics challenge finals. J Field Rob 2017; 34(2): 305–332.

25.

Yuan

Liu

, et al. Whole-body control of an autonomous mobile manipulator using model predictive control and adaptive fuzzy technique. IEEE Trans Fuzzy Syst 2022; 31(3): 799–809.

26.

Park

Hoshi

Mahajan

, et al. Active robot-assisted feeding with a general-purpose mobile manipulator: design, evaluation, and lessons learned. Rob Auton Syst 2020; 124: 103344.

27.

Kim

Balatti

Lamon

, et al. MOCA-MAN: a mobile and reconfigurable collaborative robot assistant for conjoined human-robot actions. In: 2020 IEEE international conference on robotics and automation (ICRA), 2020, pp. 10191–10197. IEEE.

28.

Xing

Torabi

Ding

, et al. An admittance-controlled wheeled mobile manipulator for mobility assistance: human–robot interaction estimation and redundancy resolution for enhanced force exertion ability. Mechatronics 2021; 74: 102497.

29.

Xia

Xie

. Stochastic Barbalat’s lemma and its applications. IEEE Trans Autom Control 2011; 57(6): 1537–1543.

30.

Korayem

Dehkordi

Ghobadi

. Wheel slippage compensation in mobile manipulators through combined kinematic, dynamic, and sliding mode control. Arabian J Sci Eng 2024: 1–21.
