Simultaneous effect of temperature and sulfuric acid concentration on degradation of fibre reinforced plastics by investigating weight loss and mechanical strength
Restricted accessResearch articleFirst published online September, 2025
Simultaneous effect of temperature and sulfuric acid concentration on degradation of fibre reinforced plastics by investigating weight loss and mechanical strength

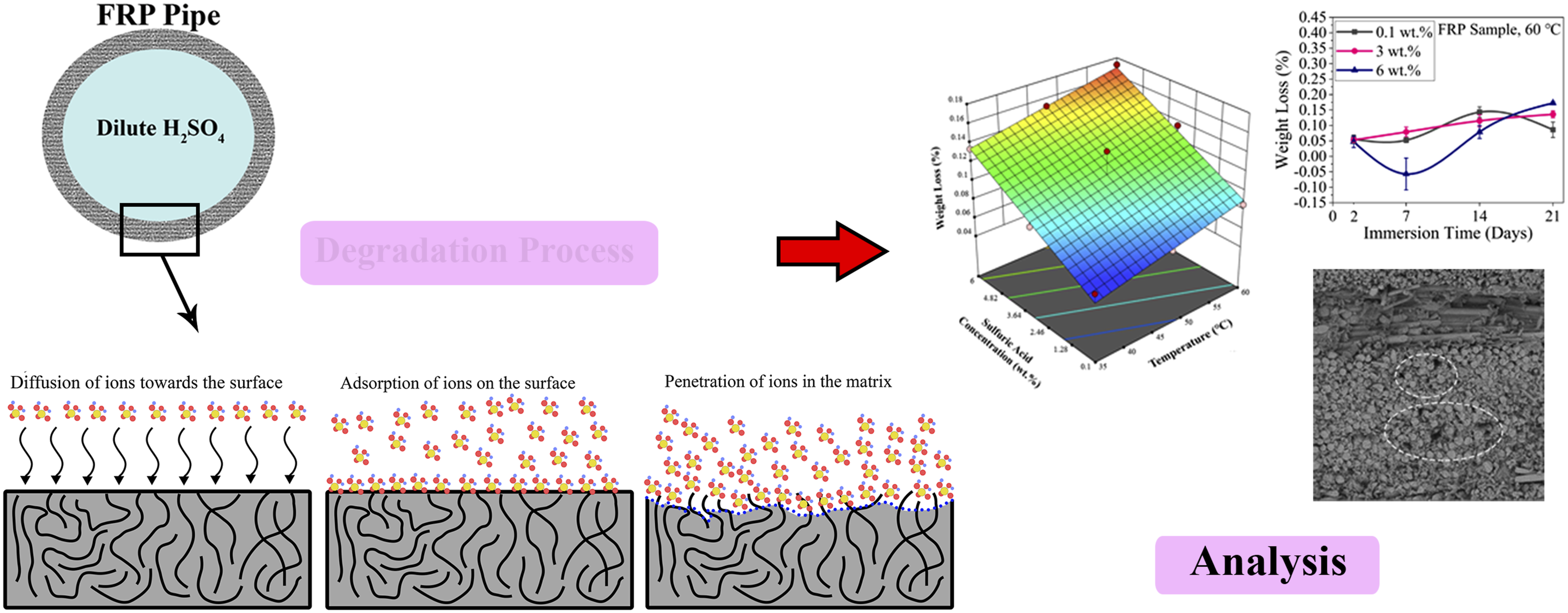

The simultaneous effect of temperature and sulfuric acid concentration on the degradation of FRP composites has been studied using the weight loss technique. The immersion tests were designed using RSM methodology based on Design Expert software. ICP-Mass tests were performed to analyze the ion concentration in sulfuric acid solution after immersion. Additionally, the morphology of FRP samples was studied through SEM-EDS analysis. Furthermore, the mechanical properties of the immersed samples were assessed through mechanical bending and micro-hardness tests. The study proposed a three-dimensional view of the variation in FRP weight loss as a response to changes in temperature and sulfuric acid concentration. The results showed that the maximum weight loss occurred at 60°C and 6% sulfuric acid concentration. A linear model for the variation of FRP weight loss was proposed based on independent parameters and ANOVA variance analysis. The effect of sulfuric acid concentration on FRP weight loss was found to be more significant than temperature in the range of investigated parameters. It was concluded that immersion of FRP in sulfuric acid resulted in corrosion and degradation, followed by weight loss and a decrease in flexural bending strength and Vickers micro-hardness.
LinKWangZ. Multiscale mechanics and molecular dynamics simulations of the durability of fiber-reinforced polymer composites. Commun Mater2023; 4: 66–616.
2.
ChandrasekaranC. Anticorrosive rubber lining: a practical guide for plastics engineers. 2017.
3.
PuticSMedjoBRakinM, et al.Effect of solution pH on crack initiation and propagation in glass-polyester pipes subjected to impact. Polym Compos2012: 1321–1328.
4.
hasan BannaM. Performance evaluation of fiber glass reinforced polymer resins in hydromentallurgical process solutions, Doctoral dissertation. St. John’s, NL: Memorial University of Newfoundland, 2010.
5.
PradcharPAokiSKubouchiM, et al.The effect of cyclic temperature of sulfuric acid on flexural property of matrix resin for FRP storage. J Chem Eng Jpn2015; 48: 670–677.
6.
HojoHTsudaKOgasawaraK. Form and rate of corrosion of corrosion-resistant FRP resins. Adv Compos Mater1991; 1: 55–67.
7.
HammamiAAl-GhuilaniN. Durability and environmental degradation of glass‐vinylester composites. Polym Compos2004; 25: 609–616.
8.
LindgrenMWallinMKakkonenM, et al.The influence of high-temperature sulfuric acid solution ageing on the properties of laminated vinyl-ester joints. Int J Adhesion Adhes2016; 68: 298–304.
9.
ToufighVHaghighiSKosarimovahhedM. An experimental study on bond behavior of tensile lap spliced FRP in aggressive environments. Structures2021; 32: 342–354.
10.
HarleSM. Durability and long-term performance of fiber reinforced polymer (FRP) composites: a review. Structures2024; 60: 105881.
11.
Glory OyiborhoroBAAnegbeBOdiachiIJ, et al.Environmental impact of multi-component fiber-reinforced composites: challenges and green solutions. In: TMS 2024 153rd annual meeting & exhibition supplemental proceedings. Cham: Springer Nature Switzerland, 2024, pp. 1237–1252.
12.
BarkoulaNMAlcockBCabreraNO, et al.Fatigue properties of highly oriented polypropylene Tapes and all-polypropylene composites. Polym Polym Compos2008; 16: 101–113.
13.
KulshreshthaAK. Handbook of polymer blends and composites. 2002, vol 1.
14.
ChinTNJWAouadiKHaightMR, et al.Effects of water, salt solution and simulated concrete pore solution on the properties of composite matrix resins used in civil engineering applications. 2004.
15.
KimHYParkYHYouYJ, et al.Short-term durability test for GFRP rods under various environmental conditions. Compos Struct2008; 83(1): 37–47.
16.
LiaoKSchultheiszCRHunstonDL. Effects of environmental aging on the properties of pultruded GFRP. Composites Part B1999; 30: 485–493.
17.
AmaroAMReisPNBNetoMA, et al.Effects of alkaline and acid solutions on glass/epoxy composites. Polym Degrad Stabil2013; 98: 853–862.
18.
WangJGangaraoHLiangR, et al.Physical, thermal, mechanical, and/or chemical changes may occur that can be either reversible or irreversible, 2016.
19.
JonesRL. Chemical corrosion of E-glass fibers in oxalic and other organic acids. J Am Ceram Soc2006; 89: 20–23.
20.
BannaMHShirokoffJMolgaardJ. Effects of two aqueous acidic solutions on polyester and bisphenol A epoxy vinyl ester resins. Mater Sci Eng2011; 528: 2137–2142.
21.
GautierLMortaigneBBellengerV. Interface damage study of hydrothermally aged glass-fibre-reinforced polyester composites. Compos Sci Technol1999; 59: 2329–2337.
22.
HotaGBarkerWManaloA. Degradation mechanism of glass fiber/vinylester-based composite materials under accelerated and natural aging. Constr Build Mater2020; 256: 119462.
23.
SarkerMHadighehSADias-da-CostaD. A performance-based characterisation of CFRP composite deterioration using active infrared thermography. Compos Struct2020; 241: 112134.
24.
MokobiaKJonathanEMOyiborhoroG, et al.Environmental degradation of polymer-based composite materials: challenges and mitigation strategies. In: TMS 2024 153rd annual meeting & exhibition supplemental proceedings. Cham: Springer Nature Switzerland, 2024, pp. 1218–1236.
25.
ChinJW. Durability of composites exposed to ultraviolet radiation. Durab Compos Civ Struct Appl2007; 2007: 80–97.
26.
ZhaoJCaiGCuiL, et al.Deterioration of basic properties of the materials in FRP-strengthening RC structures under ultraviolet exposure. Polymers2017; 9: 402.
27.
SarlinESironenRPärnänenT, et al.The effect of matrix type on ageing of thick vinyl ester glass-fibre-reinforced laminates. Compos Struct2017; 168: 840.
28.
AminiMKhavandiA. Degradation of polymer-based composites in corrosive media: experimental attempts towards underlying mechanisms. Mech Time-Dependent Mater2019; 23: 153–172.
29.
BaharlouANasouriK. A new comprehensive evaluation of the corrosion mechanism of E-type glass fibers in sulfuric acid solutions. Constr Build Mater2020; 268: 121213.
30.
EslamiSHonarbakhsh-RaoufAEslamiS. Effects of moisture absorption on degradation of E-glass fiber reinforced Vinyl Ester composite pipes and modelling of transient moisture diffusion using finite element analysis. Corros Sci2015; 90: 168–175.
31.
JavidiMKarimi AbadehHYazdanpanahHR, et al.Synergistic effect of temperature, concentration and solution flow on corrosion and passive film of austenitic SS 304L and 316L in concentrated sulfuric acid. Corros Sci2024; 237: 112306.
32.
JavidiMKarimi AbadehHYazdanpanahHR, et al.A new perspective on the corrosion of carbon steels in H2SO4 acid environments: statistical analysis of corrosion mechanisms by response surface modeling. Mater Chem Phys2024; 312: 128608.
33.
JonesRL. The corrosion of E-glass fibres in complexing organic acids. Adv Mater Res2008; 39-40: 311–316.
34.
HadighehSAGravinaRJSmithST. Effect of acid attack on FRP-to-concrete bonded interfaces. Constr Build Mater2017; 152: 285–303.
35.
Lean Yen HanYDBinti OthmanRWeiCB, et al.Mathematical analysis on the durability of basalt Rebars in acidic environment. Constr Technol Archit2023; 4: 25–34.
36.
MethodsST. Standard test methods for chemical resistance of mortars, grouts, and monolithic surfacings and polymer concretes. 2020, vol 1, p. i.
37.
StandardAS. Standard test methods for flexural properties of unreinforced and reinforced plastics and electrical insulating materials. ASTM D790. Annu Book ASTM Stand1997.
38.
HardnessAB. Standard test method for microindentation hardness of materials. West Conshohocken, PA: ASTM Committee, 1999, vol 384, p. 399.
39.
SmithIW. The temperature-dependence of elementary reaction rates: beyond Arrhenius. Chem Soc Rev2008; 37(4): 812–826.
40.
QiuQKumosaM. Corrosion of E-glass fibers in acidic environments. Compos Sci Technol1997; 57(5): 497–507.
41.
JonesRLChandlerHD. Chemical corrosion of E-glass fibres in neutral phosphate solutions. J Mater Sci1986; 21: 2175–2178.
42.
SridharNAnderkoA. Electrolyte based modeling of corrosion processes in sulfuric acid mixtures, Part 1: nonoxidizing conditions. Corrosion2021; 77(9): 935–948.
43.
SchutteCL. Environmental durability of glass-fiber composites. Mater Sci Eng R1994; 13: 265–323.
44.
JonesRLStewartJ. The kinetics of corrosion of e-glass fibres in sulphuric acid. J Non-Cryst Solids2010; 356: 2433–2436.
45.
LiHYanMQiD, et al.Corrosion of E-glass fiber in simulated oilfield environments. J Pet Sci Eng2011; 78: 371–375.
46.
RamachandranBEBasavarajappaGPaiBC, et al.Effects of acid and post heat treatment on the tensile properties of E-glass fibres. J Mater Sci Lett1984; 3: 685–688.
