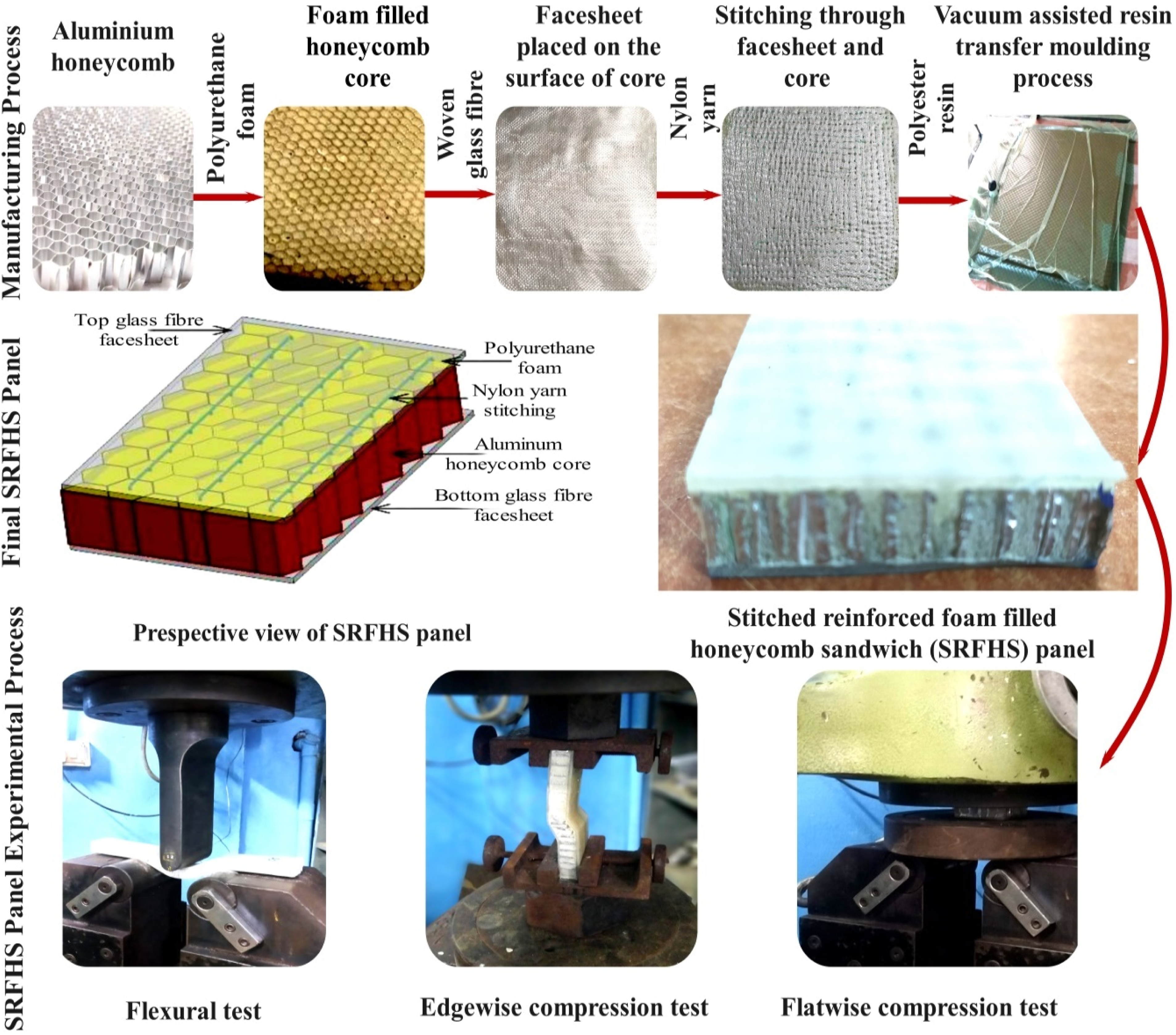

The increasing demand for lightweight, cost-effective panels with high load-bearing capacity and minimal damage potential has driven advancements in sandwich composite materials, particularly for automotive applications. This study compares the performance of Stitch Reinforced Foam-filled Honeycomb Sandwich (SRFHS1), Pin Reinforced Foam-filled Honeycomb Sandwich (PRFHS1), and traditional Reinforced Foam-filled Honeycomb Sandwich (RFHS) panels. Experimental results revealed that the SRFHS1 panel achieved a peak load of 51,550 N in flatwise compression, 11,320 N in edgewise compression, and 1,520 N in flexural testing, outperforming PRFHS1 by 1.19, 1.19, and 1.33 times, and RFHS by 1.28, 1.26, and 2.03 times, respectively. Digital microscopy confirmed reduced damage in the SRFHS1 panel after flexural testing, highlighting superior durability. Machine learning analysis using ANOVA showed F-values of 11.497, 14.642, and 26.203 for flatwise, edgewise, and flexural tests, all exceeding critical thresholds with P-values <0.05, leading to the rejection of the null hypothesis and confirming significant differences among the populations for these parameters. Post-hoc Tukey HSD and box plot analysis identified SRFHS1 as the best-performing panel. These results establish SRFHS1 panels as ideal for transportation, offering durability, lightweight design, cost-effectiveness, and improved failure prediction and damage assessment capabilities.
CzerwinskiF. Current trends in automotive lightweighting strategies and materials. Materials2021; 14: 6631.
2.
SahuSKSreekanthPSRReddySVK. A brief review on advanced sandwich structures with customized design core and composite face sheet. Polymers2022; 14: 4267.
3.
RenSWuQZhangP, et al.Damage effects of aluminum alloy honeycomb sandwich panel double-layer structure induced by reactive projectile hypervelocity impact. Thin-Walled Struct2024; 202: 112076.
4.
KhanMASyedAKIjazH, et al.Experimental and numerical analysis of flexural and impact behaviour of glass/pp sandwich panel for automotive structural applications. Adv Compos Mater2018; 27: 367–386.
5.
KazemianRFanaieNMousavi-BafrouyiSMS, et al.Experimental investigation on flexural behavior and energy absorption of lightweight sandwich panels with aluminum honeycomb core embedded by thin-ply carbon-glass fibers/epoxy face sheets. Structures2024; 60: 105961.
6.
ChandrasekaranNKArunachalamV. State-of-the-art review on honeycomb sandwich composite structures with an emphasis on filler materials. Polym Compos2021; 42: 5011–5020.
7.
AfolabiOAKannyKMohanTP. Investigation of mechanical characterization of hybrid sandwich composites with syntactic foam core for structural applications. Compos Adv Mater2023; 32: 26349833221147539.
8.
MengDGuWZhuG, et al.Interfacial architecting of long-acting hyperbranched flame retardant with high efficiency towards smoke-suppressed flexible polyurethane foam. Compos Part B Eng2023; 262: 110816.
9.
Hassanpour RoudbenehFLiaghatGSabouriH, et al.Experimental investigation of impact loading on honeycomb sandwich panels filled with foam. Int J Crashworthiness2019; 24: 199–210.
10.
Ashraff AliKSSuresh KumarSAllen JeffreyJ, et al.An insight into stress and strain analysis over on hexagonal aluminium sandwich honeycomb with various thickness glass fiber face sheets. Mater Today Proc2021; 47: 493–499.
11.
BhatRMohanNSharmaS, et al.Mechanical testing and microstructure characterization of glass fiber reinforced isophthalic polyester composites. J Mater Res Technol2019; 8: 3653–3661.
12.
NagarajanVAKumarKPVEdwinM, et al.Fabrication of fiber reinforced plastic composites using a vacuum assisted resin transfer moulding process. AIP Conf. Proc2025; 3135: 050011.
13.
KhanTAcarVAydinMR, et al.A review on recent advances in sandwich structures based on polyurethane foam cores. Polym Compos2020; 41: 2355–2400.
14.
AjayiOKMalomoBOAdebayoD, et al.Energy absorption of polyurethane filled Al 6061 honey comb sandwiched structure. Mech Adv Mat Struct2023; 31: 8887–8904.
15.
FlorenceAJaswinMAArul PrakashMDA, et al.Effect of energy-absorbing materials on the mechanical behaviour of hybrid FRP honeycomb core sandwich composites. Mater Res Innov2020; 24: 244–255.
16.
AshrafWIshakMRMYMZ, et al.Investigation of mechanical properties of honeycomb sandwich structure with kenaf/glass hybrid composite facesheet. J Nat Fibers2022; 19: 4923–4937.
17.
NosratbakhshMRostamiyanYMaddahS. Compressive and bending behavior of foam-filled Kevlar fiber composite sandwich panel with novel lozenge core: a numerical and experimental study. Proc Inst Mech Eng Part L J Mater Des Appl2023; 237: 155–169.
18.
SafarabadiMHaghighi-YazdiMSorkhiMA, et al.Experimental and numerical study of buckling behavior of foam-filled honeycomb core sandwich panels considering viscoelastic effects. J Sandw Struct Mater2021; 23: 3985–4015.
19.
CrupiVKaraEEpastoG, et al.Theoretical and experimental analysis for the impact response of glass fibre reinforced aluminium honeycomb sandwiches. J Sandw Struct Mater2018; 20: 42–69.
20.
CinarK. Evaluation of sandwich panels with composite tube-reinforced foam core under bending and flatwise compression. J Sandw Struct Mater2020; 22: 480–493.
21.
SunZChenHSongZ, et al.Three-point bending properties of carbon fiber/honeycomb sandwich panels with short-fiber tissue and carbon-fiber belt interfacial toughening at different loading rate. Compos Part A Appl Sci Manuf2021; 143: 106289.
22.
EyvazianAMoeinifardMMusharavatiF, et al.Mechanical behavior of resin pin-reinforced composite sandwich panels under quasi-static indentation and three-point bending loading conditions. J Sandw Struct Mater2021; 23: 2127–2145.
23.
AiSChenYHeR. Effects of stitching parameters on the mechanical properties of stitched sandwich panel structures. Ceram Int2021; 47: 5249–5255.
24.
YanCXuXWangT, et al.Effect of resin pins on the failure behavior of foam core sandwich beams under three-point loading. ACS Omega2022; 7: 37834–37845.
25.
SIKPVKPP, et al.Exploring copper corrosion inhibition in value added neem biodiesel: evaluation by traditional and machine learning approaches. Ind Crops Prod2024; 219: 119073.
26.
TianWLiQWangQ, et al.Additive manufacturing error quantification on stability of composite sandwich plates with lattice-cores through machine learning technique. Compos Struct2024; 327: 117645.
27.
IyyappanSVinod KumarKPPonramP. Value added biodiesel for corrosion inhibition. Indian J Chem Technol2024; 31: 85–94.
28.
JayaramRSNagarajanVAKumarKV. Low velocity impact and compression after impact behaviour of polyester pin-reinforced foam filled honeycomb sandwich panels. J Sandw Struct Mater2022; 24: 157–173.
29.
DhaneshENagarajanVVinod KumarK, et al.Enhancement of structural integrity of stitched sandwich panels: investigation by flexural, low velocity impact, compression after impact, and machine learning methods. Proc Inst Mech Eng Part L J Mater Des Appl2025; 00. DOI: 10.1177/14644207251320022,Epub ahead of print 27.
30.
DhaneshENagarajanVAVinod KumarKP, et al.Quantitative assessment of impact damage in stitched foam‐filled Aluminium honeycomb Sandwich panels by experimental and machine learning methods. Polym Compos2024; 45: 13663–13675.
31.
NagarajanVDhaneshEVinod KumarK. Mechanical performance of stitched foam-filled honeycomb sandwich panels. Proc Inst Mech Eng Part C J Mech Eng Sci2024; 238: 9601–9612.
32.
ZhangYGeTTianW, et al.Debris flow susceptibility mapping using machine-learning techniques in shigatse area, China. Remote Sens2019; 11: 2801.
33.
HuYZhuJWangJ, et al.Interfacial failure in stitched foam sandwich composites. Materials2021; 14: 2275.
34.
LeTTNTruongHBThi HoaL, et al.Cu2O/Fe3O4/UiO-66 nanocomposite as an efficient fenton-like catalyst: performance in organic pollutant degradation and influencing factors based machinelearning. Heliyon2023; 9: e20466.
35.
JayaramRSNagarajanVAKumarKPV. Mechanical performance of polyester pin-reinforced foam filled honeycomb sandwich panels. Sci Eng Compos Mater2018; 25: 797–805.
36.
PrasanthPVSahaya RajMEJappesJTW, et al.Study of matrix modifications by nano-clay on the mechanical properties of AA3003 honeycomb sandwich panels. Proc Inst Mech Eng Part C J Mech Eng Sci2022; 236: 7974–7983.
37.
Lira-MartinezMAGaona-TiburcioCAlmeraya-CalderonF, et al.Experimental study of the influence of stitched nylon threads in glass-fiber-reinforced polymer two-dimensional multilayer composite on tensile strength. Appl Sci2023; 13: 11679.
38.
KimTKimJ-WLeeK. Detection of sleep disordered breathing severity using acoustic biomarker and machine learning techniques. Biomed Eng Online2018; 17: 16.
39.
JayaramRSNagarajanVAKumarKPV. Polyester pinning effect on flexural and vibrational characteristics of foam filled honeycomb sandwich panels. Lat Am J Solids Struct2017; 14: 1314–1326.
40.
AlassafMQamarAM. Improving Sentiment Analysis of Arabic Tweets by One-way ANOVA. J King Saud Univ - Comput Inf Sci2022; 34: 2849–2859.
