Expression of Glutamate Transporters in Rat Cardiomyocytes and Their Localization in the T-tubular System

Abstract

Glutamate and aspartate play important roles in the intermediary metabolism of the myocardium and have been shown to improve cardiac recovery after hypoxia or ischemia. Limited data are available about the expression of glutamate transporters that are involved in the uptake of glutamate and aspartate in cardiomyocytes. In this study, non-radioactive in situ hybridization (ISH) using complementary RNA probes was applied to detect the glutamate transporters GLT1 variant (GLT1v) and EAAC1 mRNA in rat cardiomyocytes. The transporter proteins were demonstrated by Western blotting and immunocytochemistry using affinity-purified antibodies against transporter peptides. ISH and immunocytochemistry showed that both glutamate transporters are coexpressed in cardiomyocytes. The ISH labeling indicates the distribution of transporter mRNA throughout the cytoplasm of cardiomyocytes. GLT1v and EAAC1 proteins, which showed in Western blots a molecular mass of ~60 kD, are strongly enriched and colocalized in the transverse (T)-tubular system of cardiomyocytes. These results may indicate that glutamate/aspartate uptake into cardiomyocytes could be mediated by the high-affinity transporters GLT1v and EAAC1. A high efficiency of glutamate/aspartate transport into cardiomyocytes could be achieved by their localization in the T-tubular system, which consists of tubular invaginations of the sarcolemma extending deep into the cell.

Keywords

glutamate transporters GLT1 variant EAAC1 cardiomyocytes transverse (T)-tubules

The dicarboxylic amino acids glutamate and aspartate play important roles in the intermediary metabolism of the heart, mainly for aerobic energy production as participants of the malate–aspartate shuttle (Safer 1975), which moves reduction equivalents from cytoplasm to mitochondria for anaerobic energy generation (Wiesner et al. 1989; Pisarenko 1996), and for replenishment of intermediates of the tricarboxylic acid cycle (Russell and Taegtmeyer 1991; Snaith et al. 1992; Pisarenko et al. 1995). Myocardial ischemic arrest decreases intracellular concentrations of glutamate and ATP (Suleiman et al. 1997), whereas glutamate loading stimulates metabolic flux and improves cell recovery after hypoxia in isolated cardiomyocytes (Williams et al. 2001). In addition, aspartate seems to have protective effects against ischemia (Pisarenko et al. 1995). Therefore, cardioplegic solutions rich in glutamate and aspartate have enhanced myocardial preservation and left-ventricular function (Arsenian 1998).

The concentrations of glutamate and aspartate in cardiomyocytes are ~50- to 100-fold greater than the concentrations found in the cardiac circulation (Suleiman and Chapman 1993; Dinkelborg et al. 1995; Suleiman et al. 1997). The cellular uptake of glutamate and aspartate may be enabled by glutamate transporters localized in the sarcolemma of cardiomyocytes. It is known that the mRNA for the glutamate transporters EAAC1 (detected by Northern blotting analysis; Kanai and Hediger 1992) and GLT1 variant (GLT1v, detected by RT-PCR; Schmitt et al. 2002) are present in the heart. Furthermore, glutamate (Dinkelborg et al. 1995,1996) and aspartate transport rates have been characterized and EAAC1 protein was detected in sarcolemmal vesicles in isolated cells from rat heart (King et al. 2001). However, no studies are available about the cellular expression of glutamate transporters in the heart.

In this study, I used a highly sensitive method that provides clear cellular resolution, i.e., non-radioactive in situ hybridization (ISH) using cRNA probes (Kugler and Schmitt 1999; Schmitt et al. 2002) to detect GLT1v and EAAC1 in rat heart. The distributions of GLT1v and EAAC1 proteins were detected by immunocytochemistry applying affinity-purified polyclonal antibodies against synthetic C-terminal transporter peptides to semithin plastic sections of myocardium (Kugler and Schmitt 1999; Schmitt et al. 2002). For confirmation of transporter protein detection in the heart I used Western blotting.

Materials and Methods

Tissue Sources

Twenty adult male Wistar rats, purchased from Winkelmann Versuchstierzucht (Borchen, Germany) were used. Under ether anesthesia, the hearts were quickly removed and further processed for ISH, Western blotting, and immunocytochemistry as described below. The animal care procedures were approved by the institutional animal care committee.

In Situ Hybridization

The hearts removed were frozen in liquid nitrogen-cooled propane. Twelve-μm-thick sections were cut in a cryostat (–20C; Frigocut 2800 E, Reichert-Jung, Nussloch, Germany). The sections were mounted on precoated glass slides (Superfrost Plus; Menzel, Braunschweig, Germany) and thawed. The sections were fixed for 5 min in freshly prepared 4% formaldehyde in 0.1 M PBS, pH 7.4. The fixed sections were transferred to absolute ethanol and stored at 4C for 1–2 days and then processed for ISH.

The ISH procedure used was previously described in more detail (Kugler and Schmitt 1999). Briefly, the sections were removed from ethanol, rehydrated in a graded series of ethanol, transferred to 2 × standard saline citrate (SSC), and treated with 0.05 N HCl for 30 min. After washing with 2 × SSC, the sections were incubated with freshly prepared 0.25% acidic anhydride, washed again with 2 × SSC, and covered with the hybridization solution containing the digoxigenin (DIG)-labeled antisense (sense) cRNA probe (final concentration 8–9 ng/μl) and 550 μg/ml salmon testis DNA (Sigma; Deisenhofen, Germany) in 4 × SSC, 1 × Denhardt's solution (Sambrook et al. 1989), 10% dextran sulfate, and 50% deionized formamide at 60C for 16–18 hr. Posthybridization washes were done stepwise at room temperature with 2 × SSC, 1 × SSC, 50% formamide, and then again with 2 × SSC. Next, the sections were treated with 40 μg/ml RNase A (50 Kunitz U/mg; Boehringer, Mannheim, Germany) in a solution containing 500 mM NaCl, 10 mM Tris-HCl (pH 8), and 1 mM EDTA at 37C for 30 min to remove unhybridized single-strand RNAs. After this treatment, the sections were incubated with the same buffer without RNase A at 60C for 30 min.

The sections were then rinsed in Tris-buffered saline (TBS; 100 mM Tris and 150 mM NaCl, pH 7.5) for 5 min, incubated with TBS containing 0.5% blocking reagent (DIG Nucleic Acid Detection Kit; Boehringer) for 30 min, followed by 0.3% Triton X-100 in TBS for 20 min. After incubation with 1.5 U/ml sheep anti-DIG-aP (alkaline phosphatase) conjugated (Boehringer) in TBS containing 0.3% Triton X-100 for 60 min, the sections were washed in TBS and transferred to a 0.1 M Tris buffer (pH 9.5) containing 100 mM NaCl and 50 mM MgCl₂ for 2 min before the aP visualization (see below).

The DIG-labeled antisense (sense) cRNA probes used were generated exactly as described previously (Kugler and Schmitt 1999; Schmitt et al. 2002). The probes were complementary to nucleotide (nt) 1654–2043 of the GLT1v sequence (GLT1v cRNA; Schmitt et al. 2002) and to nt 247–1706 of the EAAC1 sequence (EAAC1 cRNA; Kugler and Schmitt 1999).

The procedure used for detection of aP was described recently (Asan and Kugler 1995). The incubation medium contained 0.4 mM 5-bromo-4-chloro-3-indolylphosphate (BCIP; Boehringer), 100 mM NaCl, 50 mM MgCl₂, 0.4 mM tetranitroblue tetrazoliumchloride (Serva; Heidelberg, Germany) in 100 mM Tris-HCl buffer at pH 9.5.

For a control, substitution of the antisense cRNA probe by an equivalent amount of labeled sense cRNA probe led to a complete lack of staining (Figure 1b). Omission of labeled cRNA probes from the respective hybridization mixtures resulted in completely unstained sections.

Antibodies

Affinity-purified polyclonal (rabbit) peptide antibodies against the glutamate transporters were used. These antibodies were characterized elsewhere: anti-GLT1v antibody (against a peptide corresponding to amino acid residues 522–541; Schmitt et al. 2002) and anti-EAAC1 antibody (against a peptide corresponding to amino acid residues 480–499; Kugler and Schmitt 1999). In addition, a polyclonal (mouse) peptide antibody against GLT1v (same peptide as described above) was generated and affinity purified as described in detail by Drenckhahn et al. (1993). A mouse monoclonal antibody (MAb) against type IV collagen (MAB 1910, clone 2311C3) was purchased from Chemicon International (Hofheim, Germany). Immunolabeling with this antibody was performed to detect transverse (T)-tubules that contain basal lamina proteins such as type IV collagen (Vracko et al. 1988). As an additional marker protein for T-tubules, the Na⁺/Ca²⁺ exchanger (NCX) was detected (Frank et al. 1992; Thomas et al. 2003) using a mouse MAb (code no. R3F1; Swant, Bellinzona, Switzerland).

Immunoblotting

For immunoblotting, the hearts and whole brains (for a positive control) removed were homogenized at 4C in 10 mM NaH₂PO₄ (pH 7.2) containing 2 mM MgCl₂, aprotinin (5 μg/ml), leupeptin (2 μg/ml), pepstatin (2 μg/ml), and phenylmethylsulfonyl fluoride (100 μg/ml). The homogenate was centrifuged at 1000 × g for 10 min, and the resulting supernatant was centrifuged at 150,000 × g for 1 hr. The protein content of the 150,000 × g pellet was determined by the Bio-Rad protein assay (Bio-Rad; Munich, Germany) and used for immunoblotting. Proteins (60 μg per lane) were electrophoretically separated on 10% gels by SDS-PAGE. Then the proteins were transferred electrophoretically to nitrocellulose membranes (Burnette 1981). Strips of the nitrocellulose membranes were incubated for 24 hr at 4C with the affinity-purified transporter antibodies (~1.8 μg/ml). Bound immunoglobulins were visualized using peroxidase-conjugated goat anti-rabbit IgG (1:3000; Bio-Rad, Richmond, Canada; blotting grade) and the enhanced luminol chemiluminescence technique (Amersham; Braunschweig, Germany). Antibodies previously absorbed with an excess of the peptides used for immunization served as control. These immunoblots showed no labeling (Figure 2).

Figure 1

Distribution of GLT1v (a,b) and EAAC1 mRNAs (c,d) in cryostat sections of the left ventricular wall detected by ISH using antisense (as) cRNA probes (a,c,d). Reaction product is deposited at moderate to strong density throughout the cytoplasm of cardiomyocytes. Endothelial cells of the endocardium are also labeled (arrows in a). No reaction product is detectable in the demonstration of GLT1v using the sense (s) cRNA probe (b, control). a, b, and d are transverse and c longitudinal sections through the myocardium. LV, left ventricle. Bars: a,b = 55 μm; c,d = 30 μm.

Immunostaining

Pieces of ventricular myocardium were frozen in liquid nitrogen-cooled propane, then freeze dried and embedded in Epoxy resin Quetol 651 (Science Services; Munich, Germany). Semithin sections (1 μm) were mounted on glass slides. The resin was removed by placing the slides for a few seconds in sodium methylate solution (Fluka; Neu-Ulm, Germany) (Mayor et al. 1961).

The tissue sections were preincubated for 3 hr at room temperature with 2% bovine serum albumin, 10% normal goat serum, and 0.05% Tween-20 (Ferrak; Berlin, Germany) in PBS, pH 7.4. Then the sections were incubated for 24–48 hr at 4C with the primary antibody diluted in the preincubation solution (anti-glutamate transporters 15 μg/ml; antitype IV collagen 1:50; anti-NCX 1:5 to 1:20). After several washes with PBS, the semithin plastic sections were incubated for 90 min at room temperature with indocarbocyanin (Cy3)-labeled secondary antibody (1:800; goat anti-rabbit IgG; Dianova, Hamburg, Germany) and/or with carbocyanin (Cy2)-labeled secondary antibody (1:50; goat anti-mouse IgG; Dianova). Controls were performed with primary antibody, previously absorbed with an excess of the corresponding glutamate transporter peptide used for immunization or without primary antibody. These sections were unstained (Figures 4b and 4d). The sections were examined with a Zeiss laser-scanning microscope (Zeiss LSM 510) equipped with an argon laser (488 nm) for excitation of Cy2, an HeNe laser (543 nm) for excitation of Cy3, and appropriate filter combinations for visualization of Cy2 and Cy3 emissions.

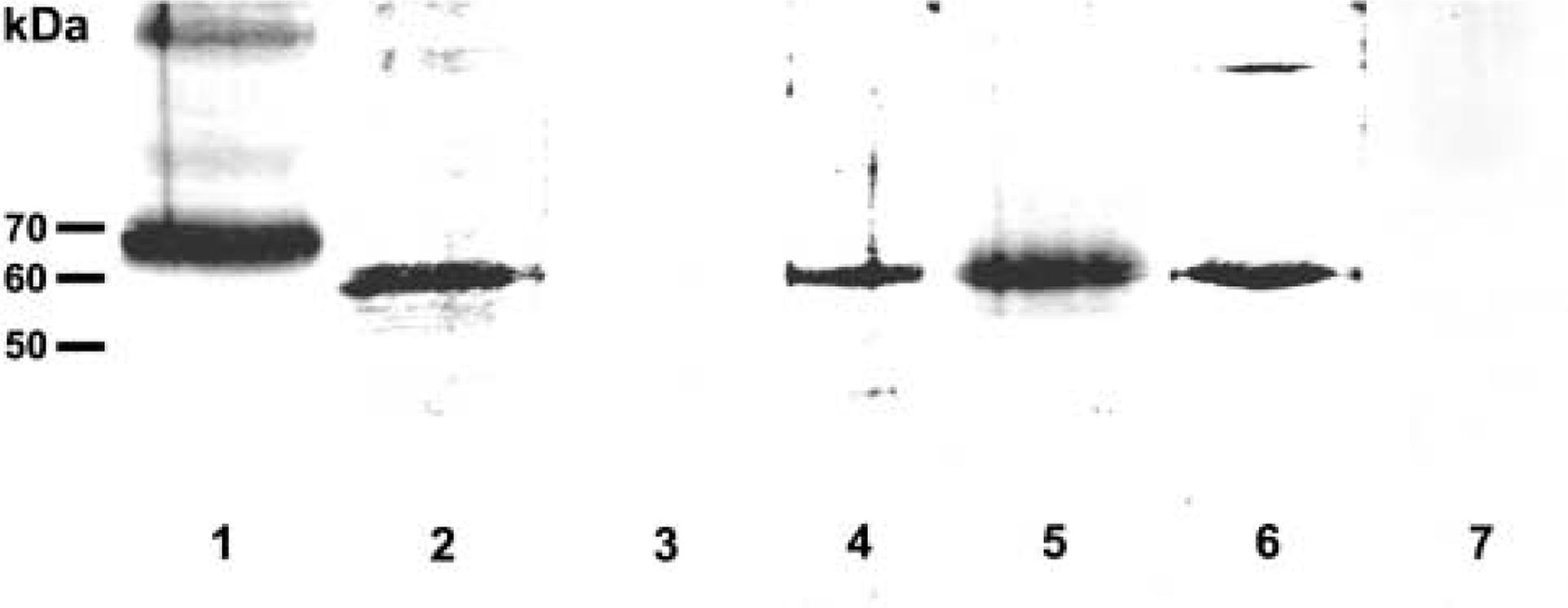

Figure 2

Western blot (10% SDS-PAGE) of left and right ventricular wall and brain (for a positive control) using affinity-purified antibodies against GLT1v peptide generated in rabbit (Lanes 1 and 2) and mouse (Lane 4) and against EAAC1 peptide generated in rabbit (Lanes 5 and 6). The amount of protein loaded per lane was 60 μg. In the 150,000 × g pellet, the antibodies labeled bands at ~60 kD, with the exception of brain (Lane 1), in which the GLT1v antibody labeled a band at ~70 kD. Lanes 1 and 5, brain; Lanes 2, 4, and 6, heart. Antibodies previously absorbed with an excess of GLT1v peptide (Lane 3) or EAAC1 peptide (Lane 7) served as controls.

Results

In Situ Hybridization

Application of the cRNA probes to cryostat sections of rat heart for detection of GLT1v and EAAC1 mRNAs resulted in identical patterns of cellular distribution (Figure 1). ISH reaction product was deposited throughout the cytoplasm of cardiomyocytes of left and right ventricles. The amount of granular reaction product was moderate. ISH reaction product was also detected in endothelial cells of the endocardium (Figure 1a) and in not-further-characterized cell types in the stroma between cardiomyocytes.

Western Blotting and Immunostaining

In immunoblots of the 150,000 × g pellet of heart homogenate, the affinity-purified antibodies generated in rabbit and mouse against GLT1v peptide labeled a band at ~60 kD (Figure 2), showing a somewhat higher electrophoretic mobility than in brain homogenates (Figure 2; cf. Schmitt et al. 2002). This may becaused by variant glycosylation of GLT1v in heart and brain. The affinity-purified antibody against EAAC1 peptide (from rabbit) labeled a band at ~60 kD (Figure 2), which is in accordance with previous results of immunoblotting analyses in heart (King et al. 2001) and brain (Figure 2; cf. Kugler and Schmitt 1999; Kugler and Beyer 2003).

When the affinity-purified antibodies against GLT1v and EAAC1 were applied to semithin plastic sections (1 μm thick) of the myocardium (left and right ventricular walls), an identical staining pattern was observed intracellularly in cardiomyocytes (Figures 3, 4a, and 4c). In longitudinal sections through cardiomyocytes, reaction product was deposited in small dots that were arranged in longitudinal parallel rows forming dotted strands (Figure 3a). In tangential longitudinal sections through the cell periphery of cardiomycytes, it was obvious that the dots of neighboring strands also formed transversely oriented dotted strands with regular distances (Figures 3a, 3d, 4a, and 4c). In transverse sections through cardiomyocytes, the fluorescent staining was also arranged in small dots and in short strands that sometimes formed circular profiles and reached to the surface of cells (Figures 3g and 3k). The sarcolemma of cells seemed to be almost unstained, but the dots of reaction product detected in the cell periphery could be also bound to the sarcolemma.

Because the staining pattern of cardiomyocytes showed apparent similarities to that of T-tubules immunostained for the detection of other molecules (Kostin et al. 1998), double-immunolabeling experiments with antibodies against type IV collagen and NCX were performed. The demonstration of the basal lamina protein type IV collagen enables the detection of T-tubules (Kostin et al. 1998), which are invaginations of the sarcolemma extending deep into the cell and containing basal lamina material at the outer surface. In addition, NCX is concentrated in T-tubules (Frank et al. 1992; Thomas et al. 2003). These double-labeling experiments showed that GLT1v and EAAC1 immunostaining was colocalized with the immunolabeling for type IV collagen (Figures 3a–3m) and for NCX (Figures 3t–3v). This indicates a localization of GLT1v and EAAC1 in membranes of the T-tubular system. However, it could not be excluded at the light microscopic level that the immunolabeling was in aggregated small vesicles just beneath the T-tubular membranes. In neurons, both transporters are preferentially localized in such cytoplasmic vesicles (Kugler and Schmitt 1999; Schmitt et al. 2002).

Figure 3

Distribution of GLT1v (a,d, longitudinal sections; o,r, transverse sections) and EAAC1 (g,k,n,q, transverse sections; t, longitudinal section), type IV collagen (b,e,h,l), and NCX (u) detected by immunofluorescence staining in 1-μm-thick plastic sections of left ventricular myocardium. Type IV collagen contained in basal laminae and NCX is preferentially detected in T-tubules of cardiomyocytes (b,e,h,l,u), where GLT1v (a,d) and EAAC1 (g,k,t) are also demonstrated. Superimposed (merged) images of corresponding micrographs (a and b merged in c; d and e merged in f; g and h merged in i; k and l merged in m; t and u merged in v) show coimmunostaining and prove the localization of glutamate transporters in T-tubules. Using rabbit and mouse antibodies against EAAC1 (n,q) and GLT1v (o,r), a colocalization of both transporters in T-tubules is demonstrated (p,s). Framed areas in a–c, g–i, and n–p are shown at high magnification in d–f, k–m, and q–s, respectively. Arrowheads in a–c, g–i, and t–v indicate cell nuclei of cardiomyocytes. Bars: a = 20 μm; d = 4 μm; t = 20 μm.

To prove the likely colocalization of GLT1v and EAAC1, double immunolabeling was performed using a mouse antibody against GLT1v and a rabbit antibody against EAAC1. The resulting immunostaining showed that both transporters are equally codistributed throughout the T-tubular system (Figures 3n–3s).

Discussion

Using non-radioactive ISH and immunocytochemistry, it was found that the glutamate transporters GLT1v and EAAC1 are coexpressed in rat cardiomyocytes. GLT1v was initially cloned from mouse brain and liver (Utsunomiya-Tate et al. 1997) and recently also from rat brain (Chen et al. 2002; Schmitt et al. 2002). Our PCR analyses showed that GLT1v is also expressed in peripheral organs of rats, including the heart (Schmitt et al. 2002). GLT1v is generated by alternative splicing at the 3′ end of the generic GLT1 cDNA, which has been cloned by Pines et al. (1992) and only detected in the central nervous system (Kugler and Schmitt 2003; for review, see Danbolt 2001). Both generic GLT1 and GLT1v are high-affinity glutamate transporters with similar transport characteristics (Utsunomiya-Tate et al. 1997; Chen et al. 2002). On the other hand, EAAC1 was initially cloned from rabbit intestine (Kanai and Hediger 1992) and is expressed in the central nervous system and in peripheral organs, including the heart (for review, see Danbolt 2001). EAAC1 is also a high-affinity transporter whose transport characteristics in rat heart preparations have been reported recently (King et al. 2001). In addition to l-glutamate, d- and l-aspartate are transportable substrates of high-affinity glutamate transporters with affinities in the lower micromolar range (Kanner 1993).

Figure 4

Distribution of GLT1v (a, longitudinal section) and EAAC1 (c, longitudinal section) detected by immunofluorescence staining in 1-μm-thick plastic sections of left ventricular myocardium. In control sections (b,d) no staining is observed. For control, the sections were incubated with the GLT1v antibody previously absorbed with an excess of GLT1v peptide (GLT1v-control) or with the EAAC1 antibody previously absorbed with an excess of the EAAC1 peptide (EAAC1-control). Arrowheads point to auto-fluorescent erythrocytes. Bar = 20 μm.

Applying immunocytochemistry on semithin plastic sections (1 μm thick), I was able to detect GLT1v and EAAC1 proteins colocalized in the T-tubular system of cardiomyocytes. The transporter proteins were highly enriched in this localization, and a possibly sarcolemmal spotty labeling could not be excluded with certainty at the light microscopic level. The T-system consists of tubular invaginations of the sarcolemma at the Z-band, extending deep into the cytoplasm and representing a specialized form of sarcolemma. The volume density of the T-system is up to 3.2%, and it represents about one third of the entire cell membrane area (Stewart and Page 1978; Severs et al.1985). It is generally accepted that the T-system is necessary for the rapid propagation of the excitation impulse throughout the muscle fiber (Sommer 1995).

Key proteins involved in excitation-contraction (E-C) coupling and further membrane proteins are concentrated at the T-tubules, e.g., L-type Ca²⁺ channels (Carl et al. 1995; Takagishi et al. 2000), Na⁺/Ca²⁺-exchange protein (Frank et al. 1992; Thomas et al. 2003), voltage-gated K⁺ channel, Kv 4.2 (Takeuchi et al. 2000), and Na⁺-pump α-catalytic subunit isoforms (McDonough et al. 1996). On stimulation, the insulin-regulated glucose transporter GLUT4 is found not only in the sarcolemma but also in the T-tubular system (Slot et al. 1991). Moreover, we now can show that the glutamate transporters GLT1v and EAAC1 are also localized in this special domain of the sarcolemma. The deep invaginations of the T-tubules in the cytoplasm of cardiomyocytes contribute to the shortening of the cytoplasmatic diffusion distances of glutamate and aspartate transported through the T-tubule membranes. They also facilitate the intracellular enrichment of both amino acids for their extensive use in the intermediary metabolism.

The uptake process of both glutamate transporters is electrogenic and is driven by the ion gradients of K⁺ and Na⁺ (for review, see Danbolt 2001). Under ischemic conditions in the brain, glutamate is released mainly from neurons via reversed operation of glutamate transporters (Seki et al. 1999; Rossi et al. 2000; for review, see Danbolt 2001). Provided that the glutamate transporters in the heart operate similarly to those in the brain, the same mechanism could be responsible for the severe loss of dicarboxylic amino acids during acute ischemia or anoxia of the myocardium (Song et al. 1996). In brain slices, ischemia removes the ATP supply to the Na⁺/K⁺ pump, K⁺ accumulates in the extracellular space, depolarizing the cells, and the Na⁺ gradient driving glutamate uptake is reduced so that glutamate is moved not into the cells but out of them to the extracellular space (Rossi et al. 2000). In hearts perfused by the Langendorff technique, the reversed operation of glutamate transporters is probably one of various mechanisms that lead to loss of these amino acids during acute ischemia (Song et al. 1998).

Further studies are needed to show whether, in addition to GLT1v and EAAC1, further glutamate transporters are expressed in the myocardium. It is now proven (Y. Dehnes and N.C. Danbolt, unpublished data) by immunoprecipitation, subsequent SDS-PAGE, and immunoblotting that at least three different glutamate transporters are detectable in the heart (Danbolt 2001). The significance of the coexpression of different high-affinity glutamate transporters in the same cell type (also documented in the brain; Lehre et al. 1995; Schmitt et al. 2002; Kugler and Beyer 2003) is not obvious.

Footnotes

Acknowledgements

Supported by a grant from the Deutsche Forschungsgemeinschaft.

I am indebted to Erna Kleinschroth and Julia Medvedev for their excellent technical assistance.

References

Arsenian

(1998) Potential cardiovascular applications of glutamate, aspartate, and other amino acids. Clin Cardiol 21:620–624.

Asan

Kugler

(1995) Qualitative and quantitative detection of alkaline phosphatase coupled to an oligonucleotide probe for somatostatin mRNA after in situ hybridization using unfixed rat brain tissue. Histochem Cell Biol 103:463–471.

Burnette

(1981) “Western blotting”: electrophoretic transfer of proteins from sodium dodecyl sulfate-polyacrylamide gels to unmodified nitrocellulose and radiographic detection with antibody and radioiodinated protein A. Anal Biochem 112:195–203.

Carl

Felix

Caswell

Brandt

Ball

Jr Vaghy

Meissner

(1995) Immunolocalization of sarcolemmal dihydropyridine receptor and sarcoplasmic reticular triadin and ryanodine receptor in rabbit ventricle and atrium. J Cell Biol 129:672–682.

Chen

Aoki

Mahadomrongkul

Gruber

Wang

Blitzblau

Irwin

(2002) Expression of a variant form of the glutamate transporter GLT1 in neuronal cultures and in neurons and astrocytes in the rat brain. J Neurosci 22:2142–2152.

Danbolt

(2001) Glutamate uptake. Prog Neurobiol 65:1–105.

Dinkelborg

Kinne

Grieshaber

(1995) Characterization and pH dependence of L-glutamate transport in sarcolemmal vesicles from rat hearts. Am J Physiol 268:H194–201.

Dinkelborg

Kinne

Grieshaber

(1996) Transport and metabolism of L-glutamate during oxygenation, anoxia, and re-oxygenation of rat cardiac myocytes. Am J Physiol 270:H1825–1832.

Drenckhahn

Jons

Schmitz

(1993) Production of polyclonal antibodies against proteins and peptides. Methods Cell Biol 37:7–56.

10.

Frank

Mottino

Reid

Molday

Philipson

(1992) Distribution of the Na(+)-Ca2+ exchange protein in mammalian cardiac myocytes: an immunofluorescence and immunocolloidal gold-labeling study. J Cell Biol 117:337–345.

11.

Kanai

Hediger

(1992) Primary structure and functional characterization of a high-affinity glutamate transporter. Nature 360:467–471.

12.

Kanner

(1993) Glutamate transporters from brain. A novel neurotransmitter transporter family. FEBS Lett 325:95–99.

13.

King

Williams

McGivan

Suleiman

(2001) Characteristics of L-aspartate transport and expression of EAAC-1 in sarcolemmal vesicles and isolated cells from rat heart. Cardiovasc Res 52:84–94.

14.

Kostin

Scholz

Shimada

Maeno

Mollnau

Hein

Schaper

(1998) The internal and external protein scaffold of the T-tubular system in cardiomyocytes. Cell Tissue Res 294:449–460.

15.

Kugler

Beyer

(2003) Expression of glutamate transporters in human and rat retina and rat optic nerve. Histochem Cell Biol 120:199–212.

16.

Kugler

Schmitt

(1999) Glutamate transporter EAAC1 is expressed in neurons and glial cells in the rat nervous system. Glia 27:129–142.

17.

Kugler

Schmitt

(2003) Complementary neuronal and glial expression of two high-affinity glutamate transporter GLT1/EAAT2 forms in rat cerebral cortex. Histochem Cell Biol 119:425–435.

18.

Lehre

Levy

Ottersen

Storm-Mathisen

Danbolt

(1995) Differential expression of two glial glutamate transporters in the rat brain: quantitative and immunocytochemical observations. J Neurosci 15:1835–1853.

19.

Mayor

Hampton

Rosario

(1961) A simple method for removing the resin from epoxy-embedded tissue. J Biophys Biochem Cytol 9:909–910.

20.

McDonough

Zhang

Shin

Frank

(1996) Subcellular distribution of sodium pump isoform subunits in mammalian cardiac myocytes. Am J Physiol 270:C1221–1227.

21.

Pines

Danbolt

Bjoras

Zhang

Bendahan

Eide

Koepsell

(1992) Cloning and expression of a rat brain L-glutamate transporter. Nature 360:464–467.

22.

Pisarenko

(1996) Mechanisms of myocardial protection by amino acids: facts and hypotheses. Clin Exp Pharmacol Physiol 23:627–633.

23.

Pisarenko

Rosenfeldt

Langley

Conyers

Richards

(1995) Differing protection with aspartate and glutamate cardioplegia in the isolated rat heart. Ann Thorac Surg 59:1541–1548.

24.

Rossi

Oshima

Attwell

(2000) Glutamate release in severe brain ischaemia is mainly by reversed uptake. Nature 403:316–321.

25.

Russell

RR III

Taegtmeyer

(1991) Changes in citric acid cycle flux and anaplerosis antedate the functional decline in isolated rat hearts utilizing acetoacetate. J Clin Invest 87:384–390.

26.

Safer

(1975) The metabolic significance of the malate-aspartate cycle in heart. Circ Res 37:527–533.

27.

Sambrook

Fritsch

Maniatis

(1989) Molecular Cloning: A Laboratory Manual. Cold Spring Harbor, NY, Cold Spring Harbor Laboratory Press.

28.

Schmitt

Asan

Lesch

Kugler

(2002) A splice variant of glutamate transporter GLT1/EAAT2 expressed in neurons: cloning and localization in rat nervous system. Neuroscience 109:45–61.

29.

Seki

Feustel

Keller

Tranmer

Kimelberg

(1999) Inhibition of ischemia-induced glutamate release in rat striatum by dihydrokinate and an anion channel blocker. Stroke 30:433–440.

30.

Severs

Slade

Powell

Twist

Jones

(1985) Morphometric analysis of the isolated calcium-tolerant cardiac myocyte. Organelle volumes, sarcomere length, plasma membrane surface folds, and intramembrane particle density and distribution. Cell Tissue Res 240:159–168.

31.

Slot

Geuze

Gigengack

James

Lienhard

(1991) Translocation of the glucose transporter GLUT4 in cardiac myocytes of the rat. Proc Natl Acad Sci USA 88:7815–7819.

32.

Snaith

Wright

Lofkin

(1992) The effects of aspartate and 2-oxoglutarate upon glycolytic energy metabolites and mechanical recovery following global ischaemia in isolated rat hearts. J Mol Cell Cardiol 24:305–315.

33.

Sommer

(1995) Comparative anatomy: in praise of a powerful approach to elucidate mechanisms translating cardiac excitation into purposeful contraction. J Mol Cell Cardiol 27:19–35.

34.

Song

O'Regan

Phillis

(1996) Release of the excitotoxic amino acids, glutamate and aspartate, from the isolated ischemic/anoxic rat heart. Neurosci Lett 220:1–4.

35.

Song

O'Regan

Phillis

(1998) Mechanisms of amino acid release from the isolated anoxic/reperfused rat heart. Eur J Pharmacol 351:313–322.

36.

Stewart

Page

(1978) Improved stereological techniques for studying myocardial cell growth: application to external sarcolemma, T system, and intercalated disks of rabbit and rat hearts. J Ultrastruct Res 65:119–134.

37.

Suleiman

Chapman

(1993) Changes in the principal free intracellular amino acids in the Langendorff perfused guinea pig heart during arrest with calcium-free or high potassium media. Cardiovasc Res 27:1810–1814.

38.

Suleiman

Dihmis

Caputo

Angelini

Bryan

(1997) Changes in myocardial concentration of glutamate and aspartate during coronary artery surgery. Am J Physiol 272:H1063–1069.

39.

Takagishi

Yasui

Severs

Murata

(2000) Species-specific difference in distribution of voltage-gated L-type Ca(2+) channels of cardiac myocytes. Am J Physiol 279:C1963–1969.

40.

Takeuchi

Takagishi

Yasui

Murata

Toyama

Kodama

(2000) Voltage-gated K(+)Channel, Kv4.2, localizes predominantly to the transverse-axial tubular system of the rat myocyte. J Mol Cell Cardiol 32:1361–1369.

41.

Thomas

Sjaastad

Andersen

Helm

Wasserstrom

Sejersted

Ottersen

(2003) Localization and function of Na⁺/Ca²⁺-exchanger in normal and detubulated rat cardiomyocytes. J Mol Cell Cardiol 35:1325–1337.

42.

Utsunomiya-Tate

Endou

Kanai

(1997) Tissue specific variants of glutamate transporter GLT-1. FEBS Lett 416:312–316.

43.

Vracko

Cunningham

Frederickson

Thorning

(1988) Basal lamina of rat myocardium. Its fate after death of cardiac myocytes. Lab Invest 58:77–87.

44.

Wiesner

Deussen

Borst

Schrader

Grieshaber

(1989) Glutamate degradation in the ischemic dog heart: contribution to anaerobic energy production. J Mol Cell Cardiol 21:49–59.

45.

Williams

King

Griffiths

Suleiman

(2001) Glutamate-loading stimulates metabolic flux and improves cell recovery following chemical hypoxia in isolated cardiomyocytes. J Mol Cell Cardiol 33:2109–2119.
