Membrane Dipeptidase in the Pig Exocrine Pancreas: Ultrastructural Localization and Secretion

Abstract

The GPI-anchored membrane dipeptidase is the major peptidase activity of the secretory granule membrane in the exocrine pancreas. The enzyme is also found in the granule content and in pancreatic secretions. Immunocytochemical localization confirmed its location in the granule membrane and in the acinar cell apical plasma membrane. In the endoplasmic reticulum and Golgi, membrane dipeptidase was strictly membrane-bound. There was no membrane dipeptidase in duct cells. The release of membrane dipeptidase from the membrane starts in the immature granule. To identify the mechanism responsible for its release, secretions were collected from cannulated conscious pig under basal conditions and atropine perfusion. The latter treatment caused complete inhibition of protein secretion but had a negligible effect on membrane dipeptidase activity in the secretions. In secretions, membrane dipeptidase partitioned into the detergent-rich phase on phase separation in Triton X-114, whereas treatment with bacterial phosphatidylinositol-specific phospholipase C caused the peptidase to partition into the aqueous phase, indicating that the secreted enzyme could come from shedding of membrane fragments at the apical surface or via the action of a previously characterized phospholipase A activity.

Keywords

GPI anchor membrane dipeptidase secretion granule exocrine pancreas

The pancreas is a model secretory gland in which massive amounts of proteins are synthesized for release in the digestive tract (exocrine) and in the circulation (endocrine). The exocrine function is exerted by the acinar cell, which possesses two topologically defined poles. At the apical pole, the digestive enzymes are secreted under the strict control of secretagogues. At the basolateral pole, an unregulated secretion occurs that consists of the constitutive release of intercellular matrix components. The distinctive morphological structure of the regulated exocrine secretion is the zymogen granule to which the digestive enzymes are specifically targeted and stored in an inactive form at a very high concentration. The pancreatic zymogen granule membrane has recently been shown to contain elevated levels of membrane dipeptidase (MDP; leukotriene D4 hydrolase) (Hooper et al. 1997). The specific activity of MDP in the granule membrane is two-to threefold greater than in the kidney brush border membrane, where MDP has been thoroughly characterized. Like GP-2, the major protein of the pancreatic zymogen granule membrane (LeBel and Beattie 1988), MDP is attached to the membrane by a glycosyl-phosphatidylinositol (GPI) anchor (Hooper et al. 1987). It has also been shown that GP-2 and MDP are not exclusively restricted to the granule membrane but are also released into the content of the pancreatic granule and are secreted by the pancreas (Paquette et al. 1986; Hooper et al. 1997). The latter localizations imply a modification of the GPI anchor that allows release of the formerly membrane-bound proteins. Involvement of a phospholipase C (PLC) or a phospholipase D (PLD) was ruled out. Recently we have been able to demonstrate the presence of a GPI anchor-modifying activity endogenous to the zymogen granule membrane that released MDP (Hooper et al. 1997).

Here we show, using immunocytochemistry at the electron microscopic level, that MDP is localized all along the secretory pathway of the exocrine pancreatic cell, from the endoplasmic reticulum (ER) to the lumen of the acinus, and that its release from the zymogen granule membrane starts in the immature granule. The endogenous mechanism by which MDP is released into pancreatic secretions has also been assessed by characterization of the secreted protein.

Materials and Methods

Materials

Cilastatin was a gift from Merck, Sharp & Dohme (Rahway, NJ). Bacillus thuringiensis phosphatidylinositol-specific phospholipase C (PI-PLC) was a gift from Dr. M.G. Low (Columbia University; New York, NY). Gly-D-Phe was from Sigma (Poole, Dorset, UK). Protein was determined using the bicinchoninic acid method in 96-well microtiter plates (Hooper 1993) with bovine serum albumin as standard. All supplies for electron microscopy were from Canemco (Montréal, Québec, Canada). Experimental procedures on animals in this study were performed in compliance with Canadian Council on Animal Care guidelines.

Atropine Perfusion of Pigs

Large White hogs (~50 kg live weight) were fitted with a permanent cannula into the pancreatic duct under halothane anesthesia as previously described (Viau et al. 1994). After an overnight fast with free access to water, cannulated pigs were perfused at 10 ml.h^-1 with saline containing 0.5% porcine serum albumin (saline-PSA) for a period of 1 hr. Stimulation was then initiated by IV perfusion of secretin. Atropine dissolved in saline-PSA was infused IV 1 hr after the beginning of the secretin. Secretions were collected continuously. We thank Dr. Tristan Corring (INRA; Jouy-en-Josas, France) for performing the surgery on the pigs and for the collection of pancreatic juice. The volume, concentration of protein, and activity of MDP were monitored.

MDP enzymic activity was determined as previously reported (Hooper et al. 1987) with Gly-D-Phe as the substrate. Specificity of the hydrolysis was assessed by inclusion of the specific inhibitor cilastatin.

Incubation with PI-PLC and temperature-induced phase separation in Triton X-114 were performed as reported in Hooper et al. (1997) on 50 μl of secretions.

Microscopy and Immunocytochemistry

Immediately after sacrifice, pieces of tissue (1 mm³) were taken from different regions of the pancreas of a 47-day-old pig (20 kg) and fixed at room temperature (RT) for 120 min in 2% glutaraldehyde buffered with 100 mM cacodylate, pH 7.4. After washing in the same buffer, samples were progressively dehydrated in ethanol at −35C (Carlemalm et al. 1985) and embedded at the same temperature in Unicryl for 24 hr. Polymerization was brought about by diffuse UV irradiation at 360 nm for 24 hr at −35C, 24 hr at −20C, 24 hr at −10C, 24 hr at 4C, and finally 24 hr at RT. Immunolocalization of MDP and the crossreacting determinant (CRD), which is a cryptic epitope revealed on GPI-anchored proteins on solubilization by PI-PLC, was carried out using a protein A-gold complex of 10 nm at a dilution of OD_{520 mm} = 0.5 using previously characterized antibodies (Hooper et al. 1991). Antibodies to MDP were produced using cilastatin-Sepharose-purified PI-PLC solubilized MDP as the antigen. Antibodies to the CRD come from antibodies to PI-PLC solubilized MDP affinity-purified on immobilized PLC solubilized trypanosome variant surface glycoprotein. Control incubations for the specificity of labeling were carried out (a) without primary antibodies, (b) with primary antibodies blocked with the antigen, and (c) with preimmune sera. Quantitative evaluation of MDP labeling over zymogen granules was carried out by counting gold particles over 65 granules. Differences between groups were tested with Student's t-test, and only significantly different groups (^p<0.05) are discussed.

Results

A high specific activity has been shown for MDP in the secretory granule membrane of the exocrine pancreas in the pig and human (Hooper et al. 1997). It was also evidenced in secretions and granule content. Immunocytochemical localization of MDP was therefore performed on pig exocrine pancreatic tissue to ascertain the presence of MDP in acinar cells and absence in the duct system, and also to determine where the GPI-anchored MDP started to be released from the membrane in the secretory pathway. Figure 1A confirms biochemical observations that MDP is associated with the granule membrane and that it is also present in the matrix and in the secretory material released into the apical acinar lumen. In the granule content, the concentration of label is not uniform from one granule to another (Figure 1A) or from one cell to another (not shown). Quantitation of the label in mature granules gives a total of 8.45±0.62 particles per granule, 2.31±0.21 particles at the membrane and 6.14±0.56 in the matrix. Controls using blocked primary antibodies give a signal of 0.16±0.01 particles per granule. This quantitation shows that 72.7% of the label is in the granule matrix and 27.3% on the membrane. Figure 1 shows that MDP is strictly membrane-associated from its site of synthesis in the rough ER (Figure 1B) and up to the Golgi (Figure 1C). At the level of immature granules, MDP is explicity released into the lumen (Figure 1C). No signal for the CRD epitope could be detected in the whole pancreas, and no MDP could be observed in duct cells (result not shown).

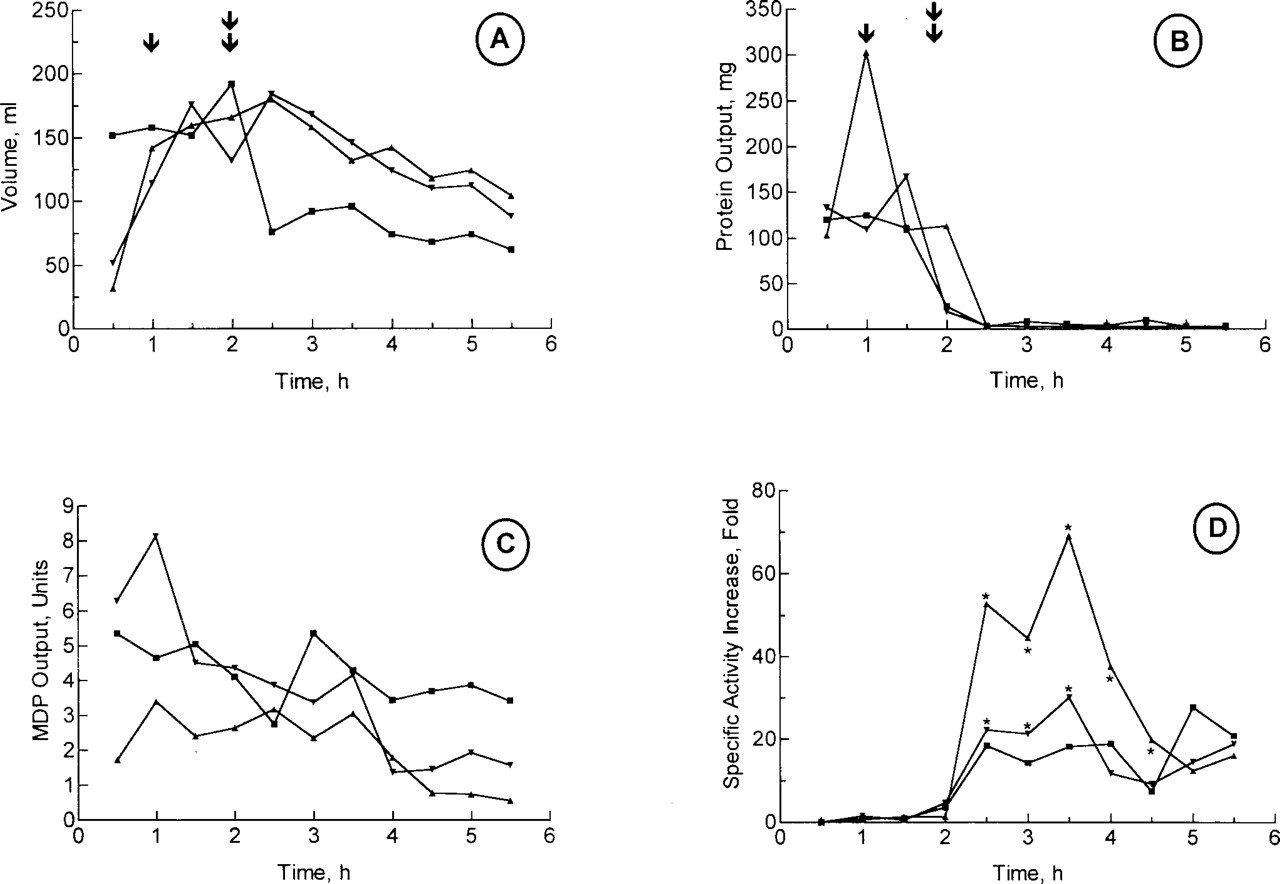

The release of MDP in pancreatic secretions was further examined using the cannulated pancreas of conscious pigs to document its mode of release. A protocol similar to the one previously used to study GP-2 secretion was used (Viau et al. 1994). In short, the cannulated pancreatic secretion of conscious pigs was harvested under constant IV perfusion of secretin allowing a continuous flow of secretion without stimulating the release of protein. On addition of atropine, protein secretion is drastically inhibited (Figure 2B). The amount of protein secreted falls from 121 mg/hr to less than 3 mg/hr or to undetectable amounts in some cases. Such an effective inhibition was expected because the pig pancreas is under an almost exclusive muscarinic cholinergic control (Morisset et al. 1996). Fluid secretion is under the control of secretin and originates from duct cells. It was poorly affected by the atropine perfusion (Figure 2A), as was the secretion of MDP (Figure 2C). The behavior of the cannulated pig pancreas in these experiments was similar to that in our previous report (Viau et al. 1994). Although the response pattern is reproducible, the level of secretions varies. This is why individual experiments are shown. Under atropine perfusion, some samples from 2.5 hr up to 5.5 hr (Figure 2B) have amounts of protein below detection, indicating that practically all regulated protein secretion through bona fide exocytosis of zymogen granules was suppressed. This is illustrated by the dramatic increase in the specific activity of MDP (Figure 2D). Therefore, under atropine perfusion, MDP-specific activities in secretions rise from 36.2 ± 18.3 nmol D-Phe produced/hr/mg under basal or secretin perfusion to more than 756.8 ± 318.8 on addition of atropine (Table 1).

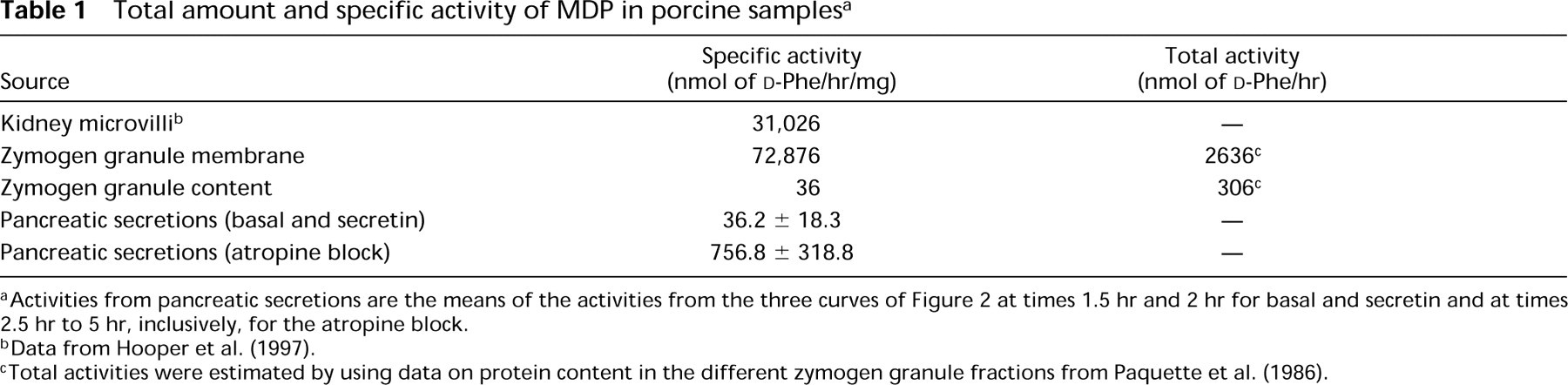

Table 1

Total amount and specific activity of MDP in porcine samples a

Source	Specific activity (nmol of D-Phe/hr/mg)	Total activity (nmol of D-Phe/hr)
Kidney microvilli b	31,026	—
Zymogen granule membrane	72,876	2636 c
Zymogen granule content	36	306 c
Pancreatic secretions (basal and secretin)	36.2 ± 18.3	—
Pancreatic secretions (atropine block)	756.8 ± 318.8	—

Activities from pancreatic secretions are the means of the activities from the three curves of Figure 2 at times 1.5 hr and 2 hr for basal and secretin and at times 2.5 hr to 5 hr, inclusively, for the atropine block.

Data from Hooper et al. (1997).

Total activities were estimated by using data on protein content in the different zymogen granule fractions from Paquette et al. (1986).

The form into which MDP is secreted was examined using temperature-induced phase separation in Triton X-114. Table 2 shows that in secretions under the atropine block, MDP partitioned predominantly (>75%) into the detergent-rich phase, suggesting the presence of a hydrophobic moiety of the GPI anchor still attached to the enzyme. Treatment with bacterial PIPLC caused MDP to partition predominantly (>67%) into the aqueous phase, confirming that at least one fatty acid chain is present on the GPI anchor. In contrast, treatment with pancreatic phospholipase A₂ (PLA₂) did not alter partitioning of MDP (results not shown) as previously observed (Hooper et al. 1997). Therefore, the secreted MDP retains a GPI anchor with an intact diacylglycerol or monoacylglycerol insensitive to hydrolysis by PLA₂.

Discussion

MDP is the major constituent membrane peptidase of the zymogen granule in the exocrine pancreas (Hooper et al. 1997). The pig granule membrane is one of the membranes in which the enzyme reaches its highest specific activity of 72,876 nmol D-Phe produced/hr/mg. The enzyme is also present, but at a very low specific activity, in the granule content and is secreted by the pancreas. Immunocytochemistry of MDP at the electron microscopic level has therefore been undertaken to confirm the ultrastructural localization of the enzyme in the pig exocrine pancreas and to assess its membranous status along the secretory pathway. The immunocytochemistry confirms our biochemical observations that MDP is present in the granule membrane, content, and secretions (Figure 1). However in granule content the specific activity of MDP is very low (Hooper et al. 1997). Such a low specific activity in the content is not abnormal because pancreatic zymogens are at a concentration of more than 150 mg of protein/ml inside the granule (Ho and Rothman 1983). Immunocytochemistry offers the advantage of allowing detection of a single epitope in a mass of unrelated antigens, regardless of whether or not the enzyme is active, which is not the case for the biochemical approach, which depends strictly on an active enzyme. A possible interpretation of the apparent inconsistency between the low enzyme activity measured in granule content and the significant immunocytochemical identification reported here is a possible inactivation of the released MDP by the acidic pH that exists in the granules.

In the rough ER, MDP is neatly confined to the membrane (Figure 1). This is consistent with the mode of addition of the GPI anchor to proteins that takes place in the ER. This is the first time that such an association of a GPI-anchored protein with the rough ER membrane has been so explicitly confirmed by immunocytochemistry at the electron microscopic level. From the ER up to the Golgi along the secretory pathway, MDP is exclusively membrane-bound. However, as mentioned above, a significant fraction of MDP is not membrane-bound in granules and the enzyme is secreted by the pancreas. Therefore, two questions were addressed. (a) Where in the secretory pathway does the release of MDP from the membrane start? (b) By which enzymatic process is it accomplished? Immunocytochemistry answered the first question, showing that MDP is first released in immature granules (Figure 1C) and downstream in the secretory pathway in the mature granule and the acinar lumen.

Table 2

Effect of PI-PLC on the phase separation in Triton X-114 of MDP in pancreatic secretions (% MDP in aqueous phase a )

Sample	-PI-PLC	+PI-PLC
1	11.0	67.5
2	10.9	72.1
3	22.6	82.0
4	20.7	73.8
5	20.4	74.9
6	24.9	69.3

Results are the mean of duplicate incubations in the absence or presence of bacterial PI-PLC. The samples come from six separate experiments on two different pigs with the pancreas cannulated under secretin + atropine perfusion, and correspond to time points between 3 and 5 hr at which MDP output was maximal but total protein output minimal (see Figure 2).

For the mode of release of MDP from the membrane in vivo, two mechanisms are known: a PI-PLC (Movahedi and Hooper 1997) and a PI-PLD (Metz et al. 1991). For the involvement of a PI-PLC, we have never been able to demonstrate such an activity in the granule membrane (Hooper et al. 1997), and we now confirm that the CRD epitope [inositol-1,2-(cyclic)monophosphate] exposed by the action of a PI-PLC on GPIanchored proteins is not detectable in the exocrine pancreas even if two GPI-anchored proteins are present on the zymogen granule membrane (GP-2 and MDP). As far as pancreatic secretions are concerned, they have always been negative for the CRD epitope (Viau et al. 1994; Hooper et al. 1997). For the involvement of a PI-PLD activity, we and others have never been able to observe such activities in the granule membrane or pancreatic secretions (M.G. Low and D. LeBel, unpublished observations; Metz et al. 1991) or to detect the product of these activities in secretions (Hooper et al. 1997). This conclusion is also supported by the observation that MDP could not be isolated from either the granule content or secretions by affinity chromatography on cilastatin-Sepharose (Hooper et al. 1997). A different phospholipase, such as a PLA, might therefore be involved in the release of MDP from the membrane. Although we cannot directly distinguish whether the GPI anchor on the secreted form of MDP is intact or has been cleaved by PLA, with the recent identification of a PLA activity in the zymogen granule membrane (Hooper et al. 1997) and the present observation that the secreted MDP possesses at least one fatty acid chain (Table 2), it is possible that this endogenous activity promotes the release of MDP from the acinar cell. The other mechanism that is compatible with the properties of secreted MDP would be the shedding of intact membrane fragments in secretions.

Another question can be raised about the secreted MDP: from which intracellular compartment does it originate? The first obvious source would be the granule content because the specific activity of secreted MDP under basal conditions and secretin stimulation is very similar to that found in the granule content (Table 1). However, under atropine block, the specific activity of MDP increases tremendously, reaching very high values, values only found in membranes (Table 1), but with almost no change in the amount of activity secreted (Figure 2C). Considering also that only 10% of the granule active MDP is in the content (Table 1), the origin of the active MDP in secretions would therefore essentially exclude the granule content as a source. Therefore, one way to explain why the secretion of active MDP is unaffected by the complete inhibition of regulated secretion is that the apical plasma membrane might be the main source of secreted MDP activity. The low amount actually secreted could be compatible with the membrane as the source of MDP. This conclusion confirms two previous studies on the secretion of GP-2 that identified the apical plasma membrane as the main reservoir and site of release of this GPI-anchored protein (Freedman et al. 1994; Viau et al. 1994). Taken together, previous observations on GP-2 and the present observations of MDP in pig pancreatic secretions still having a hydrophobic portion of its GPI anchor suggest that the release of MDP activity would take place at the apical surface of the acinar cell by the action of a PLA or by the shedding of intact membrane fragments.

Footnotes

Acknowledgements

Supported by the Canadian Cystic Fibrosis Foundation, NSERC (Canada) to DL and by the Medical Research Council of Great Britain to NMH, and by a NATO Collaborative Research Grant.

References

Carlemalm

Villiger

Hobot

Acetarin

Kellenberger

(1985) Low temperature embedding with Lowicryl resins: two new formulations and some applications. J Microsc 140:55–63

Freedman

Kern

Scheele

(1994) Apical membrane trafficking during regulated pancreatic exocrine secretion. Role of alkaline pH in the acinar lumen and enzymatic cleavage of GP-2, a GPI-linked protein. Eur J Cell Biol 65:354–365

JJL

Rothman

(1983) Protein concentration in the pancreatic zymogen granule. Biochim Biophys Acta 755:457–466

Hooper

(1993) Determination of mammalian membrane protein anchorage: glycosyl-phosphatidylinositol (G-PI) or transmembrane polypeptide anchor. Biochem Educ 21:212–216

Hooper

Broomfield

Turner

(1991) Characterization of antibodies to the glycosyl-phosphatidylinositol membrane anchors of mammalian proteins. Biochem J 273:301–306

Hooper

Cook

Lainá

LeBel

(1997) Identification of membrane dipeptidase as a major glycosyl-phosphatidylinositolanchored protein of the pancreatic zymogen granule membrane, and evidence for its release by phospholipase A. Biochem J 324:151–157

Hooper

Low

Turner

(1987) Renal dipeptidase is one of the membrane proteins released by phosphatidylinositolspecific phospholipase C. Biochem J 244:465–469

LeBel

Beattie

(1988) The major protein of pancreatic zymogen granule membranes (GP-2) is anchored via covalent bonds to phosphatidylinositol. Biochem Biophys Res Commun 154:818–823

Metz

Zhang

Guo

Tsang

Kochan

Altszuler

Davitz

(1991) Production of the glycosylphosphatidylinositol-specific phospholipase D by the islets of Langerhans. J Biol Chem 266:17733–17736

10.

Morisset

Levenez

Corring

Benrezzak

Pelletier

Calvo

(1996) Pig pancreatic acinar cells possess predominantly the CCK-B receptor subtype. Am J Physiol 271:E397–402

11.

Movahedi

Hooper

(1997) Insulin stimulates the release of the GPI-anchored membrane dipeptidase from 3T3-L1 adipocytes through the action of a phospholipase C. Biochem J 326:531–537

12.

Paquette

Leblond

Beattie

LeBel

(1986) Reducing conditions induce a total degradation of the major zymogen granule membrane protein in both its membranous and its soluble form. Immunochemical quantitation of the two forms. Biochem Cell Biol 64:456–462

13.

Viau

Lainé

Levenez

Gueugneau

A-M

Corring

Morisset

LeBel

(1994) Evidence for an apical, nonregulated protein secretion in pig exocrine pancreas. Am J Physiol 267:G764–771
