Abstract
Several processes in textile finishing involve a modification on fabric sensorial and mechanical properties. This paper tries to evaluate the effect of four different washes on the denim fabric tactile properties using a sensory analysis. The studied washes were rinse, stone1, stone2 and stone bleach. The tactile sensory properties of washed denim fabrics were assessed by a trained panel composed of 10 assessors. The 10 panelists were selected from 15 assessors after a training program, during which their performance in terms of repeatability was controlled to decrease the variability of the provided measurements. This trained panel assessed 16 sensory attributes already selected to find out the differences between the washed samples. Analyses of variance and principal components analyses were carried out to define the most pertinent attributes, which allows one to find out the difference between the washed samples. It was found that the change of washed denim fabric handle depends on the washing intensity and it is more important in the case of normal finishing than the fifties finishing.
There have been some studies in which the influences of some washing and special treatments on the mechanical and physical properties of denim fabrics were determined. This paper identifies the most important tactile sensory properties that are influenced by industrial washings for the denim fabric. In addition, this paper represents the progressive changes of the handle that occur on treating the denim fabric with various washings.
Introduction
When just woven, fabric is rough and hard. Before becoming final products, the fabric needs to undergo various mechanical and/or physical–chemical treatments. 1 In the case of denim fabric, treatments are realized in a quasi-systematic way followed by finishing treatments. They are made before the clothing production, in order to modify the state of the fabric surface and to change aesthetic appearances of denim products. The washing can be made before making-up on fabric or after clothing production on finished products. It confers a less hard aspect on denim fabric, such as giving it a bleached and worn look.
Certain research works have studied the influence of finishing and washing treatments on the handle of weaved or knitted fabric. Jevsnik et al. 2 used the KES-F 3 to evaluate the effects of cellulose treatment on weft knitted fabric regarding mechanical and surface properties. The influence of enzyme treatments, friction and geometrical roughness on the face and reverse side of interlock knitted fabrics were discussed in comparison with untreated interlock knitted fabric. Agarwal et al. 4 also used the Kawabata evaluation system for fabric (KES-F) and universal surface tester (UST) to evaluate the low-stress mechanical properties, in order to examine the influence of ageing and the fabric softener used during the wash cycles of knitted fabrics. Colina et al. 5 quantified, using subjective and objective evaluation methods, the tactile and mechanical properties of 1 × 1 rib knitwear fabrics (acrylic, cotton and wool) that were subjected to different techniques of laundering in a variety of washing and drying conditions. In the work of Strazdiene et al. 6 the effect of two finishing products (the crease-resistant finishing Knittex “K” and the softener macro Silicone Ultratex “Ul”) upon 100% cotton plain weave fabric was studied by two methods: objective evaluation and sensory analysis. Objective evaluation was done using a Griff tester device where a disc-shaped specimen was extracted through a rounded hole of the stand. Sensory analysis was performed by the panel of 11 trained subjects. Philippe et al. 7 compared the effect of some type of softener on the sensory feeling of fabrics. They assumed that fabrics treated by a macro emulsion softener are greasier than fabrics treated by the micro emulsion softener. El-Gazel et al. 8 used the sensory analysis to study the effects of certain finishing treatments, such as laundering, dying in different conditions, bio-polishing, softening, emerizing and calendering on the sensory properties of 100% cotton knitted fabric. For the denim fabric, the majority of studies investigated effects of different mechanical and chemical finishing processes on physical and mechanical properties of denim fabric. The effects of different washing treatments (rinse, stone and enzyme) on pilling and edge deformation 9 and on abrasion resistance differing according to the washing parameters 10 were investigated. Tarhan and Sariisik 11 studied the effects of sand blasting, laser application and enzyme silicone wash on fabric physical properties, hand, breaking and seam strengths and fabric stiffness. Sular and Kaplan 12 studied the influences of some washing (rinse, enzyme wash, stone, bleach) and special treatment processes on some physical, mechanical properties and hand of two types of denim fabrics. Hand evaluation was conducted by a panel composed of 10 graduate students of textile using a five-point rating scale.
The purpose of this study is to determine the effect of various washing processes carried out under industrial conditions on tactile properties of denim fabric using a trained panel. Previously, the studied fabrics were subjected to two different finishing processes. The first one was a normal finishing, the second a fifties finishing. Afterwards, they were washed by four different washing processes: rinse, stone1, stone2 and stone bleach. The evaluation of the treated fabrics was done subjectively using a panel of 10 experts. Hand evaluations were carried out as hand has a critical influence on consumer preferences; even though mechanical properties influence the performance of the product, this is no longer the main concern of consumers. It is thought that results will be beneficial for scientists conducting studies on denim finishing. Moreover, results may guide denim producers in selecting the optimum application for required aesthetic appearances.
Materials and methods
Characteristics of the evaluated fabric

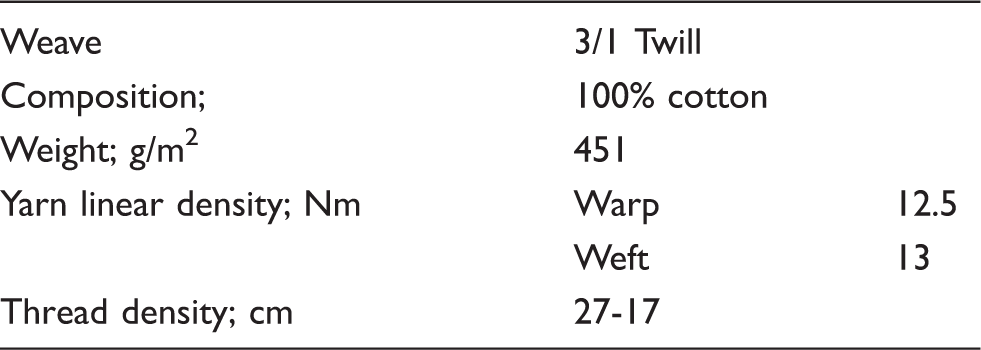

Physical properties of denim fabric
Denim washing is known as one of the finishing treatments that has vast usage because it creates special appearance and modernizes clothes. The washing treatment consists of making denim turn for one or two hours in a barrel machine or in a washing machine with a perforated drum containing stones or chemical detergents and water. Depending on the intensity of the looked for ageing, jeans can present different aspects: grey blue, clear grey blue, bleached advantage, used, etc.
The assessed samples
The normal finishing
The normal finishing consists of a Denim Range treatment followed by a sanforizing.
Denim Range: this is a treatment of fabric in a bath of finishing agent in the presence of a straightening mechanism, which permits one to exercise a high tension to fix the angle of movement between the warp and the weft yarns. This treatment allows one to increase the density of fabric and makes the fabric more like cardboard.
Sanforizing: this is a treatment to increase the dimensional stability of textile materials. The sanforizing allows one to make the cotton fabrics less fragile to the wash, in particular as regards to their shrinkage and the possible loss of colors. During this operation, fabrics are stretched in length as well as in width and compacted so that they do not shrink after the first wash.
The fifties finishing
The fifties finishing is a process of finishing that begins with a treatment on Goller in the presence of NaOH (160 g/l) and at a low temperature of 10℃, followed by rinsing and neutralization. This treatment permits a partial desizing of fabric and makes it flatten, dense, smooth and brilliant, as it increases the fabric’s dynamic resistance and the unification of dye. This finishing process ends in a Denim Range and a sanforizing treatment, as in the case of normal finishing.
The washing
Washing is an aesthetic finish creating a worn look and softer hand in denim products. There are different methods of washing the fabric. This study investigated the influence of the following washing treatments on the handle of denim fabric.
Rinse: this consists of a desizing in a hot bath (60℃) of NaOH, followed by three rinses succeeded by a softening. It gives the jeans a less hard aspect and does not discolor them.
Stone1: this consists of fading the jeans in a cold bath for 30 min, before putting them into a machine with a perforated drum or with barrel, and tumbling them with pumice stone that is not soaked with bleaching agent. It is intended to give a worn look to jeans, to achieve a soft hand feeling and to discolor them slightly. The cycle of this washing contains a desizing + two rinses + stone1 + two rinses and a final softening.
Stone2: this is a pushed stone (double stone) washing. It consists of a desizing, followed by a hot washing with stone at 60℃ for 60 min and being tumbled with pumice stone soaked in enzyme, succeeded by three rinses. Then, the jeans are rinsed three times again with another stone in addition to a softening. It is intended to give a used look to jeans and to lighten them.
Stone bleach: the bleach is a fading that allows the producers of jeans to obtain all the nuances of the blue that is looked for by the clientele. Its purpose is partially discoloring the jeans by using a bath containing 20–100 g/l of sodium hypochlorite according to the wished degree of discoloration and the concentration of the used bleach. In this research paper, we studied the bleach combined with stone2, which allows one to obtain both a used and light look.
Condition of the sensory evaluation

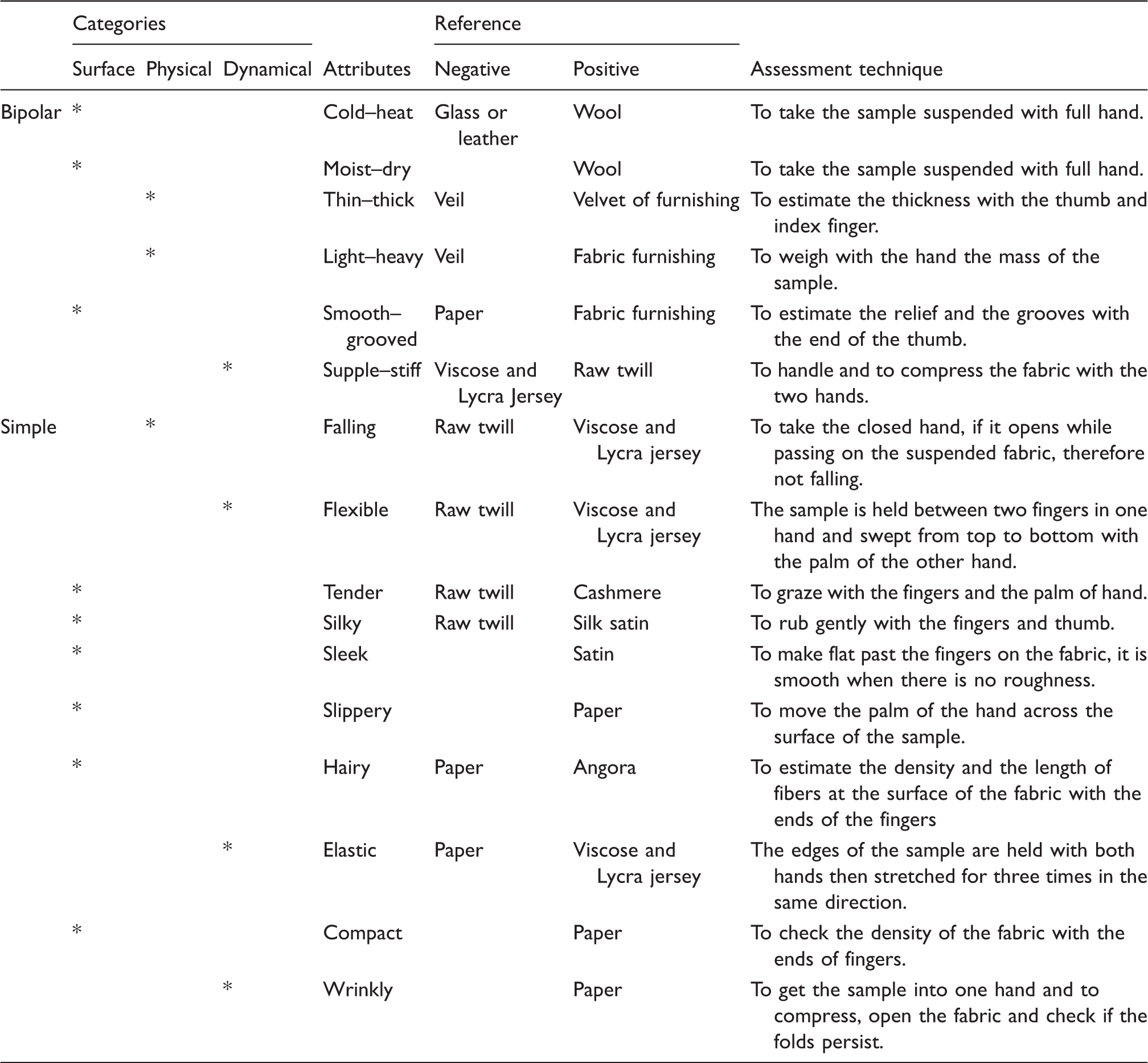

The list of attributes
The handle of the fabric was assessed in a specific cabinet with temperature and humidity control. The evaluated fabric sensory attributes were predominantly tactile without sight. The fabric swatches were presented in random order. Before the evaluation, swatches (dimension 30 cm × 20 cm) are kept in the standard condition (T = 20 ± 2℃ and H = 65 ± 2%) for 24 hours.
Before handling fabrics, the panelists were required to wash and dry their hands. In order to minimize errors arising from fatigue, the panelists assessed only five samples per session.
Results and discussion
To reach the objectives of this study, at first an analysis of variance (ANOVA) in two factors was realized. The ANOVA allowed us to calculate F fabric and F interaction (F is a statistical of Fisher Snedecor). The F fabric allows one to find if the subjects will perceive the differences between fabrics. If the F fabric is significant, then the fabrics can be considered different. The F fabric was defined as follows:
The F interaction (Equation (3)) informs one about the degree of association between the subjects; if the F interaction is not significant, the subjects can be considered as homogeneous in their notation for this attribute; therefore, they are considered in agreement. Otherwise, they are in total disagreement. Therefore, a principal components analysis (PCA) is carried out on the average notes for attributes in disagreements in order to find out the origin of the significance of this interaction:

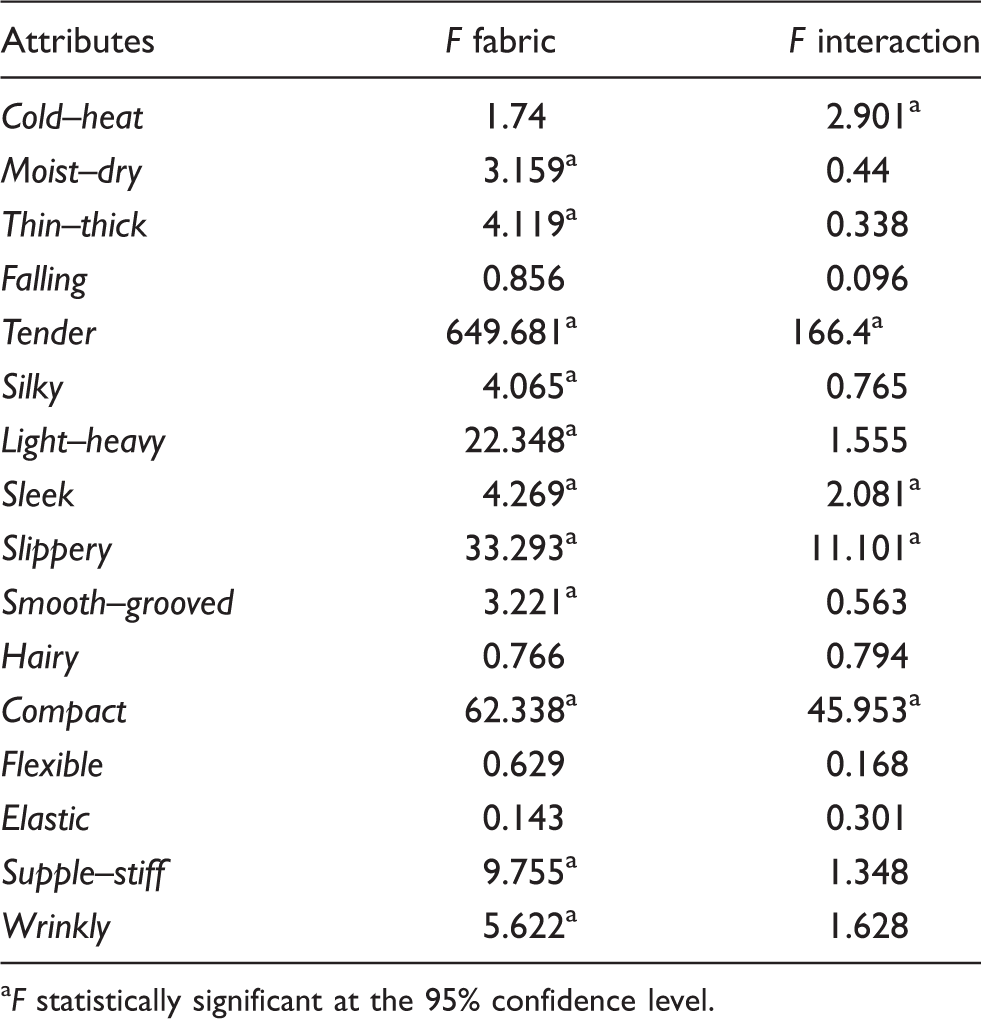

Results of analysis of variance for two factors
F statistically significant at the 95% confidence level.
This table also shows that F interaction of the compact cold–heat, tender, sleek and slippery attributes is significant at the threshold of 5%. This means that panelists noted the fabrics differently for these attributes. With the aim of determining the origin of the importance of these interactions, we represented the circle of correlation for each of the attributes in disagreements.
On the circles of correlation (Figures 1 and 2) of the attributes tender and sleek, two panelists were a bit far from the others, but the agreement is unanimous for the majority of the subjects on the evaluation of washed fabrics. These attributes will be considered during the statistical studies in question. The slippery attribute (Figure 3) also will be taken in consideration, because the panelists are positively correlated on the evaluation of fabrics for this attribute.
Circle of correlation for the tender attribute. Circle of correlation for the sleek attribute. Circle of correlation for the slippery attribute.


However, for the attribute compact (Figure 4), the panelists are scattered on the circle of correlation. Then, they are totally disagreeing on the notation of fabrics. For that reason, this attribute will not be taken into account in later statistical studies.
Circle of correlation for the compact attribute.
The discriminating attributes to be taken into account in the study of the influence of washing on the handle of denim fabric, are thus: moist–dry, thin–thick, tender, silky, light–heavy, sleek, slippery, smooth-grooved, supple–stiff and wrinkly. For these attributes, a global PCA is realized on the average notes of the group. The PCA permitted us to project a multidimensional data (size 10) onto two dimensions (axes F1&F2) that account for the greatest percentage of the variance in the data (Figure 5).
The appropriate values.
The biplot (Figure 6) represents 86.48% of the total variance in the data, which we consider to be adequate for making broad comparisons between the treated fabrics and to give an overall view of all effects of washing them. The axis F1, which forms 68.41% of the total inertia opposed the attributes supple–stiff, smooth–grooved, wrinkly and light–heavy to the attributes sleek, tender, slippery and silky. The axis F2 (18.08%) is mainly formed by the moist–dry and thin–thick attributes.
Circle of attributes correlation.
Figure 7 maps the position of all the variously washed samples, relative to each other, in terms of all the measured sensory attributes. This map shows that the fading influences the handle of fabrics, in particular for the fabrics that were subjected to a normal finishing previously. A projection (Figure 8) of fabrics on the axes of the discriminating attributes allows one to compare the various fabrics. Before washing, the fabric Nb (submitted normal finishing and not washed-out) represented a stiff and slightly rough aspect because of the size, which still remains fixed to the fabric. Every time the washing intensifies, the effect of the size decreases and the fabric becomes suppler, tenderer, sleeker, more slippery and silkier. However, for the fabrics treated with fifties finishing, the influence of washing on the tactile properties was not of the same intensity as it was in fabrics subjected to a normal finishing before washing. Stone2 wash and stone bleach made the fabrics dry and light.
Map of fabrics. Map of fabrics and circle of correlation.

We studied separately the influence of washing on the handle of fabrics that were subjected previously to a fifties finishing and on the handle of fabrics that were subjected to a normal finishing.
Figure 9 shows a PCA biplot representing the progressive changes that occur on washing the denim fabrics treated previously with a normal finishing, in different wash regimes. The figure shows that the not-washed-out fabric Nb is stiffest, the heaviest and the most wrinkly. It also shows that fabric Ns1 was judged the thickest and fabric Nsbl the thinnest. According to the panel, the rinse wash (Nr) improved moderately the handle of the fabrics subjected previously to a normal finishing. The stone wash (Ns1 and Ns2) and stone bleach (Nsbl) made this fabric more slippery, silkier, sleeker, tender and drier.
Map of fabrics treated with normal finishing.
According to Figure 10, the not-washed-out fabric Fb was judged stiff, most grooved and heavy. On the other hand, fabric Fs2 was judged the most wrinkly, the most slippery, the silkiest, the most supple and the smoothest. This implies that the stone wash has a softening effect. However, the stone bleach improves the tactile properties of the fabric treated previously with fifties finishing, it makes it (Fsbl) sleeker, silkier, tenderer and more slippery. This figure also shows that the stone1 wash makes the fabric treated previously with fifties finishing less wrinkly, tenderer and more slippery, and a simple rinse modifies slightly the handle of this fabric and makes it less sleek.
Map of fabrics treated with fifties finishing.

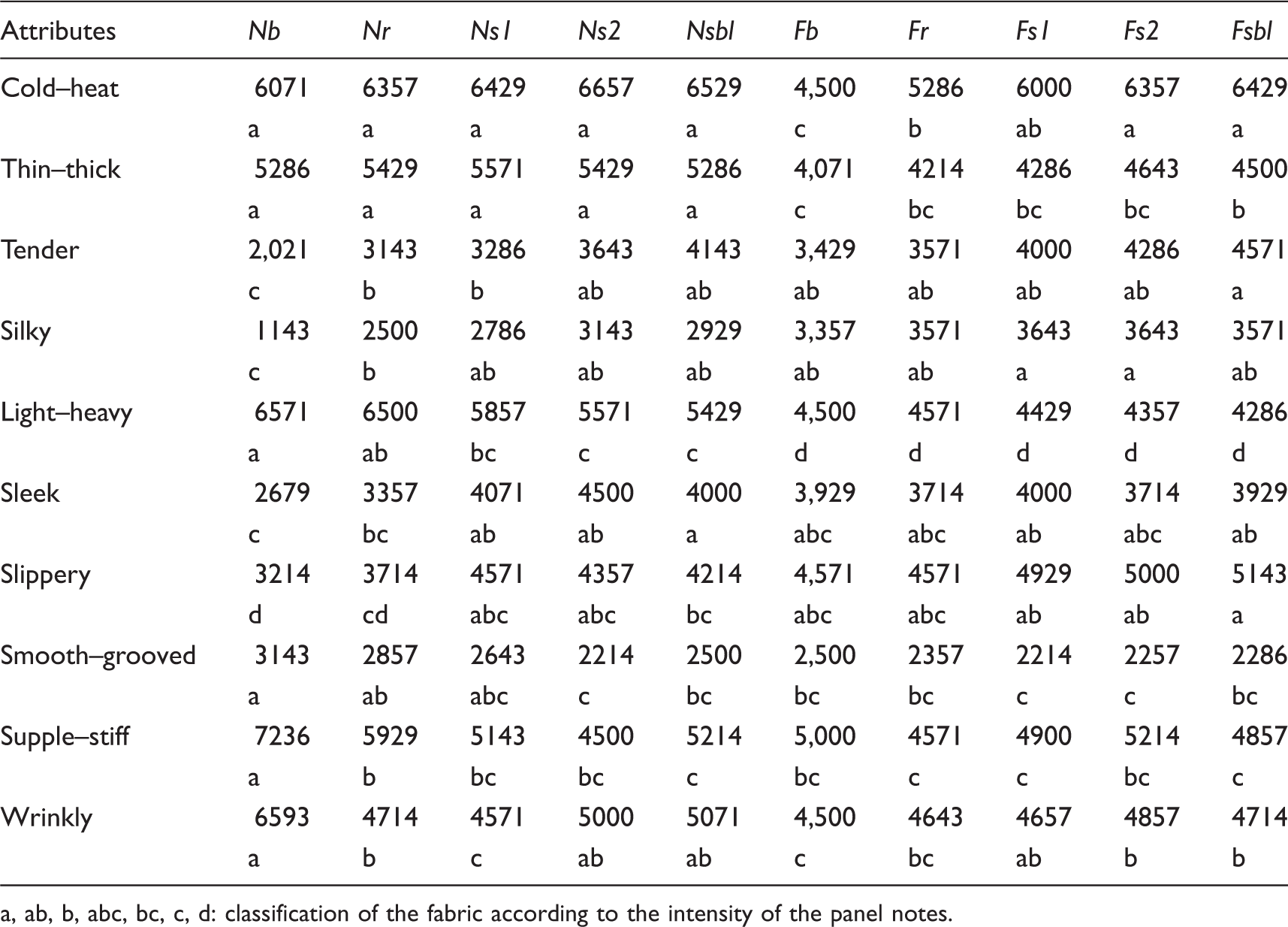

Classification of the fabrics (Duncan test)
a, ab, b, abc, bc, c, d: classification of the fabric according to the intensity of the panel notes.
The profiles of washed fabrics are represented in Figure 11. This figure shows that the profiles of fabrics treated with a fifties finishing before washing are slightly far from one another. This implies that the washing in question does not influence enormously the handle of these fabrics except for the attributes moist–dry and tender.
Profiles of fabrics treated with fifties finishing.

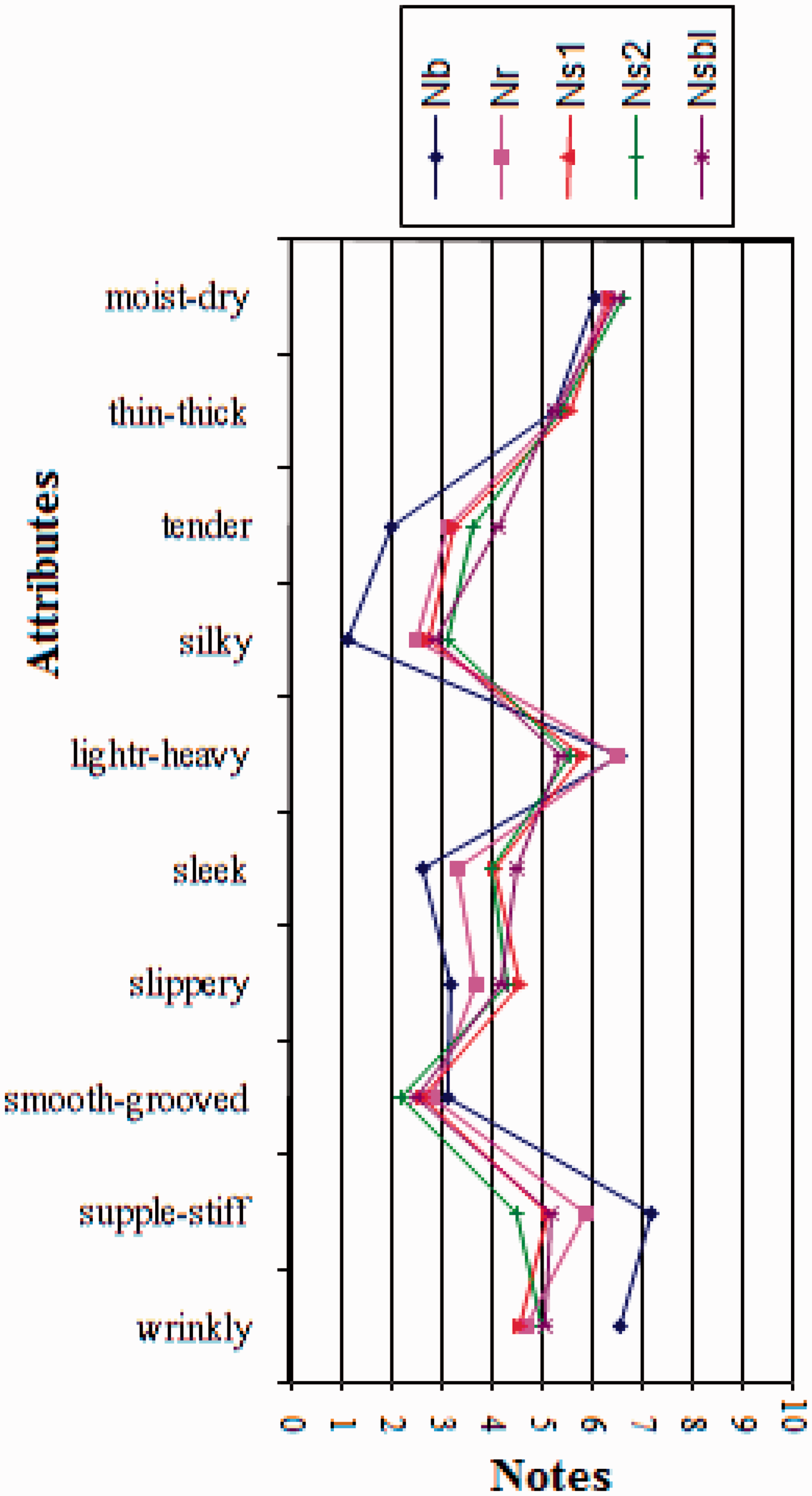

On the other hand, the influence of these washes is remarkable on the handle of fabrics (Figure 12) that had been subjected to a normal finishing previously.
Profiles of fabrics treated with normal finishing.
Conclusion
Commonly used washing processes were applied on denim fabrics that were treated with normal and fifties finishing previously, to see their effects on tactile sensory properties of the products, which are crucial for the preference quality of the denim products. According to the results, the effects of the washing process group (rinse, stone1, stone2, stone bleach) were determined to be statistically more significant in the case of normal finishing than of the fifties finishing. The studied washes did not modify enormously the handle of fabrics that were subjected to a fifties finishing previously. On the other hand, the influence of these washings is remarkable on the handle of the fabrics that were subjected to a normal finishing before washing.
Hand evaluation results were better after the applications stone1 or stone2 washing, as they wear out some of the surface fibers, creating a softer and bulkier surface. Stone 1 wash makes the fabric less wrinkly, tenderer and more slippery. The combination of the stone 2 wash with bleaching created desirable hand evaluation results for the attributes sleek, silky, tender and slippery. Nevertheless, this is not the case for the rinse wash, as panelists evaluated the rinse wash with lower scores for the attributes tender, silky, sleek and slippery and the attributes supple–stiff and wrinkly with higher scores.
