Prediction of creep behavior of laminated woven fabric with adhesive interlining under low stress in the bias direction

Abstract

The effect of adhesive interlining on the creep behavior of a woven fabric in the bias direction was investigated. Three-element viscoelastic models were used to approximate the creep behavior of a face fabric and adhesive interlining. The creep model of a laminated fabric comprised a six-element model in which two three-element models are connected in parallel with the three-element model. Creep tests were carried out using face fabrics, adhesive interlinings, and their laminated fabrics without and with bonding adhesive interlining by hanging samples in the 45° bias direction under their own weight for 7 days. Creep strains of face fabrics bonded with adhesive interlining were found to be weaker than those of the face fabrics. The creep behavior for the face and interlining fabrics could be approximated using the three-element viscoelastic model with appropriate parameters. The experimental creep behavior of a laminated fabric without bonding was similar to the theoretical behavior. However, the experimental creep of laminated fabrics with bonding interlining was less than the calculated creep, owing to the increase in stiffness due to the adhesive. By revising the six-element model with the strains just after hanging and for 2 days, it was possible to predict the creep strain over 7 days.

Keywords

interlining creep six-element model bias direction woven fabric

For woven fabrics, a direction oblique to the warp and weft is referred to as the bias direction. Crossing yarns in the bias direction of fabric are more easily deformed than those in the yarn direction.^1–3 Bias-cut fabric is able to give a soft look and drape, and is thus usually used for flared skirts or dresses. Bias-cut fabric is also partly used for circular skirts.¹ However, when we store clothing constructed from bias-cut fabric by hanging, the clothing goes out of shape owing to greater fabric strain under the clothing’s own weight. There is thus a need for the prediction and prevention of this loss of shape. Gradual deformation under a constant load such as clothing’s own weight is called creep. In this study, we investigated the creep behavior of fabric in the bias direction due to the fabric’s own weight.

In the manufacturing of clothing, interlining is used to keep the shape of the clothing. Among types of interlining, adhesive interlining, where adhesive is put on the base cloth, is commonly used. Adhesive interlining is fused to the face fabric and maintains the garment form. It is known that mechanical properties of the face fabric, such as the bending rigidity and shear stiffness, are affected by fusing interlining.^4–9 It is thus necessary to select an appropriate interlining by taking into account these changes. Kim et al.^4–9 studied a method of predicting the bending rigidity and shear stiffness of a laminated fabric comprising an adhesive interlining and face fabric.

Adhesive interlining can affect the creep of a garment. It is necessary to investigate and predict the effects of interlining on fabric creep to select a suitable interlining. The effects and prediction of the creep of interlining in the bias direction have not yet been studied.

There have been several studies on the creep of yarns and fabrics in the yarn direction. Deng and Zhou¹⁰ investigated the effects of temperature and load on the creep of a polypropylene structure. Nikolic and Mihailovic¹¹ measured the creep and recovery of woolen fabric. They classified the entire deformation into elastic deformation, viscoelastic deformation, and plastic deformation and obtained the proportions of each. Asayesh and Jeddi¹² investigated the prediction of creep of polyester plain woven fabrics from yarn creep using a three-element viscoelastic model. Urbelis et al.¹³ carried out a creep test on laminated fabrics with and without fusing and their component fabrics in the yarn direction. They found that the effect of adhesive on the creep behavior of laminated fabric in the yarn direction is negligible. They introduced a viscoelastic model for the creep and creep recovery behavior of a fabric and determined the parameters of the model, for a relatively short time of 30 min and a large load of 40–50 N, in the yarn direction.¹⁴ They also calculated the redistribution of tension for each fabric without fusing under a constant load.¹⁵ However, there has been no investigation of the creep of laminated fabric in the bias direction. Deformation of fabric in the bias direction is larger than that of yarn directions. In addition, there is a large adhesive effect on the rigidity of fused fabric in shear stiffness that cannot be neglected.^8,9

In the present study, to clarify the effect of adhesive interlining on the creep behavior of laminated fabric, we investigated the creep of laminated fabric and its components in the 45° bias direction under the fabric’s own weight. Creep of the face fabric and adhesive interlining was approximated using a three-element viscoelastic model. Creep for laminated fabric was then expressed using a six-element model that was connected in parallel with the three-element model and the modeled creep behavior was compared with the experimentally observed behavior.

Methods and materials

Analytical approach

In this study, we employ a viscoelastic model for a single fabric using a three-element model that reveals creep behavior. The model is represented as a Voigt model and a spring connected in series, as shown in Figure 1. Here, K₁, K₂, K₃, and K₄ are the elastic moduli per unit width (Ncm⁻¹) of the different springs, y₁ and y₂ are the viscosity coefficients per unit width (Ncm⁻¹s) of the dash pots, and F₁ and F₂ are the applied load per unit width (Ncm⁻¹). ɛ_f and ɛ_i are the strains of each three-element model.

Figure 1.

Three-element models.

We denote time by t and obtain the strain of a fabric named fabric 1, ɛ_f, as

ɛ f = \frac{F 1}{K 1} + \frac{F 1}{K 2} (1 - e^{- \frac{K 2}{y 1} t}) .

(1)

The strain of another fabric named fabric 2, ɛ_i, is expressed as

ɛ i = \frac{F 2}{K 3} + \frac{F 2}{K 4} (1 - e^{- \frac{K 4}{y 2} t}) .

(2)

When we ignore the effect of the adhesive, the laminated fabric can then be expressed by a six-element model in which two three-element models are connected in parallel, as shown in Figure 2. Urbelis et al.¹⁵ proposed a six-element model by connecting two three-element models in series. Their model is equivalent to the six-element model in Figure 2.¹⁶ However, the composition of viscoelastic constants in solution of the equation is unknown. We set the strain and total force of the six-element model as ɛ and F, and express first- and second-order differentiations of strains and forces with respect to t by dots such as $\overset{\cdot}{ɛ}$ and $\overset{··}{ɛ}$ , and $\overset{\cdot}{F}$ and $\overset{··}{F}$ . From the relations of the force and strain, we obtain following relations:

F = F 1 + F 2,

(3)

F 1 = K 1 ɛ K 1 = K 2 ɛ V 1 + y 1 \overset{\cdot}{ɛ} V 1,

(4)

F 2 = K 3 ɛ K 3 = K 4 ɛ V 2 + y 2 \overset{\cdot}{ɛ} V 2,

(5)

ɛ = ɛ i = ɛ K 1 + ɛ V 1 = ɛ f = ɛ K 3 + ɛ V 2,

(6)

where

ɛ K 1

and

ɛ K 3

are the strain of springs K₁ and K₃,

ɛ V 1

and

ɛ V 2

are the strain of the Voigt models for fabric 1 and fabric 2, and

\overset{\cdot}{ɛ} V 1

and

\overset{\cdot}{ɛ} V 2

are those differentiations with respect to t.

Figure 2.

The six-element model.

After eliminating $ɛ K 1$ , $ɛ K 3$ , $ɛ V 1$ , $ɛ V 2$ , $\overset{\cdot}{ɛ} V 1$ , $\overset{\cdot}{ɛ} V 2$ , F₁, and F₂ from simultaneous equations (3)–(6), using load conditions

\overset{\cdot}{F} = \overset{··}{F} = 0,

(7)

we obtain the constitutive equation

\overset{··}{ɛ} + g \overset{\cdot}{ɛ} + h ɛ = d,

(8)

where g, h, and d are constants given by the following equations:

g = \frac{GK 3 (y 1 + y 2) + Hy 2 (K 1 + K 3) + D (K 3 K 4 + \frac{K 1 K 2 y 2}{y 1})}{Dy 2 (K 1 + K 3)},

(9)

h = \frac{GK 3 (K 2 + K 4) + H (K 3 K 4 + \frac{K 1 K 2 y 2}{y 1})}{Dy 2 (K 1 + K 3)},

(10)

d = \frac{(G + H) (K 3 + K 4)}{Dy 2 (K 1 + K 3)} F,

(11)

where G, H, and D are constants given by the following equations:

G = \frac{K 1 (K 1 + K 2) y 2}{y 1} - K 1 (K 3 + K 4),

(12)

H = K 1 K 4 - K 2 K 3

(13)

D = K 1 y 2 - K 3 y 1

(14)

The solution of Equation (8) is

ɛ = C 1 exp (λ 1 t) + C 2 exp (λ 2 t) + C 3,

(15)

where

{λ 1 = \frac{- g + \sqrt{g^{2} - 4 h}}{2} λ 2 = \frac{- g - \sqrt{g^{2} - 4 h}}{2}

(16)

Here, the integration constant C₃ is determined by the conditions of $λ 1 and λ 2$ for an appropriate solution:

C 3 = \frac{d}{h}

(17)

C₁ and C₂ need to be determined. Thus, as initial conditions, the strain and strain rate at time t = 0 are defined as $ɛ | t = 0$ and $\overset{\cdot}{ɛ} | t = 0$ , respectively. When t = 0, only the springs having elastic moduli K₁ and K₃ are deformed. Thus, $ɛ | t = 0$ can be expressed as

ɛ | t = 0 = \frac{F}{K 1 + K 3} .

(18)

Here, $\overset{\cdot}{ɛ} | t = 0$ is not affected by K₂ or K₄ because they do not change at $t = 0$ . We thus derive $\overset{\cdot}{ɛ} | t = 0$ using a four-element model excluding K₂ and K₄:

\overset{\cdot}{ɛ} | t = 0 = \frac{F}{K 1} (\frac{K 1}{K 1 + K 3} - \frac{y 1}{y 1 + y 2}) (- \frac{\frac{1}{y 1} + \frac{1}{y 2}}{\frac{1}{K 1} + \frac{1}{K 3}}) + \frac{K 1 F}{y 1 (K 1 + K 3)} .

(19)

We then obtain

C 1 = \frac{\overset{\cdot}{ɛ} | t = 0 + (\frac{d}{h} - ɛ | t = 0) λ 2}{λ 1 - λ 2},

(20)

C 2 = ɛ | t = 0 - \frac{d}{h} - C 1 .

(21)

If we can obtain parameters of the three-element model in a creep test of each component fabric, we can then predict the creep behavior of the laminated fabric without fusing using Equation (15).

Experimental approach

We measured creep strains of the face fabric, adhesive interlining, lamination of both fabrics without fusing (hereinafter referred to as overlapped fabric), and lamination of both fabrics with fusing (hereinafter referred to as fused fabric) in the 45° bias direction. The load was set as the self-weight of an 80-cm length of each fabric assuming a dress of knee length. Adhesive interlining of the dot type was used.

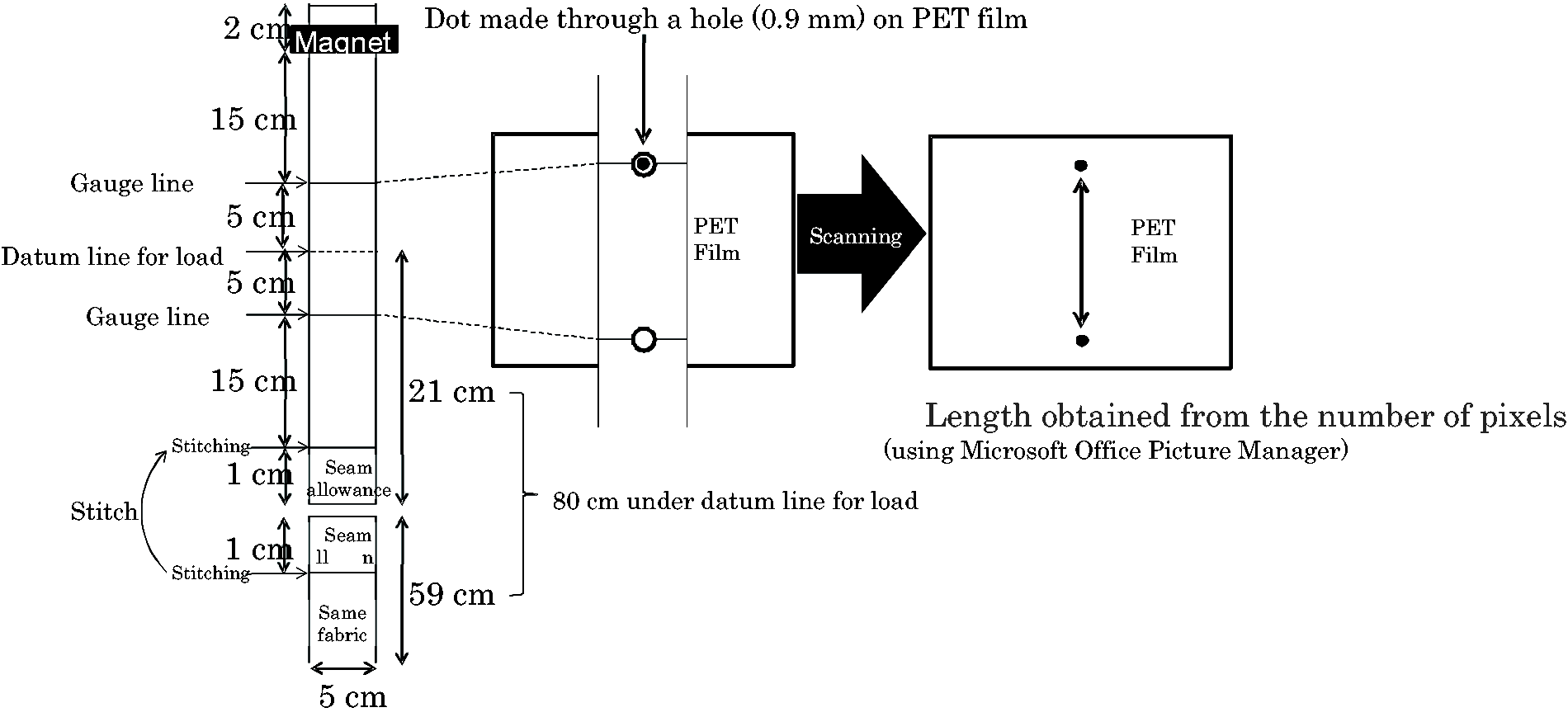

A fabric sample and the creep test method are shown in Figure 3. The sample was hung on a wall by fixing the upper end with a magnetic bar. Dimensions of samples were measured before hanging. The sample fabrics were cut on the 45° bias. The shape was a long rectangle with width of 5 cm, as shown in Figure 3. It was not possible to make an 80-cm length of fabric in the bias direction without a seam owing to the fabric size with the prepared sample fabrics. Thus, the same fabric was sewn to make an 80-cm length of fabric. Polyester sewing yarn was used. The yarn load is very small so it was neglected and sewing will not have any effect on the creep behavior. Gauge lines were drawn at 10-cm intervals and the initial gauge length was measured before hanging. The weight of the length of 80 cm was applied to the centerline of the gauge. In addition, to avoid restriction by fixing with a magnet at the top and by sewing at the bottom of the gauge, 15-cm spacings were set at the top and bottom of the gauge lines. The details of experiment are shown in Figure 4.

Figure 3.

Experimental method. PET: polyethylene terephthalate.

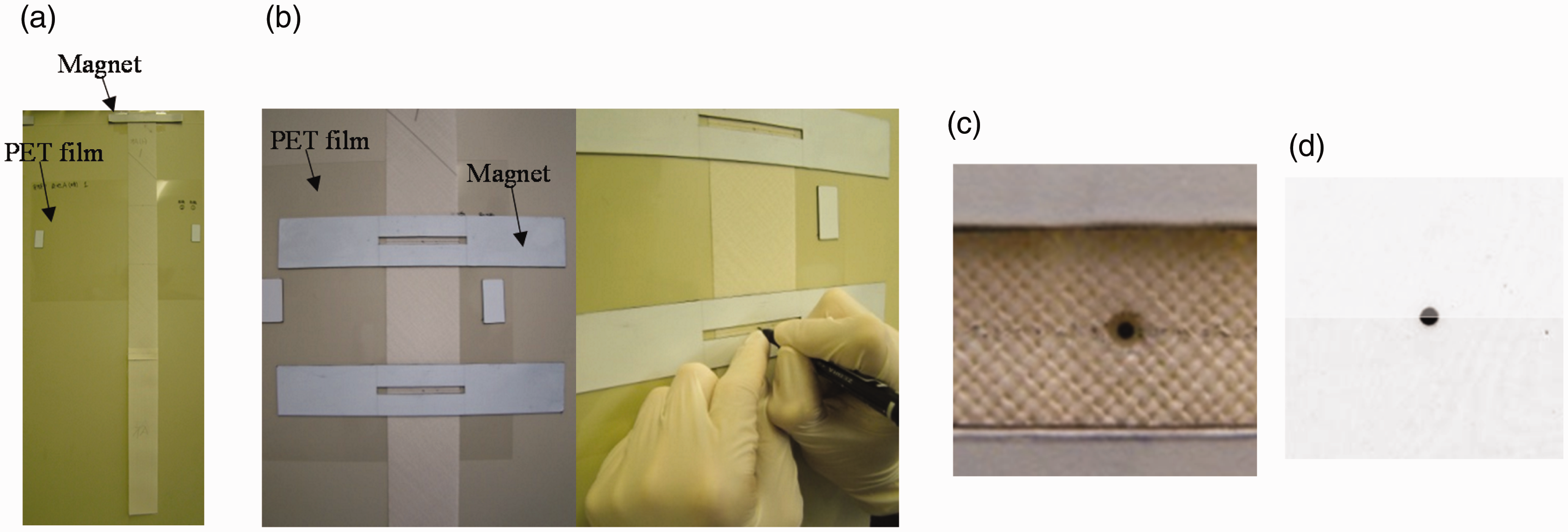

Figure 4.

Details of the experiment. PET: polyethylene terephthalate; PTFE: polytetrafluoroethylene: (a) 80cm sample hung on a wall; (b) marking a dot on PET film; (c) a hole (0.9 mm) on sample; (d) scanned PTFE film being marked.

The length between the gauge lines was measured as shown in Figure 3. To measure the exact length between gauge lines, we made holes with diameters of 0.9 mm in the width-wise center of the gauge lines. The length between the gauge lines was then recorded by making a dot with a marker on the opposite side of a polyethylene terephthalate film through the holes. The dots on the film were then scanned using a flatbed scanner, and the length was obtained from the number of pixels. The scan resolution was 600 dpi. This means that the maximum accuracy is 0.04 mm without experimental error. There was large deformation of clothing in the bias direction during 7 days of hanging.¹ Measurements were thus made at 1 day intervals for 7 days. Five sheets per one kind of fabric were prepared and average values were used in the analysis. For one sheet, we measured strains twice and took the average. The conditions of the experimental environment were a temperature of 20 ± 1℃ and relative humidity of 65 ± 5%.

Adhesive interlining was fused by a press machine. The pressing temperature was 150℃, the pressure was 9.4 kPa, and the pressing time was 10 s. When fusing interlining to the face fabric, pressing affected both the adhesive interlining and face fabric. To ensure the same condition for each fabric, the pressing treatment was carried out for the sample without fusing. The press treatment method for each sample is listed in Table 1. In Table 1, overlapped face fabric and adhesive interlining were marked as “Face fabric | | adhesive interlining”. In addition, laminated face fabric and adhesive interlining were marked as “Face fabric | adhesive interlining”. Overlapped fabric was made by fixing face fabric and adhesive interlining with yarn knots at eight places on gauge lines.

Table 1.

Pressing method for each sample

Experimental sample	Pressing method
Face fabric	Pressing alone
Adhesive interlining	Pressing with PTFE film and then removing film
Overlapped fabric (Face fabric \| \| adhesive interlining)	Pressing face fabric and adhesive interlining separately
Fused fabric (Face fabric \| adhesive interlining)	Laminating face fabric and adhesive interlining by pressing

PTFE: polytetrafluoroethylene.

Three wool face fabrics of different weaves and two adhesive interlinings of different adhesive mass were used. Tables 2 and 3 give the specifications of experimental samples. There were six combinations of face fabrics and adhesive interlinings. Table 4 gives the combinations, sample designations, and applied loads of the 80-cm length weight.

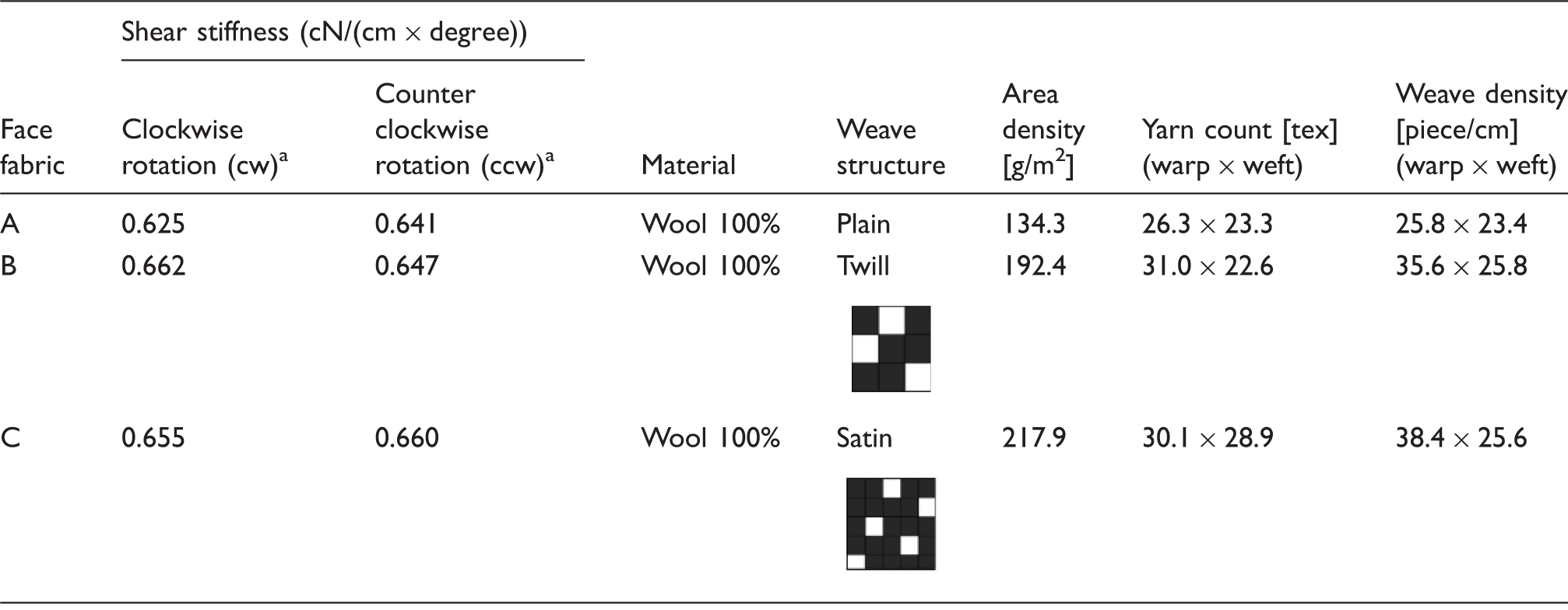

Table 2.

Specifications of the face fabric

Face fabric	Shear stiffness (cN/(cm × degree))		Material	Weave structure	Area density [g/m²]	Yarn count [tex] (warp × weft)	Weave density [piece/cm] (warp × weft)
Face fabric	Clockwise rotation (cw)^a	Counter clockwise rotation (ccw)^a	Material	Weave structure	Area density [g/m²]	Yarn count [tex] (warp × weft)	Weave density [piece/cm] (warp × weft)
A	0.625	0.641	Wool 100%	Plain	134.3	26.3 × 23.3	25.8 × 23.4
B	0.662	0.647	Wool 100%	Twill	192.4	31.0 × 22.6	35.6 × 25.8
C	0.655	0.660	Wool 100%	Satin	217.9	30.1 × 28.9	38.4 × 25.6

Rotation direction of warp when observed from the face side.

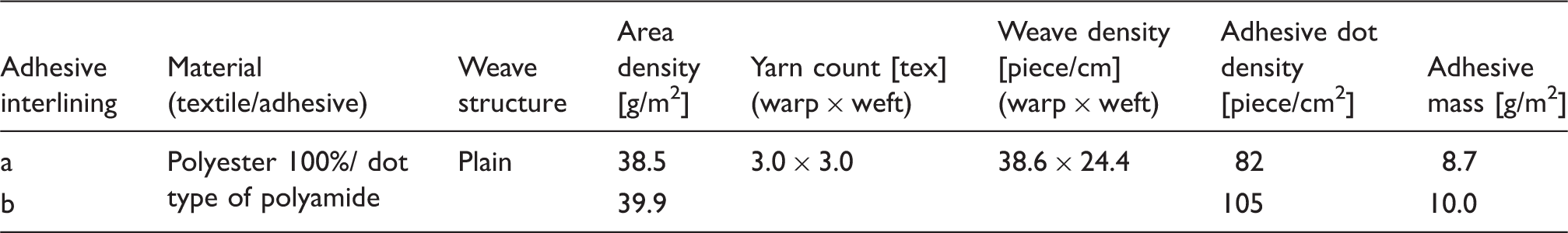

Table 3.

Specifications of the adhesive interlining

Adhesive interlining	Material (textile/adhesive)	Weave structure	Area density [g/m²]	Yarn count [tex] (warp × weft)	Weave density [piece/cm] (warp × weft)	Adhesive dot density [piece/cm²]	Adhesive mass [g/m²]
a	Polyester 100%/ dot type of polyamide	Plain	38.5	3.0 × 3.0	38.6 × 24.4	82	8.7
b	Polyester 100%/ dot type of polyamide	Plain	39.9	3.0 × 3.0	38.6 × 24.4	105	10.0

Table 4.

Combinations of the face fabric and interlining, designations of the experimental samples, and sizes of load

Combination			Shear direction in experiment	Load [cN/cm] (length: 80 cm)
Number	Face fabric	Adhesive interlining	Shear direction in experiment	Face fabric	Adhesive interlining	Overlapped fabric and laminated fabric
1	A	a	cw	1.053	0.302	1.355
2	B		ccw	1.509		1.811
3	C		cw	1.709		2.011
4	A	b	cw	1.053	0.312	1.366
5	B		ccw	1.509		1.822
6	C		cw	1.709		2.022

There are two 45° bias directions—one where the warp is rotated clockwise (cw) and one where the warp is rotated counter clockwise (ccw). The shear stiffness of the face fabric was measured for both directions using a KES-FB1 shear tester (Katotech Co., Ltd, Kyoto, Japan);¹⁷ the direction having the lower stiffness will show larger deformation was adopted. The five sheets were measured and the average value taken. The shear stiffness of the face fabric is given in Table 2.

Parameters K₁ and K₃ were determined from the load and strain at t = 0. K₂ and y₁ of the face fabric and K₄ and y₂ of the adhesive interlining were determined by fitting experimental and model strains with the three-element model using Excel Solver (Microsoft). K₂, K₄, y₁, and y₂ were set to obtain the smallest difference of the square sum between experimental and calculated values for each fabric. Creep behaviors of fused fabric and overlapped fabric were calculated using Equation (15) of the six-element model, substituting the obtained parameters. The calculated creep and experimental creep were compared.

Results and discussion

Creep strains of samples

Figures 5–10 present the strain versus time for all samples and their combinations. For the 45° bias direction of the face fabric and adhesive interlining, it was found that creep occurs under the fabric weight of a length of 80 cm. Strain changes of the face fabric were greater than those of the adhesive interlining. The small strain changes of the interlining were due to the low weight of the interlining. Overlapped fabrics had strain intermediate to the strains of their two components. However, strains of fused fabrics of all combinations were lower than those of overlapped fabrics.

Figure 5.

Strain change with time (Combination 1 (A–a)).

Table 5 gives the variation percentage of strain of laminated fabric after 7 days. The variation was obtained as

((Strainoffusedoroverlappedfabric - Strainoffacefabric) \times 100) / Strainoffacefabric

(22)

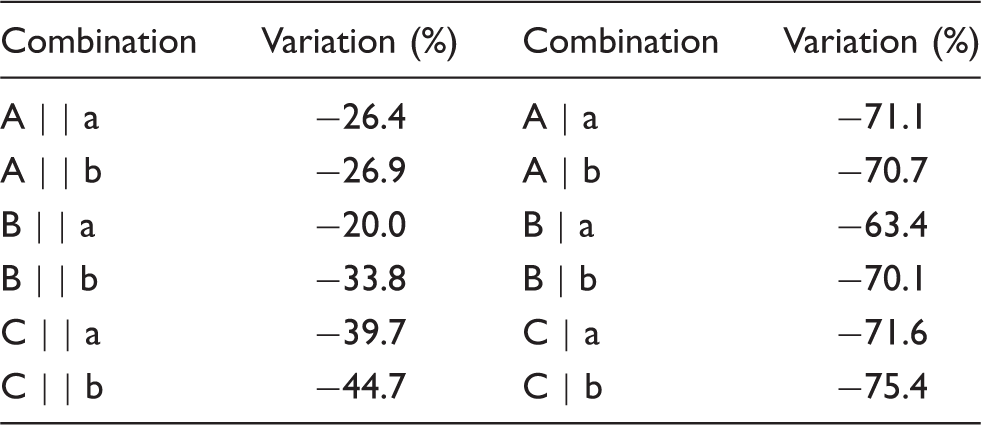

Table 5.

Variation of strain of laminated fabric after 7 days

Combination	Variation (%)	Combination	Variation (%)
A \| \| a	−26.4	A \| a	−71.1
A \| \| b	−26.9	A \| b	−70.7
B \| \| a	−20.0	B \| a	−63.4
B \| \| b	−33.8	B \| b	−70.1
C \| \| a	−39.7	C \| a	−71.6
C \| \| b	−44.7	C \| b	−75.4

The variation for the overlapped fabric was from −20% to −44.7%, while that of the fused fabric was from −63.4% to −75.4%.

Urbelis et al.¹³ described how the effect of fusing on the creep behavior of a fused fabric in the yarn direction would be negligible. However, in the bias direction, the present study found that the effect of adhesive is not negligible.

It was thus confirmed that fusing adhesive interlining to a face fabric reduces the creep strain of the face fabric. The strain changes of fused fabrics are small owing to the restraint of deformation by adhesive on the face fabric.

Prediction of creep strains of laminated and overlapped fabrics using three-element models

Table 6 gives constants and equations for the three-element model of each combination. Strains of the face fabric and interlining approximated using three-element models are shown in Figures 5–10. Approximated strains of the face fabric and adhesive interlining obtained with the three-element model are in good agreement with experimental values. It was thus found that creep behavior due to the fabric’s own weight in the 45° bias direction can be approximated using the three-element model.

Figure 6.

Strain change with time (Combination 2 (A–b)).

Figure 7.

Strain change with time (Combination 3 (B–a)).

Figure 8.

Strain change with time (Combination 4 (B–b)).

Figure 9.

Strain change with time (Combination 5 (C–a)).

Figure 10.

Strain change with time (Combination 6 (C–b)).

Table 6.

Constants and equations for the three-element model

Constant Sample	F₁ [cN/cm]	K₁ [cN/cm]	K₂ [cN/cm]	y₁ [cN×d/cm]	Equation for $ɛ [%]$
Face fabric
A	1.053	68.9	137.5	288.8	$ɛ = 2.293 - 0.766 e^{- 0.476 t}$
B	1.509	68.9	150.7	292.6	$ɛ = 3.190 - 1.002 e^{- 0.515 t}$
C	1.709	55.5	95.8	278.9	$ɛ = 4.864 - 1.784 e^{- 0.344 t}$
Constant Sample	F₂ [cN/cm]	K₃ [cN/cm]	K₄ [cN/cm]	y₂ [cN×d/cm]	Equation for $ɛ [%]$
Adhesive interlining
a	0.302	49.2	140.0	235.2	$ɛ = 0.829 - 0.216 e^{- 0.596 t}$
b	0.313	76.0	79.2	507.6	$ɛ = 0.806 - 0.395 e^{- 0.156 t}$

Prediction of creep strains of laminated fabrics using six-element models

The strain of each combination was calculated with the six-element model using parameters of each component fabric. Experimental and calculated strains are compared in Figures 11–16. Strains calculated using the six-element model were similar to the experimental strains of overlapped fabric. The equation for the six-element model and the error in the predicted strain after 7 days is presented in Table 7. The error was calculated as

(Calculatedvalue - Experimentalvalue) \times 100 / (Experimentalvalue) .

(23)

Figure 11.

Comparison of calculated and experimental strains (Combination 1 (A–a)).

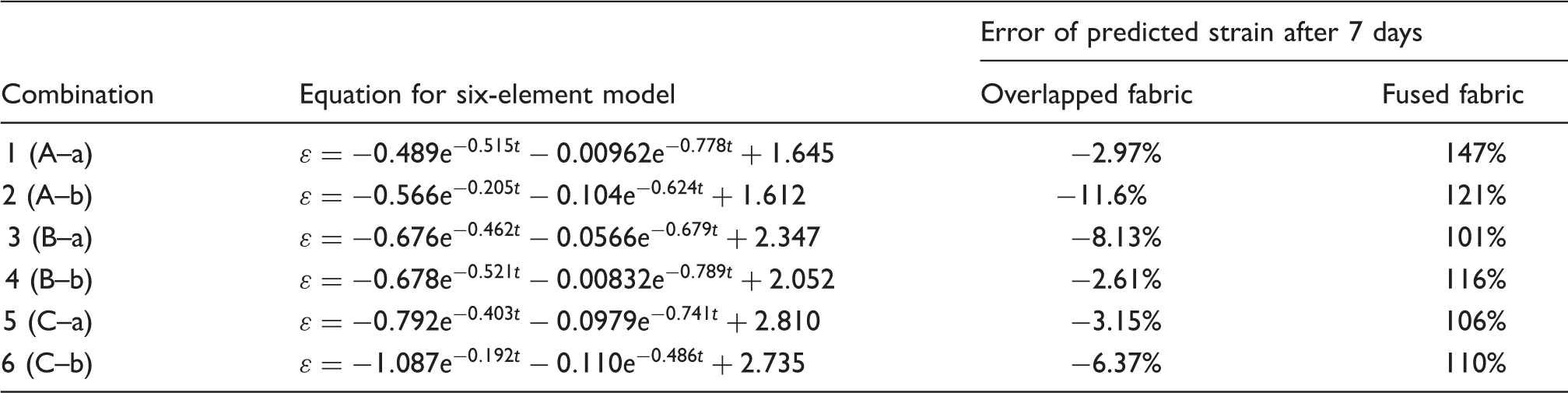

Table 7.

Equations for the six-element model and error in the predicted strain after 7 days

Combination	Equation for six-element model	Error of predicted strain after 7 days
Combination	Equation for six-element model	Overlapped fabric	Fused fabric
1 (A–a)	$ɛ = - 0.489 e^{- 0.515 t} - 0.00962 e^{- 0.778 t} + 1.645$	−2.97%	147%
2 (A–b)	$ɛ = - 0.566 e^{- 0.205 t} - 0.104 e^{- 0.624 t} + 1.612$	−11.6%	121%
3 (B–a)	$ɛ = - 0.676 e^{- 0.462 t} - 0.0566 e^{- 0.679 t} + 2.347$	−8.13%	101%
4 (B–b)	$ɛ = - 0.678 e^{- 0.521 t} - 0.00832 e^{- 0.789 t} + 2.052$	−2.61%	116%
5 (C–a)	$ɛ = - 0.792 e^{- 0.403 t} - 0.0979 e^{- 0.741 t} + 2.810$	−3.15%	106%
6 (C–b)	$ɛ = - 1.087 e^{- 0.192 t} - 0.110 e^{- 0.486 t} + 2.735$	−6.37%	110%

The differences (i.e., errors) between experimental and calculated values after 7 days ranged from −2.33% to −11.61%. Thus, strains of overlapped fabric could be predicted by the calculated values using the experimental values of the strain of the face fabric and interlining.

As described above, the strain changes of laminated fabric were smaller than those of overlapped fabric. The reason is considered to be the adhesive on the face fabric. Adhesive restrains the deformation of a face fabric in a laminated fabric, especially in shear.^8,9 Therefore, if the strain of the face fabric with adhesive can be measured and the creep strain of the face fabric with adhesive can be calculated using the three-element model, it will be possible to predict the strain of the laminated fabric using the six-element model. However, putting adhesive on a face fabric is a difficult technique. Therefore, the strain of the face fabric with adhesive was estimated from the experimental results. To estimate the strain with a small number of parameters, a magnification factor n was introduced so that there is agreement between the experimental and calculated strains at t = 0. So that the calculated value $ɛ | t = 0$ and experimental value $ɛ \exp | t = 0$ agree using n, from Equation (18), we obtain

ɛ \exp | t = 0 = \frac{F}{nK 1 + K 3} .

(24)

n is calculated as

n = \frac{1}{K 1} (\frac{F}{ɛ \exp | t = 0} - K 3) .

(25)

Parameters $K 1$ , K₂, and y₁ of the three-element model for the face fabric are then multiplied by n. Here, when all three constants are multiplied by n, the strain becomes 1/n. Thus, the plot of the three-element model is shifted parallel to the original plot. The six-element model revised with n is presented in Table 8. Errors of predicted strains after 7 days are given in Table 8. The calculated behavior of the revised six-element model is shown in Figures 11–16. The figures show that the strains of the revised six-element model are in good agreement with those of fused fabrics with relatively small errors compared with those before revision, as shown in Tables 7 and 8.

Figure 12.

Comparison of calculated and experimental strains (Combination 1 (A–b)).

Figure 13.

Comparison of calculated and experimental strains (Combination 1 (B–a)).

Figure 14.

Comparison of calculated and experimental strains (Combination 1(B–b)).

Figure 15.

Comparison of calculated and experimental strains (Combination 1 (C–a)).

Figure 16.

Comparison of calculated and experimental strains (Combination 1(C–b)).

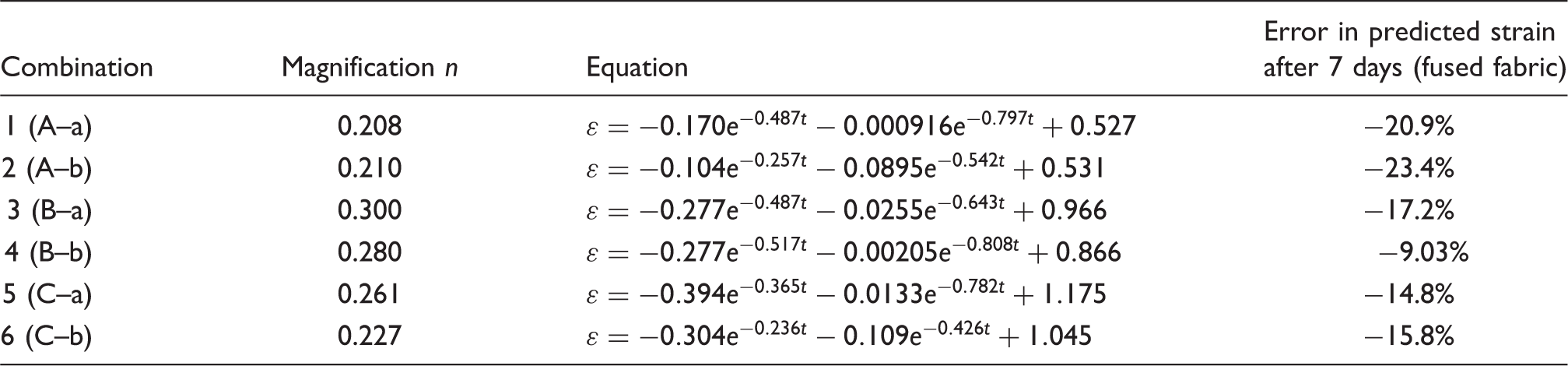

Table 8.

Revised six-element model and error in the predicted strain after 7 days

Combination	Magnification n	Equation	Error in predicted strain after 7 days (fused fabric)
1 (A–a)	0.208	$ɛ = - 0.170 e^{- 0.487 t} - 0.000916 e^{- 0.797 t} + 0.527$	−20.9%
2 (A–b)	0.210	$ɛ = - 0.104 e^{- 0.257 t} - 0.0895 e^{- 0.542 t} + 0.531$	−23.4%
3 (B–a)	0.300	$ɛ = - 0.277 e^{- 0.487 t} - 0.0255 e^{- 0.643 t} + 0.966$	−17.2%
4 (B–b)	0.280	$ɛ = - 0.277 e^{- 0.517 t} - 0.00205 e^{- 0.808 t} + 0.866$	−9.03%
5 (C–a)	0.261	$ɛ = - 0.394 e^{- 0.365 t} - 0.0133 e^{- 0.782 t} + 1.175$	−14.8%
6 (C–b)	0.227	$ɛ = - 0.304 e^{- 0.236 t} - 0.109 e^{- 0.426 t} + 1.045$	−15.8%

Consequently, the strain of laminated fabric can be predicted from the experimental strain of the face fabric and adhesive interlining and the experimental strain of the fused fabric at time zero (immediately after hanging).

Conclusion

A creep test of woven fabrics, adhesive interlinings, and their laminated combinations in the 45° bias direction under low weight was carried out for 7 days. The test revealed creep of the samples even under only the fabric’s own weight of a length of 80 cm. Creep strain of the fused fabric was appreciably less than that of the overlapped fabric and that of the face fabric. The reduction of creep deformation in the bias direction due to adhesive interlining was thus confirmed. This is explained by the adhesive restraining deformation of the face fabric. This differs from creep behavior in the yarn direction.¹³

The experimental creep strain of the face fabric and adhesive interlining could be predicted with a three-element model. The creep behavior of overlapped fabrics was well approximated with a six-element model using parameters of the three-element model of component fabrics. This is the same result of creep behavior as for the yarn direction.¹⁴ However, the creep behavior of a fused fabric could not be predicted with the six-element model because of the effect of adhesive. To take account of this effect in the six-element model, the three parameters of the model for the face fabric were multiplied by a factor n so that the calculated strain and the experimental strain of the fused fabric agreed at time zero. The creep strains revised using the factor were in good agreement with the experimental strains of the fused fabric. The creep strains of laminated fabrics over 7 days could be predicted.

Consequently, if the experimental creep behavior of a face fabric and adhesive interlining and the strain of the fused fabric at time zero are obtained, the creep behavior of the fused fabric can be predicted using the six-element model. It will thus be possible to predict the effects of adhesive interlining in terms of maintaining clothing shape against deformation in the bias direction. The results are also useful for the selection of a suitable adhesive interlining in garment manufacturing.
