Defect detection on patterned fabrics using texture periodicity and the coordinated clusters representation

Abstract

Patterned fabrics may be regarded as periodic textures, which are defined as the regular tessellation of a primitive unit. A patterned fabric is considered as defective when a primitive unit is different from the others. In this paper, we propose a one-class classifier that uses Reduced Coordinated Cluster Representation (RCCR) as features. In the training step, the size of the primitive unit of defect-free fabrics is automatically estimated using a texture periodicity algorithm. After that, the fabrics are split into samples of one unit and their local structure is learnt with the RCCR features in a one-class classifier. During the test step, defective and non-defective fabrics are also split into samples and are analyzed unit by unit. If the features of a given unit do not satisfy the classification criterion, it is considered to be a defect. Among the advantages of the RCCR is that it represents structural information of textures in a low-dimensional feature space with high discrimination performance. Results from experiments on an extensive database of real fabric images show that our method yields accurate detections, outperforming other state-of-the-art algorithms.

Keywords

defect detection texture periodicity coordinated clusters representation one-class classification

In recent years, computer vision has played a significant role in the manufacturing industry, especially in systems for automatic quality inspection. The growing interest has emerged because, usually, quality control is carried out by human visual inspection. However, it is well-known that human-based inspection is imprecise and has disadvantages. Computer vision applications based on visual texture features are among the most popular, because texture is an important attribute for the characterization of surfaces. In the texture analysis field, researchers are actively pursuing new inspection methods for a variety of surfaces,^1–3 such as steel, stone, fabrics, wood, paper, and ceramic tiles.

In particular, the analysis of patterned fabrics is commonly considered due to its presence in an assortment of essential products and accessories such as clothes, fabrics, shoes, handbags, and bed sheets, among others.^4–7 Patterned fabrics are characterized by a design primitive unit, which is repeated periodically over the whole fabric. Although there is an innumerable number of different designs, it has been proven that all patterned fabrics can be classified into only 17 groups.⁸ Each group is defined by the shape of its design unit and its inner symmetry.

A considerable number of methods has been proposed in order to detect defects on patterned fabrics. The majority of these methods are focused on the analysis of only one out of the 17 groups. Among these methods, we can find schemes based on autocorrelation,⁹ co-occurrence matrices,¹⁰ wavelet transform,^11,12 fractals,¹³ Gabor filters,^14,15 Fourier analysis,¹⁶ and morphological operations.¹⁷ An important point regarding these systems is that they can only detect specific types of defects and they have limitations in the analysis of the other 16 groups of patterned fabrics. In pursuance of a more generalized method, approaches that are able to cope with the other 16 groups have also been introduced. The works by Sanby et al.¹⁸ and Farooq et al.¹⁹ are examples of the idea of image subtraction (IS), where a sample is taken as a perfect prototype and, then, it is directly compared with the test images. A weakness of the IS-based methods is that they are susceptible to alignment problems between the reference and the test images. The approach proposed by Ngan and Pang²⁰ was one of the first methods that addressed the use of periodicity in patterned fabrics. They claimed that a break of the periodicity of a patterned texture is a defective region. The main disadvantage of such a method is that it cannot detect defects smaller than one design unit. The analysis of fabrics using regular bands was proposed by Ngan and Pang.²¹ This method, also based on periodicity analysis, is focused on defects that have a high contrast in comparison with the fabric design, and thus, it is not sensitive to defects with low contrast. Tajeripour et al.²² proposed a classification method in which the widely known Local Binary Pattern (LBP) operator²³ is modified in order to extract texture features from windows of a predefined size and, then, a suitable threshold is determined in order to estimate the defective samples. One of the drawbacks of this approach is that the size of the analysis window is not adaptable, since it is always $16 \times 16$ pixels size. A recent method is the one proposed by Asha et al.²⁴ The general idea of this approach is to divide the input fabric into its primitive units and, then, compute the Jensen–Shannon divergence of their intensity histogram. This approach does not need a priori knowledge of defect-free fabrics. However, it may be slow for practical applications because of the complexity of computing the Jensen–Shannon divergence of a 256-dimension vector.

In this paper, the analysis of patterned fabrics using texture periodicity (TP) and a Reduced Coordinated Clusters Representation (RCCR) as the feature vector in a one-class classifier is proposed. From now on, we call our method TP-RCCR. In our proposal, TP is used to automatically obtain the size of the primitive unit and to properly cut a given fabric in basic samples. Then, the local texture of the units, through the RCCR features, is learnt with a one-class classifier. An advantage of the features used in our method is that the discrimination performance is increased in comparison with using only the pixel intensities. Furthermore, the feature vector dimension of RCCR is low in comparison with other texture descriptors. Another advantage of our proposal is that with the use of a one-class classifier, the number and types of defects that can be detected are not restricted. The TP-RCCR is evaluated and compared on an extensive database of real defective and non-defective fabric images with different types and sizes of defects. Experiments using a standard database of patterned fabrics show that our method leads to better results in comparison to other texture descriptors and other state-of-the-art methods.

This paper is structured as follows: in the second section the proposed approach is described. In addition, the methods to estimate the unit size and the RCCR features are defined. In the third section, we include the experiments and results performed to validate our method on a database of real fabric images. Finally, the fourth section presents a summary of this work and our concluding remarks.

Materials and methods

In this section, the theoretical background and the proposed classification framework are introduced. The proposed method is illustrated in Figure 1, where it can be seen that it is performed in two stages: training and testing. During the training stage, defect-free images are submitted to a pre-processing treatment (presented in Figure 2 and detailed in the next section) in order to make them suitable for the feature extraction procedure. Subsequently, a classification criterion is learnt based on the training samples. For the testing stage we use both defect-free and defective fabrics. In the same manner as in the training step, test images are submitted to the pre-processing and the feature extraction steps. Finally, each sample in the fabric test images is classified using the criterion previously learnt. Each block in both Figures 1 and 2 is detailed in the following sections.

Figure 1.

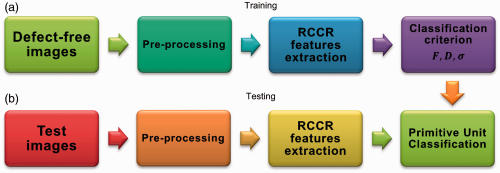

Overall block diagram of the proposed algorithm with its two main stages: (a) training and (b) testing.

Figure 2.

An illustration of the pre-processing steps performed to the input images before the feature extraction.

Pre-processing

In our method, the pre-processing is performed in four stages. Firstly, in order to improve the contrast in the images of the database used for our experiments, an adjustment has been performed. Concerning this task, we have tested methods such as linear adjustment, gamma correction, and histogram equalization. We have found that the simple histogram equalization offers better results in terms of detection accuracy in comparison to other methods without any adjustment. Statistical results and details about such comparison of algorithms are presented in the Comparison with other approaches section. The second step is the estimation of the unit size, so that the different design units can be properly separated. Size can be easily measured with different methods, such as that proposed by Asha et al.²⁵ or by Lizarraga-Morales et al.²⁶ Concretely, in our approach, the unit size is estimated using the algorithm presented by Lizarraga-Morales et al. Such a method is completely automatic, robust, accurate, and computationally efficient. After that, a thresholding process using the Otsu method²⁷ is accomplished. As it is detailed in the Reduced coordinated clusters representation section, the RCCR features are extracted from a binary image; therefore, a thresholding process is mandatory. In our approach, the Otsu method has been selected for its simplicity, and because it has proven to be suitable for different applications where computational speed is required.^28–30

Primitive unit size estimation

The estimation of the unit size of patterned textures is a problem that researchers have been addressing for years. Recently, Lizarraga-Morales et al.²⁶ presented a fast and robust approach based on the use of homogeneity cues computed using the difference histogram proposed by Unser.³¹ One of the main attributes of this method is that, as is shown in the original paper, it is capable of performing without failure under conditions of blur, noise, and geometrical deformations. Moreover, it is fast enough to be considered for practical applications because it only takes a few milliseconds to estimate the unit size.

According to the description of the method, let us consider a $M \times N$ pixels size image $I (p), p = (x, y) \in T, T = {0, 1, \dots, M - 1} \times {0, 1, \dots, N - 1}$ with K gray levels, such that $I (p) \in {0, 1, \dots, K - 1}$ . In order to obtain the horizontal and vertical dimensions of the primitive unit, we must consider the parameter $v = (v_{1}, v_{2})$ , which is a displacement vector that relates two pixels, $I (p)$ and $I (p + v) .$ Firstly, the differences for all pairs of pixels, $dif (p, v) = a = I (p) - I (p + v)$ , are computed and registered in the difference histogram $h (a, v)$ . When the histogram is normalized, we obtain the probability distribution of difference occurrences $P (a, v)$ . Subsequently, the homogeneity is defined as in equation (1)

G (I, v) = \sum_{a} \frac{1}{1 + a^{2}} P (a, v)

(1)

It may be observed that the homogeneity value reaches its maximum value of 1 when all the differences between the indexed pixels in the image are 0. Taking this into account, the problem of measuring the primitive size of a given periodic texture is reduced to the search of $v^{*} = min {\arg {max}_{v} G (I, v)}$ . An example of the performance of this method is shown in Figure 3. A patterned fabric with the estimated unit size is presented in Figure 3(a) and its corresponding homogeneity functions, in both horizontal and vertical directions, are shown in Figure 3(b). In this figure we can see that the homogeneity function is near periodic and the unit size may be estimated at its global maxima in each direction. In this case, the unit size is $25 \times 26$ pixels.

Figure 3.

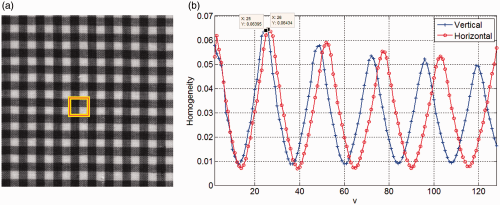

A patterned fabric (a) with its estimated unit size $(25 \times 26 pixels)$ and (b) its homogeneity function in both horizontal and vertical directions.

Reduced coordinated clusters representation

The Coordinated Clusters Representation (CCR) is a model for binary image characterization that was proposed by Kurmyshev and Cervantes.³² In this model, a binary image is identified by a histogram of occurrences of patterns and it can be used as a texture descriptor. The CCR has been successfully employed in a variety of tasks^33,34 while demonstrating a high discrimination performance. Following the description by Sanchez-Yanez et al.,³³ in order to compute the CCR of a binary image, we must establish a rectangular analysis window of $W = I \times J$ pixels and then use it to scan the image sequentially in raster-scan order. The analysis window W extracts binary patterns ${CCR}_{I \times J}$ (see equation (2)) and registers them in a histogram

{CCR}_{I \times J} = \sum_{j = 1}^{I \times J} s_{j} 2^{j - 1}

(2)

where s_j is each bit of the binary string detected by W. When the histogram is normalized, it is a probability distribution function of pattern occurrences. Since the pixel patterns are binary units, the number of all possible states of a window of

W = I \times J

pixels size is

2^{W}

; this means that for the

{CCR}_{3 \times 3}

the histogram will have 512 bins. For some applications, the

{CCR}_{I \times J}

feature space might be considered high-dimensional. Therefore, inspired by the complexity coding reduction (called FCCR) proposed by Kurmyshev and Guillen-Bonilla,³⁵ in this paper, a further simplification is considered.

According to Kurmyshev and Guillen-Bonilla,³⁵ a way to reduce the complexity of a binary string is to partition it into blocks of a given number of bits, so that the whole string is represented by an ordered set of natural numbers. For example, binary patterns extracted by the aforementioned ${CCR}_{I \times J}$ can be represented by I binary numbers of $2^{J}$ bits if they are extracted in a row code, and by J numbers of $2^{I}$ bits if they are extracted in a column way. Analyzing this representation, it is possible to observe that the extracted row or column codes are very similar and they might be equally extracted by ${CCR}_{1 \times J}$ or ${CCR}_{I \times 1}$ , respectively. Following this idea, by using ${CCR}_{1 \times J}$ the feature space complexity can be reduced from $2^{I \times J}$ to $2^{J}$ .This dimensionality reduction makes it possible to concatenate two histograms of patterns in different directions: rows $({CCR}_{1 \times J})$ and columns $({CCR}_{I \times 1})$ . The ultimate feature vector size is of $2^{I} + 2^{J}$ bins. We call such concatenation of two operators in different directions RCCR $({RCCR}_{I \times J})$ .

One-class classification

Classification³⁶ is used to learn a model (classifier) from a set of labeled data instances (training) and, then, classify a test sample into one of the classes using the learnt model (testing). Based on the number of labels in the training data samples, the classification can be considered as multi-class or one-class classification. In particular, one-class classification methods learn a discriminative criterion around the normal samples and any test instance that does not fall within the learnt criterion is regarded as out of the scope of interest. In this paper, we propose the use of a one-class classification system in order to detect defects on patterned textures.

In the learning phase, a set of non-defective images is pre-processed, the corresponding ${RCCR}_{I \times J}$ probability distributions are computed, and a prototype of the desirable pattern is learnt. Consider that Q defect-free images $I_{q} (q = 1, 2, \dots, Q)$ of a given patterned fabric are available. Firstly, depending on the design unit size, a set of P units $I_{q}^{α} (α = 1, 2, \dots, P)$ is randomly extracted from each image I_q. The ${RCCR}_{I \times J}$ features $F_{q}^{α}$ of each unit are computed, and the mass center, or prototype F, is computed as the mean of all the ${RCCR}_{I \times J}$ features among all samples extracted (see equation (3))

F (b) = \frac{1}{QP} \sum_{q = 1}^{Q} \sum_{α = 1}^{P} F_{q}^{α} (b)

(3)

where b is the binary pattern obtained with the corresponding

{RCCR}_{I \times J}

In order to establish the limits of the discriminative boundary, we compute the other two characteristics of the model: D and σ. Considering $d (\cdot, \cdot)$ to be the Manhattan distance of two points in the ${RCCR}_{I \times J}$ feature space, D is the mean of the distances of each $F_{q}^{α}$ to the mass center F, and σ is the standard deviation of such distances. D and σ are defined in equations (4) and (5), respectively. These two characteristics tell us the dispersion of the defect-free samples from the mass center in the RCCR feature space

D = \frac{1}{QP} \sum_{q = 1}^{Q} \sum_{α = 1}^{P} d (F_{q}^{α}, F)

(4)

σ = \sqrt{\frac{1}{QP} \sum_{q = 1}^{Q} \sum_{α = 1}^{P} (d (F_{q}^{α}, F) - D)^{2}}

(5)

After all the characteristics of the defect-free model are learnt, a selection criterion is formulated. The idea is simple: a given sample is considered defective if its feature vector position, with respect to the learnt prototype, is out of the limit. Following this idea, it is stated that a given unit $I_{test}^{α}$ is considered defect-free only if

(D - 2 σ) \leq d (F_{test}^{α}, F) \leq (D + C σ)

(6)

where the adjustment parameter C is used to modify the selectiveness of the classification criterion. When C is small, the selectiveness is too high, and the classifier will not accept small variations of the pattern. When C takes larger values, the classifier becomes more inclusive, allowing defective patterns to be considered as normal. Therefore, it is important to calibrate this parameter for each particular application. In the Parameter estimation section, the experimental setup and procedure followed to estimate the best C value for our specific approach is detailed.

Experiments and results

In this section, we introduce the experiments that have been conducted in order to evaluate the performance of our approach. The evaluation is carried out by a thorough quantitative analysis on a standard database. Our method is compared to other state-of-the-art approaches and to other texture descriptors. Firstly, in the Dataset and quantitative measures section, the dataset used for experiments is presented and the different quantitative measures are defined. Subsequently, in the Parameter estimation section, the methodology to estimate the best parameters for our method is described. Afterwards, our method is compared to the most recently proposed approaches and to other texture descriptors in the Comparison with other approaches section. Finally, in the Performance evaluation with deformed fabrics section, considering that in the industrial environment there are common mechanical tension changes by rolling the fabric under test, we have tested our method with patterned textures submitted to different degrees of geometrical deformation.

Dataset and quantitative measures

Concerning the performance of the proposed algorithm for different types of designs, images of real fabrics with different defects are analyzed. For the experiments, we have used the database provided by Henry YT Ngan from the Industrial Automation Research Laboratory of the Department of Electrical and Electronic Engineering at the University of Hong Kong. Such a database is a standard basis for defect detection algorithms on patterned fabrics. It consists of three different fabrics belonging to the three major design groups: (a) p4m (box-patterned); (b) p2 (star-patterned); and (c) pmm (dot-patterned). The pmm, p2, and p4m groups are called major, due to the fact that all the other groups can be transformed to these three via geometric transformation.²¹ Therefore, defect detection experiments on these three patterns can be extrapolated to the 17 groups. The advantage of this dataset is that, for each pattern, sets of defective samples previously labeled with five of the most common defects occurring in the textile industry are provided: Broken End, Thick Bar, Thin Bar, Hole, and Multiple Netting. Furthermore, for each defective image, a ground-truth is available and can be used to quantify the reliability of a given method. The full database consists of 30 defect-free and 25 defective images (five images for each defect) of each pattern.

From the dataset, we have built three different sets of primitive units for our experiments: training, validation, and testing. In order to generate the training and validation sets, we have randomly extracted 700 overlapping units from the 30 defect-free images available. We have taken 400 samples for the training set and 300 for the validation one. In addition, the validation set was enriched with 500 defective samples, the outliers. The outliers were selected randomly among the defective images in the dataset. For the testing set of each pattern, the corresponding 25 defective images are uniformly divided into non-overlapped samples of the size of the primitive unit. For the p4m pattern, the division results in 2250 samples, 135 defective and 2115 defect-free sample units. The images in the p2 group are separated into 4125 non-overlapped sample units, 270 defective and 3855 defect-free ones. The division of the pmm patterned images results in 1575 non-overlapped samples of both defective (105) and non-defective (1470) units. It is important to highlight that special care was taken to ensure that the validation and testing sets are completely different.

Examples of the three different patterned fabrics are shown in Figure 4. For each one, the estimated unit size with the method described in the Primitive unit size estimation section is highlighted with a frame. The units sizes of the p4m, p2, and pmm groups shown in this figure are $25 \times 26$ , $18 \times 22$ , and $36 \times 26$ pixels, respectively.

Figure 4.

Samples of patterned fabrics used in the experiments with their primitive unit highlighted: (a) p4m, box-patterned; (b) p2, star-patterned; (c) pmm, dot-patterned.

Taking into account that we have access to real defective images with their corresponding ground-truth, quantitative evaluation may be performed. Regarding this task, we have adopted the evaluation method described by Ngan et al.³⁷ in order to measure the defect detection accuracy. Specifically, we use the detection success rate (DSR), which is defined in equation (7)

DSR = \frac{TP + TN}{N}

(7)

where N is the total number of samples, including defective and non-defective ones. TP stands for True Positives, which are the non-defective samples that are correctly classified. TN are the True Negatives, which are the defective samples classified as defectives. In addition, in order to accomplish a deeper analysis of our method, we have included the Precision (see equation (8)) and Recall (see equation (9)) measures

Precision = \frac{TP}{TP + FP}

(8)

Recall = \frac{TP}{TP + FN}

(9)

where FP stands for False Positives, which is the count of defective samples that are classified as non-defective. FN is False Negatives, which are the non-defective samples classified as defective.

Parameter estimation

The TP-RCCR method has two parameters to be estimated: the size of the scanning window $W = I \times J$ , and the selectiveness parameter C. Therefore, we have to search for the values that give the best performance and minimize the error of the classifier for each fabric design. The validation set previously described is used to evaluate the performance with different values of W and C, according to the algorithm proposed by Guillen-Bonilla et al.³⁸ In this work, we have searched the best value of C in the range ${0.2, 0.4, 0.6, \dots, 7}$ and in the set ${3 \times 3, 5 \times 5, 7 \times 7, 9 \times 9}$ for W. The selected values are the ones that minimize the error, calculated using equation (10)

E (C, W) = \frac{FP + FN}{N}

(10)

where N is the total number of samples in the validation set. In our experiments,

N = 800

In Table 1, the error results, corresponding to the optimal value of C for each window size, are presented. In this table, the average error for each window size is also presented. From this table we can identify that the optimal window size for each pattern is

3 \times 3

, which means that the concatenation of

{CCR}_{3 \times 1}

and

{CCR}_{1 \times 3}

provides the best detection accuracy. In Figure 5, the different error functions for each class (p4m, p2, and pmm) using their corresponding optimal window size are shown. The best values for C when using the optimal window are

C = 1

C = 1.4

, and

C = 0.8

for the p4m, p2, and pmm classes, respectively.

Table 1.

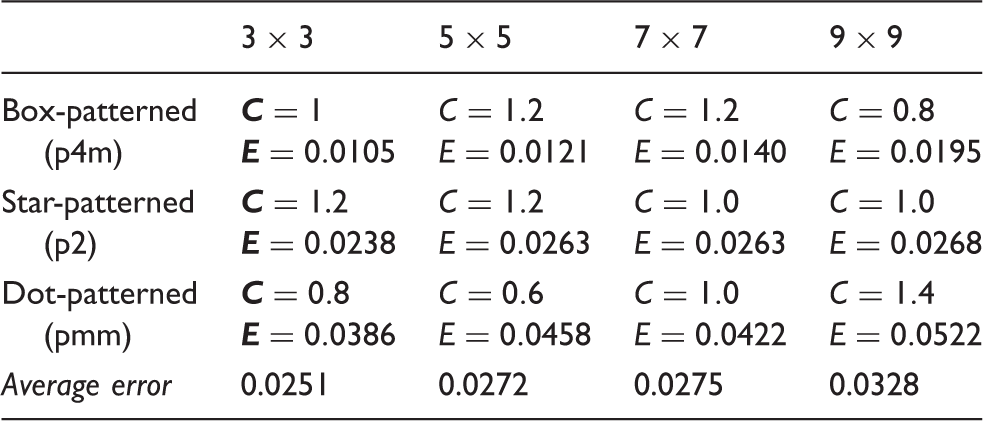

Optimal values of the parameter C for each analysis window size and the corresponding classification error

	$3 \times 3$	$5 \times 5$	$7 \times 7$	$9 \times 9$
Box-patterned (p4m)	$C = 1$ $E = 0.0105$	$C = 1.2$ $E = 0.0121$	$C = 1.2$ $E = 0.0140$	$C = 0.8$ $E = 0.0195$
Star-patterned (p2)	$C = 1$ .2 $E = 0.0238$	$C = 1.2$ $E = 0.0263$	$C = 1.0$ $E = 0.0263$	$C = 1.0$ $E = 0.0268$
Dot-patterned (pmm)	$C = 0.8$ $E = 0.0386$	$C = 0.6$ $E = 0.0458$	$C = 1.0$ $E = 0.0422$	$C = 1.4$ $E = 0.0522$
Average error	0.0251	0.0272	0.0275	0.0328

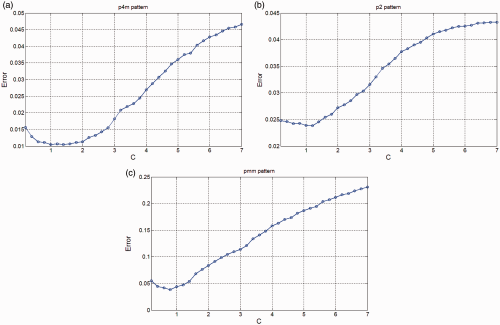

Figure 5.

Error plot as a function of parameter C for the three different fabrics: (a) p4m pattern; (b) p2 pattern; (c) pmm pattern.

Comparison with other approaches

In this section, we present series of tests that have been undertaken in order to evaluate the performance of our approach in comparison with the following: (i) other contrast adjustments (pre-processing); (ii) other texture features; and (iii) other state-of-the-art methods.

The goal of the first comparison is to study the effect on the performance of selecting different types of pre-processing algorithms. The algorithms used in this comparison are the widely known linear adjustment, gamma correction with

γ = 0.5

, gamma correction with

γ = 2

, and histogram equalization. In addition, we have included the performance of our method without pre-processing. In Table 2, the average DSR is presented in detail for each patterned fabric used in our experiments. As can be observed, the majority of the algorithms for contrast improvement present better results (97.51%, 98.41%, 95.74%) in comparison to the method without contrast improvement (90.96%). An exception is the gamma adjustment with

γ = 2

, which attains a DSR of 89.36%. This poor result may be produced because such pre-processing maps the intensity values toward darker intensities, diminishing the contrast of the fabric and its defects. The higher DSR for the p4m and p2 patterns is achieved when the images are submitted to a histogram equalization. In the case of the pmm pattern, the DSR achieved with a linear adjustment is of 97.20%, followed by the histogram equalization with 96.88%.

Table 2.

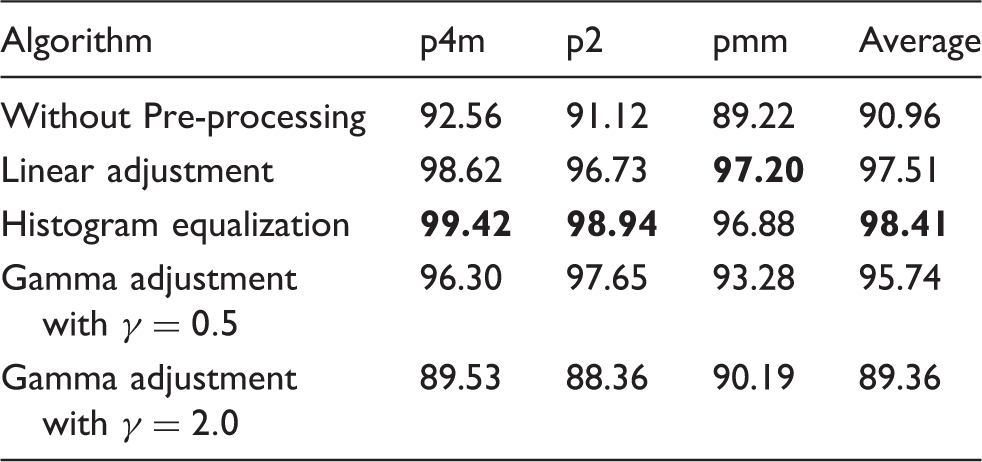

Average detection success rate comparison with different pre-processing algorithms

Algorithm	p4m	p2	pmm	Average
Without Pre-processing	92.56	91.12	89.22	90.96
Linear adjustment	98.62	96.73	97.20	97.51
Histogram equalization	99.42	98.94	96.88	98.41
Gamma adjustment with $γ = 0.5$	96.30	97.65	93.28	95.74
Gamma adjustment with $γ = 2.0$	89.53	88.36	90.19	89.36

In our approach, the same pre-processing is executed for all patterns; therefore, the decision for the more suitable pre-processing algorithm is taken with the average DSR. In this case, the higher DSR on average is obtained using a histogram equalization. Such pre-processing results in an even intensity distribution and an enhancement of the contrast between the fabrics and the defect. Qualitative examples of an original sample image, the resulting images of each pre-processing algorithm, and their corresponding histograms are presented in Figure 6. In this figure, we can see that, usually, the distribution of the intensities is skewed to one side of the histogram. However, a more even distribution is obtained with the histogram equalization.

Figure 6.

(a) A non-defective sample and its histogram. Resulting images and their corresponding histograms of the pre-processings: (b) linear adjustment; (c) histogram equalization; (d) gamma adjustment with $\underline{γ} = 0.5$ ; (e) gamma adjustment with $\underline{γ} = 2$ .

The second experiment was carried out in order to assess the defect discrimination capacity of ${RCCR}_{I \times J}$ features. For these experiments, we consider descriptors based on histograms of equivalent patterns,³⁹ since they are very popular in the computer vision community. Regarding this task, we take into account the LBP²³ operator and its most important variations: ${LBP}_{8, 1}^{u 2}$ , ${LBP}_{8, 1}^{riu 2}$ , ${LBP}_{8, 1 + 16, 2}^{riu 2}$ . Such selection is made because of their wide use and success in different applications. In addition, we have taken into account the basic ${CCR}_{3 \times 3}$ and ${FCCR}_{3 \times 3}$ ,³⁵ which is a complexity reduced coding of the original $CCR$ . The comparison was performed with the same database and only substituting the texture descriptor in our methodology.

Results for the average DSR of each algorithm are shown in Table 3. The feature space dimensionality of each descriptor is also presented. From this table we can see that the descriptor that has the lower dimensionality is

{LBP}_{8, 1}^{riu 2}

, with a histogram of only 10 bins. Behind

{LBP}_{8, 1}^{riu 2}

we can find

{RCCR}_{3 \times 3}

, with only 16 bins. We can also see that the detection rates of different versions of the LBP are very similar, around 93% on average. Comparing

{RCCR}_{3 \times 3}

with the different codifications, we can see that the original

{CCR}_{3 \times 3}

attains only 96.52%. This might be because of the fact that when it is applied to small images, the resulting histograms of 512 bins are sparse, leading to inaccurate classification.

FCCR

and

{RCCR}_{3 \times 3}

exhibit very similar results, with 98.22% and 98.41%, respectively. Nevertheless, the feature space dimensionality of

{RCCR}_{3 \times 3}

is lower.

Table 3.

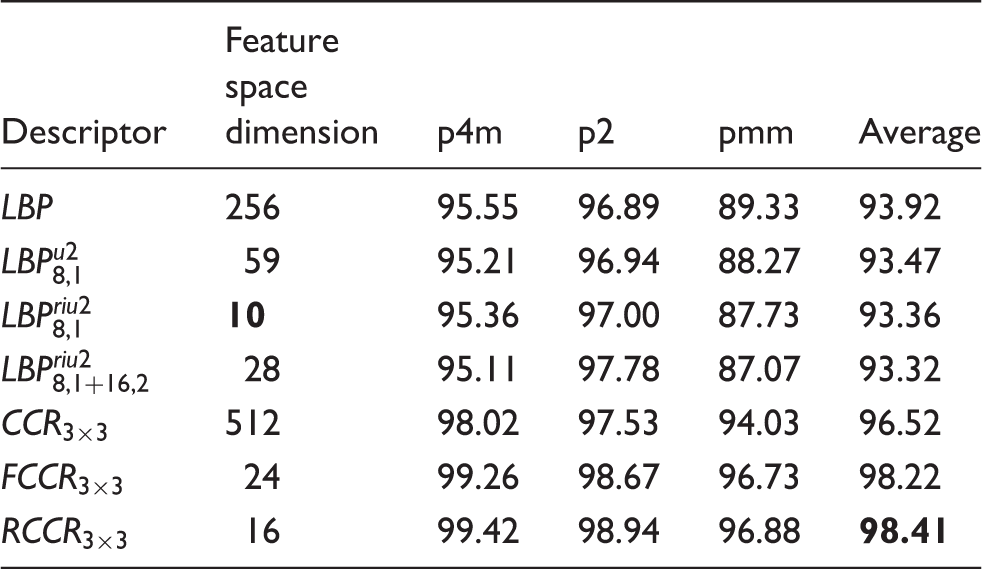

Average detection success rate comparison among different texture descriptors

Descriptor	Feature space dimension	p4m	p2	pmm	Average
$LBP$	256	95.55	96.89	89.33	93.92
${LBP}_{8, 1}^{u 2}$	59	95.21	96.94	88.27	93.47
${LBP}_{8, 1}^{riu 2}$	10	95.36	97.00	87.73	93.36
${LBP}_{8, 1 + 16, 2}^{riu 2}$	28	95.11	97.78	87.07	93.32
${CCR}_{3 \times 3}$	512	98.02	97.53	94.03	96.52
${FCCR}_{3 \times 3}$	24	99.26	98.67	96.73	98.22
${RCCR}_{3 \times 3}$	16	99.42	98.94	96.88	98.41

The third comparison was performed with two state-of-the-art methods: (i) the Modified LBP-based method (MLBP),²² which is based on the widely used LBP texture descriptor; and (ii) the use of Texture Periodicity and the Jensen–Shannon Divergence (TP-JD).²⁴ As far as we know, these methods are the most recently proposed approaches and have proven to be robust when applied to defect detection. Moreover, these methods were evaluated using the same database, allowing a direct comparison.

For this experiment, we present detailed results for each pattern group: p4m (box-patterned), p2 (star-patterned), and pmm (dot-patterned). We start with the p4m group. For this pattern, we have tested 25 defective fabric images of

256 \times 256

pixels size, five images for each of the five defects. As was previously described, each image is uniformly divided into 90 non-overlapped unit samples of

25 \times 26

pixels. Such division results in 2250 samples, 135 defective and 2115 defect-free sample units. In Table 4, the precision, recall, and DSRs of TP-JD, MLBP, and our TP-RCCR for five different defects on the p4m wallpaper group (box-patterned fabric), are presented. Regarding the precision and recall assessments, we can see that our method achieves 100% of true positive detections and the TP-JD and MLBP get around 99% of true positive detections. In terms of recall, even when our TP-RCCR achieves 95.58%, the TP-JD and MLBP methods get only 74% and 73%, respectively. In this table, we can also see that our method achieves the best DSR for each of the five different defects. On average, our method achieves 99.42%, in contrast with the 96.20% and 97.60% of the TP-JD and MLBP methods, respectively.

Table 4.

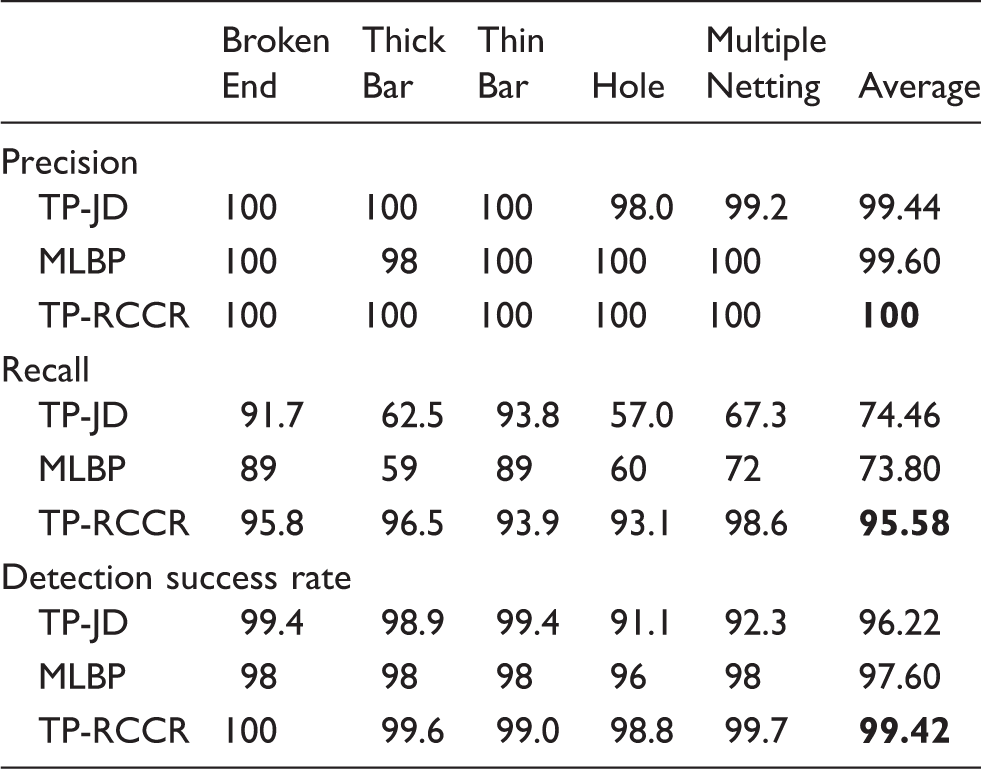

Average precision, recall, and detection success rate for 2250 samples of box-patterned fabric, p4m group

	Broken End	Thick Bar	Thin Bar	Hole	Multiple Netting	Average
Precision
TP-JD	100	100	100	98.0	99.2	99.44
MLBP	100	98	100	100	100	99.60
TP-RCCR	100	100	100	100	100	100
Recall
TP-JD	91.7	62.5	93.8	57.0	67.3	74.46
MLBP	89	59	89	60	72	73.80
TP-RCCR	95.8	96.5	93.9	93.1	98.6	95.58
Detection success rate
TP-JD	99.4	98.9	99.4	91.1	92.3	96.22
MLBP	98	98	98	96	98	97.60
TP-RCCR	100	99.6	99.0	98.8	99.7	99.42

One example of each defect and their corresponding detections are depicted in Figure 7. In this figure, the original defective image is presented in the first row, and the corresponding defective units are delineated and shown in the second row. As can be seen in this figure, the TP-RCCR can detect defects with high contrast in comparison with the original texture (Thick Bar) and also with low contrast (Broken End). The TP-RCCR is also able to detect defects that are smaller than the fabric unit, for example, the Thin Bar defect, which has the size of less than a half of the primitive unit.

Figure 7.

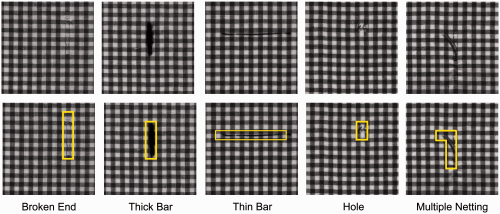

Samples of each defect occurring on the p4m wallpaper group and the corresponding defects detected with the TP-RCCR.

The second pattern to be tested belongs to the p2 wallpaper group, which we referred to as star-patterned. For the test stage of the classifier, we have also used 25 images that have been split into 4125 non-overlapped sample units, 270 defective and 3855 defect-free ones. The average detection success, precision, and recall rates for the five different defects occurring in this pattern are shown in Table 5. In this table, we can see that our method attains the highest precision, recall, and DSRs for all the defects in comparison with MLBP. In comparison with TP-JD, we detect higher percentages of the Hole and Multiple Netting defects. On average, our TP-RCCR has the higher DSR of 98.67% in comparison with the 97.98% and 97% of the TP-JD and MLBP, respectively. Qualitative examples of the resulting detections for each occurring defect are presented in Figure 8. In this figure, the defective input images are shown in the first row while the corresponding defect detections are presented in the second row. As it can be seen in this figure, the Broken End defect is small and it only affects a small portion of the pattern unit; however, our method is still capable of detecting it.

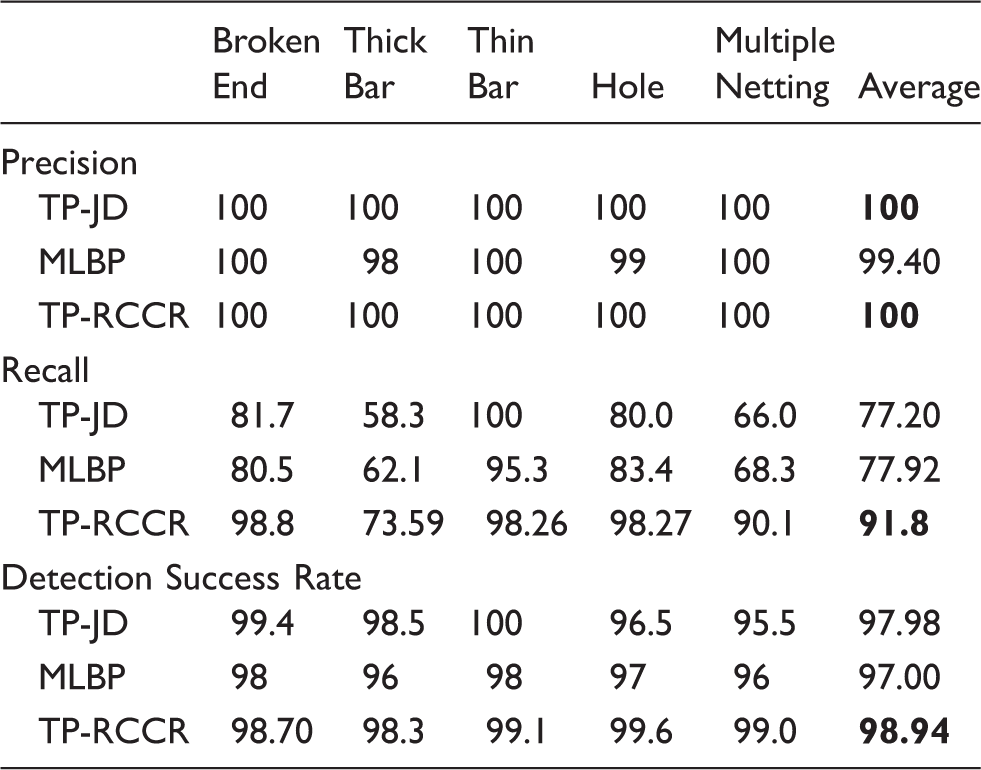

Table 5.

Average precision, recall, and detection success rate for 4125 samples of star-patterned fabric, p2 group

	Broken End	Thick Bar	Thin Bar	Hole	Multiple Netting	Average
Precision
TP-JD	100	100	100	100	100	100
MLBP	100	98	100	99	100	99.40
TP-RCCR	100	100	100	100	100	100
Recall
TP-JD	81.7	58.3	100	80.0	66.0	77.20
MLBP	80.5	62.1	95.3	83.4	68.3	77.92
TP-RCCR	98.8	73.59	98.26	98.27	90.1	91.8
Detection Success Rate
TP-JD	99.4	98.5	100	96.5	95.5	97.98
MLBP	98	96	98	97	96	97.00
TP-RCCR	98.70	98.3	99.1	99.6	99.0	98.94

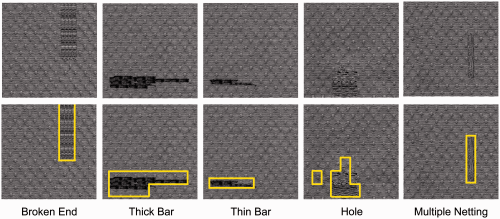

Figure 8.

Samples of each defect occurring on the p2 wallpaper group and the corresponding defects detected with the TP-RCCR.

In Table 6 , the evaluation rates for five different defects occurring in the dot-patterned fabric (pmm group) are presented. For the testing stage of the classifier, we have used 1575 non-overlapped samples of both defective (105) and non-defective (1470) units. Table 6 shows that the best detection rates for the Broken End and Thick Bar defects are attained by the TP-JD approach. For the other three defects (Thin Bar, Hole, and Netting Multiple), the TP-RCCR method obtains the highest detection rates. The TP-RCCR approach also obtains higher precision rates with 96.70% on average. Regarding Recall, even when the TP-JD method attains the higher rates with 81.14%, our method is only 3% below with 78.18%.

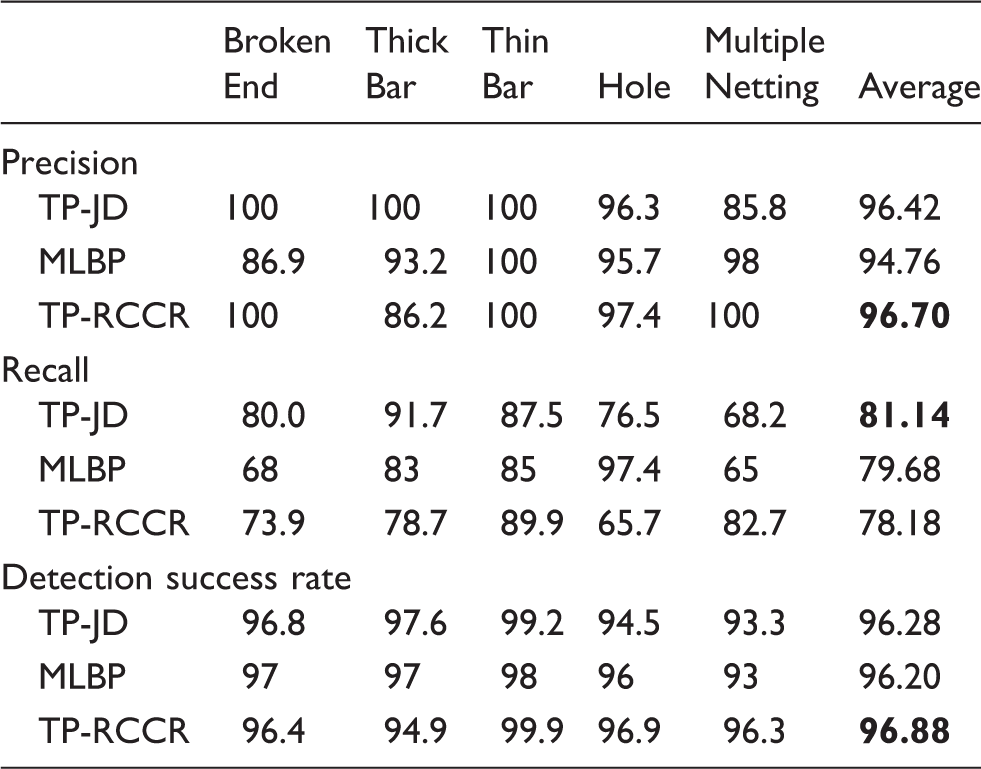

Table 6.

Average detection success rate for 1575 samples of dot-patterned fabric, pmm group

	Broken End	Thick Bar	Thin Bar	Hole	Multiple Netting	Average
Precision
TP-JD	100	100	100	96.3	85.8	96.42
MLBP	86.9	93.2	100	95.7	98	94.76
TP-RCCR	100	86.2	100	97.4	100	96.70
Recall
TP-JD	80.0	91.7	87.5	76.5	68.2	81.14
MLBP	68	83	85	97.4	65	79.68
TP-RCCR	73.9	78.7	89.9	65.7	82.7	78.18
Detection success rate
TP-JD	96.8	97.6	99.2	94.5	93.3	96.28
MLBP	97	97	98	96	93	96.20
TP-RCCR	96.4	94.9	99.9	96.9	96.3	96.88

On average, the TP-FCCR approach obtains a higher DSR on the dot-patterned fabric with 96.88%, in comparison to the 96.28% and 96.2% of the TP-JD and MLBP approaches, respectively. Samples of defective images and their corresponding detection outputs are shown in Figure 9. In this figure, we can see that our method detects the Broken End, Thin Bar, and Multiple Netting defects accurately. However, it presents false positives and false negatives on the Hole defect. Such misdetections are reflected in the Precision and Recall measures.

Figure 9.

Samples of each defect occurring on the pmm wallpaper group and the corresponding defects detected with the TP-RCCR.

As a final comment on this subset of experiments, it is pointed out that the average DSR of our method for the three groups, each group with five different defects, is 98.41%. In contrast, the average success rates for the TP-JD and for the MLBP are 96% and 97.16%, respectively.

Performance evaluation with deformed fabrics

A relatively common problem in the industry is that the machinery that rolls the fabrics causes uneven stress on the surface and, therefore, fabrics under test may suffer undesirable deformation. In order to evaluate the performance of our approach in such conditions, we have arbitrarily deformed samples of the three patterned fabrics using the IWarp function of the image manipulation software GIMP. Such a function allows four different deformation modes: move, grow, shrink, and swirl, which emulate the stress caused by the machinery. A healthy sample of each patterned fabric (shown in the first column of Figure 10) is submitted to 10, 20, 30, and 40 randomly selected and positioned deformations (shown in the second, third, fourth, and fifth columns of Figure 10, respectively). The parameters used for the deformations are predefined in the software: Deform Radius = 20, Deform Amount =0.30.

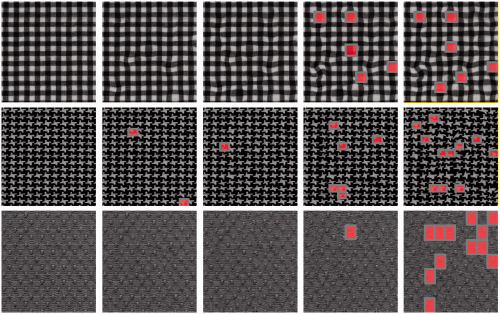

Figure 10.

TP-RCCR results of deformed fabrics. The defective samples are highlighted by a frame.

The detection results of the TP-RCCR method are depicted in Figure 10, where the units classified as defect are highlighted with a frame. Taking into account that in this experiment, all samples should be classified as healthy, the TP-RCCR method has obtained an average detection accuracy of 97.77%, 97.40%, and 95.87% for the box, star, and dot-patterned fabrics, respectively. In this regard, it is important to point out that a quality inspection system should be tolerant enough to accept minor differences and deformations among patterns, but not be too inclusive, allowing defective patterns to be classified as normal.

Summary

The main attributes exhibited by the proposed approach are summarized. The defect detection problem is regarded as a one-class classifier problem, where non-defective samples conform with the objective class and any defective sample that does not fit the similarity criterion is viewed as a defect. With this approximation, in our method there is no restriction on the types and number of defects that may be detected. The TP-RCCR analyzes the fabrics split in rectangular units. This assumption makes our method able to cope with any of the 17 pattern groups. With our approach, the detected defect is outlined in the output image, allowing a posterior analysis of the defects and a possible improvement of the production process. From the quantitative evaluation using different defects and patterns, we can see that our method is capable of detecting defects with both low and high contrast, regarding the fundamental pattern. In addition, it has been shown that it can also detect defects smaller than half of the primitive unit and it is robust to deformations. An important feature of any defect detection system should be the computational time that the method requires to analyze one image. Regarding the computation time of the TP-RCCR, the average processing time for analyzing one image requires ∼60 ms using a non-optimized MATLAB implementation in an ordinary Intel Core i3 CPU. Such attributes, which overcome the different drawbacks of previously proposed methods, make the proposed methodology a good option for defect detection on patterned fabrics.

Conclusions

In this paper, we discussed the use of the RCCR in a one-class classifier for defect detection on patterned fabrics. Training is accomplished using non-defective samples and a similarity criterion is built. During the test stage, input images are split into primitive units and any unit that does not fit the criterion learnt is considered defective. One of the main contributions of this paper is the use of an automatic estimation of the primitive unit size. This automatic estimation aims to extract the fundamental features of the repetitive pattern and releases the system from human intervention. In addition, we found that the TP-RCCR is highly discriminative, since it obtains the local structure of the texture instead of using only the pixel intensities. Moreover, the features used in this paper are represented in a space of only 16 dimensions, which reduces the space complexity of other state-of-the-art approaches (28–54 dimensions of MLBP and 256 of TP-JD). The use of a one-class classifier also brings advantages, since there are no restrictions on the type and number of defects to be detected. Evaluation of the proposed method was carried out with experiments on real fabric images. Quantitative results show that our method is robust and flexible in finding defects of different types, sizes, and contrast levels and it has been shown to be more accurate than other state-of-the-art methods. For future studies, having localized the defective region, we intend to explore the estimation of the type of defect, which may help in localizing errors in the manufacturing process.
