Excellent fixation and color fastness of nylon fibers dyed with low-water-soluble reactive dyes based on the reactivity and stability of vinyl sulfone

Abstract

Reactive dyes in nylon dyeing have been associated with utilization inefficiencies despite their high color fastness. A potential solution to this issue involves combining the benefits of reactive dyes and milling acid dyes to obtain low-water-soluble reactive dyes (LWSRDs), which can stain and fix to nylon fibers under neutral conditions. To identify a suitable functional group for LWSRDs, six model dyes comprising one vinyl sulfone and five monochloro-s-triazines were prepared and reacted with glycine or hydrolyzed to simulate the fixation progress on nylon fibers. The results show that vinyl sulfone exhibited sufficient reactivity with glycine, and ∼3% hydrolysis over 90 min. Consequently, vinyl sulfone was considered a superior functional group for LWSRDs. Based on these results, four LWSRDs with monofunctional groups were synthesized and used for dyeing nylon 6 microfibers. Notably, these dyes exhibited fixation of >91% and demonstrated exceptional color fastness against washing and rubbing, exceeding grade 4. These results underscore the potential of LWSRDs as highly efficient and effective dyes for nylon, offering a solution to the limitations associated with conventional dyeing techniques.

Keywords

Nylon reactivity and stability vinyl sulfone low-water-soluble reactive dyes high fixation excellent color fastness

Polyamide, known as nylon, is a synthetic fiber polymerized from dicarboxylic acid and diamine. Dyed polyamide products are used in various fields, such as textiles and packaging.^1
–3 Nylon fibers can be classified into traditional fibers and microfibers based on their fineness, with nylon microfibers referring to those with monofilament fineness of <1 dtex. The terminal amino groups in nylon possess high reactivity, making acid dyes and reactive dyes the common choice for dyeing nylon. Acid dyes create ionic bonds between the colored anions generated from the acid dyes and the protonated amino terminals in nylon under acidic conditions. Milling acid dyes with low water solubility usually exhibit good exhaustion toward nylon fibers under weakly acidic or neutral conditions.⁴ However, these ionic bonds become unstable under moist or alkaline conditions, resulting in inadequate wet color fastness for nylon fibers dyed with acid dyes.^5,6 Nylon fibers dyed with acid dyes often need additional treatments to improve their color fastness.^7
–9 Compared with acid dyes, reactive dyes exhibit superior color fastness owing to their functional groups,^10,11 which react with the amino groups in nylon to form covalent bonds.^12
–14

Extensive studies have been conducted on various commercial reactive dyes with different functional groups for dyeing nylon fibers. Reactive dyes with single-type functional groups, including α-bromoacrylamido, chlorodifluoropyrimidinyl, sulfate ethyl sulfone and chlorotriazine dyes, were used to dye nylon 6,6 fibers at 98°C for 30–60 min.^15
–17 The results demonstrated that most commercial reactive dyes exhibited good washing fastness. However, α-bromoacrylamido dyes exhibited poor fixation on nylon 6,6 and were easily removed by wash-off, whereas chlorodifluoropyrimidinyl, sulfate ethyl sulfones and chlorotriazine dyes exhibited good build-up on nylon 6,6. For dyeing nylon 6,6 fibers, specific reactive dyes, such as C.I. Reactive Red 195, C.I. Reactive Red 198 and C.I. Reactive Red 241, which possess monochlorotriazine and sulfate ethyl sulfone structures, were applied at various pH values ranged from 3.0 to 8.0.^18,19 The dyeing results revealed that the utilization of these dyes was insufficient, and that optimum exhaustion was achieved at pH 2.4 as an increase in the number of hydrogen ions facilitated the formation of ionic bonds between the reactive dyes and nylon fibers. Initially, fixation increased with increasing pH, reaching a maximum at pH 6.0, and then decreased. This trend was attributed to low pH levels (pH < 6.0), which hindered the reaction between the reactive dyes and nylon fibers, while high pH levels (pH > 6.0) posed a disadvantage in exhaustion, making pH 6.0 a compromise point. To address the contradiction above, the sulfate groups were moved away from the sulfate ethyl sulfones before dyeing, resulting in enhanced fixation.¹⁸ Eriofast reactive dyes, particularly designed for nylon by Ciba Specialty Chemicals, employed a similar approach.²⁰

To overcome the issue of insufficient utilization of commercial reactive dyes, numerous cationic reactive dyes and reactive disperse dyes have been synthesized for nylon fibers.^21
–32 These dyes mainly feature sulfate ethyl sulfone and chlorotriazine functional groups, exhibiting excellent exhaustion and fixation properties. However, the choice of coupling agents (aniline derivatives) limits the chromatography of cationic reactive dyes and reactive disperse dyes, resulting in their limited applications, mainly in yellow and orange colors.

To address this challenge, one potential solution is to introduce functional groups into the structures of milling acid dyes to prepare low-water-soluble reactive dyes (LWSRDs). These dyes can stain and firmly adhered to nylon fibers under nearly neutral conditions to prevent the destruction of ionic bonds between the dyes and nylon by an alkali. Therefore, the reactivity of the functional groups is a critical factor in the fixation progress of nylon, where rapid reaction ability toward nylon and good stability under neutral pH conditions are essential. This study was focused on selecting a suitable functional group for LWSRDs based on the reactivity and stability of model dyes with monovinyl sulfone (model-monovinyl sulfone; M-MVS) and five typical monochlorotriazine (model-monochlorotriazine; M-MCT) dyes. The fixation between reactive dyes and nylon fibers is a complex process in a solid–solid system; therefore, the fixation progress is considerably influenced by the exhaustion of reactive dyes. To quantitatively evaluate the reactivity of different functional groups, the fixation progress should be simplified into a homogeneous reaction. Glycine, a molecule similar to nylon with an amino and a carboxylic group, was used as a substitute for nylon to simulate the reactions between functional groups and nylon fibers in an aqueous medium. Reactivity and stability tests were performed by referring to the hydrolysis kinetic study of the functional groups.^33,34 The functional group with sufficient reactivity and good stability was considered suitable for LWSRDs. Furthermore, four low-water-soluble monovinyl sulfone dyes (LWS-MVSDs) containing the superior functional group were synthesized and used to dye nylon 6 microfibers to obtain excellent fixation and color fastness under neutral conditions.

Experimental details

Chemicals and instruments

1-Acetylamino-8-hydroxynaphthalene-3,6-disulfonic acid (acetyl H-acid) was synthesized in the laboratory. The following chemicals were used in this study: 1-amino-8-hydroxynaphthalene-3,6-disulphonic acid (H-acid), acetic anhydride, cyanuric chloride (TCT), 4-(ethylsulfurate sulfonyl) aniline, 2-amino-5-naphthol-7-sulfonic acid (J-acid), 3-methyl-1-phenyl-2-pyrazolin-5-one, 3-aminobenzene sulfonic acid, 4-aminoacetanilide, 4-butylaniline, 4-n-dodecyl-aniline, aniline-2-sulfonic acid, ethanol absolute, aniline-4-sulfonic acid, 33% dimethylamine solution, ammonium hydroxide, aniline, 37.0% concentrated hydrochloric acid, sodium nitrite, sodium hydroxide, sodium carbonate and pH 6.86 phosphate buffer solution (prepared according to GB/T 27501-2011). H-acid, J-acid and 4-(ethylsulfurate sulfonyl) aniline with mass contents of 80.4%, 92.3% and 90.0%, respectively, were purchased from Hubei Color Root Co., Ltd in China; moreover, these chemicals were of industrial grade. Other reagents were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd and were of analytical grade. All the reagents were used without further purification. Nylon 6 nonwoven microfibers were purchased from HuaFeng Group.

The ultraviolet-visible (UV-Vis) absorption spectra were collected using an Agilent 8453 UV-Vis spectrophotometer. High-performance liquid chromatography (HPLC) was performed using an Agilent 1100 series HPLC system. The mobile phase comprised 3.0‰ (volume contents) triethylamine and 3‰ (volume contents) acetic acid in aqueous solution as solvent A and methanol (HPLC grade) as solvent B. The solvents were pumped through a 20-cm reverse column with A/B gradient ratios ranging from 90:10 to 10:90 over 30 min, followed by a 10-min hold at a constant flow rate of 1.0 mL/min. The samples were analyzed using a UV-Vis spectrophotometer at a wavelength of 500 nm. Atmospheric pressure ionization-electrospray-mass spectra (API-ES-Mass) were recorded using an Agilent 1100 HPLC-MS. Fourier transform infrared (FTIR) spectra were obtained using a Jasco FTIR-430 spectrometer with KBr pellets.

Preparation of dyes

Model-MVS

Preparation of chromophore: 4-(ethylsulfurate sulfonyl) aniline (2.89 g; 0.0102 mol) was dissolved in 20 mL of water at pH 6.0–7.0 by adding an aqueous sodium carbonate solution (10%; w/v). Sodium nitrite (0.70 g; 0.0102 mol) was dissolved in 5 mL of water, then added to the solution. The mixture was rapidly added to cooled concentrated hydrochloric acid (37%, 0.03 mol) under vigorous stirring. The diazotization reaction was maintained for 30 min at 0–5°C and the excess nitrous acid was decomposed using a small amount of sulfamic acid. The diazonium salt was slowly added dropwise to acetyl H-acid solution (3.47 g; 0.01 mol) within 2 h at 0–5°C, and the pH of this solution was maintained at 7.0–7.5 using aqueous sodium carbonate solution (10%; w/v). The reaction solution was maintained under the aforementioned condition above for 2 h.

Vinylation reaction: the pH of the solution was adjusted to 12.0–12.5 by adding aqueous sodium hydroxide solution (10%; w/v) at 0–5°C. The pH was maintained until all the sulfate groups were removed, as confirmed via thin-layer chromatography (mobile phase: n-butanol/iso-propanol/ethyl acetate/water at a volume ratio of 2:4:1:3). Subsequently, the pH was adjusted to 6.0–7.0 using hydrochloric acid solution (10%; w/v).

Aftertreatment: after adding potassium acetate (20% of solution volume), the product was isolated, separated by filtration, washed with 100 mL of ethanol thrice and dried in a vacuum oven at 40°C. The product yield was 90.1% and the product purity was 94.1% at 500 nm as measured via HPLC (retention time (RT) = 19.1 min).

IR spectrum (KBr): –NH and –OH stretching 3429 cm⁻¹; N–H bending 1595 cm⁻¹; N=N stretching 1565 cm⁻¹; S=O bending 1315 cm⁻¹; C–N bending 1295 cm⁻¹; –SO₃H stretching 1050 cm⁻¹. MS: m/z calculated for C₂₀H₁₇N₃O₁₀S₃ [M–H]^–, 554.01, found 554.10.

Model-MCT1

A mixture of TCT (1.84 g; 0.01 mol) and absolute ethanol (30 mL) was cooled to 0–5°C in an ice bath. Subsequently, sodium carbonate (0.53 g; 0.005 mol) was added to the mixture, followed by stirring for 7 h.³⁵ The resulting solution was added to 50 mL of water, and then mixed with 20 mL of aqueous H-acid (3.19 g; 0.01 mol) solution. The mixture was stirred for 2 h at 30°C, and the pH of this mixture was maintained at 6.5–7.0 using an aqueous 10% (w/v) sodium carbonate solution. Furthermore, aniline-2-sulfonic acid (1.76 g; 0.0102 mol) was diazotized using the same method as a para base ester. The resulting diazonium salt was slowly added to the aforementioned solution within 2 h at 0–5°C, while maintaining the pH at 7.0–7.5 using an aqueous 10% (w/v) sodium carbonate solution. The reaction solution was maintained under these conditions for an additional 2 h. Subsequently, the pH of the solution was adjusted to 6.0–7.0. The aftertreatment of M-MCT1 was the same as for M-MVS. The product yield was 85.3% and the purity was 97.2% at 500 nm, as measured via HPLC (RT = 17.7 min).

IR spectrum (KBr): –NH and –OH stretching 3449 cm⁻¹; N=N bending 1565 cm⁻¹; triazine stretching 1500 cm⁻¹; C–N bending 1295 cm⁻¹; C–O bending 1200 cm⁻¹; –SO₃H stretching 1050 cm⁻¹. MS: m/z calculated for C₂₁H₁₇ClN₆O₁₁S₃ [M–H]^–, 658.98, found 659.00.

Model-MCT2

TCT (1.84 g; 0.01 mol) and ice cubes (20 g) were stirred for 30 min at 0–5°C. The first condensation reaction was started by adding aniline-4-sulfonic acid solution (1.73 g; 0.01 mol) at 0–5°C, while maintaining the pH at 4.0–4.5 for 2 h. Afterward, the reaction solution was mixed with 20 mL aqueous H-acid (3.19 g; 0.01 mol) solution. The mixture was stirred for 2 h at 30°C, while maintaining the pH at 6.5–7.0. The subsequent steps of diazotization, coupling progress and post-treatment were the same as those of M-MCT1. The product yield was 80.2% and the purity was 97.5% at 500 nm, as measured via HPLC (RT = 17.9 min).

IR spectrum (KBr): –NH and –OH stretching 3426 cm⁻¹; N=N bending 1565 cm⁻¹; triazine stretching 1500 cm⁻¹; C–N bending 1323 cm⁻¹; –SO₃H stretching 1050 cm⁻¹. MS: m/z calculated for C₂₅H₁₈ClN₇O₁₃S₄ [M–H]^–, 785.95, found 786.00.

Model-MCT3

M-MCT3 was synthesized by replacing aniline-4-sulfonic acid with dimethylamine solution (33%; 0.01 mol) as for M-MCT2. The product yield was 75.8% and the purity was 90.0% at 500 nm, as measured via HPLC (RT = 19.4 min).

IR spectrum (KBr): –NH and –OH stretching 3441 cm⁻¹; N=N bending 1565 cm⁻¹; triazine stretching 1495 cm⁻¹; C–N bending 1295 cm⁻¹; –SO₃H stretching 1050 cm⁻¹. MS: m/z calculated for C₂₁H₁₈ClN₇O₁₀S₃ [M–H]^–, 658.00, found 658.00.

Model-MCT4

M-MCT4 was synthesized by replacing aniline-4-sulfonic acid with ammonium hydroxide (35%; 0.025 mol) as for M-MCT2. The product yield was 88.5% and the purity was 93.7% at 500 nm, as measured via HPLC (RT = 16.8 min).

IR spectrum (KBr): –NH and –OH stretching 3445 cm⁻¹; N=N bending 1565 cm⁻¹; triazine stretching 1495 cm⁻¹; C–N bending 1300 cm⁻¹; –SO₃H stretching 1050 cm⁻¹. MS: m/z calculated for C₁₉H₁₄ClN₇O₁₀S₃ [M–H]^–, 629.97, found 630.00.

Model-MCT5

M-MCT5 was synthesized by replacing aniline-4-sulfonic acid with aniline (0.93 g; 0.01 mol) as for M-MCT2. The product yield was 61.2% and the purity was 97.3% at 500 nm, as measured via HPLC (RT = 22.3 min).

IR spectrum (KBr): –NH and –OH stretching 3445 cm⁻¹; N=N bending 1550 cm⁻¹; triazine stretching 1491 cm⁻¹; C–N bending 1321 cm⁻¹; –SO₃H stretching 1050 cm⁻¹. MS: m/z calculated for C₂₅H₁₈ClN₇O₁₀S₃ [M–H]⁻, 706.00, found 706.10.

Low-water-soluble monovinyl sulfone reactive yellow (LWS-MVSRY)

Preparation of the chromophore: 4-(ethylsulfurate sulfonyl) aniline was prepared using the same method as that used for preparing M-MVS. 3-Aminobenzene sulfonic acid (1.75 g; 0.01 mol) was dissolved in 20 mL of water and the pH was adjusted to 7.0–7.5. Subsequently, diazonium salt was added dropwise to the aforementioned solution within 2 h at 0–5°C and a pH of 7.0–7.5. Following that, concentrated hydrochloric acid (37%; 4.0 g; 0.04 mol) and sodium nitrite (0.70 g; 0.0102 mol) were sequentially added to the first coupling solution. In a separate step, 3-methyl-1-phenyl-2-pyrazolin-5-one (1.78 g; 0.01 mol) was dissolved in 50 mL of water, and the pH was adjusted to 9.0–9.5 with sodium hydroxide aqueous solution (10%, w/v). Finally, the diazonium salt was slowly added dropwise to 3-methyl-1-phenyl-2-pyrazolin-5-one solution within 2 h at 0–5°C and a pH of 7.0–7.5.

The acetylation and aftertreatment were the same as for M-MVS. The product yield was 84.3% and the purity was 88.2% at 440 nm, as measured via HPLC (RT = 31.2 min).

IR spectrum (KBr): –NH and –OH stretching 3441 cm⁻¹; C–H stretching 3059 and 2963 cm⁻¹; N=N bending 1556 cm⁻¹; C=C stretching 1502 cm⁻¹; S=O bending 1331 cm⁻¹; C–N bending 1252 cm⁻¹; –SO₃H stretching 1029 cm⁻¹. MS: m/z calculated for C₂₄H₂₀N₆O₆S₂ [M–H]^–, 551.09, found 551.00.

Low-water-soluble monovinyl sulfone reactive orange (LWS-MVSRO)

Preparation of the chromophore: 4-(ethylsulfurate sulfonyl) aniline was prepared using the same method as that used for preparing M-MVS. J-acid (2.59 g; 0.01 mol) and NaOH (0.40 g; 0.01 mol) were dissolved in 40 mL of water and added dropwise to diazonium salt for 2 h. The reaction solution was maintained at 0–5°C for 8 h; subsequently, its pH was adjusted to 7.0. The diazotization of 4-butylaniline (1.51 g; 0.0101 mol) was conducted using the same method as that used for the diazotization of 4-(ethylsulfurate sulfonyl) aniline; the resulting diazonium salt solution was added dropwise to the first coupling solution at 0–5°C, while maintaining a pH of 7.0–7.5 using an aqueous sodium carbonate solution (10%; w/v).

The acetylation and aftertreatment were performed using the same method as for M-MVS. The product yield was 95.9% and the purity was 91.2% at 440 nm, as measured via HPLC (RT = 31.5 min).

IR spectrum (KBr): –NH and –OH stretching 3376 cm⁻¹; C–H stretching 2927 and 2857 cm⁻¹; N=N bending 1580 cm⁻¹; C=C stretching 1481 cm⁻¹; S=O bending 1370 cm⁻¹; C–N bending 1299 cm⁻¹; –SO₃H stretching 1048 cm⁻¹. MS: m/z calculated for C₂₈H₂₇N₅O₆S₂ [M–H]^–, 592.14, found 592.20.

Low-water-soluble monovinyl sulfone reactive red (LWS-MVSRR)

Low-water-soluble monovinyl sulfone reactive red (LWS-MVSRR) was synthesized by replacing 4-butylaniline with 4-aminoacetanilide (1.52 g; 0.0101 mol) as for LWS-MVSRO. The product yield was 98.3% and the purity was 92.0% at 500 nm, as measured via HPLC (RT = 26.4 min).

IR spectrum (KBr): –NH and –OH stretching 3388 cm⁻¹; N=N bending 1618 cm⁻¹; C=C stretching 1489 cm⁻¹; S=O bending 1333 cm⁻¹; C–N bending 1284 cm⁻¹; –SO₃H stretching 1043 cm⁻¹. MS: m/z calculated for C₂₆H₂₂N₆O₇S₂ [M–H]^–, 593.10, found 593.10.

Low-water-soluble monovinyl sulfone reactive blue (LWS-MVSRB)

LWS-MVSRB was synthesized by replacing J-acid and 4-butylaniline with H-acid (4.00 g; 0.01 mol) and 4-n-dodecyl-aniline (2.63 g; 0.0101 mol), respectively, as for LWS-MVSRO. The product yield was 76.1% and the purity was 90.6% at 610 nm, as measured via HPLC (RT = 32.2 min).

IR spectrum (KBr): –NH and –OH stretching 3434 cm⁻¹; C–H stretching 2927 and 2948 cm⁻¹; N=N bending 1571 cm⁻¹; C=C stretching 1489 cm⁻¹; S=O bending 1333 cm⁻¹; C–N bending 1284 cm⁻¹; –SO₃H stretching 1043 cm⁻¹. MS: m/z calculated for C₃₆H₄₃N₅O₉S₃ [M–H]^–, 784.22, found 784.30.

Reactivity study of model dyes

Glycine (0.75 g, 0.01 mol) and phosphate buffer solution (pH 6.86, 100 mL) were mixed and stirred in a 250-mL flask equipped with a thermometer, a pH meter and an Allihn condenser. The common dyeing temperature (75°C and 90°C) was chosen to simulate the fixation progress of reactive dyes. After reaching the desired test temperature, model dyes (∼1 × 10⁻⁴ mol) were added into the flask quickly. Samples were collected at suitable intervals, quenched and maintained in an ice bath before HPLC analysis. The absorption peaks were measured at 500 nm to determine their respective peak area.

Stability study of model dyes

Phosphate buffer solution (pH 6.86, 100 mL) was stirred in a 250-mL flask with a thermometer, a pH meter and an Allihn condenser at 90°C. Subsequently, model dyes (∼1 × 10⁻⁴ mol) were added into the flask quickly. Samples were collected at suitable intervals, quenched and maintained in an ice bath before HPLC analysis. The absorption peaks were measured at 500 nm to determine their respective peak area.

Dyeing nylon 6 microfibers with the M-MVS and LWS-MVSDs

As shown in Figure 1, the M-MVS and LWS-MVSDs [2% (o.w.f.), on weight of fabric] were dissolved in a phosphate buffer solution (pH = 6.86; 40 mL). Nylon 6 nonwoven microfibers (2.000 g) were immersed in the aforementioned dye solution in a dyebath with a liquor ratio of 20:1. The dyeing progress was carried out in the sealed, stainless steel dye pots with 100 cm³ capacity of an XW4000B Sample Dyeing Machine (Jingjiang Xinwang Dyeing Finishing & Machinery Factory). The temperature for exhaust dyeing was increased to 90°C at the rate of 1°C·min⁻¹, and maintained for 60 min to achieve dye adsorption equilibrium and sufficient fixation time. After dyeing, the dyebaths were cooled to room temperature at the rate of 2°C·min⁻¹. The dyed nylon microfibers were cleaned in soap solution at 95°C until the solution was colorless.

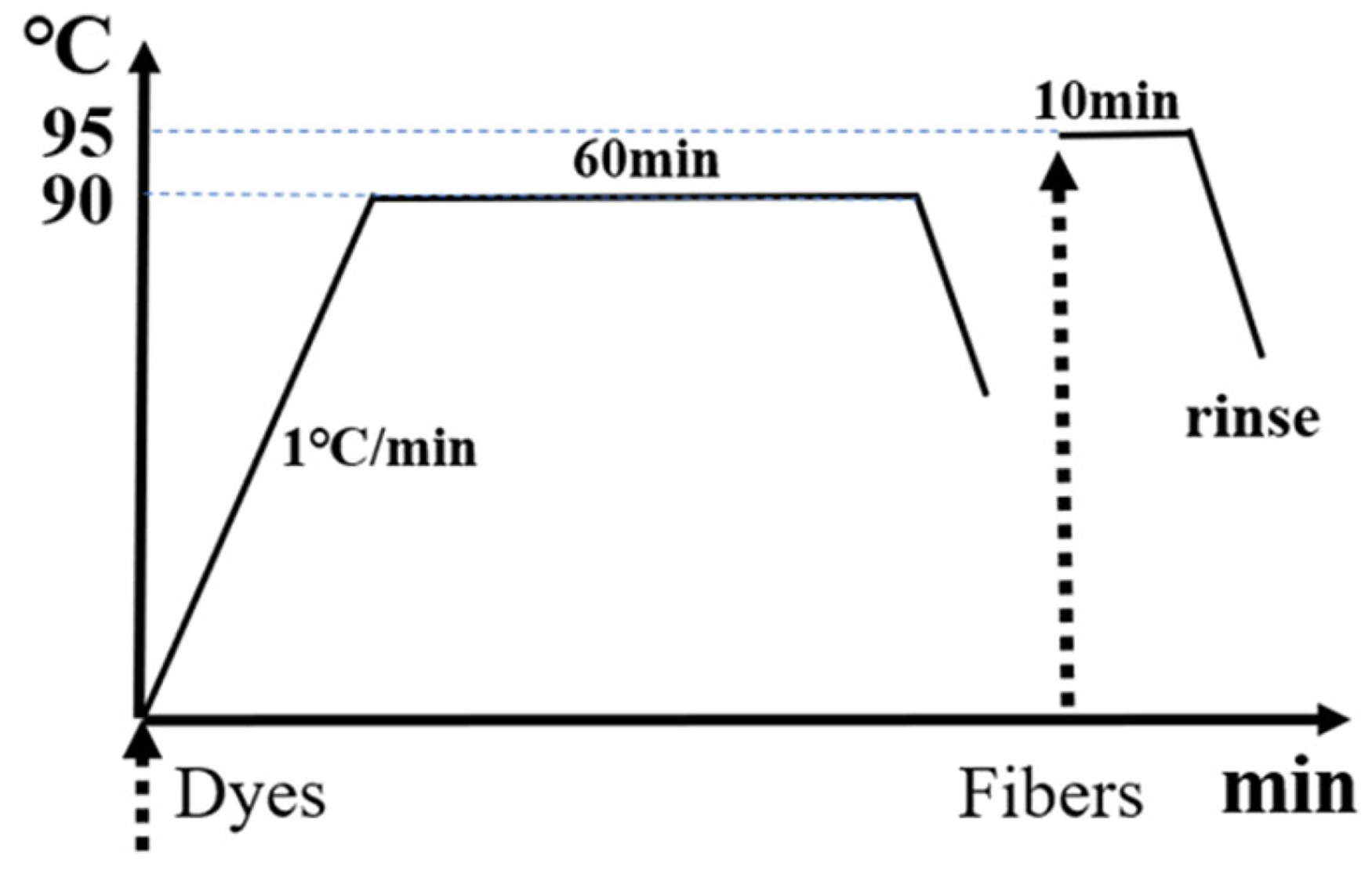

Figure 1.

The dyeing progress of the monovinyl sulfone dyes.

Exhaustion (E%), fixation (F%) and reactivity (R%) of the dyes were calculated using Equations (1)–(4), where m is the dosage of dyes; ε_max is the molar absorption coefficient at the maximum absorption wavelength; M is the relative molecular mass of dyes; V is the volume of dyestuff solution; A₁ and A₂ are the absorbances of the fixation solution and washing solution, respectively:

A_{0} = m \cdot ε_{\max} / M V

(1)

E % = (1 - A_{1} / A_{0}) \times 100

(2)

F % = (1 - A_{1} / A_{0} - A_{2} / A_{0}) \times 100

(3)

R % = F / E * 100

(4)

Measurements of color strength and fastness

The K/S values were measured using an ultrascan pro spectroscopic tester (HunterLab Company, USA) and calculated based on the Kubelka–Munk equation (Equation (5)), which reveals the relations among the absorption coefficient (K), the scattering coefficient (S) and the reflectance of dyed fabric (R) at different absorption wavelengths:

K / S = {(1 - R)}^{2} / 2 R

(5)

The washing fastness of the samples was tested according to the ISO 105-C10:2006 test. Rubbing fastness was estimated using a Y(B)571-II crockmeter (Darong Standard Textile Apparatus Co., Ltd, China) according to ISO 105-X12:2016. Light fastness was determined using a YG(B)611-V light-fastness tester (Darong Standard Textile Apparatus Co., Ltd, China) according to ISO 105-B02:2014.

Results and discussion

Model dyes and model reactions to simulate the fixation process

To quantitatively evaluate the reactivity of different functional groups, six model dyes were prepared using one vinyl sulfone and five common monochloro-s-triazines and reacted with glycine (model of nylon) in a homogeneous system to simulate the fixation progress. The synthesis procedures of the model dyes are illustrated in Figure S1, and their structures and spectral data are shown in Table 1.

Table 1.

Structures and properties of the model dyes

Name (color index)	λ_max, nm	ε_max × 10⁴, dm³·mol⁻¹·cm⁻¹	Purity at 500 nm (HPLC %)	Solubility, g·L⁻¹
M-MVS	504	2.54	94.1%	141.8
M-MCT1	533	2.26	97.2%	40.2
M-MCT2	534	2.12	97.5%	194.4
M-MCT3	536	2.07	90.0%	28.7
M-MCT4 (C.I. Reactive Red 12)	533	2.0	93.7%	33.8
M-MCT5 (C.I. Reactive Red 3)	533	2.02	97.3%	31.6

Note: HPLC: high-performance liquid chromatography; M-MVS: model-monovinyl sulfone; M-MCT: model-monochlorotriazine.

All the model dyes were red monoazo compounds derived from H-acid. M-MVS has the same functional group as C.I. Reactive Red 35. Vinyl sulfone was obtained by removing the sulfate group from sulfate ethyl sulfone to enhance fixation.¹⁸ The monochloro-s-triazines exhibited various 4-substituents, including ethoxy, 4-sulfonyl anilino, dimethylamino, amino and anilino. M-MCT4 and M-MCT5 are also named C.I. Reactive Red 12 and C.I. Reactive Red 3, respectively. M-MCT1 has been reported to have a higher reactivity among monochloro-s-triazines.³⁰ The structure of M-MCT2 is similar to Reactive Red 15 and has the same functional group. The functional group of M-MCT3 comprises tertiary amines, enabling the forming of ionic bonds with carboxyl groups in nylon fibers. The solubility of the model dyes was 141.8, 40.2, 194.4, 28.7, 33.8 and 31.6 g·L⁻¹, respectively. Their solubility was sufficient for the reactivity and stability studies.

Generally, the reactions between M-MVS and the glycine solution followed nucleophilic addition mechanisms, as presented in Figure 2(a). Conversely, the reactions involving M-MCT dyes proceeded via nucleophilic substitution mechanisms, as shown in Figure 2(b). During these reactions, the hydrolysis products of model dyes were the only byproduct because hydroxyl ions could compete with glycine as nucleophilic groups.

Figure 2.

(a) Reaction between model-monovinyl sulfone and glycine and (b) Reactions between model-monochlorotriazine dyes and glycine.

Furthermore, among the five chlorotriazines, ethoxychloro-s-triazine possessed a special functional group. Taylor et al.³⁶ found that alkoxy could be replaced by hydroxide ion in the hydrolysis of alkoxychloro-s-triazine. Reactions between ethoxychloro-s-triazine and glycine were hypothesized to have occurred, as shown in Figure 3. To verify this hypothesis, the reaction solution of M-MCT1 was analyzed by high-performance liquid chromatography–mass spectrometry (HPLC-MS). The results showed two distinct absorption peaks in the spectra (Figure S15). In particular, the peak with a RT of 17.1 min corresponded to M-MCT1, while the peak with a RT of 16.2 min corresponded to the product formed by replacing the chlorine atom with glycine. The presence of this product was confirmed by its mass spectra (see Figure S16), which displayed a m/z of 698.2, consistent with the calculated value of 698.04 for the product (C₂₃H₂₁N₇O₁₃S₃) [M–H]^–. These findings demonstrated that ethoxychloro-s-triazine followed the same principle as M-MCT dyes. The HPLC-MS of the other dyes in glycine solution are shown in Table S1 and Figures S14 and S17–20.

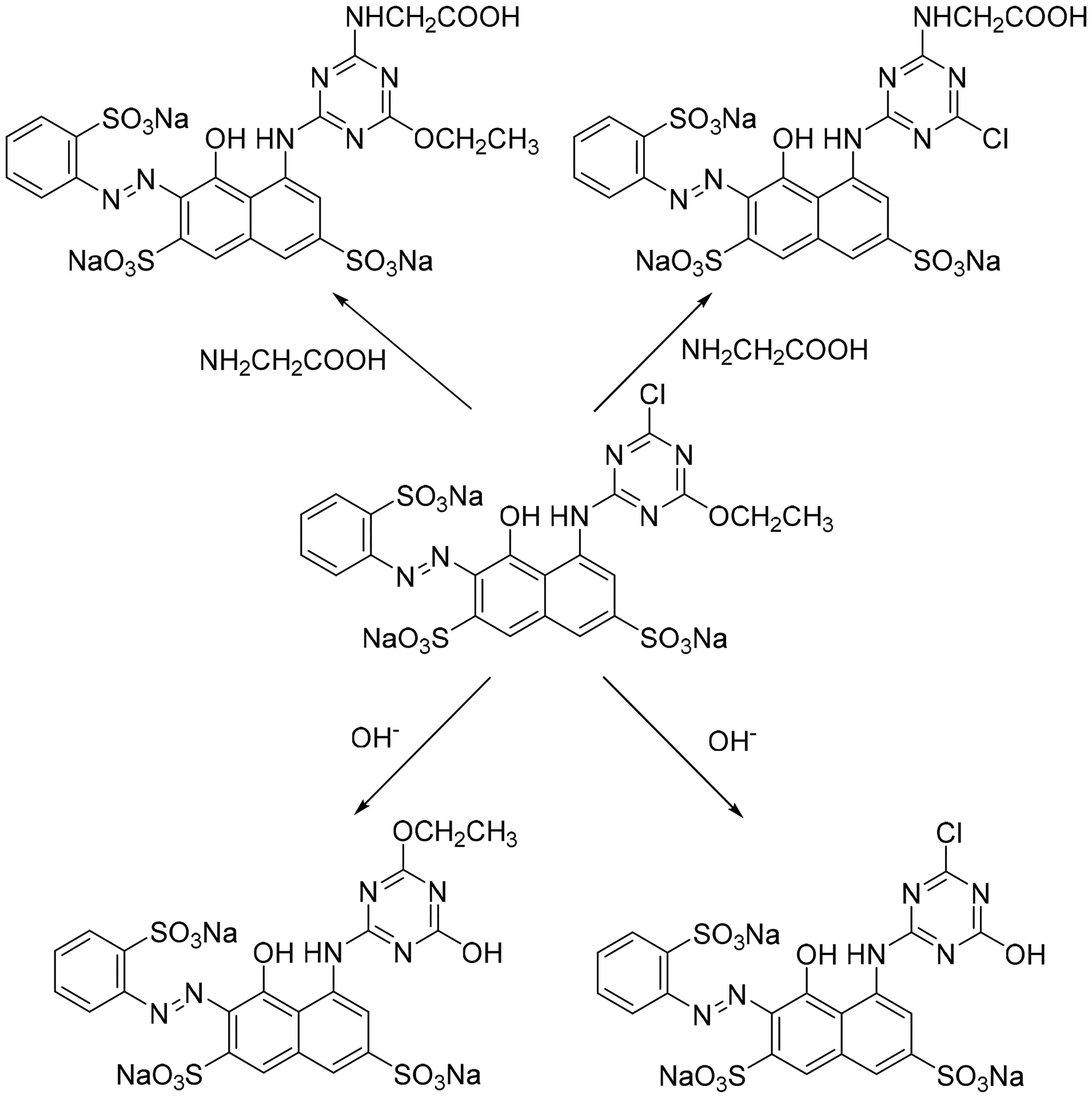

Figure 3.

Potential reactions of M-MCT1 in glycine solution. M-MCT: model-monochlorotriazine.

Reactivity study of model dyes

Experiments were conducted in a phosphate buffer solution (pH = 6.8) to measure the reactivity of functional groups under neutral conditions. The model dyes we synthetized had only one functional group; therefore, the reaction rate equation between the dyes and glycine was expressed as in Equation (6):

- d [D] / d t = k_{0} {[D]}_{t} {\cdot [{NH}_{2}]}_{t}

(6)

where t denotes the time; [D] _t is the concentration of dye at time t; and [NH₂] _t is the concentration of the free amino at time t.

The molar amount of glycine is 100 times that of dye. Glycine in water always exists in dynamic equilibrium, as shown in Figure 4.

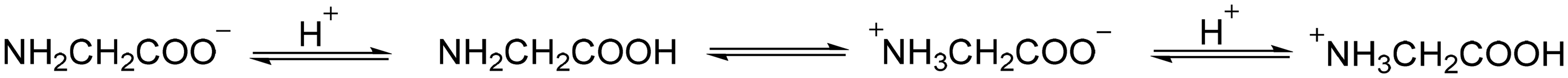

Figure 4.

Dynamic equilibrium of glycine in water.

The pH of the solution remains stable due to the buffer solution, which ensures that the concentration of the free amino ([NH₂] _t ) remains almost constant. Therefore, the reaction between the dyes and glycine is considered a pseudo-first-order reaction. To analyze the reactivity study, the following pseudo-first-order equation is utilized, presented in Equation (7):

\ln (A_{t} / A_{0}) = - k t + b

(7)

where t denotes the time [min]; A_t denotes the concentration of dye at time t; A₀ denotes the initial concentration of dye; k denotes the slope [min⁻¹], k = k₀[NH₂] _t ; b denotes the intercept; the concentration of dye (A and A₀) was calculated from the peak area of its corresponding HPLC chromatogram.

The plots of ln(A/A₀) against time for the model dyes are presented in Figure S21 and the rate constants of model dyes were calculated using Equation (7); the results are shown in Table 2. Owing to its high reactivity, the pseudo-first-order reaction rate of M-MVS was challenging to measure at 90°C. However, the pseudo-first-order reaction rate of M-MVS was 0.22242 min⁻¹, indicating the highest reactivity among all the selected functional groups. The reactivity of M-MCT dyes was measured at 75°C and 90°C. The pseudo-first-order reaction rates of all the M-MCT dyes were <0.1 min⁻¹, even at 90°C, with M-MCT1 exhibiting the fastest reaction rate (0.0994 min⁻¹) among the M-MCT dyes at 90°C. Comparison of the reaction rate ratios [k (90°C)/k (75°C)] of the same model dyes showed that the reaction rate of each model dye increased three to four times when the temperature was increased from 75°C to 90°C.

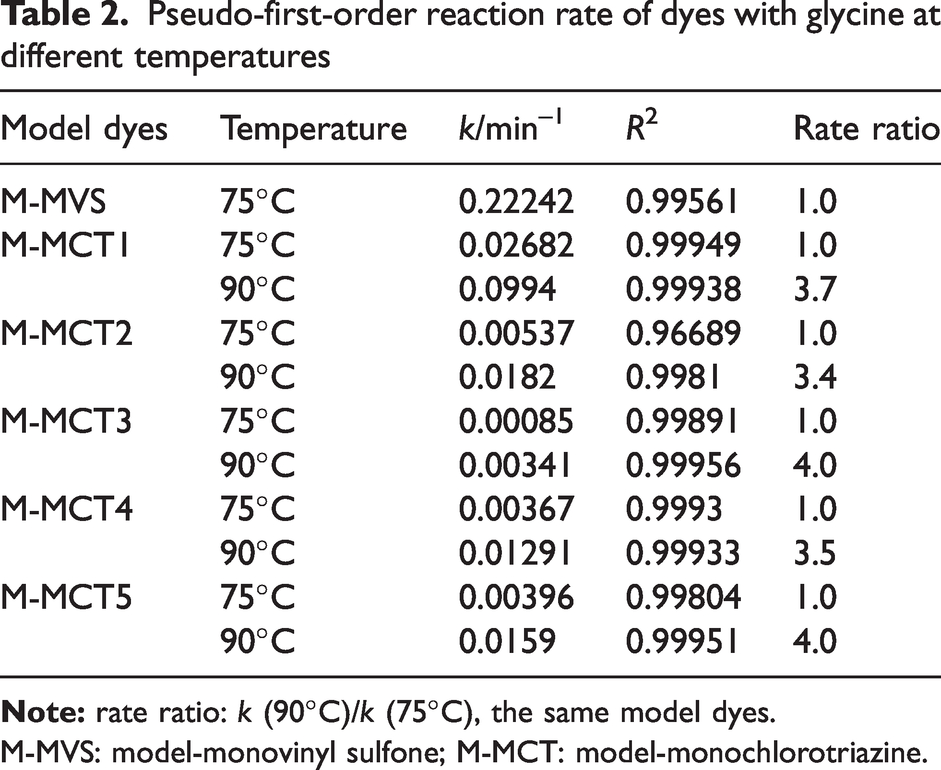

Table 2.

Pseudo-first-order reaction rate of dyes with glycine at different temperatures

Model dyes	Temperature	k/min^–1	R ²	Rate ratio
M-MVS	75°C	0.22242	0.99561	1.0
M-MCT1	75°C	0.02682	0.99949	1.0
M-MCT1	90°C	0.0994	0.99938	3.7
M-MCT2	75°C	0.00537	0.96689	1.0
M-MCT2	90°C	0.0182	0.9981	3.4
M-MCT3	75°C	0.00085	0.99891	1.0
M-MCT3	90°C	0.00341	0.99956	4.0
M-MCT4	75°C	0.00367	0.9993	1.0
M-MCT4	90°C	0.01291	0.99933	3.5
M-MCT5	75°C	0.00396	0.99804	1.0
M-MCT5	90°C	0.0159	0.99951	4.0

Note: rate ratio: k (90°C)/k (75°C), the same model dyes.

M-MVS: model-monovinyl sulfone; M-MCT: model-monochlorotriazine.

To directly observe the difference in reactivity among the model dyes, the reaction rates at 75°C are collected in Table 3. The reaction rates of ethoxychloro-s-triazine (M-MCT1), 4-sulfonated phenylaminochloro-s-triazine (M-MCT2), dimethylaminochloro-s-triazine (M-MCT3), aminochloro-s-triazine (M-MCT4) and anilinochloro-s-triazine (M-MCT5) were 0.121, 0.024, 0.004, 0.017 and 0.018 times as large as that of vinyl sulfone (M-MVS), respectively. The reactivity of ethoxychloro-s-triazine (M-MCT1) was the closest to that of vinyl sulfone, but still exhibited substantial disparity. Among the M-MCT dyes, the reactivity was decreased in the following order: M-MCT1 (ethoxy) > M-MCT2 (4-sulfonated phenylamino) > M-MCT5 (aniline) > M-MCT4 (amino) > M-MCT3 (dimethylamino). This trend can be attributed to the higher electronegativity of the oxygen atom in ethoxy than that of the nitrogen substituents. Therefore, M-MCT1 displayed the highest reactivity.³⁵ Conversely, the lower electronegativity of the dimethylamino group resulted in the lower reactivity observed for M-MCT3.

Table 3.

The rate ratios of model dyes at 75°C, pH 6.86

Model dyes	Functional group	k/min⁻¹	Rate ratio
M-MVS	Vinyl sulfone	0.22242	1
M-MCT1	Ethoxychloro-s-triazine	0.02682	0.121
M-MCT2	4-Sulfonated phenylaminochloro-s-triazine	0.0053	0.024
M-MCT3	Dimethylaminochloro-s-triazine	0.00085	0.004
M-MCT4	Aminochloro-s-triazine	0.00367	0.017
M-MCT5	Anilinochloro-s-triazine	0.00396	0.018

Note: rate ratio: k (M-MCT)/k (M-MVS).

M-MVS: model-monovinyl sulfone; M-MCT: model-monochlorotriazine.

To evaluate the progress of the reactions between model dyes and glycine, plots of percentage content as a function of time were plotted for all the model dyes, and these plots are presented in Figure 5. The reactions were tested up to the 90th minute, because the fixation time for nylon remained within 90 min. The reaction between M-MVS and glycine was found to be completed within 30 min at 75°C owing to its high reactivity. The reaction rate of ethoxychloro-s-triazine was 0.121 times that of vinyl sulfone, leading to ∼10% of M-MCT1 remaining in solution at 75°C. Once the temperature was increased to 90°C, M-MCT1 reacted completely within 50 min. M-MCT3 displayed the lowest reactivity, with less than half of the dye reacting even after 90 min at 90°C. The reactions of the other M-MCT dyes followed the order of their respective reactivity, with approximately 20–30% of dyes remaining in the solution at the 90th min.

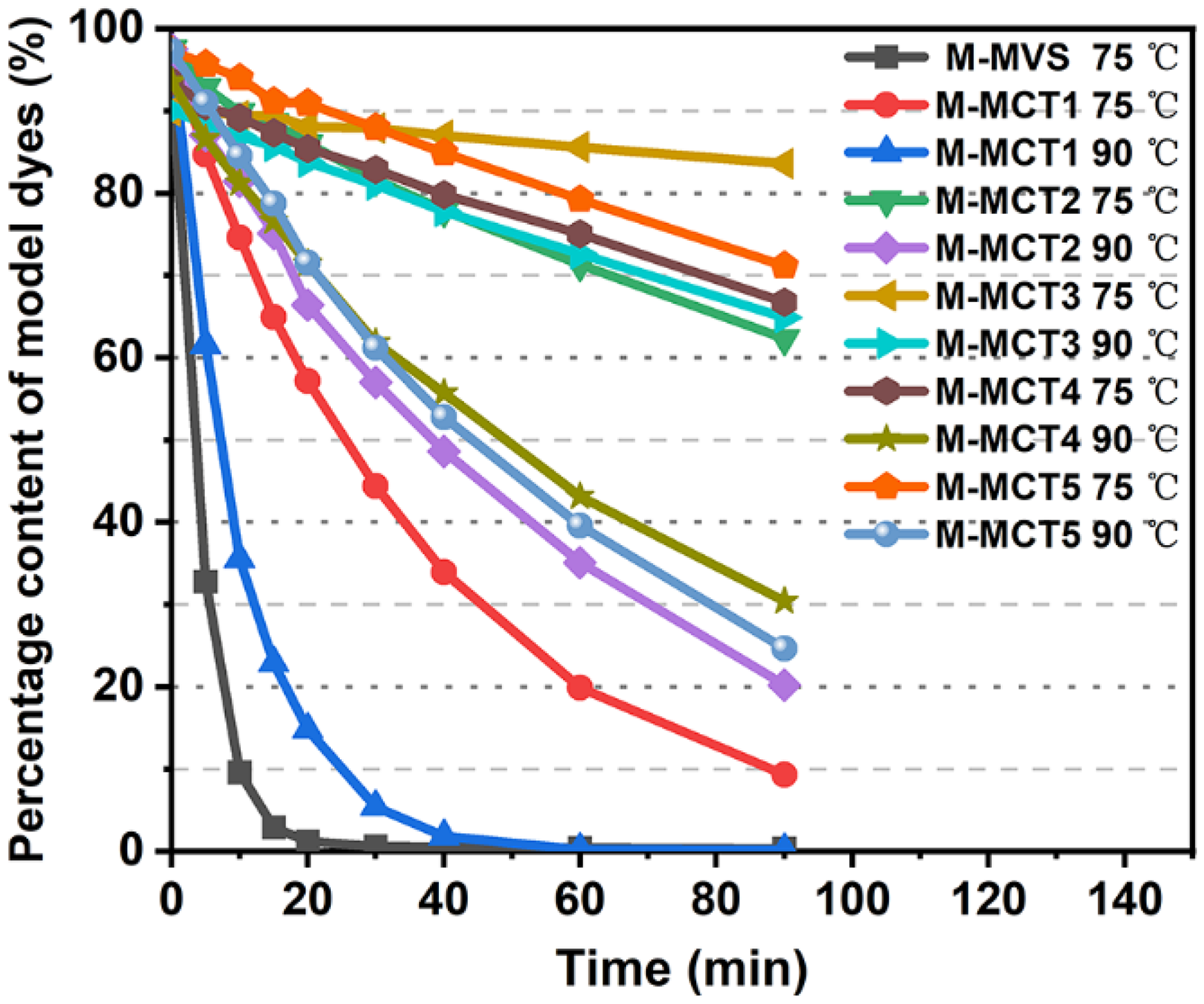

Figure 5.

Plots of the percentage content as a function of time for model dyes in a glycine solution. M-MVS: model-monovinyl sulfone; M-MCT: model-monochlorotriazine.

Stability study of model dyes

The stability of the functional groups is also important in dyeing progress. To analyze their stability, all the model dyes were subjected to the same condition as the reactivity study, but without glycine. This stability study measured the hydrolysis of the model dyes at pH 6.86 and 90°C.

The plots of percentage content as a function of time for all the model dyes are presented in Figure 6. Both M-MVS and M-MCT1 hydrolyzed only 3% in 90 min at 90°C. This result was acceptable under these conditions, and the hydrolysis percentage in the actual dyeing progress would be lower because of the competition between amino groups in nylon fibers and hydroxyl ions. The other dyes barely hydrolyzed owing to their low reactivities. Notably, although the reactivity of M-MCT1 was only 0.121 times that of M-MVS, M-MCT1 still hydrolyzed ∼3%. Therefore, the hydrolysis rate constants of M-MVS and M-MCT1 were analyzed using a similar approach to the reactivity study. Owing to the existence of the phosphate buffer solution, the hydroxyl ion content remains nearly constant. Thus, the pseudo-first-order hydrolysis equation can be expressed as follows:

\ln (A_{t} / A_{0}) = - k_{h} t + b

(8)

where t denotes the time [min]; A_t denotes the concentration of dye at time t; A₀ denotes the initial concentration of dye; k_h denotes the slope [min⁻¹], k_h = k₀ [OH^–] _t ; and b denotes the intercept. The concentration of the dye (A and A₀) was calculated from the peak area of its corresponding HPLC chromatogram.

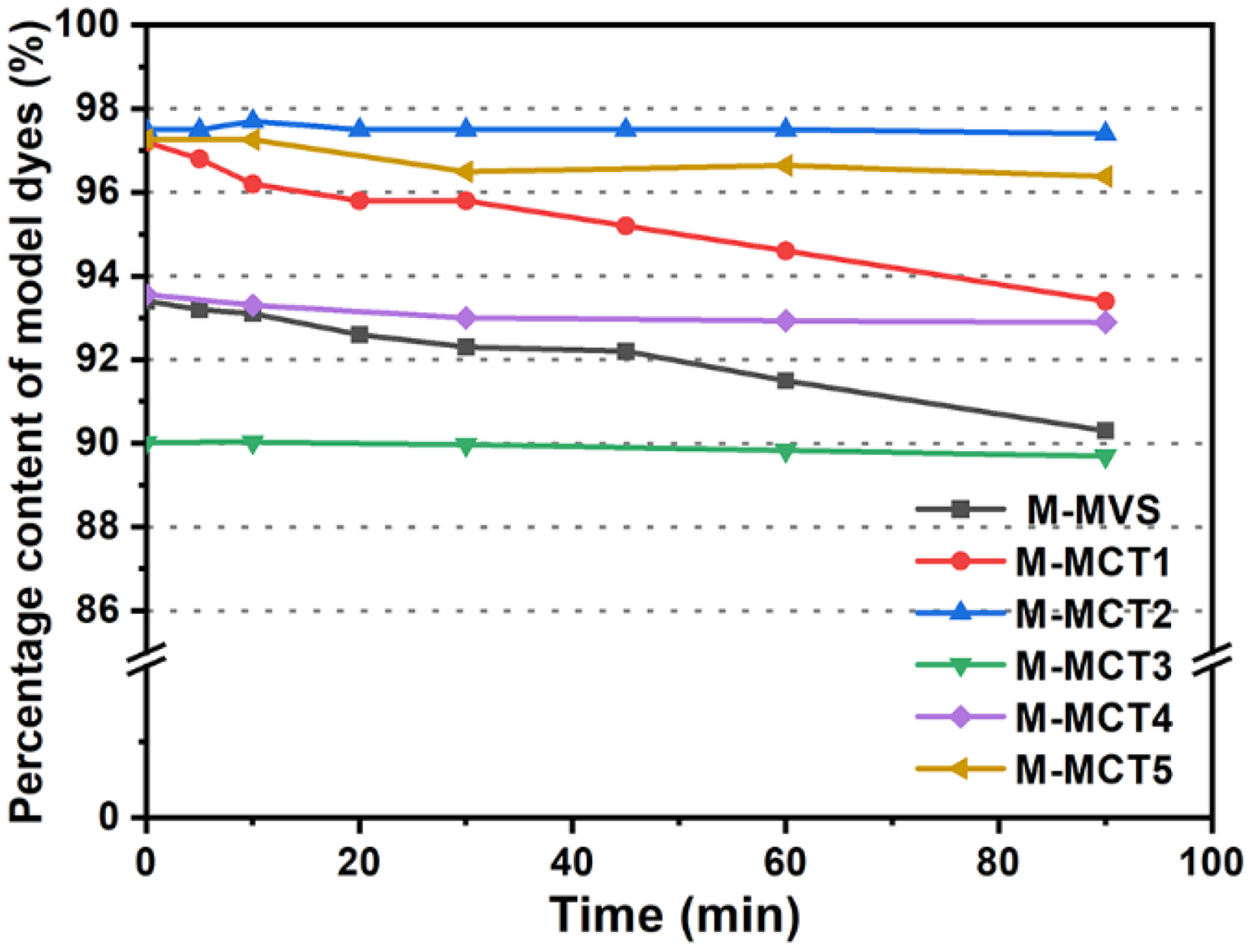

Figure 6.

Plots of the percentage content as a function of time for model dyes in a pH 6.86 buffer solution. M-MVS: model-monovinyl sulfone; M-MCT: model-monochlorotriazine.

The plots of ln(A/A₀) as a function of time for the hydrolysis of MSV and M-MCT1 are presented in Figure S22, and the hydrolysis rates of MSV and M-MCT1 are presented in Table 4. Although the reaction rate of M-MCT1 was only 0.121 times that of M-MVS, its hydrolysis rate was slightly higher than that of M-MVS. This result proved that vinyl sulfone exhibited higher reactivity and stability at pH 6.86 than ethoxychloro-s-triazine. Therefore, vinyl sulfone is more suitable as a functional group for LWSRDs to react with nylon fibers under neutral conditions.

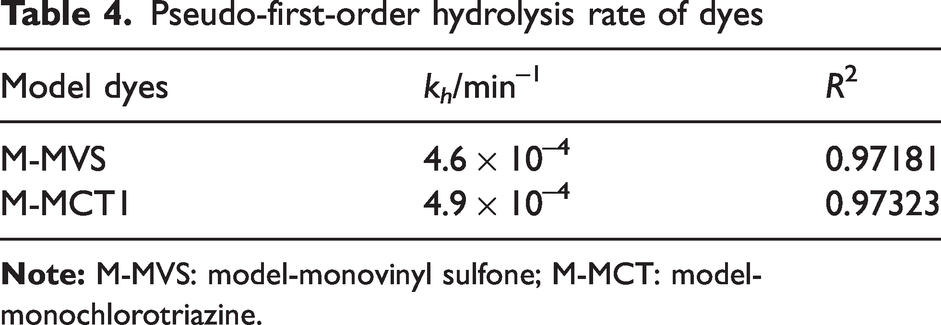

Table 4.

Pseudo-first-order hydrolysis rate of dyes

Model dyes	k_h/min^–1	R ²
M-MVS	4.6 × 10^–4	0.97181
M-MCT1	4.9 × 10^–4	0.97323

Note: M-MVS: model-monovinyl sulfone; M-MCT: model-monochlorotriazine.

Structures and properties of LWS-MVSDs

In the reactivity and stability studies, vinyl sulfone demonstrated superior characteristics as a functional group for LWSRDs. Therefore, to synthesize four LWS-MVSDs with a large relative molecular mass, traditional dye intermediates, such as 3-methyl-1-phenyl-2-pyrazolin-5-one, J-acid and H-acid, were used as coupling components. The synthesis of LWS-MVSRY dyes involved ingenious utilization of the coupling compound comprising 3-aminobenzene sulfonic acid and 4-(ethylsulfurate sulfonyl) aniline as diazonium salts, which were coupled with 3-methyl-1-phenyl-2-pyrazolin-5-one (Figure 7).

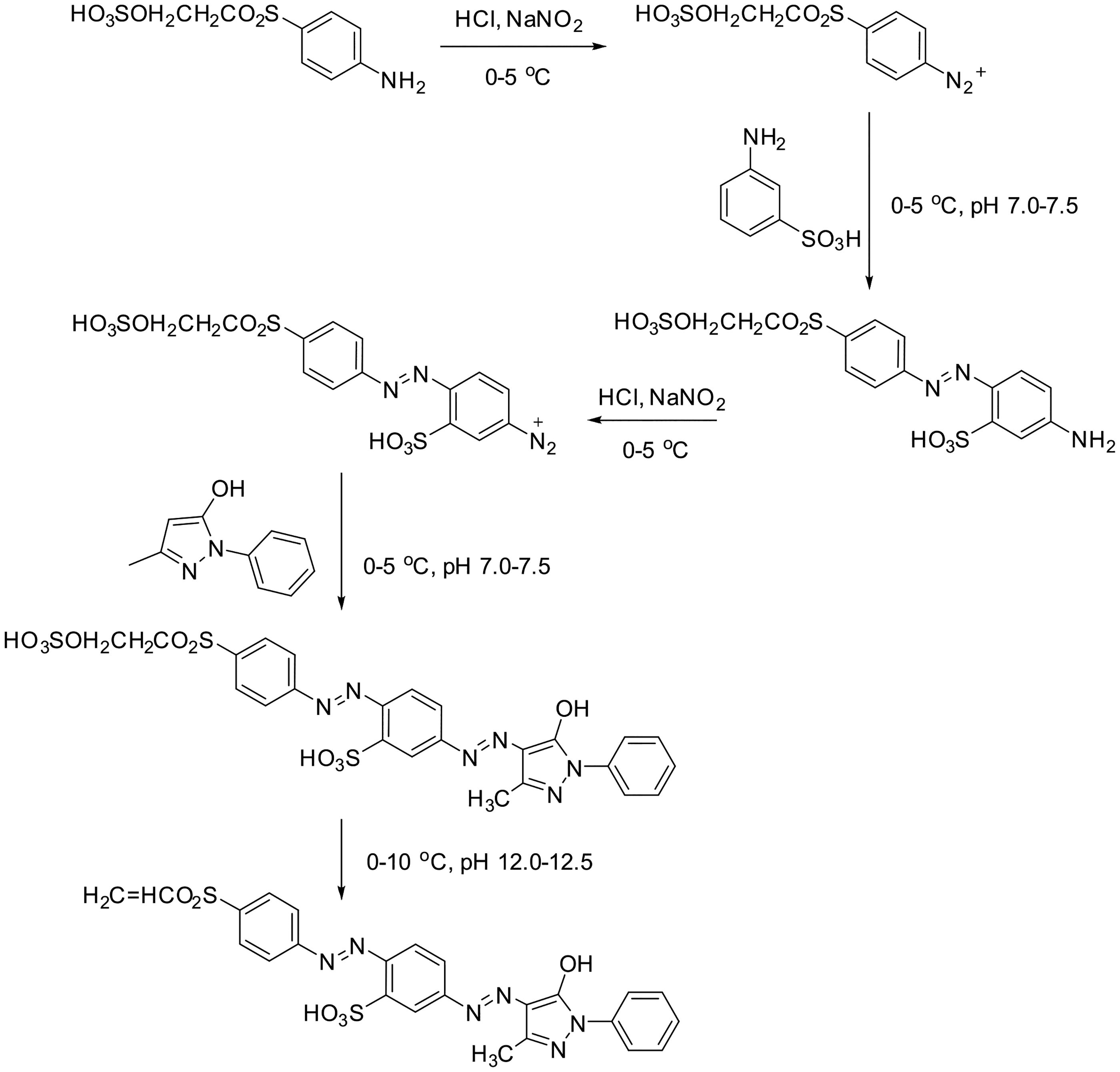

Figure 7.

Synthesis of LWS-MVSRY.Note: LWS-MVSRY: low-water-soluble monovinyl sulfone reactive yellow.

As shown in Figure 8, LWS-MVSRO, LWS-MVSRR and LWS-MVSRB had a similar synthesis procedure. LWS-MVSRO and LWS-MVSRR were bisazo dyes derived from J-acid. The first coupling reaction was carried out between 4-(ethylsulfurate sulfonyl) aniline and J-acid, and the second diazonium salts were 4-butylaniline and 4-aminoacetanilide, respectively. The final step involved the vinylation reaction. LWS-MVSRB was synthesized by introducing 4-n-dodecyl-aniline as the second diazonium salt into the first coupling product of 4-(ethylsulfurate sulfonyl) aniline and H-acid, resulting in the formation of a bisazo dye derived from H-acid.

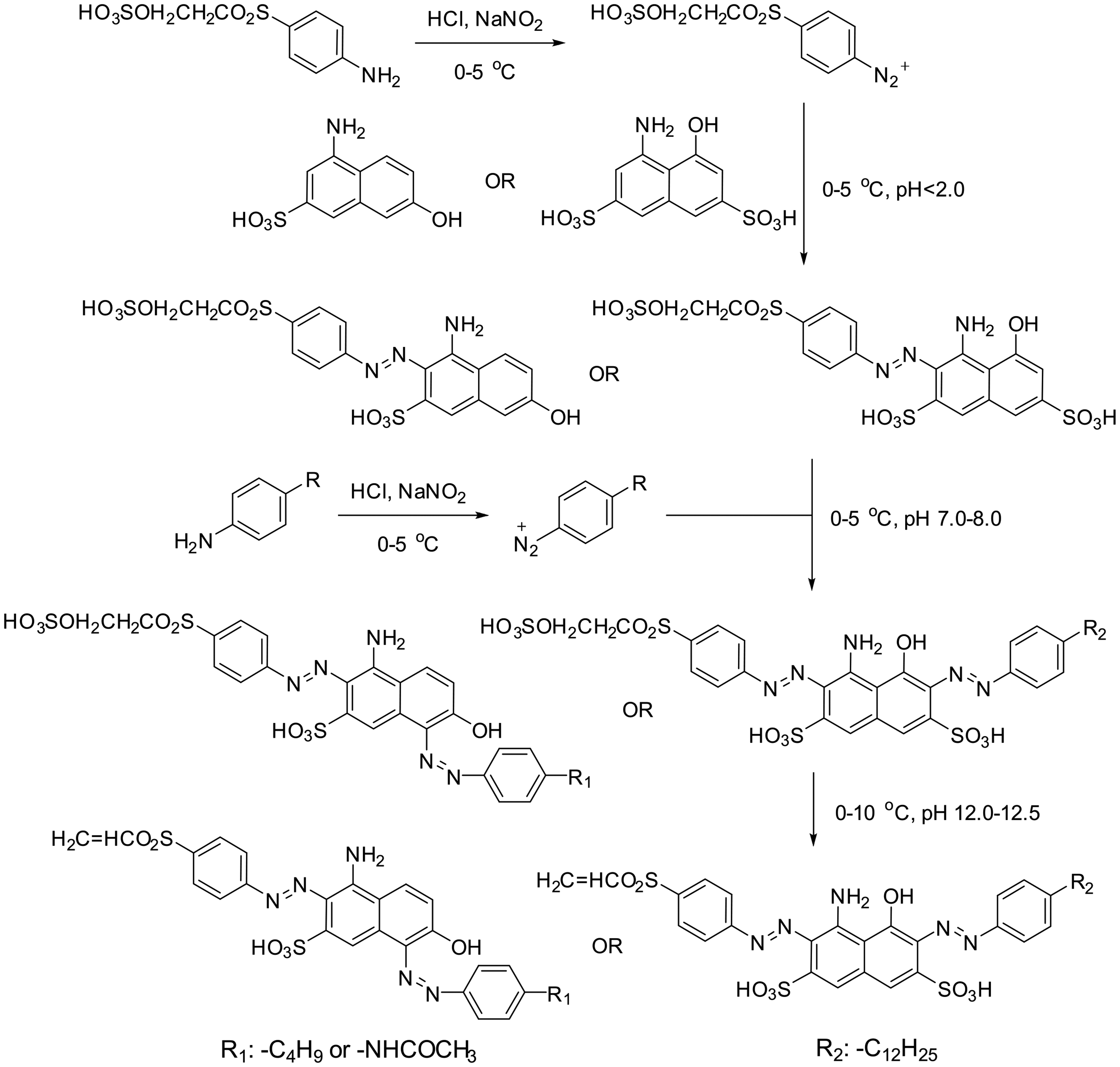

Figure 8.

Synthesis of LWS-MVSRO, LWS-MVSRR and LWS-MVSRB.Notes: LWS-MVSRO: low-water-soluble monovinyl sulfone reactive orange; LWS-MVSRR: low-water-soluble monovinyl sulfone reactive red; LWS-MVSRB: low-water-soluble monovinyl sulfone reactive blue.

The structures and spectral data of the LWS-MVSDs are presented in Table 5. LWS-MVSRY exhibited a bright yellow color with a maximum absorption wavelength at 387 nm, accompanied by a molar absorption coefficient (ε_max) of 1.69 × 10⁴ dm³·mol⁻¹·cm⁻¹. However, LWS-MVSRO and LWS-MVSRR exhibited orange and red colors with maximum absorption wavelengths at 499 and 514 nm, respectively. Their respective ε_max values were 2.14 × 10⁴ and 2.23 × 10⁴ dm³·mol⁻¹·cm⁻¹. LWS-MVSRB exhibited the typical blue color characteristic of H-acid and the largest ε_max (3.27 × 10⁴ dm³·mol⁻¹·cm⁻¹) among the four LWS-MVSDs. The solubility of the LWS-MVSDs ranged from 5.85 to 10.30 g·L⁻¹, which was considerably lower than that of M-MVS (see Table 1). Therefore, they exhibited a good affinity for nylon microfibers, similar to that of milling acid dyes.

Table 5.

Structures and spectral data of the low-water-soluble monovinyl sulfone dyes

Name	λ_max, nm	ε_max × 10⁴, dm³·mol⁻¹·cm⁻¹	Solubility, g/L
LWS-MVSRY	387	1.69	5.85
LWS-MVSRO	499	2.14	7.56
LWS-MVSRR	514	2.23	8.23
LWS-MVSRB	586	3.27	10.30

Notes: LWS-MVSRY: low-water-soluble monovinyl sulfone reactive yellow; LWS-MVSRO: low-water-soluble monovinyl sulfone reactive orange; LWS-MVSRR: low-water-soluble monovinyl sulfone reactive red; LWS-MVSRB: low-water-soluble monovinyl sulfone reactive blue.

Dyeing results and color fastness of the M-MVS and LWS-MVSDs

Figure 9 illustrates the dyeing results of the M-MVS and LWS-MVS dyes [2% (o.w.f.)] on nylon 6 microfibers. The exhaustion of M-MVS was only 41.0%, which accounts for the low utilization of M-MVS. Furthermore, the fixation of M-MVS was only 36.6%, indicating a substantial wastage of M-MVS dyes. However, the reactivity of M-MVS was 88.0%, demonstrating the favorable affinity of vinyl for nylon 6 microfibers. Conversely, the four LWS-MVSDs performed excellent utilization. LWS-MVSRY achieved a fixation of 91.8% with a reactivity of 94.1%. The other three LWS-MVSDs displayed fixations of >97.9%. This exceptional performance was attributed to the ability of the LWS-MVSDs to effectively stain nylon 6 microfibers under neutral conditions and the high reactivity of vinyl sulfone in the LWS-MVSDs with amino groups on the nylon microfiber. Overall, the dyeing results of the LWS-MVSDs were highly satisfactory, with almost no colored wastewater produced during the dyeing process.

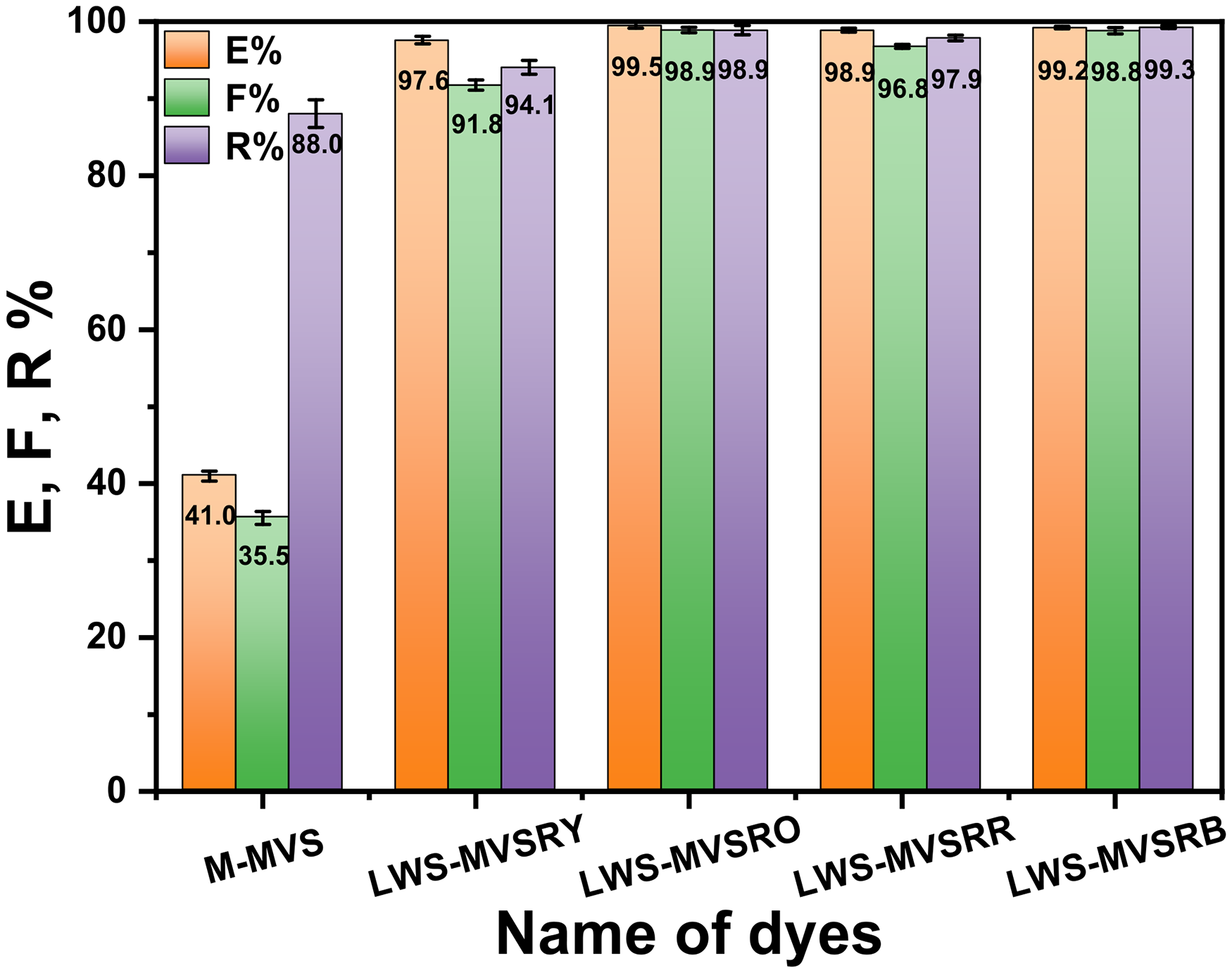

Figure 9.

Dyeing results of nylon microfiber with the model-monovinyl sulfone (M-MVS) and low-water-soluble monovinyl sulfone dyes (LWS-MVSDs).Notes: LWS-MVSRY: low-water-soluble monovinyl sulfone reactive yellow; LWS-MVSRO: low-water-soluble monovinyl sulfone reactive orange; LWS-MVSRR: low-water-soluble monovinyl sulfone reactive red; LWS-MVSRB: low-water-soluble monovinyl sulfone reactive blue.

Digital photos of the dyed nonwoven nylon 6 microfibers are shown in Figure 10. As show in this figure, the four dyed fibers exhibited bright colors, but the K/S values, which indicate the dye uptake, were <6.0 at a dosage of 2% (o.w.f.) (Table 6). The low K/S values can be attributed to the nature of the nonwoven nylon 6 fibers used in this study. Microfibers have a larger specific surface area and stronger reflection than traditional fibers; therefore, they exhibit lighter color shades.

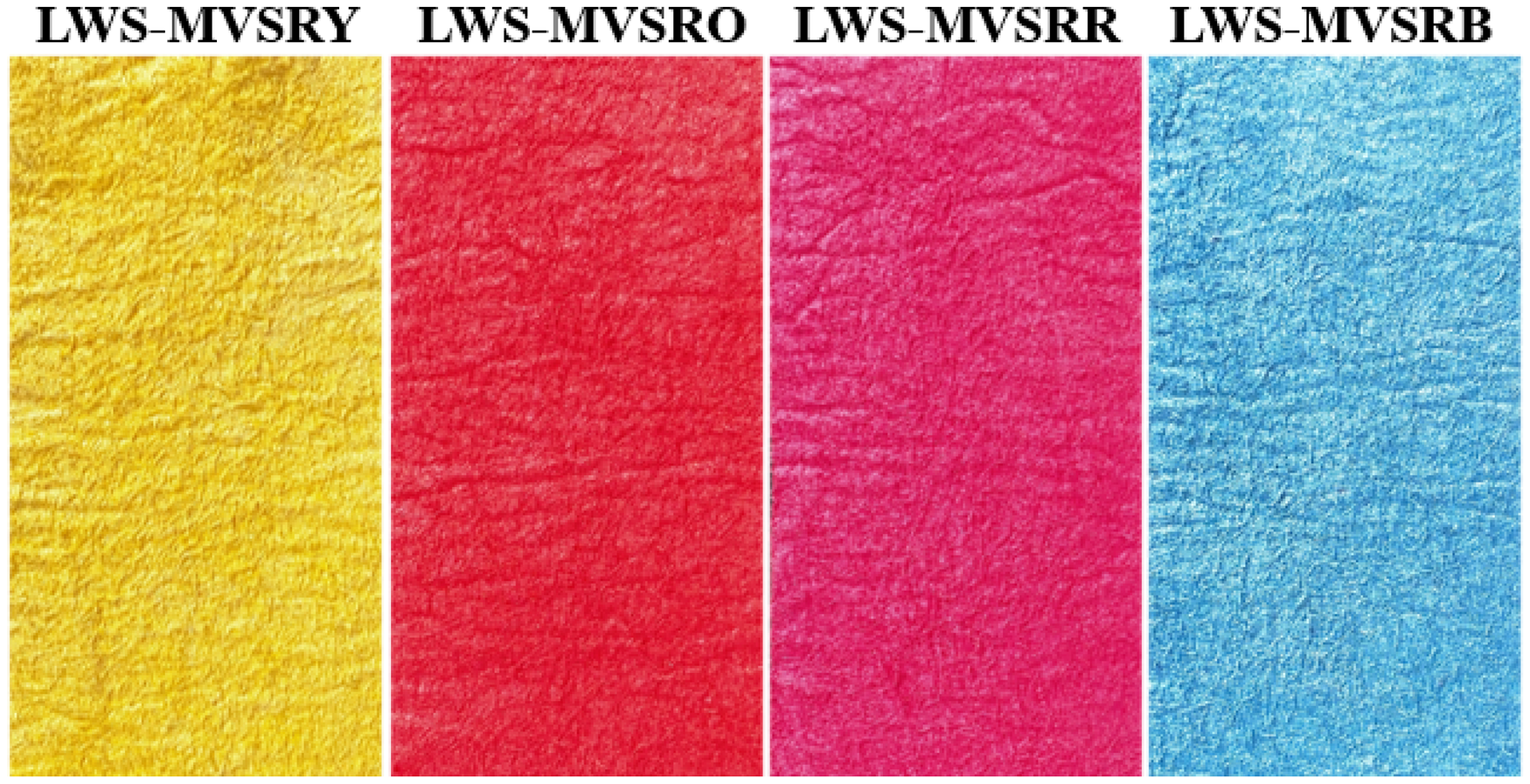

Figure 10.

Photographs of nylon microfiber dyed with low-water-soluble monovinyl sulfone dyes (LWS-MVSDs).Notes: LWS-MVSRY: low-water-soluble monovinyl sulfone reactive yellow; LWS-MVSRO:low-water-soluble monovinyl sulfone reactive orange; LWS-MVSRR:low-water-soluble monovinyl sulfone reactive red; LWS-MVSRB:low-water-soluble monovinyl sulfone reactive blue.

Table 6.

Color fastness of the model-monovinyl sulfone (M-MVS) and low-water-soluble monovinyl sulfone dyes on nylon 6 microfibers

Dyes	K/S	Washing fastness							Rubbing fastness		Light fastness
Dyes	K/S	Change	Wool	Acrylic fibers	Polyester	Polyamide	Cotton	Cellulose acetate	Dry	Wet	Light fastness
M-MVS	4.0	4–5	4–5	4–5	4–5	4-5	4-5	4–5	4–5	4-5	4
LWS-MVSRY	4.3	4–5	4–5	4–5	4–5	4–5	4–5	4–5	4-5	4	6
LWS-MVSRO	5.6	4–5	4–5	4–5	4–5	4-5	4-5	4–5	4–5	4	4
LWS-MVSRR	5.4	4–5	4–5	4–5	4–5	4–5	4–5	4–5	4-5	4-5	4
LWS-MVSRB	4.8	4–5	4–5	4–5	4–5	4–5	4–5	4–5	4-5	4	4

Notes: M-MVS: model-monovinyl sulfone; LWS-MVSRY: low-water-soluble monovinyl sulfone reactive yellow; LWS-MVSRO: low-water-soluble monovinyl sulfone reactive orange; LWS-MVSRR: low-water-soluble monovinyl sulfone reactive red; LWS-MVSRB: low-water-soluble monovinyl sulfone reactive blue.

The LWS-MVSDs exhibited good dyeing results for nylon 6 microfibers; moreover, these dyes exhibited excellent color fastness with K/S values ranging from 4.0 to 5.6. The washing and multifiber staining color fastness were all above grade 4–5, and the rubbing fastness exceeded grade 4 (see Table 6). The excellent washing and rubbing color fastness were attributed to the functional groups in the dyes, which can form covalent bonds with amino groups in nylon 6 microfibers. The light color fastness of reactive dyes mainly depended on the dye structure. The light color fastness of LWS-MVSRY was grade 6 owing to its coupling component (3-methyl-1-phenyl-2-pyrazolin-5-one), which has good color stability in dyes. Furthermore, the light color fastness of the other LWSRDs was approximately grade 4, which is commonly observed in the case of many acid dyes and reactive dyes, which are synthesized based on J-acid and H-acid. Overall, vinyl sulfone proved to be a suitable functional group for LWSRDs, particularly in dyeing nylon microfibers.

Conclusions

LWSRDs offer a potential solution to enhance the low utilization of traditional reactive dyes on nylon fibers. To quantitatively evaluate a suitable functional group for LWSRDs, a M-MVS and five M-MCT red dyes were synthesized, possessing 4-substituents such as ethoxy, 4-sulfonated phenylamino, dimethylamino, amino and anilino. These dyes were used to simulate the fixation progress of nylon fibers using glycine as a model compound at 75°C and 90°C and a pH of 6.86. The reactivity study of the model dyes with glycine demonstrated that only vinyl sulfone and ethoxychloro-s-triazine exhibited sufficient reactivity to react with glycine within 90 min. The reaction between M-MVS and glycine was completed within just 30 min at 75°C, highlighting its high reactivity. M-MCT1 reacted completely at 90°C within 50 min. The reaction rate of ethoxychloro-s-triazine was only 0.121 times that of vinyl sulfone. The other M-MCT dyes showed insufficient reactivity and were unsuitable as functional groups for LWSRDs. In the stability study, vinyl sulfone and ethoxychloro-s-triazine hydrolyzed to ∼3% within 90 min, exhibiting similar hydrolysis rates. Considering the considerably higher reactivity of vinyl sulfone compared with ethoxychloro-s-triazine, vinyl sulfone emerged as the more suitable functional group for LWSRDs. Therefore, four LWS-MVSDs were synthesized to dye nylon 6 microfibers. Compared with the low utilization of M-MVS, the LWS-MVSDs performed superior fixation exceeding 90%, with washing and rubbing color fastness surpassing grade 4. The reactivity and stability studies provide valuable guidance in selecting functional groups for reactive dyes. LWSRDs comprising vinyl sulfones have broad application prospects in the dyeing of silk, wool, leather, nylon fibers and their related products.
