Biodiesel production from non-edible plant oils

Abstract

Biodiesel is an alternative to petroleum-based fuels derived from a variety of feedstocks, including vegetable oils, animal fats, and waste cooking oil. At present, biodiesel is mainly produced from conventionally grown edible oils such as soybean, rapeseed, sunflower, and palm. The cost of biodiesel is the main obstacle to commercialization of the product. Biodiesel produced from edible oils is currently not economically feasible. On the other hand, extensive use of edible oils for biodiesel production may lead to food crisis. These problems can be solved by using low-cost feedstocks such as non-edible oils and waste cooking oils for biodiesel production. This paper reviews numerous options of non-edible oils as the substantial feedstocks, biodiesel processing, and effect of different parameters on production of biodiesel.

Keywords

Non-edible oil viscocity FFA biodiesel transesterification fuel characteristics

Introduction

Interest in the use of biofuels worldwide has grown strongly in recent years due to the limited oil reserves, concerns about climate change from greenhouse gas emissions and the desire to promote domestic rural economies (Balat and Balat, 2009; Ozturk, 2014). The term biofuel is as such referred to solid, liquid, or gaseous fuels that are produced from plant matter and residues, agricultural crops, municipal wastes, and agricultural and forestry by-products (Aburas and Demirbas, 2015a; Qin et al., 2009, 2010; Altun and Yasar, 2013). Liquid biofuels can be used as an alternative to traditional fossil fuels in the transportation sector (Aburas, 2015).

Globally, the transportation sector is a major source of energy consumption and carbon dioxide (CO₂) emissions. This sector is responsible for 18% of primary energy consumption (Wang et al., 2014) and 23% of all energy-related CO₂ emissions globally (Du Ploy and Nel, 2012). The world energy demand continues to increase. This growth will affect the stability of ecosystems and global climate as well as global oil reserves. The most feasible way to meet this growing demand is by utilizing alternative fuels (Demirbas et al., 2015a, 2015b). Production of biofuel from biomass is one way to reduce both the consumption of crude oil and environmental pollution (Ayanoglu and Aksoy, 2015).

Global production of biofuels has been growing rapidly in recent years, rising from about 18 billion liters in 2000 (Kemausuor et al., 2013) to 110 billion liters in 2013 (IEA, 2014). It is expected to reach to 140 billion liters by 2018 (IEA, 2014). Current consumption of biofuels globally constitutes about 3.5% of transportation fuels by energy content, and this could expand to about 4% by 2018 (IEA, 2014).

Majority of liquid biofuels is produced in the form of bioethanol (around 80%) and the rest constitutes biodiesel (Figiel and Hamulczuk, 2014). The global biodiesel industry is one of the fastest-growing markets. Since 2004, global biodiesel production increased 15-fold, while bioethanol production grew nearly fourfold (REN21, 2014). This paper reviews different processing techniques for biodiesel production from common non-edible vegetable oils and determines the most suitable one.

Raw materials for biodiesel production

Biodiesel production is a very modern and technological area for researchers due to the relevance that it is winning every day because of the increase in the petroleum price and the environmental advantages (Aburas and Demirbas, 2015b; Marchetti et al., 2007). Biodiesel can be derived from a variety of sources including vegetable oils, animal fats, and waste cooking oil.

Vegetable oils, also known as triglycerides, are chemically triglycerides molecules in which three fatty acids groups are esters attached to one glycerol molecule. Vegetable oils from renewable oil seeds can be used when mixed with diesel fuels (Demirbas, 2008a). The advantages of vegetable oils as diesel fuel are their portability, ready availability, renewability, higher heat content (about 88% of no. 2 Diesel fuel), lower sulfur content, lower aromatic content, and biodegradability (Demirbas et al., 2015b). The main disadvantages of vegetable oils as diesel fuel are higher viscosity, higher cost, lower volatility, and the reactivity of unsaturated hydrocarbon chains (Demirbas, 2009a,b). The vegetable oils were all extremely viscous, with viscosities ranging 10–20 times greater than no. 2 Diesel fuel (Aburas et al., 2015; Demirbas, 2003). Fuel-related properties of various vegetable oils are shown in Table 1. Blending of vegetable oils with diesel, however, reduces the viscosity drastically and the fuel handling system of the engine can handle vegetable oil–diesel blends without any problems (Agarwal et al., 2008; Rao et al., 2008). The conversion of vegetable oils into fatty acid methyl esters (FAME) is an effective way to overcome all the problems associated with the vegetable oils.

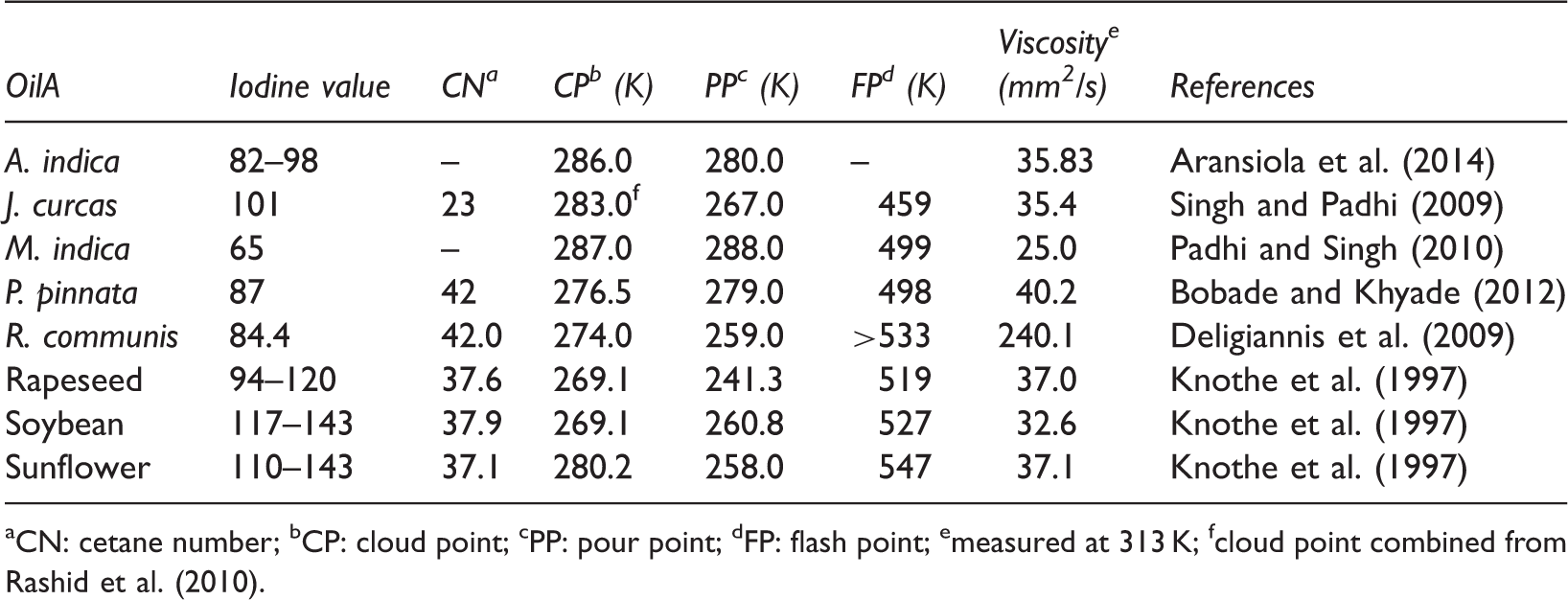

Table 1.

Fuel-related properties of selected vegetable oils.

OilA	Iodine value	CN^a	CP^b (K)	PP^c (K)	FP^d (K)	Viscosity^e (mm²/s)	References
A. indica	82–98	–	286.0	280.0	–	35.83	Aransiola et al. (2014)
J. curcas	101	23	283.0^f	267.0	459	35.4	Singh and Padhi (2009)
M. indica	65	–	287.0	288.0	499	25.0	Padhi and Singh (2010)
P. pinnata	87	42	276.5	279.0	498	40.2	Bobade and Khyade (2012)
R. communis	84.4	42.0	274.0	259.0	>533	240.1	Deligiannis et al. (2009)
Rapeseed	94–120	37.6	269.1	241.3	519	37.0	Knothe et al. (1997)
Soybean	117–143	37.9	269.1	260.8	527	32.6	Knothe et al. (1997)
Sunflower	110–143	37.1	280.2	258.0	547	37.1	Knothe et al. (1997)

CN: cetane number; ^bCP: cloud point; ^cPP: pour point; ^dFP: flash point; ^emeasured at 313 K; ^fcloud point combined from Rashid et al. (2010).

Most of the biodiesel is currently made from soybean, rapeseed, sunflower, and palm oils (Demirbas, 2015b). New plant oils that are under consideration include mustard seed, peanut, sunflower, and cotton seed. Soybean oil is commonly used in the United States and rapeseed oil is used in many European countries for biodiesel production, whereas, coconut oil and palm oils are used in Malaysia and Indonesia for biodiesel production (Ghadge and Raheman, 2005; Srivastava and Verma, 2008). About 80% of the European Union’s total biofuel production is comprised of biodiesel produced from rapeseed and sunflower seeds (Ahmad et al., 2010). Soybean oil accounts for approximately 90% of the biodiesel produced in the United States (Balat and Balat, 2010). Rapeseed oil has 59% of total global biodiesel raw material sources, followed by soybean (25%), palm oil (10%), sunflower oil (5%), and other (1%) (Pahl, 2008).

Food versus fuel

The major obstacle for commercialization of biodiesel is its cost approximately 70%–90% of biodiesel cost is arises from the cost of raw materials (Shikha and Rita, 2012). Therefore, biodiesel produced from edible vegetable oils is currently not economically feasible. Non-edible oil plants are easily available in developing countries and are very economical comparable to edible plant oils. The production of biodiesel from different non-edible oilseed crops has been extensively investigated over the last few years.

Extensive use of edible oils may cause other significant problems such as starvation in developing countries. Using edible oils to produce biodiesel raises major nutritional and ethical concerns. About 13% of global vegetable oil supplies were used for biodiesel production in 2012. World annual petroleum consumption and vegetable oil production is about 4.018 and 0.107 billion tons, respectively (Demirbas, 2010). Biodiesel production accounted for 25.6% of the global demand for rapeseed oil, 16.1% of the global soybean oil demand, and 5.9% of global palm oil demand in 2012.

On the other hand, extensive use of edible vegetable oils may cause other significant problems such as starvation in developing countries. There are concerns that biodiesel feedstock may compete with food supply in the long term (Chhetri et al., 2008). Biodiesel produced from non-edible vegetable oil has good potential as an alternative diesel fuel. The use of non-edible plant oils when compared with edible plant oils is very significant because of the tremendous demand for edible oils as food, and they are far too expensive to be used as fuel at present (Mahanta et al., 2006). Non-edible oil plants can be grown in waste lands that are not suitable for food crops and the cost of cultivation is much lower because these plants can still sustain reasonably high yield without intensive care (Fatah et al., 2012). Non-edible oil plants are well adapted to arid, semi-arid conditions and require low fertility and moisture demand to grow (Atabani et al., 2013).

Non-edible vegetable oils as raw material

In order to overcome the above-mentioned problems, researches have been made to produce biodiesel by using alternative resources like non-edible vegetable oils. Oils from non-edible resources are unsuitable for human consumption because of the presence of some toxic components (Bankovic-Ilic et al., 2012). Non-edible vegetable oils are therefore expected to help the biodiesel to be competitive in price as compared to the use of food-grade vegetable oils. The advantages of non-edible vegetable oils as a diesel fuel are their liquid nature portability, ready availability, renewability, higher combustion efficiency, lower sulfur, and aromatic content and higher biodegradability (Shikha and Rita, 2012). However, as a serious drawback, most non-edible oils contain a high content of free fatty acids (FFAs), which increases the biodiesel production cost (Bankovic-Ilic et al., 2012). The type and quantification of fatty acids contained in vegetable oil depends on the plant species and on the growth conditions of the plant (Thangaraj et al., 2014). Table 2 shows comparison of fatty acid composition between various edible and non-edible vegetable oils.

Table 2.

Comparison of fatty acid composition between various edible and non-edible vegetable oils.

Oil	Palmitic (C16:0)	Palmitoleic (C16:1)	Stearic (C18:0)	Oleic (C18:1)	Linoleic (C18:2)	Linolenic (C18:3)	References
A. indica	12.01	–	12.95	34.09	38.26	0.3	Muthu et al. (2010)
J. Curcas	14.2	0.7	7.0	44.7	32.8	0.2	Edem (2002)
M. indica	24.5	–	22.7	37.0	14.3	–	Bhatt et al. (2004)
tabacum	7.9	–	3.1	17.1	70.6	–	Zdremnan and Zdremnan (2006)
P. pinnata	10.2	–	7.0	51.8	17.7	3.6	Akoh et al. (2007)
communis ^a	1.3	–	1.2	5.5	0.5	7.3	Salimon et al. (2010)
Rapeseed	3.5	0	0.9	64.1	22.3	8.2	Demirbas (2003)
Soybean	13.9	0.3	2.1	23.2	56.2	4.3	Demirbas (2003)
Sunflower	6.4	0.1	2.9	17.7	72.9	0	Demirbas (2003)

R. communis oil contains 89.6% ricinoloic acid.

There are many examples for non-edible oilseed crops such as jatropha tree (Jatropha curcas), karanja (Pongamia pinnata), mahua (Madhuca indica), castor bean seed (Ricinus communis), neem (Azadirachta indica), rubber seed tree (Hevea brasiliensis), tobacco seed (Nicotiana tabacum), rice bran, etc. The production of biodiesel from different non-edible oilseed crops has been extensively investigated over the last few years (Ghadge and Raheman, 2005; Gimbun et al., 2013; Heroor and Bharadwaj, 2013; Ong et al., 2011; Padhi and Singh, 2010; Thangaraj et al., 2014). Table 3 shows the oil contents of some non-edible plants as suitable feedstock for biodiesel production.

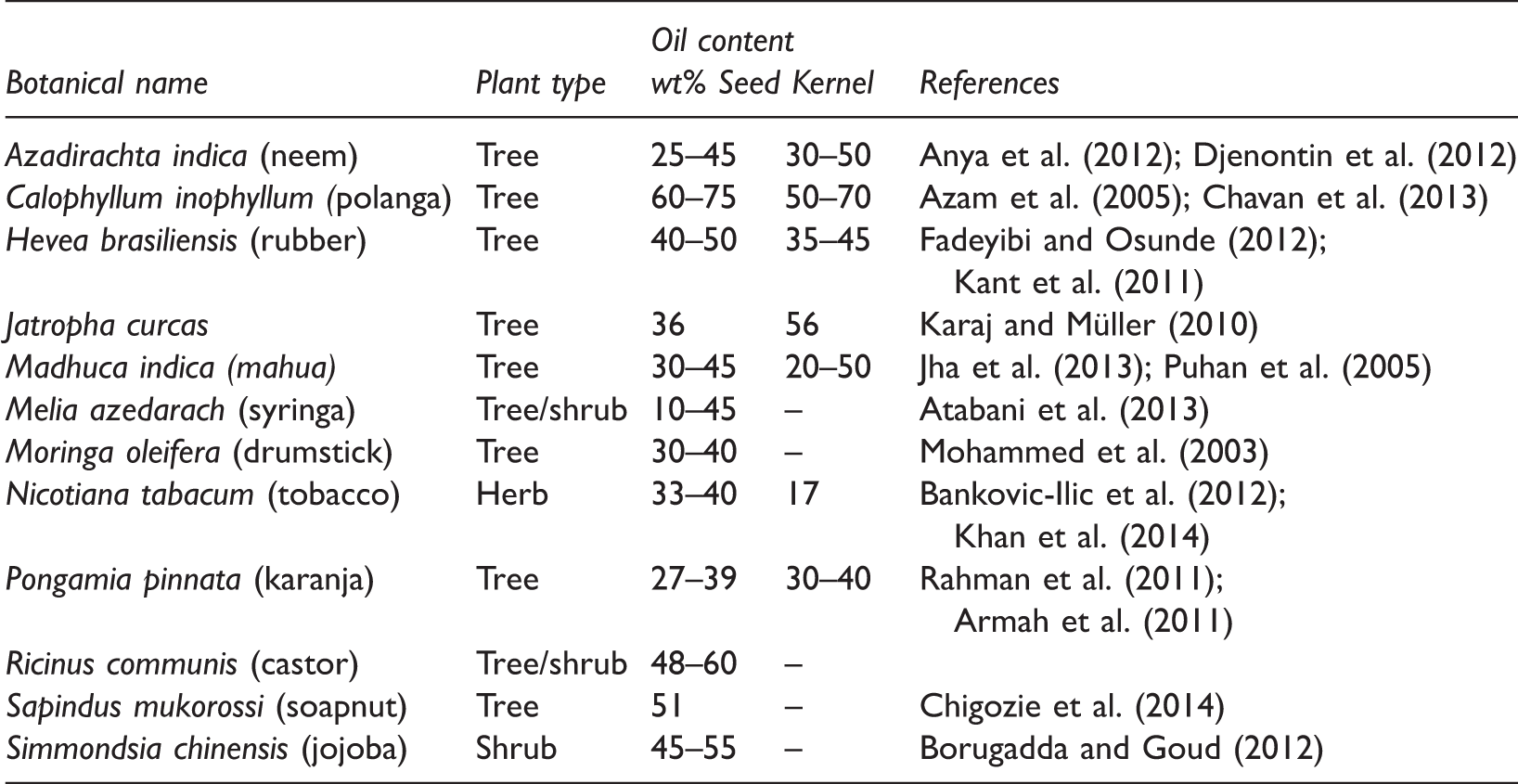

Table 3.

The oil content in seeds and kernels of some non-edible plants.

Botanical name	Plant type	Oil content wt% Seed Kernel		References
Azadirachta indica (neem)	Tree	25–45	30–50	Anya et al. (2012); Djenontin et al. (2012)
Calophyllum inophyllum (polanga)	Tree	60–75	50–70	Azam et al. (2005); Chavan et al. (2013)
Hevea brasiliensis (rubber)	Tree	40–50	35–45	Fadeyibi and Osunde (2012); Kant et al. (2011)
Jatropha curcas	Tree	36	56	Karaj and Müller (2010)
Madhuca indica (mahua)	Tree	30–45	20–50	Jha et al. (2013); Puhan et al. (2005)
Melia azedarach (syringa)	Tree/shrub	10–45	–	Atabani et al. (2013)
Moringa oleifera (drumstick)	Tree	30–40	–	Mohammed et al. (2003)
Nicotiana tabacum (tobacco)	Herb	33–40	17	Bankovic-Ilic et al. (2012); Khan et al. (2014)
Pongamia pinnata (karanja)	Tree	27–39	30–40	Rahman et al. (2011); Armah et al. (2011)
Ricinus communis (castor)	Tree/shrub	48–60	–
Sapindus mukorossi (soapnut)	Tree	51	–	Chigozie et al. (2014)
Simmondsia chinensis (jojoba)	Shrub	45–55	–	Borugadda and Goud (2012)

Jatropha curcas

Jatropha curcas is a tall bush or small tree, up to 5–7 m tall, belonging to the Euphorbiaceae family (Atabani et al., 2013). Originally from Central America, Jatropha curcas is found throughout the tropics including much of Africa and Asia (Nahar and Sunny, 2014). It has been planted in several arid regions, in these regions it only yields about 0.5 ton per hectare (Balat and Balat, 2010). The plant is important for climate change issues as a mature plant or tree absorbs CO₂ at a rate of 18 lbs per year (Nahar and Sunny, 2014). A research study (Becker et al., 2013) showed that one hectare of Jatropha curcas could capture up to 25 tons of CO₂ from the atmosphere every year (over a 20-year period). Jatropha curcas oil is a leading candidate for the commercialization of non-edible vegetable oils (No, 2011). Jatropha curcas seeds have an oil content ranging between 30% and 40% (Pandey et al., 2012). Jatropha curcas oil contains approximately 24.60% of crude protein, 47.25% of crude fat, and 5.54% of moisture content (Akintayo, 2004). Most of the non-edible oils including Jatropha curcas carry a high level of FFAs. The oil fraction of Jatropha curcas consists of both saturated (14.2% palmitic acid and 7.0% stearic acid) and unsaturated fatty acids (44.7% oleic acid and 32.8% linoleic acid) (Table 2).

Pongamia pinnata (Karanja)

Pongamia pinnata, commonly known as karanja, is a medium-sized glabrous, perennial tree grows in the littoral regions of South Eastern Asia and Australia (Satyavati et al., 1987). It is a hardy tree of 12–15 m height, branches spread into hemispherical crown of dense green leaves (Naik and Katpatal, 2013). The yield of oilseed per tree is between 8 and 24 kg (Doshi and Srivastava, 2013). The seeds of Pongamia pinnata contain around 30%–40% of oil (Scott et al., 2008). Pongamia pinnata oil is considered to be less toxic and cheaper than Jatropha curcas oil, so it has become the subject of biodiesel research (Khayoon et al., 2012). Most of the physical and chemical properties of the Pongamia pinnata oil are similar to those of the diesel fuel, however this oil is more viscous and produce higher carbon residue (Meenakshi, 2014). Pongamia pinnata oil contains oleic acid (51.8%) as the major fatty acid followed by linoleic (10.7%), palmitic (10.7%), and stearic (7%) acids (Table 2).

Madhuca indica (Mahua)

Madhuca indica, commonly known as mahua or butternut tree, is a middle-sized large deciduous tree, which grows to a height of 10–15 m (Chidrewar et al., 2010). It belongs to the family Sapotaceae. The Madhuca indica tree starts producing seeds after 10 years and continues for up to 60 years (Pandey, 2008). An average yield of 800 kg/ha can be expected in a Mahua plantation after a decade (Kant et al., 2011). Each tree yields about 20–40 kg of seed per year (Borugadda and Goud, 2012). Madhuca indica seed contains 35% oil and 16% protein (Panigrahi et al., 2014). Fresh Madhuca indica oil from properly stored seeds is yellow, while commercial oils are generally greenish yellow with an offensive odor and disagreeable taste (Puhan et al., 2005). The Madhuca indica oil contains a high level of FFAs (up to 20%) (Ghadge and Raheman, 2005) and a procedure for converting this oil to biodiesel is very much required. FFA composition of Madhuca indica oil is shown in Table 2.

Ricinus communis (Castor)

Ricinus communis, commonly known as castor oil plant, is a plant species of the family Euphorbiaceae. It originates in Africa but it is found in both wild and cultivated states in all the tropical and subtropical countries of the world (Forero, 2004). Ricinus communis is a small wooden tree that can reach a height of about 6 m. The comparative advantage of Ricinus communis is that its growing period is much shorter than that of Jatropha curcas and Pongamia pinnata, and there is considerably greater experience and awareness among farmers about its cultivation (Rajagopal, 2007). Ricinus communis is an ideal candidate for production of high value, industrial oil feedstocks because of the very high oil content (48%–60%) of the seed, and the extremely high levels of potential oil production (500–1000 l of oil/acre). The main constituent of Ricinus communis oil is ricinoleic acid (90%), which contains 18 carbon atoms with a hydroxyl group position 12. Therefore, Ricinus communis oil contains more oxygen than other oils and, therefore, Ricinus communis oil and its derivatives are more soluble in alcohols during the transesterification reactions. The main disadvantage of Ricinus communis oil is its high viscosity (240.12 mm²/s at 313 K) (Deligiannis et al., 2009). The high viscosity of Ricinus communis oil to its poor atomization of the fuel, incomplete combustion, choking of the fuel injectors, and ring carbonization (Baroutian et al., 2010).

Azadirachta indica (Neem)

Azadirachta indica (commonly known as “neem tree”), a member of the family Meliaceae, is a majestic, evergreen, tropical forest tree, with a broad crown and a height of approximately 25 m. Most parts of the Azadirachta indica plant such as leaves, bark, flower, fruit, seed, and root have applications in the field of medicine. Azadirachta indica is well established plant in at least 30 countries worldwide, in Asia, Africa, and Central and South America. Some small scale plantations are also reportedly successful in Europe and United States of America (Kumar and Navaratnam, 2013). Azadirachta indica tree normally begins to bear fruit between 3 and 5 years and becomes fully productive in 10 years. From the 10th year onwards, it can produce up to 50 kg of fruits annually (Girish and Shankara, 2008). It requires little water and plenty of sunlight and rainfall in the range of 450 to 1200 mm with wide temperature range of 273 to 322 K (Heroor and Bharadwaj, 2013). Azadirachta indica seeds contain about 45% of a brownish-yellow of fixed oil (Radha and Manikandan, 2011), mainly constituted by oleic acid (34.01%), palmitic acid (12.1%), stearic acid (12.95%), linoleic acid (38.26%) (Muthu et al., 2010). Traditionally, Azadirachta indica oil has been used as fuel in lamps for lighting purpose in rural areas and it is used on an industrial scale for manufacturing of soaps, cosmetics, pharmaceuticals, and other non-edible products (Gahadwal and Yadav, 2014).

Hevea brasiliensis (Rubber)

Hevea brasiliensis, commonly known as rubber tree, is a fast growing tree that belongs to the family Euphorbiaceae. It is the major source of natural rubber and is native to the Amazon forests and is now widely cultivated in tropics across the world (Kant et al., 2011). Growing up to 34 m in height, the tree requires heavy rainfall and produces seeds weighing from 2 to 4 g that do not currently have any major industrial applications (Moser, 2011). Normal seed production yields vary from 70 to 500 kg per hectare per year while the annual Hevea brasiliensis seed production potential in India is about 150 kg per hectare (Reksowardojo et al., 2011). The yields of various non-edible oil feedstocks are given in Table 4. Hevea brasiliensis seed contain approximately about 40% of kernel with 20%–25% of moisture (Gimbun et al., 2013). Apart from its use in latex production for foreign exchange, Hevea brasiliensis tree produces oil-bearing seed whose oil content in dried kernel varies from 35% to 45% (Fadeyibi and Osunde, 2012). Hevea brasiliensis oil does not contain any unusual fatty acids, and its rich source of essential fatty acids C18:2 and C18:3 that make up 52% of its total FFA composition (Salimon and Abdullah, 2009).

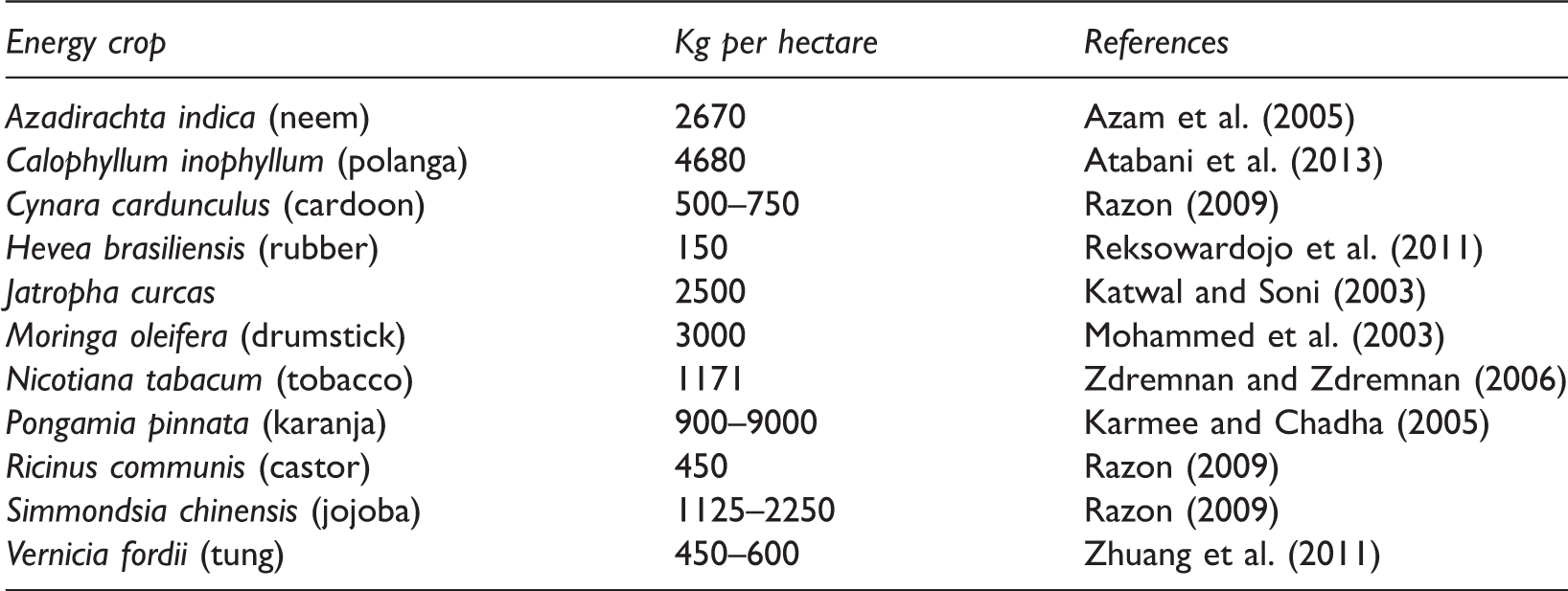

Table 4.

The yields of various non-edible oil feedstocks.

Energy crop	Kg per hectare	References
Azadirachta indica (neem)	2670	Azam et al. (2005)
Calophyllum inophyllum (polanga)	4680	Atabani et al. (2013)
Cynara cardunculus (cardoon)	500–750	Razon (2009)
Hevea brasiliensis (rubber)	150	Reksowardojo et al. (2011)
Jatropha curcas	2500	Katwal and Soni (2003)
Moringa oleifera (drumstick)	3000	Mohammed et al. (2003)
Nicotiana tabacum (tobacco)	1171	Zdremnan and Zdremnan (2006)
Pongamia pinnata (karanja)	900–9000	Karmee and Chadha (2005)
Ricinus communis (castor)	450	Razon (2009)
Simmondsia chinensis (jojoba)	1125–2250	Razon (2009)
Vernicia fordii (tung)	450–600	Zhuang et al. (2011)

Nicotiana tabacum (Tobacca)

Nicotiana tabacum, commonly referred to tobacco, is an annually grown herbaceous plant belonging to the Solanaceae family, widespread in North and South America, commonly grown for the collection of leaves. The highest seed production is found in the Nicotiana tabacum varieties used to obtain the chewing Nicotiana tabacum, reaching 1171 kg seeds per hectare, which corresponds to 432.9 kg oil per hectare (Zdremnan and Zdremnan, 2006). The seed oil content ranges between 33 and 40 wt% (Khan et al., 2014). The major fatty acids in seed triacylglycerols are linoleic acid (70.6%), oleic acid (17.1%), palmitic acid (7.9%), and stearic acid (3.1%) (Table 2).

Rice bran

Rice is the main cultivation in subtropical Southern Asia, and it is a staple food for a large part of the world’s human population especially in East, South, and South Eastern Asia, making it the most consumed cereal grain (Subbaiah et al., 2010). Rice bran is a low value co-product of rice milling, which contains approximately 15%–23% oil (Sinha et al., 2008). The oil fraction of rice bran consists of both saturated (15.0% palmitic acid and 1.9% stearic acid) and unsaturated fatty acids (42.5% oleic acid and 39.1% linoleic acid) (Mohanty, 2013). Rice bran oil is an underutilized non-edible vegetable oil, which is available in large quantities in rice cultivating countries like China and India, and very little research has been done to utilize this oil as a replacement for mineral diesel (Sinha et al., 2008).

Moringa oleifera (Drumstick tree)

Moringa oleifera, also called drumstick tree, is a softwood perennial tree. This plant belongs to the monogeneric family Moringaceae and is an extremely fast growing tree that can get to 10 m. Moringa oleifera is most commonly cultivated in South India, Ethiopia, Philippines, Sudan, and has been grown in West, East and South Africa, tropical Asia, Latin America, the Caribbean, Florida, and the Pacific Islands (Fahey, 2005). The fast growing, drought-tolerant Moringa oleifera can tolerate poor soil, a wide rainfall range (25 to 300 + cm per year), and soil pH from 5.0 to 9.0 (Rashid et al., 2008). It has been reported that some 3000 kg of Moringa oleifera seeds could be obtained from one hectare, equivalent to 900 kg oil per hectare, comparable to soybean which also yields an average of 3000 kg seeds per hectare but with only 20% oil yield (Mohammed et al., 2003; Orhevba et al., 2013). Moringa oleifera seed has an oil content of between 30% and 40%, depending on the plant variety and climate (Mohammed et al., 2003). Moringa oleifera oil contains oleic acid (67.7%) as the major fatty acid followed by stearic (8.3%), behenic (7.4%), arachidic (4.7%), palmitic (6.9%), linoleic (10.7%), and eicosenoic (2.3%) acids (Sunga and Whitby, 1995).

Calophyllum inophyllum (Polanga)

Calophyllum inophyllum, commonly known as polanga or honne, is a large evergreen, belongs to the Clusiaceae family, widespread in East Africa, India, South East Asia, and Australia (Silitonga et al., 2013). Calophyllum inophyllum is a medium and large-sized evergreen sub-maritime tree that averages 8–20 m in height with a broad spreading crown of irregular branches (Ong et al., 2011). Each tree yields about 20–100 kg of whole fruits per year (Venkanna and Reddy, 2009). Trees begin to bear significantly after 4–5 years (Chavan et al., 2013). The nut kernel contains 50%–70% oil and the mature tree may produce 1–10 kg of oil per year depending upon the productivity of the tree and the efficiency of extraction process (Chavan et al., 2013). Traditionally, Calophyllum inophyllum oil has been used as a medicine, soap, lamp oil, hair grease, and cosmetic in different parts of the world (Ong et al., 2011).

Simmondsia chinensis (Jojoba)

Simmondsia chinensis, commonly known as jojoba, is a perennial shrub belonging to the Simmondsiaceae family (Moser, 2011). This plant is native to the Mojave and Sonoran deserts of Mexico, California, and Arizona. A 10-year old tree yields on an average 1 kg of seeds per year (Kant et al., 2011). Simmondsia chinensis is unique among plants in the fact that its seeds contain about 50% of oil by weight, which is more than amount in soybean and somewhat more than in most oil seed crops (Sharma and Singh, 2011). Simmondsia chinensis oil is practically colorless and odorless and it is composed mainly of straight chain monoesters of C20 and C22 acids and alcohols with two double bonds (Zaher et al., 2004).

Sapindus mukorossi (Soap nut)

Sapindus mukorossi (soap nut) is a perennial tree belonging to the family Sapindaceae, indigenous to northern India (Philomina and Rao, 2000). This plant grows very well in deep loamy soils and leached soils so cultivation of Sapindus mukorossi in such soil avoids potential soil erosion (Chhetri et al., 2008). Sapindus mukorossi tree can be used for rural building construction, oil and sugar presses, and agricultural implements (Chhetri et al., 2008). Sapindus mukorossi seeds contain 23% oil of which 92% is triglycerides (Atabani et al., 2013).

Melia azedarach (Syringa)

Melia azedarach (syringa) is a deciduous tree that grows between 7 and 12 m in height in the mahogany family of Meliaceae that is native to Pakistan, India, Bangladesh, Southeast Asia, and Australia (Moser, 2011; Sarin, 2012). The oil content of dried syringe berries is around 10 wt% (Atabani et al., 2013). Melia azedarach oil is characterized by a high percentage of unsaturated fatty acids such as oleic (21.8%) and linoleic (64.1%) acids (Moser, 2011). Other constituents that are present in greater than 1% are saturated species such as palmitic (10.1%) and stearic (3.5%) acids (Moser, 2011).

Vernicia fordii (Tung)

Vernicia fordii, commonly known as tung tree, is an oil-bearing woody plant belonging to the Euphorbecaeae family that is native to China, Burma, and Vietnam. It is a small- to medium-sized deciduous tree, which grows up to 20 m in height. The oil content of Vernicia fordii seeds and whole nuts is approximately 21 and 41 wt%, respectively (Yu et al., 2013), and the average yield of oil is about 450–600 kg per hectare (Zhuang et al., 2011). Its seed oil had been conventionally used in lamps for lighting, as well as an ingredient for wood paint and varnish (Wang et al., 2011). Tung oil principally contains the unusual conjugated fatty acid, eleostearic acid (9,11,13-octadecatrienoic acid; 63.8%), with linoleic (11.5%), oleic (8.6%), and behenic (8.4%) acids also present in significant quantities (Moser, 2011).

Schleichera oleosa (Kusum)

Schleichera oleosa, also called as kusum, is medium-sized (up to 40 m in height) deciduous or nearly evergreen tree belonging to the Sapindaceae family that is native to South and South East Asia. The fruits, seeds, and young leaves of this plant are edible and used for medicinal and dye purposes (Kant et al., 2011). The oil content of kusum seeds is 51%–62% but the yields are 25%–27% in village ghanis (oil mills) and about 36% oil in expellers (Acharya et al., 2011). Iodine value of the oil is 215–220 and its total fatty acid content is 91.6% (Acharya et al., 2011).

Derivatives of non-edible oils as diesel fuels

Non-edible vegetable oils can be used as fuels for diesel engines. The primary problems associated with using straight these oils as alternative fuel in compression ignition (CI) engines are caused by very high fuel viscosity and low volatility (Basavaraja et al., 2005). The high viscosity of non-edible vegetable oils can be reduced by several techniques which include dilution, microemulsion, pyrolysis, and transesterification.

Dilution of non-edible vegetable oils

The oil–diesel fuel blend is a simple way to reduce the viscosity of non-edible vegetable oil. This method does not require any chemical process. A number of researchers have examined the use of blends of conventional diesel fuel with non-edible vegetable oils, such as Jatropha curcas oil (Pramanik, 2003), Pongamia pinnata oil (Agarwal and Rajamanoharan, 2009), Azadirachta indica oil (Prasad and Agarwal, 2012), etc.

Pramanik (2003) studied the effect of temperature on viscosities of Jatropha curcas oil and its various blends at a temperature range from 298 to 348 K. Results of this study showed that viscosity values of 50:50 Jatropha curcas oil/diesel fuel and 40:60 Jatropha curcas oil/diesel fuel are close to diesel in the range of 328–333 K and at about 318 K, respectively, whereas the blend containing 30:70 Jatropha curcas oil/diesel fuel has viscosity close to diesel at the range of 308–313 K. In another study, Agarwal and Rajamanoharan (2009) investigated the performance and emission characteristics of a CI engine fueled with karanja (Pongamia pinnata) oil and diesel fuel blends and the effect of preheated oil on engine performances. They reported that karanja oil blends with diesel (up to 50% v/v) without preheating as well as with preheating could be replaced diesel for operating the CI engine with lower emissions and improved performance.

Using microemulsions for non-edible vegetable oils

Microemulsions are transparent, thermodynamically stable colloidal dispersions in which the diameter of the dispersed phase particles is less than one-fourth the wavelength of visible light (Goering et al., 1983). To reduce of the high viscosity of vegetable oils, microemulsions with immiscible liquids such as methanol and ethanol and ionic or non-ionic amphiphiles have been studied (Billaud et al., 1995).

Liquid fuel and biodiesel from non-edible vegetable oils via pyrolysis

Conversion of vegetable oils using pyrolysis type reactions represents a promising option for the production of biodiesel fuel. Pyrolysis is the conversion of one substance into another by means of heat or by heat with the aid of a catalyst (Sonntag, 1979). Thermal decomposition of triglycerides produces the compounds of classes including alkanes, alkenes, alkadienes, aromatics, and carboxylic acids. Different types of vegetable oils produce large differences in the composition of the thermally decomposed oil (Srivastava and Prasad, 2000).

In recent years, many investigators have studied the pyrolysis of non-edible vegetable oils and their cakes such as Jatropha curcas (Manurung et al., 2009), Madhuca indica (Kalaiselvan et al., 2014), tung (Lima et al., 2004), and castor oil (Figueiredo et al., 2009) to obtain the suitable alternative fuel for CI engine. For instance, Figueiredo et al. (2009) described the production of pyrolysis oil from castor seeds via a low temperature conversion process and showed that the use of this oil in a pyrolysis oil–diesel blend is a good option.

Biodiesel via transesterification from non-edible vegetable oils

Transesterification is the chemical reaction between a triglyceride and an alcohol (mostly methanol or ethanol) in the presence of a catalyst and consists of a sequence three consecutive reversible reactions where triglycerides are converted to diglycerides and then diglycerides are converted to monoglycerides followed by the conversion of monoglycerides to glycerol. In each step, an ester is produced and thus three ester molecules are produced from one molecule of triglycerides (Sharma and Singh, 2008). Ethanol is a preferred alcohol in the transesterification process compared to methanol because it is derived from agricultural products and is renewable and biologically less objectionable in the environment (Demirbas, 2003). However, methanol is preferable because of its low cost and its physical and chemical advantages (polar and shortest chain alcohol). Triacylglycerols are esters of long-chain carboxylic acids combined with glycerol. Carboxylic acids {R– C( = O)–O–H} can be converted into methyl esters {R–C( = O)–O– CH₃} by the action of a transesterification agent (Demirbas, 2009a). Figure 1 shows the transesterification reaction of triglycerides with alcohol.

Figure 1.

Transesterification of triglycerides with alcohol.

Transesterification of vegetable oils can be carried out by two ways: (a) catalytic transesterification and (b) non-catalytic transesterification methods.

Catalytic transesterification methods

Vegetable oils can be transesterified by heating them with a large excess of anhydrous methanol and a catalyst. Transesterification reactions can be catalyzed by alkalis, acids, or enzymes.

Biodiesel produced by transesterification reaction can be catalyzed by methanolic sulfuric acid (Ghadge and Raheman, 2005; Ramadhas et al., 2004; Tiwari et al., 2007), ferric sulfate (Wang et al., 2007), sulfonic acid (Veljkovic et al., 2006), methanolic hydrogen chloride (Darnoko and Cheryan, 2000), and methanolic boron trifluoride (Rule, 1997). These catalysts give very high yields in alkyl esters, but the reactions are slow. Table 5 shows comparison of various methanolic transesterification methods. Acid-catalyzed reactions require the use of high alcohol-to-oil molar ratios in order to obtain good product yields in practical reaction times. However, ester yields do not proportionally increase with molar ratio (Lotero et al., 2006). On the other hand, an excessive amount of alcohol makes the recovery of the glycerol difficult, so that the ideal alcohol/oil ratio has to be established empirically, considering each individual process.

Table 5.

Comparison of various methanolic transesterification methods.

Method	Reaction temperature (K)	Reaction time (min)
Acid or alkali catalytic process	303–338	60–360
Boron trifluoride–methanol	360–390	20–50
Sodium methoxide–catalyzed	293–298	4–6
Non-catalytic supercritical methanol	523–573	6–12
Catalytic supercritical methanol	523–573	0.5–1.5

Transesterification can be catalyzed by alkaline catalysts, preferably by sodium or potassium methoxide (Muthu et al., 2010; Padhi and Singh, 2010; Prabaningrum, 2011; Thangaraj et al., 2014). Sodium methoxide (CH₃ONa) is the most widely used biodiesel catalyst with over 60% of industrial plants using this catalyst (Huber et al., 2006). Alkaline catalysts have the advantages, e.g. short reaction time and relatively low temperature can be used with only a small amount for catalyst and with little or no darkening of color of the oil (Singh and Padhi, 2009). Alkaline metal alkoxides (as CH₃ONa for the methanolysis) are the most active catalysts, since they give very high yields (>98%) in short reaction times (30 min) even if they are applied at low molar concentrations (0.5 mol%). However, they require the absence of water, which makes them inappropriate for typical industrial processes (Schuchardt et al., 1998). In the alkali catalytic methanol transesterification method, the catalyst is dissolved into methanol by vigorous stirring in a small reactor. The oil is transferred into a biodiesel reactor and then the catalyst/alcohol mixture is pumped into the oil. The final mixture is stirred vigorously for 2 h at 340 K in ambient pressure. A successful transesterification reaction produces two liquid phases: ester and crude glycerol. However, due to the high FFA content of non-edible oils, these oils cannot be transesterified in the presence of an alkaline base catalyst for it leads to catalyst deactivation and soap formation (Fadhil et al., 2012). For high FFA oils, two step acid-base catalyzed transesterification process is preferred. FFA content of oil could be reduced to less than 1% using an acid catalyst at the first stage. The second step is base catalyzed transesterification in which oil reacts with methanol in the presence of an alkaline catalyst to form ester and glycerol (Fadhil et al., 2012).

The transesterification process is catalyzed by lipases such as Candida antarctica, Candida rugasa, Pseudomonas cepacia, immobilized lipase (Lipozyme RMIM), Pseudomonas sp., and Rhizomucor miehei (Kumari et al., 2007; Wang et al., 2011; Zarei et al., 2014). In recent work (Shah et al., 2004), three different lipases (Chromobacterium viscosum, Candida rugosa, and Porcine pancreas) were screened for a transesterification reaction of jatropha oil in a solvent-free system to produce biodiesel; only lipase from Chromobacterium viscosum was found to give appreciable yield. In particular, it should be noted that the byproduct, glycerol, can be easily recovered with simple separation processes. Nevertheless, enzymatic catalysts are often more expensive than chemical catalysts, so recycling and reusing them is often a must for commercial viability. The reaction yields as well as the reaction times are still unfavorable compared to the base-catalyzed reaction systems (Schuchardt et al., 1998). Due to their ready availability and the ease with which they can be handled, hydrolytic enzymes have been widely applied in organic synthesis. Reaction conditions reported in the literature using different catalyst are summarized in Table 6.

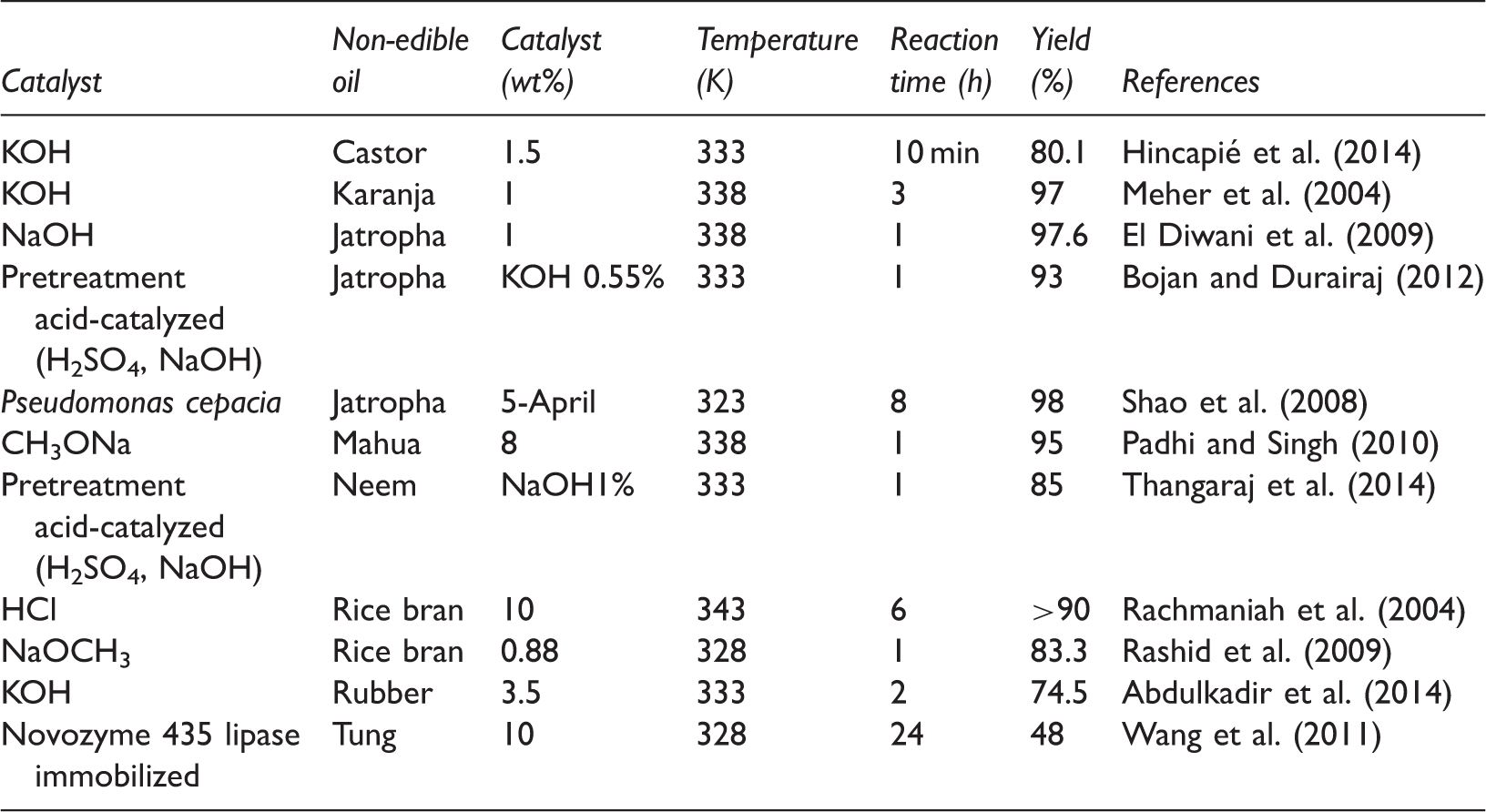

Table 6.

Summary of catalytic transesterification of some selected non-edible oils.

Catalyst	Non-edible oil	Catalyst (wt%)	Temperature (K)	Reaction time (h)	Yield (%)	References
KOH	Castor	1.5	333	10 min	80.1	Hincapié et al. (2014)
KOH	Karanja	1	338	3	97	Meher et al. (2004)
NaOH	Jatropha	1	338	1	97.6	El Diwani et al. (2009)
Pretreatment acid-catalyzed (H₂SO₄, NaOH)	Jatropha	KOH 0.55%	333	1	93	Bojan and Durairaj (2012)
Pseudomonas cepacia	Jatropha	5-April	323	8	98	Shao et al. (2008)
CH₃ONa	Mahua	8	338	1	95	Padhi and Singh (2010)
Pretreatment acid-catalyzed (H₂SO₄, NaOH)	Neem	NaOH1%	333	1	85	Thangaraj et al. (2014)
HCl	Rice bran	10	343	6	>90	Rachmaniah et al. (2004)
NaOCH₃	Rice bran	0.88	328	1	83.3	Rashid et al. (2009)
KOH	Rubber	3.5	333	2	74.5	Abdulkadir et al. (2014)
Novozyme 435 lipase immobilized	Tung	10	328	24	48	Wang et al. (2011)

Non-catalytic transesterification methods

There are two basic routes to produce biodiesel by non-catalyzed transesterification. These are BIOX co-solvent process and supercritical alcohol process. BIOX co-solvent process uses either tetrahydrofuran (THF) or methyl tert-butyl ether as a co-solvent to generate a one-phase system. The result is a fast reaction, on the order of 5–0 min, and no catalyst residues in either the ester or the glycerol phase (Demirbas, 2009a). The THF co-solvent is chosen, in part, because it has a boiling point very close to that of methanol. This system requires a rather low operating temperature, 303 K (Helwani et al., 2009).

In the conventional transesterification of fats and vegetable oils for biodiesel production, FFAs and water always produce negative effects, since the presence of FFAs and water causes soap formation, consumes catalyst, and reduces catalyst effectiveness, all of which results in a low conversion (Komers et al., 2001). The transesterification reaction may be carried out using either basic or acidic catalysts, but these processes require relatively time-consuming and complicated separation of the product and the catalyst, which results in high production costs and energy consumption (Demirbas, 2009a). To minimize these problems, Kusdiana and Saka (2001) and Demirbas (2002a, 2003) have proposed that biodiesel fuels may be prepared from vegetable oils via non-catalytic transesterification with supercritical methanol. A non-catalytic biodiesel production route with supercritical methanol has been developed that allows a simple process and high yield because of simultaneous transesterification of triglycerides and methyl esterification of fatty acids (Demirbas, 2002b). A reaction mechanism of vegetable oil in supercritical methanol was proposed based on the mechanism developed by Krammer and Vogel (2000) for the hydrolysis of esters in sub/supercritical water. The basic idea of supercritical treatment is based on the effect of the relationship between pressure and temperature upon the thermophysical properties of the solvent, such as dielectric constant, viscosity, specific weight, and polarity (Aysu et al., 2014; Kusdiana and Saka, 2001). In the supercritical alcohol transesterification method, the yield of conversion increases to 50%–95% in the first 10 min (Demirbas, 2005). Table 7 shows the comparisons between the catalytic methanol method and the supercritical methanol method for biodiesel from vegetable oils by transesterification. Some researchers recently have successfully produced biodiesel fuel from various non-edible vegetable oils under different conditions using supercritical alcohol transesterification method. For instance, biodiesel production from Jatropha oil by supercritical methanol method was studied by Hawash et al. (2009). They found at 593 K, oil to methanol molar ratio of 1:43 and 4 min of reaction time, 100% of FAME yields at 8.4 MPa.

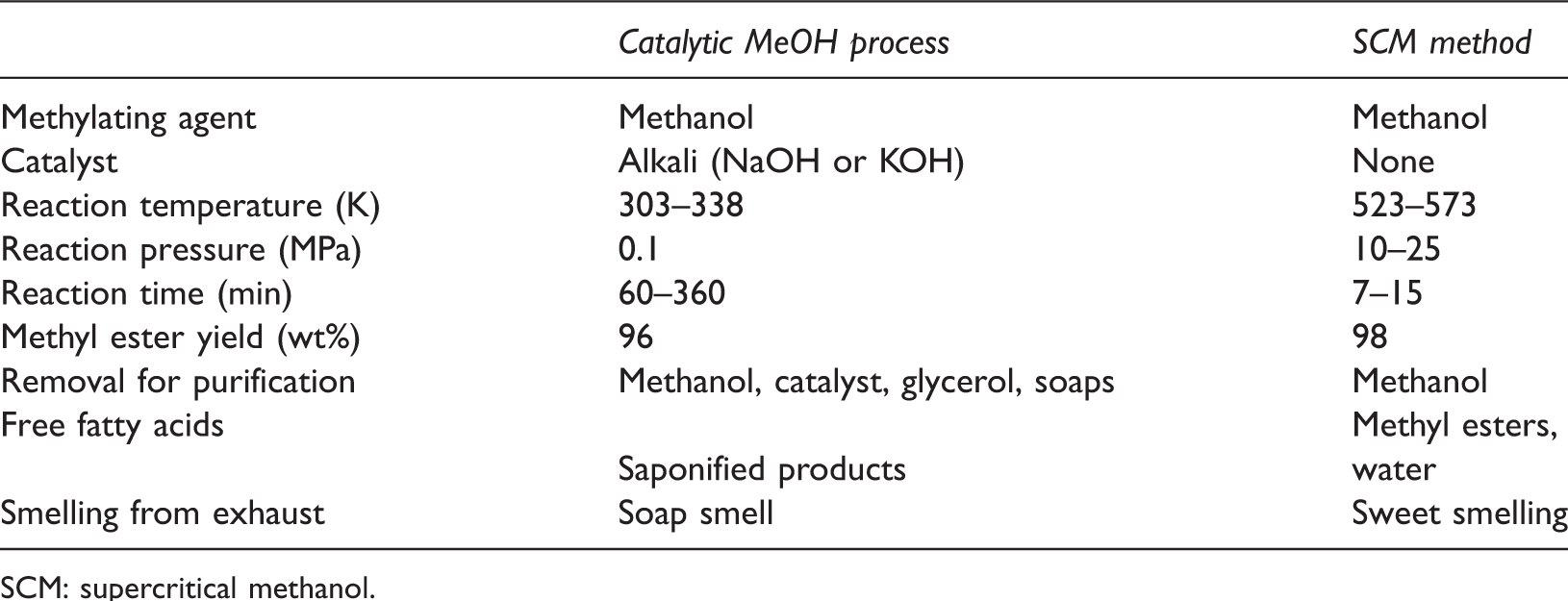

Table 7.

Comparisons between catalytic methanol (MeOH) method and SCM method for biodiesel from vegetable oils by transesterification.

	Catalytic MeOH process	SCM method
Methylating agent	Methanol	Methanol
Catalyst	Alkali (NaOH or KOH)	None
Reaction temperature (K)	303–338	523–573
Reaction pressure (MPa)	0.1	10–25
Reaction time (min)	60–360	7–15
Methyl ester yield (wt%)	96	98
Removal for purification	Methanol, catalyst, glycerol, soaps	Methanol
Free fatty acids		Methyl esters,
	Saponified products	water
Smelling from exhaust	Soap smell	Sweet smelling

SCM: supercritical methanol.

Effect of different reaction parameters on the biodiesel yield

The main factors affecting transesterification are alcohol/oil molar ratio, reaction time, reaction temperature and pressure, catalyst, water content, and FFA content. It is evident that at subcritical states of alcohol, the reaction rate is so low and gradually increased as either pressure or temperature rises (Madras et al., 2004). The most important variables affecting the methyl ester yield during transesterification reaction are alcohol/oil molar ratio and reaction temperature.

Effect of molar ratio and alcohol type

One of the most important variables affecting the yield of alkyl ester is the molar ratio of alcohol to oil. In the supercritical alcohol transesterification method, the yield of conversion raises 50%–95% for the first 10 min.

The stoichiometric ratio for transesterification reaction requires 3 mol of alcohol and 1 mol of triglyceride to yield 3 mol of fatty acid ester and 1 mol of glycerol. Higher alcohol/oil molar ratios are used to enhance the solubility and to increase the contact between the triglyceride and alcohol molecules (Noureddini et al., 1998). The alcohol/oil molar ratio of 6:1 or higher generally gives the maximum yield (higher than 98 wt%).

The vegetable oils are transesterified 1:6–1:40 oil/alcohol molar ratios in catalytic and supercritical alcohol conditions (Demirbas, 2002a). Transesterification of Jatropha curcas oil in supercritical methanol conditions was carried out at different oil/methanol molar ratios from 10 to 43 (Hawash et al., 2009). It was observed that increasing molar ratio had a favorable influence on methyl ester conversion.

Acid-catalyzed reactions require the use of high alcohol/oil molar ratios in order to obtain good product yields in practical reaction times. However, ester yields do not proportionally increase with molar ratio. Ramadhas et al. (2004) and Sahoo et al. (2007) have reported 6:1 alcohol/oil molar ratio during acid esterification and 9:1 alcohol/oil molar ratio during alkaline esterification to be the optimum amount for biodiesel production from high FFA rubber seed oil and polanga seed oil, respectively.

Another important variable affecting the yield of ester is the type of alcohol to triglyceride. In general, short chain alcohols such as methanol, ethanol, propanol, and butanol can be used in the transesterification reaction to obtain high ester yields.

Effect of reaction temperature and time

Transesterification reaction can occur at different temperatures depending on the type of oil employed. It was observed that increasing the reaction temperature, especially to supercritical conditions, had a favorable influence on the yield of ester conversion. In the alkali-catalytic transesterification reaction, the temperature maintained by the researchers during different steps range between 318 and 338 K. The boiling point of methanol is 337.9 K. Temperature higher than this will burn the alcohol and will result in much lesser yield. Leung and Guo (2006) showed that temperature higher than 323 K had a negative impact on the product yield for neat oil, but had a positive effect for waste oil with higher viscosities.

Encinar et al. (2002) studied the transesterification reaction, with ethanol, of Cynara cardunculus oils using NaOH and KOH as catalysts and reported 91.6% conversion at room temperature. Alkali-catalytic transesterification of Pongamia pinnata oil was carried out at five different temperatures with 1% KOH catalyst concentration, methanol/oil ratio 6:1, and 30 min of reaction time. The conversion was increased with increase in temperature and the optimum temperature was found to be 333 K beyond that point no change was observed with increase in temperature.

Effect of reaction temperature and the reaction time was investigated on the conversion of Jatropha curcas oil to biodiesel (Vyas et al., 2011). Maximum FAME yields 93.5% was observed at 323 K and 45 min of reaction time.

The methyl ester conversion rate increases with the reaction time. Different researchers have reported different reaction times for the transesterification process. Kim et al. (2004) studied the transesterification reaction, with methanol/oil ratio (6:1), of vegetable oils using NaOH and Na/NaOH/c-Al₂O₃ as catalysts at 333 K. They reached the maximum biodiesel yield within 1 h both for the case of homogeneous and heterogeneous catalyst systems.

Effect of water and FFA

The water and FFA content are key parameters for determining the viability of the vegetable oil transesterification process. In the transesterification process, the vegetable oil should have an acid value less than 1 and all materials should be substantially anhydrous. If acid value is greater than 1, more alkali (NaOH or KOH) is injected to neutralize the FFAs.

Water content is an important factor in the conventional catalytic transesterification of vegetable oil. Water can cause soap formation and frothing. The resulting soaps can induce an increase in viscosity, formation of gels and foams, and made the separation of glycerol difficult (Agra et al., 1992; Ghadge and Raheman, 2005). In the conventional transesterification of fats and vegetable oils for biodiesel production, FFAs and water always produce negative effects, since the presence of FFAs and water causes soap formation, consumes the catalyst, reduces its catalytic effectiveness which results a low conversion in biodiesel production. FFAs react with the alkaline catalyst to produce soaps that inhibit the separation of the ester, glycerin, and wash water (Canakcı and Van Gerpen, 1999). Ma et al. (1998) reported that water and FFA contents of beef tallow catalyzed by NaOH had to be maintained below 0.06 wt% and 0.5 wt%, respectively. Using NaOH catalyzed transesterification, methyl esters can generally be prepared in high yields for low FFA oils.

In catalyzed methods, the presence of water has negative effects on the yields of methyl esters. The presence of water had negligible effect on the conversion while using lipase as a catalyst (Madras et al., 2004). At the same time, the presence of water had a positive effect in the yield of methyl esters when methanol at room temperature was substituted by supercritical methanol (Demirbas, 2006). Kusdiana and Saka (2004) studied the effect of water and FFA contents on the yield of methyl esters by the supercritical methanol treatment (623 K, 43 MPa, 4 min of treatment with a methanol to oil molar ratio of 42:1) compared with those from alkaline- and acid-catalyzed method. Effects of water and FFA contents on the alkaline- and acid-catalyzed and supercritical transesterification of triglycerides are shown in Figures 2 and 3.

Figure 2.

Yields of methyl esters as a function of water content in transesterification of triglycerides.

Figure 3.

Yields of methyl esters as a function of free fatty acid content in transesterification of triglycerides.

Effect of catalyst content and type

Catalysts used for the transesterification of triglycerides are classified as alkali, acid, enzyme. Several studies have examined the effects of catalyst content and type in transesterification of triglycerides (Ma et al., 1998; May, 2004; Meneghetti et al. (2006); Stavarache et al., 2005).

The effect of different catalyst concentrations on base-catalyzed transesterification during biodiesel production from vegetable oil by means of ultrasonic energy were investigated by Stavarache et al. (2005). The highest yields were obtained when the catalyst was used in small concentration, i.e. 0.5% wt/ of oil.

Hossain and Mazen (2010) investigated the effects of different homogeneous catalysts (NaOH, KOH) on the biodiesel yield. The experiments were carried out at room temperature with 0.5% catalyst concentration, methanol/oil ratio 1:1, and 2 h of reaction time. The results showed that NaOH (71.2%) gave the better yield, compared with KOH (68.9%). In addition, different concentrations of NaOH like 0.5, 1.0, and 1.5% were used. The highest yield was obtained with 1.0% of NaOH concentration. In another study, Meneghetti et al. (2006) reported that HCl is much more effective than NaOH at higher reaction temperatures.

Fuel properties of biodiesel from non-edible vegetable oils

Just like petroleum-based diesel fuel, biodiesel operates in the CI engines. The biodiesel is characterized for its physical and fuel properties, including density, viscosity, cetane number, iodine value, acid value, cloud and pour point, distillation range, flash point, ash content, sulfur content, carbon residue, copper corrosion, and higher heating value (HHV) (Demirbas et al., 2015a). Some biodiesel standards are ASTM D6751 (ASTM = American Society for Testing and Materials) and the European standard EN 14214. ASTM D6751 standard identifies the parameters the pure biodiesel (B100) must meet before being used as a pure fuel or being blended with petroleum-based diesel fuel. ASTM standards of maximum allowed quantities in diesel and biodiesel are given in Table 8.

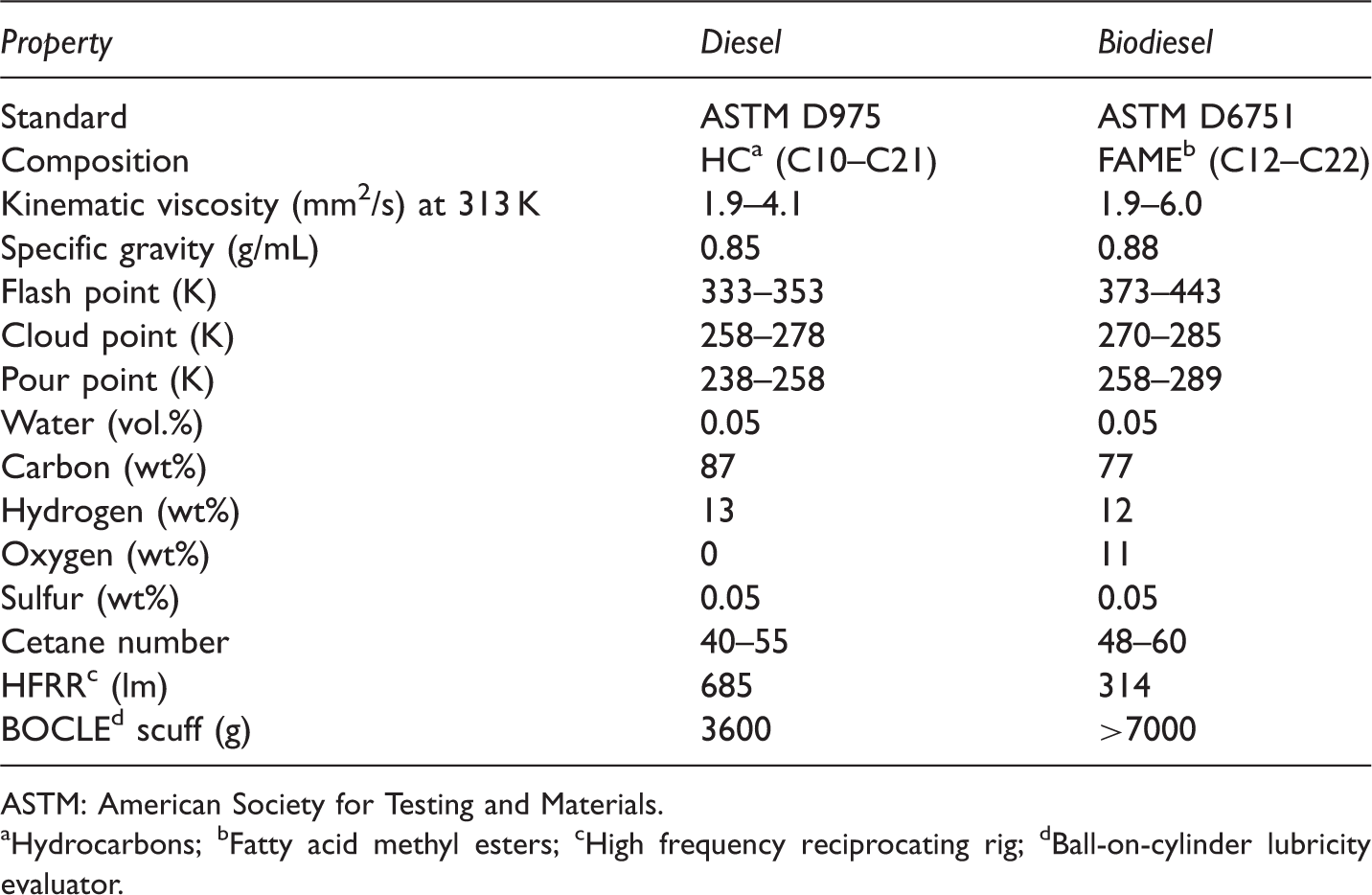

Table 8.

ASTM standards of maximum allowed quantities in diesel and biodiesel (Lotero et al., 2006).

Property	Diesel	Biodiesel
Standard	ASTM D975	ASTM D6751
Composition	HC^a (C10–C21)	FAME^b (C12–C22)
Kinematic viscosity (mm²/s) at 313 K	1.9–4.1	1.9–6.0
Specific gravity (g/mL)	0.85	0.88
Flash point (K)	333–353	373–443
Cloud point (K)	258–278	270–285
Pour point (K)	238–258	258–289
Water (vol.%)	0.05	0.05
Carbon (wt%)	87	77
Hydrogen (wt%)	13	12
Oxygen (wt%)	0	11
Sulfur (wt%)	0.05	0.05
Cetane number	40–55	48–60
HFRR^c (lm)	685	314
BOCLE^d scuff (g)	3600	>7000

ASTM: American Society for Testing and Materials.

Hydrocarbons; ^bFatty acid methyl esters; ^cHigh frequency reciprocating rig; ^dBall-on-cylinder lubricity evaluator.

As per the literature survey, many researchers have investigated the fuel properties of biodiesel from non-edible vegetable oils such as Jatropha curcas (Jatropha), Pongamia pinnata (Karanja), Schleichera oleosa (Kusum), Ricinus communis (Castor), Hevea brasiliensis (Rubber), Rice bran, etc. Table 9 shows the properties of biodiesel fuels from various non-edible vegetable oil.

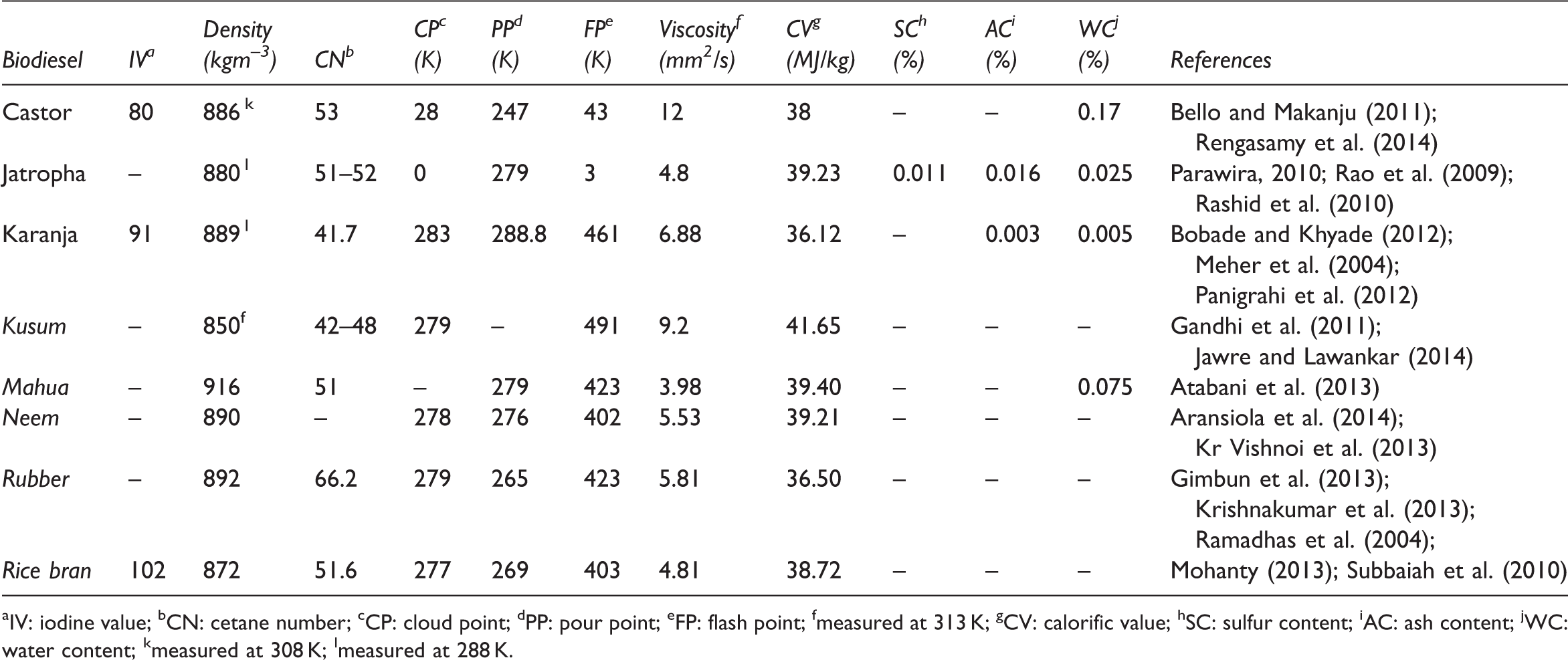

Table 9.

Fuel-related properties of biodiesel from non-edible oils.

Biodiesel	IV^a	Density (kgm^–3)	CN^b	CP^c (K)	PP^d (K)	FP^e (K)	Viscosity^f (mm²/s)	CV^g (MJ/kg)	SC^h (%)	ACⁱ (%)	WC^j (%)	References
Castor	80	886 ^k	53	28	247	43	12	38	–	–	0.17	Bello and Makanju (2011); Rengasamy et al. (2014)
Jatropha	–	880 ^l	51–52	0	279	3	4.8	39.23	0.011	0.016	0.025	Parawira, 2010; Rao et al. (2009); Rashid et al. (2010)
Karanja	91	889 ^l	41.7	283	288.8	461	6.88	36.12	–	0.003	0.005	Bobade and Khyade (2012); Meher et al. (2004); Panigrahi et al. (2012)
Kusum	–	850^f	42–48	279	–	491	9.2	41.65	–	–	–	Gandhi et al. (2011); Jawre and Lawankar (2014)
Mahua	–	916	51	–	279	423	3.98	39.40	–	–	0.075	Atabani et al. (2013)
Neem	–	890	–	278	276	402	5.53	39.21	–	–	–	Aransiola et al. (2014); Kr Vishnoi et al. (2013)
Rubber	–	892	66.2	279	265	423	5.81	36.50	–	–	–	Gimbun et al. (2013); Krishnakumar et al. (2013); Ramadhas et al. (2004);
Rice bran	102	872	51.6	277	269	403	4.81	38.72	–	–	–	Mohanty (2013); Subbaiah et al. (2010)

IV: iodine value; ^bCN: cetane number; ^cCP: cloud point; ^dPP: pour point; ^eFP: flash point; ^fmeasured at 313 K; ^gCV: calorific value; ^hSC: sulfur content; ⁱAC: ash content; ^jWC: water content; ^kmeasured at 308 K; ^lmeasured at 288 K.

The injection and atomization characteristics of the vegetable oils are significantly different than those of petroleum-derived diesel fuels, mainly as the result of their high viscosities (Cigizoglu et al., 1997). High viscosity leads to poorer atomization of the fuel spray and less accurate operation of the fuel injectors. The lower the viscosity of the biodiesel, the easier it is to pump and atomize and achieve finer droplets (Islam and Beg, 2004). The viscosity values of vegetable oil methyl esters decrease sharply after transesterification. The viscosity values of vegetable oils are between 27.2 and 53.6 mm²/s, whereas those of vegetable oil methyl esters are between 3.6 and 4.6 mm²/s (Demirbas, 2006). The kinematic viscosity in biodiesel is determined using ASTM D6751 (1.9–6.0 mm²/s) (Table 8). Compared to ASTM D6751 standards for biodiesel fuel, some of non-edible vegetable oil methyl esters are highly viscous, such as Ricinus communis and Schleichera oleosa methyl esters (Table 9).

The cetane number is an important parameter for the determination of diesel fuel quality, especially the ignition quality. It measures the readiness of the fuel to auto-ignite when injected into the engine. Ignition quality is one of the properties of biodiesel that is determined by the structure of the FAME component (Bamgboye and Hansen, 2008). As shown in Table 9, cetane number of non-edible oil methyl esters is higher than that of petroleum; therefore they can replace diesel for the combustion engine.

Another important property of biodiesel fuel is its flash point. Flash point of a fuel is the lowest temperature at which it will spontaneously ignite without the presence of a flame or spark. Non-edible oil methyl esters have quite high flash points which make them less volatile and safer to transport or handle than diesel fuel.

Two important parameters for low-temperature applications of a fuel are cloud point and pour point. The cloud point is the temperature at which wax first becomes visible when the fuel is cooled. The pour point is the temperature at which the amount of wax from a solution is sufficient to gel the fuel; thus it is the lowest temperature at which the fuel can flow. Compared to ASTM D6751 standards for biodiesel fuel, cloud and pour points of non-edible oil methyl esters are similar biodiesel fuel. Biodiesel has a higher cloud and pour points compared to conventional diesel (Prakash, 1998). The vegetable oil methyl esters have cloud point and pour point that are 15–25 K higher than those of diesel fuels (Table 8). The cloud and pour points of non-edible methyl esters vary significantly with feedstock depending on fatty acid compositions (Atabani et al., 2013; Silitonga et al., 2013).

The density is an another important property of biodiesel fuel. It is the mass per unit volume of any liquid at a given temperature. Specific gravity is the ratio of the density of a liquid to the density of water. Specific gravity of biodiesels ranges between 0.87 and 0.89 (Demirbas, 2006). An increase in density from 860 to 885 kg/m³ for vegetable oil methyl esters increases the viscosity from 3.59 to 4.63 mm²/s and the increases are highly regular (Demirbas, 2005, 2009a). There is high regression between the density and viscosity values of vegetable oil methyl esters (Demirbas, 2009a). According to ASTM D6751 standards, density should be tested at the temperature reference of 288 K. The density of non-edible methyl esters is higher than that of common diesel fuel. This may be due to the presence of higher molecular weight triglycerides (Hotti and Hebbal, 2015).

HHV is an important parameter in the selection of a fuel. The HHVs of biodiesels (39–41 MJ/kg) are slightly lower than those of gasoline (46 MJ/kg), petrodiesel (43 MJ/kg), or petroleum (42 MJ/kg) (Demirbas, 2008b) because of their higher oxygen content. Ash and extractive content are two important parameters directly affecting the heating value. High ash content of a plant part makes it less desirable as fuel, whereas high extractive content adds to its desirability (Demirbas, 2002c).

Conclusion

Edible plant oil fuels presently do not compete economically with petroleum-based fuels because they are more expensive but due to the recent increase in petroleum prices and uncertainties concerning petroleum availability, there is renewed the interest in non-edible plant oil fuels for diesel engines.

Non-edible plant oils are unsuitable for human food because of the presence of some toxic components. These plants are easily available in developing countries and are very economical comparable to edible plant oils. Biodiesel produced from non-edible plant oils has good potential as an alternative diesel fuel. However, as a serious drawback, most non-edible oils contain a high content of FFAs, which increases the biodiesel production cost.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Abdulkadir

Danbature

Yirankinyuki

(2014) In situ transesterification of rubber seeds (Hevea brasiliensis). Greener Journal of Physical Sciences 4(3): 038–044.

Aburas

Bafail

Demirbas

(2015) The pyrolizing of waste lubricating oil (WLO) into diesel fuel over supported calcium oxide additive. Petroleum Science and Technology 33(2): 226–236.

Aburas

Demirbas

(2015a) Evaluation of beech for production of bio-char, bio-oil and gaseous materials. Process Safety and Environmental Protection 94: 29–36.

Aburas

Demirbas

(2015b) The Caspian Sea Basin, the Middle East petroleum resources, and importance of Turkey. Petroleum Science and Technology 33: 397–405.

Aburas

(2015) Transitioning Jeddah city from automobile eccentric to multimode urban transport network. Energy Education Science and Technology Part D 7: 41–60.

Acharya

Mishra

Rath

(2011) Performance analysis of karanja and kusum oils as alternative bio-diesel fuel in diesel engine. International Journal of Agricultural and Biological Engineering 4(2): 23–28.

Agarwal

Rajamanoharan

(2009) Experimental investigations of performance and emissions of Karanja oil and its blends in a single cylinder agricultural diesel engine. Applied Energy 86(1): 106–112.

Agarwal

Kumar

Agarwal

(2008) Performance evaluation of a vegetable oil fuelled compression ignition engine. Renewable Energy 33(6): 1147–1156.

Agra IB, Warnijati S and Pratama MS (1992) Catalytic pyrolysis of nyamplung seeds oil to mineral oil like fuel. In: Sayigh AAM (ed) Proceedings of the Second World Renewable Energy Congress. Pergamon, UK, 13–18 September 1992.

10.

Ahmad

Ahmed

Hassan

(2010) Basecatalyzed transesterification of sunflower oil biodiesel. African Journal of Biotechnology 9(50): 8630–8635.

11.

Akintayo

(2004) Characteristics and composition of Parkia biglobbossa and Jatropha curcas soils and cakes. Bioresource Technology 92(3): 307–310.

12.

Akoh

Chang

Lee

(2007) Enzymatic approach to biodiesel production. Journal of Agricultural and Food Chemistry 55(22): 8995–9005.

13.

Altun

Yasar

(2013) Biodiesel production from leather industry wastes as an alternative feedstock and its use in diesel engines. Energy Exploration & Exploitation 31(5): 759–770.

14.

Anya

Chioma

Obinna

(2012) Optimized reduction of free fatty acid content on neem seed oil, for biodiesel production. Journal of Basic and Applied Chemistry 2(4): 21–28.

15.

Aransiola

Betiku

Ikhuomoregbe

DIO

(2014) Production of biodiesel from crude neem oil feedstock and its emissions from internal combustion engines. African Journal Biotechnology 11(22): 6178–6186.

16.

Armah

Archer

Philips

(2011) Drives leading to higher food prices: Biofuels are not the main factor. In: Dwight

Prakash

David

(eds) Biofuels Global İmpact on Renewable Energy Production Agriculture, and Technological Advancements, New York: Springer Science + Business Media, pp. 19–36.

17.

Atabani

Silitonga

Ong

(2013) Non-edible vegetable oils: A critical evaluation of oil extraction, fatty acid compositions, biodiesel production, characteristics, engine performance and emissions production. Renewable and Sustainable Energy Reviews 18: 211–245.

18.

Ayanoglu

Aksoy

(2015) Biochar production from various biomass by different technologies: A review. Energy Education Science and Technology-Part C 7: 29–48.

19.

Aysu

Kucuk

Demirbas

(2014) Optimization of process variables for supercritical liquefaction of giant fennel. RSC Advances 4(99): 55923–55923.

20.

Azam

Waris

Nahar

(2005) Prospects and potential of fatty acid methyl esters of some non-traditional seed oils for use as biodiesel in India. Biomass and Bioenergy 29(4): 293–302.

21.

Balat

(2009) Recent trends in global production and utilization of bio-ethanol fuel. Applied Energy 86(11): 2273–2282.

22.

Balat

(2010) Progress in biodiesel processing. Applied Energy 87(6): 1815–1835.

23.

Bamgboye

Hansen

(2008) Prediction of cetane number of biodiesel fuel from the fatty acid methyl ester (FAME) composition. International Agrophysics 22(1): 21.

24.

Bankovic-Ilic

Stamenkovic

Veljkovic

(2012) Biodiesel production from non-edible plant oils. Renewable Sustainable Energy Reviews 16(6): 3621–3647.

25.

Baroutian

Aroua

Raman

AAAS

(2010) Viscosities and densities of binary and ternary blends of palm oil + palm biodiesel + diesel fuel at different temperatures. Journal of Chemical and Engineering Data 55(1): 504–507.

26.

Basavaraja T, Reddy RB and Swamy V (2005) Effect of injection pressure on emission performance of bio-diesel and its blends. SAE technical paper no. 2005-26-30.

27.

Becker

Wulfmeyer

Berger

(2013) Carbon farming in hot, dry coastal areas: An option for climate change mitigation. Earth System Dynamics 4(2): 237–251.

28.

Bello

Makanju

(2011) Production, characterization and evaluation of castor oil biodiesel as alternative fuel for diesel engines. Journal of Emerging Trends in Engineering and Applied Sciences 2(3): 525–530.

29.

Bhatt

Murthy

Datta

(2004) Use of mahua oil (Madhuca indica) as a diesel fuel extender. Journal of the Institution of Engineers (India): Agricultural Engineering Division 85: 10–14.

30.

Billaud

Dominguez

Broutin

(1995) Production of hydrocarbons by pyrolysis of methyl esters from rapeseed oil. Journal of the American Oil Chemists' Society 72(10): 1149–1154.

31.

Bobade

Khyade

(2012) Detail study on the properties of Pongamia Pinnata (Karanja) for the production of biofuel. Research Journal of Chemical Sciences 2(7): 16–20.

32.

Bojan

Durairaj

(2012) Producing biodiesel from high free fatty acid Jatropha Curcas oil by a two step method: An Indian case study. International Journal of Sustainable Energy and Environment 3: 63–66.

33.

Borugadda

Goud

(2012) Biodiesel production from renewable feedstocks: Status and opportunities. Renewable Sustainable Energy Reviews 16(7): 4763–4784.

34.

Canakcı

Van Gerpen

(1999) Biodiesel production via acid catalysis. Transactions of the ASAE-American Society of Agricultural Engineers 42(5): 1203–1210.

35.

Chavan

Kumbhar

Deshmukh

(2013) Callophyllum Inophyllum Linn (“honne”) oil, a source for biodiesel production. Research Journal of Chemical Sciences 3(11): 24–31.

36.

Chhetri

Tango

Budge

(2008) Non-edible plant oils as new sources for biodiesel production. International Journal of Molecular Sciences 9(2): 169–180.

37.

Chidrewar

Tanavade

Deshpande

(2010) Anti-ulcer and antioxidant activity of leaves of Madhuca indica in rats. Oriental Pharmacy and Experimental Medicine 10(1): 13–20.

38.

Chigozie

Onukwuli

Nwabanne

(2014) Characterization, kinetics and statistical screening analysis of gmelina seed oil extraction process. Materials for Renewable and Sustainable Energy 3(4): 1–12.

39.

Cigizoglu

Ozaktas

Karaosmanoglu

(1997) Used sunflower oil as an alternative fuel for diesel engines. Energy Sources 19(6): 559–566.

40.

Darnoko

Cheryan

(2000) Kinetics of palm oil transesterification in a batch reactor. Journal of the American Oil Chemists' Society 77(12): 1263–1267.

41.

Deligiannis A, Anastopoulos G, Karavalakis G, et al. (2009) Castor (Ricinus Communis L) seed oil as an alternative feedstock for the production of biodiesel. In: Proceeding of the 11th International Conference on Environmental Science and Technology, Chania, Crete, Greece, 3–5 September 2009, pp.204–211.

42.

Demirbas

(2002a) Biodiesel from vegetable oils via transesterification in supercritical methanol. Energy Conversion and Management 43(17): 2349–2356.

43.

Demirbas

(2002b) Diesel fuel from vegetable oil via transesterification and soap pyrolysis. Energy Sources 24(9): 835–841.

44.

Demirbas

(2002c) Relationships between heating value and lignin, moisture, ash and extractive contents of biomass fuels. Energy Exploration and Exploitation 20(1): 105–111.

45.

Demirbas

(2003) Biodiesel fuels from vegetable oils via catalytic and non-catalytic supercritical alcohol transesterifications and other methods: A survey. Energy Conversion and Management 44(13): 2093–2109.

46.

Demirbas

(2005) Biodiesel production from vegetable oils by supercritical methanol. Journal of Scientific and Industrial Research 64(11): 858.

47.

Demirbas

(2006) Biodiesel production via non-catalytic SCF method and biodiesel fuel characteristics. Energy Conversion and Management 47(15): 2271–2282.

48.

Demirbas

(2008a) Biofuels sources, biofuel policy, biofuel economy and global biofuel projections. Energy Conversion and Management 49(8): 2106–2116.

49.

Demirbas

(2008b) Biodiesel: A realistic fuel alternative for Diesel engines, London: Springer.

50.

Demirbas

(2009a) Progress and recent trends in biodiesel fuels. Energy Conversion and Management 50(1): 14–34.

51.

Demirbas

(2009b) Production of biodiesel fuels from linseed oil using methanol and ethanol in non-catalytic SCF conditions. Biomass Bioenergy 33(1): 113–118.

52.

Demirbas

(2010) New biorenewable fuels from vegetable oils. Energy Sources Part A: Recovery, Utilization, and Environmental Effects 32(7): 628–636.

53.

Demirbas

(2015a) Global fossil energy policy. Energy Education Science and Technology Part D 7: 1–14.

54.

Demirbas

(2015b) Global renewable energy policy. Energy Education Science and Technology Part D 7: 15–40.

55.

Demirbas

Alidrisi

Balubaid

(2015a) API gravity, sulfur content and desulfurization of crude oil. Petroleum Science and Technology 33(1): 93–101.

56.

Demirbas

Balubaid

Kabli

(2015b) Diesel fuel from waste lubricating oil by pyrolitic distillation. Petroleum Science and Technology 33(2): 129–138.

57.

Djenontin

Wotto

Avlessi

(2012) Composition of Azadirachta indica and Carapa procera (Meliaceae) seed oils and cakes obtained after oil extraction. Industrial Crops and Products 38: 39–45.

58.

Doshi

Srivastava

(2013) Sustainable approach to produce bioethanol from Karanja (Pongamia pinnata) oilseed residue. Turkish Journal of Agriculture and Forestry 37(6): 781–788.

59.

Du Ploy

Nel

(2012) A study of a feebate policy aimed at vehicle manufacturers to reduce CO₂ emissions. International Business and Economics Research 11(9): 1029–1040.

60.

Edem

(2002) Palm oil: Biochemical, physiological, nutritional, hematological, and toxicological aspects: A review. Plant Foods for Human Nutrition 57(3–4): 319–341.

61.

El Diwani

Attia

Hawash

(2009) Development and evaluation of biodiesel fuel and by-products from jatropha oil. International Journal of Environmental Science and Technology 6(2): 219–224.

62.

Encinar

Gonzalez

Rodriguez

(2002) Biodiesel fuels from vegetable oils: Transesterification of Cynara cardunculus Loils with ethanol. Energy Fuels 16(2): 443–450.

63.

Fadeyibi

Osunde

(2012) Thermo-physical properties of rubber seed useful in the design of storage structure. International Journal of Agricultural and Biological Engineering 5(2): 62–66.

64.

Fadhil

Dheyab

Ahmed

(2012) Biodiesel production from spent fish frying oil through acid-base catalyzed transesterification. Pakistan Journal of Analytical and Environmental Chemistry 13: 9–15.

65.

Fahey

(2005) Moringa oleifera: A review of the medical evidence for its nutritional, therapeutic, and prophylactic properties-Part 1. Trees Life Journal 1(5): 1–15.

66.

Fatah

Farah

Ossman

(2012) Production of biodiesel from non-edible oil and effect of blending with diesel on fuel properties. Engineering Science and Technology, an International Journal 2(4): 583–591.

67.

Figiel

Hamulczuk

(2014) The effects of increase in production of biofuels on world agricultural prices and food security. European Scientific Journal 9(10): 10–17.

68.

Figueiredo

Romeiro

Damasceno

(2009) The isolation of pyrolysis oil from castor seeds via a Low Temperature Conversion (LTC) processand its use in a pyrolysis oil—diesel blend. Fuel 88(11): 2193–2198.

69.

Forero CLB (2004) Biodiesel from castor oil: A promising fuel for cold weather. Dissertation Submitted to Department of Hydraulic, Fluids and Thermal, Sciences, Francisco de Paula Santander University, Columbia, 12E–96.

70.

Gahadwal

Yadav

(2014) Production of neem oil methyl ester by using two-step esterification Process. International Journal of Research 1(10): 1418–1431.

71.

Gandhi

Ramu

Raj

(2011) Methyl ester production from Schlichera Oleosa. International Journal of Pharmaceutical Sciences and Research 2(5): 1244–1250.

72.

Ghadge

Raheman

(2005) Biodiesel production from mahua (Madhuca indica) oil having high free fatty acids. Biomass Bioenergy 28(6): 601–605.

73.

Gimbun

Ali

Kanwal

CCSC

(2013) Biodiesel production from rubber seed oil using a limestone based catalyst. Advances in Materials Physics and Chemistry 2(04): 138.

74.

Girish

Shankara

(2008) Neem-A green treasure. Electronic Journal of Biology 4(3): 201–111.

75.

Goering

Schwab

Campion

(1983) SoyoiI-ethanol microemulsions as diesel fuel. American Society of Agricultural Engineers 26(6): 1602–1604.

76.

Hawash

Kamal

Zaher

(2009) Biodiesel fuel from Jatropha oil via non-catalytic supercritical methanol transesterification. Fuel 88(3): 579–582.

77.

Helwani

Othman

Aziz

(2009) Solid heterogeneous catalysts for transesterification of triglycerides with methanol: A review. Applied Catalysis A: General 363(1): 1–10.

78.

Heroor

Bharadwaj

SDR

(2013) Production of bio-fuel from crude neem oil and its performance. International Journal of Environmental Engineering and Management 4: 425–432.

79.

Hincapié

Valange

Barrault

(2014) Effect of microwave- Assisted system on transesterification of castor oil with ethanol. University Science 19(3): 193–200.

80.

Hossain

ABMS

Mazen

(2010) Effects of catalyst types and concentrations on biodiesel production from waste soybean oil biomass as renewable energy and environmental recycling process. Australian Journal of Crop Science 4(7): 550–555.

81.

Hotti

Hebbal

(2015) Biodiesel production and fuel properties from non-edible champaca (michelia champaca) seed oil for use in diesel engine. Journal of Thermal Engineering 1(1): 330–336.

82.

Huber

Iborra

Corma

(2006) Synthesis of transportation fuels from biomass: Chemistry, catalysts, and engineering. Chemical Reviews 106(9): 4044–4098.

83.

IEA (2014) Renewables- Bioenergy. International Energy Agency (IEA), Paris. Avaliable at: www.iea.org ’ Topics ’ Renewables ’ Subtopics (accessed 18 January 2016).

84.

Islam

Beg

MRA

(2004) The fuel properties of pyrolysis liquid derived from urban solid wastes in Bangladesh. Bioresource Technology 92(2): 181186.

85.

Jawre

Lawankar

(2014) Performance analysis of kusum methyl ester as alternative bio-fuel in diesel engine with diethyl ether as additive. International Journal of Innovative Research and Development 3(5): 139–144.

86.

Jha

Vaibhav

Suneetha

(2013) A culinary mahua (Madhuca Indica) flower from bihar, India– a potential in production of jam, alcohol for pharmacological benefits with fertilizer value. International Journal of Drug Development and Research 5(2): 362–367.

87.

Kalaiselvan

Anitha

Shanthi

(2014) Morphology of entangled multiwalled carbon nanotubes by catalytic spray pyrolysis using Madhuca longifolia oil as a precursor. Rasayan Journal of Chemistry 7(4): 333–339.

88.

Kant P, Shuirong W, Chaliha S, et al. (2011) Going beyond Jatropha: Can an expanded land and feedstock base help India meet its ambitious biodiesel target? Institute of Green Economy, IGREC working paper IGREC-22.

89.

Karaj

Müller

(2010) Determination of physical, mechanical and chemical properties of seeds and kernels of Jatropha curcas L. Industrial Crops and Products 32(2): 129–138.

90.

Karmee

Chadha

(2005) Preparation of biodiesel from crude oil of Pongamia pinnata. Bioresource Technology 96(13): 1425–1429.

91.

Katwal

RPS

Soni

(2003) Biofuels: An opportunity for socioeconomic development and cleaner environment. Indian Forester 129(8): 939–949.

92.

Kemausuor

Akowuah

Ofori

(2013) Assessment of feedstock options for biofuels production in Ghana. Journal of Sustainable Bioenergy Systems 3(2): 1–10.

93.

Khan

TMY

Atabani

Badruddin

(2014) Recent scenario and technologies to utilize non-edible oils forbiodiesel production. Renewable and Sustainable Energy Reviews 37: 840–851.

94.

Khayoon

Olutoye

Hameed

(2012) Utilization of crude karanj (Pongamia pinnata) oil as a potential feedstock for the synthesis of fatty acid methyl esters. Bioresource Technology 111: 175–179.

95.

Kim

Kang

Kim

(2004) Transesterification of vegetable oil to biodiesel using heterogeneous base catalyst. Catalysis Today 93: 315–320.

96.

Knothe G, Dunn RO and Bagby MO (1997) Biodiesel: The use of vegetable oils and their derivatives as alternative diesel fuels. İn: ACS symposium series no. 666: Fuels and chemicals from biomass, Washington, American Chemical Society, US, pp.172–208.

97.

Komers

Machek

Stloukal

(2001) Biodiesel from rapeseed oil and KOH 2. Composition of solution of KOH in methanol as reaction partner of oil. European Journal of Lipid Science and Technology 103(6): 359–362.

98.

Kr Vishnoi

Bharti

Tewari

(2013) Production of neem oil ethyl ester (NOEE) or neem oil biodiesel by two step esterification of filtered neem oil. MATRIX Academic International Online Journal of Engineering and Technology 1: 15–18.

99.

Krammer

Vogel

(2000) Hydrolysis of esters in subcritical and supercritical water. The Journal Supercritical Fluids 16(3): 189–206.

100.

Krishnakumar

Sivasubramanian

Selvaraju

(2013) Physico-chemical properties of the biodiesel extracted from rubber seed oil using solid metal oxide catalysts. International Journal of Engineering Research and Applications 3(4): 2206–2209.

101.

Kumar

Navaratnam

(2013) Neem (Azadirachta indica): Prehistory to contemporary medicinal uses to humankind. Asian Pacific Journal of Tropical Biomedicine 3(7): 505–514.

102.

Kumari

Shah

Gupta

(2007) Preparation of biodiesel by lipase-catalyzed transesterification of high free fatty acid containing oil from Madhuca indica. Energy Fuels 21(1): 368–372.

103.

Kusdiana

Saka

(2001) Kinetics of transesterification in rapeseed oil to biodiesel fuels as treated in supercritical methanol. Fuel 80(5): 693–698.

104.

Kusdiana

Saka

(2004) Effects of water on biodiesel fuel production by supercritical methanol treatment. Bioresource Technology 91(3): 289–295.

105.

Leung

DYC

Guo

(2006) Transesterification of neat and used frying oil: Optimization for biodiesel production. Fuel Processing Technology 87(10): 883–890.

106.

Lima

Soares

Ribeiro

(2004) Diesel-like fuel obtained by pyrolysis of vegetable oils. Journal of Analytical and Applied Pyrolysis 71(2): 987–996.

107.

Lotero

Goodwin

Bruce

(2006) The catalysis of biodiesel synthesis. Catalysis 19(1): 41–83.

108.

Clements

Hanna

(1998) The effect of catalyst, free fatty acids, and water on transesterification of beef tallow. Transactions of the ASAE 41(5): 1261–1264.

109.

Madras

Kolluru

Kumar

(2004) Synthesis of biodiesel in supercritical fluids. Fuel 83(14): 2029–2033.

110.

Mahanta

Mishra

Kushwah

(2006) A comparative study of pongamia and Jatropa curcas oil as diesel substitute. International Energy Journal 7: 1–11.

111.

Manurung

Wever

DAZ

Wildschut

(2009) Valorisation of Jatropha curcas L. plant parts: Nut shell conversion to fast pyrolysis oil. Food and Bioproducts Processing 87(3): 187–196.

112.

Marchetti

Miguel

Errazu

(2007) Possible methods for biodiesel production. Renewable and Sustainable Energy Reviews 11(6): 1300–1311.

113.

May

(2004) Transesterification of palm oil: Effect of reaction parameters. Journal of Oil Palm Research 16(2): 1–11.

114.

Meenakshi HN (2014) Compatibility of Pongamia pinnata biofuel diesel blends with few industrial metals. A Doctoral Thesis, Avinashilingam Deemed University for Women, Tamil Nadu, India.

115.

Meher

Naik

Das

(2004) Methanolysis of Pongamia pinnata (karanja) oil for production of biodiesel. Journal of Scientific and Industrial Research 63(11): 913–918.

116.

Meneghetti

SPM

Meneghetti

Wolf

(2006) Ethanolysis of castor and cottonseed oil: A systematic study using classical catalysts. Journal of the American Oil Chemists' Society 83(9): 819–822.

117.

Mohammed

Lai

Muhammad

SKS

(2003) Moringa oleifera, potentially a new source of oleic acid-type oil for Malaysia. Investing in Innovation 3: 137–140.

118.

Mohanty

(2013) A production of biodiesel from rice bran oil and experimenting on small capacity diesel engine. International Journal of Modern Engineering Research 3(2): 920–923.

119.

Moser

(2011) Biodiesel production, properties, and feedstocks. In Vitro Cellular and Developmental Biology-Plant 45: 229–266.

120.

Muthu

SathyaSelvabala

Varathachary

(2010) Synthesis of biodiesel from Neem oil using sulfated zirconia via tranesterification. Brazilian Journal of Chemical Engineering 27(4): 601–608.

121.

Nahar

Sunny

(2014) Jatropha curcas L: A sustainable feedstock for the production of bioenergy and by products. Journal of Energy and Natural Resources 3: 51–57.

122.

Naik

Katpatal

(2013) Optimization of effective parameters of Pongamia Pinnata (Karanja) biodiesel using taguchi method. International Journal of Engineering Research and Applications 3(4): 701–706.

123.

(2011) Inedible vegetable oils and their derivatives for alternative diesel fuels in CI engines: A review. Renewable and Sustainable Energy Reviews 15(1): 131–149.

124.

Noureddini

Harkey

Medikonduru

(1998) A Continuous process for the conversion of vegetable oils into methyl esters of fatty acids. Journal of the American Oil Chemists' Society 75(12): 1775–1783.

125.

Ong

Mahli

TMI

Masjuki

(2011) Comparison of palm oil, Jatropha curcas and Calophyllum inophyllum for biodiesel: A review. Renewable and Sustainable Energy Reviews 15(8): 3501–3515.

126.

Orhevba

Sunmonu

Iwunze

(2013) Extraction and characterization of Moringa oleifera seed oil. Research and Reviews: Journal of Food and Dairy Technology 1: 22–27.

127.

Ozturk

(2014) Energy analysis for biodiesel production from rapeseed oil. Energy Exploration and Exploitation 32(6): 1005–1032.

128.

Padhi

Singh

(2010) Optimization of esterification and transesterification of Mahua (Madhuca Indica) oil for production of biodiesel. Journal of Chemical and Pharmaceutical Research 2(5): 599–608.

129.

Pahl

(2008) Biodiesel: Growing a new energy economy, Vermont: Chelsea Green Publishing Company, pp. 252.

130.

Pandey

(2008) Handbook of plant-based biofuels, CRC Press: Boca Raton, pp. 361.

131.

Pandey

Singh

(2012) Jatropha curcas: A potential biofuel plant for sustainable environmental development. Renewable and Sustainable Energy Reviews 16(5): 2870–2883.

132.

Panigrahi

Mohanty

Mishra

(2014) Performance, emission, energy, and exergy analysis of a C.I. engine using mahua biodiesel blends with diesel. International Scholarly Research Notices 2014: 1–13.

133.

Panigrahi

Mohanty

Pradhan

(2012) Non-edible karanja biodiesel- A sustainable fuel for CI engine. International Journal of Engineering Research and Applications 2(6): 853–860.

134.

Parawira

(2010) Biodiesel production from Jatropha curcas: A review. Scientific Research and Essays 5(14): 1796–1808.

135.

Philomina

Rao

JVS

(2000) Micropropagation of Sapindus mukorossi Gaertn. Indian Journal of Experimental Biology 38(6): 621–624.

136.

Prabaningrum N (2011) In-situ transesterification of Jatropha curcas seeds using the mixture of methanol and isopropanol. National Postgraduate Conference (NPC), Kuala Lumpur, 19–20 September 2011, pp.1–6. New York: IEEE.

137.

Prakash CB (1998) A critical review of biodiesel as a transportation fuel in Canada. A Technical Report, GCSI-Global Change Strategies International, Canada.

138.

Pramanik

(2003) Properties and use of Jatropha curcas oil and diesel fuel blends in compression ignition engine. Renewable Energy 28(2): 239–248.

139.

Prasad

Agarwal

(2012) Experimental investigation of performance of diesel engine working on diesel and neem oil blends. Carbon 86: 78–92.

140.

Puhan

Vedaraman

Rambrahaman

(2005) Mahua (Madhuca indica) seed oil: a source of renewable energy in India. Journal of Scientific and Industrial Research 64(11): 890.

141.

Qin

Sun

Meng

(2010) Production and analysis of biodiesel from non-edible seed oil of Pistacia Chinensis. Energy Exploration & Exploitation 28(1): 37–46.

142.

Qin

Sun

Yao

(2009) Homogeneous production of biodiesels from vegetable oils. World Journal of Engineering 6(1): 139–142.

143.

Rachmaniah O, Ju YH, Vali SR, et al. (2004) A study on acidcatalyzed transesterification of crude rice bran oil for biodiesel production. In: Youth Energy Symposium, 19th world energy congress and exhibition, Sydney, 5–9 September 2004.

144.

Radha KV and Manikandan G (2011) Novel production of biofuels from neem oil. In: World renewable energy congress, Sweden, 8–13 May 2011, pp.471–478.

145.

Rahman

Islam

Rouf

(2011) Extraction of alkaloids and oil from Karanja (Pongamia pinnata) seed. Journal of Scientific Research 3(3): 669–675.

146.

Rajagopal D (2007) Rethinking current strategies for biofuel production in India. In International conference on linkages in water and energy in developing countries organized by IWMI and FAO, ICRISAT, Hyderabad, India.

147.

Ramadhas

Jayaraj

Muraleedharan

(2004) Biodiesel production from high FFA rubber seed oil. Fuel 84(4): 335–340.

148.

Rao

Reddy

KHC

(2008) Experimental investigation of pongamia, jatropha and neem methyl esters as biodiesel on CI engine. Jordan Journal of Mechanical and Industrial Engineering 2(2): 117–122.

149.

Rao

Voleti

Raju

(2009) Experimental investigations on jatropha biodiesel and additive in diesel engine. Indian Journal of Science and Technology 2(4): 25–31.

150.

Rashid

Anwar

Ansari

(2009) Optimization of alkaline transesterification of rice bran oil for biodiesel production using response surface methodology. Journal of Chemical Technology and Biotechnology 84(9): 1364–1370.

151.

Rashid

Anwar

Jamil

(2010) Jatropha Curcas seed oil as a viable source for biodiesel. Pakistan Journal of Botany 42(1): 575–582.

152.

Rashid

Anwar

Moser

(2008) Moringa oleifera oil: A possible source of biodiesel. Bioresource Technology 99(17): 8175–8179.

153.

Razon

(2009) Alternative crops for biodiesel feedstock. CAB Reviews: Perspectives in Agriculture, Veterinary Science, Nutrition and Natural Resources 4(56): 1–15.

154.

Reksowardojo

Bui

Sok

(2011) The effect of biodiesel fuel from rubber seed oil (Hevea brasiliensis) seed oil on a direct injection (DI) diesel engine. ASEAN Engineering Journal 1: 65–81.

155.

REN21 (2014) Renewables 2014 Global Status Report. REN21 Secretariat, Paris. Available at: www.ren21.net/…/globalstatusreport.aspx (accessed 18 January 2016).

156.

Rengasamy

Mohanraj

Vardhan

(2014) Transesterification of castor oil using nano-sized iron catalyst for the production of biodiesel. Journal of Chemistry and Pharmaceutical Sciences 2: 108–112.

157.

Rule

(1997) Direct transesterification of total fatty acids of adipose tissue, and of freeze dried muscle and liver with boron-trifluoride in methanol. Meat Science 46(1): 23–32.

158.

Salimon

Abdullah

(2009) A study on the thermal properties and solid fat content of Malaysian rubber seed oil. Malaysian Journal of Analytical Sciences 13(1): 1–7.

159.

Salimon

Noor

DAM

Nazrizawati

(2010) Fatty acid composition and physicochemical properties of Malaysian castor bean Ricinus communis L. seed oil. Sains Malaysiana 39(5): 761–764.

160.

Sarin

(2012) Biodiesel: Production and properties, Cambridge: Royal Society of Chemistry.

161.

Satyavati

Gupta

Tandon

(1987) Medicinal plants of India. Indian Council of Medical Research 2(6): 490–499.

162.

Schuchardt

Sercheli

Vargas

(1998) Transesterification of vegetable oils: A review. Journal of the Brazilian Chemical Society 9(3): 199–210.

163.

Scott

Pregelj

Chen

(2008) Pongamia pinnata: An untapped resource for the biofuels industry of the future? Bioenergy Research 1(1): 2–11.

164.

Shah

Sharma

Gupta

(2004) Biodiesel preparation by lipase-catalyzed transesterification of jatropha oil. Energy Fuels 18(1): 154–159.

165.

Shao

Meng

(2008) Analysis of immobilized Candida rugosa lipase catalyzed preparation of biodiesel from rapeseed soap stock. Food and Bioproducts Processing 86(4): 283–289.

166.

Sharma

Singh

(2011) Pharmacognostical evaluation of roots of Simmondsia chinensis schneider. International Journal of Pharmaceutical Sciences and Drug Research 3(4): 323–326.

167.

Sharma

Singh

(2008) Development of biodiesel from karanja, a tree found in rural India. Fuel 87(8): 1740–1742.

168.

Sahoo

Das

Babu

MKG

(2007) Biodiesel development from high acid value polanga seed oil and performance evaluation in a CI engine. Fuel 86(3): 448–454.

169.

Shikha

Rita

(2012) Biodiesel production from non edible-oils: A review. Journal of Chemical and Pharmaceutical Research 4(9): 4219–4230.

170.

Silitonga

Masjuki

Mahli

TMI

(2013) Overview properties of biodiesel diesel blends from edible and non-edible feedstock. Renewable and Sustainable Energy Reviews 22: 346–360.

171.

Singh

Padhi

(2009) Characterization of jatropha oil for the preparation of biodiesel. Natural Product Radiance 8(2): 127–132.

172.

Sinha

Agarwal

Garg

(2008) Biodiesel development from rice bran oil: Transesterification process optimization and fuel characterization. Energy Conversion and Management 49(5): 1248–1257.

173.

Sonntag (1979) Reactions of fats and fatty acids. In: Swern

(ed.) Bailey’s Industrial Oil and Fat Products, 4th ed. New York: Wiley, pp. 99.

174.

Srivastava

Prasad

(2000) Triglycerides-based diesel fuels. Renewable and Sustainable Energy Reviews 4(2): 111–133.

175.

Srivastava

Verma

(2008) Methyl ester of karanja oil as an alternative renewable source energy. Fuel 87(8): 1673–1677.

176.

Stavarache

Vinatoru

Nishimura

(2005) Fatty acids methyl esters from vegetable oil by means of ultrasonic energy. Ultrasonics Sonochemistry 12(5): 367–372.

177.

Subbaiah

Gopal

Hussain

(2010) Rice bran oil biodiesel as an additive in diesel- ethanol blends for diesel engines. International Journal of Engineering Research and Applications 3: 334–342.

178.

Sunga I and Whitby G (1995) Decentralized edible oil milling in Zimbabwe: An evaluation report of the Tinytech oil mill project. Progress Report for Intermediate Technology Development Group, ITDG Press, Rugby, UK, pp.186.

179.

Thangaraj

Ramachandran

Raj

(2014) Homogeneous catalytic transesterification of renewable Azadirachta indica (Neem) oil and its derivatives to biodiesel fuel via acid/alkaline esterification processes. International Journal of Renewable Energy and Biofuels 11: 1–16.

180.

Tiwari

Kumar

Raheman

(2007) Biodiesel production from jatropha oil (Jatropha curcas) with high free fatty acids: An optimized process. Biomass Bioenergy 31(8): 569–575.

181.

Veljkovic

Lakicevic

Stamenkovic

(2006) Biodiesel production from tobacco (Nicotiana tabacum L.) seed oil with a high content of free fatty acids. Fuel 85(17): 2671–2675.

182.

Venkanna

Reddy

(2009) Biodiesel production and optimization from Calophyllum (honne oil)- A three stage method. Bioresource Technology 100(21): 5122–5125.

183.

von Lampe M, Bartelings H, Meijl H, et al. (2014) Fertiliser and biofuel policies in the global agricultural supply chain: Implications for agricultural markets and farm incomes. OECD Food, Agriculture and Fisheries Papers no. 69. OECD Publishing.

184.

Vyas

Verma

Subrahmanyam

(2011) Effects of molar ratio, alkali catalyst concentration and temperature on transesterification of Jatropha oil with methanol under ultrasonic irradiation. Advances in Chemical Engineering and Science 1(02): 45–50.

185.

Wang

Yang

(2014) A study on future energy consumption and carbon emissions of China’s transportation sector. Low Carbon Economy 5(04): 133–138.

186.

Wang

Liu

(2007) Preparation of biodiesel from waste cooking oil via two-step catalyzed process. Energy Conversion and Management 48(1): 184–188.

187.

Wang YN, Chen MH, Ko CH, et al. (2011) Lipase catalyzed transesterification of tung and palm oil for biodiesel. In: World renewable energy congress, Sweden, 8–13 May 2011, pp.87–92.

188.

Sha

Guo

(2013) High-level expression and characterization of a chimeric lipase from Rhizopus oryzae for biodiesel production. Biotechnology and Biofuels 6: 29–41.

189.

Zaher

El Kinawy

El Haron

(2004) Solvent extraction of jojoba oil from pre-pressed jojoba meal. Grasas Y Aceites 55(2): 129–134.

190.

Zarei

Amin

NAS

Talebian-Kiakalaieh

(2014) Immobilized lipase-catalyzed transesterification of Jatropha curcas oil: Optimization and modeling. Journal of the Taiwan Institute of Chemical Engineers 45(2): 444–451.

191.

Zdremnan

(2006) The tobacco oil and its qualities. Bulletin USAMV-CN 63: 209–213.

192.

Zhuang

Jiang

Liu

(2011) Assessment of bioenergy potential on marginal land in China. Renewable and Sustainable Energy Reviews 15(2): 1050–1056.
