Suitability of utilizing small horizontal axis wind turbines for off grid loads in eastern region of Saudi Arabia

Abstract

Small wind turbines of 1–3, 5–10, and 15–20 kW rated powers are used to find out suitable and efficient turbines for power generation in the eastern region of Saudi Arabia. Additionally, the effect of hub height on energy output and the plant capacity factor is investigated to recommend an optimal hub height to be used in the present case. To achieve the set objectives, hourly mean wind speed data measured at 20, 30, and 40 m and wind direction at 30 and 40 m during 13 September 2005 to 9 May 2010 have been utilized. The annual mean wind speed values were 5.73, 5.34, and 4.75 m/s at 40, 30, and 20 m with north-north west (NNW) prevailing wind direction. An increase of about 20.7% was estimated in wind speed measured at 40 m compared to that at 20 m. Wind turbines Fortis Passat—1.4 kW, Fortis Montana—5.8 kW, Fortis Alize—10 kW, and CF20—20 kW with annual energy and plant capacity factor of 7.015 MW h and 57.2%, 25.955 MW h and 51.08%, 42.603 MW h and 48.63%, and 54.674 MW h and 31.21% were the most efficient turbines for the chosen location, respectively. Highest percentage increase in annual energy yield was obtained for a mere change of 5 m from 15 to 20 m in hub height in the present case study. The next best annual energy yield was obtained while increasing hub height from 20 to 30 m.

Keywords

Small wind turbine hub height wind speed turbulence intensity wind power density annual energy yield

Introduction

Globally increasing population, fast technological development, luxurious, and materialistic life styles have resulted in disproportionate increase in power requirements. Hence new and renewable sources of energy in addition to regular means of power generation are being explored to meet the increasing demands. Exploitation and utilization of clean energy sources reduces the dependence on fossil fuels which means reduction in greenhouse gases emissions and facilitates energy supply at places where there is no national or regional electrical grid. The fast developing and widely used sources of clean energy include the wind, solar thermal, solar photovoltaic (PV), hydro, geothermal, and biomass. Of these clean sources, wind energy has been accepted commercially due to its availability, ease of maintenance, and low cost of operation. The global cumulative wind power installed capacity reached 369.597 GW by the end of 2014 compared to 318.644 GW in 2013, an increase of 16% (GWEC, 2015). The global annual cumulative wind power growth is shown in Figure 1. With cumulative installed capacity of 91.413 GW, China remained the leader in wind power industry as of December 2014. The USA, Germany, Spain, and India remained at second, third, fourth, and fifth place with total cumulated wind power installed capacities of 65.879, 39.165, 22.987, and 22.465 GW, respectively. With respect to new additions in 2014, China was number one with 23.196 GW (45.1%) and Germany at number two with 5.279 GW (10.2%) new installations. However, USA, Brazil, and India remained third, fourth, and fifth with new capacity additions of 4.854 GW (9.4%), 2.472 GW (4.8%), and 2.315 GW (4.5%), respectively.

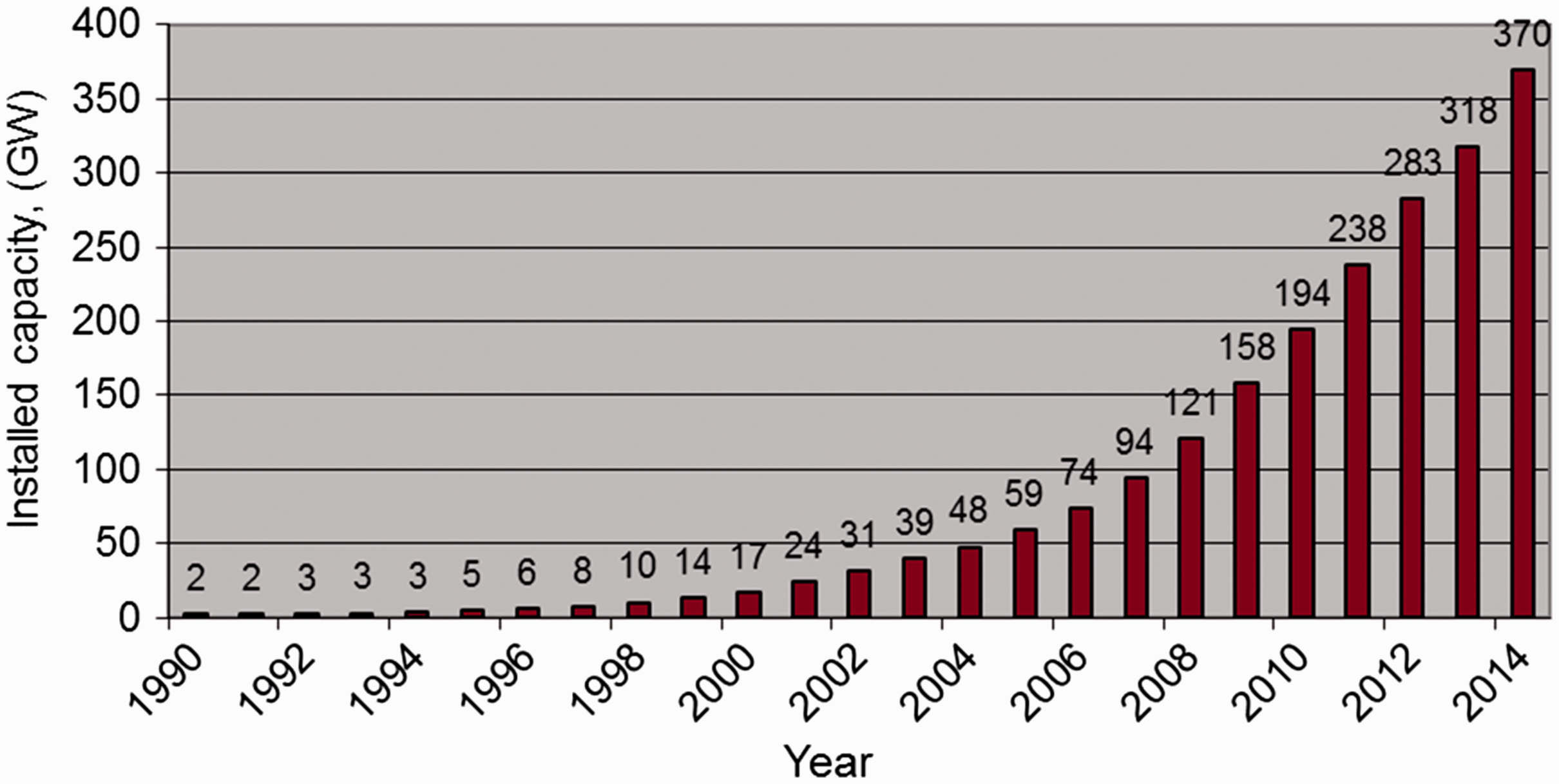

Figure 1.

Global cumulative annual wind power installed growth (GWEC, 2015).

Saudi Arabia is a vast country and is well connected with asphalted roads network and with electrical grid. Beside all efforts by the government, there are still some isolated areas and small communities and villages which are not on the national grid due to being uneconomical. These villages and communities are being supplied power using diesel generation power plants developed and maintained by the national power utility. This option is very costly and skilled manpower intensive and hence the government is taking initiative to use new and renewable sources of energy like wind, solar thermal, and solar PV to meet partial load requirements of these communities and villages. To investigate the possibility of using small wind turbines for various applications in Rawdat Ben Habbas (RBH), the present study has been initiated.

Small wind turbine applications include heating of greenhouses and residential buildings (Ozgener, 2010), hydrogen production for upgrading bitumen from oil fields (Olateju and Kumar, 2011), and water lifting (Abed, 1997), to name a few. According to Albani et al. (2014), all energy forms or sources have an adverse environmental impact but the wind energy does not, compared to conventional energy sources. Wind energy is one of the cleanest, benign, and environment friendly source of energy and is not going to diminish like fossil fuels having fixed and limited reserves (Al-Qabandi et al., 2014; Bassyouni and Gutub, 2013; Ozgur and Kose, 2006).

Lara et al. (2011) evaluated a 3 kW wind turbine for charging a battery bank of 48 V/880 A h by means of a six-pulse rectifier. Nagai et al. (2009) reported the performance of a 2 kW rated power wind turbine in terms of the functions of wind turbine rotational speed, generated outputs, and its stability for wind speed changes. The expected performance of the turbine was confirmed under actual wind conditions and it showed a power coefficient of 0.257 at an average speed of 7.3 m/s. Bekele and Tadesse (2012) conducted feasibility of small-scale hydro/pv/wind-based hybrid system for six sites. Ozgener (2006) presented energy analysis of a 1.5 kW turbine with a hub height of 12 m and rotor diameter of 3 m in Turkey. The test results showed that at an average wind speed of 7.5 m/s the turbine produced 616 W of energy.

Arifujjaman et al. (2008) modeled a small wind turbine with furling mechanism and its resulting dynamics using MATLAB/Simulink platform. The results indicated that the energy capture of a wind turbine depends on the control strategy, wind speed, and the Rayleigh distribution. Jowder (2009) investigated the site matching of wind turbines at 30 and 60 m heights by estimating the capacity factors of some commercially available wind turbines for its optimal selection. The study conducted by Bishop and Amaratunga (2008) proposed a distributed energy system using micro wind turbines of horizontal and vertical axis configurations of less than 500 W rated power. The study illustrated great potential of small wind turbines to be competitive with conventional wind farms. Mostafaeipour (2013) statistically analyzed the three hourly measured long-term wind speed data (1991–2004) of Kerman, Iran. Mean wind power based on measured data and Weibull distribution function as well as the relative percentage error between estimated values of wind power based on two methods have been studied and reported results for three small wind turbine having rated powers of 300 W, 600 W, and 1 kW, respectively. Sedaghat et al. (2012) have investigated the effect of turbulence on small wind turbines characteristics using open jet wind generating facilities.

Etamaly (2013) proposed an accurate procedure to choose the best site and suitable wind turbines. Authors analyzed 100 turbines to select suitable turbines for chosen best sites at Yanbo, Dhahran, Dhulom, Riyadh, and Qaisumah in Saudi Arabia. Bassyouni et al. (2015) used the wind data for a period of 11 years (2002--2012) to study the wind characteristics of Jeddah in Saudi Arabia. The results showed that maximum and minimum wind power potential was observed in the month of March and February. The study concluded that the wind potential of the region can be used for small-scale off-grid applications. Islam et al. (2013) proposed a comprehensive study to highlight the recent and future trends of wind energy technology, and estimated that within next 2–3 decades the vertical axis wind turbines (VAWT) can dominate the wind energy technology. Chen et al. (2013) used a statistical method in combination with linear wake model and wind turbine power curve to model the wind speed distribution for wind power assessment for optimal micro-siting. Kishore et al. (2013) proposed the design of a small-scale wind energy portable turbine targeted to operate below 5 m/s wind speed. Simic et al. (2013) performed a detailed study and analysis of small wind turbines with less than 10 kW of installed power.

The present study utilizes wind speed measurements made at different heights over a period of around five years at RBH meteorological station to evaluate the performance of 14 horizontal and eight VAWTs of 3–20 kW rated power.

Data, site, and material description

The meteorological data (wind speeds, wind direction, ambient temperature, relative humidity, surface pressure, global solar radiation) were measured at RBH station for a period of approximately 56 months from 13 September 2005 to 9 May 2010. The data were scanned every 3 s and 10 min; averaged values along with mean, standard deviation, minimum, and maximum were recorded. The data collection was done through onsite visits and remotely using Al-Jawal GSM data services. The latitude, longitude, and altitude of the measurements site were 29°8′N, 44°20′E, and 443.0 m. The data collection site at RBH is an open area from all directions except a number of transmission line poles, cables, and shades for housing the generators and other inventory items. The site is located inside the RBH diesel power plant and is fenced from all sides. The wind speed data were collected at 20, 30, and 40 m height above the ground. At all measurement heights, two wind speed sensors were installed. The wind direction data were recorded at 30 and 40 m. The ambient temperature (℃) and global solar radiation (W/m²) data were recorded at 2 m above the ground level. A schematic of the meteorological sensors installed on 40 m tall tower is shown in Figure 2 and an actual photo of the mast taken at the site is shown in Figure 3. The technical specifications of all the sensors used in this measurement campaign are given in Table 1.

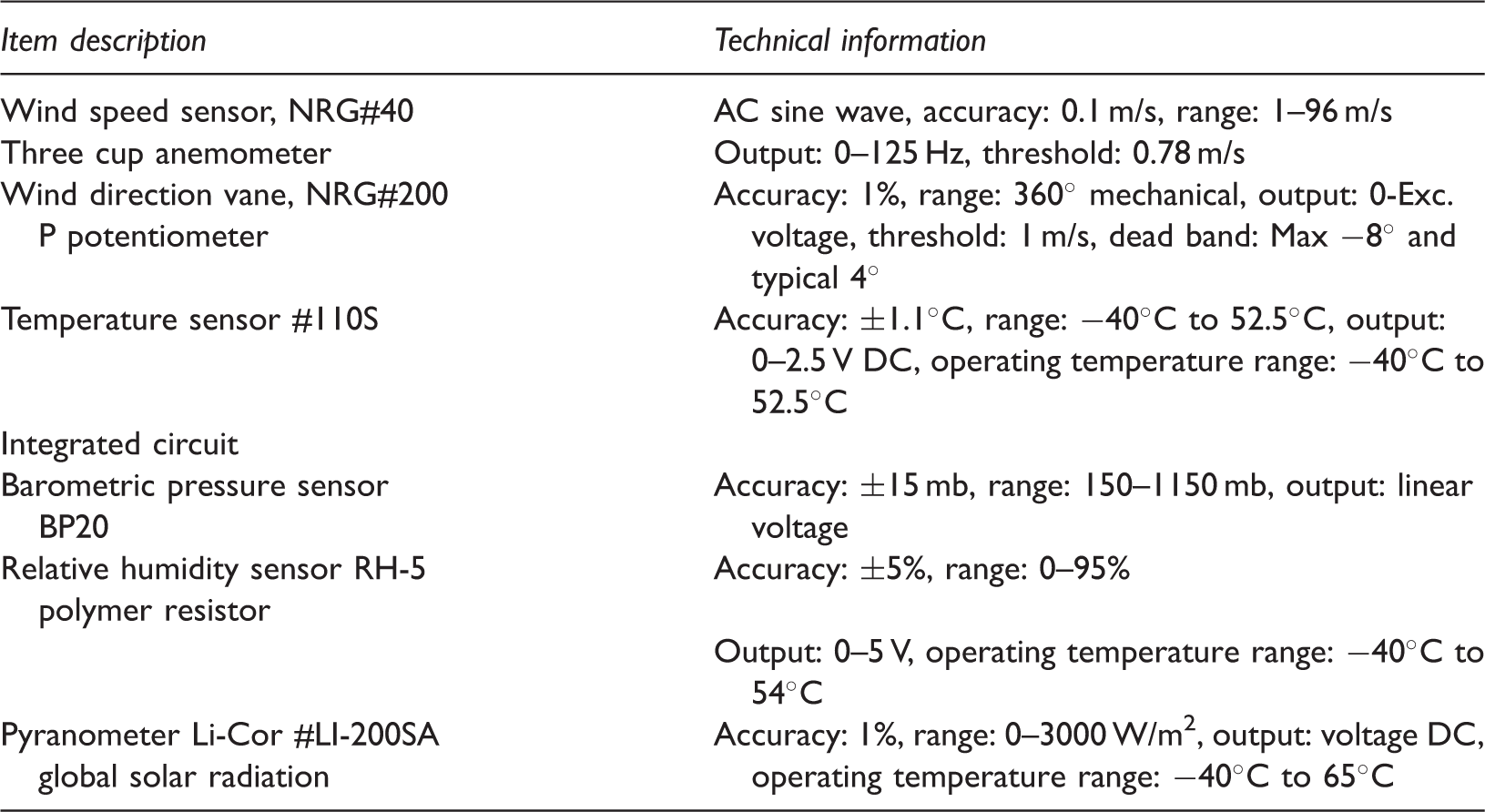

Table 1.

Operating ranges and accuracies of various sensors used for data collection.

Item description	Technical information
Wind speed sensor, NRG#40	AC sine wave, accuracy: 0.1 m/s, range: 1–96 m/s
Three cup anemometer	Output: 0–125 Hz, threshold: 0.78 m/s
Wind direction vane, NRG#200 P potentiometer	Accuracy: 1%, range: 360° mechanical, output: 0-Exc. voltage, threshold: 1 m/s, dead band: Max −8° and typical 4°
Temperature sensor #110S	Accuracy: ±1.1℃, range: −40℃ to 52.5℃, output: 0–2.5 V DC, operating temperature range: −40℃ to 52.5℃
Integrated circuit
Barometric pressure sensor BP20	Accuracy: ±15 mb, range: 150–1150 mb, output: linear voltage
Relative humidity sensor RH-5 polymer resistor	Accuracy: ±5%, range: 0–95%
	Output: 0–5 V, operating temperature range: −40℃ to 54℃
Pyranometer Li-Cor #LI-200SA global solar radiation	Accuracy: 1%, range: 0–3000 W/m², output: voltage DC, operating temperature range: −40℃ to 65℃

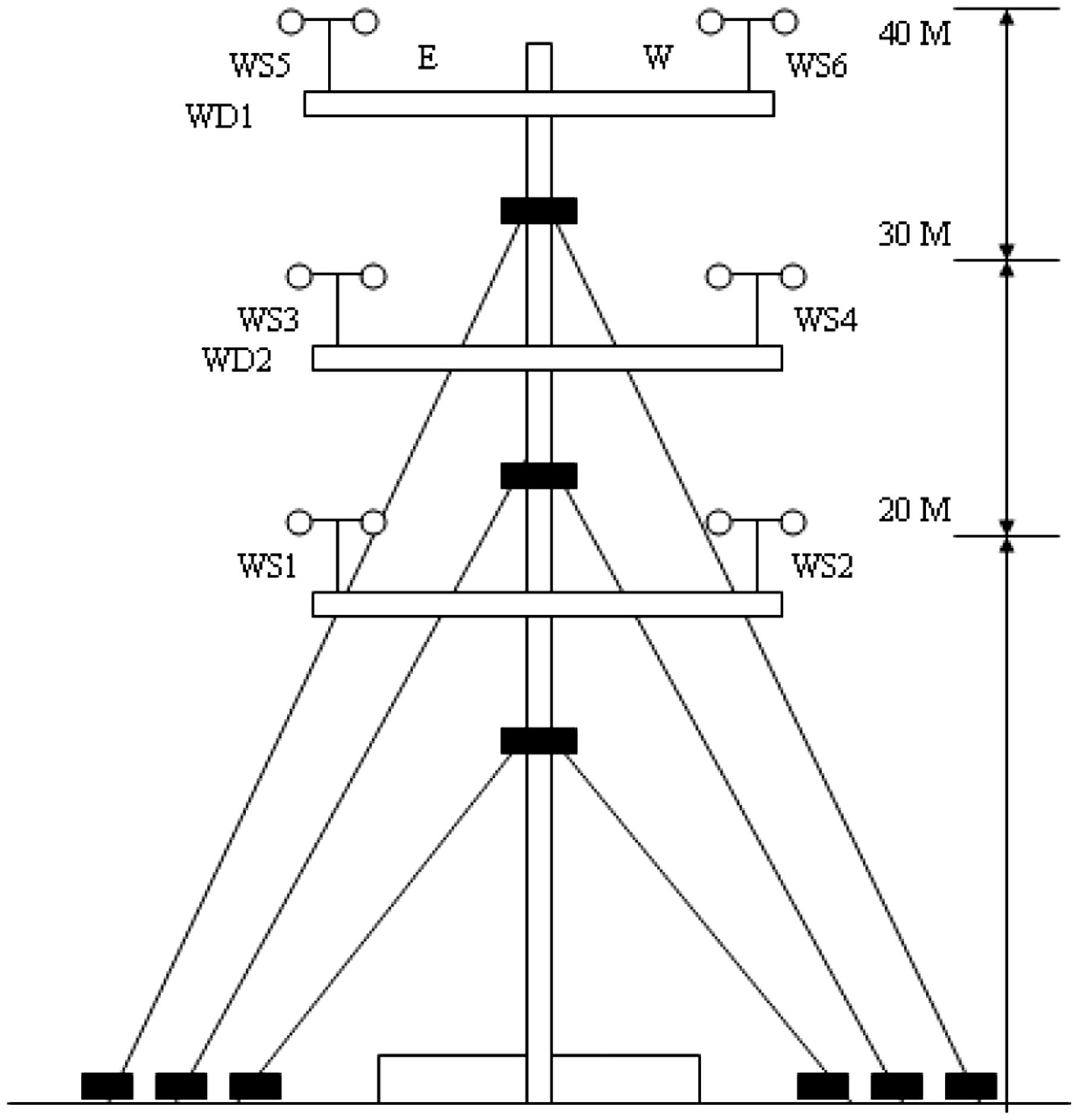

Figure 2.

Schematic diagram of meteorological measurement tower at RBH.

Figure 3.

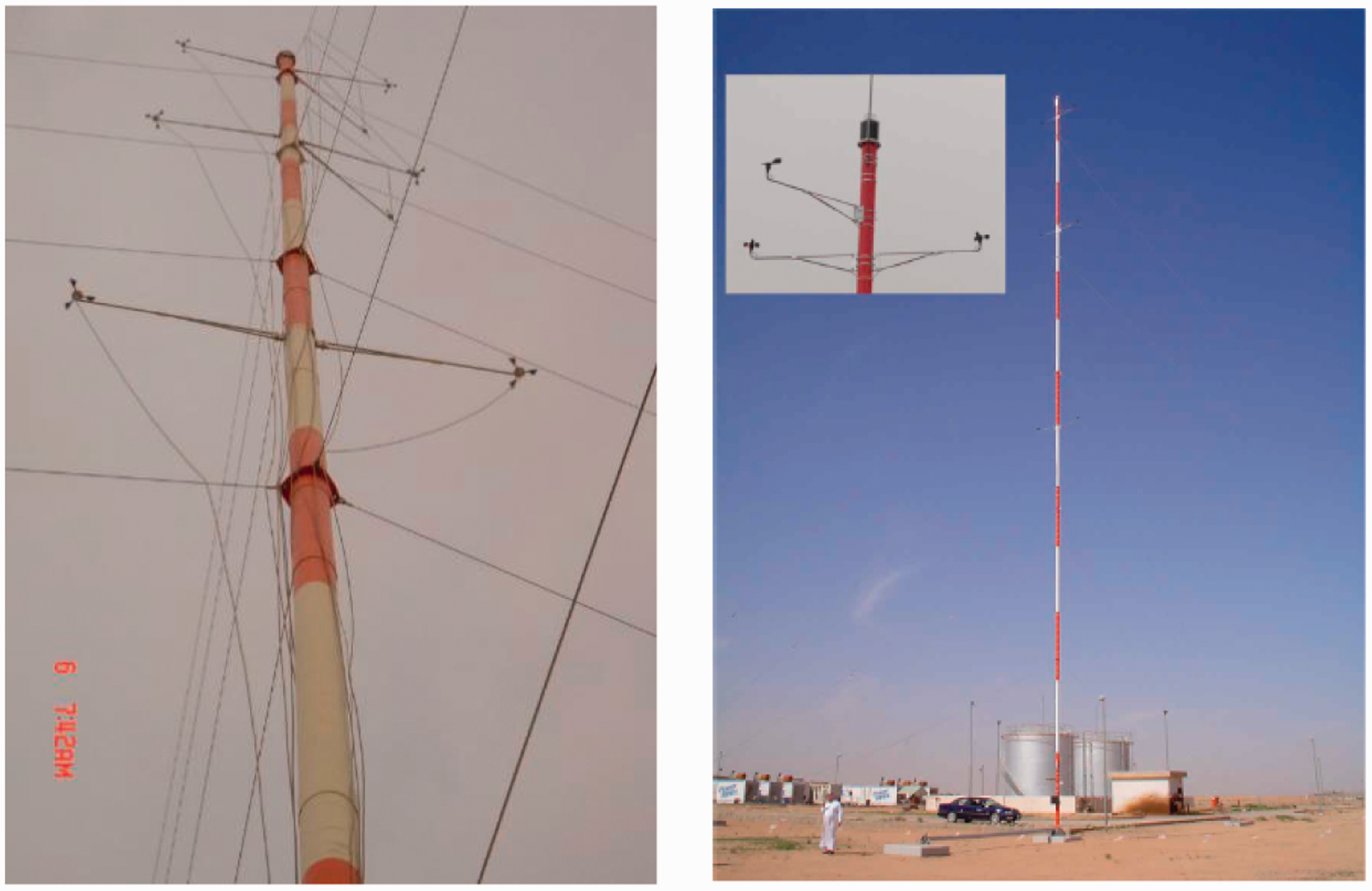

Meteorological measurement mast at RBH.

The energy pattern factor (K_e) also known as the cube factor is calculated for each wind speed using the following equation where N is the number of time steps, U_i is the wind speed at time step I, and U is the mean wind speed. For constant air density, the energy pattern factor is calculated as the ratio of the actual mean wind power density (WPD) to the WPD calculated based on only the mean wind speed as follows where the mean WPD in W/m³, ρ is the air density in kg/m³, U is the mean wind speed in m/s, and K_e is the energy pattern factor. The average wind energy content for each wind speed in the data set is estimated using the following equation where $\bar{E}$ is the average wind energy content in kW h/m²/yr and $\bar{P}$ is the average wind power density in W/m².

A total of 13 commercially available small horizontal axis wind turbines (HAWT) were selected and the required technical specifications are given in Table 2. The wind power curves of chosen HAWT were obtained from different internet sources (web links are given in Appendix 1). The rated power of HAWT varied from 1.4 to 20 kW. The wind power curves used for energy yield estimation are given in Figure 4(a) and (b).

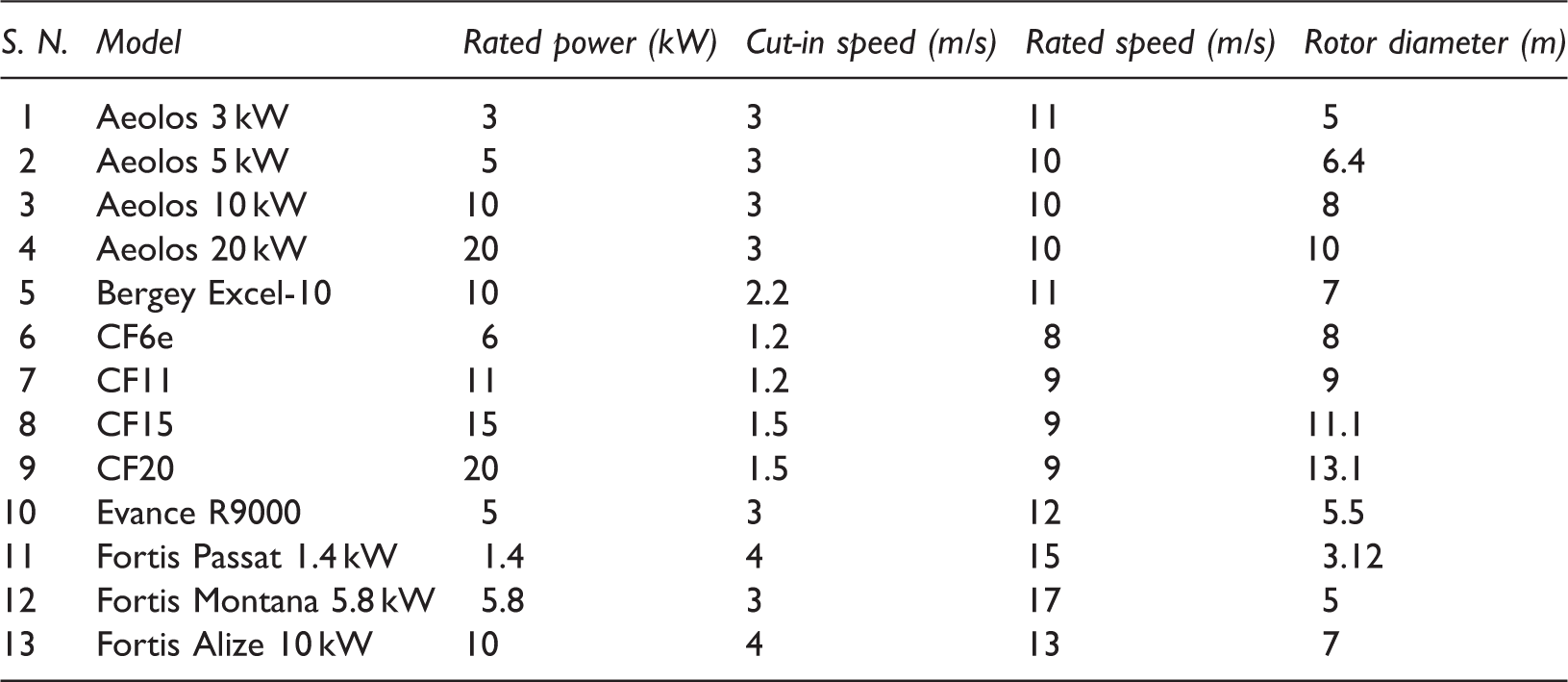

Table 2.

Horizontal axis small wind turbine specifications.

S. N.	Model	Rated power (kW)	Cut-in speed (m/s)	Rated speed (m/s)	Rotor diameter (m)
1	Aeolos 3 kW	3	3	11	5
2	Aeolos 5 kW	5	3	10	6.4
3	Aeolos 10 kW	10	3	10	8
4	Aeolos 20 kW	20	3	10	10
5	Bergey Excel-10	10	2.2	11	7
6	CF6e	6	1.2	8	8
7	CF11	11	1.2	9	9
8	CF15	15	1.5	9	11.1
9	CF20	20	1.5	9	13.1
10	Evance R9000	5	3	12	5.5
11	Fortis Passat 1.4 kW	1.4	4	15	3.12
12	Fortis Montana 5.8 kW	5.8	3	17	5
13	Fortis Alize 10 kW	10	4	13	7

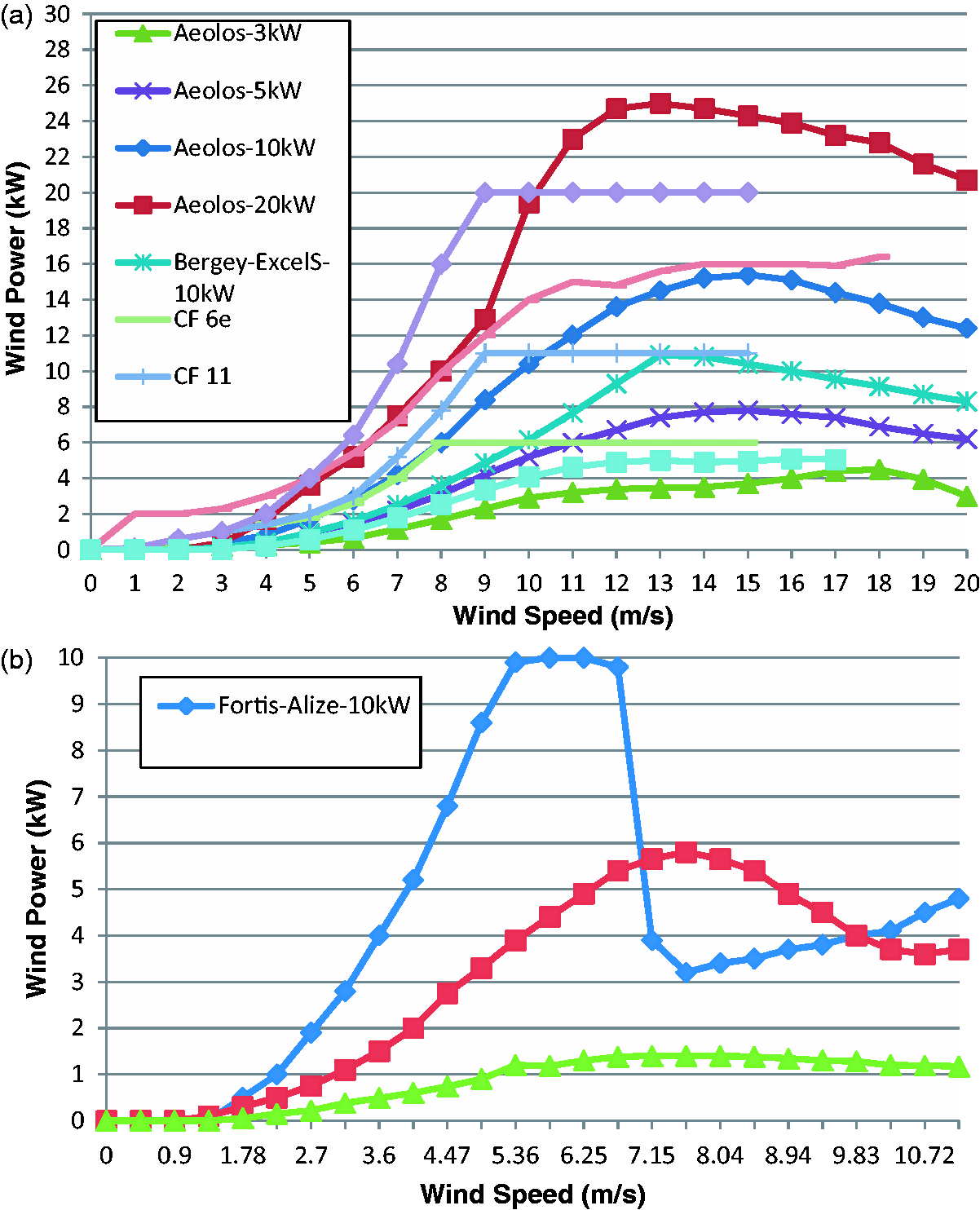

Figure 4.

(a) Wind power curves of selected HAWTs, (b) wind power curves of selected HAWTs.

Results and discussion

The theoretical computation results are presented as overall meteorological summaries, energy yield and plant capacity factor (PCF), annual and monthly energy yield, and PCF variation. To estimate the net power or energy yield, the availability, wake effect, turbine performance, and electrical losses are assumed as 3, 4, 3, and 2%, respectively, with an overall loss of 11.48%. The PCF values were obtained by dividing the actual energy yield by the maximum possible yield in a given period of time.

Meteorological summaries at RBH (13 September 2005 to 9 May 2010)

The mean, mean of monthly means (MoMM), minimum, and maximum values along with the median of measured wind speeds (WS1, WS2, WS3, WS4, WS5, and WS6), wind directions (WD1 and WD2), ambient temperature, global solar radiation, pressure, and relative humidity and derived parameters (like air density, turbulence intensity (TI), and WPD) are summarized in Table 3. The mean WS increased by around 7.1 and 12.7% at 30 and 40 m above ground level (AGL) compared to its value at previous height, respectively. An overall increase of about 20.7% was observed in wind speed measured at 40 m compared to that at 20 m. The MoMM gives a better estimate of mean wind speed values because the seasonality effects are minimized by taking the average of monthly men values. In the present case, the MoMM were almost the same as the mean wind speed values as seen from the data given in Table 3. The mean WD was predominantly from north-north west (NNW) with an average value of 339° at 40 m and 327° at 30 m. The ambient temperature at the site varied from a minimum of -6.1 ℃ to a maximum of 49.1 ℃ with an overall average of 24.7 ℃. The mean values of global solar radiation, pressure, and relative humidity were 231 W/m², 931.4 mbar, and 21.4%, respectively. The air density was calculated using ambient pressure and temperature and was found to vary from 0.72 to 1.27 kg/m³ with an overall mean of 1.09 kg/m³. The local value of air density was used for the estimation of WPD and energy yield from the chosen wind turbines.

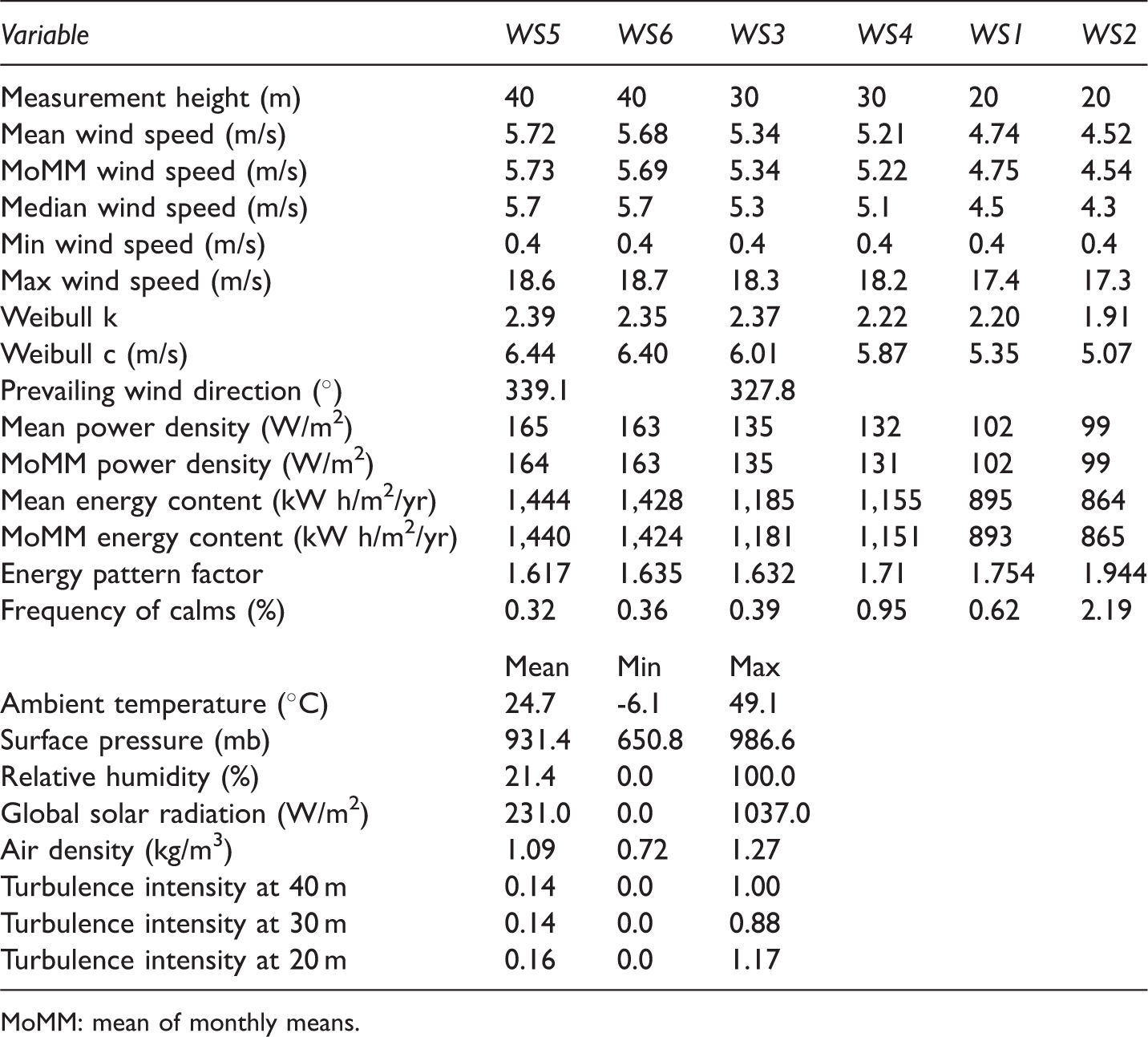

Table 3.

Meteorological data summary (13 September 2005 to 9 May 2010).

Variable	WS5	WS6	WS3	WS4	WS1	WS2
Measurement height (m)	40	40	30	30	20	20
Mean wind speed (m/s)	5.72	5.68	5.34	5.21	4.74	4.52
MoMM wind speed (m/s)	5.73	5.69	5.34	5.22	4.75	4.54
Median wind speed (m/s)	5.7	5.7	5.3	5.1	4.5	4.3
Min wind speed (m/s)	0.4	0.4	0.4	0.4	0.4	0.4
Max wind speed (m/s)	18.6	18.7	18.3	18.2	17.4	17.3
Weibull k	2.39	2.35	2.37	2.22	2.20	1.91
Weibull c (m/s)	6.44	6.40	6.01	5.87	5.35	5.07
Prevailing wind direction (°)	339.1		327.8
Mean power density (W/m²)	165	163	135	132	102	99
MoMM power density (W/m²)	164	163	135	131	102	99
Mean energy content (kW h/m²/yr)	1,444	1,428	1,185	1,155	895	864
MoMM energy content (kW h/m²/yr)	1,440	1,424	1,181	1,151	893	865
Energy pattern factor	1.617	1.635	1.632	1.71	1.754	1.944
Frequency of calms (%)	0.32	0.36	0.39	0.95	0.62	2.19
	Mean	Min	Max
Ambient temperature (℃)	24.7	-6.1	49.1
Surface pressure (mb)	931.4	650.8	986.6
Relative humidity (%)	21.4	0.0	100.0
Global solar radiation (W/m²)	231.0	0.0	1037.0
Air density (kg/m³)	1.09	0.72	1.27
Turbulence intensity at 40 m	0.14	0.0	1.00
Turbulence intensity at 30 m	0.14	0.0	0.88
Turbulence intensity at 20 m	0.16	0.0	1.17

MoMM: mean of monthly means.

The mean air turbulence intensities were calculated using the mean wind speed and standard deviation values and were found to be 0.14, 0.14, and 0.16 at 40, 30, and 20 m AGL which were always less than the critical TI value of 0.18 as the permissible value recommended in IEC 61400-1 standard (2005). Furthermore, the mean TI values were found to be decreasing with height which indicates that wind turbines will be safe to operate even at further higher hub heights if needed. Finally, the mean WPD was found to vary from 102 to 165 W/m² corresponding to 20 and 40 m heights. The mean WPD at 30 m height was 135 W/m² as can be seen from Table 3. In case of WPD, the MoMM of WPD and simple WPD values were almost the same in magnitude. The WPD density was also found to increase with increasing heights. The mean energy content or the wind speed cube factor was observed to be decreasing with increasing wind measurement height. For an increase of height of 10 m from 20 to 30 m, the energy content changed by around 25% while for the same height change from 30 to 40 m it changed only by 18%. This simply implies that the energy content or the wind cube factor effect decreases with height. The energy pattern factors were found to be decreasing with increasing height with highest values at 20 m height and lowest at 40 m.

Energy yield and PCF analysis (1 July 2006 to 10 July 2008)

The annual energy yield and the PCF corresponding to all wind turbines at 10, 15, 20, 30, and 40 m heights are summarized in Table 4. For a small load of 700 W or less Fortis Passat, WT with 1.4 kW rated capacity could be used. The annual energy yield (AEY) of this turbine is 4.847 MW h with a PCF of 39.5% at 10 m hub height. The same WT could produce 7.084 MW h of electricity with a PCF of 57.8% at 40 m hub height. Among 5 kW rated power turbines, Aeolos 5 kW was found to be most efficient with an AEY of 12.017 MW h and PCF of 27.44% corresponding to 40 m hub height. From 10 kW rated power WTs, Fortis Alize 10 kW was found to be most efficient with AEY of 43.901 MW h and PCF of 50.12% at 30 m hub height. The 20 kW rated power WT CF20 produced 54.674 MW h electricity annually with a PCF of 31.21% while Aeolos 20 kW turbine produced 42.141 MW h of energy with a PCF of 24.05% corresponding to 40 m hub height. The performance of other WTs of 3, 6, 11, and 15 kW is also included in Table 4 and a particular WT with suitable hub height can be selected for meeting the required electrical loads.

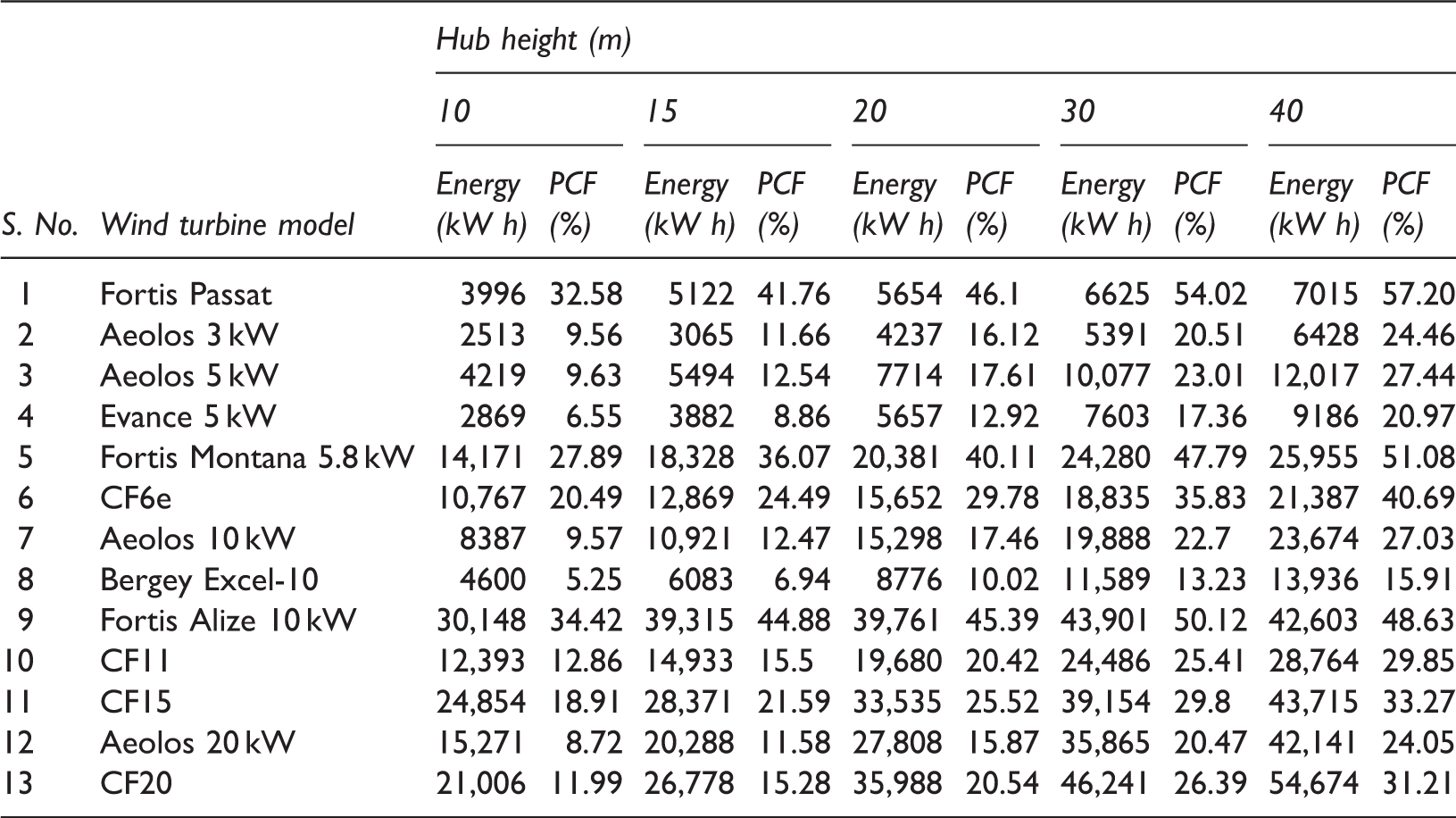

Table 4.

Annual energy yield and plant capacity factor obtained from HAWTs.

S. No.	Wind turbine model	Hub height (m)
		10		15		20		30		40
		Energy (kW h)	PCF (%)	Energy (kW h)	PCF (%)	Energy (kW h)	PCF (%)	Energy (kW h)	PCF (%)	Energy (kW h)	PCF (%)
1	Fortis Passat	3996	32.58	5122	41.76	5654	46.1	6625	54.02	7015	57.20
2	Aeolos 3 kW	2513	9.56	3065	11.66	4237	16.12	5391	20.51	6428	24.46
3	Aeolos 5 kW	4219	9.63	5494	12.54	7714	17.61	10,077	23.01	12,017	27.44
4	Evance 5 kW	2869	6.55	3882	8.86	5657	12.92	7603	17.36	9186	20.97
5	Fortis Montana 5.8 kW	14,171	27.89	18,328	36.07	20,381	40.11	24,280	47.79	25,955	51.08
6	CF6e	10,767	20.49	12,869	24.49	15,652	29.78	18,835	35.83	21,387	40.69
7	Aeolos 10 kW	8387	9.57	10,921	12.47	15,298	17.46	19,888	22.7	23,674	27.03
8	Bergey Excel-10	4600	5.25	6083	6.94	8776	10.02	11,589	13.23	13,936	15.91
9	Fortis Alize 10 kW	30,148	34.42	39,315	44.88	39,761	45.39	43,901	50.12	42,603	48.63
10	CF11	12,393	12.86	14,933	15.5	19,680	20.42	24,486	25.41	28,764	29.85
11	CF15	24,854	18.91	28,371	21.59	33,535	25.52	39,154	29.8	43,715	33.27
12	Aeolos 20 kW	15,271	8.72	20,288	11.58	27,808	15.87	35,865	20.47	42,141	24.05
13	CF20	21,006	11.99	26,778	15.28	35,988	20.54	46,241	26.39	54,674	31.21

The effect of hub height on the percent change in energy yield from chosen WTs is shown in Figure 5. As seen from this figure, maximum percentage increase in AEY was observed for all the chosen WTs while changing the hub height from 15 to 20 m, i.e. an increase of only 5 m. Next best percentage increase in AEY was obtained for hub height change of 5 m, i.e. from 10 to 15 m. An interesting observation is made from this figure that almost all the WTs showed same percentage change in AEY for an increase of hub height of 5 m (from 10 to 15 m) and an increase of hub height of 10 m (from 20 to 30 m). Furthermore, highest percentage increase in AEY of about 45% was observed for Bergey Excel-10 and Evance R9000 wind turbines. For example in case of Evance R9000, the AEY changed from 2.869 MW h to 3.882 MW h to 5.657 MW h to 7.603 MW h to 9.186 MW h corresponding to change in hub height from 10 to 15, 15 to 20, 20 to 30, and 30 to 40 m, respectively.

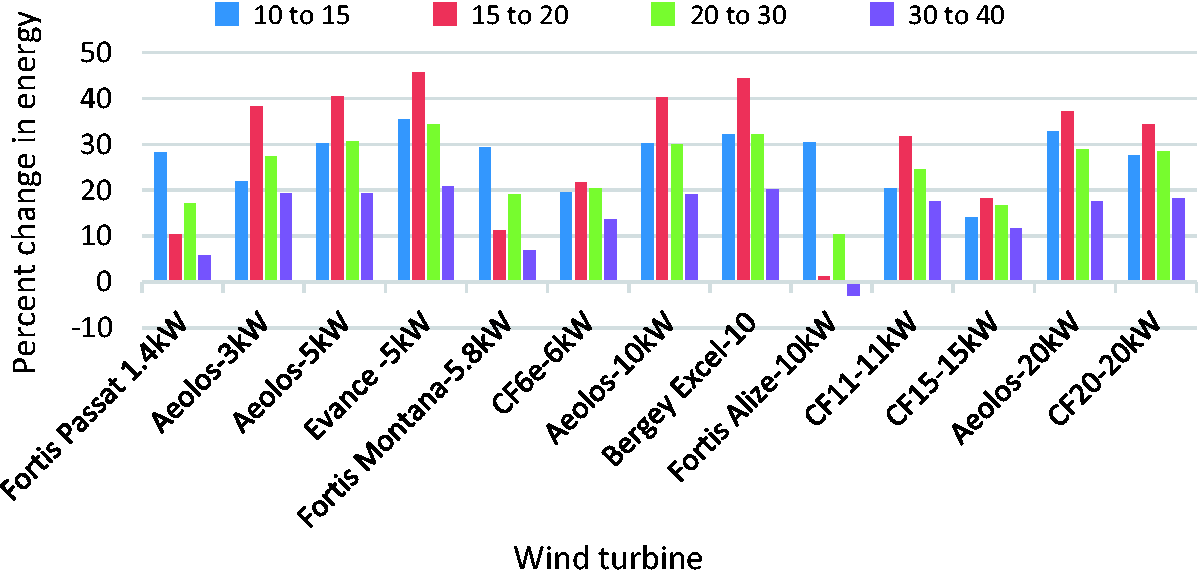

Figure 5.

Percentage increase in AEY of wind turbine with change in hub height.

For practical applications at RBH and its surroundings and areas with similar or better wind resources, following wind turbines are recommended:

For small loads of < 0.7 kW, Fortis Passat with PCF of 41.76% at 15 m hub height;

For medium loads of up to 1.5 kW, Aeolos 5 kW with PCF of 17.61% at 20 m hub height;

For larger loads of up to 2.5 kW, CF6e with PCF of 29.78% at 20 m hub height;

For further higher loads, suitable wind turbines could be chosen from the performance data given in Table 4.

Figures 6 and 7 provide the performance of all the WTs at a glance based on AEY and PCF and could be used for the selection of an efficient wind turbine for a particular load requirement and application. Furthermore, these figures could also be helpful in choosing the hub height of the chosen wind turbine based on AEY or PCF or combination. The long-term performance in terms of actual energy produced in different years (from 2006 to 2009) of all the WTs corresponding to hub heights of 10, 15, 20, 30, and 40 m is displayed in Figures 8 to 12, respectively.

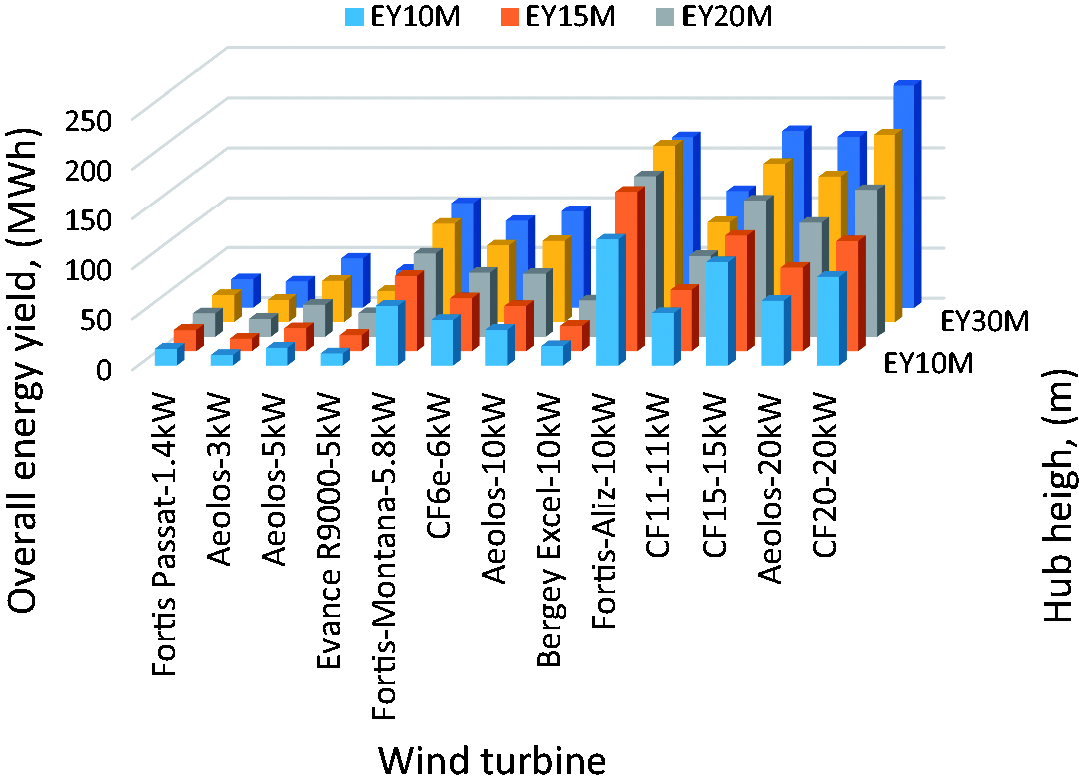

Figure 6.

Variation of overall energy yield from chosen wind turbines with hub height.

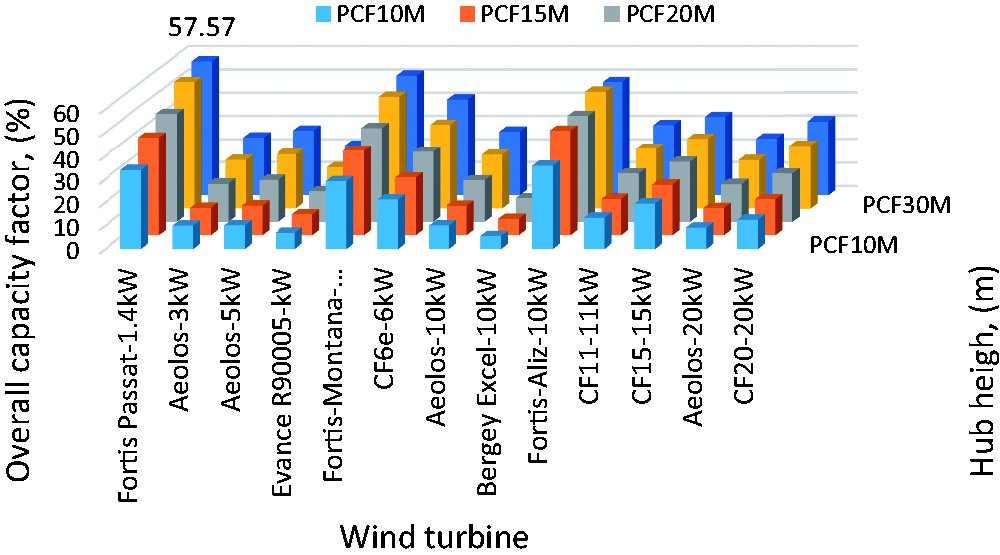

Figure 7.

Variation of overall plant capacity factors of chosen wind turbines with hub height.

Figure 8.

Annual variation of energy yield of wind turbines with 10 m hub height.

Figure 9.

Annual variation of energy yield of wind turbines with 15 m hub height.

Figure 10.

Annual variation of energy yield of wind turbines with 20 m hub height.

Figure 11.

Annual variation of energy yield of wind turbines with 30 m hub height.

Figure 12.

Annual variation of energy yield of wind turbines with 40 m hub height.

The durations during which the chosen wind turbines did not produce any energy are compared in Figure 13. It is very clear from this representation that all the wind turbines had highest percentages of zero out for hub height of 10 m. This simply meant that the wind has more fluctuations near the ground level due to high roughness value. As the hub height of the turbine increased, the percentages of the zero output energy were noticed to decrease, as depicted in Figure 13. In case of wind turbines Fortis Passat, Aeolos-H 3 kW, Fortis Montana-H 5.8 kW, and Fortis Alize-H 10 kW, the decrease in zero output percentages was insignificant while in case of rest of the turbines it was noticeable. It is however established that maximum decrease in zero output power was achieved for a mere increase in hub height of 5 m from 10 to 15 m. On the other hand, almost no change or decrease was seen in percent time duration of zero power output.

Figure 13.

Zero output power duration during entire data collection period.

The percent duration of time during which the wind turbines produced the rated power at different hub heights is shown in Figure 14. In general, the rated power generation duration was found to be increasing with increasing hub height due to the fact that wind speed intensity increases with height above the ground level due to minimal effect of ground activities and additional contribution of regional wind speed. At 10 and 15 m hub heights none of the wind turbine except Fortis Passat, CF6e, and Fortis Alize produced the rated power. The data provided in Figures 13 and 14 can also provide a guideline for the selection of an efficient wind turbine for a particular site for wind power development.

Figure 14.

Rated output power duration during entire data collection period.

Monthly variation of energy yield and PCF

Based on optimal annual energy yield, the PCF, and hub height, wind turbines with higher values have been chosen here for further analysis on monthly basis. The selected wind turbines are Fortis Passat of 1.4 kW, Fortis Montana of 5.8 kW, Fortis Alize of 10 kW, and CF20 of 20 kW rated powers. The respective PCFs of these turbines are of 41.76, 40.11, 50.12, and 31.21% corresponding to hub heights of 15, 20, 30, and 40 m, respectively.

Under RBH wind conditions, the 1.4 kW wind turbine is expected to produce a maximum of 497 kW h of energy in July while a minimum of 324 kW h in the month of September with respective PCFs of 47.7 and 32.2%. Furthermore, during entire year, a net energy of about 400 kW could be available from this small wind turbine of 1.4 kW and hence can be used comfortably for small energy needs as seen from the data summarized in Table 5. The duration during which the energy output was zero remained always < 10%. The duration during which the turbine produced rated power was >2% during most of the months and around 5% during February–June. The net PCF values were mostly around 35%, as can be seen from the last column of Table 5.

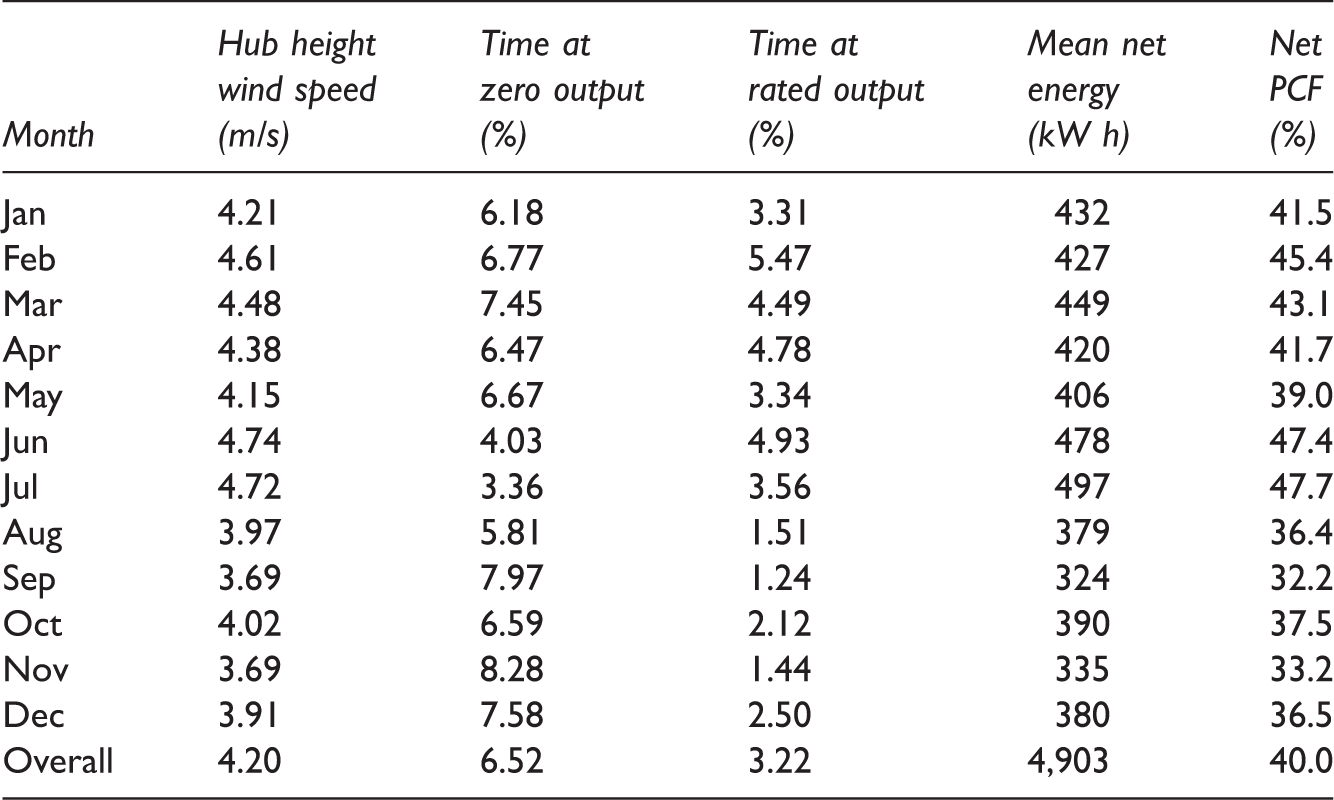

Table 5.

Monthly variation of energy yield and plant capacity factor for a 1.4 kW (Fortis Passat) wind turbine at 15 m hub height.

Month	Hub height	Time at	Time at	Mean net	Net
	wind speed	zero output	rated output	energy	PCF
	(m/s)	(%)	(%)	(kW h)	(%)
Jan	4.21	6.18	3.31	432	41.5
Feb	4.61	6.77	5.47	427	45.4
Mar	4.48	7.45	4.49	449	43.1
Apr	4.38	6.47	4.78	420	41.7
May	4.15	6.67	3.34	406	39.0
Jun	4.74	4.03	4.93	478	47.4
Jul	4.72	3.36	3.56	497	47.7
Aug	3.97	5.81	1.51	379	36.4
Sep	3.69	7.97	1.24	324	32.2
Oct	4.02	6.59	2.12	390	37.5
Nov	3.69	8.28	1.44	335	33.2
Dec	3.91	7.58	2.50	380	36.5
Overall	4.20	6.52	3.22	4,903	40.0

A 5.8 kW (Fortis Montana) wind turbine could produce maximum energy of 2001 kW h in the month of July while a minimum of 1308 kW h in September with respective PCFs of 40.6 and 31.3% with a hub height of 20 m, as given in Table 6. On an average, during entire year, the net energy output was > 1500 kW h. The duration during which the energy output was zero remained mostly < 4%. This turbine was never able to produce the rated power under wind conditions of RBH, as it is evident from the data given in Table 6. The net PCF values were mostly around 40% with a minimum of 31.3% in the month of September, as can be seen from the last column of Table 6.

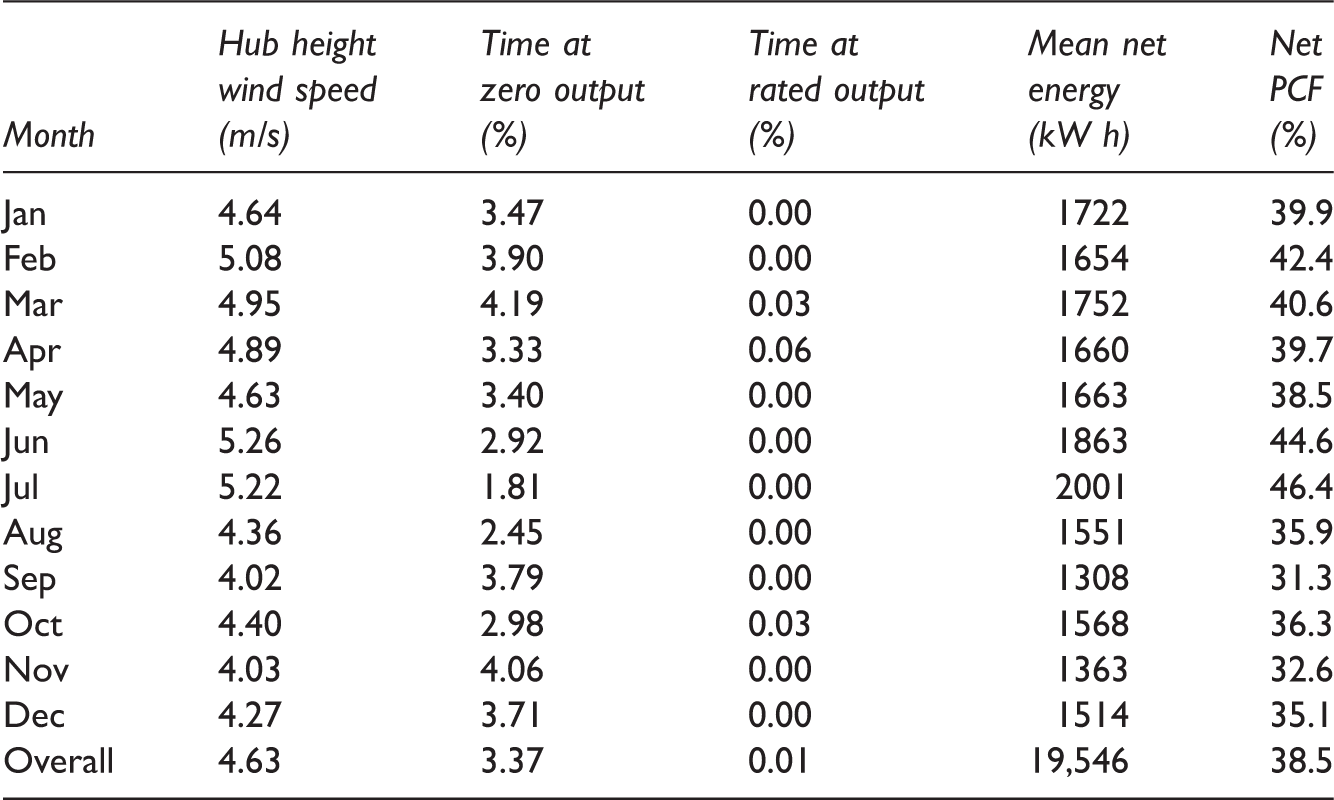

Table 6.

Monthly variation of energy yield and plant capacity factor for a 5.8 kW (Fortis Montana) wind turbine at 20 m hub height.

Month	Hub height	Time at	Time at	Mean net	Net
	wind speed	zero output	rated output	energy	PCF
	(m/s)	(%)	(%)	(kW h)	(%)
Jan	4.64	3.47	0.00	1722	39.9
Feb	5.08	3.90	0.00	1654	42.4
Mar	4.95	4.19	0.03	1752	40.6
Apr	4.89	3.33	0.06	1660	39.7
May	4.63	3.40	0.00	1663	38.5
Jun	5.26	2.92	0.00	1863	44.6
Jul	5.22	1.81	0.00	2001	46.4
Aug	4.36	2.45	0.00	1551	35.9
Sep	4.02	3.79	0.00	1308	31.3
Oct	4.40	2.98	0.03	1568	36.3
Nov	4.03	4.06	0.00	1363	32.6
Dec	4.27	3.71	0.00	1514	35.1
Overall	4.63	3.37	0.01	19,546	38.5

The 10 kW wind turbine (Fortis Alize) was the most efficient turbine among 10 kW rated power machines studied in the present work. This turbine with 30 m hub height was able to produce a maximum of 4030 kW h of energy in July with a PCF of 54.2% and a minimum of 3254 kW h in February with a PCF of 48.4% as shown in Table 7. Furthermore, this turbine produced more energy during summer time compared to wintertime as dictated by numbers given in the fifth column of Table 7. The zero output duration was always < 7%. However, the rated energy output was almost always > 6% which is an indication of good performance of this turbine at the test site. The net PCF was always > 47% with a minimum of 47.2% in March and a maximum of 50.3% in October, as can be seen from the last column of Table 7.

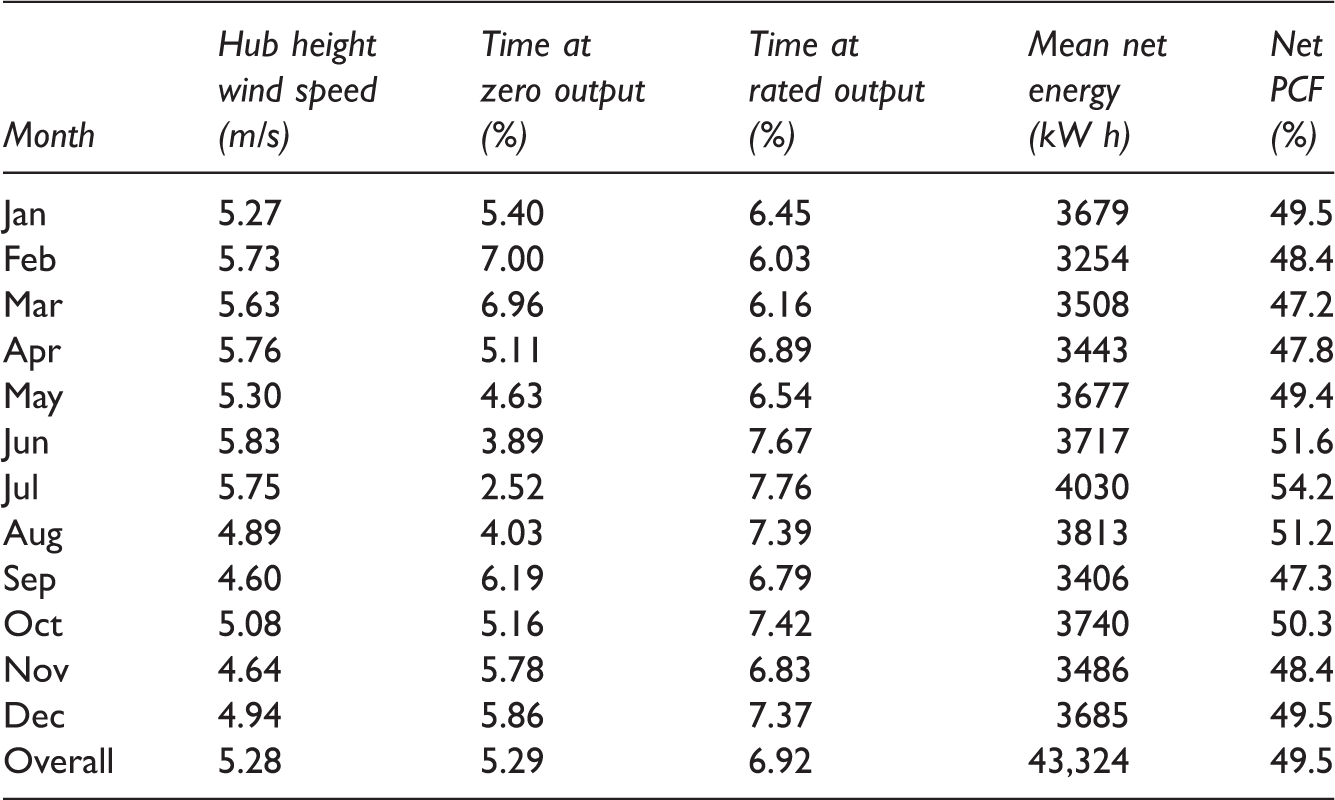

Table 7.

Monthly variation of energy yield and plant capacity factor for a 10 kW (Fortis Alize) wind turbine at 30 m hub height.

Month	Hub height	Time at	Time at	Mean net	Net
	wind speed	zero output	rated output	energy	PCF
	(m/s)	(%)	(%)	(kW h)	(%)
Jan	5.27	5.40	6.45	3679	49.5
Feb	5.73	7.00	6.03	3254	48.4
Mar	5.63	6.96	6.16	3508	47.2
Apr	5.76	5.11	6.89	3443	47.8
May	5.30	4.63	6.54	3677	49.4
Jun	5.83	3.89	7.67	3717	51.6
Jul	5.75	2.52	7.76	4030	54.2
Aug	4.89	4.03	7.39	3813	51.2
Sep	4.60	6.19	6.79	3406	47.3
Oct	5.08	5.16	7.42	3740	50.3
Nov	4.64	5.78	6.83	3486	48.4
Dec	4.94	5.86	7.37	3685	49.5
Overall	5.28	5.29	6.92	43,324	49.5

The 20 kW rated power (CF20) turbine never had zero output during entire operation period as can be seen from column 3 of Table 8. On the other hand, the rated output duration was relatively on the higher side varying from 2 to 13%. The energy output from this turbine was found to be increasing from January till July and then decreasing toward September and then a recovery toward the end of the year. The maximum energy of 5318 kW h with a PCF of 36.9% could be received in June while a minimum of 3321 kW h in September with a PCF of 23.1% at a hub height of 40 m. Furthermore, this turbine produced more energy during summer time compared to wintertime as shown in the fifth column of Table 8. This energy pattern matches with the larger load requirement during summer time and lower during rest of the period. The net PCF was always > 23%, as seen from the last column of Table 8.

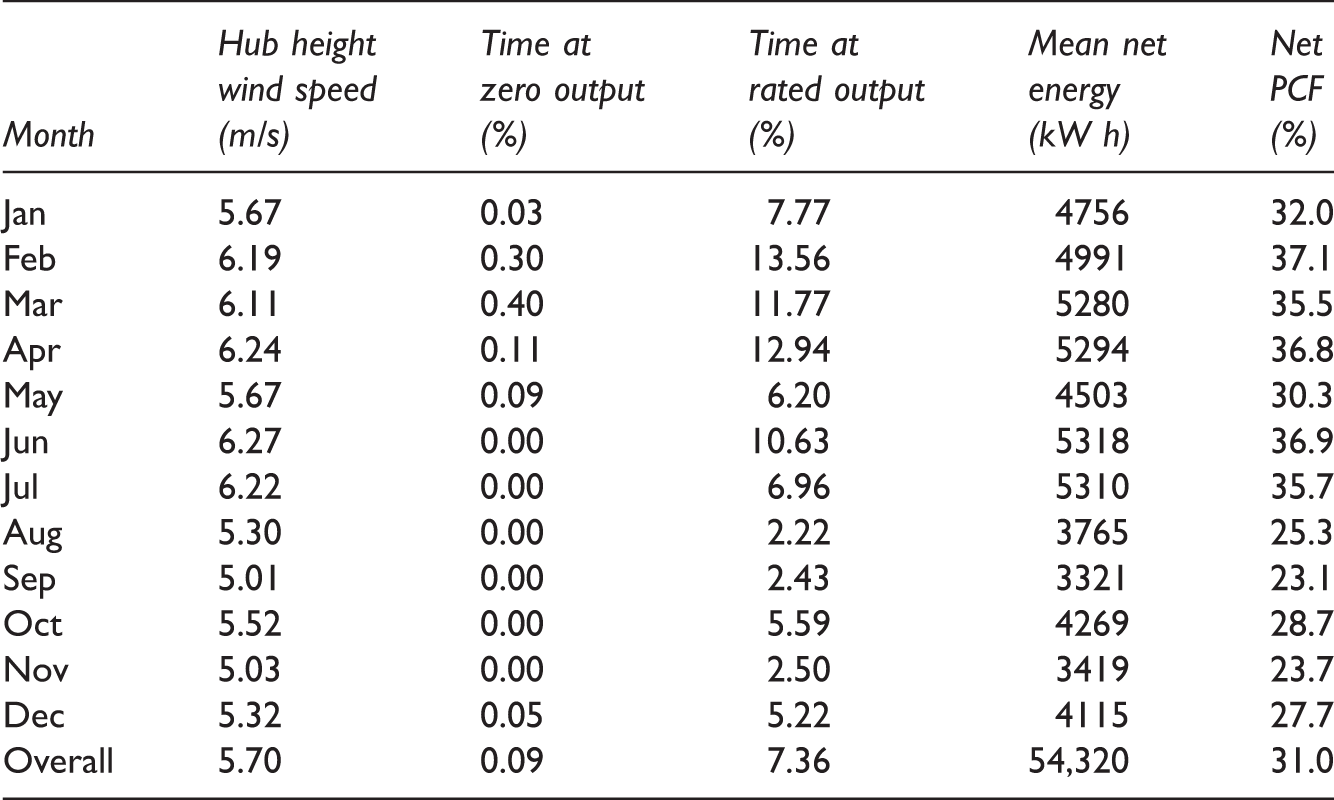

Table 8.

Monthly variation of energy yield and plant capacity factor for a 20 kW (CF20) wind turbine at 40 m hub height.

Month	Hub height	Time at	Time at	Mean net	Net
	wind speed	zero output	rated output	energy	PCF
	(m/s)	(%)	(%)	(kW h)	(%)
Jan	5.67	0.03	7.77	4756	32.0
Feb	6.19	0.30	13.56	4991	37.1
Mar	6.11	0.40	11.77	5280	35.5
Apr	6.24	0.11	12.94	5294	36.8
May	5.67	0.09	6.20	4503	30.3
Jun	6.27	0.00	10.63	5318	36.9
Jul	6.22	0.00	6.96	5310	35.7
Aug	5.30	0.00	2.22	3765	25.3
Sep	5.01	0.00	2.43	3321	23.1
Oct	5.52	0.00	5.59	4269	28.7
Nov	5.03	0.00	2.50	3419	23.7
Dec	5.32	0.05	5.22	4115	27.7
Overall	5.70	0.09	7.36	54,320	31.0

Conclusions

A total of 13 wind turbines have been analyzed in terms of annual energy yield and PCF by using wind speed data measured at 20, 30, and 40 m AGL at RBH meteorological station in Saudi Arabia for a period of 55 months and 25 days. To estimate the net power or energy yield, the down time, array, icing, and other losses were assumed as 5, 4, 1, and 2%, respectively. Following are the findings of the present study:

The long-term mean WS varied from 4.74 to 5.34 to 5.72 m/s corresponding to measurement heights of 20, 30, and 40 m. An increase of about 20.7% was found in wind speed measured at 40 m compared to that at 20 m. In the present case, the MoMM wind speed were almost the same as the normal mean values. The mean WD was predominantly from NNW with an average value of 339° at 40 m and 327° at 30 m.

The ambient temperature varied from a minimum of -6.1 ℃ to a maximum of 49.1 ℃ with an overall average of 24.7 ℃. The mean values of global solar radiation, pressure, and relative humidity were 231 W/m², 931.4 mbar, and 21.4%, respectively.

The mean air turbulence intensities were 0.14, 0.14, and 0.16 at 40, 30, and 20 m AGL which were always less than the critical TI value of 0.18 as the permissible value recommended in IEC 61400-1 standard.

The mean WPD values were 102, 135, and 165 W/m² at 20, 30, and 40 m heights.

The mean energy content or the wind speed cube factor was observed to be decreasing with increasing wind measurement height. For an increase of measurement height of 10 m from 20 to 30 m, the energy content changed by around 25% while for the same height change from 30 to 40 m it changed only by 18%. This simply implies that the energy content or the wind cube factor effect decreases with height.

The energy pattern factors were found to be decreasing with increasing height with highest values at 20 m height and lowest at 40 m.

Maximum percentage increase in AEY was observed for all the chosen WTs while changing the hub height from 15 to 20 m, i.e. an increase of only 5 m. Next best percentage increase in AEY was obtained for hub height change of 5 m, i.e. from 10 to 15 m. An interesting observation is made that almost all the WTs showed same percentage change in AEY for an increase of hub height of 5 m (from 10 to 15 m) and an increase of hub height of 10 m (from 20 to 30 m).

In general, the rated power generation duration was found to be increasing with increasing hub height due to the fact that wind speed intensity increases with height above the ground level due to minimal effect of ground activities and additional contribution of regional wind speed.

For small loads of <0.7 kW, Fortis Passat with PCF of 41.76% at 15 m hub height can be used while for medium loads of up to 1.5 kW, Aeolos 5 kW with PCF of 17.61% at 20 m hub height is recommended. For larger loads of up to 2.5 kW, CF6e with PCF of 29.78% at 20 m hub height is suggested.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The authors wish to acknowledge the support of the Research Institute of King Fahd University of Petroleum and Minerals, Dhahran, Saudi Arabia. Alam wishes to acknowledge support given to him from the Research Grant Council of Shenzhen Government through grants JCYJ20120613145300404. The authors (A Lashin and N Al Arifi) extend their appreciation to the Deanship of Scientific Research at King Saud University (Saudi Arabia) for funding the work through the international research group project no. IRG14-36.

Appendix 1

References

Abed

(1997) Performance of a wind turbine-driven compressor for lifting water. Energy 22(1): 21–26.

Albani

Ibrahim

Yong

(2014) The feasibility study of off shore wind energy potential in Kijal, Malaysia: The new alternative energy source exploration in Malaysia. Energy, Exploration and Exploitation 32(2): 329–344.

Al-Qabandi

De Silva

Al-Enezi

(2014) Synthesis, fabrication and mechanical characterization of reinforced epoxy and polypropylene composites for wind turbine blades. Journal of Reinforced Plastics and Composites 33(24): 2287–2299.

Arifujjaman

Iqbal

Quaicoe

(2008) Energy capture by a small wind-energy conversion system. Applied Energy 85(1): 41–51.

Bassyouni

Gutub

(2013) Materials selection strategy and surface treatment of polymer composites for wind turbine blades fabrication. Polymers and Polymer Composites 21(7): 463–471.

Bassyouni

Gutub

Javaid

(2015) Assessment and analysis of wind power resource using weibull parameters. Energy Exploration and Exploitation 33(1): 105–122.

Bekele

Tadesse

(2012) Feasibility study of small hydro/PV/wind hybrid system for off-grid rural electrification in Ethiopia. Applied Energy 97: 5–15.

Bishop

JDK

Amaratunga

GAJ

(2008) Evaluation of small wind turbines in distributed arrangement as sustainable wind energy option for Barbados. Energy Conversion and Management 49(6): 1652–1661.

Chen

Song

Zhang

(2013) A statistical method to merge wind cases for wind power assessment of wind farm. Journal of Wind Engineering and Industrial Aerodynamics 119: 69–77.

10.

Eltamaly

(2013) Design and implementation of wind energy system in Saudi Arabia. Renewable Energy 60: 42–52.

11.

Global Wind Energy Council (GWEC) annual report, 2015. Available at: http://www.gwec.net/wp content/uploads/2012/06/GLOBAL-INSTALLED-WIND-POWER-CAPACITY-MW-Regional-Distribution.jpg (accessed 13 July 2015).

12.

International Electrochemical Commission (IEC) standard IEC61400-1 (2005) Available at: http://webstore.iec.ch/ (accessed 25 June 2015).

13.

Islam

Mekhilef

Saidur

(2013) Progress and recent trends of wind energy technology. Renewable and Sustainable Energy Reviews 21: 456–468.

14.

Jowder

FAL

(2009) Wind power analysis and site matching of wind turbine generators in Kingdom of Bahrain. Applied Energy 86(4): 538–545.

15.

Kishore

Coudron

Priya

(2013) Small-scale wind energy portable turbine (SWEPT). Journal of Wind Engineering and Industrial Aerodynamics 116: 21–31.

16.

Lara

Merino

Pavez

(2011) Efficiency assessment of a wind pumping system. Energy Conversion and Management 52(2): 795–803.

17.

Mostafaeipour

(2013) Economic evaluation of small wind turbine utilization in Kerman, Iran. Energy Conversion and Management 73: 214–225.

18.

Nagai

Ameku

Roy

(2009) Performance of a 3 kW wind turbine generator with variable pitch control system. Applied Energy 86(9): 1774–1782.

19.

Olateju

Kumar

(2011) Hydrogen production from wind energy in Western Canada for upgrading bitumen from oil sands. Energy 36(11): 6326–6339.

20.

Ozgener

(2006) A small wind turbine system (SWTS) application and its performance analysis. Energy Conversion and Management 47(11–12): 1326–1337.

21.

Ozgener

(2010) Use of solar assisted geothermal heat pump and small wind turbine systems for heating agricultural and residential buildings. Energy 35(1): 262–268.

22.

Ozgur

Kose

(2006) Assessment of the wind energy potential of Kutahya, Turkey. Energy, Exploration and Exploitation 24(4): 331–347.

23.

Sedaghat

Liu

Whitty

(2012) Wind power of small wind turbines in turbulent open jets. Scientia Iranica 19(2): 272–281.

24.

Simic

Havelka

Vrhovcak

(2013) Small wind turbines—A unique segment of the wind power market. Renewable Energy 50: 1027–1036.
