Shale gas adsorption and desorption characteristics and its effects on shale permeability

Abstract

A large proportion of shale gas is in adsorbed state. However, in the process of shale gas development, adsorbed gas in the shale pores will gradually desorb, which results in the permeability change of shale. This study aims to find out the adsorption and desorption characteristics of shale and whether there exists certain impact of desorption effects on shale permeability by experiments. Isothermal adsorption and desorption curves of shale gas are not coincident and the desorption curves are in hysteresis. Langmuir equation can be used to calculate the shale isothermal adsorption curve and desorption equation can be used to calculate the shale gas isothermal desorption curve. The permeability of shale was measured, respectively, under low pressure and high pressure, with methane and helium as experimental gas. Then, the comparison was made between the results of shale and the similar experiment results of tight gas sandstone. The results are showed as follows: adsorption effects will break the linear relationship between the shale permeability and the reciprocal of average pore pressure under low pressure; under high pressure, when gas desorption enhances, shale permeability significantly increases. Therefore, adsorption effects can impact the shale permeability under low pressure as well as under high pressure, which should be taken into consideration in the shale gas development.

Keywords

Shale permeability adsorption desorption pressure

Introduction

In China, there are various kinds of shale gas resources, distributing in large areas. Thus, our shale gas has a great potential for exploitation. According to estimation, China’s shale gas resource that can be exploited is about 31 × 10¹² m³ (Wang and Wang, 2011). In shale gas reservoir, gas exists in three states: as free gas in cracks, as free gas in matrix pore, and as absorption gas (Lane et al., 1989). Generally, shale contains high organic matter and clay mineral. And the quantity of high organic matter is closely related to natural gas adsorption (Lu et al., 1995). Its pore structure provides it with large specific surface area. Those advantages are beneficial for matrix pore to adsorb a good deal of natural gas, with its content changing in the range of 20–85% (Lane et al., 1995). The existence of nanopores in shale has been revealed recently by ultra-high pressure mercury injection (Curtis et al., 2010, 2011a; Elgmati et al., 2011; Sondergeld et al., 2010) and back-scattered scanning electron microscopy (Ambrose et al., 2012; Curtis et al., 2011b; Milner et al., 2010; Schieber, 2010).

Currently, there are mainly three methods for determining permeability of very low permeability rocks in the laboratory: traditional steady-state method, unsteady-state method, and mercury (Hg) intrusion curves method. Steady-state method has been successfully applied in conventional reservoirs for many years (Klinkenberg, 1941; Rushing et al., 2004; Sinha et al., 2013). However, this method requires a very long time to achieve steady-state flow in measuring ultra-low permeability samples. In order to overcome the shortcoming of steady-state method, the unsteady-state technique makes the shale permeability measurement possible by reducing the test time. Pulse decay method is one of the commonly used unsteady-state techniques, which generally includes the core column method (Bourbie and Walls, 1982; Chen and Stagg, 1984; Dicker and Smits, 1988; Hsieh et al., 1981; Jones, 1997), core chips or drill cuttings method (Qu et al., 2015), and the degassing method (Egermann et al., 2015; Luffel et al., 1993). Mercury (Hg) intrusion method is first presented by Washburn (1921) who first put forward capillary force function and established the relationship between capillary force, interfacial tension, and contact angle. After that, the relationship between Hg injection curves and permeability has been investigated by a number of authors (Kamath, 1992; Rashid et al., 2015; Thomeer, 1960, 1983). Cui et al. (2009) defined an apparent transport coefficient to determine the shale permeability and concluded that the apparent transport coefficient will become smaller if the gas is adsorptive to the sample if the gas adsorption is considered. Sinha et al. (2013) presented the results of steady-state permeability measurements on shale samples conducted at reservoir conditions and found that net stress, pore pressure, temperature, and gas type have strong effects on permeability of shale. Cao et al. (2016) presented a new approach for measuring the permeability of shale featuring adsorption and found that shale permeability would be inaccurate without consideration of adsorption. Except for net stress, pore pressure, temperature, and gas type, water is also an important factor influencing the permeability of shale. Zhou et al. (2016) provided quantitative permeability change to shale imbibition with various fracturing fluid and found that imbibition in shale seriously and permanently reduced matrix permeability. In this study, we focused on the gas adsorption effect on shale permeability by experiment.

Samples and methods

Samples

Experimental samples are collected from the target layer of Longmaxi Formation in Southern Sichuan Basin because Longmaxi Shale in this area is relatively stable and can better represent the formation. Core plugs with diameter of 2.5 cm and length of 5 cm were drilled from whole cores as shown in Figure 1, and then the left cores were crushed into 60–80 mesh (as shown in Figure 2) for isothermal adsorption experiment. The gas adsorption and desorption isotherms were measured on the “as-received” sample without any drying of the sample. Table 1 presents the compositional analysis of the Longmaxi shale sample. Generally speaking, clay mineral content is the highest, which ranges from 18 to 46% with an average of 36%. The second highest mineral is quartz, which ranges from 24 to 41% with an average of 32.8%. The average calcite content is 10.7%. Overall, in our research area, the sum of average clay, quartz, and calcite content accounts for 79.5% of the whole composition minerals. Other minerals such as plagioclase and pyrite content are usually less than 7%. The average total organic content of the samples is 1.75%.

Figure 1.

Core plugs ready for permeability measurement experiments.

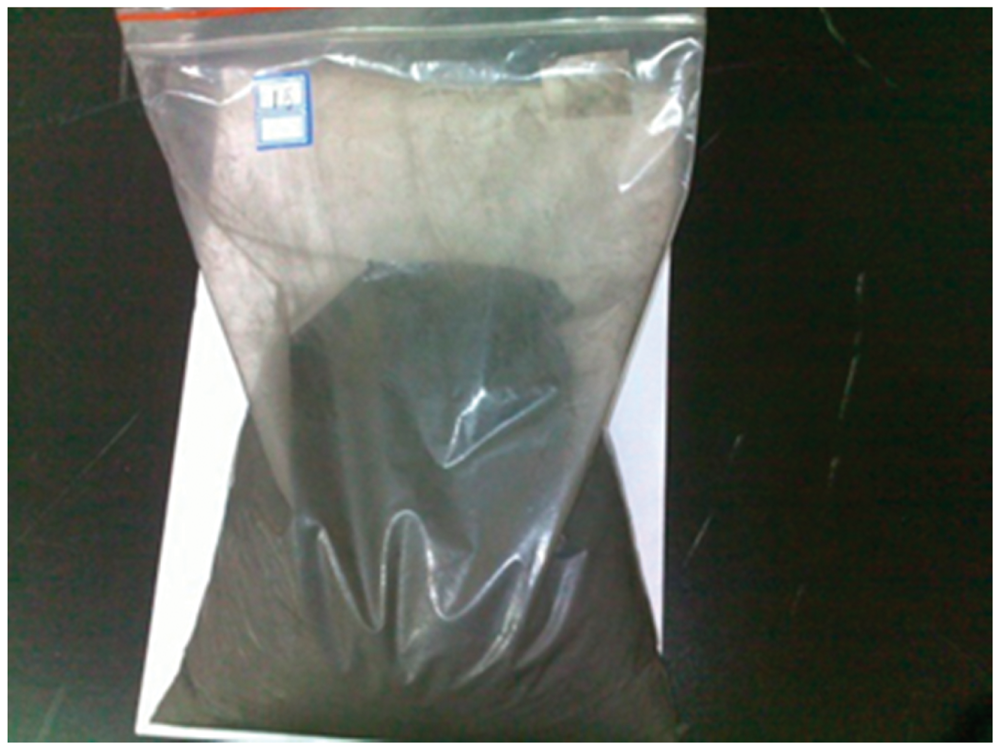

Figure 2.

Crushed shale sample for isothermal adsorption experiments.

Table 1.

Mineral composition of Longmaxi Formation, Southern Sichuan Basin.

Sample#	Depth (m)	Clay compositions (%)				Other minerals (%)
Sample#	Depth (m)	Chlorite	Illite	Illite– Smectite mixed layer	Total clay content	Quartz	Potassium feldspar	Plagioclase	Calcite	Dolomite	Pyrite
1	1400.95	17	43	40	36	35	3	7	8	9	2
2	1406.41	16	41	43	46	34	2	4	7	5	2
3	1414.97	19	39	42	45	36	2	5	7	3	2
4	1420.47	16	49	35	38	41	–	4	10	4	3
5	1425.19	12	48	40	33	27	1	4	12	19	4
6	1437.3	9	60	31	18	24		1	20	34	3

The gas adsorption experiment using nitrogen as the adsorbent at liquid nitrogen temperature was conducted. Figure 3 shows the adsorption–desorption isotherms results of the shale samples. Both the isotherms show hysteresis between adsorption and desorption that is characteristic of type IV isotherms (as per IUPAC classification). The hysteresis pattern, termed H3 as per IUPAC classification, indicates presence of slit-like pores. Figure 4 shows the pore size distribution obtained from the desorption curves by Barrett-Joyner-Halenda method. The distribution curves of six shale samples show a peak radius of between 1 and 3 nm. The dominance of micropores in shale makes it a good candidate for gas adsorption potential. So in the permeability measurement of shale samples, we should take gas adsorption effect into consideration.

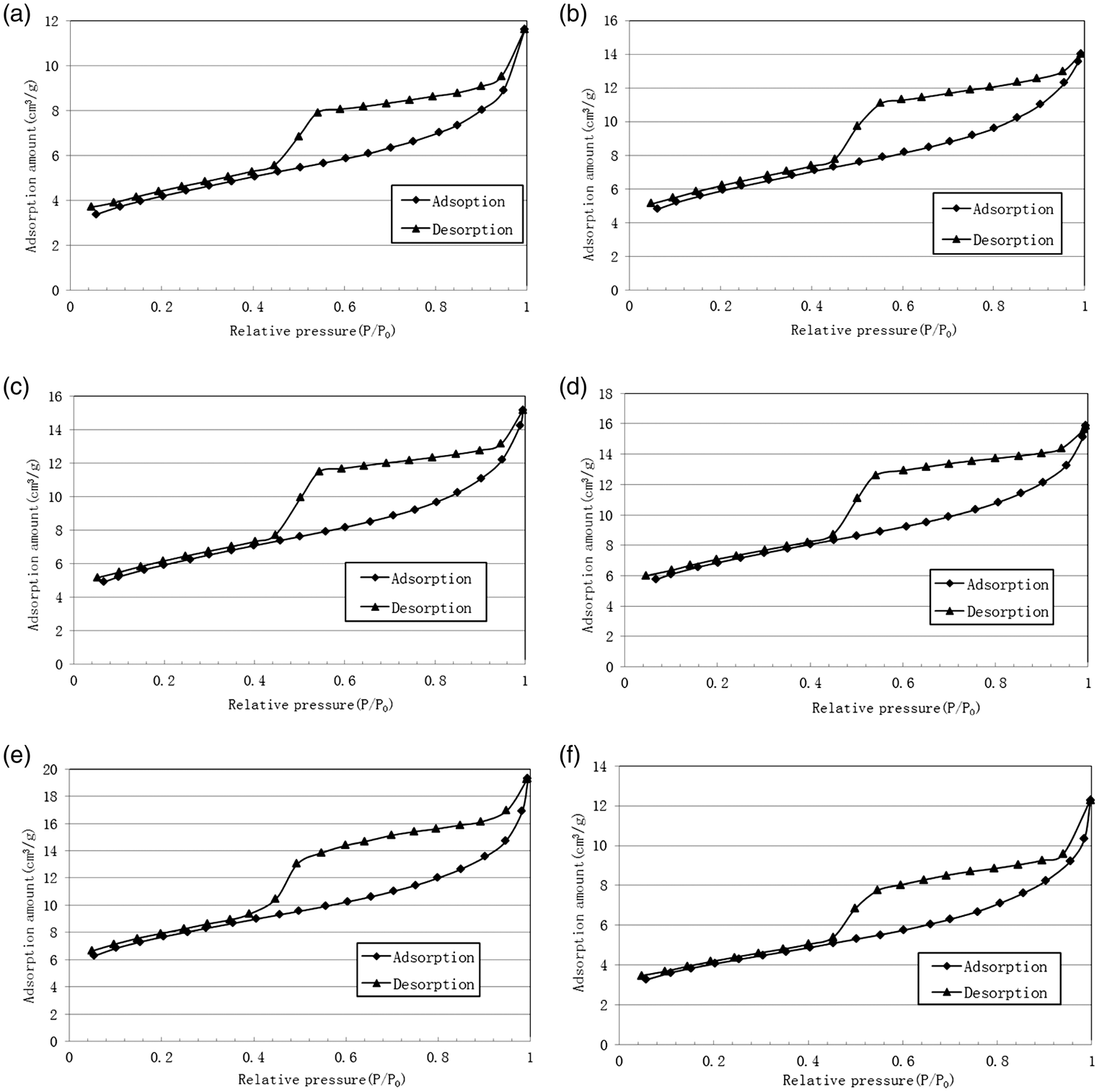

Figure 3.

Liquid nitrogen adsorption and desorption experimental results. (a) Sample 1#, (b) sample 2#, (c) sample 3#, (d) sample 4#, (e) sample 5#, and (f) sample 6#.

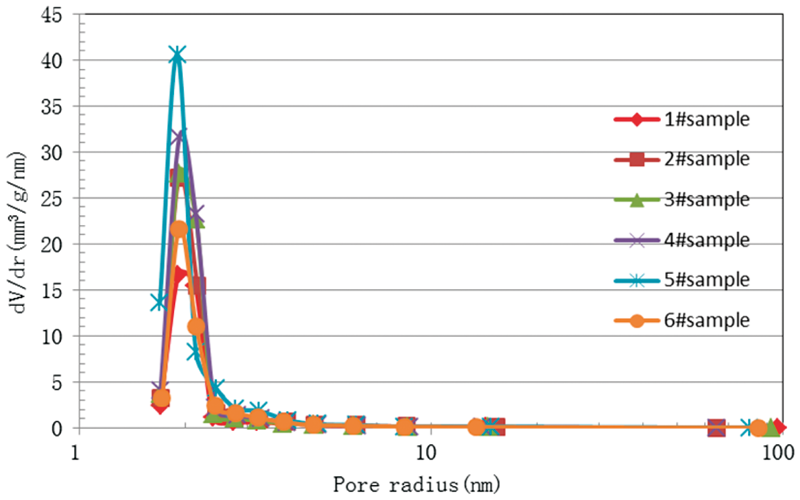

Figure 4.

Pore size distribution of shale samples.

Adsorption and desorption isotherm curves measurement method

The experimental technique used in this study is based on the volumetric method of measuring adsorption. The experimental apparatus is shown schematically in Figure 5. The essential details of the method are described in the following paragraph.

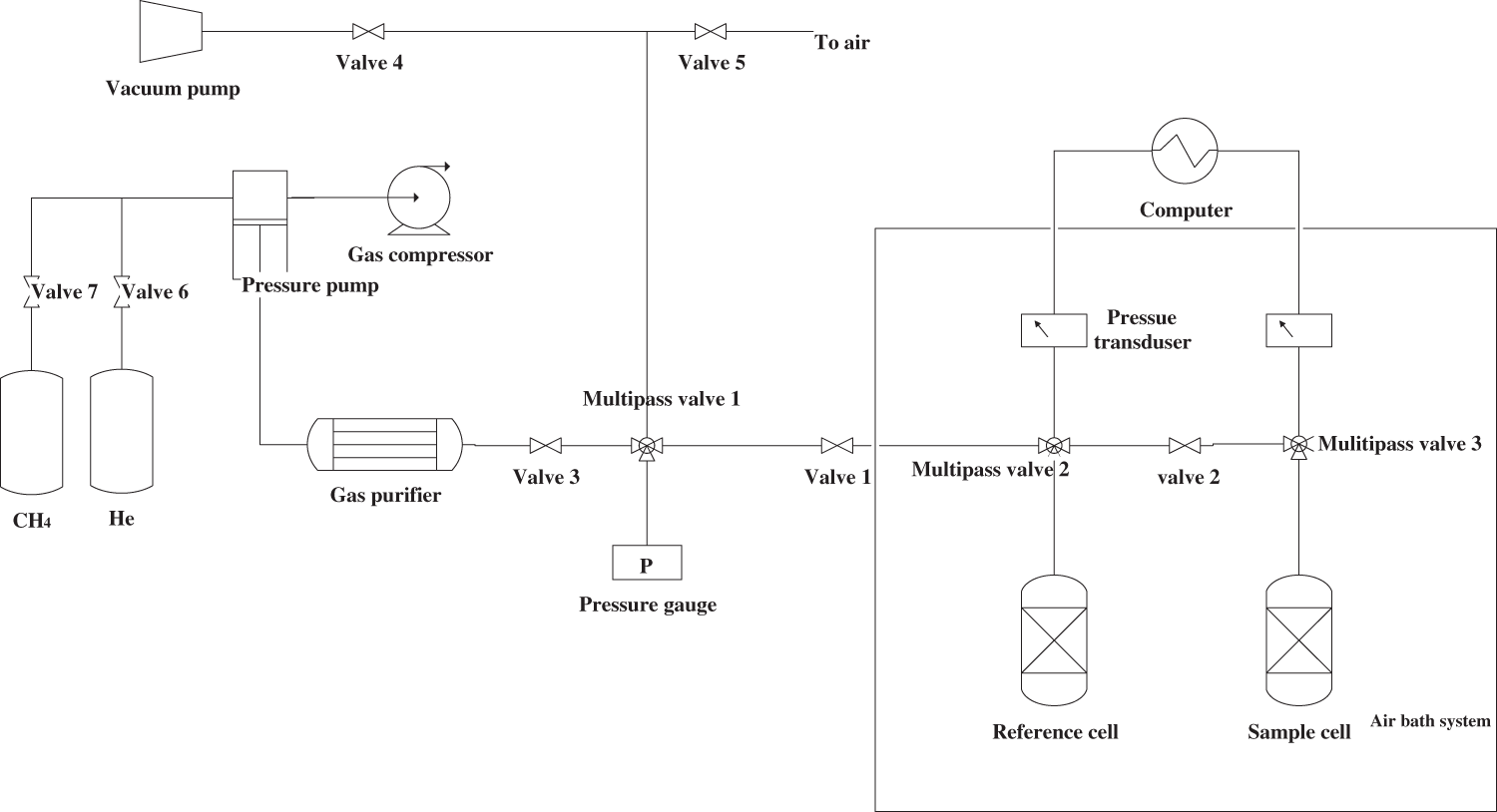

Figure 5.

Isothermal adsorption experimental apparatus diagram.

The entire apparatus is maintained in a constant temperature air bath. The sample cell (Figure 5) is filled with the adsorbent. The void volume in the cell, V₀, is determined by helium expansion method. The helium void volume includes all the volume of the cell section exclusive of the adsorbent volume that is impenetrable to helium gas. Because the adsorption amount of helium can be ignored, the void volume can be determined from gas expansion method. The details of measuring V₀ are as follows: (1) Set the system temperature first and open the valve 1, 2, 4 to vacuum the system that includes reference cell, sample cell, and connecting lines for 120 min until no significant pressure change and then close the valve 2, 4 and record the reference cell and sample cell pressure p₁. (2) Open the valve 3, 6 to let a certain helium gas (purity > 99.999%) flow into the reference cell, and then close the valve 1, 3, 6. When the reference cell pressure and temperature become stable, the reference cylinder pressure p₂ is recorded to calculate the amount of He in the reference cell. Open the valve 2, He expands into the sample cell and record the equilibrium pressure p₃. The V₀ can be calculated from the material balance equation

V_{0} = V_{r} (\frac{p_{2} Z_{1} Z_{3} - p_{3} Z_{1} Z_{2}}{p_{3} Z_{1} Z_{2} - p_{1} Z_{2} Z_{3}})

(1)

where V_r is the volume of reference cell with connection lines (cm³), p₁ is the sample cell initial pressure (MPa), p₂ is reference cell initial pressure (MPa), p₃ is the equilibrium pressure (MPa), Z₁ is the helium compression factor at p₁ (dimensionless), Z₂ is the helium compression factor at p₂ (dimensionless), Z₃ is the helium compression factor at p₃ (dimensionless). (3) Repeat step 2 and increase the reference cell pressure up to 8 MPa in intervals of 1 MPa. Generally, the void volume relative error calculated from sequential pressures is less than 1%. The constancy of the calculated void volume from the incremental injections over a range of pressures confirmed the validity of our assumption that adsorption of helium is negligible on the conditions of the measurements.

The isothermal adsorption experiment is a progress of gas injection–equilibrium–gas injection. The details of measuring isothermal adsorption curves are as follows: (1) After sample cell void volume measurements, valves 1, 2, 3, 4 are opened and the system is vacuumed for 120 min and then the valves 2 and 4 are closed. (2) Open the valves 3 and 7 to let methane (purity > 99.99%) flow into reference cell, and then close the valves 1 and 7, the reference cell pressure is recorded after equilibrium and the amount of CH₄ in the reference cell is calculated in application of gas equation of state

n_{1}^{0} = \frac{p_{1}^{0} V_{r}}{Z_{1}^{0} RT}

(2)

where T is system temperature (K) and

Z_{1}^{0}

is the compression factor of methane in the temperature T and pressure

p_{1}^{0}

. (3) Open valve 2 slowly, the reference cell and the sample cell are connected and methane expands from the reference cell to the sample cell. (4) In order to keep the shale adsorb methane completely, the equilibrium time should be longer than 12 h and then record the final equilibrium pressure p₁. The remaining amount of free methane in the system n₁, the shale excess adsorption amount of methane N₁, and the per gram shale excess adsorption amount of methane Q₁ can be calculated as follows

n_{1} = \frac{p_{1} (V_{r} + V_{0})}{Z_{1} RT}

(3)

N_{1} = \frac{1}{RT} [\frac{p_{0}^{1} V_{r}}{Z_{1}^{0}} - \frac{p_{1} (V_{r} + V_{0})}{Z_{1}}]

(4)

Q_{1} = 22.4 \times 1000 \times \frac{N_{1}}{G}

(5)

where n₁ is the remaining amount of free methane in the system (mol), Z₁ is the compression factor of methane at the temperature T and pressure p₁, Q₁ is the shale excess adsorption amount of methane per gram (cm³/g), and G is shale sample mass (g). (5) Close the valve 2, open the valves 1 and 7 and then close, the reference cell is injected with methane the second time and then the equilibrium pressure of reference cell is recorded. Open valve 2 slowly and keep the equilibrium time longer than 12 h and then record the final equilibrium pressure p₂. The shale excess adsorption amount of methane and the per gram shale excess adsorption amount of methane can be calculated as follows

N_{2} = N_{1} + \frac{1}{RT} [\frac{p_{2}^{0} V_{r}}{Z_{2}^{0}} + \frac{p_{1} V_{0}}{Z_{1}} - \frac{p_{2} (V_{r} + V_{0})}{Z_{2}}]

(6)

Q_{2} = 22.4 \times 1000 \times \frac{N_{2}}{G}

(7)

where

p_{2}^{0}

is the reference cell filling pressure for the second injection (MPa), p₂ is the equilibrium pressure for the second injection (MPa),

Z_{2}^{0}

is the compression factor of methane in the temperature T and pressure

p_{2}^{0}

, and Z₂ is the compression factor of methane in the temperature T and pressure p₂. (6) Repeat step (5) and increase the experimental pressure until it reaches the required highest pressure The shale excess adsorption amount of methane and the shale excess adsorption amount of methane per gram can be calculated as follows

N_{i} = N_{i - 1} + \frac{1}{RT} [\frac{p_{i}^{0} V_{r}}{Z_{i}^{0}} + \frac{p_{i - 1} V_{0}}{Z_{i - 1}} - \frac{p_{i} (V_{r} + V_{0})}{Z_{i}}]

(8)

Q_{i} = 22.4 \times 1000 \times \frac{N_{i}}{G}

(9)

The isothermal desorption experiments operation is the inverse process for the adsorption. The experiment is started from the maximum equilibrium pressure in the adsorption isotherm experiments. The steps are as follows:

Close the valve 2 and open the valve 1 and 5 slowly and then close, release a small amount of methane in the reference cell and record the equilibrium pressure p_i₋₁¹.

Open valve 2 slowly, connect the reference cell and the sample cell for more than 12 h and record the equilibrium pressure $p_{i - 1}'$ . The adsorption amount of methane $N_{i - 1}'$ under pressure $p_{i - 1}'$ and the amount of methane desorption ΔN_i from the pressure p_i to $p_{i - 1}'$ are as follows

N_{i - 1}^{'} = N_{i} - \frac{1}{RT} [\frac{p_{i - 1}^{1} V_{r}}{Z_{i - 1}^{1}} + \frac{p_{i} V_{0}}{Z_{i}} - \frac{p_{i - 1}^{'} (V_{r} + V_{0})}{Z_{i - 1}^{'}}]

(10)

Δ N_{i} = N_{i} - N_{i - 1}^{'} = \frac{1}{RT} [\frac{p_{i - 1}^{1} V_{r}}{Z_{i - 1}^{1}} + \frac{p_{i} V_{0}}{Z_{i}} - \frac{p_{i - 1}^{'} (V_{r} + V_{0})}{Z_{i - 1}^{'}}]

(11)

Repeating steps (1) and (2) successively reduces experimental pressure to the adsorption isotherms of the initial pressure. Plot the $N_{i - 1}'$ and $p_{i - 1}'$ and the desorption curve is obtained.

As evident from the above equations, compressibility factors are required for the pure gases for proper data analysis. We choose the PR equation to calculate the CH₄ compression factor (Robinson et al., 1985). For void volume determination, the helium compressibility factor was calculated with an expression based on experimental data from the National Bureau of Standards Technical Note 631 for helium (McCarty, 1972).

Shale permeability measurement method

To make clear gas flow characteristics in shale under low pressure (<5 MPa), the following experiments were carried out (as shown in Figure 6): (1) The shale core plug of 2.5 cm in diameter and 5 cm in length was put into an apparatus as shown schematically in Figure 7; (2) the confining pressure was adjusted to the core holder; (3) open the inlet valves to let gas flow to the core holder; (4) when the pressure and gas flow rate became stable, record the inlet pressure and gas flow rate; (5) increase the inlet pressure and repeat the third and fourth steps. In order to make comparison, both methane and helium gas were used to measure shale permeability. Tight gas sand samples were also tested to make sure the gas adsorption indeed has impaction on shale permeability.

Figure 6.

Schematic sketch of a low-pressure shale gas permeability test apparatus.

Figure 7.

Schematic sketch of high-pressure shale gas permeability test apparatus.

Under high pressure (>5 MPa), both pore pressure and confining pressure can affect shale permeability. Shale permeability decreases with confining pressure increases and increases with pore pressure increases. For this reason, shale stress sensitivity must be considered in high-pressure permeability test. So as to eliminate the interference of slippage effect on the experiment results, back-pressure regulator was fixed in the outlet end of experimental apparatus, as shown in Figure 7. At the same time, in order to eliminate the negative influence of stress sensitivity on shale permeability measurement, inlet pressure and outlet pressure were changed with confining pressure and the differential pressure between confining pressure and average pore pressure was kept in a constant value. Specific experiment processes are as follows: (1) Put core plug into core holder and adjust confining pressure to 20 MPa. (2) Increase the inlet pressure, outlet pressure, and confining pressure simultaneously and maintain confining pressure and differential pressure value of confining pressure and average pore pressure at 20 MPa; keep differential pressure of inlet pressure and outlet pressure a constant value, until inlet pressure reaches 30 MPa. (3) The confining pressure, inlet pressure, outlet pressure, and the gas flow rate are recorded. Once one data point is recorded, the inlet pressure, outlet pressure, and confining pressure are reduced by 2 MPa. While differential pressure, no matter between average pore pressure and confining pressure or between inlet pressure and outlet pressure, remains the same. In addition, the time interval for every data point recording is long enough, so that gas desorption in the rocks achieves equilibrium. The criterion of equilibrium is that gas volume flow rate keeps unchanged. (4) When inlet pressure drops to 2 MPa, back-pressure regulator is removed, then inlet pressure is slowly reduced and the gas flow rate and inlet pressure are recorded. In order to make comparison, both methane and helium gas were used to measure shale permeability under high pressure. Tight gas sand samples were also tested to make sure the gas adsorption indeed has impaction on shale permeability.

Results and discussion

Shale gas adsorption and desorption characteristics

Figure 8 shows the isothermal adsorption and desorption curves of three shale samples.

Figure 8.

Isothermal adsorption and desorption curves of shale, the experimental temperature is 318.15 K.

It is easily found that desorption and adsorption curves were not coincident and desorption curve overruns the adsorption curve.In our previous work (Wei et al., 2013a, 2013b), we have explained why the desorption curve and adsorption curve did not coincide; we have also proposed that Langmuir equation can be used to calculate the adsorption curve and the desorption equation can be used to calculate the desorption curve. Langmuir (1918) equation is

V = \frac{V_{L} p}{p + p_{L}}

(12)

where V is the shale adsorption capacity (m³/t), V_L is the Langmuir volume which presents the maximum adsorption capacity of shale (m³/t), p is the gas pressure (MPa), and p_L is the Langmuir pressure present at which pressure the adsorption volume reaches half of the maximum adsorption capacity. The fitting results of six samples we studied using Langmuir equation are presented in Table 2. From Table 2 it is found that V_L increases with TOC increases and Langmuir equation can be used to calculate the isothermal adsorption curve.

Table 2.

Fitting results of isothermal adsorption curves using Langmuir equation.

Sample	TOC%	P_L (MPa)	V_L (m³/t)	r²
1#	0.651	3.49	1.15	0.9968
2#	0.896	2.99	1.17	0.9976
3#	1.429	3.18	1.20	0.9980
4#	2.634	1.39	1.53	0.9965
5#	2.873	2.62	1.64	0.9987
6#	2.025	1.88	1.48	0.9996

Desorption equation is

V = \frac{V_{d} p}{p + p_{d}} + C

(13)

where V is the adsorption volume when gas pressure decreases to p (m³/t), V_d is the maximum desorption capacity (m³/t), p_d is a constant related to desorption speed and the heat of adsorption (MPa), and C is the residue adsorption capacity (m³/t).

The fitting results of six samples we studied using desorption equation are presented in Table 3. The fitting degree of all the desorption curves is higher than 99% and the desorption equation can be used to calculate the isothermal desorption curve.

Table 3.

Fitting results of isothermal adsorption curves using Langmuir equation.

Sample	V_d (m³/t)	P_d (MPa)	C (m³/t)	r²
1#	0.83	2.08	0.123	0.9923
2#	0.92	1.408	0.065	0.9969
3#	0.95	1.98	0.089	0.9982
4#	1.48	1.63	0.079	0.9955
5#	1.35	1.30	0.057	0.9947
6#	1.16	1.17	0.181	0.9936

The impact of adsorption effects on shale permeability under low pressure

In conventional tight gas sandstone, gas slippage effect occurs when gas flows through rocks under the low pressure (Klinkenberg, 1941)

K_{g} = K_{\infty} (1 + \frac{b}{P^{-}})

(14)

b = \frac{4 c λ}{r} P^{-}

(15)

where K_g is gas permeability (mD); K_∞ is equivalent liquid permeability (mD);

\bar{P}

is the average pressure of core inlet and outlet (MPa); b is slippage factor; λ is the gas molecular mean free path, which can be calculated by equation (30); and c is the scale factor and r is the radius of pore

λ = \frac{κ T}{\sqrt{2} π d^{2} P^{-}}

(16)

where κ, T, and d represents Boltzmann constant, absolute temperature, and gas molecular collision diameter, respectively.

Shale permeability can be calculated with Darcy equation

K_{g} = \frac{2000 Q μ ZL}{(P_{1}^{2} - P_{2}^{2}) A}

(17)

where K_g is gas permeability (mD), Q is gas volume flow rate (cm³/s), μ is gas viscosity (mPa s), Z is gas compression factor (dimensionless), L is core length (cm), P₁ is inlet pressure (MPa), P₂ is outlet pressure (MPa), and A is cross-sectional area of the core (cm²).

The experiment results of shale permeability under low pressure are demonstrated in Figure 9, with methane as experimental gas. From Figure 9, it is seen that K_g and 1/ $\bar{p}$ is not in a linear relationship, but a curving segment appears. To make a comparison, the experiment results of tight sandstones that have a similar permeability with shale are plotted in Figure 10. Gas permeability of tight sandstone and the reciprocal of average pressure 1/ $\bar{p}$ are kept in a linear relationship, in accordance with equation (14). Nevertheless, adsorption effects may lead to a curving segment in Figure 9. The shale pore diameter mainly distributes among 4–6 nm, and moreover, adsorption gas occupies a large space of it. With pore pressure increases, adsorption gas increases and pore volume decreases, and thus gas flow channel narrows down. Consequently, shale permeability decreases. In order to quantify the curving segment, the following analysis is made. Substituting equations (15) and (16) into equation (14), we obtain

K_{g} = K_{\infty} (1 + \frac{m}{r} \times \frac{1}{P^{-}})

(18)

m = \frac{4 c κ T}{\sqrt{2} π d^{2}}

(19)

Figure 9.

Shale permeability as a function of reciprocal of average pore pressure under low pressure with methane as experimental gas. (a) -▪- 4# shale sample and (b) -▪- 5# shale sample.

Figure 10.

Tight sandstone permeability as a function of reciprocal of average pore pressure under low pressure with methane as experimental gas. (a) -▪- 1# sandstone and (b) -▪- 2# sandstone.

From the equation above, it is found that if T and r are kept at a constant value, K_g is proportional to 1/ $\bar{p}$ and the gradient is m/r. While if T is kept at a constant value but r changes with p, then K_g is no longer proportional to 1/ $\bar{p}$ . And if r decreases with $\bar{p}$ increases, m/r will increase with $\bar{p}$ increases and the curving segment in Figure 9 occurs. In order to find out whether adsorption effects play an important role in the presence of curving segment in Figure 9, another experiment is arranged, with helium as experimental gas. The results are shown in Figure 11. The shale permeability and the reciprocal of average pressure 1/ $\bar{p}$ also displays a linear relationship. As a result, it is sure that adsorption effects can influence shale permeability under low pressure.

Figure 11.

Shale permeability as a function of reciprocal of average pore pressure under low pressure with helium as experimental gas. (a) -▪- 4# shale sample and (b) -▪- 5# shale sample.

The impact of adsorption effects on shale permeability under high pressure

With methane as experimental gas, relationship diagram of shale permeability changes with average pore pressure and isothermal desorption curves are displayed in Figure 12. The desorption curves are calculated with desorption equation when the pressure is above 8 MPa. Figure 13 shows the results of the tight sandstone in the same experimental condition. In contrast, it is easily noted in Figure 12 that when average pore pressure is higher than 10 MPa, the shale permeability keeps a constant value with average pore pressure and confining pressure decreases. However, when average pore pressure is lower than 10 MPa, shale permeability obviously increases with average pore pressure decreases, and when the pore pressure continues to decrease, the permeability keeps increasing. In the corresponding desorption curve, desorption gas increases rapidly with the pressure decreases when the pressure is less than 10 MPa. In Figure 13, when average pore pressure is higher than 4 MPa, there is no apparent change of tight sandstone permeability with average pore pressure decreases. Then, as average pore pressure becomes lower than 4 MPa, sandstone permeability increases as average pore pressure decreases. Such an increase is due to gas slippage effect under low-pressure condition. In Figure 12, the increase of permeability with average pore pressure decreases when average pore pressure is higher than 4 MPa may result from gas desorption effect; while the sharp increase of permeability with average pore pressure when average pore pressure is less than 4 MPa may result from gas slippage effect and gas desorption effect.

Figure 12.

Shale permeability as a function of average pore pressure, under high pressure and with methane as experimental gas. (a) 4# shale sample and (b) 5# shale sample.

Figure 13.

Tight sandstone permeability as a function of average pore pressure, under high pressure and with methane as experimental gas. (a) -▪- 1# sandstone sample and (b) -•- 2# sandstone sample.

Take the gas flow channel in core plug as a bundle of nanotubes with the same radius, the overall flow rates under high-pressure condition where there is no gas slippage effect can be calculated with Hagen–Poiseuille model

v = - \frac{{Nr}^{2} dp}{8 μ dL}

(20)

where N is the number of nanotubes (dimensionless), r is the radius of nanotubes (cm), μ is the viscosity of gas (mPa s), p is the gas pressure (MPa), and L is the length of core plug (cm). Darcy equation of gas flow rates is

v = - \frac{K}{μ} \frac{dp}{dL}

(21)

where K is permeability. Comparing equation (20) with equation (21), it is found that the two equations have the same term dp/μdL. So the permeability of nanotubes can be considered as

K_{0} = \frac{{Nr}^{2}}{8}

(22)

From the equation above, we can see that K₀ is directly related to nanotube radius r. When N is a constant, K₀ decreases with r decreases and increases with r increases. If gas adsorption effect that affects r exists, the permeability K₀ will change with average pore pressure changes. The pore space will increase with gas desorption and organic matter may shrink with adsorbed gas desorption, which leads to the enlargement of pore diameter and thus influences shale permeability.

In order to make sure adsorption effects have influence on permeability, similar experiment is conducted with helium. Figure 14 demonstrates the results. It is easy to observe that the permeability of shale as a function of average pore pressure agrees well with that of tight gas sandstone, which indicates that adsorption effects affect shale permeability. Besides, the permeability of helium is bigger than that of methane, the reason is that the molecular diameter of helium is smaller than that of methane and the helium molecule can pass through much smaller nanopores.

Figure 14.

Shale permeability as a function of average pore pressure, under high pressure and with helium as experimental gas. (a) -▪- 3# shale sample and (b) -•- 5# shale sample.
