Numerical simulation of hydraulic fracturing in coal seam for enhancing underground gas drainage

Governing equation of hydraulic field

Coal seam is a kind of layered combustible mineral characterized by a typical dual-porosity system filling with gas, groundwater, and fracturing water. The coal matrix contains free gas and adsorbed gas components. The gas content in matrix can be defined as (Li et al., 2016a)

m m = φ m ρ g + V s g ρ c ρ g s

(1)

According to the ideal gas state equation, gas density is defined as

ρ g = M g R T p

(2)

The absorbed gas volume per unit mass can be expressed as a Langmuir equation

V s g = V L p m P L + p m

(3)

As assumed in the hypothesis, gas is originally in dynamic equilibrium state of adsorption and desorption. The gas pressure in coal matrix is equal to that in fractures. Both hydraulic fracturing and gas drainage will change the gas pressure in fracture and then break the dynamic equilibrium state. For gas drainage, the adsorbed gas will desorb and transport into the fracture system by means of diffusion under the concentration gradient. According to the Fick diffusion law, the conservation of gas mass in coal matrix can be described as (Fan et al., 2016)

∂ m m ∂ t = − M g τ R T ( p m − p f g )

(4)

By substituting equations (1)–(3) into equation (4), the gas migration equation in coal matrix can be obtained

∂ ∂ t ( V L p m P L + p m ρ s M g R T s p s + φ m M g R T p m ) = − M g τ R T ( p m − p f g )

(5)

In the process of hydraulic fracturing enhancing underground gas drainage, coal seam contains large amount of ad/desorbed gas coexisting with fracturing water and groundwater. Hence, the fluid flow in coal seam is a kind of gas–water two-phase flow. Coal matrix provides a uniformly distributed gas mass source for the fracture system. The mass conservation equation in fracture will be (Fan et al., 2016)

{ ∂ ( s w φ f ρ w ) ∂ t + ∇ ⋅ ( ρ w q w ) = 0 ∂ ( s g φ ρ f g ) ∂ t + ∇ ⋅ ( ρ g q g ) = M g τ R T ( p m − p f g )

(6)

According to the generalized Darcy law of two-phase flow and considering the gas Klinkenberg effect (Zhu et al., 2007), the gas and water velocity in fracture are:

{ q w = − k k r w μ w ∇ p f w q g = − k k r g μ g ( 1 + c p f g ) ∇ p f g

(7)

Corey (1954) proposed a calculative equation for relative permeability, which was proved by Clarkson and Qanbari (2015)

{ k r w = k r w 0 ( s w − s w r 1 − s w r ) 4 k r g = k r g 0 [ 1 − ( s w − s w r 1 − s w r − s g r ) ] 2 [ 1 − ( s w − s w r 1 − s w r ) 2 ]

(8)

By substituting equation (6) into equation (7), the governing equations of hydraulic field in fracture system can be derived as

{ ∂ ∂ t ( s w φ f ρ w ) + ∇ ⋅ [ − ρ w k k r w μ w ∇ p f w ] = 0 ∂ ∂ t ( s g φ f M g R T p f g ) + ∇ ⋅ [ − M g ( p f g + b 1 ) R T k k r g μ g ∇ p f g ] = M g τ R T ( p m − p f g )

(9)

Governing equation of stress field

Coal seam is a dual-porosity material, and its mechanical properties are influenced by pores and fractures and the contained fluid. The total strain of coal seam is the sum of strains induced by stress, gas pressure, water pressure, and gas de/adsorption induced shrinkage/swelling, which can be expressed as (Li et al., 2016a; Wu et al., 2011; Xia et al., 2014)

ε i j = 1 2 G σ i j − ( 1 6 G − 1 9 K ) σ k k δ i j + α m p m + α f p f 3 K δ i j + ε a 3 δ i j

(10)

Based on the elastic mechanics, the equations of strain–displacement relation and static stress equilibrium relation in coal seam can be defined as

{ ε i j = 1 2 ( u i , j + u j , i ) σ i j , j + F i = 0

(11)

Combining equations (10) and (11), a modified Navier equation, namely the governing equation of stress field, can be obtained

G u i , j j + G 1 − 2 υ u j , j i − α m p m , i − α f p f , i − K ε a , i + F i = 0

(12)

Governing equation of damage field

Coal and rock are heterogeneous materials. We assume that the mechanical parameters of REV obey the Weibull distribution. The function of probability density is defined as (Zhu et al., 2013)

f ( u ) = m u 0 ( u / u 0 ) m − 1 exp ⁡ [ − ( u / u 0 ) m ]

(13)

The impact of hydraulic fracturing on coal properties mainly includes two aspects: elastic modulus reduction and fracture permeability increase caused by physical damage, which are presented in the damage variable of equations (14) and (22), respectively. The cracks in the damaged area of coal seam after hydraulic fracturing are much developed, which will result in the fracture permeability rising (Zhu et al., 2013). Therefore, the coal damage zone, namely the elastic modulus decreasing zone, can be basically regarded as the zone of hydraulic fracturing.

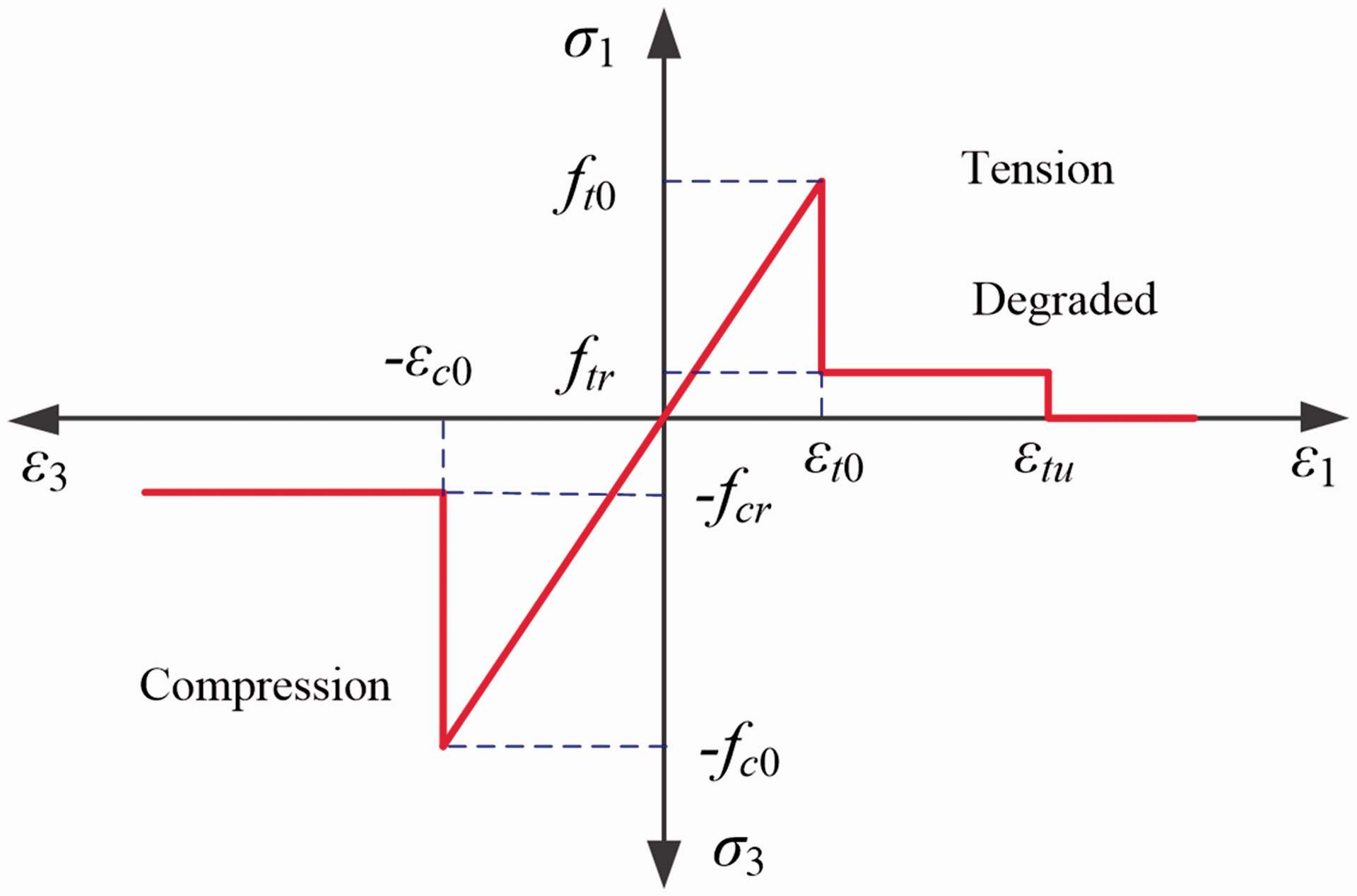

Under the uniaxial compressive and tensile stress conditions, the elastic constitutive relation of an REV is shown in Figure 2.

OPEN IN VIEWER

Figure. 2

Elastic damage constitutive model of coal under uniaxial stress (after Xu et al., 2006).

Based on the elastic damage theory, the elastic modulus decreases linearly with damage variable (Fan et al., 2017)

E = E 0 ( 1 − D )

(14)

When the REV is confronted with tensile stress, the maximum tensile stress criterion is chosen as the strength criterion for the elements

σ 1 ≥ f t

(15)

In this case, the damage variable can be defined as (Fan et al., 2017; Xu et al., 2006)

D = { 0 , ε < ε t 1 − f t r E ε , ε t < ε < ε t u 1 , ε t u < ε

(16)

When the REV is confronted with compressive stress state, the Mohr–Coulomb criterion is chosen as the strength criterion for the elements

− σ 3 + σ 1 1 + sin ⁡ ϕ 1 − sin ⁡ ϕ ≥ f c

(17)

The damage variable in compression can be defined as (Xu et al., 2006; Fan et al., 2017)

D = { 0 , ε < ε c 1 − f c r E ε , ε c < ε

(18)

From equations (16) and (18), the damage variable is in the interval (0∼1). The maximum tensile stress criterion is first applied to judge whether the tensile damage of the elements or not. When the element is not damaged, the Mohr–Coulomb criterion is then applied.

Equation of coupling terms

Pores and fractures are the main storage and migration place for gas and water in coal seam, while the permeability is an important parameter for gas and water transportation. The variation of porosity and permeability is closely related to the stress imposed to coal seam and the inherent characteristics of coal seam. Based on our previous work, matrix porosity can be described as (Fan et al., 2016; Li et al., 2016a)

φ m = 1 ( 1 + S ) [ φ m 0 ( 1 + S 0 ) + α m ( S − S 0 ) ]

(19)

The fracture porosity can be defined as (Wu et al., 2011)

φ f = φ f 0 − 3 φ f 0 ( Δ ε a − Δ ε v ) φ f 0 + 3 K f / K

(20)

The cubic law is adopted as the relationship between fracture permeability and porosity in coal seam:

k k 0 = ( φ f φ f 0 ) 3

(21)

Substituting equation (20) into equation (21), and considering the rising effect induced by fracturing damage and the direction of permeability in coal seam, we can obtain

k i = k i 0 ( 1 + D ξ ) [ 1 − 3 ( Δ ε a − Δ ε v ) φ f 0 + 3 K f / K ] 3

(22)

Combining equations (5), (9), (12), (14), (19), (20), and (22), we propose a fully coupled HSD model for hydraulic fracturing enhancing underground gas drainage. The model is consisted of several partial differential governing equations, which are difficult to solve theoretically because of spatiotemporal nonlinearity. Therefore, we implement them into COMSOL with MATLAB (CwM) to obtain numerical solution (COMSOL AB, 2012). This finite element method approach requires that the damage state and the damage-induced alteration of elastic modulus and permeability are continually updated with new damage occurs. Figure 3 presents a flow chart for this coupled modeling approach. The basic procedures are summarized as follows:

OPEN IN VIEWER

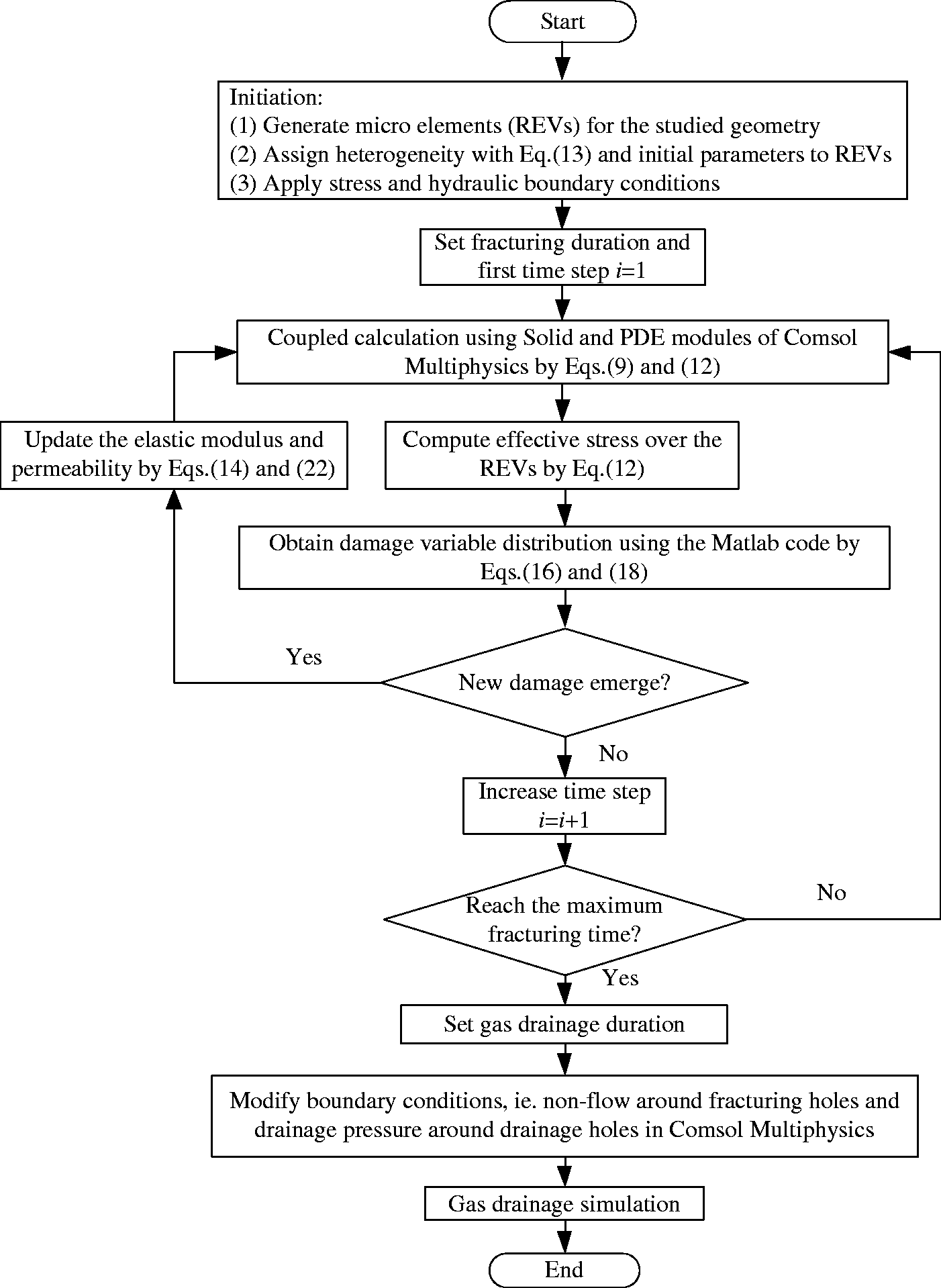

Figure 3.

Solving process of the hydraulic stress damage coupled model.

According to this flow chart, the combined model is programmed using MATLAB and Comsol Multiphysics.

Physical geometry model and solving conditions

The Mabao coal mine located in Shanxi Provence, China is a highly gassy mine with an approved production capacity of 1.5 million tons per year. The main minable seams are 8#, 9#, and 15# coal seams. The panel 15108 recovers coal seam 15# with an average thickness 4.8 m, dip angle 10–12°, and buried depth 640 m. The working face width of panel 15108 is 180 m and the strike length is 1627 m. The roof lithology of the coal seam 15# is mudstone and fine sandstone, while the floor lithology is mudstone. The low permeability of coal seam 15# leads to difficulty of gas drainage, resulting in gas concentration exceeds allowable value at the upper corner of working face. Therefore, hydraulic fracturing is carried out to increase permeability and promote gas drainage.

The plane strain geometry with two dimensions is adopted to reproduce the hydraulic fracturing enhancing underground gas drainage process. As shown in Figure 4, the model size is 44 m × 10.8 m. The thickness of coal seam, roof, and floor are 4.8 m, 3 m, and 3 m, respectively. Hydraulic fracturing will usually cause destruction and collapse of the coal mass around fracturing borehole. So, the adjacent borehole is generally used for gas drainage. We arrange one drainage borehole, two control boreholes (for crack guidance), and two fracturing boreholes in the coal seam. The borehole spacing is 8 m and the diameter is 0.11 m. The initial horizontal and vertical permeability in coal seam are 0.02 mD and 0.004 mD, respectively. In the original state, gas pressure is 0.61 MPa. For the physical model, a slip boundary is applied to both bottom and left sides. The load from the weight of overlying strata with an average density of 2500 kg·m⁻³ is adopted on the top boundary. The horizontal stress is applied to the right boundary. Meanwhile, the floor and roof stratum are insulated for gas and water migration. The fluid injecting pressure of hydraulic fracturing is 20 MPa, while the drainage pressure is 30 kPa. As listed in Table 1, other parameters used in the numerical simulations are taken from the experimental results and related literatures (Fan et al., 2017; Li et al., 2016a; Wu et al., 2011; Xia et al., 2014; Zhu et al., 2007).

OPEN IN VIEWER

Figure 4.

Physical model of hydraulic fracturing enhancing gas drainage.

OPEN IN VIEWER

Table 1.

Parameters used in simulation.

Variable	Parameter	Value	Unit	Acquisition approach
E	Elastic modulus of coal	2.7	GPa	Experiments
E s	Elastic modulus of skeleton	8.4	GPa	Xia et al. (2014)
K n	Fracture stiffness	4.8	GPa/m	Xia et al. (2014)
ν	Poisson's ratio of coal	0.35		Experiments
k x 0	initial horizontal permeability	0.02	mD	Field test
k y 0	initial vertical permeability	0.004	mD	Field test
p fg 0	initial gas pressure	0.61	MPa	Field test
Φ m 0	Initial porosity for coal matrix	0.046		Experiments
Φ f 0	Initial porosity for fracture	0.012		Experiments
b 0	Initial fracture aperture	1 × 10−5	m	Wu et al. (2011)
a 0	Initial matrix width	0.01	m	Wu et al. (2011)
p cgw	Capillary pressure	50	kPa	Experiments
μ g	Gas dynamic viscosity	1.84 × 10−5	Pa·s	Li et al. (2016a)
μ w	Water dynamic viscosity	1.01 × 10−3	Pa·s	Li et al. (2016a)
ρ c	Coal density	1 470	kg·m−3	Li et al. (2016a)
ρ w	Water density	1 000	kg·m−3	Li et al. (2016a)
τ	Adsorption time	9.2	d	Experiments
P L	Langmuir pressure constant	3.88	MPa	Experiments
V L	Langmuir volume constant	0.036	m3·kg−1	Experiments
α sg	Coefficient for sorption-induced volumetric strain	0.06	kg·m−3	Li et al. (2016a)
s wi	Initial water saturation	0.7		Experiments
k rw 0	Endpoint of water relative permeability	1.0		Experiments
k rg 0	Endpoint of gas relative permeability	0.756		Experiments
s wr	Residual water saturation	0.42		Experiments
s gr	Residual gas saturation	0.15		Experiments
c	Klinkenberg factor	0.76	MPa	Zhu et al. (2007)
m	Homogeneity index of coal seam	6		Fan et al. (2017)
f c 0	Coal compressive strength	6.8	MPa	Experiments
f t 0	Coal tensile strength	0.3	MPa	Experiments
ϕ	Internal friction angle	32	°	Experiments
ξ	Jump coefficient of permeability	55		Fan et al. (2017)

A green line A–B and point O as the observation reference was drawn to analyze the variations of permeability and gas pressure during the hydraulic fracturing enhancing underground gas drainage process (Figure 4). The location of point A and B are (0 m, 5.4 m) and (44 m, 5.4 m), respectively. The point O (22 m, 5.4 m) is in the middle of line A–B.

According to equation (8) and parameters in Table 1, the relative permeability curves of gas and water phases are shown in Figure 5. The following simulations are carried out using the curves.

OPEN IN VIEWER

Figure 5.

Relative permeability curves of gas and water.

Model verification

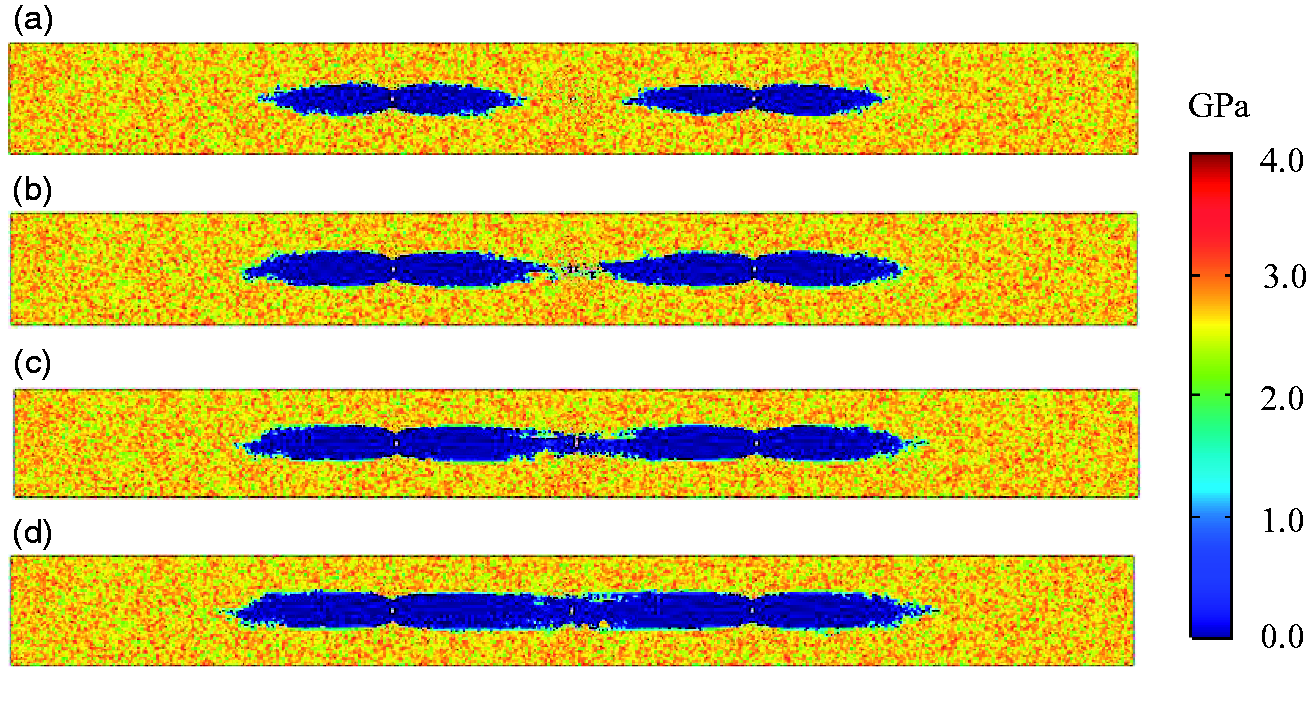

The elastic modulus distribution in coal seam after different fractured durations is shown in Figure 6. Coal seam is a heterogeneous porous material and its elastic modulus obeys the Weibull distribution. High-pressure fluid flows into coal seam through the fracturing borehole, resulting in tensile and shear damage. Generally speaking, under the influence of geological structure, the horizontal stress in coal seam is greater than vertical stress. The coal mass on the both sides of fracturing borehole is damaged firstly due to the large subjected tensile stress. The permeability of damage zone dramatically increases to a high value. Driven by high permeability and large pressure gradient, the fracturing fluid rapidly penetrates into this damage zone. Later, the coal around the damage zone will continually rupture. With the increase of fracturing time (t_f), the damage zone gradually expands and this expansion along the horizontal direction is much faster than vertical direction, which will result a horizontal strip shape of the damage zone. After fractured 1.5 h, 2.0 h, 2.5 h, and 3.0 h, the expansions in the horizontal direction of single fracturing borehole are 11 m, 14 m, 15.5 m, and 16 m, respectively. The damage zone between the two fracturing boreholes will be connected at the drainage borehole when t_f is more than 2.5 h.

OPEN IN VIEWER

Figure 6.

Elastic modulus distribution in coal seam, where t_f is the fracturing time. (a) t_f = 1.5 h, (b) t_f = 2.0 h, (c) t_f = 2.5 h and (d) t_f = 3.0 h

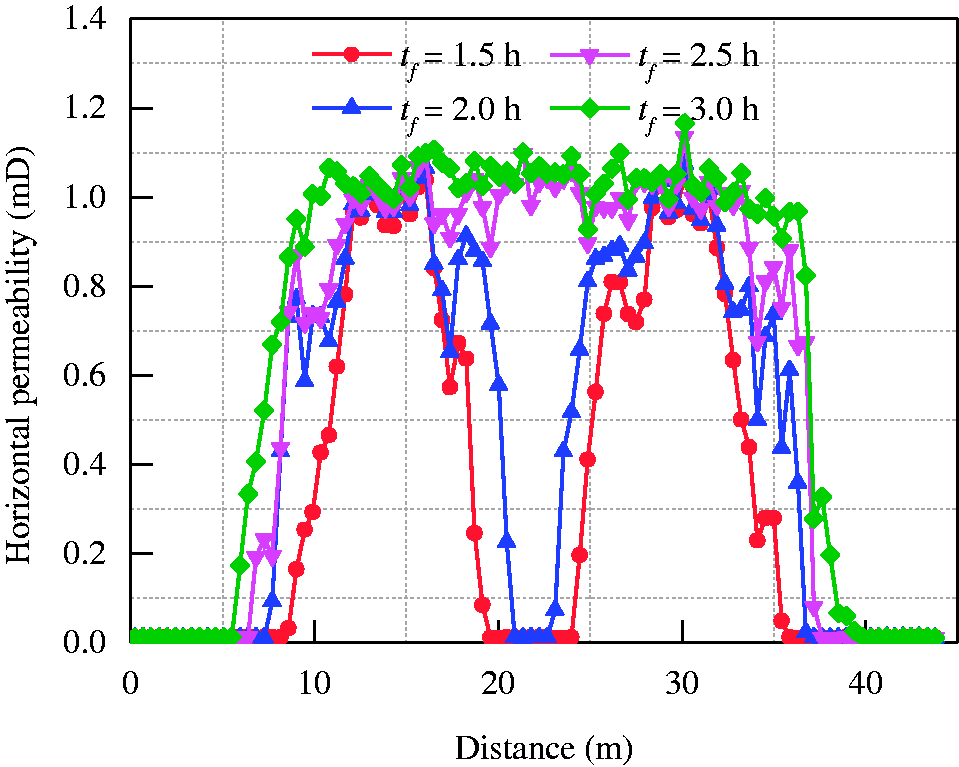

The horizontal permeability variation on reference line A–B after fractured different time is displayed in Figure 7, which appears that the permeability variation has a wave shape. High permeability near the drainage borehole can promote gas migration. In this term, high permeability induced by the damage breakthrough at the drainage borehole is the guarantee of efficiency gas drainage. In Figure 7, the permeability is relatively low near the drainage borehole when fractured 2.0 h, which approximately equals to the initial permeability 0.02 mD. The permeability increases rapidly when fractured 2.5 h, reaching more than 0.8 mD. And the maximum permeability is 54.9 times higher than the initial permeability. However, as fracturing time continues to increase, the permeability of coal seam near the drainage borehole increases slowly. So, we can consider that the fracturing time 2.5 h is the shortest time for effective fracturing in Mabao coal mine. We define this shortest time as breakthrough time. After fractured 2.5 h, we changed the boundary conditions of the drainage and fracturing boreholes to simulate gas drainage, and compared the results with the field measured data.

OPEN IN VIEWER

Figure 7.

Horizontal permeability on line A–B after fractured different time.

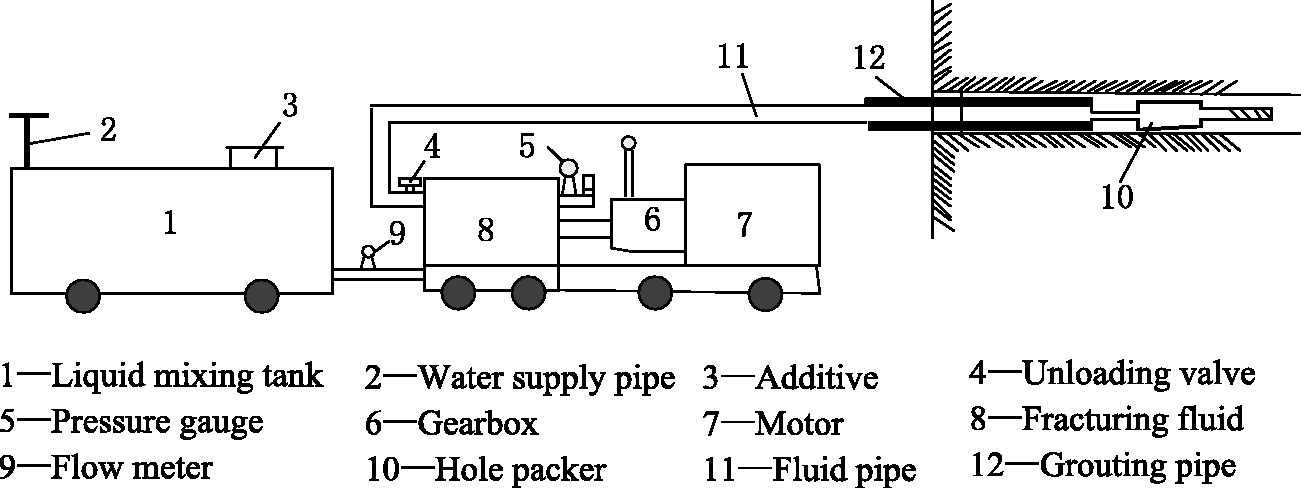

The field test was carried out in Mabao coal mine. Boreholes were drilled on the coal wall of the roadway in panel 15108 according to arrangement in Figure 4. The diameter and length of the boreholes are 113 mm and 50 m, respectively. The sealing length of fracturing borehole is 20 m, while the sealing length of control and drainage borehole is 8 m. The boreholes are sealed immediately after drilled using grouting method, and the seal ring is added to ensure good sealing. As shown in Figure 8, the hydraulic fracturing equipment includes high-pressure pump, liquid mixing tank, fluid pipe, seal device, meters, and other relevant parts. High-pressure pump is an YL400/315 type plunger pump with rated pressure of 50 MPa. The liquid mixing tank is specially made for underground fracturing. The pipe is a rubber tube with inner diameter and outer diameter of 0.045 m and 0.065 m, respectively. When the preparation was finished, we carried out hydraulic fracturing with an initial injecting pressure of 15 MPa. After the coal wall around fracturing borehole was wet, we gradually increased the pressure to 20 MPa, and then kept it stable. The fluid injection was stopped when the injecting pressure declined to 7.5 MPa with fluid rushing out from the drainage borehole. It finally spent 2 h 40 min to fracturing, which approaches the 2.5 h of numerical simulation. Then, we began to drainage gas from coal seam by connecting drainage boreholes and pumping system. The drainage pressure was set as 30 kPa, and the gas flux was recorded in real time.

OPEN IN VIEWER

Figure 8.

Schematic of hydraulic fracturing equipment.

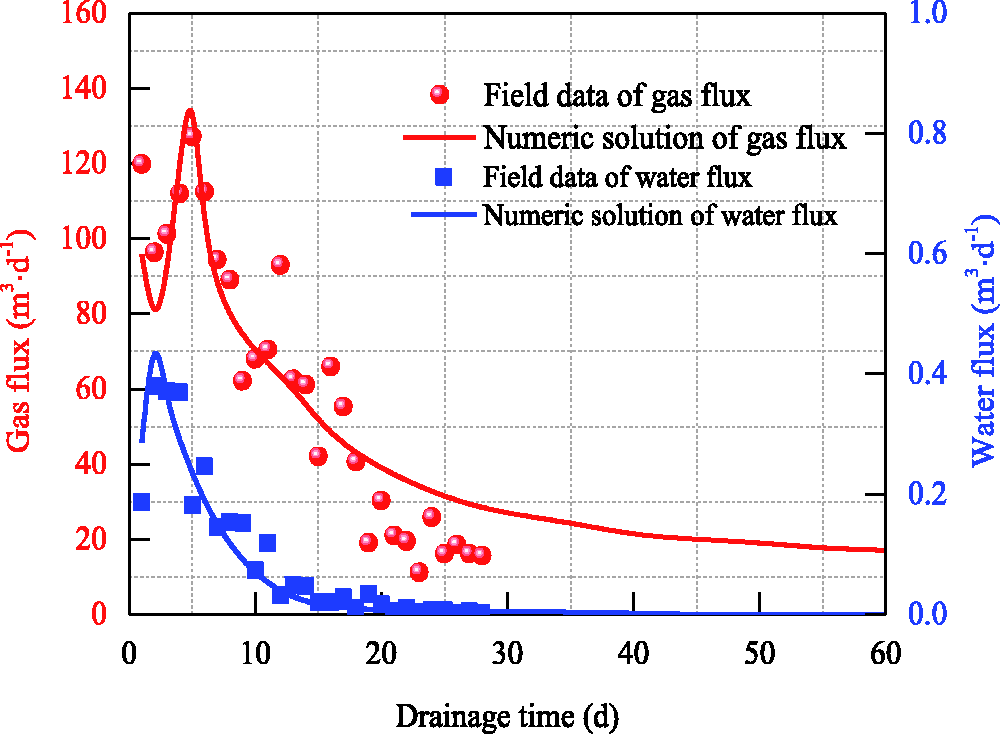

The gas flux of field test and numerical simulation is shown in Figure 9. With increasing of drainage time, the gas flux has a decline–incline–decline tendency. In the early gas drainage stage, free gas in coal seam will gather around the drainage borehole driven by high-pressure injecting fluid. This amount of free gas is first extracted out, leading to a relatively high gas flux on the first day, with 95.88 m³·d⁻¹ of the simulation and 119.82 m³·d⁻¹ of the field test. The water flux on the first day is relatively low, with 0.2846 m³·d⁻¹ of the simulation and 0.1866 m³·d⁻¹ of the field test. After that, the fracturing water and groundwater continually flow into the drainage borehole. The water flux increases to the maximum value with 0.4884 m³·d⁻¹ of the simulation and 0.3804 m³·d⁻¹ of the field test. As the water in coal seam is discharged, the water relative permeability and the water flux decreases. The gas migration channel gradually unblocks to increase the gas relative permeability. A large amount of adsorbed gas desorbs and migrates into drainage borehole through fractured cracks, which induces a rapid rising of gas flux. The maximum values of simulation and field test are 145.54 and 127.15 m³·d⁻¹ respectively. With the reduction of gas pressure in coal seam, the pressure gradient decreases gradually, as well as the gas flux. The field measured gas flux in 28 days is 22.89–126.57 m³·d⁻¹ with an average of 63.79 m³·d⁻¹. After 20 days’ drainage, the average water flux is extremely low, almost equal to zero. The overall trend and values measured in field are in accordance with the simulated result, which shows the accuracy of proposed model.

OPEN IN VIEWER

Figure 9.

Fluid flux of field test and numerical simulation.

Effect of effective fracturing on gas drainage

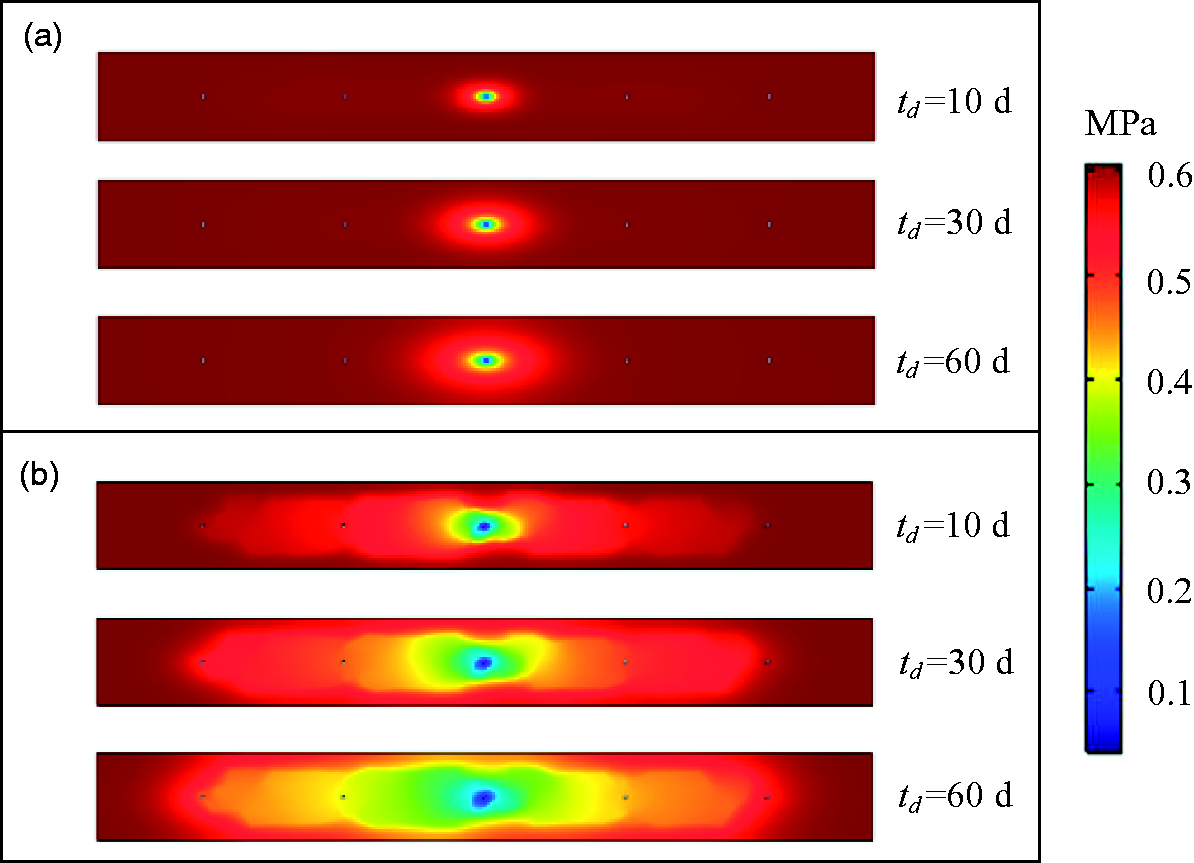

As revealed in Model verification section, the coal seam near the drainage borehole cannot be effectively fractured until fracturing 2.5 h. The results of gas drainage after fractured 2.0 h and 2.5 h are comparatively analyzed. The gas pressure in coal seam reduction by 20% is considered as a criterion for the influence radius of gas drainage. In the coal seam 15# of Mabao coal mine, the initial gas pressure is 0.61 MPa and the critical gas pressure is 0.488 MPa. The maximum influence radius occurs in horizontal direction. As shown in Figure 10, the gas pressure decreases slowly under the condition of noneffective fracturing. When the gas drainage time t_d = 10 d, 30 d, and 60 d, the maximum influence radius is 0.8 m, 1.3 m and 1.6 m, respectively. While the gas pressure reduces rapidly after effectively fractured, and the maximum influence radius is 3.2 m, 7.8 m, and 14.8 m when t_d = 10 d, 30 d, and 60 d, respectively.

OPEN IN VIEWER

Figure 10.

Gas pressure distribution in coal seam: (a) non-effectively fractured with fracturing time t_f = 2.0 h, (b) effectively fractured with fracturing time t_f = 2.5 h.

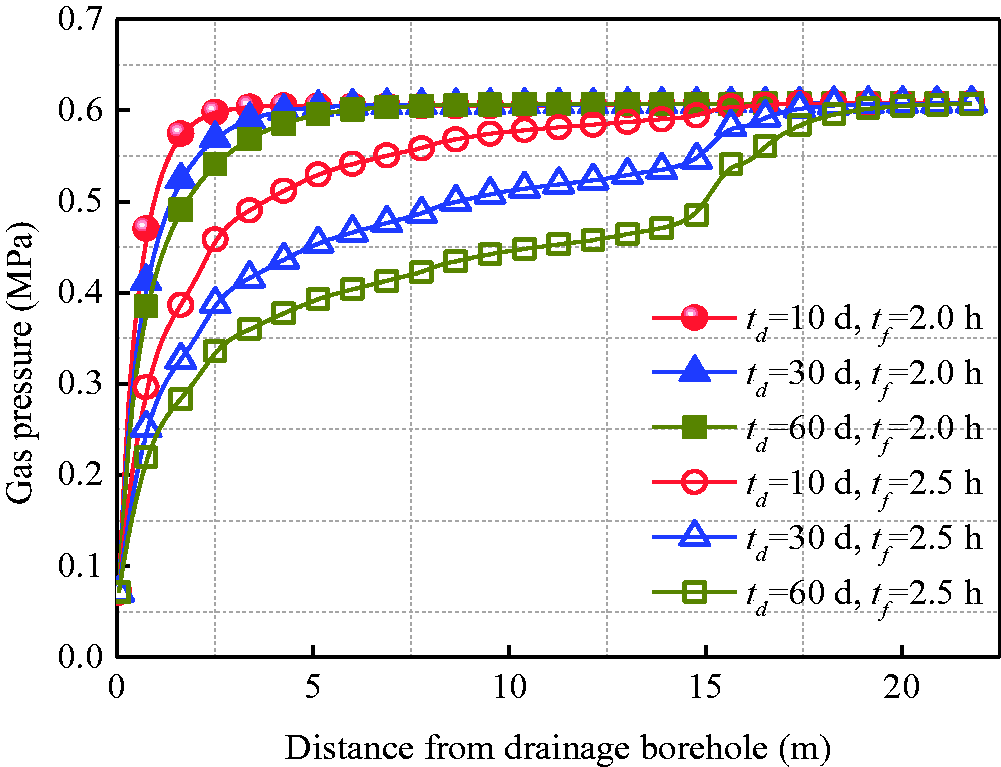

Gas pressure on line O–B is taken out to better understand the rules of gas drainage enhanced by hydraulic fracturing, as shown in Figure 11. With increasing of drainage time, the gas pressure in coal seam reduces, especially around the drainage borehole. When the coal seam is fractured 2.0 h (t_f = 2.0 h), the gas pressure at the 5 m position from the drainage borehole is 0.6053 MPa, 0.6029 MPa, and 0.5935 MPa after 10, 30, and 60 days’ gas drainage. Compared with the initial value 0.61 MPa, gas pressure only reduces by 0.77%, 1.16%, and 2.71% respectively. In contrast, when fracturing time t_f = 2.5 h, the gas pressure of t_d= 10 d, 30 d, 60 d is 0.5257 MPa, 0.4499 MPa, and 0.3894 MPa, reducing by 13.82%, 26.25%, and 36.16%, respectively. The gas pressure of t_f = 2.5 h is much smaller than that of t_f = 2.0 h, which explains that the importance of damage zone breakthrough at the drainage borehole for efficient gas drainage.

OPEN IN VIEWER

Figure 11.

Gas pressure on the reference line O–B.

Influencing factors analysis

The success of hydraulic fracturing is largely dependent on the design of technical parameters and the in situ conditions in a given coal seam. Li et al. (2010) divided the influencing factors into technical factors (injecting pressure, borehole spacing, fracturing time, borehole length, sealing method, and fracturing equipment) and geological factors (the mechanical properties, geostress in coal seam). Due to the 2D geometry, factors of borehole length, sealing method, and fracturing equipment will not be discussed here. In the subsequent sections, a series of simulations are conducted to gain insight into the influence of injecting pressure, borehole spacing, vertical stress, and elastic modulus of coal seam on the hydraulic fracturing enhancing underground gas drainage process.

Borehole spacing

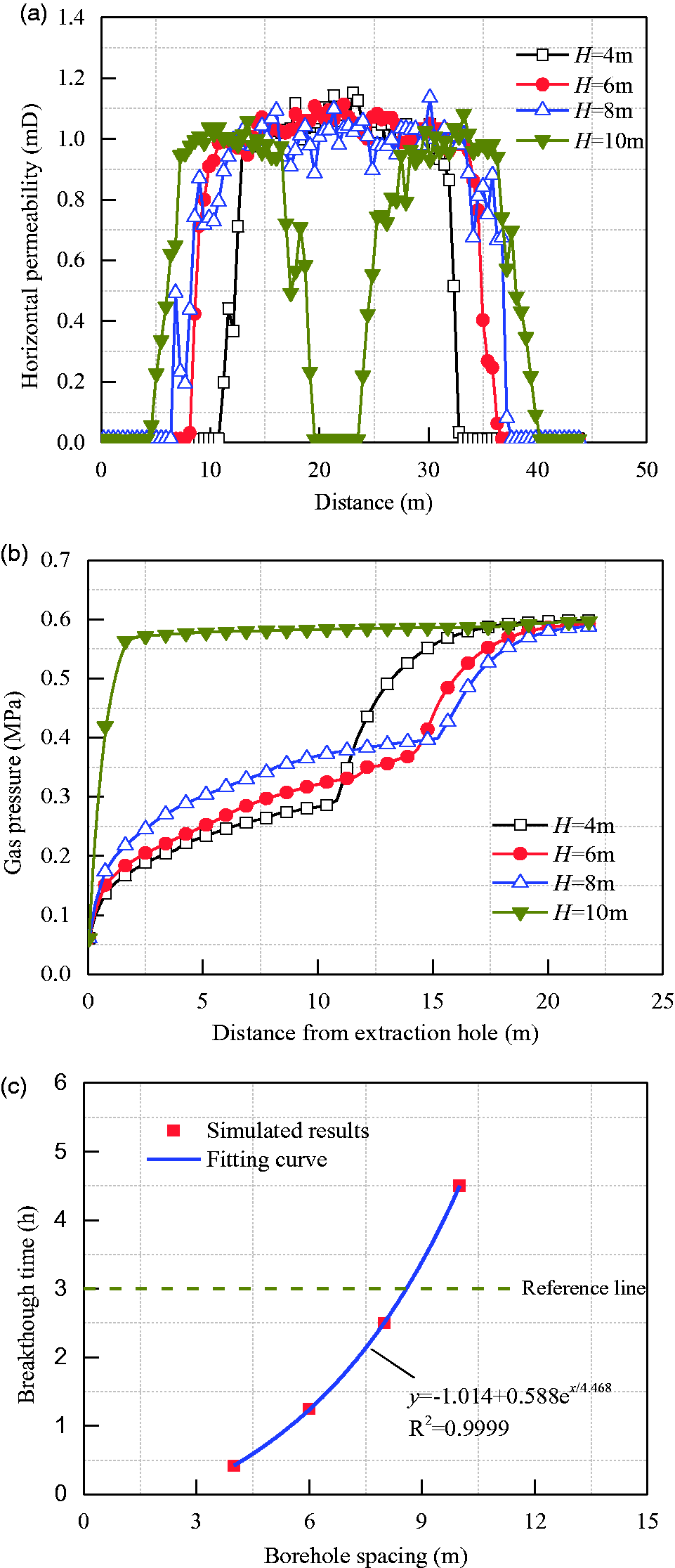

Borehole spacing is one of the key parameters during hydraulic fracturing enhancing gas drainage. As it is well known, small borehole spacing may increase the workload of drilling and fluid injection. Besides, large borehole spacing may cause the difficult of damage zone breakthrough and reduce the efficiency of gas drainage. In the following, we define the effective fracturing radius as the horizontal radius of the permeability increasing area on one side of the fracturing hole. As shown in Figure 12(a), when the borehole spacing is 10 m, the effective fracturing radius of t_f = 2.5 h is 7.34 m, which is less than borehole spacing and the damage zone cannot be connected at the drainage borehole. The coal seam permeability near the drainage borehole is approximately equal to initial permeability. When borehole spacing is 4 m, 6 m, and 8 m, the damage zone break through drainage borehole, and the permeability will increase rapidly with a maximum value of 1.1425 mD near the drainage borehole. In Figure 12(b), when borehole spacing is 4 m, 6 m, 8 m, and 10 m, the gas pressure of t_d = 60 d at the position of 8 m from drainage borehole is 0.268 MPa, 0.299 MPa, 0.346 MPa, and 0.582 MPa, respectively. This indicates that gas pressure of borehole spacing 10 m only drops a small amount, because the permeability near drainage borehole is too low to drive gas moving into drainage borehole. The breakthrough time is defined as the duration of fracturing induced damage zone connecting at the drainage borehole. We obtained the breakthrough time of different borehole spacing, as shown in Figure 12(c). By fitting with the least square method, the breakthrough time has an exponential increasing relationship with borehole spacing. In Mabao coal mine, we imply that the coal seam can be effectively fractured within 3 h only when the borehole spacing is less than 8.58 m.

OPEN IN VIEWER

Figure 12.

Parameter evolutions with different borehole spacing.

Fluid injecting pressure

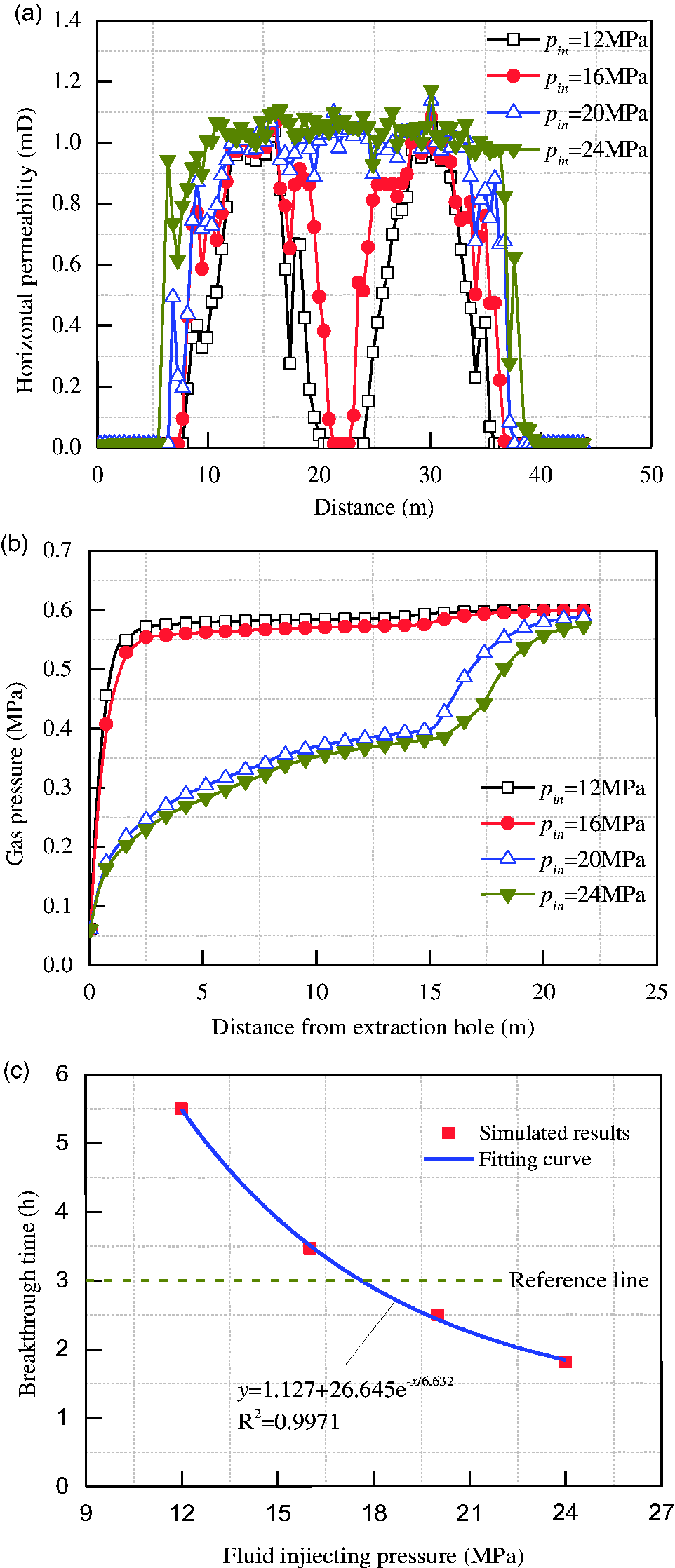

In terms of coal seam with low permeability, the natural fractures can hardly form fracture network. Therefore, hydraulic fracturing is needed to force fractures to expand and connect with each other. And a proper value of injecting pressure can avoid problems of difficult sealing and ineffective fracturing. Figure 13 presents the evolutions of horizontal permeability, gas pressure and breakthrough time with different fluid injecting pressure p_in. It is found in Figure 13(a) that the rising area of permeability spreads with increasing of injecting pressure p_in. When p_in = 12, 16 MPa, the effective fracturing radius is 6.24 m and 7.12 m respectively, which is smaller than the borehole spacing. This indicates that fracturing induced damage zone could not break through at the drainage borehole. On the contrary, when p_in = 20, 24 MPa, the effective fracturing radius is greater than borehole spacing and the damage zone could break through. The permeability around drainage borehole will increase rapidly. Figure 13(b) shows that higher injecting pressure will result greater gas pressure drop. When p_in = 12, 16, 20, and 24 MPa, the gas pressure of t_d = 60 d at the position of 8 m from drainage borehole is 0.583, 0.567, 0.346, and 0.328 MPa, respectively. The breakthrough time decreases with the increasing of injecting pressure, and has an exponential function with injecting pressure (Figure 13(c)). Under the geological condition of panel 15108, the damage zone can be connected at the drainage borehole within 3 h if the injecting pressure is larger than 17.61 MPa.

OPEN IN VIEWER

Figure 13.

Parameter evolutions with different fluid injecting pressure.

Vertical stress

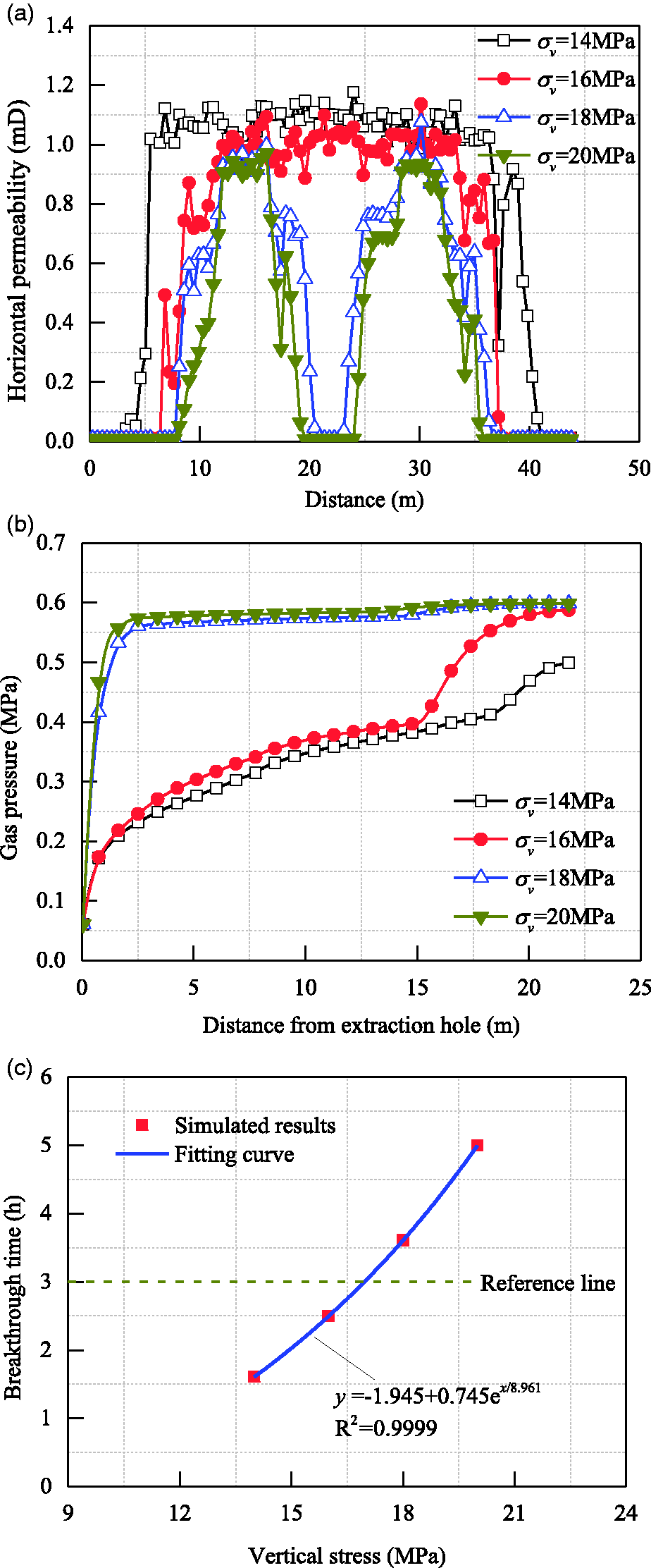

Generally speaking, the permeability is low when the coal seam is confronted with high compressive geostress. The injecting pressure should overcome the geostress to further develop fractures in coal seam. Figure 14 shows the evolutions of horizontal permeability, gas pressure, and breakthrough time with different vertical stress σ_v. It is observed that the effective fracturing radius of vertical stress σ_v = 18, 20 MPa is 6.68 m and 5.36 m, respectively when fractured time t_f is 2.5 h. In this case, the effective fracturing radius is smaller than borehole spacing that the damage zone near drainage borehole could not be connected and the permeability is close to the initial value. When the vertical stress σ_v = 14, 16 MPa, the permeability near drainage borehole increases rapidly due the breakthrough of damage zone. As shown in Figure 14(b), after 60 days’ drainage, gas pressure on line O–B at the position of 8 m from drainage borehole is 0.320, 0.346, 0.572, and 0.581 MPa corresponding to σ_v = 14, 16, 18, 20 MPa. The exponential increase relationship between breakthrough time and vertical stress is revealed in Figure 14(c). In this term, the damage zone can break through within 3 h fracturing when the vertical stress is smaller than 16.96 MPa.

OPEN IN VIEWER

Figure 14.

Parameter evolutions with different vertical stress.

Elastic modulus of coal seam

Elastic modulus reflects the difficulty of coal deformation and the ability of coal to bear and resist failure. As shown in Figure 15(a), when the elastic modulus of coal seam E is 4.81 GPa, the effective fracturing radius is 6.35 m and permeability near drainage borehole is close to initial value. In contrast, when E = 1.81, 2.81, 3.81 GPa, the damage zone is connected and the effective fracturing radius reaches to the borehole spacing, leading to rapid increase of permeability near drainage borehole. It is found in Figure 15(b), when E = 1.81, 2.81, 3.81, 4.81 GPa, the gas pressure at the position of 8 m from drainage borehole with t_d = 60 d is 0.332, 0.346, 0.41, and 0.581 MPa, respectively. In other words, the greater the elastic modulus of coal seams, the larger the capacity of coal mass to resist damage, and the more difficult the fracturing will be. As displayed in Figure 15(c), the breakthrough time linearly increases with the elastic modulus of coal seam. It can be calculated that the breakthrough time is 3 h when the elastic modulus is 4.59 GPa.

OPEN IN VIEWER

Figure 15.

Parameter evolutions with different coal seam elastic modulus.
