An economic evaluation on welfare distribution and carbon sequestration under competitive pyrolysis technologies

Abstract

Pyrolysis and gasification are considered as a means of producing renewable energy and improving energy sustainability, which has become attractive renewable technologies to many countries. Unlike other studies that are conducted in small scale, this study aims to aggregate the economic and environmental effects such as agricultural benefits, energy sale, and carbon sequestration to provide more detailed information to decision-makers before these projects are widely employed. This study first employs a lifecycle assessment to investigate the feasibility, profitability, and emission reduction of four major pyrolysis and gasification technologies using crop residuals, and then conducts a sensitive analysis to examine the most influential factors. The results indicate that the intermediate pyrolysis with rice straw and slow pyrolysis from corn stover could offset the carbon dioxide the most. However, the pyrolysis value is also sensitive to production of the feedstock used. Value adding of stover-based biochar under fast pyrolysis improves profitability but other technologies do not have such patterns. Additionally, while gasification can generate considerable amount of renewable electricity, it yields almost zero percent of biochar that can be used as a soil amendment, and thus its contribution to agricultural sector is trivial.

Keywords

Crop residuals emission offset lifecycle assessment renewable energy sustainable development

Introduction

China has become the largest importer of crude oil and natural gas. Its dependence on foreign energy peaks at over 72% and 45% in 2018, respectively (Cheng, 2019). The intensive use of fossil fuel is beneficial to economic growth but emitted unprecedented amount of greenhouse gases (GHG) would make the environment unsustainable and possibly hamper the future growth of economy. For this reason, China has been seeking sustainable energy sources that are considered as clean (or green) and renewable. Under such a consideration, development of renewable energy in China is one of the most urgent issues discussed by various parties among decision-makers, industries, and academics.

Renewable energy production from the utilization of agricultural resources has been considered as the primary solution. First, more than 800 million people who engaged in agricultural and related sectors receive relatively low income stream. Development of bioenergy thus effectively alleviates such a situation and improves distribution of total social welfare. Second, land resource is sufficient that can insure the feedstock supply to bioenergy production. Third, the byproduct produced from bioenergy development such as biochar may be used as a soil amendment to improve environmental quality and land fertility (Lehmann, 2007; McCarl et al., 2009).

This study investigates four types of pyrolysis (i.e. fast, intermediate, slow pyrolysis and gasification) to explore the economic and environmental effects such as potential benefits received by farmers, energy sales, and emission reductions. Gasification is a competitive pyrolysis technology that primarily focuses on gaseous product to generate electricity (Calvo et al., 2012; Hornung, 2013; Park et al., 2014), and this technology is also investigated and compared with conventional pyrolysis technologies so that a comprehensive understanding on various technologies can be obtained. In this study, Jiangxi province of China will be used as an example for the investigation of the large-scale development of pyrolysis and gasification technologies. This study area is determined because it is a typical agricultural-based province that has been undergoing the stages of accelerated industrialization and urbanization, low urban and rural living standard, and the rapid growth of energy consumption.

This study makes contributions in several ways. First, the potential source and technology that increase the supply of biopower can be explored. With this knowledge the decision makers would be able to see to what extent and at what cost the energy security can be improved and the energy structure can be adjusted. Second, this study investigates the regional agro-economic effects and depicts a more efficient way to subsidize farmers and fallow land, both of which are important in welfare analysis. Third, the environmental consequences such as improvement of regional land quality, nearby watershed protection, and potential influences on climate change mitigation are presented and discussed. With such an aggregate framework, the government officers would be able to design or reform existing renewable energy and environmental policies.

Literature review

Pyrolysis and gasification are a promising thermochemical technology to produce renewable energy, and various organic matters such as agricultural commodities and wastes, woody residuals, animal manures, sludge, and municipal solid wastes can be fed as inputs in the pyrolysis reactors (Joshi et al., 2017; Perkins et al., 2018; Rathore et al., 2016).

Feedstocks processed during pyrolysis and gasification generally are decomposed into a range of mixed gaseous, liquid, and solid products such as bio-oil, biogas, and biochar, along with a small amount of ash (Bridgwater and Peacocke, 2000). Depending on the selection of feedstocks and the types of pyrolysis, the combination of outputs may vary significantly (Park et al., 2008). For example, Wright et al. (2008) show that about 15% biochar, 70% bio-oil and 13% syngas of input can be obtained from fast pyrolysis, and Ringer et al. (2006) indicate that 30% as bio-oil, 35% as biogas, and the 35% of feedstock carbon would end up as biochar under slow pyrolysis. However, during gasification process, the heating rate is much higher and the heating duration is much longer, and the feedstocks only end up as biochar and biogas (Calvo et al., 2012). Table 1 presents the general information about the most common types of pyrolysis and gasification technologies under the most popular fluidized-bed reactor.

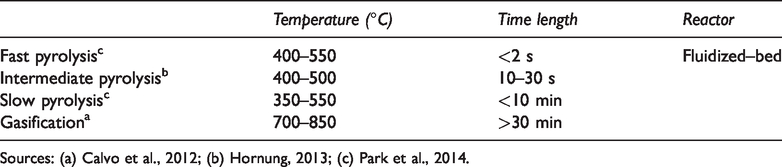

Table 1.

Reacting temperature and heating duration.

	Temperature (°C)	Time length	Reactor
Fast pyrolysis^c	400–550	<2 s	Fluidized–bed
Intermediate pyrolysis^b	400–500	10–30 s
Slow pyrolysis^c	350–550	<10 min
Gasification^a	700–850	>30 min

Sources: (a) Calvo et al., 2012; (b) Hornung, 2013; (c) Park et al., 2014.

Studies point out that with pyrolysis technologies, 10 EJ/year to 270 EJ/year of the energy may be generated (Beringer et al., 2011; Gronowska et al., 2008; Searle and Malins, 2015), implying that pyrolysis might be an effective approach to increase the supply of renewable energy world widely. Various gains from pyrolysis application may occur. Studies have pointed out that the conjunctive application of pyrolysis and its solid byproduct (i.e., the biochar) are probably the most efficient method to combat climate change in the sense of carbon sequestration (Lehmann, 2007), along with other economic and environmental benefits (Gaunt and Lehmann, 2008; Lehmann et al., 2006; McCarl et al., 2009).

For example, the field experiments show that with appropriate biochar application, crop yields can be enahnced (Nehls, 2002; Steiner et al., 2007), and saving on irrigation and improvement of feed efficiency can be achieved (Agblevor et al., 2010; Jeffery et al., 2011; Vaccari et al., 2011). Moreover, Woolf et al. (2010) and Smith (2004) suggest that the process and the production of pyrolysis can reduce GHG emissions effectively, while other studies explore that carbon can be captured from the atmosphere and stored in a more stable form via pyrolysis and biochar application (Chan et al., 2007; Lehmann et al., 2003; Qambrani et al., 2017; Qian et al., 2015). These studies implicitly point out that we also need to integrate the co-benefit of biochar application in agricultural sector to achieve a more robust conclusion to these competing pyrolysis technologies.

However, none of the above pyrolysis technologies has been successfully applied in China (Cao, 2019), primarily due to the lack of information of requirement on subsidy, benefits from economic and environmental sectors, and potential influencing factors such as market energy price, plant construction and maintenance costs, and stability of input supply. This study uncovers such information by estimating these issues under the framework of the life cycle assessment (LCA).

Analytical framework

Methods

Life cycle assessment (LCA) is generally used for evaluating environmental effects of a product, process, or activity throughout its life cycle or lifetime, which is known as a ‘from cradle to grave’ analysis (ISO, 2006). It has also been intensively applied in the field of renewable energy analysis to explore the net economic and environmental consequences (Wang, 2008). For example, McCarl et al. (2009) adopt LCA to analyze the profitability of pyrolysis in the United States, while Kung et al. (2013) apply this approach to examine the potential emission reduction of pyrolysis and biochar application. Although this technique is not as complicate as mathematical programming and econometrics, the system boundary must be properly designed to illustrate the general flows of the production.

System boundary

To evaluate the net economic and environmental potential of pyrolysis and gasification in China, it is necessary to understand that there exist heterogeneities across provinces and the estimated values may alter considerably in different regions. This study focuses on the illustrations of the general framework and assumptions for a specific province. The central and local governments can then determine the general effects based on the geographic characteristics, consequently deciding the optimal production path.

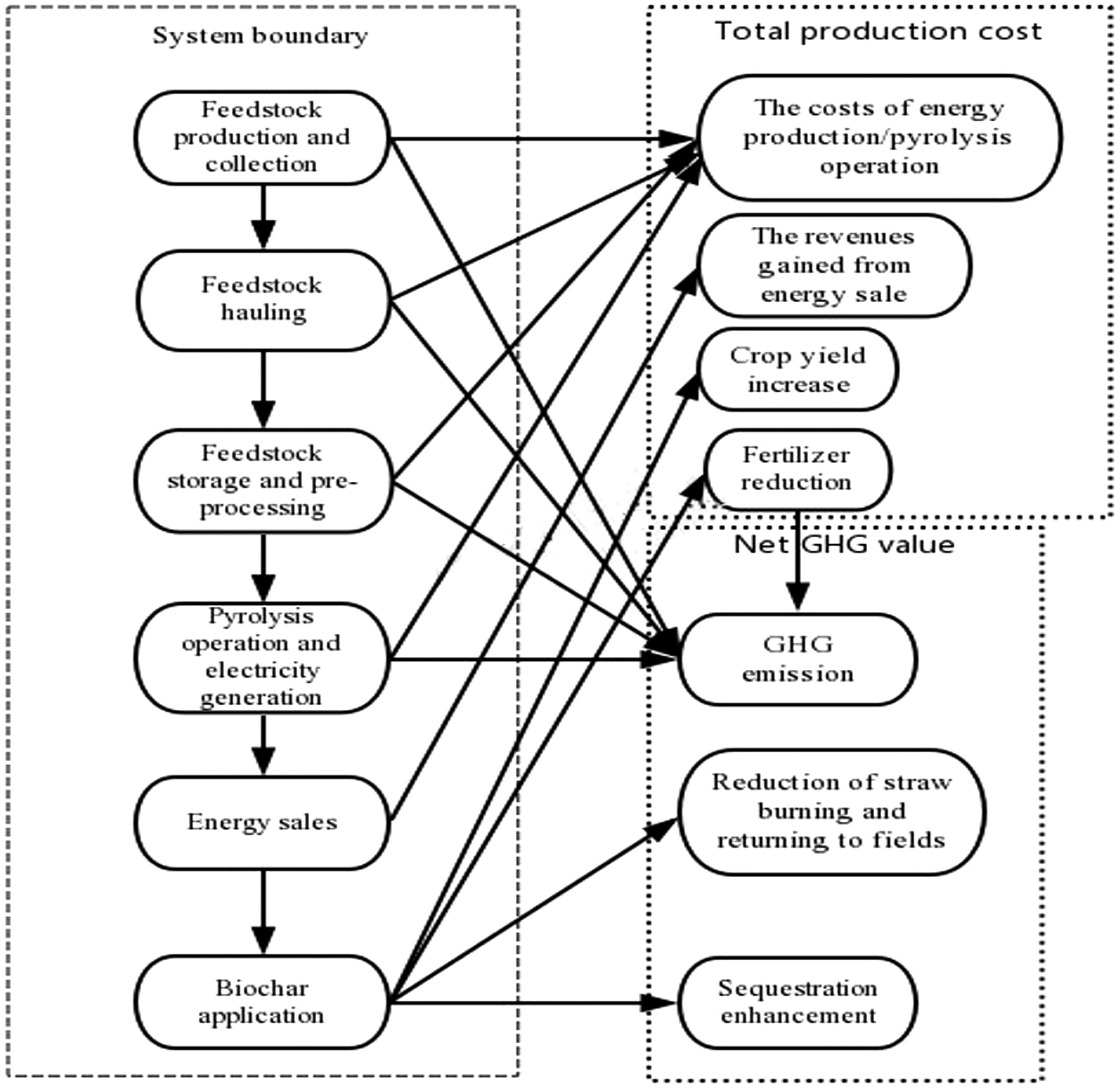

Figure 1 presents the system boundary of the economic and environmental components associated with LCA process. The economic components contain the costs of crop production, transportation, processing, plant construction and maintenance, and output applications. Since emission from energy consumption and carbon sequestration would occur, it is also necessary to estimate the net environmental effects to explore the overall consequence from renewable energy technologies. That is, only by systematically measuring and evaluating the energy consumption and environmental emissions in the whole process of feedstock collection and biochar application, we are able to assess actual environmental impact.

Figure 1.

System boundary of pyrolysis and gasification in China.

Pyrolysis output

Jiangxi, one of the agricultural provinces of China, is relatively under-developed and its residents have been suffering from low incomes and low living standard for decades. Rice and corn are the major commodities produced and thus we would utilize rice straw and corn stover to investigate the energy, economic, and environmental potential from pyrolysis and gasification technologies in this area.

Table 2 indicates the output ratios of the rice straw and corn stover. While slow pyrolysis generally yields the maximum amount of biochar per unit of input, fast pyrolysis yields the most liquid components (Park et al., 2014). On the contrary, gasification yields 0% of bio-oil and most of the input will be decomposed into a mixture of gases such as carbon monoxide, hydrogen and light hydrocarbons, along with a small portion of carbon dioxide and nitrogen (Calvo et al., 2012). This gas mixture is also called syngas that contains high calorific value that can replace fossil fuels in high efficiency power generation, heat, and combined heat and power applications.

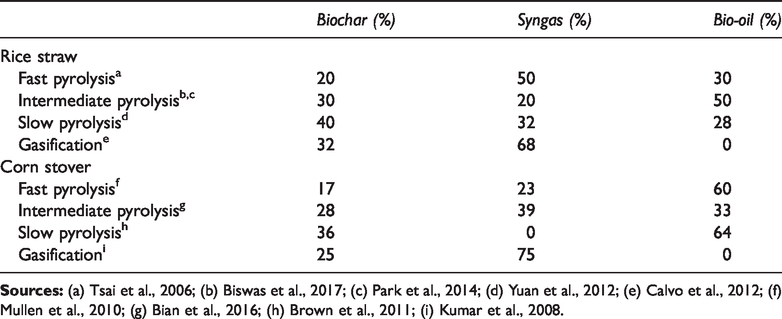

Table 2.

Pyrolysis and gasification outputs.

	Biochar (%)	Syngas (%)	Bio-oil (%)
Rice straw
Fast pyrolysis^a	20	50	30
Intermediate pyrolysis^b,c	30	20	50
Slow pyrolysis^d	40	32	28
Gasification^e	32	68	0
Corn stover
Fast pyrolysis^f	17	23	60
Intermediate pyrolysis^g	28	39	33
Slow pyrolysis^h	36	0	64
Gasificationⁱ	25	75	0

Sources: (a) Tsai et al., 2006; (b) Biswas et al., 2017; (c) Park et al., 2014; (d) Yuan et al., 2012; (e) Calvo et al., 2012; (f) Mullen et al., 2010; (g) Bian et al., 2016; (h) Brown et al., 2011; (i) Kumar et al., 2008.

Economic analysis of pyrolysis and gasification

Feedstock production and collection

Since 2016, an agricultural subsidy of USD247 per hectare (USD/ha) has been implemented. Based on the Analysis about the Changing Efficiency of the Major Crops in China (Li and Zhang, 2010), we then estimate the fertilizer cost proportionally to crop residues. The result is displayed in Table 3.

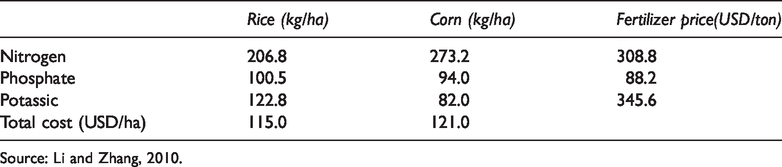

Table 3.

The amount of fertilization use.

	Rice (kg/ha)	Corn (kg/ha)	Fertilizer price(USD/ton)
Nitrogen	206.8	273.2	308.8
Phosphate	100.5	94.0	88.2
Potassic	122.8	82.0	345.6
Total cost (USD/ha)	115.0	121.0

Source: Li and Zhang, 2010.

The average seeding rates for rice and corn are 150 kg/ha and 111 kg/ha, with the respective 2017 market prices of USD382.4/t and USD294/t. By adding all components, we estimate the total cost of USD 437/ha for rice and USD419/ha for corn. However, since the total cost should be allocated to crop and its residual, we calculate the weight of “residue to biomass” to obtain the costs of the crop residues. Table 4 presents the results.

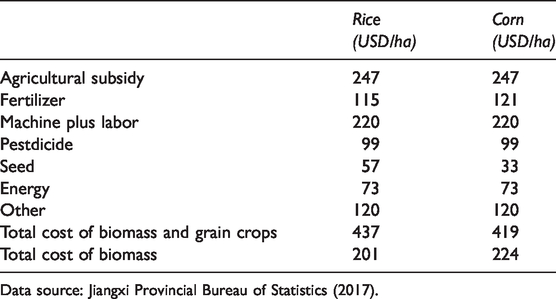

Table 4.

Feedstock production and collection cost.

	Rice	Corn
	(USD/ha)	(USD/ha)
Agricultural subsidy	247	247
Fertilizer	115	121
Machine plus labor	220	220
Pestdicide	99	99
Seed	57	33
Energy	73	73
Other	120	120
Total cost of biomass and grain crops	437	419
Total cost of biomass	201	224

Data source: Jiangxi Provincial Bureau of Statistics (2017).

Feedstock hauling and storage

To estimate the transportation cost of feedstocks from cropland to plant, we assume that the pyrolysis plant with 75,000 capacity is located in the center of a square surrounded by a square grid layout of roads, and thus the average hauling distance ( $\bar{D}$ ) and hauling cost (H) can be estimated by French (1960) and McCarl et al. (2009).

\bar{D} = 0.4714 \sqrt{\frac{S}{640 Y}}

H = (b_{0} + 2 b_{1} \bar{D}) / L d

where S is the amount of feedstock consumed in a bio-refinery plant, Y is the crop yield per unit of land multiplied by an assumed crop density of 63.3% for rice straw and 0.6% for corn stover, according to their planted area to total cropland. 640 is a conversion factor for the number of acres per square mile, Ld is the truck load size, b₀ is a fixed loading charge per truckload, and b₁ is the hauling cost per mile. Based on the Jiangxi Statistical Yearbook, the total production of rice and corn is 21,261,500 tons and 154,000 tons in 2017, respectively. Based on the crop to residual factor, we then assume the production of rice straw and corn stover to be 85% and 120% of total rice and corn production, respectively. Since the rice yield is 6.07 t/ha and that of corn is 4.32 t/ha, the biomass yield of crop residue is 5.42 t/ha for rice straw and 5.23 t/ha for corn stover. A 5% loss of feedstocks during transportation is also assumed.

We use a 10 ton grain elevator truck that can automatically convey crops into the carriage to reduce the loading charge from USD58.2 to USD7.3 per mile. Because rice could be harvested twice a year and corn is harvested only once a year, the hauling charge including maintenance labor cost is USD1.8 for rice straw and USD1.2 for corn stover. The results are presented in Table 5.

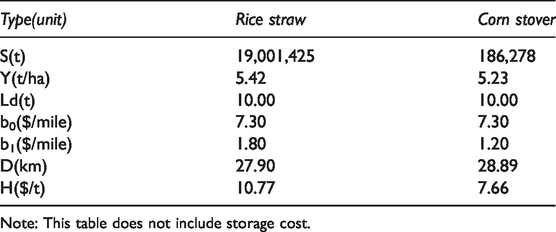

Table 5.

Estimated transport cost and hauling distance of feedstocks.

Type(unit)	Rice straw	Corn stover
S(t)	19,001,425	186,278
Y(t/ha)	5.42	5.23
Ld(t)	10.00	10.00
b₀($/mile)	7.30	7.30
b₁($/mile)	1.80	1.20
D(km)	27.90	28.89
H($/t)	10.77	7.66

Note: This table does not include storage cost.

The feedstock should be stored before being processed, storage costs should be estimated. The assumed storage fee is USD17.6 per ton of feedstock based on the Statistics of National Reserved Storage Fee. Altogether the per ton hauling and storage cost are USD28.37 for rice straw and USD25.26 for corn stover.

Cost of plant operation

Most gasification and pyrolysis processes have four stages such as preprocessing the feedstocks, conveying the feedstocks to the pyrolysis plant, scrubbing the gases to remove the particulates and water and hydrocarbons and soluble matters, and using the outputs to generate electricity. For a plant that consumes 200 tons of biomass per day, its capital investment is approximately USD24.6 million (including the purchase and installation of all equipment), and labor expenses, supplies and overheads costs, and utilities are about USD 203,430 and USD767,930 for rice straw and corn stover, respectively (Pourhashem et al., 2013). For the plant with processing biomass capacity of 75,000t per year, we need 248 plants for rice straw and 3 plants for corn stover. The result in Table 6 shows that rice straw can generate electricity at a lower cost.

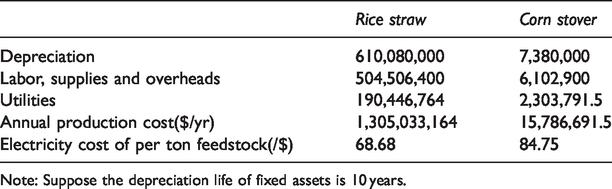

Table 6.

Annual cost of electricity production of alternative feedstock.

	Rice straw	Corn stover
Depreciation	610,080,000	7,380,000
Labor, supplies and overheads	504,506,400	6,102,900
Utilities	190,446,764	2,303,791.5
Annual production cost($/yr)	1,305,033,164	15,786,691.5
Electricity cost of per ton feedstock(/$)	68.68	84.75

Note: Suppose the depreciation life of fixed assets is 10 years.

During stages 1 and 2, the moisture contained in the feedstocks is removed, and the production of each output is displayed in Table 6.

The biochar is applied as a soil additive to sequester carbon, while bio-oil and syngas are used for power generation. We then adopt the estimates from Pourhashem et al., (2013) to obtain the heating value of bio-oil, biochar and coal of 22.1 MJ/kg, 21 MJ/kg and 30.15 MJ/kg, respectively, and the heating value of syngas of 3.98 MJ/kg from Calvo et al. (2012).

Table 7 shows the generating capacity under various technologies. For rice straw, biomass produced by intermediate pyrolysis could yield 33,281,119 MWh, while corn stover under fast pyrolysis generates the most. Although the generating capacity of slow pyrolysis and gasification is relatively low, they produce considerable amount of biochar that significantly benefits the agricultural sector.

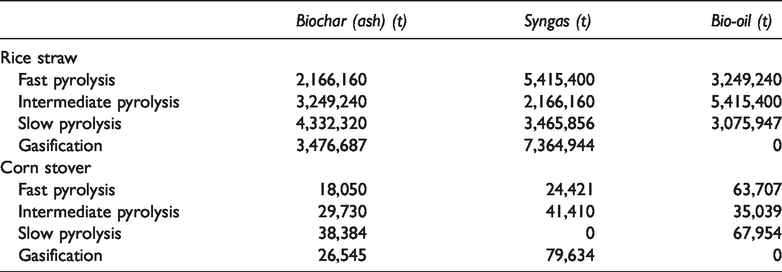

Table 7.

The output from various pyrolysis and gasification technologies.

	Biochar (ash) (t)	Syngas (t)	Bio-oil (t)
Rice straw
Fast pyrolysis	2,166,160	5,415,400	3,249,240
Intermediate pyrolysis	3,249,240	2,166,160	5,415,400
Slow pyrolysis	4,332,320	3,465,856	3,075,947
Gasification	3,476,687	7,364,944	0
Corn stover
Fast pyrolysis	18,050	24,421	63,707
Intermediate pyrolysis	29,730	41,410	35,039
Slow pyrolysis	38,384	0	67,954
Gasification	26,545	79,634	0

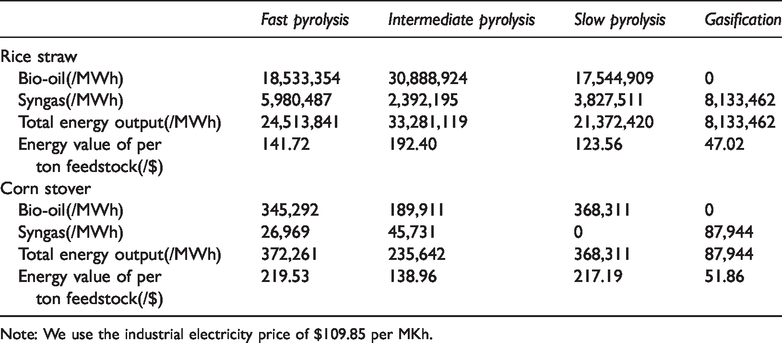

Table 8.

Generating capacity of various feedstocks.

	Fast pyrolysis	Intermediate pyrolysis	Slow pyrolysis	Gasification
Rice straw
Bio-oil(/MWh)	18,533,354	30,888,924	17,544,909	0
Syngas(/MWh)	5,980,487	2,392,195	3,827,511	8,133,462
Total energy output(/MWh)	24,513,841	33,281,119	21,372,420	8,133,462
Energy value of per ton feedstock(/$)	141.72	192.40	123.56	47.02
Corn stover
Bio-oil(/MWh)	345,292	189,911	368,311	0
Syngas(/MWh)	26,969	45,731	0	87,944
Total energy output(/MWh)	372,261	235,642	368,311	87,944
Energy value of per ton feedstock(/$)	219.53	138.96	217.19	51.86

Note: We use the industrial electricity price of $109.85 per MKh.

Value of biochar

Lehmann et al. (2003) found that the application of biochar to soil results in a 60% reduction in nitrogen leaching. Xu et al. (2016) studied the effect of biochar additions to soil on nitrogen leaching and came up with the result that biochar could significantly reduce the cumulative amount of total N leached by 18.8%, 19.5% and 20.2% in the 2%, 4% and 8% treatment, respectively. Their results point out that increasing amount of biochar applied on soil would reduce N leaching. Hence, we assume that the reduction in N leaching is 20 wt.%, which is equivalent to a 20% saving of fertilizer. Biochar could also increase crop yield. Vaccari et al. (2011) investigate the large volume application of biochar (30 and 60 t ha⁻¹) on durum wheat in the Mediterranean climate condition and the result shows that with biochar application up to an 30% increase on biomass production may be achieved. Major et al. (2010) also point out that the maize yield could be improved ranging from 40% to 200% during the next three years. To be conservative, we assume that the crop production would increase by 5% with the application of 5 t per hectare of biochar in this study. The estimates are shown in Table 8.

The current rice and corn price are $378.79/t and $301.52/t, respectively. Thus, the benefit from crop yield is USD21.21 for rice and USD12.45 for corn per ton of biomass. However, only a portion of cropland can be applied with limited amount of biochar, and rice seems to be a more attractive feedstock as its production is much larger than corn. The results are shown in Table 9.

Table 9.

Crop yield increase.

	Biochar (ash) (/t)	The proportion of covered land (%)	Crop yield increase (/$)
Rice straw
Fast pyrolysis	2,166,160	12.36	2.62
Intermediate pyrolysis	3,249,240	18.54	3.93
Slow pyrolysis	4,332,320	24.72	5.24
Gasification	3,476,687	19.84	4.21
Corn stover
Fast pyrolysis	18,050	10.13	1.26
Intermediate pyrolysis	29,730	16.68	2.08
Slow pyrolysis	38,384	21.53	2.68
Gasification	26,545	14.89	1.85

So far there exists no standardized biochar market, and we estimate the biochar value using its energy content relative to coal. Since the heating value of biochar is 67% of coal, along with the current coal price of $117.12/t in China, the biochar price is assumed to be $78.95 per ton. Table 10 shows the value of biochar under different pyrolysis and gasification technologies. We find that the combustion value of biochar far exceeds its added value as a soil additive, implying its economic benefits under energy source is more attractive. In area where results show that biochar combustion value is greater than its environmental value, people would find the alternative use of biochar and make it as a fuel source rather than as a soil additive.

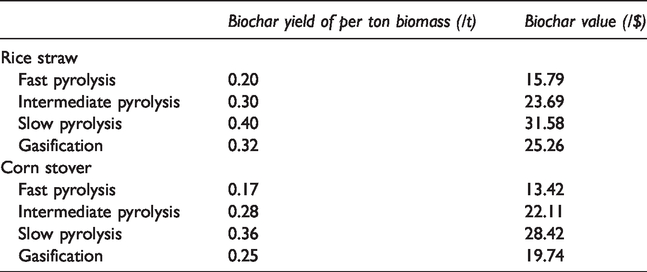

Table 10.

Biochar value of combustion.

	Biochar yield of per ton biomass (/t)	Biochar value (/$)
Rice straw
Fast pyrolysis	0.20	15.79
Intermediate pyrolysis	0.30	23.69
Slow pyrolysis	0.40	31.58
Gasification	0.32	25.26
Corn stover
Fast pyrolysis	0.17	13.42
Intermediate pyrolysis	0.28	22.11
Slow pyrolysis	0.36	28.42
Gasification	0.25	19.74

Environmental analysis of biochar application

Since the biochar-compost-based soil management can improve soil organic carbon, soil nutrient status, and soil water content, and may mitigate greenhouse gas emissions in certain systems (Agegnehu et al., 2016), to explore the net environmental consequence from pyrolysis and gasification, it is necessary to take the alternative biochar application into account.

Production and hauling

In this study, the GHG offset of feedstock production refers to the direct and indirect carbon emissions caused by human carbon input in the crop production. The direct carbon emissions from crop production refer to the greenhouse gas emissions caused by the carbon input directly affecting the whole production process, including the consumption of agricultural machinery fuel and direct carbon emission increase in soil due to the application of fertilizer. Indirect carbon emission from production refers to the transportation of production materials such as fertilizers and pesticides, production process, and carbon emissions from upstream sectors. The system boundary of the carbon footprint starts from sowing and ends at harvest. The boundary is defined within the crop production and planting process.

The carbon footprint per hectare of rice is 0.35 t CO2e in Jiangxi (Luo, 2014), while Yu et al. (2019) indicate that the greenhouse gas emission from corn production is 0.55 t CO2e per hectare. We estimate the GHG emission of per ton of biomass is 0.065 t CO2e for rice straw and 0.105 t CO2e for corn stover.

Collected feedstock will be transported to the plant, and produced biochar will be conveyed to the field. The average hauling distance per ton of biomass is 27.90 km for rice straw and 29.89 km for corn stover, and the average hauling distance for straw-based biochar and stover-based biochar is 21.63 km and 22.39 km, respectively. A truck with a 10-ton capacity consumes 22.6 liters of gasoline per 100 km with CO₂ emission of 2.7 kg/liter (Zeng and Nie, 2016), and thus the CO₂ emission from transportation is estimated to be 0.61 kg/km. With these estimates, the CO₂ emission in the hauling process is 0.002 t CO₂e regardless of what feedstock is transported, and during production and hauling stage, the emissions per ton of biomass are estimated to be 0.067 t for rice straw and 0.107 t for corn stover.

Plant operation

Rogers and Brammer (2012) showed that to produce bio-oil containing 1 GJ heating value requires energy input of 20 KWh. Based on the average emission factors of regional power grids, we use the carbon emission factor of 0.997 t CO₂e/MWh. The CO₂ offset from pyrolysis and gasification is presented in Table 11. Regardless of the types of feedstock, the fast pyrolysis offsets the most emission, while the slow pyrolysis offsets the least.

Table 11.

CO₂ offset from plant operation.

	Syngas	Bio-oil	Total offset	Offset rate (t CO₂e/t biomass)
Rice straw
Fast pyrolysis	429,773	257,864	687,637	0.038
Intermediate pyrolysis	171,909	429,773	601,682	0.033
Slow pyrolysis	275,055	244,111	519,165	0.029
Gasification	584,491	0	584,491	0.032
Corn stover
Fast pyrolysis	1938	5056	6994	0.040
Intermediate pyrolysis	3286	2,781	6067	0.034
Slow pyrolysis	0	5,393	5,393	0.030
Gasification	6320	0	6,320	0.036

Offset from electricity generation

From the perspective of power generation, China's total thermal power generation reached 4979 billion KWh in 2018, accounting for about 73.23% of the total power generation. We assume that the energy generated from bio-oil and syngas is to substitute the electricity generated from coal and the results of emission offset from electricity are shown in Table 12.

Table 12.

CO₂ offset from electricity generation.

	Bio-oil	Syngas	Total offset	Substitute coal CO₂ offset	Offset rate (t CO₂e/t biomass)
Rice straw
Fast pyrolysis	1,413,733	1,028,926	2,442,659	24,440,299	1.158
Intermediate pyrolysis	2,356,221	411,570	2,767,791	33,181,275	1.601
Slow pyrolysis	1,338,333	658,513	1,996,846	21,308,303	1.017
Gasification	0	1,399,339	1,399,339	8,109,061	0.353
Corn stover
Fast pyrolysis	27,719	4640	32,359	371,144	1.818
Intermediate pyrolysis	15,245	7868	23,113	234,936	1.137
Slow pyrolysis	29,567	0	29,567	367,206	1.813
Gasification	0	15,130	15,130	87,680	0.390

The maximum CO₂ reduction from rice straw utilization is 1.601 t under intermediate pyrolysis, while the maximum CO₂ reduction per ton of corn stover is 1.818 t under fast pyrolysis. Gasification is the least competitive technology compared to other pyrolysis modes.

Offset from reduced inputs and irrigation

Biochar improves nitrogen and water retention, and thus less amount of fertilizer and irrigation is required. This eventually reduces NO₂ emission from the application of fertilizer machinery and fertilizer itself, and CO₂ emission from fossil fuel consumption associated with irrigation. With the 20% nutrient saving and the emission factor from IPCC (2006) and Dubey and Lal (2009), NO₂ emission from Nitrogen, Phosphorus, and Potassium is equivalent to 1.4 kg CO₂, 0.73 kg CO₂, and 0.55 kg CO₂, respectively. Collectively, the per hectare CO₂e emission is 86.2 kg for rice straw and 99.2 kg for corn stover.

Meanwhile, the fertilizer reduction per hectare amounts to USD23 for rice and USD24.2 for corn, and the reduction on associated machine, labor, and energy use is USD23.3 per hectare. The results are shown in Table 13.

Table 13.

Offset from reduced inputs and irrigation.

	CO₂ reduction (t CO₂e/t biomass)	Input and irrigation reduction ($/t biomass)
Rice straw
Fast pyrolysis	0.002	1.06
Intermediate pyrolysis	0.003	1.58
Slow pyrolysis	0.004	2.11
Gasification	0.003	1.69
Corn stover
Fast pyrolysis	0.002	0.92
Intermediate pyrolysis	0.003	1.51
Slow pyrolysis	0.004	1.96
Gasification	0.003	1.35

Carbon sequestration from biochar

The average organic carbon content in Jiangxi province is approximately 100t/ha and the carbon density of the surface layer of dry land is 1/3 relatively to the world average, implying that the soil system in China has great potential for carbon sequestration and emission reduction (Xu et al., 2016). In terms of carbon sequestration, 60% of carbon contained in biochar of which 2% escaping in the form of CO₂, and the remaining 58% would retain in the form of stable C, resulting in the carbon sequestration of 2.9 t CO₂e per hectare.

Besides this, there are about 1/3 straw burned directly in China (Jiang et al., 2013; Li and Wang 2013). If the conventionally burned straws are to be used in biochar application, it will offset 0.957 t CO₂e per hectare, resulting in an emission reduction of 3.857t CO₂e from biochar application. The results are presented in Table 14.

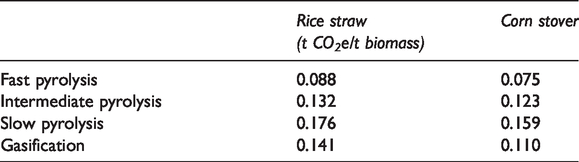

Table 14.

Carbon sequestration from biochar application.

	Rice straw	Corn stover
	(t CO₂e/t biomass)
Fast pyrolysis	0.088	0.075
Intermediate pyrolysis	0.132	0.123
Slow pyrolysis	0.176	0.159
Gasification	0.141	0.110

Net GHG balance

Since May 2013, the implementation of trading on carbon emission is launched. Based on the prices released from national emission trading exchanges (Table 15), we use a weighted average price of $6.4 per ton CO₂e to measure the total value of reduced CO₂ emission.

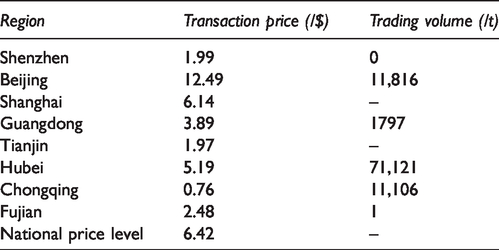

Table 15.

Trading volume and price of carbon emission.

Region	Transaction price (/$)	Trading volume (/t)
Shenzhen	1.99	0
Beijing	12.49	11,816
Shanghai	6.14	–
Guangdong	3.89	1797
Tianjin	1.97	–
Hubei	5.19	71,121
Chongqing	0.76	11,106
Fujian	2.48	1
National price level	6.42	–

The GHG value ranges from USD2 to USD12 of per ton biomass, and corn stover is considered as a more suitable feedstock in terms of profitability. Although the amount of corn stover received in Jiangxi is relatively less than that of the rice straw, the result implies that in regions where the corn is the primary commodity may obtain significant emission reduction. The results are displayed in Table 16.

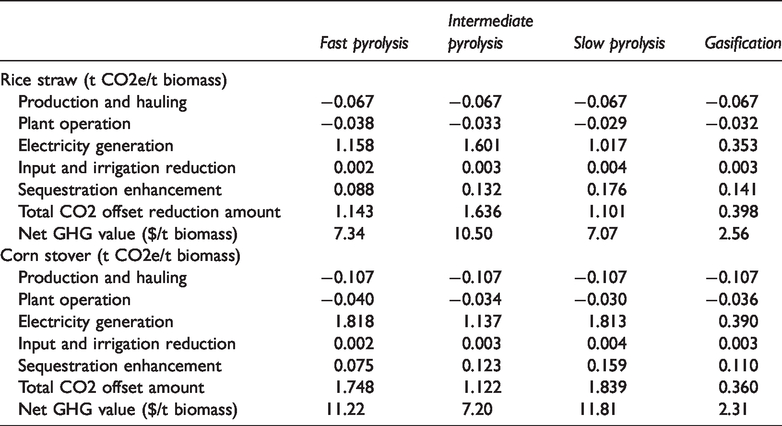

Table 16.

Net environmental benefits from pyrolysis and gasification.

	Fast pyrolysis	Intermediate pyrolysis	Slow pyrolysis	Gasification
Rice straw (t CO2e/t biomass)
Production and hauling	−0.067	−0.067	−0.067	−0.067
Plant operation	−0.038	−0.033	−0.029	−0.032
Electricity generation	1.158	1.601	1.017	0.353
Input and irrigation reduction	0.002	0.003	0.004	0.003
Sequestration enhancement	0.088	0.132	0.176	0.141
Total CO2 offset reduction amount	1.143	1.636	1.101	0.398
Net GHG value ($/t biomass)	7.34	10.50	7.07	2.56
Corn stover (t CO2e/t biomass)
Production and hauling	−0.107	−0.107	−0.107	−0.107
Plant operation	−0.040	−0.034	−0.030	−0.036
Electricity generation	1.818	1.137	1.813	0.390
Input and irrigation reduction	0.002	0.003	0.004	0.003
Sequestration enhancement	0.075	0.123	0.159	0.110
Total CO2 offset amount	1.748	1.122	1.839	0.360
Net GHG value ($/t biomass)	11.22	7.20	11.81	2.31

Table 17 summarizes the net benefits from pyrolysis and gasification using corn stover and rice straw.

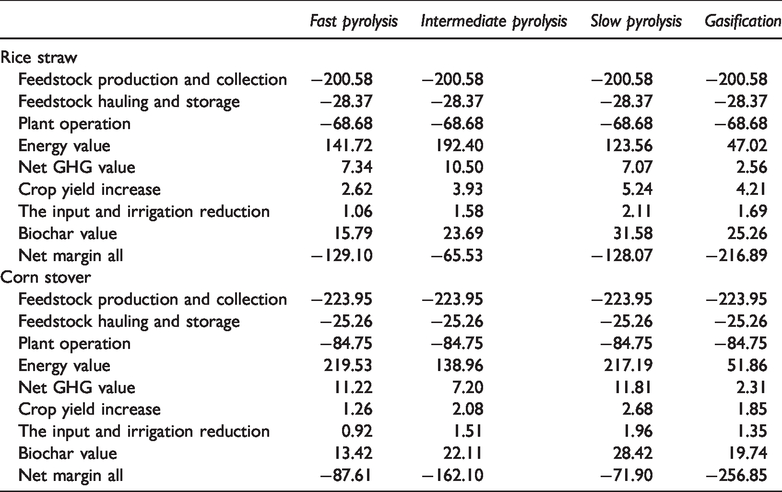

Table 17.

Totality of value ($/t biomass).

	Fast pyrolysis	Intermediate pyrolysis	Slow pyrolysis	Gasification
Rice straw
Feedstock production and collection	−200.58	−200.58	−200.58	−200.58
Feedstock hauling and storage	−28.37	−28.37	−28.37	−28.37
Plant operation	−68.68	−68.68	−68.68	−68.68
Energy value	141.72	192.40	123.56	47.02
Net GHG value	7.34	10.50	7.07	2.56
Crop yield increase	2.62	3.93	5.24	4.21
The input and irrigation reduction	1.06	1.58	2.11	1.69
Biochar value	15.79	23.69	31.58	25.26
Net margin all	−129.10	−65.53	−128.07	−216.89
Corn stover
Feedstock production and collection	−223.95	−223.95	−223.95	−223.95
Feedstock hauling and storage	−25.26	−25.26	−25.26	−25.26
Plant operation	−84.75	−84.75	−84.75	−84.75
Energy value	219.53	138.96	217.19	51.86
Net GHG value	11.22	7.20	11.81	2.31
Crop yield increase	1.26	2.08	2.68	1.85
The input and irrigation reduction	0.92	1.51	1.96	1.35
Biochar value	13.42	22.11	28.42	19.74
Net margin all	−87.61	−162.10	−71.90	−256.85

Sensitivity analysis

For rice straw, only if the electricity price is higher than USD146.26/MWh, intermediate pyrolysis could be profitable. Slow pyrolysis can be profitable as long as the electricity price increases to USD145.21/MWh. When the biomass is corn stover, this result is close to intermediate pyrolysis.

Regardless the feedstock used, gasification is the least competitive to other production module. Gasification can be profitable unless total costs from production, hauling, and plant operation can be reduced by 75%. Since this great reduction is hardly to achieve in the short run, gasification is less attractive.

When environmental consideration is more emphasized by the government, the GHG price may rise substantially and improve profitability. The study shows that if the GHG price rise to about USD40 per ton, then both slow and intermediate pyrolysis could be economically feasible. However, as international GHG price has been continuing falling and the highest domestic price level is only USD12.49 in Beijing, such an application may not be as attractive as other renewable technologies.

Conclusion

The benefits of pyrolysis primarily come from greenhouse gas offset, carbon sequestration enhancement, and increased crop output. The profitability of fast, intermediate, slow pyrolysis and gasification using rice straw and corn stover as feedstock in Jiangxi is examined to explore their economic and environmental potential. The results show that gasification technology is not competitive to other pyrolysis patterns. The most competent pyrolysis patterns using different feedstock are intermediate pyrolysis using rice straw and slow pyrolysis using corn stover. The benefit from pyrolysis application is also sensitive to feedstock selection and subsequent pyrolysis output. Value adding of stover-based biochar under fast pyrolysis improves profitability but other technologies do not have such patterns.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The authors thank for the support from the National Natural Science Foundation (41861042; 71864013; 71663025), Distinguished Young Scholar Program of Jiangxi Province (20171BCB23047), Science Program of Jiangxi Bureau of Education (GJJ190275), and University Social Science Foundation of Jiangxi (JC17205).

ORCID iD

Chih-Chun Kung

References

Agblevor

Beis

Kim

, et al. (2010) Biocrude oils from the fast pyrolysis of poultry litter and hardwood. Waste Management 30 (2): 298–307.

Agegnehu

Bass

Nelson

, et al. (2016) Benefits of biochar, compost and biochar–compost for soil quality, maize yield and greenhouse gas emissions in a tropical agricultural soil. The Science of the Total Environment 543: 295–306.

Beringer

TIM

Lucht

Schaphoff

(2011) Bioenergy production potential of global biomass plantations under environmental and agricultural constraints. GCB Bioenergy 3: 299–312.

Bian

Zhu

, et al. (2016) Pyrolysis of crop residues in a mobile bench-scale pyrolyser: Product characterization and environmental performance. Journal of Analytical and Applied Pyrolysis 119: 52–59.

Biswas

Pandey

Bisht

, et al. (2017) Pyrolysis of agricultural biomass residues: Comparative study of corn cob, wheat straw, rice straw and rice husk. Bioresource Technology 237: 57–63.

Bridgwater

Peacocke

GVC

(2000) Fast pyrolysis processes for biomass. Renewable and Sustainable Energy Reviews l 4: 1–73.

Brown

Wright

Brown

(2011) Estimating profitability of two biochar production scenarios: Slow pyrolysis vs fast pyrolysis. Biofuels, Bioproducts and Biorefining 5(1): 54–68.

Calvo

Gil

Otero

, et al. (2012) Gasification of rice straw in a fluidized-bed gasifier for syngas application in close-coupled boiler-gasifier systems. Bioresource Technology 109: 206–214.

Cao

(2019) Opportunities and challenges of biomass energy development in China under the background of One Belt and One Road. Low Carbon World 9(08): 31–32. (in Chinese)

10.

Chan

Zwieten

Meszaros

, et al. (2007) Agronomic values of green waste biochar as a soil amendment. Soil Research 45: 629–634.

11.

Cheng

(2019) China's energy security challenges and analysis of coal security role. Coal Economic Research 39(04): 10–14. (in Chinese)

12.

Dubey

Lal

(2009) Carbon footprint and sustainability of agricultural production systems in Punjab, India, and Ohio, USA. Journal of Crop Improvement 23(4): 332–350.

13.

Gaunt

Lehmann

(2008) Energy balance and emissions associated with biochar sequestration and pyrolysis bioenergy production. Environmental Science & Technology 42: 4152–4158.

14.

Gronowska

Joshi

MacLean

(2008) A review of US and Canadian biomass supply studies. Bioresource 4: 341–369.

15.

Hornung

(2013) Intermediate pyrolysis of biomass. In: Biomass combustion science, technology and engineering. London: Woodhead Publishing, pp. 172–186.

16.

Intergovernmental Panel on Climate Change (IPCC) (2006) 2006 IPCC guidelines for national greenhouse gas inventories. (2013) 04-28. Available at: www.ipcc-nggip.iges.or.jp./public/2006gl/index. html (accessed 27 December 2019).

17.

International Standardization Organization (ISO) (2006) Environmental Management: Life Cycle Assessment; Principles and Framework. Geneva, Switzerland: Author.

18.

Jeffery

Verheijen

FGA

van der Velde

, et al. (2011) A quantitative review of the effects of biochar application to soils on crop productivity using meta-analysis. Agriculture, Ecosystem and Environment 144(1): 175–187.

19.

Jiang

Zheng

, et al. (2013) Preliminary assessment of the potential of biochar technology in mitigating the greenhouse effect in China. Huan Jing ke Xue = Huanjing Kexue 34(6): 2486–2492. (in Chinese)

20.

Jiangxi Provincial Bureau of Statistics (2017) Jiangxi Statistical Yearbook. Beijing: China Statistics Press. (in Chinese)

21.

Joshi

Pandey

Rana

, et al. (2017) Challenges and opportunities for the application of biofuel. Renewable and Sustainable Energy Reviews 79: 850–866.

22.

Kumar

Wang

Dzenis

, et al. (2008) Thermogravimetric characterization of corn stover as gasification and pyrolysis feedstock. Biomass and Bioenergy 32(5): 460–467.

23.

Kung

McCarl

Cao

(2013) Economics of pyrolysis based energy production and biochar utilization – A case study in Taiwan. Energy Policy 60(9): 317–323.

24.

Lehmann

(2007) A handful of carbon. Nature 447: 143–144.

25.

Lehmann

Gaunt

Rondon

(2006) Bio-char sequestration in terrestrial ecosystems – A review. Mitigation and Adaptation Strategies for Global Change 11: 395–419.

26.

Lehmann

Silva

Steiner

, et al. (2003) Nutrient availability and leaching in an archaeological anthrosol and a ferralsol of the Central Amazon Basin: Fertilizer, manure and charcoal amendments. Plant and Soil 249: 343–357.

27.

Wang

(2013) Carbon emission from crop straw burning and carbon sequestration from biochar conversion in China. Journal of Agricultural Engineering 29(14): 1–7. (in Chinese)

28.

Zhang

(2010) Chemical fertilizer use and efficiency change of main grain crops in China. Journal of Soil Science and Plant Nutrition 16(5): 1136–1143. (in Chinese)

29.

Luo

(2014) Quantification of Carbon Emissions Source from Agricultural Industry Activities and the Development of Methodology – A Case Study. Nanjing, China: Nanjing Agricultural University. (in Chinese)

30.

McCarl

Peacocke

Chrisman

, et al. (2009) Economics of biochar production, utilization, and GHG offsets. In: Lehmann

Joseph

(eds) Biochar for Environmental Management: Science and Technology. London: Earthscan Publisher, pp. 341–357.

31.

Major

Rondon

Molina

, et al. (2010) Maize yield and nutrition during 4 years after biochar application to a Colombian savanna oxisol. Plant and Soil 333(1–2): 117–128.

32.

Mullen

Boateng

Goldberg

, et al. (2010) Bio-oil and bio-char production from corn cobs and stover by fast pyrolysis. Biomass and Bioenergy 34(1): 67–74.

33.

Nehls

(2002) Fertility improvement of terra firme oxisol in central Amazonia by charcoal applications. M.Sc. Thesis, University of Bayreuth, Germany.

34.

Park

Dong

Jeon

, et al. (2008) Effects of the operating parameters on the production of bio-oil in the fast pyrolysis of Japanese larch. Chemical Engineering Journal 143(1–3): 124–132.

35.

Park

Lee

Ryu

, et al. (2014) Slow pyrolysis of rice straw: Analysis of products properties, carbon and energy yields. Bioresource Technology 155: 63–70.

36.

Perkins

Bhaskar

Konarova

(2018) Process development status of fast pyrolysis technologies for the manufacture of renewable transport fuels from biomass. Renewable and Sustainable Energy Reviews 90: 292–315.

37.

Pourhashem

Spatari

Boateng

, et al. (2013) Life cycle environmental and economic tradeoffs of using fast pyrolysis products for power generation. Energy & Fuels 27(5): 2578–2587.

38.

Qambrani

Rahman

Won

, et al. (2017) Biochar properties and eco-friendly applications for climate change mitigation, waste management, and wastewater treatment: A review. Renewable and Sustainable Energy Reviews 79: 255–273.

39.

Qian

Kumar

Zhang

, et al. (2015) Recent advances in utilization of biochar. Renewable and Sustainable Energy Reviews 42: 1055–1064.

40.

Rathore

Nizami

Singh

, et al. (2016) Key issues in estimating energy and greenhouse gas savings of biofuels: Challenges and perspectives. Biofuel Research Journal 3: 380–393.

41.

Ringer

Putsche

Scahill

(2006) Large-scale pyrolysis oil production: A technology assessment and economic analysis. National Renewable Energy Laboratory, NREL/TP-510-37779. Available at: www.nrel.gov/docs/fy07osti/37779.pdf (accessed 27 December 2019)

42.

Rogers

Brammer

(2012) Estimation of the production cost of fast pyrolysis bio-oil. Biomass and Bioenergy 36: 208–217.

43.

Searle

Malins

(2015) A reassessment of global bioenergy potential in 2050. GCB Bioenergy 7: 328–336.

44.

Smith

(2004) Carbon sequestration in croplands: The potential in Europe and the global context. European Journal of Agronomy 20(3): 229–236.

45.

Steiner

Mosenthin

Zimmermann

, et al. (2007) Distribution of phytase activity, total phosphorus and phytate phosphorus in legume seeds, cereals and cereal products as influenced by harvest year and cultivar. Animal Feed Science and Technology 133: 320–334.

46.

Tsai

Lee

Chang

(2006) Fast pyrolysis of rice straw, sugarcane bagasse and coconut shell in an induction-heating reactor. Journal of Analytical and Applied Pyrolysis 76(1-2): 230–237.

47.

Vaccari

Baronti

Lugato

, et al. (2011) Biochar as a strategy to sequester carbon and increase yield in durum wheat. European Journal of Agronomy 34(4): 231–238.

48.

Wang M (2008) Well-to-wheels Energy and Greenhouse Gas Emission Results of Fuel Ethanol. Argonne National Laboratory, USA.

49.

Woolf

Amonette

Street-Perrott

, et al. (2010) Sustainable biochar to mitigate global climate change. Nature Communications 1: 56.

50.

Wright

Brown

Boateng

(2008) Distributed processing of biomass to bio-oil for subsequent production of Fischer-Tropsch liquids. Biofuels, Bioproducts and Biorefining 2: 229–238.

51.

Tan

Wang

, et al. (2016) Effect of biochar additions to soil on nitrogen leaching, microbial biomass and bacterial community structure. European Journal of Soil Biology 74: 1–8.

52.

Jiang

Wang

, et al. (2019) Effect of reduced nitrogen fertilization on carbon footprint in spring maize-late rice production system. The Journal of Applied Ecology 30(4): 1397–1403. (in Chinese)

53.

Yuan

Dai

Zhou

, et al. (2012) Rapid co-pyrolysis of rice straw and a bituminous coal in a high-frequency furnace and gasification of the residual char. Bioresource Technology 109: 188–197.

54.

Zeng

Nie

(2016) Calculation and model establishment of fuel consumption and emission of freight vehicles in city traffic environment. Vehicle Engineering 18(11): 44–48. (in Chinese)
