A novel hybrid method for modeling of photovoltaic module I–V characteristic curve by using artificial intelligence-based solver and multi-criteria decision making

Abstract

In this research, hybrid method is proposed to model the I–V characteristic curve of a photovoltaic (PV) module. The method is represented by a multi-objective arithmetic optimization and cuckoo search with multi-criteria decision-making approach. The proposed model generates first a number of I–V curves as candidates. This phase is conducted through multi-objective optimization algorithm. The optimization algorithm is assessed by a non-dominated ranking scheme and crowding distance framework. After that, the best I–V curve candidate is chosen from the result of Pareto front by using the VIKOR multi-criteria decision-making method. Moreover, the analytic hierarchy approach is employed to select the appropriate weight for each criterion. The proposed method is validated by using an experimental data under various operational conditions. This validation is done by extracting different I–V characteristic for PV modules. The proposed method is compared to a number of methods in the literature. Results show that the proposed method exceeds other methods in the literature considering the accuracy of generating the I–V curves. In addition, results show that the proposed method requires less computational power as compared to other hybridized methods.

Keywords

Single diode photovoltaic module I–V curve arithmetic optimization algorithm cuckoo search

Introduction

In general, to model a photovoltaic (PV) module, the single-diode model (SDM) is utilized for identifying PV module I–V characteristics due to its relative easiness and straightforwardness of computations. To extract I–V characteristics within various climatic conditions, SDM requires calculation of five parameters. Thus, PV module parameter extraction is the process of estimating parameters of these aggregated equivalent circuits from datasheet or measured I–V data (Gude et al., 2022).

PV module parameter extraction approaches can be classified into three categories, which are numerical, analytical, and artificial intelligence-based methods. In the analytical method, each parameter of the five parameters is modeled as a function of various conditions of operation such as short circuit, open circuit, and maximum power point (MPP). Simplified solutions are being used to solve these functions by estimating the constants of the formulated regression equations. However, the accuracy of such a method is not that high as compared to numerical method. Second, numerical (iterative) techniques which are based on numerical approaches are used for the purpose of minimizing an error criteria function in order to solve the equations. Here, the accuracy of the numerical approaches is affected by a number of variables, such as algorithm's starting solution guess and error criterion function. Moreover, convergence problems as well as the gradient operation requirement are also considered drawbacks of numerical method (Gude et al., 2022; Laudani et al., 2014). Third, meta-heuristic optimization algorithms can be also utilized for resolving such a problem. Such approaches do not need a guess of the initial solution and calculation of the gradient. Therefore, they can be considered as efficient solution for PV module parameter extraction problem (Jordehi, 2016).

There are many examples on the use meta-heuristic optimization algorithms for PV modules I–V characteristic curve in the literature. In (Kharchouf et al., 2022), the authors have used an improved differential evolution (IDE) algorithm for extracting the parameters of a PV module. The objective function in (Kharchouf et al., 2022) aimed at minimizing the difference between algorithm's output and referenced parameters. In (Fan et al., 2022), random reselection particle swarm optimization (PSOCS) approach was also used to solve the same objective function which is described in (Kharchouf et al., 2022). Similarly, different artificial intelligence-based methods (AI) are used to minimize the difference between a referenced PV module parameters and model's output. In (Siddiqui and Abido, 2013; Zagrouba et al., 2010; Ismail et al., 2013; Harrag and Messalti, 2017; Fathy et al., 2019; Qais et al., 2020; Chenouard and El-Sehiemy, 2020; Oulcaid et al., 2020; Premkumar et al., 2020; Ridha et al., 2022a; Ridha et al., 2022b; Pan et al., 2022; Farah et al., 2022; Sharma et al., 2022; Wang et al., 2022), many AI-based algorithms were used as well to solve the same objective function including differential evolution (DE), genetic algorithm (GA), particle swarm optimization (PSO), DE-assisted tabu search (TS), (TSDE), PSO assisted DE, enhanced moth search algorithm (EMSA), the interval branch and bound (IBEXOPT) algorithm, Grey wolf Optimizer (GWO), Symbiosis organisms search (SOS), and dynamic opposite learning strategy (DOL).

$R M S E$ Thus, in this research, an attempt to generate accurate PV module I–V curves is done by using hybrid AI algorithm with the help of multi-criteria decision making (MCDM) method in order to minimize the required computational power. The optimization of PV module parameters is done by a multi-objective optimization (MOO) approach. PV module Parameters are calculated first by achieving best values for evaluating merits including root mean square error, $R^{2}$ , average absolute error, $(A A E)$ , $d_{i}$ , and $M B E$ . After that, as MOO $R M S E$ provide numerous tradeoff optimal solutions, (Pareto front solutions), a multi-objective cuckoo search (MOCS) method is used to select the best solution. Here, the cuckoo search optimization algorithm (CSO) is used to reduce fitness function as it needs fewer control parameters. Consequently, the required CPU power will be less than other AI-based solver (Yousri et al., 2020; Yusuf et al., 2021).

Finally, the main contribution of this paper is the proposal of hybrid algorithm that generates PV module I–V curves with high accuracy and minimal computational power. This makes the proposal more realistic and easier to embed as compared to other AI-based methods which require either extensive training or high computational power for processing.

PV models and problem formulation

Single-diode PV solar cell model

Solar cell properties are commonly simulated by utilizing the SDM. SDM equivalent circuit is demonstrated in Figure 1 (Long et al., 2020; Gong and Cai, 2013). In SDM, resultant current is computed as below:

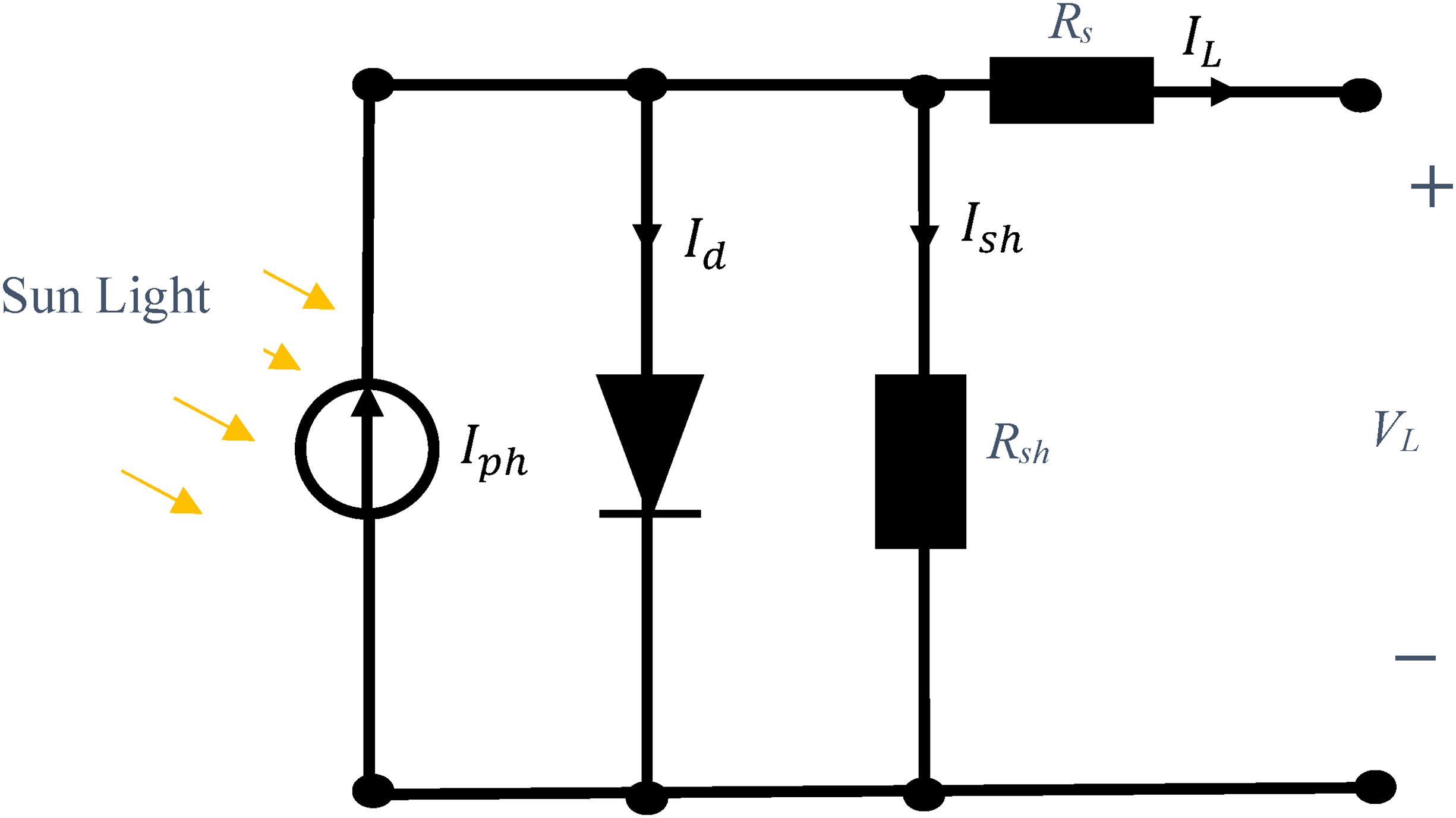

Figure 1.

PV model equivalent circuit with single diode. PV, photovoltaic.

I_{L} = I_{p h} - I_{d} - I_{s h}

(1)

Where $I_{L}$ , $I_{p h}$ , , and $I_{d}$ represent the PV output current (A), the photo generated current (A), the shunt resistor current (A), and the diode current (A), respectively. Based on Shockley equation, Equation (1) can be y $I_{s h}$ reformulated as follows (Gong and Cai, 2013):

I_{L} = I_{p h} - I_{o} * [e x p (\frac{V_{L} + R_{s} I_{L}}{a k T / q}) - 1] - \frac{V_{L} + R_{s} I_{L}}{R_{s h}}

(2)

where

I_{0}

denotes reverse saturation current (A),

V_{L}

represents the PV output voltage (V),

R_{s}

represents the series resistance (Ω),

q

=1.60217646 × 10⁻¹⁹ denotes the electron charge (C), a denotes the diode ideality constant,

R_{s h}

represents the shunt resistance (Ω), T is the cell temperature in Kelvin, and

k

= 1.380653 × 10²³ J/K is the Boltzmann constant. It can be observed from Equation (2), in SDM, there are five parameters (

I_{p h}

I_{0}

R_{s}

R_{s h}

and

a

) need to be extracted.

Definitions of investigated problem and objective functions

The process of the SDM PV module parameters identification is counted as a multivariable, nonlinear problem. Thus, it is necessary to identify some unknowns before solving this problem. Variables’ value correctness is adjusted by utilizing various evaluating merit by using estimated and measured variables (Yousri et al., 2020). The first evaluating merit function in this work is the $R M S E$ between estimated and measured values. Meanwhile, the evaluating merit is regression ( $R^{2}$ ), which reflects the degree of variation in the experimental data. The two evaluating functions are described as below:

R M S E (X) = \sqrt{\frac{1}{N} \sum_{i = 1}^{N} f_{i} (V_{L}, I_{L}, X)}

(3)

where N is the number of I–V curve points, X, represents the vector of five unknown parameters which are to be calculated. The function of the error in the SDM PV module is specified by Equation (4):

f_{i} (V_{L}, I_{L}, X) = I_{p h} - I_{o} [e x p (\frac{q (V_{L} + R_{s} I_{p})}{a k T}) - 1] - \frac{V_{L} + R_{S} I_{p}}{R_{s h}} - I_{L}

(4)

R^{2} = 1 - \frac{\sum_{i = 1}^{N} {(I_{p} - I_{L})}^{2}}{\sum_{i = 1}^{N} (I_{L} - {\bar{I}}_{L)}^{2}}

(5)

where the measured and calculated currents are

I_{L}

and

I_{p}

(A), and

{\bar{I}}_{L}

represents arithmetic mean related to experimental current (A).

{\bar{I}}_{L} = \frac{1}{N} \sum_{i = 1}^{N} I_{L}

(6)

The proposed method

In this research, the proposed methodology is divided into two main stages. The first stage is the proposed multi-objective hybrid arithmetic optimization algorithm and cuckoo search (MOAOACS) algorithm for calculating PV module's parameters. Meanwhile, in the second stage, candidates for the best solutions are chosen based on the weights assigned to various factors that have been determined as the most influential on problem's performance. This stage consists of hybrid MCDM methods, namely VIKOR and analytical hierarchy process (AHP) methods. The VIKOR method is used to rank the solutions produced by the MOAOACS algorithm, while the AHP approach is used to provide the proper weight for every criterion based on value related to that criterion.

The hybrid AOACS algorithm

This section briefly illustrates the hybrid cuckoo search algorithm and the arithmetic optimization (AOA) method. The AOA algorithm that is suggested in (Abualigah et al., 2021) is inspired by solving mathematical problems via utilizing the arithmetic operators. On the other hand, Cuckoo searching algorithm which is first presented in (Yang and Deb, 2009) is based cuckoo species obligate brood parasitism. Cuckoos brood parasitism involves putting their eggs in other species nests of host birds and served as its model. Direct combat between some host birds and the trespassing cuckoos is possible. AOACS pseudo-code (Algorithm 1) is described in Appendix A below.

The AOACS flow chart is depicted in Figure 2. As shown in Figure 2, the suggested hybrid algorithm starts by randomly initializing a population within the boundaries of the interesting problem. Then, the AOA and CS algorithm parameters are initialized by suitable values. The algorithm begins the iterative search process to find the optimum alternative once the initialization phase is finished. Through comparing a random value with the value of 0.5, that is the appropriate value depending on a large number of studies, the algorithm determines whether to employ the AOA searching approach or the CS (Yang and Deb, 2009).

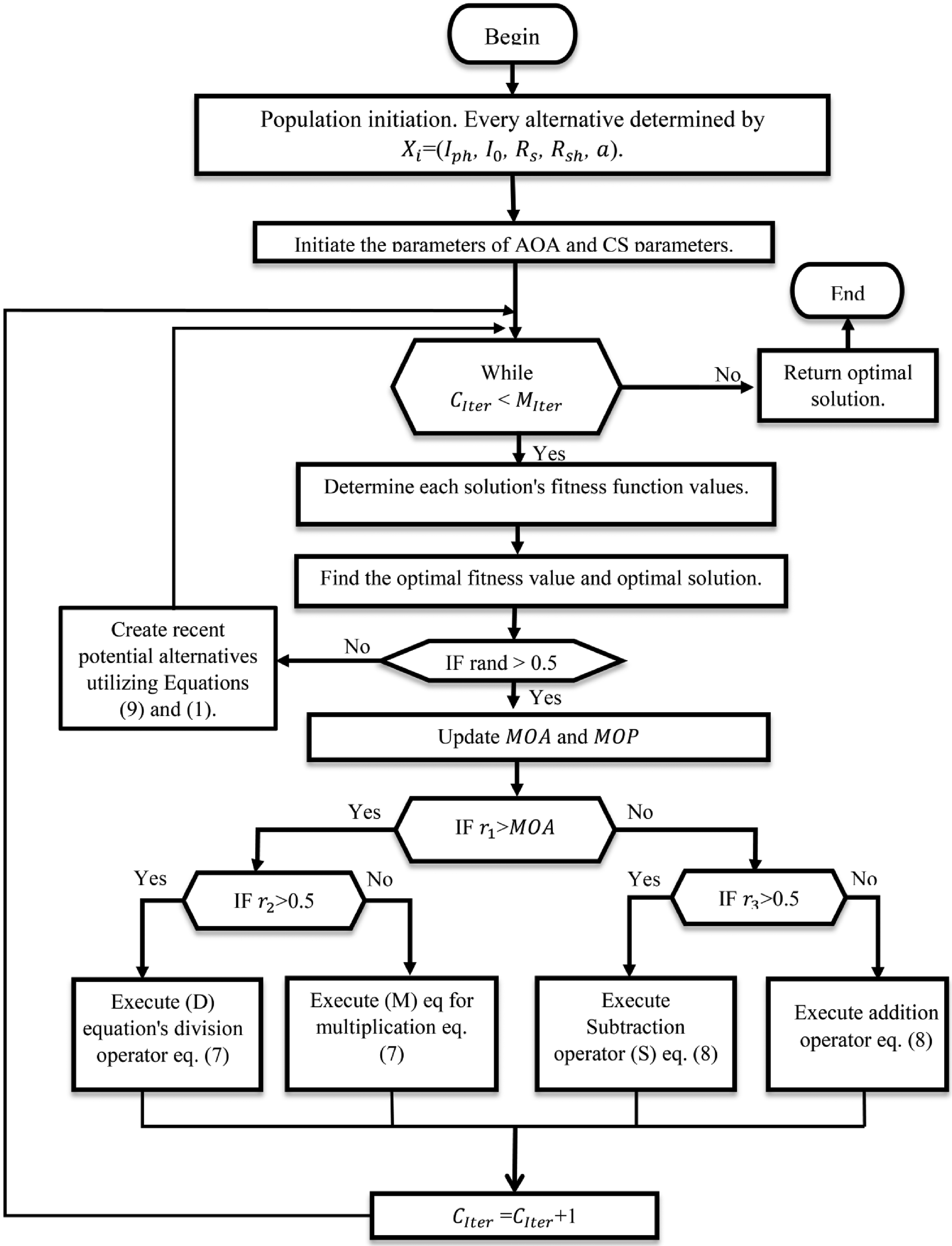

Figure 2.

AOACS approach flow chart.

AOA approach depends on random value for purpose of deciding between two possible stages, which are globally exploration and local exploitation, which will be used by the algorithm when the original random number is bigger than 0.5. The exploration phase which uses either Division (D) operator or Multiplication (M) operator (Equation (7)) obtains scattered values or alternatives and prevents the CS from focusing the search on a single local optimum as below:

x_{i, j} (C_{I t e r} + 1) = {\begin{matrix} b e s t (x_{j}) \div (M O P + ϵ) ((U B_{j} - L B_{j}) μ + L B_{j}), r_{2} < 0.5 \\ b e s t (x_{j}) * M O P ((U B_{j} - L B_{j}) μ + L B_{j}), o t h e r w i s e \end{matrix}

(7)

where

x_{i} (C_{I t e r} + 1)

represents i^th alternative in the following generation,

x_{i, j} (C_{I t e r} + 1)

represents j^th location in i^th alternative in current generation, additionally best (

x_{j}

) represents j^th location in best alternative yet. ɛ represents tiny integer number within range of

U B_{j}

and

L B_{j}

, which stand for the upper and lower boundaries of

j^{t h}

location, respectively (Abualigah et al., 2021).

In order to obtain highly dense results, the exploitation phase utilizes either addition (A) operator or subtraction (S) operator (Equation (8)). Due to their reduced dispersion compared to other operators, the intended operators (S and A) may more smoothly find the target, enhancing the CS technique's local search.

x_{i, j} (C_{I t e r} + 1) = {\begin{matrix} b e s t (x_{j}) - M O P ((U B_{j} - L B_{j}) μ + L B_{j}), r_{3} < 0.5 \\ b e s t (x_{j}) + M O P ((U B_{j} - L B_{j}) μ + L B_{j}), o t h e r w i s e \end{matrix}

(8)

It is worth to mention that the approach will accomplish the CS search (Equations (9) and (10)) if random value is equal to or less than 0.5. By having L'evy stroll around the best solution so far, CS will make sure that some new solutions are created, speeding up the local search. The CS algorithm's key benefit is simplicity.

x_{i, j} (C_{I t e r} + 1) = x_{i, j} (C_{I t e r}) + α \oplus L e v y (λ),

(9)

where the scales of the relevant problem should be correlated with the step size (α > 0). Generally, a random walk is described as a Markov chain where the transition probability and the present position (equation (9) first term) are only factors influencing next status or location (the second term). The stochastic random walk equation is basically same as the equation above. A random walk is specifically supplied by L'evy flight, and the length of random step is chosen using an L'evy distribution as described below:

L \overset{'}{e} v y \sim u = t^{- λ}, where (1 < λ \leq 3)

(10)

The steps here basically form a power-law step-length distribution with heavy tail random walk process. L'evy should stroll near the optimal alternative yet to come with some fresh ones; this will fasten up the local search. To prohibit system from getting trapped in local optimum, a critical portion of recent alternatives must be created through far field randomization, as well as their placements must be sufficiently remote from optimal alternative currently available (Yang and Deb, 2009).

Multi-objective hybrid arithmetic optimization algorithm and cuckoo search

The proposed MOAOACS uses the non-dominated sorting (NDS) method, as well as crowding distance (CD) framework which is utilized for purpose of maintaining variety. After executing AOACS hybrid algorithm that is explained in the previous section, a new population will be generated according to the fitness function of the new (child) solutions compared to the old (parent) solutions. This child population will be combined with the parent population to generate a doubled size (2NP) population. Then, the NDS approach will apply on this doubled size population to rank the solution based on two objective function values simultaneously, namely $R M S E$ and $R^{2} .$ After that, all of the non-dominated solutions are given a non-dominated ranking (NDR) (non-dominated alternatives are alternatives which are not being dominated by other alternatives in same search space, if its values are better considering all the objectives). The NDR's output is a set of Pareto fronts (The Pareto front represents the Pareto optimal set image in the objective space). The solutions in first front are given a “0” index because no other solution in the population has any influence over them. In contrast, the alternatives in second front are at least one solution in the first front's dominant solution, the alternatives in third front are at least one solution in the first or/and second fronts’ dominant solution, and so on. The rank of non-dominated alternatives is equivalent to ranks of prevailing ones. After finishing NDS step, the results are 2NP population that is ranked based on the objective functions, while these solutions are divided into set of Pareto fronts. This 2NP population acts as the input to the CD framework as below:

C D_{j}^{i} = \frac{f o b j_{j}^{i + 1} - f o b j_{j}^{i - 1}}{f o b j_{j}^{m a x} - f o b j_{j}^{m i n}}

(11)

where

f o b j_{j}^{m a x}

and

f o b j_{j}^{m i n}

are the

j^{t h}

objective function's maximum (R²) and minimum (RMSE) values (Premkumar et al., 2021).

Not all alternatives are presented in the NP slots of recently generated population, despite fact that empirical search space is 2NP in size. Alternatives that are not chosen by recently created population are eliminated. The alternatives from final permitted rank (final front) can exceed the free slots in the new population. Instead of arbitrary dismissing some alternatives and expand the variety of alternatives, a CD ranking idea is applied in this situation to choose alternatives in lower crowded zone.

The initialization of the necessary control parameters, including highest number of iterations ( $M_{I t e r}$ ), population size (NP), as well as termination criteria, is the first phase in the method. In the second stage, the feasible search space is randomly generated, and for each initial population solution, the fitness functions in the objective vector space are assessed. Then, in order to discover the best solution, NDS and CD ranking are applied based on the elitist framework to initial population. To produce the new next-generation population, the new population of X_new is produced and conjugated with the original population. The next step is to order the population of the next generation by using the elitist NDS strategy as well as determined CD and NDR values. The initial population that was updated before is formed by using the first-best NP solutions. Finally, until the termination criteria are met, this process is repeated. The initial population is then updated and formed by using the first-best NP solutions.

The best answer or collection of solutions to PV parameters extraction problem are nominated in current study work by using a compromise ranking mechanism, the VIKOR method. The suggested MOAOACS provides a group of solutions that make up the ideal Pareto front. These optimal solutions are set then and will be the input to the MCDM VIKOR method. The VIKOR method is assigning the weights (preferences) of related significance of attributes to each evaluation criterion by employing the AHP for this purpose. Based on their preferences, the criteria are systematically assigned related significance (weight) values via the integration of the VIKOR and the AHP weighting methods.

A sample decision matrix is shown in Equation 12, the decision matrix denoted by DM that is created by evaluating the $i^{t h}$ alternative in terms of the $j^{t h}$ criteria function ( $f_{i j}$ ). The total number of alternatives and attributes (criteria) are, respectively, I and J in the dimension of DM. By comparing the ideal solution to the closeness measure, the compromise ranking may be determined. When using MCDM, the feasible solution is the most practical and nearest to ideal solution.

\begin{matrix} C_{1} & \dots & C_{j} \end{matrix}

\begin{matrix} D M = A_{1} \\ ⋮ \\ A_{i} \end{matrix} [\begin{matrix} a_{11} & \dots & a_{1 j} \\ ⋮ & \dots & ⋮ \\ a_{i 1} & \dots & a_{i j} \end{matrix}]

(12)

Analytical hierarchy process weighting method

The AHP is a nonlinear general theory of assessment framework for implementing both inductive and deductive imagination with no use of logical measurement (Saaty, 1987). The AHP is used to generate ratio scales from continuous and discrete comparison pairs deriving from an essential scale or a practical computation that depicts the relationship between the sensation and the preferences (Saaty, 1987).

Three evaluators’ paired comparisons by using Saaty's scales are shown in Table 1 (Saaty, 1987). Saaty's AHP method is creating the preferences (weights) depending on opinions of some of the evaluators. These evaluators determine from their point of view the relationship between the involved criteria. They assess the relative significance of each attribute in relation to the others. Then based on these opinions, the AHP calculations are made and the above set of weights is obtained as illustrated in Table 2. These indicators show the most important error factor that should be used in order to evaluate the generated models. From the table, it can be seen that $RMSE$ , $R^{2}$ , and $MBE$ are the most important factors to evaluate the proposed models. Consequently, the Pareto front solutions are ranked based on these weights and the best solution is selected.

Table 1.

Using Saaty's AHP scale, pairwise comparisons of three evaluators.

Evaluator	Criteria	Extremely favor	Very strong favor	Strong favor	Slightly favor	Equal	Slightly favor	Strong favor	Very strong favor	Extremely favor	Criteria
Evaluator	Criteria	9	7	5	3	1	3	5	7	9	Criteria
1	RMSE			√							R ²
	RMSE			√							MPP
	RMSE					√					AAE
	RMSE			√							Isc
	R ²					√					MPP
	R ²							√			AAE
	R ²					√					Isc
	MPP							√			AAE
	MPP					√					Isc
	AAE			√							Isc
2	RMSE							√			R ²
	RMSE				√						MPP
	RMSE							√			AAE
	RMSE		√								Isc
	R ²			√							MPP
	R ²					√					AAE
	R ²	√									Isc
	MPP							√			AAE
	MPP			√							Isc
	AAE	√									Isc
3	RMSE		√								R ²
	RMSE			√							MPP
	RMSE						√				AAE
	RMSE				√						Isc
	R ²							√			MPP
	R ²			√							AAE
	R ²		√								Isc
	MPP						√				AAE
	MPP							√			Isc
	AAE					√					Isc

MPP, maximum power point; RMSE, root mean square error; AHP, analytical hierarchy process; AAE, average absolute error.

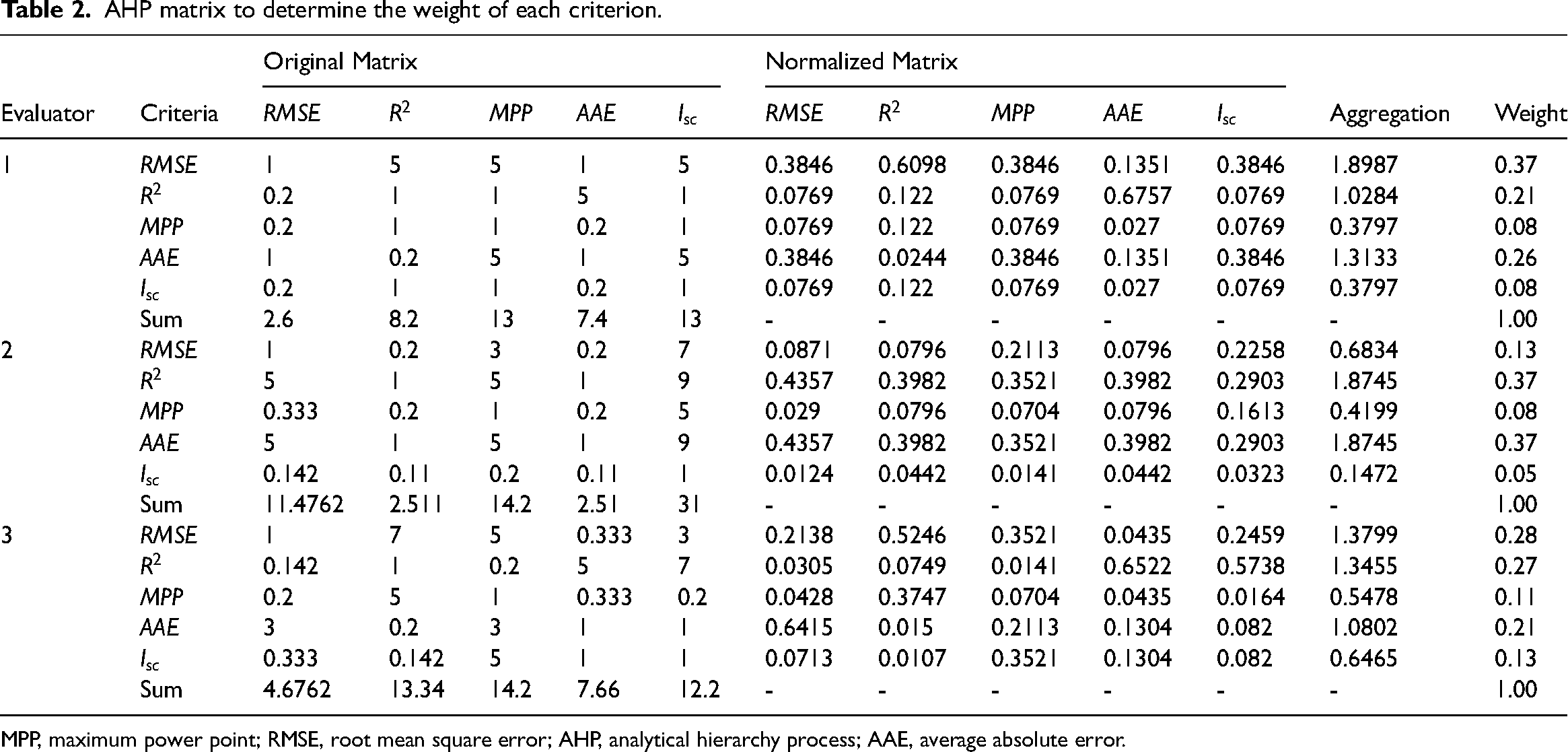

Table 2.

AHP matrix to determine the weight of each criterion.

Evaluator	Criteria	Original Matrix					Normalized Matrix					Aggregation	Weight
Evaluator	Criteria	$R M S E$	$R^{2}$	$M P P$	$A A E$	$I_{s c}$	$R M S E$	$R^{2}$	$M P P$	$A A E$	$I_{s c}$	Aggregation	Weight
1	$R M S E$	1	5	5	1	5	0.3846	0.6098	0.3846	0.1351	0.3846	1.8987	0.37
	$R^{2}$	0.2	1	1	5	1	0.0769	0.122	0.0769	0.6757	0.0769	1.0284	0.21
	$M P P$	0.2	1	1	0.2	1	0.0769	0.122	0.0769	0.027	0.0769	0.3797	0.08
	$A A E$	1	0.2	5	1	5	0.3846	0.0244	0.3846	0.1351	0.3846	1.3133	0.26
	$I_{s c}$	0.2	1	1	0.2	1	0.0769	0.122	0.0769	0.027	0.0769	0.3797	0.08
	Sum	2.6	8.2	13	7.4	13	-	-	-	-	-	-	1.00
2	$R M S E$	1	0.2	3	0.2	7	0.0871	0.0796	0.2113	0.0796	0.2258	0.6834	0.13
	$R^{2}$	5	1	5	1	9	0.4357	0.3982	0.3521	0.3982	0.2903	1.8745	0.37
	$M P P$	0.333	0.2	1	0.2	5	0.029	0.0796	0.0704	0.0796	0.1613	0.4199	0.08
	$A A E$	5	1	5	1	9	0.4357	0.3982	0.3521	0.3982	0.2903	1.8745	0.37
	$I_{s c}$	0.142	0.11	0.2	0.11	1	0.0124	0.0442	0.0141	0.0442	0.0323	0.1472	0.05
	Sum	11.4762	2.511	14.2	2.51	31	-	-	-	-	-	-	1.00
3	$R M S E$	1	7	5	0.333	3	0.2138	0.5246	0.3521	0.0435	0.2459	1.3799	0.28
	$R^{2}$	0.142	1	0.2	5	7	0.0305	0.0749	0.0141	0.6522	0.5738	1.3455	0.27
	$M P P$	0.2	5	1	0.333	0.2	0.0428	0.3747	0.0704	0.0435	0.0164	0.5478	0.11
	$A A E$	3	0.2	3	1	1	0.6415	0.015	0.2113	0.1304	0.082	1.0802	0.21
	$I_{s c}$	0.333	0.142	5	1	1	0.0713	0.0107	0.3521	0.1304	0.082	0.6465	0.13
	Sum	4.6762	13.34	14.2	7.66	12.2	-	-	-	-	-	-	1.00

MPP, maximum power point; RMSE, root mean square error; AHP, analytical hierarchy process; AAE, average absolute error.

VIKOR method

The VIKOR approach is dependent on a collection function that stems from the compromise programming method and represents “closeness to the ideal.” This method uses linear normalization. VIKOR technique incorporates a collecting function as the deviation from the ideal solution, taking into account the significance of each criterion with respect to others and striking an equilibrium between overall as well individual objectives (San Cristóbal, 2011).

Results and discussion

For purpose of assessment of effectiveness related to the suggested MOAOACS for parameter estimation, a number of experiments are carried out on SDM PV module within this part. The experimental I–V dataset is utilized to extract SDM PV parameters. PV module that was used to collect the experimental data was mounted on a solar structure, and the data were collected by utilizing a DC–DC converter-based I–V characteristic generator; this generator preciseness is about 95%–99%. Data was measured under seven climate conditions ( $G_{1}$ - $G_{7}$ ); the specifications of experimental data explained in Table 3. Taking into account the SDM PV parameter boundaries in the literature, this work utilizes the same upper and lower boundaries as presented in Table 4, (San Cristóbal, 2011).

Table 3.

Actual experimental data points gathered under different operational circumstances.

Working condition	$G_{1}$	$G_{2}$	$G_{3}$	$G_{4}$	$G_{5}$	$G_{6}$	$G_{7}$
Number of data points	22	24	24	91	92	101	102
Climate conditions (W/m²)	118.28	148	306	711	780	840	978
Cell temperature (K)	318.32	321.25	327.7	324.21	329.1	331.42	328.56

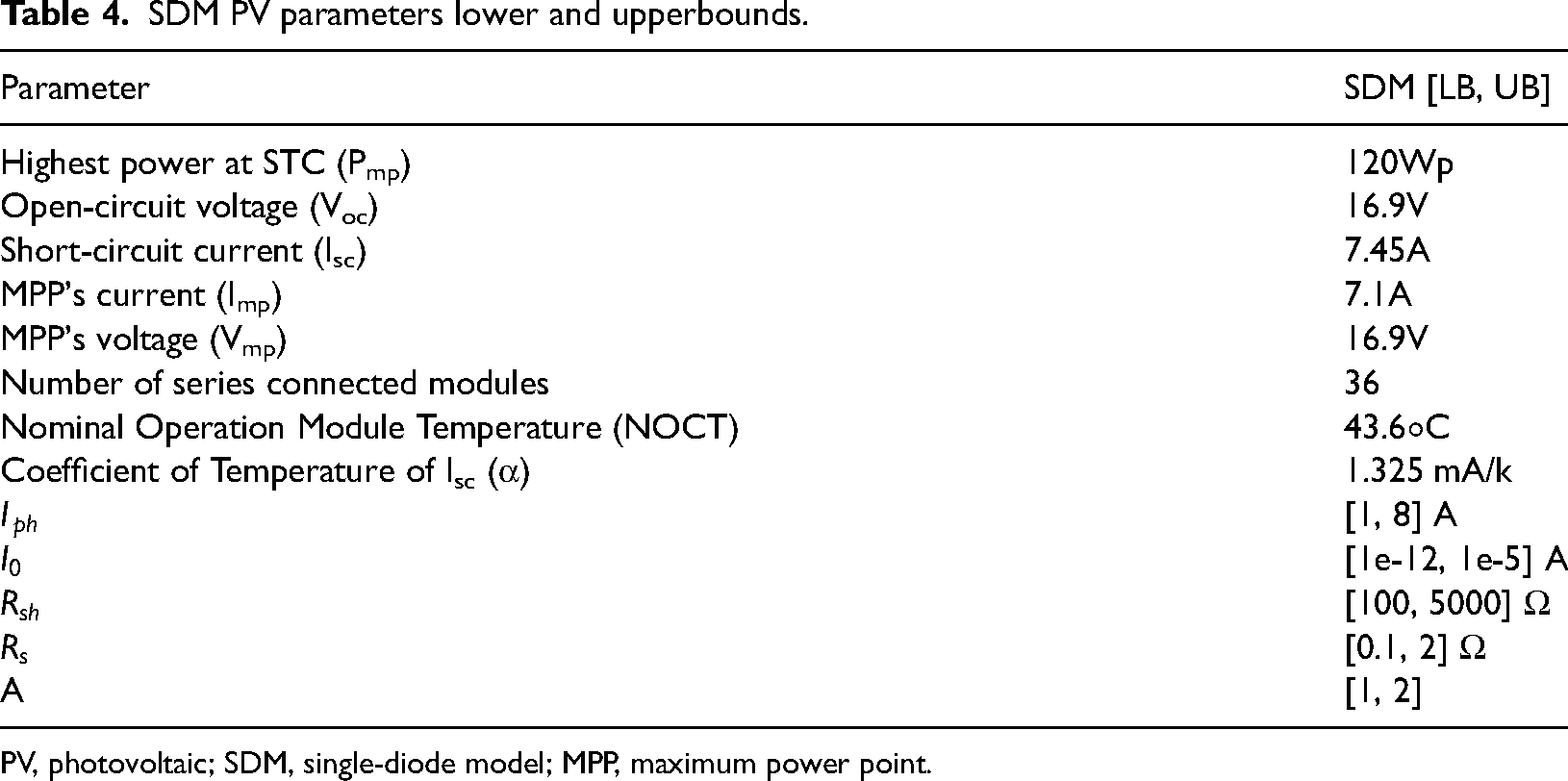

Table 4.

SDM PV parameters lower and upperbounds.

Parameter	SDM [LB, UB]
Highest power at STC (P_mp)	120Wp
Open-circuit voltage (V_oc)	16.9V
Short-circuit current (I_sc)	7.45A
MPP's current (I_mp)	7.1A
MPP's voltage (V_mp)	16.9V
Number of series connected modules	36
Nominal Operation Module Temperature (NOCT)	43.6◦C
Coefficient of Temperature of I_sc (α)	1.325 mA/k
$I_{p h}$	[1, 8] A
$I_{0}$	[1e-12, 1e-5] A
$R_{s h}$	[100, 5000] Ω
$R_{s}$	[0.1, 2] Ω
A	[1, 2]

PV, photovoltaic; SDM, single-diode model; MPP, maximum power point.

In order to model the PV module I–V curves, the Pareto front obtained for PV module, from the MOAOACS method for all the utilized experimental data sets (G1-G7) are established as illustrated in Figure 3 which shows an example of Pareto front obtained for PV module for G1. According to Figure 3, Pareto front produced by MOAOACS approach had alternatives that could produce the optimal value of every $R M S E$ as well as $R^{2}$ taken separately, as well as a wider variety of non-dominated alternatives.

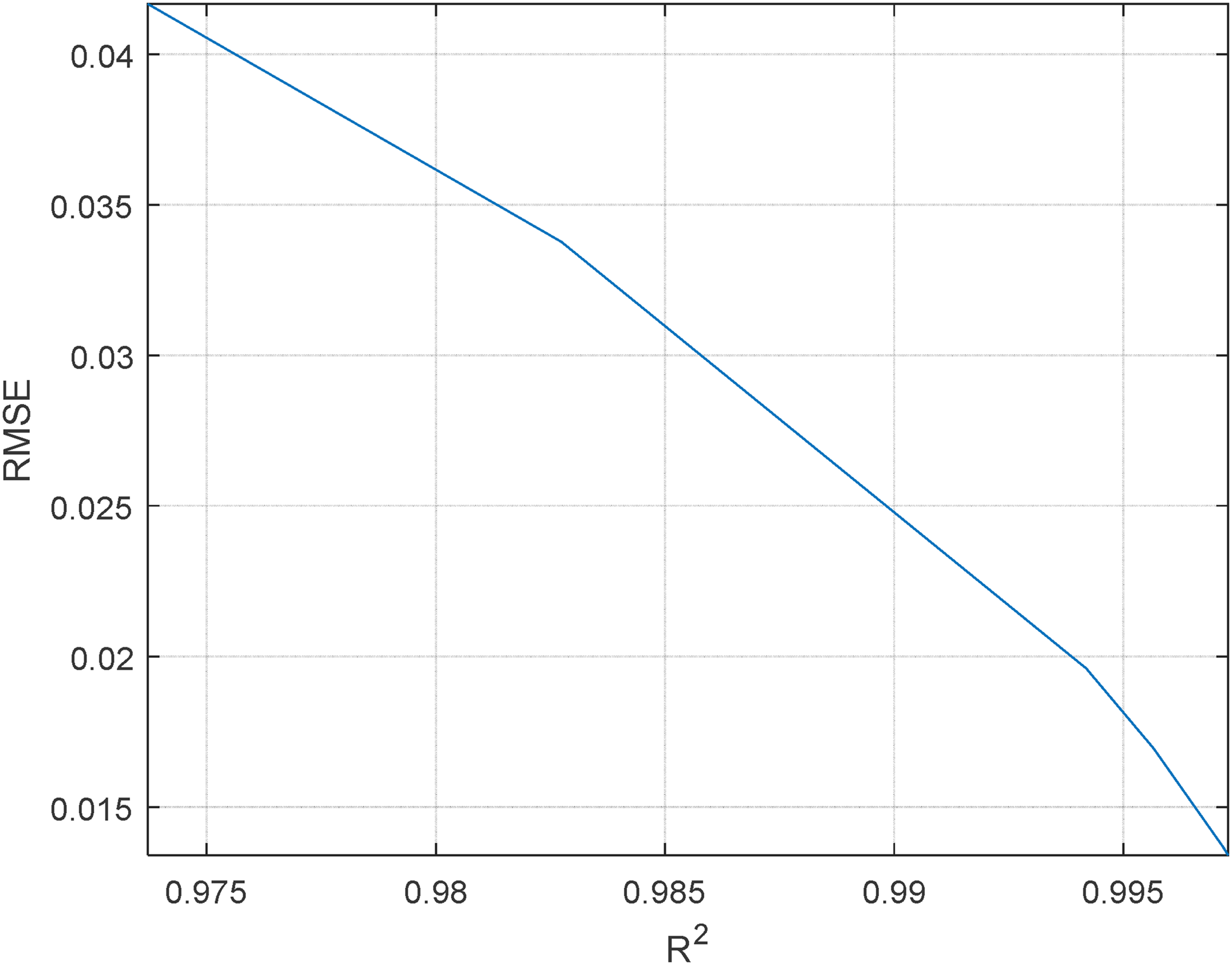

Figure 3.

Pareto front obtained by the MOAOACS approach for the compromise solution (example for G1). MOAOACS, multi-objective hybrid arithmetic optimization algorithm and cuckoo search.

After obtaining these Pareto fronts, VIKOR approach is implemented to obtain the best solution depending on AHP calculated weights. In the present work, the best-obtained solution is the solution that is firstly ranked for all of the operational conditions. A decision matrix shown in Table 5 is a sample for Pareto front that produced by MOAOACS, it utilized by the VIKOR MCDM method to select the best solution(s) based on three different weight arrays ([w1, w2, w3]) considered. Table 5 demonstrates the decision matrix for the first operational conditions. The three arrays of weight are referred to as case: A, B, and C, respectively regarding the evaluation of three experts. For these three cases, weight arrays are assigned as follows: A → [0.37, 0.21, 0.08, 0.26, 0.08], B → [0.13, 0.37, 0.08, 0.37, 0.05], C → [0.28, 0.27, 0.11, 0.21, 0.13], in addition the criteria that are used to construct the decision matrix are $R M S E$ , $R^{2}$ , $M P P$ , $A A E$ , and $I_{s c}$ .

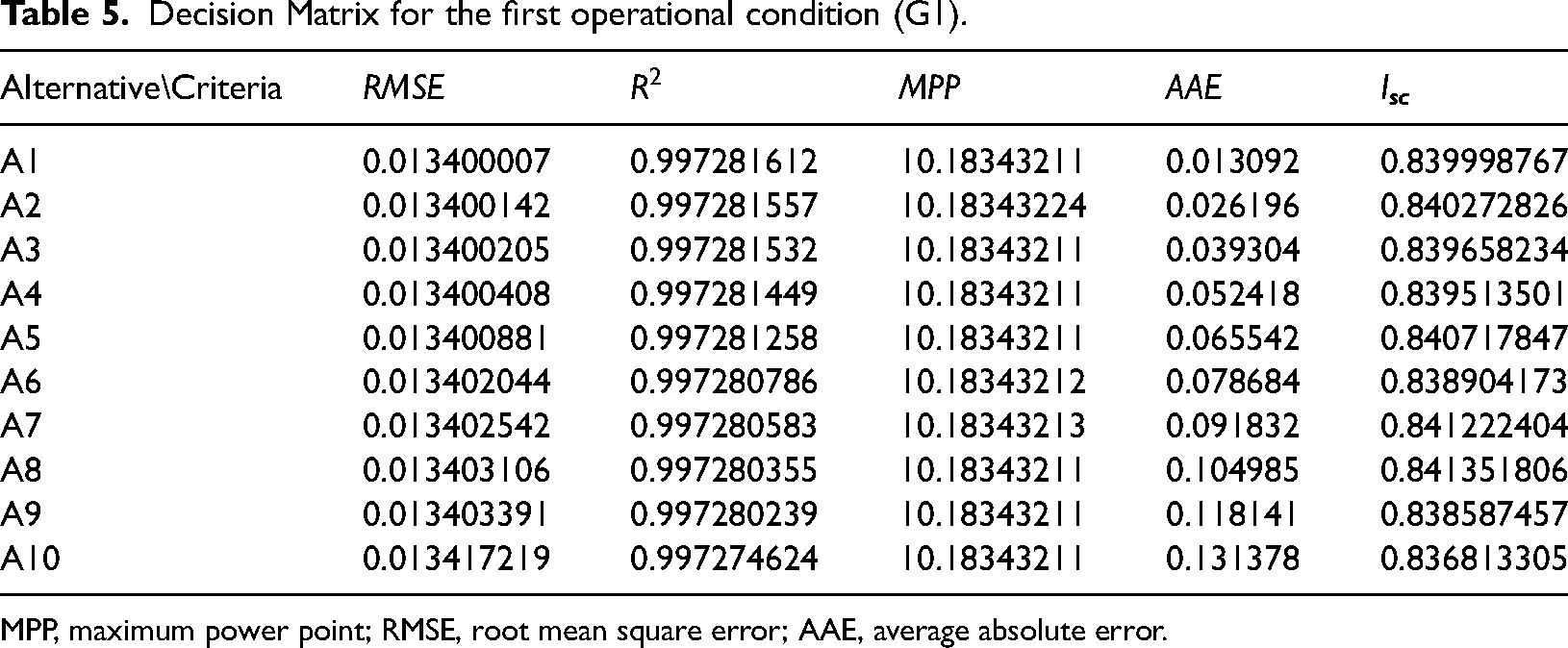

Table 5.

Decision Matrix for the first operational condition (G1).

Alternative\Criteria	$R M S E$	$R^{2}$	$M P P$	$A A E$	$I_{s c}$
A1	0.013400007	0.997281612	10.18343211	0.013092	0.839998767
A2	0.013400142	0.997281557	10.18343224	0.026196	0.840272826
A3	0.013400205	0.997281532	10.18343211	0.039304	0.839658234
A4	0.013400408	0.997281449	10.18343211	0.052418	0.839513501
A5	0.013400881	0.997281258	10.18343211	0.065542	0.840717847
A6	0.013402044	0.997280786	10.18343212	0.078684	0.838904173
A7	0.013402542	0.997280583	10.18343213	0.091832	0.841222404
A8	0.013403106	0.997280355	10.18343211	0.104985	0.841351806
A9	0.013403391	0.997280239	10.18343211	0.118141	0.838587457
A10	0.013417219	0.997274624	10.18343211	0.131378	0.836813305

MPP, maximum power point; RMSE, root mean square error; AAE, average absolute error.

On the other hand, the parameters obtained for the suggested MOAOACS approach are described in Table 6. In this table, SDM PV module parameters that differ from their individual $R M S E$ and $R^{2}$ optimal values are derived at simultaneous optimized values of $R M S E$ as well as $R^{2}$ . The MOO technique may yield PV module parameters close to the optimum values of $R M S E$ and $R^{2}$ with no losing precision of any specific objective, as shown in Table 6.

Table 6.

MOAOACS SDM PV model's extracted parameters.

Parameter	$G_{1}$	$G_{2}$		$G_{4}$	$G_{5}$	$G_{6}$	$G_{7}$
$I_{p h}$	3.8735	3.1789	3.6281	1.0019	2.720	1.00085	5.2547.720
$I_{0}$	3.730E-06	2.095E-06	3.36E-09	3.22E-11	1.32E-07	2.62E-06	4.48E-08
$R_{s h}$	3318.7043	185.9409	3397.0302	3923.5721	5000	492.0167	3336.72
$R_{s}$	2.0000	1.9999	1.9999	2.0000	2.0000	1.9999	2.0000
$a$	1.0000	1.0000	1.0000	1.0000	1.0000	1.0000	1.0000

PV, photovoltaic; SDM, single-diode model; MOAOACS, multi-objective hybrid arithmetic optimization algorithm and cuckoo search.

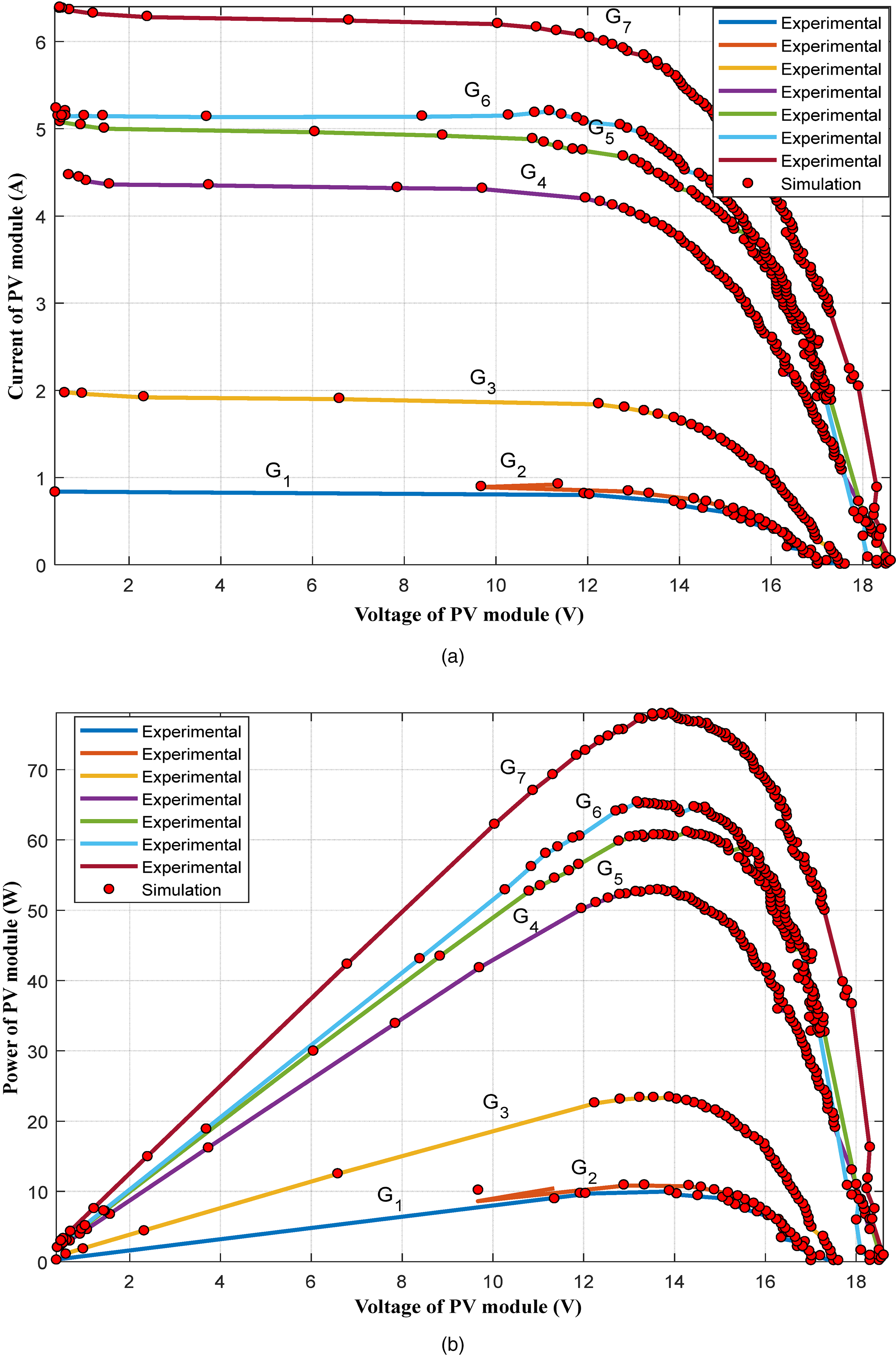

Figure 4 shows characteristics curves (I–V and P–V) related to computed and experimental points of data related to SDM. Based on Figure 5, it is obvious that the curves show suggested MOAOACS approach are very close to all data points obtained experimentally for different operational circumstances, including MPPs’ data points.

Figure 4.

SDM I–V and P–V curves of seven utilized experimental data sets using proposed MOAOACS as well as competitive approaches. (A) I–V curves (B) P–V curves. SDM, single-diode model; MOAOACS, multi-objective hybrid arithmetic optimization algorithm and cuckoo search.

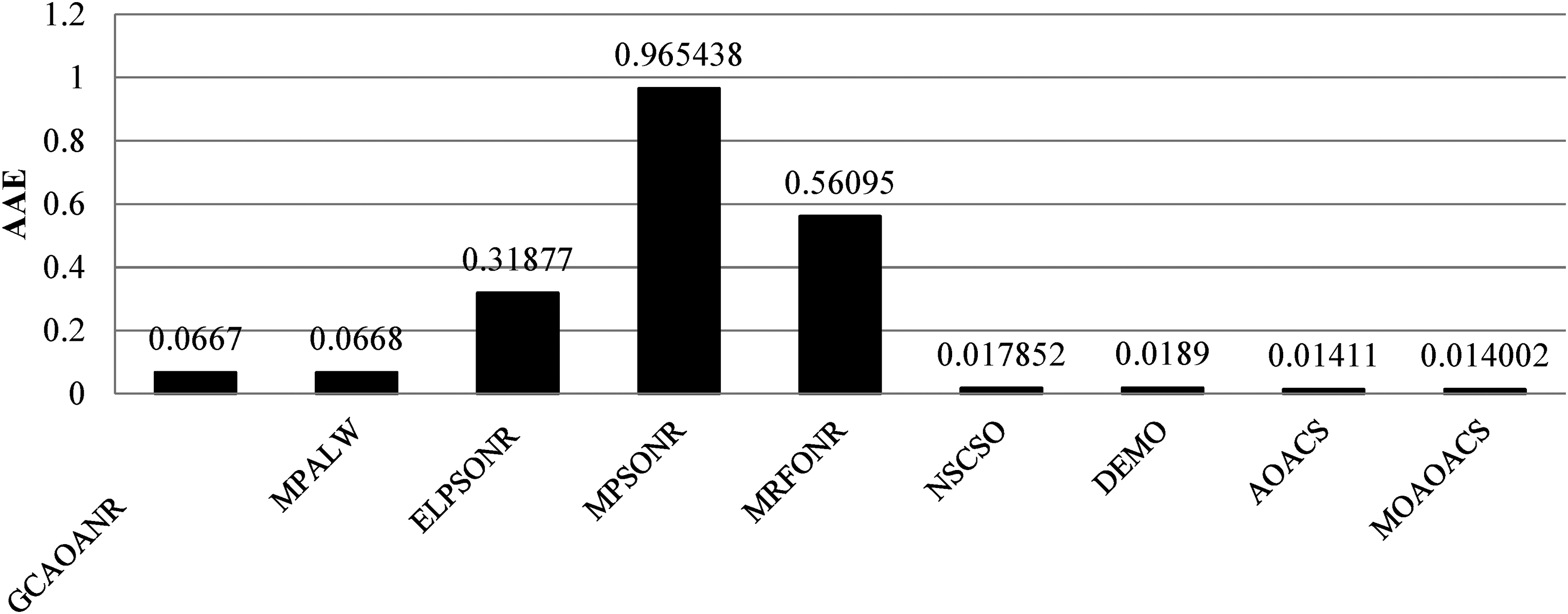

Figure 5.

Example of the AAE of proposed MOAOACS approaches as well as its competitors within a specific climate condition (G5). AAE, average absolute error. MOAOACS, multi-objective hybrid arithmetic optimization algorithm and cuckoo search.

For the purpose of verifying the effectiveness of the suggested MOAOACS approach, a comparative analysis with competitive algorithms including AOACS, GCAOA_NR (Ridha et al., 2022a), GCAOA_LW (Ridha et al., 2022a), MPA_LW (Ridha, 2020), ELPSO_NR (Ridha et al., 2022a), MPSO_NR (Merchaoui et al. 2018), MRFO_NR (Houssein et al. 2021), NSCSO (Gude et al., 2022), and DEMO (Muhsen et al., 2016) methods is also conducted to assess single-diode PV module parameters. Suggested approach and all competitive methods are utilized to obtain SDM PV module parameters via optimizing RMSE subjected to experimental I–V data set. Moreover, both proposed method and DEMO algorithm are used as multi-objective by optimizing a second objective which is the $R^{2} .$ The identical population size of 30 as well as highest number of function evaluations (NFE) count of 450,000 are used for initializing each algorithm.

$R^{2}$ , $A A E$ , $M B E$ , deviation of $R M S E$ ( $d_{i}$ ), and average CPU execution time for each solar irradiance level are the statistical metrics that are utilized to assess the performance of these approaches empirically.

Table 7 demonstrates optimum values of $R M S E$ , $d_{i}$ , $R^{2}$ , and $M B E$ , respectively. It is clearly shown in Table 7 that the proposed algorithm exceeds other algorithm considering these the aforementioned evaluation merits,

Table 7.

Statistical criteria of various approaches, such as the MOAOACS, AOACS and other approaches, for the SDM PV model.

Criterion	Method	$G_{1}$	$G_{2}$	$G_{3}$	$G_{4}$	$G_{5}$	$G_{6}$	$G_{7}$
$R M S E$	GCAOA_NR	0.0463	0.0101	0.0252	0.0280	0.0950	0.0882	0.1362
	MPA_LW	0.0464	0.0102	0.0270	0.0285	0.0961	0.0885	0.1375
	ELPSO_NR	0.0363	0.0102	0.0278	0.0297	0.0954	0.0881	0.1452
	MPSO_NR	0.0466	0.0103	0.0316	0.0600	0.1052	0.1031	0.1543
	MRFO_NR	0.0468	0.0112	0.0266	0.0393	0.1019	0.0940	0.1372
	NSCSO	0.0245	0.0364	0.0284	0.0278	0.0296	0.0314	0.0287
	DEMO	0.0164	0.0163	0.0178	0.0179	0.0181	0.0225	0.0164
	AOACS	0.0134	0.0138	0.0139	0.0138	0.0140	0.0142	0.0139
	MOAOACS	0.0134	0.0138	0.0139	0.0138	0.0140	0.0142	0.0139
$d_{i}$	GCAOA_NR	−4.1633	−8.6736	1.73E-17	6.93E-18	-1.11E-16	2.77E-17	-1.94E-16
	MPA_LW	-5.1526	-8.7245	0.00000	7.12E-18	0.00000	2.85E-17	-1.97E-16
	ELPSO_NR	-8.60E-04	-0.0118	-5.28E-05	-0.0512	-0.2402	-1.57E-04	-0.0010
	MPSO_NR	-0.00243	-0.00488	-0.02850	-0.04696	-0.01826	-0.01661	-0.01777
	MRFO_NR	-7.28E-05	-9.35E-05	-5.73E-04	-1.49E-04	-2.22E-16	-4.16E-16	-2.49E-16
	NSCSO	-0.0057	-0.00049	-0.00867	-0.00412	-0.00025	-0.01487	-0.02547
	DEMO	-0.36704	-0.01736	-0.03054	-0.02621	-0.13651	-0.16029	-0.12988
	AOACS	−8.2E-10	−5.1E-4	−0.0007	−0.0004	−4.2E-4	−0.0012	−0.0010
	MOAOACS	−1.26E-04	−6.46E-05	−1.64E-05	−1.63E-04	−7.38E-06	−1.40E-04	−1.05E-04
$M B E$	GCAOA_NR	0.00215	1.03E-04	6.37E-04	7.84E-04	0.00903	0.00778	0.01856
	MPA_LW	0.00215	1.03E-04	7.30E-04	8.12E-04	0.00914	0.00789	0.01872
	ELPSO_NR	0.00225	4.86E-04	0.09850	0.00101	0.14605	0.00878	0.02249
	MPSO_NR	0.01383	0.26643	0.58587	0.80753	0.82904	0.12920	0.14711
	MRFO_NR	0.75940	0.15894	0.33796	0. 25321	0.39664	0. .53184	0.51746
	NSCSO	0.00068	0.00075	0.00046	0.00089	0.00587	0.00389	0.00952
	DEMO	2.30E-04	3.42E-04	0.00843	0.00267	3.57E-04	0.06129	0.16659
	AOACS	1.70E-04	1.90E-04	1.95E-04	1.92E-04	1.99E-04	2.01E-04	1.96E-04
	MOAOACS	0.00017	0.00019	0.00019	1.92E-04	0.00019	0.0002	1.95E-04
$R^{2}$	GCAOA_NR	0.9674	0.9986	0.9981	0.9993	0.9944	0.9955	0.9920
	MPA_LW	0.9673	0.9976	0.9978	0.9993	0.9959	0.9946	0.9918
	ELPSO_NR	0.9657	0.9936	0.7117	0.9991	0.9101	0.9950	0.9903
	MPSO_NR	0.7905	-2.45476	0.7144	0.5114	0.4483	0.9269	0.8700
	MRFO_NR	0.4967	0. 5104	0.4633	0. .6782	0.7559	0. .6157	0.6397
	NSCSO	0.9964	0.9971	0.9992	0.9996	0.9956	0.9998	0.9995
	DEMO	0.9959	0.9965	0.9990	0.9997	0.9998	0.9997	0.9998
	AOACS	0.9973	0.9975	0.9994	0.9998	0.9919	0.9998	0.9999
	MOAOACS	0.9973	0.9975	0.9994	0.9999	0.9999	0.9999	0.9999

PV, photovoltaic; SDM, single-diode model; MOAOACS, multi-objective hybrid arithmetic optimization algorithm and cuckoo search; RMSE, root mean square error.

Moreover, the AAE, which represents error of every data point of computed current and experimental current is shown in Figure 6. From the figure, MOAOACS outperforms other approaches. Moreover, Figure 6 illustrates that the AAE of suggested MOAOACS approach is slightly superior to the AOACS hybrid algorithm for most of the operation conditions, and it is nearly 62% less than the $A A E$ of GCAOA_NR as well as MPA_LW approaches.

Figure 6.

Bar chart of average CPU execution time of various approaches for SDM PV module. PV, photovoltaic; SDM, single-diode model.

Another important evaluation criterion is the average CPU execution time, The CPU average execution time acquired by MOAOACS as well as other competing approaches within different operational conditions is shown in Figure 6. This graph makes it clear that, with respect to average CPU execution time, the proposed solution competitive to the other methods. Most of the competing approaches take more time to compute than the suggested MOAOACS.

Finally, Figure 7 shows a sample of the evolution of the fitness function values across generations for competitive methods and suggested MOAOACS method for seven climate circumstances that were used. As observed, the MOAOACS outperformed the other approaches in terms of fast convergence and high accuracy.

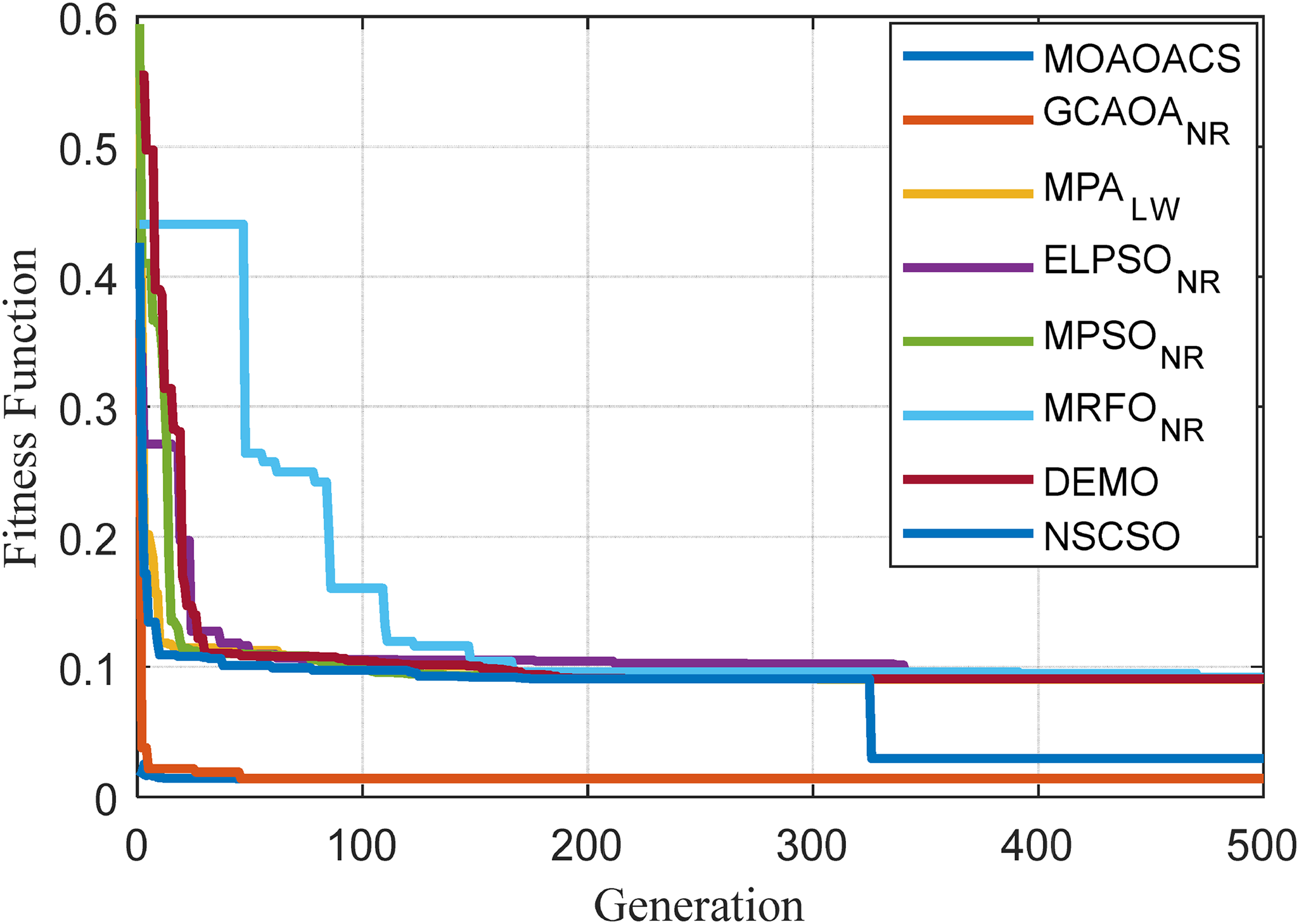

Figure 7.

Example for generational evolution of MOAOACS and competitive approaches fitness functions for specific climate condition G5. MOAOACS, multi-objective hybrid arithmetic optimization algorithm and cuckoo search.

Overall, proposed parameters estimation method has reduced $R M S E$ and $R^{2}$ values in comparison some meta-heuristic single objective algorithm-based parameter estimation methods for SDM PV module. By simultaneously optimizing the $R M S E$ and $R^{2}$ , the PV module's results suggest that the MOO approach using the NDS, crowing distance, AHP weighting method, VIKOR MCDM method, and AOACS hybrid algorithm can increase parameter estimation accuracy. Therefore, from the comparison analysis, it can be concluded that utilizing a multi-objective strategy for parameter estimate of PV modules increases parameter estimation's overall accuracy.

Conclusion

In this research, a hybrid MOAOACS algorithm that combines arithmetic optimization, cuckoo search, and multi-objective/multi-criteria decision-making are suggested for modeling the I–V characteristic curve of a PV module. The two meta-heuristic algorithms could work together efficiently and achieve equilibrium between global exploration and local exploitation. The accurate outcomes of using MOAOACS for modeling PV I–V characteristic curve showed effectiveness of the proposed method. Moreover, results showed that MOAOACS approach also demonstrates great stability under a range of climatic and irradiance conditions. Finally, although the temporal complexity of the AOACS method was found higher than that of the basic algorithms, the whole approach converged quite quickly as compared to other hybridized methods and required less computational power. As a future work, it is important to discuss the embedding process of such an application considering all embedded systems design constrain and characteristics

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Tamer Khatib

References

Abualigah

Diabat

Mirjalili

, et al. (2021) The arithmetic optimization algorithm. Computer Methods in Applied Mechanics and Engineering 376: 113609.

Chenouard

El-Sehiemy

(2020) An interval branch and bound global optimization algorithm for parameter estimation of three photovoltaic models. Energy Conversion and Management 205(September 2019): 112400.

Fan

Wang

Heidari

, et al. (2022) Random reselection particle swarm optimization for optimal design of solar photovoltaic modules. Energy 239: 121865.

Farah

Belazi

Benabdallah

, et al. (2022) Parameter extraction of photovoltaic models using a comprehensive learning Rao-1 algorithm. Energy Conversion and Management 252(September 2021): 115057.

Fathy

Elaziz

Sayed

, et al. (2019) Optimal parameter identification of triple-junction photovoltaic panel based on enhanced moth search algorithm. Energy 188: 116025.

Gong

Cai

(2013) Parameter extraction of solar cell models using repaired adaptive differential evolution. Solar Energy 94(61203307): 209–220.

Gude

Jana

Laudani

, et al. (2022) Parameter extraction of photovoltaic cell based on a multi-objective approach using nondominated sorting cuckoo search optimization. Solar Energy 239(April): 359–374.

Harrag

Messalti

(2017) Sciencedirect ScienceDirect ScienceDirect and seven PV model parameters extraction using PSO assessing the feasibility of using the heat demand-outdoor Algeria forecast temperature function for a long-term district heat demand. Energy Procedia 119: 767–774.

Houssein

Zaki

Diab

AAZ

, et al. (2021) An efficient manta ray foraging optimization algorithm for parameter extraction of three-diode photovoltaic model. Computers & Electrical Engineering 94(July): 107304.

10.

Ismail

Moghavvemi

Mahlia

TMI

(2013) Characterization of PV panel and global optimization of its model parameters using genetic algorithm. Energy Conversion and Management 73: 10–25.

11.

Jordehi

(2016) Parameter estimation of solar photovoltaic (PV) cells: A review. Renewable & Sustainable Energy Reviews 61: 354–371.

12.

Kharchouf

Herbazi

Chahboun

(2022) Parameter’s extraction of solar photovoltaic models using an improved differential evolution algorithm. Energy Conversion and Management 251(July 2021): 114972.

13.

Laudani

Riganti Fulginei

Salvini

(2014) High performing extraction procedure for the one-diode model of a photovoltaic panel from experimental I-V curves by using reduced forms. Solar Energy 103: 316–326.

14.

Long

Cai

Jiao

, et al. (2020) A new hybrid algorithm based on grey wolf optimizer and cuckoo search for parameter extraction of solar photovoltaic models. Energy Conversion and Management 203(October 2019): 112243.

15.

Merchaoui

Sakly

Mimouni

(2018) Particle swarm optimisation with adaptive mutation strategy for photovoltaic solar cell/module parameter extraction. Energy Conversion and Management 175(August): 151–163.

16.

Muhsen

Ghazali

Khatib

, et al. (2016) Sizing of a standalone photovoltaic water pumping system using a multi-objective evolutionary algorithm. Energy 109: 961–973.

17.

Oulcaid

El Fadil

Ammeh

, et al. (2020) Parameter extraction of photovoltaic cell and module: Analysis and discussion of various combinations and test cases. Sustainable Energy Technologies and Assessments 40(February): 100736.

18.

Pan

Tian

Snášel

, et al. (2022) Maximum power point tracking and parameter estimation for multiple-photovoltaic arrays based on enhanced pigeon-inspired optimization with Taguchi method. Energy 251.

19.

Premkumar

Jangir

Kumar

, et al. (2021) A new arithmetic optimization algorithm for solving real-world multiobjective CEC-2021 constrained optimization problems: Diversity analysis and validations. IEEE Access 9: 84263–84295.

20.

Premkumar

Sowmya

Umashankar

, et al. (2020) Extraction of uncertain parameters of single-diode photovoltaic module using hybrid particle swarm optimization and grey wolf optimization algorithm. Materials Today: Proceedings 46: 5315–5321.

21.

Qais

Hasanien

Alghuwainem

(2020) Transient search optimization for electrical parameters estimation of photovoltaic module based on datasheet values. Energy Conversion and Management 214(February): 112904.

22.

Ridha

(2020) Parameters extraction of single and double diodes photovoltaic models using marine predators algorithm and Lambert W function. Solar Energy 209(September): 674–693.

23.

Ridha

Hizam

Mirjalili

, et al. (2022b) On the problem formulation for parameter extraction of the photovoltaic model: Novel integration of hybrid evolutionary algorithm and Levenberg Marquardt based on adaptive damping parameter formula. Energy Conversion and Management 256(February): 115403.

24.

Ridha

Hizam

Mirjalili

, et al. (2022a) Parameter extraction of single, double, and three diodes photovoltaic model based on guaranteed convergence arithmetic optimization algorithm and modified third order Newton Raphson methods. Renewable & Sustainable Energy Reviews 162(April).

25.

Saaty

(1987) The analytic hierarchy process-what it is and how it is used. Mathematical Modelling 9(3–5): 161–176.

26.

San Cristóbal

(2011) Multi-criteria decision-making in the selection of a renewable energy project in Spain: The Vikor method. Renewable Energy 36(2): 498–502.

27.

Sharma

Averbukh

, et al. (2022) Improved moth flame optimization algorithm based on opposition-based learning and Lévy flight distribution for parameter estimation of solar module. Energy Reports 8: 6576–6592.

28.

Siddiqui

Abido

(2013) Parameter estimation for five- and seven-parameter photovoltaic electrical models using evolutionary algorithms. Applied Soft Computing Journal 13(12): 4608–4621.

29.

Wang

Sun

Kang

, et al. (2022) Heterogeneous differential evolution algorithm for parameter estimation of solar photovoltaic models. Energy Reports 8: 4724–4746.

30.

Yang

Deb

(2009) Cuckoo search via Lévy flights. 2009 World Congress Nature Biologically Inspired Computing NABIC 2009 - Proceeding (June 2014): 210–214.

31.

Yousri

Abd Elaziz

Oliva

, et al. (2020) Reliable applied objective for identifying simple and detailed photovoltaic models using modern metaheuristics: Comparative study. Energy Conversion and Management 223(June): 113279.

32.

Yusuf

Bayhan

Tiryaki

, et al. (2021) Multi-objective optimization of concentrated photovoltaic-thermoelectric hybrid system via non-dominated sorting genetic algorithm (NSGA II). Energy Conversion and Management 236: 114065.

33.

Zagrouba

Sellami

Bouaïcha

, et al. (2010) Identification of PV solar cells and modules parameters using the genetic algorithms: Application to maximum power extraction. Solar Energy 84(5): 860–866.
