Developing a model for waste plastic biofuels in CRDi diesel engines using FTIR,GCMS,and WASPAS synchronisations for engine analysis

Abstract

The excessive use of single-use plastic products in modern life has caused severe environmental, social, economic, and health consequences globally. Mostly all plastics manufactured are one-time-use materials that end up in landfills or as unmanageable garbage. This situation has led to the production of around 400 million tonnes of plastic waste per year, and if this trend continues, global production will reach up to 1100 million tonnes by 2050. India alone produced over 34.7 lakh tonnes per annum (TPA) of plastic waste, with only half of it being recycled or co-processed. As such, there is an urgent need to develop ways to reduce plastic waste. One possible solution is the use of waste plastic biofuel in engines, which has been shown to have promising results. The study aimed to analyse waste plastic oil using (Gas Chromatography Mass Spectrometry) GC-MS and (Fourier Transform Infrared Spectroscopy) FTIR analysis to identify its chemical composition. The findings of the study revealed the presence of various chemical compounds, such as alcohol, hydroperoxide, carbonyl acid groups, ester, carboxylic acid, ketones, aldehyde groups, and others. FTIR analysis confirmed the presence of alcohol, hydroperoxide, carbonyl acid groups, methyl and methylene groups, ester, carboxylic acid, ketones, aldehyde group, symmetric and asymmetric C-H bending, C-O stretch for ethers, carboxylic acids, and esters, and=C-H bending out for alkenes. The study further explains that primary plastic consumption and packaging lifetime have a significant impact on plastic waste generation. The research indicates the need to explore alternative ways to recycle and dispose of single-use plastics to mitigate its negative impact on the environment. Furthermore, this study analyses the statistical optimisation method to develop a model fit for engine behaviour using waste plastic biofuel on a single-cylinder (common rail direct injection engine) CRDi diesel engine using the (weighted aggregated sum product assessment) WASPAS approach. Additionally, the objective is to develop a model that can optimise the engine's performance while using waste plastic biofuel. The uncertainty analysis demonstrated that the experiment was carried out with a high degree of accuracy and the results were reliable. The study employed the WASPAS methodology to evaluate the performance of different (waste plastic oil) WPO samples, and the results showed that the optimal parametric setting to obtain the desired responses can be achieved with a fuel blend of 5%, load of 21 bar, and speed of 2000 RPM. However, the results demonstrate that the use of waste plastic biofuel can significantly improve engine performance, and the proposed optimisation model can accurately predict the engine's behaviour. The regression equation that was formulated showed a reasonable degree of agreement between the actual experimental results and the predicted values, thereby indicating the reliability of the experiment. Significant effects were observed from fuel blend, and speed, whereas load did not make a substantial contribution. The findings regarding the effect of parameters suggest that a reduction in fuel blend, and engine speed resulted in a decline in the performance index, while variations in load had little impact. The relationship between load and speed demonstrates that a rise in load and a reduction in speed contributed to enhanced combustion and a higher performance index. The interaction among fuel blend and speed, with a particular emphasis on the significance of reduced fuel blend and speed values in order to optimise the performance index. The findings of the analysis underlined the vitality of process parameters, specifically fuel blend and speed, wherein speed exhibited a significant impact on the outcomes. The study concludes that the use of waste plastic biofuel in engines can be an effective way to reduce plastic waste while improving engine performance. This study's findings can be applied to various engines to improve their performance while reducing plastic waste. All in all, the outcomes of the study make a substantial contribution to the advancement of scientific information regarding the properties of waste plastic oil as well as its combustion characteristics. This expands the potential for advanced breakthrough innovations in sustainable energy solutions and the conservation of the environment.

Keywords

GC-MS analysis FTIR analysis waste plastic oil plastic production plastic waste single-use plastic plastic garbage recycling environmental impact

Introduction

Plastics are one of the most usable commodities around us. It has gained a lot of popularity since it is simple to produce and has standout qualities including low cost, versatility, and a high strength-to-weight ratio. The addiction to the use of single-use plastic products has grown severely in today's world, which serves environmental, social, economic, and health consequences. Globally, 1 million bottles of plastic are bought every minute, and 5 trillion bags of plastic are used every year. Approximately half of all plastics manufactured are single-use, or “use it and chuck it,” materials. According to research by the UN Environment Program (Petroleum, 2020), because plastic output was minimal between 1950 and 1970, plastic trash was mostly under control. But between the 1970s and the 1990s, the amount of plastic waste produced doubled, which was consistent with an increase in plastic production. In the early 2000s, the globe produced more plastic garbage in a decade than it had in the previous 40. Figure 1 shows Global plastic production. Today, every year around 400 million tonnes of plastic waste is produced. If this historic growth trend continues, it is forecasted that the global production of plastic will reach up to 1100 million tonnes by the year 2050. An estimated 36% of all plastic produced is used for packaging, including single-use containers for food and drink that typically go to landfills or as unmanageable trash. Nearly 98% of plastic items with a single use are produced using fossil fuels. Single-use plastic is now widely used and has integrated itself into our daily lives. Figure 1 illustrates the worldwide plastic production, emphasising a substantial increase in recent years compared to earlier periods. This underscores the critical importance of our study in addressing the need for efficient plastic waste management to keep pace with this rapid production growth.

Figure 1.

Global plastic production (Petroleum, 2020).

In 2019–20, India produced over 34.7 lakh tonnes per annum (TPA) of plastic garbage, according to a minister of state for the Ministry of the Environment, forests, and Climate Change who spoke in the Lok Sabha. The amount of plastic trash recycled was 15.8 lakh TPA, and co-processing was 1.67 lakh TPA. This indicates that half of all plastic waste has been recycled. The Central Pollution Control Board's annual report for 2019–20 was being discussed by the minister. According to different research by the National Center for Coastal Research, the percentage of plastic waste found on beaches ranges from 40% to 96%. The production, distribution, import, sale, stocking, and use of certain single-use plastic goods in India have just been made illegal nationally beginning on July 1, 2022. These items have limited uses and a high propensity to become trash.

Primary plastic consumption and product lifetime both have a significant impact on plastic trash generation. For instance, the lifetime of packaging in use is extremely brief. In contrast, plastic used in building and construction has a mean lifespan of 35 years (Geyer et al., 2017). Therefore, packaging is the governing factor of plastic waste, which accounts for over half of the entire global output. The generation of plastic waste by different sectors is shown in Figure 2.

Figure 2.

Global plastic waste generation by sector (Petroleum, 2020).

Figure 2 depicts the various sectors contributing to global plastic waste generation, while Figure 3 conveys the worldwide methods employed for plastic waste treatment. These visual aids have offered significant valuable insights into the origins of global plastic waste, and the approaches taken for its management. Such insights are crucial for assessing the feasibility of efficiently sourcing plastic waste for conversion into valuable resources like plastic-to-oil.

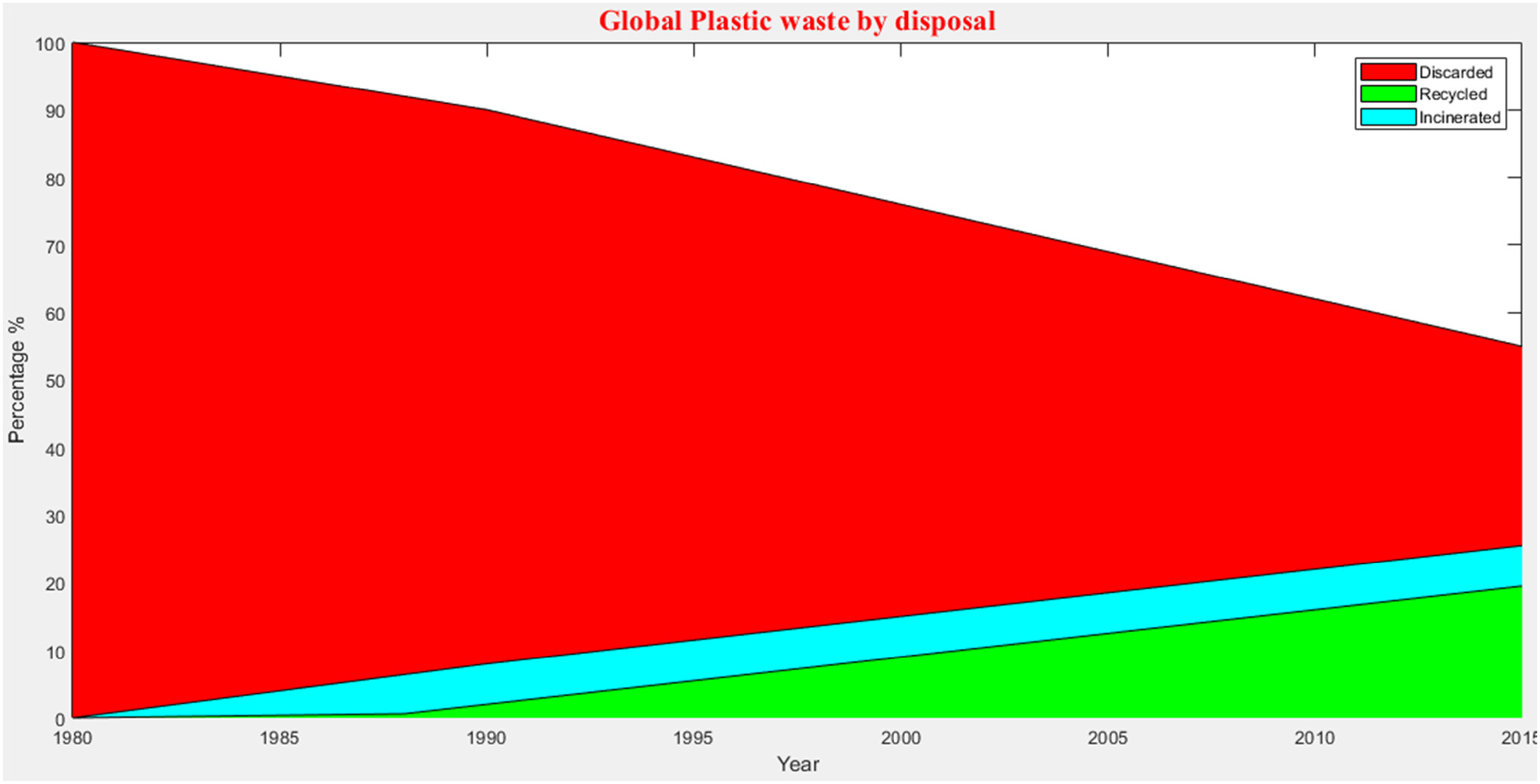

Figure 3.

Global plastic waste by disposal (Petroleum, 2020).

Earlier in the 1980s, since there was little plastic garbage recycled or burned, it was all discarded. For recycling and incineration, the rate increased by an aggregate of 0.7% annually between 1980 and 1990. (Geyer et al., 2017). According to Figure 3, approximately 55% of worldwide plastic garbage was thrown in 2015, 25% was burned, and 20% was recycled. The rate of incineration would rise to 50%, the rate of recycling to 44%, and the percentage of wasted waste would decline to 6% if we extrapolate this historical trend through 2050.

Due to the perfect characteristics of thermoplastic polymers, such as their high strength, low density, and corrosion resistance, as well as their user-friendly designs, the use of plastic has risen significantly relative to the use of aluminum or other metals. Since the aim is to create the lightest composite possible, the ideal alternatives for flax reinforcement, for example, are (polypropylene) PP and LDPE (low-density polyethylene). For thermoplastic polymers, the typical components of recovery techniques include recycling and incineration. The creation of harmful fumes and the ash residue, which accommodate lead and cadmium, are two issues caused by incineration. Recyclables offer benefits like reduced environmental issues and material and energy savings (Hawkins, 1987; U. 4b2, 1993). There are three basic methods by which thermoplastic polymers can be recycled (Mechanical Recycling, Chemical Recycling, and Energy Recovery). Thermoplastic polymers can only be utilised in Mechanical Recycling strategy since they can be remelted and processed into final goods. While processing the polymer is not changed in anyway. Waste plastic is chopped, cleaned, or shredded into the right grade of flakes, granulates, or pellets for manufacture to demonstrate this process in physical form. These are melted next, and extrusion is used to create the new by-product. It is also possible to combine the reprocessed material with pure material to get better results. Once the plastic has been cleaned, dried, and processed directly into finished items, there will be a huge decrease in the amount of waste plastic. It is advisable to completely dry the surface, use chemicals to lengthen the chain, or reprocess using vacuum degassing. Additionally, this technique is reasonably priced but requires a large upfront commitment (Hopewell et al., 2009). In addition to mechanical recycling, chemical recycling approach may be employed. Chemical recycling entails partially depolymerising polymers to produce monomers or completely depolymerising polymers to produce oligomers. To duplicate the actual or a related polymeric product, fresh polymerisations can be carried out using the produced monomers. Using monomers, oligomers, or combinations of different hydrocarbon compounds as the starting point, this process can break down into smaller molecules of plastic that can be used as feedstock material (Olah et al., 2009). Only a few businesses are working on chemical recycling since it is not yet completely developed and because it requires a significant financial commitment and specialised staff. The pyrolysis and gasification approach. Currently, several methods are being examined. With the Energy Recovery technique, the Plastic's energy content is recovered. However, because of the health risks posed by airborne harmful compounds like dioxins, this approach is not ecologically acceptable. It is a good option because it produces a lot of energy from polymers. Chemical recycling is the only recycling process among those mentioned above that complies with the theories of sustainable development because it produces the monomers needed to create polymers (Fisher et al., 2005; Ghobadian et al., 2009; Siddique et al., 2008). Every year, manufacturing operations or municipal solid wastes produce a large amount of garbage. Solid waste management is a major issue for the entire world, so using waste instead of throwing it away has gained popularity. Plastic is being utilised in many applications as shown in Table 1.

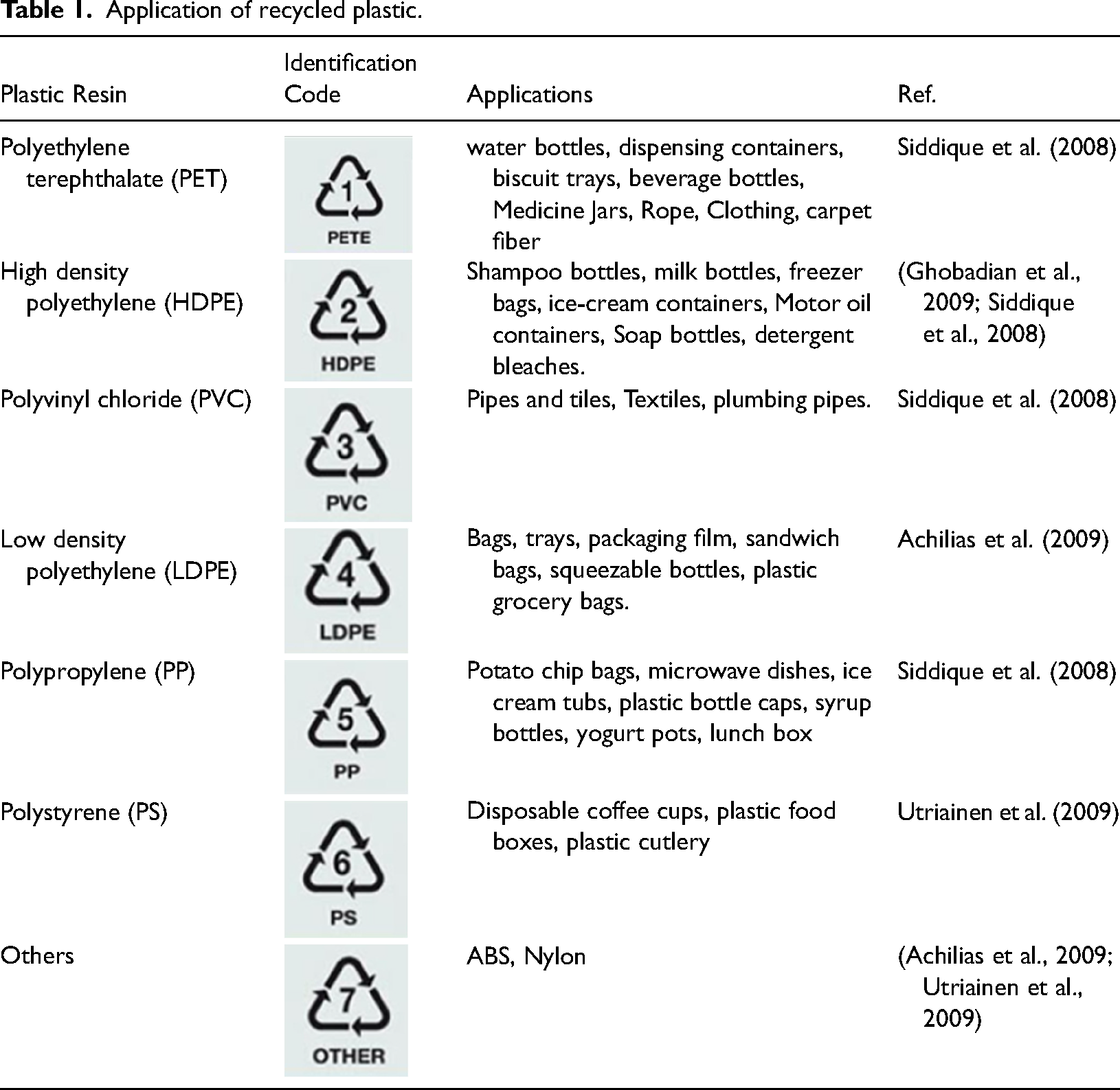

Table 1.

Application of recycled plastic.

Plastic Resin	Applications	Ref.
Polyethylene terephthalate (PET)	water bottles, dispensing containers, biscuit trays, beverage bottles, Medicine Jars, Rope, Clothing, carpet fiber	Siddique et al. (2008)
High density polyethylene (HDPE)	Shampoo bottles, milk bottles, freezer bags, ice-cream containers, Motor oil containers, Soap bottles, detergent bleaches.	(Ghobadian et al., 2009; Siddique et al., 2008)
Polyvinyl chloride (PVC)	Pipes and tiles, Textiles, plumbing pipes.	Siddique et al. (2008)
Low density polyethylene (LDPE)	Bags, trays, packaging film, sandwich bags, squeezable bottles, plastic grocery bags.	Achilias et al. (2009)
Polypropylene (PP)	Potato chip bags, microwave dishes, ice cream tubs, plastic bottle caps, syrup bottles, yogurt pots, lunch box	Siddique et al. (2008)
Polystyrene (PS)	Disposable coffee cups, plastic food boxes, plastic cutlery	Utriainen et al. (2009)
Others	ABS, Nylon	(Achilias et al., 2009; Utriainen et al., 2009)

The greatest way to improve studies for the various biofuels, which are carried out using a number of ways, is by modifying the engine operating parameters, which affect the characteristics of engine power and emissions. The timing, quantity, and pressure settings for the fuel injection system can be changed to reduce nitrogen oxide (NOx) emissions while reducing particulate matter (PM) and brake-specific fuel consumption (BSFC). (Damodharan et al., 2017; Gopal et al., 2018). The improvement of fuel injection time (IT) can give better combustion with a proper ignition delay. The pre-mixed combustion of the air-fuel combination causes the emissions of hydrocarbons (HC), carbon monoxide (CO), and smoke to decrease when the fuel injection time is advanced. (De Poures et al., 2017). Higher fuel injection pressure (IP) can improve fuel atomisation, and efficient and clean combustion reduces HC and BSFC. However, more NOx emission is achieved through efficient combustion, which results in higher cylinder temperatures. The diesel engine now uses split injection to cut down on NOx emissions and combustion noise. By splitting the timing and volume of the fuel injection, a high heat release rate during the combustion process can be prevented. This also gives time for the air and fuel to mingle, improving the homogeneity of the charge. The vast majority of research claims that there is a trade-off between fuel injection parameter tuning and engine power responsiveness. In order to improve output characteristics and effectively use biofuels in IC engine applications, a wide variety of interaction studies between fuel injection parameters is required.

In various operating situations, like cold and hot start, Ali et al. (Zare et al., 2018) investigated the effects of running a multi-cylinder CRDI engine on a fuel blend of diesel and altered waste edible oil with an oxygenated agent. When compared to hot-start operation, they discovered that cold-start operation yielded greater results with respect to thermal efficiency, braking torque, fuel consumption, combustion temperature, and heat release rate. By using an oxygenated additive during cold-starting, the engine was able to increase BSFC while reducing friction power, cylinder temperature, and indicated power. Singh et al. (Singh, Rajak, et al., 2021) carried out experiments at various speeds to assess the ecological and performance aspects. D80PO20 is a blend of diesel fuel and plastic pyrolysed oil (PPO) that is used in engines to test the properties of the engine. Results have proven encouraging because the cylinder pressure during combustion is on par with that of a diesel-fuelled engine. The findings demonstrated that excessive cylinder pressure and BTE were produced by increasing engine speed. Additionally, low BSFC and excessive NOx emissions have been noted. Engine tailpipe emissions of smoke (BSN) and NOX are reduced with the D80PO20 blended mixture. In Table 2, the fuel properties of waste plastic fuel extracted from various plastic types as mentioned above are compared with those of diesel. These values are taken from the various literature published.

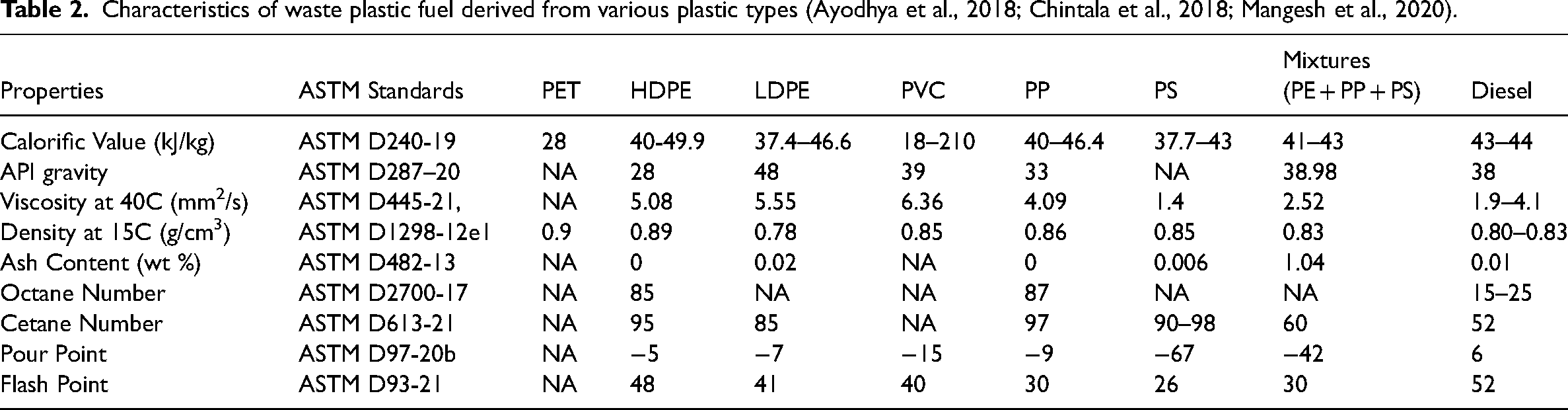

Table 2.

Characteristics of waste plastic fuel derived from various plastic types (Ayodhya et al., 2018; Chintala et al., 2018; Mangesh et al., 2020).

Properties	ASTM Standards	PET	HDPE	LDPE	PVC	PP	PS	Mixtures (PE + PP + PS)	Diesel
Calorific Value (kJ/kg)	ASTM D240-19	28	40-49.9	37.4–46.6	18–210	40–46.4	37.7–43	41–43	43–44
API gravity	ASTM D287–20	NA	28	48	39	33	NA	38.98	38
Viscosity at 40C (mm²/s)	ASTM D445-21,	NA	5.08	5.55	6.36	4.09	1.4	2.52	1.9–4.1
Density at 15C (g/cm³)	ASTM D1298-12e1	0.9	0.89	0.78	0.85	0.86	0.85	0.83	0.80–0.83
Ash Content (wt %)	ASTM D482-13	NA	0	0.02	NA	0	0.006	1.04	0.01
Octane Number	ASTM D2700-17	NA	85	NA	NA	87	NA	NA	15–25
Cetane Number	ASTM D613-21	NA	95	85	NA	97	90–98	60	52
Pour Point	ASTM D97-20b	NA	−5	−7	−15	−9	−67	−42	6
Flash Point	ASTM D93-21	NA	48	41	40	30	26	30	52

With variable loads in a CI engine, Kumar et al. (2013) investigate the emission and performance of WPO mixes with diesel. The experimental findings demonstrate that, in comparison to DF, BTE is poorer under all load circumstances. As engine load increases, the BSFC declines. With an increase in engine load, NOx emissions fall, and CO emissions rise. As the engine load increases, the UHC decreases. For practically all loads, the mixes’ carbon dioxide emissions are lower than those of diesel. Rao et al. (2018) offer experimental research on the injection parameters impact, including injection pressures, timing, and compression ratio on the output and emission characteristics of engine with variable CR running on plastic oil's blend. The experimental investigation shows that, in contrast with pure diesel and pure plastic oil, the P90D5E5 combination provides the maximum BTE. P90D5E5 is reported to have the lowest smoke emissions compared to diesel and P100. In this Literature with an increase in injection timing, compression ratio, and injection pressure, all blends have lower BSFC, CO, and smoke values. For P90D5E5 and P100, respectively, the combustion study of the mixes shows exclusive cylinder pressures and net HRR. There are many studies in the literature using blend of waste plastic oil and diesel used in a diesel engine as mentioned in Table 3. Further, the potential environmental benefits or life cycle impacts of using waste plastic oil versus conventional fuels could be as follows:

Reduction in plastic waste in landfills.

Minimised environmental pollution from plastic disposal.

Potential for lower greenhouse gas emissions when managed effectively.

Contributing to a reduced carbon footprint.

Sustainable utilisation of plastic waste for energy production.

Table 3.

Summary of Literature review using blend of waste plastic oil and diesel used in a diesel engine.

	Increase	Diesel Engine Specification	Fuel	Test Condition	Reference Fuel	Blend Designation	Performance	NOx	Soot	UHC	CO
	Decrease
	No Change
References
Venkatesan et al. (2019)		KIRLOSKAR 1-cylinder,4S, 3.5KW@1500 rpm	WPO	Retarded Injection timing, Constant speed	Diesel	PO 15% PO 30%	PPf BTE	6.6 to 8.5%	n/a		11.16%
Boopathi and Gopinath (2019)		KIRLOSKAR 1-cylinder,4S, DI, CR-17.5:1, 5.2KW@1500rpm	WPO	Retarded fuel injection timing	WPO injected at 22⁰ CA	P10D90 P20D90	SFC BTE		n/a
Mani et al. (2011)		KIRLOSKAR 1-Cylinder, 4S, 4.4KW@1500rpm	D + WPO WPO	Constant speed	Diesel	WPO D90-WPO10 D70-WPO30 D50-WPO50 D30-WPO70	PP EGT BTE HRR ID	25%	40%	15%	5%
Kaimal and Vijayabalan (2015)		1-cylinder,4S, CR-16.5:1, AC, DI, 3.7KW@1500rpm	D + WPO	Constant speed	Diesel	D75-WPO25 D50-WPO50 D25-WPO75	BTE PP HRR	n/a	n/a	n/a	n/a
Premkumar et al. (2021)		KIRLOSKAR 1-cylinder, 4S, CR-17.5:1, WC, 3.7KW@1500rpm	D + WPO WPO	Varying IP	Diesel	B25 B50 B75	BTE SFC	6. 03%	6.32%	13.37%	12%
Das et al. (2020)		KIRLOSKAR 1-cylinder,4S, CR-18:1, WC, 5.2KW@1500rpm	D + WPO WPO	Constant speed	WPO injected at 23⁰CA bTDC	10WPO 20WPO 30WPO	BTE BSFC	7.08%	n/a
Pal et al. (2019)		1-cylinder, 4S, CR-16.7:1, WC,	WPO	Varying IT	WPO injected at 10⁰ retard and 8⁰ advance CA bTDC	PF10 PF20 PF30	BTE BSFC
Sayin and Gumus (2011)		LOMBARDINI, 1-cylinder, 4S, CR-18:1, 7.5KW@3600 rpm, 21Nm@2200rpm	Biodiesel	Varying IP Varying IT Varying CR	Start of injection timing 20⁰ CA bTDC	B5 B20 B50 B100	BSFC BSEC BTE
Kumar and Sankaranarayanan (2016)		KIRLOSKAR, 1-cylinder, 4S, CR-17.5:1, AC, 4.4KW@1500rpm	D + WPO WPO	Constant speed	WPO injected 23⁰ before TDC	PW10 PW20 PW30	BTE HRR		41%		n/a
Mani et al. (2009)		KIRLOSKAR 1-cylinder, 4S, 4.4KW@1500rpm	D + WPO WPO	Constant speed	WPO injected 23⁰ before TDC	WPO100	HRR PP
Kumar et al. (2016)		KIRLOSKAR 1-cylinder,4S, WC, 3.7KW@1500rpm	D + WPO WPO	Constant speed	WPO injected at 26⁰ before TDC	WPF100 WPF10D90 WPF20D80 WPF30D70	BTE BSFC		n/a
Chakraborty et al. (2015)		COMET VCT10 2-cylinder,4S, CR-17.5:1, WC, DI 7.4KW@1500rpm	D + WPO	Varying loads	Diesel	D90-WPO10 D80-WPO20 D70-WPO30 D60-WPO40	BTE BSEC		n/a

4S- Four Stroke; DI– Direct Injection; CR – Compression Ratio; AC-Air cooled; WC- Water cooled; CA- Crank angle; BTDC- Before Top Dead Centre; WPO- Waste Plastic oil; IP- Injection Pressure; IT- Injection Timing; HRR – Heat Release Rate; BP- Brake power; BTE- Brake thermal efficiency; BSFC – Brake specific fuel consumption; PP – Peak pressure; ID- Ignition delay; n/a- not available.

The current study has aimed to characterise the waste plastic oil extracted from plastic chairs and furthermore explore the studies including, BTE, BSFC, NOx, Smoke, and CO as well as operational parameters like engine load, engine speed, and fuel mixtures. It is necessary to determine the operational parameter's hence optimisation had to be done by using WASPAS approach. Moreover, the regression equation needs to be developed in order to further cut down on experiment time and expenses.

Research objectives of the current work

Based on the literature review and identifying the research gaps the present study focuses on achieving the following objectives:

Characterising waste plastic oil from plastic chairs as a potential alternative fuel for compression ignition (CI) engines using GC-MS and FTIR analysis. Discarded plastic chairs from the university campus were being utilised for deriving the waste plastic oil to perform the experimentation testing and characterisation studies.

To study the effect of operational parameters such as engine load, engine speed and fuel blends to attain optimal engine behaviour through contours and 3D surface plots

To find the optimal operational parameter for overall output responses of BTE, BSFC, NOx, Smoke, and CO in terms of total relative importance index ( $Q_{i}$ ) using the WASPAS approach in the case of CI engine.

To develop a regression model for the total relative importance index ( $Q_{i}$ ) so that it could be utilised for finding test values without performing time-utilising and high-priced tests.

Experimentation

Fourier transform infrared (FTIR) analysis

Figure 4 shows the results of an FT-IR investigation of waste plastic oil. All of the waste plastic oil samples had peaks in the range of 3200 and 4000 cm⁻¹, which indicates the presence of alcohol, hydroperoxide, and carbonyl acid groups in the O-H stretch. Additionally, peaks between 1800 and 3200 cm⁻¹ can be used to confirm the presence of C-H stretches for the methyl and methylene groups. The existence of C=O starch for ester, carboxylic acid, ketones, and aldehyde group is indicated by the two peaks that were seen at 1650 and 1600 cm⁻¹. The peak between 1200 and 1500 cm⁻¹ depicts the presence of both symmetric and asymmetric C-H bending. The following peak range, from 1200 to 100 cm⁻¹, shows that there is a C-O stretch for ethers, carboxylic acids, and esters. While C-H deformation for alkyl groups was detected from peaks occurring below 600 cm⁻¹, =C-H bending out again for alkenes was found from peaks occurring with a range of 600–800 cm⁻¹.

Figure 4.

FT-IR analysis showing spectral distribution of waste plastic oil.

Gas chromatography-mass spectroscopy (GC-MS) analysis

The characterisation of WPO was carried out at the Central Instrumental Facility (CIF) at Lovely Professional University, Punjab. Gas Chromatography-Mass Spectrometry (GCMS) facility (Mass Range: 10 m/z to 1090 m/z with a maximum scan rate of 20,000 amu/s having an Electron Impact (EI) Ionisation Technique, Unique direct inlet probe for solid and liquid with an FID detector and headspace injector) was used to analyse the chemical compounds present in the WPO extracted. With the help of a Micropipette 1 µL of the sample oil was diluted with 0.9 µl of methanol and then a nylon 0.45-micron filter was used to remove any possible impurity. Following the preparation and injection of the material, the spectra were correlated to those in the NIST mass spectral database. Table 4 lists the primary chemical components found in WPO along with their percentage distribution. Figure 5 has exhibited the findings acquired from the GC-MS analysis of Waste Plastic oil.

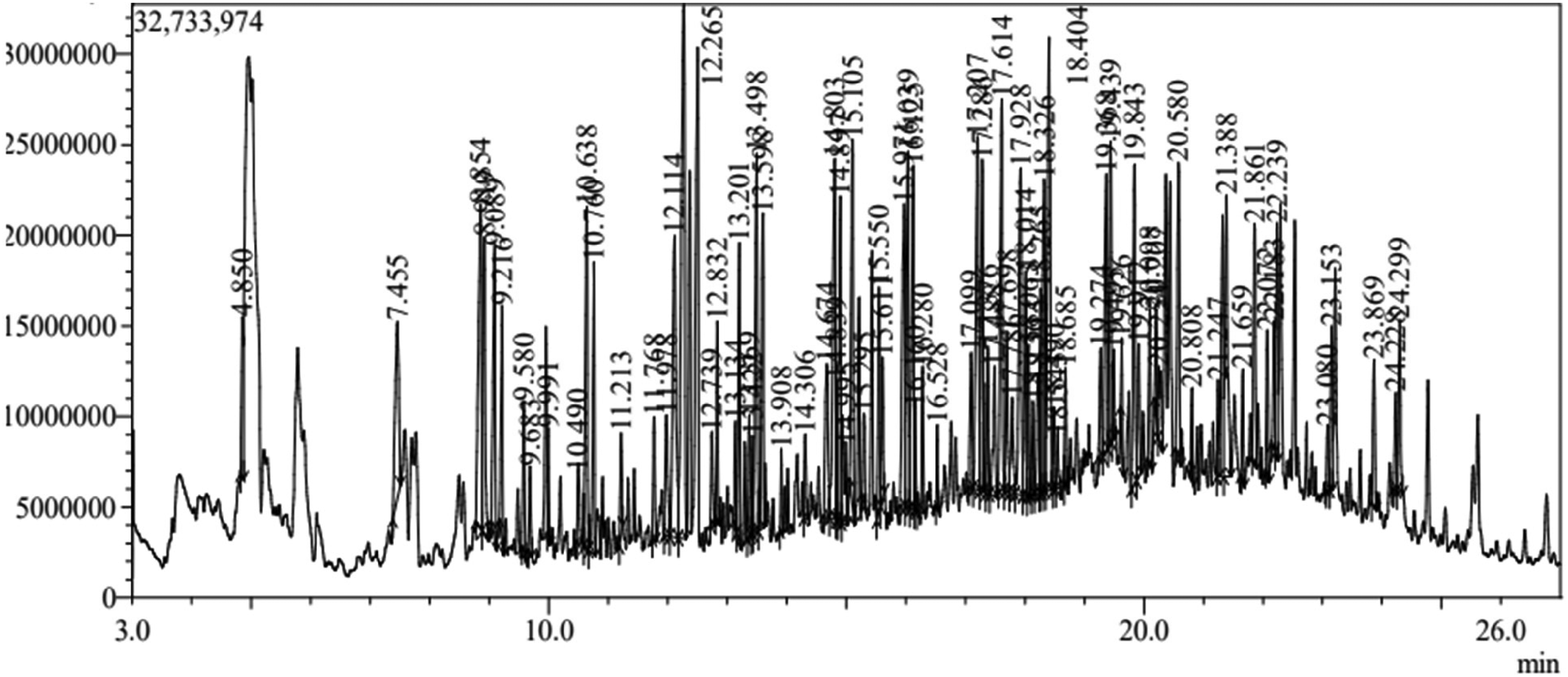

Figure 5.

GC-MS analysis of waste plastic oil.

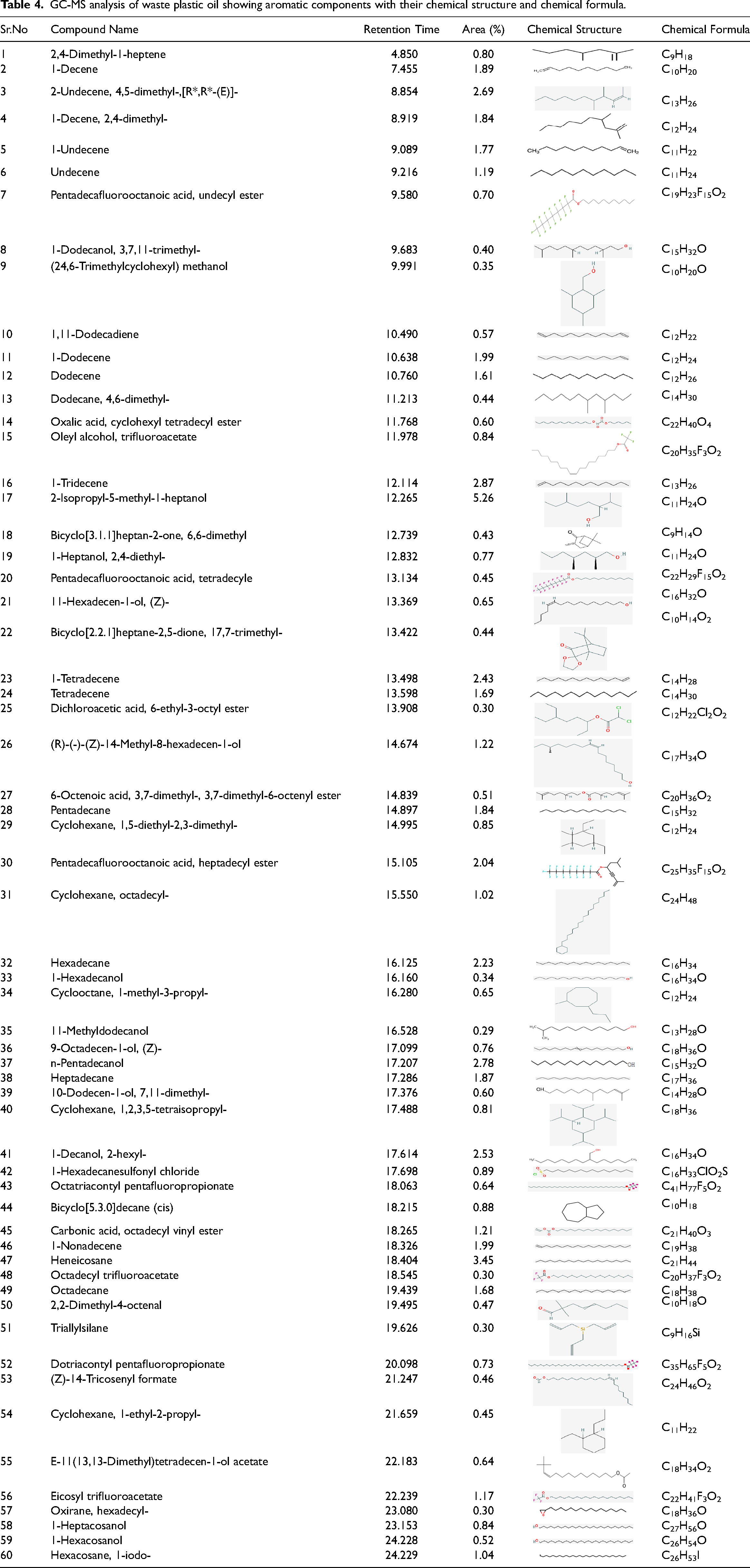

Table 4.

GC-MS analysis of waste plastic oil showing aromatic components with their chemical structure and chemical formula.

Sr.No	Compound Name	Retention Time	Area (%)	Chemical Formula
1	2,4-Dimethyl-1-heptene	4.850	0.80	C₉H₁₈
2	1-Decene	7.455	1.89	C₁₀H₂₀
3	2-Undecene, 4,5-dimethyl-,[R,R-(E)]-	8.854	2.69	C₁₃H₂₆
4	1-Decene, 2,4-dimethyl-	8.919	1.84	C₁₂H₂₄
5	1-Undecene	9.089	1.77	C₁₁H₂₂
6	Undecene	9.216	1.19	C₁₁H₂₄
7	Pentadecafluorooctanoic acid, undecyl ester	9.580	0.70	C₁₉H₂₃F₁₅O₂
8	1-Dodecanol, 3,7,11-trimethyl-	9.683	0.40	C₁₅H₃₂O
9	(24,6-Trimethylcyclohexyl) methanol	9.991	0.35	C₁₀H₂₀O
10	1,11-Dodecadiene	10.490	0.57	C₁₂H₂₂
11	1-Dodecene	10.638	1.99	C₁₂H₂₄
12	Dodecene	10.760	1.61	C₁₂H₂₆
13	Dodecane, 4,6-dimethyl-	11.213	0.44	C₁₄H₃₀
14	Oxalic acid, cyclohexyl tetradecyl ester	11.768	0.60	C₂₂H₄₀O₄
15	Oleyl alcohol, trifluoroacetate	11.978	0.84	C₂₀H₃₅F₃O₂
16	1-Tridecene	12.114	2.87	C₁₃H₂₆
17	2-Isopropyl-5-methyl-1-heptanol	12.265	5.26	C₁₁H₂₄O
18	Bicyclo[3.1.1]heptan-2-one, 6,6-dimethyl	12.739	0.43	C₉H₁₄O
19	1-Heptanol, 2,4-diethyl-	12.832	0.77	C₁₁H₂₄O
20	Pentadecafluorooctanoic acid, tetradecyle	13.134	0.45	C₂₂H₂₉F₁₅O₂
21	11-Hexadecen-1-ol, (Z)-	13.369	0.65	C₁₆H₃₂O
22	Bicyclo[2.2.1]heptane-2,5-dione, 17,7-trimethyl-	13.422	0.44	C₁₀H₁₄O₂
23	1-Tetradecene	13.498	2.43	C₁₄H₂₈
24	Tetradecene	13.598	1.69	C₁₄H₃₀
25	Dichloroacetic acid, 6-ethyl-3-octyl ester	13.908	0.30	C₁₂H₂₂Cl₂O₂
26	(R)-(-)-(Z)-14-Methyl-8-hexadecen-1-ol	14.674	1.22	C₁₇H₃₄O
27	6-Octenoic acid, 3,7-dimethyl-, 3,7-dimethyl-6-octenyl ester	14.839	0.51	C₂₀H₃₆O₂
28	Pentadecane	14.897	1.84	C₁₅H₃₂
29	Cyclohexane, 1,5-diethyl-2,3-dimethyl-	14.995	0.85	C₁₂H₂₄
30	Pentadecafluorooctanoic acid, heptadecyl ester	15.105	2.04	C₂₅H₃₅F₁₅O₂
31	Cyclohexane, octadecyl-	15.550	1.02	C₂₄H₄₈
32	Hexadecane	16.125	2.23	C₁₆H₃₄
33	1-Hexadecanol	16.160	0.34	C₁₆H₃₄O
34	Cyclooctane, 1-methyl-3-propyl-	16.280	0.65	C₁₂H₂₄
35	11-Methyldodecanol	16.528	0.29	C₁₃H₂₈O
36	9-Octadecen-1-ol, (Z)-	17.099	0.76	C₁₈H₃₆O
37	n-Pentadecanol	17.207	2.78	C₁₅H₃₂O
38	Heptadecane	17.286	1.87	C₁₇H₃₆
39	10-Dodecen-1-ol, 7,11-dimethyl-	17.376	0.60	C₁₄H₂₈O
40	Cyclohexane, 1,2,3,5-tetraisopropyl-	17.488	0.81	C₁₈H₃₆
41	1-Decanol, 2-hexyl-	17.614	2.53	C₁₆H₃₄O
42	1-Hexadecanesulfonyl chloride	17.698	0.89	C₁₆H₃₃ClO₂S
43	Octatriacontyl pentafluoropropionate	18.063	0.64	C₄₁H₇₇F₅O₂
44	Bicyclo[5.3.0]decane (cis)	18.215	0.88	C₁₀H₁₈
45	Carbonic acid, octadecyl vinyl ester	18.265	1.21	C₂₁H₄₀O₃
46	1-Nonadecene	18.326	1.99	C₁₉H₃₈
47	Heneicosane	18.404	3.45	C₂₁H₄₄
48	Octadecyl trifluoroacetate	18.545	0.30	C₂₀H₃₇F₃O₂
49	Octadecane	19.439	1.68	C₁₈H₃₈
50	2,2-Dimethyl-4-octenal	19.495	0.47	C₁₀H₁₈O
51	Triallylsilane	19.626	0.30	C₉H₁₆Si
52	Dotriacontyl pentafluoropropionate	20.098	0.73	C₃₅H₆₅F₅O₂
53	(Z)-14-Tricosenyl formate	21.247	0.46	C₂₄H₄₆O₂
54	Cyclohexane, 1-ethyl-2-propyl-	21.659	0.45	C₁₁H₂₂
55	E-11(13,13-Dimethyl)tetradecen-1-ol acetate	22.183	0.64	C₁₈H₃₄O₂
56	Eicosyl trifluoroacetate	22.239	1.17	C₂₂H₄₁F₃O₂
57	Oxirane, hexadecyl-	23.080	0.30	C₁₈H₃₆O
58	1-Heptacosanol	23.153	0.84	C₂₇H₅₆O
59	1-Hexacosanol	24.228	0.52	C₂₆H₅₄O
60	Hexacosane, 1-iodo-	24.229	1.04	C₂₆H₅₃I

Experimental setup

Collection and extraction of waste plastics

The primary source of oil in this study was waste plastic, specifically derived from discarded plastic chairs collected on the university campus, which were nearly identical in composition. Plastic chairs are typically made from various materials, with HDPE being the most common. The waste plastic was subjected to pyrolysis in a batch pyrolysis unit, fueled by gaseous heat, with a handling capacity of 2 kg of waste to produce pyrolytic waste plastic oil (WPO). The pyrolysis process was conducted under isothermal conditions at 450°C for 30 min, with a heating rate of 20°C per minute starting from room temperature. The pyrolytic WPO production plant included a reactor assembly, condensing unit, separator, and a gas collection system.

Engine setup

A single-cylinder, 4-stroke, water-cooled, CRDI diesel engine was used. A water-cooled eddy current dynamometer was connected to the for precise loading, and a load cell was used to measure the load placed on the engine. The DAS and computer both recorded and stored the cylinder pressures. A combustion analyser setup was used to gauge the heat release rate (HRR). At every degree of crank angle, crank angle pulses are generated by the crank angle encoder, while a piezoelectric pressure transducer measures the cylinder pressure. To keep the engine speed at 1500 rpm, a non-contact optical sensor was attached to the flywheel. Using a high-accuracy flow meter, the fuel flow at specified time intervals was estimated. Table 5 provides the full description of the engine specification that was used.

Table 5.

Test Engine Specification.

Make	Kirloskar
Model	TV 1
Compression ratio	17.5:1
cooling system	water cooled
Standard fuel injection timing	23 degrees before TDC
Standard fuel injection pressure	200 bars
Rated Speed in rpm	1500
Rated brake power in kW	5.2 kW
Number of cylinders	single
Bore X Stroke	87.5 × 110

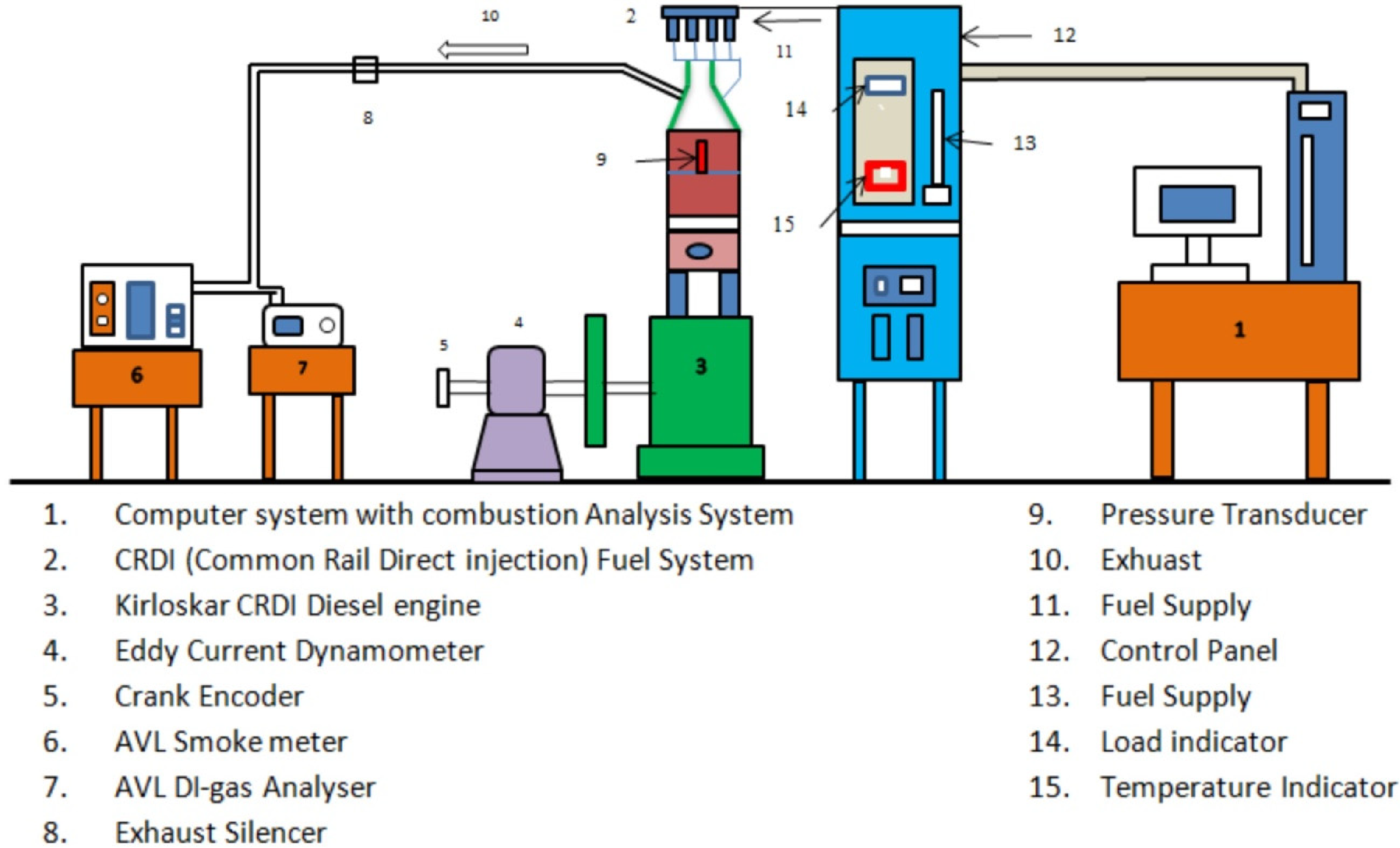

Figure 6 depicts the experimental setup in visual and schematic form. The engine was initially run on diesel fuel for over 30 min at a constant speed of 1500 rpm to achieve steady-state conditions with the least amount of load. The cooling water and lubricating oil temperatures were taken throughout the experiment to be constant in order to prevent their effects on the results. The steady state was reached for the constant-speed engine under no load conditions.

Figure 6.

Experimental set-up.

Uncertainty analysis

For experimental activities, uncertainty analysis ought to be performed to demonstrate the precision of measured and estimated readings. Instrument choice, observation, and contextual conditions all have a significant impact on how uncertain the experimental endeavour is. To combine dependent parameters of uncertainty, the partial differentiation approach is utilised. The repeated set of readings’ mean, standard error, and standard deviation calculations produced independent metrics of uncertainty. The degrees of uncertainty for different parameters are displayed in Table 6. The test's overall level of uncertainty ± 0.475%

Total Uncertainty % = \sqrt{U_{R P M}^{2} + U_{L o a d}^{2} + U_{P r}^{2} + U_{T}^{2} + U_{C O}^{2} + U_{H C}^{2} + U_{N O x}^{2} + U_{S m o k e}^{2} + U_{B T E}^{2} + U_{B S F C}^{2}} = \sqrt{\begin{aligned} {0.018}^{2} + {0.25}^{2} + {0.025}^{2} + {0.008}^{2} + {0.065}^{2} + {0.25}^{2} \\ + {0.25}^{2} + {0.1}^{2} + {0.005}^{2} + {0.02}^{2} + {0.1}^{2} + {0.08}^{2} + {0.08}^{2} \end{aligned}} = \pm 0.475 %

Table 6.

Uncertainties of Parameters

Measuring instrument/Measured parameter	Uncertainty (%)
Pressure transmitter/AF rate	± 0.25
Differential pressure transducer/FF rate	± 0.065
CA encoder/RPM	± 0.018
Load cell	± 0.025
BTE	± 0.08
BSFC	± 0.08
Smoke Opacity	± 0.1
NOx Emission	± 0.02
CO emission	± 0.1
Thermocouple type K/Temperature	± 0.25
HC emission	± 0.005
Piezo sensor/ In-cylinder pressure	± 0.008
Thermocouple RTD PT 100/ Temperature	± 0.1

Implementation of weighted aggregated sum product assessment (WAPAS) approach for statistical analysis

A novel fusion of the weighted sum model (WSM) and the weighted product model (WPM) is known as the weighted aggregated sum product assessment (WASPAS) technique. It is now widely acknowledged as an effective decision-making tool due to its mathematical simplicity and ability to produce more accurate findings when compared to WSM and WPM approaches. Chakraborty et al. (2015) had applied WASPAS method as a decision-making tool and illustrated five cases to demonstrate how the WASPAS approach assumed used to make decisions and to justify its applicability and usefulness. The weight and criteria were chosen through fuzzy weight provided with respect to the decision makers (Atmanlı et al., 2015; Maccrimmon, 1968; Triantaphyllou and Mann, 1989).

The multi-criteria decision-making (MCDM) is done with the help of a decision matrix, $X = [x_{i j}]_{m x n}$ , where, i and j vary from $1$ to m, and $1$ to n, respectively. Here, m is the maximum no. of candidate available, n is the maximum no. of evaluation criteria, and x_ij is the response measure of i^th alternative to the j^th criterion (Srinidhi et al., 2021b; Yilmaz et al., 2022). Combining the weighted product model (WPM) and the weighted sum model, the weighted aggregated sum product assessment (WASPAS) is made and applied in the MCDM approach (WSM). Below are the steps of the process followed in this paper:

Step 1: normalising the performance measure matrix

This step helps to remove any abnormalities that occurred during the experimentation by converting them to dimensionless quantities. There are three criteria for normalising the experimental data, i.e., higher-the-better, lower-the-better, and nominal-the-best. Out of these, the following two normalising criteria are considered for this experimentation:

Higher - the - better : x_{i j} * = \frac{x_{i j}}{Max x_{i j}}

(1)

Lower - the - better : x_{i j} * = \frac{Min x_{i j}}{x_{i j}}

(2)

where

x_{i j} *

is the normalised value of x_ij.

Step 2: creating a total relative importance matrix

In the WASPAS method, the optimality criteria are taken from both WSM and WPM with a linear combination

Similar to the WSM method, the total relative importance of i^th alternative is calculated below:

Q_{i}^{(1)} = \sum_{j = 1}^{n} x_{i j} * w_{j}

(3)

where w_j indicates the relative significant weight of j^th criterion. In addition, the WPM method (Triantaphyllou and Mann, 1989) calculates the total relative importance of i^th alternative is calculated by using the following equation:

Q_{i}^{(2)} = \prod_{j = 1}^{n} (x_{i j} *)^{w_{j}}

(4)

The performance parameters are assigned weights with the help of suitable logistic variables by using triangular fuzzy members in [0, 1]. A committee of five decision-makers is constituted, to weigh each response parameter in accordance with their perceptions of any linguistic terms. Thus, the aggregated weights are calculated for each of the responses, which are taken for further calculations.

Step 3: calculating the variances for the importance matrix

The initial values of experiments are determined by considering the input variables of dispersed results Triantaphyllou and Mann (1989). The following two equations are considered for computing variance depending on WSM and WPM.

For WSM : σ^{2} (Q_{i}^{(1)}) = \sum_{j = 1}^{n} σ^{2} (x_{i j} *) w_{j}^{2}

(5)

For WPM : σ^{2} (Q_{i}^{(2)}) = \sum_{j = 1}^{n} σ^{2} (x_{i j} *) {[\frac{Q_{i}^{(2)} w_{j}}{{(x_{i j} *)}^{w_{j}} {(x_{i j} *)}^{1 - w_{j}}}]}^{2}

(6)

Here,

σ^{2} (x_{i j} *) = 0.0025 \times (x_{i j} *)^{2}

is the variance of normalised for preliminary assessment criteria at a 95% level of confidence.

Step 4: calculating the coefficient $λ$

$λ$ is a coefficient that affects the dispersion and distribution of results. The extreme relative importance function is calculated by considering the optimum value of $λ$ . The coefficient $λ$ is calculated by using Eq 7:

λ_{i} = \frac{σ^{2} (Q_{i}^{(2)})}{σ^{2} (Q_{i}^{(1)}) + σ^{2} (Q_{i}^{(2)})}

(7)

Step 5: generalising total relative importance index equation

The total relative importance index ( $Q_{i}$ ) derived from the combination of the response measures, is generated as follows:

Q_{i} = λ_{i} Q_{i}^{(1)} + (1 - λ_{i}) Q_{i}^{(2)}

(8)

where,

λ = 0, 0.1, 0.2 \dots \dots 1

. As per the WASPAS method,

λ

the value is taken as 0 and 1, for WPM and WSM methods, respectively.

For this experiment, the input process parameters are taken as blend (6 levels), load (3 levels) and speed (3 levels), and the responses are BTE, BSFC, NOx, smoke, and CO. By using Taguchi methodology, the experimentation is limited to L18 orthogonal array with the levels of input parameters as given in Table 7.

Table 7.

The operational process parameters with their levels.

Process parameters	Units	Levels
Process parameters	Units	1	2	3	4	5	6
Fuel blend	%	5	10	15	20	25	30
Load	kg	7	14	21
Engine speed	rpm	2000	2500	3000

Results and discussion

The fuzzy weighted average, a method that takes into account fuzzy consideration for the operations of rating, weighting, and aggregation, is frequently used to resolve multilevel assessment difficulties. The individual weights are calculated by considering the individual fuzzy weights out of the linguistic terms as shown in Table 8. The linguistic variable is divided into seven categories. The variable with least to most importance is categories under lowest, lower, low, medium, high, higher and highest. The fuzzy weight from 0 to 1 is also assigned to each of the linguistic variables. Three fuzzy weight value is assigned to each linguistic variable.

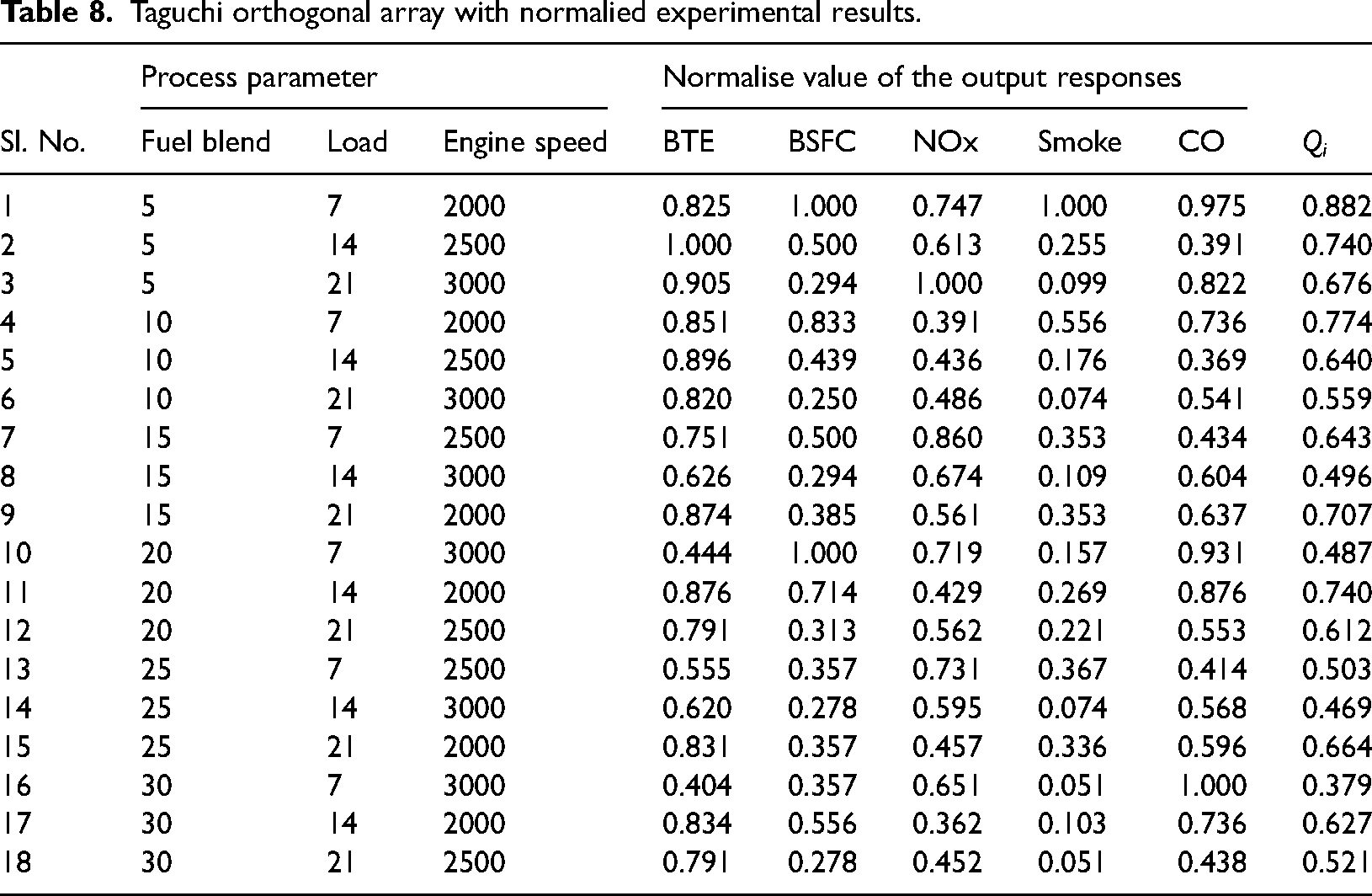

Table 8.

Taguchi orthogonal array with normalied experimental results.

Sl. No.	Process parameter			Normalise value of the output responses					Q_i
Sl. No.	Fuel blend	Load	Engine speed	BTE	BSFC	NOx	Smoke	CO	Q_i
1	5	7	2000	0.825	1.000	0.747	1.000	0.975	0.882
2	5	14	2500	1.000	0.500	0.613	0.255	0.391	0.740
3	5	21	3000	0.905	0.294	1.000	0.099	0.822	0.676
4	10	7	2000	0.851	0.833	0.391	0.556	0.736	0.774
5	10	14	2500	0.896	0.439	0.436	0.176	0.369	0.640
6	10	21	3000	0.820	0.250	0.486	0.074	0.541	0.559
7	15	7	2500	0.751	0.500	0.860	0.353	0.434	0.643
8	15	14	3000	0.626	0.294	0.674	0.109	0.604	0.496
9	15	21	2000	0.874	0.385	0.561	0.353	0.637	0.707
10	20	7	3000	0.444	1.000	0.719	0.157	0.931	0.487
11	20	14	2000	0.876	0.714	0.429	0.269	0.876	0.740
12	20	21	2500	0.791	0.313	0.562	0.221	0.553	0.612
13	25	7	2500	0.555	0.357	0.731	0.367	0.414	0.503
14	25	14	3000	0.620	0.278	0.595	0.074	0.568	0.469
15	25	21	2000	0.831	0.357	0.457	0.336	0.596	0.664
16	30	7	3000	0.404	0.357	0.651	0.051	1.000	0.379
17	30	14	2000	0.834	0.556	0.362	0.103	0.736	0.627
18	30	21	2500	0.791	0.278	0.452	0.051	0.438	0.521

The decision-makers have given fuzzy weights as shown in as per their desired responses. Fuzzy weight values determine whether the outcomes of decision-making are correct. The aggregated fuzzy weights are tabulated in Table 9. The fuzzy weights are taken to find the performance matrix. The fuzzy weights assigned to BTE, BSFC, NOx, smoke, and CO are 0.666, 0.093, 0.066, 0.126, and 0.106, respectively, as given in Table 10. Normalised values of the responses are calculated and mentioned in Table 11.

Table 9.

Decision maker decision for output responses.

Responses	Decision makers
Responses	DM 1	DM 2	DM 3	DM 4	DM5
BTE	H1	H3	M	H3	H2
BSFC	L1	L2	L3	L1	L2
NOx	L2	L1	L1	L2	L1
Smoke	L3	L3	L2	L1	L2
CO	L2	L2	L1	L3	L2

Table 10.

Linguistic variables.

Importance Fuzzy Weight
Lowest (L1)	(00,0.1)
Lower (L2)	(0,0.1,0.2)
Low (L3)	(0.1,0.2,0.3)
Medium (M)	(0.3,0.4,0.5)
High (H3)	(0.5,0.6,0.7)
Higher (H2)	(0.7,0.8,.9)
Highest (H1)	(0.8,0.9,1)

Table 11.

Aggregated fuzzy weights.

	Fuzzy weights						Fuzzy weights
BTE	H1	0.8	0.9	1		NOX	L2	0	0.1	0.2
	H3	0.5	0.6	0.7			L1	0	0	0.1
	M	0.3	0.4	0.5			L1	0	0	0.1
	H3	0.5	0.6	0.7			L2	0	0.1	0.2
	H2	0.7	0.8	0.9			L1	0	0	0.1
	Avg	0.56	0.66	0.76	0.666		Avg	0	0.04	0.14	0.066
BSFC	L1	0	0	0.1		CO	L2	0	0.1	0.2
	L2	0	0.1	0.2			L2	0	0.1	0.2
	L3	0.1	0.2	0.3			L1	0	0	0.1
	L1	0	0	0.1			L3	0.1	0.2	0.3
	L2	0	0.1	0.2			L2	0	0.1	0.2
	Avg	0.02	0.08	0.18	0.093		Avg	0.02	0.1	0.2	0.106
SMOKE	L3	0.1	0.2	0.3
	L3	0.1	0.2	0.3
	L2	0	0.1	0.2
	L1	0	0	0.1
	L2	0	0.1	0.2
	Avg	0.04	0.12	0.22	0.126

In this case, all the responses are affected by the process parameters. Normalisation of data mainly focuses on reducing errors in data revision, eliminating the majority of redundant data, and making queries easier. Finally, normalisation can enhance efficiency, improve assurance, and minimise expenses in addition to basically establishing data during experimentation. The normalisation of the BTE is done by higher-the-better, and BTE, BSFC, NOx, smoke, and CO are done by lower-the-better.

The ANOVA of $Q_{i}$ as shown in Table 12 is done to know the significance and contribution of parameters, where backward elimination approach is adopted on P-value with a confidence level of 95%. The P-value < 0.05 gives the significance of process parameters, and here the process parameters, i.e., fuel blend and speed are significant, whereas, the load is not significant. The lesser will P-value, the more will contribution of process parameters, where speed contributes maximum to the responses, followed by fuel blend. The regression model's R-squared statistic estimates the percentage of the variance of the dependent variables that can be taken into account by the independent variable. The model summary in Table 13 shows that the R-square value of the ANOVA is 97.90% and the adjusted R-square value is 95.50%. The best level for each factor should be chosen using the response tables. The mean response values for a design parameter or process variable are plotted at each level in a main effects plot. The relative effectiveness of the effects of multiple variables can be compared using this figure. Table 14 shows the response table for mean where the ranks obtained confirm the contribution of the parameters. Figure 7 gives the main effects plot for mean value of $Q_{i}$ obtained from MINITAB software. It can be portrayed from the graph that by decreasing fuel blend and engine speed the $Q_{i}$ decreases, but change in load doesn’t significantly affects the $Q_{i}$ . Moreover, in case of load, the reverse happens, i.e., with increase in load, the $Q_{i}$ increases. Thus, the optimal parametric setting to obtain the desired responses is with fuel blend of 5%, load of 21 bar and speed of 2000 unit.

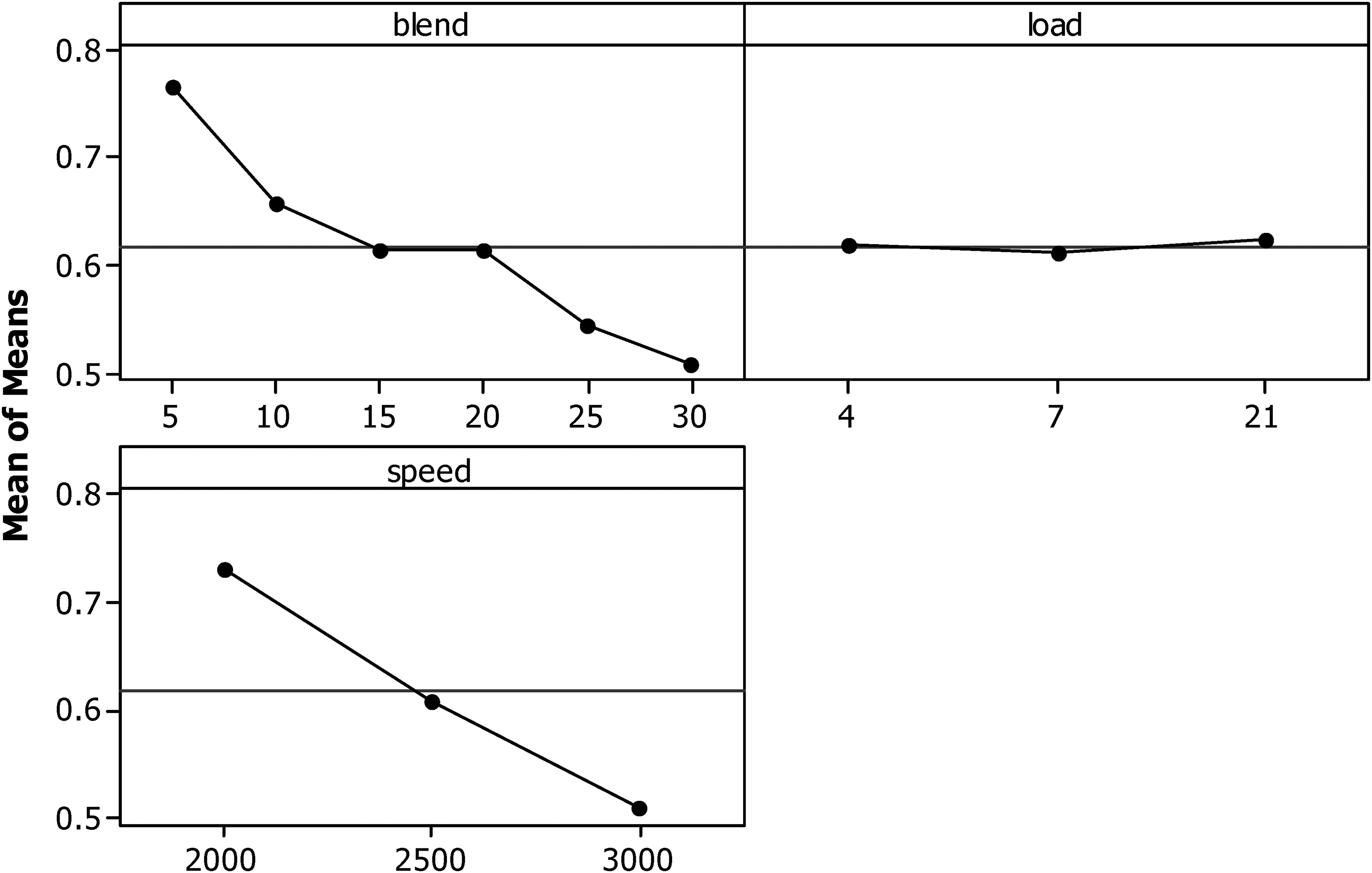

Figure 7.

Main effects plot for means obtained from MINITAB.

Table 12.

ANOVA analysis of means of total relative importance.

Source	DF	Seq SS	Adj SS	Adj MS	F	P	% Contribution
fuel blend	5	0.121994	0.121994	0.024399	33.19	0.001	53.114
load	2	0.V000439	0.000439	0.000219	0.30	0.750	0.191
speed	2	0.147250	0.147250	0.073625	98.17	0.001	46.695
Residual Error	8	0.005880	0.005880	0.000735
Total	17	0.275563

Table 13.

Model summary.

S	R-Sq	R-Sq(adj)
0.02711	97.9%	95.5%

Table 14.

Response table for means.

Level	fuel blend	load	speed
1	0.7660	0.6189	0.7322
2	0.6576	0.6112	0.6100
3	0.6153	0.6231	0.5111
4	0.6132
5	0.5453
6	0.5091
Delta	0.2570	0.0119	0.2211
Rank	1	3	2

The ability to investigate the connection among factors is provided by regression analysis. The variables are frequently referred to be either dependent or independent. An input, or factor that affects a dependent variable is known as an independent variable. The four main goals of the regression technique are description, estimation, prediction, and control. Regression may illustrate whether both independent and dependent variables interact with one another. Estimation is the process of determining the value of the dependent variable from the measured values of the independent variables. Based on the interactions between dependent and independent variables, regression analysis can be helpful for forecasting outcomes as well as relationships between dependent and independent variables.

The regression equation obtained from the MINITAB is given in equation 9, which is used to calculate the predicted values in Figure 7.

Q_{i} = 1.33 - (0.00928 * fuel blend) + (0.00043 * load) - (0.000221 * speed)

(9)

Hence, additional analysis of the three-dimensional surface plot of all significant interaction terms with

Q_{i}

is plotted. Figure 8(a) shows the surface interaction plot between speed and load. It shows that by decreasing the value of speed and increasing the value of load,

Q_{i}

increases. This can be attributed to by as increasing the load on the engine means that it is working harder, which results in better combustion and more complete fuel utilisation (Atmanli et al., 2016; Chatur et al., 2023; Yilmaz et al., 2018). This leads to higher BTE and lower BSFC, which are desirable outcomes. Although, by decreasing the speed means that the engine is operating at a lower RPM, which can lead to better combustion and lower emissions. Lower RPM means that there is more time for the fuel to burn completely, which reduces the formation of unburnt hydrocarbons and other pollutants. In addition, the interaction between speed and load can have a synergistic effect on the performance of the engine. This means that the combined effect of decreasing speed and increasing load can lead to better combustion and lower emissions, which results in higher overall performance index. Figure 8(b) gives the contour plot for the interaction between speed and load. The deep green region in Figure 8(b) depicts the area where the

Q_{i}

value increases. It can be observed that by decreasing the speed and maintaining the load at the lower value the

Q_{i}

increases.

Figure 8.

(a) Surface interaction plot, and (b) contour plot for $Q_{i}$ with respect to speed and load.

Figure 9(a) shows the surface interaction plot between fuel blend and load, where the least $Q_{i}$ is obtained with maximum fuel blend and minimum load. Maximum $Q_{i}$ is obtained with minimum fuel blend and load, which can also be confirmed from Figure 9(b), which is the contour plot for $Q_{i}$ . This trend can be enlightened i.e., by increasing the fuel blend, the percentage of waste plastic oil (WPO) in the fuel mixture, can improve the combustion process by increasing oxygen quantity in the fuel. These outcomes in a more fulfilling combustion, leading to higher BTE and lower BSFC (Pawar et al., 2022). However, increasing the fuel blend beyond a certain point can lead to incomplete combustion due to the limited availability of oxygen, resulting in increased emissions of smoke, NOx, and CO, leading to a decrease in the performance index. In addition, by decreasing the load, i.e., the amount of power generated by the engine, can result in a more efficient combustion process by reducing the amount of unburnt fuel and decreasing BSFC (Srinidhi, Jawale, et al., 2022). This leads to an increase in BTE and a decrease in emissions of smoke, No_x, and CO, resulting in an increase in the performance index. However, decreasing the load beyond a certain point can lead to incomplete combustion, resulting in increased emissions and a decrease in the performance index.

Figure 9.

(a) Surface interaction plot, and (b) contour plot for $Q_{i}$ with respect to fuel blend and load.

Figure 10(a) portrays the interaction plot between speed and fuel blend. This shows that with minimum speed and fuel blend, the $Q_{i}$ obtained is maximum. The reason behind this can be explained as maximum performance index with minimum fuel blend and load: The performance index in this case is maximised at minimum fuel blend and load values. This is because, with less fuel and less load, the engine operates at a lower power output, which leads to lower fuel consumption and reduced emissions. Moreover, the engine operates more efficiently at lower loads due to the reduced pumping losses and heat losses (Atmanli et al., 2015). This results in a higher BTE and lower BSFC. In addition, the least performance index with maximum fuel blend and minimum load (Cheng et al., 2021; Liu et al., 2022; Zhou et al., 2024). The performance index in this case is minimised at maximum fuel blend and minimum load values. This is because a higher fuel blend increases the viscosity of the fuel, which may cause incomplete combustion, leading to higher emissions and lower efficiency. Moreover, a minimum load may cause incomplete combustion due to insufficient air supply, leading to higher emissions and lower efficiency. The findings are supported by the contour plot in Figure 10(b). In Figure 10(b) the deep green region shows the higher value of $Q_{i}$ with respect to the speed and fuel blend. It can be seen that, at lower value of fuel blend and speed the $Q_{i}$ value increases (Liu et al., 2023; Muhammad et al., 2022; Wu et al., 2023).

Figure 10.

(a) Surface interaction plot, and (b) contour plot for $Q_{i}$ with respect to speed and fuel blend.

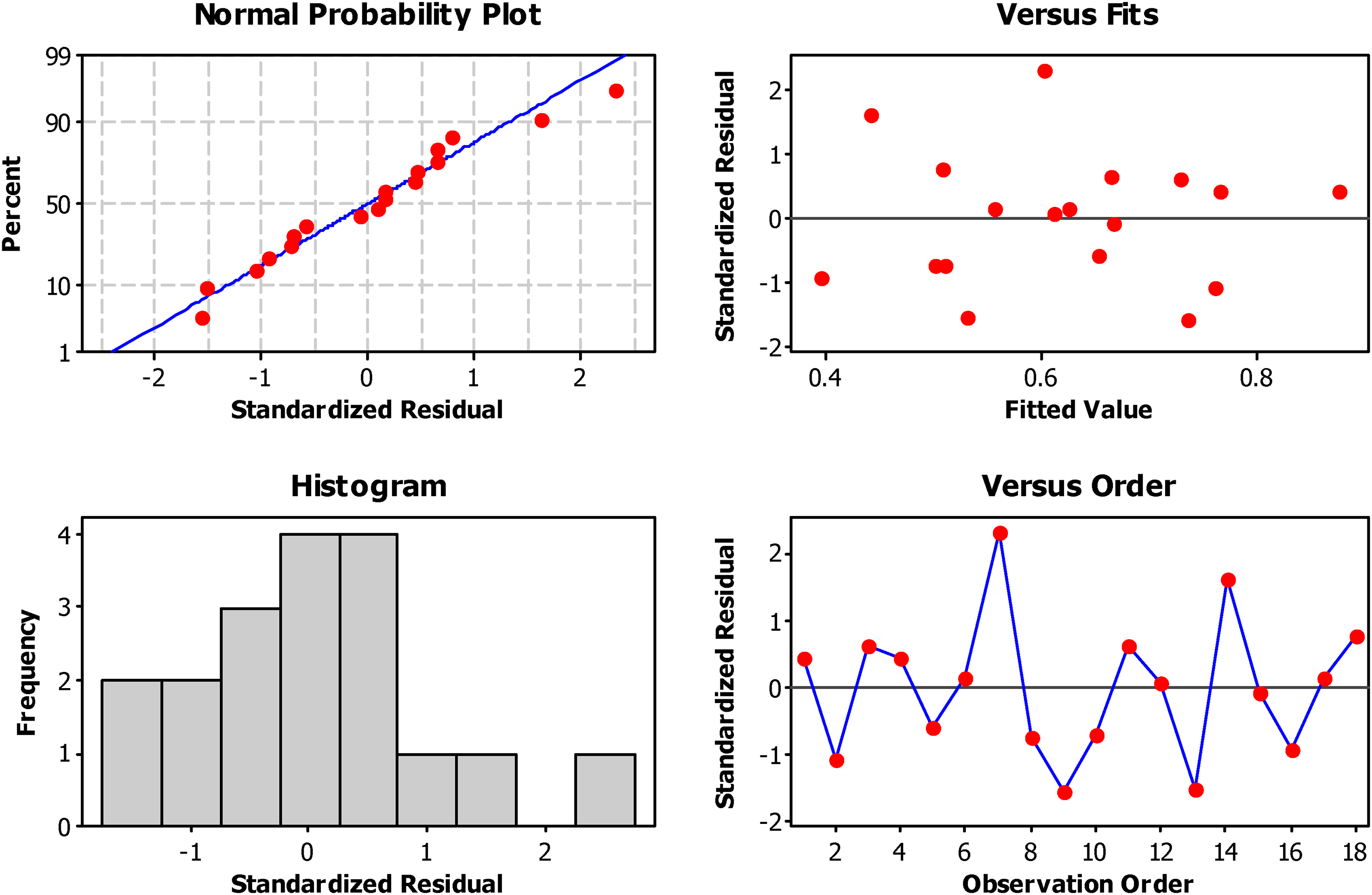

The normal probability plot shows that the residuals approximately follow a straight line, and the histogram's approximately symmetric form suggests that the residuals have a normal distribution. As they are randomly distributed about zero for residuals versus the fitted values, residuals possess constant variance. Figure 11 illustrates the residual plots for mean. The graph demonstrates that the total number of experiments falls within the normal range of percentage probability (Ahmad et al., 2023; Iftikhar et al., 2023; Shen et al., 2022). As a result, it is possible to create an appropriate regression equation that will offer a highly accurate and precise prediction of the $Q_{i}$ from the chosen combinations of the control factors. The non-symmetric bell-shaped histogram uses normal distribution for the analysis and gives the fit of the data available (Hasnain et al., 2023; Li et al., 2023; Thejas et al., 2022). The versus fits show that the residuals are randomly distributed having constant variance and the same has been in accordance with (Singh, Sharma, et al., 2021). The versus orders show that the residuals are uncorrelated with each other. The value obtained through observation or measurement of the accessible data is the actual value. Additionally, it is known by the name “observed value.” The predicted value of the factor determined by the regression analysis is known as the expected value. The most popular method for calculating the model error with mean-square error is linear regression (Iftikhar et al., 2023; Thejas et al., 2022). Figure 12 shows the error between the experimental and predicted value (using regression equation) of $Q_{i}$ , where the average error is 1.807%, which is in the acceptable range.

Figure 11.

Residual plots for mean $Q_{i}$ .

Figure 12.

Error graph between the experimental and predicted results.

The research outlined in the present study that follows have offered a number of novel aspects. To commence, the investigation encompasses the application of FT-IR spectroscopy to examine waste plastic oil. FT-IR is a unique technique for identifying specific chemical groups in waste plastic oil samples, including alcohol, hydroperoxide, carbonyl acid, ester, carboxylic acid, ketones, aldehyde, along with various stretching and bending vibrations (Hasnain et al., 2023; Li et al., 2023; Singh et al., 2021). The thorough chemical analysis presented herein offers an exhaustive insight into the constituents of waste plastic oil. Additionally, the study utilises GC-MS as a method of analysis to determine the type, quantity, and composition of chemical compounds that are discovered in waste plastic oil (Channapattana et al., 2023; Srinidhi, Kshirsagar, et al., 2022; Srinidhi et al., 2021a). The application of GC-MS enables precise identification of specific chemical constituents as well as their respective percentage distributions. By revealing the precise molecules that are present in reuse plastic oil, this analytical method contributes to the scientific originality of the investigation (Campli et al., 2021; Srinidhi et al., 2020, 2022a). Thirdly, the study employs fuzzy weighted average methodology in order to address the difficulties associated with multilevel assessment. The implementation of fuzzy considerations for rating, weighting, and aggregation in this study presents an innovative methodology for decision-making processes. Fuzzy logic enables the management of uncertain, unreliable, imprecise, and unclear data, thereby enhancing the resilience and adaptability of the decision-making process in practical contexts (Atmanli, 2016; Srinidhi et al., 2019, 2022b). In summary, the research investigates the interaction relationships between a number of variables (including fuel mixture, engine speed, and load) and the performance index (Q_i) through the use of regression analysis. While regression analysis is a widely recognised statistical method, its utilisation in this particular context-namely, to optimise engine performance by considering waste plastic oil parameters-increases the research's scientific originality (Atmanli and Yilmaz, 2021; Yilmaz et al., 2016).

In addition, the research exhibits scientific rigour by employing advanced analytical methodologies, including FT-IR and GC-MS, to ensure the precise identification and characterisation of chemical constituents present in waste plastic oil. Furthermore, the research utilises fuzzy weighted average methodology, wherein decision-making variables are systematically categorised and assigned fuzzy weights. The methodology is explicitly and thoroughly delineated, assuring clarity and replicability throughout the assessment process. In addition, an ANOVA is performed to determine the contribution and significance of various process parameters. By implementing a backward elimination method that relies on P-values, the statistical rigour is enhanced and it ensures that the analysis incorporates exclusively the significant factors.

Furthermore, the research is distinguished by its comprehensive methodology employed in the analysis of waste plastic oil. The study achieves an in-depth understanding of the chemical composition of residual plastic oil through the integration of FT-IR and GC-MS analyses. The integration of fuzzy weighted average methodology incorporates an unprecedented aspect to the process of decision-making by permitting the evaluation of imprecise data. Moreover, employing regression analysis, the study has investigated the interactions between multiple variables (fuel mixture, engine speed, and load). The examination of these interactions within the framework of optimising engine performance using waste plastic oil constitutes a distinctive facet of the investigation. A comprehensive analysis of the ways in which these variables impact the performance index (Q_i) yields significant knowledge that can be applied to future research endeavours concerning alternative fuels and combustion efficiency.

In terms of practical applications, this research has substantial and wide-ranging practical implications. The comprehensive chemical analysis of waste plastic oil through the implementation of FT-IR and GC-MS methodologies yields critical data for areas engaged in the recycling and conversion of waste plastic. It is imperative to comprehend the chemical composition of waste plastic oil in order to devise effective processes for its conversion into fuels or other valuable products (Atmanli and Yilmaz, 2020; Yilmaz et al., 2018). Numerous industries and sectors in which uncertain or imprecise data are utilised in the decision-making process might discover utilisation of fuzzy weighted average methodology to be advantageous. By implementing this methodology, decision-making frameworks can be strengthened, enabling organisations to deal with intricate circumstances that require more understanding, versatility, adaptability, and flexibility. Moreover, the insight attained from the regression analysis possesses immediate repercussions for the energy and automotive industries, specifically regarding the interactions among fuel blend, engine speed, and load. By optimising engine performance with waste plastic oil blends, more sustainable and environmentally benign energy solutions could be developed. The prospective application of the findings obtained from this study has the capacity to reduce dependence on conventional fossil fuels, thus aiding in the mitigation of environmental issues and the advancement of sustainable energy methodologies.

Conclusions

The results of the GC-MS and FTIR investigations show that WPO contains a number of chemical components that point to its potential as a fuel source. WPO consists of a variety of chemical components, including esters, carboxylic acids, and aldehydes, among others, according to the GC-MS investigation.

As evidence of the oil's potential as a fuel source, the FTIR study revealed the existence of alcohol, hydroperoxide, and carbonyl acid groups in addition to C-H stretches for the methyl and methylene groups. Alcohol, hydroperoxide, carbonyl acid groups, C-H stretches for methyl and methylene groups, and C = O stretches for ester, carboxylic acid, ketones, and aldehyde groups have been identified by the FT-IR analysis. The primary chemical components in WPO have been additionally characterised by the GC-MS analysis, yielding significant insights into its composition.

The study's offered an innovative methodology for assessing various parameters, including BTE, BSFC, NO_x, smoke, and CO, by employing fuzzy weighted average analysis. By incorporating linguistic variables along with fuzzy logic into this methodology, a thorough evaluation of the performance matrix was attainable. The effect of significant process parameters, such as fuel ratio, speed, and load, on engine performance was identified through the analysis. In addition to regression analysis and three-dimensional surface graphs, the research investigated intricate interrelationships interaction among fuel blend, speed, and load, thereby contributing to a broader comprehensive understanding of combustion dynamics.

Furthermore, the residual analysis was employed to validate the robustness of the regression model, thereby assuring the developed model's precision and reliability. The mean-square error analysis revealed that the regression equation accurately predicted the performance index with an average error of 1.807%, which is considered an acceptable level.

The efficiency of multiple WPO samples was assessed using the WASPAS multi-criteria decision-making methodology. The explicit description of the weights assigned to criteria in the WSM method ensures transparency, enabling decision-makers to discern the relative significance for every criterion throughout the evaluation process. WSM possesses the capability to incorporate both qualitative and quantitative criteria, rendering it adaptable to a wide range of decision problems. By consolidating numerous criteria into a single score, WSM streamlines the decision-making process by offering an unambiguous, open, and easy-to-understand hierarchy of alternatives according to their overall performance effectiveness. Through incorporating non-linearity via the exponentiation process, WPM enables decision-makers to modify the exponents in order to emphasise or de-emphasise the significance of particular criteria. This characteristic offers a more intricate depiction of the significance of criteria. WPM requires an inherent compromise between its criteria. As extreme values (extremely high or low) on any criterion have the tendency to take precedence in the overall evaluation, it is prudent to consider every criterion in a balanced manner in order to prevent results that are skewed. The weighted aggregated sum product assessment method combines elements of both the weighted product model and the weighted sum model. It allows for a more balanced consideration of factors as well as more flexible approach for accommodating diverse type of data. The total relative importance index ( $Q_{i}$ ) has obtained and the results revealed that a fuel blend of 5%, a load of 21 bar, and a speed of 2000 RPM provided the expected responses (high for BTE and low for BSFC, smoke, NO_x, and CO, respectively).

The developed regression equation revealed an acceptable difference between the experimental and projected values, demonstrating the validity of the experiment. Therefore, before WPO can be used on a broader scale, the study emphasises the need for additional research to optimise the processing of WPO and assess its environmental impact.

In conclusion, this study provides important empirical findings and insights that can inform future research and policy decisions regarding the use of waste plastic oil as an alternative fuel source. In future the more optimisation method can be used and data can be analyse using meta-heuristic approach. The optimisation studies using the waste plastic oil derived from mixture of PET, PP and PS only can be explored.

Future outlook

On the basis of the outcomes of this investigation, the following suggestions can be extended to future research and applications:

Optimisation and Scaling: To refine the parametric settings and enhance the performance index, additional optimisation studies may be conducted. Applying practical insights to real-world conditions could be achieved by scaling up the experimental setup.

Emission Reduction Techniques: Further research could be devoted to the development of novel emission reduction techniques, including however not limited to NOx, CO, and smoke, which would also enhance fuel efficiency. Investigating novel catalysts or additives for combustion may constitute a promising domain of scholarly inquiry.

Environmental Impact Assessment: Conducting an exhaustive assessment of the environmental impact, which shall encompass a life cycle analysis, in order to assess the holistic sustainability of utilising WPO as a substitute fuel. This would yield knowledge regarding the potential environmental benefits as well as drawbacks associated with the widespread implementation of WPO-based fuels.

Investigating Distinct Sources of Plastic Waste: Examining WPO derived from various sources of plastic waste in order to comprehend chemical composition and combustion characteristic variations. The findings of this comparative analysis may be utilised to determine which plastic waste streams are most appropriate for the production of WPO.

Techno-economic Analysis: In order to evaluate the economic viability of integrating large-scale WPO production into preexisting fuel supply chains, it is necessary to conduct a techno-economic analysis. Determining the commercial viability of fuels derived from WPO would require this analysis.

Policy Advocacy and Public Awareness: Enhancing the general public's understanding regarding the benefits of utilising fuels derived from WPO and urging for regulatory bodies and governments to implement favourable policies and incentives in this regard. Policy support and public acceptability are crucial to the effective implementation of alternative fuel technologies.

By exploring those areas, subsequent studies can facilitate the advancement of environmentally conscious and sustainable alternatives to fuels, thereby establishing a pathway towards a future characterised by reduced carbon emissions and enhanced energy efficiency.

Footnotes

Abbreviations

Acknowledgments

Researchers Supporting Project number (RSPD2023R1060), King Saud University, Riyadh, Saudi Arabia.

Author contributions

Conceptualisation, SK, SP, RK, SS, OB, MP; methodology, SK, SP, RK, SS, OB, MP; formal analysis, SK, SP, RK, SS, OB, MP, RD; investigation, SK, SP, RK, SS, OB, MP; writing—original draft preparation, SK, SP, RK, SS, OB, MP; writing—review and editing, SS, SPD, FAA, MIK, EAAI, RD; supervision, SS, SPD, FAA, MIK, EAAI, RD; project administration, SS, SPD, FAA, MIK, EAAI. All authors have read and agreed to the published version of the manuscript.

Consent to participate

Not applicable

Consent to publish

Not applicable.

Data availability

All the data that were used to support this study are available in this manuscript.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethical approval

Not applicable

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: Researchers Supporting Project number (RSPD2023R1060), King Saud University, Riyadh, Saudi Arabia.

ORCID iD

Shubham Sharma

References

Achilias

Giannoulis

Papageorgiou

(2009) Recycling of polymers from plastic packaging materials using the dissolution-reprecipitation technique. Polymer Bulletin 63(3): 449–465.

Ahmad

Dawood

Lashin

, et al. (2023) Effect of coconut fiber on low-density polyethylene plastic-sand paver blocks. Ain Shams Engineering Journal 14(8): 101982.

Atmanli

(2016) Effects of a cetane improver on fuel properties and engine characteristics of a diesel engine fueled with the blends of diesel, hazelnut oil and higher carbon alcohol. Fuel 172: 209–217.

Atmanli

Ileri

Yilmaz

(2016) Optimization of diesel–butanol–vegetable oil blend ratios based on engine operating parameters. Energy 96: 569–580.

Atmanli

Ileri

Yuksel

(2015) Nadir yilmaz, extensive analyses of diesel–vegetable oil–n-butanol ternary blends in a diesel engine. Applied Energy 145: 155–162.

Atmanli

Yilmaz

(2020) An experimental assessment on semi-low temperature combustion using waste oil biodiesel/C3-C5 alcohol blends in a diesel engine. Fuel 260: 116357.

Atmanli

Yilmaz

(2021) Comparative assessment of different diesel engines fueled with 1-pentanol and diesel blends. Environmental Progress & Sustainable Energy 40(5): e13663.

Atmanlı

Yüksel

İleri

, et al. (2015) Response surface methodology-based optimization of diesel–n-butanol –cotton oil ternary blend ratios to improve engine performance and exhaust emission characteristics. Energy Conversion and Management 90: 383–394.

Ayodhya

Lamani

Bedar

, et al. (2018) Effect of exhaust gas recirculation on a CRDI engine fueled with waste plastic oil blend. Fuel 227: 394–400.

10.

Boopathi

Gopinath

(2019) Performance analysis of plastic oil blend by changing the fuel injection timing in diesel engine. Materials Today: Proceedings 46: 4613–4618.

11.

Campli

Acharya

Channapattana

, et al. (2021) The effect of nickel oxide nano-additives in azadirachta indica biodiesel-diesel blend on engine performance and emission characteristics by varying compression ratio. Environmental Progress & Sustainable Energy 40(2): e13514.

12.

Chakraborty

Zavadskas

Antucheviciene

(2015) Applications of WASPAS method as a multi-criteria decision-making tool. Economic Computation and Economic Cybernetics Studies and Research 49(1): 5–22.

13.

Channapattana

Campli

Madhusudhan

, et al. (2023) Energy analysis of DI-CI engine with nickel oxide nanoparticle added azadirachta indica biofuel at different static injection timing based on exergy. Energy 267: 126622.

14.

Chatur

Maheshwari

Campli

(2023) Investigation of waste cooking oil–diesel blend with copper oxide additives as fuel for diesel engine under variations in compression ratio. Int J Energy Environ Eng 14: 791–802.

15.

Cheng

Guo

, et al. (2021) New insights into the effects of methane and oxygen on heat/mass transfer in reactive porous media. International Communications in Heat and Mass Transfer 129: 105652.

16.

Chintala

Godkhe

Phadtare

, et al. (2018) A comparative assessment of single cylinder diesel engine characteristics with plasto-oils derived from municipal mixed plastic waste. Energy Conversion and Management 166: 579–589.

17.

Damodharan

Sathiyagnanam

Rana

, et al. (2017) Extraction and characterization of waste plastic oil (WPO) with the effect of n-butanol addition on the performance and emissions of a DI diesel engine fueled with WPO/diesel blends. Energy Conversion and Management 131: 117–126.

18.

Das

Hansdah

Mohapatra

, et al. (2020) Energy, exergy and emission analysis on a DI single cylinder diesel engine using pyrolytic waste plastic oil diesel blend. Journal of the Energy Institute 93(4): 1624–1633.

19.

De Poures

Sathiyagnanam

Rana

, et al. (2017) 1-Hexanol As a sustainable biofuel in DI diesel engines and its effect on combustion and emissions under the influence of injection timing and exhaust gas recirculation (EGR). Applied Thermal Engineering 113: 1505–1513.

20.

Fisher

, et al. (2005) Energy Recovery in the Sustainable Recycling of Plastics from End-of-Life Electrical and Electronic Products.

21.

Geyer

Jambeck

Law

(2017) Production, use, and fate of all plastics ever made.

22.

Ghobadian

Rahimi

Nikbakht

, et al. (2009) Diesel engine performance and exhaust emission analysis using waste cooking biodiesel fuel with an artificial neural network. Renewable Energy 34(4): 976–982.

23.

Gopal

Sathiyagnanam

Rajesh Kumar

, et al. (2018) Prediction of emissions and performance of a diesel engine fueled with n-octanol/diesel blends using response surface methodology. Journal of Cleaner Production 184: 423–439.

24.

Hasnain

SMM

Chatterjee

Ranjan

, et al. (2023) Performance, emission, and spectroscopic analysis of diesel engine fuelled with ternary biofuel blends. Sustainability 15(9): 7415.

25.

Hawkins

(1987) Recycling of polymers . Conservation and Recycling 10(1). doi: 10.1016/0361-3658(87)90003-8.

26.

Hopewell

Dvorak

Kosior

(2009) Plastics recycling: Challenges and opportunities. Philosophical Transactions of the Royal Society B: Biological Sciences 364(1526): 2115–2126.

27.

Iftikhar

Alih

Vafaei

, et al. (2023) Predicting compressive strength of eco-friendly plastic sand paver blocks using gene expression and artificial intelligence programming. Scientific Reports 13(1): 12149.

28.

Kaimal

Vijayabalan

(2015) A detailed study of combustion characteristics of a DI diesel engine using waste plastic oil and its blends. Energy Conversion and Management 105: 951–956.

29.

Kumar

Sankaranarayanan

(2016) Investigation on environmental factors of waste plastics into oil and its emulsion to control the emission in DI diesel engine. Ecotoxicology and Environmental Safety 134: 440–444.

30.

Kumar

Mishra

Singh

, et al. (2016) Experimental evaluation of waste plastic oil and its blends on a single cylinder diesel engine. Journal of Mechanical Science and Technology 30(10): 4781–4789.

31.

Kumar

Prakash

Murugan

, et al. (2013) Performance and emission analysis of blends of waste plastic oil obtained by catalytic pyrolysis of waste HDPE with diesel in a CI engine. Energy Convers. Manag. 74: 323–331.

32.

Chithra

Sudha

, et al. (2023) Mathematical modelling of the biofiltration treating mixtures of toluene and N-propanol in the biofilm and gas phase. International Journal of Hydrogen Energy. 48(76): 29759–29770.

33.

Liu

Han

(2023) Investigation on diesel spray flame evolution and its conceptual model for large nozzle and high-density of ambient gas. Fuel 339: 127357.

34.

Liu

Tang

Liu

(2022) Investigation of future low-carbon and zero-carbon fuels for marine engines from the view of thermal efficiency. Energy Reports 8: 6150–6160.

35.

Maccrimmon

(1968) Descriptive and normative implications of the decision-theory postulates. In: Borch

Mossin

(eds) Risk and Uncertainty. International Economic Association Conference Volumes, Numbers 1–50. London: Palgrave Macmillan. https://doi.org/10.1007/978-1-349-15248-3_1

36.

Mangesh

Padmanabhan

Tamizhdurai

, et al. (2020) Combustion and emission analysis of hydrogenated waste polypropylene pyrolysis oil blended with diesel. Journal of Hazardous Materials 386: 121453.

37.

Mani

Nagarajan

Sampath

(2011) Characterisation and effect of using waste plastic oil and diesel fuel blends in compression ignition engine. Energy 36(1): 212–219.

38.

Mani

Subash

Nagarajan

(2009) Performance, emission and combustion characteristics of a DI diesel engine using waste plastic oil. Applied Thermal Engineering 29(13): 2738–2744.

39.

Muhammad

Khan

Kehili

, et al. (2022) The shortfall and rise in energy deposition and combustion via OpenFOAM. Case Studies in Thermal Engineering 40: 102563.

40.

Olah

Goeppert

Prakash

GKS

(2009) Chemical recycling of carbon dioxide to methanol and dimethyl ether: From greenhouse gas to renewable, environmentally carbon neutral fuels and synthetic hydrocarbons. Journal of Organic Chemistry 74(2): 487–498.

41.

Pal

Chintala

Sharma

, et al. (2019) Effect of injection timing on performance and emission characteristics of single cylinder diesel engine running on blends of diesel and waste plastic fuels. Mater. Today Proc. 17: 209–215.

42.

Pawar

Hole

Bankar

, et al. (2022) Studies on Xanthium strumarium L. Seed oil: Biodiesel synthesis and process optimization. Materials Today: Proceedings 66(4): 2169–2177.

43.

Petroleum (2020) BP Statistical review of world energy 2020. Available at: https://www.bp.com/en/global/corporate/energy-economics/statistical-review-of-world-energy/oil-demand.html

44.

Premkumar

Nalluri

Munaf

(2021) Effect of waste plastic oil diesel blend on variant injection pressure of a diesel engine. AIP Conference Proceedings 2316(February). doi: 10.1063/5.0037160.

45.

Rao

Bharadwaz

Virajitha

, et al. (2018) Effect of injection parameters on the performance and emission characteristics of a variable compression ratio diesel engine with plastic oil blends – an experimental study. Energy & Environment. 29(4): 492–510.

46.

Sayin

Gumus

(2011) Impact of compression ratio and injection parameters on the performance and emissions of a di diesel engine fueled with biodiesel-blended diesel fuel. Applied Thermal Engineering 31(16): 3182–3188.

47.

Shen

Cheng

, et al. (2022) Effects of supersonic nozzle guide vanes on the performance and flow structures of a rotating detonation combustor. Acta Astronautica 193: 90–99.

48.

Siddique

Khatib

Kaur

(2008) Use of recycled plastic in concrete: A review. Waste Management. 28(10): 1835–1852.

49.

Singh

Sharma

Singh

, et al. (2021) Optimization of performance, combustion and emission characteristics of acetylene aspirated diesel engine with oxygenated fuels: An experimental approach. Energy Reports 7: 1857–1874.

50.

Singh

Rajak

Dasore

, et al. (2021) Performance and ecological parameters of a diesel engine fueled with diesel and plastic pyrolyzed oil (PPO) at variable working parameters. Environmental Technology & Innovation. 22. doi: 10.1016/j.eti.2021.101491.

51.

Srinidhi

Jawale

Utikar

, et al. (2022) A comparative performance and emission investigation CI engine fuelled with neem oil esters with varying engine compression ratios. Heat Transfer 51: 7990–8004.

52.

Srinidhi

Kshirsagar

Joshi

, et al. (2022) Effect of fuel injection timing on CI engine fuelled with neem biodiesel blends–a comparative study of experimental and numerical simulation. International Journal of Energy and Environmental Engineering 13(1): 1–12.

53.

Srinidhi

Madhusudhan

Channapattana

(2019) Effect of NiO nanoparticles on performance and emission characteristics at various injection timings using biodiesel-diesel blends. Fuel 235: 185–193.

54.

Srinidhi

Madhusudhan

Channapattana

(2022a) Comparative analysis of exhaust gas recirculation and nanoparticles on the performance and emission of diesel engine fuelled with Neem biodiesel blend. International Journal of Ambient Energy 43(1): 290–299.

55.

Srinidhi

Madhusudhan

Channapattana

(2022b) Parametric studies of CI engine at various injection strategies using biodiesel blended nanoparticles as fuel. International Journal of Ambient Energy 43(1): 117–127.

56.

Srinidhi

Madhusudhan

Channapattana

, et al. (2021a) Comparitive investigation of performance and emission features of methanol, ethanol, DEE, and nanopartilces as fuel additives in diesel-biodiesel blends. Heat Transfer 50(3): 2624–2642.

57.

Srinidhi

Madhusudhan

Channapattana

, et al. (2021b) RSM Based parameter optimization of CI engine fuelled with nickel oxide dosed azadirachta indica methyl ester. Energy 234: 121282.

58.

Srinidhi

Panshetty

Madhusudhan , et al. (2020) Optimization of neem biodiesel blend and injection pressure of CI engine. In Advances in Structures, Systems and Materials: Select Proceedings of ERCAM 2019. Singapore: Springer, 211–225.

59.

Thejas

Naveen

Khan

, et al. (2022) A review on electrical and gas-sensing properties of reduced graphene oxide-metal oxide nanocomposites. Biomass Conversion and Biorefinery: 1–11.

60.

Triantaphyllou

Mann

(1989) An examination of the effectiveness of multi-dimensional decision-making methods: A decision-making paradox. Decision Support Systems 5(3): 303–312.

61.

U. 4b2 (1993) (12) United States Patent.

62.

Utriainen

Application

Data

, et al. (2009) (12) Patent Application Publication (10) Pub . No .: US 2009 / 0312954 A1 (D Patent Application Publication, vol. 1, no. 19, pp. 1–6.

63.

Venkatesan

Sivamani

Bhutoria

, et al. (2019) Assessment of waste plastic oil blends on performance, combustion and emission parameters in direct injection compression ignition engine. International Journal of Ambient Energy 40(2): 170–178.

64.

Liu

, et al. (2023) Investigation of rapid flame front controlled knock combustion and its suppression in natural gas dual-fuel marine engine. Energy 279: 128078.

65.

Yilmaz

Atmanli

Hall

, et al. (2022) Determination of the Optimum blend ratio of diesel, waste oil derived biodiesel and 1-pentanol using the response surface method. Energies 15: 5144.

66.

Yilmaz

Atmanli

Vigil

(2018) Quaternary blends of diesel, biodiesel, higher alcohols and vegetable oil in a compression ignition engine. Fuel 212: 462–469.

67.

Yilmaz

Ileri

Atmanli

(2016) Performance of biodiesel/higher alcohols blends in a diesel engine. International Journal of Energy Research 40(8): 1134–1143.

68.

Zare

Bodisco

Nabi

, et al. (2018) A comparative investigation into cold-start and hot-start operation of diesel engine performance with oxygenated fuels during transient and steady-state operation. Fuel 228(April): 390–404.

69.

Zhou

Meng

Sun

(2024) Numerical study on infrared detectors cooling by multi-stage thermoelectric cooler combined with microchannel heat sink. Applied Thermal Engineering 236: 121788.

Developing a model for waste plastic biofuels in CRDi diesel engines using FTIR,GCMS,and WASPAS synchronisations for engine analysis

Abstract

Keywords

Introduction

Research objectives of the current work

Experimentation

Fourier transform infrared (FTIR) analysis

Gas chromatography-mass spectroscopy (GC-MS) analysis

Experimental setup

Collection and extraction of waste plastics

Engine setup

Uncertainty analysis

Implementation of weighted aggregated sum product assessment (WAPAS) approach for statistical analysis

Step 1: normalising the performance measure matrix

Step 2: creating a total relative importance matrix

Step 3: calculating the variances for the importance matrix

Step 4: calculating the coefficient λ

Step 5: generalising total relative importance index equation

Results and discussion

Conclusions

Future outlook

Footnotes

Abbreviations

Acknowledgments

Author contributions

Consent to participate

Consent to publish

Data availability

Declaration of conflicting interests

Ethical approval

Funding

ORCID iD

References

Step 4: calculating the coefficient $λ$
