An artificial-intelligence-based petrophysical property predictor for compositional volatile oil reservoir using three-phase production data

Abstract

When considering multiphase flow scenarios, the interpretation of petrophysical properties poses significant challenges for production forecasts and reservoir modeling. The findings of the numerical modeling were therefore subject to uncertainty because characteristics like relative permeability and capillary pressure curve were hardly ever bound by interpretations. The uncertainty may result in inaccurate predictions of reservoir performance and skewed perceptions of the reservoir. Due to the difficulty in directly interpreting such property from the available field data and the expensive cost of coring, analyses or experimental measurements to determine relative permeability and capillary pressure were infrequently carried out. Such a gap would be filled by a straightforward yet rigorous method. In this study, we develop production projections for a wide range of three-phase compositional volatile oil reservoirs. Then, we used an artificial neural network to figure out how petrophysical characteristics and production data relate to one another. The artificial neural network model was adjusted, and the final trained model was tested blindly to determine how well it predicted permeability, multiphase relative permeability, and capillary pressure data. For the testing scenarios, consistency is seen between the predicted values and the original ones, despite some mispredictions being present. To provide production projections that can be compared to those from the reservoir model that include the initial petrophysical characteristic, the anticipated properties are then propagated into reservoir models. The comparison findings show that for 65/59/34 out of 74 testing scenarios, the reservoir model with artificial neural network-predicted features can anticipate oil/gas/water output with < 20% inaccuracy. With the developed artificial neural network tool, the reservoir engineers can evaluate the three-phase relative permeability surface from rate-transient data conveniently improving the accuracy of the relative permeability data implemented by history matching or from core experiments which sometimes are extremely expensive. The findings of this study can help for a better understanding of the relationships between three-phase rate-transient data and the relative permeability surface as well as the horizontal/vertical permeability.

Keywords

Artificial neural network relative permeability permeability multiphase reservoir engineering

Introduction

The great majority of reservoir simulations in the industry employ relative permeability, capillary pressure, and permeability. The ratio of effective permeability to absolute permeability is known as relative permeability. Relative permeability, whose property profile considerably alters production performance, strongly influences reservoir flow behavior. In the simulation study for reservoirs, relative permeability has been employed as a key history-matching parameter, but it is rarely restricted by observed or forecasted data.

If erroneous relative permeability statistics are employed, false reservoir performance may be anticipated. The length of transition zones, on the other hand, could fluctuate due to a capillary pressure profile, resulting in various flow patterns and an early or late water or gas breakthrough into the well. If the improper capillary pressure relationship is used, it might potentially misrepresent the flow regime in the vertical direction. Relative permeability, capillary pressure, permeability, and porosity, if inaccurately evaluated, cause biased production predictions and encourage poor development choices. The use of petrophysical characteristics in enhanced oil recovery (EOR) projects is a notable example because multi-phase behavior in EOR projects heavily depends on relative permeability. An EOR project could be harmed by an inaccurate depiction of relative permeability. In reservoir engineering projects like reservoir development plans, enhanced oil recovery, and carbon dioxide sequestration, permeability is crucial. Since it can typically be calculated from well testing and rate-transient analysis, permeability is less ambiguous. However, a reservoir model for an oil field is also prone to erroneous estimation of permeability. It must therefore be restrained using efficient techniques. Even when coring is an option, the cost of the coring procedure itself is considerable, which raises the price of reservoir characterization and the price of the development plan. Due to the high overhead, coring in offshore operations is considerably more expensive, costing up to $500,000 for each operation.

The relative permeability of the sample can be estimated using two traditional methods: the steady-state technique and the unsteady-state method. One way to calculate three-phase relative permeability is to assess the two-phase flow's relative permeability separately and couple it using Stone's models I (1970) and II (1973). The flow rates and pressure drop between the two core ends are measured to determine the two-phase relative permeabilities. The relative permeability of the phases is then determined by applying Darcy's law to the effective permeability of each phase. The relative permeability curve for a given system's one-direction saturation change typically requires 50–100 measurements (Sarma et al., 1994). An issue with the steady-state technique is that capillary pressure is believed to be zero. The steady-state technique does not take into consideration the “end effects,” or the consequences of the capillary force discontinuity at the end of the flow.

Another problem is that the fluids may interact with the sample because of the enormous injection volume and lengthy experimentation period, which has an impact on how accurate the results of the experiment are.

When employing the steady-state methods to measure the relative permeability curve, gravitational force is another aspect to take into account. If the viscous force is negligible relative to the capillary force and gravity force in the reservoir, the intermediate region and the section furthest from the endpoints may be meaningless. The relative permeability curve of the two-phase flow can also be estimated using the unsteady-state approach. Numerous tests have been performed using techniques created around this concept. Such studies include the following: Goodfield et al., 2001; Helset et al., 1998; Islam and Bentsen, 1986; Johnson et al., 1959; Jones and Roszelle, 1978; Kalbus and Christiansen, 1995; Marle, 1981; Ruth et al., 1988; Sigmund and McCaffery, 1979; Siddiqui et al., 1998; Toth et al., 2001, and Welge, 1952. Johnson et al. (1959) developed a displacement test to estimate the relative permeability of reservoir formation. Welge (1952) developed a method to evaluate the average saturation during the unsteady-state method to improve the unsteady-state relative permeability measurements. Jones and Roszelle (1978) demonstrated graphical constructions that simplify the calculation of relative permeability from displacement data. Sigmund and McCaffery, (1979) improved the unsteady state measurement method for determining the heterogeneous porous media's relative permeability. Marle (1981) proposed an unsteady-state measurement method. Ruth et al. (1988) improved the Welge method (1952) by incorporating explicit relative permeability function forms and did sensitivity analysis. Toth et al. (2001) developed an unsteady-state method for two-phase fluid injection settings during relative permeability measurements. Islam and Bentsen (1986) used the microwave attenuation technique to develop an unsteady-state measurement method. Kalbus and Christiansen (1995) improved the Johnson–Bossler–Naumann (JBN) method and the Hagoort method. Helset et al. (1998) developed a method to measure the relative permeability at all saturation with the experiments carried out at low injection speed, in contrast to high speed in most methods. Siddiqui et al. (1998) developed an unsteady-state method for evaluating three-phase relative permeability under a three-phase flow path. Goodfield et al. (2001) extended previously published techniques for interpreting gravity drainage floods by including viscous and capillary forces and calculating relative permeabilities directly from in-situ saturation and pressure drop data, without the need to use simulation methods.

The saturated core of the unsteady-state technique is injected with a phase. The pressure across the core and the flow rate of each phase are then monitored. The calculations are made using the results and the standard Buckley–Leverett theory (Buckley and Leverett, 1942). The homogenous assumption and one-dimensional assumption that underpin this family of techniques are flaws. The JBN approach was discovered to have substantial inaccuracy when converting average injectivity into a point value (Johnson et al., 1959). When employing Jones and Roszelle's approach or JBN method, the differentiation and breakthrough point estimation are the additional sources of mistakes. Additionally, Heaviside and Black (1983) and Crotti and Rosbaco (1998) identified the following issues: the relative permeability measured by running experiments at various rates and lengths may vary; the endpoint relative permeability is affected by mobility ratio; additionally, the capillary and gravity effects are not taken into account in the unsteady-state method. The data near the endpoint are calculated. As shown by earlier investigations, two-phase relative permeability can also be calculated from capillary pressure data (Brooks and Corey, 1966; Purcell, 1949). This method is helpful for samples with unique fluids or low permeability samples. The category also includes samples of insufficient size that can be used for capillary pressure measurement but cannot be utilized for flow tests (Sahimi, 2011). Li and Horne (2002) have demonstrated that the relative permeability determined from capillary pressure is accurate. Based on a variety of petrophysical and fluid parameters, Guler et al. (2003) make predictions about the relative permeability. By using this approach, the time-consuming laboratory experiment used to determine relative permeability is avoided. However, because their approach needs residual saturation, it is still reliant on core-based experiments for its measurements. Additionally, rather than predicting a relative permeability profile, the tool forecasts single-value relative permeability. For both oil–water and oil–gas systems, Silpngarmlers et al. (2002) developed artificial neural networks (ANNs) to forecast relative permeability using petrophysical and fluid properties. However, their approach still only yields a single-value prediction.

To forecast relative permeability in massive carbonate reservoirs, Al-Fattah and Al-Naim (2009) constructed ANN models. However, their approach still needs petrophysical inputs like irreducible saturations and residual saturation. It is more difficult to measure three-phase relative permeability than two-phase ones. Methods for linking two-phase relative permeability with two-phase relative permeability were also created due to the incredibly high time cost and experimental complexity. These techniques include Stone's Model I and Stone's Model II, as well as the Hustad–Holt correlation (1992). Mercury injection or a centrifuge can be used to measure capillary pressure curves. The resulting capillary pressure is then translated to capillary pressure data for the chosen liquid–gas and water–oil systems with Leverett J-function assistance. Cores and experimental operations are needed for all of the approaches outlined above. Coring is a pricey operation that is hardly used for wells. Due to the high operation costs, offshore coring is particularly expensive, costing up to $500,000. The petrophysical qualities take time to measure and might be challenging at times.

In this study, our goal is to use production data to assess permeability, capillary pressure curves, and three-phase relative permeability properties. The evaluation of reserve and hydraulic fracture qualities has mostly relied on production data (Blasingame et al., 1991; Fetkovich, 1980; Wattenbarger et al., 1998; Zhang and Ayala H., 2016, 2017, 2018). Using proxies, Zhang and Ertekin (2021) evaluated the petrophysical characteristics of black oil reservoirs. To the best of our knowledge, it has not yet been employed to calculate the relative permeability and capillary pressure for compositional volatile oil reserves.

The key difference between this specific study and previous studies from different genres is that we utilize rate-transient data to directly evaluate the three-phase relative permeability relationship in terms of relative permeability curves in the framework of Stone's Model II while the previous method either relies on core experiments and measurements or predict single-point two-phase relative permeability given other petrophysical properties which has no production data involved. By not using core-related data we are able to save thousands of to millions of dollars in predicting relative permeability curves and surface petrophysical properties and this also avoided the shortcoming of predicting only single-point two-phase water–oil or oil–gas relative permeability data using traditional previously developed artificial neural network tool, which takes tens of trials to predict complete relative permeability curves which are not applicable to three-phase reservoir water, oil and gas fluid flow in porous media. It should be noted that this study can be extended to the hydrogen production scenario and CCUS scenario considering previous studies (Sun et al., 2020, 2022, 2023).

By utilizing the ANN, a general functional relationship capturer, in this study, we can estimate three-phase relative permeability features, capillary pressure curves, and permeability for volatile oil reservoirs. A scheme of the ANN in this study is presented in Figure 1.

Figure 1.

Schematic diagram of the problem in this study.

Methodology

Artificial neural network

An excellent tool for time-series prediction, grouping, pattern recognition, and other tasks is the ANN. It has been utilized as a function approximator for demanding complex numerical computations in various areas of the oil and gas industry, such as reservoir simulations, phase behavior calculations, seismic wave interpretation, etc. Instead of taking hours or days to estimate reservoir production behavior using reservoir simulations, ANNs can do so in just a few seconds. With many inputs, an ANN may successfully mimic any function, as demonstrated by Hornik et al. (1989). An ANN can imitate several outputs. Based on the neural networks in the brain, ANN is proposed. Over the past 70 years, its theory has undergone dramatic change. It is currently one of the most effective techniques for time-series prediction, clustering, decision-making, pattern identification, etc. Over the past 20 years, the use of ANN has been the subject of a substantial amount of study in the petroleum and natural gas fields. For instance, Gorucu et al. (2005) developed ANNs to predict the performance of enhanced coalbed methane and CO₂ sequestration projects. Olufemi et al. (2004) developed ANNs for performance prediction and screening of carbon dioxide sequestration in coal seams. Ayala and Ertekin (2007) and Ayala et al. (2007) built ANNs to analyze gas-cycling performance and studied development in gas/condensate reservoirs. There are numerous further uses (Alajmi and Ertekin, 2007; Artun et al., 2011a, 2011b; Bansal et al., 2013; Enab and Ertekin, 2014; Enyioha and Ertekin, 2014; Parada and Ertekin, 2012; Ramgulam et al., 2007; Siripatrachai et al., 2014; Sun and Ertekin, 2012, 2017, 2018). Such work also includes Masoudi et al. (2012) and Masoudi et al. (2014).

Because of its distinctive structure, ANN can simulate relationships. The human brain contains 100 billion neurons. The neurons are interconnected to enable a variety of all-encompassing tasks. The details of neurons can be found by Zhang and Ertekin (2021).

By mimicking a neuron's structure, an artificial neuron can be produced. The first part of Figure 2 shows a visual representation of a synthetic neuron. On the diagram, you can see the input from earlier neurons (P1 to Pn), weights related to each input (W1 to Wn), a bias (b), a processing function (f), and output (a). The bias, weights, and inputs are used to evaluate a contain-it-all input value. The processing function gets the input and uses it to produce an output after passing it along. The feedforward network is one of the most often utilized networks. Neurons are organized into layers. All of the neurons in the two levels are connected to form crosslinks between adjacent layers. Each link has a unique weight attached to it. As previously described for a single neuron, each neuron in a layer operates similarly. The type of transfer function that is used can differ from layer to layer, changing how an artificial neuron layer reacts to input from a lower layer. The second part of Figure 2 shows a two-hidden-layer feedforward ANN. The ANN is shown as a training dataset. Calculated and compared with the accurate output is the error of the output of the ANN. To transmit the error back to the input, a backpropagation method is used. Backpropagation occurs from the output layer to the input layer. The gradient descent algorithm, conjugate gradient method, quasi-newton algorithm, and Levenberg–Marquardt algorithm are common backpropagation algorithms.

Figure 2.

Illustration of an artificial neuron (Zhang and Ertekin, 2021) and a feedforward network with two hidden layers.

Several variables, including data structure, transfer function type, number of neurons, number of layers, error function, and training function, all have an impact on an ANN's capacity to forecast, specifically on how well the relationship capture process works. Different kinds of ANNs are suitable for various kinds of application circumstances that involve different numbers and organization of input and output parameters. Complex functional interactions typically require more layers and neurons than simple ones. A variety of structures are developed for training to increase the likelihood of finding the ideal ANN structure.

Determination of ANN structure

The feedforward neural network is fully connected between layers and they are only connected between two closely located layers. The number of input neurons is determined by the number of time points that are contained in a production rate time series. It is also determined by the number of other data. The number of hidden layers and the number of neurons in each hidden layer are randomly chosen so that the structure of the feedforward network is to a large extent various. During the creation phase, ANN configurations are altered at random. The number of layers is chosen at random from 1 to 6. Between 1 and 600 neurons are randomly produced for each layer. The reason why six layers are used is that the computation cost of ANN when the number of layers is more than six is high and it incurs additional cost to the training. Another reason is it is rarely seen in previous oil and natural gas engineering applications of feedforward network construction that the number of layers needs to be larger than six. Also, the number of neurons maximum does not exceed 600 because assigning more than 600 neurons in this case simply elevates computational cost, and this 600 plus number of neurons is rarely seen in previous oil and natural gas engineering artificial neural network construction in the authors’ experiences. The reason the upper limit is so high is that the number of inputs is high and there are 442 neurons to take in all parameters as input. The number of layers is more than the number of layers typically used considering that one to two layers is a subset of one to six layers. Also, we do this in case more than two layers are needed. The number of neurons is much larger than the typically adopted number of neurons (15–30) just in case more neurons are needed to produce a stronger-performing artificial neural network. However, it is realized that this number of layers and such a large number of neurons are not necessary and could be reduced one. The log-sigmoid transfer function, hyperbolic tangent sigmoid transfer function, radial transfer function, saturating linear transfer function, and symmetric saturating linear transfer function are all possible candidates for the transfer function for each layer. Each ANN receives one of the following training functions at random: gradient descent, one-step secant, Powell–Beale conjugate gradient, and Polak–Ribiere conjugate gradient. Each structure receives a maximum of 500 epochs of training. Equation (1) serves as the performance function in our study.

msereg = γ mse + (1 - γ) msw

(1)

where

msw = 1 / n \sum_{j = 1}^{n} ω_{j}^{2}

, in which

ω_{j}

is the weight or bias in the network;

mse

is the mean square error of normalized outputs;

γ

is the performance ratio. The network responds more smoothly and is less likely to overfit thanks to this error function (Beale et al., 2010). A group of produced ANNs will be created by training the ANNs in the ANN pool. Blind tests will be used to evaluate all of the trained ANNs, which means they will be evaluated against situations they were never exposed to during training. The best performing ANN, or the champion ANN, will then be chosen to be used. Figure 3 can be used to demonstrate the procedure.

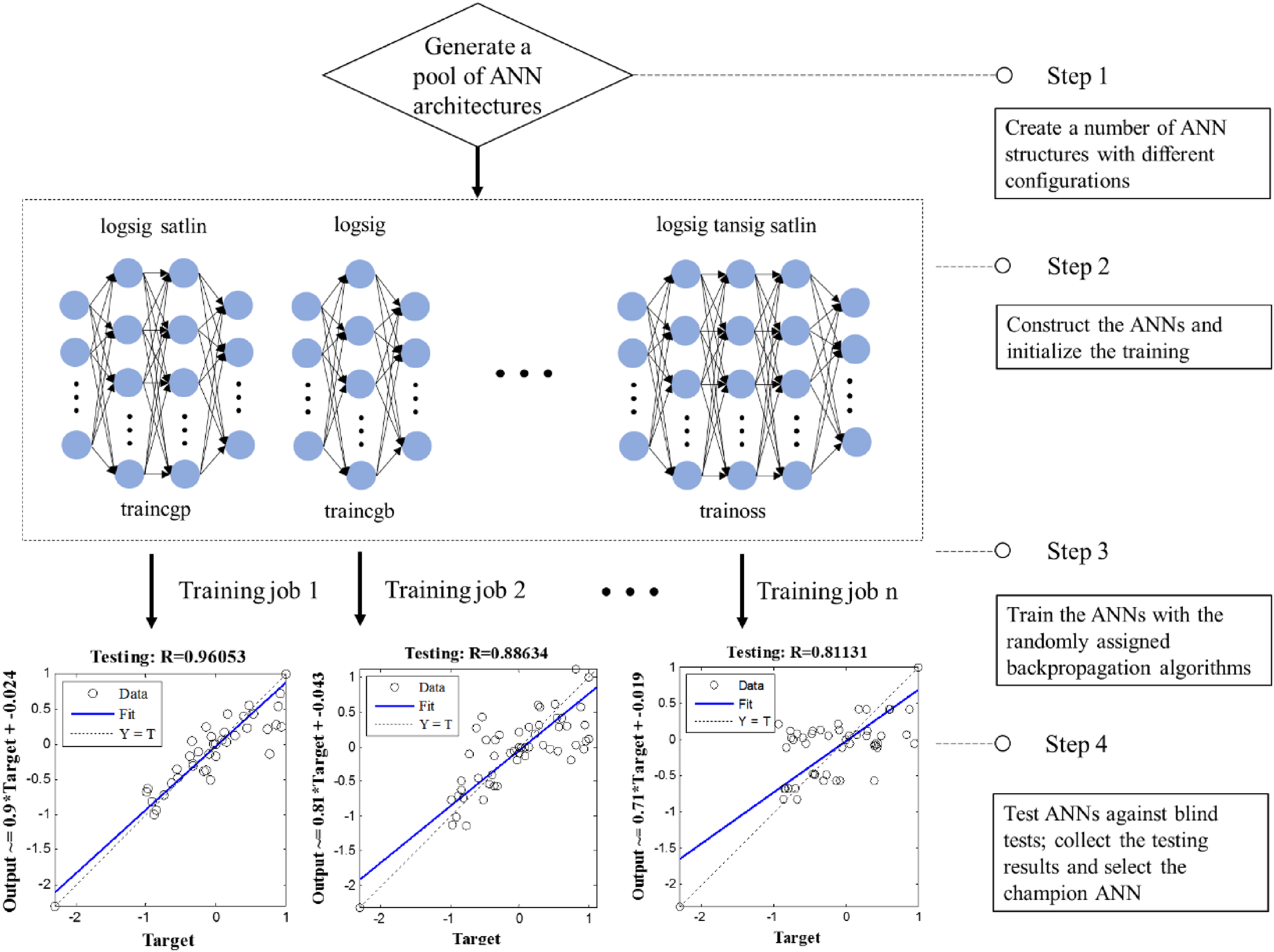

Figure 3.

Artificial neural network (ANN) optimization and training workflow.

Where logsig is log-sigmoid transfer function; satlin is saturated linear transfer function; tansig is hyperbolic tangent sigmoid transfer function; traincgp is conjugate gradient backpropagation algorithm with Polak–Ribière updates; traincgb is conjugate gradient backpropagation algorithm with Powell–Beale restarts; trainoss is one-step secant backpropagation algorithm.

ANN development workflow

A volatile oil reservoir contains lighter hydrocarbon than black oil and is also generally lighter in terms of density. The oil formation volume factor of volatile oil is less than two RB/STB. The gas–oil ratios of volatile oil are between 2000 and 3200 SCF/STB. The oil gravities are between 45° API and 55° API.

The CMG® GEM^TM¹ model is used to model volatile oil reservoirs. The component and concentration of the fluid and the reservoir properties are varied to cover a variety of reservoirs. Chemicals included in our volatile oil modeling encompass C1 to C45, $N_{2}$ , $C O_{2}$ , and $H_{2} S$ . C1 to C45 includes $C H_{4}, C_{2} H_{6}, C_{3} H_{8}, C_{4} H_{10}$ (butane and isobutane), $C_{5} H_{12}$ (pentane and isopentane), $C_{6} H_{14}$ , and C7 to C45. A semi-continuous approach is used to generate concentrations of the 45 components. For each case, the concentrations of C1 to C6, $N_{2}$ , $C O_{2}$ , and $H_{2} S$ are randomly generated within their respective ranges. The concentrations of C7 to C45 are generated using a distribution function, equation (2), developed by Whitson (1983).

p (M W) = \frac{{(M W - η)}^{α - 1} \exp [\frac{(M W - η)}{β}]}{β^{α} Γ (α)}

(2)

where

p (M W)

is the probability density of distribution for molecules with molecular weight (MW); α is the distribution parameter; and η is the minimum molecular weight among

C_{n} +

components, where

C_{n}

is the smallest single-carbon-number (SCN) group among the hydrocarbon components that the function is intended to capture.

β

is calculated using equation (3).

β = \frac{M_{n} + - η}{α}

(3)

where

M_{n} +

is the measured molecular weight of the

C_{n} +

fraction.

To generate the distribution of C7 to C45, $α$ and $M_{n} +$ are randomly assigned within their respective ranges. $η$ is taken to be 92, as C7 is the smallest SCN group. The probability densities of the SCN groups, namely C7 to C45, are then calculated. Table 1 displays the concentration ranges for H₂S, CO₂, N₂, and C1 to C6, while $α$ and $M_{n} +$ are used for generating the probability density distributions of C7 + components. The fraction of each SCN group is subsequently calculated using the trapezoid rule. The C7 + components are then categorized into six pseudo-components using Whitson's method. The number of pseudo-components is determined by the number of SCN groups to be created. The properties of the pseudo-components are calculated using Hong's mixing rule (1982). The binary interaction coefficients are calculated following Danesh (1998) but using a weight fraction instead of a molar fraction.

Table 1.

Range of concentration of components and distribution parameters.

H₂S	0–0.0004
CO₂	0–0.0584
N₂	0–0.0349
C1	0.3768–0.708
C2	0.0537–0.1409
C3	0.0322–0.1091
C4	0.0257–0.1112
IC4 (isobutane)	0.005–0.06
C5	0.013–0.0752
IC5 (isopentane)	0.005–0.0375
C6	0.0093–0.0473
$α$	0.5–2.5
MWC7+	156–250

For each set of synthetic volatile oils, a temperature is randomly generated within a given range. Then the bubble-point pressure for the synthetic volatile oil at this temperature is found using a PVT algorithm. The bubble-point pressure is taken to be the initial pressure at the gas–oil contact. If the synthetic oil at this particular temperature is not found in the oil zone at a pressure between 1500 and 10,000 psia, the case is excluded. The composition of the gas in the reservoir at the gas-oil contact is calculated by flashing the oil composition at a pressure 1 psia lower than the bubble-point pressure. Using a radial-cylindrical coordinate system, circular reservoirs are modeled. Implemented is the discretization strategy outlined by Abou-Kassem et al. (2006). Figure 4 demonstrates the structure and design of a sample volatile oil formation. After capillary pressure curves are haphazardly generated for each scenario, the densities of the liquid and vapor phases at the beginning condition are computed and used to infer the length of the transition zone. Then, the well blocks are configured to solely encompass the oil zone. The distribution of contact depths is determined by their respective ranges. Production from the well is done at constant bottom-hole pressure. The starting pressure is multiplied by a chance number between 0.15 and 0.3 to determine the bottomhole pressure. The thickness of the formation multiplied by a chance number between 0.05 and 0.4 determines the distance from the gas–oil contact to the top of the formation. The formation thickness times a chance number between 0.8 and 1 determines the separation between the water–oil contact and the formation top.

Figure 4.

Representation in the forms of a side view and top-down view of a sample volatile oil reservoir. The discretization is demonstrated. The red region in the lower middle part represents the oil zone. The zone above represents the gas zone while that below represents the water zone.

In this work, Stone's Model II and Corey's model are used to model relative permeability. Two power-law formulas serve as representations for capillary pressure. The Corey model's formula is broken down into equations (4) through (7)

k_{r o w} = k_{r o w}^{o} {(\frac{1 - S_{w} - S_{o r w}}{1 - S_{o r w} - S_{w c o n}})}^{n_{o w}}

(4)

k_{r w o} = k_{r w o}^{o} {(\frac{S_{w} - S_{w c o n}}{1 - S_{o r w} - S_{w c o n}})}^{n_{w}}

(5)

k_{r o g} = k_{r o g}^{o} {(\frac{1 - S_{g} - S_{w c o n} - S_{o r g}}{1 - S_{w c o n} - S_{o r g} - S_{g c r i t}})}^{n_{o g}}

(6)

k_{r g o} = k_{r g o}^{o} {(\frac{S_{g} - S_{g c r i t}}{\begin{matrix} 1 - S_{w c o n} \\ ]] - S_{o r g} - S_{g c r i t} \end{matrix}})}^{n_{g}}

(7)

where

k_{r o w}

is the relative permeability of oil in a water–oil system;

k_{r w o}

is the water relative permeability in a water–oil system;

k_{r o g}

is the oil relative permeability in a gas–oil system;

k_{r g o}

is the gas relative permeability in an oil–gas system;

S_{w}

is the water saturation;

S_{w c o n}

is the connate water saturation;

S_{o r w}

is the residual oil saturation after being flooded by water;

S_{g}

is the gas saturation;

S_{g c r i t}

is the critical gas saturation;

S_{o r g}

is the residual oil saturation after being flooded by gas;

n_{o w}

is the oil relative permeability exponent in an oil–water system;

n_{o w}

is the oil relative permeability exponent in an oil–water system;

n_{g}

is the relative permeability curve exponent of gas in a gas–liquid system; and

n_{o g}

is the oil relative permeability exponent in a gas–liquid system.

Capillary pressure in the matrix is described by equations (8) and (9) (modified from Gang and Kelkar, 2007).

P_{c o w} = P_{c s w c} {(\frac{1}{1})}^{1}

(8)

P_{c g o} = P_{c s l c} {(\frac{1}{1})}^{1}

(9)

where

P_{c s w c}

is the water–oil system threshold capillary pressure;

P_{c s l c}

is the liquid–gas system threshold capillary pressure; and

λ

is the pore distribution index.

P_{c s w c}

is assigned a random number between

2.9134 \times 10^{- 11} k_{h o r}^{- 0.369}

and

17.7276 k_{h o r}^{- 0.369}

, and

P_{c s l c}

is assigned a random number between

0.0111 k_{h o r}^{- 0.369}

and

6.699 k_{h o r}^{- 0.369}

. The exponent −0.369 is derived from Davies (1991) and the four coefficients are empirical.

The range of reservoir and fluid properties is given in Table 2.

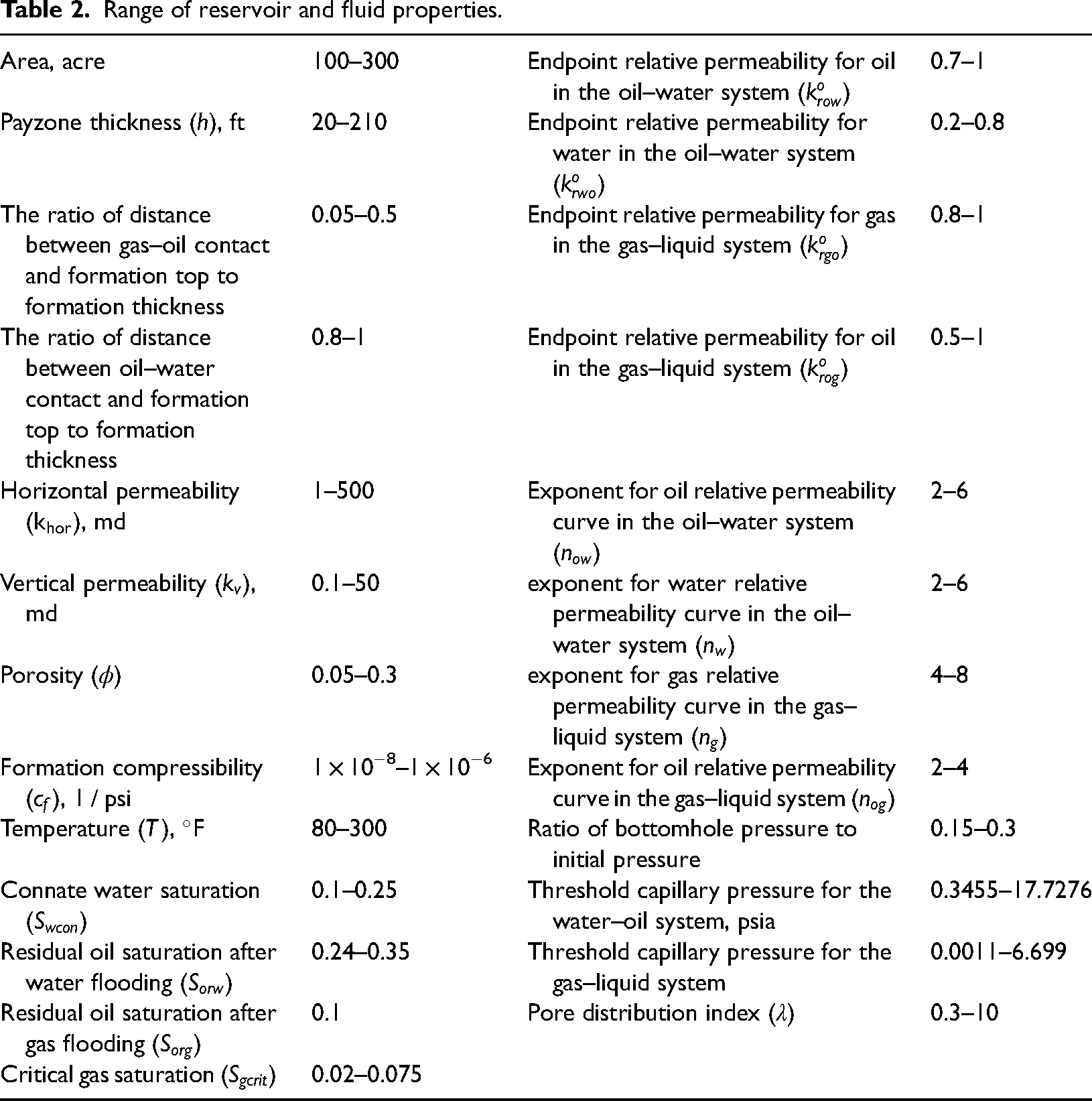

Table 2.

Range of reservoir and fluid properties.

Area, acre	100–300	Endpoint relative permeability for oil in the oil–water system ( $k_{r o w}^{o}$ )	0.7–1
Payzone thickness (h), ft	20–210	Endpoint relative permeability for water in the oil–water system ( $k_{r w o}^{o}$ )	0.2–0.8
The ratio of distance between gas–oil contact and formation top to formation thickness	0.05–0.5	Endpoint relative permeability for gas in the gas–liquid system ( $k_{r g o}^{o}$ )	0.8–1
The ratio of distance between oil–water contact and formation top to formation thickness	0.8–1	Endpoint relative permeability for oil in the gas–liquid system ( $k_{r o g}^{o}$ )	0.5–1
Horizontal permeability ( $k_{hor}$ ), md	1–500	Exponent for oil relative permeability curve in the oil–water system ( $n_{o w}$ )	2–6
Vertical permeability ( $k_{v}$ ), md	0.1–50	exponent for water relative permeability curve in the oil–water system ( $n_{w}$ )	2–6
Porosity ( $ϕ$ )	0.05–0.3	exponent for gas relative permeability curve in the gas–liquid system ( $n_{g}$ )	4–8
Formation compressibility ( $c_{f}$ ), $1 / psi$	1 × 10⁻⁸–1 × 10⁻⁶	Exponent for oil relative permeability curve in the gas–liquid system ( $n_{o g}$ )	2–4
Temperature (T), $\circ F$	80–300	Ratio of bottomhole pressure to initial pressure	0.15–0.3
Connate water saturation ( $S_{w c o n}$ )	0.1–0.25	Threshold capillary pressure for the water–oil system, psia	0.3455–17.7276
Residual oil saturation after water flooding ( $S_{o r w})$	0.24–0.35	Threshold capillary pressure for the gas–liquid system	0.0011–6.699
Residual oil saturation after gas flooding ( $S_{o r g})$	0.1	Pore distribution index ( $λ$ )	0.3–10
Critical gas saturation ( $S_{g c r i t}$ )	0.02–0.075

The 50 × 1 × 30 discretization is found to be the best one for modeling volatile oil reserves through sensitivity analysis. The petrophysical property and reservoir fluids configurations as well as the sensitivity analysis results which include the simulation production rates have been demonstrated, plotted, and drawn by Zhang (2017). Researchers who would like to know the details of the comparisons on the simulated production rates (water rates, oil rates, and gas rates) and the identification of the best optimization with the detailed least number of grid blocks and a high accuracy can go check those analyses with delineated details. Circular volatile-oil reservoir models are built and run using this discretization. Table 2 provides the properties’ ranges. In models of circular reservoirs, the ratio of the oil phase to the gas phase at the gas-oil contact is determined and utilized as the model's initial condition. The production data is then extracted from the results files using software. This production data, coupled with reservoir and fluid parameters obtained from well logs and fluid tests, are used as inputs for ANN training. The petrophysical properties employed in the simulation runs are the results used during training. The inputs and outputs are listed in Table 3. Since feedforward ANNs have been successfully used in prior studies on predicting relative permeability, feedforward networks have been employed in this investigation (Guler et al., 2003; Silpngarmlers et al., 2002).

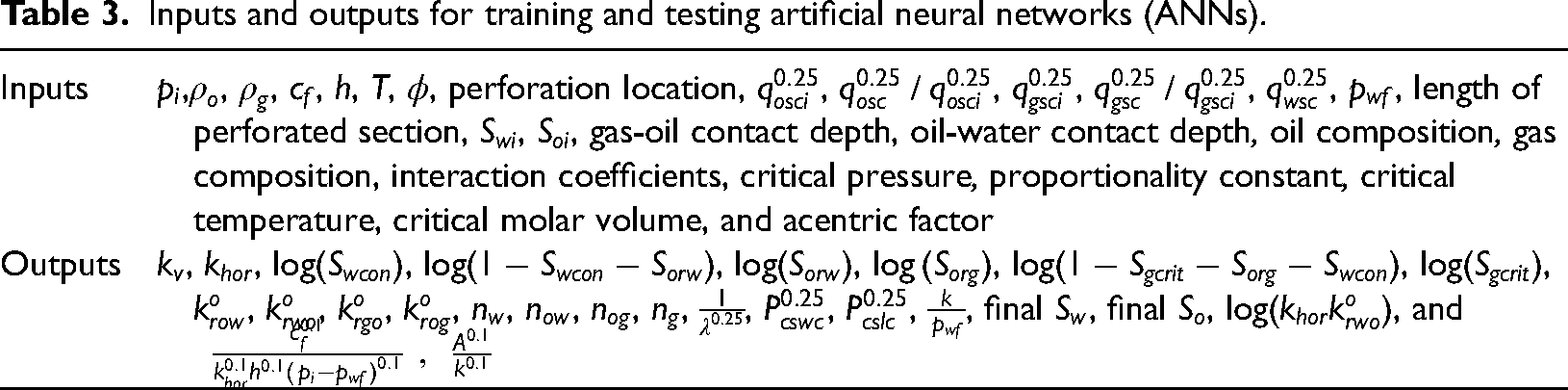

Table 3.

Inputs and outputs for training and testing artificial neural networks (ANNs).

Inputs

p_{i}

ρ_{o}

ρ_{g}

c_{f}

, h, T,

ϕ

, perforation location,

q_{o s c i}^{0.25}

q_{o s c}^{0.25} / q_{o s c i}^{0.25}

q_{g s c i}^{0.25}

q_{g s c}^{0.25} / q_{g s c i}^{0.25}

q_{w s c}^{0.25}

p_{w f}

, length of perforated section,

S_{w i}

S_{o i}

, gas-oil contact depth, oil-water contact depth, oil composition, gas composition, interaction coefficients, critical pressure, proportionality constant, critical temperature, critical molar volume, and acentric factor

Outputs

k_{v}

k_{h o r}

\log (S_{w c o n})

\log (1 - S_{w c o n} - S_{o r w})

\log (S_{o r w})

\log (S_{o r g})

\log (1 - S_{g c r i t} - S_{o r g} - S_{w c o n})

\log (S_{g c r i t})

k_{r o w}^{o}

k_{r w o}^{o}

k_{r g o}^{o}

k_{r o g}^{o}

n_{w}

n_{o w}

n_{o g}

n_{g}

\frac{1}{λ^{0.25}}

P_{c s w c}^{0.25}

P_{c s l c}^{0.25}

\frac{k}{p_{w f}}

, final

S_{w}

, final

S_{o}

\log (k_{h o r} k_{r w o}^{o})

, and

\frac{c_{f}^{0.1}}{k_{h o r}^{0.1} h^{0.1} {(p_{i} - p_{w f})}^{0.1}}, \frac{A^{0.1}}{k^{0.1}}

To enable a steady distribution of parameters, a total of 74 $q_{o s c}$ , $q_{g s c}$ , and $q_{w s c}$ are taken from the simulation output files. The production ratio rather than the production rate is then used. To offer adequate information, the component's characteristics and the composition of the gas and oil at the gas–oil contact are employed as inputs. With a starting set of examples represented by various reservoir models, ANNs were created. Then, a diverse group of scenarios were used to test the ANNs. We then train it after producing more examples and adding these cases to the pool of existing training cases to improve the training's quality. In the end, 946 examples were produced to provide the ANNs with training data. Out of them, 756 examples are used as training datasets, 95 cases are used as validating datasets, and 95 cases are used as testing datasets. The ratios for training datasets, validation datasets, and testing datasets are 0.8, 0.1, and 0.1, respectively. A collection of ANNs was created and given randomly generated structures, transfer functions, and backpropagation algorithms, as explained in the “Methodology” section. There will be training for each ANN. The ANNs are tested against blind datasets after training. They will be contrasted in terms of ANN performance. Finally, an artificial neural network presenting the most satisfactory predicting power is identified and selected for actual implementation.

Results and discussion

In this study, a three-layer feedforward network with one hidden layer exhibits the best performance. A total of 69 neurons make up hidden layer 1 of the brain (neural network). A symmetric saturating linear transfer function serves as the transfer function for buried layer number 1. Conjugate gradient backpropagation along with Polak–Ribiére updates is used in this training procedure. At the 458th epoch, the training process's lowest performance function is 0.1922. The training ends 500 extra epochs later.

This section compares the expected and actual values of three petrophysical properties: horizontal permeability, vertical permeability, and relative permeability. Additionally supplied are statistics on the predictions made by the ANN. In Figures 5 and 6, permeability comparisons are shown. The predicted horizontal permeability and the observed horizontal permeability were very similar. In terms of horizontal permeability, the average relative error is 13.5%. Although the anticipated and actual vertical permeability differs when compared, the patterns between the two values are quite comparable.

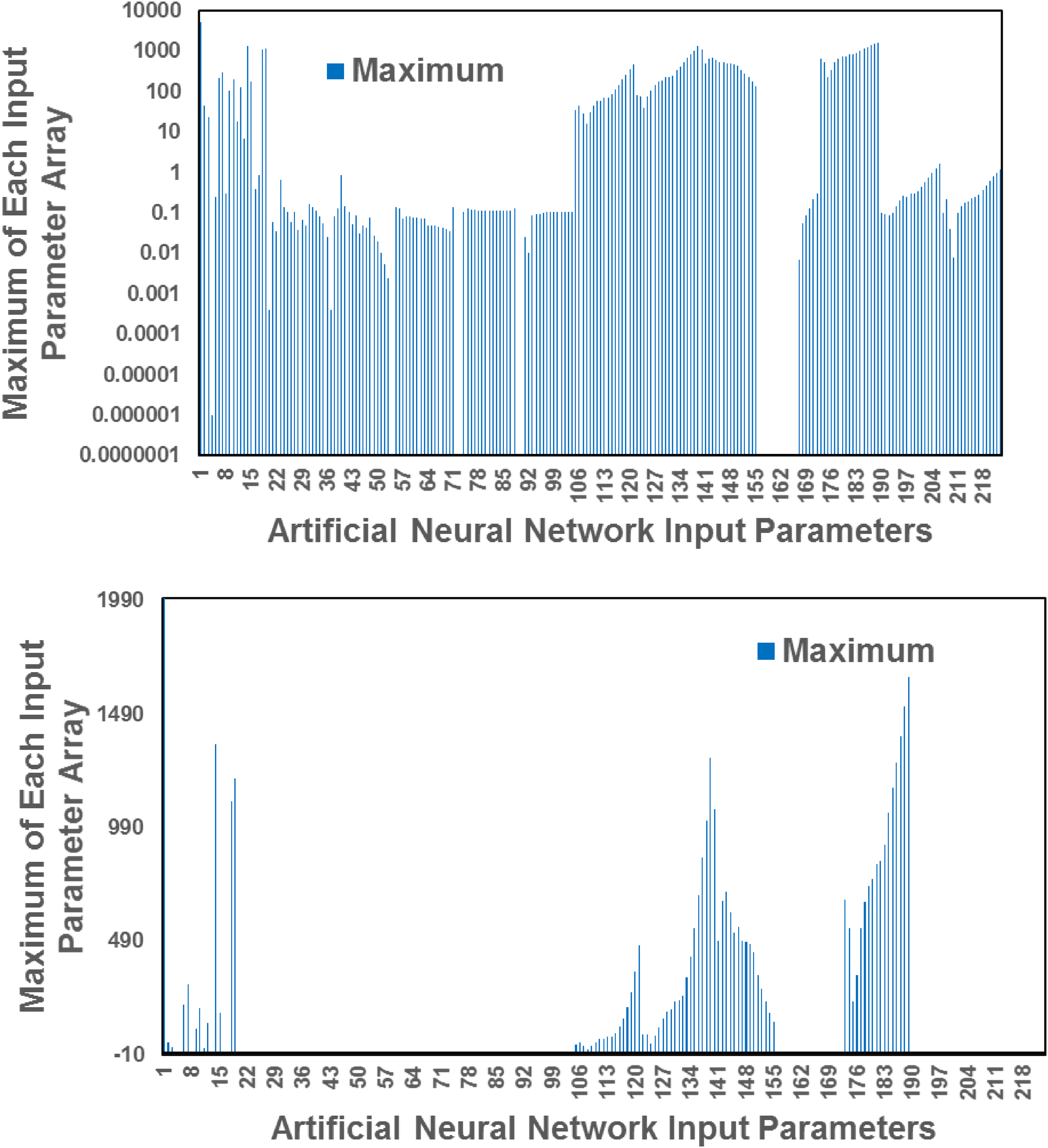

Figure 5.

The distribution of a maximum of the parameters used in the training procedure in log scale (upper figure) and in normal scale (lower figure).

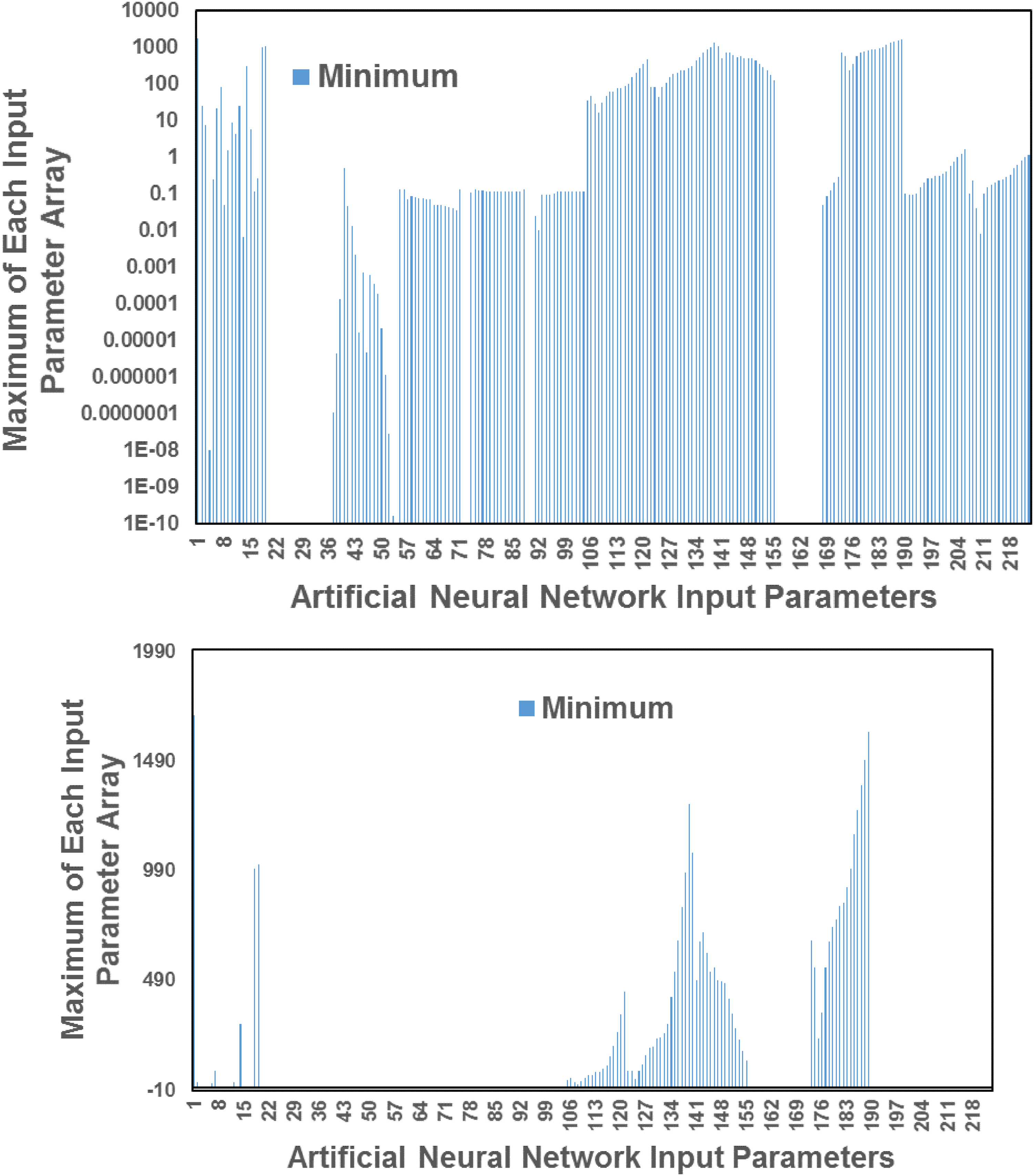

Figure 6.

The distribution of minimum of the parameters used in the training procedure in log scale (upper figure) and in normal scale (lower figure).

For the test instances, two-phase relative permeability curves and capillary pressure curves are plotted using both the expected attributes and their actual values. Figures 7 to 11 show the capillary pressure and relative permeability curves for the first five test instances.

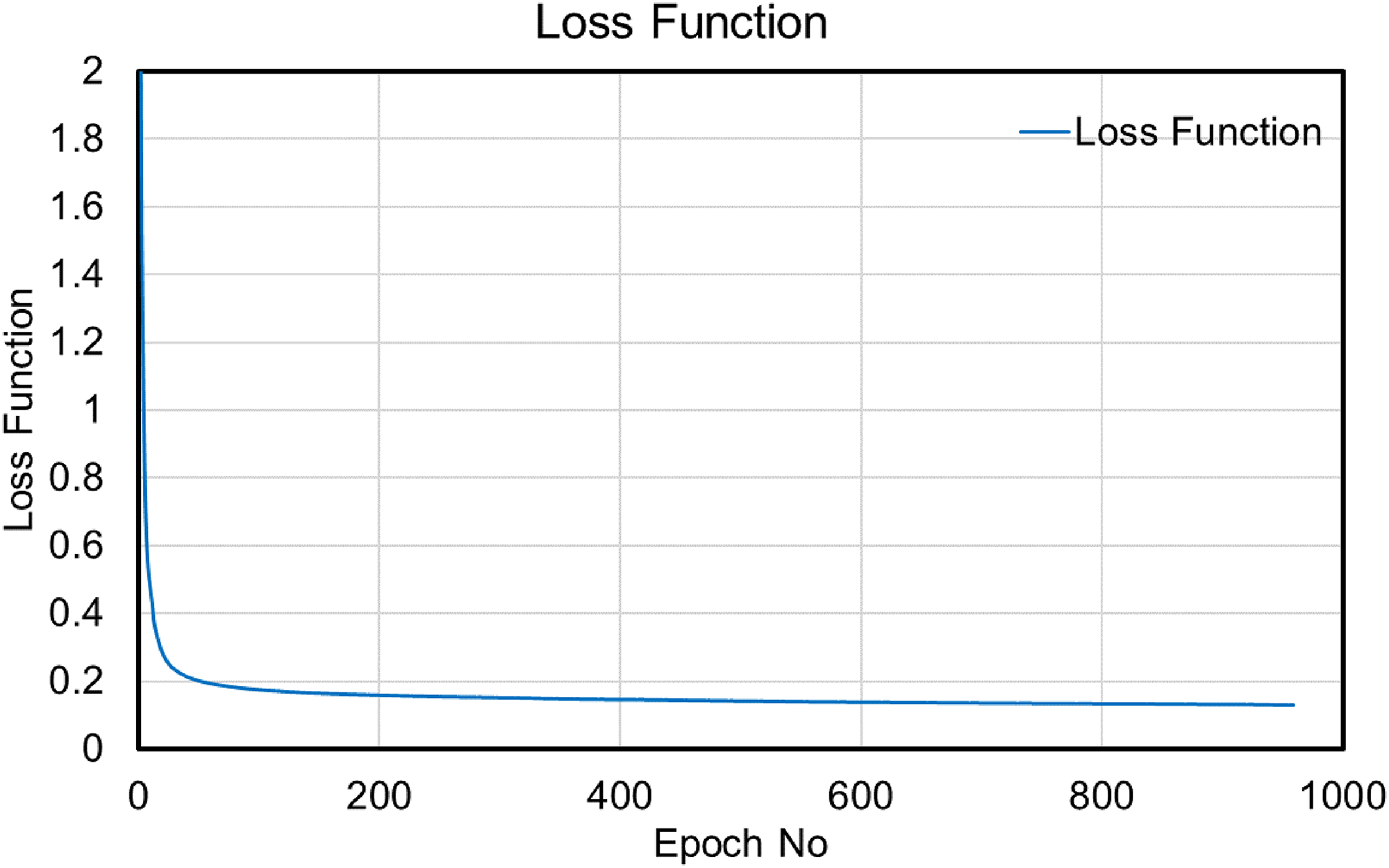

Figure 7.

The loss function of the three-phase volatile-oil reservoir petrophysical property prediction artificial neural network training process.

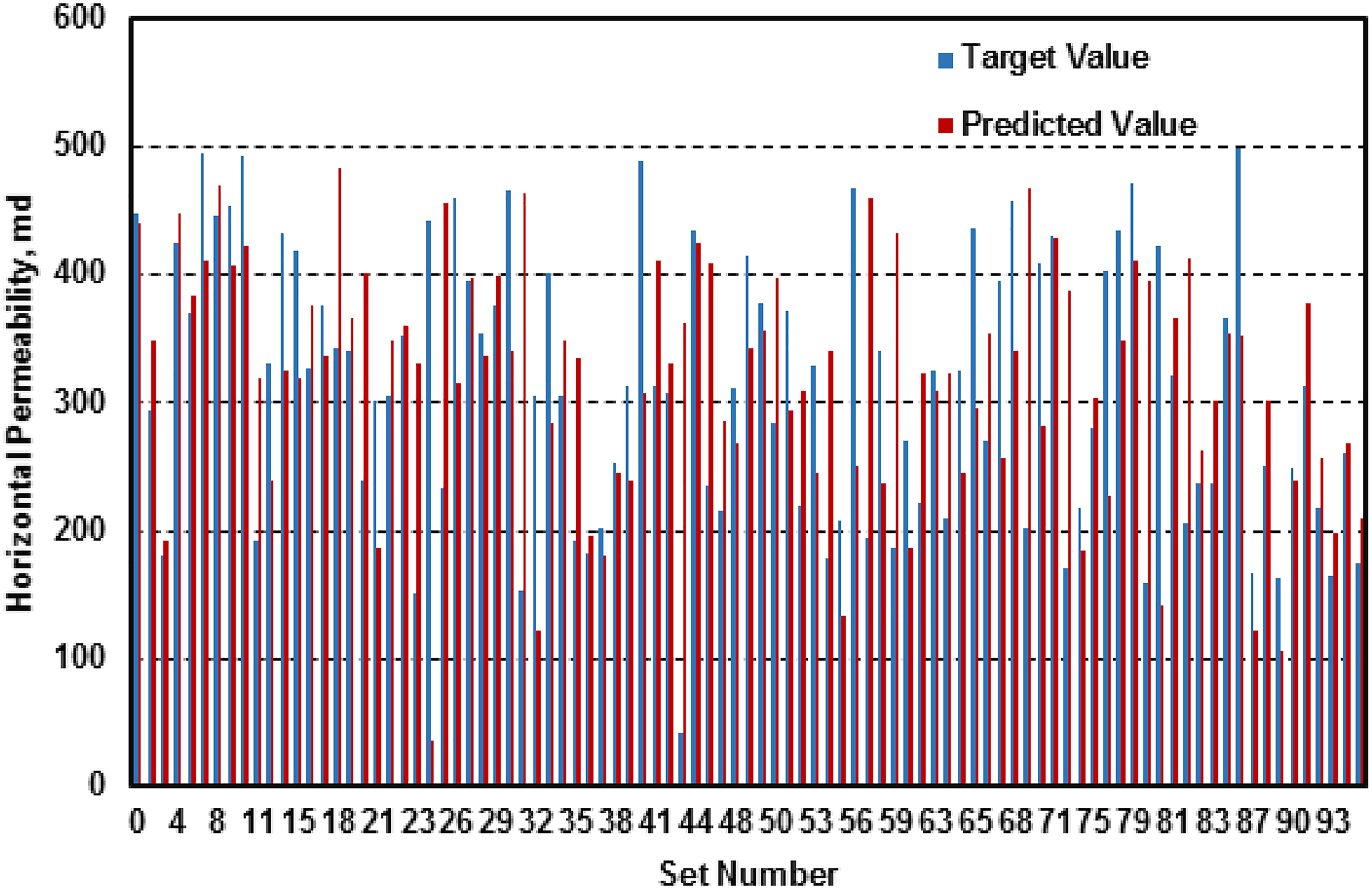

Figure 8.

Horizontal permeability of test cases.

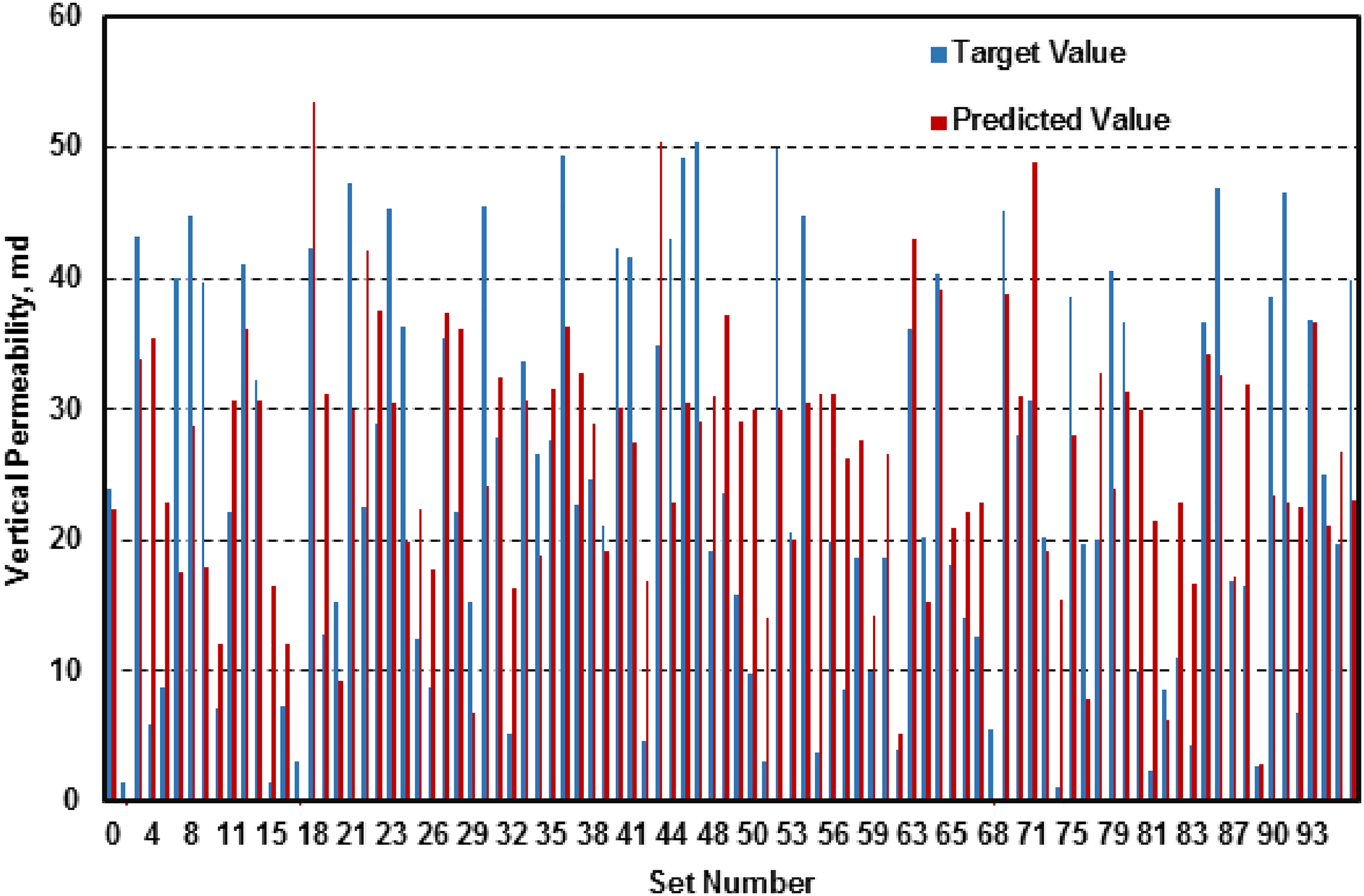

Figure 9.

Vertical permeability of test cases.

Figure 10.

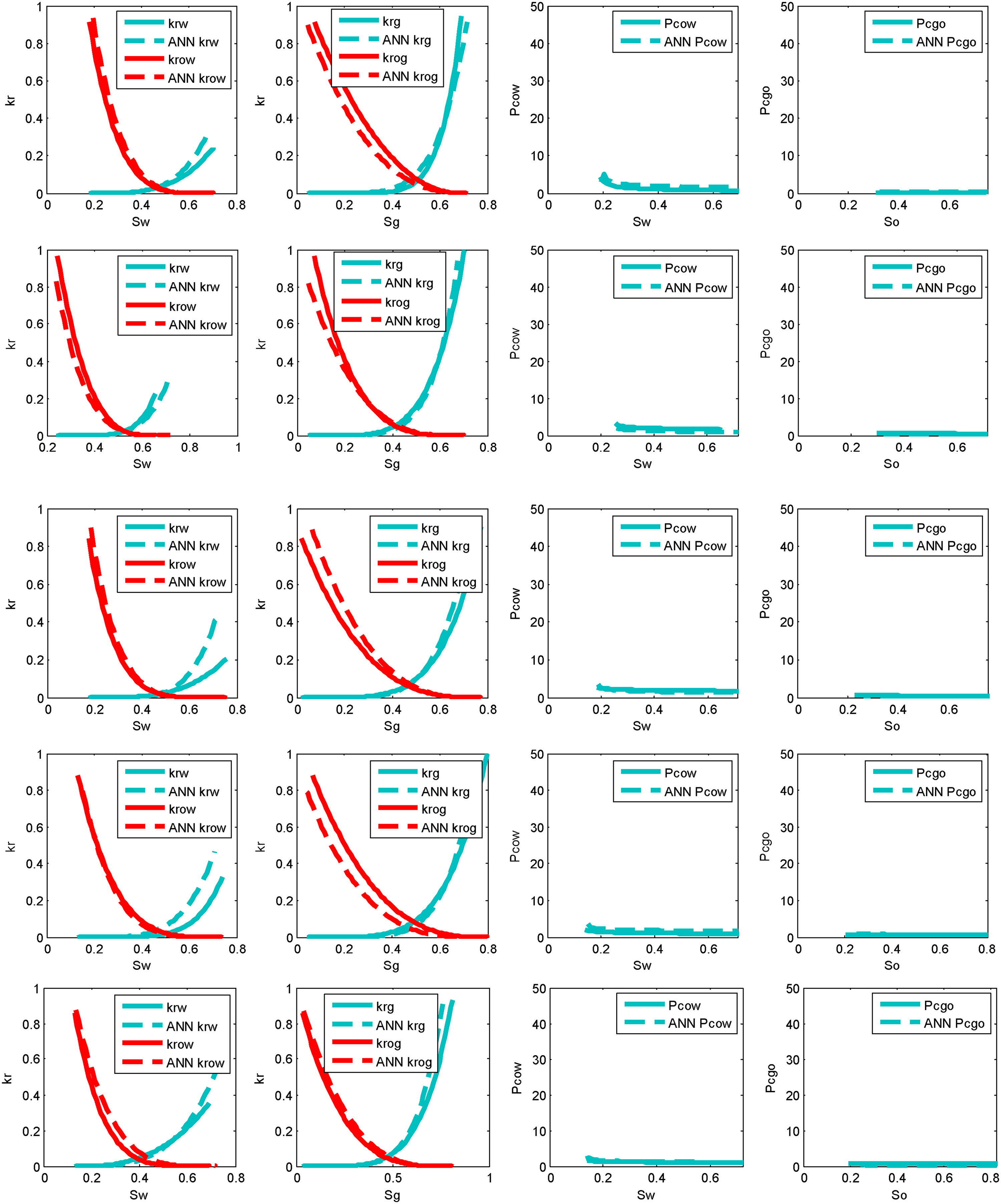

Results of ANN predicted relative permeability and capillary pressure for test cases 1, 2, 3, 4, and 5 in sequence.

Figure 11.

Results of simulated reservoir oil, gas, and water production data using predicted permeability (horizontal and vertical), relative permeability, and capillary pressure compared with those using original reservoir properties for test cases 1, 2, 3, 4, and 5 in sequence.

The comparisons show that the relative permeability curve closely resembles both the capillary pressure curve and the real relative permeability curve. The majority of the test scenarios have similar endpoint relative permeabilities. The relative endpoint saturation error for the water relative permeability curve ranges from −30% to 50%. Between −25% and 30% are the relative errors for the endpoint saturations of the relative permeability curve of oil in the water–oil system. For 87 out of the 95 examples, the relative error for residual gas saturation is between −50% and −50%. For 87 of the 95 cases, the relative permeability curve of water's curvature parameter, or exponent in Corey's model, is between −50% and 50%. Again, the exponent in Corey's model, the curvature parameter for the relative permeability curve of oil in water-oil systems, is between −40% and 50% for 84 of the 95 examples. For 92 out of the 95 examples, the curvature parameter, or exponent, in Corey's model for the relative permeability curve of oil in liquid–gas systems ranges between −30% and 40%. For 88 out of 95 cases, the relative errors of the curvature parameter, or exponent, in Corey's model for the relative permeability curve of gas range from −30% to 40%. Following that, production data is generated using the reservoir models that were built using the projected parameters. To assess the prediction's accuracy, the extracted production data is contrasted with the original production data. Figures 6 to 10 also display a comparison of the output rates for the first five valid test instances. We discovered that, with the exception of four cases, the test cases match in terms of their oil production rates based on comparisons of the production rates for the test cases in these figures. Ten examples reveal an apparent difference in gas rates between the test situations. Half of the cases’ production rates indicate a perfect match between water production rates, while the other half of the cases indicate mismatches.

In some instances, incorrectly anticipated horizontal permeability is the cause of discrepancies between oil production rates and gas production rates. In other instances, the discrepancy between the estimated gas and oil production rates from the updated reservoir models and those from the initial simulations is primarily attributable to incorrect forecasts of the relative permeability curves. The differences in the other circumstances are caused by the combined effects of relative permeability, vertical permeability, and horizontal permeability. An incorrect water relative permeability curve could lead to an imbalance in water production rates. The disparity could potentially be due to incorrect vertical permeability predictions. The inaccurate forecast of horizontal permeability also has an impact on the quality of the production match.

Figures 9 to 11 show the bar plots showing the cumulative relative error in production for the three phases. The relative errors of the non-convergent situations were set to zero. Figures 12 to 14 show the distribution of relative error in cumulative production. The histograms’ horizontal axis ranges must fall between −1 and 1.

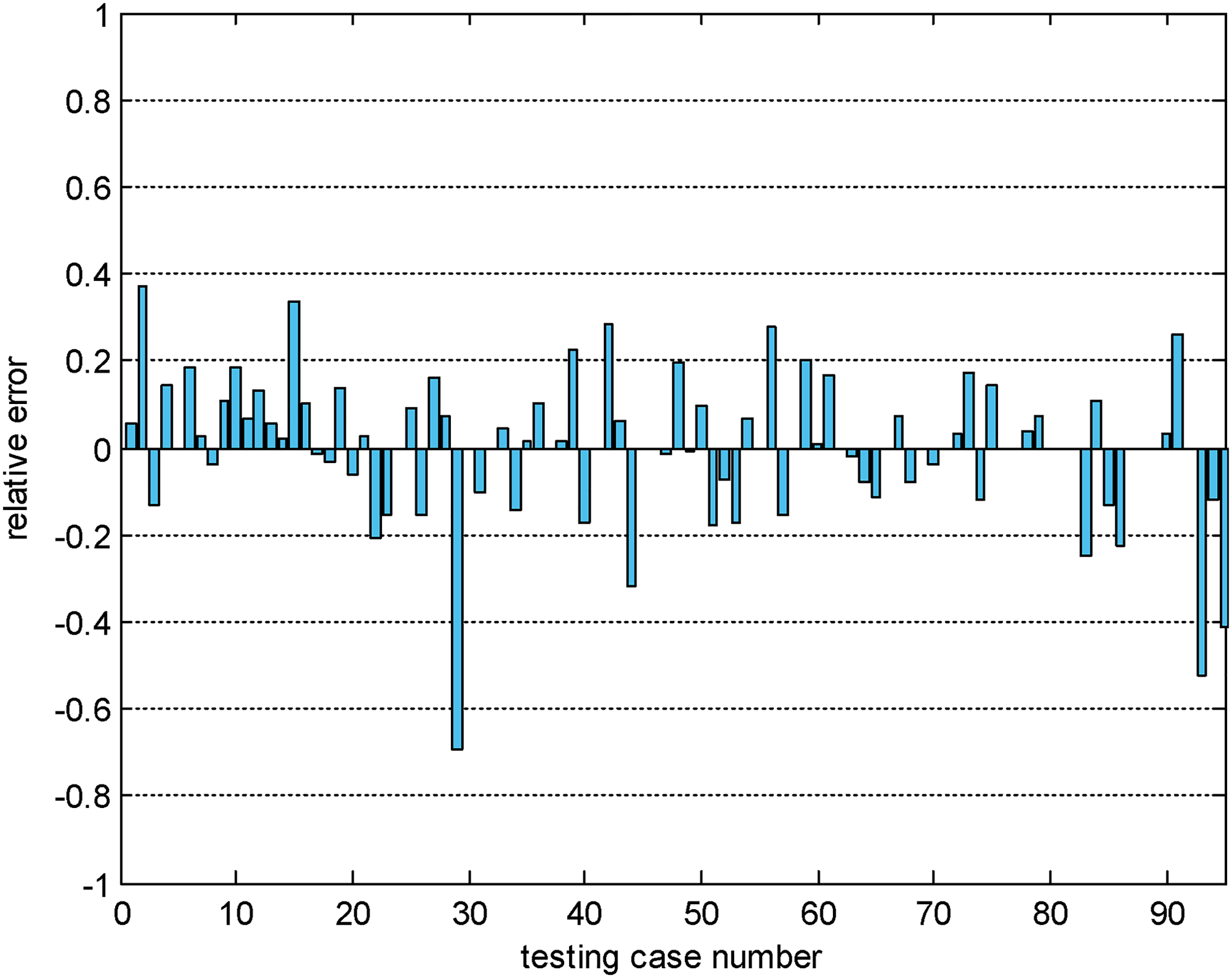

Figure 12.

Relative error of cumulative oil production of test cases.

Figure 13.

Relative error of cumulative gas production of test cases.

Figure 14.

Relative error of cumulative water production of test cases.

In the completed 74 test cases’ simulation running results, 61 reveal relative errors in cumulative oil output between −20% and 20%, excluding the simulation runs that fail to converge. Similar to this, 58 out of 74 test instances show relative inaccuracies in the cumulative output of gas between −20% and 20%. The results of 66 of 74 testing instances point to relative errors in cumulative gas output between −40% and 40%. Moreover, 44 test instances reveal relative errors in cumulative water production between −40% and 40%, while 23 test cases show relative errors in cumulative water production between −20% and 20%. The results of the production profile comparisons allow us to draw the conclusion that the ANN tool is able to forecast petrophysical parameters with a great degree of accuracy. For the majority of test cases, the tool's forecasting ability accurately describes oil and gas production rates. Despite the fact that the water production rates of simulations with predicted parameters are less precise than the oil and gas production rates, the ANN tool is still able to produce correct findings for half of the scenarios.

It should be noted that other than the mean squared error with weighted mean squared weight, mean squared error (MSE) and mean absolute error (MAE) performance functions were also implemented following the training process in order to validate against the training results. The predicted permeability, both horizontal and vertical, from the trained ANN compared against the original values are shown in Figures 15 to 18. The MAE of the predicted horizontal permeability from the network trained using MSE plus mean squared weight is 96.78 md while the MAE of the vertical permeability from the same neural network is 28.2 md. The MAE of the prediction on horizontal permeability from the neural network trained using MSE as the measure for training performance gives an MAE of 66.35 md. The error of predicted vertical permeability by the network generated using the training process using MSE is 10.33 md. Using MAE as the error function of the network training process gives a neural network predicting horizontal permeability with a 55 md MAE and vertical permeability with a 10.46 md MAE. We could observe that the prediction errors with MAE and MSE are lower than those from the network trained with MSE added with a weighted sum of squared weights. This may be due to the reason that weight is not strongly correlated to the accuracy of the prediction results of the petrophysical properties. The error of the horizontal permeability prediction from the ANN trained using MSE as the error function is slightly larger than that obtained from that trained using MAE as the error function. This may be explained using the statement that MAE could more evenly represent the error distributed within the horizontal permeability range. All predictions using the three different kinds of error functions fall into a range that is considered good estimations as the predicted values and the real values are close.

Figure 15.

Distribution of relative error of cumulative oil production of test cases.

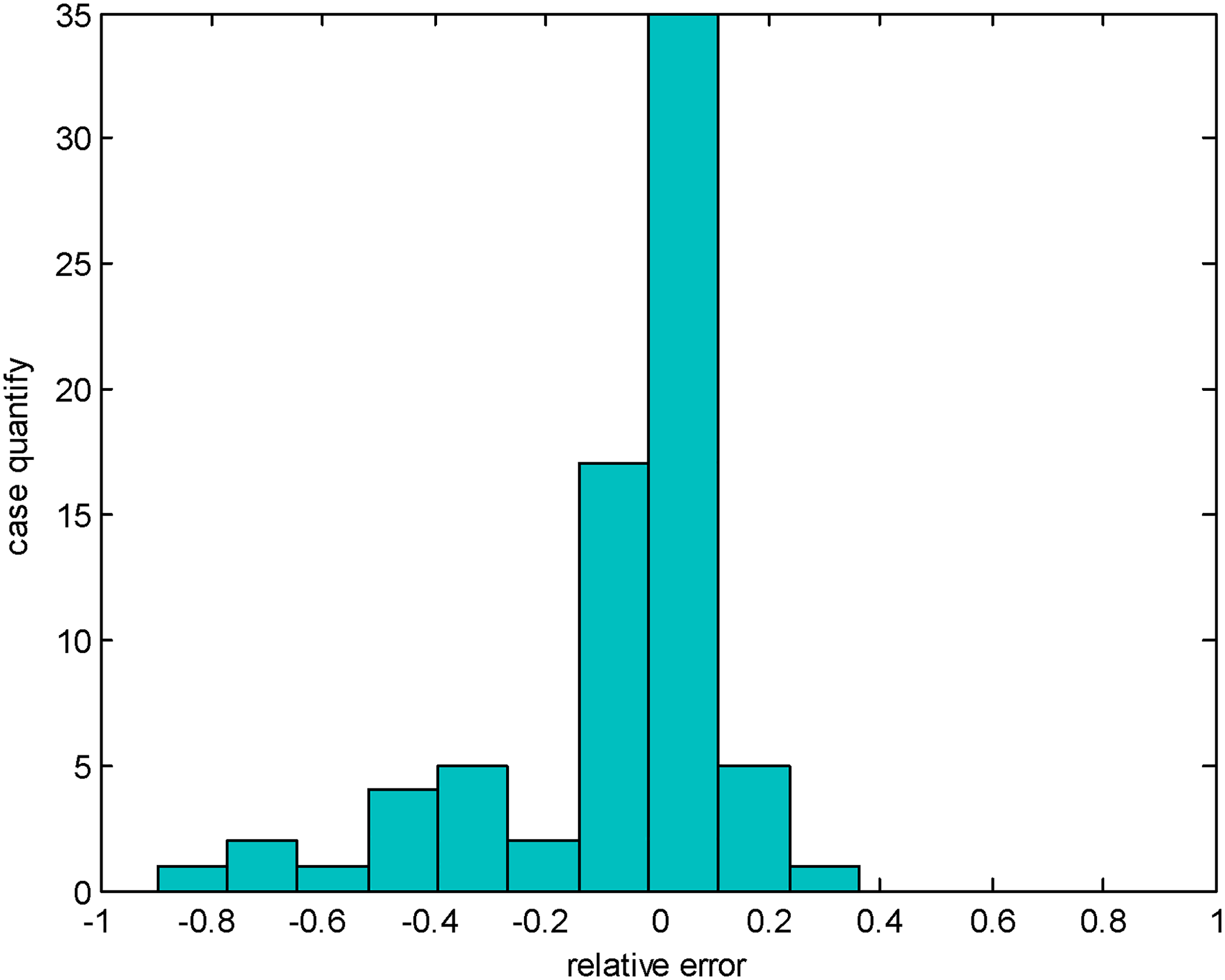

Figure 16.

Distribution of relative error of cumulative gas production of test cases.

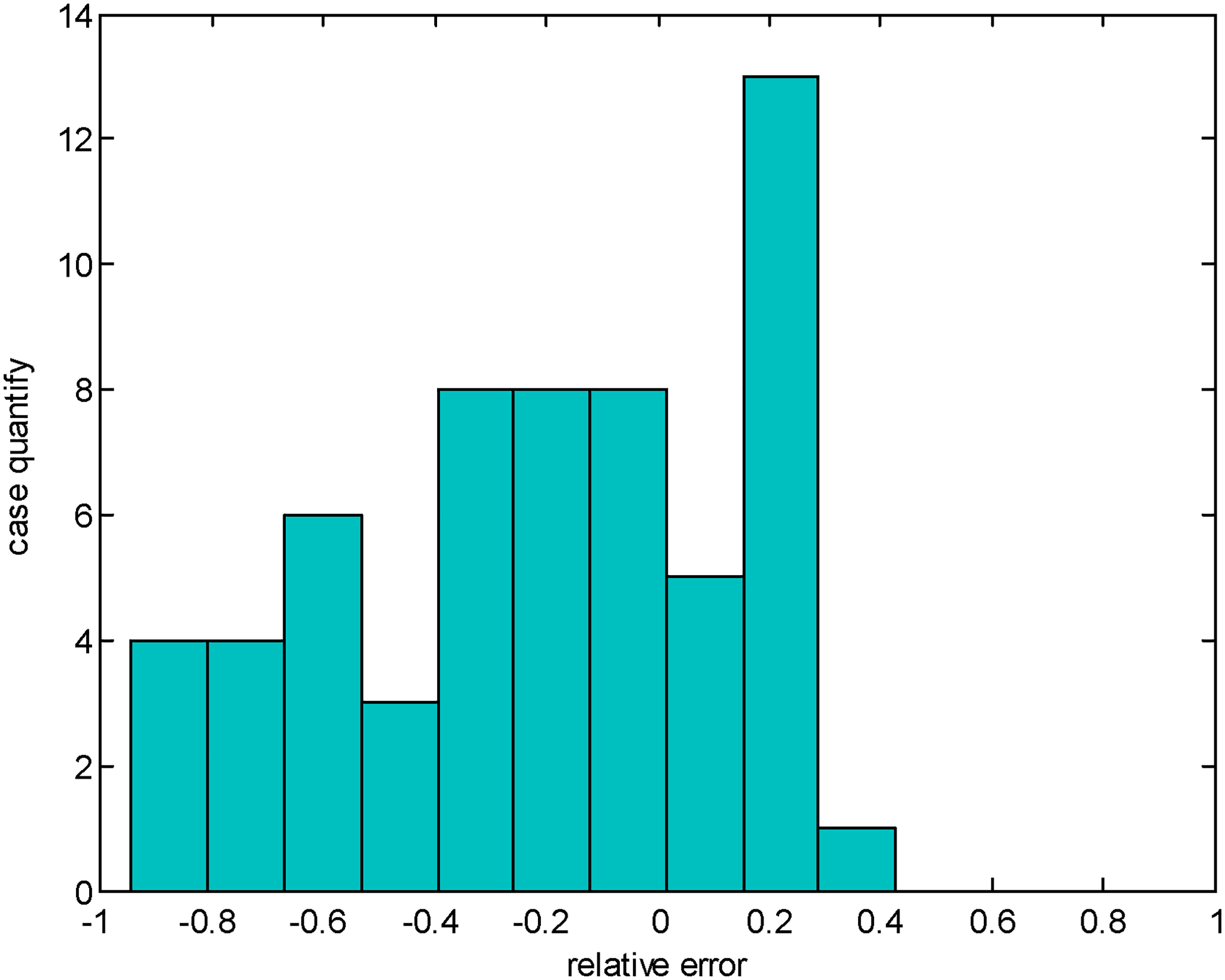

Figure 17.

Distribution of relative error of cumulative water production of test cases.

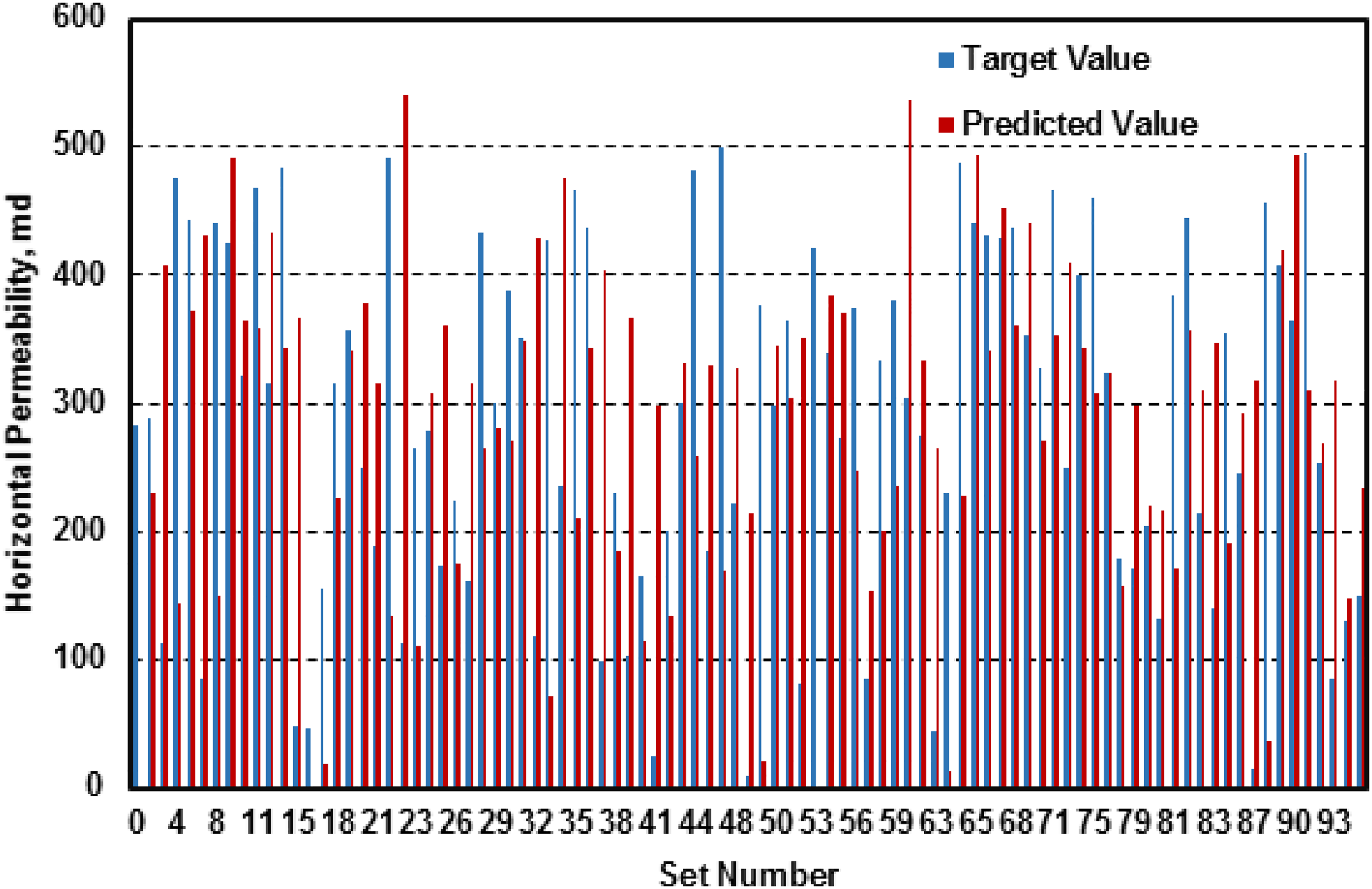

Figure 18.

Horizontal permeability of the testing cases from the network generated from the neural network training process using mean square error as the error function.

Finally, we create a graphical user interface that can be used to forecast petrophysical parameters using the created ANN tool, as shown in Figures 19 to 22.

Figure 19.

Vertical permeability of the testing cases from the network generated from the neural network training process using mean square error as the error function.

Figure 20.

Horizontal permeability of the testing cases from the network generated from the neural network training process using mean absolute error as the error function.

Figure 21.

Vertical permeability of the testing cases from the network generated from the neural network training process using mean absolute error as the error function.

Figure 22.

Implementation of graphical user interface (GUI) for circular volatile-oil reservoir with vertical well.

To enforce the developed permeability and relative permeability predicting software in the real field case, a reservoir engineer is supposed to collect readily available field data and reservoir and fluid properties including reservoir initial pressure, oil density, gas density, formation compressibility, reservoir thickness, reservoir temperature, porosity, perforation location, oil production rates, gas production rates, water production rates, bottomhole pressure, length of the perforated section, initial water saturation, initial oil saturation, gas–oil contact depth, oil–water contact depth, oil composition, gas composition, interaction coefficients, critical pressure, proportionality constant, critical temperature, critical molar volume, and acentric factor. Then the reservoir engineer applies the data to the input section of the software and runs it. Then the reservoir engineer will obtain the permeability, relative permeability, and capillary pressure curve estimation, which the reservoir engineer could use in reservoir simulation studies or rate transient analysis to estimate reserve and forecasting future production. More than this, the researchers, when implementing real field case data in their analytical solutions and reservoir numerical simulations, could use the tool to predict the permeability, relative permeability, and capillary pressure and use the predicted values as initial guess in their analytical solutions and numerical simulation runs data inputs.

It should be realized that this ANN tool for predicting three-phase relative permeability relationship and horizontal and vertical permeability and capillary curves is limited to the application in volatile oil reservoir scenarios without the open outer boundary which ideally should be closed. Also, the fluid properties, permeability, porosity, and thickness should strictly fall within the developer-assigned property range of those values in order for this developed tool to be strictly applicable to the scenario in the case of the tool's application.

Conclusions

In this study, we created an ANN-based expert system to assess the capillary pressure curves and three-phase relative permeability, as well as other petrophysical parameters. Our newly created ANN technology is concentrated on compositional volatile oil reservoirs. In blind tests, the developed tool has been shown to correctly forecast the majority of three-phase relative permeability relationships, capillary-pressure curves, and other petrophysical parameters. The input data can be easily obtained from drilling, completion, well logging, and PVT tests.

A huge number of reservoir models covering a broad range of reservoir and fluid parameters are produced in order to generate the ANNs. The reservoir attributes and production data that were taken from the results were converted into a training data format and applied to the training. A large amount of ANNs were trained and the best-performing network was selected. To evaluate the network's performance, the ANNs were put to the test with blind cases. The best-performing ANN is then selected for use.

After conducting the simulations of the updated models, we substituted the original petrophysical properties with the predicted ones and obtained production data to examine the accuracy of the predicted petrophysical properties for blind test cases. We see a reasonable match between the production profile from the revised model and the outcomes from the previous original model for the vast majority of the testing situations. As a result, we are confident that the trained ANNs can make precise predictions in a range of scenarios. However, there are also instances where expert systems are unable to anticipate an accurate outcome, suggesting that we should use caution while using the ANN.

The ANN predicts residual saturation, critical saturation, and connate water saturation in addition to three-phase relative permeability, capillary pressure, and permeability. The tool offers efficient help with reservoir modeling and history matching. The tool can be used to assess the petrophysical characteristics of the reservoir as the input into analytical/numerical models when history-matching work runs into local minimums.

Additionally, this instrument is a useful source of petrophysical data for the petrophysical characteristics of uncored wells.

Footnotes

Acknowledgements

The authors would like to thank John Yilin Wang, Ming Xiao, and Hamid Emami-Meybodi for their valuable comments throughout the study. The authors would also like to thank Bob Brugman from CMG and Gregory King for their precious help in reservoir simulations.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by The Pennsylvania State University (grant number N/A).

ORCID iD

Zhenzihao Zhang

Notes

Appendix

References

Abou-Kassem

Farouq

Islam

(2006) A Basic Approach to Reservoir Simulation. Houston, Texas: Gulf Publishing Co.

Al-Fattah

Al-Naim

(2009) Artificial intelligence technology predicts relative permeability of giant carbonate reservoirs. SPE Reservoir Evaluation & Engineering 12(01): 96–103.

Alajmi

Ertekin

(2007) The Development of an Artificial Neural Network as a Pressure Transient Analysis Tool for Applications in Double-Porosity Reservoirs. Paper SPE-108604 presented at Asia Pacific oil and gas conference and exhibition held in Jakarta, Indonesia, 30 October–1 November. https://doi.org/10.2118/108604-MS.

Artun

Ertekin

Watson

, et al. (2011a) Development of universal proxy models for screening and optimization of cyclic pressure pulsing in naturally fractured reservoirs. Journal of Natural Gas Science and Engineering 3(6): 667–686.

Artun

Ertekin

Watson

, et al. (2011b) Performance and economic evaluation of cyclic-pressure pulsing in naturally fractured reservoirs. Journal of Canadian Petroleum Technology 50(9/10): 24–36.

Ayala

Ertekin

Adewumi

(2007) Study of gas/condensate reservoir exploitation using neurosimulation. SPE Reservoir Evaluation & Engineering 10(02): 140–149.

Ayala H

Ertekin

(2007) Neuro-simulation analysis of pressure maintenance operations in gas condensate reservoirs. Journal of Petroleum Science and Engineering 58(1–2): 207–226.

Bansal

Ertekin

Karpyn

, et al. (2013) Forecasting Well Performance in a Discontinuous Tight Oil Reservoir Using Artificial Neural Networks. Paper SPE-164542 presented at SPE Unconventional Resources Conference held in Woodlands, Texas, USA, 10 April–12 April. https://doi.org/10.2118/164542-MS.

Beale

Hagan

Demuth

(2010) Neural Network Toolbox 7 User’s Guide, MathWorks.

10.

Blasingame

McCray

Lee

(1991) Decline Curve Analysis for Variable Pressure Drop/Variable Flowrate Systems. Paper SPE-21513 presented at SPE Gas Technology Symposium held in Houston, Texas, USA, 22 January–24 January. https://doi.org/10.2118/21513-MS.

11.

Brooks

Corey

(1966) Properties of porous media affecting fluid flow. Journal of the Irrigation and Drainage Division 92(2): 61–90.

12.

Buckley

Leverett

(1942) Mechanism of fluid displacement in sands. Transactions of the AIME 146(01): 107–116.

13.

Crotti

Rosbaco

(1998) Relative Permeability Curves: The Influence of Flow Direction and Heterogeneities. Paper SPE-39657 presented at SPE/DOE Improved Oil Recovery Symposium held in Tulsa, Oklahoma, USA, 19–22 April. https://doi.org/10.2118/39657-MS.

14.

Danesh

(1998) PVT and Phase Behaviour of Petroleum Reservoir Fluids, first edition Amsterdam: Elsevier.

15.

Davies

(1991) Evaluation of the Role of Threshold Pressure in Controlling Flow of Waste-Generated Gas Into Bedded Salt at the Waste Isolation Pilot Plant, Sandia Rep. SAND 90-3246, Sandia National Laboratories Albuquerque, New Mexico.

16.

Enab

Ertekin

(2014) Artificial neural network based design for dual lateral well applications. Journal of Petroleum Science and Engineering 123: 84–95.

17.

Enyioha

Ertekin

(2014) Advanced Well Structures: An Artificial Intelligence Approach to Field Deployment and Performance Prediction. Paper presented at SPE Intelligent Energy International held in Utrecht, Netherlands, 1–3 April.

18.

Fetkovich

(1980) Decline curve analysis using type curves. Journal of Petroleum Technology 32(06): 1065–1077.

19.

Gang

Kelkar

(2007) A More General Capillary Pressure Curve and Its Estimation From Production Data. Paper SPE-108180 Presented at Rocky Mountain Oil & Gas Technology Symposium held in Denver, Colorado, USA, 16–18 April. https://doi.org/10.2118/108180-MS.

20.

Goodfield

Goodyear

Townsley

(2001) New Coreflood Interpretation Method for Relative Permeabilities Based on Direct Processing of In-Situ Saturation Data. Paper SPE-71490 presented at SPE Annual Technical Conference and Exhibition held in New Orleans, Louisiana, USA, 30 Semptermber–3 October. https://doi.org/10.2118/71490-MS.

21.

Gorucu

Ertekin

Bromhal

, et al. (2005) A Neurosimulation Tool for Predicting Performance in Enhanced Coalbed Methane and CO2, Sequestration Projects. Paper SPE-97164 presented at SPE Annual Technical Conference and Exhibition held in Dallas, Texas USA, 9–12 October. https://doi.org/10.2118/97164-MS.

22.

Guler

Ertekin

Grader

(2003) An artificial neural network based relative permeability predictor. Journal of Canadian Petroleum Technology 42(04): 49–57.

23.

Heaviside

Black

CJJ

(1983) Fundamentals of Relative Permeability: Experimental and Theoretical Considerations. Paper SPE-12173 presented at the SPE Annual Technical Conference and Exhibition held in San Francisco, California, USA, 5–8 October. https://doi.org/10.2118/12173-MS.

24.

Helset

Nordtvedt

Skjaeveland

, et al. (1998) Three-phase relative permeabilities from displacement experiments with full account for capillary pressure. SPE Reservoir Evaluation & Engineering 1(02): 92–98.

25.

Hong

(1982) Lumped-Component Characterization of Crude Oils for Compositional Simulation. Paper SPE-10691 presented at SPE Enhanced Oil Recovery Symposium held in Tulsa, Oklahoma, USA, 4–7 April. https://doi.org/10.2118/10691-MS.

26.

Hornik

(1989) Multilayer feedforward networks are universal approximators. Neural Networks 2(5): 359–366.

27.

Hustad

Holt

(1992) Gravity Stable Displacement of Oil by Hydrocarbon Gas After Waterflooding. Paper SPE-24116 presented at SPE/DOE Enhanced Oil Recovery Symposium held in Tulsa, Oklahoma, USA, 22–24 April. https://doi.org/10.2118/24116-MS.

28.

Islam

Bentsen

(1986) A dynamic method for measuring relative permeability. Journal of Canadian Petroleum Technology 25(01): 39–50.

29.

Johnson

Bossler

Neumann

(1959) Calculation of relative permeability from displacement experiments. Trans. AIME 216: 370–372.

30.

Jones

Roszelle

(1978) Graphical techniques for determining relative permeability from displacement experiments. Journal of Petroleum Technology 30(05): 807–817.

31.

Kalbus

Christiansen

(1995) New Data Reduction Developments for Relative Permeability Determination. Paper SPE-30799 presented at the SPE Annual Technical Conference and Exhibition held in Dallas, Texas, USA, 22–25 October. https://doi.org/10.2118/30799-MS.

32.

Horne

(2002) Experimental Verification of Methods to Calculate Relative Permeability Using Capillary Pressure Data. Paper SPE-76757 presented at SPE Western Regional/AAPG Pacific Section Joint Meeting held in Anchorage, Alaska, USA, 20–22 May. https://doi.org/10.2118/76757-MS.

33.

Marle

(1981) Multiphase Flow in Porous Media. Paris: Editions Technip.

34.

Masoudi

Arbab

Mohammadrezaei

(2014) Net pay determination by artificial neural network: Case study on Iranian offshore oil fields. Journal of Petroleum Science and Engineering 123: 72–77.

35.

Masoudi

Tokhmechi

Jafari

, et al. (2012) Application of fuzzy classifier fusion in determining productive zones in oil wells. Energy Exploration & Exploitation 30(3): 403–415.

36.

Olufemi

Ertekin

Smith

, et al. (2004) Carbon Dioxide Sequestration in Coal Seams: A Parametric Study and Development of a Practical Prediction/Screening Tool Using Neuro-Simulation. Paper SPE-90055 presented at SPE Annual Technical Conference and Exhibition held in Houston, Texas, USA, 26–29 September. https://doi.org/10.2118/90055-MS.

37.

Parada

Ertekin

(2012) A New Screening Tool for Improved Oil Recovery Methods Using Artificial Neural Networks. Paper SPE-153321 presented at SPE Western Regional Meeting held in Bakersfield, California, USA, 21–23 March. https://doi.org/10.2118/153321-MS.

38.

Purcell

(1949) Capillary pressures-their measurement using mercury and the calculation of permeability therefrom. Journal of Petroleum Technology 1(02): 39–48.

39.

Ramgulam

Ertekin

Flemings

(2007) An Artificial Neural Network Utility for the Optimization of History Matching Process. Paper SPE-107468 presented at Latin American & Caribbean Petroleum Engineering Conference held in Buenos Aires, Argentina, 15–18 April. https://doi.org/10.2118/107468-MS.

40.

Ruth

Nikakhtar

Wong

, et al. (1988) The Analysis of Laboratory Fluid/Flow Displacement Data to Obtain Relative Permeability Curves. Paper PETSOC-88-39-25 presented at Annual Technical Meeting held in Calgary, Alberta, Canada, 12–16 June. https://doi.org/10.2118/88-39-25.

41.

Sahimi

(2011) Flow and Transport in Porous Media and Fractured Rock: From Classical Methods to Modern Approaches. Weinheim: Wiley-VCH.

42.

Sarma

Maini

Purves

, et al. (1994) A laboratory investigation of the pseudo relative permeability characteristics of unstable immiscible displacements. Journal of Canadian Petroleum Technology 33(01): 42–49.

43.

Siddiqui

Yang

Ahmed

(1998) Dynamic Displacement Measurement of Three-Phase Relative Permeabilities in Berea Sandstone Cores. Paper SPE-49306 presented at the SPE Annual Technical Conference and Exhibition held in New Orleans, Louisiana, USA, 27–30 September. https://doi.org/10.2118/49306-MS.

44.

Sigmund

McCaffery

(1979) An improved unsteady-state procedure for determining the relative-permeability characteristics of heterogeneous porous media (includes associated papers 8028 and 8777). SPE Journal 19(01): 15–28.

45.

Silpngarmlers

Guler

Ertekin

, et al. (2002) Development and testing of two-phase relative permeability predictors using artificial neural networks. SPE Journal 7(03): 299–308.

46.

Siripatrachai

Rana

Bodipat

, et al. (2014) An Effective Coupling of Type Curves and Expert Systems for Evaluating Multi-Stage Hydraulically Fractured Horizontal Wells in Composite Dual-Porosity Shale Gas Reservoirs. Paper SPE-170963 presented at the SPE Annual Technical Conference and Exhibition held in Amsterdam, the Netherlands. 27–29 October. https://doi.org/10.2118/170963-MS.

47.

Stone

(1970) Probability model for estimating three-phase relative permeability. Journal of Petroleum Technology 22(02): 214–218.

48.

Stone

(1973) Estimation of three-phase relative permeability and residual oil data. Journal of Petroleum Technology 12(4): 53–61.

49.

Sun

Ertekin

(2012) Design of Multiple Brine Producer/Injector Configurations to Increase Carbon Dioxide Injectivity in Saline Formations. Presented at AIChE Annual Meeting held in Pittsburgh, Pennsylvania, USA, 28 October–2 November.

50.

Sun

Ertekin

(2017) Structuring an artificial intelligence based decision making tool for cyclic steam stimulation processes. Journal of Petroleum Science and Engineering 154: 564–575.

51.

Sun

Ertekin

(2018) Development and Application of an Artificial-Neural-Network Based Expert System for Screening and Optimization of Polymer Flooding Projects. Paper SPE-192236 presented at SPE Kingdom of Saudi Arabia Annual Technical Symposium and Exhibition held in Dammam, Saudi Arabia, 23–26 April. https://doi.org/10.2118/192236-MS.

52.

Sun

Huang

Wang

, et al. (2023) Hydrogen adsorption in nanopores: Molecule-wall interaction mechanism. International Journal of Hydrogen Energy 48(86): 33496–33508.

53.

Sun

Liu

, et al. (2020) Molecular dynamics of methane flow behavior through realistic organic nanopores under geologic shale condition: Pore size and kerogen types. Chemical Engineering Journal 398: 124341. DOI: https://doi.org/10.1016/j.cej.2020.124341.

54.

Sun

Wang

Xiong

, et al. (2022) Optimal nanocone geometry for water flow. AIChE Journal 68(3). https://doi.org/doi:10.1002/aic.17543.

55.

Toth

Bodi

Szucs

, et al. (2001) Direct Determination of Relative Permeability from Nonsteady-State Constant Pressure and Rate Displacements. Paper SPE-67318 presented at Oklahoma City, Oklahoma, USA, 24–27 March. https://doi.org/10.2118/67318-MS.

56.

Wattenbarger

El-Banbi

Villegas

, et al. (1998) Production Analysis of Linear Flow into Fractured Tight Gas Wells. Paper SPE-39931 presented at SPE Rocky Mountain Regional/Low-Permeability Reservoirs Symposium held in Denver, Colorado, 5–8 April. https://doi.org/10.2118/39931-MS.

57.

Welge

(1952) A simplified method for computing oil recovery by gas or water drive. Journal of Petroleum Technology 4(04): 91–98.

58.

Whitson

(1983) Characterizing hydrocarbon plus fractions. SPE Journal 23(04): 683–694.

59.

Zhang

(2017) Predicting Petrophysical Properties from Rate-Transient Data: An Artificial Intelligence Application. PhD dissertation, The Pennsylvania State University, State College, Pennsylvania.

60.

Zhang

Ayala H

(2016) Decline curve analysis using a pseudo-pressure-based interporosity flow equation for naturally fractured gas reservoirs. Journal of Petroleum Exploration and Production Technology 7(2): 555–567.

61.

Zhang

Ayala H

(2017) Production data analysis for dual-porosity gas/liquid systems: A density-based approach. Journal of Natural Gas Science and Engineering 46: 143–159.

62.

Zhang

Ayala H

(2018) Analytical dual-porosity gas model for reserve evaluation of naturally fractured gas reservoirs using a density-based approach. Journal of Natural Gas Science and Engineering 59: 224–236.

63.

Zhang

Ertekin

(2021) Proxy models for evaluation of permeability, three-phase relative permeability, and capillary pressure curves from rate-transient data. Simulation 97(2): 109–133.
