Solar drying of oregano leaves ( Plectranthus amboinicus,Lour): Analysis of experimental performance under a tropical climate

Abstract

Despite the multiple applications of the oregano (Plectranthus amboinicus (Lour)), an important herbaceous plant because of its medicinal and culinary properties, limited research has been conducted on this species’ solar drying. Thus, the experimental drying of oregano leaves in a tropical climate was performed using direct and indirect solar drying and an electric oven in this research work. Also, mathematical modeling of the drying process, moisture diffusivity, activation energy, and colorimetric analysis (as a quality parameter) were accomplished to complement the experimental evaluation and understand the drying process behavior. The results show a shorter drying time obtained with the electric oven with 210 min reached at 65°C; however, the minimum solar drying time (250 min) was achieved with a maximum drying rate of 0.025 g water/g dry matter per minute and minimum final moisture between 0.28 and 0.13 g water/g dry matter was obtained with indirect solar dryer. Moreover, the models that better represented the experimental data were Modified Page, Page, and Logarithmic, with a maximum value of R² obtained of 0.9980 corresponding to the Logarithmic model. Furthermore, a maximum effective diffusivity value of 1.81E-9 was obtained with direct solar dryer natural convection, while for the electric oven, were 1.14E-10, 2.280E-10, and 1.026E-09 for 45, 55, and 65°C, respectively. The activation energy for water diffusion in oregano leaves was 55.66 and 97.78 kJ/g mol for solar dryers and electric ovens, respectively, which were values very close to those reported in the literature. Finally, the colorimetric analysis exhibited a minimum color change value of 17.1 obtained for the indirect solar dryer, allowing better oregano preservation and maintaining its quality for the market, which makes it ideal for drying oregano in tropical climates and promotes solar drying use for sustainable growth of the region.

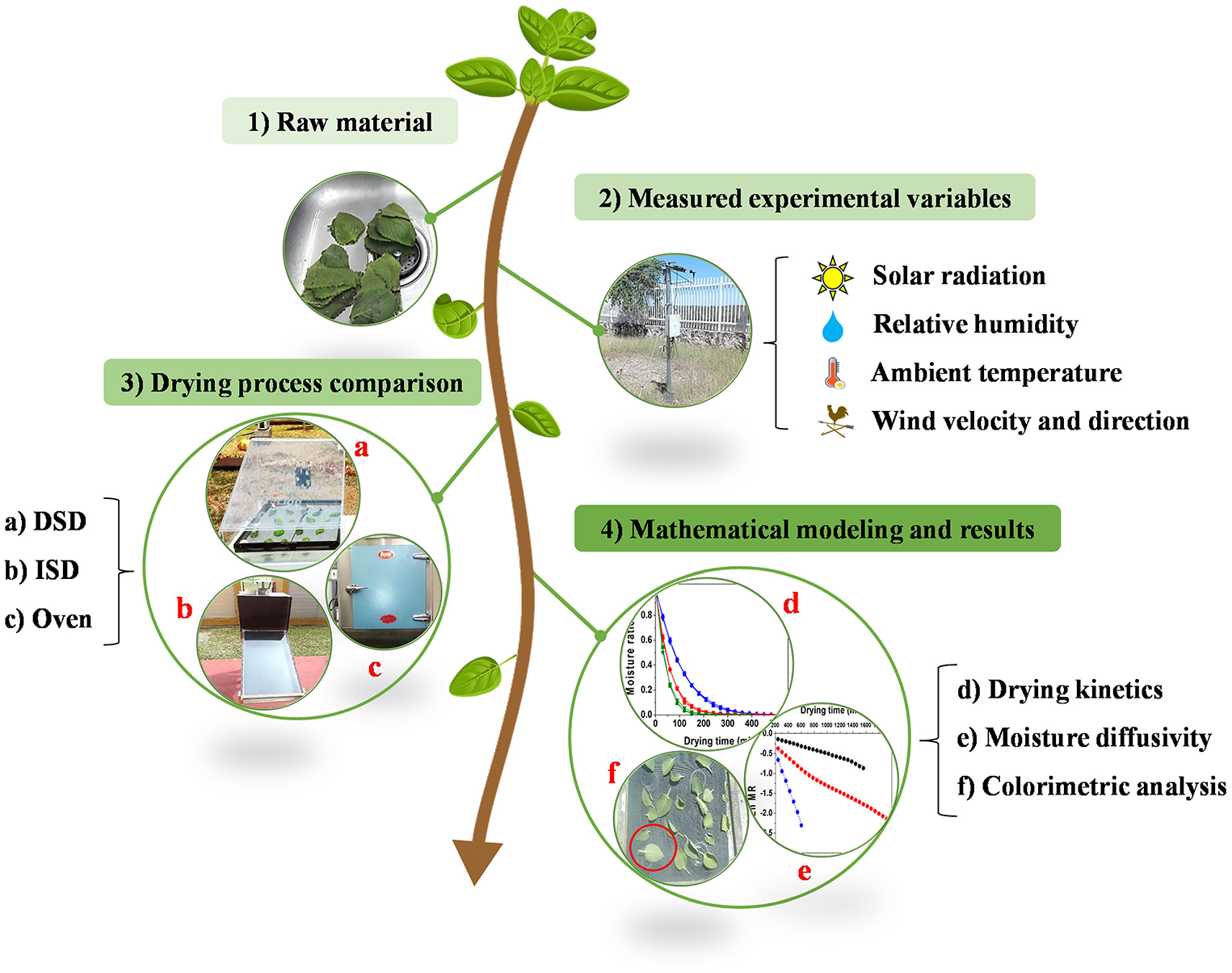

Graphical abstract

This is a visual representation of the abstract.

Keywords

Solar drying technologies activation energy kinetics and modeling colorimetry study sustainable agriculture

Introduction

The genus Plectranthus amboinicus (Lour.), which comprises approximately 300 species, is found in tropical Africa, Asia, and Australia. It is a perennial and fragrant plant with robust, plump leaves. This plant is known in other parts of the world as French Oregano, Mexican mint, Indian oregano, and width oregano (Faisal et al., 2023). Moreover, its worldwide commercial value is primarily attributed to its medicinal, antibacterial, antifungal, antiparasitic, antimicrobial, and antioxidant properties (Stasińska-Jakubas et al., 2023). Some components of this plant, such as thymol and carvacrol, are widely used as food ingredients and additives and in other applications in the food, pharmaceutical, and perfumery industries (Sulaiman et al., 2018). Mexico is one of oregano's leading exporters, representing 35–40% of the international market (García-Bores et al., 2017). Different drying technologies have emerged to accomplish this purpose and have been investigated to ensure a continuous process (Cetina-Quiñones et al., 2021). Drying is the most used treatment to inhibit microbial growth and prevent specific biochemical changes (Jafari and Malekjani, 2023). Open sun drying has been used within these techniques and represents an ancient practice utilized in many regions of the world to preserve food. It is favored because of its low operating costs compared to mechanized processes. However, although open-sun drying is considered a non-polluting method, it has inherent limitations, such as high dependency on weather conditions, plant loss of color due to excessive exposure to ultraviolet rays, and moisture absorption during the night with contamination for dust and insects. These limitations can significantly affect the products’ quality and market value (Tomar et al., 2017). Furthermore, some traditional drying methods provide hot air for drying materials by burning fossil fuels or wood, which not only intensifies environmental pollution and energy shortage but also negatively impacts the drying materials’ quality (Deng et al., 2021). Therefore, increasing attention has been paid to solar dryer use which can offer faster drying processes with uniform, hygienic, and effective drying than traditional methods, resulting in better color and texture (Chan-Gonzálelz et al., 2021). Solar dryers can be classified as direct, indirect, or mixed/hybrid, and this classification primarily considers the aspect of drying a product under direct/indirect exposure to solar insolation (Mohana et al., 2020). The product is exposed to incident sunlight in a direct solar dryer through a transparent cover (Ameri et al., 2018). This type of solar dryer has been used for drying fruits, vegetables, and meat where the moisture content is high because it ensures a fast drying process but compromises the quality of the product (Kumar et al., 2016). These limitations can be overcome with an indirect-type solar dryer since the drying product is not exposed to direct radiation, but rather the heated air from the solar collector dries the product by removing moisture, and more heat transfer can be controlled (Singh et al., 2021). Finally, mixed-type solar dryers combine the principles of direct and indirect solar dryers, where the air is heated by the solar collector, which flows in natural or forced convection into a transparent drying chamber (López-Vidaña et al., 2020). Therefore, many researchers in the field have reported a wide variety of solar drying technologies, including direct, indirect, and hybrid solar driers (Castillo-Téllez et al., 2021; Khalfaoui et al., 2021; López-Vidaña et al., 2022; Simo-Tagne and Ndukwu, 2021). Moreover, there are other studies on the drying processes optimization to examine the drying kinetics behavior and evaluate the mathematical models developed to dry various products such as cocoa bean, mentha, valeriana jatamansi, Jamaica's flowers (Hibiscus sabdariffa), chile, rosemary (Rosmarinus officinalis), fine herbs, and medicinal plants (Bhardwaj et al., 2019; García-Valladares et al., 2023; Simo-Tagne et al., 2021, 2022). Regarding medicinal plants, a wide variety of different studies have been performed in recent years, such as the drying of horehound leaves (Marrubium vulgare L.) (Bahammou et al., 2019), rupturewort (Herniaria hirsuta) (Bahammou et al., 2020), stevia leaves (Hidar et al., 2020), Trigonella foenum-graecum (Singh et al., 2021), and Tithonia diversifolia gray (Constantino-Robles et al., 2022). Despite the wide range of its applications as an herbaceous plant with great commercial importance in culinary and industrial matters, limited research has been conducted on the solar drying of Oregano P. amboinicus (Lour.) species. The dehydrating methods currently used to dry Oregano plants include natural open drying and mechanical drying using propane gas and heat pumps (Vel and Acevedo, 2014). Also, drying in vacuum ovens (Hossain et al., 2010), microwaves (Jaloszynski et al., 2008; Śledź et al., 2013), and natural convection indirect solar (Avila-Sosa et al., 2012; Zimberg et al., 2000). Also, in regions with tropical climates, solar dryers represent a suitable option, and lower capital and operating costs can be obtained compared to conventional dryers (Moheno-Barrueta et al., 2021).

Unfortunately, there is a lack of studies on the solar drying of Oregano species reported in the current literature (Bergues-Ricardo et al., 2013; Nurafifah et al., 2018). There is an opportunity gap related to comparative studies of different drying technologies, a kinetic modeling study that complements the experimental results, and colorimetric studies. Therefore, Table 1 presents a qualitative analysis of recent experimental and theoretical studies on solar dryers. These research studies are categorized based on different aspects, considering a comparative study of other solar dryer technologies, kinetic modeling of the drying process, and a color assessment. Specifically, the colorimetric study is highly relevant in any drying process since it presents areas of opportunity where the drying process can be optimized based on the color of a sample, which allows the development of artificial intelligence applications through the development of sensors for the optimization of the drying process.

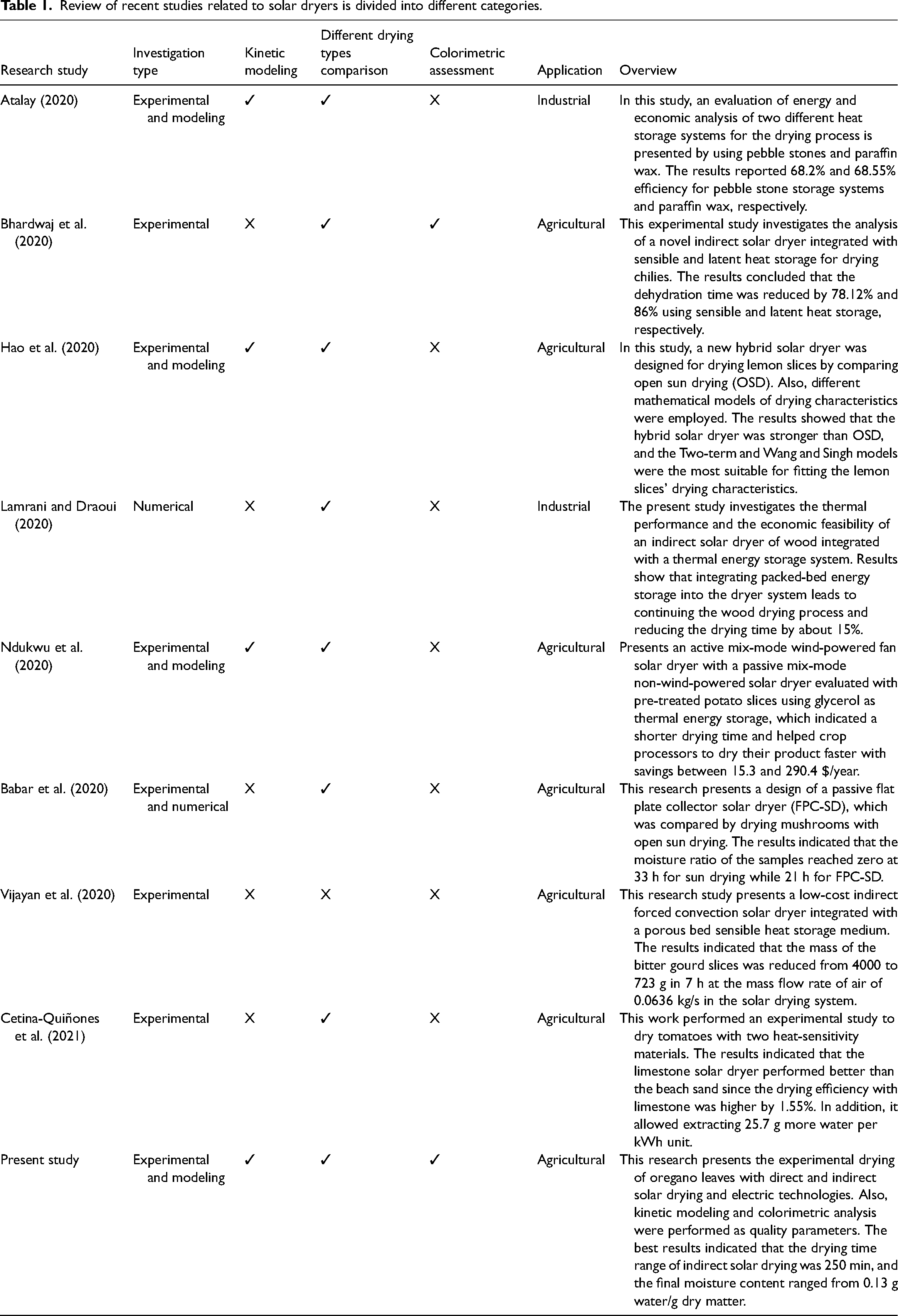

Table 1.

Review of recent studies related to solar dryers is divided into different categories.

Research study	Investigation type	Kinetic modeling	Different drying types comparison	Colorimetric assessment	Application	Overview
Atalay (2020)	Experimental and modeling	✓	✓	X	Industrial	In this study, an evaluation of energy and economic analysis of two different heat storage systems for the drying process is presented by using pebble stones and paraffin wax. The results reported 68.2% and 68.55% efficiency for pebble stone storage systems and paraffin wax, respectively.
Bhardwaj et al. (2020)	Experimental	X	✓	✓	Agricultural	This experimental study investigates the analysis of a novel indirect solar dryer integrated with sensible and latent heat storage for drying chilies. The results concluded that the dehydration time was reduced by 78.12% and 86% using sensible and latent heat storage, respectively.
Hao et al. (2020)	Experimental and modeling	✓	✓	X	Agricultural	In this study, a new hybrid solar dryer was designed for drying lemon slices by comparing open sun drying (OSD). Also, different mathematical models of drying characteristics were employed. The results showed that the hybrid solar dryer was stronger than OSD, and the Two-term and Wang and Singh models were the most suitable for fitting the lemon slices’ drying characteristics.
Lamrani and Draoui (2020)	Numerical	X	✓	X	Industrial	The present study investigates the thermal performance and the economic feasibility of an indirect solar dryer of wood integrated with a thermal energy storage system. Results show that integrating packed-bed energy storage into the dryer system leads to continuing the wood drying process and reducing the drying time by about 15%.
Ndukwu et al. (2020)	Experimental and modeling	✓	✓	X	Agricultural	Presents an active mix-mode wind-powered fan solar dryer with a passive mix-mode non-wind-powered solar dryer evaluated with pre-treated potato slices using glycerol as thermal energy storage, which indicated a shorter drying time and helped crop processors to dry their product faster with savings between 15.3 and 290.4 $/year.
Babar et al. (2020)	Experimental and numerical	X	✓	X	Agricultural	This research presents a design of a passive flat plate collector solar dryer (FPC-SD), which was compared by drying mushrooms with open sun drying. The results indicated that the moisture ratio of the samples reached zero at 33 h for sun drying while 21 h for FPC-SD.
Vijayan et al. (2020)	Experimental	X	X	X	Agricultural	This research study presents a low-cost indirect forced convection solar dryer integrated with a porous bed sensible heat storage medium. The results indicated that the mass of the bitter gourd slices was reduced from 4000 to 723 g in 7 h at the mass flow rate of air of 0.0636 kg/s in the solar drying system.
Cetina-Quiñones et al. (2021)	Experimental	X	✓	X	Agricultural	This work performed an experimental study to dry tomatoes with two heat-sensitivity materials. The results indicated that the limestone solar dryer performed better than the beach sand since the drying efficiency with limestone was higher by 1.55%. In addition, it allowed extracting 25.7 g more water per kWh unit.
Present study	Experimental and modeling	✓	✓	✓	Agricultural	This research presents the experimental drying of oregano leaves with direct and indirect solar drying and electric technologies. Also, kinetic modeling and colorimetric analysis were performed as quality parameters. The best results indicated that the drying time range of indirect solar drying was 250 min, and the final moisture content ranged from 0.13 g water/g dry matter.

Another essential parameter in the drying process is the effective moisture diffusivity (D_eff) related to the mass transfer and functions of the structure, water content, and temperature. D_eff includes all types of water transport, which is very accepted in modeling (Castro et al., 2018). Moreover, it is determined using experimental data, usually applying the Arrhenius-type equation. Combined with an analytical, thin-layer solution of this drying curve, the experimental moisture loss curve, based on Fick's law and the Crank solution, is utilized (Crank, 1975) for different geometries accounting only for axial or radial moisture diffusion. The effective diffusivity dependence on the moisture content is also applied in an Arrhenius-modified equation to obtain the activation energy (Váquiro et al., 2009). The activation energy is the minimum amount of power supplied to carry out the drying process so the water molecules overcome the energy obstacle during their transfer through the surface. Thus, a low value indicates that less energy is required to remove moisture from the product.

The drying process determines the food's final sensory and nutritional properties. Therefore, its selection is vital to optimize times and improve economic gains with products with the required quality. In this study, Oregano P. amboinicus (Lour.) was dried in a tropical climate using different technologies, comparing the products drying behavior, kinetics, and properties, offering an option to use clean and free solar energy instead of conventional sources.

Materials and methods

Experiments were performed to review the kinetics of oregano drying. Direct and indirect solar dryers and electric ovens were used. Water activity, humidity content, and colorimetric studies were conducted before and after treatment. Also, with the experimental data obtained, an adjustment of moisture ratio (MR) was made with some empirical and theoretical mathematical models, allowing the prediction of the drying behavior. Additionally, water diffusivity and activation energy were determined. This study was conducted at the Environmental Engineering Laboratory in the Autonomous University of Guadalajara Campus Tabasco, Mexico, with coordinates 17°59′13′′ N and 92°55′10′′ W. This site has a tropical wet-dry climate. The maximum average temperature is 27°C and 74% of the annual average relative humidity. The global average annual solar radiation value is 5.8 kWh/m²/day, and the experimentation was carried out from July 1 through September 30, 2020.

Raw material

P. amboinicus (Lour.), cultivated in Macuspana, Tabasco, was chosen for the experimental test. The leaves were separated from the branches to obtain a homogeneous group, considering ripeness and color, and then their width, length, and thickness were weighed and measured. The leaves’ average size was 6, 4, and 0.15 cm, corresponding to length, width, and thickness.

Methodology

Monitoring

Operating data

The initial and final moisture content was determined with a moisture balance, Boeco BMA150 (accuracy = 0.001%), using a sample of 1.5 g of weighing. The water activity was tested in fresh and dried oregano samples with a water activity meter, Rotronic HygroPalm, with an accuracy of ±0.001 a _W . The drying chambers’ humidity and temperature were measured with a thermo-hygrometer Brannan (accuracy of ±3% and ±1°C, respectively). A Boeco balance, model BPS40plus, with an accuracy of ±0.001 g, was used to measure the samples’ weights. A digital colorimeter (Huanyu model SC-10), ΔE* was used to perform color measurement tests on fresh and dehydrated samples.

Weather data

The climatic parameters were documented. Table 2 presents the measuring instruments used in the weather station.

Table 2.

Measuring instruments details of the weather station.

Variable	Description	Model	Accuracy
Global solar irradiance	LI-COR Pyranometer	LI-200R	Azimuth: ± 1% at 360° to 45° of elevation
Relative humidity	NRG Systems	RH-5X	± 3%
Ambient temperature	NRG Systems	110S	± 1.1°C
Wind velocity and direction	Wind sensor NRG Systems	P2546C-OPR Series #200P	± 0.3 m/s ± 3°

Solar drying

Two solar drying technologies were selected: direct drying (cabinet-type dryer and shadow-mesh) and indirect drying with a flat plate solar collector.

Direct solar drying

A transparent plastic cabin was used for direct solar drying (DSD). The base was utilized to place the material to dry, and its surface has an area of 0.56 m². The lateral faces, the cover, and the rear holes were made to promote the flow and removal of warm and humid air. A fan reaching 2 m/s maximum air velocity was placed at the dryer's back to dry with natural or forced convection. The interior temperature, the weight loss in the oregano samples, the irradiance, relative humidity, and air temperature were reported. Figure 1 represents the schematic illustration of DSD.

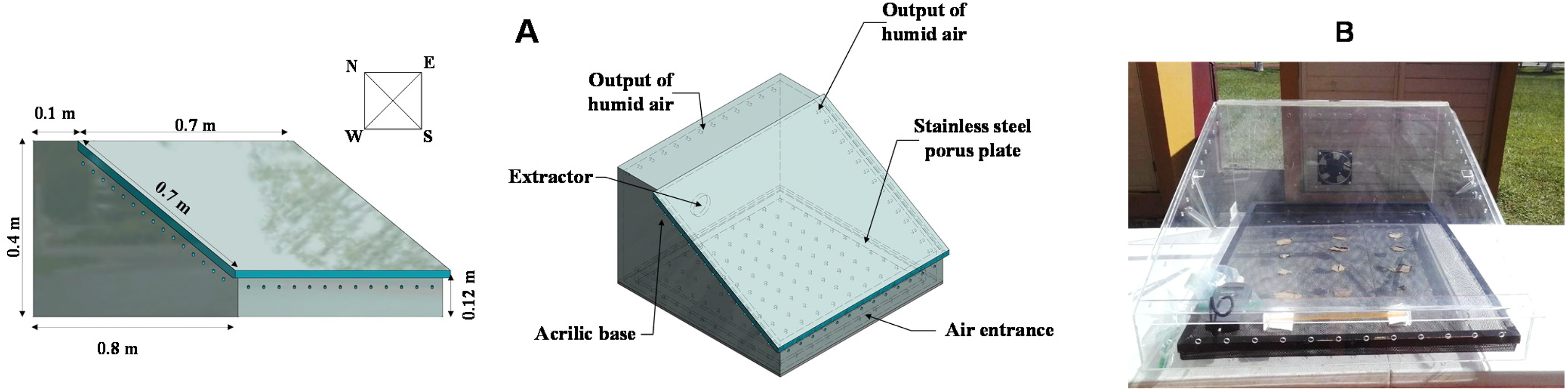

Figure 1.

(A) Schematic illustration of the DSD, (B) actual image of the DSD.

Experimentation was performed using two DSDs at the same time. Moreover, one dryer was covered by a shadow mesh, whose irradiance filtration rate was 60%. This experimentation allows data on irradiance's effect on the oregano leaves to be studied through drying.

Indirect solar drying

The indirect solar drying (ISD) technology used was a natural convection type and consisted of three main parts: a drying chamber, a chimney, and an air collector. The chamber is a horizontal tunnel with dimensions of 0.40 m long and wide, constituting a 0.16 m² cross-section, built of wood and thermally insulated. Also, the drying chamber is separated into levels with four trays to hold the product to dry (see Figure 2).

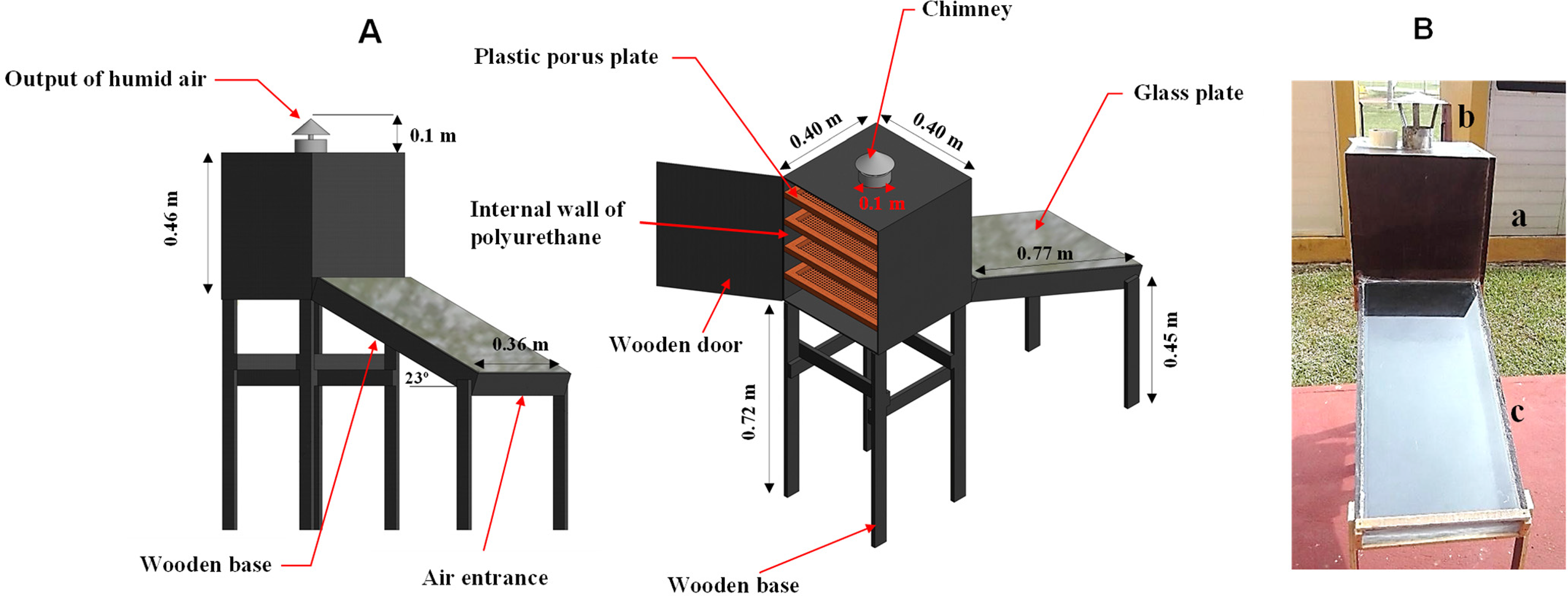

Figure 2.

(A) Schematic illustration of the ISD, (B) actual image of the ISD: (a) drying chamber, (b) chimney, (c) air collector.

Electric Oven

Oregano leaves were dry under three different temperatures in an electric oven: 45, 55, and 65°C. The oven used was a Riossa brand, with natural convection. Data obtained were recorded on a computer.

Drying kinetics modeling

The fundamental chemistry and physics of food drying are very complex. Dryers are more complicated than equipment that merely removes moisture, and effective models are necessary for process design, optimization, energy integration, and control (Marinos-Kouris and Maroulis, 2006). The commonly used models are listed in Table 3.

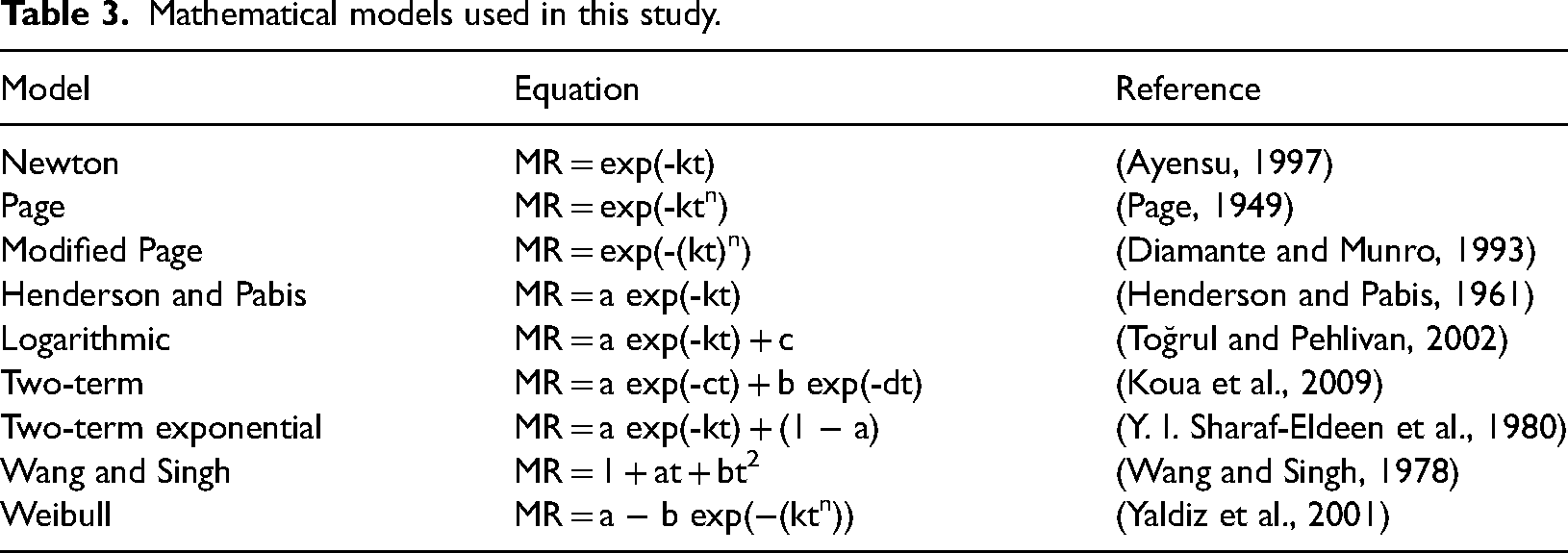

Table 3.

Mathematical models used in this study.

Model	Equation	Reference
Newton	MR = exp(-kt)	(Ayensu, 1997)
Page	MR = exp(-ktⁿ)	(Page, 1949)
Modified Page	MR = exp(-(kt)ⁿ)	(Diamante and Munro, 1993)
Henderson and Pabis	MR = a exp(-kt)	(Henderson and Pabis, 1961)
Logarithmic	MR = a exp(-kt) + c	(Toğrul and Pehlivan, 2002)
Two-term	MR = a exp(-ct) + b exp(-dt)	(Koua et al., 2009)
Two-term exponential	MR = a exp(-kt) + (1 − a)	(Y. I. Sharaf-Eldeen et al., 1980)
Wang and Singh	MR = 1 + at + bt²	(Wang and Singh, 1978)
Weibull	MR = a − b exp(−(ktⁿ))	(Yaldiz et al., 2001)

The moisture ratio (MR) is considered a function of the drying time, which can be calculated using equation (1) (Toĝrul and Pehlivan, 2004):

M R = \frac{M - M_{e}}{M_{0} - M_{e}}

(1)

where M is the moisture content, M₀ is the initial moisture, and M_e is the equilibrium moisture content, which was determined from the values of initial moisture content and the final weights of the samples when the equilibrium was reached (when the difference in samples weights between two successive measurements was less than 0.001 g).

The coefficient of determination (R²) was used as the main criterion to select the model that best fits the experimental results. The R² was evaluated by calculating the parameters linked in the adjustment models with DataFit software. Reduced chi-square (χ²) and root-mean-square error (RMSE) were considered in selecting the best-fitting model. According to the literature, the model with the maximum R² and lowest RMSE and χ² was chosen as the better model that describes the kinetics of dried oregano leaves (Castillo Téllez et al., 2018). R², RMSE, and χ² were calculated with equations (2)–(4).

R^{2} = \frac{\sum_{i = 1}^{n} (M R_{i} - M R_{p r e, i}) \sum_{i = 1}^{n} (M R_{i} - M R_{e x p, i})}{\sqrt{[\sum_{i = 1}^{n} {(M R_{i} - M R_{p r e, i})}^{2}] [\sum_{i = 1}^{n} {(M R_{i} - M R_{e x p, i})}^{2}]}}

(2)

R M S E = \sqrt{\frac{1}{N} \sum_{i = 1}^{N} {(M R_{e x p, i} - M R_{p r e, i})}^{2}}

(3)

χ^{2} = \frac{\sum_{i = 1}^{N} {(M R_{e x p, i} - M R_{p r e, i})}^{2}}{N - n}

(4)

where MR_exp,i denotes the experimental moisture ratio, MR_pre,i is the moisture ratio projected for the model, N is the number of observations, and n is the number of constants.

Nine models were analyzed in this study, as listed in Table 3. The parameters for each model and the R², RMSE, and χ² values were calculated.

Moisture diffusivity

The drying characteristics of agricultural products can be described using the Fick diffusion equation (equation (5)) for moisture diffusion:

\frac{\partial M}{\partial t} = \frac{\partial}{\partial x} (D_{e f f} (\frac{\partial M}{\partial x}))

(5)

where D_eff (m²s⁻¹) and M (g water/g dry matter) are the effective diffusivity coefficient and the moisture content, respectively, assuming that: (1) mass transfer occurs in an infinite slab with symmetrical boundary conditions; (2) internal mechanisms control mass transfer; (3) the effective diffusivity is constant during the process; and (4) mass transfer occurs in a homogenous medium, the diffusion coefficient can be expressed in the logarithmic form with equation (6) (Crank, 1975):

L n (M R) = l n (\frac{8}{π^{2}}) - \frac{π^{2} D_{e f f}}{4 L^{2}} t

(6)

where L is the leaves’ thickness (m) and t is the drying time (s).

The Arrhenius relationship assessed the temperature dependence of diffusivity (Ozdemir and Devres, 2000). D_eff can be determined using the slope obtained from the experimental graph of Ln (MR) versus the drying time and the slope, which is estimated by equation (7) (Velić et al., 2004).

m = - \frac{π^{2} D_{e f f}}{4 L^{2}} o r D_{e f f} = - \frac{4 L^{2}}{π^{2}} m

(7)

The linear Arrhenius relation can express the connection of the activation energy with the effective humidity diffusivity and the temperature, which can be seen in equation (8) (Sanjuán et al., 2003).

D = D_{0} e x p (- E_{a} / R T)

(8)

where D₀ is the pre-exponential factor of the Arrhenius equation (m²s⁻¹), E_a is the activation energy (J mol⁻¹), R is the gas constant (8.314 J mol⁻¹K⁻¹), and T is the temperature of the drying air (K). The activation energy can be determined from the slope obtained from the experimental graph of ln (D_eff), the drying temperature's inverse, and the slope is estimated by equation (9) (Sanjuán et al., 2003).

m = \frac{E_{a}}{R}

(9)

Color measurement

Food color is a critical quality attribute of dry foods due to its importance in visual appearance to consumers. Additionally, a change in food color can indicate a degradation of nutrients such as carotenoids, chlorophyll, anthocyanins, betalains, and pigments, which provide many health benefits. The color difference presented by the dry leaves was analyzed using the CIELAB color coordinates. Moreover, the L*, a*, and b* values average ten readings, and the color brightness coordinate L* measures the whiteness value and ranges from black at 0 to white at 100. The chromaticity coordinates measured a* (b*) are red (yellow) when it is positive and green (blue) when it is negative (Castillo-Téllez et al., 2023). Chroma C*'s value is the distance from the lightness axis (L*), starting from 0 in the center. The Hue angle starts from the + a* axis and is expressed in degrees.

Experimental methodology

All the sections previously described can be summarized in the schematic diagram illustrated in Figure 3.

Figure 3.

Schematic diagram of experimental methodology for oregano's drying process.

Figure 3 describes the methodology used in this research work. In Stage A, the preparation of the drying product is carried out in parallel with Stage B, where the different measurements of the environmental variables are performed, as described in Table 2. The three types of technologies measured the climatic data simultaneously during the drying process. Subsequently, in Stage C, direct solar drying under natural convection, forced convection, and shadow mesh were considered, as well as an indirect solar dryer and an electric oven for drying the product. Finally, (Stage D), kinetic process modeling is presented, involving the equations reported in Table 3, moisture ratio, the drying time, the moisture diffusivity, and a colorimetric study are evaluated.

Results and discussion

Through the experimentation days, about 20 experiments were achieved. Moreover, environmental conditions were similar in most cases, particularly the average solar irradiance on experimentation days. Hence, representative test days were selected from August 3–7, 2020.

Weather conditions

Figure 4 displays the weather conditions during three typical experimentation days. The global solar irradiance reached a maximum of 1000 W/m², with a maximum average ranging from 950 to 980 W/m², and the average minimum ambient temperature was 33°C, and the average maximum temperature was 40°C. The highest RH (relative humidity) ranged from 52 to 55%, while the minimum RH ranged between 43 and 47%.

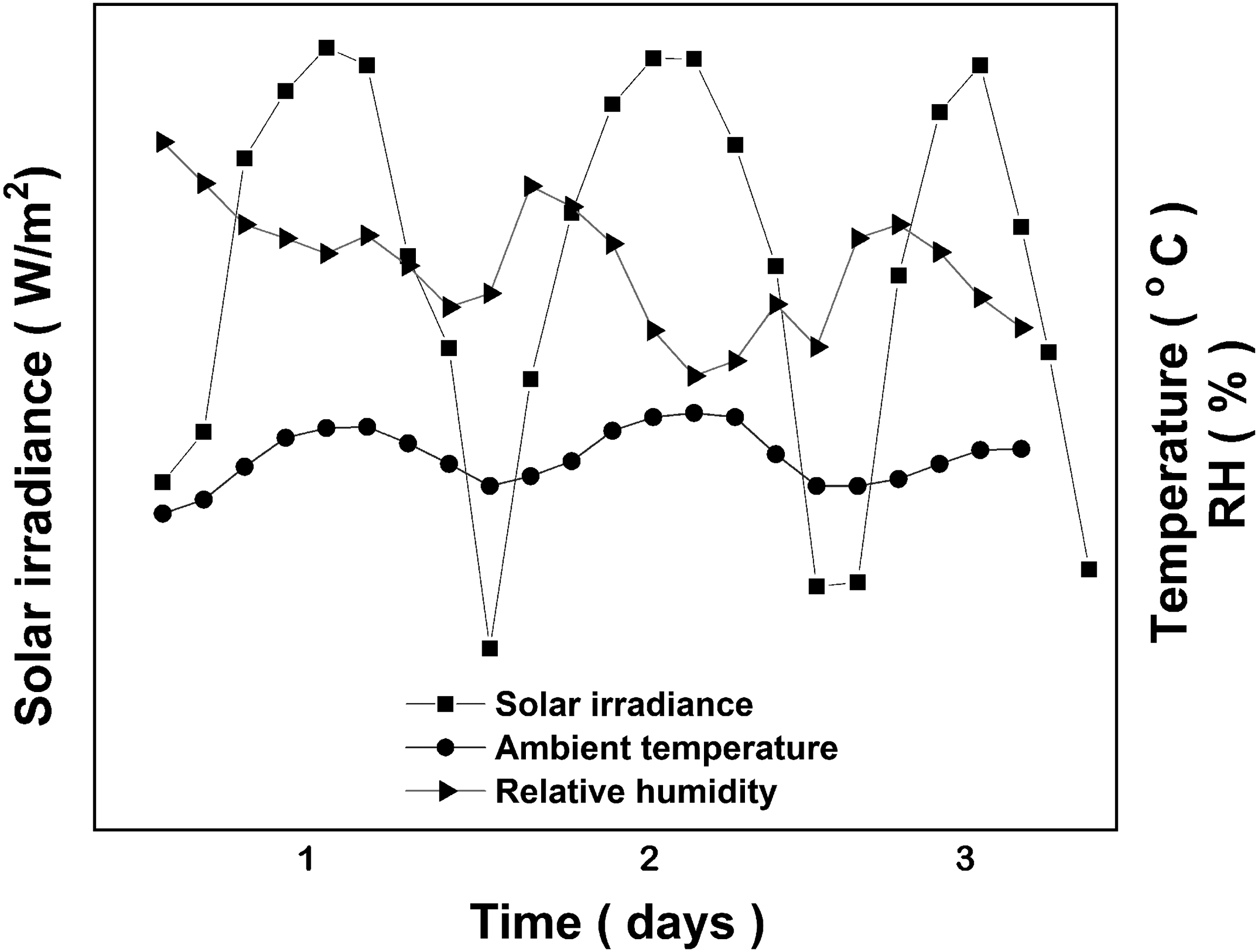

Figure 4.

Climatic data during three typical experimentation days.

Solar drying

The initial and final moisture of water activity is registered in Table 4 for each analyzed technology. As can be seen, a slight variation in the initial humidity was detected in all cases. Slightly lower final humidity levels than those obtained by commercial products were reported. A similar increase in humidity levels obtained in each test can be seen regardless of the drying operation. A similar trend was observed regarding the differences in water activity. All tested drying technologies’ final water activity results indicate that the environmental conditions do not harm the dehydrated samples.

Table 4.

Humidity and water activity from drying methods.

Drying operation mode	Humidity (%)		Water activity (a_w)
Drying operation mode	Initial	Final	Initial	Final
DSD (Natural convection)	80.30 ± 1.6	8.93 ± 0.16	0.856 ± 0.02	0.178 ± 0.01
DSD (Forced convection)	81.25 ± 1.6	9.01 ± 0.17	0.875 ± 0.02	0.198 ± 0.01
Electric Oven	87.00 ± 1.7	8.73 ± 0.17	0.845 ± 0.02	0.163 ± 0.01
Indirect solar dryer	81.87 ± 1.6	9.32 ± 0.17	0.883 ± 0.02	0.179 ± 0.01

Direct solar drying

Figure 5 illustrates the solar irradiance, with a maximum value of approximately 1000 W/m². The temperature variations in the dryer were also studied. For drying using natural convection, the temperature was between 40 and 60°C, with forced convection between 30 and 40°C, and for shadow mesh drying, temperatures were between 35 and 43°C.

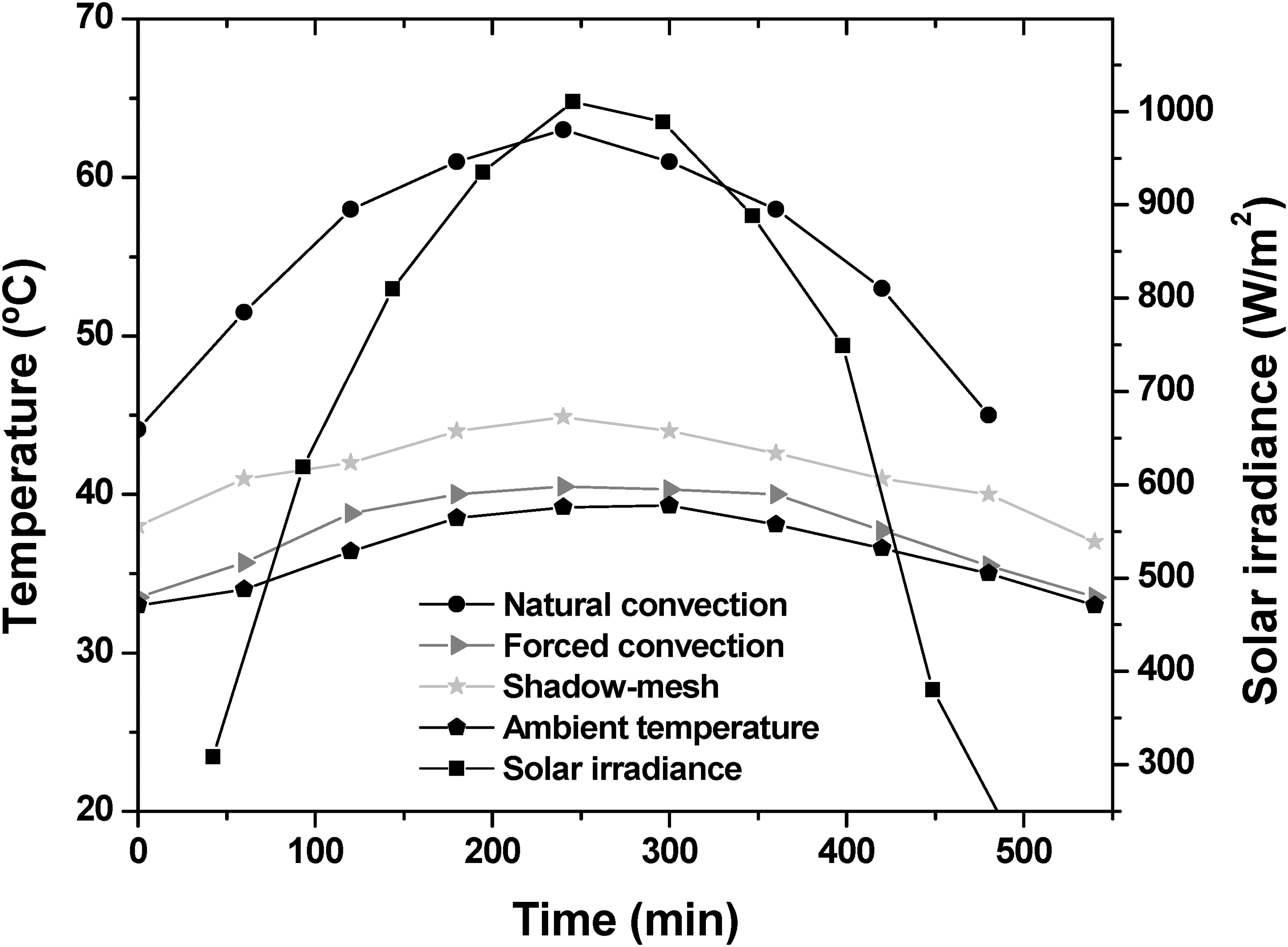

Figure 5.

Solar irradiance and temperature for the DSD modes.

This solar dryer observed significant temperature differences between natural convection and forced and shadow mesh. The shadow mesh covering decreased the internal temperature while maintaining constant heat transfer.

Figure 6(A) presents the moisture content of solar dryers (d.b.) that operate with natural and forced convection and shadow-mesh. A lower moisture content is obtained when natural convection is used. These results are obtained when solar irradiation is high and the air velocity is high enough (even in natural convection) to evaporate the moisture on the surface of the product. On the contrary, if the air velocity is insufficient, surface evaporation is slow, and drying kinetics are limited. These results are similar to those obtained by Teussingka et al. (2023). Therefore, faster drying kinetics were observed using natural convection due to the higher temperature and lower humidity inside the drying chamber during this process, which concluded at 250 min.

Figure 6.

(A) Variation in moisture content and (B) Drying rate as a moisture content function under three DSD modes.

Moreover, a lower temperature was observed using DSD with forced convection because the residence time of the hot air inside the chamber was insufficient to heat and remove the moisture from the product. Hence, the drying ended at 345 min; thus, these results revealed that the fan was oversized. On the other hand, the drying curve obtained using shadow-mesh needed a drying time of 300 min to achieve moisture content equilibrium. This longer time compared with natural convection is due to the reduced 60% solar irradiance for the used mesh.

On the other hand, Figure 6(B) depicts the drying rates as a moisture content function for each direct drying mode. Constant drying rates were observed in natural convection and shadow-mesh methods. The highest drying rate (0.025 g water/g dry matter·min) was achieved under natural convection mode; the initial and final moisture contents were 5.67 and 0.12 g water/g dry matter, respectively. The drying rate obtained under natural convection mode decreased uniformly until a moisture content value of 1.366, then the decrease was slighter until a drying rate of 0.026 g water/g dry matter·min. Because the dwell time of the hot air inside the dryer was insufficient to heat and remove the moisture from the product, the lowest drying rates were achieved under the forced convection mode with a maximum drying rate of 0.024 g water/g dry matter·min. When forced convection was used, the moisture content slowly decreased through three drying phases, first, middle, and final, to reach 2.75, 1.01, and 0.25 g water/g dry matter, respectively. When the shadow mesh was used, the drying rates decreased in an intermediate range compared to those obtained by natural and forced convection. In this case, the final moisture content reached 0.12 g water/g dry matter in 270 min.

Indirect solar drying

Figure 7 exhibits the variation in solar irradiance compared to the temperatures inside the chamber and solar collector during two different experimentation days. Therefore, it can be observed that the maximum solar irradiance was 1000 W/m², and the maximum temperature reached in the drying chamber was 54°C, with an average of 50°C. On the other hand, the solar collector's temperature was considerably higher, with a maximum of 65°C and an average of 62°C. This behavior is expected since the air flowing through the collector is hotter because solar radiation falls directly on the surface, so when it enters the drying chamber, it removes moisture from the product and loses heat, which indicates a decrease in the temperature of the drying chamber. Finally, ambient temperature presented the lowest temperature value, with a maximum value of 40.3°C. On average, the sample under study lost the most weight during the first 100 min of drying, achieving stabilization after 200 min.

Figure 7.

Typical solar irradiance and temperature in the dryer and solar collector ISD mode in two experimentation days.

Figure 8(A) illustrates the change in moisture content during the drying time when ISD was used. A decrease from 5.67 to 1.6 g water/g dry matter is observed during 55 min and then tends to stabilize after 200 min, finally reaching 250 min, where the moisture content ranged between 0.28 and 0.13 g water/g dry matter. It is observed that the total drying time was 345 min, in which the minimum moisture content value was reached, so it was decided to conclude the experiment. Furthermore, Figure 8(B) reveals the difference in the drying rate based on the moisture content in d.b. An increase can be observed until reaching a maximum value of 0.020 g water/g dry matter·min with an initial moisture content of 5.67 g water/g dry matter, final moisture content ranging between 0.28 and 0.13. This result is similar to that obtained with the natural convection direct solar dryer of 0.026 g water/g dry matter·min. Finally, experimental results indicated that using an indirect solar dryer with natural convection reduces drying times significantly. When the air temperature rises, its density decreases, which extracts moisture from the drying product in less time.

Figure 8.

(A) Variation in moisture content and (B) Drying rate versus moisture content during ISD test.

Electric oven

Figure 9(A) depicts the leaves’ moisture content during drying at 45, 55, and 65°C. It can be observed that drying time is a temperature function. As the temperature increases, the drying time decreases. Moreover, at 65°C, time is reduced from 690 min at 45°C to 225 min, where moisture content is stabilized for this kinetics. Moisture content remains higher at the end of the drying process when performed at 45°C.

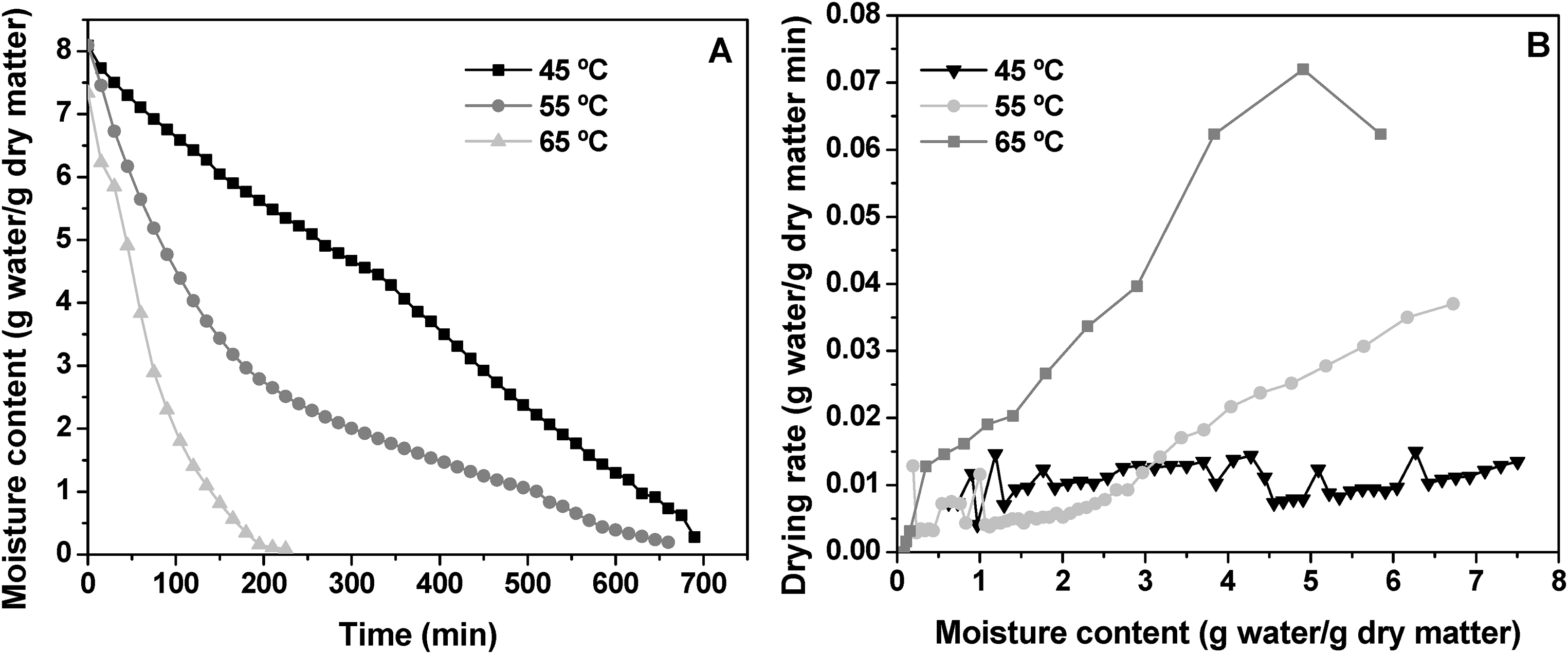

Figure 9.

(A) Variation in moisture content and (B) Drying rate as a moisture content function during oven drying tests.

The drying rate is also a temperature and moisture content function. When the moisture content is lower, the drying rate has a lower value. Figure 9(B) reveals that the highest drying rate was 0.071 g water/g dry matter·min, reaching 4.91 g water/g dry matter, obtained at 65°C. Two constant periods are present in this temperature. There is only one long period of constant velocity, which starts at 0.0103 g water/g dry matter·min. The drying rate decreased slowly when a temperature of 45°C was used, reaching a maximum moisture content of 0.013 g water/g dry matter.

Mathematical modeling of the drying process

Tables 5–7 report the three best-adjusted models to the experimental data, their coefficients, and fit parameters for drying technology analysis, DSD, ISD, and electric oven drying kinetics.

Table 5.

Coefficients and fit parameters for DSD (natural and forced convection and shadow-mesh).

Model			Model			Model
Natural convection	Parameter	Value	Forced convection	Parameter	Value	Shadow-mesh	Parameter	Value
Two-term	a	0.2255	Two-term	a	0.7314	Two-term	a	0.4885
	b	0.7683		b	0.2674		b	0.4885
	c	0.529		c	0.0846		c	0.1959
	d	0.2068		d	1.098		d	0.1959
	R²	0.9959		R²	0.9839		R²	0.9913
	RMSE	0.0152		RMSE	0.0231		RMSE	0.0235
	χ²	0.0002		χ²	0.0006		χ²	0.0006
Logarithmic	a	0.9696	Logarithmic	a	0.8123	Logarithmic	a	0.9856
	c	0.007		c	0.0785		c	−0.018
	k	0.2459		k	0.1313		k	0.1845
	R²	0.9955		R²	0.9657		R²	0.9934
	RMSE	0.0173		RMSE	0.0418		RMSE	0.022
	χ²	0.0003		χ²	0.002		χ²	0.0005
Page	k	0.2842		k	0.2477	Henderson and Pabis	a	0.977
	n	0.9132		n	0.6854		k	0.1959
	R²	0.9965	Page	R²	0.9832		R²	0.9924
	RMSE	0.0151		RMSE	0.0286		RMSE	0.0235
	χ²	0.0002		χ²	0.0009		χ²	0.0006

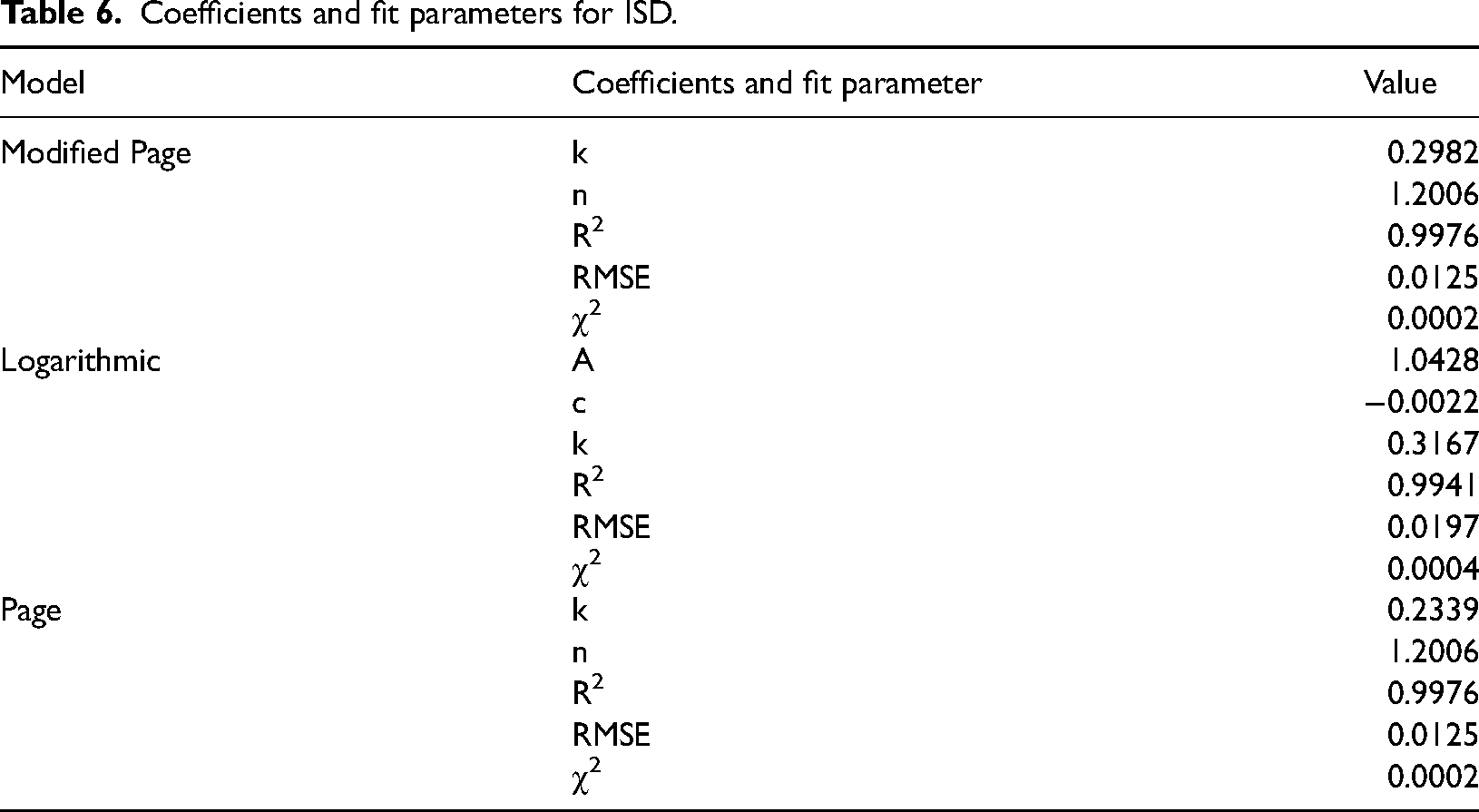

Table 6.

Coefficients and fit parameters for ISD.

Model	Coefficients and fit parameter	Value
Modified Page	k	0.2982
	n	1.2006
	R²	0.9976
	RMSE	0.0125
	χ²	0.0002
Logarithmic	A	1.0428
	c	−0.0022
	k	0.3167
	R²	0.9941
	RMSE	0.0197
	χ²	0.0004
Page	k	0.2339
	n	1.2006
	R²	0.9976
	RMSE	0.0125
	χ²	0.0002

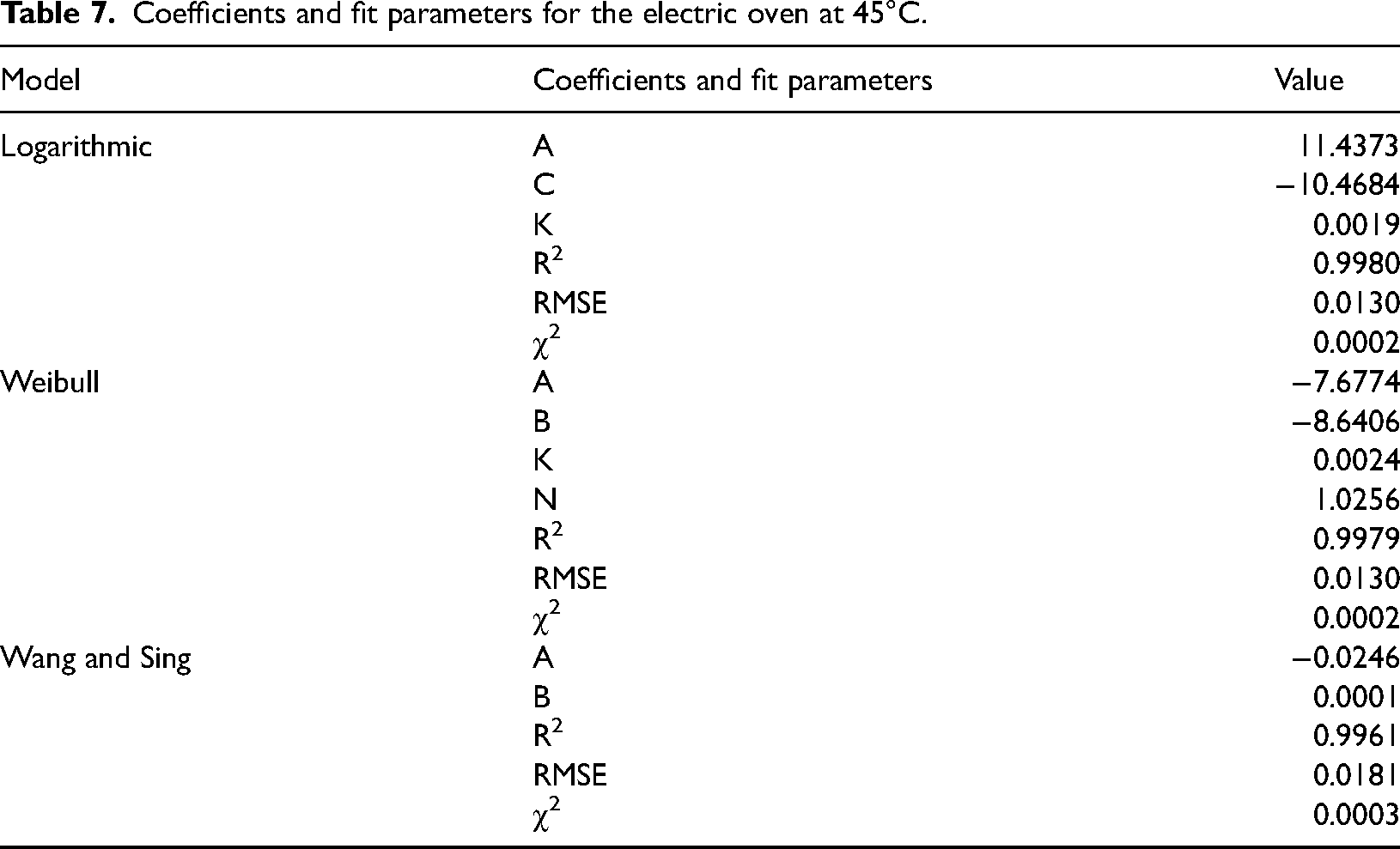

Table 7.

Coefficients and fit parameters for the electric oven at 45°C.

Model	Coefficients and fit parameters	Value
Logarithmic	A	11.4373
	C	−10.4684
	K	0.0019
	R²	0.9980
	RMSE	0.0130
	χ²	0.0002
Weibull	A	−7.6774
	B	−8.6406
	K	0.0024
	N	1.0256
	R²	0.9979
	RMSE	0.0130
	χ²	0.0002
Wang and Sing	A	−0.0246
	B	0.0001
	R²	0.9961
	RMSE	0.0181
	χ²	0.0003

Two-term, logarithmic, and Page achieved DSD's best fit with the natural convection with a minimum R² of 0.9955, maximum RMSE, and a χ² of 0.0151 and 0.0003, respectively. The best results with forced convection were obtained fitting Two-Term, Logarithmic, and Page models, with minimum R² of 0.9657, maximum RMSE, and χ² of 0.0418 and 0.0020, respectively. Furthermore, the Logarithmic model obtained the best fit for shadow-mesh, then Henderson and Pabis and the Two-term model (minimum R² of 0.9913; maximum RMSE and χ² of 0.0235, respectively) with R² of 0.9976, 0.9941, and 0.9976; RMSE of 0.0125, 0.0197, and 0.0125; and χ² of 0.0002, 0.0004, and 0.0002, respectively. ISD experimentation results were better represented by Modified Page, Logarithmic, and Page models, with R² of 0.9976, 0.9941, and 0.9976; RMSE of 0.0125, 0.0197, and 0.0125; and χ² of 0.0002, 0.0004, and 0.0002, respectively. Finally, for the electric oven, the best-fit model was achieved by Logarithmic, with R² of 0.9980, 0.9888, and 0.9917, respectively.

On the other hand, Figures 10–12 depict the fitting of oregano leaves’ experimental data using the tested direct and ISD and electric oven technologies with different mathematical models.

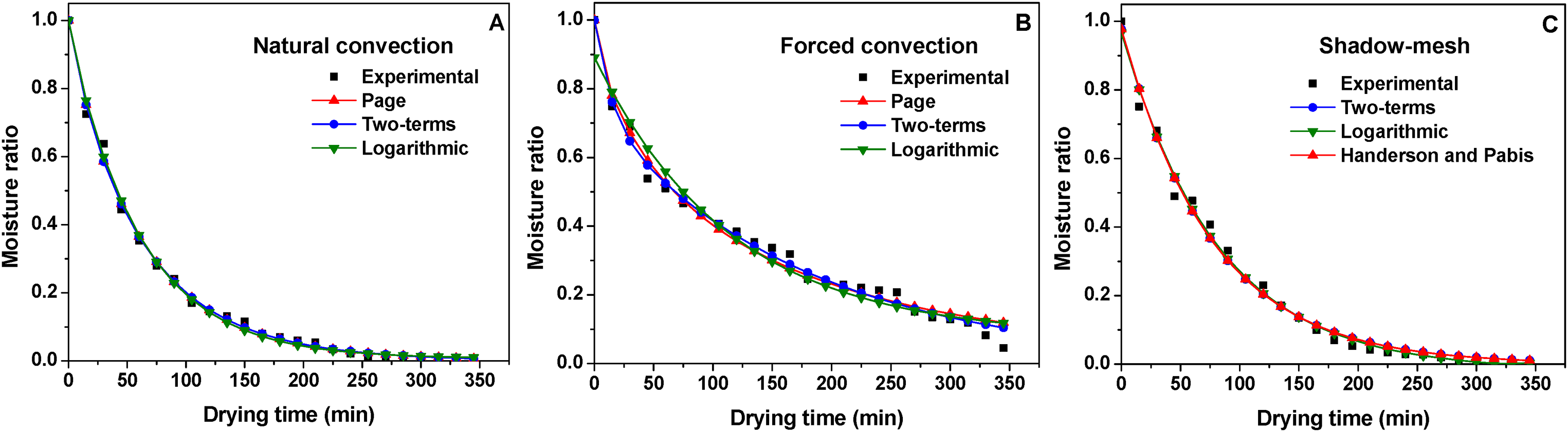

Figure 10.

Fitting experimental moisture ratio versus drying time obtained for the DSD under (A) natural convection, (B) forced convection, and (C) shadow-mesh with different models.

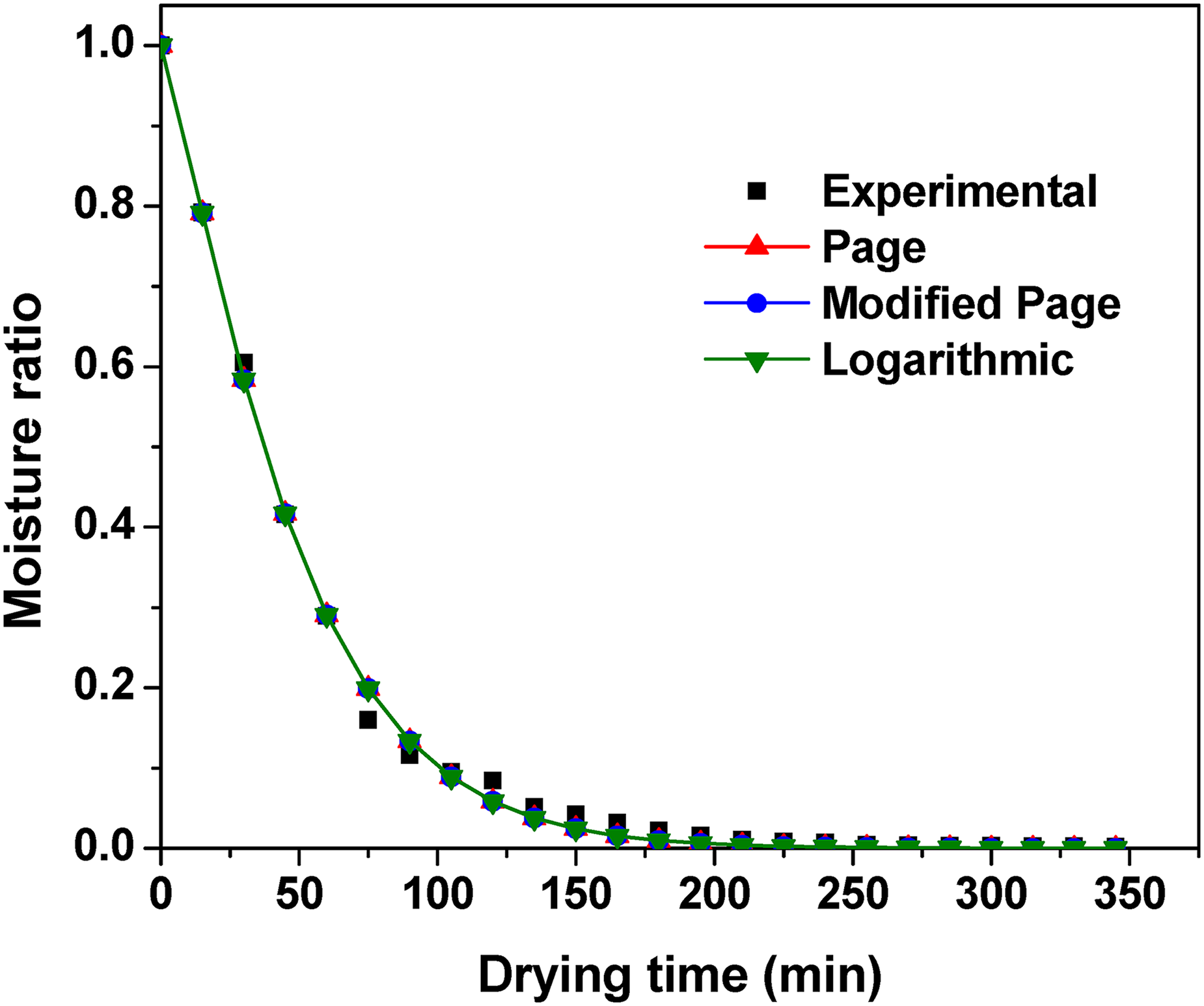

Figure 11.

Fitting experimental moisture ratio versus drying time obtained for ISD with modified page, page, and logarithmic models.

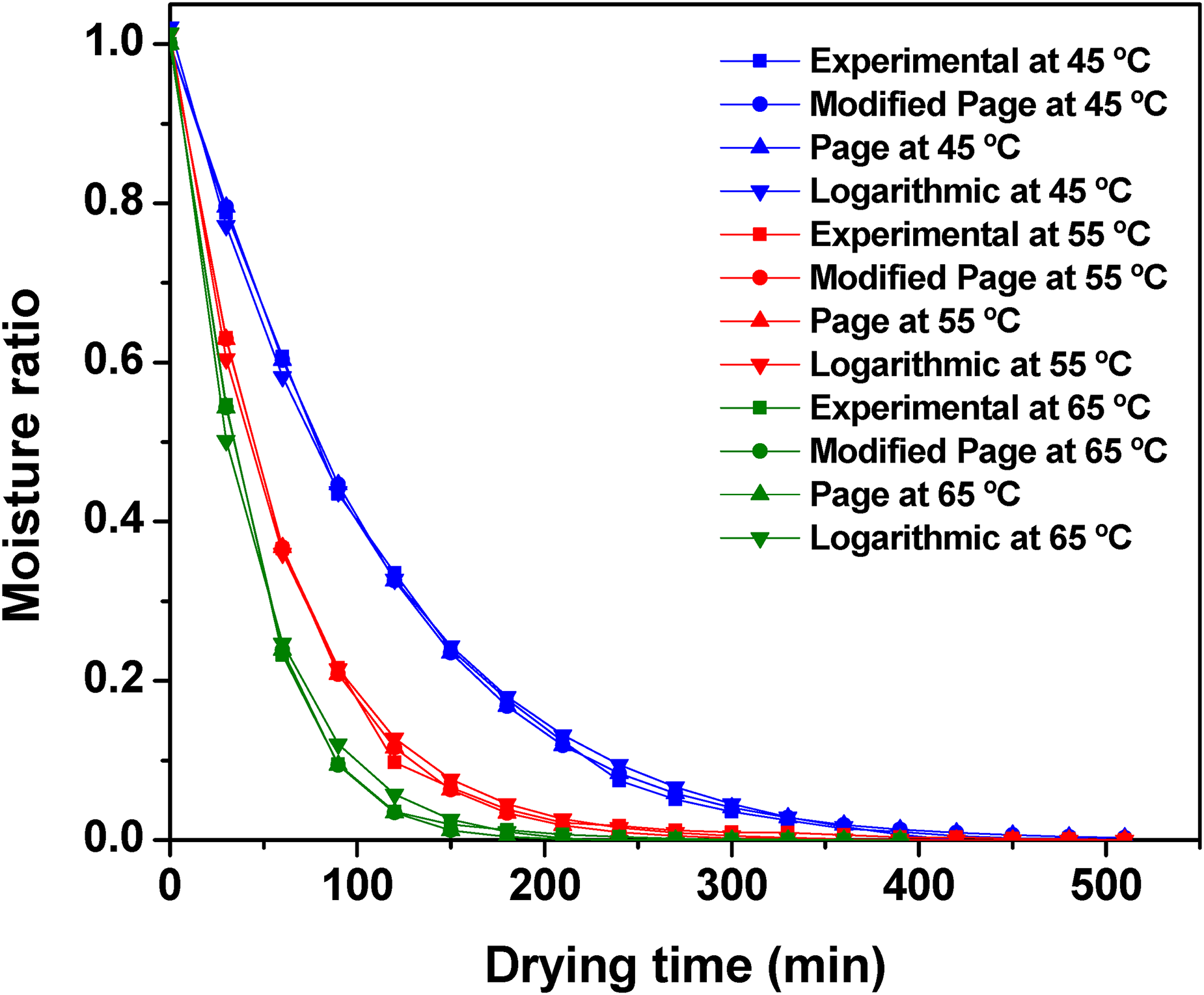

Figure 12.

Fitting experimental moisture ratio versus drying time obtained for electric oven drying by different models and temperatures.

Figure 10 indicates that the three best models in each case exhibited a high fit; in Figure 10(A), the Page model best fits the experimental results, while Figure 10(B) was the two-term, and Figure 10(C), the best model, was the logarithmic, according to the R² values reported in Table 5, with a total drying time of 345 min.

Figure 11 depicts a high correlation of fitting with Page, Modified Page, and Logarithmic models, where the best fitting was obtained with Page and Modified Page with both R² of 0.9976, according to the report in Table 6. The total drying time was around 345 min; however, around minute 200, the moisture ratio was close to zero.

Finally, Figure 12 presents the drying time versus moisture ratio results and the correlation of three mathematical models compared with the experimental data obtained during the drying test with the electric oven at different temperatures. The drying time was 510 min, with a meager moisture ratio close to zero. Furthermore, it can be noted that the models fit well for the three different electric oven temperatures. The Page model best represented the moisture ratio for the different drying temperatures with a maximum R² of 0.9980.

Moisture diffusivity and activation energy

Moisture diffusivity was calculated for solar dryers (Figure 13(A)) and electric ovens at three temperatures (Figure 13(B)). These results indicated a tendency to increase diffusivity values when drying temperature increases, as was expected. The leaf structure modification does not influence water diffusivity even with the higher temperature. Similar values were found for (Doymaz et al., 2006) 6.693E-10–1.434E-9 m²/s for dill and 9.0E-10–2.337E-9 m²/s for parsley leaves, (Sobukola et al., 2007) 43.42E-10 for bitter leaves, (Doymaz, 2006) 3.07E-9–19.41E-9 for mint leaves.

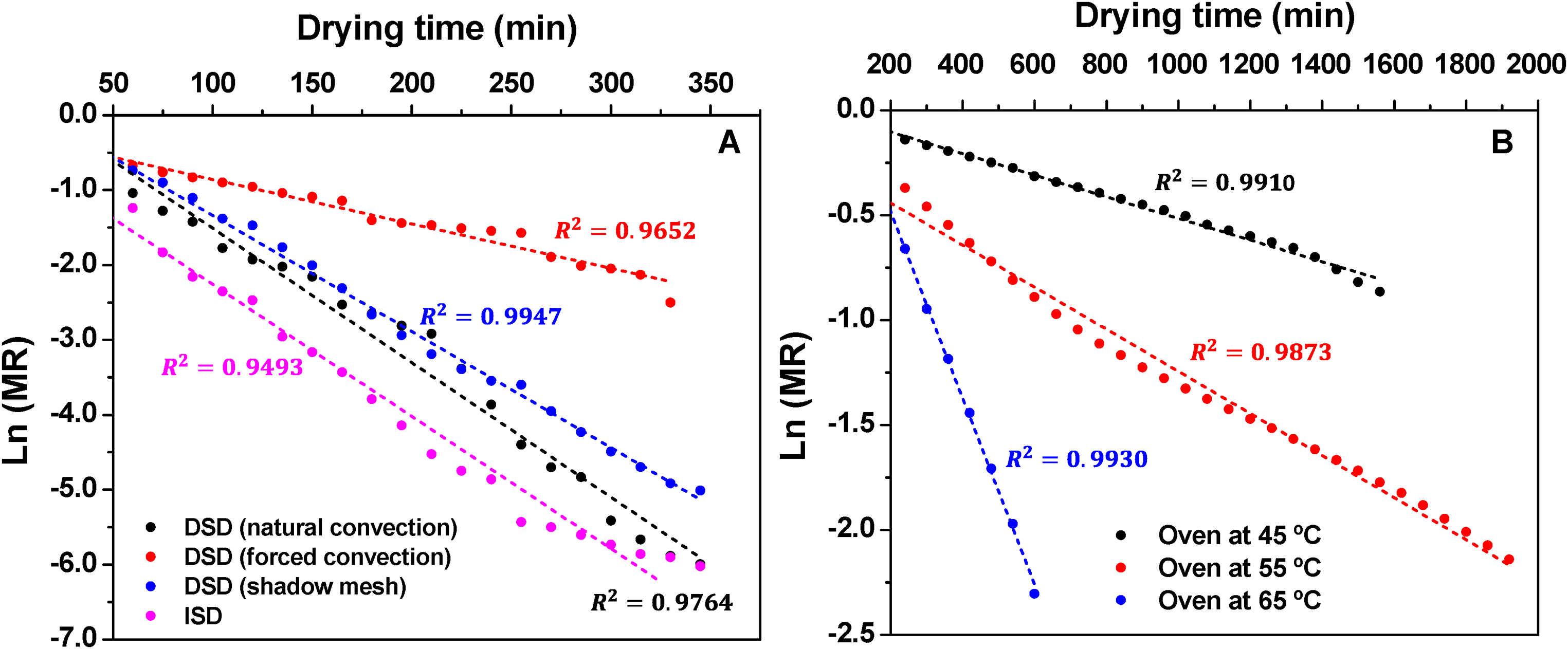

Figure 13.

Effective diffusivity values: (A) direct and indirect solar dryer and (B) electric oven at 45, 55, and 65°C.

The experimental data from effective diffusivity has been used to obtain the activation energy utilizing the Arrhenius relationship type (see Figure 14). Ln (D_eff) as a function of absolute temperature reciprocal shows a linear relationship, presenting an R² of 0.8044 for solar technologies (Figure 14(A)) and 0.9491 for the electric oven (Figure 14(B)).

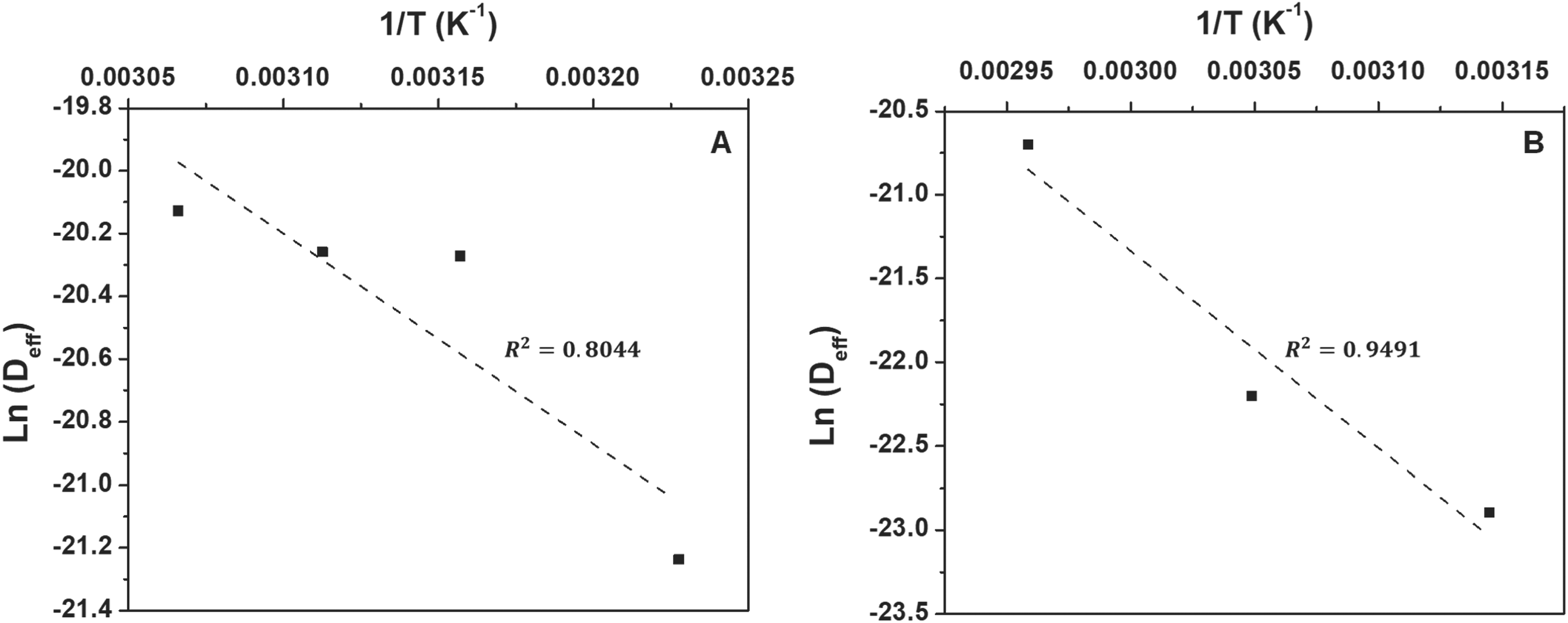

Figure 14.

1/T versus ln (D_eff) to obtain the activation energy: (A) solar dryer modes and (B) electric oven.

The activation energy and effective water diffusivity at all studied temperatures are presented in Table 8. These results are close to those found in the literature on drying leaves: (Jin Park et al., 2002) calculated an E_a value of 82.93 kJ/g mol and (Doymaz, 2006) found 62.96 kJ/g mol for mint leaves. The activation energy values obtained are in the recommended range (Samimi-Akhijahani and Arabhosseini, 2018).

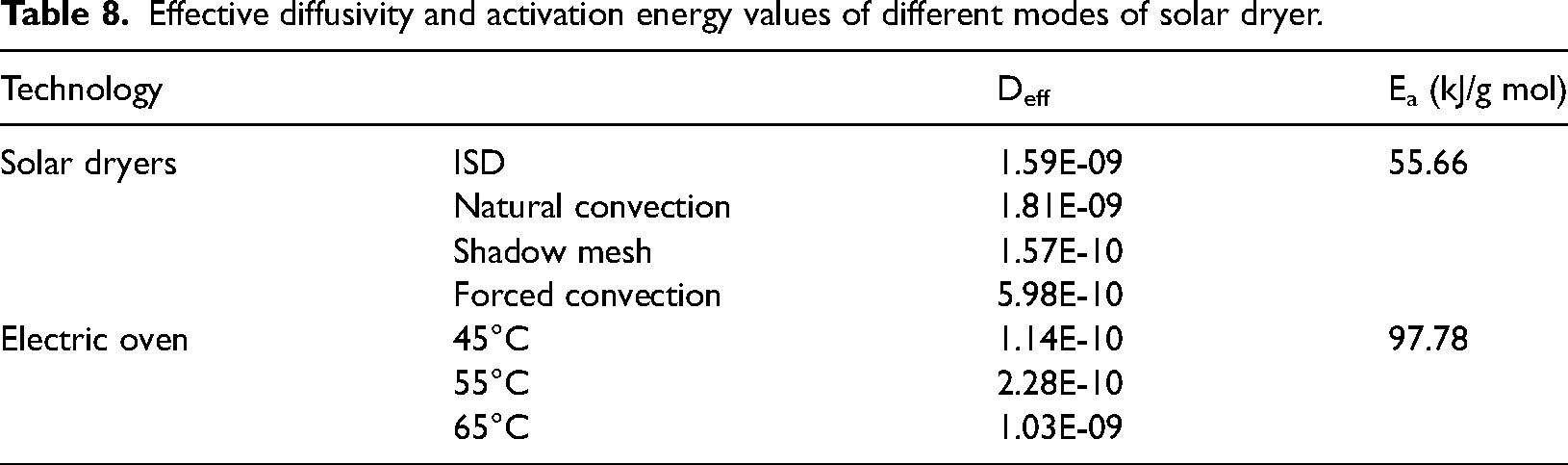

Table 8.

Effective diffusivity and activation energy values of different modes of solar dryer.

Technology		D_eff	E_a (kJ/g mol)
Solar dryers	ISD	1.59E-09	55.66
	Natural convection	1.81E-09
	Shadow mesh	1.57E-10
	Forced convection	5.98E-10
Electric oven	45°C	1.14E-10	97.78
	55°C	2.28E-10
	65°C	1.03E-09

Colorimetric analysis

Table 9 details the average L*, a*, b*, C*, and H* in each drying method evaluated. The total color change (ΔE) between the coordinates L*, a*, and b* is calculated using the obtained data.

Table 9.

Chromatic color coordinates of the oregano leaves during dehydration.

LAB	Raw material	ISD	DSD (natural convection)	DSD (forced convection)	DSD (shadow-mesh)	Electric oven 55°C
L*	45.6	43.42	31.69	39.3	35.71	44.15
a*	−9.9	6.34	4.44	6.23	3.71	7.11
b*	23.5	18.62	12.0	19.3	18.43	30.58
C*	25.50	19.67	12.80	20.28	18.80	31.40
H*°	1.21	1.24	1.22	1.26	1.37	1.34
ΔE*	-	17.1	23.0	17.8	17.6	18.48

There is an increase in a* in all cases, indicating a change from green to red. This can be caused by the enzyme polyphenol oxidase, which causes an enzymatic browning, producing very quickly black, brown, or red pigments, as was concluded in (Mahecha et al., 2010).

The L* values decreased in the dryer with natural convection, showing decreased luminosity due to direct exposure to the sun. This result agrees with that reported in (Méndez-Robles et al., 2018). For b*, it is observed that solar drying with natural convection approximates a grayish tone due to exposure to direct solar radiation and high temperatures, initiating a photo-oxidation process of the pigments, which, in combination with oxygen, produces an intense discoloration. In addition, the discoloration indicates that chlorophyll is being lost in the leaves, forming pheophytin, which is olive-brown; this same value is reflected in L*, which significantly decreases the luminosity in the leaves. Similar results were found in (Garcia et al., 2017). The ΔE analysis shows a more remarkable color change with natural convection than the other drying methods evaluated. In the indirect solar dryer, the food is protected from direct radiation; consequently, the leaves are less degraded, resulting in a lower ΔE than in the direct solar dryers. A similar situation is noted in the electric oven, where the most favorable saturation value (C*) was obtained.

Finally, Table 10 compares results obtained in the present study with some previously reported in the literature, considering drying time, moisture content, and activation energy, among others.

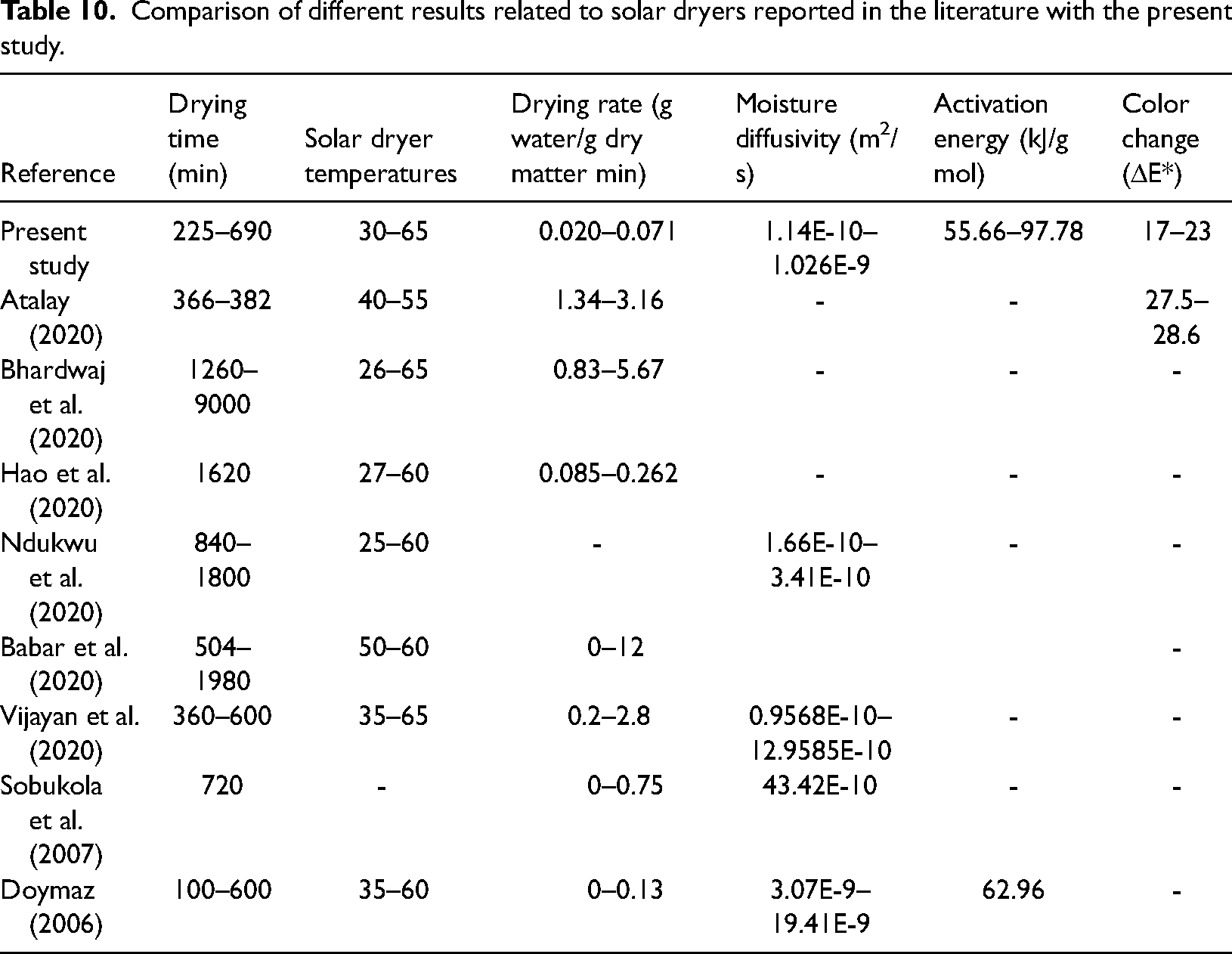

Table 10.

Comparison of different results related to solar dryers reported in the literature with the present study.

Reference	Drying time (min)	Solar dryer temperatures	Drying rate (g water/g dry matter min)	Moisture diffusivity (m²/s)	Activation energy (kJ/g mol)	Color change (ΔE*)
Present study	225–690	30–65	0.020–0.071	1.14E-10–1.026E-9	55.66–97.78	17–23
Atalay (2020)	366–382	40–55	1.34–3.16	-	-	27.5–28.6
Bhardwaj et al. (2020)	1260–9000	26–65	0.83–5.67	-	-	-
Hao et al. (2020)	1620	27–60	0.085–0.262	-	-	-
Ndukwu et al. (2020)	840–1800	25–60	-	1.66E-10–3.41E-10	-	-
Babar et al. (2020)	504–1980	50–60	0–12			-
Vijayan et al. (2020)	360–600	35–65	0.2–2.8	0.9568E-10–12.9585E-10	-	-
Sobukola et al. (2007)	720	-	0–0.75	43.42E-10	-	-
Doymaz (2006)	100–600	35–60	0–0.13	3.07E-9–19.41E-9	62.96	-

As seen in Table 10, the results obtained are within the range of outcomes obtained by different research works reported in the literature; considering the differences in initial and operating conditions in these investigations compared to this work, the validity of the findings obtained is ensured by this experimental study.

Conclusions

This research presented the experimental evaluation of comparative oregano leaves’ drying kinetics using direct, indirect, and electric drying technology. Moisture diffusivity and activation energy were calculated, and a colorimetric analysis was performed to quantify the quality of the product. Direct solar drying was divided into natural and forced convection and shadow-mesh. Furthermore, the indirect solar dryer was a natural convection type, and finally, an electric oven with three different drying temperatures was used. Among the results, it was found that the direct dryer revealed a shorter drying time of 250 min with natural convection, reaching a moisture content of 0.12 g water/g dry matter and a maximum drying rate of 0.025 g water/g dry matter per minute. When comparing these results with the indirect solar dryer, it was obtained that the product reached the equilibrium moisture after 250 min, with the highest drying rate of 0.020 g water/g dry matter per minute and final moisture between 0.28 and 0.13 g water/g dry matter.

On the other hand, with the electric oven, the shortest drying time was around 210 min, reached at a temperature of 65°C, and a maximum moisture content and drying rate was 0.013 g water/g dry matter and 0.071 g water/g dry matter per minute, respectively. Regarding the mathematical modeling, Modified Page, Logarithmic, and Page models best represented the experimental results with R² above 0.99, which permitted satisfactory descriptions of oregano leaves drying under similar conditions. Furthermore, regarding the moisture diffusivity, a maximum value of 1.57047E-8 was obtained for DSD forced convection. Moreover, the activation energy for solar dryers was 55.66 kJ/kg mol. Finally, the colorimetric analysis brought a minimum color change value (ΔE) of 17.1, corresponding to the indirect solar dryer. A maximum ΔE value of 23.0 was obtained with the direct solar dryer. These results agree with expected since direct solar drying deteriorates the product faster due to the influence of solar radiation, unlike ISD, which is preferable since it represents promising technology and permits better preservation of oregano while maintaining its quality and value for the market.

The present work provides relevant information to agroindustrialists about improvements in drying kinetics, effective diffusivity, and colorimetry studies during oregano drying using solar drying to select the most appropriate depending on the purpose. It is demonstrated that these sustainable technologies are competitive with those commercially used, such as electric ovens. Additionally, thin layer modeling is vital for future designs and sizing of solar dryers applied to the experimental conditions presented.

For future work and continuity of the project, critical aspects are visualized for this type of system's improvement and development. It is proposed to apply artificial intelligent tools to develop a smart sensor to optimize time and reduce drying process costs, increasing efficiency.

Footnotes

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

Margarita Castillo Téllez

Omar Sarracino Martínez

Beatriz Castillo-Téllez

A.J. Cetina-Quiñones

References

Ameri

Hanini

Benhamou

, et al. (2018) Comparative approach to the performance of direct and indirect solar drying of sludge from sewage plants, experimental and theoretical evaluation. Solar Energy 159: 722–732.

Atalay

(2020) Assessment of energy and cost analysis of packed bed and phase change material thermal energy storage systems for the solar energy-assisted drying process. Solar Energy 198: 124–138.

Avila-Sosa

Palou

Jiménez Munguía

, et al. (2012) Antifungal activity by vapor contact of essential oils added to amaranth, chitosan, or starch edible films. International Journal of Food Microbiology 153(1–2): 66–72.

Ayensu

(1997) Dehydration of food crops using a solar dryer with convective heat flow. Solar Energy 59(4–6): 121–126.

Babar

Tarafdar

Malakar

, et al. (2020) Design and performance evaluation of a passive flat plate collector solar dryer for agricultural products. Journal of Food Process Engineering 43(10): e13484.

Bahammou

Moussaoui

Lamsayeh

, et al. (2020) Water sorption isotherms and drying characteristics of rupturewort (Herniaria hirsuta) during a convective solar drying for a better conservation. Solar Energy 201: 916–926.

Bahammou

Tagnamas

Lamharrar

, et al. (2019) Thin-layer solar drying characteristics of Moroccan horehound leaves (Marrubium vulgare L.) under natural and forced convection solar drying. Solar Energy 188: 958–969.

Bergues-Ricardo

Díaz-López

Torres-Ten

(2013) Correlations of mean process parameters for agricultural products drying in thin bed in solar direct dryers. Tecnología Química 33(3): 328–339.

Bhardwaj

Kumar

Chauhan

(2019) Experimental investigation of the performance of a novel solar dryer for drying medicinal plants in Western Himalayan region. Solar Energy 177: 395–407.

10.

Bhardwaj

Kumar

Chauhan

, et al. (2020) Experimental investigation and performance evaluation of a novel solar dryer integrated with a combination of SHS and PCM for drying chilli in the Himalayan region. Thermal Science and Engineering Progress 20: 100713.

11.

Castillo-Téllez

Téllez

López-Vidaña

, et al. (2023) Temperature–air velocity association, experimental and modeling study of stevia leaves solar drying. Energy Exploration and Exploitation 41(5): 1802–1818.

12.

Castillo-Téllez

Téllez

Vega-Gómez

, et al. (2021) Direct and mixed solar drying effect on edamame (Glycine max (L.) Merr.) kinetics and colorimetry. Proceedings - ISES Solar World Congress 2021 1: 809–816.

13.

Castillo Téllez

Pilatowsky Figueroa

Castillo Téllez

, et al. (2018) Solar drying of Stevia (Rebaudiana Bertoni) leaves using direct and indirect technologies. Solar Energy 159: 898–907.

14.

Castro

Mayorga

Moreno

(2018) Mathematical modelling of convective drying of fruits: A review. Journal of Food Engineering 223: 152–167.

15.

Cetina-Quiñones

Lopez Lopez

Ricalde-Cab

, et al. (2021) Experimental evaluation of an indirect type solar dryer for agricultural use in rural communities: Relative humidity comparative study under winter season in tropical climate with sensible heat storage material. Solar Energy 224: 58–75.

16.

Chan-Gonzálelz

Castillo Téllez

Castillo-Téllez

, et al. (2021) Improvements and evaluation on bitter orange leaves (Citrus aurantium L .) solar drying in humid climates. Sustainability 13(16): 9393.

17.

Constantino-Robles

Romero-Eredia

Sevilla-Camacho , et al. (2022) Novel hybrid solar dryer for medicinal plants: An experimental evaluation (Tithonia diversifolia gray). Sustainable Energy Technologies and Assessments 51: 101950.

18.

Crank

(1975) The mathematics of diffusion. Brunel University Uxbridge 4: 205–206.

19.

Deng

Xing

, et al. (2021) A literature research on the drying quality of agricultural products with using solar drying technologies. Solar Energy 229: 69–83.

20.

Diamante

Munro

(1993) Mathematical modelling of the thin layer solar drying of sweet potato slices. Solar Energy 51(4): 271–276.

21.

Doymaz

(2006) Thin-layer drying behaviour of mint leaves. Journal of Food Engineering 74(3): 370–375.

22.

Doymaz

Tugrul

Pala

(2006) Drying characteristics of dill and parsley leaves. Journal of Food Engineering 77(3): 559–565.

23.

Faisal

Qahtan

Alatar

(2023) Thidiazuron induced in vitro plant regeneration, phenolic contents, antioxidant potential, GC-MS profiles and nuclear genome stability of Plectranthus amboinicus (Lour.) Spreng. Horticulturae 9(2): 277.

24.

García-Bores

Espinosa-González

Reyna-Campos

, et al. (2017) Lippia graveolens photochemopreventive effect against UVB radiation-induced skin carcinogenesis. Journal of Photochemistry and Photobiology, B: Biology 167: 72–81.

25.

García-Valladares

Lucho-Gómez

Montiel-Baltazar

, et al. (2023) Effect of modified solar dryers on colorimetric and physicochemical properties of pumpkin flower (Cucurbita maxima). Plant Foods for Human Nutrition 78(1): 139–145.

26.

Garcia

Rugel

Rodriguez Sandoval

, et al. (2017) Aprovechamiento de cilantro (Coriandrum sativum) y perejil (Petrosilenum crispum) aplicando procesos combinados de deshidratacion. Journal of Chemical Information and Modeling 8(9): 1–58.

27.

Hao

Liu

, et al. (2020) Mathematical modeling and performance analysis of a new hybrid solar dryer of lemon slices for controlling drying temperature. Energies 13(2): 350.

28.

Henderson

Pabis

(1961) Temperature effect on drying coefficient. Journal of Agricultural Engineering Research 6(3): 169–174.

29.

Hidar

Ouhammou

Mghazli

, et al. (2020) The impact of solar convective drying on kinetics, bioactive compounds and microstructure of stevia leaves. Renewable Energy 161: 1176–1183.

30.

Hossain

Barry-Ryan

Martin-Diana

, et al. (2010) Effect of drying method on the antioxidant capacity of six Lamiaceae herbs. Food Chemistry 123(1): 85–91.

31.

Jafari

Malekjani

(2023) Drying Technology in Food Processing. Cambridge: Woodhead Publishing.

32.

Jaloszynski

Figiel

Wojdylo

(2008) Drying kinetics and antioxidant activity of oregano. Acta Agrophysica 11(1): 81–90.

33.

Jin Park

Vohnikova

Pedro Reis Brod

(2002) Evaluation of drying parameters and desorption isotherms of garden mint leaves (Mentha crispa L.). Journal of Food Engineering 51(3): 193–199.

34.

Khalfaoui

Besombes

Deeb

, et al. (2021) Phenomenological modeling of drying by starting-accessibility and water internal diffusion (SAWID); case of swell-drying of Tunisian thyme. Drying Technology 40(9): 1948–1965.

35.

Koua

Fassinou

Gbaha

, et al. (2009) Mathematical modelling of the thin layer solar drying of banana, mango and cassava. Energy 34(10): 1594–1602.

36.

Kumar

Sansaniwal

Khatak

(2016) Progress in solar dryers for drying various commodities. Renewable and Sustainable Energy Reviews 55: 346–360.

37.

Lamrani

Draoui

(2020) Thermal performance and economic analysis of an indirect solar dryer of wood integrated with packed-bed thermal energy storage system : A case study of solar thermal applications. Drying Technology 39(10): 1371–1388.

38.

López-Vidaña

César-Munguía

García-Valladares

, et al. (2020) Thermal performance of a passive, mixed-type solar dryer for tomato slices (Solanum lycopersicum). Renewable Energy 147: 845–855.

39.

López-Vidaña

Domínguez Niño

García-Valladares

, et al. (2022) Indirect and mixed-mode solar drying and its effect on physicochemical properties of raw and cooked chicken breast meat. Journal of Food Processing and Preservation 46(10): e16848.

40.

Mahecha

Cortes

Rodríguez

(2010) Evaluación del Secado de Perejil Aplicando Técnicas de Deshidratación Osmótica Como Pretratamiento. Revista Facultad de Agronomía Universidad Nacional Medellin 63(2): 5693–5705.

41.

Marinos-Kouris

Maroulis

(2006) Transport properties in the drying of solids. In: Handbook of Industrial Drying, 3rd ed. Boca Raton, FL: CRC Press.

42.

Méndez-Robles

Carrera-Arellano

García-González

, et al. (2018) Análisis de propiedades físicas en el deshidratado de guayaba por medio de energía solar utilizando convección natural y forzada. Investigación y Desarrollo en Ciencia y Tecnología de Alimentos 3: 264–269.

43.

Mohana

Mohanapriya

Anukiruthika

, et al. (2020) Solar dryers for food applications: Concepts, designs, and recent advances. Solar Energy 208: 321–344.

44.

Moheno-Barrueta

Tzuc

Martínez-Pereyra

, et al. (2021) Experimental evaluation and theoretical optimization of an indirect solar dryer with forced ventilation under tropical climate by an inverse artificial neural network. Applied Sciences 11(16): 7616.

45.

Ndukwu

Onyenwigwe

Abam

, et al. (2020) Development of a low-cost wind-powered active solar dryer integrated with glycerol as thermal storage. Renewable Energy 154: 553–568.

46.

Nurafifah

Luqman Chuah

Puteri Farah Wahida

(2018) Drying of Plectranthus amboinicus (lour) Spreng leaves by using oven dryer. Engineering in Agriculture, Environment and Food 11(4): 239–244.

47.

Ozdemir

Devres

(2000) The thin layer drying characteristics of hazelnuts during roasting. Journal of Food Engineering 42(4): 225–233.

48.

Page

(1949) Factors Influencing the Maximum Rates of Air Drying Shelled Corn in Thin Layers. Pardue University.

49.

Samimi-Akhijahani

Arabhosseini

(2018) Accelerating drying process of tomato slices in a PV-assisted solar dryer using a sun tracking system. Renewable Energy 123: 428–438.

50.

Sanjuán

Lozano

García-Pascual

, et al. (2003) Dehydration kinetics of red pepper (Capsicum annuum L var jaranda). Journal of the Science of Food and Agriculture 83(7): 697–701.

51.

Sharaf-Eldeen

Blaisdell

Hamdy

(1980) A model for ear corn drying. Transactions of the ASAE 23(5): 1261–1265.

52.

Simo-Tagne

Ndukwu

(2021) Study on the effect of conical and parabolic solar concentrator designs on hybrid solar dryers for apricots under variable conditions: A numerical simulation approach. International Journal of Green Energy 18(15): 1613–1631.

53.

Simo-Tagne

Tagne

Ndukwu

, et al. (2021) Numerical study of the drying of cassava roots chips using an indirect solar dryer in natural convection. AgriEngineering 3(1): 138–157.

54.

Simo-Tagne

Tamkam Etala

Tagne Tagne

, et al. (2022) Energy, environmental and economic analyses of an indirect cocoa bean solar dryer: A comparison between natural and forced convections. Renewable Energy 187: 1154–1172.

55.

Singh

Gill

Hans

, et al. (2021) A novel active-mode indirect solar dryer for agricultural products: Experimental evaluation and economic feasibility. Energy 222: 119956.

56.

Śledź

Nowacka

Wiktor

, et al. (2013) Selected chemical and physico-chemical properties of microwave-convective dried herbs. Food and Bioproducts Processing 91(4): 421–428.

57.

Sobukola

Dairo

Sanni

, et al. (2007) Thin layer drying process of some leafy vegetables under open sun. Food Science and Technology International 13(1): 35–40.

58.

Stasińska-Jakubas

Hawrylak-Nowak

Wójciak

, et al. (2023) Comparative effects of two forms of chitosan on selected phytochemical properties of Plectranthus amboinicus (Lour.). Molecules 28(1): 1–16.

59.

Sulaiman

Deepak

Balachandran

(2018) Spectrophotometric and tandem mass spectroscopic analysis of Indian borage (Plectranthus amboinicus (lour.) Spreng.) for its polyphenolics characterization. Beni-Suef University Journal of Basic and Applied Sciences 7(4): 471–473.

60.

Teussingka

Simo-Tagne

Njankouo

, et al. (2023) An experimental and theoretical analysis of the dynamic response of solar drying in natural convection under rainy month of Maroua (Cameroon) of three tropical wood species. Wood Material Science and Engineering 18(5): 1685–1705.

61.

Toğrul

İT

Pehlivan

(2002) Mathematical modelling of solar drying of apricots in thin layers. Journal of Food Engineering 55(3): 209–216.

62.

Toĝrul

İT

Pehlivan

(2004) Modelling of thin layer drying kinetics of some fruits under open-air sun drying process. Journal of Food Engineering 65(3): 413–425.

63.

Tomar

Tiwari

Norton

(2017) Solar dryers for tropical food preservation: Thermophysics of crops, systems and components. Solar Energy 154: 2–13.

64.

Váquiro

Clemente

García-Pérez

, et al. (2009) Enthalpy-driven optimization of intermittent drying of Mangifera indica L. Chemical Engineering Research and Design 87(7): 885–898.

65.

Vel

Acevedo

(2014) Procedimiento para deshidratación de orégano utilizando gas propano como combustible. Tecno Lógicas 17(33): 13–20.

66.

Velić

Planinić

Tomas

, et al. (2004) Influence of airflow velocity on kinetics of convection apple drying. Journal of Food Engineering 64(1): 97–102.

67.

Vijayan

Arjunan

Kumar

(2020) Exergo-environmental analysis of an indirect forced convection solar dryer for drying bitter gourd slices. Renewable Energy 146: 2210–2223.

68.

Wang

Singh

(1978) A single layer drying equation for rough rice. American Society of Agricultural Engineers 78: 3001.

69.

Yaldiz

Ertekin

Uzun

(2001) Mathematical modeling of thin layer solar drying of sultana grapes. Energy 26(5): 457–465.

70.

Zimberg

Mathisson

Sica

(2000) Solar Drying of Herbs, numerical simulation and experimental results. In: World Renewable Energy Congress VI. Kidlington, UK.
