Productivity enhancement of continuous miners packages of underground mines with energy conservation in industrial sectors

Abstract

Energy auditing is crucial for both emerging and developed nations, focusing on aspects such as energy efficiency, quality and intensity. This becomes especially significant in the industrial sector, where major operating costs involve materials, machinery, personnel and energy. A key objective is identifying energy consumption in the Continuous Miner Machine, boasting a 1050 KW connected load, to explore opportunities for energy savings and improved quality. The execution of an energy audit promises increased efficiency, enhanced power quality, reduced costs and prevention of energy wastage. This research study has meticulously examined the electrical equipment supplying power to Continuous Miner Machines, proposing modifications to boost production through energy-efficient methods. Comprehensive assessments of primary substations, including Incomers, Transformers, Feeders, etc., involve tests for voltage, current, power factor, harmonics and AC waveform. Thermal imaging is employed to analyze the operational temperature of the electrical equipment. The graphical representations of test outcomes have highlighted a significant recommendation: installing an Automatic Power Factor Controller on the inductive load side of transformers could lead to a notable 3.85% reduction in energy costs.

Keywords

Energy audit energy efficiency energy quality energy intensity substation's equipment mining

Introduction

Energy availability is essential to all economies. Energy is becoming increasingly crucial for people, businesses and entire countries as industrialize, expand and depend on more complex infrastructure and technology systems. Enhancing energy efficiency at business, regional, national and international levels becoming increasingly popular on a global scale. It is seen to address worries about energy security and the environmental effect of energy consumption. ‘Improvements in final consumption efficiency offer the greatest opportunity to solve energy security, pricing and environmental issues’, says the G8 Clean Energy and Development Report. Energy efficiency is widely recognized as a lucrative business model that can provide multiple non-energy benefits without the need for subsidies. These benefits include increased productivity, increased employment, reduced fuel shortages and improved public health. These benefits were recently recognized because of a landmark International Energy Agency study. (Fawkes et al., 2016) The need for auditing and transitioning energy consumption is crucial because it has the potential to reduce dependence on fossil fuels, thereby lessening the negative environmental effects associated with these pollutants (Kreith and Goswami, 2007; Mahdi, 2018).

As industry consumes the most energy, improving energy efficiency in industry is key to reducing carbon emissions (Thollander and Palm, 2012). Coal India is the world's largest coal producer. Coal was mined by both open pit and underground mining. Most of the coal consumed in India is used to generate electricity in thermal power plants. Energy cost reductions are achieved using energy-efficient technologies, energy carrier conversion, demand response and more energy-efficient operation. An energy audit is a valuable tool in removing barriers to energy efficiency. Additionally, a properly structured initial energy audit is the first critical step in establishing a successful internal energy management program in your industry (Rosenqvist et al., 2012).

This research aims to enhance our understanding of electrical equipment performance in heavy mines machinery through a unique application of energy audit tools. Unlike existing studies that focus on energy efficiency in various domains, this research sheds light on the overlooked dynamics of mines machinery and its electrical components. Using innovative methods such as Harmonics and Thermal imaging, the study delves into nuanced analyses of energy wastage, aiming to provide specific recommendations for improvement. By filling these unexplored gaps, the research aspires to be a catalyst for transformative enhancements in the energy efficiency of heavy subterranean machinery, contributing to a more sustainable and productive future for the mining industry.

Coal is produced in the Khairaha Underground mines using Board and Pillar mining methods (Siddiqui et al., 2022a). Coal mining operations use continuous miner to remove coal reserves from underground coal seams. The miner consists of a rotating steel drum fitted with tungsten carbide picks that scrape coal from seams (Bogunovic et al., 2009; Mendis and Perera, 2006; Siddiqui et al., 2022b). The continuous miner should also have a roof and bolter attached. However, these elements should not prevent construction personnel from placing support pattern rows. Continuous miner systems enhance the speed of coal mining operations while reducing the need for extensive blasting. Moreover, these machines enable meeting the growing demand for underground coal production, as illustrated in Figure 1.

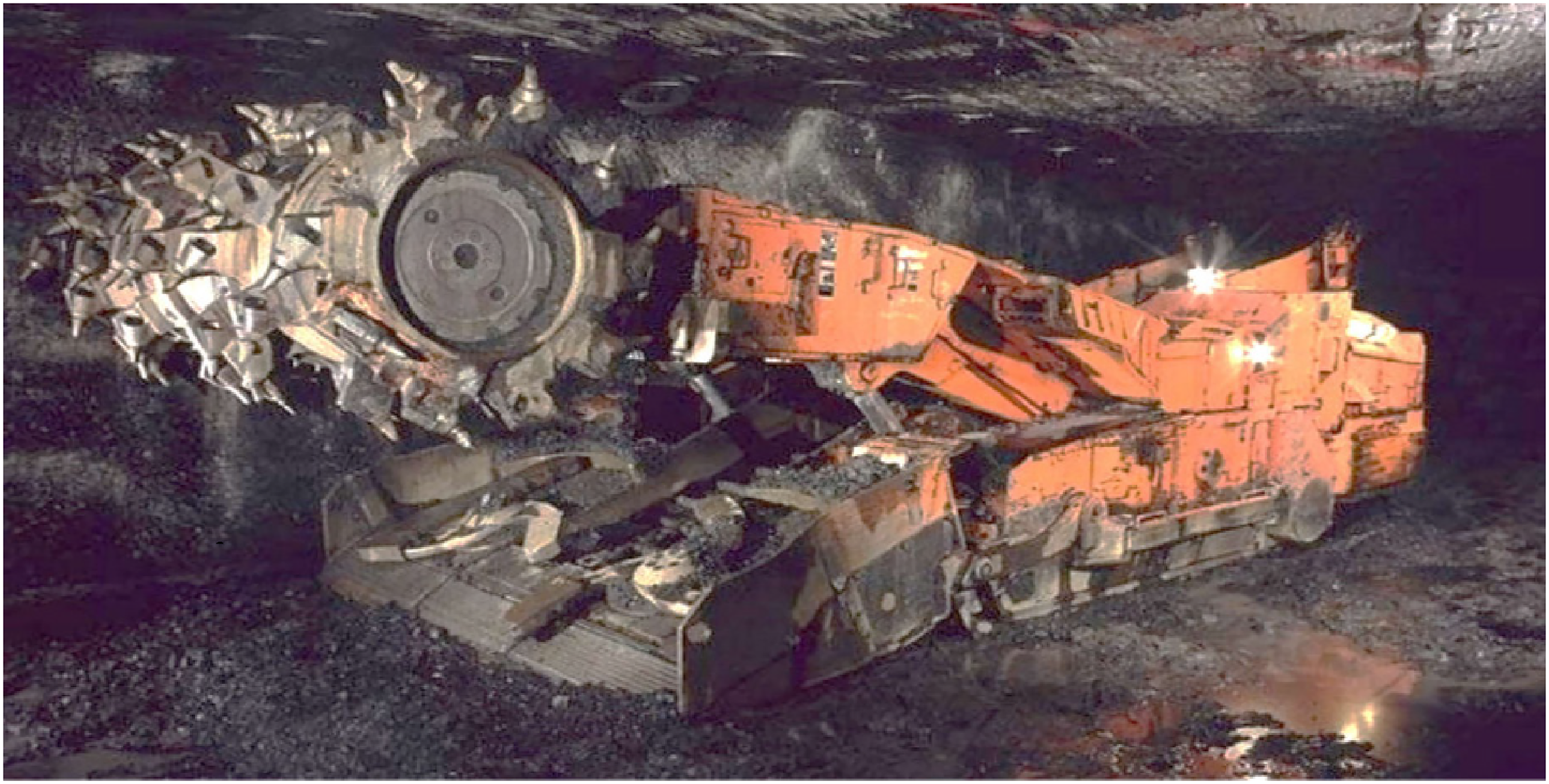

Figure 1.

Continuous miner machine at underground.

Cut coal transported by battery-driven Shuttle Car up to the in-pit crusher, roof support is done by Twin Bolter, and coal from the in-pit coal crusher is brought to the surface bunkers by belt conveyors. There are other machines rather than coal production, such as LHD, Pumps, Main Mechanical Ventilators and haulages, for allied mining processes (Siddiqui et al., 2022b). All these machines are powered by electricity. Electricity consumption is critical for the functioning of these machines, which use a significant portion of overall expenses.

A large electrical substation, 33KV/3.3KV, has been installed at the surface to handle all the mine's loads. In this article, a complete investigation of the substation's apparatuses was undertaken, and improvement strategies to increase production through energy-efficient techniques were proposed. A year's worth of detailed data, including output, was collected from April 2021 to March 2022. The electricity bill for the same period was gathered, as well as unit consumptions, contact demand, billing demand, power factor, power factor rebate or surcharge, time of day (TOD) surcharge, rebate and load factor, particular energy usage and so on.

The transformers’ performance was evaluated. Its power quality and load factor profile were examined, and graphs were generated. Based on real data obtained with a Portable Power Analyzer, voltage and current, power and power factor, voltage and current harmonics and AC waveform profiles have been shown. The working efficiency of the transformers was compared to their maximum efficiency. The harmonics analysis was conducted, and the resulting graph illustrates harmonic distortion in both power and distribution transformers. The graph compares the actual harmonic distortion (I-THD) during operation with the acceptable limits. Additionally, it displays harmonics profiles and sinusoidal waveforms, utilizing real data collected by the Portable Power Analyzer shown in Figure 2.

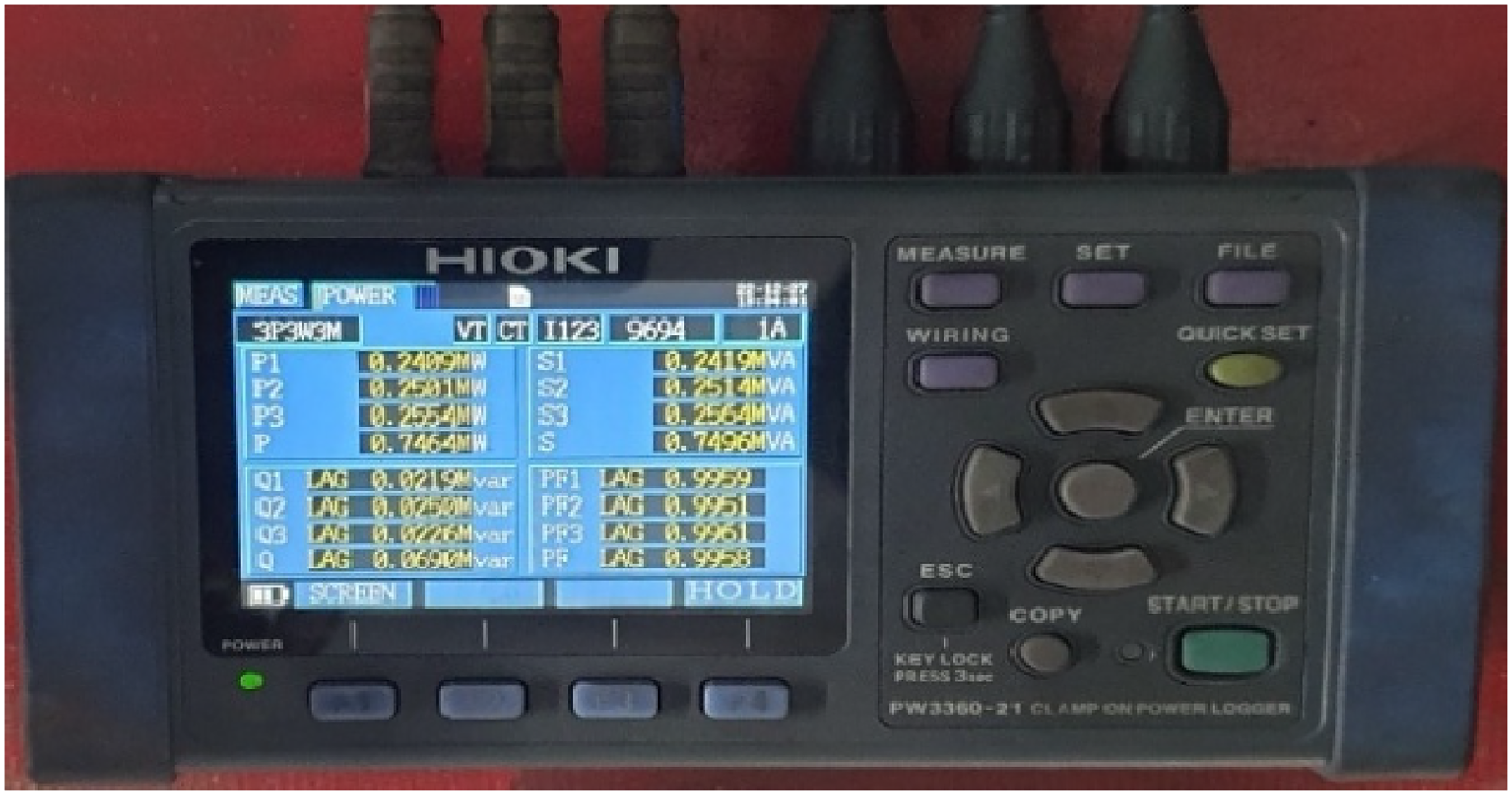

Figure 2.

Portable power quality analyser.

Thermal Imaging Camera, as shown in Figure 3, utilized to take thermal photos of the transformers and their associated circuits. The analysis of these images focused on identifying any thermal distortion in the devices.

Figure 3.

Thermal imaging camera.

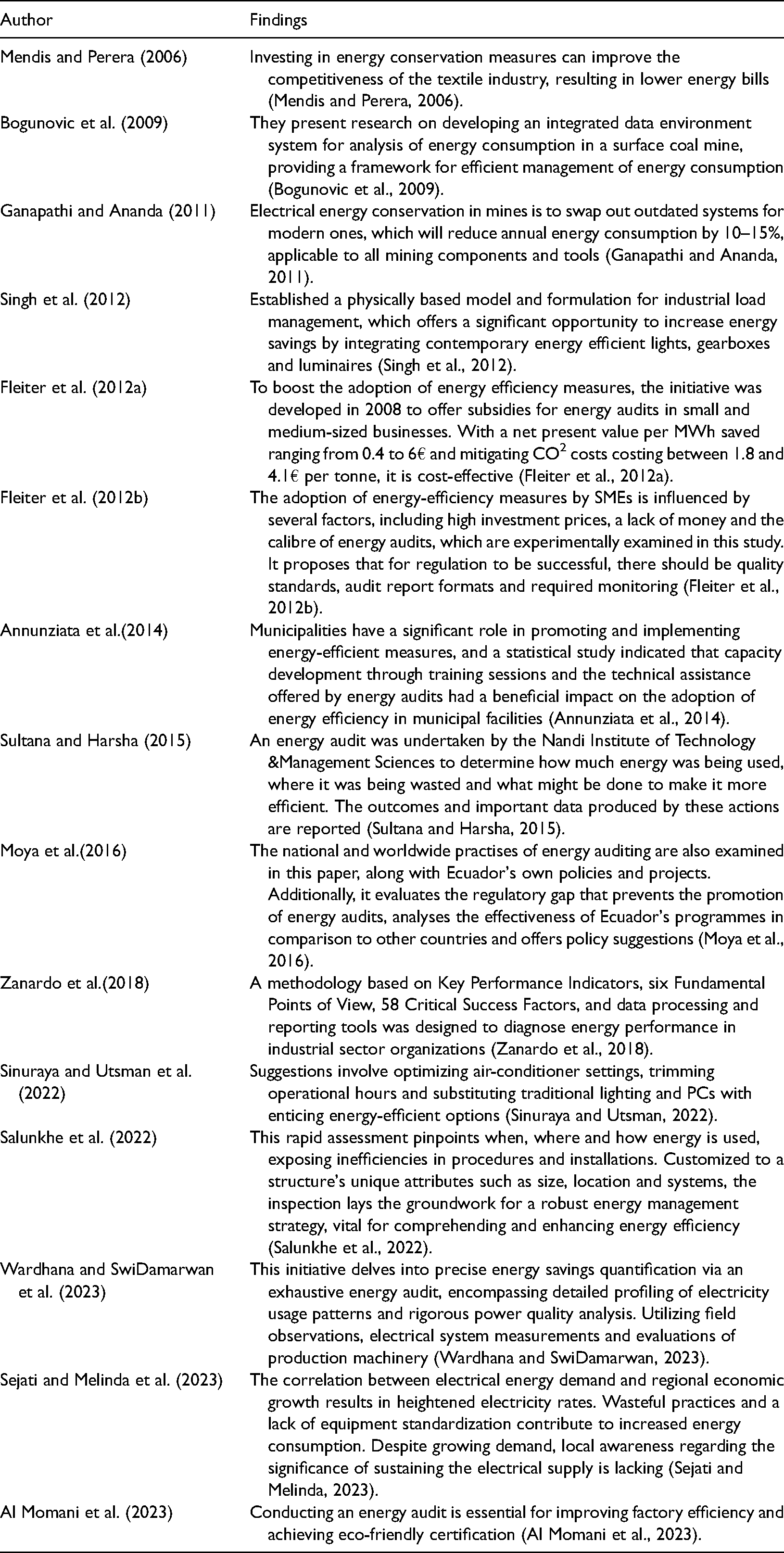

Literature review

Author	Findings
Mendis and Perera (2006)	Investing in energy conservation measures can improve the competitiveness of the textile industry, resulting in lower energy bills (Mendis and Perera, 2006).
Bogunovic et al. (2009)	They present research on developing an integrated data environment system for analysis of energy consumption in a surface coal mine, providing a framework for efficient management of energy consumption (Bogunovic et al., 2009).
Ganapathi and Ananda (2011)	Electrical energy conservation in mines is to swap out outdated systems for modern ones, which will reduce annual energy consumption by 10–15%, applicable to all mining components and tools (Ganapathi and Ananda, 2011).
Singh et al. (2012)	Established a physically based model and formulation for industrial load management, which offers a significant opportunity to increase energy savings by integrating contemporary energy efficient lights, gearboxes and luminaires (Singh et al., 2012).
Fleiter et al. (2012a)	To boost the adoption of energy efficiency measures, the initiative was developed in 2008 to offer subsidies for energy audits in small and medium-sized businesses. With a net present value per MWh saved ranging from 0.4 to 6€ and mitigating CO² costs costing between 1.8 and 4.1€ per tonne, it is cost-effective (Fleiter et al., 2012a).
Fleiter et al. (2012b)	The adoption of energy-efficiency measures by SMEs is influenced by several factors, including high investment prices, a lack of money and the calibre of energy audits, which are experimentally examined in this study. It proposes that for regulation to be successful, there should be quality standards, audit report formats and required monitoring (Fleiter et al., 2012b).
Annunziata et al.(2014)	Municipalities have a significant role in promoting and implementing energy-efficient measures, and a statistical study indicated that capacity development through training sessions and the technical assistance offered by energy audits had a beneficial impact on the adoption of energy efficiency in municipal facilities (Annunziata et al., 2014).
Sultana and Harsha (2015)	An energy audit was undertaken by the Nandi Institute of Technology &Management Sciences to determine how much energy was being used, where it was being wasted and what might be done to make it more efficient. The outcomes and important data produced by these actions are reported (Sultana and Harsha, 2015).
Moya et al.(2016)	The national and worldwide practises of energy auditing are also examined in this paper, along with Ecuador's own policies and projects. Additionally, it evaluates the regulatory gap that prevents the promotion of energy audits, analyses the effectiveness of Ecuador's programmes in comparison to other countries and offers policy suggestions (Moya et al., 2016).
Zanardo et al.(2018)	A methodology based on Key Performance Indicators, six Fundamental Points of View, 58 Critical Success Factors, and data processing and reporting tools was designed to diagnose energy performance in industrial sector organizations (Zanardo et al., 2018).
Sinuraya and Utsman et al. (2022)	Suggestions involve optimizing air-conditioner settings, trimming operational hours and substituting traditional lighting and PCs with enticing energy-efficient options (Sinuraya and Utsman, 2022).
Salunkhe et al. (2022)	This rapid assessment pinpoints when, where and how energy is used, exposing inefficiencies in procedures and installations. Customized to a structure's unique attributes such as size, location and systems, the inspection lays the groundwork for a robust energy management strategy, vital for comprehending and enhancing energy efficiency (Salunkhe et al., 2022).
Wardhana and SwiDamarwan et al. (2023)	This initiative delves into precise energy savings quantification via an exhaustive energy audit, encompassing detailed profiling of electricity usage patterns and rigorous power quality analysis. Utilizing field observations, electrical system measurements and evaluations of production machinery (Wardhana and SwiDamarwan, 2023).
Sejati and Melinda et al. (2023)	The correlation between electrical energy demand and regional economic growth results in heightened electricity rates. Wasteful practices and a lack of equipment standardization contribute to increased energy consumption. Despite growing demand, local awareness regarding the significance of sustaining the electrical supply is lacking (Sejati and Melinda, 2023).
Al Momani et al. (2023)	Conducting an energy audit is essential for improving factory efficiency and achieving eco-friendly certification (Al Momani et al., 2023).

A detailed comparison of the referenced literature with the present study is thoroughly discussed in Table 1.

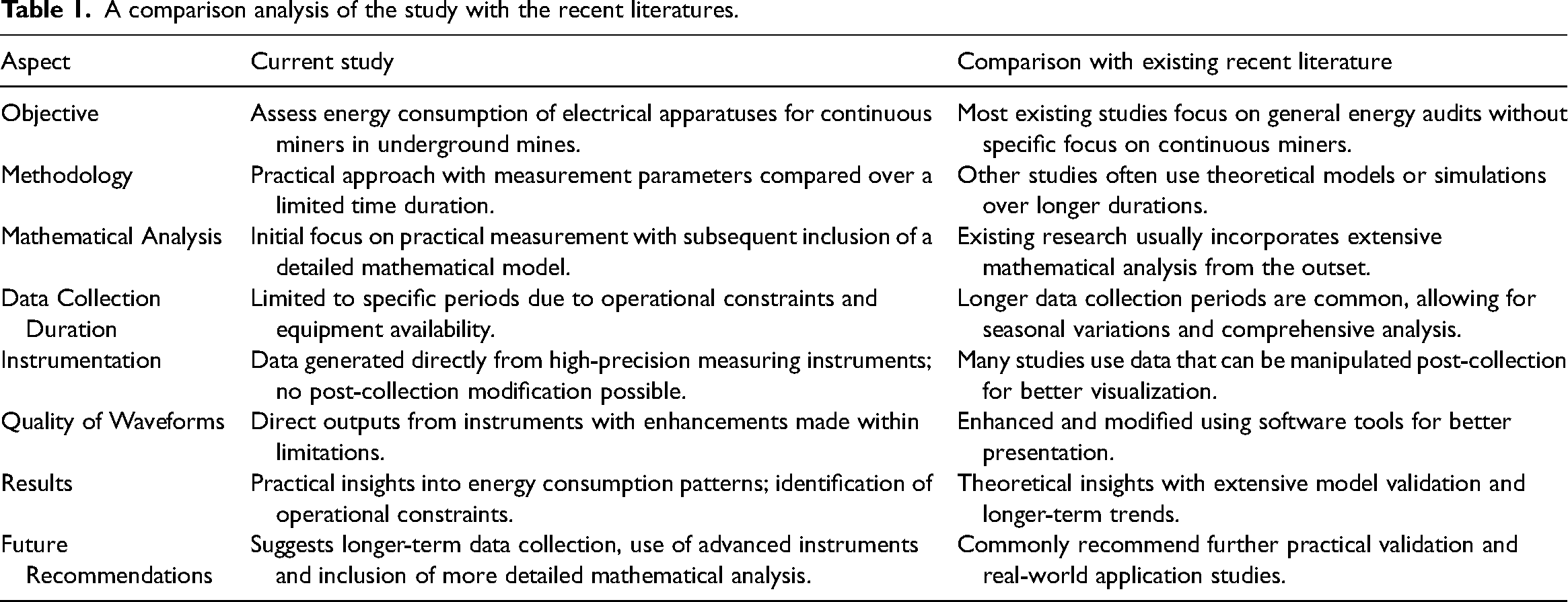

Table 1.

A comparison analysis of the study with the recent literatures.

Aspect	Current study	Comparison with existing recent literature
Objective	Assess energy consumption of electrical apparatuses for continuous miners in underground mines.	Most existing studies focus on general energy audits without specific focus on continuous miners.
Methodology	Practical approach with measurement parameters compared over a limited time duration.	Other studies often use theoretical models or simulations over longer durations.
Mathematical Analysis	Initial focus on practical measurement with subsequent inclusion of a detailed mathematical model.	Existing research usually incorporates extensive mathematical analysis from the outset.
Data Collection Duration	Limited to specific periods due to operational constraints and equipment availability.	Longer data collection periods are common, allowing for seasonal variations and comprehensive analysis.
Instrumentation	Data generated directly from high-precision measuring instruments; no post-collection modification possible.	Many studies use data that can be manipulated post-collection for better visualization.
Quality of Waveforms	Direct outputs from instruments with enhancements made within limitations.	Enhanced and modified using software tools for better presentation.
Results	Practical insights into energy consumption patterns; identification of operational constraints.	Theoretical insights with extensive model validation and longer-term trends.
Future Recommendations	Suggests longer-term data collection, use of advanced instruments and inclusion of more detailed mathematical analysis.	Commonly recommend further practical validation and real-world application studies.

Methodology

The energy audit study employed a specific methodology, which was systematically implemented in several steps, visually presented in Figures 4–6.

Figure 4.

Research methodology block diagram.

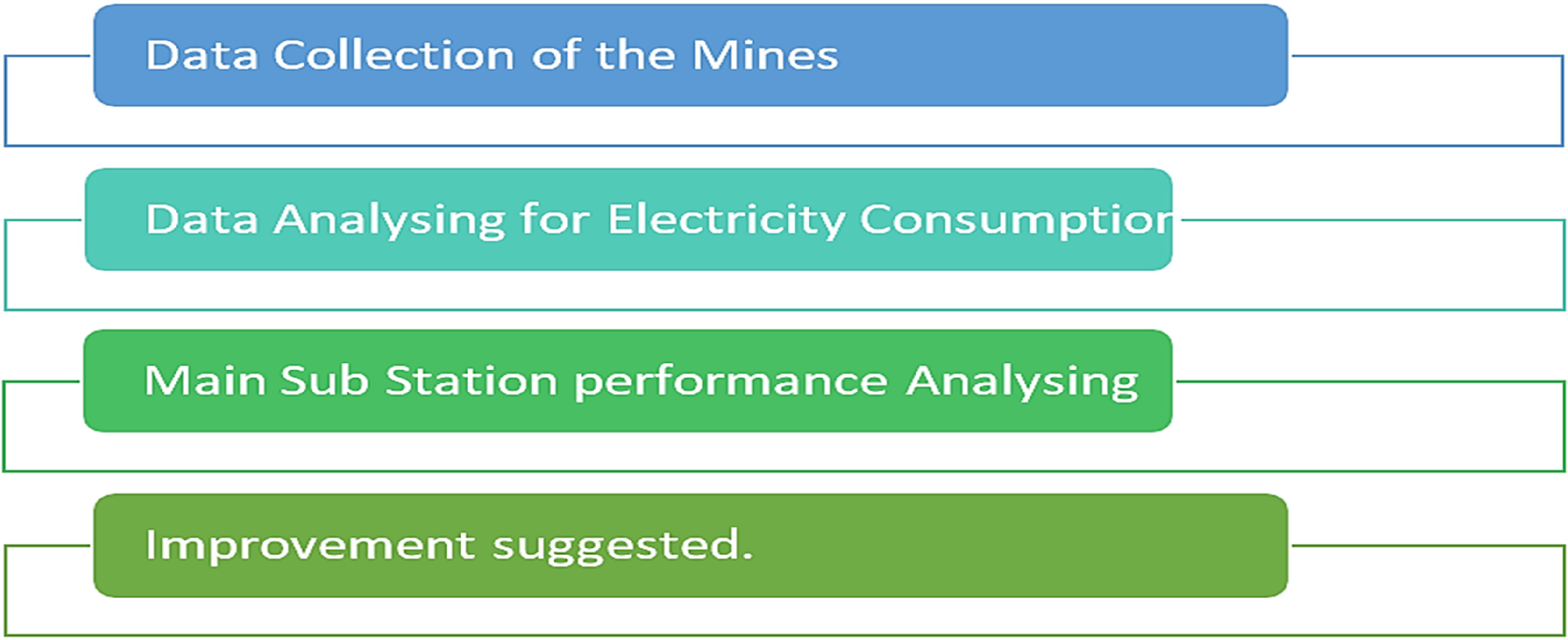

Figure 5.

Methodology adopted during energy audit of the mines.

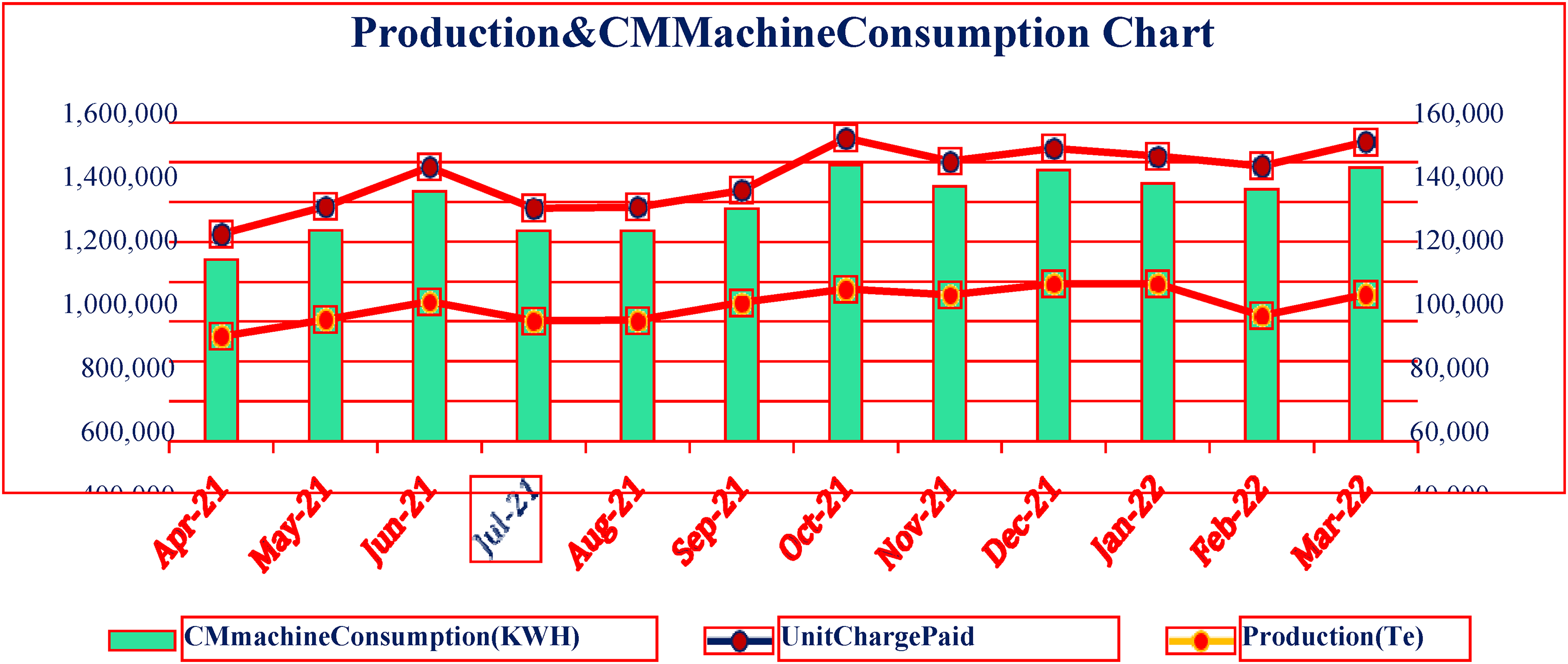

Figure 6.

Graph of month wise production.

Data collection

To assess power quality and efficiency, we collected data on production, unit consumption and SEC (Specific Energy Consumption) for a year from April 21 to March 22. The results of this analysis are presented in Figures 5 and 6.

The summarized information presented in Table 2 is derived from a meticulous analysis of the electricity bill data specifically associated with the Khairaha Underground (UG) mine.:

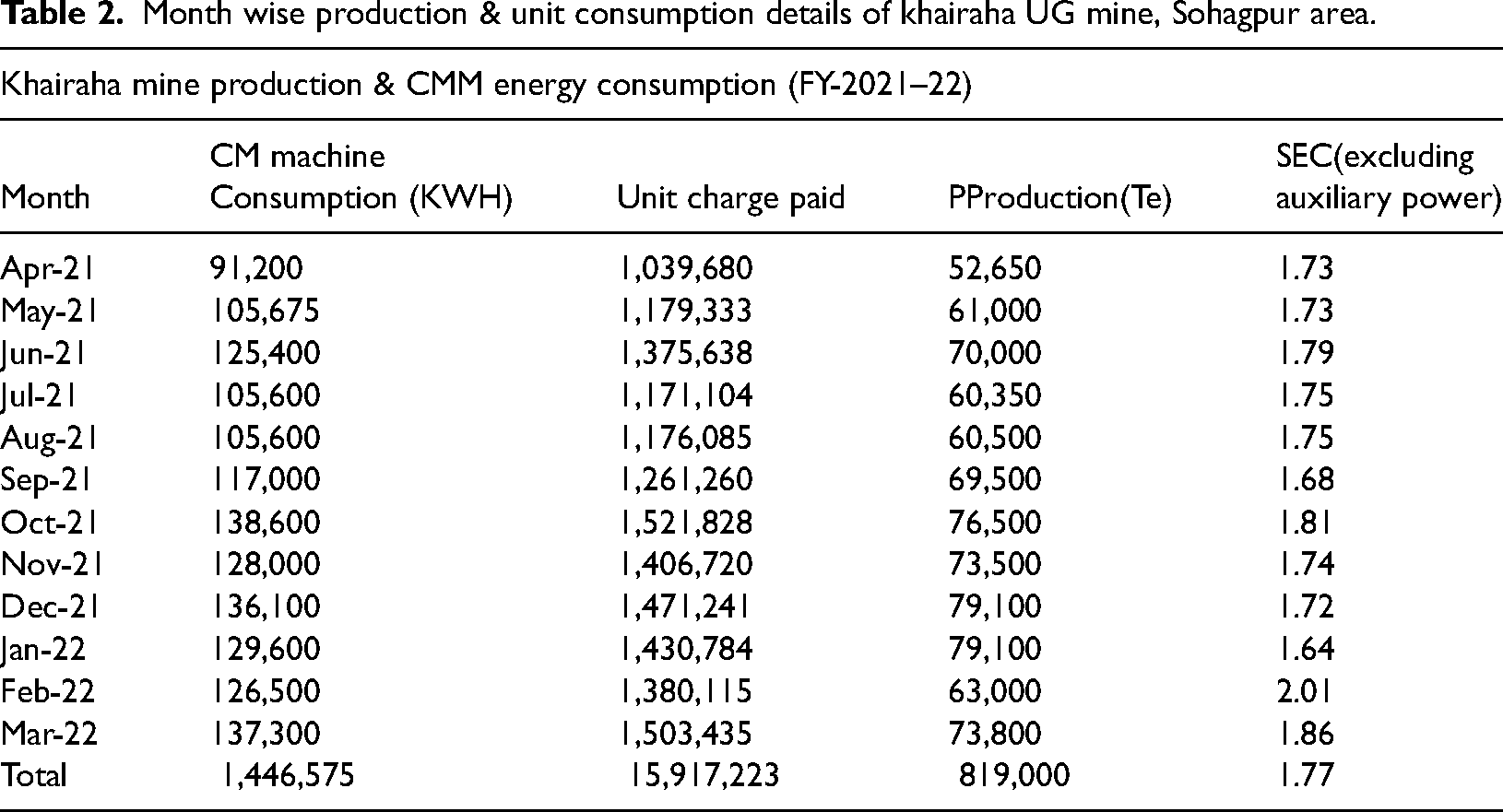

Table 2.

Month wise production & unit consumption details of khairaha UG mine, Sohagpur area.

Khairaha mine production & CMM energy consumption (FY-2021–22)
Month	CM machine Consumption (KWH)	Unit charge paid	PProduction(Te)	SEC(excluding auxiliary power)
Apr-21	91,200	1,039,680	52,650	1.73
May-21	105,675	1,179,333	61,000	1.73
Jun-21	125,400	1,375,638	70,000	1.79
Jul-21	105,600	1,171,104	60,350	1.75
Aug-21	105,600	1,176,085	60,500	1.75
Sep-21	117,000	1,261,260	69,500	1.68
Oct-21	138,600	1,521,828	76,500	1.81
Nov-21	128,000	1,406,720	73,500	1.74
Dec-21	136,100	1,471,241	79,100	1.72
Jan-22	129,600	1,430,784	79,100	1.64
Feb-22	126,500	1,380,115	63,000	2.01
Mar-22	137,300	1,503,435	73,800	1.86
Total	1,446,575	15,917,223	819,000	1.77

Data analysis

Power factor, contract demand (CD), highest recorded demand, connection type and electricity pricing structure have all been investigated in recent months. The power bills were gathered and evaluated to identify the various charges assessed as well as any rebates or penalties incurred while the unit was in service. Table 3 provides a breakdown of the power usage pattern spanning from December 2021 to November 2022. Based on last one year electricity bill, mentioned in Table 2, it has been observed that energy consumption (kWh) was maximum during June-2022 and minimum during March-2022. The energy cost paid was maximum during June 2022 and minimum during March-2022.

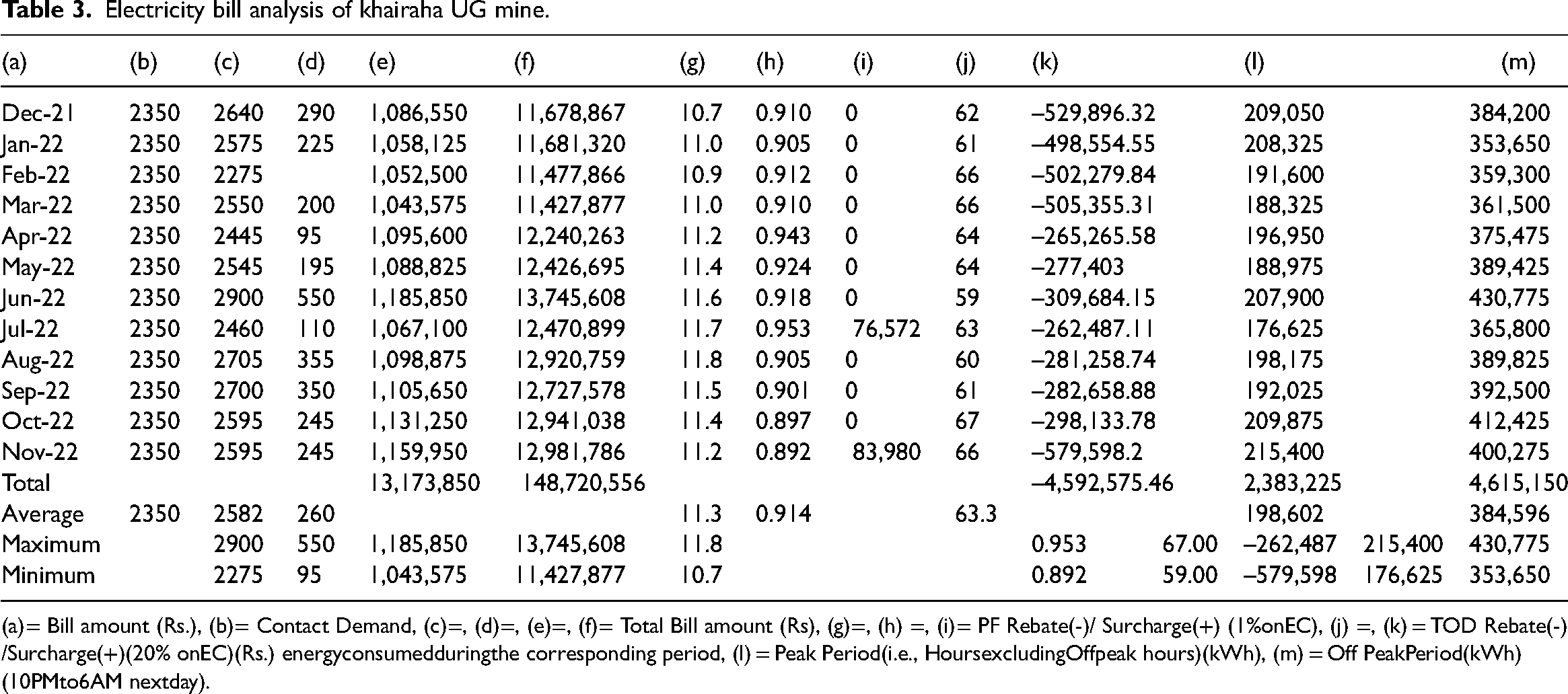

Table 3.

Electricity bill analysis of khairaha UG mine.

(a)	(b)	(c)	(d)	(e)	(f)	(g)	(h)	(i)	(j)	(k)		(l)		(m)
Dec-21	2350	2640	290	1,086,550	11,678,867	10.7	0.910	0	62	–529,896.32		209,050		384,200
Jan-22	2350	2575	225	1,058,125	11,681,320	11.0	0.905	0	61	–498,554.55		208,325		353,650
Feb-22	2350	2275		1,052,500	11,477,866	10.9	0.912	0	66	–502,279.84		191,600		359,300
Mar-22	2350	2550	200	1,043,575	11,427,877	11.0	0.910	0	66	–505,355.31		188,325		361,500
Apr-22	2350	2445	95	1,095,600	12,240,263	11.2	0.943	0	64	–265,265.58		196,950		375,475
May-22	2350	2545	195	1,088,825	12,426,695	11.4	0.924	0	64	–277,403		188,975		389,425
Jun-22	2350	2900	550	1,185,850	13,745,608	11.6	0.918	0	59	–309,684.15		207,900		430,775
Jul-22	2350	2460	110	1,067,100	12,470,899	11.7	0.953	76,572	63	–262,487.11		176,625		365,800
Aug-22	2350	2705	355	1,098,875	12,920,759	11.8	0.905	0	60	–281,258.74		198,175		389,825
Sep-22	2350	2700	350	1,105,650	12,727,578	11.5	0.901	0	61	–282,658.88		192,025		392,500
Oct-22	2350	2595	245	1,131,250	12,941,038	11.4	0.897	0	67	–298,133.78		209,875		412,425
Nov-22	2350	2595	245	1,159,950	12,981,786	11.2	0.892	83,980	66	–579,598.2		215,400		400,275
Total				13,173,850	148,720,556					–4,592,575.46		2,383,225		4,615,150
Average	2350	2582	260			11.3	0.914		63.3			198,602		384,596
Maximum		2900	550	1,185,850	13,745,608	11.8				0.953	67.00	–262,487	215,400	430,775
Minimum		2275	95	1,043,575	11,427,877	10.7				0.892	59.00	–579,598	176,625	353,650

(a)= Bill amount (Rs.), (b)= Contact Demand, (c)=, (d)=, (e)=, (f)= Total Bill amount (Rs), (g)=, (h) =, (i)= PF Rebate(-)/ Surcharge(+) (1%onEC), (j) =, (k) = TOD Rebate(-) /Surcharge(+)(20% onEC)(Rs.) energyconsumedduringthe corresponding period, (l) = Peak Period(i.e., HoursexcludingOffpeak hours)(kWh), (m) = Off PeakPeriod(kWh) (10PMto6AM nextday).

The energy consumption in kilowatt-hours (kWh) and the corresponding payment patterns for each month from December 2021 to November 2022 at the mine are visually represented in Figure 7.

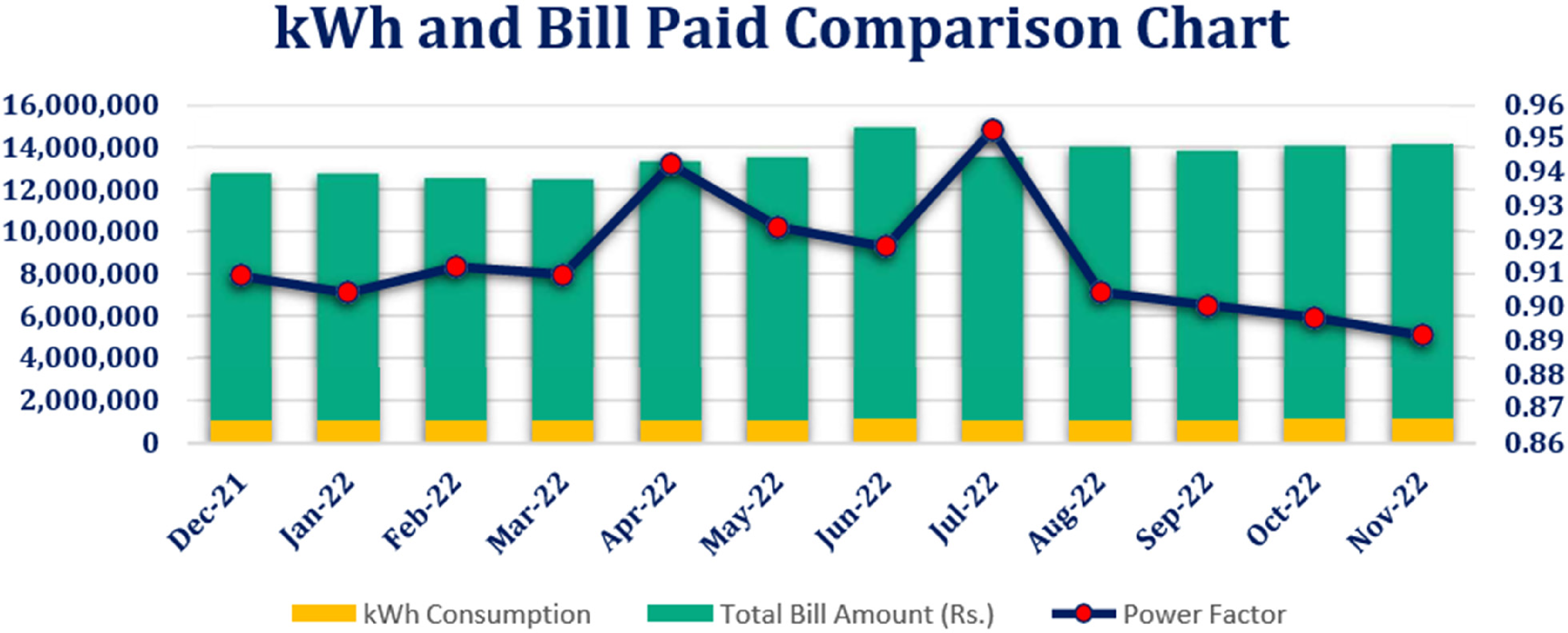

Figure 7.

Graph of electrical energy consumption and bill paid pattern (2020–21) in mine.

The graph in Figure 8 illustrates the CD and billing demand for the mine from December 2021 to November 2022.

Figure 8.

Graph of contract demand v/s billing demand compression chart (2021–22).

Figure 8 clearly illustrates that the maximum demand (MD)/billing demand was more than the CD in all months except February 22, when the MD was low, that is, 2275 kVA, while the CD was 2350 kVA. In the month of June-22, the recorded MD is up to 130% of the CD; therefore, Fixed charges for Excess Demand above 120% of CD must be levied at 1.3 times the regular fixed costs; this is an extra fee for Excess Demand (As per tariff order) (Ganapathi and Ananda, 2011; Fleiter et al., 2012a, 2012b, Singh et al., 2012).

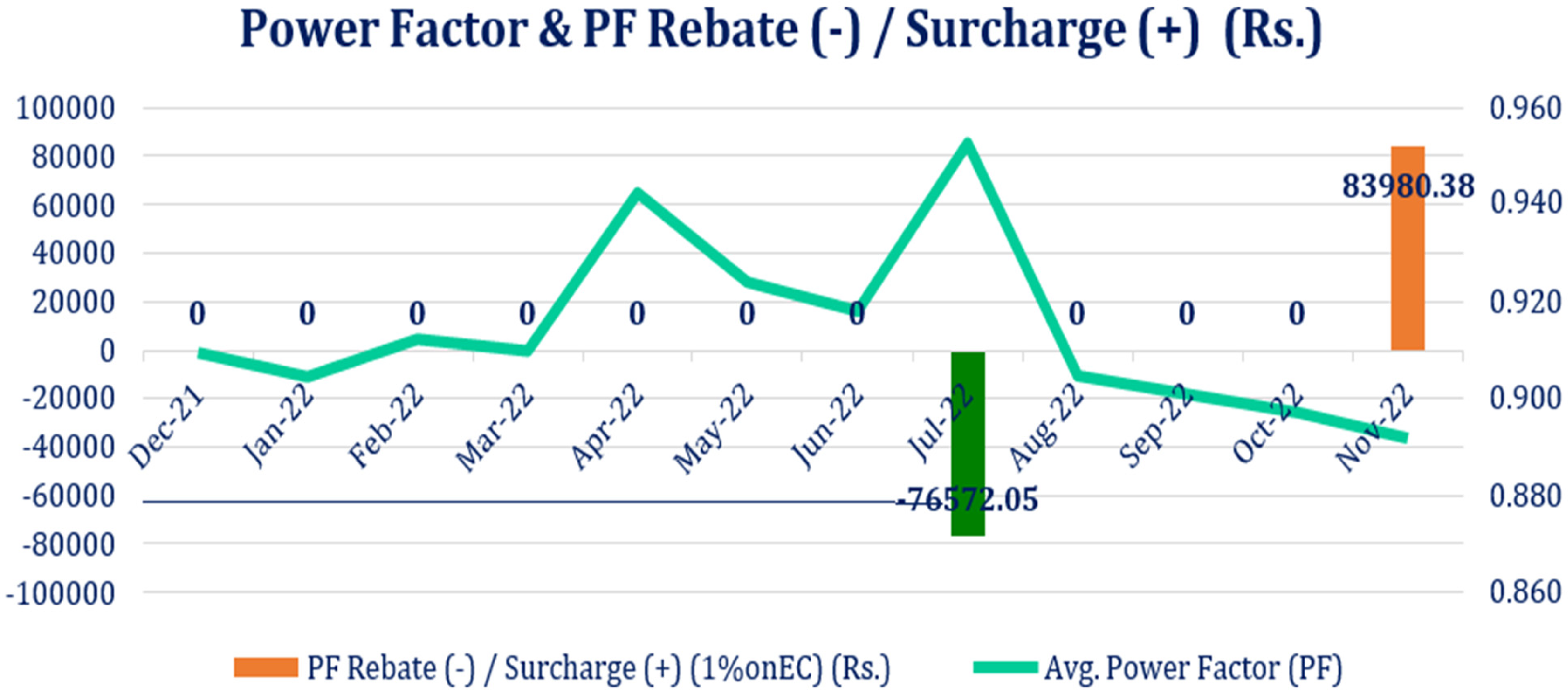

As depicted in Figure 9, it is evident that a 1% penalty will be imposed on my account due to the power factor dropping below 0.90, specifically measuring 0.892, in the month of November-22. Refund is 1% on EC in the month of July-22 owing to PF arriving 0.953; therefore, it is apparent that obtaining Power Factor advantages when pf climbs beyond 95%. Maintaining power factor unity might provide additional motivation (Annunziata et al., 2014; Moya et al., 2016; Sultana and Harsha, 2015). Figure 10 displays the changes in TOD concerning the surcharge/rebate and load factor.

Figure 9.

Graph of power factor & power factor rebate chart.

Figure 10.

Graph of TOD surcharge/rebate & load factor.

Specific energy consumption (kWh/T)

The average overall SEC of Coal from Dec-21 to Nov-22 is 15.55 kWh/T. The graph in Figure 11 clearly indicates that the SEC was at its highest in August-22 and at its lowest in October-22 (Salunkhe et al., 2022; Sinuraya and Utsman, 2022; Zanardo et al., 2018).

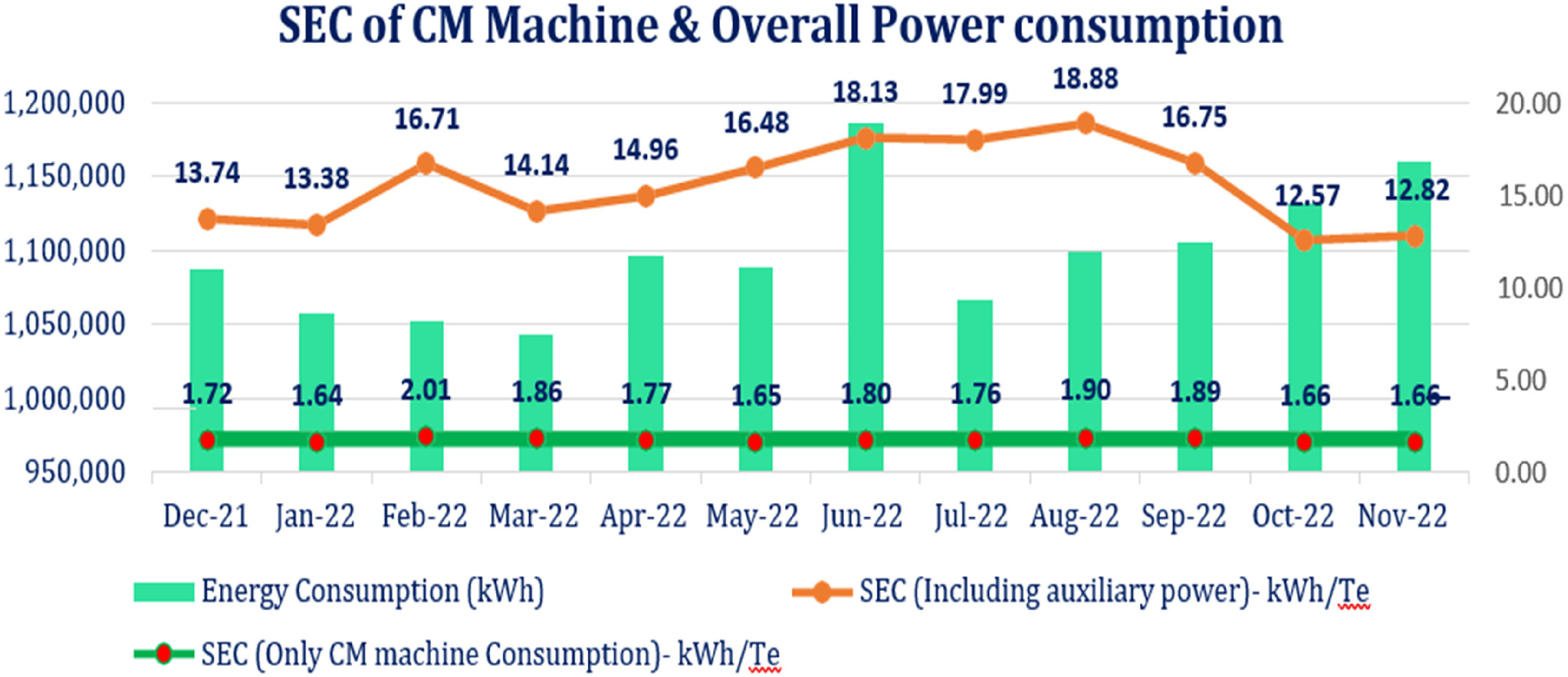

Figure 11.

Graph of specific energy consumption of cm machine & overall power consumption profile.

Analysis of energy scenario of main substation

The main substation at the Mines has four transformers, and their specific details are provided in Table 4.

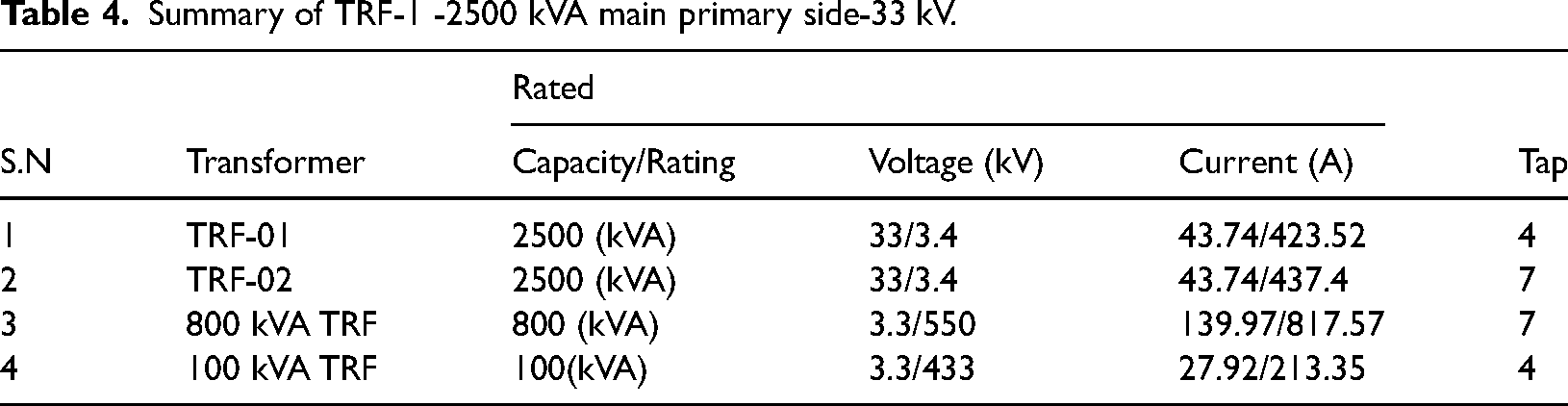

Table 4.

Summary of TRF-1 -2500 kVA main primary side-33 kV.

S.N	Transformer	Rated			Tap
S.N	Transformer	Capacity/Rating	Voltage (kV)	Current (A)	Tap
1	TRF-01	2500 (kVA)	33/3.4	43.74/423.52	4
2	TRF-02	2500 (kVA)	33/3.4	43.74/437.4	7
3	800 kVA TRF	800 (kVA)	3.3/550	139.97/817.57	7
4	100 kVA TRF	100(kVA)	3.3/433	27.92/213.35	4

Iron losses and copper losses are the two forms of losses (Sejati and Melinda, 2023; Wardhana and SwiDamarwan, 2023). Although iron loss is constant regardless of load, copper loss I²R varies with load (Al Momani et al., 2023; Kluczek and Olszewski, 2017). Transformer should be loaded optimally to limit load loss to a minimal. Transformer performance is determined by current and power factor (Li et al., 2022; Wang et al., 2022b; Yin et al., 2023a).

Table 5 illustrates the usual load on a 2500 kVA transformer. On the primary side, the load fluctuates between a maximum of 1531.4 kW and a minimum of 768 kW. The operating power factor varies between 0.7608 (leading) to 0.9472 (lagging).

Table 5.

Summary of TRF-1 -2500 kVA main primary side-33 kV.

Date	U1[V]	U2[V]	U3[V]	I1[A]	12[A]	I3[A]	P[Kw]	Q[KVAR]	S[kVA]	PF
Average value in the period	31,779	31,883	31,691	20.162	20.672	20.817	1029.8	461.1	1130.7	0.9111
Maximum value in the period	31,950	32,040	31,850	33.041	33.709	33.795	1531.4	1162.4	1819.1	0.9472
Time of maximum value, 27:12:22	13:47:04	13:44:44	13:44:44	13:44:43	13:44:43	13:44:43	13:45:58	13:44:43	13:44:43	13:46:30
Minimum value in the period	31,380	31,530	31,320	14.694	15.20	15.341	768.0	324.6	834.0	0.7608
Time of minimum period, 27:12:22	13:44:43	13:44:43	13:44:43	13:44:44	13:44:44	13:44:44	13:44:44	13:44:44	13:44:44	13:44:43

A power analyzer measures the flow of power (w) in an electrical system. While power is commonly expressed in terms of energy per second (J/s), this refers to the rate of electrical transmission between a power source and a drain (Sun et al., 2023; Xiao et al., 2023; Yin et al., 2023b). Observing power flow is a crucial yet straightforward task that can be done using a traditional power analyzer. More advanced systems, as shown in Figures 12–15, collect electrical signals and conduct integrated calculations for a more thorough analysis (Li et al., 2023b; Yu et al., 2022).

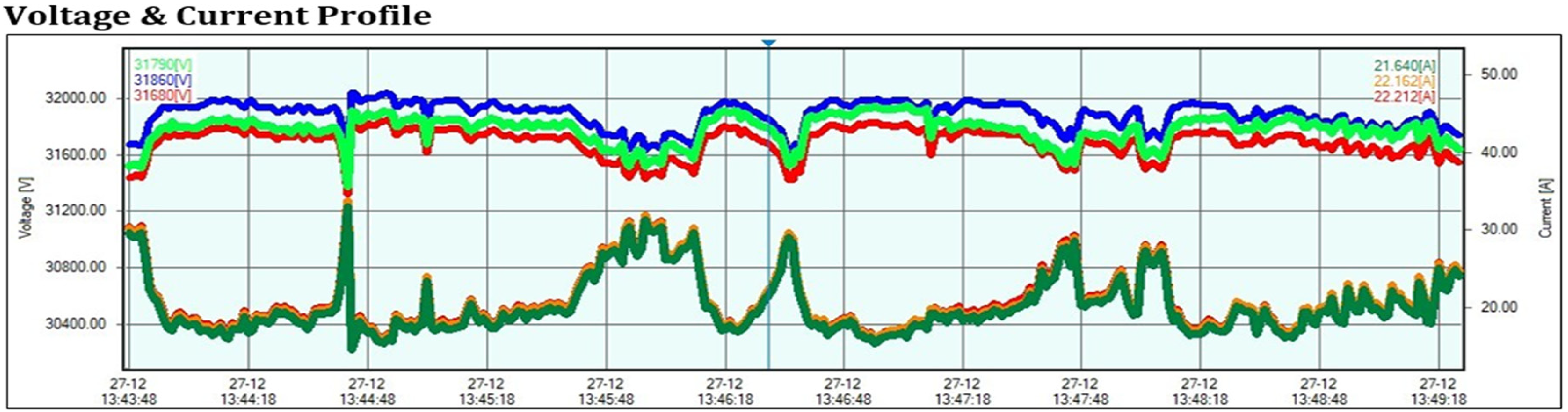

Figure 12.

Graph of voltage & current profile of TRF-1-2500 kVA main primary side-33 kv main.

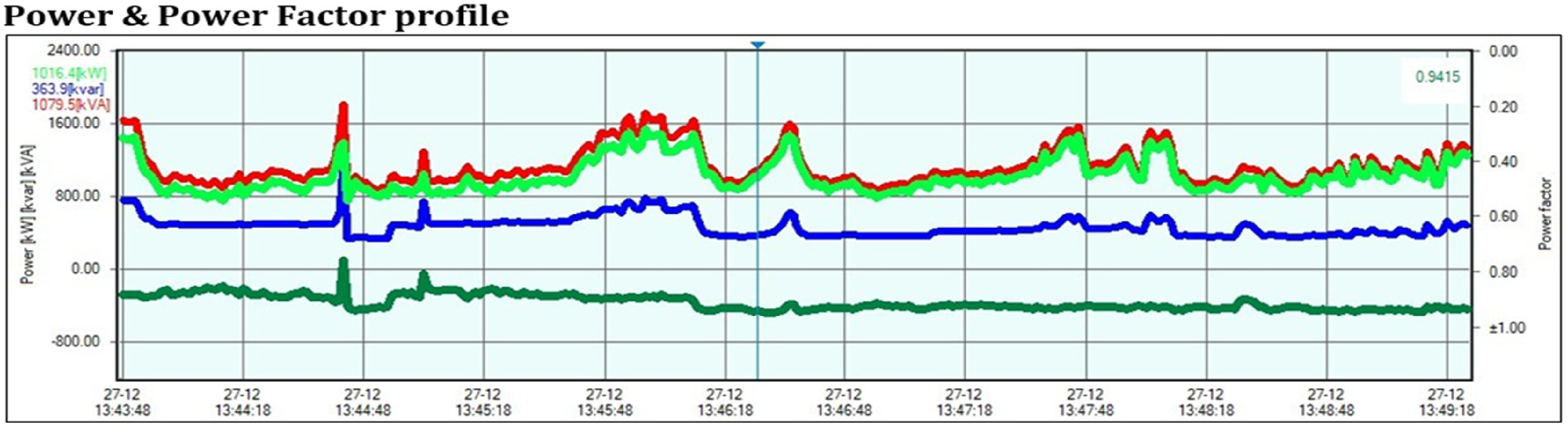

Figure 13.

Graph of power & power factor profile of TRF-1-2500kVA main primary side-33 kv main.

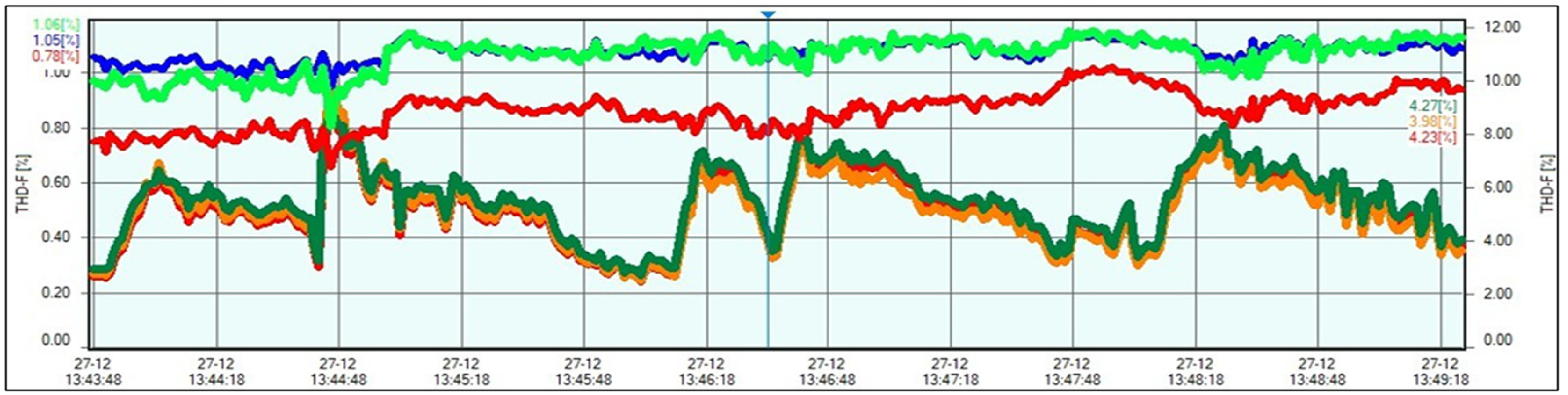

Figure 14.

Graph of voltage & current harmonics profile of TRF-1-2500kVA main primary side-33 kv main.

Figure 15.

Graph of AC waveform profile of TRF-1-2500 kVA main primary side-33kV.

The power quality analysis tests for the 33kv main incomer-1 covered voltage, current, power, power factor, voltage and current harmonics and AC waveform for the four transformers outlined in Table 5, specifically on the primary side (Tie et al., 2023; Wang et al., 2022a). Following the generation of graphs for each test, we calculated the relative performance. Figure 16 presents a comparison graph showcasing the performance variations among different transformers.

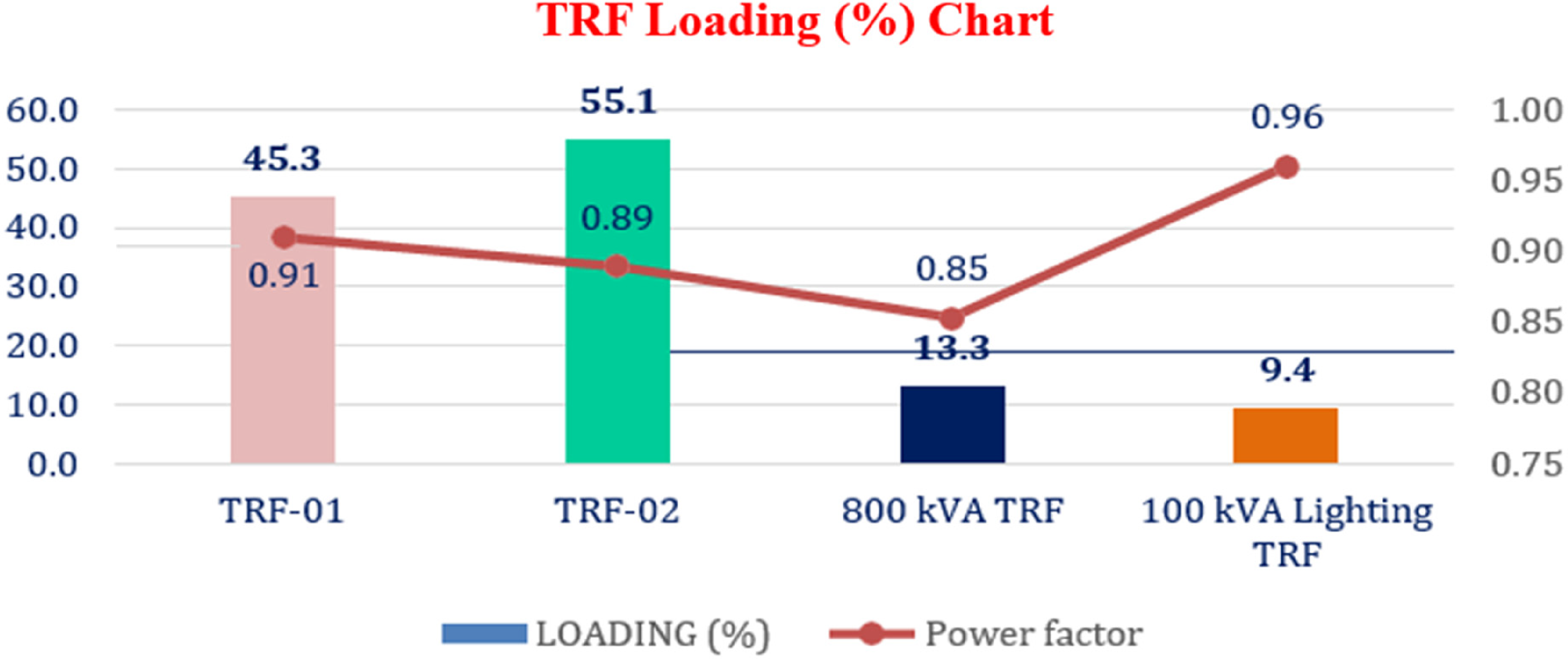

Figure 16.

Graph of transformer loading (%) of power TRF.

Unbalance is defined as any departure in magnitude or phase shift from a perfect sinusoidal voltage and current waveform. Imperfections in the load produce current imbalance, which travels to the transformer and causes three-phase voltage unbalance (Jiang et al., 2022; Wang et al., 2023a; Wu et al., 2022). Even modest voltage imbalances at the transformer level dramatically disrupt the current waveform on all loads connected to it (Babu et al., 2023; Ma et al., 2023). A 1% imbalance is okay because it has no effect on the wire. Nevertheless, it grows linearly over 1%, and at 4%, the de-rating is 20%. This implies that 20% of the current flowing through the cable won't contribute to productive work, resulting in a 25% increase in copper losses within the cable when there's a 4% imbalance, as shown in Figure 17 (Chu et al., 2023; Khan and Alzahrani, 2022; Varun Kumar et al., 2022).

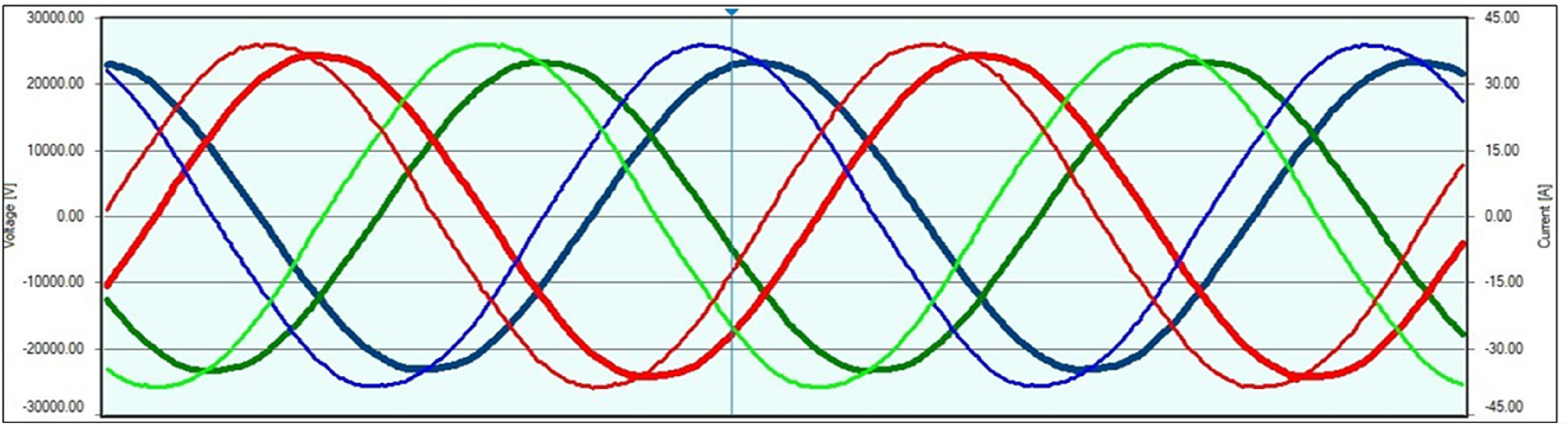

Figure 17.

Graph of AC sinusoidal waveform profile of TRF-1-2500kVA main primary side-33kV.

The analysis of power quality and load for transformers involves measuring the actual loading conditions on the secondary side, as presented in Table 6.

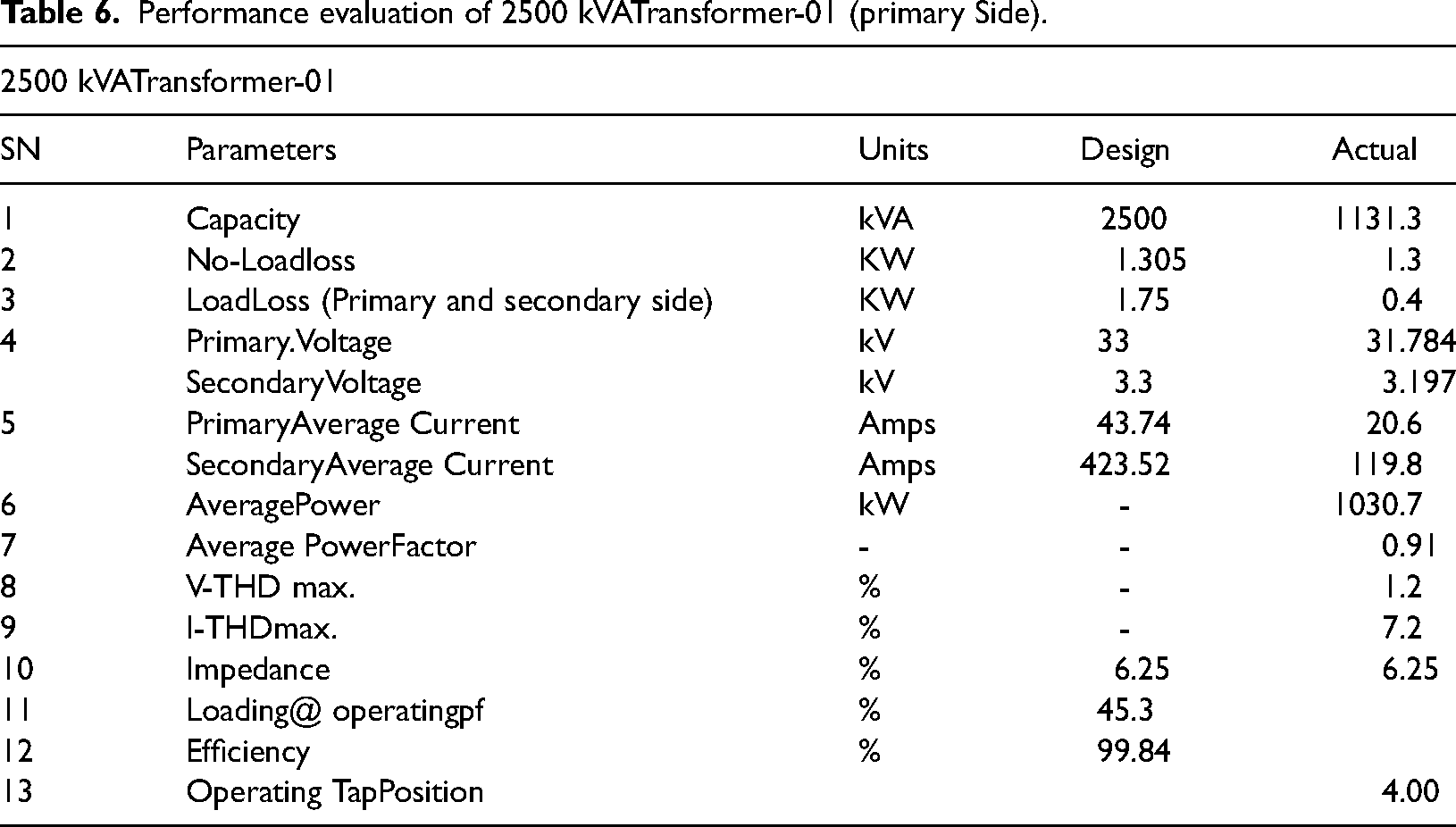

Table 6.

Performance evaluation of 2500 kVATransformer-01 (primary Side).

2500 kVATransformer-01
SN	Parameters	Units	Design	Actual
1	Capacity	kVA	2500	1131.3
2	No-Loadloss	KW	1.305	1.3
3	LoadLoss (Primary and secondary side)	KW	1.75	0.4
4	Primary.Voltage	kV	33	31.784
4	SecondaryVoltage	kV	3.3	3.197
5	PrimaryAverage Current	Amps	43.74	20.6
5	SecondaryAverage Current	Amps	423.52	119.8
6	AveragePower	kW	-	1030.7
7	Average PowerFactor	-	-	0.91
8	V-THD max.	%	-	1.2
9	I-THDmax.	%	-	7.2
10	Impedance	%	6.25	6.25
11	Loading@ operatingpf	%	45.3
12	Efficiency	%	99.84
13	Operating TapPosition			4.00

Loads on the 2500 kVA Transformer-01 (Primary side) is 45.3%, which is satisfactory. Distribution transformers typically have a maximum efficiency range of 40% to 60% transformer loading (Liu et al., 2023; Waqas et al., 2023; Xin et al., 2023). The preceding data shows that the HT voltage is 31.8 kV, which is fine. The tap operation is still in manual mode, and the transformer is set to the fourth position (Tripathi et al., 2022b, 2021c). As seen in Table 5, the power factor of the 2500kVA Transformer-01 (Primary side) is 0.91, which is somewhat lower (Tripathi et al., 2021b). Power Factor is affected by the kind of load. The use of a capacitor to keep the power factor constant (Tripathi et al., 2022a).

Based on the information in Table 7, for a standard load of 2500kVA, the highest load on the secondary side of the main transformer-01 Secondary side incomer-01 was 655 kW. The operational power factor varied from 0.9808 (leading) to 0.9867 (lagging) (Ansari et al., 2022; Dinkar et al., 2021).

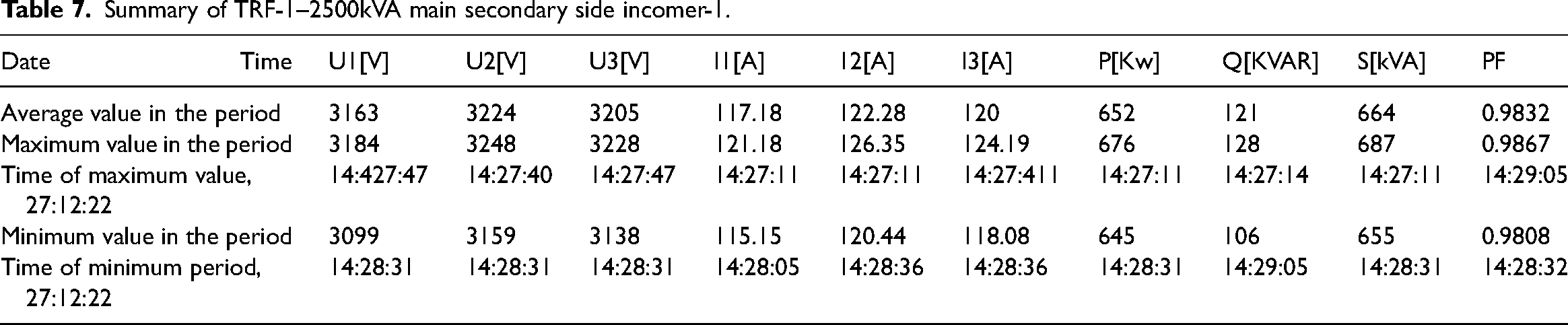

Table 7.

Summary of TRF-1–2500kVA main secondary side incomer-1.

Date	U1[V]	U2[V]	U3[V]	I1[A]	12[A]	I3[A]	P[Kw]	Q[KVAR]	S[kVA]	PF
Average value in the period	3163	3224	3205	117.18	122.28	120	652	121	664	0.9832
Maximum value in the period	3184	3248	3228	121.18	126.35	124.19	676	128	687	0.9867
Time of maximum value, 27:12:22	14:427:47	14:27:40	14:27:47	14:27:11	14:27:11	14:27:411	14:27:11	14:27:14	14:27:11	14:29:05
Minimum value in the period	3099	3159	3138	115.15	120.44	118.08	645	106	655	0.9808
Time of minimum period, 27:12:22	14:28:31	14:28:31	14:28:31	14:28:05	14:28:36	14:28:36	14:28:31	14:29:05	14:28:31	14:28:32

The voltage and current, power and power factor, voltage and current harmonics as well as AC waveform tests mentioned above were carried out on the four transformers specified in Figures 18–21, respectively, on the secondary side (Chattopadhyaya et al., 2021; Li et al., 2023c; Tripathi et al., 2022c). The graph in Figure 22 depicts the maximum versus operating efficiency of these transformers.

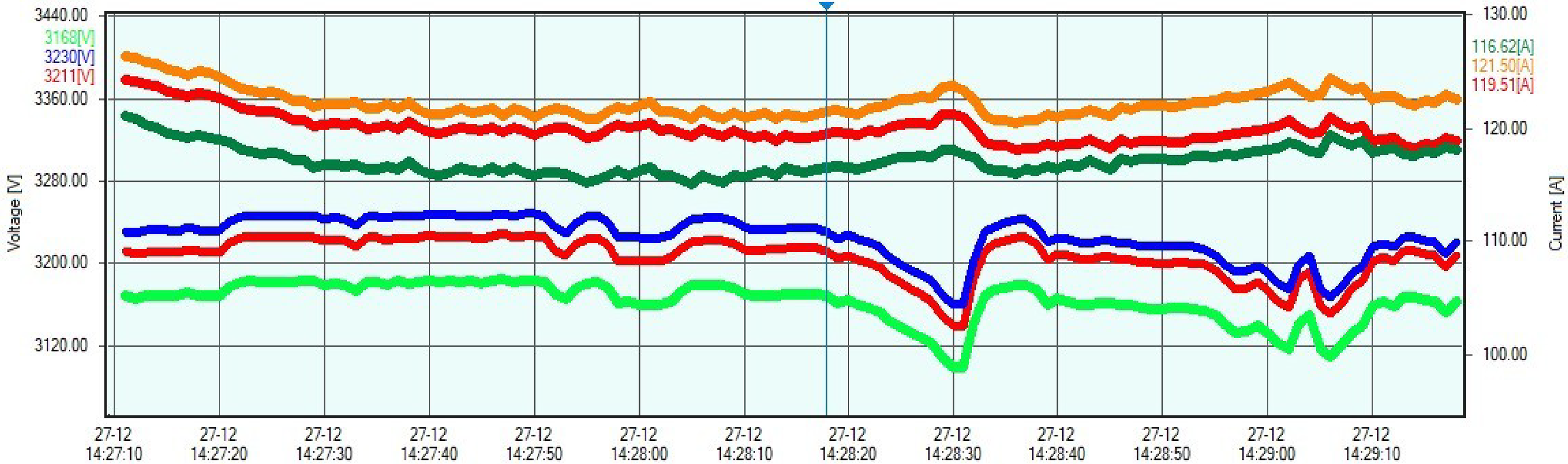

Figure 18.

Graph of voltage & current profile of TRF-1-2500kVA main secondary side incomer-1.

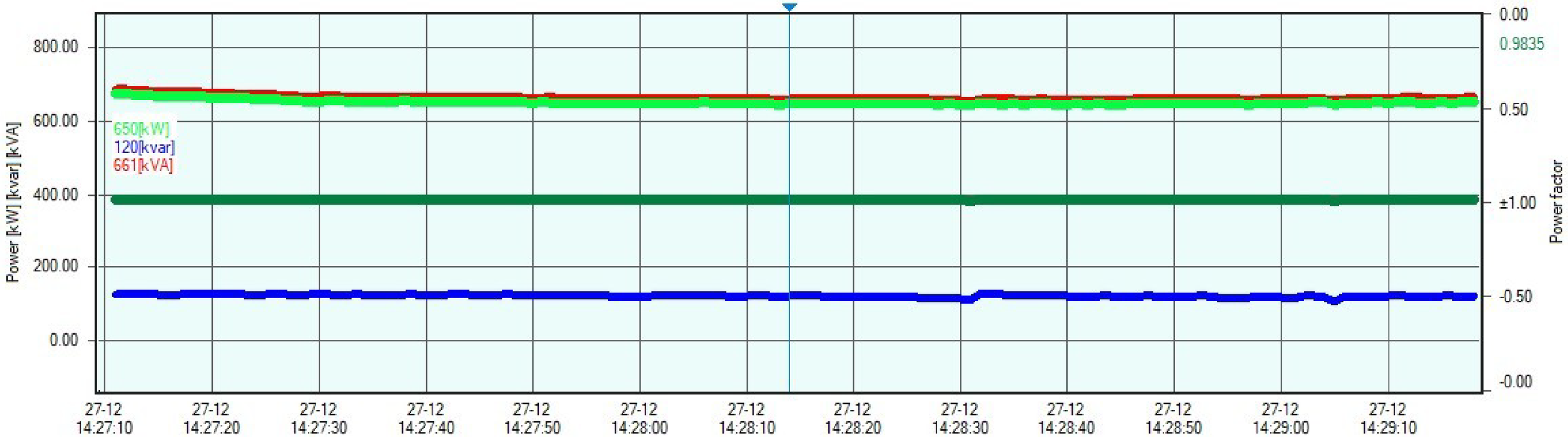

Figure 19.

Graph of Power & Power Factor profile of TRF-1-2500kVA main secondary side incomer-1.

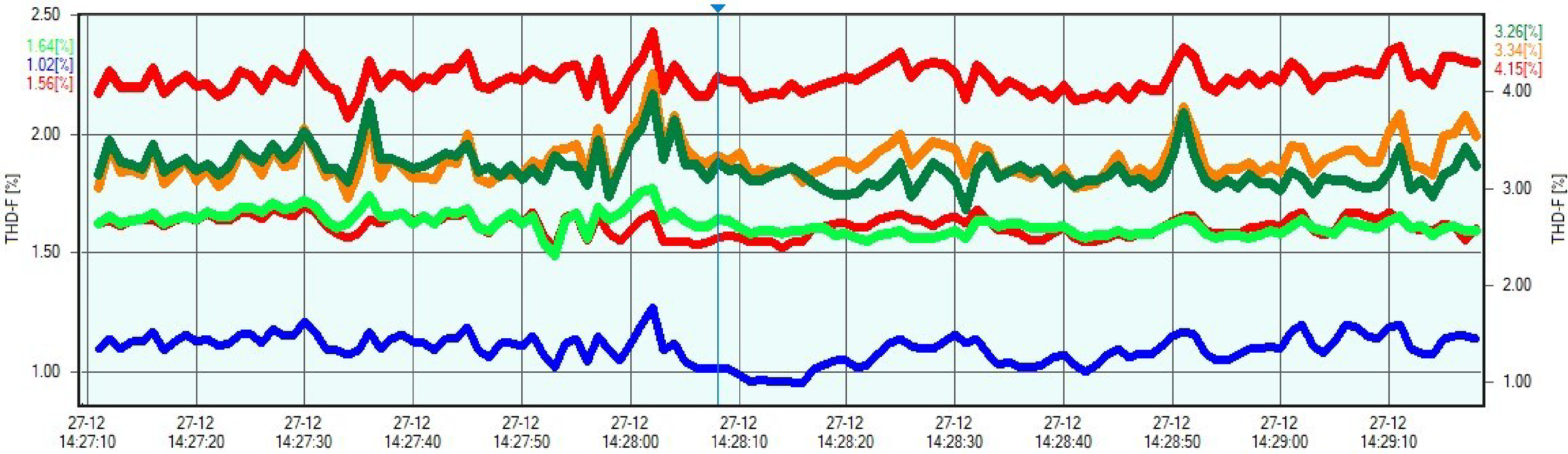

Figure 20.

Graph of Voltage & Current Harmonics profile of TRF-1-2500kVA main secondary side incomer-1.

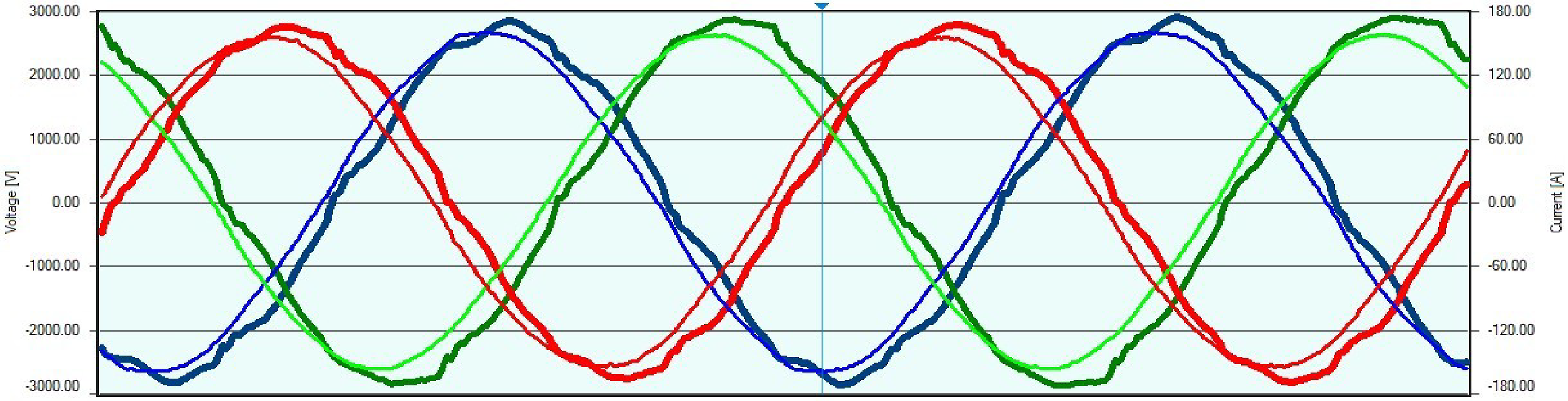

Figure 21.

Graph of AC waveform profile of TRF-1-2500kVA main secondary side incomer-1.

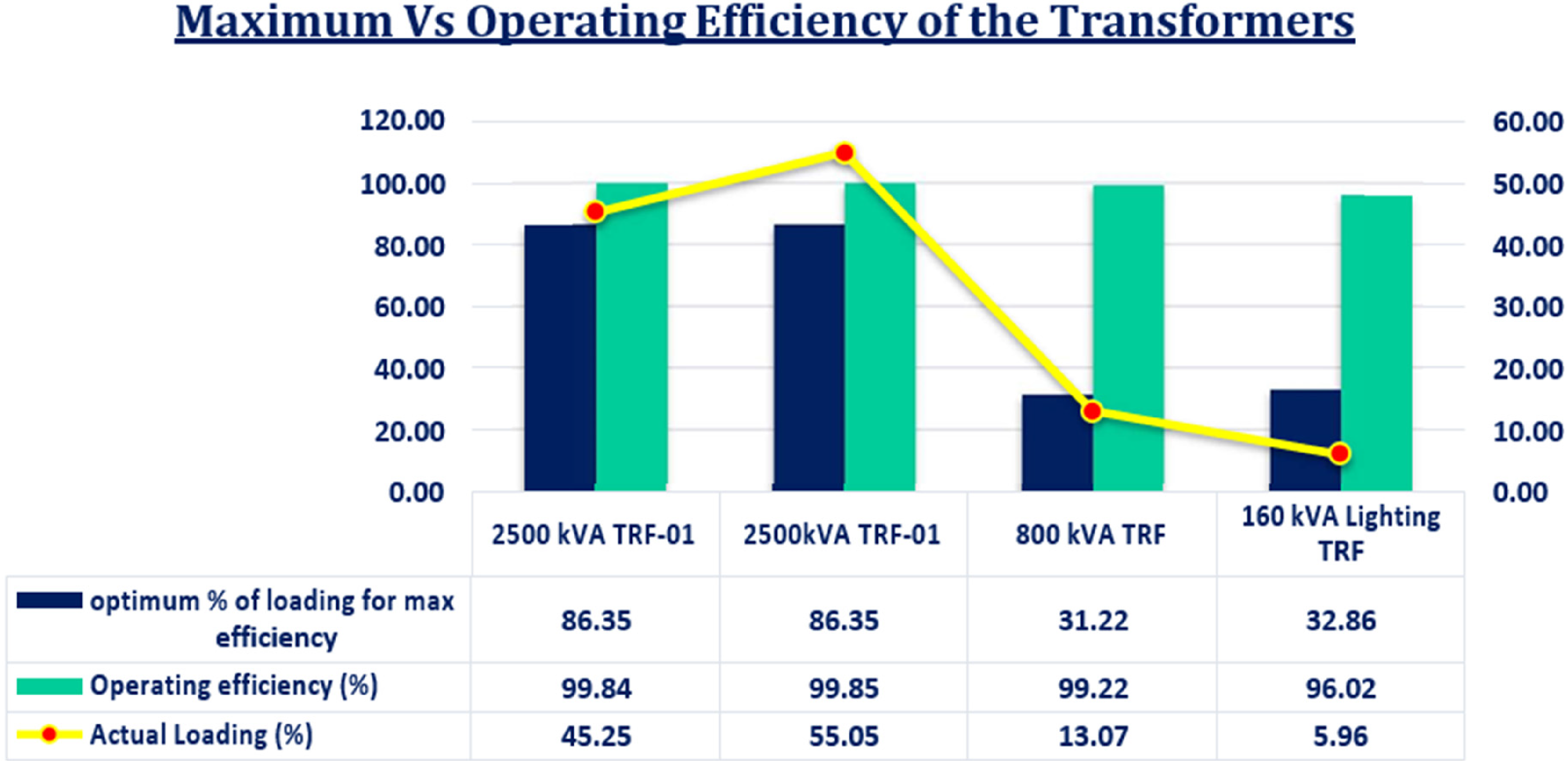

Figure 22.

Graphof maximum vs operating efficiency of the transformers.

Harmonics analysis

Harmonic studies are performed to evaluate harmonic distortion levels and filtering requirements inside a facility, as well as to determine if harmonic voltages and currents are within allowable limits (Muhammad et al., 2022; Suresh Kumar et al., 2023). The usage of harmonic filters will significantly alter the frequency response of the power supply. The existence of harmonics in the system is verified based on the IEEE 519–2014 standard. It is essential to maintain both voltage (refer to Table 8) and current (refer to Table 9) at the prescribed PCC levels.

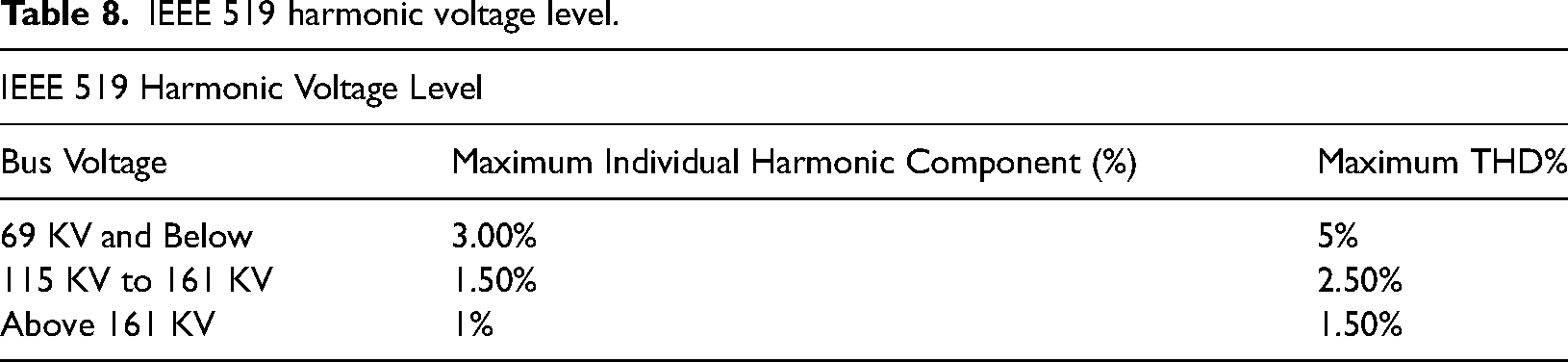

Table 8.

IEEE 519 harmonic voltage level.

IEEE 519 Harmonic Voltage Level
Bus Voltage	Maximum Individual Harmonic Component (%)	Maximum THD%
69 KV and Below	3.00%	5%
115 KV to 161 KV	1.50%	2.50%
Above 161 KV	1%	1.50%

Table 9.

IEEE 519 harmonic current level.

IEEE 519 Harmonic Current Level
SCR = Isc/IL	<11	11 < h<17	17 < h<23	23 < h<35	35 < h	TDD
<20	4	2	1.5	0.6	0.3	5
20–50	7	3.5	2.5	1	0.5	8
50–100	10	4.5	4	1.5	0.7	12
100–1000	12	5.5	5	2	1	15
>1000	15	7	6	2.5	1.4	20

Harmonics refer to distortions in the voltage and current waveforms, as revealed in Figure 23. It is a reference wave's integral multiple (Rafiq et al., 2023). The harmonic wave increases the transformer's core and copper loss, lowering its efficiency. It also raises the dielectric stress on the transformer's insulation (Siddiqui et al., 2022c). The non-sinusoidal nature of magnetizing current provides sinusoidal flux in a three-phase transformer, resulting in the unwanted occurrence. The phase magnetizing currents in a transformer should include the third and higher harmonics required to generate a sinusoidal flux (Bhushan et al., 2022; Siddiqui et al., 2022a).

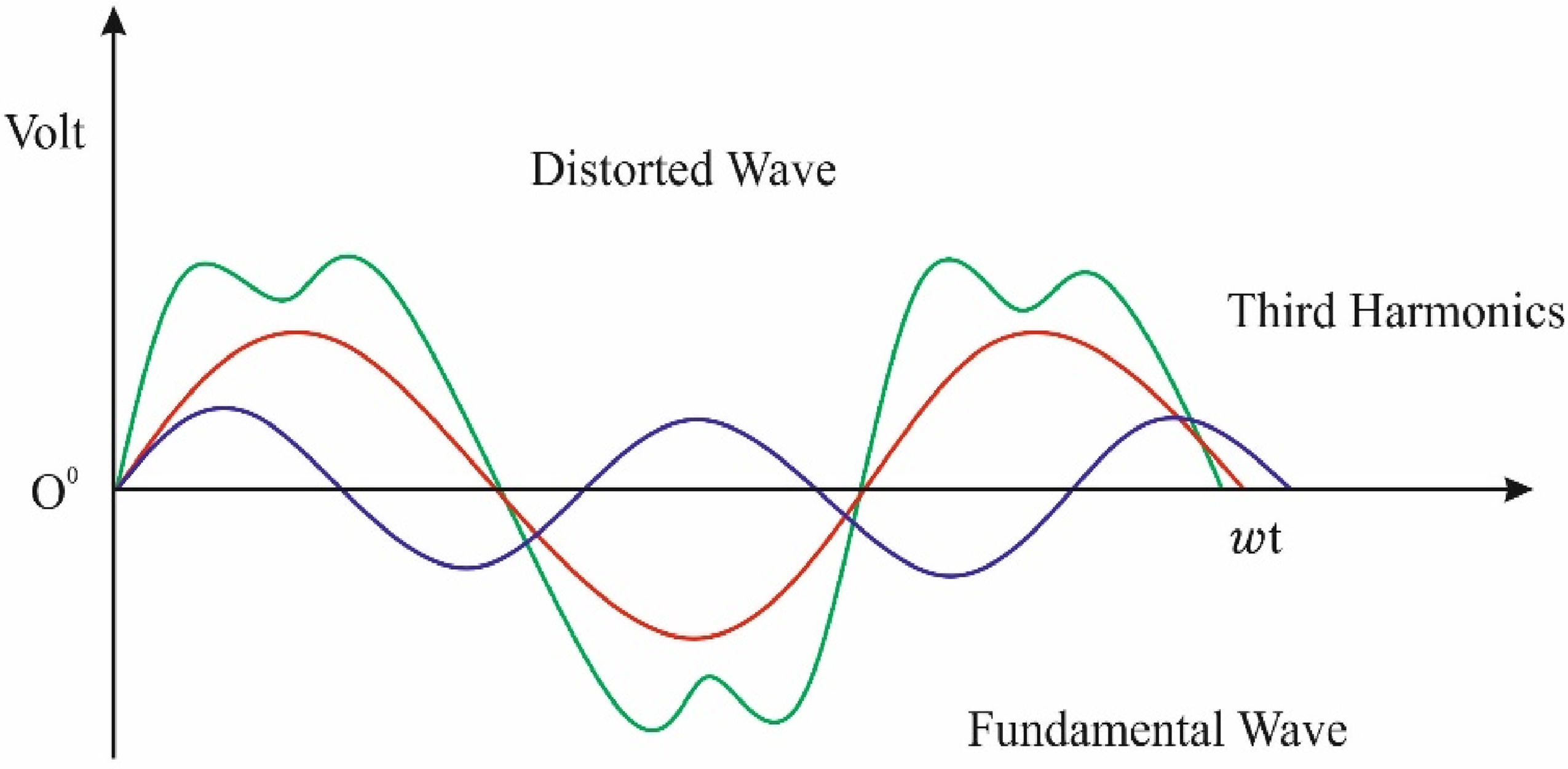

Figure 23.

Graph of harmonics.

Voltage Harmonic Distortion falls within the range of 1.20% to 1.55%, as indicated by the harmonic at the PCC in Table 10, which is within acceptable limits. Current harmonics on the main side of transformers vary from 0.80% to 12.4%, remaining within acceptable limits (Sun et al., 2023; Wang et al., 2023b; Xiao et al., 2023). However, on the 100kVA lighting transformer, I-THD is recorded at 12.40, which is on the higher side, as depicted in Figure 24.

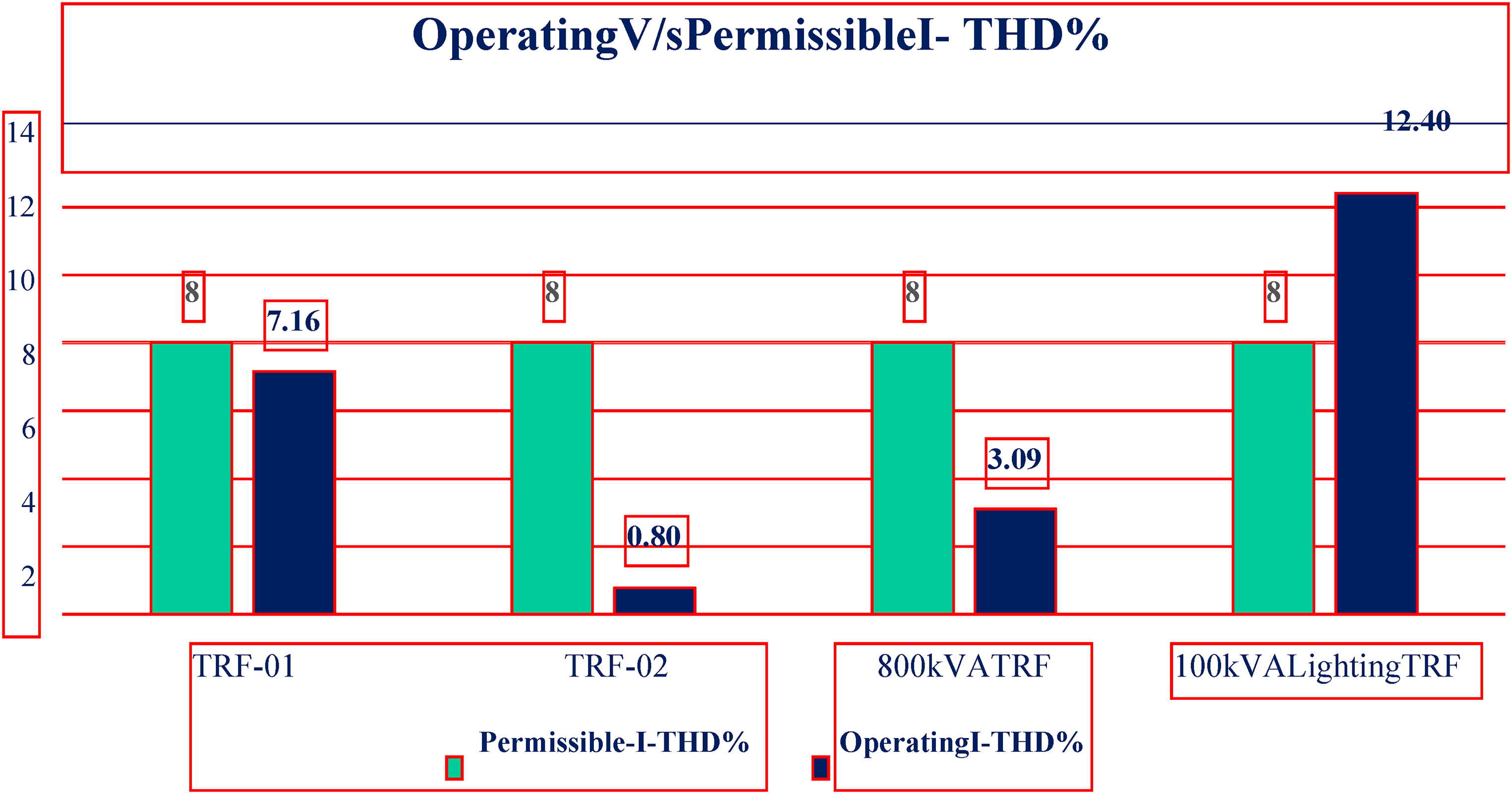

Figure 24.

Graph of permissible limit v/s operating I-THD% profile of Transformers.

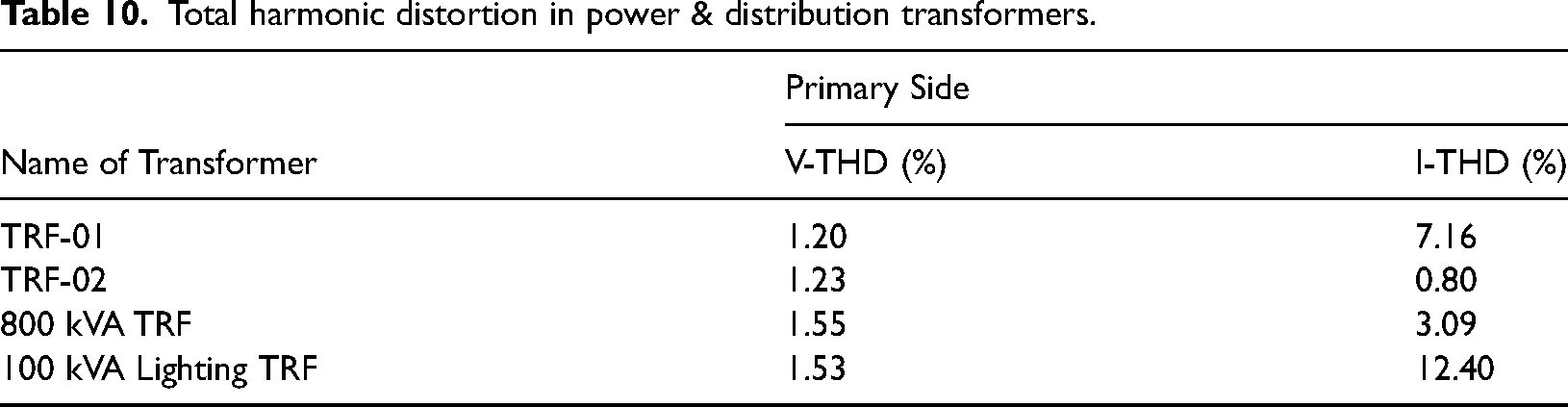

Table 10.

Total harmonic distortion in power & distribution transformers.

Name of Transformer	Primary Side
Name of Transformer	V-THD (%)	I-THD (%)
TRF-01	1.20	7.16
TRF-02	1.23	0.80
800 kVA TRF	1.55	3.09
100 kVA Lighting TRF	1.53	12.40

2.5 MVATRF-1(33 kV)

The harmonic profiles for the 2.5 MVA Transformer (TRF-1) at 33 kV are shown in Figures 25 and 27.

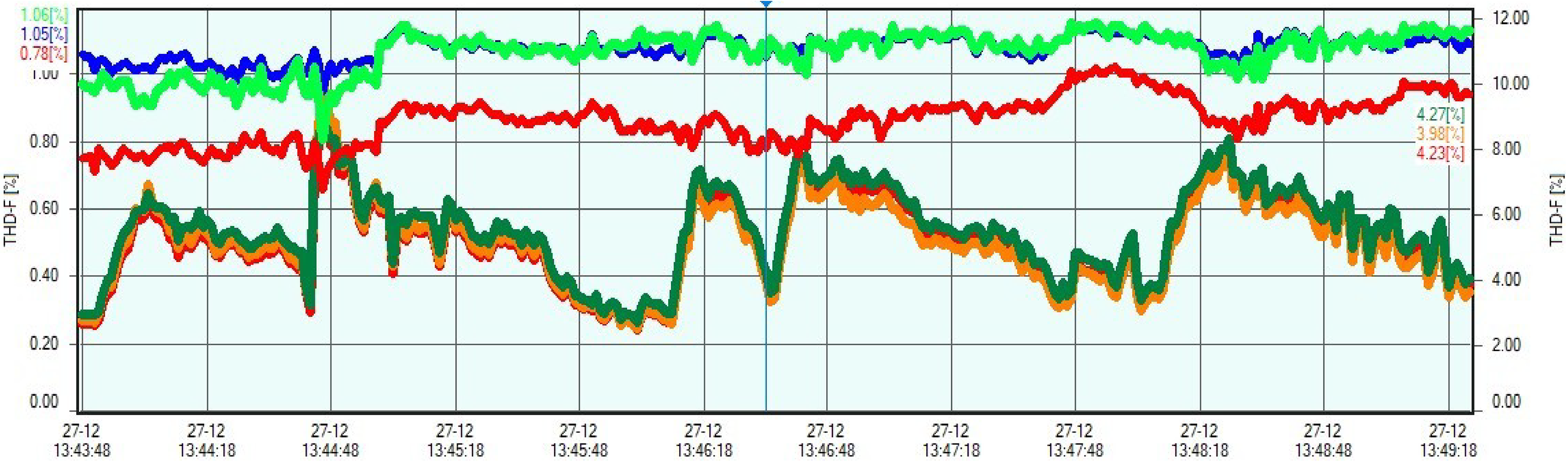

Figure 25.

Graph of harmonics profile.

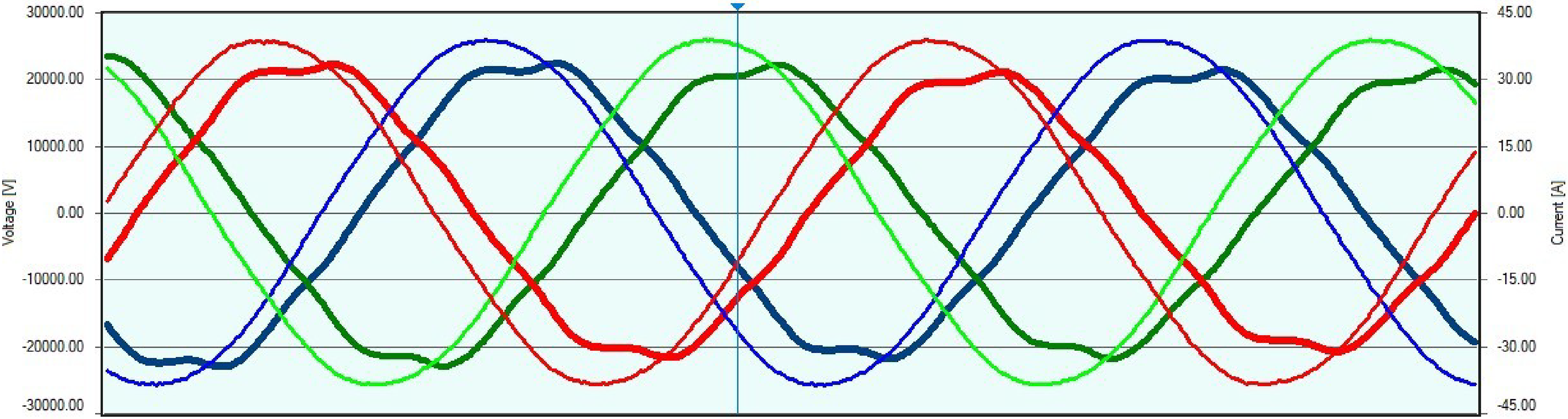

Figure 26.

Graph of sinusoidal waveform.

2.5 MVA(Primary Side)-(33 kv)

Harmonic profiles for the 2.5 MVA transformer at 33 kV are displayed in Figure 27. These graphs offer insights into the distribution and characteristics of harmonics, aiding in understanding their impact on the transformer's electrical performance and providing valuable data for power quality analysis and optimization (Li et al., 2023a; Yan et al., 2024; Yu et al., 2022).

Figure 27.

Graph of waveform, 2.5 MVA, primary side (33KV).

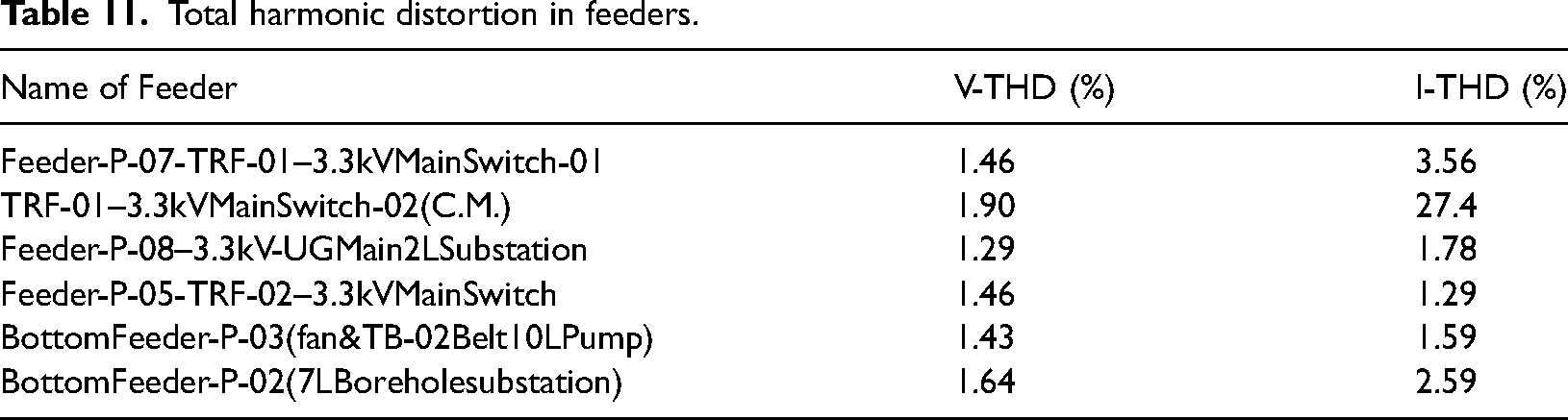

Referring to the information in PCC (Tables 10 and 11), the Voltage Harmonic Distortion falls within the acceptable range, ranging from 1.29% to 1.90%. Similarly, the Current Harmonic Distortion, as indicated in the PCC table, fluctuates between 1.29% and 3.56%, remaining within acceptable limits (Fan and Zhou, 2023; Hu et al., 2024b; Jiang et al., 2022). However, it's noteworthy that for TRF-01–3.3 kV Main Switch-02 (C.M.), the I-THD reaches 27.4, which is higher, as illustrated in Figures 28–30.

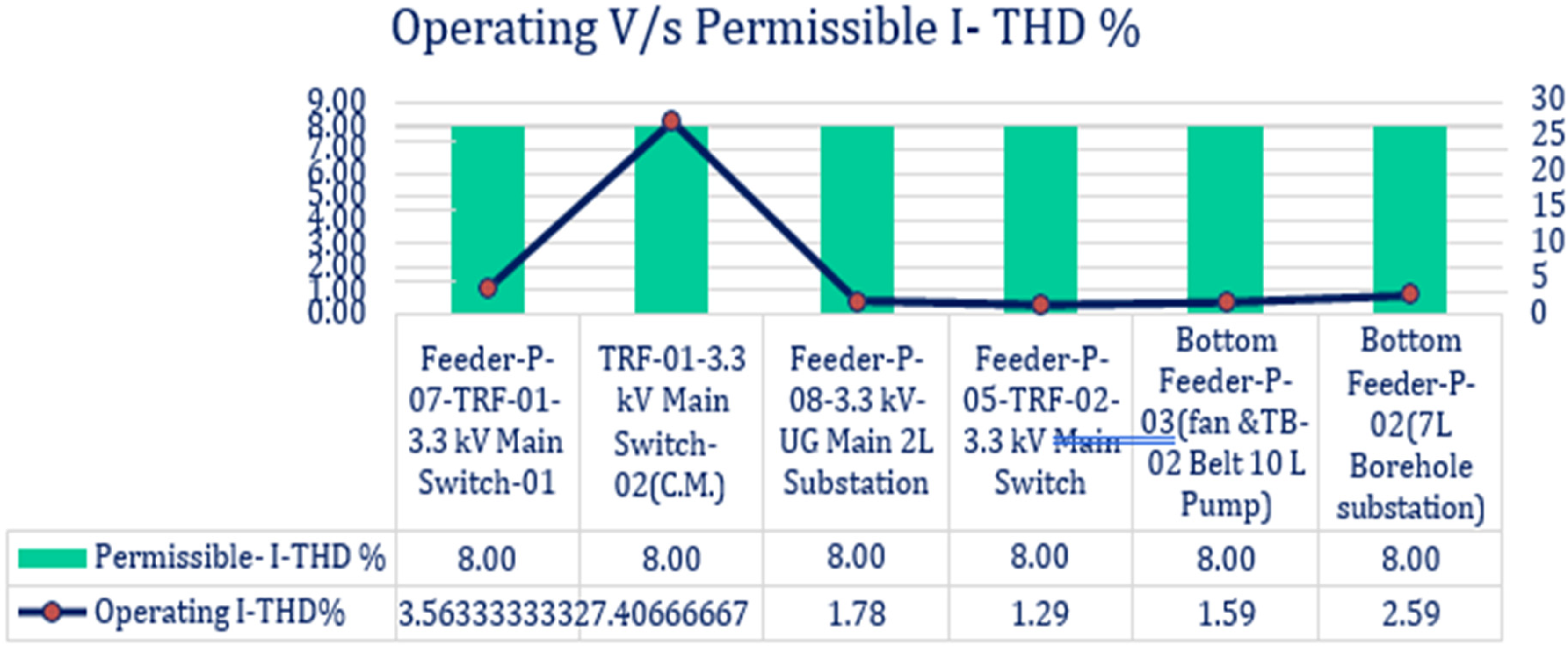

Figure 28.

Graph of permissible limit V/s operating I-THD% profile of feeder.

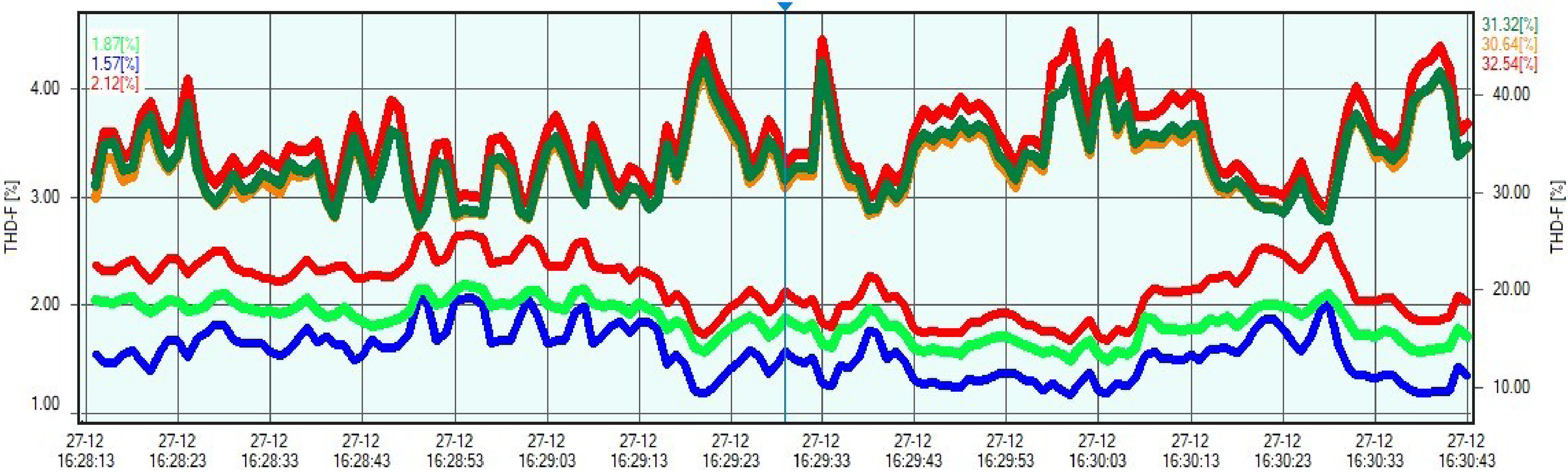

Figure 29.

Graph of voltage & current harmonics profile of TRF-1-2500 kVA main secondary side-incomer-02 (C.M.Main).

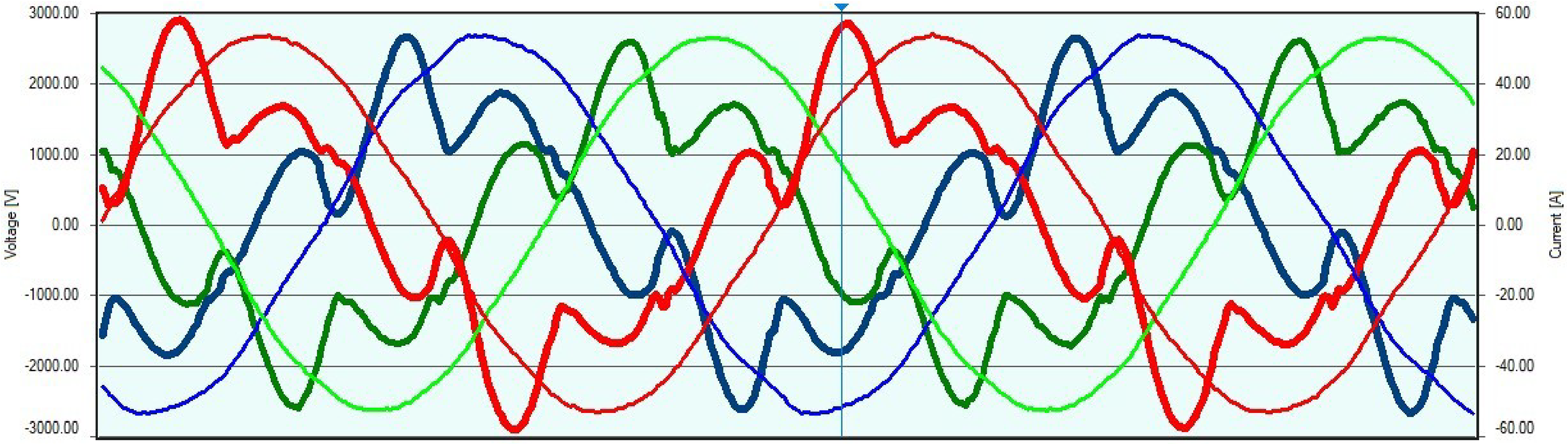

Figure 30.

Graph of AC waveform profile of TRF-1-2500 kVA main secondary side-incomer-02 (C.M.Main).

Table 11.

Total harmonic distortion in feeders.

Name of Feeder	V-THD (%)	I-THD (%)
Feeder-P-07-TRF-01–3.3kVMainSwitch-01	1.46	3.56
TRF-01–3.3kVMainSwitch-02(C.M.)	1.90	27.4
Feeder-P-08–3.3kV-UGMain2LSubstation	1.29	1.78
Feeder-P-05-TRF-02–3.3kVMainSwitch	1.46	1.29
BottomFeeder-P-03(fan&TB-02Belt10LPump)	1.43	1.59
BottomFeeder-P-02(7LBoreholesubstation)	1.64	2.59

Thermal imagining of Electrical panels

Thermography serves as a non-destructive testing method that proves invaluable in identifying issues such as poor connections, unbalanced loads and deteriorated insulation within energized electrical components (Su et al., 2023; Wang and Zhang, 2023; Xi et al., 2023). Detecting these potential problems is crucial as they can contribute to excessive power consumption, heightened maintenance expenses, or even result in catastrophic equipment failure, leading to unscheduled service interruptions, equipment damage and other operational issues (Kluczek and Olszewski, 2017). In accordance with the Bureau of Indian Standards, Table 12 provides a comprehensive guide for assessing the severity of electrical fault temperatures and offers corresponding recommendations:

Table 12.

Standard for thermography.

Fault category	Temperature rise	Recommendations
1	>50 °C	Must be repaired immediately
2	25–50 °C	Repair at the earliest opportunity
3	10–25 °C	Investigate during next scheduled maintenance
4	<10 °C	Record and continue to monitor

During the thermal imaging analysis presented in Figures 31–34, it was observed that none of the equipment generated heat beyond the recommended levels. Enhancing the thermal performance of electrical equipment can be achieved without altering the existing operational conditions. A state-of-the-art thermal imaging camera was deployed to meticulously measure the heat generation in various components, including incoming and outgoing feeders, transformers, switches, power cables and all connections (Du et al., 2024; Yin et al., 2023a). This advanced approach allows for a detailed and comprehensive analysis of the thermal behaviour, paving the way for targeted improvements without disruption to the current operational setup.

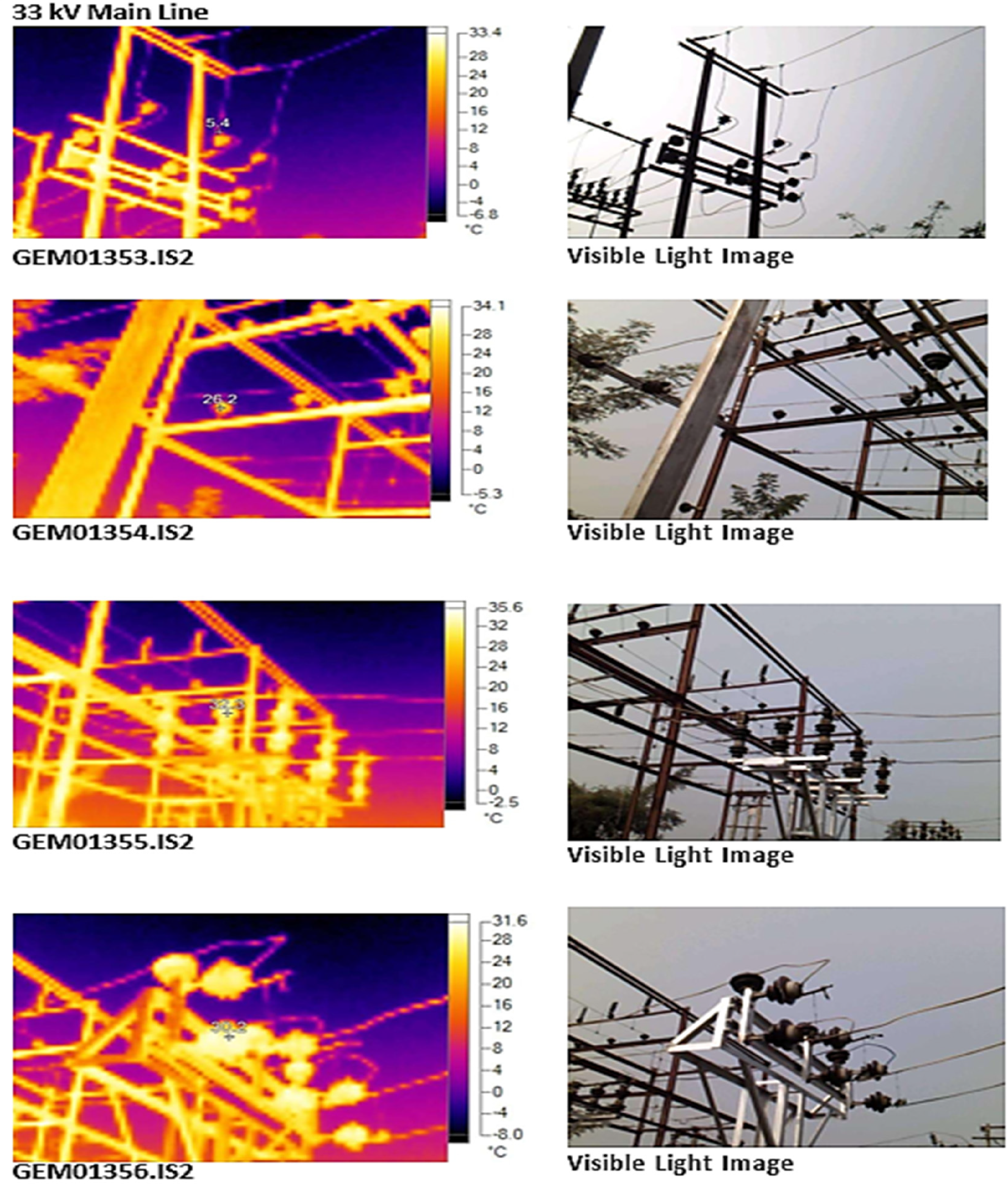

Figure 31.

Thermal and normal image of 33kV main overhead lines.

Figure 32.

Thermal and normal image of 33kV main substation.

Figure 33.

Thermal and normal image of 33kV main transformers.

Figure 34.

Thermal and normal image of 150 KVAR capacitor.

Result and discussions

The investigation into the realm of electrical power factor and its implications on electricity bills has yielded significant findings. In November 2022, a penalty of 1% was incurred due to the power factor falling below 0.90, specifically recording 0.892. Conversely, a Power Factor Rebate of 1% on the Energy Cost in July 2022 was granted because the power factor exceeded 0.953. Achieving a power factor above 95% not only avoids penalties but also brings substantial benefits, including rebates ranging from 1% to 7% on the Energy Cost. This indicates a scenario where the electrical system demonstrated high efficiency and effective power utilization, resulting in a reward in the form of a rebate (Abou-Rjeily and Mourad, 2020; Bouri, 2023; Liang et al., 2024).

The dynamic nature of electrical grids, with variations in demand throughout the day, underscores the significance of TOD pricing structures. These aim to incentivize consumers to shift energy consumption to periods of lower demand. The rebate offered during off-peak load periods (10 p.m. to 6 a.m.) serves as an economic strategy, encouraging consumers to use electricity when overall demand on the grid is lower (Bhushan et al., 2022; Bouri and Shahzad, 2022; Maalouf et al., 2020). This aligns with the principle of optimizing resource utilization by promoting energy consumption during surplus capacity periods (Bhushan et al., 2022; Gharibeh et al., 2022; Harb and Bassil, 2023).

Figures 8–10 provide valuable insights into the dynamics of demand, informing a strategic approach to demand management. When recorded MD surpasses 130% of the agreed-upon CD, an additional layer of cost is introduced. Electrical systems face challenges during peak demand periods, leading to charges at double the standard fixed rate for recorded demand exceeding 130% of the CD (Dhiaf et al., 2024; El-Khalil and Nader, 2020; Nader and EL-khalil, 2021). This reflects the economic reality that providing electricity beyond certain thresholds incurs additional costs (Bhushan et al., 2022; Bouri et al., 2023; Su et al., 2023; Yu et al., 2022).

The operational status of transformers further adds depth to the discussion. Transformer-1 operating at 45.3% suggests a conservative or underutilized state, while Transformer-2 at 55.1% is performing admirably, indicating a healthier and more efficient operational state (Yin et al., 2017; Yu et al., 2024; Zheng et al., 2023).

Reference to voltage and current imbalances, depicted in Figure 17, indicates that these imbalances are well within acceptable limits. This emphasizes the importance of maintaining balance in electrical systems to prevent inefficiencies, increased losses and potential issues with equipment performance (Bhushan et al., 2022; Yin et al., 2023a; Zhao et al., 2024).

In the context of power factor enhancement, the suggestion to consider installing capacitors on the load side aligns with the scientific principle of power factor correction (Hu et al., 2024a; Jin et al., 2024; Liu et al., 2024). Additionally, examining secondary voltage in the 33 kV main substation within an acceptable range (3.37–3.42 kV) signifies a well-regulated electrical environment. Voltage regulation is crucial for maintaining a stable and reliable power supply (Bhushan et al., 2022; Liang et al., 2024; Tripathi et al., 2021d).

The thermal analysis, showcased in Figures 31–34, highlights the equipment's exceptional performance under varying temperatures. None of the devices crossed the recommended thresholds, affirming their ability to maintain cool composure even under challenging thermal conditions (Bhushan et al., 2022; Orbak et al., 2023; Tripathi et al., 2021a).

Hence, the intent of this research is to improve our comprehension of the performance of electrical equipment in heavy mines machinery by employing a distinctive set of energy audit instruments in comparison with prior studies (Tripathi et al., 2023a, 2023b, 2023c). This research illuminates the dynamics of mine apparatus and its electrical components, in contrast to extant studies that concentrate on energy efficiency in a variety of domains (Tripathi et al., 2023d; Ulug ’bek O ’g ’li et al., 2023; Yao et al., 2023). The study explores the nuanced analysis of energy wastage using innovative methods such as Harmonics and Thermal imaging, with the objective of offering specific recommendations for improvement. The research aims to be a catalyst for transformative improvements in the energy efficiency of heavy subterranean machinery by addressing these unexplored voids, thereby contributing to a more sustainable and productive future for the mining industry in comparison with literary studies (Siddiqui et al., 2024; Tripathi et al., 2023e).

In addition, several strategies are recommended by harmonic analysis to reduce harmonic distortion in electrical systems. These include the substitution of conventional transformers with specialized harmonic-mitigating variants that incorporate distinctive winding configurations or magnetic shielding. Furthermore, harmonics can be effectively mitigated by selecting low-harmonic emission equipment or incorporating line reactors for inductive loads. The utilization of phase-shifting transformers facilitates load distribution balancing, while the installation of passive or active harmonic filters provides targeted harmonic reduction. Harmonic distortion is further reduced by guaranteeing stable voltage levels and equitable load distribution. Continuous monitoring is essential for the ongoing optimization of a system, as it enables the timely implementation of alterations and maintenance to preserve its integrity and performance.

Conclusions

The energy audit emerges as a powerful instrument for identifying and implementing a comprehensive energy management program. Through a meticulous audit, organizations can formulate a strategic plan to manage their energy systems effectively, ensuring minimal energy costs.

In essence, the tariff order's provisions represent a blend of scientific and economic principles, aiming to incentivize consumers to uphold high-power factors. This not only contributes to the overall efficiency and reliability of the electrical grid but also aligns with a fair and transparent cost structure.

The significance of TOD pricing lies in its principles of optimizing energy consumption based on temporal variations in demand. By encouraging consumers to synchronize electricity usage with periods of lower demand and promoting efficient power factor management, TOD pricing becomes a cornerstone for achieving cost savings and enhancing grid reliability.

Exploring electrical demand patterns, the relationship between recorded MD and CD, and the economic rationale behind excess demand charges emphasizes the importance of a fair and transparent cost structure aligned with actual demand scenarios.

Moreover, the mention of distribution transformers engineered for optimal efficiency within the 50–60% loading range underscores a fundamental engineering philosophy. Operating transformers within this loading range is strategically designed to maximize performance, minimize losses and ensure longevity, aligning with principles of transformer design and efficiency.

In this dynamic landscape, optimization strategies such as capacitive installations and load adjustments play a pivotal role in fine-tuning the system for peak performance. This scientific approach involves continually optimizing and adjusting system parameters to achieve the utmost efficiency and reliability.

Finally, the discussion on thermal analysis highlights the equipment's resilience under varying temperatures. The use of visual data and adherence to recommended thresholds illustrates a scientific methodology employed to ensure the thermal stability and reliability of the equipment.

Installation of APFC (Automatic Power Factor Controller) in secondary side of transforms to achieve the power factor from 0.85 to 0.99 as illustrated in Table 13. Present status during the energy audit, loading pattern and power factor of all the Transformers, Feeders & motors was studied in detail. It was observed that most of the feeders operating with poor power factor, that is, less than 0.80.

Table 13.

Power factor of the transformers.

Sr. No.	Name	PowerFactor	Power(kW)
1	2.5MVA-TRF-01(33/3.3 kV)	0.91	1029
2	2.5.MVA-TRF-02(33/3.3 kV)	0.89	1225
3	800kVATRF	0.85	91

The Reactive power is required by the system to generate the magnetic field for the functioning of inductive electrical equipment. By installing the capacitor bank near the load end has following advantages:

Reduction in Distribution losses – The motor receives the required reactive current component from the capacitor bank. Thus, the reactive current required from the grid reduces resulting in the corresponding reduction in I²R losses.

Reduction in Line Voltage Drop – The shunt compensation system also acts as Voltage boosters and improves the performance of the motor.

Harmonic analysis recommends several strategies to mitigate harmonic distortion within electrical systems. These include replacing traditional transformers with specialized harmonic-mitigating variants incorporating unique winding configurations or magnetic shielding. Additionally, opting for low-harmonic emission equipment or integrating line reactors for inductive loads can effectively reduce harmonics. Installation of passive or active harmonic filters offers targeted harmonic reduction, while the use of phase-shifting transformers aids in load distribution balancing. Ensuring stable voltage levels and equitable load distribution further minimizes harmonic distortion. Continuous monitoring is imperative for ongoing optimization, facilitating prompt adjustments and maintenance to uphold system integrity and performance.

Recommendation

We recommend utilizing existing capacitor banks and install at the transformer secondary side in shunt or a dynamic KVAR compensator which would provide the reactive power required maintaining the power factor close to unity.

Savingscalculation

TotalPowerConsumption = 2345kWSavingsinkW

=3%X2345kW

=70.35kW

AnnualPowersaving =70.35kW×7200hours

=506520kWhAnnualCostSavings

= 506520 kWhx7.2 Rs/kWh

=Rs.36.47Lakhs

Investment = Rs.45.00Lakhs

SimplePaybackPeriod =15months

The average annually electrical energy saving in kWh is reported in Graph 1.

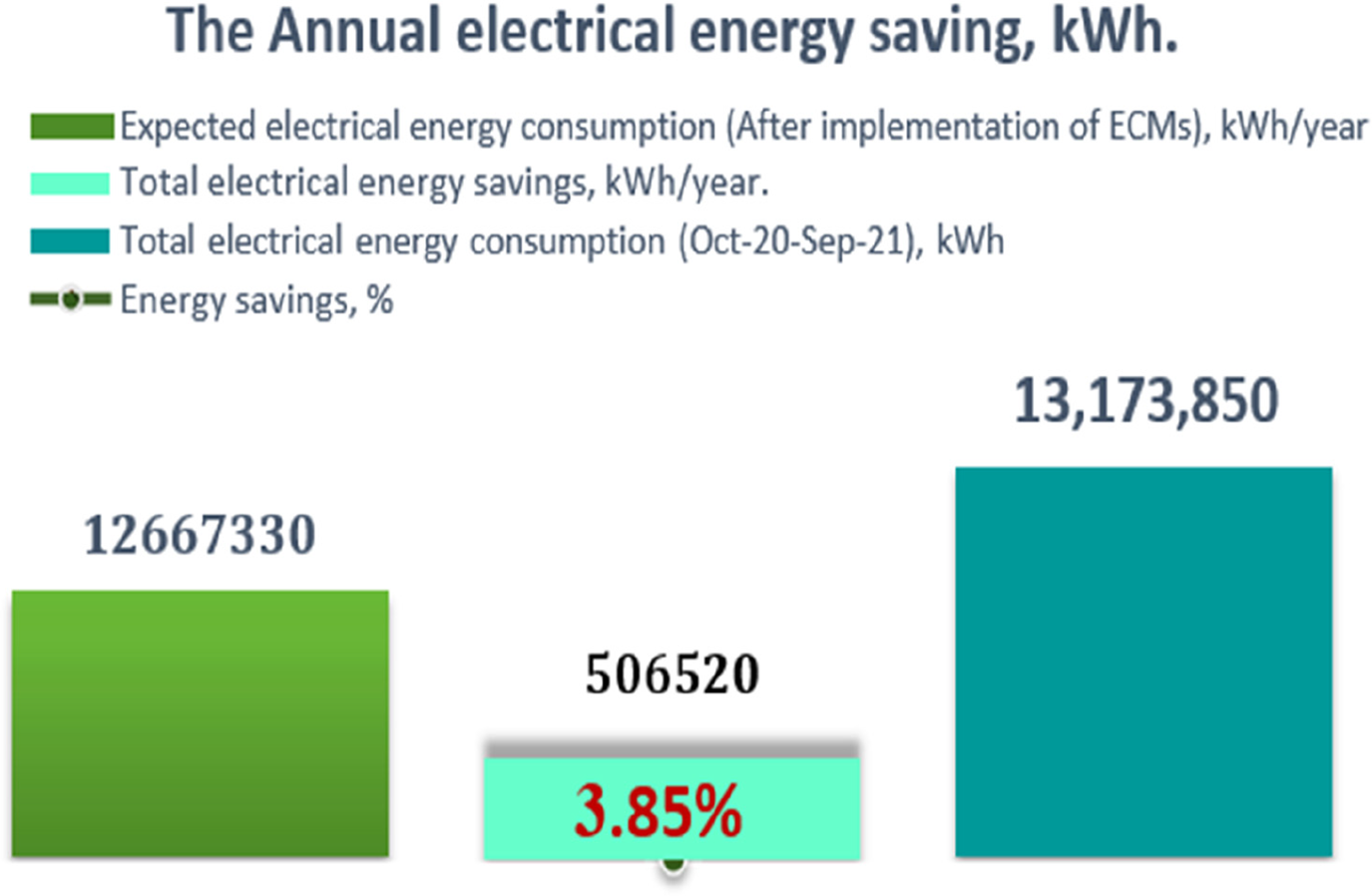

Graph 1.

Annual electrical energy saving in kWh.

Footnotes

Acknowledgments

The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University (KKU) for funding this research through the Research Group Program Under the Grant Number:(R.G.P.2/513/44).

Author contributions

Conceptualization, MAHS, SC, SS, CL, YZ; formal analysis, MAHS, SC, SS, CL, YZ; investigation, MAHS, SC, SS, CL, YZ; writing – original draft preparation, MAHS, SC, SS, CL, YZ; writing – review and editing, SS, AK, DK, MA, JL; supervision, SS, AK, DK, MA, JL; project administration, SS, AK, DK, MA, JL; funding acquisition, SS, AK, DK, MA, JL. All authors have read and agreed to the published version of the manuscript.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship and/or publication of this article: This work was supported by the King Saud University, (grant number R.G.P.2/513/44). The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University (KKU) for funding this research through the Research Group Program Under the Grant Number: (R.G.P.2/513/44).

ORCID iD

Shubham Sharma

References

Abou-Rjeily

Mourad

(2020) Optical spatial modulation with improved energy harvesting for MIMO FSO communications. In: 2020 international wireless communications and mobile computing (IWCMC). IEEE, pp.1474–1479.

Al Momani

, Al Turk Y, Abuashour MI, et al. (2023) Energy saving potential analysis applying factory scale energy audit – A case study of food production. Heliyon 9: 1–20.

Annunziata

Rizzi

Frey

(2014) Enhancing energy efficiency in public buildings: The role of local energy audit programmes. Energy Policy 69: 364–373.

Ansari

Chattopadhyaya

Ghose

, et al. (2022) Productivity enhancement by prediction of liquid steel breakout during continuous casting process in manufacturing of steel slabs in steel plant using artificial neural network with backpropagation algorithms. Materials 15(2): 670.

Babu

Sankar

Velpula

, et al. (2023) Chemically reactive flow of viscous thermophoretic fluid over wedge with variable thermal conductivity and viscosity. Case Studies in Thermal Engineering 45: 102924.

Bhushan

Chattopadhyaya

Sharma

, et al. (2022) Analyzing reliability and maintainability of crawler dozer BD155 transmission failure using Markov method and total productive maintenance: A novel case study for improvement productivity. Sustainability 14: 14534.

Bogunovic

, Kecojevic V, Lund V, et al.

(2009) Analysis of energy consumption in surface coal mining. SME Transactions 326: 79–87.

Bouri

(2023) Spillovers in the joint system of conditional higher-order moments: US evidence from green energy, brown energy, and technology stocks. Renewable Energy 210: 507–523.

Bouri

Rognone

Sokhanvar

, et al. (2023) From climate risk to the returns and volatility of energy assets and green bonds: A predictability analysis under various conditions. Technological Forecasting and Social Change 194: 122682.

10.

Bouri

Shahzad

SJH

(2022) Network topology of dynamic credit default swap curves of energy firms and the role of oil shocks. The Energy Journal 43(1_suppl): 1–26.

11.

Chattopadhyaya

Dinkar

Mukhopadhyay

, et al. (2021) Meta-analysis and forest plots for sustainability of heavy load carrier equipment used in industrial mining environment. Sustainability (MDPI) 13(15): 8672.

12.

Chu

Abbasi

Al-Khaled

, et al. (2023) Mathematical modeling and computational outcomes for the thermal oblique stagnation point investigation for non-uniform heat source and nonlinear chemical reactive flow of Maxwell nanofluid. Case Studies in Thermal Engineering 41: 102626.

13.

Dhiaf

Khakan

Atayah

, et al. (2024) The role of FinTech for manufacturing efficiency and financial performance: In the era of industry 4.0. Journal of Decision Systems 33(2): 220–241.

14.

Dinkar

Mukhopadhyay

Chattopadhyaya

, et al. (2021) Statistical reliability assessment for small sample of failure data of dumper diesel engines based on power law process and Maximum likelihood estimation. Applied Sciences 11(12): 5387.

15.

Bai

, et al. (2024) Storage, form, and influencing factors of karst inorganic carbon in a carbonate area in China. Science China Earth Sciences 67(3): 725–739.

16.

El-Khalil

Nader

(2020) Impact of flexibility on operational performance: A case from us automotive manufacturing facilities. In: Proceedings of the 5th NA international conference on industrial engineering and operations management, Detroit, MI, USA, pp.10–14.

17.

Fan

Zhou

(2023) Optimization of a hybrid solar/wind/storage system with bio-generator for a household by emerging metaheuristic optimization algorithm. Journal of Energy Storage 73: 108967.

18.

Fawkes

, Thorpe D and Oung K (2016) Best practices and case studies for industrial energy efficiency improvement: an introduction for policy makers.

19.

Fleiter

Schleich

Ravivanpong

(2012b) Adoption of energy-efficiency measures in SMEs – an empirical analysis based on energy audit data from Germany. Energy Policy 51: 863–875.

20.

Fleiter

, Gruber E, Eichhammer W, et al. (2012a) The German energy audit program for firms – a cost-effective way to improve energy efficiency? Energy Efficiency 5: 447–469.

21.

Ganapathi

Ananda

(2011) Electrical Energy Conservation in Underground Mines.Underground, Electrical Energy Conservation in. ICAER 2011.

22.

Gharibeh

Chaumontet

Darcel

, et al. (2022) Intermittent sucrose solution intake and its schedule of access modulate energy intake and weight gain in response to chronic variable stress in mice. Appetite 176: 106123.

23.

Harb

Bassil

(2023) TFP In the manufacturing sector: Long-term dynamics, country and regional comparative analysis. Economies 11(2): 34.

24.

, et al. (2024a) Surface settlement prediction of rectangular pipe-jacking tunnel based on the machine-learning algorithm. Journal of Pipeline Systems Engineering and Practice 15(1): 04023061.

25.

Zou

Zhao

(2024b) Robust operation of hydrogen-fueled power-to-gas system within feasible operating zone considering carbon-dioxide recycling process. International Journal of Hydrogen Energy 58: 1429–1442.

26.

Jiang

Xiao

, et al. (2022) An energy-efficient framework for internet of things underlaying heterogeneous small cell networks. IEEE Transactions on Mobile Computing 21(1): 31–43.

27.

Jin

Pang

, et al. (2024) Internal superhydrophobic marine concrete: Interface modification based on slag microstructure regulation. Journal of Building Engineering 86: 108769.

28.

Khan

Alzahrani

(2022) Optimized framework for slip flow of viscous fluid towards a curved surface with viscous dissipation and joule heating features. Applied Mathematics and Computation 417: 126777.

29.

Kluczek

Olszewski

(2017) Energy audits in industrial processes. Journal of Cleaner Production 142: 3437–3453.

30.

Kreith

Goswami

(2007) Energy Management and Conservation Handbook. Boca Raton, FL: CRC Press.

31.

Wang

Nassani

, et al. (2023a) The future of green energy: A panel study on the role of renewable resources in the transition to a green economy. Energy Economics 127: 107026.

32.

Lin

Nguyen

, et al. (2023b) Enrichment of strategic metals in the upper triassic coal from the Nui Hong open-pit mine, Thai Nguyen coalfield, NE Vietnam. Ore Geology Reviews 153: 105301.

33.

Wang

Nguyen

, et al. (2022) First insights into mineralogy, geochemistry, and isotopic signatures of the upper triassic high-sulfur coals from the Thai Nguyen coal field, NE Vietnam. International Journal of Coal Geology 261: 104097.

34.

Raghunath

Alfaleh

, et al. (2023c) Effects of activation energy and chemical reaction on unsteady MHD dissipative Darcy–Forchheimer squeezed flow of Casson fluid over horizontal channel. Scientific Reports 13(1): 2666.

35.

Liang

Zhao

, et al. (2024) Age and petrogenesis of ore-forming volcanic-subvolcanic rocks in the Yidonglinchang Au deposit, lesser Xing’an range: Implications for late Mesozoic Au mineralization in NE China. Ore Geology Reviews 165: 105875.

36.

Liu

Yue

Lian

, et al. (2024) Reverse-time migration of GPR data for imaging cavities behind a reinforced shield tunnel. Tunnelling and Underground Space Technology 146: 105649.

37.

Liu

Khan

, et al. (2023) Bicriteria multi-machine scheduling with equal processing times subject to release dates. Networks and Heterogeneous Media 18(3): 1378–1392.

38.

Qiu

Yang

, et al. (2023) Surface multi-hazard effect of underground coal mining. Landslides 20(1): 39–52.

39.

Maalouf

Elhajj

Shammas

, et al. (2020) Biomimetic energy-based humanoid gait design. Journal of Intelligent & Robotic Systems 100: 203–221.

40.

Mahdi

(2018) Energy audit a step to effective energy management. International Journal of Trend in Research and Development 5(2): 521–525.

41.

Mendis

NNiR

Perera

(2006) Energy audit: a case study. In: 2006 international conference on information and automation. IEEE.

42.

Moya

Torres

Stegen

(2016) Analysis of the Ecuadorian energy audit practices: A review of energy efficiency promotion. Renewable and Sustainable Energy Reviews 62: 289–296.

43.

Muhammad

Khan

Kehili

, et al. (2022) The shortfall and rise in energy deposition and combustion via OpenFOAM. Case Studies in Thermal Engineering 40: 102563.

44.

Nader

EL-khalil

(2021) Flexibility and Operational Performance: Examining the Mediating Role of Lean and Sustainability Practices. 10.46254/SA02.20210804.

45.

Orbak

ÂY

Küçük

Akansel

, et al. (2023) Mathematical model assisted six-sigma approach for reducing the logistics costs of a pipe manufacturing company: A novel experimental approach. Mathematics 11(3): 621.

46.

Rafiq

Shaheen

Trabelsi

, et al. (2023) Impact of activation energy and variable properties on peristaltic flow through porous wall channel. Scientific Reports 13(1): 3219.

47.

Rosenqvist

, Thollander P and Rohdin P

(2012) Industrial energy auditing for increased sustainability – methodology and measurements. Sustainable energy: Recent Studies.

48.

Salunkhe

, Kamble B, Acharya A, et al. (2022) Energy management and energy audit in area of western Maharashtra. Energy 10(2).

49.

Sejati

Melinda

(2023) Education on the use of IoT technology for energy audit and management within the context of conservation and efficiency. International Transactions on Education Technology 1(2): 138–143.

50.

Siddiqui

MAH

Akhtar

Chattopadhyaya

, S, et al. (2022a) Investigation of geo-mining green roof seismic energy balancing with resin bolting by universal drilling machine: A novel energy-absorbing-based support system. Arabian Journal of Geosciences (Springer) 15: 431.

51.

Siddiqui

MAH

Akhtar

Chattopadhyaya

, et al. (2022c) Technical risk assessment for the safe design of a man-rider chair lift system. Machines 10(9): 769.

52.

Siddiqui

MAH

Akhtar

Chattopadhyaya

, et al. (2024) 611 Universal drilling machine reliability modeling and performance evaluation in subterranean coal mines. Rock Mechanics and Rock Engineering 57: 3559–3575.

53.

Siddiqui

MAH

, Chattopadhyaya S, Sharma S, et al. (2022b) Real-time comprehensive energy analysis of the LHD 811MK-V machine with mathematical model validation and empirical study of overheating: An experimental approach. Arabian Journal for Science and Engineering 47(7): 9043–9059.

54.

Singh

(2012) Energy audit: A case study to reduce lighting cost. Asian Journal of Computer Science and Information Technology 2(5): 119–122.

55.

Sinuraya

Utsman

(2022) Energy conservation and energy audit as an energy saving effort at MSTP UNDIP (case study of MSTP Undip Jepara). Journal of Physics: Conference Series 2406(1): 1-13.

56.

Dai

, et al. (2023) Estimation of the cavity volume in the gasification zone for underground coal gasification under different oxygen flow conditions. Energy 285: 129309.

57.

Sultana

Harsha

(2015) Electrical energy audit a case study. IOSR Journal of Electrical and Electronics Engineering 10(3): 1–6.

58.

Sun

Liu

, et al. (2023) Study on heat flow transfer characteristics and main influencing factors of waxy crude oil tank during storage heating process under dynamic thermal conditions. Energy 269: 127001.

59.

Suresh Kumar

Hussain

Raghunath

, et al. (2023) Numerical analysis of magnetohydrodynamics Casson nanofluid flow with activation energy, Hall current and thermal radiation. Scientific Reports 13(1): 4021.

60.

Thollander

Palm

(2012) Improving energy efficiency in industrial energy systems: An interdisciplinary perspective on barriers, energy audits, energy management, policies, and programs. Springer Science & Business Media, Springer-Verlag London, UK.

61.

Tie

Rui

Shi-Hui

, et al. (2023) A real-time intelligent lithology identification method based on a dynamic felling strategy weighted random forest algorithm. Petroleum Science. DOI: https://doi.org/10.1016/j.petsci.2023.09.011

62.

Tripathi

Chattopadhyaya

Bhadauria

, et al. (2021a) An agile system to enhance productivity through a modified value stream mapping approach in industry 4.0: A novel approach. Sustainability 13(21): 11997.

63.

Tripathi

Chattopadhyaya

Mukhopadhyay

, et al. (2021b) Development of a data-driven decision-making system using lean and smart manufacturing concept in industry 4.0: A case study. Mathematical Problems in Engineering 2022: 3012215.

64.

Tripathi

Chattopadhyaya

Mukhopadhyay

, et al. (2021c) A novel smart production management system for the enhancement of industrial sustainability in industry 4.0. Mathematical Problems in Engineering (Hindawi) 2022: 6424869.

65.

Tripathi

Chattopadhyaya

Mukhopadhyay

, et al. (2021d) An innovative agile model of smart lean–green approach for sustainability enhancement in industry 4.0. Journal of Open Innovation: Technology, Market, and Complexity 7(4): 215.

66.

Tripathi

Chattopadhyaya

Mukhopadhyay

, et al. (2022a) A sustainable methodology using lean and smart manufacturing for the cleaner production of shop floor management in industry 4.0. Mathematics (MDPI) 10(3): 347.

67.

Tripathi

Chattopadhyaya

Mukhopadhyay

, et al. (2022b) A sustainable productive method for enhancing operational excellence in shop floor management for industry 4.0 using hybrid integration of lean and smart manufacturing: An ingenious case study. Sustainability 14(12): 7452.

68.

Tripathi

Chattopadhyaya

Mukhopadhyay

, et al. (2022c) Recent progression developments on process optimization approach for inherent issues in production shop floor management for industry 4.0. Processes 10: 1587.

69.

Tripathi

Chattopadhyaya

Mukhopadhyay

, et al. (2023b) Lean, green, and smart manufacturing: An ingenious framework for enhancing the sustainability of operations management on the shop floor in industry 4.0. Proceedings of the Institution of Mechanical Engineers, Part E: Journal of Process Mechanical Engineering: 09544089231159834.

70.

Tripathi

Chattopadhyay

Sharma

, et al. (2023a) Development of an agile model using total productive maintenance to enhance industrial sustainability in industry 4.0. In: AIP Conference Proceedings, Vol. 2558, No. 1. AIP Publishing.

71.

Tripathi

Chattopadhyaya

Sharma

, et al. (2023c) A conceptual framework for shop floor management using smart manufacturing concept in industry 4.0. In: AIP Conference Proceedings, Vol. 2495, No. 1. AIP Publishing.

72.

Tripathi

Chattopadhyaya

Sharma

, et al. (2023d) An agile model for shop floor management system using process optimization concept in industry 4.0. In: AIP Conference Proceedings, Vol. 2495, No. 1. AIP Publishing.

73.

Tripathi

Chattopadhyaya

Sharma

, et al. (2023e) Development of an agile production management system in context of industry 4.0: A case study. In: AIP Conference Proceedings, Vol. 2535, No. 1. AIP Publishing.

74.

Ulug ’bek O ’g ’li

Turg ’unovna

Abdujalilovna

, et al. (2023) Intelligent decision support systems in integrated management systems–A novel multicriteria computational control system. In: AIP Conference Proceedings, Vol. 2558, No. 1. AIP Publishing LLC, p.020001.

75.

Varun Kumar

Sowmya

Jayaprakash

, et al. (2022) Assessment of thermal distribution through an inclined radiative-convective porous fin of concave profile using generalized residual power series method (GRPSM). Scientific Reports 12(1): 13275.

76.

Wang

Zhang

(2023) Techno-economic analysis and optimization of hybrid energy systems based on hydrogen storage for sustainable energy utilization by a biological-inspired optimization algorithm. Journal of Energy Storage 66: 107469.

77.

Wang

Lou

Wang

, et al. (2022a) Stochastic failure analysis of reinforced thermoplastic pipes under axial loading and internal pressure. China Ocean Engineering 36(4): 614–628.

78.

Wang

Lou

Wang

, et al. (2023a) Experimental investigation of the effect of rotation rate and current speed on the dynamic response of riserless rotating drill string. Ocean Engineering 280: 114542.

79.

Wang

Peng

Wang

, et al. (2023b) Micro-macro evolution of mechanical behaviors of thermally damaged rock: A state-of-the-art review. Journal of Rock Mechanics and Geotechnical Engineering. DOI: https://doi.org/10.1016/j.jrmge.2023.11.012.

80.

Wang

Jia

, et al. (2022b) Thermal evolution of chemical structure and mechanism of oil sands bitumen. Energy (Oxford) 244: 1.

81.

Waqas

Nasir

Khan

, et al. (2023) Marangoni forced convective thermally developed two-phase dusty flow of fluid with heat source/sink phenomenon. International Journal of Modern Physics B 37(13): 2350126.

82.

Wardhana

ASJ

SwiDamarwan

(2023) Identification of energy saving potential through energy audit at PT. ABC. Jurnal Edukasi Elektro 7(1): 63–74.

83.

Liang

(2022) A procedure for 3D simulation of seismic wave propagation considering source-path-site effects: Theory, verification and application. Earthquake Engineering & Structural Dynamics 51(12): 2925–2955.

84.

Xiaoming

Jiawang

, et al. (2023) Karst topography paces the deposition of lower Permian, organic-rich, marine–continental transitional shales in the southeastern Ordos Basin, northwestern China. AAPG Bulletin. DOI: https://doi.org/10.1306/11152322091.

85.

Xiao

Liu

, et al. (2023) Model for economic evaluation of closed-loop geothermal systems based on net present value. Applied Thermal Engineering 231: 121008.

86.

Xin

Khan

(2023) Scheduling equal-length jobs with arbitrary sizes on uniform parallel batch machines. Open Mathematics 21(1): 20220562.

87.

Yan

Sun

, et al. (2024) A real-time intelligent lithology identification method based on a dynamic felling strategy weighted random forest algorithm. Petroleum Science 21(2): 1135–1148.

88.

Yao

Qin

Wang

, et al. (2023) The evolution of renewable energy environments utilizing artificial intelligence to enhance energy efficiency and finance. Heliyon 9(5).

89.

Yin

, et al. (2023a) Predicting mine water inrush accidents based on water level anomalies of borehole groups using long short-term memory and isolation forest. Journal of Hydrology 616: 128813.

90.

Yin

Zhang

, et al. (2023b) A deep learning-based data-driven approach for predicting mining water inrush from coal seam floor using microseismic monitoring data. IEEE Transactions on Geoscience and Remote Sensing 61. DOI: https://doi.org/10.1109/TGRS.2023.3300012.

91.

Yin

Gao

, et al. (2017) Energy-efficient job shop scheduling problem with variable spindle speed using a novel multi-objective algorithm. Advances in Mechanical Engineering 9(4): 755449641.

92.

Zhou

, et al. (2024) Mathematical model and knowledge-based iterated greedy algorithm for distributed assembly hybrid flow shop scheduling problem with dual-resource constraints. Expert Systems with Applications 239: 122434.

93.

Wang

Lian

(2022) An assessment of seal ability of tubing threaded connections: A hybrid empirical-numerical method. Journal of Energy Resources Technology 145(5). DOI: https://doi.org/10.1115/1.4056332.

94.

Zanardo

, et al. (2018) Energy audit model based on a performance evaluation system. Energy 154: 544–552.

95.

Zhao

Yin

, et al. (2024) Identification of geochemical anomalies based on RPCA and multifractal theory: A case study of the Sidaowanzi Area, Chifeng, Inner Mongolia. ACS Omega. DOI: https://doi.org/10.1021/acsomega.4c02078

96.

Zheng

Teng

, et al. (2023) Natural resources, tourism resources and economic growth: A new direction to natural resources perspective and investment. Resources Policy 86: 104134.
