Multi-method Coal Seam Floor Water Inrush Risk Evaluation Based on Variable Weight Theory

Abstract

Frequent water inrush disasters in deep coal seam mining pose a significant threat to the safety of coal extraction operations. Due to the complexity and non-linearity of water inrush factors, evaluating the risk of water inrush in coal seam floor is challenging and the results can vary significantly. To achieve more accurate evaluations, the weighted rank-sum method and Grey-TOPSIS method were employed, alongside a master control indicator variable-weight model, for assessing the risk of water inrush in coal seam floor. Validation of the evaluation zoning map against actual conditions revealed that both methods produced accurate assessment results, thus affirming the reliability of the new evaluation approach. Compared with the water inrush coefficient method, the diversification of index factors weakened the absolute control effect of the water inrush threshold. The evaluation outcomes were more systematic and comprehensive, providing a new methodology and perspective for deep coal seam mining.

Keywords

Variable weights model WRSR grey-TOPSIS water inrush coefficient water inrush risk evaluation

Introduction

China possesses abundant coal resources, which account for >90% of the proven fossil energy resources, making coal one of the most significant energy sources in the country. China's resource structure dictates that coal will remain the primary source of national energy production and consumption in the long term (Jia et al., 2021). Safe and efficient exploitation of coal resources is integral to the development of China's national economy and society. Dong et al. (2022) studied water inrush patterns of Ordovician limestone in North China Coalfield based on hydrochemical characteristics, revealing the evolution processes of water inrush in this region. Dong et al. (2023) established a hydraulic model of roof (floor) water inrush in near-fault coal mining under “double pressure” control, deriving a new method for calculating the width of waterproof coal (rock) pillars in coal mining on large normal faults. More recently, Dong et al. (2024) constructed a dynamic monitoring and prewarning system for coal seam roof water inrush risk based on deep learning and joint advanced detection, which provides a new method for preventing water disasters in coal seam roofs. As shallow coal resources in China are depleting, coal mining operations are increasingly moving to deeper areas. However, this shift brings new challenges, including the development of geological structures such as faults and folds (Li et al., 2023), rupture of thin water barriers under mining conditions, and the risk of high pressure in strong water-rich limestone aquifers. These factors pose significant hazards in deep coal mines. Therefore, objectively and accurately assessing the risk of water inrush from deep coal seam floors has become an unavoidable research topic for coal mine practitioners.

The evaluation of the risk of water inrush on coal seam floors is a multidisciplinary task that involves coal geology, tectonic geology, hydrogeology, geomechanics, mathematical geology, and other fields (Fan et al., 2024). As early as 1944, Hungarian scientist REIBIEZC first introduced the concept of a relative water barrier for floor water inrush and provided an initial description of it. In 1948, Soviet scientist Slisalif systematized the theory of water inrush and proposed a formula for the thickness of a safe water barrier, laying the groundwork for further scientific research on water inrush (Pan, 1986). In 1964, Chinese researchers, utilizing unique data from Chinese mining areas, proposed the water inrush coefficient method based on the mechanisms of water inrush (Yao et al., 2024). Although this method may not be universally applicable, it remains the most commonly used approach for evaluating floor water inrush in China. In the twenty-first century, Wu et al. (2007a, 2007b) proposed the establishment of a main control index system for floor water inrush. They comprehensively and systematically introduced indices related to the floor water inrush. Based on the factors of the main control indices, they adopted the vulnerability index method to classify the risk of coal seam floor water inrush using GIS. This results in a more accurate evaluation. Subsequently, under this mode of thinking, various mathematical methods had been continuously explored and applied to the evaluation of floor water inrush, such as vulnerable index method based on Surfer (Zhang et al., 2020a) and TOPSIS (Li et al., 2022). The diverse theories and evaluation methods developed have been widely applied to guide the prevention and control of water inrush on mine floors. However, in practical applications, even with the same data from the same mine, the evaluation results of the mine using different evaluation methods still have large differences. Therefore, applying different methods to assess the risk of coal seam floors in the same mine is crucial for accurate evaluations.

We adopted two innovative mathematical methods, the weighted rank-sum ratio (WRSR) and Grey-TOPSIS, to evaluate the risk of floor water inrush. The rank-sum ratio (RSR), as a carrier of composite information, can process the information of multi-indicator factors affecting coal seam floor water inrush through rank substitution. This is done to form a new statistical metric to analyze nonlinear indicator information and evaluate the floor water inrush risk. Compared with other methods, it has the advantages of large capacity, strong relevance, and plasticity; is effective in quantifying research information; and is easy to popularize and apply (Tian, 2002). The Grey-TOPSIS method is a new method for evaluating floor water inrush, which is based on the traditional TOPSIS method and is introduced by combining it with the grey correlation theory. The TOPSIS method is a multi-objective decision analysis approach. It considers the influence of the difference in each indicator information while considering the information of the indicators affecting the floor water inrush. This method makes full use of the original indicator information and reflects the degree of fit between the data. As a result, it has been widely used in the evaluation of floor water inrush risk (Wang et al., 2021). However, the traditional TOPSIS method is prone to disorder when the distance of the index factors from the positive and negative ideal solutions is equal. It also has certain limitations when reflecting the difference between the internal trend of the index factors and the ideal condition. The grey correlation theory addresses the shortcomings of the TOPSIS method. It analyzes the potential connection between indicators by calculating their degrees of correlation, allowing for the assessment of each indicator's expected impact on the evaluation system. Therefore, this approach reflects the proximity of each evaluation indicator to the ideal situation in terms of trend similarity. By combining the two methods, the data in the analyses of the degree of fit and the degree of trend fit complement each other (Zhang et al., 2020c), which can effectively improve the accuracy of the evaluation compared with a single method.

This study used the Sitai wellfield of the Datong coal field (Figure 1) as the research object and established the main control index system containing three aspects of aquifer performance, water barrier performance, and geological structure by integrating multi-factor considerations. In order to target the characteristics of the water inrush indicators and obtain more accurate evaluation results. WRSR and Grey-TOPSIS mathematical methods, combined with a variable weight model, were used to evaluate the risk of water inrush in the 8# coal seam threatened by limestone karst water in the Sitai mine. The lithological column of the study area is shown in Figure 2. The results were compared with the water inrush coefficient method based on the actual water inrush situation to verify their relative accuracy. The aim was to provide a reference for water control work in the Sitai wellfield and a new direction for the evaluation of water inrush risk in the coal seam floor.

Study area

Establishment of the master control index system

At the core of establishing an indicator system, the selection of the main control indicators is the basis for the two evaluation methods to perform an accurate evaluation. Based on the analysis of the hydrogeological conditions and geological structure of the mine, a system of main control indices for water inrush in the coal floor was established. The system includes the aquifer water pressure, aquifer water richness, water-barrier thickness, floor damage depth, brittle-plastic rock thickness ratio, and tectonic complexity. This system was combined with previous ground investigation data from the study area of the Sitai wellfield to evaluate the risk of floor water inrush.

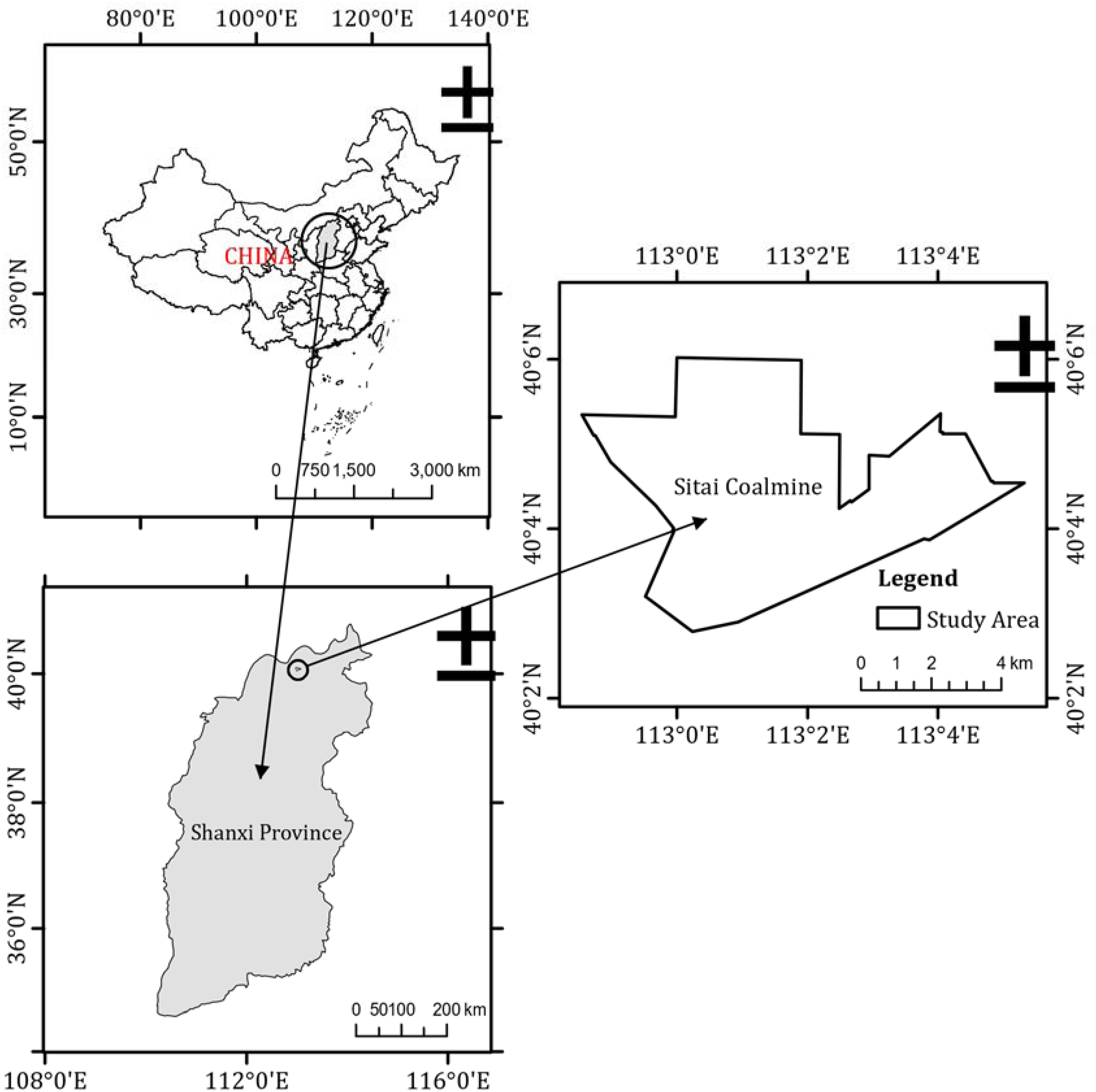

Figure 1.

Geographic location of the Sitai wellfield.

Figure 2.

Lithological column of the study area.

Aquifer water pressure

Aquifer water pressure is the power source of floor water inrush in the coal seam. When the head pressure exceeds the water-barrier strength, floor water inrush occurs. Therefore, the probability of water inrush increases with water pressure in the aquifer. The value of water pressure can be determined based on the water level and elevation of the Cambrian limestone.

Aquifer water richness

Aquifer water richness refers to the ability of an aquifer to release water, which reflects its water content and determines the intensity of water filling. Evaluating water richness per unit of borehole using borehole pumping test data is the main basis for determining water richness.

Water-barrier thickness

The layer between the coal seam and water-bearing layer serves as a protective barrier, hindering and weakening the head pressure. Its primary function is to prevent confined water from entering the mining space. The thickness of this layer determines its water-blocking ability and risk of floor water inrush. The thickness of the coal seam can be determined by comparing the elevation of its floor with that of the Cambrian limestone roof.

Floor damage depth

During coal seam mining, the rock layer beneath the coal seam is damaged by mining pressures and other factors, resulting in the formation of fissures. These fissures can become water-conducting channels, thereby increasing the risk of floor water inrush. The depth of destruction of the coal seam floor refers to the vertical distance between the floor of the mined coal seam and deepest part of the mining fissure zone, which can be calculated using Eq. (1) (Liu et al., 2021b):

h = 0.0085 H + 0.1665 α + 0.1079 L - 4.3579

(1)

where h is the depth of destruction of the floor (m); H is the mining depth of the coal seam (m); α is the inclination angle of the coal seam (°); and L is the sloping length of the working face (m).

Brittle-plastic rock thickness ratio

Brittle rock possesses high mechanical strength, and exhibits strong anti-surge properties. In contrast, plastic rock possesses low mechanical strength and poor anti-surge performance. Therefore, a higher thickness ratio of brittle to plastic rock in the water barrier results in better anti-water-rupture performance and reduces the risk of floor water inrush. The thickness ratio of the brittle to plastic rock deposits was determined statistically using the drill core accumulated in the wellfield.

Tectonic complexity

Tectonic distribution is characterized by a non-linear distribution (Ma et al., 2020), and its complexity can be quantified using fractal dimension analysis. To calculate the fractal dimensions, the study area was divided into four exponentially increasing square grids (1000 m × 1000 m, 500 m × 500 m, 250 m × 250 m, and 125 m × 125 m) using the grid coverage method. The complexity of the tectonic distribution was assessed by counting the number of grids containing fault traces in different cells. A double logarithmic coordinate system was established for the grid edge lengths and number of fault traces. The curves were fitted to calculate the capacity dimensions of each grid (Xu et al., 2021). The capacity dimension is defined using Eq. (2):

D = - lim_{r \to 0} \frac{l o g N (r)}{l o g r}

(2)

where r is the side length of the square grid (m) and N(r) is the number of squares containing constructions.

After establishing the master control index system, the quantitative value of each master control index was calculated. Combined with known borehole coordinate data, six contour thematic maps were generated (Figure 3) using the kriging interpolation method in Surfer software to achieve the visualization of the master control index values.

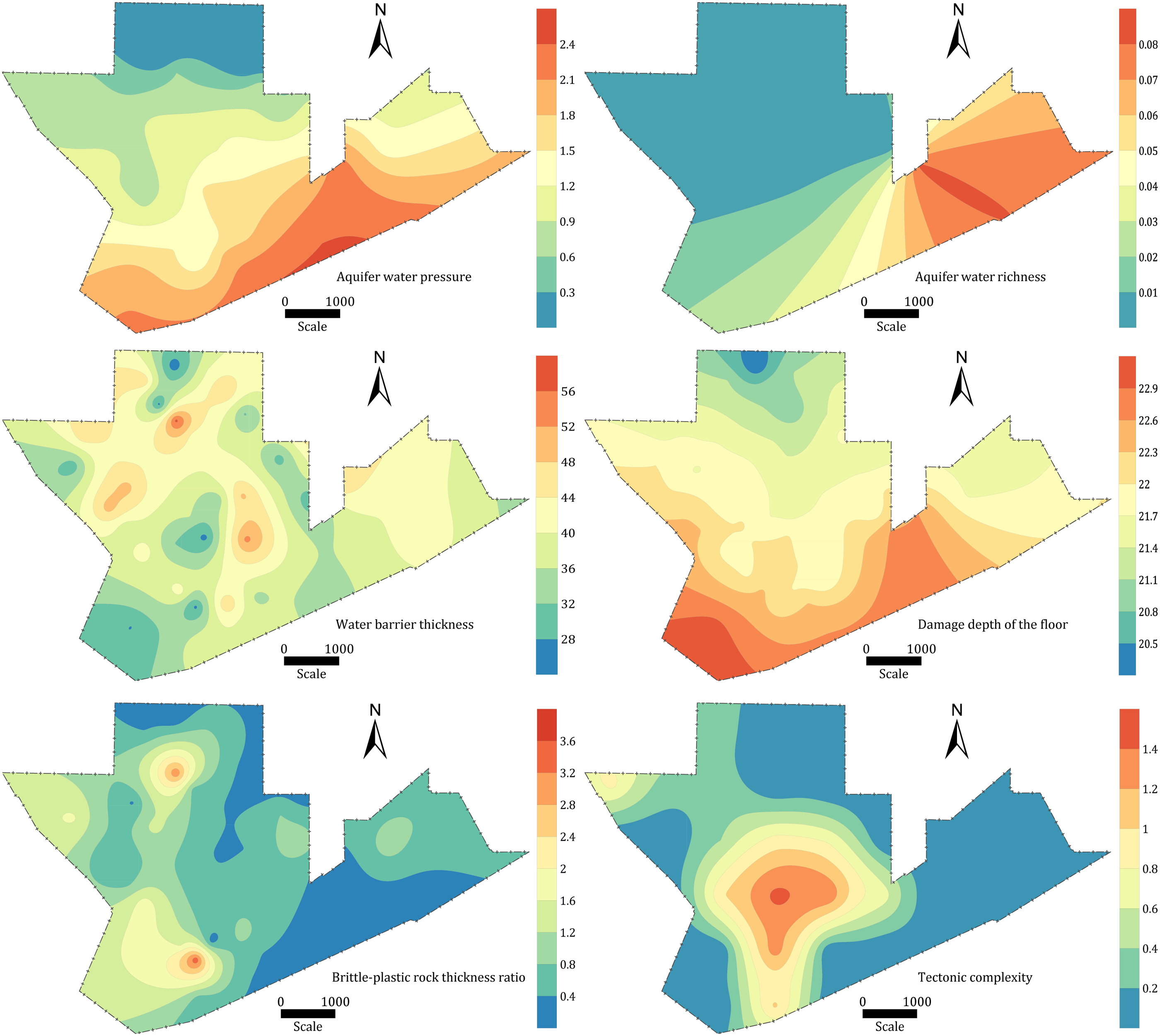

Figure 3.

Thematic maps of master control index factors.

Determination of weights for master control index

Standardization of index factors

After establishing the master control index system, the different measurements of the index factors were not directly comparable. To eliminate the differences in unit measurements between index factor values, it is necessary to standardize the main control index values such that the data are comparable, statistically significant, and easy to evaluate and analyze. For the index factors, the larger the value of the index is, the higher the risk of floor water inrush is used in Eq. (3). On the other hand, the smaller the value of the index, the higher the risk of floor water inrush is used in Eq. (4):

X_{i j} = \frac{x_{j} - x_{m i n}}{x_{m a x} - x_{m i n}}

(3)

X_{i j} = \frac{x_{m a x} - x_{j}}{x_{m a x} - x_{m i n}}

(4)

where

X_{i j}

is the dimensionless value of sample i in index j;

x_{j}

is the quantized value of the sample in index j;

x_{m a x}

is the maximum quantized value of the sample in index j; and

x_{m i n}

is the minimum quantized value of the sample in index j.

Determination of comprehensive constant weights

Establishing the main control index system is the basis for the evaluation of floor water inrush risk. To ensure the reliability and accuracy of the evaluation results, the selection of a reasonable method to assign weights to the indicator factors is key to the evaluation process. When determining the constant weight of the indicator factors, a single assignment method is prone to bias, which affects the accuracy of the evaluation results. By employing a combined approach of subjective and objective weighting, this approach integrates the expert knowledge and experience from subjective weighting with the inherent relationships between indicators in objective weighting, thereby enhancing the scientific rigor and effectiveness of the weighting process (Wei et al., 2021). In this study, the AHP method was adopted for subjective empowerment. The principle of AHP involves establishing an ordered hierarchical structure based on the evaluation of floor risk indicators. By employing different levels of scaling for comparative assessment across the hierarchical indicators, quantitative assessment weights for the respective factors can be derived. Objective weighting was conducted using the CRITIC method, which analyzes the comparative intensity among indicators and their correlations. This approach fully leverages the intrinsic properties of the data to determine weights through objective evaluation. After the subjective and objective weights are determined, based on the principle of minimum relative information entropy (Ren et al., 2022), an optimal combination of assignment model is established to determine the comprehensive weights ω0 j, which is calculated as Eq. (5):

ω_{j}^{0} = \frac{\sqrt{ω_{j}^{1} ω_{j}^{2}}}{\sum_{i = 1}^{n} \sqrt{ω_{j}^{1} ω_{j}^{2}}}

(5)

where

ω_{j}^{0}

is the combined constant weight of index j;

ω_{j}^{1}

is the constant weight of index j using the AHP method;

ω_{j}^{2}

is the constant weight of index j using the CRITIC method; and n is the total number of samples i.

Establishment of variable weight model

The constant weight model can reflect the relative importance of different indicators to some extent, but in the context of water inrush assessment, evaluation results depend not only on the fundamental significance of each indicator but also on the variations in their state values and combinations. The variable weight model addresses the limitation of having a single fixed weight for indicator factors in the evaluation process. Moreover, it clarifies the controlling mechanisms and variation patterns of these factors related to water inrush in coal seam floors (Zhang et al., 2020b). Consequently, the establishment of indicator weights is more accurate and reflective of practical scenarios. The specific contents and steps of the indicator variable weight model are as follows.

Construction of state variable weight vector: Considering the characteristics of the variable weight theory, the ability of the variable weight model to accurately address sudden changes in the values of the main control indicators is critical to the reliability of the model prediction results. The vector construction introduces two modes: “incentive” and “penalty.” Dynamic assignment of indicator weights is applied in response to sudden changes in indicator factor values, facilitating or hindering water inrush assessment. This approach effectively reflects the impact of sudden variations in main control indicator values on the overall evaluation. Combined with an analysis of the state variable weight vector model, Eq. (6) was applied:

S_{i j} (X) = {\begin{matrix} e^{a_{1} (d_{j 1} - X)} + c - 1, X \in [0, d_{j 1}) \\ c, X \in [d_{j 1}, d_{j 2}) \\ e^{a_{2} (X_{i j} - d_{j 2})} + c - 1, X \in [d_{j 2}, d_{j 3}) \\ e^{a_{3} (X_{i j} - d_{j 3})} + e^{a_{2} (d_{j 3} - d_{j 2})} + c - 2, X \in [d_{j 3}, 1] \end{matrix}

(6)

where c, a₁, a₂, and a₃ are the tuning parameters and d_j1, d_j2, and d_j3 are the thresholds of the variable weight intervals for index j.

Determination of the variable weight interval of the main control factors: In previous studies, the K-means clustering method was used for the classification thresholds of variable weight intervals (Liu et al., 2021a). However, this method may inadequately categorize data points located between two cluster centers (Zuo and Chen, 2016), resulting in reduced classification accuracy of sample data during the application of variable weights. Given the complexity and uncertainty of the factors influencing floor water inrush, fuzzy clustering methods present advantages over K-means clustering, particularly in situations involving multiple evaluation indicators, where decision boundaries are ambiguous and lack clear delineation (Zhu and Song, 2021). Therefore, this study employed a more widely applicable and scientifically rigorous clustering method—fuzzy C-means clustering. Based on the state variable weight vector, fuzzy C-means clustering was used to categorize the data of each master controlling indicator into four classes. The classification results were then utilized to determine the threshold values for each master controlling factor and to compute the variable weight interval thresholds using Eqs. (7), (8), and (9).

d_{j 1} = (f_{j 1} + f_{j 2}) / 2

(7)

d_{j 2} = (f_{j 3} + f_{j 4}) / 2

(8)

d_{j 3} = (f_{j 5} + f_{j 6}) / 2

(9)

where f_j is the classification threshold for the variable weight interval of index j.

Model parameter solution: In the constructed state variable weight vector, the parameters control and regulate the variable weight results (Liu et al., 2021a). Here, a₁ regulates the magnitude of the weight change in the penalty interval, a₂ regulates the magnitude of the weight change in the initial incentive interval, a₃ regulates the magnitude of the weight change in the strong incentive interval, and c controls the magnitude of the change in the entire variable weight model. The parameters in the solution must select a determined evaluation unit based on knowing its indicator factor constant weight and ideal variable weight. Matlab software can be used to derive the state variable weight vector parameter values.

Through the construction of the state variable weight vector, the division of the variable weight interval and the solution of the variable weight parameter, the application of the partition variable weight model can be conducted to determine the variable weight of the main control index. Its calculation formula is shown in Eq. (10):

ω_{i j} = \frac{ω_{j}^{0} S_{i j} (X)}{\sum_{j = 1}^{m} ω_{j}^{0} S_{i j} (X)}

(10)

where

ω_{i j}

is the variable weight of sample i on index j and m is the number of index j.

Risk assessment of water inrush

WRSR method

The WRSR method was first proposed by Tian (1991) and was first applied to index statistics and comprehensive evaluation in the field of healthcare. The principle involves calculating the WRSR of the evaluation matrix, utilizing probit values for sorting and categorization to obtain the final evaluation results. The detailed steps are as follows:

Establishment of data matrix: The evaluation object i was designated as the rows and the indicators j as the columns, arranging the raw data into an m × n matrix. The water-barrier thickness and brittle-plastic rock thickness were classified as “high-preference indicators”. Conversely, the aquifer water pressure, aquifer water richness, floor damage depth, and tectonic complexity were categorized as “low-preference indicators”.

Non-integer method ranking: Compared with the integer method ranking, the non-integer method ranking can establish a certain linear correspondence with the original index value, which overcomes the drawback of losing quantitative information in the integer method ranking. The calculation formulas of its high-optimality indicators and low-preference indicators are shown in Eqs. (11) and (12):

R_{i j} = 1 + (n - 1) \frac{x_{j} - x_{m i n}}{x_{m a x} - x_{m i n}}

(11)

R_{i j} = 1 + (n - 1) \frac{x_{m a x -} x_{j}}{x_{m a x} - x_{m i n}}

(12)

where

R_{i j}

is the rank of sample i on index j.

Calculate the WRSR and rank: By incorporating the variable weights of different indicators for each evaluation object, the WRSR is calculated according to Eq. (13). The rank values are then arranged in descending order.

W R S R_{i} = \frac{1}{n} \sum_{j = 1}^{m} ω_{i j} R_{i j}

(13)

where

W R S R_{i}

is the WRSR of sample i.

Determination of the RSR distribution: The probit model is a generalized linear model that adheres to a normal distribution. The distribution of the RSR can be expressed using specific cumulative frequencies of the probability unit Probit values. Through a series of transformations between rank ordering and probit values, the correspondence between the WRSR and probit can be established.

Calculate the linear regression equation: A linear regression equation is established with the probability unit probit as the independent variable and the WRSR as the dependent variable. The regression equation is subject to testing, as outlined by Eq. (14).

W R S R = b + k \times P r o b i t .

(14)

where k and b are the slope and constant term of the regression equation, respectively.

Probit sorting: After the regression equation test, the Delphi method (Tian, 1993) was used to sort the probit corresponding to the WRSR value, completing the threshold division for the evaluation of floor water inrush risk.

Grey-TOPSIS method

The TOPSIS method was first proposed by Hwang and Yoon in 1981 (Zhang et al., 2021). As a multi-attribute decision-making technique, its principle involves ranking the indicator factors influencing floor water inrush based on their proximity to an ideal state. This approach employs Euclidean distance to conduct a comprehensive evaluation, analysis, and processing of the relative merits of the indicator factors, ultimately facilitating the assessment of the risk of floor water inrush. As a systematic correlation analysis method, the grey correlation method determines the dominant and subordinate factors within a system by calculating the degree of correlation among indicators. It reveals the nonlinear relationships and trends among the indicator data. Based on the principles and characteristics of both methods, the Grey-TOPSIS method effectively integrates the Euclidean distance with the grey correlation degree in evaluating indicators (Surya et al., 2023). By assessing the comprehensive relative closeness, the process reflects the risk of floor water inrush.

1. Construct a weighted standardized matrix: Based on the standardized value of the indexes of each evaluation object, combined with variable weights, establish a decision matrix, as in Eq. (15):

W = (w_{i j}) = [\begin{matrix} ω_{11} X_{11} & ω_{12} X_{12} & \dots & ω_{1 m} X_{1 m} \\ ω_{21} X_{21} & ω_{22} X_{22} & \dots & ω_{2 m} X_{1 m} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ ω_{n 1} X_{n 1} & ω_{n 1} X_{n 1} & \dots & ω_{n m} X_{n m} \end{matrix}]

(15)

where W is the decision matrix and

w_{i j}

is the decision evaluation weighted value of the sample indexes.

1. 2. Determination of positive and negative ideal solutions: Based on the established decision matrix, the maximum and minimum values of the positive indexes, that is, aquifer water pressure, aquifer water richness, floor damage depth, and tectonic complexity, are taken as the positive and negative ideal solutions of the evaluation system, respectively. The minimum and maximum values of the negative indexes, that is, the brittle-plastic rock thickness ratio and water-barrier thickness, are taken as the positive and negative ideal solutions of the evaluation system, respectively, and their calculation formulas are shown in Eqs. (16) and (17):

W^{+} = {max_{1 \leq i \leq n} w_{i j} | j ϵ J^{+}, min_{1 \leq i \leq n} w_{i j} | j ϵ J^{-}}

(16)

W^{-} = {min_{1 \leq i \leq n} w_{i j} | j ϵ J^{+}, max_{1 \leq i \leq n} w_{i j} | j ϵ J^{-}}

(17)

where

W^{+}

and

W^{-}

are the positive and negative ideal solutions, and

J^{+}

and

J^{-}

are the positive and negative indices, respectively.

Calculation of the Euclidean distance: The Euclidean distance between each evaluation object and the positive and negative ideal solutions was calculated using Eqs. (18) and (19):

D_{i}^{+} = \sqrt{\sum_{i = 1}^{n} {(w_{i j} - w^{+})}^{2}}

(18)

D_{i}^{-} = \sqrt{\sum_{i = 1}^{n} {(w_{i j} - w^{-})}^{2}}

(19)

where D is the Euclidean distance from sample i to the positive and negative ideal solutions.

Calculate the grey correlation degree: Based on the definition of the reference sequence and comparison sequence in the calculation of grey correlation coefficient, the positive and negative ideal solutions are set as the reference sequence, and the weighted value of each sample index is set as the comparison sequence. The grey correlation coefficient matrix is then calculated following Eqs. (20) and (21). The average the grey correlation coefficient of each sample is used to obtain grey correlation degrees $η_{i j}^{+}$ and $η_{i j}^{-}$ .

γ_{i j}^{+} = \frac{(m i n_{i} m i n_{j} | w_{j}^{+} - w_{i j} | + ρ m a x_{i} m a x_{j} | w_{j}^{+} - w_{i j} |)}{| w_{j}^{+} - w_{i j} | + ρ m a x_{i} m a x_{j} | w_{j}^{+} - w_{i j} |}

(20)

γ_{i j}^{-} = \frac{(m i n_{i} m i n_{j} | w_{j}^{-} - w_{i j} | + ρ m a x_{i} m a x_{j} | w_{j}^{-} - w_{i j} |)}{| w_{j}^{-} - w_{i j} | + ρ m a x_{i} m a x_{j} | w_{j}^{-} - w_{i j} |}

(21)

where ρ is the resolution coefficient (0 ≤ ρ ≤ 1), and γ is the grey correlation coefficient.

Dimensionless processing: The Euclidean distance and grey correlation are dimensionless and can be calculated using Eqs. (22) and (23), respectively:

d_{i}^{+} = \frac{D_{i}^{+}}{max_{1 \leq i \leq n} (D_{i}^{+})}, d_{i}^{-} = \frac{D_{i}^{-}}{max_{1 \leq i \leq n} (D_{i}^{-})}

(22)

δ_{i}^{+} = \frac{η_{i}^{+}}{max_{1 \leq i \leq n} (η_{i}^{+})}, δ_{i}^{-} = \frac{η_{i}^{-}}{max_{1 \leq i \leq n} (η_{i}^{-})}

(23)

where d and δ are the dimensionless values of Euclidean distance and grey correlation, respectively.

Calculation of comprehensive relative closeness: The Euclidean distance and grey correlation after dimensionless processing were combined to calculate the comprehensive relative closeness. The larger the values of $d_{i}^{+}$ and $δ_{i}^{-}$ , the closer the evaluation object is to the ideal solution; the larger the values of $d_{i}^{-}$ and $δ_{i}^{+}$ , the more the evaluation object deviates from the ideal solution. The comprehensive relative proximity calculation formula is given by Eqs. (24) and (25).

T_{i}^{-} = α d_{i}^{-} + β δ_{i}^{+}, T_{i}^{+} = α d_{i}^{+} + β δ_{i}^{-}

(24)

ε = \frac{T_{i}^{-}}{T_{i}^{-} + T_{i}^{+}}

(25)

where ε is the comprehensive relative closeness.

Threshold division of comprehensive relative closeness: First, the K-means clustering algorithm is used to divide the comprehensive relative closeness into 10 classes. Thereafter, using the Delphi method, these 10 classes are divided into four levels to complete the threshold division of comprehensive relative closeness (Yin et al., 2020).

Results and discussion

Constant weight model

The AHP and CRITIC methods were used to determine the subjective and objective weights, yielding the results of the comprehensive constant weights shown in Table 1. Due to the different starting points and perspectives in assigning these weights, the subjective and objective weights derived from the same indicators may exhibit significant discrepancies. This confirms the lack of rigor in unilateral weighting methods, indicating that a comprehensive weighting approach is more accurate and effective.

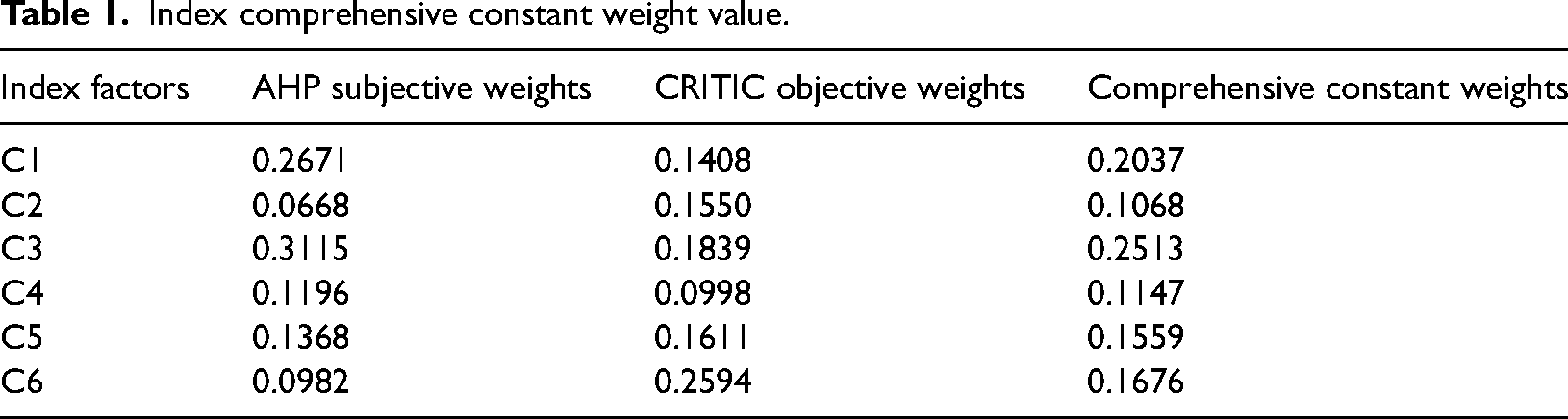

Table 1.

Index comprehensive constant weight value.

Index factors	AHP subjective weights	CRITIC objective weights	Comprehensive constant weights
C1	0.2671	0.1408	0.2037
C2	0.0668	0.1550	0.1068
C3	0.3115	0.1839	0.2513
C4	0.1196	0.0998	0.1147
C5	0.1368	0.1611	0.1559
C6	0.0982	0.2594	0.1676

Variable weight model

The classification threshold values for the water-barrier thickness determined using the fuzzy C-means clustering algorithm was $f 1 = 32.15, f 2 = 33.3, f 3 = 38.63, f 4 = 39.15, f 5 = 43.13, and f 6 = 46.9.$ According to Eqs. (7), (8), and (9), the variable weight interval thresholds were $d 1 = (f 1 + f 2) / 2 = 45.02$ , with normalized values of 0.3853, $d 2 = (f 1 + f 2) / 2 = 38.875$ , 0.5792, $d 3 = (f 1 + f 2) / 2 = 32.725$ , and 0.7743, respectively.

Similarly, the thresholds for the weighted intervals of aquifer water pressure, aquifer water richness, floor damage depth, brittle-plastic rock thickness ratio, and tectonic complexity can be calculated using the same method. The “incentive” and “penalty” of the weights were determined, and the results were shown in Table 2.

Table 2.

Index weighting interval thresholds.

Index factors	Penalty interval	No incentive no penalty interval	Initial incentive interval	Strong incentive interval
C1	0 ≤ X ≤ 0.125	0.125 ≤ X ≤ 0.442	0.442 ≤ X ≤ 0.748	0.748 ≤ X ≤ 1
C2	0 ≤ X ≤ 0.156	0.156 ≤ X ≤ 0.338	0.338 ≤ X ≤ 0.645	0.645 ≤ X ≤ 1
C3	0 ≤ X ≤ 0.385	0.358 ≤ X ≤ 0.579	0.579 ≤ X ≤ 0.774	0.774 ≤ X ≤ 1
C4	0 ≤ X ≤ 0.436	0.436 ≤ X ≤ 0.604	0.604 ≤ X ≤ 0.781	0.781 ≤ X ≤ 1
C5	0 ≤ X ≤ 0.299	0.299 ≤ X ≤ 0.664	0.664 ≤ X ≤ 0.862	0.862 ≤ X ≤ 1
C6	0 ≤ X ≤ 0.151	0.151 ≤ X ≤ 0.361	0.361 ≤ X ≤ 0.650	0.650 ≤ X ≤ 1

When solving the parameters of the variable-weighting model, borehole ST704 was selected as the computational unit for parameter solving. The normalized values of aquifer water pressure, aquifer water richness, water-barrier thickness, floor damage depth, brittle-plastic rock thickness ratio, and tectonic complexity were $X = (0.3292, 0.004, 0.6201, 0.5512, 0.9801, 0.0265)$ as shown in Table 2. These are located on the no penalty no incentive interval, penalty interval, initial incentive interval, no penalty no incentive interval, strong incentive interval, and penalty interval, respectively. The AHP and expert scoring methods were employed to determine the ideal variable weights $ω = (0.2318, 0.0755, 0.2382, 0.1055, 0.1666, 0.1824)$ . By substituting the values of X, ω, ω₀ into equations (6) and (10) using Matlab, the parameters were calculated as $a 1 = 0.7025, a 2 = 0.3715, a 3 = 0.0366, c = 0.4980$ , thereby establishing the variable weight model.

Taking borehole ST101 as an example, its normalized index value was $X = (0.3, 0.0120,$ $0.8684, 0.6290, 0.5373, 0.1156)$ as shown in Table 2. Substitute into Eq. (6) to calculate the state variable weight vector $S (X) = (0.498, 0.6046, 0.5766, 0.5072, 0.498, 0.5233)$ , and then substitute $S (X)$ and constant weight $ω_{j}^{0}$ into Eq. (10) to obtain the variable weights of ST101. By repeating these steps, the variable weights of some borehole indicators were calculated as listed in Table 3.

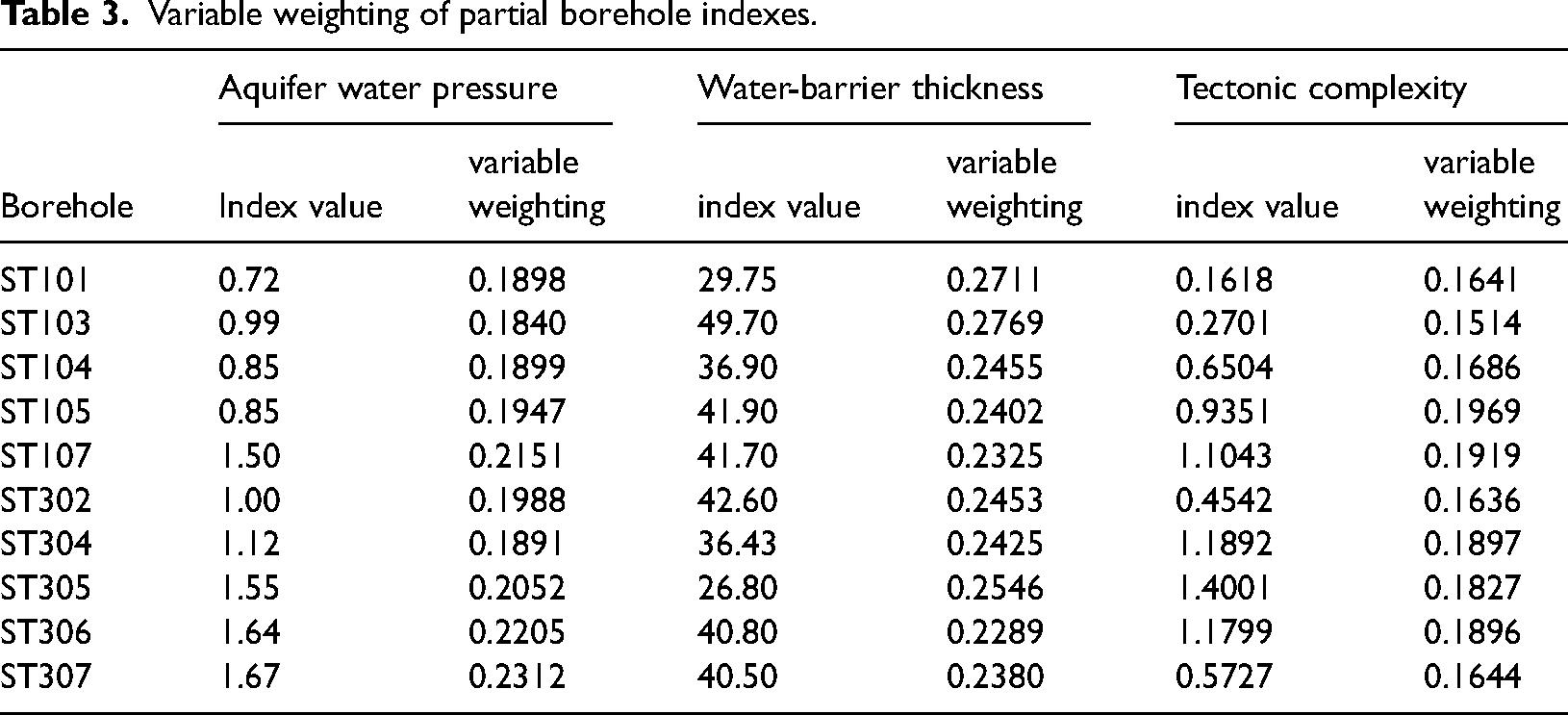

Table 3.

Variable weighting of partial borehole indexes.

Borehole	Aquifer water pressure		Water-barrier thickness		Tectonic complexity
Borehole	Index value	variable weighting	index value	variable weighting	index value	variable weighting
ST101	0.72	0.1898	29.75	0.2711	0.1618	0.1641
ST103	0.99	0.1840	49.70	0.2769	0.2701	0.1514
ST104	0.85	0.1899	36.90	0.2455	0.6504	0.1686
ST105	0.85	0.1947	41.90	0.2402	0.9351	0.1969
ST107	1.50	0.2151	41.70	0.2325	1.1043	0.1919
ST302	1.00	0.1988	42.60	0.2453	0.4542	0.1636
ST304	1.12	0.1891	36.43	0.2425	1.1892	0.1897
ST305	1.55	0.2052	26.80	0.2546	1.4001	0.1827
ST306	1.64	0.2205	40.80	0.2289	1.1799	0.1896
ST307	1.67	0.2312	40.50	0.2380	0.5727	0.1644

Faults have a significant control effect on the floor water inrush, and there is often an inseparable relationship between them. In the table, the normalized value of the indicator $X = (0.3542, 0.106,$ $0.484, 0.5866, 0.4933, 0.6680)$ for borehole ST105, which were in the no penalty and no incentive interval, the penalty interval, the no penalty and no incentive interval, the no penalty and no incentive interval, the no penalty and no incentive interval, the no penalty and no incentive interval, and the strong incentive interval, respectively. Compared with other indicators, the value of the tectonic complexity for the evaluation unit was relatively greater and in the strong incentive interval, indicating that the tectonic complexity had a stronger role in controlling the floor water inrush in this unit. In the constant weight model, the tectonic complexity of the evaluation unit was fixed at 0.1676. Regardless of the mathematical evaluation method used, the controlling effect of the fault was likely to be neutralized by other indexes, and the effect of the sudden change in the index value could not be reflected. The variable weight model adjusted the weight of tectonic complexity from 0.1676 in the constant weight model to 0.1969 by regulating the state variable weight vector. This enhancement of tectonic complexity increased the impact of the abrupt change on the comprehensive evaluation of water inrush, which strengthened the controlling effect of the faults on floor water inrush within the evaluation unit. As a result, the evaluation was more accurate and consistent with real-world conditions.

WRSR method

The non-integer method was applied to rank the main control indicators of the boreholes. Subsequently, the weighted value of each borehole was calculated by combining the variable weights. The data was then arranged in ascending order to obtain the cumulative frequency, which was converted into a percentage. The Table of Comparison between Percentage and Probability Units (Yao et al., 2022) was consulted to derive the corresponding probit value, and some of the results were shown in Table 4.

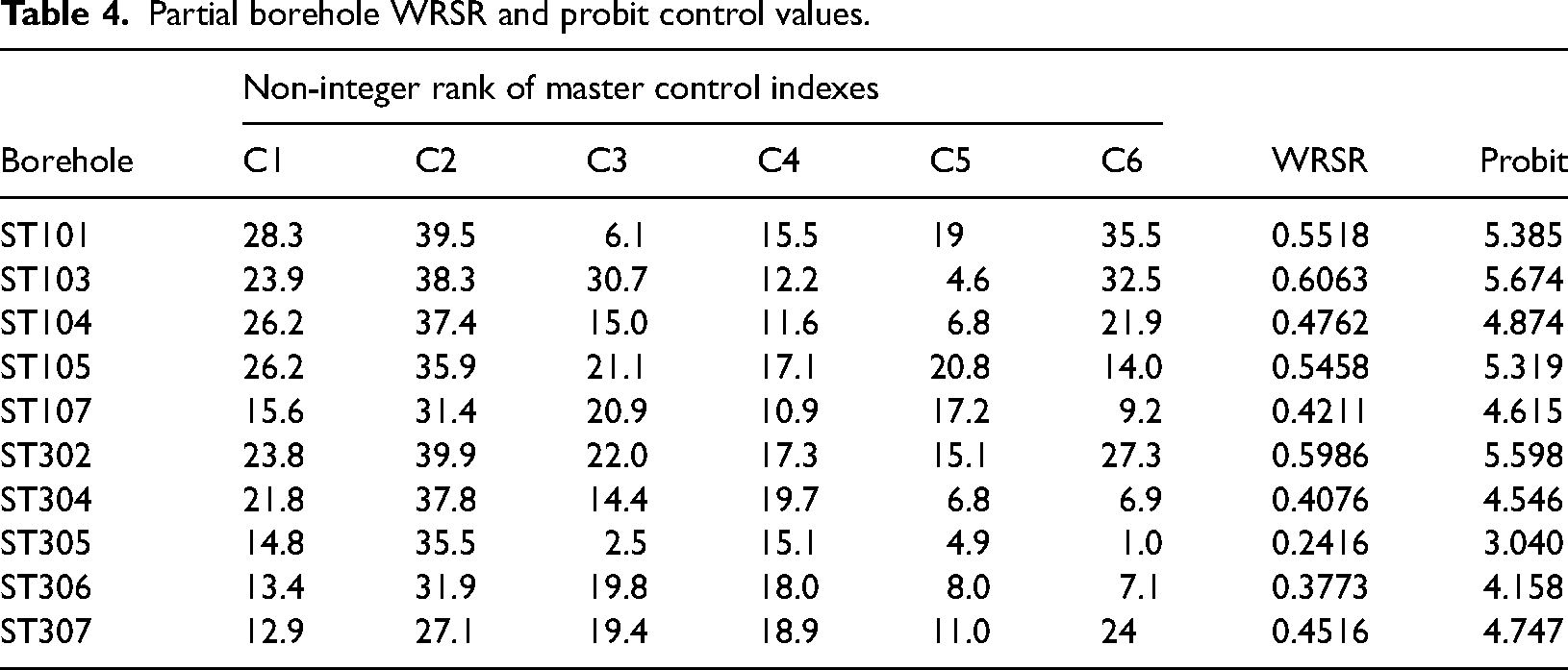

Table 4.

Partial borehole WRSR and probit control values.

Borehole	Non-integer rank of master control indexes						WRSR	Probit
Borehole	C1	C2	C3	C4	C5	C6	WRSR	Probit
ST101	28.3	39.5	6.1	15.5	19	35.5	0.5518	5.385
ST103	23.9	38.3	30.7	12.2	4.6	32.5	0.6063	5.674
ST104	26.2	37.4	15.0	11.6	6.8	21.9	0.4762	4.874
ST105	26.2	35.9	21.1	17.1	20.8	14.0	0.5458	5.319
ST107	15.6	31.4	20.9	10.9	17.2	9.2	0.4211	4.615
ST302	23.8	39.9	22.0	17.3	15.1	27.3	0.5986	5.598
ST304	21.8	37.8	14.4	19.7	6.8	6.9	0.4076	4.546
ST305	14.8	35.5	2.5	15.1	4.9	1.0	0.2416	3.040
ST306	13.4	31.9	19.8	18.0	8.0	7.1	0.3773	4.158
ST307	12.9	27.1	19.4	18.9	11.0	24	0.4516	4.747

The regression equation established with the probit value as the independent variable and the WRSR value as the dependent variable was $WRSR = 0.1479 probit - 0.2079$ , and R² = 0.9849, which proved the validity of the linear equation. According to the actual situation of the study area and concerning the relevant research results, the grading of the risk for coal floor water inrush using the probit value was as follows: probit < 3.5 was the dangerous zone, 3.5 ≤ probit < 5.0 was the relatively dangerous zone, 5 ≤ probit < 6.5 was the relatively safe zone, and probit ≥ 6.5 was the safe zone. The combination of probit and WRSR values categorized the study area into four class intervals, as shown in Table 5.

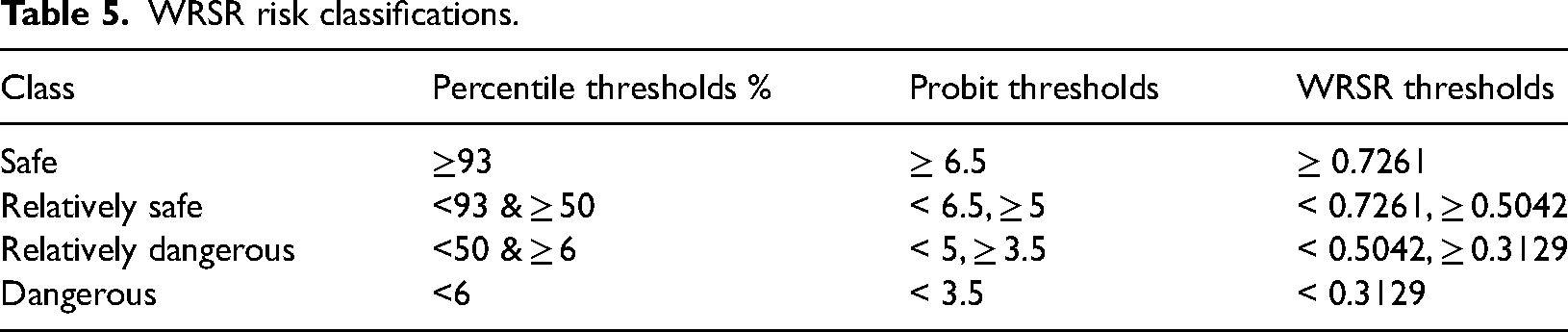

Table 5.

WRSR risk classifications.

Class	Percentile thresholds %	Probit thresholds	WRSR thresholds
Safe	≥93	≥ 6.5	≥ 0.7261
Relatively safe	<93 & ≥ 50	< 6.5, ≥ 5	< 0.7261, ≥ 0.5042
Relatively dangerous	<50 & ≥ 6	< 5, ≥ 3.5	< 0.5042, ≥ 0.3129
Dangerous	<6	< 3.5	< 0.3129

Grey-TOPSIS method

Establishment of a weighted normalization matrix based on variable weight model calculations: The positive and negative ideal solutions for each borehole indicator data according to Eqs. (16) and (17) are presented in Table 6. Subsequently, the Euclidean distance and grey correlation coefficient of the indicator data based on the positive and negative ideal solutions were determined using Eqs. (18) and (19) and Eqs. (20) and (21), respectively, and are made dimensionless using Eqs. (22) and (23). Then, according to Eqs. (24) and (25), the Euclidean distance and grey correlation of the dimensionless data were combined to obtain the comprehensive relative closeness, and the results are presented in Table 7.

Table 6.

Positive and negative ideal solutions for each of the main control indicator factors.

Indicator factors	C1	C2	C3	C4	C5	C6
Positive ideal solutions	0.0630	0.0601	0.0243	0.0235	0.0020	0.0612
Negative ideal solutions	0	0	0.0735	0.0151	0.0963	0

Table 7.

Calculated results of Grey-TOPSIS method evaluation for partial boreholes.

Borehole	Euclidean distance		Grey correlation coefficient		Comprehensive closeness		Comprehensive relative closeness
Borehole	(+)	(−)	(+)	(−)	(+)	(−)	Comprehensive relative closeness
ST101	0.7652	0.5944	0.6837	0.7513	0.7583	0.6391	0.4573
ST103	0.7186	0.7135	0.6933	0.7243	0.7214	0.7034	0.4937
ST104	0.6271	0.7449	0.7619	0.6387	0.6329	0.7534	0.5435
ST105	0.6314	0.6419	0.7184	0.6481	0.6398	0.6802	0.5153
ST107	0.4985	0.7637	0.8203	0.5572	0.5278	0.7920	0.6001
ST302	0.6926	0.6249	0.6803	0.7013	0.6970	0.6526	0.4835
ST304	0.5473	0.8430	0.8321	0.6395	0.5934	0.8376	0.5853
ST305	0.4705	0.9450	0.9672	0.5940	0.5323	0.9561	0.6424
ST306	0.4465	0.8711	0.8611	0.5850	0.5157	0.8661	0.6268
ST307	0.5031	0.7668	0.7776	0.5933	0.5482	0.7722	0.5848

The comprehensive relative closeness integrated the Euclidean distance and grey correlation degree, thereby addressing issues related to the disorder caused by equidistance. This can be considered as the risk coefficient of water inrush in the evaluation, where a higher value indicates a greater risk of water inrush from the floor.

Based on the actual situation, the K-means clustering algorithm combined with the Delphi method was used to classify the water inrush risk coefficient, as listed in Table 8.

Table 8.

Grey-TOPSIS water inrush risk coefficient classifications.

Class	Safe	Relatively safe	Relatively dangerous	Dangerous
Risk coefficient	ε<0.4483	0.4483≤ε<0.5725	0.5725≤ε<0.6508	ε ≥ 0.6508

Using Surfer software, the Kriging interpolation was employed to map the evaluation zones based on the classification thresholds established by the two different methods, as depicted in Figure 4.

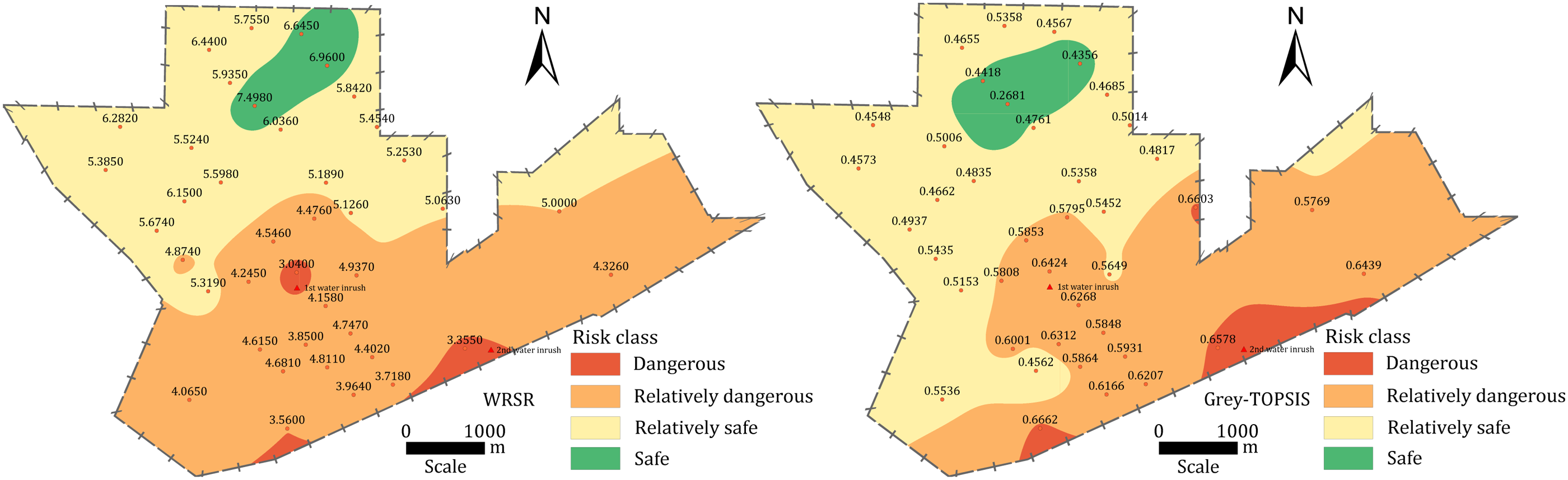

Figure 4.

Evaluation partition diagrams for the two mathematical methods.

From the viewpoint of the criteria for dividing the area, the higher the probit value in the WRSR evaluation zoning map, the lower the evaluation risk level, and the safer the area was classified as. The higher the comprehensive relative closeness in the Grey-TOPSIS evaluation zoning map, the higher the evaluation risk level, and the more dangerous the area was classified as. The difference in the evaluation methods presented two different evaluation criteria. However, from the viewpoint of the division area, the danger level of the two evaluation methods tended to be the same, and both gradually increased from north to south. The safe area was concentrated in the northern part of the wellfield, the dangerous area was concentrated in the southern boundary, with both occupying relatively small areas; the rest of the relatively safe and dangerous areas accounted for most of the wellfield area. Therefore, during the actual extraction process, focused preventive measures should be implemented in the southern areas of the wellfield. Key detection should be conducted on potential water-conducting faults or weak zones using methods such as geophysical exploration and drilling. Additionally, continuous monitoring of water level changes in the limestone aquifer is essential. Prompt resolution of any identified issues is necessary to mitigate the risk of water inrush in these areas.

In addition to the analysis of the overall trend presented by the two evaluation methods, the difference between the two methods in terms of zoning details should also be noted. In the evaluation zoning map of the WRSR method, a small part of the center of the wellfield was classified as a hazardous area, and the classification level was differed from the overall trend presented by the two methods. Notably, one of the two past water inrush incidents occurred within this dangerous zone identified by the WRSR. On-site analysis revealed that the cause of the water inrush was a fault that connected to the aquifer during the mining process. The WRSR method, utilizing a variable weight model in conjunction with the main control indicators, effectively predicted this water inrush, receiving strong validation from the actual events. The second water inrush occurred in the southern part of the mining area, which also falls within the dangerous zones delineated by both evaluation methods. The Grey-TOPSIS method similarly yielded satisfactory validation results, reflecting a relatively accurate assessment. In subsequent mining operations, the integration of both evaluation methods is anticipated to facilitate targeted prevention and control measures for potential water inrush risk areas, thereby reducing the probability of water inrush accidents.

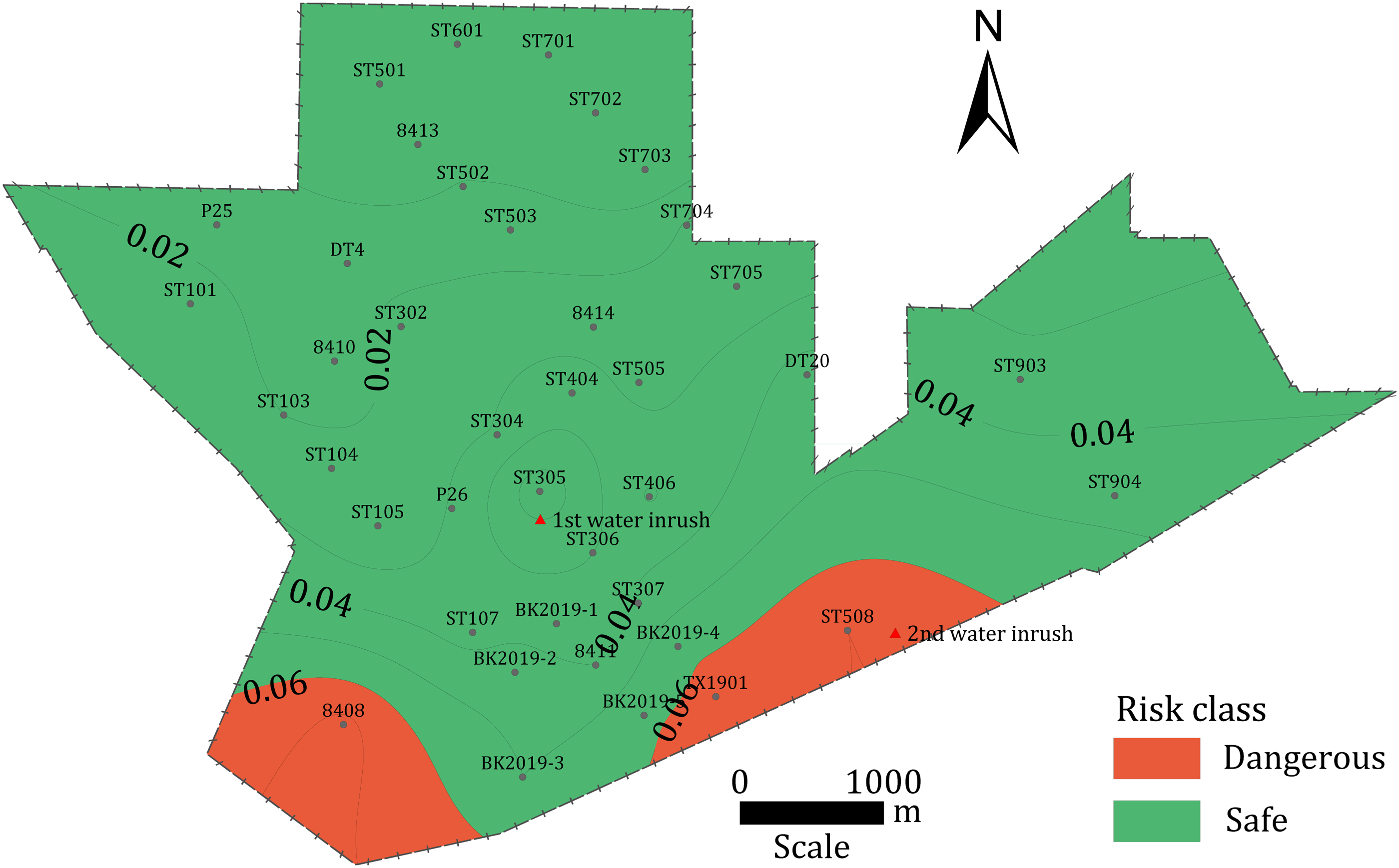

Comparison with the water inrush coefficient method

The water inrush coefficient of each borehole was calculated using Eq. (26) (Cao et al., 2022). According to the actual situation of the wellfield, the water-barrier thickness in the wellfield was <60 m. Furthermore, based on the thin plate theory and the statistical law of the number of water inrush coefficients (Li and Li, 2022), the regional risk level was divided by a critical value of 0.06 MPa/m to obtain the evaluation zoning map presented in Figure 5.

Figure 5.

Water inrush coefficient method evaluation zoning map.

T = P / M

(26)

where T is the floor water inrush coefficient (MPa/m); P is the water pressure on the water barrier (MPa); and M is the thickness of the water barrier (m).

Comparing Figures 4 and 5, the three methods had certain similarities in the trend of risk distribution. However, in the classification of risk areas, the water inrush coefficient method roughly divided the wellfield into safe and dangerous areas. This classification was simple and not comprehensive enough, which was obviously not as detailed as the WRSR and Grey-TOPSIS methods in the classification of areas. From the actual water inrush situation, a water inrush was located in a safe area divided by the water inrush coefficient method, which was less than the critical value of 0.06 MPa/m. The result was inconsistent with the actual situation. This is because the water inrush coefficient method only involves the aquifer water pressure and water-barrier thickness; it cannot recognize the water inrush risk caused by other index factors and has certain limitations. However, the WRSR method and the Grey-TOPSIS method introduced other index factors, including aquifer water pressure and water-barrier thickness, into the selection of index factors. This augmentation of information not only enhanced the analytical depth but also reduced the adverse effects associated with the absolute control of the water inrush coefficient threshold. In the case of the Sitai wellfield, the two new methods extend the applicability of the water inrush coefficient method, address the limitations of the evaluation results obtained by the water inrush coefficient method, and enhance the accuracy and rationality of the assessment outcomes.

Conclusions

To address the nonlinear complexity of factors influencing floor water inrush in coal seams, this study employed the WRSR and the Grey-TOPSIS methods, adapted from other fields, for application in deep coal extraction. Furthermore, in terms of weight assignment, the study innovatively integrated a variable weight model, which enhanced the precision of the evaluation. As a result, novel evaluation models for predicting floor water inrush based on variable weight theory were developed.

Considering the set of evaluation factors comprehensively, including aquifer performance, water barrier performance, and geological structure, six index factors, namely aquifer water pressure, aquifer water richness, water-barrier thickness, floor damage depth, brittle-plastic rock thickness ratio, and tectonic complexity, were selected to establish a system of the main control indices for evaluation.

A variable weight model centered on the idea of variable weight theory was established based on the comprehensive constant weights established by the AHP and CRITIC methods. During the evaluation process using the variable weight vector, an “incentive” and “penalty” mechanism was implemented to adjust the weights of the evaluation indicators. This approach overcame the limitations of constant weight models, which fail to capture the control effects under varying states of multiple indicators. A comparative analysis between the results of the variable weight model and the constant weight model revealed that the variable weight model provided superior weight assignment effects, aligning more closely with actual conditions.

Combining the WRSR and Grey-TOPSIS methods with the variable weight model, an evaluation model of floor water inrush risk was established, and the two mathematical models were visually represented using the evaluation zoning diagram. Combined with the water inrush coefficient method, through the comparison of the actual water inrush situation and the evaluation partition map, it was found that the two mathematical methods were more accurate, and the evaluation model results were more effective, providing valuable insights for research on risk assessment methods for floor water inrush.

Footnotes

Acknowledgements

The authors acknowledge the financial support from the National Natural Science Foundation of China (42302199), Natural Science Foundation of Hebei Province (D2020402013&D2022402040), Hunan Provincial Key Research and Development Program (2022SK2070), and Science Research Project of Hebei Education Department (CXY2023010).

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China, Natural Science Foundation of Hebei Province, Department of Science and Technology of Hunan Province, Department of Education of Hebei Province, (grant number 42302199, D2020402013, D2022402040, 2022SK2070, CXY2023010).

ORCID iD

Fuzhu Wu

References

Cao

Huang

, et al. (2022) Risk assessment of fault water inrush during deep mining. International Journal of Mining Science and Technology 32(2): 423–434.

Dong

Yin

Cheng

, et al. (2022) Study on water inrush pattern of Ordovician limestone in North China coalfield based on hydrochemical characteristics and evolution processes: A case study in Binhu and Wangchao coal mine of Shandong Province, China. Journal of Cleaner Production 380: 134954.

Dong

Yin

Cheng

, et al. (2024) Quantitative prediction model and prewarning system of water yield capacity (WYC) from coal seam roof based on deep learning and joint advanced detection. Energy 290: 130200.

Dong

Yin

Feng

, et al. (2023) A new insight of water inrush mode and coal (rock) pillars setting in near-fault mining under high confined water. Journal of Applied Geophysics 216: 105036.

Fan

Luo

Gao

, et al. (2024) Evolution law of mining-induced overburden stratum stress and fracture fields in inclined coal seam. World Journal of Engineering 21(3): 475–486.

Jia

Gong

Jin

, et al. (2021) The main progress in the 13th five−year plan and the prospect of coal geology. Coal Geology & Exploration 49(01): 32–44.

(2022) Techniques for prevention and control of Ordovician limestone water disasters based on modified water modified water inrush coefficient method. Coal Geology & Exploration 50(06): 125–131.

Zhao

(2022) Risk assessment of floor water inrush based on TOPSIS combined weighting model: A case study in a coal mine, China. Earth Science Informatics 16(1): 565–578.

Bian

Han

, et al. (2023) Study on water inrush warning information of coal seam floor fault structure. Energy Exploration & Exploitation 41(3): 973–993.

10.

Liu

, et al. (2021a) Vulnerability evaluation and application of floor water inrush in mining area with multiple coal seams and single aquifer based on variable weight. Journal of China University of Mining & Technology 50(03): 587–597.

11.

Liu

Han

Meng

, et al. (2021b) Mine water inrush risk assessment evaluation based on the GIS and combination weight-cloud model: A case study. ACS omega 6(48): 32671–32681.

12.

Bian

, et al. (2020) The mechanism of stability of fault system inducing roof water-inrush. Energy Exploration & Exploitation 38(5): 1680–1689.

13.

Pan

(1986) An inquiry of secure hydraulic head formulae of Slisalif's. Journal of Hefei University of Technology (Natural Science) 8(01): 99–103.

14.

Ren

Wang

, et al. (2022) Risk assessment of water inrush from coal seam floors based on multiple methods. Mining Safety & Environmental Protection 50(02): 89–97.

15.

Surya

Sameer

Gunjan

, et al. (2023) Evaluating approaches using the Grey-TOPSIS for sustainable supply chain collaboration under risk and uncertainty. Benchmarking: An International Journal 30(9): 3124–3149.

16.

Tian

(1991) Analysing and reanalysing-the role of RSR in comprehensive multi-indicator evaluation. Chinese Hospital Management 11(07): 16–20.

17.

Tian

(1993) Staging problems in the RSR method. Chinese Journal of Health Statistics 10(02): 26–28.

18.

Tian

(2002) The rank-sum ratio method and its applications. Journal of Chinese Physician 4(02): 115–119.

19.

Wang

Liu

Qiu

(2021) FDAHP-TOPSIS model for evaluation of the water inrush risk from coal floors. Journal of Mining and Strata Control Engineering 3(02): 104–115.

20.

Wei

Xie

, et al. (2021) The risk assessment of water bursting based on combination rule of distance function. China Mining Magazine 30(04): 162–167.

21.

Zhang

(2007a) A new practical methodology of the coal floor water bursting evaluating (part Ⅰ): The master controlling index system construction. Journal of China Coal Society 32(01): 42–47.

22.

Zhang

, et al. (2007b) A new practical methodology of the coal floor water bursting evaluating (part Ⅱ): The vulnerable index method. Journal of China Coal Society 32(11): 1121–1126.

23.

Niu

(2021) Study on optimization of permeability coefficient of structural fractal for mine water inflow. Coal Science and Technology 49(10): 228–232.

24.

Yao

, et al. (2022) Risk assessment of floor water inrush by weighted rank sum ratio based on combination weighting. Coal Geology & Exploration 50(06): 132–137.

25.

Yao

Yin

, et al. (2024) Developing of the evaluation of water inrush risk from coal seam floor. Coal Science and Technology 52(S1): 183–191.

26.

Yin

, et al. (2020) Study on risk assessment method of water inrush from thick floor aquifuge in deep mining. Coal Science and Technology 48(01): 83–89.

27.

Zhang

Zheng

Zhang

, et al. (2020a) Evaluation method of coal seam floor water inrush based on Surfer and its application. Mining Safety & Environmental Protection 47(05): 60–64.

28.

Zhang

Xue

Bai

, et al. (2021) Risk assessment of floor water inrush in coal mines based on MFIM-TOPSIS variable weight model. Journal of Central South University 28(8): 2360–2374.

29.

Zhang

Liu

, et al. (2020b) Vulnerability evaluation of water inrush in coal seam floor based on zone variable weight and AHP. Journal of Mining Science and Technology 5(02): 131–139.

30.

Zhang

Xue

Chen

, et al. (2020c) Optimization of front suspension and steering system based on grey correlation TOPSIS method. Automotive Engineering 42(08): 1082–1089+1130.

31.

Zhu

Song

(2021) Fuzzy C means clustering algorithm for incomplete data based on multiple information. Journal of Chinese Computer Systems 42(12): 2545–2552.

32.

Zuo

Chen

(2016) Anomaly detection algorithm based on improved K-means clustering. Computer Science 43(08): 258–261.
