The Utility of the Maxillary Heuwieser for Oropharyngeal Foreign Body Removal Under Nebulized Local Anesthesia: A Case Series

Introduction

Fish bones have classically been the most common foreign bodies that gets lodged in the pharynx. In recent years, the incidence of other foreign bodies in the pharynx has been rising, particularly the wire bristle. ¹ One retrospective review identified 8% of all upper aerodigestive foreign bodies involved the throat with a bedside successful removal rate of 67%. ² In cases when extraction is not possible using traditional bedside techniques, patients often require general anesthesia for operative exploration and removal. To date, there have been no reports of sinus instruments utilized for removal of throat foreign bodies.

Methods

The University of Rochester institutional review board approved this study. Retrospective review of case series involving visualized upper aerodigestive tract foreign bodies and 4 cases of foreign bodies lodged in the base of tongue were identified via flexible laryngoscopy and extracted under local anesthesia from 2016 to 2018. Success rates and complications including failure to extract or dislodgement of the foreign body were reviewed.

Results

Four adult patients were identified to have a foreign body visualized on flexible laryngoscopy. All 4 patients presented immediately to the emergency department following foreign body ingestion were not in any airway distress and underwent successful removal of the foreign body, which included 2 fishbones, a sewing pin, and a wire bristle. All patients tolerated the procedure without excessive gag reflex or complications (see Figure 1).

OPEN IN VIEWER

Figure 1.

(Left) Flexible nasendoscopy reveals wire bristle embedded in base of tongue, (right) removal under nasoendoscopy with front-to-back nonbiting giraffe.

Discussion

Historically, removal of foreign body involved utilizing a laryngeal mirror or direct laryngoscopy with patient in intubation position. In 1990s, flexible gastroscopes and nasendoscopes with working channels were described in the use of removal of foreign bodies, however the ability for the patient to tolerate these was limited due to the discomfort associated with the larger caliber endoscopes. ^3,4 The flexible nasendoscopy guided removal of fish bones was described in 1995 by Koay and Herdman, ⁵ where the eyepiece was stabilized by an assistant and the surgeon removes the visualized foreign body using Magill forceps following topical spray of anesthetic to the throat.

Several advancements in different subspecialties over past decades allow further refinement of foreign body removal. Major advances such as smartphone mounts and video towers now allow for bedside video flexible nasendoscopy routinely. The use of nebulized local anesthetic has been described in the removal of fish bones in the oropharynx and is a common technique utilized in awake fiberoptic intubation. The topical application of local anesthetic via nebulization with adequate anesthetic application to the nose is an important technique for successful transoral injection laryngoplasty. When utilized appropriately, it can minimize the patient gag reflex and allow for better tolerance of foreign body removal in difficult areas such as the oropharynx. Advances in sinus surgery in the past 2 decades have led to the development of a host of specialized tools for manipulation of tissue in difficult to reach areas such as the frontal and floor of the maxillary sinuses. These instruments are small in profile and contoured to reach beyond the base of tongue to the piriform sinuses without contact to the surfaces of the oropharynx that can elicit a gag reflex. Varied closure patterns of the graspers allow for facile removal of the foreign bodies in any orientation (Figure 2).

OPEN IN VIEWER

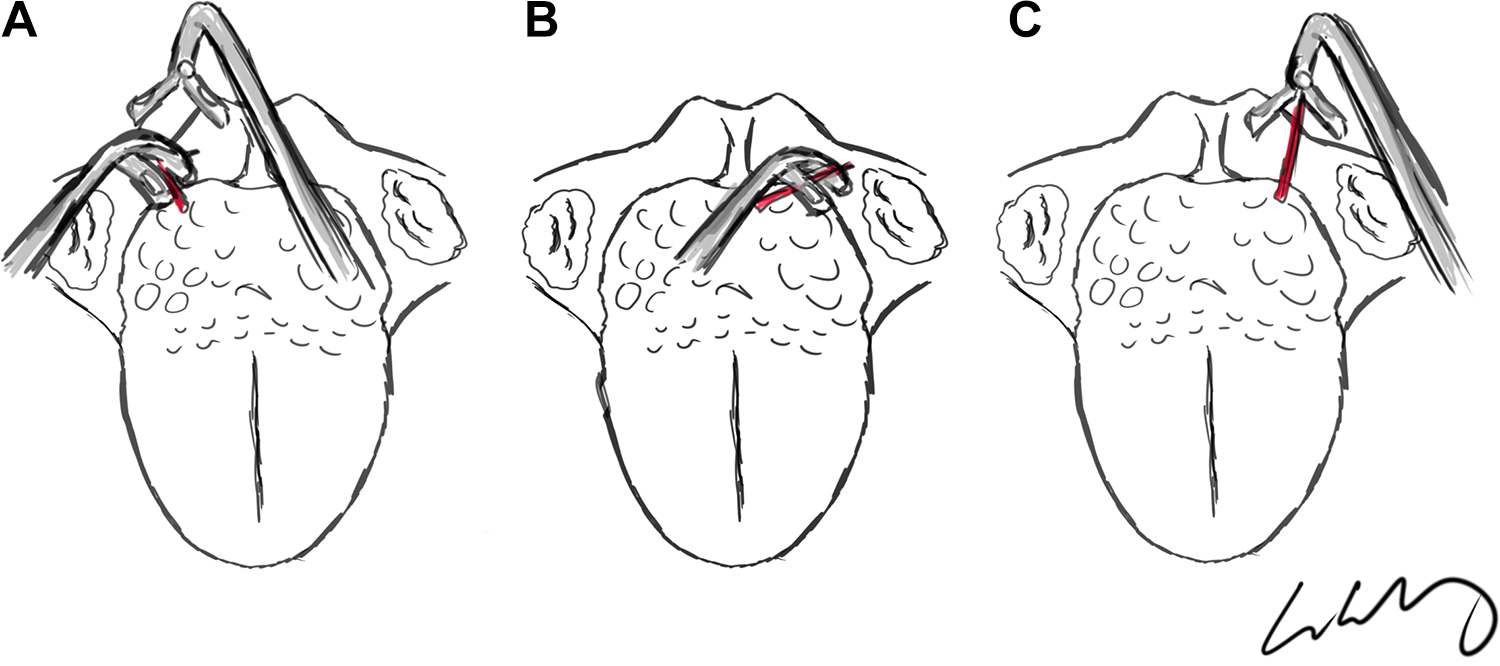

Figure 2.

A, Only tip of foreign body visible, amenable to either Heuwieser or side-to-side giraffe. B, Horizontally oriented, most accessible by Heuwieser. C, vertically oriented, most accessible by side-to-side nonbiting giraffe.

Several factors in general practice can make existing techniques difficult to implement. While flexible laryngoscopy is commonplace, channeled flexible endoscopes may not be available in some practice settings for foreign body removal. In contrast, sinus instruments are a routine part of general otolaryngology practice. There is a significant size and articulation advantage to use of sinus instruments. A comparison of the sizes of commonly used instruments including St. Clair-Thompson forceps and Magill forceps compared to sinus instruments is shown in Figure 3; the articulating joint of the mentioned forceps is at the handle and thus the shaft opens when attempting to grab foreign bodies, an issue that is not present with sinus instruments.

OPEN IN VIEWER

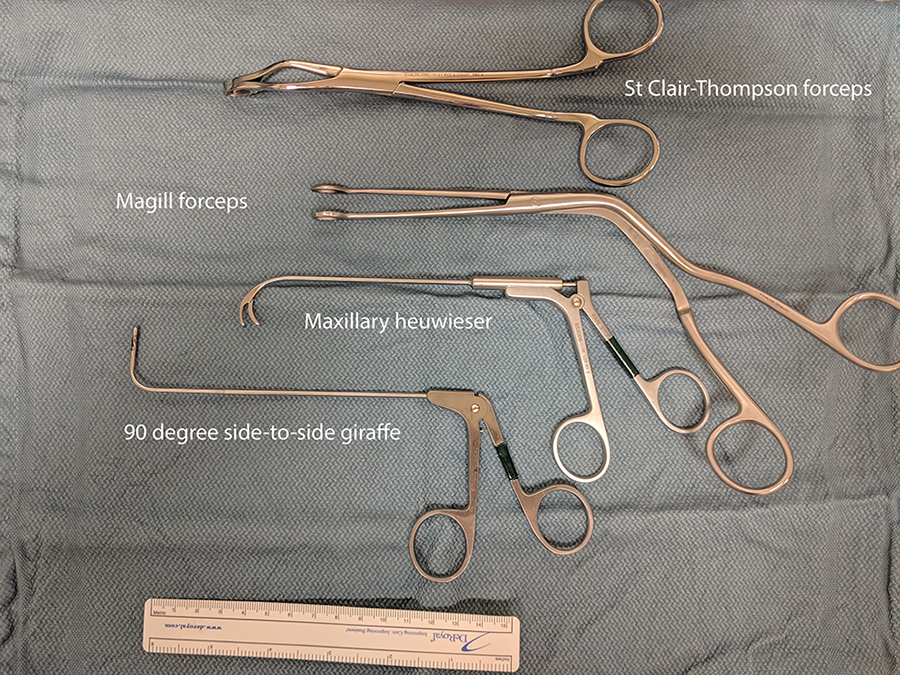

Figure 3.

Comparison of traditional forceps to maxillary Heuwieser and side-to-side giraffe. The articulation of the forceps widens the shaft of the forceps when opening as demonstrated, not seen with sinus instruments.

Our report contributes to the refinement of existing foreign body removal techniques described by Koay and Herdman by integrating the newer technologies employed in different subspecialties of rhinology and laryngology. ⁵ These can improve patient comfort during removal and may allow for removal of otherwise difficult to access foreign bodies in the oropharynx that would necessitate general anesthesia and direct laryngoscopy. Avoiding the need to go to the operating room in visualized foreign bodies has many advantages including minimizing delay in removal and potentially losing visualization of a migrating fish bone, decreasing the overall health-care cost, and eliminating exposing the patient to the risks of general anesthesia.

Conclusions

The use of sinus instruments in conjunction with flexible laryngoscopy visualization is safe, allows for removal of otherwise difficult to reach foreign bodies at the bedside. This obviates the need for general anesthesia to the patient and minimizes health-care costs.
