The Cliff and Ord Test for Spatial Correlation of the Disturbances in Unbalanced Panel Models

Abstract

In many cases, only an unbalanced panel data set with some observations missing at random is available. This note derives a Cliff and Ord test for spatially autocorrelated disturbances for such data. In a small Monte Carlo simulation exercise, the performance of the proposed test is similar to its balanced counterpart. In almost all simulation experiments, the test is properly sized. Naturally, the lower the power of the test, the higher the share of missing data.

Keywords

unbalanced panel data spatially autocorrelated disturbances Cliff and Ord test

Introduction

For unbalanced panels, diagnostic tests for spatial correlation of the idiosyncratic disturbances seem to be unavailable. The existing tests are based on balanced panels. Specifically, Baltagi, Song, and Koh (2003) derive an lagrange multiplier (LM) test under the random effects and the normality assumption, while Mutl and Pfaffermayr (2010) propose a Cliff and Ord test in the spirit of Burridge (1980) and Moran (1950) that is based on the within-transformed residuals.¹

This article follows the work of Haining, Griffith, and Bennett (1989), Martin (1984), and LeSage and Pace (2004) on spatial cross-section models with data missing at random (MAR) and derives a Cliff and Ord test for unbalanced panel data.² An important consequence of the MAR assumption is that the missing data mechanism is ignorable, so that the likelihood of the observed unbalanced panel model can then be based on the marginal distribution of the observed model (see Martin 1984; Little and Rubin 2002). The MAR assumption is plausible for possibly large cross sections of units, where the missingness of data only depends on the observed values of the outcome and the set of explanatory variables, but not on the outcome of the missing ones. A leading application is provided by LeSage and Pace, who analyze the determinants of housing prices in a cross section under the MAR assumption. In their data, only the prices of houses actually sold are observed, while a spatial relation of the disturbances is assumed among all houses.

The proposed Cliff and Ord test on spatially correlated disturbances in unbalanced panels is based on the within-transformed data and is robust to the violation of the random effects assumption. This test is easy to implement and in a small Monte Carlo simulation exercise it performs similar to its balanced counterpart in terms of size and power. In almost all simulation experiments, the test is properly sized. As one would expect, the power of the test is lower, the higher the share of missing data. However, at negative spatial correlation of the disturbances and a distance-based spatial weight matrix, the power of the test can be very low. This phenomenon is also observed in balanced panels (see e.g., Mutl and Pfaffermayr 2010), but seems to be aggravated in unbalanced ones.

The Cliff and Ord Test in an Unbalanced Panel

In the balanced but unobserved panel model, the data are assumed to be ordered first by time and then by units so that the fast index refers to units $i = 1, . . ., N$ and the slow index to time $t = 1, . . ., T$ . The balanced panel model is given by:³

y_{N} = X_{N} β + ι_{N T} α + {(I_{N T} - ρ (I_{T} \otimes W_{N}))}^{- 1} (Z_{N} μ_{N} + ν_{N}),

The $(N T \times 1)$ vector $y_{N}$ is the dependent variable, the $(N T \times K)$ matrix $X_{N}$ comprises the set of $K$ exogenous variables excluding the constant, which is denoted by α. β is the corresponding $(K \times 1)$ parameter vector. $μ_{N} = (μ_{1}, . . ., μ_{N})^{^{'}}$ is the $(N \times 1)$ vector of unit-specific effects and $ν_{N}$ denotes the vector of the i.i.d. remainder disturbances. The vector of unit-specific effects $μ_{N}$ is repeated in all time periods using the $(N T \times N)$ dummy design matrix $Z_{N} = I_{T} \otimes I_{N}$ , where $I_{T}$ is a ( $T \times 1$ ) vector of ones and $I_{N}$ and $I_{T}$ are identity matrices of dimension $N$ and $T$ , respectively. Following Kapoor, Kelejian, and Prucha (2007), the term $Z_{N} μ_{N} + v_{N}$ may be spatially correlated involving the ( $N \times N$ ) spatial weighting matrix $W_{N}$ and the spatial autocorrelation parameter ρ.⁴ Typically, the spatial weights are either based on contiguity or decline in some measure of distance between units. The assumptions stated below guarantee that ${(I_{N T} - ρ (I_{T} \otimes W_{N}))}^{- 1}$ exists.

The observed panel is unbalanced with some observations MAR. It is derived from the unobserved balanced one using the $(n \times N T)$ selector matrix $S_{N}^{O}$ , which is obtained from the $(N T \times N T)$ identity matrix by skipping all rows referring to missing values. n denotes the number of observed values, while the number of missings is denoted by m so that $n + m = N T .$ Thus, the unbalanced model uses $y_{N}^{O} = S_{N}^{O} y_{N}$ and $X_{N}^{O} = S_{N}^{O} X_{N}$ . Next, define r_N as the vector of indicator variables taking the value $1$ if unit i is observed at time t and $0$ otherwise. According to the definition of Rubin (1976) data are MAR, if missingness only depends on the observed values, but not on the missing ones. An important consequence of the MAR assumption is that the missing data mechanism is ignorable. As a consequence, the joint density $f (y_{N}^{O}, r_{N} | X_{N})$ that is obtained by integrating out $y_{N}^{M}$ is the product of $f (r_{N} | y_{N}^{O}, X_{N})$ and the marginal distribution of the observed values $y_{N}^{O}$ denoted by $f (y_{N}^{O} | X_{N})$ . Hence, one can treat r_N and, therefore, $S_{N}^{O}$ as given (see Little and Rubin 2002, 119) and base the inference on the marginal distribution $f (y_{N}^{O} | X_{N})$ .⁵ Throughout, it is assumed that the share of missing observations converges to a finite constant.

Applying the selector matrices defined yields the unbalanced panel model

y_{N}^{O} = S_{N}^{O} X_{N} β + S_{N}^{O} ι_{N T} α + S_{N}^{O} {(I_{T} \otimes A_{N})}^{- 1} (Z_{N} μ_{N} + ν_{N}),

with $A_{N} = I_{N} - ρ W_{N} .$ The projection matrix $Q_{N}^{O} = I_{n} - P_{N}^{O}$ with $P_{N}^{O} = S_{N}^{O} Z_{N} \times (Z_{N}^{^{'}} S_{N}^{O^{'}} S_{N}^{O} Z_{N})^{- 1} Z_{N}^{^{'}} S_{N}^{O^{'}}$ $? >$ removes the unit-specific effects to obtain the within-transformed observed model as

Q_{N}^{O} y_{N}^{O} = Q_{N}^{O} S_{N}^{O} X_{N} β + Q_{N}^{O} S_{N}^{O} {(I_{T} \otimes A_{N})}^{- 1} ν_{N} .

This uses $Q_{N}^{O} S_{N}^{O} {(I_{T} \otimes A_{N})}^{- 1} Z_{N} μ_{N} = 0$ as shown in the Appendix. The transformed model would also result from Anselin’s (1988) specification, where only the remainder disturbances are spatially correlated or the more general model considered in Baltagi and Liu (2012) and Lee and Yu (2010b). The variance–covariance matrix of the within-transformed disturbances of the observed unbalanced model follows immediately from equation (3) as

{\tilde{Σ}}_{N, O O} = Q_{N}^{O} S_{N}^{O} Σ_{N} S_{N}^{O^{'}} Q_{N}^{O} = σ_{ν}^{2} [Q_{N}^{O} S_{N}^{O} (I_{T} \otimes {(A_{N}^{^{'}} A_{N})}^{- 1}) S_{N}^{O^{'}} Q_{N}^{O}] .

Throughout it is assumed that the following assumptions hold:

Assumption 1: The real-valued random variables of the array $\{ν_{i t, N} : 1 \leq i \leq N, 1 \leq t \leq T, N \geq 1\}$ satisfy $E (ν_{i t, N}) = 0$ . For each $N \geq 1$ , the random variables $ν_{11, N}, ν_{21, N}, . . ., ν_{N 1, N}, . . ., ν_{1 T, N}, . . ., ν_{N T, N}$ are totally independent and identically distributed. Furthermore, ${s u p}_{1 \leq i \leq N, 1 \leq t \leq T, N \geq 1}$ $E {|ν_{i t, N}|}^{4 + δ_{ν}} < \infty$ for some $δ_{ν} > 0$ , and $E (ν_{i t, N}^{2}) = σ_{ν}^{2} > 0$ .

Assumption 2: The spatial weights collected in W_N are nonstochastic and

$w_{i i, N} = 0$ ,

$(I_{N} - ρ W_{N})$ is nonsingular, the absolute row and column sums of the matrices W_N and ${(I_{N} - ρ W_{N})}^{- 1}$ are uniformly bounded,

$0 < k_{1} \leq n^{- 1} t r (Q_{N}^{O} S_{N}^{O} (W_{N}^{^{'}} + W_{N}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} W_{N} S_{N}^{O^{'}})$ , where k ₁ is a positive constant that does not depend on N and $W_{N} = (I_{T} \otimes W_{N})$ .

Assumption 3: Data are MAR and at fixed $T {l i m}_{N \to \infty} \frac{n}{N T} = k_{2}$ , where k ₂ is a positive constant that does not depend on N.

Assumption 4: The elements of X_N are nonstochastic and are uniformly bounded in absolute value.

These assumptions closely follow those made in the literature (see e.g., Lee and Yu 2010a; Kapoor, Kelejian, and Prucha 2007; Mutl and Pfaffermayr 2010 for a discussion). Assumption 3 is based on the literature on missing data and guarantees that the selection mechanism is ignorable, so that the estimation can be based on the marginal distribution of the observed values. In addition, this assumption maintains that the share of missing values does not vanish as N gets large. Rather, the “missing” portion of the sample is allowed to increase at the same rate as the observed portion.

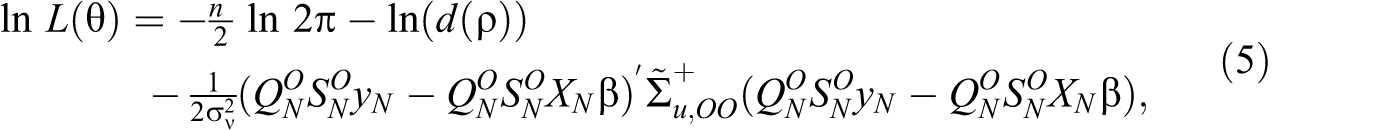

Following Cornwell and Schmidt (1992), Khatri (1968) and, specifically, Rao (1973, 527), the log likelihood for the within-transformed observed model is based on the singular multivariate normal distribution, since ${\tilde{Σ}}_{N, O O}$ defined above does not have full rank:⁶

\begin{aligned} l n L (θ) = - \frac{n}{2} l n 2 π - l n (d (ρ)) \\ - \frac{1}{2 σ_{ν}^{2}} (Q_{N}^{O} S_{N}^{O} y_{N} - Q_{N}^{O} S_{N}^{O} X_{N} β)^{^{'}} {\tilde{Σ}}_{u, O O}^{+} (Q_{N}^{O} S_{N}^{O} y_{N} - Q_{N}^{O} S_{N}^{O} X_{N} β), \end{aligned}

where we define $θ = (β^{^{'}}, σ_{ν}, ρ)^{^{'}} .$ d(ρ) is the product of the positive Eigenvalues of ${\tilde{Σ}}_{u, O O} .$ In the Appendix, the Cliff and Ord test for unbalanced panels is derived as the square root of an LM test for ρ = 0 and the corresponding test statistic is given by

{\hat{I}}_{N} = \frac{{\hat{\tilde{u}}}_{N}^{O'} S_{N}^{O} W_{N} S_{N}^{O'} {\hat{\tilde{u}}}_{N}^{O}}{{\hat{σ}}_{ν}^{2} \sqrt{t r (Q_{N}^{O} S_{N}^{O} (W_{N}^{'} + W_{N}) S_{N}^{O'} Q_{N}^{O} S_{N}^{O} W_{N} S_{N}^{O'})}},

where ${\hat{\tilde{u}}}_{N}^{O} = Q_{N}^{O} y_{N}^{O} - Q_{N}^{O} X_{N}^{O} \hat{β}$ and $\hat{β} = {(X_{N}^{O^{'}} Q_{N}^{O} X_{N}^{O})}^{- 1} X_{N}^{O^{'}} Q_{N}^{O} y_{N}^{O}$ is a consistent estimator of β. Under H ₀ with ρ = 0, ${\hat{σ}}_{ν}^{2}$ is consistently estimated by $({\hat{\tilde{u}}}_{N}^{O'} {\hat{\tilde{u}}}_{N}^{O}) / (n - N)$ (see Baltagi 2008; Lee and Yu 2010a). This test is easy to implement. One only needs the estimated residuals of the within-transformed unbalanced model and a spatial weighting matrix where all rows and columns are skipped that refer to missing data. In a balanced panel, $S_{N}^{O}$ is the identity matrix and the test statistic reverts to that considered by Mutl and Pfaffermayr (2010).⁷ The following asymptotic normality result for this test statistic under H ₀ can be established.

Theorem 1: Let Assumptions 1 to 4 hold and let ${\hat{\tilde{u}}}_{N}$ be based on a $\sqrt{n} -$ consistent estimator of β. Then

(i) $I_{N} = \frac{r_{N}}{σ_{r_{N}}} \overset{d}{\to} N (0, 1),$

where

r_{N} = \frac{1}{2} ν_{N}^{^{'}} S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} ν_{N}

and

σ_{r_{N}}^{2} = σ_{ν}^{4} t r (Q_{N}^{O} S_{N}^{O} (W_{N}^{^{'}} + W_{N}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} W_{N} S_{N}^{O^{'}}) .

(ii) ${\hat{I}}_{N} - I_{N} = o_{p} (1)$ , where ${\hat{I}}_{N}$ is given in equation (6)

Proof: See the Appendix.

Monte Carlo Simulations

The Monte Carlo simulations are based on the following model:

y_{i t} = α + β x_{i t} + u_{i t}, u_{i t} = ρ \sum_{j = 1}^{N} w_{i j} u_{j t} + μ_{i} + ν_{i t},

setting α = 1 and β = 0.5. The explanatory variable is generated as $x_{i t} = ζ_{i} + z_{i t}$ with $ζ_{i} ~ i . i . d .$ $U [- 2.5, 2.5]$ and $z_{i t} ~ i . i . d .$ $U [- 5, 5]$ where $U [a, b]$ denotes the uniform distribution on the interval $[a, b]$ . X_it is kept fixed in repeated samples. The remainder disturbances are generated as independent draws from $v_{i t} : N (0, 10) .$ The unit effects μ _i are left unspecified since they drop out when applying the within transformation.

The spatial weighting matrix is based on a regular lattice with 144 and 289 cells, respectively, containing one observation each. The first weighting scheme is a rook design, where every unit is surrounded by four neighbors. Alternatively, the distance between any two neighboring cells in the north–south and east–west direction is set to 1, and the spatial weighting scheme is based on the Euclidean distance d_ij . The spatial weight is then defined as $w_{i j} = \frac{1 / d_{i j}}{{m a x}_{i} \sum_{j = 1}^{N} 1 / d_{i j}},$ with $d_{i i} = 0$ . There is a cutoff with $w_{i j} = 0$ if the Euclidian distance is larger than $10$ . Both spatial weighting matrices are maximum-row normalized, following Kelejian and Prucha (2010b).⁸

For each simulation experiment, Table 1 exhibits the size of the test calculated as the share of rejections at ρ = 0. The power of the test is given by the share of rejections under the alternative $ρ \neq 0$ . Experiments 1 to 6 in Table 1 refer to the rook design with 10 percent, 30 percent, and 50 percent, respectively, missing observations in waves t > 2. Note waves 1 and 2 are assumed to be fully observed and the pattern of missings is kept fixed in repeated samples. At T = 5 this translates into an overall share of missing observations of 6 percent, 18 percent, and 30 percent, respectively.

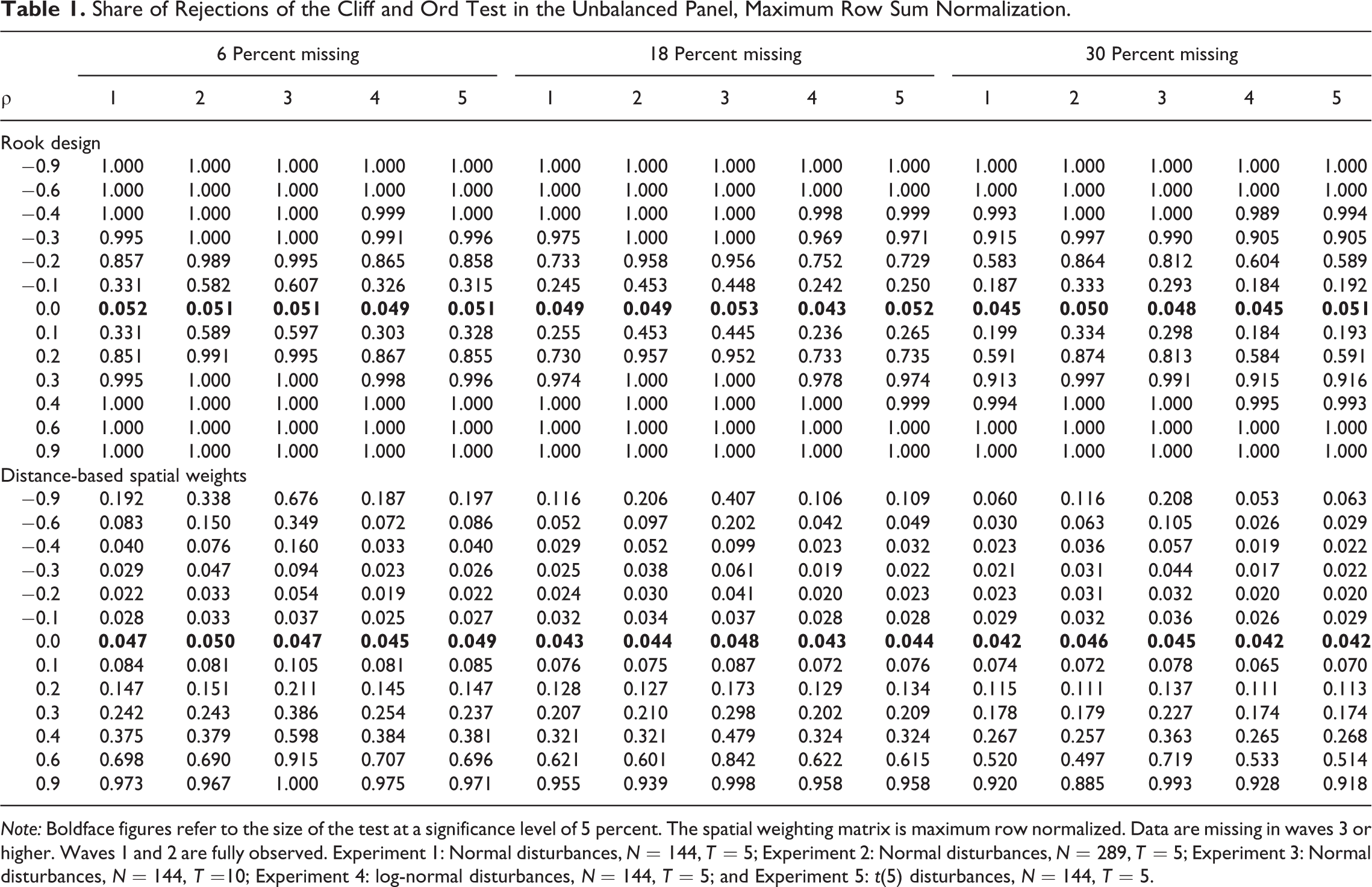

Table 1.

Share of Rejections of the Cliff and Ord Test in the Unbalanced Panel, Maximum Row Sum Normalization.

	6 Percent missing					18 Percent missing					30 Percent missing
ρ	1	2	3	4	5	1	2	3	4	5	1	2	3	4	5
Rook design
−0.9	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000
−0.6	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000
−0.4	1.000	1.000	1.000	0.999	1.000	1.000	1.000	1.000	0.998	0.999	0.993	1.000	1.000	0.989	0.994
−0.3	0.995	1.000	1.000	0.991	0.996	0.975	1.000	1.000	0.969	0.971	0.915	0.997	0.990	0.905	0.905
−0.2	0.857	0.989	0.995	0.865	0.858	0.733	0.958	0.956	0.752	0.729	0.583	0.864	0.812	0.604	0.589
−0.1	0.331	0.582	0.607	0.326	0.315	0.245	0.453	0.448	0.242	0.250	0.187	0.333	0.293	0.184	0.192
0.0	0.052	0.051	0.051	0.049	0.051	0.049	0.049	0.053	0.043	0.052	0.045	0.050	0.048	0.045	0.051
0.1	0.331	0.589	0.597	0.303	0.328	0.255	0.453	0.445	0.236	0.265	0.199	0.334	0.298	0.184	0.193
0.2	0.851	0.991	0.995	0.867	0.855	0.730	0.957	0.952	0.733	0.735	0.591	0.874	0.813	0.584	0.591
0.3	0.995	1.000	1.000	0.998	0.996	0.974	1.000	1.000	0.978	0.974	0.913	0.997	0.991	0.915	0.916
0.4	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	0.999	0.994	1.000	1.000	0.995	0.993
0.6	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000
0.9	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000	1.000
Distance-based spatial weights
−0.9	0.192	0.338	0.676	0.187	0.197	0.116	0.206	0.407	0.106	0.109	0.060	0.116	0.208	0.053	0.063
−0.6	0.083	0.150	0.349	0.072	0.086	0.052	0.097	0.202	0.042	0.049	0.030	0.063	0.105	0.026	0.029
−0.4	0.040	0.076	0.160	0.033	0.040	0.029	0.052	0.099	0.023	0.032	0.023	0.036	0.057	0.019	0.022
−0.3	0.029	0.047	0.094	0.023	0.026	0.025	0.038	0.061	0.019	0.022	0.021	0.031	0.044	0.017	0.022
−0.2	0.022	0.033	0.054	0.019	0.022	0.024	0.030	0.041	0.020	0.023	0.023	0.031	0.032	0.020	0.020
−0.1	0.028	0.033	0.037	0.025	0.027	0.032	0.034	0.037	0.028	0.028	0.029	0.032	0.036	0.026	0.029
0.0	0.047	0.050	0.047	0.045	0.049	0.043	0.044	0.048	0.043	0.044	0.042	0.046	0.045	0.042	0.042
0.1	0.084	0.081	0.105	0.081	0.085	0.076	0.075	0.087	0.072	0.076	0.074	0.072	0.078	0.065	0.070
0.2	0.147	0.151	0.211	0.145	0.147	0.128	0.127	0.173	0.129	0.134	0.115	0.111	0.137	0.111	0.113
0.3	0.242	0.243	0.386	0.254	0.237	0.207	0.210	0.298	0.202	0.209	0.178	0.179	0.227	0.174	0.174
0.4	0.375	0.379	0.598	0.384	0.381	0.321	0.321	0.479	0.324	0.324	0.267	0.257	0.363	0.265	0.268
0.6	0.698	0.690	0.915	0.707	0.696	0.621	0.601	0.842	0.622	0.615	0.520	0.497	0.719	0.533	0.514
0.9	0.973	0.967	1.000	0.975	0.971	0.955	0.939	0.998	0.958	0.958	0.920	0.885	0.993	0.928	0.918

Note: Boldface figures refer to the size of the test at a significance level of $5$ percent. The spatial weighting matrix is maximum row normalized. Data are missing in waves 3 or higher. Waves 1 and 2 are fully observed. Experiment 1: Normal disturbances, $N = 144$ , $T = 5$ ; Experiment 2: Normal disturbances, $N = 289$ , $T = 5$ ; Experiment 3: Normal disturbances, $N = 144$ , $T =$ 10; Experiment 4: log-normal disturbances, $N = 144$ , $T = 5$ ; and Experiment 5: t(5) disturbances, $N = 144$ , $T = 5$ .

Each experiment is repeated 10,000 times so that at nominal size of $0.05$ a 95 percent confidence interval of the calculated size is given by $[0.0456, 0.0544] .$ In almost all experiments, the simulated size of Cliff and Ord test is contained in this 95 percent confidence interval, and the test possesses power against the alternative. Doubling the number of observations either in the cross-section dimension or in the time dimension (experiments 2 and 3) improves the power as expected. Also, the power tends to be smaller the higher the share of missings as one would expect.⁹

Experiments 4 and 5 consider nonnormal disturbances, namely log-normal disturbances $ν_{i t} = \frac{e^{ξ_{i t}} - e^{0.5}}{\sqrt{e^{2} - e^{1}}},$ where $ξ_{i t} ~ i . i . d .$ N(0, 1) (Experiment 4) or alternatively, $ν_{i t} ~ i . i . d$ $t (5)$ (Experiment 5). In both cases, the size of the Cliff and Ord test is nearly correct. In Experiment 4, the test seems somewhat undersized and its size falls outside the 95 percent confidence interval when 18 percent and 30 percent of the observations are missing. In addition, the power of the test tends to be smaller as compared to the case of normally distributed disturbances.

Finally, all experiments are repeated for the distance-based spatial weights (Experiments 6–10). This weighting scheme implies a much higher spatial correlation of the disturbances. Again, the size of the Cliff and Ord test is nearly correct in experiments 1 to 3, but we now observe a slightly lower than nominal size in both experiments 4 and 5. Due to the higher spatial correlation of the disturbances, the power of the test is lower than under the rook design. Specifically, the power turns out very small if ρ is negative but large in absolute value (see Mutl and Pfaffermayr 2010, for similar results in case of a balanced panel). A higher share of missing data reinforces this phenomenon. The reason seems to be that under a negative ρ positive and negative contributions to the mean of the test statistic tend to cancel out. The comparison of experiments 2 and 3 shows that the power increases much faster with T than with N. The reason is that the idiosyncratic disturbances are assumed to be uncorrelated over time, so that increasing T does not affect the spatial correlation of units, while increasing N means adding highly spatially correlated units.

Conclusion

This article derives a Cliff and Ord test for spatial correlation of the idiosyncratic disturbances for unbalanced panel data models where some observations are MAR. Under this assumption, missing data can be ignored and inference can be based on the marginal distribution of the observed values. The proposed test is easy to implement, as it only needs consistently estimated residuals of the within-transformed unbalanced panel model and a spatial weighting matrix where all rows and columns are skipped that refer to missing data.

A small Monte Carlo simulation exercise demonstrates that this test performs well in finite samples in terms of size and power under a rook design. With distance-based spatial weights, the power of the test is comparable only in case of positive spatial correlation of the disturbances. Similar to the case of the balanced panel, the power can be very low under negative spatial correlation of the disturbances. A high share of missing values seems to aggravate this phenomenon.

Appendix

Consider the observed within-transformed model

Q_{N}^{O} y_{N}^{O} = Q_{N}^{O} X_{N}^{O} β + Q_{N}^{O} S_{N}^{O} (I_{T} \otimes A_{N}^{- 1}) (Z_{N} μ_{N} + ν_{N}),

and observe that

\begin{aligned} Q_{N}^{O} S_{N}^{O} {(I_{T} \otimes A_{N})}^{- 1} Z_{N} μ_{N} & = Q_{N}^{O} S_{N}^{O} (I_{T} \otimes A_{N}^{- 1}) (I_{T} \otimes I_{N}) μ_{N} \\ = Q_{N}^{O} S_{N}^{O} Z_{N} {\tilde{μ}}_{N} = 0, \end{aligned}

where we define ${\tilde{μ}}_{N} = A_{N}^{- 1} μ_{N}$ and use $Q_{N}^{O} S_{N}^{O} Z_{N} = 0 .$ Therefore, we have

Q_{N}^{O} y_{N}^{O} = Q_{N}^{O} X_{N}^{O} β + Q_{N}^{O} S_{N}^{O} (I_{T} \otimes A_{N}^{- 1}) ν_{N},

and

{\tilde{Σ}}_{N, O O} = σ_{ν}^{2} [Q_{N}^{O} S_{N}^{O} (I_{T} \otimes {(A_{N}^{^{'}} A_{N})}^{- 1}) S_{N}^{O^{'}} Q_{N}^{O}] .

Following Kiefer (1980) and Rao (1973), the product of nonzero Eigenvalues d can be calculated by skipping one observation per unit (e.g., the last one). Specifically, define the ( $(n - N) \times n$ ) selector matrix D_N that is obtained from I_n by skipping all rows referring to the last observation of a unit in the panel. Then, it follows that $σ_{ν}^{2} D_{N} Q_{N}^{O} S_{N}^{O} (I_{T} \otimes {(A_{N}^{^{'}} A_{N})}^{- 1}) S_{N}^{O^{'}} Q_{N}^{O} D_{N}^{^{'}}$ has rank n − N and its determinant, which is equal to d(ρ), is nonzero. The partial derivative of the log likelihood w.r.t. ρ is then given by

\begin{aligned} \frac{\partial l n L (θ)}{\partial ρ} & = - \frac{\partial l n d (ρ)}{\partial ρ} \\ - \frac{1}{2} (Q_{N}^{O} y_{N}^{O} - Q_{N}^{O} X_{N}^{O} β)^{^{'}} \frac{d}{d ρ} {\tilde{Σ}}_{N, O O}^{+} (Q_{N}^{O} y_{N}^{O} - Q_{N}^{O} X_{N}^{O} β) . \end{aligned}

Under $H_{0} : ρ = 0$ , we have

\begin{array}{l} \frac{\partial l n d (ρ)}{\partial ρ} = t r {((D_{N} Q_{N}^{O} S_{N}^{O} (I_{T} \otimes {(A_{N}^{'} A_{N})}^{- 1}) S_{N}^{O'} Q_{N}^{O} D_{N}^{'})}^{- 1} \times \\ D_{N} Q_{N}^{O} S_{N}^{O} (I_{T} \otimes {(A_{N}^{'} A_{N})}^{- 1} (- W_{N} - W_{N}' + 2 ρ W_{N}^{'} W_{N}) {(A_{N}^{'} A_{N})}^{- 1}) \times \\ S_{N}^{O'} Q_{N}^{O} D_{N}^{'}) \\ {\frac{\partial l n d (ρ)}{\partial ρ} |}_{ρ = 0} = t r ({(D_{N} Q_{N}^{O} D_{N}^{'})}^{- 1} D_{N} Q_{N}^{O} S_{N}^{O} (I_{T} \otimes (- W_{N} - W_{N}^{'})) S_{N}^{O'} Q_{N}^{O} D_{N}^{'}), \end{array}

using $S_{N}^{O} S_{N}^{O^{'}} = I_{n} .$ Collecting terms yields

\begin{aligned} t r (Q_{N}^{O} D_{N}^{^{'}} {(D_{N} Q_{N}^{O} D_{N}^{^{'}})}^{- 1} D_{N} Q_{N}^{O} S_{N}^{O} (I_{T} \otimes (- W_{N} - W_{N}^{^{'}})) S_{N}^{O^{'}}) \\ = t r (Q_{N}^{O} S_{N}^{O} (I_{T} \otimes (- W_{N} - W_{N}^{^{'}})) S_{N}^{O^{'}}) \\ = \sum_{t = 1}^{T} t r (- W_{N, t} - W_{N, t}^{^{'}}) (I_{N_{t}} - P_{N, t t}^{O}) = 0, \end{aligned}

using $Q_{N}^{O} D_{N}^{^{'}} {(D_{N} Q_{N}^{O} D_{N}^{^{'}})}^{- 1} D_{N} Q_{N}^{O} = Q_{N}^{O}$ (see Abadir and Magnus 2005, 231f). $S_{N, t}^{O}$ refers to the $(N_{t} \times N)$ matrix selector of wave t. Then, one can define $W_{N, t} = S_{N, t}^{O} W_{N} S_{N, t}^{O^{'}}$ . $P_{N, t t}^{O} = S_{N, t}^{O} {(\sum_{τ = 1}^{T} S_{N, τ}^{O^{'}} S_{N, τ}^{O})}^{- 1} S_{N, t}^{O^{'}}$ is a $(N_{t} \times N_{t})$ diagonal matrix with zeros in the main diagonal if the corresponding observation is missing and with 1/T_i if it is nonmissing. Multiplying W_N,t from the right by $P_{N, t τ}^{O}$ changes the columns of missing observations to zero and the others to $w_{i j} / T_{i} .$ Therefore, the typical diagonal element of $W_{N, t} P_{N, t t}^{O}$ is zero, since $w_{i i} = 0$ .

Furthermore, observe that

\begin{aligned} {{\tilde{Σ}}_{N, O O}|}_{ρ = 0} = σ_{ν}^{2} [Q_{N}^{O} S_{N}^{O} S_{N}^{O^{'}} Q_{N}^{O}] = σ_{ν}^{2} Q_{N}^{O}, s i n c e S_{N}^{O} S_{N}^{O^{'}} = I_{n} \\ {{\tilde{Σ}}_{N, O O}^{+}|}_{ρ = 0} = \frac{1}{σ_{ν}^{2}} Q_{N}^{O} \\ {\frac{d}{d ρ} {\tilde{Σ}}_{N, O O}|}_{ρ = 0} = σ_{ν}^{2} Q_{N}^{O} S_{N}^{O} (- W_{N} - W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} . \end{aligned}

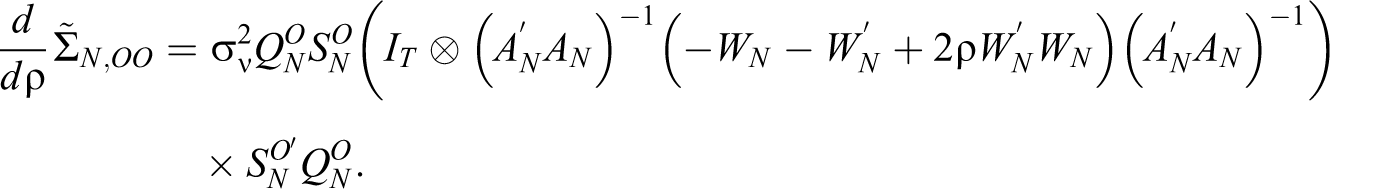

The last result uses

\begin{aligned} \frac{d}{d ρ} {\tilde{Σ}}_{N, O O} & = σ_{ν}^{2} Q_{N}^{O} S_{N}^{O} (I_{T} \otimes {(A_{N}^{^{'}} A_{N})}^{- 1} (- W_{N} - W_{N}^{^{'}} + 2 ρ W_{N}^{^{'}} W_{N}) {(A_{N}^{^{'}} A_{N})}^{- 1}) \\ \times S_{N}^{O^{'}} Q_{N}^{O} . \end{aligned}

Hence, one obtains¹⁰

\begin{aligned} {\frac{d}{d ρ} {\tilde{Σ}}_{N, O O}^{+}|}_{ρ = 0} & = - (\frac{1}{σ_{ν}^{2}} Q_{N}^{O}) (σ_{ν}^{2} Q_{N}^{O} S_{N}^{O} (- W_{N} - W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O}) (\frac{1}{σ_{ν}^{2}} Q_{N}^{O}) \\ + (\frac{1}{σ_{ν}^{4}} Q_{N}^{O}) (σ_{ν}^{2} Q_{N}^{O} S_{N}^{O} (- W_{N} - W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O}) (I_{n} - Q_{N}^{O}) \\ + (I_{n} - Q_{N}^{O}) (σ_{ν}^{2} Q_{N}^{O} S_{N}^{O} (- W_{N} - W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O}) (\frac{1}{σ_{ν}^{4}} Q_{N}^{O}) \\ = \frac{1}{σ_{ν}^{2}} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} \end{aligned}

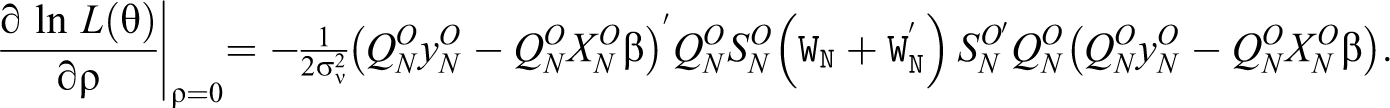

and the score under ρ = 0 is given by

{\frac{\partial l n L (θ)}{\partial ρ}|}_{ρ = 0} = - \frac{1}{2 σ_{ν}^{2}} {(Q_{N}^{O} y_{N}^{O} - Q_{N}^{O} X_{N}^{O} β)}^{^{'}} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} (Q_{N}^{O} y_{N}^{O} - Q_{N}^{O} X_{N}^{O} β) .

At true β and under ρ = 0 the score is, therefore, given by the quadratic form

r_{N} = \frac{1}{2} v_{N}^{^{'}} S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} ν_{N} .

Lemma 2: Let Assumptions 1 to 3 hold. Consider the sequence of quadratic forms $r_{N} = ν_{N}^{^{'}} C_{N} ν_{N}$ , where $C_{N} = \frac{1}{2} S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O}$ is a symmetric nonsingular nonstochastic n × n matrix. Then, $E [r_{N}] = 0$ and $V a r [r_{N}]$ is given by

σ_{r_{N}}^{2} = σ_{ν}^{4} t r (Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} W_{N} S_{N}^{O^{'}}) .

Furthermore,

\frac{r_{N}}{σ_{r_{N}}} \overset{d}{\to} N (0, 1) .

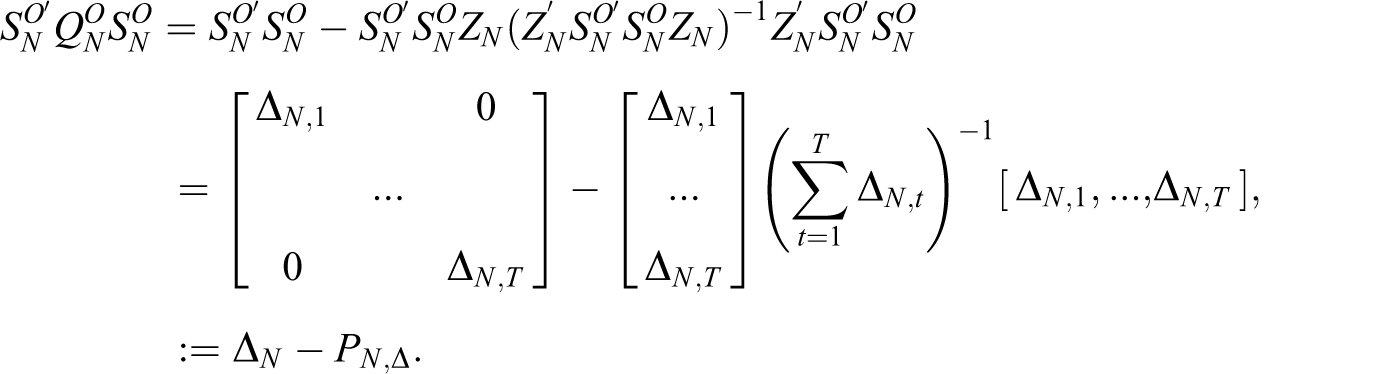

Proof: In order to derive the expectation and variance of r_N , it is first demonstrated that C_N has zero diagonal elements. Define $S_{N}^{O} = d i a g (S_{N, 1}^{O}, . . ., S_{N, T}^{O})$ where $S_{N, t}^{O}, t = 1, . . ., T$ refers to the $n_{t} \times N$ selector matrix of wave t with $\sum_{t = 1}^{T} n_{t} = n$ and observe that the N × N matrix $Δ_{N, t} = S_{N, t}^{O^{'}} S_{N, t}^{O}$ has ones in the main diagonal and zero off-diagonal elements. In addition, all elements of main diagonal are zero that refers to missing values. Multiplying a conformable matrix by $Δ_{N, t}$ from the left changes the rows corresponding to missing values to zeros, multiplying from the right replaces the rows referring to missing values by zeros. Now

\begin{aligned} S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} = S_{N}^{O^{'}} S_{N}^{O} - S_{N}^{O^{'}} S_{N}^{O} Z_{N} (Z_{N}^{^{'}} S_{N}^{O^{'}} S_{N}^{O} Z_{N})^{- 1} Z_{N}^{^{'}} S_{N}^{O^{'}} S_{N}^{O} \\ = [\begin{matrix} Δ_{N, 1} & 0 \\ . . . \\ 0 & Δ_{N, T} \end{matrix}] - [\begin{matrix} Δ_{N, 1} \\ . . . \\ Δ_{N, T} \end{matrix}] {(\sum_{t = 1}^{T} Δ_{N, t})}^{- 1} [\begin{matrix} Δ_{N, 1}, . . ., Δ_{N, T} \end{matrix}], \\ := Δ_{N} - P_{N, Δ} . \end{aligned}

Defining the N × N matrix $Λ_{N} = \sum_{t = 1}^{T} Δ_{N, 1} = d i a g (1 / T_{1}, . . ., 1 / T_{N})$ , it can easily be verified that $Δ_{N, t} Λ_{N}^{- 1} Δ_{N, t} = Δ_{N, t} Λ_{N}^{- 1}$ and that $\sum_{t = 1}^{T} Δ_{N, t} (W_{N} + W_{N}^{^{'}}) Δ_{N, t} Λ_{N}^{- 1} = (W_{N} + W_{N}^{^{'}})$ .

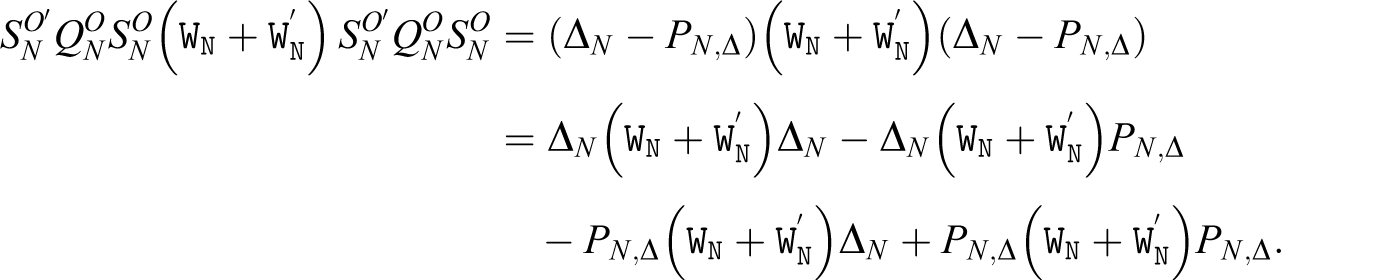

1 m m \begin{aligned} S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} & = (Δ_{N} - P_{N, Δ}) (W_{N} + W_{N}^{^{'}}) (Δ_{N} - P_{N, Δ}) \\ = Δ_{N} (W_{N} + W_{N}^{^{'}}) Δ_{N} - Δ_{N} (W_{N} + W_{N}^{^{'}}) P_{N, Δ} \\ - P_{N, Δ} (W_{N} + W_{N}^{^{'}}) Δ_{N} + P_{N, Δ} (W_{N} + W_{N}^{^{'}}) P_{N, Δ} . \end{aligned}

Some tedious calculations yield

\begin{aligned} P_{N, Δ} (W_{N} + W_{N}^{^{'}}) Δ_{N} = Δ_{N} (W_{N} + W_{N}^{^{'}}) P_{N, Δ} \\ = [\begin{matrix} Λ_{N}^{- 1} Δ_{N, 1} (W_{N} + W_{N}^{^{'}}) Δ_{N, 1} & . . . & Λ_{N}^{- 1} Δ_{N, 1} (W_{N} + W_{N}^{^{'}}) Δ_{N, T} \\ . . . \\ Λ_{N}^{- 1} Δ_{N, T} (W_{N} + W_{N}^{^{'}}) Δ_{N, 1} & Λ_{N}^{- 1} Δ_{N, T} (W_{N} + W_{N}^{^{'}}) Δ_{N, T} \end{matrix}] . \end{aligned}

and

\begin{aligned} P_{N, Δ} (W_{N} + W_{N}^{^{'}}) Δ_{N} = Δ_{N} (W_{N} + W_{N}^{^{'}}) P_{N, Δ} \\ = [\begin{matrix} Λ_{N}^{- 1} Δ_{N, 1} (W_{N} + W_{N}^{^{'}}) Δ_{N, 1} & . . . & Λ_{N}^{- 1} Δ_{N, 1} (W_{N} + W_{N}^{^{'}}) Δ_{N, T} \\ . . . \\ Λ_{N}^{- 1} Δ_{N, T} (W_{N} + W_{N}^{^{'}}) Δ_{N, 1} & Λ_{N}^{- 1} Δ_{N, T} (W_{N} + W_{N}^{^{'}}) Δ_{N, T} \end{matrix}] . \end{aligned}

Finally, the matrix $P_{N, Δ} (W_{N} + W_{N}^{^{'}}) P_{N, Δ}$ has typical blocks of elements $Δ_{N, l} Λ_{N}^{- 1}$ × $(\sum_{τ = 1}^{T} Δ_{N, τ} (W_{N} + W_{N}^{^{'}}) Δ_{N, τ} Λ_{N}^{- 1}) Δ_{N, k} = Λ_{N}^{- 1} Δ_{N, l} (W_{N} + W_{N}^{^{'}}) Δ_{N, k}$ , $l, k = 1, . ., T$ . Therefore, $S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{^{'}}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O}$ has zero diagonal elements, since the typical diagonal block $Λ_{N}^{- 1} Δ_{N, t} (W_{N} + W_{N}^{^{'}}) Δ_{N, t}$ possesses zero diagonal elements if W_N does. As a result, one obtains

\begin{aligned} E [r_{N}] & = \frac{σ_{ν}^{2}}{2} t r (S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{}) S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O}) \\ = σ_{ν}^{2} t r (S_{N}^{O} (W_{N} + W_{N}^{}) S_{N}^{O^{'}} Q_{N}^{O}) = 0, \end{aligned}

as shown above. Next consider $V a r [r_{N}]$ , which is given by

\begin{array}{l} 2 {(\frac{1}{2})}^{2} σ_{ν}^{4} t r ({(S_{N}^{O'} Q_{N}^{O} S_{N}^{O} (W_{N} + W_{N}^{'}) S_{N}^{O'} Q_{N}^{O} S_{N}^{O})}^{2}) \\ = σ_{ν}^{4} t r ({(S_{N}^{O'} Q_{N}^{O} S_{N}^{O} W_{N} S_{N}^{O'} Q_{N}^{O} S_{N}^{O})}^{2}) \\ + σ_{ν}^{4} t r (S_{N}^{O'} Q_{N}^{O} S_{N}^{O} W_{N}^{'} S_{N}^{O'} Q_{N}^{O} S_{N}^{O} S_{N}^{O'} Q_{N}^{O} S_{N}^{O} W_{N} S_{N}^{O'} Q_{N}^{O} S_{N}^{O}) \\ = σ_{ν}^{4} t r (Q_{N}^{O} S_{N}^{O} (W_{N}^{'} + W_{N}) S_{N}^{O'} Q_{N}^{O} S_{N}^{O} W_{N} S_{N}^{O'}), \end{array}

since ${(S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} W_{N}^{^{'}} S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O})}^{^{'}} = S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O} W_{N}^{} S_{N}^{O^{'}} Q_{N}^{O} S_{N}^{O}$ and $S_{N}^{O} S_{N}^{O^{'}} = I_{n} .$ The assumptions maintained in the Lemma guarantee that those made in Theorem 1 in Kelejian and Prucha (2001, 227) hold. Specifically, Assumption 2 implies that $n^{- 1} σ_{r_{N}}^{2} \geq k > 0$ for some positive constant k. The claim of Lemma then follows from Theorem 1 of Kelejian and Prucha (2001, 227).

Proof of Theorem 1: Part (i) follows from Lemma 2. The proof of part (ii) is similar to that of Theorem 1 in Mutl and Pfaffermayr (2010) and thus omitted.
