Abstract
This research delves into the need to use granular analyses at the neighborhood level to study the preexisting conditions of vulnerability that best explain the waves of COVID-19 incidence and mortality. It seems most appropriate to use the comprehensive approach of the sustainable development with variables that analyze the economic, social, environmental, and governance dimensions, given the extensive literature that identifies each as a determining factor for the impact of disease. The work utilizes a composite vulnerability index that allows the city of Malaga to be divided into 434 census sections; waves of incidence and mortality for each section are constructed for the period of March 2020 to March 2021. Cluster analysis reveals that there are five different cluster incidence patterns, whereas the lethality waves are found to behave as a hot-spot phenomenon. The results reveal that neighborhoods that are the most vulnerable in terms of their demographic conditions (large proportion over 65 years of age and dependent) and socioeconomic conditions (severe material deprivation), have been the most affected by COVID-19 infection and mortality.
Introduction
The rapid expansion of the COVID-19 pandemic in cities has ratified the importance of cities in the context of present and future world development. As stated by UN-Habitat in its report on the response of cities to COVID (UN-Habitat 2020), more than 1430 cities in 210 countries have been affected by the pandemic and well above 95% of total cases have been located in urban areas.
The UN 2030 Agenda (2015) and the subsequent version developed by the Habitat Agency (New Urban Agenda, 2016) insisted that we need to build more inclusive, safe, resilient, and sustainable communities with the aim that we will “leave no one behind”. The localization of sustainable development goals in cities requires that neighborhood-level data be collected on the poverty and vulnerability conditions of its population, with a holistic vision of sustainability (UN System Staff College 2017). Here, we examine the importance of analyzing COVID-19 in light of the spatial inequalities in cities at the highest possible level of spatial and temporal data disaggregation (Mishra, Gayen, and Haque 2020).
Historically, the poorest populations are those that have been the most highly impacted by diseases and crises, exhibiting a higher prevalence of chronic diseases and high rates of morbidity and mortality (Stiglitz 2020; Wade 2020). Locating these people and groups in the urban fabric and understanding their living conditions will improve our understanding of the behavior of the SARS-CoV2 virus and the policies and measures needed to improve the resilience of these neighborhoods and populations (Matthew and McDonald 2006; Viezzer and Biondi 2021).
The differences between countries and regions in the evolution of COVID-19 have been studied by numerous disciplines, including regional science, and multiple articles have been written on its varied impacts (Karaye and Horney 2020; Macharia et al. 2020; Miramontes et al. 2021; Rodríguez-Pose and Burlina 2021; Shams, Haleem, and Javaid 2020). The example, Shams, Haleem and Javaid (2020) studied the 18 countries most highly affected by COVID-19. The disease has not spread homogeneously across or within countries, especially where the health system is decentralized. Some articles quantified the unevenness in the distribution of epidemiological variables across the regions, or within the provinces in the case of Spain, as Gutierrez, Inguanzo, and Orbe (2021) studied. Other authors found that countries with significant percentages of the older population have been vulnerable to a high number of deaths due to COVID-19 and proposed to provide specialized support for the self-isolation of people aged 75 and above.
The factors that have been identified as causes or vectors of the waves of contagion and lethality are multiple and, in some cases, even contradictory (air and water pollution, temperature, population mobility, lack of green spaces, previous morbidity and pathologies, ethnic characteristics, poverty and marginality, aging, etc.) (Auler et al. 2020; Bashir et al. 2020; Kodera, Rashed and Hirata 2020; Li et al. 2021; Liang et al. 2020; Prata, Rodrigues and Bermejo 2020).
Sharifi and Khavarian-Garmsir (2020) analyzed the literature published in scientific journals during the first 8 months after the contagion was first recognized in Wuhan, in reference to the causes and effects of COVID-19 on an urban scale. The authors found four main themes of research focus: environmental quality, socioeconomic impacts, management and governance, and transportation and urban design. In their conclusions, they emphasized the relative lack of research using an integrated approach in which the four dimensions of sustainable development (economic, social, environmental, and governance) were considered jointly in the analysis. This reflection encouraged us to examine the spatial and temporal disaggregation of COVID in cities from a comprehensive perspective such as the sustainable development.
As an example, we took the city of Malaga (570,000 inhabitants), which is located in southern Spain and is the capital of the widely populated Costa del Sol (1.5 million inhabitants). Recent studies have highlighted the clear spatial segregation of the neighborhoods of Malaga. For example, Bárcena-Martín et al. (2021) created a global vulnerability index and four sub-indices (socioeconomic, environmental, demographic, and assistance dimensions), and used them to establish a classification for the 434 census sections of the city. Based on individualized data provided by the Junta de Andalucía on the cases of infections and deaths during the first year of the pandemic, we visualized the waves of COVID-19 incidence and lethality for each census section. We then used the clustering method to identify five incidence patterns that are directly related to the previously classified vulnerability of the affected areas. In contrast, lethality did not exhibit a normal distribution; rather, this parameter was distributed as atypical cases or very small foci (hot spots). Analyzing the previous vulnerability conditions of the hot spots in comparison with the sections enabled us to determine that the neighborhoods with the highest mortality rates had a specific combination of demographic, socioeconomic, and healthcare factors.
The cluster analysis has been used by other authors to consider the incidence and lethality of COVID, as Bilal et al. (2021). They studied confirmed cases and mortality in New York, Philadelphia, and Chicago during the first 6 months of the pandemic and they found spatial clusters of high and low positivity, confirmed cases, and mortality co-located with clusters of low and high social vulnerability in the three cities.
Our research confirms that the preexisting conditions of vulnerability and poverty in neighborhoods have conditioned the results of the contagious in the city (Ahmed et al. 2020; Martins-Filho et al. 2020) but shows that COVID-19 lethality has not followed the same pattern. As a consequence, the resilience of neighborhoods in pandemic scenarios will not only imply betting on sanitary or preventive health measures, but also addressing measures to fight against inequality and spatial vulnerability in all its dimensions (Qian and Fan 2020; Jon 2020).
Theoretical Framework
Since the bibliographic review carried out by Sharifi and Khavarian-Garmsir (2020) on the impact of COVID in cities, accumulating studies have indicated that analyses should involve the granular disaggregation of data to the neighborhood level (Fu and Zhai 2021; Kayanan, Moore-Cherry, and Clavin 2021; Krellenberg and Koch 2021; Liu et al. 2021; Viezzer and Biondi 2021). Interesting analyses have looked at cities from both developed and developing countries, especially large metropolises such as New York, Chicago, Ontario, London, Rio de Janeiro, Barcelona, Madrid, etc. (Baldasano 2020; Credit 2020; Harris 2020). Although environmental and health dimensions have consistently prevailed in these analyses, newer studies have linked the social and economic vulnerability of neighborhoods with the evolution of COVID-19 contagion and lethality (Bambra et al. 2020; Patel et al. 2020; Qian and Fan 2020; Viezzer and Biondi 2021). Some authors examined the role of place-based versus diffusion factors in the geographic incidence of COVID-19, such as Florida and Mellander (2022) in the counties and neighborhood in Sweden. They concluded that in countries without lockdown policies the cases and lethality of the COVID- 19 is more related with diffusion factors, such as the location of nursing homes or the behavior of people.
Viezzer and Biondi (2021) looked at several Brazilian cities in the Atlantic Forest and confirmed the influence of urban, socioeconomic, and eco-environmental aspects on the lethality of COVID. Huang et al. (2021) studied cities in South Carolina and confirmed that preexisting conditions of social vulnerability, resilience, and urban or rural geography have influenced the spread of the pandemic and the severity of mortality rates. Credit (2020) focused on the neighborhoods of Chicago and New York and concluded that hospitalizations and deaths from COVID-19 at the individual case level was—to that point—strongly associated with minority groups and those with underlying conditions. The author’s findings suggested that higher socioeconomic status and the provision of a healthy and active built environment showed a significant negative association with COVID-19 infection rates, while several aspects of social vulnerability were significant positive predictors of COVID-19 infection rates. Although the impacts were context-specific, some social groups were found to be disproportionately affected, as previously suggested by Qian and Fan (2020) in China. The latter authors concluded that factors such as education, family income, Communist Party membership, and state-sector employment were important factors in determining people’s vulnerability to COVID-related financial troubles.
In an analysis of demographic and geographic factors in 182 countries, Nguimkeu and Tadadjeu (2021) found that the population density, urbanization rate, and proportion of people aged 65 and over were decisive factors that could explain why the number of COVID-19 cases differed across countries. Similarly, Khavarian-Garmsir, Sharifi and Moradpour (2021) found in Tehran that the mortality rate was higher in districts with a greater proportion of older people.
The results obtained from recent neighborhood-level studies have affirmed that this approach will be useful for performing space-time-based investigations and delineating vulnerable areas for COVID-19. For example, Rahman et al. (2021) proposed that a neighborhood-level focus could facilitate the formulation of effective management action plans to reduce and control the disease propagation and impacts of COVID-19.
Whitehead et al. (2020) recognized that there were clear differences between population groups due to preexisting vulnerability conditions, leading to the idea that we are not “all together” in this boat. The problems of marginality and vulnerability underlie some of the behavior exhibited by the virus, and only the organized efforts of society can help prevent marginalized and vulnerable groups from once again being disproportionately affected in the short and medium terms.
In Spain, Amate-Fortes and Guarnido-Rueda (2022) conducted a study in 819 Spanish municipalities with a linear cross-sectional model that allowed to conclude that a higher level of income inequality generates a higher rate of infections but not deaths, highlighting the importance of the Spanish National Health Service. Also, Aguilar- Palacio (2021) confirmed the effect of socioeconomic inequalities on the probability of COVID-19 infection, and its variations across the three pandemic waves in Aragon (a Spanish region) in individual and area levels. They insisted in the necessity to develop individual and area coordinated measures in the control, diagnosis and treatment of the epidemic to avoid an increase in the existing inequalities.
The present study applies an integrated approach that takes advantage of the battery of indicators and indices available for the spatial vulnerability conditions of the neighborhoods in the city of Malaga, Spain.
The existing studies on COVID-19 have varied widely in their statistical approach and analytic methods across authors and territorial spaces. In general, parametric measures have been used for regions with relatively reliable and continuous information sources, whereas non-parametric measures have been used in regions with lower-quality information (Nguimkeu and Tadadjeu 2021; Sannigrahi et al. 2020; Wu et al. 2020). However, efforts to study the spatial incidence of COVID-19 have required the use of non-parametric statistics, as this has enabled researchers to generate more robust and explanatory results without losing basic information (Khavarian-Garmsir, Sharifi and Moradpour 2021; Rahman et al. 2021).
Here, composite indices and the cluster technique were chosen to guarantee the robustness of the analysis while separately considering incidence and lethality and maintaining spatial vulnerability as a reference variable to explain the evolution of the other variables.
The Case of Malaga
This work studied the city of Malaga in light of its 434 census sections. Malaga is located on the shores of the Mediterranean; over its more than 3000 years of history, different cultures have succeeded one another, although the model of a compact and complex city has generally been maintained. This city is an enclave of high-quality natural wealth located between the sea and the Montes de Malaga Natural Park. The city economic is based on cultural tourism and the construction sector, although technological and logistical services are becoming increasingly important. The metropolitan environment of Malaga is marked by the tourist attraction of the Costa del Sol and the agricultural and gastronomic offerings of the provincial interior.
The city grew on the banks of the Guadalhorce River and later moved to the banks of the Guadalmedina River, both of which are located within the current urban area. Over the years, the city has advanced in different directions, generating a unique sociodemography that is linked to the characteristics of the territory. The historic center underwent a process of abandonment from the end of the 19th century to the middle of the 20th century, as industry and foreign trade moved from these areas to the outskirts. The valley of the Guadalhorce River to the northwest, which has more extreme temperatures and greater rural links, became the home of technology (Andalusia Technological Park) and knowledge (Campus of the University of Malaga). Along the eastern coastline, the original beachfront fishing neighborhoods were displaced by bourgeois houses and upper-middle class neighborhoods with sea views and a lower urban density. Along the western coastline, the remains of the 19th century industrial center gave way to middle and lower-middle working-class neighborhoods that were highly populated and relatively lacking in services.
During the second half of the 20th century, the degradation of the central areas was redirected, and a strategic urban revitalization movement transformed the configuration of the neighborhoods closest to the core of the city Centre. International tourism generated speculative pressures in many parts of the city and once again displaced vulnerable populations. However, one can still see the social, economic, environmental, and urban differences that have been consolidated in recent centuries.
Together, these waves of evolution have generated spatial and social segregation wherein some individuals and families live in areas with high standards of living but a large majority lives in neighborhoods with different types of inequalities and deficiencies. The arrival of the pandemic saw five-fold increases in the proportion families served by municipal social services and the investments necessary to prevent the marginalization of many others, providing further evidence that living conditions affect the resilience of individuals and neighborhoods against COVID-19.
Materials and Methods
During 2021, the CIEDES Foundation collaborated with the Malaga City Council and the University of Malaga to conduct an investigation examining the vulnerability of the different neighborhoods of Malaga in multiple dimensions (Bárcena-Martín et al. 2021). This study generated a global vulnerability index that consisted of four sub-indices: demographic, socioeconomic, social care, and territorial (spatial) vulnerability. This index allowed to examine the 362 neighborhoods and the 434 census sections (CSs) of Malaga using an in-house designed algorithm that grouped together the different spatial units. Analysis of more than 200 variables from official sources led to the selection of 19 variables from official sources and a short-term survey on living conditions, mostly coincides with those used by other studies and authors for vulnerability analysis in other cities in Spain (Ayuntamiento de Madrid 2018; Egea Jiménez and Soledad Suescún 2008). A normalization process was applied to these variables so all of them were ranged in [0, 1], being in all the cases 0 the best situation and 1 the worst. The variables were normalized and, despite being a maximizing or minimizing one, a higher value means a worse situation in that characteristic. Finally, the normalized variables were grouped in the previously mentioned four categories (demographic, socioeconomic, social care, and territorial) and a linear weighted aggregation was conducted to obtain a final vulnerability index. The authors chose to give the same weight to the dimensions and distribute the weights proportionally within each dimension. Note that this dimension’s aggregation method allows compensation between them. Therefore, authors assumed that, for example, a low score in the level of income can be compensated (according to the assigned weights) by an increase in the level of education and this compensation is constant.
This general vulnerability index was applied in another study analyzing the impact of the COVID pandemic in Malaga (paper under evaluation), wherein geostatistical analysis was used to delve as deeply as possible into the micro-scale of disease incidence and its correlation with vulnerability. The study found that the most vulnerable neighborhoods were the most highly affected by the COVID-19 pandemic.
We conducted a clustering analysis using the K-means, where we chose the number of clusters using the Elbow Method (that aims to minimize the within-cluster sum of squared errors-WSS) and trying to avoid having too small clusters. Using this approach, we selected five clusters (k = 5) as the best option when considering both the reduction of the WSS value and avoiding too small clusters. This methodological approach allowed us to obtain general patterns and to infer enough general conclusions, as well as analyzing the dissimilarities among clusters.

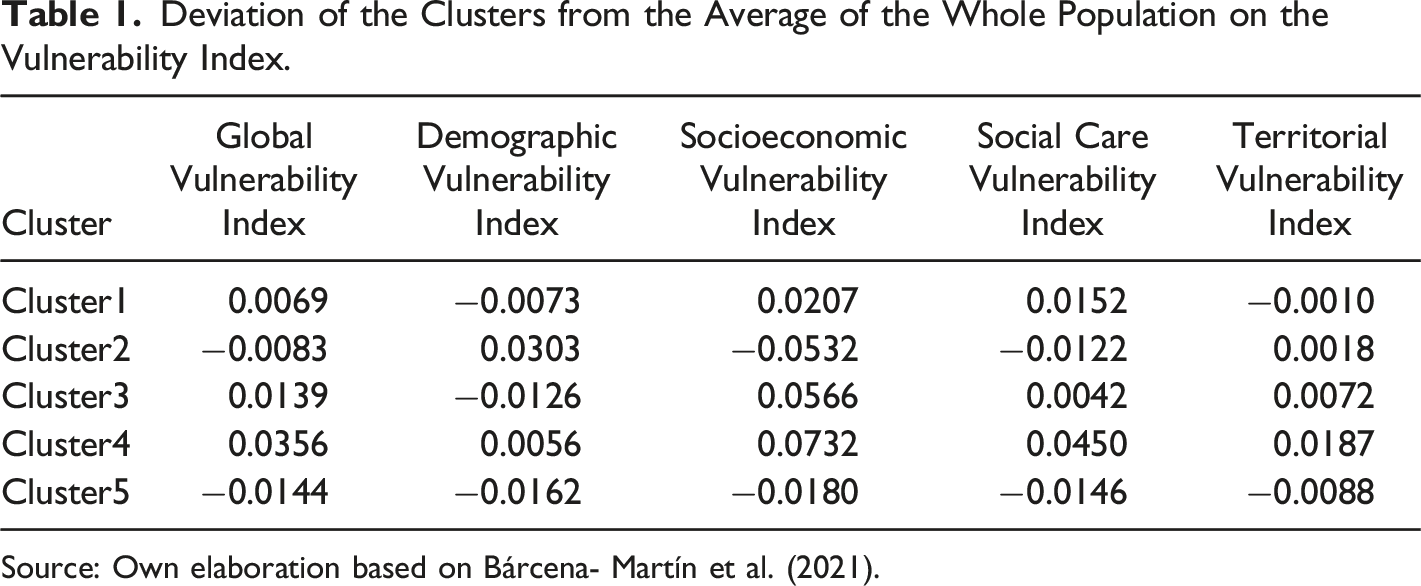

Deviation of the Clusters from the Average of the Whole Population on the Vulnerability Index.
Source: Own elaboration based on Bárcena- Martín et al. (2021).
Cluster 1 (lower-middle class) included CSs with moderate socioeconomic status, welfare vulnerability, and low-income levels and work intensity. The incidence of COVID-19 was very high in cluster 1 CSs during the fourth wave, and the incidence showed a moderate rate of change on either side of the peak.
Cluster 2 (elderly and upper class) included CSs with the best socioeconomic conditions and quality of care (high income, high work intensity, advanced education, and little need for social interventions or material goods). These areas showed a low incidence of COVID-19 with relatively low numbers of cases during almost all waves.
Cluster 3 (young lower-middle class) included CSs with greater socioeconomic vulnerability than cluster 1, including low income, very low labor intensity, and a high poverty index. The pandemic manifested slowly in the CSs of this cluster, but there was a much greater increase in incidence during the fourth wave compared to those seen in clusters 1, 2, and 5.
Cluster 4 (elderly lower class) included a relatively small number of CSs, but these CSs were highly vulnerable. The neighborhoods in cluster 4 experienced the largest peaks during all four waves.
Cluster 5 (young upper-middle class) had positive conditions on all of the vulnerability sub-indices and almost all of the studied variables. The incidence of COVID-19 in CSs of cluster 5 increased during each of the waves, showing considerable intensity and slow recovery after the wave passed.
As this clustering analysis showed that COVID incidence was related to the vulnerability parameters of different areas, we next examined whether COVID-19 lethality was also related to vulnerability. To answer this question, we implemented the above-described methodology for lethality, and compared the results with those obtained for incidence.
The Andalusian Health Service provided daily data on the number of COVID-19 infections in Malaga by CS, and for each of these cases reported if the infected patient survived or not. The obtained information spanned from 5 March 2020 to 31 March 2021 for each CS, and thus covered the first four waves of the pandemic. This information was used for statistical, graphical, and cartographic analyses. The unit of spatial reference was the CS, which is smaller than the municipality and has easily identifiable limits, including natural terrain features, permanent buildings, and roads. Each CS had a population of about 1000–2500.
End Dates of Each Wave.
Source: Own elaboration based on data from Junta de Andalucía.
For each CS (CSi) on each day of a wave (dayj), the number of deaths per cases during the prior 14 days (C14dij) was calculated as the number of patients who finally died (maybe weeks later) among the total number of infections in the 14 days prior to dayj in the CSi, where i ranged from 1 to 434 and j ranged from 64 to 455. In other words, we have a record for each patient who got the COVID in a given date, and we know if that patient finally died, sometime in the future, due to COVID. So, for each CS, the number of diseases among the infected during the previous 14 days was obtained for each day from 5 March 2020 (day 64) to 31 March 2021 (day 455), as a measure of lethality on those 14 days. Each CS therefore had its own unique lethality profile, as indicated by the four representative CSs in Figure 1. Examples of lethality curves for four representative CSs. Source: Own elaboration based on data from Junta de Andalucía.
A K-means method-based clustering algorithm was applied to analyze the 434 curves with the Python package Kmeans. The K-means method (Hartigan and Wong, 1979) is one of the most widely used clustering methods (Chen et al. 2020). It aims to partition a set of n observations into k groups, in which each observation belongs to the group whose mean value is the closest to the observation. This method has been used in diverse fields, as market segmentation (Lichtenstein, Burton, and Netemeyer 1997), computer vision (Frigui and Krishnapuram 1999), geostatistics (Fouedjio 2016), and astronomy (Jang and Hendry 2007), and in many problems related to data mining (Berkhin 2006).

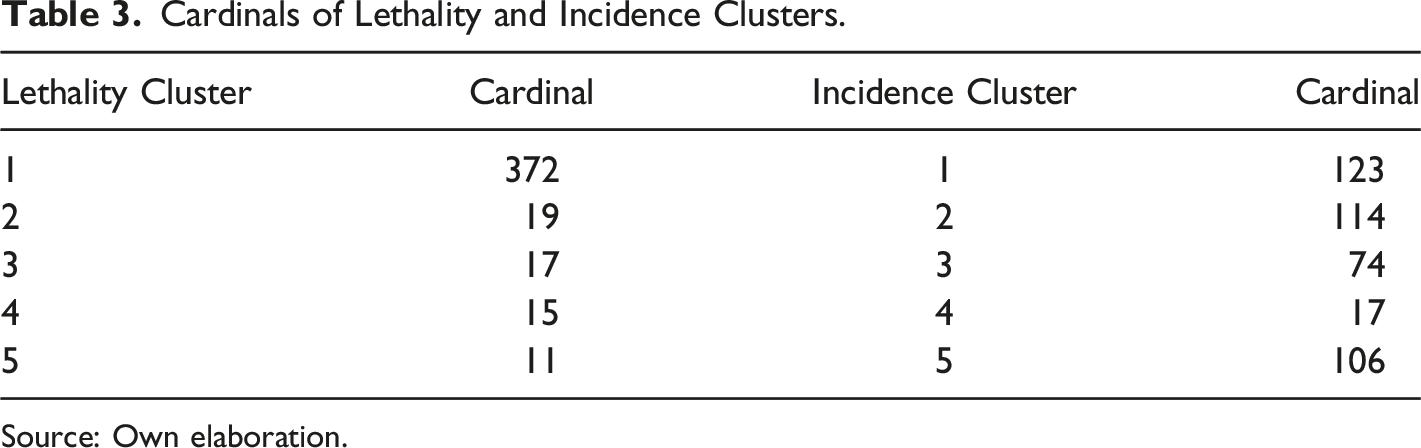

Cardinals of Lethality and Incidence Clusters.
Source: Own elaboration.

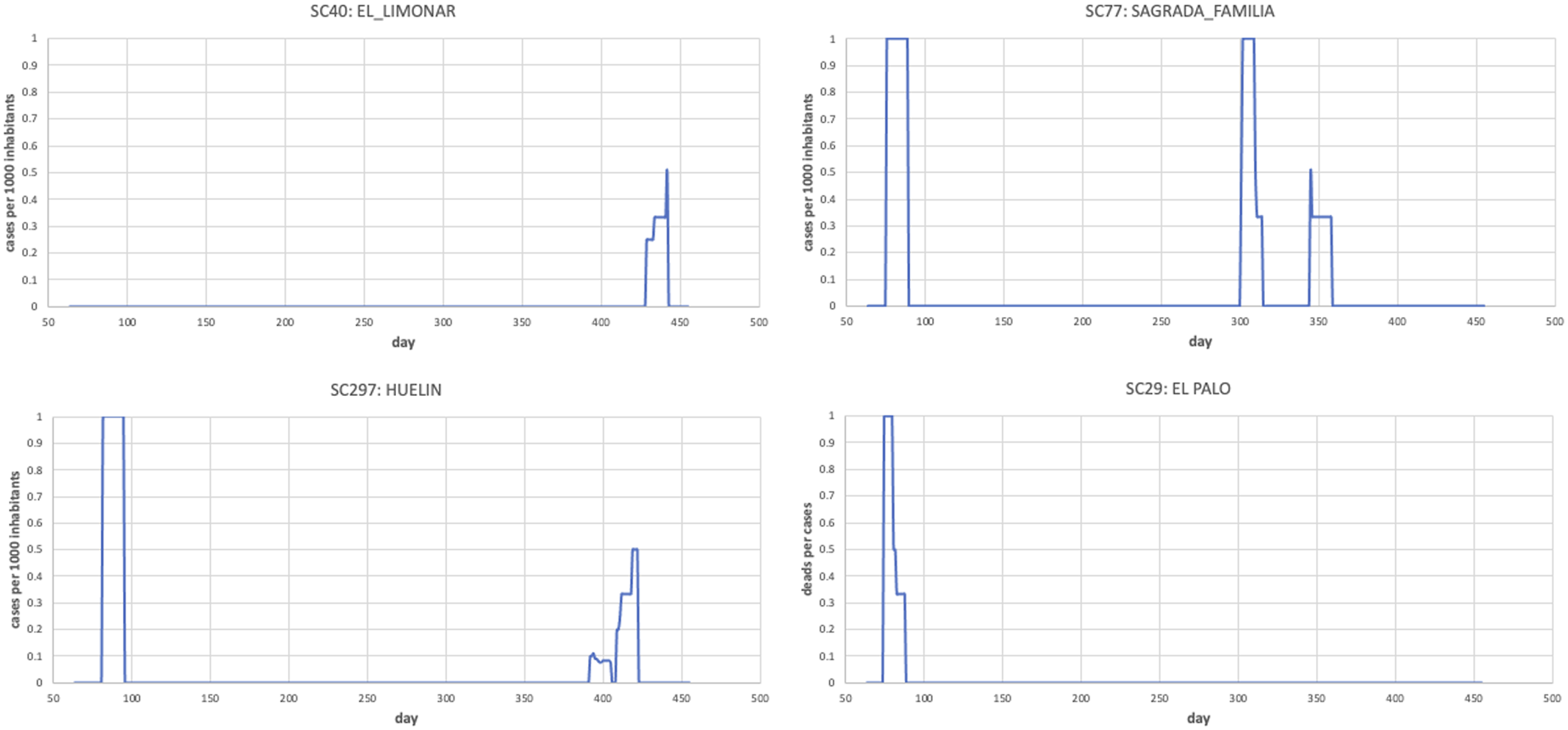

If we look at the average curves of each cluster (Figure 2), the reason for the latter pattern becomes evident. Average curves of the lethality clusters. Source: Own elaboration based on data from Junta de Andalucía.
Note that there is one cluster of 372 CSs having quite low lethality throughout the study period, and four minor clusters including CSs that exhibited anomalously high lethality’s hot spots at certain time points (see below Figure 3). In this map, Cluster one (grayed) represents the low lethality normal areas, and the rest, clusters 2 to 5, represents the anomalously high lethality’s hot spots. Lethality hot-spots. Source: Own elaboration based on data from Málaga Municipality (OMAU) and CIEDES Foundation.

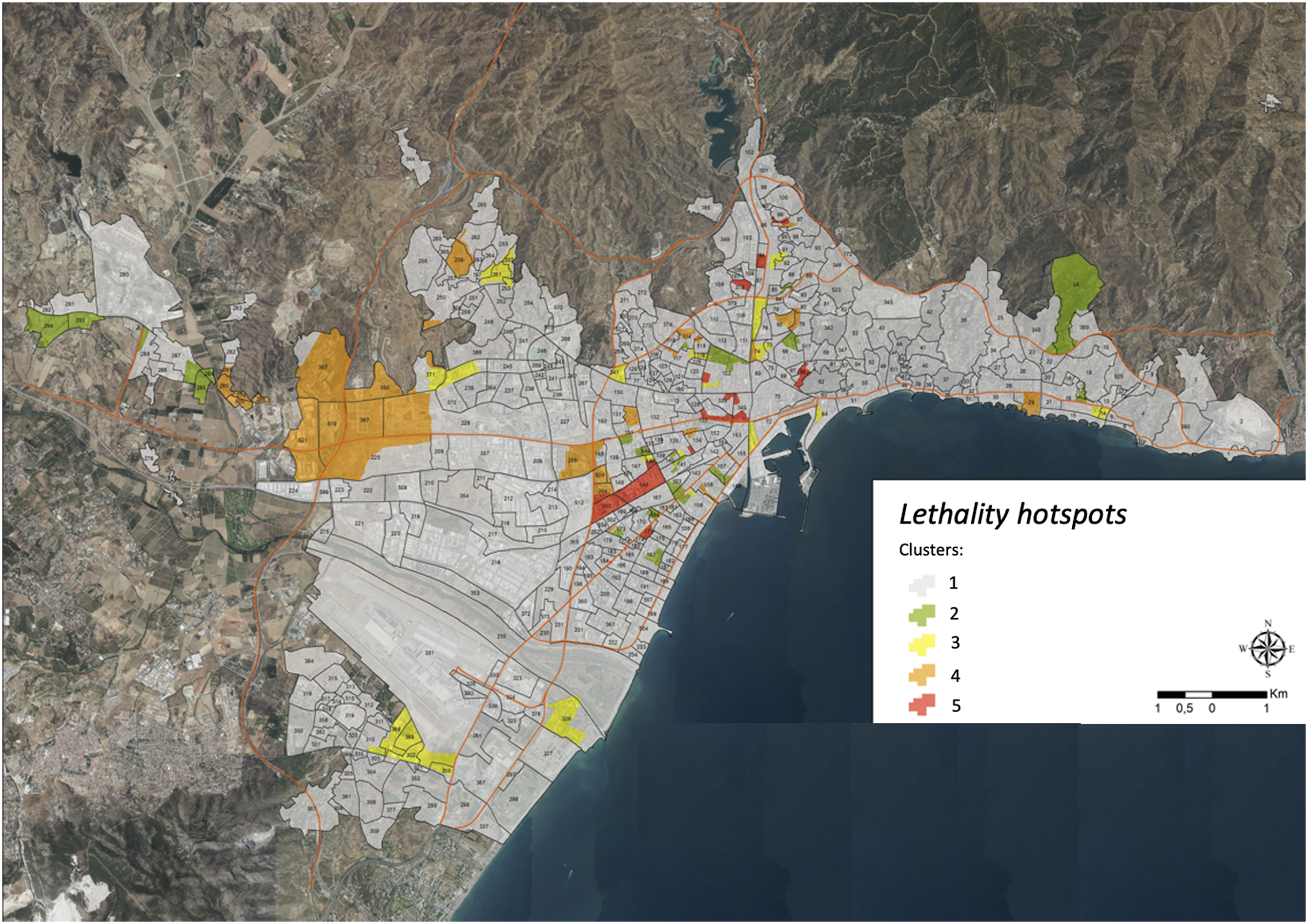

We next questioned whether these lethality hot spots were related to socioeconomic conditions and vulnerability, as seen for the analysis of incidence. To assess this, we followed two different paths. First, we analyzed each cluster individually according to the same set of variables used in our previous study (paper under evaluation), to establish the individual features of each cluster in the same framework used to study incidence. Second, we established two groups: the normal lethality group, which included all CSs from cluster 1; and the abnormal lethality group, which included those from clusters 2 through 5 (Figure 4). Normal and abnormal lethality curves (average). Source: Own elaboration based on data from Junta de Andalucía.
Examples of Lethality Profile for Four Representative CSs.
Source: Own elaboration based on data from the Malaga Municipality (OMAU) and CIEDES Foundation.

Characteristic of lethality Cluster 1. Source: Own elaboration based on data from Málaga Municipality (OMAU) and CIEDES Foundation.

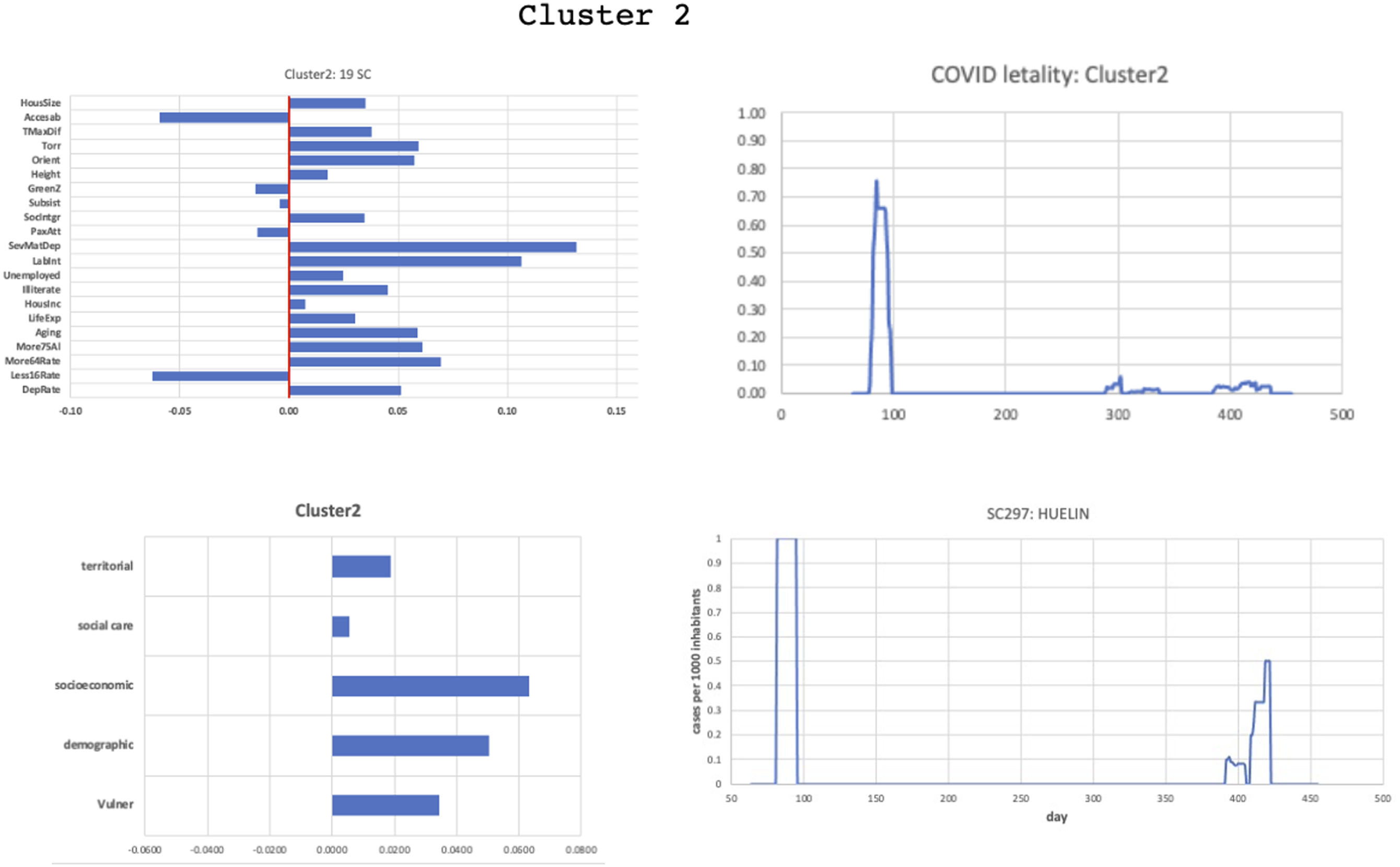

Characteristic of lethality Cluster 2. Source: Own elaboration based on data from Málaga Municipality (OMAU) and CIEDES Foundation.

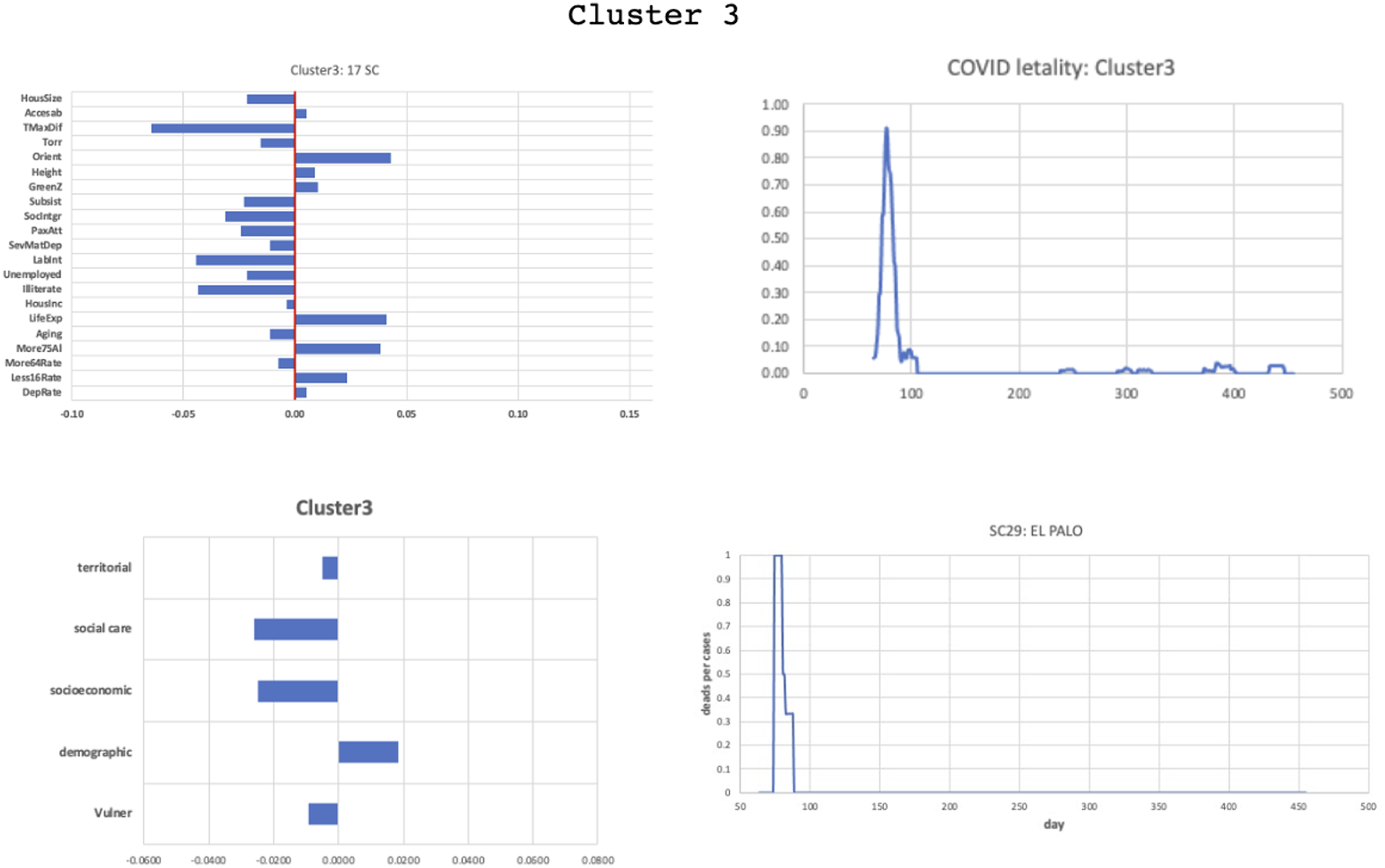

Characteristic of lethality Cluster 3. Source: Own elaboration based on data from Málaga Municipality (OMAU) and CIEDES Foundation.

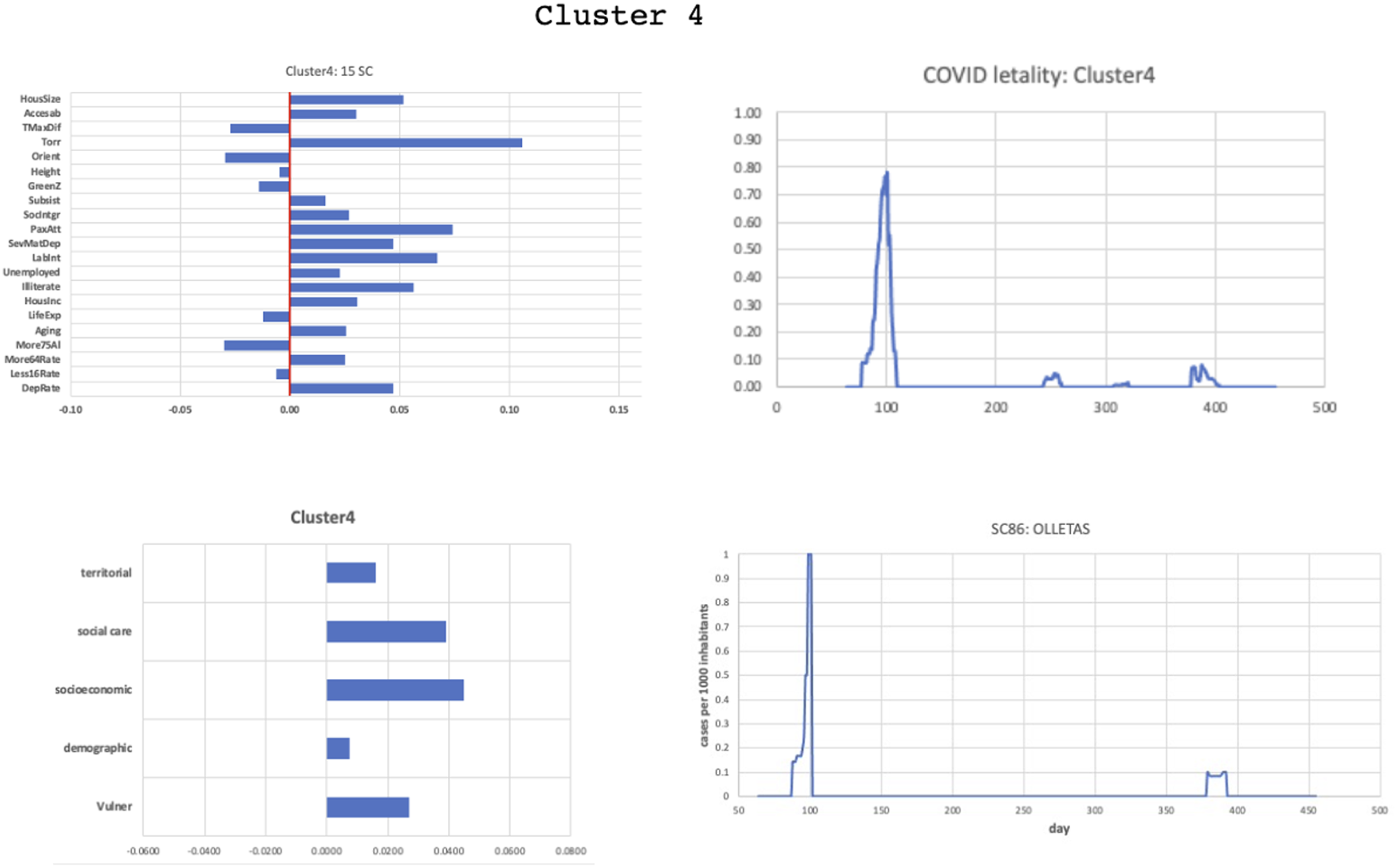

Characteristic of lethality Cluster 4. Source: Own elaboration based on data from Málaga Municipality (OMAU) and CIEDES Foundation.

Characteristic of lethality Cluster 5. Source: Own elaboration based on data from Málaga Municipality (OMAU) and CIEDES Foundation.

Deviation of normal and abnormal lethality clusters from the overall mean. Source: Own elaboration.
Results
As noted above, we first assessed each lethality cluster individually according to the same set of variables used in our previous study (paper under evaluation) to explain the incidence of the pandemic. For each cluster, we considered its deviation from the average of the whole population in Malaga for each variable and vulnerability index (general, demographic, socioeconomic, social care, and territorial). All variables and indexes were normalized: A negative deviation (left) indicates a better situation with respect to the average of the whole population, and a positive deviation (right) means a worse situation than the average of the whole population.
Cluster 1 summarizes 372 CSs and it was characterized by its low level of lethality at all time points, and by its normality. We observed only small deviations from the average values in all variables and vulnerability indices (Figure 5).
We have analyzed better the patterns in the other four abnormal clusters.
Cluster 2 presented overall negative results, with only a few variables of these components remaining positive, including the proportion of children under 16 years of age or good access to public services and green areas. The neighborhoods of this cluster were those experiencing very severe material poverty, with very low labor intensity and high unemployment. These neighborhoods were also characterized by low educational levels and quite old populations; this, along with the high proportion of minors, implies high dependency rates. The greatest COVID lethality in cluster 2 occurred during the first wave, when pronounced up-and-down curves were seen in almost all of the included neighborhoods. Lethality remained fairly controlled during the second wave. During the third wave, lethality rose again; the degree of change was relatively small but prolonged. These neighborhoods experienced a relatively late entry into each wave and showed the lowest level of lethality among the atypical clusters (Figure 6).
Cluster 2 neighborhoods had high proportions of those over 75 years of age and low proportions of those under 16 years of age; their dependency rates would thus be expected to be, although they showed relatively little utilization of public welfare and social services. These neighborhoods were characterized by high labor intensity, good employment conditions, and high levels of education and family income, but poor conditions of orientation, accessibility to services, and the most are located at an elevation that challenges accessibility, but the houses tend to be relatively large (Figure 7).
Cluster 4 neighborhoods were characterized by a low average income that would lead to severe material poverty, given that labor intensity is low, and unemployment is high. Although the population is not too old, the education level is low, and the use of social and welfare services is high. The houses are small in size and located in areas with high rainfall, although the housing orientation and temperature are good. The highest lethality occurred in the first wave, as in all clusters, but cluster 4 also showed lower-intensity peaks in the second and third waves. This cluster ranked third in lethality during the first wave but was the last to crest and resolve the situation. In the second wave, lethality remained fairly controlled; however, the slight increase was prolonged until almost the third wave, when this cluster experienced two significant peaks (Figure 8).
Cluster 5 included neighborhoods harboring large proportions of people over 75 years of age living alone and over 64 years of age, as well as some young people under 16 years of age. Family income was low. Although the educational level was not very low, there was high unemployment and low labor intensity. These were working-class neighborhoods without intensive use of social and assistance services, and very good access to public services. This cluster exhibited the highest lethality in the first wave of the pandemic and showed lethality during all subsequent waves, exhibiting curves with more pronounced crests than seen for the other clusters. It experienced the first wave ahead of the other clusters. During the second wave, it experienced a delay in the growth of lethality. In the third wave, there were multiple plateaus indicating prolonged periods of increased lethality (Figure 9).
We then unified these four abnormal clusters of lethality into a single atypical cluster and compared the vulnerability variables with respect to the average from the group of normal results.
As Figure 10 shows, this overall analysis revealed that outbreaks occurred in those census sections that, above all, have a relatively large proportion of individuals over 75 years living alone, along with high rates of aging and dependency. These neighborhoods are also typically characterized by especially small houses, a high rate of severe material deprivation, a low rate of education and an accordingly high need for social integration. Our work therefore shows that the CSs experiencing mortality peaks were generally characterized by high vulnerability, not only in general, but especially in aspects that are highly sensitive to COVID, such as high proportions of elderly individuals living alone or people living in particularly small houses.
Discussion
The territorial affectation processes of a phenomenon such as the COVID-19 pandemic can be complex, variable, and heterogeneous, often leading to the use of statistical tools that allow users to quickly understand what is happening. In this sense, the present work arose from previous studies that used synthetic indices to explain the vulnerability of neighborhoods to COVID 19 in terms of their economic, social, environmental, and governance dimensions. As note by Hyatt (2001) and Ebert and Welsch (2004), it is difficult to define indicators and there are important differences between simple indicators (combining two or more data sets) and synthetic indicators (treated with a mathematical function that synthesizes them) (EEA/AMAE, 2002). Pena Trapero (1977) and Zarzosa (1996) argued that although a constructed index generally fails to explain all the factors that can describe a latent variable, it will always approximate them. To measure spatial vulnerability in cities and its condition in a pandemic process, one must further introduce the temporal variable. Establishing a system of simple or synthetic indicators will often require information that is unavailable, making it necessary to introduce other, more robust statistical techniques such as the cluster method and tools, such as geographical information systems (Casas, Delmelle, and Varela 2010) or people movement mobile apps (Chen et al. 2022).
Despite the variability of data throughout the pandemic and the impossibility of strictly comparing data over time, the combination of synthetic indices and clusters utilized herein offers a quantitative tool that simplifies the attributes and weights of multiple variables to provide a broader explanation of the waves of incidence and case-fatality (lethality) that we wanted to assess. Nevertheless, in future research lines, we will improve our methodology considering the different techniques for choosing optimal partitions in the cluster analysis (Caballero et al. 2011; Scitovski et al. 2021).
A scan of the literature shows that the high transmissibility of the virus in cities has been influenced not only by specific characteristics of the virus, but also by factors related to social, economic, environmental, and governance determinants that previously existed, having evolved unevenly in the city’s urban geography (Bárcena-Martín et al. 2021; Credit 2020; Ríos Quituizaca et al. 2021).
Undoubtedly, the socioeconomic conditions, health resources, mechanisms for mobilizing the population, education, work, housing, basic services—in short, what we could call the way of life in the different urban areas, have modulated the territorial dynamics of the pandemic itself. This line of thought coincides with the work of Ríos Quituizaca et al. (2021), who proposed that the social characteristics of each territory should be add to individual factors to analyze the risks and vulnerability of neighborhoods in the COVID-19 pandemic and others respirational diseases. The study of Malaga has shown that social vulnerability is more than just exposure to risk; rather, it constitutes a combination of traits that combine potential adversities with the inability to respond and/or adapt to existing or potential risks (Escobar 2006). Indeed, vulnerability is affected by risk situations related to personal, family, professional, socioeconomic, and/or political environments, and these must be considered in neighborhood-level analyses (Salado Garcia, Rojas, and Cantergi 2008). An integrated sustainable urban development approach, especially one that also considers the importance of the governance dimension, is more consistent with the real dynamics of the pandemic in space and time (García-Peña, González-Medina, and Diaz-Sarachaga 2021). Future research lines could be related to the public policy and management involved in the resolution of this comprehensive problems, and the creation of tools for a new local governance (Huete García, Merinero Rodríguez, and Munoz Moreno 2016).
As indicated by Sharifi (2021), the resilience of cities will be linked to the capacities of cities and neighborhoods for planning, absorption, recovery, and adaptation. Characteristics such as flexibility, collaboration, diversity, redundancy, resourcefulness, and self-organization should be considered and enhanced at a granular level. In the future, resilience against pandemics will require pre-event planning, long-term visioning, early responses, integrated governance, community empowerment, and appropriate use of smart city solutions. Thus, micro-level analyses are an absolute necessity (Christopherson, Michie and Tyler 2010).
Conclusions
This research shows the importance of microscale spatial analysis, especially in historical moments such as the current one in which the COVID-19 pandemic has highlighted spatial inequalities, with the poorest suffering the worst consequences (Wade 2020). The comprehensive analysis of the sustainable development has been taken as a central approach for the statistical method and highlights the value of using economic, social, environmental, and governance indicators to understand the complexity of urban phenomena and their interrelationships (Del Castillo and Haarich 2013).
The interdisciplinary composition of the research team has enriched the conceptual field and has facilitated the elaboration of the method. Here, the spatial dimension of the sustainable development was addressed through the use of synthetic indices, georeferenced indicators at census-section scale, and parametric and non-parametric methods (such as cluster analysis). This multi-criterion approach to data analysis and decision-making enabled us to draw conclusions on the relationships between the waves of COVID-19 incidence and lethality and the preexisting conditions of poverty and vulnerability in cities.
During the waves of contagion, the incidence of disease was higher in neighborhoods that could be considered the most vulnerable from the economic and demographic points of view, whereas lethality exhibited hot-spot behavior that seemed to lack a direct correlation with the pattern of incidence. These findings are consistent with those previously reported by other authors (Credit 2020; Huang et al. 2021; Viezzer and Biondi 2021). This supports the accuracy of our approach and the effectiveness of the statistical methodology chosen to understand the urban dynamics of this complex phenomenon in space and time.
The use and study of all existing information allows us to learn from the exceptions or atypical values, which can help us identify patterns that can greatly facilitate the design of action plans. The results of our research make it possible to identify the main intervention needs in the city of Malaga with almost surgical precision and establish priority criteria that can be used in allocating resources to reduce poverty in all of its dimensions. The 2030 Agenda named the fight against all types of vulnerability as its main objective and a key to achieving sustainable development. The activation of territorial governance strategies based on statistics and data systems for monitoring, controlling, and evaluating public policies was identified by the UN as being key to localizing the 2030 Agenda in cities (UCLG 2019).
As noted by Abrams and Szefler (2020), the effects of COVID-19 have shed light on the broad disparities within our society, providing us with an opportunity to address those disparities moving forward. In the future, we must ensure that social and environmental dimensions of sustainability are considered in addition to economic development. Planners could capitalize on the pandemic to improve future urban development (Sharifi and Khavarian-Garmsir 2020), and this can have implications for public and private sector groups (Mathew and McDonald 2006).
As reflected by the UN-Habitat studies, one of the major action areas in response to the pandemic is the provision of “urban-evidence-based mapping and knowledge for informed decision-making (UN-Habitat 2020). Thus, it will be very important that we continue to publish studies on the dynamics of the pandemic in cities and the effects of government policies on these dynamics, especially given that deprivation and vulnerability are known to be key drivers of COVID-19 (Morrissey et al. 2021).
