Organizational culture in knowledge creation,creativity and innovation: Towards the Freiraum model

Abstract

This paper draws on findings from an in-depth case study of practices related to the meeting of organizational goals pertinent to knowledge creation, creativity and innovation performance. Overall a mixed methods approach that used both quantitative and qualitative data was adopted in empirical research conducted within a large German manufacturing firm. A quantitative analysis of survey data highlighted factors necessary to nurture an environment conducive to knowledge creation, creativity and innovation. The organization should: be open to change; encourage and value free communication and new and/or unusual ideas; tolerate mistakes; and nurture intrinsically motivated staff. It should be supported by leaders who promote these characteristics as shared values, while challenging and empowering their staff to generate new ideas in a drive to further innovation. Further analysis of focus group and interview data in the same case study identified three main determinants that underpin knowledge creation and creativity: (1) structured ‘space’ that creates expertise and experience of individuals while working in routine; (2) willingness to innovate – individuals’ propensity to experiment with ideas, even at risk of failure; and (3) authorized and dedicated ‘space’ designated specifically for individuals to explore new ideas (‘Freiraum’). These findings have contributed to the development of a new articulation of the organization of creativity and innovation. It draws on established concepts from the domain of knowledge and creativity management, and extends these to deepen our understanding of how aspects of organizational culture, including leadership and social conditions, influence organizational performance in terms of (1) improving knowledge creation processes related to creativity, and (2) fostering innovation.

Keywords

Creativity Freiraum innovation knowledge creation knowledge management learning organizational culture organizational learning

1. Introduction

This paper explores knowledge and creativity management issues related to organizational culture. These include leadership and social conditions, and their influence on practices of creativity and innovation as individuals interact within broader organizational contexts. The main findings presented here derive from a large empirical study conducted within a German automotive manufacturer between 2007 and 2011. Overall the study identified three strata of influence: those related to (1) the macrostructure as evident in culture of the organization; (2) social interactions conducted between individuals; and (3) individual cognitive processes. This paper is mainly concerned with the first of the three.

The findings are prefaced by a literature review that considers the treatment of organizational culture in the extant literature as a facilitator of (or hindrance to) knowledge and creativity management. It also explains how organizational culture is incorporated into models of knowledge management, and into frameworks that consider knowledge creation, creativity and innovation. Of particular interest is the work of Nonaka and Takeuchi [1], and Nonaka and Konno [2], and how this might be extended through the introduction of a set of linked concepts that includes reference to a phenomenon identified as ‘Freiraum’. The work presented responds to a broad call for a closer examination of links between knowledge, innovation and performance to identify the organizational circumstances under which knowledge management initiatives lead to improved results [3].

2. Literature review

2.1. Knowledge management and organizational culture

While understandings of the term ‘knowledge management’ (KM) are diverse and much debated [4, p. 185], the broad goals of KM focus on the improvement of organizational performance, whether or not the organization in question articulates this by deploying the discourse of KM, e.g. [5, pp. 5–7, 6, pp. 10–13]. For instance, in the context of the manufacturing industry, KM processes such as efforts towards improved information and knowledge sharing are aligned to the goals of new knowledge creation to support innovation, e.g. [3, 7].

Just as there is general agreement on its broad purpose, the extant literature of the domain has discussed at length, and repeatedly, the many barriers to effective KM, particularly as related to information and knowledge sharing, e.g. [8, 9]. Organizational culture is frequently cited as one such barrier, e.g. [10, pp. 192–193, 11, p. 181]. Alternatively, in cases where a supposed ‘knowledge culture’ exists, organizational culture is valued as an enabler [4, pp. 183 and 185].

Interest in the relationships between organizational culture and knowledge management has generated a number of studies and theoretical contributions [4]. Often the treatment of these themes is, however, generalized, e.g. [12], with scant regard paid to the specifics of ‘organizational culture’ and what it might comprise beyond ‘organizational values, norms, unwritten rules and procedures’ [13, p. 238]. Equally others have identified the mistaken implicit assumption of earlier studies that organizational culture is uniform across the whole organization (i.e. literally a single organizational culture) [4, p. 197], and a stable phenomenon [5, p. 238]. A further drawback of this body of literature is that many of the more detailed studies fail to investigate the impact of organizational culture on specific KM processes other than knowledge sharing [4, p. 197]. Earlier reviews have identified that there is opportunity, for example, to make contributions related to processes such as new knowledge creation [4, p. 191], including creative processes.

A further problem relates to how the summarized output of studies of organizational culture and its influence on knowledge and creativity management are presented. This often takes the form of lists of conditions and values – such as trust, openness, tolerance of mistakes, encouragement of risk-taking, employee autonomy, support of teamwork – as general enablers, e.g. [4, p. 191]. Where organizational culture is incorporated into general models and frameworks of KM, it is often treated as a top-level heading alongside people, processes and technology, and as a component of ‘the organization’. For example, Mueller’s 2012 model ‘The interrelationship of corporate culture, cultural knowledge and knowledge management’ [4, p. 197] only goes to the level of ‘Cultural knowledge: assumptions, values and manifestations’. It is unsurprising that this is the case given the breadth of concepts and processes that KM comprises. Added to this is the difficulty of modelling a comprehensive picture that is able to both describe KM and prescribe the outcome of any particular interventions. At the other extreme, detailed models and frameworks of KM that focus on a particular aspect (e.g. Boisot’s I-Space KM model, with its emphasis on information and knowledge per se [14]) are limited because (unsurprisingly) they are not comprehensive enough. It is perhaps for this reason that amongst the most compelling models of KM are those that promote the importance of connections, e.g. [15] on the basis that knowledge resides with individuals and their relationships with others, and is embodied within organizations as such.

It is also worth considering here how case studies published in the practitioner press treat the issue of organizational culture and KM. Often here the umbrella term ‘organizational culture’ is simply applied loosely without detailed explanation, and may be deployed as a neutral term for less desirable organizational characteristics such as corporate power struggles [11, 16]. A close reading of such studies demonstrates the degree to which local contexts determine the degree of success of activities targeted at improving KM and its desired outputs [17]. However, practitioners who hope to draw on examples of good practice for their own implementations will be disappointed because the actualities of published case studies in the organizations in question do not match their own local environments. ‘Black box’ case studies, e.g. [18 –20] may offer cheery accounts of successful practice – but this may not necessarily be replicated beyond the locus of the reported study.

2.2. Models of new knowledge creation, innovation and organizational culture

A number of models and frameworks, emanating from a wide range of subject domains, provide detail on particular processes of KM. Those that include discussion of new knowledge creation and innovation are summarized in Table 1.

Table 1.

Models that incorporate concepts of knowledge, creativity and innovation.

Models	Concepts	Key authors and sources
Communities of practices, social networks and online communities	Communities of practice and the creation of knowledge, creativity and innovation	Amin and Roberts [21, 22]; Davenport and Hall [23]; Hall and Graham [24]; Wenger [25]; Wenger et al. [26]
Creative and innovative systems	Disciplines, practices, structures and organization of creativity and innovation	Amabile [27, 28]; Bendixen [29]; Csíkszentmihályi [30, 31]; Jaworski and Zurlino [32]; Nooteboom [33]; Sawyer [34]; Sutton [35]; Teece [36]; Tidd and Besant [37]; Woodman et al. [38]; Zhou and Shalley [39]
Distributed knowledge systems	Knowledge-based view of the organization, disciplines, practices and structure of knowledge creation	Grant [40]; Tsoukas [41]; Von Krogh and Roos [42]
Information-based system	Organizational construction of knowledge and meaning	Choo [43]
Knowledge conversion (SECI model and Ba)	Tacit knowledge as source of creativity and innovation; spatial knowledge and shared context creation within the organization; organizational knowledge creation	Nonaka and Takeuchi [1]; Nonaka et al. [44]
Knowledge-centric systems	Learning about learning in organizations	Stonehouse and Pemberton [45]; Pemberton and Stonehouse [46, 47]
Learning systems (single- and double-loop learning)	Reflective learning about action and governance to continuously improve (first- and second-order cybernetics)	Argyris and Schön [48]; Argyris [49]
Open and co-creating systems	Open innovation, user groups and co-creation to generate customer and user innovation	Chesbrough [50, 51]; Von Hippel [52, 53]; Prahalad and Ramaswamy [54]; Ramaswamy and Gouillart [55]; Bakken et al.
Self-producing systems (autopoietic systems)	Autopoietic systems of knowledge creation and innovation	[56, 57]; Hernes and Bakken [58]; Hernes [59]; Luhmann [60]; Maula [61]; Magalhães and Sanchez [62]; Zeleny [63, 64]
Sense making and organizing	Sense making and organizing from process	Daft and Weick [65]; Weick [66]
Spatial constructed systems (autopoietic systems)	Spatial construction of organization	Amin and Roberts [21]; Nonaka et al. [44]; Hernes [67, 68]; Crang and Thrift [69]; Thrift [70, 71]
Systems of shared meaning	Influence of culture (structure) on process and outcome	Smircich [72]
System-thinking system	Organizational capabilities and disciplines of learning	Senge [73]
Viable systems (self-referential systems)	Recursive interaction with environment to adoption of changing environment	Beer [74, 75]

As is the case of models and frameworks of KM in general, the models that cover the processes associated with new knowledge creation and innovation, such as those summarized in Table 1, also attract criticism for being too general [76, p. 2]. Nevertheless, taken together, these models provide important insight into how the generation of new knowledge through thinking (the process of creativity) is organized to formulate novel and valuable ideas which can then be institutionalized and exploited (the outcome of creativity as innovation). It should still be recognized, however, that the explanations of creativity and innovation offered by these models are very complex. They take into account a large number of personal, social and contextual influences, to explain how individual, group and organizational processes are supported and constrained. The concept of ‘intelligent complex adaptive systems’ as introduced by Beer [77] and developed by others, e.g. [78], for example, is appropriate nomenclature to describe organizations as living, self-organizing entities that comprise individuals who negotiate relationships within communities to create new knowledge for innovation, and are subject to a variety of positive and negative influences on their work.

The terms ‘creativity’ and ‘innovation’ also pose problems in the literature. They are often used interchangeably to describe both (1) processes that result in something novel and valuable, and (2) the outcomes of such processes that are novel and valuable in themselves (e.g. a product, service, organizational structure or administrative system). The loose treatment of the two terms together is understandable given that innovation as a process necessarily incorporates creativity: the act of innovation includes the implementation of the initial creative idea. In addition, as an initial creative idea is shaped and developed during an implementation, it is often the case that new ideas are prompted. So, for example, creative thinking may become as part of an innovation process when those charged with an implementation are faced with an unexpected problem and are forced to find ways to solve it. Thus innovation is routinely a creative process in itself.

Another characteristic that this body of literature shares with the more ‘mainstream’ KM publications is the identification of a number of key enabling factors, in this instance applied to organizational capacity for new knowledge creation and innovation. Those identified at the level of the organization (the focus of this paper) correspond with the desirable elements of a culture for engendering good KM practice. These include, for example, access to information and knowledge resources through effective information and knowledge sharing behaviours, open communication practices and established routines, e.g.[40]. Added to these are other elements of the organizational infrastructure that bear an influence. Amongst these are intangibles – such as organizational leadership and vision [37, 44], commonly shared representations of meaning [72] and conditions that promote a sense of trust [27] – as well as more concrete conditions that include the nature of the physical environment [38, p. 296], and the resources of time and money [28]. Often these factors cannot be ‘bought in’, but must rather be built, developed and cultivated over time [36].

Amongst the models listed in Table 1, Nonaka and Takeuchi’s well-established and oft-cited knowledge conversion model [1] is of particular interest to the study reported in this paper, not least because it considers knowledge creation as an organizational capability that comprises a social process in which knowledge is transformed through interactions. This model closes the gap between individual and group processes at the micro level, and those at the organizational, or macro, level. Built on the Japanese premise that knowledge in the workplace is principally collectively owned group knowledge (a different cultural perspective than that which is pervasive in the West [79]), the model describes four stages¹ through which knowledge is acquired, shared, developed and integrated, moving between tacit and explicit forms, to create new insight. These stages are labelled (1) Socialization, where knowledge is created through social interaction; (2) Externalization, where knowledge is articulated and codified into a tangible format; (3) Combination, where discrete pieces of knowledge are combined to create new knowledge; and (4) Internalization, where new knowledge becomes embedded in the minds of knowers. Although Nonaka and Takeuchi do not use the term explicitly, this is an autopoietic cycle of both organizational and individual and group interactions, where the former is labelled ‘structure’ and the latter ‘process’ in autopoietic terms (as discussed in other models noted in Table 1, e.g. [33, 64]).

With Konno in 1998, Nonaka introduced the concept of ‘Ba’ to the model of knowledge conversion [2]. This has since been further developed, e.g. [44, 80]. ‘Ba’ relates to mental and social space in constant motion in which shared context and new knowledge are created [44, pp. 34–35]. Unlike ‘ordinary’ space, it has been argued that Ba, in its various forms, can overcome physical and temporal restraints. It does so in each quadrant of the SECI model [2, pp. 46–47]:

Originating Ba, relevant to Socialization, is the space where individuals share feelings, emotions and experiences;

Interacting Ba, relevant to Externalization, is the space where individuals learn about the mental models of others, and reflect and analyse their own collectively;

Cyber Ba, relevant to combination, is the space for interacting in the online environment;

Exercising Ba, relevant to internalization, is the space where explicit knowledge becomes tacit (Figure 1).

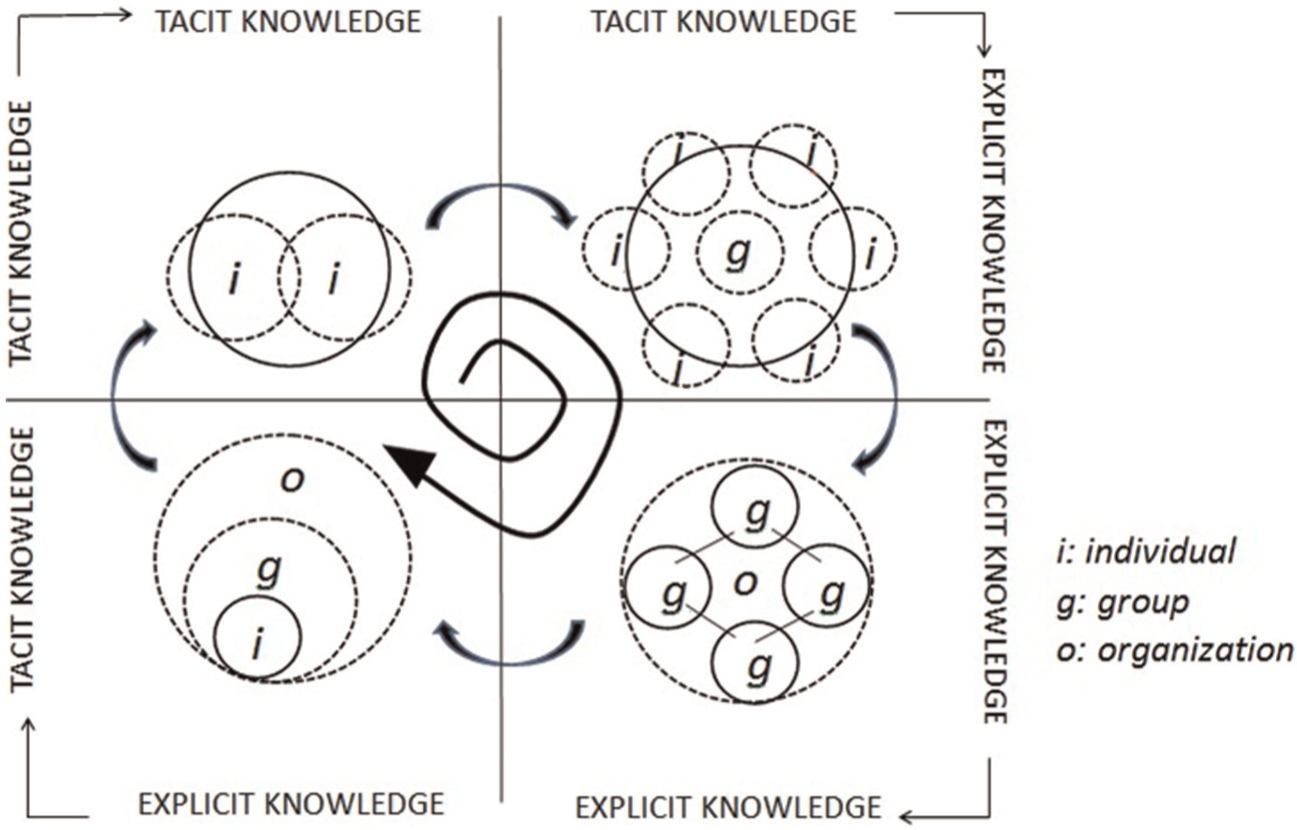

Figure 1.

Spiral evolution of knowledge conversion and self-transcending process. (Source: [2, p. 43].)

The concept of Ba is pertinent to the study reported here because this new work explores the enabling conditions that relate to organizational culture, such as leadership (in terms of knowledge vision), noted as important to Originating Ba [2, p. 46]. In addition, Cyber Ba is said to influence organizational culture [2, p. 47]. This earlier work is also relevant to the empirical study reported in this article given the new insight it provides on the concept of ‘space’ (as will be explained below).

While the SECI model neatly explains routes for knowledge creation within a shared social context, Bereiter [81, pp. 160–161] notes that it falls short on four accounts related to creativity. One of these is directly related to the organizational context: the model has little to say about the production, management, improvement or application of knowledge abstracted from practice. Others have argued similarly that the model does not provide an adequate explanation of innovation, e.g. [82, 83]. For instance, although it explains how pre-given conditions and knowledge can be represented, it fails to tie these to the innovation process [83]. Furthermore, the SECI model does not take into account complexities identified by other scholars, such as the fact that creative ideas are often routinely rejected in organizations [84, 85]. These findings point to the need to extend the model to enhance the explanation of desirable conditions and processes for creativity and innovation. The report of the empirical study as related below helps address this need.

3. Research design: site selection, data collection and analysis

The findings reported here derive from a single in-depth case study investigated between 2007 and 2011. The site for data collection is a large German company characterized as enjoying a complex, dynamic and evolving organizational culture: in 2011 it employed just over 270,000 staff across six main divisions. As a world-leading automotive manufacturer, the company has a long history of innovation that stretches back to the late nineteenth century.

Data for the study were gathered from in three main stages from 2007/2008 onwards when the first author worked for the company as a Research Associate:

by survey – 201 participants from across a range of business functions responded;

from two focus groups that comprised 18 development department staff (total);

in interviews with 46 employees who work in innovation management functions.

The survey was designed to investigate the organizational context within the company, and focused on gathering data to assess the experience and perceptions of employees from across a range of functions and different career stages within the company. Administered in German, the respondents were asked to rate 112 statements on a four-point Likert scale group within sections, as shown in Table 2.

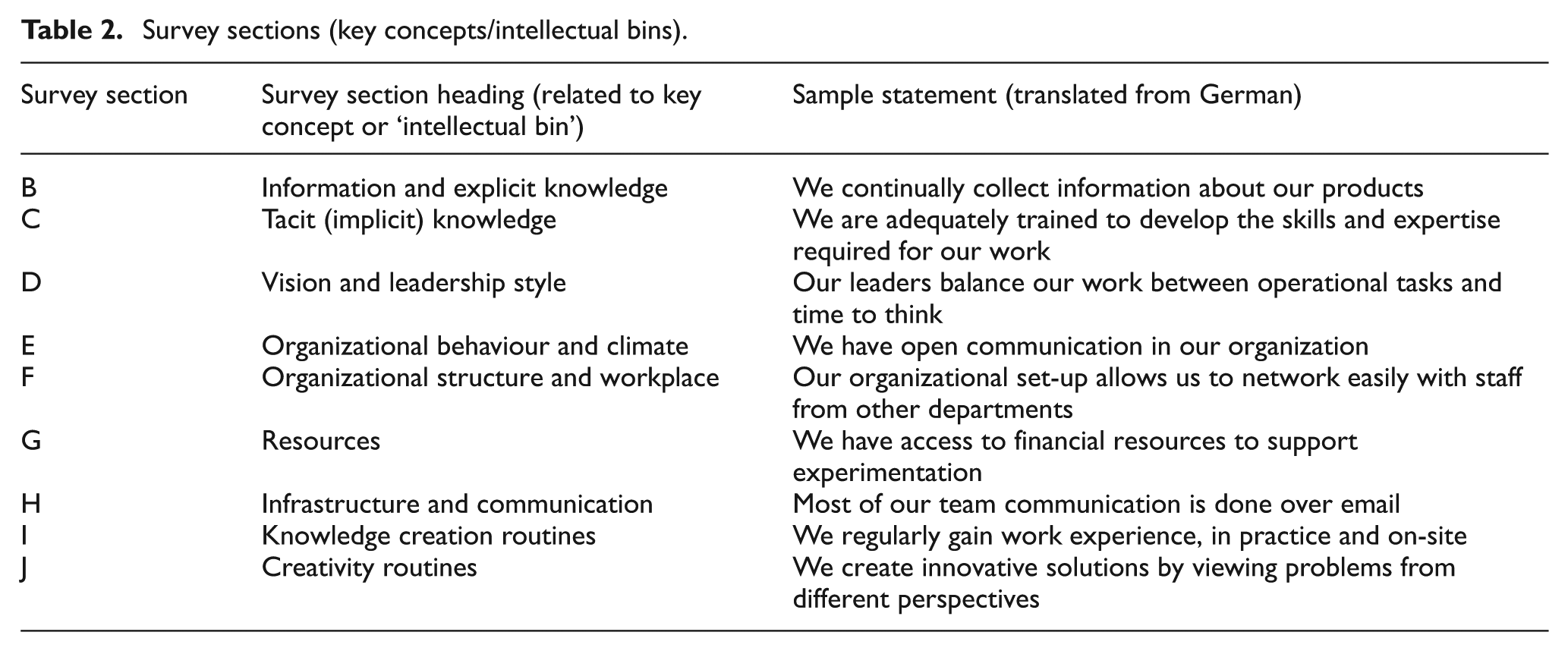

Table 2.

Survey sections (key concepts/intellectual bins).

Survey section	Survey section heading (related to key concept or ‘intellectual bin’)	Sample statement (translated from German)
B	Information and explicit knowledge	We continually collect information about our products
C	Tacit (implicit) knowledge	We are adequately trained to develop the skills and expertise required for our work
D	Vision and leadership style	Our leaders balance our work between operational tasks and time to think
E	Organizational behaviour and climate	We have open communication in our organization
F	Organizational structure and workplace	Our organizational set-up allows us to network easily with staff from other departments
G	Resources	We have access to financial resources to support experimentation
H	Infrastructure and communication	Most of our team communication is done over email
I	Knowledge creation routines	We regularly gain work experience, in practice and on-site
J	Creativity routines	We create innovative solutions by viewing problems from different perspectives

Of 320 surveys distributed, 201 were completed, giving a response rate of 63%. A factor analysis of the survey responses as related to the 10 statements on innovation performance (e.g. ‘We create innovative solutions by viewing problems from different perspectives’) provided a macro-level gauge of participant perceptions. Using the Pearson correlation coefficient analysis (PCA) function in SPSS, relationships between the key determinants were revealed.

The findings on innovation performance (amongst others related to wider aspects of the study) as derived from the quantitative analysis of the survey data were then presented at the two focus groups. Here they served as a stimulus for group discussion (following the technique advocated by Barbour [86]). In two sets, the 18 focus group participants verified the survey findings and discussed the impact of the macrostructure on individual behaviours and interactions (both their own and that observed in others) as related to new knowledge creation, creativity and innovation. Both focus group discussions were recorded for later analysis.

The 46 semi-structured interviews which followed provided a further opportunity to discuss the emergent themes in greater depth, in this instance for 30–40 minutes on a one-to-one basis with (mainly) senior managers whose job remit included responsibility for innovation per se, or innovation management. These managers worked in a range of departments including innovation management, research, development, production, marketing and after-sales. The interviewees provided a diverse range of personal and contextually rich narratives in response to a number of prompts that took the form of basic questions. Emergent themes thus came to the fore in an inductive manner. All but five of the interviewees gave permission for the interviews to be recorded. The interview data were subsequently explored and analysed alongside the other qualitative data using NVivo.

Coding and cognitive mapping of the qualitative data from the focus groups and interviews generated valuable output that was reformulated as patterns [87 –89]. The total of nine patterns generated from the data collected described the situations in which creative ideas emerge within interactions of individuals at the micro level, as bound within the broader social structures of the macro level. They helped to explain the impact of cultivated behaviours on group interactions as related to team creativity and organizational innovation. Considered together, the patterns contributed to the design of a system model of the phenomena under investigation. Attention was paid here to interactions that related to (1) shared behaviours at the macro level of the organization and (2) situated interactions performed between individuals and small groups at the micro level, reflecting the duality of structure [90] and tenets of organizational autopoiesis theory, e.g. [62, 91]. The pattern analysis identified components of organizational culture as determinants for new knowledge creation, creativity and innovation. From this can be offered practical advice that applies across a number of contexts.

Following the analysis of the empirical data from the three data collection exercises (the survey, the focus groups, and the interviews) the results were disseminated within the case study organization in a series of presentations. These presentations provided an opportunity to verify the research findings and confirm their relevance. They also gave the staff a chance to reflect on the implications of the study’s findings in practice.

4. Findings: key influences of organizational culture on creativity and innovation

Amongst the main findings of the study (and the focus of this paper) is new insight into how organizational culture (including leadership and social conditions) influences practices of creativity and innovation as individuals interact within the broader organizational context of the company.

The quantitative analysis of the survey data revealed the characteristics of an environment that is conducive to innovation performance. In total 16 factors of organizational context were identified as having an impact, as can be seen in Table 3. The two most significant of interest to the themes of this paper – owing to its focus on organizational culture – are Leadership style and Organizational behaviour I (openness, motivation and values), both of which show a close to strong effect.² Also of interest is the category placed eighth: Organizational behaviour II (mistakes and problem behaviour). The factors noted in Table 3 were combined through a further factor analysis to build groups of factors, which were then subsequently correlated with performance factors in further PCAs. Of interest to the main themes of this paper is the combination of Leadership style, Organizational behaviour I and Organizational behaviour II. Grouped together these can be conceived as influences on organizational culture. They depend closely on one another, as shown in the high Pearson’s coefficient figures in Figure 2.

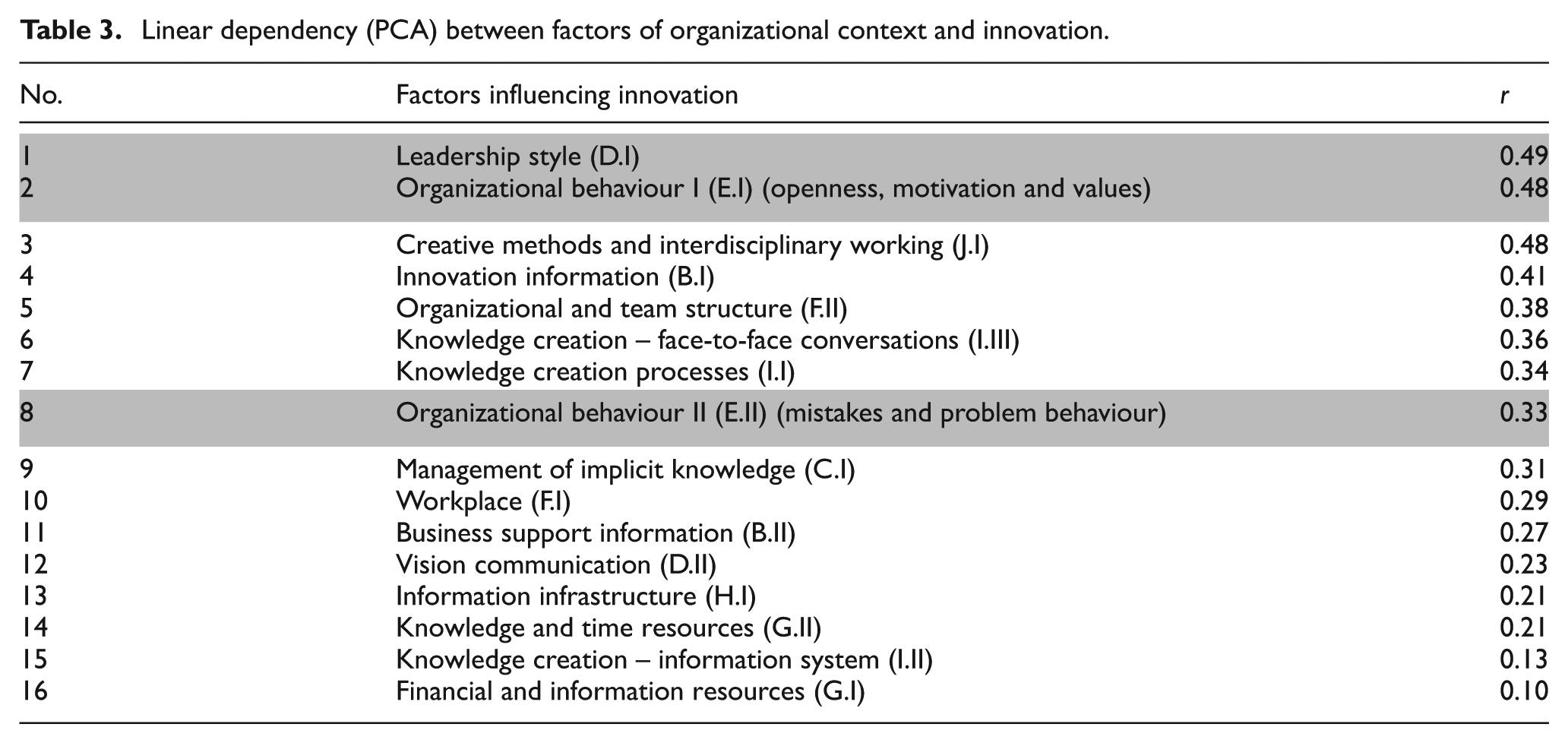

Table 3.

Linear dependency (PCA) between factors of organizational context and innovation.

No.	Factors influencing innovation	r
1	Leadership style (D.I)	0.49
2	Organizational behaviour I (E.I) (openness, motivation and values)	0.48
3	Creative methods and interdisciplinary working (J.I)	0.48
4	Innovation information (B.I)	0.41
5	Organizational and team structure (F.II)	0.38
6	Knowledge creation – face-to-face conversations (I.III)	0.36
7	Knowledge creation processes (I.I)	0.34
8	Organizational behaviour II (E.II) (mistakes and problem behaviour)	0.33
9	Management of implicit knowledge (C.I)	0.31
10	Workplace (F.I)	0.29
11	Business support information (B.II)	0.27
12	Vision communication (D.II)	0.23
13	Information infrastructure (H.I)	0.21
14	Knowledge and time resources (G.II)	0.21
15	Knowledge creation – information system (I.II)	0.13
16	Financial and information resources (G.I)	0.10

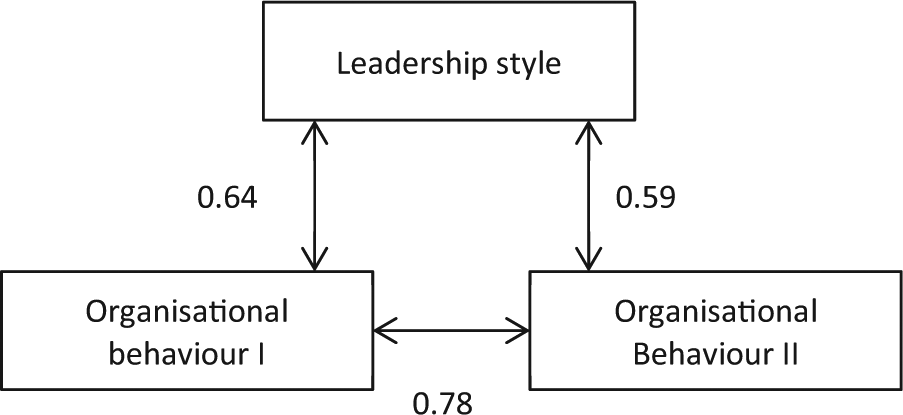

Figure 2.

Correlation coefficients of the organizational culture group.

When the group Pearson coefficient is then calculated to establish the relationship between organizational culture and innovation performance, a high medium score is revealed (r = 0.46). This relationship can also be plotted as a graph, as shown in Figure 3. Here the points represent the data subjects who provided survey responses that could be analysed to assess this relationship (150 in total). In general, individual perceptions of ‘poor’ organizational culture fit with perceptions of ‘low’ innovation performance. Equally ‘good’ organizational culture fits with ‘high’ innovation performance. From the analysis of the survey data it was also possible to list individual organizational behaviours and leadership practices that generate social space that is conducive to new knowledge creation and creativity. Those with strong medium influence are highlighted in Table 4.

Figure 3.

The relationship between organizational culture and innovation performance (PCA).

Table 4.

Ranked value of organizational characteristics that influence innovation.

Characteristic of the organization	r
It is open to change	0.48
Its leaders challenge staff to create new ideas	0.45
Its leaders empower staff to generate new ideas	0.41
It is populated by staff who are intrinsically motivated	0.39
It values free communication	0.36
It promotes a shared vision and goals	0.35
It practises its shared values	0.31
Its leaders practise its shared values	0.30
Its leaders balance time to work and to think	0.28
It encourages risk-taking	0.26
It encourages a positive atmosphere	0.25
It values trust	0.25
Its leaders value new and/or unusual ideas	0.25

Subsequent discussion in the focus groups and interviews confirmed the importance of these factors. This contributed to the final datasets from which nine patterns of the larger study emerged:

individual knowledge creation;

co-creation;

vision, strategy and leadership;

innovation willingness and reaction to mistakes;

ambiance and social support;

regulatory, social and cognitive influences on time spaces;

communication behaviour;

spaces of knowledge creation;

change in work pattern and routines.

The patterns provided insight into how organizational culture may be a support for knowledge creation, creativity and innovation. In particular pattern 3 revealed how leadership influences creativity, and pattern 4 revealed the same for innovation willingness.³ Pattern 3 revealed how shared leadership values challenge and empowers workers to be creative. Pattern 4 showed that the social reward of appreciation by leaders in an environment where there is open communication, low levels of stress and high degrees of professional autonomy contributes to individual innovation willingness. Findings on collective innovation willingness were also made evident in Pattern 4. Again openness (in terms of communication and to the concept of change) is shown to be highly valued. Perhaps of greater interest here, however, is the question of risk-taking and mistakes, and the organization’s reaction to these. If mistakes are not tolerated, and staff are unable to learn from mistakes, then opportunities for new knowledge creation, creativity and innovation will be lost as the organization becomes entrenched in ‘safer’ work practices.

When the study findings on organizational leadership and social conditions from the survey, focus groups and interviews are taken together, it can be seen that there is a strong thematic thread related to a form of work-related freedom as a pre-condition for creativity. There is no English term to encompass the actual nature of the freedom identified, hence the introduction of the German term ‘Freiraum’ to the discussion. Literal translations of Freiraum include ‘free space’, ‘free room’ or ‘free field’. However, Freiraum can be more than a physical space: the German dictionary Duden online provides a definition that translates as ‘Opportunity to develop one’s own strength and ideas (of a person or a group)’.⁴ The term can be connected to creativity in German as ‘der kreative Freiraum’ (creative free space), emphasizing the human context. Thus Freiraum can represent a space that is produced by social influences (amongst other factors), where both place and time offer ‘freedom’ for exploring, creating and experimenting with ideas (creativity). Practical implementations of Freiraum are evident in companies such as 3M with its 15% rule [93, p. 21], Google with its 80:20 rule [94], and others such as GE and Motorola that encourage staff to engage in ‘bootleg’ and ‘submarine’ activities [32, pp. 124–130].

Freiraum as authorized, protected and dedicated ‘space’ designated specifically for the exploration of new ideas, which takes the form of free time away from the usual extreme time pressures and other work, is thus one of three main organizational determinants that contributes to a fluid process of new knowledge creation identified in this study. Like Freiraum, the second determinant is also strongly tied to the work environment and can be considered a factor of organizational culture. This is the propensity of individuals to experiment with ideas, even at risk of failure, i.e., whether or not staff are encouraged to develop a high degree of innovation willingness. The third determinant, as identified by the wider study to which these findings contribute, is the expertise and experience of individuals. This comes from working in the thick of the action, experiencing problems and opportunities as, when and where they occur. Working in the thick of action may be conceived as the mirror image of Freiraum in that work in this ‘space’ relies on executing established knowledge only, and not experimenting with anything new. For example, assembly line workers may know from experience about problems with the production line, but while in the midst of their routine work they do not have the capacity to generate creative ideas to solve them. Instead they need focus and concentration to execute tasks efficiently. The three determinants and their relationships are shown in Figure 4.

Figure 4.

Three determinants that contribute to fluid process of new knowledge creation.

An implication of these findings is that individuals need to be supported so that they both engage in the routine to develop their expertise and experience, and periodically step out of it in order to explore new ideas. Where this is successful, the new ideas are then brought into the routine to be shared and prototyped. When workers are involved in prototyping they are thus operating in the space between the routine (thick of the action) and idea creation (Freiraum). They contribute to new routines and practices with the expectation of innovation in products and services delivery. Of course, when a prototype (or new concept) is executed or reproduced, it eventually takes its place as routine work. An advantage of this articulation over standard models for facilitating creativity and innovation (such as linear innovation processes with shared routines and fixed structures) is that it can be adopted to fit with the extant management style of the organization, and its own particular context. This is important given the dynamic nature of new knowledge creation, creativity and innovation.

5. Discussion: extending our understanding of organizational culture as support for knowledge creation, creativity and innovation

This study did not set out to test any specific model(s), such as those that incorporate the concepts of knowledge, creation and creativity, as cited in Table 1. However, the opportunity to reconsider one in particular became evident at the data analysis stage, particularly as Patterns 3 and 4 were generated. Findings from the study presented here tie to the earlier work by Nonaka and his colleagues on the SECI model and the concept of Ba, not least because of the focus on enabling conditions that depend on characteristics of organizational culture. For example, leadership is a component of Originating Ba, and Cyber Ba emphasizes space as a prerequisite for new knowledge creation [2, pp. 46–47], and both of these feature strongly in the case study. Space is especially important to the concept of Freiraum as a locus for creativity and innovation.

The relationships of key components of an organizational culture that allows for innovation-willing staff to move between periods of work time in the thick of the action and others of Freiraum (see Figure 4) also recall Nonaka and Takeuchi’s earlier discussions of systems redundancy as a facilitator of their ‘knowledge spiral’ [1, pp. 80–82]. They argue for redundancy as a positive feature of an organization that values overlaps in information and activities to promote the sharing of tacit knowledge across functions, teams and hierarchies. They view this as a means of speeding up knowledge creation processes, particularly at the concept development stage. However, they do not explicitly integrate redundancy into the SECI model. Rather, they provide recommendations for encouraging redundancy within organizational processes. They suggest, for example, setting up staff rotations, bringing different departments together for project work, dividing product development staff into competing teams, and making it more obvious where knowledge and information are held within the organization. Freiraum puts an emphasis on human creativity, innovation and encouragement of knowledge redundancy through changed perspectives, alongside recognition that staff ‘travel’ with their work from this more creative space to other settings in the thick of the action. Thus it points to an extension the concept of Ba within the SECI model through a detailed exploration of the work on desirable conditions and processes as presented here. At the very least, this analysis goes some way to explain what is lacking in the SECI model as far as creativity is concerned. In this context Freiraum also articulates well with the broader explanations of systems redundancy and the requirement of this for innovation, e.g. [56, 95, p. 105].

This work also responds to some of the criticisms of the extant KM literature as relevant to the theme of organizational culture. For example, it provides a level of detail that is greater than that which is presented in studies which treat organizational culture as an overarching entity or a series of listed factors; it considers relationships between factors of the organizational culture in order to explain particular processes; it takes the discussion beyond information and knowledge sharing to the desired outputs of KM in the form of new knowledge creation, creativity and innovation. Also of interest here is the prominence of leadership style as a key resource of organizational culture. This gives further credence to the view that organizational culture in the context of KM may in part be a euphemism for something less palatable: power issues [11, 16]. The treatment of this theme also supports the suggestion that organizational culture might be regarded as an intangible asset of KM in its own right [4, p. 187].

Of course this work has limitations. As a single case study no claims can be made for the generalizability of the findings: the goal here was to present a ‘good example’ [96] of phenomena at play developed using standard methods pertinent to the communication of context-specific problems and solutions [97]. The interplay of the concepts modelled here (Freiraum, and working in the thick of the action, in a context of innovation willingness) needs to be tested in other environments for its value across different contexts to be assessed. However, as an academic piece of work (and not a black box case study destined for the practitioner press) based on extensive fieldwork using triangulated datasets, this work offers a framework with implications for practice in the tradition of other detailed studies in KM, creativity and innovation management, e.g. [98].

6. Conclusion

It was established above that there have been calls for further work to examine the links between knowledge, innovation and performance, and to shed light on the organizational circumstances under which KM initiatives might lead to improved results [3]. This paper has responded to such calls in a new and original contribution that explores knowledge and creativity management issues related to organizational culture. Focusing on elements of the organizational macrostructure, some key relationships have been identified as pertinent to understanding how particular influences of organizational culture have an impact knowledge creation, creativity and innovation.

Organizations that seek a positive influence on processes of knowledge creation, creativity and innovation should: be open to change; encourage and value free communication and new and/or unusual ideas; tolerate mistakes; and nurture intrinsically motivated staff. Their leaders need to promote these characteristics as shared values, while challenging and empowering their staff to generate new ideas in a drive to further innovation. Three main determinants of knowledge creation and creativity processes are identified as: (1) structured ‘space’ that creates expertise and experience of individuals while working in routine; (2) willingness to innovate, i.e., individuals’ propensity to experiment with ideas, even at risk of failure; and (3) authorized and dedicated ‘space’ designated specifically for individuals to explore new ideas, labelled here as Freiraum.

This output has both extended knowledge in the field (most notably in suggesting an adaptation to the long-established SECI model of knowledge conversion) and opened up the opportunity for further debate in the area. Some of this will come through further papers from the larger study discussed here, currently under preparation. Future extension to the work may include consideration of the relative value of Freiraum in specific work contexts, the identification of types and characteristics of Freiraum (e.g. individual Freiraum vs group Freiraum), and the extent to which the findings presented here may be applicable to efforts to enhance innovation capacity at sectoral or national level.
