Testing the validity of Wikipedia categories for subject matter labelling of open-domain corpus data

4.1. Derivation of hierarchical taxonomy from Wikipedia categories

Hierarchical taxonomies offer flexible degrees of granularity in subject matter labelling, because they let annotators choose between specific labels from deeper levels of the taxonomy and less specific labels from higher levels, depending on how sure they are about the subject of a given document. In case of uncertainty, more general but accurate rather than specific but incorrect labels should be used [13] (p. 174). For crowd-based corpora labelled by non-experts, this flexibility helps avoid labelling errors, because annotators are not forced to assign specific labels when in doubt. Furthermore, hierarchies are very well suited for navigation and browsing [10]. In combination with its size and coverage, its hierarchical structure makes the WCS a prime candidate for the labelling and navigation of open-ended crowd-based text collections. However, the WCS is not without problems. While Wikipedia aims to organise its categories as a directed acyclic graph of polyhierarchical subsumption relations [3], it was found that the graph is, in fact, a noisy pseudo-hierarchical structure with cycles [22]. Similarly, Boldi and Monti [20] describe the WCS graph as a sparse and noisy category pseudo-forest that contains cycles, duplications, errors and oversights, and that is often too fine-grained; therefore, the graph is difficult to use directly without prior modifications.

Despite these deficiencies, it has been shown that the WCS can be hierarchised by pinpointing a root and top-level categories and by organising the graph into hierarchy levels according to the length of directed paths in the graph [4,21]. Following this idea, we derived a hierarchical taxonomy from the categories of the English Wikipedia, making as few modifications to the original graph as possible, as described in the next paragraph. Given that only the first three to five levels of the WCS yield reasonably good subsumption relations [19], our taxonomy is limited to a depth of three levels. This limit is in line with our aim of evaluating a lean and manageable yet sufficiently detailed taxonomy for Use Case 2.

First, the 13 main categories from the English Wikipedia overview page ⁴ were extracted. These categories are as follows: General Reference, Culture, Geography, Health, History, Human activities, Mathematics, Nature, People, Philosophy, Religion, Society and Technology. Some category names were modified slightly to make them more succinct (e.g. Health and fitness was shortened to Health). The categories Human activities and People were merged into a new category Person, since more than 90% of their articles had overlapped. The number of articles per category was retrieved with the MediaWiki API. ⁵ A root node was added to connect the categories at the zeroth level of the graph. Subsequently, for each category, the subcategories along with the number of articles assigned to it were extracted. These numbers can be derived from Wikipedia dumps or using the MediaWiki API. For instance, the category Health has several subcategories such as Self-care, which by itself has more fine-grained subcategories like Fitness or Longevity. This process could be repeated several times for the subcategories, depending on the total depth of the respective branch. However, for the sake of manageability and the above-mentioned reasons identified in Bairi et al. [19], we extracted only the first three levels. Subcategories beyond the third level are very sparse.

At the second and third levels of the resulting graph, two problematic issues arise. First, there are instances of cyclic relations, meaning that some second-level subcategories are further categorised into one of the first-level categories. We removed links causing cycles. The second problem is that the graph contains duplicates of subcategories where a specific third-level subcategory has two different parents. We used frequency counts (i.e. how often a category is assigned to articles) of each subcategory to resolve ambiguous hierarchical relations.

The resulting three-level taxonomy is provided in the Supplementary Material.

4.2. Test corpus

To test whether the three-level taxonomy described in Section 4.1 is suitable for accurate and reliable labelling of open-domain text corpora, a crowd-based online annotation study was conducted. The volunteer annotators (see Section 4.4) were asked to use our designated online interface (see Section 4.3) to label the subject matter of eight short text fragments each. Broad thematic coverage and stylistic diversity of the test corpus was ensured by randomly sampling a total of 160 English texts from two sources: (1) the written component of the BNC XML Edition, ⁶ a 90-million-word general-purpose corpus of British English covering a large variety of registers, genres, subject domains and linguistic styles; (2) the English Wikipedia, which is a ‘proxy for knowledge in general’ [4] (p. 2) due to its size and thematic diversity. The Wikipedia sample was created manually using Wikipedia’s random article selector, ⁷ ignoring stubs shorter than three sentences. Based on BNC’s subject domain annotation, the thematic coverage of the BNC sample was assessed: the sample covers all nine BNC subject domains, with natural sciences and imaginative literature being underrepresented (Figure 1). The Wikipedia sample lacks unambiguous subject ground truth, because Wikipedia articles are usually assigned to multiple Wikipedia categories. We deem the test corpus a proxy to open-domain problems despite its limited size, because it combines samples from two large, thematically diverse and stylistically complementary representative text collections.

OPEN IN VIEWER

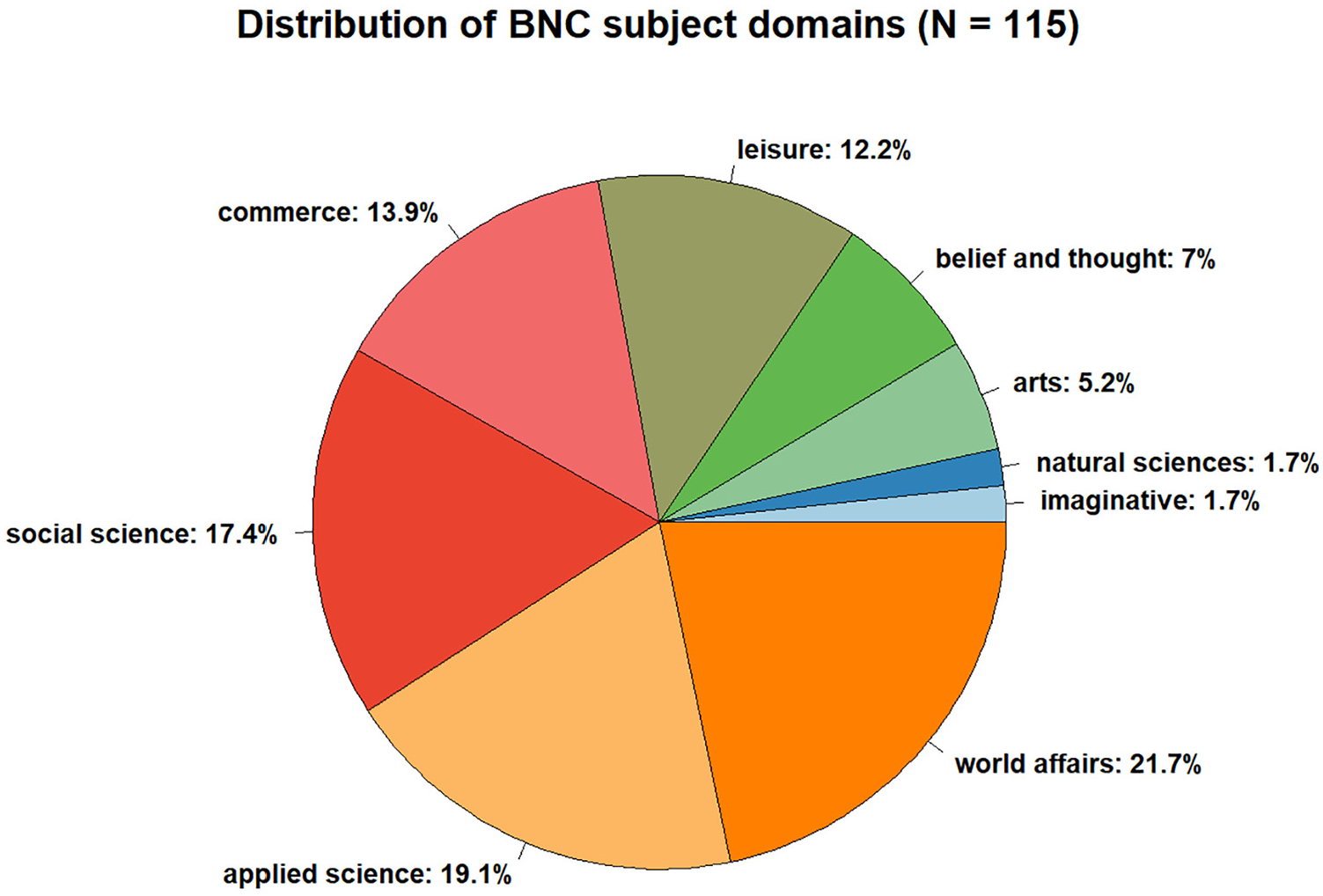

Figure 1.

Relative distribution of topics in BNC sample, based on BNC’s subject domain annotation.

To avoid multi-topic texts and prevent demotivation of volunteer annotators, the sampled texts were truncated to approximately 120 words, respecting sentence boundaries. Such snippets are valid task stimuli, because usually the initial sentences of a text determine its ‘aboutness’ and establish the contact between writer and reader [23]. A breakdown of the test corpus is shown in Table 1.

OPEN IN VIEWER

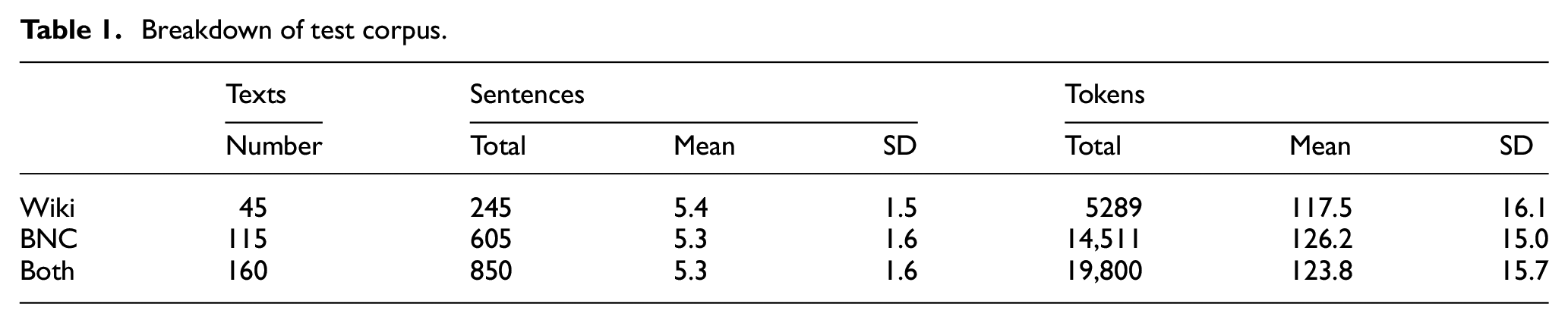

Table 1.

Breakdown of test corpus.

	Texts	Sentences			Tokens
	Number	Total	Mean	SD	Total	Mean	SD
Wiki	45	245	5.4	1.5	5289	117.5	16.1
BNC	115	605	5.3	1.6	14,511	126.2	15.0
Both	160	850	5.3	1.6	19,800	123.8	15.7

4.3. Annotation interface

For the labelling of the test corpus, we developed a web-based interface that comprises three components: (1) instruction page with brief explanation of labelling procedure; (2) labelling panel; and (3) survey form. In the labelling panel, eight texts randomly selected from the test corpus were shown to annotators on separate pages, one page per text. Each text from the test corpus was assigned to three annotators. The overall study objective, as well as the taxonomy’s provenance, was not disclosed to avoid annotators’ bias. As shown in Figure 2(a), the annotators were tasked with labelling the subject matter of texts as precisely as possible by selecting appropriate entries from the taxonomy with the help of a three-level dropdown list. The dropdown list is a dependent one, that is, the options displayed at lower levels depend on the choices made on higher levels. Five-point rating scales next to each dropdown level captured how confident annotators were about their choices. Leaving any of the dropdowns or confidence ratings blank was not possible. Normally, in crowd-based subject labelling by non-experts annotators would be allowed to limit their label choices to the top level if they cannot find suitable labels at deeper levels of the taxonomy. However, in this study, annotators were required to choose labels at all three levels, because measuring labelling confidence is essential to assess the taxonomy’s intuitiveness. Furthermore, the labelling panel supported only a hierarchical use of Wikipedia categories. The reason for this is that we tested two more labelling modes (autocomplete-supported tagging with flat list of tags; combination of hierarchical taxonomy and free-text tagging) in a pilot study with an independent cohort of volunteer annotators, observing that the exclusive use of the hierarchical taxonomy yielded the most conclusive results. To ensure the labelling panel’s usability and to control for potential confounding variables, we decided to limit the panel to the hierarchical labelling mode only.

OPEN IN VIEWER

Figure 2.

Screenshot of labelling panel (a) and survey form (b) used for data collection in the crowd-based annotation study.

Figure 2(b) shows the survey form, which was displayed to annotators upon complete annotation of the eight texts. Through the survey form, annotators stated their opinion about the taxonomy by indicating their level of agreement with six qualitative statements on six-point Likert-type scales.

The collected data are provided in the Supplementary Material.

4.4. Annotators

Calls to voluntarily participate in the study were distributed through a number of academic mailing lists and social media channels in the field of (corpus and computational) linguistics, translation, natural language processing and digital humanities, such as the LINGUIST List. ⁸ The addressees were also encouraged to share the call with others. Participation in the study was open to anyone, not just to language experts or English native speakers. No remuneration was paid.

In total, 54 annotators volunteered in the study. Their self-reported profiles are summarised in Figure 3. The majority of annotators are academic language experts with advanced proficiency in English and thus representative of the target group of Use Case 2: researchers interested in well-labelled corpus data. The observed variation in annotators’ individual profiles approximates the crowd-based labelling scenario underlying this study. Annotators’ previous experience in corpus labelling was not assessed, because in real-life crowd-based labelling, it would be barely controllable.

OPEN IN VIEWER

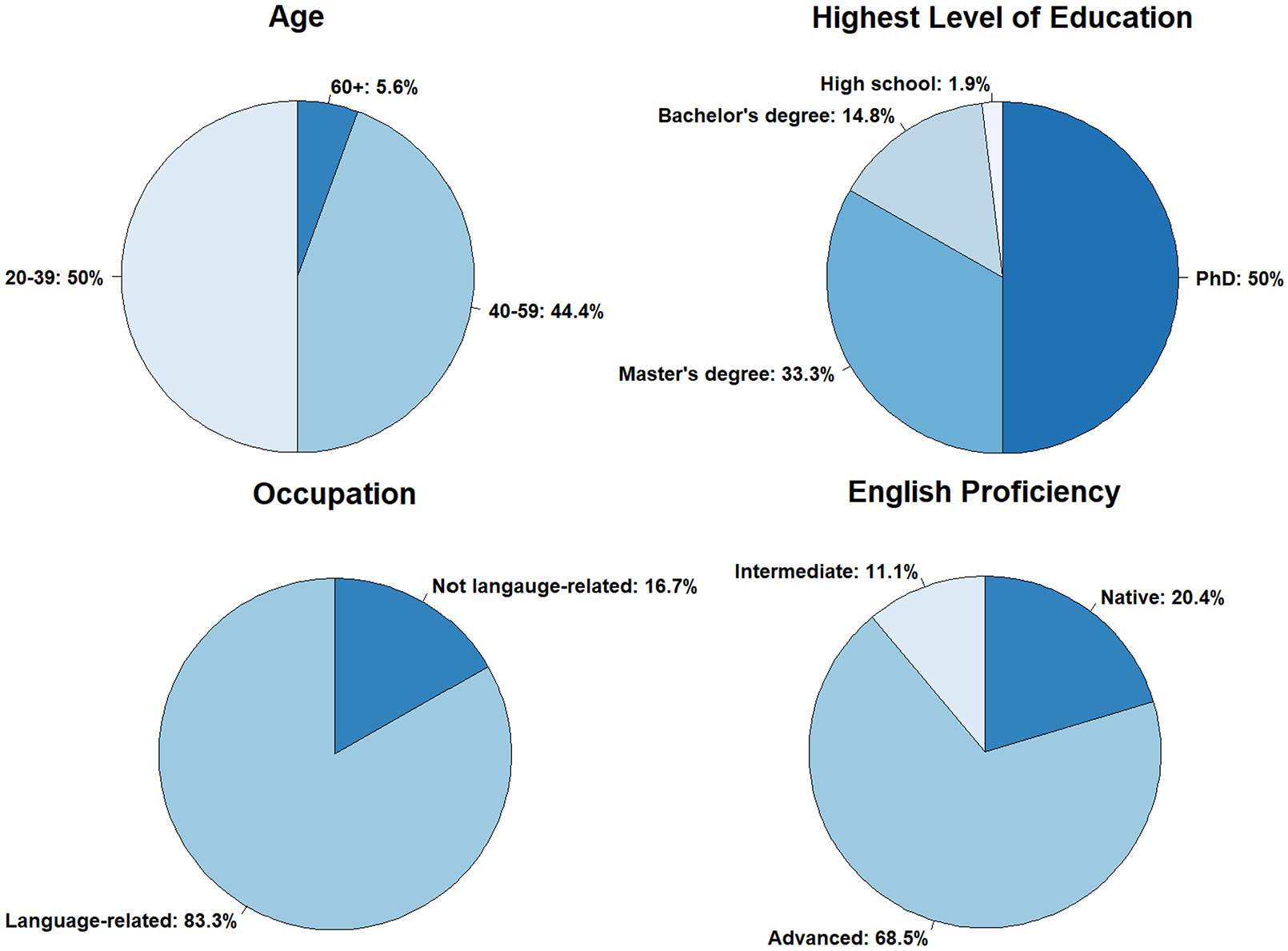

Figure 3.

Summary of annotators’ demographic data (English proficiency, age, highest level of education and occupation).

5.1. Descriptive analysis of the derived taxonomy

The derived monohierarchical taxonomy is a directed acyclic graph with 848 nodes, organised into 12 categories at the first level (L1) and 82 categories at the second level (L2). The average number of child nodes for first-level categories is 6.8 and for second-level categories 10.3. On average, each first-level category ends up in 70.7 leaves at the third level (L3). The average branching factor over the entire graph is 9.9. These numbers indicate increasing granularity at deeper levels. However, there is considerable variability in the granularity, especially at the second level, where the number of third-level child nodes ranges from 1 to 34 (M = 10.3, Mdn = 8, SD = 7.29). The three most fine-grained L2 categories are Religion > Religionism with 34 children at L3, Geography > Landforms with 32 children at L3 and Culture > Sports with 15 children at L3. By contrast, the L2 categories Culture > Recreation and Society > Government and Politics have only four and three L3 children, respectively. Consequently, labelling of texts concerned with the latter subject matters is inevitably less precise than for the fine-grained categories. These discrepancies in terms of granularity can be attributed to the unbalanced distribution of topics in Wikipedia [4,21,22]. As a matter of fact, even the fine-grained categories are inherently incomplete. For instance, the L2 category Culture > Sports has 15 child nodes referring to various types of sports; hence, the only way to label a text dealing with a sports topic not covered by these 15 categories would be to resort to the more coarse-grained L2 label Sports, at the expense of labelling precision.

Inconsistency and ambiguity, known to be the potential drawbacks of social tagging [13,8], can also be detected in our taxonomy. For instance, topics related to medicine appear at various positions of the graph: as the L2 category Health > Medicine, as the L2 category Health > Human Medicine or as the L3 category Technology > Technology and Science > Medicine. Such ambiguities may impede clear-cut labelling choices, thus reducing the reliability of the taxonomy as a controlled vocabulary for corpus labelling.

5.2. Validity of the taxonomy: IRA

Out of the 160 texts in the test corpus, 112 were labelled by three annotators each, while 48 texts were labelled by two annotators, thus yielding 432 total observations. From all labels available in the taxonomy, annotators used 12 different first-level labels (= 100% of all labels at L1), 61 different second-level labels (= 74.4%) and 190 different third-level labels (= 22.4%). The high percentages at L1 and L2 indicate broad topic coverage of the test corpus, which suggests that despite its limited size, the test corpus is representative of open-domain text collections. According to L1 labels (Figure 4), in the labelled data, humanities topics (e.g. Society, Culture, Person, History) are more prevalent than natural and applied sciences topics, with the notable exception of Technology. The distribution of L1 labels appears to mirror the composition of the test corpus, although the BNC subjects reported in Section 4.2 are not directly comparable to the WCS-based taxonomy labels. In Wikipedia, topics related to human sociocultural life are overrepresented [16,18], therefore the WCS-based taxonomy may have biased annotators towards labels from these categories.

OPEN IN VIEWER

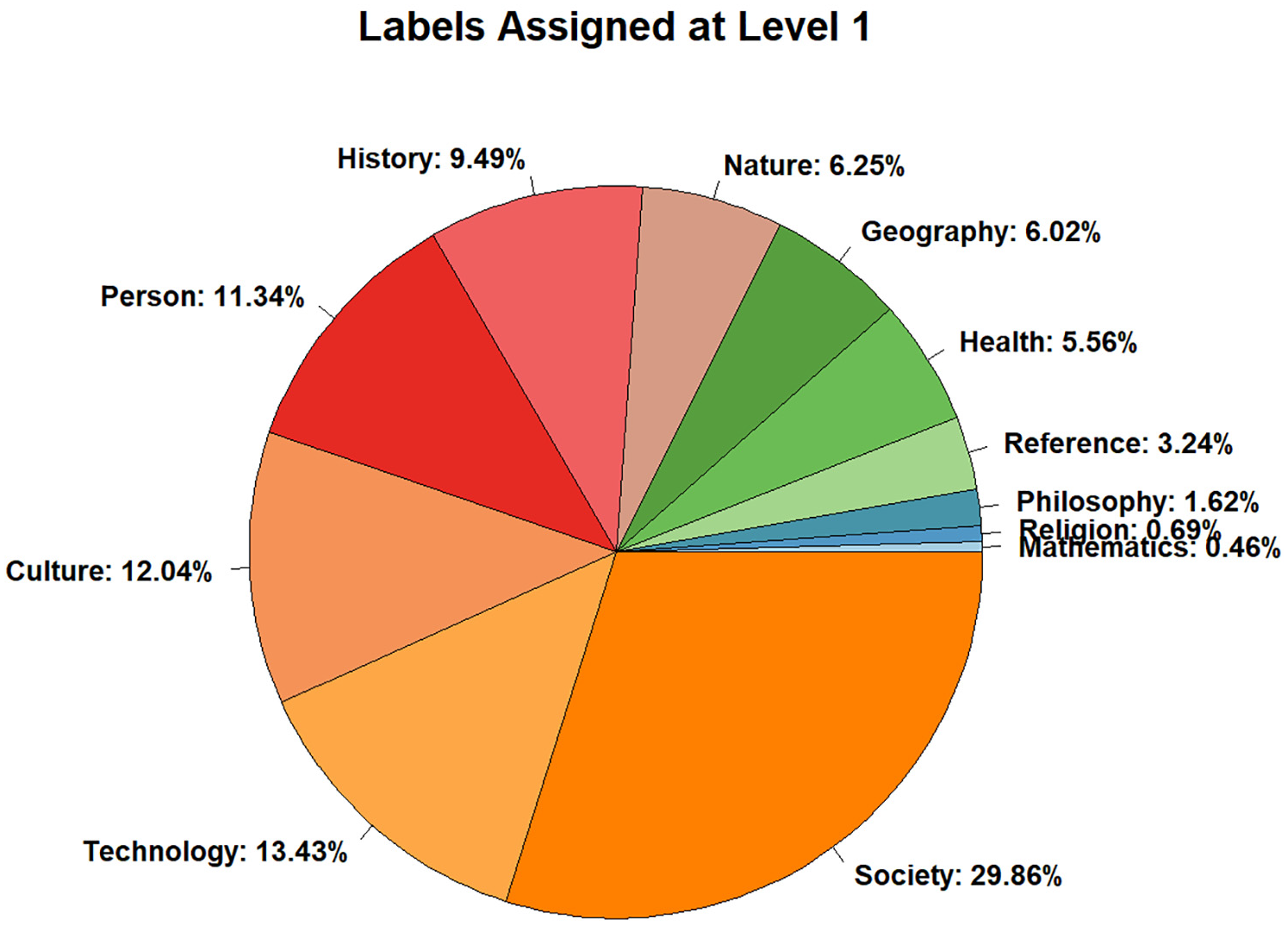

Figure 4.

Relative distribution of first-level labels assigned by annotators to the 160 texts of the test corpus.

To validate whether the three-level taxonomy is suitable for accurate hierarchical multi-class labelling of subject matters, the labels annotators assigned to texts were analysed in terms of IRA. Krippendorff’s alpha (α) was used as the agreement statistic, because it treats the randomly sampled raters as freely permutable and interchangeable, thus not being biased by raters’ individual identities [24]. α was computed with the irr package [25] for R; 95% confidence intervals for α were computed with the standard bootstrap resampling method (10,000 iterations) recommended by Zapf et al. [26], as implemented in the lamisc R package [27]. We computed individual αs for each level of the taxonomy, as well as overall αs across all three levels. Overall αs were computed in two different ways: first, by taking the mean of the three individual per-level αs, and, second, by computing one multi-label α [28]. In the latter approach, agreement is not computed on one label, but on one set of three labels. To account for partial agreement between annotators, for example, two annotators agreeing on the labels at L1 and L2 but disagreeing at L3, the Jaccard distance metric was used to capture partially overlapping multi-label sets. Overall multi-label α with Jaccard distance was computed with the NLTK toolkit [29].

Table 2 shows that overall multi-label α for all texts are only in the range of fair agreement, which by definition ranges from 0.21 to 0.40 [30]. Only at the first level we observe IRA in the moderate range (0.41–0.60 by definition), with α = 0.49 (95% confidence interval: 0.41–0.56). The non-overlapping confidence intervals at the first two levels for all 160 texts show that the observed agreement difference is statistically significant at the 0.05 level. This was to be expected, because the first level of the taxonomy is much more coarse-grained than the remaining two levels, thus making labelling arguably easier at higher levels of the taxonomy. Yet, even at the first level, the taxonomy scores below the minimum of 0.667 required for acceptable agreement [31]. Taking into account all levels – irrespective of the method of overall agreement computation – the minimum acceptability of 0.667 is missed by a large margin. Therefore, we conclude that the derived taxonomy is not a sufficiently valid instrument for the manual labelling of the test corpus. At the third level, agreement is mostly only in the slight range (0.00–0.20 by definition), rendering the most fine-grained level of the taxonomy almost useless for the labelling task. While agreement is slightly higher for Wikipedia texts than for BNC texts (see Table 2), for both text sources, it is in the fair range only, except for the first level. The large overlaps of the confidence intervals at each level of Wikipedia and BNC texts suggest that the text source does not have an influence on IRA.

OPEN IN VIEWER

Table 2.

Interrater agreement (Krippendorff’s α and 95% confidence intervals) on labelling of test corpus, grouped by text source (Wikipedia, BNC, all).

		All (n = 160)			Wiki (n = 45)			BNC (n = 115)
		α	CI lower	CI upper	α	CI lower	CI upper	α	CI lower	CI upper
Per level	Level
	L1	0.49	0.41	0.56	0.53	0.39	0.66	0.46	0.36	0.55
	L2	0.28	0.22	0.33	0.30	0.19	0.40	0.26	0.20	0.33
	L3	0.19	0.14	0.24	0.27	0.16	0.37	0.16	0.11	0.20
Overall	Method
	α (mean)	0.32	0.26	0.38	0.37	0.24	0.48	0.29	0.22	0.36
	α (Jaccard)	0.27	–	–	0.32	–	–	0.25	–	–

The table shows the per-level scores for each category level and overall scores across levels.

5.3. Completeness and intuitiveness of the taxonomy: annotator feedback

In this part of the study, we collate the findings on IRA from Section 5.2 with annotators’ feedback obtained through (1) the survey form displayed to annotators upon completion of the labelling task and (2) the five-point confidence rating scales for each level of the labelling panel.

In the survey form, annotators indicated their level of agreement with the following six qualitative statements:

Q1 elicits data on perceived text comprehensibility; Q2 and Q4 on intuitiveness of the taxonomy; and Q3, Q5 and Q6 on its completeness. Responses to Q1 indicate that annotators’ understanding of the labelled texts was high: more than 75% of annotators fully or mostly agreed with Q1 (Figure 5). The high self-reported text comprehensibility suggests that the low IRA scores are likely not caused by overly difficult texts in the corpus. Furthermore, there was no significant association between annotators’ self-reported English proficiency and perceived text comprehensibility, as assessed by a two-sided Fisher’s exact test (p = 0.43). Therefore, both annotators’ linguistic profiles and text comprehensibility can be ruled out as factors contributing to low IRA.

OPEN IN VIEWER

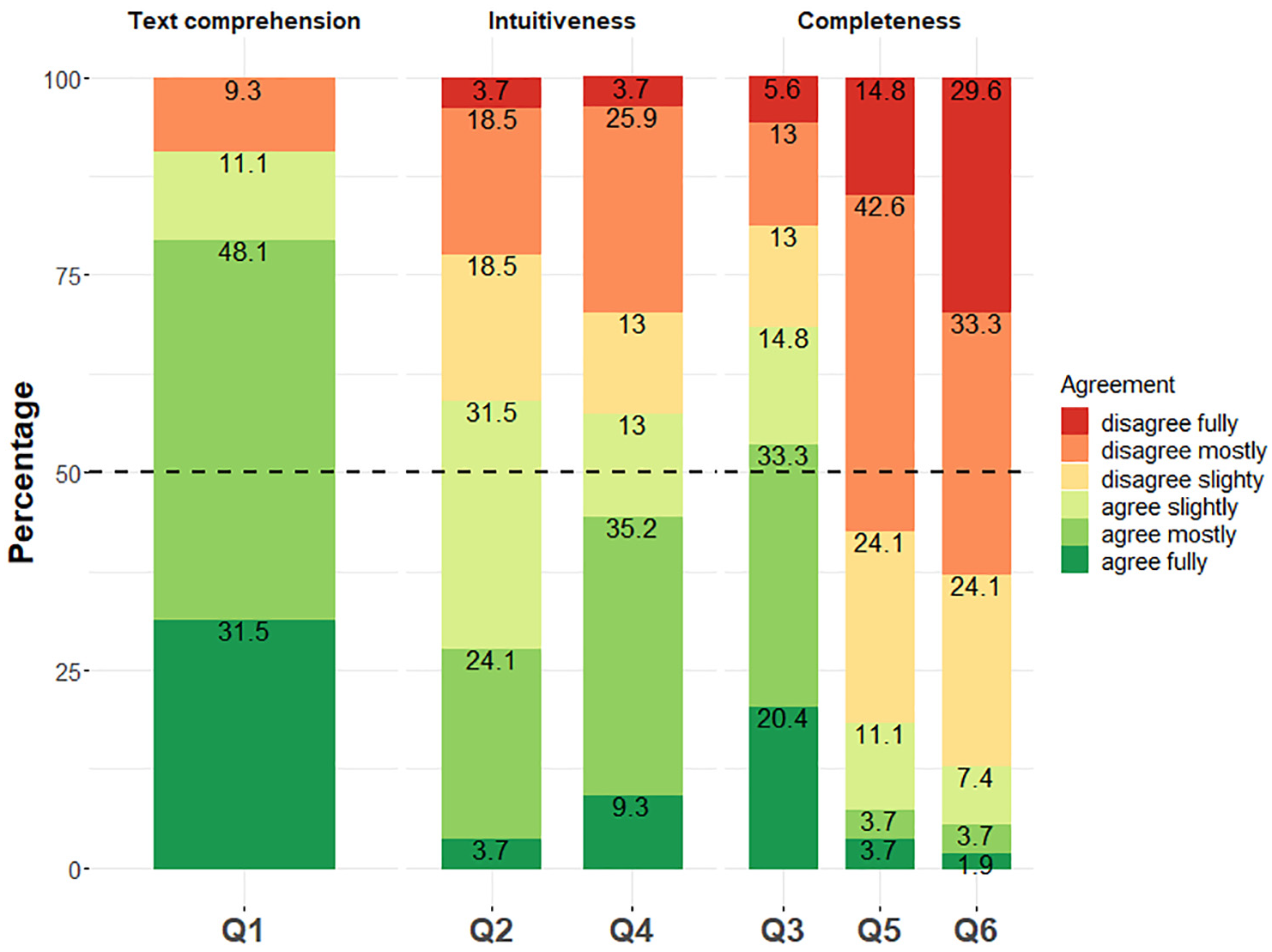

Figure 5.

Relative distribution of annotators’ responses to the statements Q1 to Q6 of survey form (n = 54).

With regard to intuitiveness, more than 50% of annotators state full to slight agreement to Q4, but there is also a considerable percentage of disagreement (Figure 5). The picture is even less clear for Q2, for which we observe considerable variability in the responses. From these number we conclude that the intuitiveness of the taxonomy for untrained annotators cannot be taken for granted, although the responses to Q2 and Q4 are slightly skewed towards the positive range of agreement. This, in turn, means that variability in annotators’ intuitive understanding of and comfort with the taxonomy may have contributed to low IRA.

Finally, with regard to the taxonomy’s completeness, the depth of three levels was mostly deemed sufficient by annotators (Q6 in Figure 5). However, the number of categories (848) was mostly deemed insufficient: over two-thirds agree fully to slightly that the taxonomy should have more categories (Q3), while full to slight agreement to Q5 accounts only for a cumulative 18.5%. Annotators’ perceived incompleteness of the taxonomy can be interpreted in light of the heterogeneous granularity of the labels described in Section 5.1. In fact, one annotator proactively contacted us by email, reporting discomfort with the variability of granularity, which made it difficult to get used to the taxonomy on one hand and to precisely label texts on the other. We hypothesise that annotators’ high agreement to Q3 reflects the inherent incompleteness of static knowledge organisation systems when applied to open-domain problems.

Annotators’ self-rated labelling confidence (i.e. how sure they were about each chosen label) was captured through the five-point rating scales of the labelling panel. The data indicate that despite the completeness and intuitiveness issues identified above, annotators were mostly confident about the chosen labels, with a gradual decline from first-level to third-level labels (Figure 6). The distribution of confidence ratings differs significantly across levels, as assessed by a chi-square test (p < 0.01, χ² = 88.554, df = 8). Hence, higher IRA at L1 (see Section 5.2) is also reflected in higher labelling confidence. However, annotators’ perceived confidence ratings for individual texts differ considerably, because IRA on the confidence ratings for all 160 texts is very low – in fact, even lower than IRA on the labels: α = 0.13 for the first level (95% confidence interval: 0.02–0.24), α = 0.17 for the second level (0.06–0.28) and α = 0.23 for the third level (0.12–0.34). This means that while in absolute terms annotators reported relatively high labelling confidence, there is large variability as to which texts were labelled with high confidence. This, in turn, means that labelling confidence itself is not necessarily a predictor of labelling agreement.

OPEN IN VIEWER

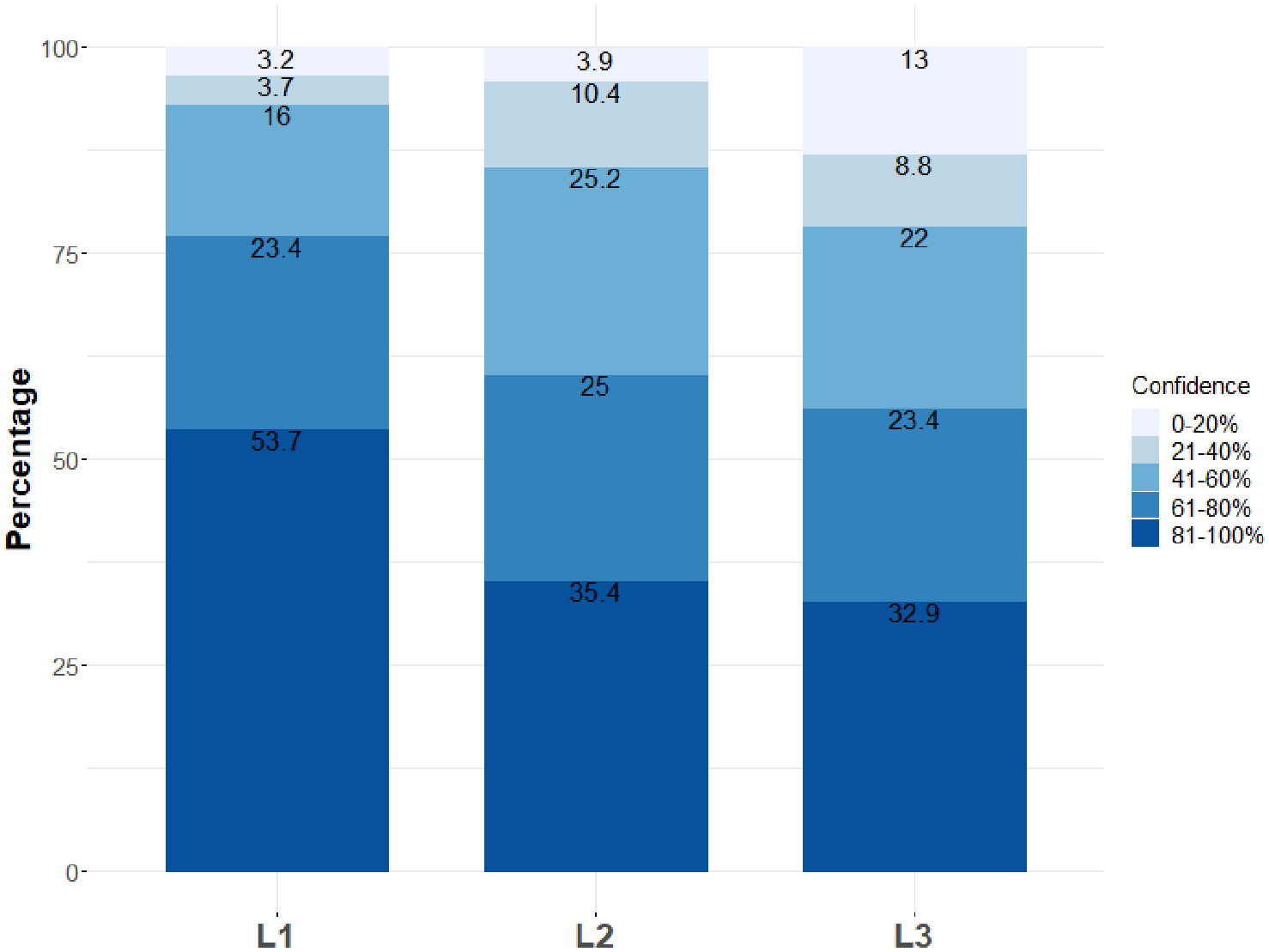

Figure 6.

Relative distribution of annotators’ self-rated labelling confidence by taxonomy level (n = 432).

To account for the individual differences in annotators’ confidence ratings, for each text, we computed mean confidence scores from the individual confidence ratings indicated by the annotators. Mean confidence scores were computed for all three levels of the taxonomy. A Kruskal–Wallis H-Test showed that there was a statistically highly significant difference in mean confidence ratings across labelling levels: χ²(2) = 47.689, p < 0.01, with mean confidence ratings of 4.2 for L1, 3.8 for L2 and 3.5 for L3. Post hoc pairwise comparison using Wilcoxon Rank Sum Test showed that mean confidence ratings at L1 differ significantly from L2 and L3, (p < 0.01 each), while the difference in mean confidence ratings between L2 and L3 is not significant (p = 0.053). This corroborates the results of the chi-square test computed on the raw confidence rating counts. In addition, it suggests that the granularity of labels has a significant impact on rating confidence: the more coarse-grained the label, the higher is raters’ perceived labelling confidence.

To analyse the effect of rating confidence on labelling agreement, the test corpus was divided into three distinct groups (high, medium and low labelling confidence) based on the mean confidence ratings for each text. Subsequently, IRA on the assigned labels was computed for each group. As shown in Table 3, on all three taxonomy levels, higher labelling confidence leads to higher labelling agreement. The non-overlapping 95% confidence intervals for texts labelled with high and medium confidence indicate that IRA for high-confidence texts is statistically significantly higher than for texts labelled with lower confidence. Yet, even at the coarse-grained first level, IRA for texts labelled with high confidence is only in the moderate range and below the required minimum of 0.667. For low-confidence texts, the confidence intervals include zero and therefore indicate lack of agreement; however, the number of observations is very low and therefore the results are not robust. By means of a qualitative inspection of the labels assigned by annotators to texts in the low-confidence group, we identify the following factors that may explain low labelling confidence and thus low labelling agreement:

OPEN IN VIEWER

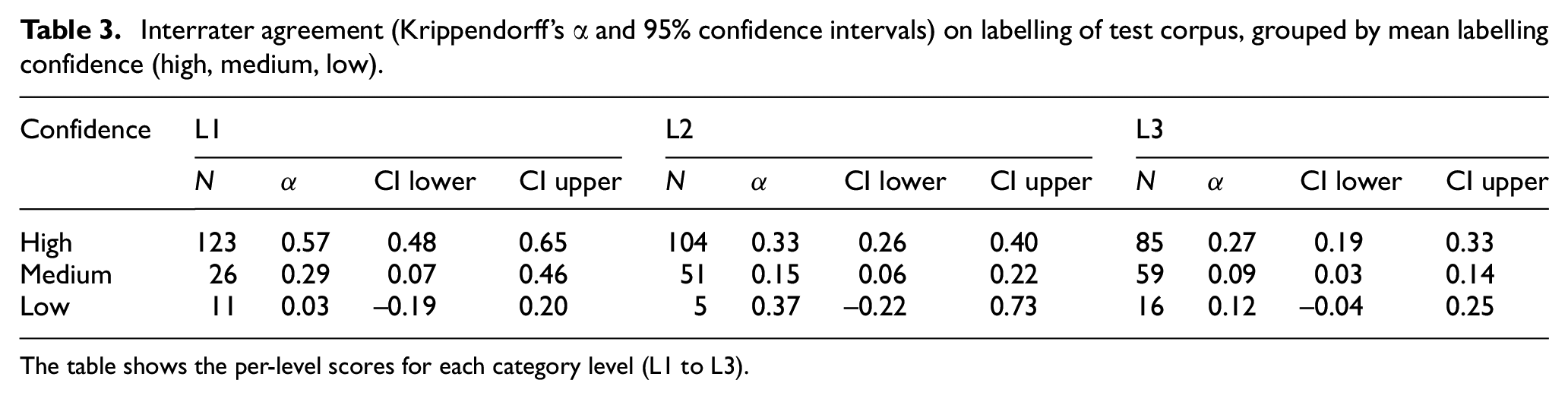

Table 3.

Interrater agreement (Krippendorff’s α and 95% confidence intervals) on labelling of test corpus, grouped by mean labelling confidence (high, medium, low).

Confidence	L1				L2				L3
	N	α	CI lower	CI upper	N	α	CI lower	CI upper	N	α	CI lower	CI upper
High	123	0.57	0.48	0.65	104	0.33	0.26	0.40	85	0.27	0.19	0.33
Medium	26	0.29	0.07	0.46	51	0.15	0.06	0.22	59	0.09	0.03	0.14
Low	11	0.03	−0.19	0.20	5	0.37	−0.22	0.73	16	0.12	−0.04	0.25

The table shows the per-level scores for each category level (L1 to L3).

With regard to social tagging, the lack of a controlled vocabulary is seen as the major problem [8]. The first two factors listed above indicate, however, that in this labelling study, the structure of the controlled vocabulary itself (i.e. the Wikipedia-based taxonomy) may cause difficulties, too. The remaining two factors may be attributed to the lack of training of annotators in this study. However, it remains unclear whether annotator training and more detailed labelling guidelines may compensate for the apparent deficiencies of the taxonomy.
