Lipid Embolism in Obese Göttingen Minipigs

Abstract

Pigs are used as a model of human obesity, both for metabolic characterization and for evaluation of pharmacological interventions. Over a period of 7 years, acute death or clinical signs requiring immediate euthanasia were observed in 12 obese Göttingen minipigs (GMs) included in different pharmacological studies. The GM were fed ad libitum on normal chow-diet and the unscheduled deaths occurred in animals treated with drug candidates as well as in untreated animals. The most prominent clinical signs requiring euthanasia included varying degrees of respiratory distress; and on histopathological examination, thickening of the alveolar septa due to vacuolation was observed throughout the lung in 10 of the 12 animals. Furthermore, vacuolation in glomeruli of the kidney was detected in 9 of the 10 animals. Oil red O staining of cryosections demonstrated that the vacuoles both in lung and kidney contained lipid, and immunohistochemistry with anti-von Willebrand factor and transmission electron microscopy revealed that the lipid was localized in the lumen of blood vessels establishing the occurrence of fatal pulmonary lipid embolism. Additionally, lipogranulomatous inflammation in the abdominal adipose tissue was observed in all the GMs with lipid emboli.

Keywords

animal model minipig lipid embolism respiratory distress lung kidney acute death lipogranulomatous inflammation steatitis

Introduction

Obesity is a worldwide epidemic with a high and increasing prevalence and can result in metabolic syndrome and increased risk of severe diseases such as diabetes, cardiovascular disease, and cancer.^1
-3 To decrease the burden of obesity and its sequelae, new and efficient treatments are needed, leading to the necessity for predictive preclinical animal models of obesity.

Rodents, mainly diet-induced obese mice or rats, are used as valuable, first in-line preclinical models for evaluation of efficacy, and often, the efficacy is confirmed in a nonrodent obesity model such as obese nonhuman primates or obese pigs. Pigs share many physiological and anatomical similarities with humans,^4,5 and they easily develop obesity when fed on high-energy diets.⁶ The Göttingen minipig (GM) is a small, microbiologically and genetically well-characterized strain, commonly used in both pharmacology and toxicology.⁷ The female GM readily develops gross obesity when fed ad libitum on a normal chow diet,^8,9 and the female GM has been used as primary nonrodent obesity model at Novo Nordisk A/S for more than 10 years. The effect of the Glucagon-like peptide-1 receptor agonist liraglutide on food intake and body weight (BW) has been described in this model, indicating its translational potential.⁹

The present article describes the occurrence of lipid embolism in 12 obese GMs which either died by acute death or had clinical signs requiring immediate euthanasia. Within a period of 7 years, 8 studies including 128 pigs have been performed with a variety of antiobesity drug candidates. The clinical signs leading to the decision of immediate euthanasia included respiratory distress and/or prolonged anorexia and the affected animals included both vehicle and drug-treated animals. In addition, 3 obese GMs, with clinical observations requiring scheduled euthanasia in the interstudy period, 13 obese drug-naive or previously treated GMs without clinical observations, and 5 lean, age-matched, drug-naive GMs were studied.

Materials and Methods

Animals, Feeding, and Housing

All studies were conducted in accordance with national regulations in Denmark, which are fully compliant with internationally accepted principles for the care and use of laboratory animals and with animal experimental licenses granted by the Danish Ministry of Justice.

In the 7-year period, the obese minipigs were housed either at the experimental animal facility at Copenhagen University (Taastrup, Denmark, Studies 1-4) or at CitoxLAB Denmark (Lille Skensved, Denmark, Studies 5-8). The typical study setup is described below and in Figure 1.

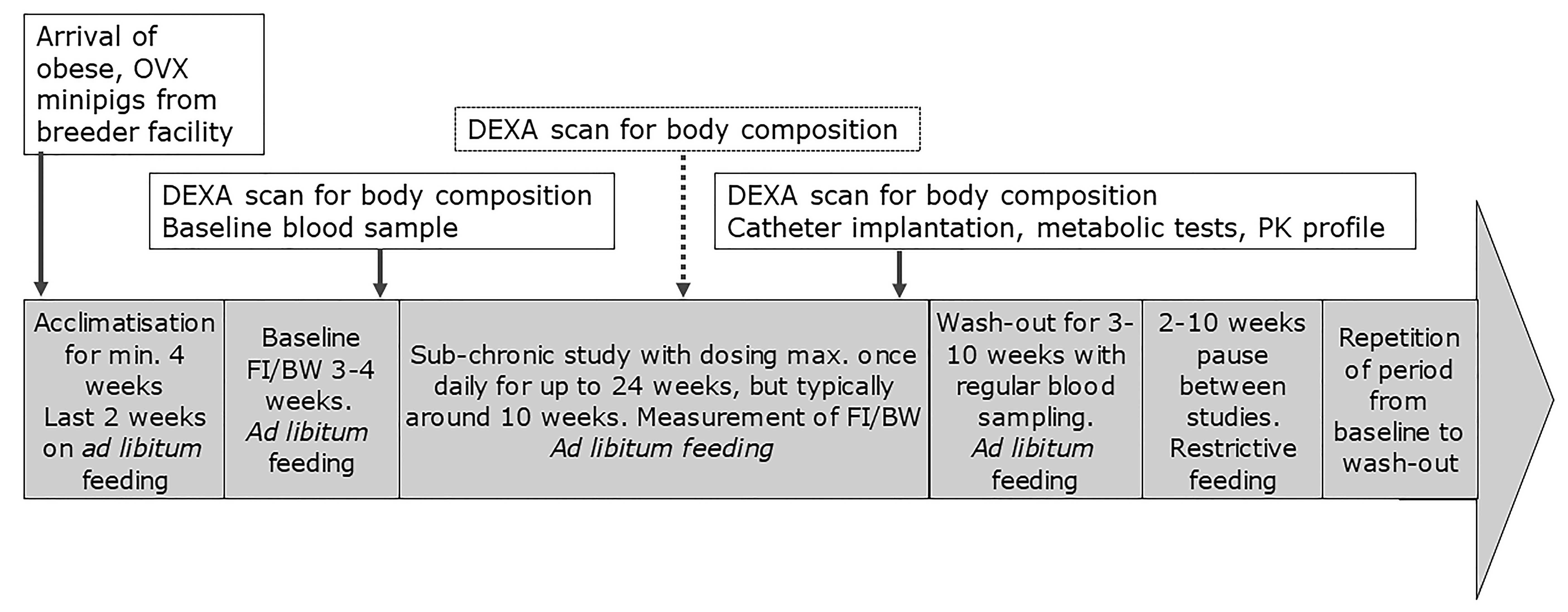

Figure 1.

Outline of typical study setup in the obese Göttingen minipig model. BW indicates body weight; DEXA, dual-energy X-ray; FI, food intake; max, maximum; min, minimum; PK, pharmacokinetics; OVX, ovariectomized.

Female GMs (Ellegaard Göttingen Minipigs A/S, Dalmose, Denmark) were selected at approximately 5 to 6 months of age, and either they were ovariectomized at Ellegaard Göttingen Minipigs A/S or later after arrival to CitoxLAB. Denmark Ovariectomy was performed in order to avoid the large variation in food consumption in relation to the reproductive cycle.¹⁰ Obesity was induced by gradually offering increasing amounts of food approaching ad libitum levels after 9 to 10 months, aiming for a BW of approximately 80 to 85 kg at study start. In the induction period, the pigs were fed SDS minipig diet (Special Diet Services, Essex, United Kingdom), Porcine G+ (Scanbur, Denmark), or Altromin 9023 (Brogaarden, Denmark), but in all cases, the pigs were changed to Altromin 9023 at least 2 months before study start and continued on this diet during the studies. This diet contains 1.5% polyunsaturated fat corresponding to 44% of the total fat content. Domestic water was always available ad libitum. After the induction period, at an age of approximately 15 to 16 months, the pigs entered the first study. In some cases, they were terminated after the first study and in other cases, they were subjected to a suitable washout period and reused in a second study before termination (Table 1). In the study periods, the pigs were fed ad libitum, and daily food intake was monitored using an automated system (Mpigwin/MP2, Ellegaard Systems/Mbrose, Faaborg, Denmark). In general, the ad libitum fed pigs consumed 1 to 1.5 kg per day, which correspond to 2 to 3 times the recommended amount. In the interstudy period, the pigs were fed restrictedly with 200 to 250 g Altromin 9023 twice daily to limit further development of obesity, and generally the animals had a limited weight loss in this period. In all studies, the obese pigs were allowed ad libitum access to food at least 3 weeks before study start. The lean reference pigs were fed restrictedly with 250 g Altromin 9023 twice daily. Body weight was measured on a large animal scale twice weekly (TW) during the study periods.

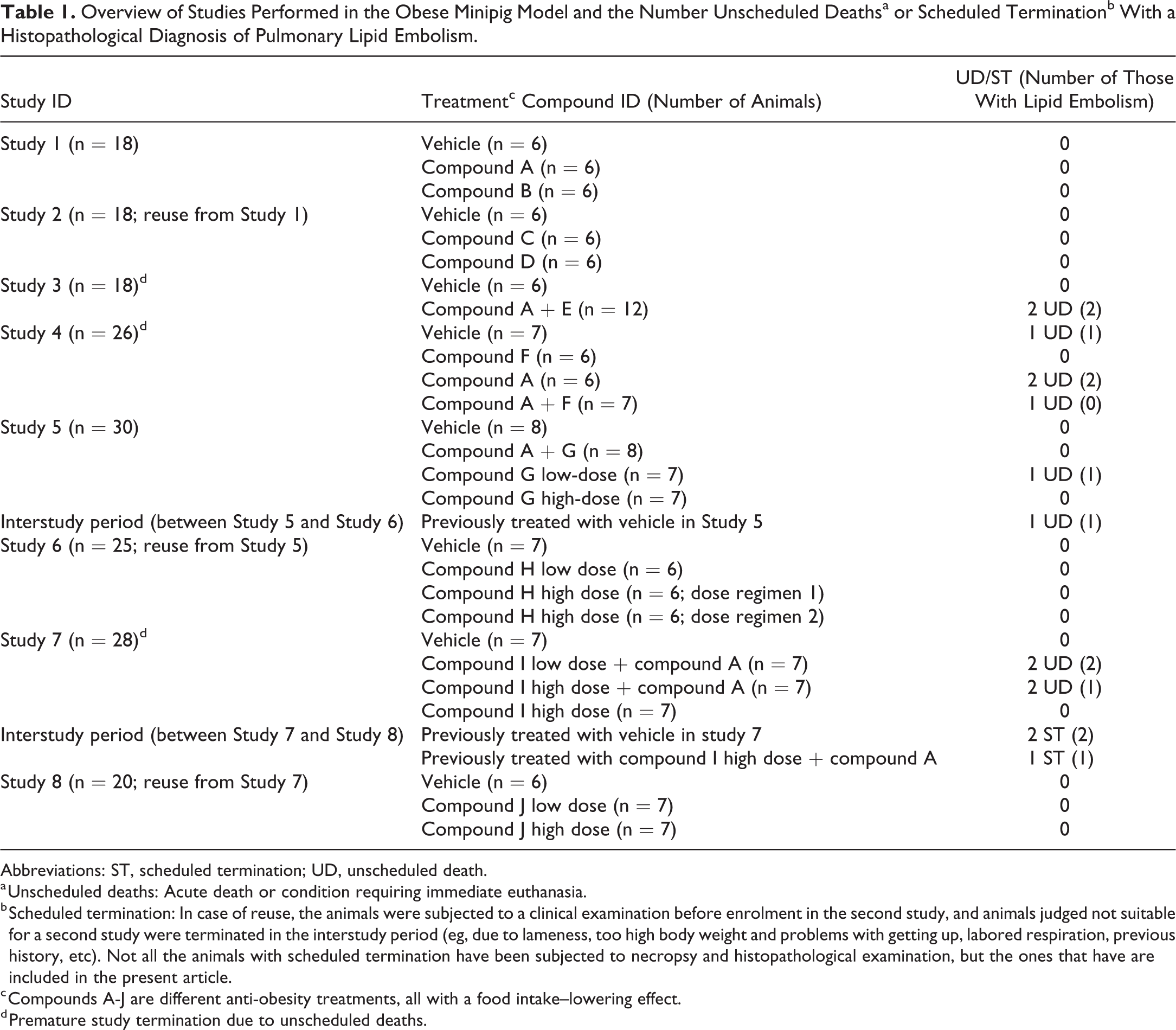

Table 1.

Overview of Studies Performed in the Obese Minipig Model and the Number Unscheduled Deaths^a or Scheduled Termination^b With a Histopathological Diagnosis of Pulmonary Lipid Embolism.

Study ID	Treatment^c Compound ID (Number of Animals)	UD/ST (Number of Those With Lipid Embolism)
Study 1 (n = 18)	Vehicle (n = 6)	0
	Compound A (n = 6)	0
	Compound B (n = 6)	0
Study 2 (n = 18; reuse from Study 1)	Vehicle (n = 6)	0
	Compound C (n = 6)	0
	Compound D (n = 6)	0
Study 3 (n = 18)^d	Vehicle (n = 6)	0
Study 3 (n = 18)^d	Compound A + E (n = 12)	2 UD (2)
Study 4 (n = 26)^d	Vehicle (n = 7)	1 UD (1)
	Compound F (n = 6)	0
	Compound A (n = 6)	2 UD (2)
	Compound A + F (n = 7)	1 UD (0)
Study 5 (n = 30)	Vehicle (n = 8)	0
	Compound A + G (n = 8)	0
	Compound G low-dose (n = 7)	1 UD (1)
	Compound G high-dose (n = 7)	0
Interstudy period (between Study 5 and Study 6)	Previously treated with vehicle in Study 5	1 UD (1)
Study 6 (n = 25; reuse from Study 5)	Vehicle (n = 7)	0
	Compound H low dose (n = 6)	0
	Compound H high dose (n = 6; dose regimen 1)	0
	Compound H high dose (n = 6; dose regimen 2)	0
Study 7 (n = 28)^d	Vehicle (n = 7)	0
	Compound I low dose + compound A (n = 7)	2 UD (2)
	Compound I high dose + compound A (n = 7)	2 UD (1)
	Compound I high dose (n = 7)	0
Interstudy period (between Study 7 and Study 8)	Previously treated with vehicle in study 7	2 ST (2)
Interstudy period (between Study 7 and Study 8)	Previously treated with compound I high dose + compound A	1 ST (1)
Study 8 (n = 20; reuse from Study 7)	Vehicle (n = 6)	0
	Compound J low dose (n = 7)	0
	Compound J high dose (n = 7)	0

Abbreviations: ST, scheduled termination; UD, unscheduled death.

^a Unscheduled deaths: Acute death or condition requiring immediate euthanasia.

^b Scheduled termination: In case of reuse, the animals were subjected to a clinical examination before enrolment in the second study, and animals judged not suitable for a second study were terminated in the interstudy period (eg, due to lameness, too high body weight and problems with getting up, labored respiration, previous history, etc). Not all the animals with scheduled termination have been subjected to necropsy and histopathological examination, but the ones that have are included in the present article.

^c Compounds A-J are different anti-obesity treatments, all with a food intake–lowering effect.

^d Premature study termination due to unscheduled deaths.

Treatment

Various anti-obesity drugs were tested in the model either as monotherapy or as combination therapy, as indicated in Table 1. All the animals were treated by subcutaneous (SC) injection in the skin behind the ears once daily, TW, or once weekly depending on the compound in question. Various vehicles were used: 8 mmol/L phosphate, 184 mmol/L propylene glycol, 58 mmol/L phenol, pH 7.4 or pH 8.15; 10 mmol/L phosphate, 2% glycerol, pH = 7.6; 50 mmol/L sodium phosphate, 70 mmol/L sodium chloride, 0.05% tween 80, pH 7.4; or 8 mmol/L phosphate, 18 mg/mL propylene glycol, pH 7.4 (see Supplemental Table 1 for details). The scheduled treatment period ranged from 53 to 140 days; in 3 cases, the unscheduled deaths lead to premature termination of the study as specified in Table 1.

Additional Study-Related Procedures

In some studies, and in the lean and obese reference pigs just before euthanasia, the body composition was determined by dual-energy X-ray absorptiometry scanning (DEXA scanning; see Supplemental Table 2 for details) and a central-venous catheter for stress-free blood sampling during metabolic tests, and exposure profiles were implanted under general anesthesia as described in Supplemental Table 2.

Clinical Evaluation

In the pigs, where clinical signs were observed, a limited clinical examination was performed. Typically, body temperature, respiratory frequency and quality, capillary refill time, heart rate, and in some cases oxygenation were obtained.

Blood Sampling and Plasma Analysis (Baseline Reference Values, Control Animals)

Blood samples for hematology and selected clinical chemistry parameters were obtained in the prestudy period in study 5 (in the anesthesia for baseline DEXA scanning), and clinical chemistry was obtained in the lean and obese reference pigs just before euthanasia to evaluate obesity-related differences in the measured parameters. For hematology, EDTA stabilized blood was taken, and hematological parameters were measured on an ABX Pentra DX120SPS (Horiba ABXdiagnostics, France). For clinical chemistry, blood was taken in plain glass tubes or in EDTA tubes, and concentration of triglycerides, total cholesterol, and albumin in the resulting serum or plasma was analyzed on a Cobas 6000 (Roche, Switzerland) according to the manufacturer’s instructions. Samples were analyzed for C-reactive protein (CrP) using luminescence oxygen channeling immunoassay. Acceptor beads were conjugated with a monoclonal antibody (mAb) toward porcine CrP (AM26061Pu-N, OriGene Technologies GmbH, Germany), donor beads were coated with streptavidin, and a mAb toward human/mouse/porcine CrP (MAB1707, R&D systems, Minnesota) was biotinylated. Five microliter of the calibrators, controls, or ×50 diluted unknown samples in pig plasma were incubated 1 hour at room temperature (RT) with a 15 µL mixture of acceptor beads (79 µg/mL) and biotinylated mAb (15 nmol/L). Then 30 µL streptavidin-coated donor beads (66.67 µg/mL) was added and incubated for 30 minutes at RT. The plates were read in an Envision plate reader at 21°C to 22°C with a filter having a bandwidth of 520 to 645 nm after excitation by a 680 nm laser. The total measurement time per well was 210 milliseconds including a 70 milliseconds excitation time. The assay had a lower and a higher limit of quantification of 20 ng/mL and 1200 ng/mL, respectively, and a pig CrP reference serum (RS-5CrP) was used as calibrator.

Necropsy and Tissue Sampling

Seven animals died unexpectedly, and 5 animals had to be immediately euthanized, these 12 animals are referred to as “unscheduled deaths” (Table 1). Three obese animals were euthanized via scheduled termination in the interstudy period after a clinical examination before enrollment in the second study, as the animals were judged not to be fit for a second study period. These animals are referred to as “scheduled termination” in Table 1. All animals had been obese for approximately 6 to 12 months at the time of death. Furthermore, 13 obese drug-naive or previously treated GMs without clinical observations and 5 lean, age-matched, drug-naive GMs were included, these animals are referred to as “obese reference minipigs” and “lean reference minipigs,” respectively. The obese reference minipigs had been obese for approximately 18 months.

The euthanasia was performed by an intravenous injection of the Zoletil mixture described in Supplemental Table 2 followed by exsanguination. A macroscopic examination was performed after opening the thoracic and abdominal cavities and by observing the appearance of the organs and tissues in situ. In studies 3, 4, and 5, 2 to 4 lung samples were fixed in neutral phosphate buffered 4% formaldehyde. In study 7, for the scheduled termination after study 7, and for the obese and lean reference animals, lung samples from left cranial, left caudal, right cranial, right medial, right caudal, and the accessory lobes were included. Tissues from kidney and liver were sampled in all animals. Furthermore, if abnormalities were found at necropsy in tissues/organs, these were sampled as well, which for many animals included samples of necrotic adipose tissue (retroperitoneal and/or intra-abdominal).

Histopathological Evaluation

The fixed tissues were trimmed, embedded in paraffin, and approximately 3-µm thick sections were stained with hematoxylin and eosin. The tissue sections were evaluated by the study pathologist using a light microscope. The severity of vacuolation in lung and kidney was assigned one of the following 5 grades: minimal (very few), mild (few), moderate (moderate number), marked (many), and severe (extensive number).

For demonstration of lipid, formalin-fixed tissue was soaked in 30% glucose overnight, embedded in OCT compound (Optimal Cutting Temperature, VWR, Denmark), and frozen on dry ice. Cryosections were stained with Oil Red O (Sigma-Aldrich, Denmark), counterstained with hematoxylin, and mounted with Faramount (Dako-Agilent, Denmark). Oil Red O staining was performed on lung tissue from 4 unscheduled deaths, 3 scheduled terminations, and 1 obese and 2 lean reference GMs.

The composition of lipid in the lipid emboli was evaluated by acetone treatment of cryosections from lung tissue. The sections were treated with 99.9% acetone (VWR, Denmark) for 30 minutes at either 4°C, RT, or 37°C followed by Oil Red O staining.

Immunohistochemistry

Immunohistochemistry (IHC) was performed to demonstrate macrophages with an antibody toward CD68 (rabbit antimouse CD68, Abcam, United Kingdom), lymph vessels with an antibody toward LYVE1 (rabbit antimouse LYVE1, Abcam), and blood vessels with an antibody toward von Willebrand factor (VWF; rabbit antihuman VWF, Abcam). In short, deparaffinized sections were blocked with peroxidase-blocking solution (Dako-Agilent, Denmark) followed by blocking in 3% bovine serum albumin (BSA) in tris-buffered saline (TBS; Ampliqon, Denmark). The sections were incubated 30 minutes with primary antibody diluted 1:250 (anti-CD68), 1:2500 (anti-LYVE1), or 1:8000 (anti-VWF) in TBS, 3% BSA, followed by incubation with BrightVision-HRP (Immunologic, VWR, Denmark) for 30 minutes and diaminobenzidine (DAB) + substrate chromogen system (Dako-Agilent, Denmark) for 5 minutes. Slides were washed in TBS, 0.01% Tween 20 between incubations. Finally, slides were counterstained with hematoxylin and mounted in Pertex. All incubations were performed at RT. Double staining, IHC anti-CD68/Oil Red O, was performed as described above except that cryosections were used, and incubation with DAB + chromogen was followed by Oil Red O staining.

Transmission Electron Microscopy

The tissue was processed for transmission electron microscopy (TEM) as described previously.¹¹ In short, the formalin-fixed tissues were refixed in cooled 0.5% glutaraldehyde and 2% paraformaldehyde and postfixed in 2% OsO₄ in cacodylate buffer (Ampliqon, Denmark) for 1 hour at RT followed by a wash in cacodylate buffer and staining with 0.5% uranyle acetate (Sigma-Aldrich, Denmark) before processing to epon (Ax-Lab, Denmark) blocks using increasing gradients of ethanol and increasing concentrations of epon in propylene oxide (Sigma-Aldrich, Denmark). The presence of lipid was verified in 1 µm semithin sections stained with 1% toluidine blue (Merck, Denmark), before preparing sections for the electron microscope. Ultrathin sections (∼70 nm) cut with a diamond knife (Diatome 3 mm) collected at copper grids, mesh 200, were examined in a Tecnai G2 Bio TWIN FP 5018/41 transmission electron microscope (FEI, the Netherlands). Images were obtained with a Veleta CCD Camera (Olympus-SIS, Germany) using Microscope User Interface version 4.6.4 TEM Imaging & Analysis version 4.7 SP3 software.

Statistical Analysis

Body weight, fat percentages, and blood parameters from the lean and obese reference groups were compared using Student t test. In addition, triglycerides, total cholesterol, and albumin concentrations from obese pigs with pulmonary embolism of moderate, severe, or marked degree were compared to the plasma values from obese pigs without pulmonary embolism (unscheduled death and obese reference pigs) using Student t test. All statistical analyses were done in GraphPad Prism version 8.0.0 for Windows, GraphPad Software (San Diego, California; www.graphpad.com).

Results

An overview of the studies performed in the obese minipig model from 2011 to 2017 and the number of unscheduled deaths with a histopathological diagnosis of pulmonary lipid embolism are given in Table 1.

Body Weight and Fat Percentage

Prestudy DEXA scanning data from study 5 have been used as an example of typical BW and fat percentage range in this model, and in addition, BW and fat percentage from the lean and obese reference pigs are given to show the level of obesity in the model (Table 2). As can be seen, a typical starting BW is around 90 kg (in this case ranging from 68 to 97 kg), and fat percentage is around 47% (here ranging from 39% to 50%). The BW and the fat percentage in the obese controls are significantly increased, approximately 100% compared to the lean controls.

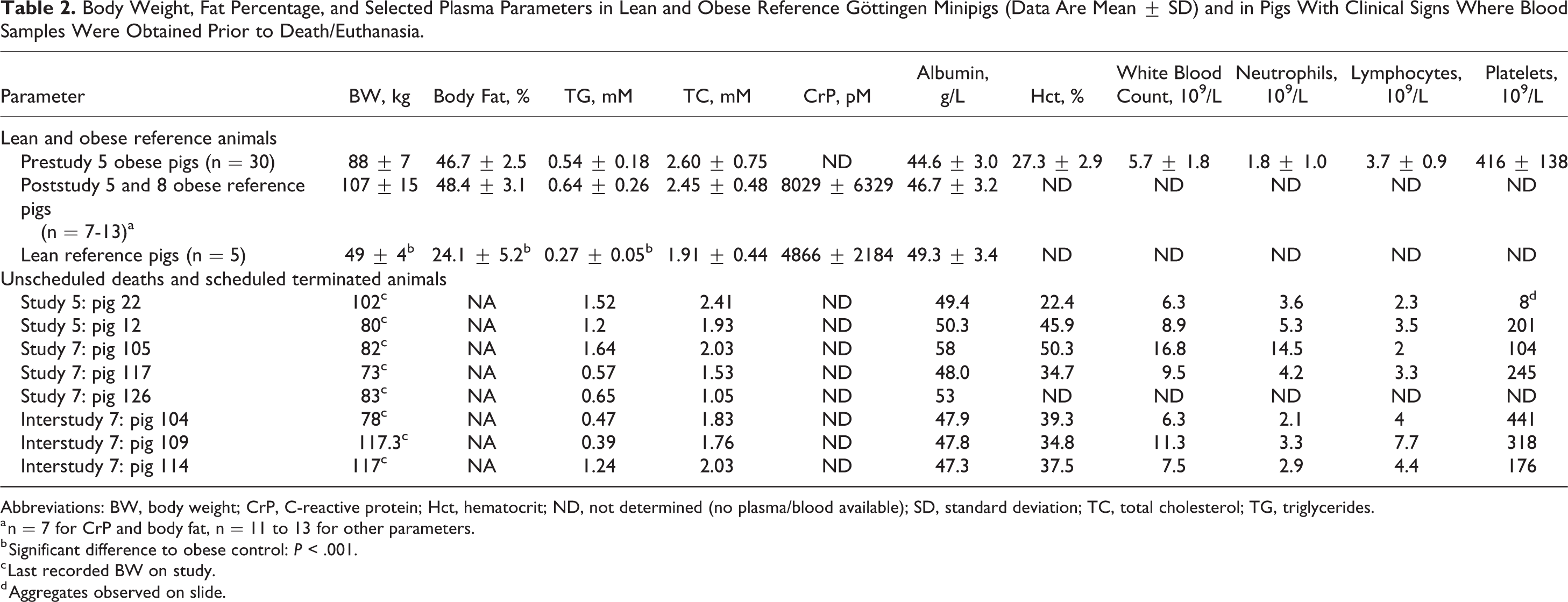

Table 2.

Body Weight, Fat Percentage, and Selected Plasma Parameters in Lean and Obese Reference Göttingen Minipigs (Data Are Mean ± SD) and in Pigs With Clinical Signs Where Blood Samples Were Obtained Prior to Death/Euthanasia.

Parameter	BW, kg	Body Fat, %	TG, mM	TC, mM	CrP, pM	Albumin, g/L	Hct, %	White Blood Count, 10⁹/L	Neutrophils, 10⁹/L	Lymphocytes, 10⁹/L	Platelets, 10⁹/L
Lean and obese reference animals
Prestudy 5 obese pigs (n = 30)	88 ± 7	46.7 ± 2.5	0.54 ± 0.18	2.60 ± 0.75	ND	44.6 ± 3.0	27.3 ± 2.9	5.7 ± 1.8	1.8 ± 1.0	3.7 ± 0.9	416 ± 138
Poststudy 5 and 8 obese reference pigs (n = 7-13)^a	107 ± 15	48.4 ± 3.1	0.64 ± 0.26	2.45 ± 0.48	8029 ± 6329	46.7 ± 3.2	ND	ND	ND	ND	ND
Lean reference pigs (n = 5)	49 ± 4^b	24.1 ± 5.2^b	0.27 ± 0.05^b	1.91 ± 0.44	4866 ± 2184	49.3 ± 3.4	ND	ND	ND	ND	ND
Unscheduled deaths and scheduled terminated animals
Study 5: pig 22	102^c	NA	1.52	2.41	ND	49.4	22.4	6.3	3.6	2.3	8^d
Study 5: pig 12	80^c	NA	1.2	1.93	ND	50.3	45.9	8.9	5.3	3.5	201
Study 7: pig 105	82^c	NA	1.64	2.03	ND	58	50.3	16.8	14.5	2	104
Study 7: pig 117	73^c	NA	0.57	1.53	ND	48.0	34.7	9.5	4.2	3.3	245
Study 7: pig 126	83^c	NA	0.65	1.05	ND	53	ND	ND	ND	ND	ND
Interstudy 7: pig 104	78^c	NA	0.47	1.83	ND	47.9	39.3	6.3	2.1	4	441
Interstudy 7: pig 109	117.3^c	NA	0.39	1.76	ND	47.8	34.8	11.3	3.3	7.7	318
Interstudy 7: pig 114	117^c	NA	1.24	2.03	ND	47.3	37.5	7.5	2.9	4.4	176

Abbreviations: BW, body weight; CrP, C-reactive protein; Hct, hematocrit; ND, not determined (no plasma/blood available); SD, standard deviation; TC, total cholesterol; TG, triglycerides.

^a n = 7 for CrP and body fat, n = 11 to 13 for other parameters.

^b Significant difference to obese control: P < .001.

^c Last recorded BW on study.

^d Aggregates observed on slide.

Clinical Evaluation

The most prominent clinical signs requiring euthanasia included varying degrees of respiratory distress, cyanosis, prolonged capillary refill time, and/or anorexia. Low oxygen tension (Spo ₂) was measured by pulse oximetry in some of the animals, and in 3 cases vomiting was observed. Individual details are given in Table 3.

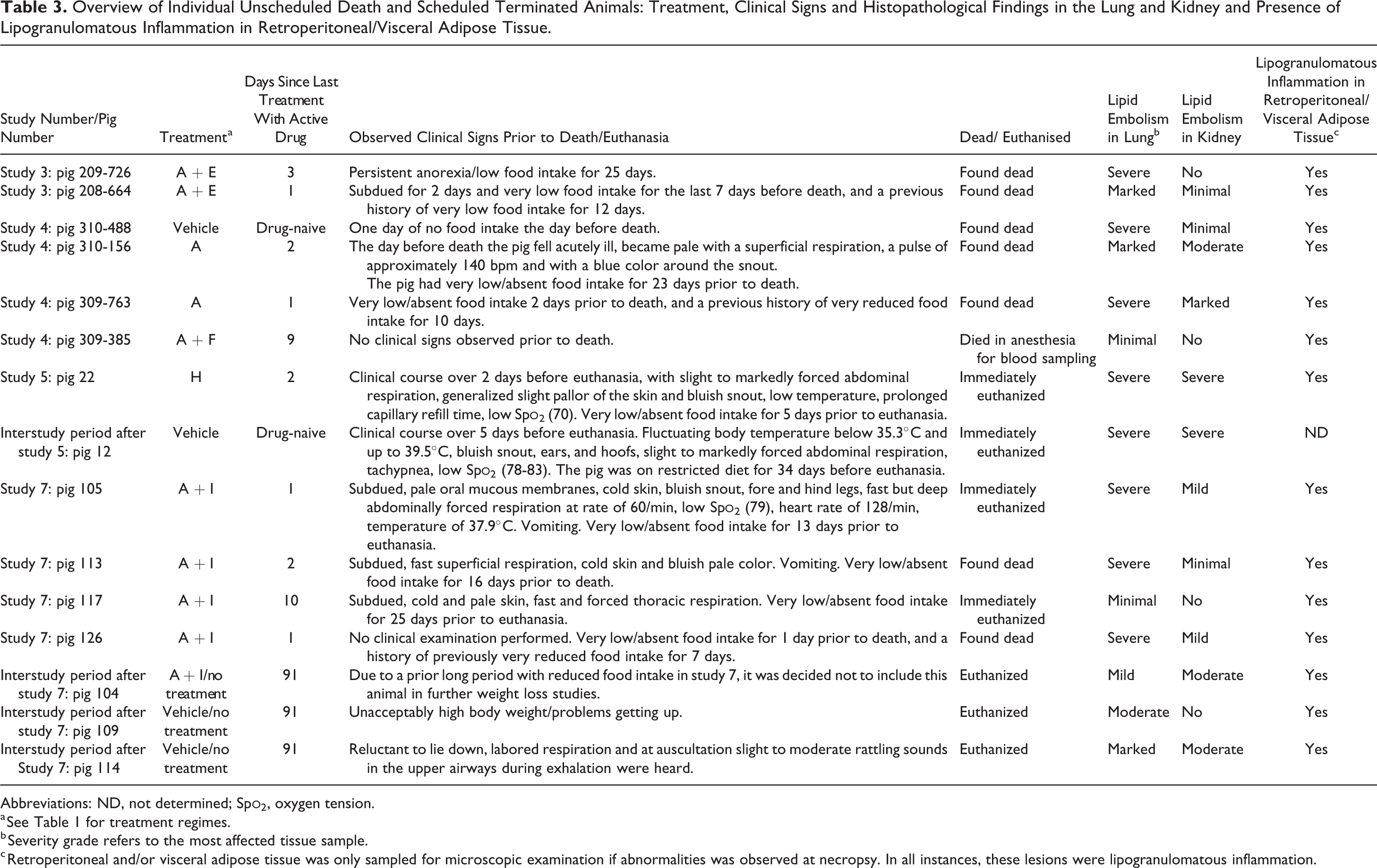

Table 3.

Overview of Individual Unscheduled Death and Scheduled Terminated Animals: Treatment, Clinical Signs and Histopathological Findings in the Lung and Kidney and Presence of Lipogranulomatous Inflammation in Retroperitoneal/Visceral Adipose Tissue.

Study Number/Pig Number	Treatment^a	Days Since Last Treatment With Active Drug	Observed Clinical Signs Prior to Death/Euthanasia	Dead/ Euthanised	Lipid Embolism in Lung^b	Lipid Embolism in Kidney	Lipogranulomatous Inflammation in Retroperitoneal/Visceral Adipose Tissue^c
Study 3: pig 209-726	A + E	3	Persistent anorexia/low food intake for 25 days.	Found dead	Severe	No	Yes
Study 3: pig 208-664	A + E	1	Subdued for 2 days and very low food intake for the last 7 days before death, and a previous history of very low food intake for 12 days.	Found dead	Marked	Minimal	Yes
Study 4: pig 310-488	Vehicle	Drug-naive	One day of no food intake the day before death.	Found dead	Severe	Minimal	Yes
Study 4: pig 310-156	A	2	The day before death the pig fell acutely ill, became pale with a superficial respiration, a pulse of approximately 140 bpm and with a blue color around the snout. The pig had very low/absent food intake for 23 days prior to death.	Found dead	Marked	Moderate	Yes
Study 4: pig 309-763	A	1	Very low/absent food intake 2 days prior to death, and a previous history of very reduced food intake for 10 days.	Found dead	Severe	Marked	Yes
Study 4: pig 309-385	A + F	9	No clinical signs observed prior to death.	Died in anesthesia for blood sampling	Minimal	No	Yes
Study 5: pig 22	H	2	Clinical course over 2 days before euthanasia, with slight to markedly forced abdominal respiration, generalized slight pallor of the skin and bluish snout, low temperature, prolonged capillary refill time, low Spo ₂ (70). Very low/absent food intake for 5 days prior to euthanasia.	Immediately euthanized	Severe	Severe	Yes
Interstudy period after study 5: pig 12	Vehicle	Drug-naive	Clinical course over 5 days before euthanasia. Fluctuating body temperature below 35.3°C and up to 39.5°C, bluish snout, ears, and hoofs, slight to markedly forced abdominal respiration, tachypnea, low Spo ₂ (78-83). The pig was on restricted diet for 34 days before euthanasia.	Immediately euthanized	Severe	Severe	ND
Study 7: pig 105	A + I	1	Subdued, pale oral mucous membranes, cold skin, bluish snout, fore and hind legs, fast but deep abdominally forced respiration at rate of 60/min, low Spo ₂ (79), heart rate of 128/min, temperature of 37.9°C. Vomiting. Very low/absent food intake for 13 days prior to euthanasia.	Immediately euthanized	Severe	Mild	Yes
Study 7: pig 113	A + I	2	Subdued, fast superficial respiration, cold skin and bluish pale color. Vomiting. Very low/absent food intake for 16 days prior to death.	Found dead	Severe	Minimal	Yes
Study 7: pig 117	A + I	10	Subdued, cold and pale skin, fast and forced thoracic respiration. Very low/absent food intake for 25 days prior to euthanasia.	Immediately euthanized	Minimal	No	Yes
Study 7: pig 126	A + I	1	No clinical examination performed. Very low/absent food intake for 1 day prior to death, and a history of previously very reduced food intake for 7 days.	Found dead	Severe	Mild	Yes
Interstudy period after study 7: pig 104	A + I/no treatment	91	Due to a prior long period with reduced food intake in study 7, it was decided not to include this animal in further weight loss studies.	Euthanized	Mild	Moderate	Yes
Interstudy period after study 7: pig 109	Vehicle/no treatment	91	Unacceptably high body weight/problems getting up.	Euthanized	Moderate	No	Yes
Interstudy period after Study 7: pig 114	Vehicle/no treatment	91	Reluctant to lie down, labored respiration and at auscultation slight to moderate rattling sounds in the upper airways during exhalation were heard.	Euthanized	Marked	Moderate	Yes

Abbreviations: ND, not determined; Spo ₂, oxygen tension.

^a See Table 1 for treatment regimes.

^b Severity grade refers to the most affected tissue sample.

^c Retroperitoneal and/or visceral adipose tissue was only sampled for microscopic examination if abnormalities was observed at necropsy. In all instances, these lesions were lipogranulomatous inflammation.

Plasma Parameters

Prestudy samples were included in one study (study 5), data from the lean and obese reference pigs together with values from the unscheduled deaths and scheduled termination, where blood sampling was performed before death/euthanasia, are given in Table 2. Obese pigs had significantly higher triglyceride levels, whereas total cholesterol, CrP, and albumin were not significantly different between the lean and obese reference groups.

The obese pigs with clinical signs did not display a uniform pattern. The statistical analysis comparing values from pigs with embolism of moderate, severe, or marked degree to those from obese pigs with no or minimal embolism revealed a trend for higher triglyceride concentrations (0.60 ± 0.24 vs 0.97 ± 0.47 mM, P = .06) and significantly higher albumin concentrations (46.4 ± 3.4 vs 50.0 ± 3.6, P < .05) in the pigs with lipid embolism, whereas no differences were found in the cholesterol concentrations (2.5 ± 0.5 vs 2.0 ± 0.4 mM, P = ns). In addition, 4 animals with clear respiratory signs had low platelet counts compared to the prestudy samples in apparently healthy drug-naive obese pigs (Table 2), and some had high numbers of white blood cells and/or neutrophils. Note that blood samples only were taken in 8 of 16 animals with clinical observations, and not all parameters were measured in all the pigs.

Pathological Evaluation

The gross appearance of the lungs did not reveal any findings except for occasional small focal red areas. In general, no macroscopic findings were recorded for kidney and liver, whereas white or yellowish masses, up to 10 cm in diameter, were found in the retroperitoneal and/or visceral adipose tissue of 19 examined animals at the macroscopic examination; 11 of the 12 unscheduled deaths, 3 scheduled terminations, and 5 obese reference minipigs.

On histopathological examination, marked to severe thickening of the alveolar septa throughout the lung was observed in 10 of the 12 unscheduled deaths. The thickening of the alveolar septa was due to variable sized vacuoles (Figure 2A) involving most lobes, but with a tendency to be most severe in the caudal lobes. Oil Red O staining of formalin-fixed cryosections demonstrated that the vacuoles contained lipid (Figure 2B) and that the lipid was disseminated in the alveolar septa (Figure 2C). In general, there was no inflammation associated with the lipid changes, whereas in some animals, the lipid changes were accompanied by focal alveolar edema and hemorrhage (Figure 2D) consistent with the focal red areas observed macroscopically in these animals. Intra-alveolar aggregation of vacuolated macrophages was seen in variable degrees (Figure 2E) and Oil Red O staining of formalin-fixed cryosections demonstrated that the vacuoles contained lipid (Figure 2F). However, the finding was not associated with the vacuoles in the alveolar septa, and aggregation of vacuolated alveolar macrophages was also observed in 2 of the 5 lean age-matched GMs although the vacuoles were smaller. Table 3 gives an overview of the individual animals where the severity grades refer to the most affected lung samples.

Figure 2.

Lipid embolism in lung. A, Thickening of alveolar septa due to vacuoles (arrows). Animal: Study 7—pig 105, right caudal lobe, HE staining. Original objective ×20. B, Oil red O staining demonstrates that the vacuoles contain lipid. Animal: Interstudy period study 7—pig 114, right caudal lobe. Oil red O staining of cryosection (lipid is orange/red). Original objective ×40. C, The lipid is disseminated in the alveolar septa. Animal: Study 7—pig 105, right caudal lobe, Oil red O staining of cryosection (lipid is orange/red). Original objective ×10. D, Occasionally, alveolar edema and hemorrhage are observed in areas with vacuoles in alveolar septa. Animal: Interstudy period study 5—pig 12, HE staining. Original objective ×20. E, Aggregation of alveolar macrophages some of which are vacuolated (arrows). Animal: Interstudy period study 7—pig 114. IHC, anti-CD68 (macrophages have brown stained cytoplasm). Original objective ×40. F, The vacuoles in the alveolar macrophages contain lipid (arrows). Animal: Interstudy period study 7—pig 114. IHC, anti-CD68 combined with Oil red O on cryosection. Original objective ×60. IHC indicates immunohistochemistry; HE, hematoxylin and eosin.

In the kidney, the main microscopic finding was variable-sized vacuoles in glomeruli (Figure 3A), this was observed in 9 of the 12 unscheduled deaths. The glomerular capillaries were dilated due to lipid and sometimes erythrocytes were seen to be displaced in the capillaries. Oil red O staining of formalin-fixed cryosections confirmed that the vacuoles contained lipid (Figure 3B). There was no accompanying inflammation, hemorrhage, or necrosis. In the liver, macrovesicular vacuoles in the hepatocytes were observed in a few animals. Lipid emboli were observed in hepatic vessels in one unscheduled death and one scheduled termination (Figure 3C). Furthermore, multinucleated giant cells were observed in hepatic vessels of 2 acutely death animals with lipid embolism (Figure 3D).

Figure 3.

Lipid embolism in kidney and liver. A, Distended glomerular capillaries in kidney due to lipid embolism. Erythrocytes are displaced by the lipid emboli (arrow). Animal: Obese reference study 8—pig 16, HE staining. Original objective ×40. B, Confirmation of lipid content in glomeruli by Oil red O staining of cryosection (lipid is orange/red). Animal: Obese reference study 8—pig 16. Original objective ×40. C, Lipid emboli in hepatic vessel of the liver. Animal: Interstudy period study 7—pig 114, Oil red O staining of cryosection. Original objective ×40. D, Multinucleated giant cell in a hepatic vessel of the liver (arrow). Animal: Study 7—pig 113, HE staining. Original objective ×20. HE indicates hematoxylin and eosin.

Immunohistochemistry was performed to examine the presence of lipid in blood vessels and to determine whether lipid could be found in lymph vessels as well. Staining was absent adjacent to the vacuoles with the lymphatic marker LYVE1, although lymph vessels could easily be detected in the lungs (Figure 4A). In contrast, weak staining surrounding the vacuoles could be detected with an antibody against VWF indicating that the lipid emboli were present in the blood capillaries but not in the lymph vessels (Figure 4B). Transmission electron microscopy verified that the lipid in the alveolar septa of the lung was located in the blood capillaries (Figure 4C), although lipid droplets occasionally were observed in intravascular macrophages.

Figure 4.

Localization of lipid emboli in lung tissue. A, Lymph vessel in lung demonstrated by IHC, anti-LYVE1 antibody. Several lymph vessels are stained brown (arrows); however, the tissue adjacent to vacuoles containing lipid (*) are not stained. Animal: Interstudy period study 5—pig 12, original objective ×40. B, Weak brown staining of the tissue adjacent to the vacuoles (*) is detected with IHC, anti-vWF antibody, indicating that the lipid is located in the pulmonary capillaries. Animal: Interstudy period study 5—pig 12, original objective ×60. C, Transmission electron microscopy (TEM). Lipid emboli (*) in pulmonary capillary displace erythrocytes laterally (e). Animal: Obese reference Study 6—pig 24, electron microscopy. Original magnification ×2550. IHC indicates immunohistochemistry; vWF, von Willebrand factor.

The composition of the lipid in the blood vessels was studied by acetone treatment of the cryosection from lung tissue at either 4°C, RT, or 37°C followed by Oil Red O staining. The lipid emboli were extracted from the tissue at all 3 incubation temperatures indicating that the lipid mainly consisted of triglycerides as phospholipids are not dissolved by acetone.¹²

Lipid embolism was not observed in any of the 5 lean GMs, whereas varying degree of lipid embolism was seen in the lung of 7 of the 13 examined obese reference GMs and in the 3 GMs with scheduled termination after study 7 (Tables 3 and 4). One of the obese reference GM demonstrated marked lipid embolism in the lung and one animal had moderate lipid embolism, whereas the remaining 5 animals only had minimal changes. The 3 GMs with scheduled termination had mild to marked lipid embolism in lung, and moderate lipid embolism was observed in the kidney in 2 of the animals.

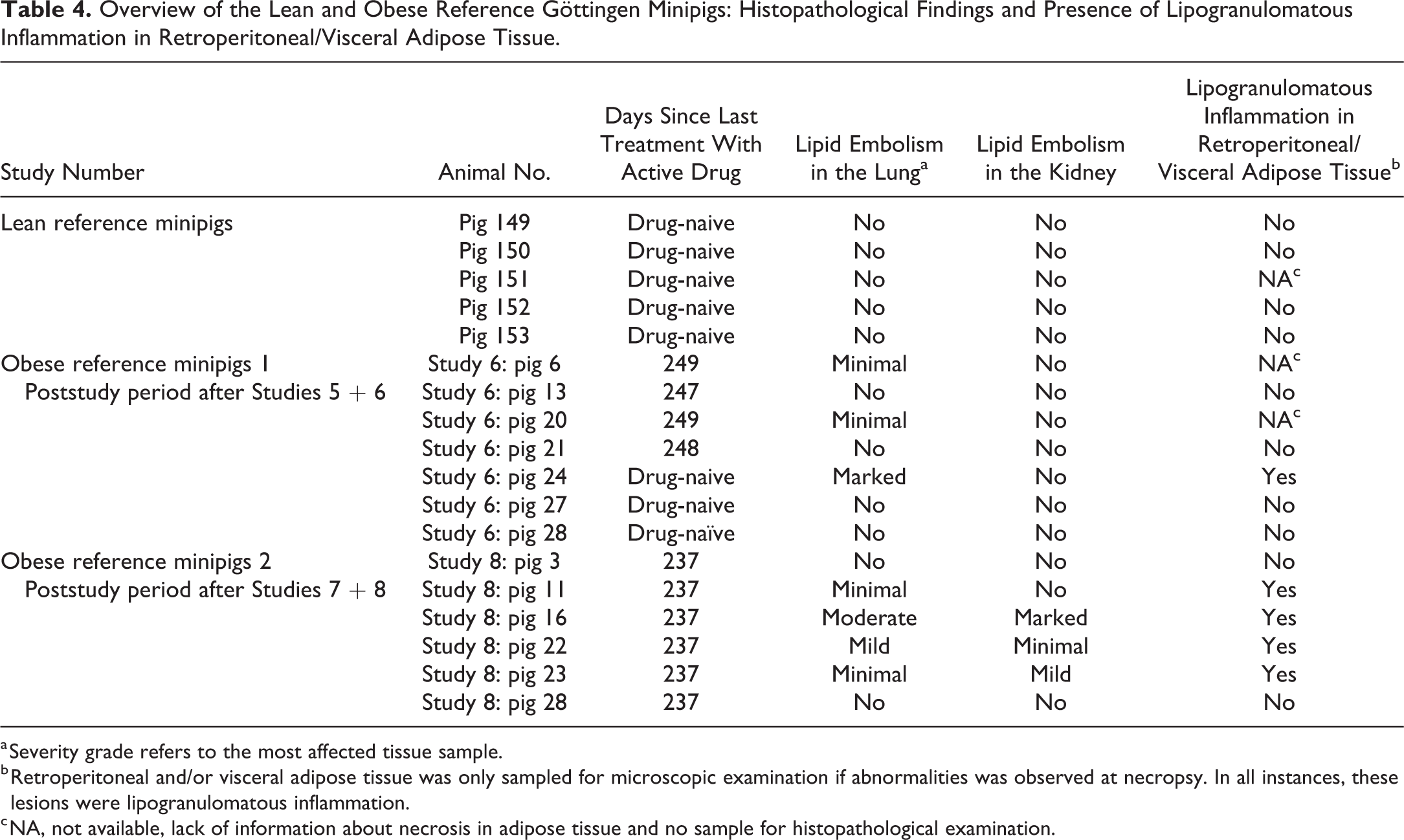

Table 4.

Overview of the Lean and Obese Reference Göttingen Minipigs: Histopathological Findings and Presence of Lipogranulomatous Inflammation in Retroperitoneal/Visceral Adipose Tissue.

Study Number	Animal No.	Days Since Last Treatment With Active Drug	Lipid Embolism in the Lung^a	Lipid Embolism in the Kidney	Lipogranulomatous Inflammation in Retroperitoneal/Visceral Adipose Tissue^b
Lean reference minipigs	Pig 149	Drug-naive	No	No	No
	Pig 150	Drug-naive	No	No	No
	Pig 151	Drug-naive	No	No	NA^c
	Pig 152	Drug-naive	No	No	No
	Pig 153	Drug-naive	No	No	No
Obese reference minipigs 1 Poststudy period after Studies 5 + 6	Study 6: pig 6	249	Minimal	No	NA^c
	Study 6: pig 13	247	No	No	No
	Study 6: pig 20	249	Minimal	No	NA^c
	Study 6: pig 21	248	No	No	No
	Study 6: pig 24	Drug-naive	Marked	No	Yes
	Study 6: pig 27	Drug-naive	No	No	No
	Study 6: pig 28	Drug-naïve	No	No	No
Obese reference minipigs 2 Poststudy period after Studies 7 + 8	Study 8: pig 3	237	No	No	No
	Study 8: pig 11	237	Minimal	No	Yes
	Study 8: pig 16	237	Moderate	Marked	Yes
	Study 8: pig 22	237	Mild	Minimal	Yes
	Study 8: pig 23	237	Minimal	Mild	Yes
	Study 8: pig 28	237	No	No	No

^a Severity grade refers to the most affected tissue sample.

^b Retroperitoneal and/or visceral adipose tissue was only sampled for microscopic examination if abnormalities was observed at necropsy. In all instances, these lesions were lipogranulomatous inflammation.

^c NA, not available, lack of information about necrosis in adipose tissue and no sample for histopathological examination.

Microscopic examination revealed that the macroscopic changes found in the retroperitoneal and/or visceral adipose tissue consisted of lipogranulomatous inflammation (lipogranulomatous steatitis; Figure 5A). The lipogranulomatous inflammation was characterized by cholesterol clefts surrounded by multinucleated giant cells (Figure 5B) and was observed in all examined animals with lipid embolism including the obese reference GM with minimal pulmonary lipid embolism (Table 4). A high number of macrophages could be detected by IHC using an anti-CD68 antibody (Figure 5C). Small lipid droplets were often observed in the macrophages (Figure 5D). The changes were accompanied by extensive fibrosis.

Figure 5.

Lipogranulomatous inflammation. A, Abdominal adipose tissue. The lipogranulomatous inflammation is characterized by cholesterol clefts surrounded by giant cells and extensive fibrosis. Animal: Study 7—pig 113, HE staining. Original objective ×10. B, Cholesterol clefts surrounded by multinucleated giant cells. Animal: Study 7—pig 113, HE staining. Original objective ×40. C, Macrophages are the dominant cell type in the lipogranulomatous inflammation. Animal: Study 7—pig 113. IHC, anti-CD68 (macrophages have brown stained cytoplasm). Original objective ×40. D, The macrophages in the lipogranulamatous inflammation contain lipid droplets (arrows). Animal: Interstudy period study 7—pig 114. IHC, anti-CD68 combined with Oil red O on cryosection. Original objective ×60. IHC indicates immunohistochemistry.

Discussion

In the present article, the occurrence of fatal pulmonary lipid embolism in obese GM is described. Overall, 5 cohorts of obese GM were included in 8 studies with different anti-obesity treatments. In these 8 studies, marked to severe pulmonary lipid embolism was seen in 10 of 12 unscheduled deaths (acute death or immediate euthanasia), and mild to marked lipid embolism was observed in 3 GMs with scheduled termination in the interstudy period due to clinical observations. Furthermore, 7 of the 13 obese reference animals that were terminated and evaluated in the poststudy periods had variable degrees of pulmonary lipid embolism ranging from minimal to marked in severity. Pulmonary lipid embolism was not detected in any of the lean aged-matched reference animals.

The clinical course of the condition varied quite a lot, from severe respiratory distress and cyanosis to no obvious clinical signs despite marked pulmonary lipid embolism in one obese reference animal. Since the acute deaths occurred when the animals were not observed, respiratory distress or other clinical signs could have been present in the period from last observation to death. Also, it should be noted that more subtle clinical signs can be hard to evaluate in these grossly obese, sedentary minipigs that spend much of their times lying down. Reluctance to get up and to exercise could be a first sign of pulmonary lipid embolism in the absence of other clinical signs like lameness but could also just be related to the obesity. Marked to severe pulmonary lipid embolism was observed in all 7 animals that were found dead in the present studies. Cyanosis was observed in 2 of these animals before death and further 3 animals that were euthanized experienced clinical signs of abdominally forced respiration and cyanosis. Severe pulmonary lipid embolism was observed in all 5 animals presented with cyanosis showing the correlation between the lipid embolism and the cause of respiratory distress and death in these animals.

Macroscopically, there were no findings in the lungs of the pigs with pulmonary lipid embolism except for small dark red areas described in a few animals corresponding to the histopathological findings of focal hemorrhage. It has been suggested that the hemorrhage can be caused by local toxic action of free fatty acids (FFAs) that are released from the lipid emboli due to action of endothelial lipases that act on the lipid emboli.¹³

Microscopically, the lipid embolism presented as a thickening of the alveolar septa due to accumulation of lipid in the lung capillaries. The degree of lipid embolism varied between lung lobes in the individual animals with a tendency to be most severe in the caudal lobes. In the most affected animals, the majority of the alveolar septa in the tissue sample were involved with alveolar septal capillaries being totally occluded with lipid globules. Therefore, it is very likely that these large quantities of lipid caused direct mechanical obstruction of the pulmonary vasculature and lead to impaired gas exchange and hypoxia, observed as severe respiratory distress, and eventually to the death of the animals. Aggregation of macrophages was observed in the alveoli of some animals, and these macrophages could contain large droplets of lipid. However, aggregation of macrophages in alveoli is a common background finding in minipigs¹⁴ and was also observed in the lean control animals of this study.

In addition to pulmonary lipid embolism, lipid embolism was also observed in glomerular capillaries of kidney suggesting that the lipid emboli are transported in the blood and trapped in the capillaries of lung and kidney.

Interestingly, all the animals with pulmonary lipid embolism also had widespread lipogranulomatous inflammation in the retroperitoneal and/or visceral adipose tissue. Very similar macroscopic and histopathological changes in form of lipid embolism in lung and kidney as well as lipogranulomatous inflammation in retroperitoneal/visceral adipose tissue have previously been observed in one pet Vietnamese potbellied pig.¹⁵ Recently, Renner et al also described lipogranulomatous inflammation in retroperitoneal and/or visceral adipose tissue in several obese high-fat diet fed GM,¹⁶ with no involvement of SC adipose tissue. These authors observed lipid in the lungs of the animals as well; however, in contrast to the present study, it was detected within the lymphatic vessels. In the present study, localization of the lipid in pulmonary capillaries was confirmed by TEM, whereas no lipid was detected in lymphatic vessels by IHC. The co-occurrence of lipogranulomatous inflammation with the fat embolism indicates a potential involvement of the lipogranulomatous inflammation in the pathogenesis of lipid embolism in the present study. Likely, necrosis of adipocytes will cause leakage of triglycerides, and the finding of multinucleated giant cells in hepatic vessels in 2 acutely death animals could indicate that components from the lipogranulomatous inflammation enter the blood circulation.

Three animals that had only been treated with vehicle, 2 unscheduled deaths and 1 obese reference pig, displayed either severe or marked pulmonary fat embolism. In addition, similar macroscopic and histopathological findings have been observed in the pet Vietnamese potbellied pig.¹⁵ These observations confirm the fact that the condition is not directly caused by the given treatments, although there was a predominance of unscheduled deaths in the treated groups. The condition, however, seems to be related to prolonged periods of reduced food intake together with the presence of lipogranulomatous inflammation in the retroperitoneal and/or visceral adipose tissue. The reduced food intake was, in most cases, an expected pharmacological effect, and with the relatively higher number of pigs receiving active treatment compared to vehicle treatment, this can at least partly explain the preponderance of cases in the treated groups. In some instances, the anorectic effect seemed to be exaggerated by anesthesia in relation to DEXA scanning, and in one case (a vehicle treated animal), the anorectic period lasted only for one day just before acute death and had no obvious reason. However, it can be assumed that severe lipid embolism in itself will cause reduced food intake due to poor clinical condition.

Pulmonary lipid embolism is also seen in humans, and the clinical manifestation is referred to as fat embolism syndrome (FES).¹⁷ Much like in the pigs, human FES may range from subclinical FES with no obvious clinical signs to subacute FES with respiratory insufficiency, petechiae, and cerebral involvement to fulminant FES, with severe respiratory failure and death although mortality solely due to respiratory insufficiency in fat embolism patients is uncommon.^17
-19 The condition may be due to tissue trauma caused by, for example, bone fracture, bone surgery, bone marrow harvesting, or liposuction; to hyperlipemic parenteral alimentation or; more rarely, to metabolic conditions such as pancreatitis, fat necrosis of the omentum, diabetes, hepatic steatosis, and panniculitis.^17,20

-23 In relation to trauma and hyperlipemic parenteral nutrition, large lipid particles enter the blood stream directly from the injured tissue/bone or via intravenous infusion and get captured in the pulmonary microcirculation. For the metabolic causes, there seems to be a circulating metabolic/inflammatory component that leads to disruption of the normal fine emulsion of fat in the blood stream, thereby causing the lipid to aggregate into larger spherules of fat, which will get stuck in the capillaries of, for example, the lung, kidney, and brain.^21,24,25 For instance, excessive FFA in the plasma may lead to increased formation of enlarged and unstable very low-density lipoprotein particles that may coalesce into fat droplets of embolic size.^23,26,27 In vitro, several substances or conditions may alter the physiological state of fat emulsions, for example ether, protamine, histamine, 10% glucose, pancreatic extract, bile, surface-active agents, extracts of necrotic muscle, variation in pH,^25,28,29 and acute-phase proteins like CrP.^24,30 Whether such factors are needed to trigger the coalescence of lipid particles in vivo is not completely known, but it seems very likely.^22,28,29 Importantly, hyperlipidemia is not a prerequisite for the condition to occur.^20,29

It can be hypothesized that the low food intake seen in most of the unscheduled deaths in the present study has led to mobilization of FFAs from the very extensive fat depots^31,32 and that these FFAs caused coalescence of fat droplet^19,26
-28,33 as described above. This lipid aggregation could occur as a result of mere overloading of the systemic circulation with FFA, in combination with high levels of, for example, the acute-phase protein, CrP, that is released in response to various stimuli, for example, acute infection, inflammatory conditions, obesity, cancer, myocardial infarction, trauma, and so on^25,34

-38 or in combination with other proaggregating circulating factors. In this case, increased CrP levels could be related not only to the obesity^39,40 but also to the extensive lipogranulomatous inflammation in the abdominal adipose tissue, potentially causing a systemic acute phase response. Unfortunately, in the present study, blood samples were only obtained from 8 of the animals with clinical signs, and FFA and CrP were not measured in these animals. High concentrations of triglycerides were, however, seen in 4 of these 8 animals, and respiratory distress and marked to severe pulmonary lipid emboli were observed in all of these 4 animals.

The cause of the lipogranulomatous inflammation in the adipose tissue is not known, but it has been suggested that the fat cells undergo necrosis due to hypoxia in the center of the fat depot.^39,41 Thus, fat may be released directly into the systemic circulation from these ruptured necrotic fat cells, further aggravating the lipid embolism. The combination of lipogranulomatous inflammation and pulmonary lipid embolism has also been observed in a horse secondary to yellow fat disease (steatitis).⁴² Yellow fat disease has also been observed in cats, mink, and pigs and can be induced experimentally by feeding a diet high in polyunsaturated fat combined with low vitamin E.^43
-45 Yellow fat disease is characterized by inflammation and necrosis of adipose tissue, both visceral/abdominal and SC fat, and deposition of ceroid pigment in macrophages and adipocytes. Although ceroid was not observed in the affected abdominal adipose tissue in the present study, involvement of nutritional factors such as vitamin E and polyunsaturated fat in the pathogenesis cannot be excluded as the high food intake could result in a relative high intake of polyunsaturated fat.

In conclusion, fatal pulmonary lipid embolism occurred in obese GM included in pharmacological anti-obesity studies and seemed to be related to the presence of lipogranulomatous inflammation in the abdominal adipose tissue. The data from the present study suggest that the pulmonary lipid embolism is not directly related to the test items but rather caused by a combination of factors present in the obese minipig model. This is supported by a previous report in a pet Vietnamese potbellied pig.

Supplemental Material

Supplemental Material, Viuff_et_al._Supplemental_table_1 - Lipid Embolism in Obese Göttingen Minipigs

Supplemental Material, Viuff_et_al._Supplemental_table_1 for Lipid Embolism in Obese Göttingen Minipigs by Birgitte Martine Viuff, Ellen M. Straarup, Jette Nowak, Line Morgills, Mikala Skydsgaard, Ingrid Sjögren, Birgitte S. Wulff and Berit Ø. Christoffersen in Toxicologic Pathology

Supplemental Material

Supplemental Material, Viuff_et_al._Supplemental_table_2 - Lipid Embolism in Obese Göttingen Minipigs

Supplemental Material, Viuff_et_al._Supplemental_table_2 for Lipid Embolism in Obese Göttingen Minipigs by Birgitte Martine Viuff, Ellen M. Straarup, Jette Nowak, Line Morgills, Mikala Skydsgaard, Ingrid Sjögren, Birgitte S. Wulff and Berit Ø. Christoffersen in Toxicologic Pathology

Footnotes

Acknowledgments

The authors wish to thank Karsten Marckstrøm and Helle Wagner, Novo Nordisk A/S, for their excellent technical assistance. Marianne Kronborg Bracken is thanked for skillful study direction and veterinary support during the in-life phase of studies performed at CitoxLAB Denmark.

Declaration of Conflicting Interests

The author(s) declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: The study was sponsored by Novo Nordisk A/S. All authors except LM were full-time employees of Novo Nordisk A/S during the conduct of this study, and most authors are minor shareholders of Novo Nordisk A/S.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Birgitte Martine Viuff

Supplemental Material

Supplemental material for this article is available online.

References

Bellastella

Scappaticcio

Esposito

Giugliano

Maiorino

. Metabolic syndrome and cancer: “the common soil hypothesis”. Diabetes Res Clin Pract. 2018;143:389–397.

Rochlani

Pothineni

Kovelamudi

Mehta

. Metabolic syndrome: pathophysiology, management, and modulation by natural compounds. Ther Adv Cardiovasc Dis. 2017;11(8):215–225.

Steele

Thomas

Henley

, et al. Vital signs: trends in incidence of cancers associated with overweight and obesity—United States, 2005-2014. MMWR Morb Mortal Wkly Rep. 2017;66(39):1052–1058.

Bode

Clausing

Gervais

, et al. The utility of the minipig as an animal model in regulatory toxicology. J Pharmacol Toxicol Methods. 2010;62(3):196–220.

Swindle

Makin

Herron

Clubb

Jr Frazier

. Swine as models in biomedical research and toxicology testing. Vet Pathol. 2012;49(2):344–356.

Koopmans

Schuurman

. Considerations on pig models for appetite, metabolic syndrome and obese type 2 diabetes: from food intake to metabolic disease. Eur J Pharmacol. 2015;759:231–239.

Bollen

Ellegaard

. The Göttingen minipig in pharmacology and toxicology. Pharmacol Toxicol. 1997;80(suppl 2):3–4.

Bollen

Madsen

Meyer

Ritskes-Hoitinga

. Growth differences of male and female Göttingen minipigs during ad libitum feeding: a pilot study. Lab Anim. 2005;39(1):80–93.

Raun

von Voss

Knudsen

. Liraglutide, a once-daily human glucagon-like peptide-1 analog, minimizes food intake in severely obese minipigs. Obesity (Silver Spring). 2007;15(7):1710–1716.

10.

Douglas

. Menstrual cycle variation in food intake. In: BJ Blinder

Goldstein

, ed. The eating disorders. New York: PMA Publishing Corp; 1988:377–383.

11.

Mascorro

Bozzola

. Processing biological tissues for ultrastructural study. In: Kuo

, ed. Electron Microscopy. Methods and Protocols. Vol 369. 2nd ed. Totowa, NJ: Humana Press; 2007:19–34.

12.

Adams

Bayliss

. Histochemistry of myelin. VI. Solvent action of acetone on brain and other lipid-rich tissues. J Histochem Cytochem. 1968;16(2):115–118.

13.

Moylan

Evenson

. Diagnosis and treatment of fat embolism. Annu Rev Med. 1977;28:85–90.

14.

Jeppesen

Skydsgaard

. Spontaneous background pathology in Göttingen minipigs. Toxicol Pathol. 2015;43(2):257–266.

15.

Newkirk

Fineschi

Kiefer

VanAmstel

. Lipid emboli in a Vietnamese potbellied pig (Sus scrofa). J Vet Diagn Invest. 2012;24(3):625–629.

16.

Renner

Blutke

Dobenecker

, et al. Metabolic syndrome and extensive adipose tissue inflammation in morbidly obese Göttingen minipigs. Mol Metab. 2018;16:180–190.

17.

George

Dixit

Gupta

. Fat embolism syndrome. Lung India. 2013;30(1):47–53.

18.

Lualdi

Goldhaber

. Right ventricular dysfunction after acute pulmonary embolism: pathophysiologic factors, detection, and therapeutic implications. Am Heart J. 1995;130(6):1276–1282.

19.

Ten Duis

. The fat embolism syndrome. Injury. 1997;28(2):77–85.

20.

Capan

Patel

. Fat embolism. Anesthesiol Clin. 1993;11(1):25–53.

21.

Cuppage

. Fat embolism in diabetes mellitus. Am J Clin Pathol. 1963;40(3):270–275.

22.

Guardia

Bilbao

Murray

Warren

Sweet

. Fat embolism in acute pancreatitis. Arch Pathol Lab Med. 1989;113(5):503–506.

23.

O’Donnell

. Fat embolism syndrome. In: O’Donnell

Nácul

, eds. Surgical Intensive Care Medicine. Boston, MA: Springer; 2001:385–396.

24.

Hulman

. Fat macroglobule formation from chylomicrons and non-traumatic fat embolism. Clin Chim Acta. 1988;177(2):173–178.

25.

Hulman

. The pathogenesis of fat embolism. J Pathol. 1995;176(1):3–9.

26.

Lequire

Shapiro

Lequire

Cobb

Jr Fleet

. A study of the pathogenesis of fat embolism based on human necropsy material and animal experiments. Am J Pathol. 1959;35(5):999–1015.

27.

Mahley

Gray

LeQuire

. Role of plasma lipoproteins in cortisone-induced fat embolism. Am J Pathol. 1972;66(1):43–64.

28.

Lehman

. Transthoracic abdominal hernia. Ann Surg. 1927;85(5):797–800.

29.

Tedeschi

Castelli

Tedeschi

. Fat particles in plasma. The macroglobule: its relevance to the concept of fat embolism. Hum Pathol. 1971;2(1):165–171.

30.

Hulman

Fraser

Pearson

Bell

. Agglutination of intralipid by sera of acutely ill patients. Lancet. 1982;2(8313):1426–1427.

31.

Mersmann

MacNeil

. Relationship of plasma lipid concentrations to fat deposition in pigs. J Anim Sci. 1985;61(1):122–128.

32.

Wangsness

Acker

Burdette

Krabill

Vasilatos

. Effect of fasting on hormones and metabolites in plasma of fast-growing, lean and slow-growing obese pigs. J Anim Sci. 1981;52(1):69–74.

33.

Davis

Musselman

. Blood particle agglomeration and fat embolism. Int Rec Med Gen Pract Clin. 1954;167(8):439–448.

34.

Christoffersen

Jensen

Ludvigsen

Nilsson

Grossi

Heegaard

. Age- and sex-associated effects on acute-phase proteins in Göttingen minipigs. Comp Med. 2015;65(4):333–341.

35.

Firdous

. Correlation of CRP, fasting serum triglycerides and obesity as cardiovascular risk factors. J Coll Physicians Surg Pak. 2014;24(5):308–313.

36.

Gabay

Kushner

. Acute-phase proteins and other systemic responses to inflammation. N Engl J Med. 1999;340(6):448–454.

37.

Hulman

. Pathogenesis of non-traumatic fat embolism. Lancet. 1988;1(8599):1366–1367.

38.

Paepegaey

Genser

Bouillot

Oppert

Clement

Poitou

. High levels of CRP in morbid obesity: the central role of adipose tissue and lessons for clinical practice before and after bariatric surgery. Surg Obes Relat Dis. 2015;11(1):148–154.

39.

Cinti

Mitchell

Barbatelli

, et al. Adipocyte death defines macrophage localization and function in adipose tissue of obese mice and humans. J Lipid Res. 2005;46(11):2347–2355.

40.

Sun

Kusminski

Scherer

. Adipose tissue remodeling and obesity. J Clin Invest. 2011;121(6):2094–2101.

41.

Trayhurn

. Hypoxia and adipose tissue function and dysfunction in obesity. Physiol Rev. 2013;93(1):1–21.

42.

Suarez-Bonnet

Espinosa de los Monteros

ADL

Herraez

Rodriguez

Andrada

Caballero

. Fat embolism secondary to yellow fat disease in an Appaloosa horse. J Vet Diagn Invest. 2008;20(5):684–687.

43.

Cordy

. Experimental production of steatitis yellow fat disease) in kittens fed a commercial canned cat food and prevention of the condition by vitamin E. Cornell Vet. 1954;44(3):310–318.

44.

Danse

Steenbergen-Botterweg

. Enzyme histochemical studies of adipose tissue in porcine yellow fat disease. Vet Pathol. 1974;11(6):465–476.

45.

Gorham

Boe

Baker

. Experimental “yellow fat” disease in pigs. Cornell Vet. 1951;41(4):332–338.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.04 MB
