Statistically optimized floating alginate–bentonite and β -zeolite composites with enhanced cyclic reusability for efficient Hg(II) removal from mining-impacted waters

Abstract

Mercury pollution in aquatic systems poses a critical environmental challenge due to its high mobility, toxicity, and bioaccumulation potential. In this study, the synthesis of floating alginate–bentonite (FAB) and floating alginate–β-zeolite (FAZ) composites was optimized using a central composite design, with buoyancy as the key functional parameter to facilitate material recovery and large-scale applicability. The composites were comprehensively characterized by X-ray diffraction, attenuated total reflectance–Fourier transform infrared spectroscopy, thermogravimetric and differential thermogravimetric analysis, field emission scanning electron microscope, N₂ adsorption–desorption isotherms, and pH_pzc analysis (point of zero charge), and subsequently evaluated for Hg(II) adsorption. The optimized formulations, FAB_1.0 and FAZ_1.0, exhibited buoyancies above 98% and adsorption capacities of 33 and 28 mg g⁻¹, respectively, under single-cycle operation. Notably, both materials showed a marked improvement in removal efficiency upon reuse, reaching 93% for FAB_1.0 and 71% for FAZ_1.0 after three adsorption–desorption cycles. Spectroscopic and thermal analyses revealed specific interactions between alginate carboxylate groups and aluminosilicate surface sites, which enhanced structural cohesion, thermal stability, and resistance to repeated regeneration. The integration of design-of-experiments with the synthesis of floating, regenerable alginate–aluminosilicate composites provides a sustainable and operationally advantageous strategy for Hg(II) removal from mining-impacted waters. The high buoyancy, reusability, and ease of recovery without energy-intensive separation steps position FAB_1.0 in particular as a competitive candidate for scalable and environmentally responsible water treatment applications.

Keywords

adsorption floating composites alginate bentonite mercury

Introduction

Heavy metal pollution in aquatic environments has become a growing global concern, mainly due to increasing anthropogenic activities (Aziz et al., 2023). Among these pollutants, mercury (Hg) species are particularly critical because of its high mobility and bioaccumulation potential, which lead to severe ecological and human health risks. In ecosystems, mercury can inhibit plant growth and photosynthetic activity while disrupting key metabolic processes (Singh, 2023). In humans and aquatic species, chronic exposure is associated with pulmonary dysfunction, renal impairment, acute neurotoxicity, and central nervous system damage (Wang et al., 2021).

Colombia is currently among the 21 countries with the highest per capita mercury emissions, releasing more than 100 tons annually, which are subsequently distributed into major rivers and tributaries nationwide (Diaz et al., 2022). This widespread contamination has caused adverse effects on biodiversity and poses severe risks to local communities that depend directly on these water resources (Harry et al., 2018). Alarmingly, mercury levels as high as 47.0 μg g⁻¹ have been detected in human populations from the Colombian Amazon, primarily due to the consumption of contaminated fish and water (Olivero-Verbel et al., 2016).

To mitigate mercury contamination in aquatic systems, several treatment technologies have been developed, including chemical precipitation (Matebese et al., 2024), ion flotation (Dhokpande et al., 2024), ion exchange (Zhao et al., 2019), coagulation–flocculation (Mac Mahon, 2022), and electrochemical methods (Wu et al., 2019). Among these, adsorption stands out as the most efficient, cost-effective, and versatile approach for the removal of Hg(II) from aqueous media (Rajendran et al., 2022). Adsorption also provides advantages in terms of reusability and adaptability to a wide range of natural, mineral, and polymeric adsorbents (Upadhyay et al., 2021). Various sorbents have been reported, such as biochar (Yang et al., 2021), conjugated nanomaterials (Rani et al., 2022), and natural clays, which are particularly attractive due to their high specific surface area, ion-exchange capacity, structural stability, low toxicity, and wide availability (Prabhu and Prabhu, 2018).

Recently, composites based on natural biopolymers such as sodium alginate (SA) have gained increasing attention owing to their unique features, including high biocompatibility, biodegradability, and abundant hydroxyl and carboxyl groups that strongly interact with metal ions (Gao et al., 2019). When combined with clay minerals or zeolites, alginate-based composites display enhanced adsorption capacity and improved mechanical resistance, as reported for alginate–zeolite and alginate–clay beads (Das et al., 2021). Despite these advances, a major limitation remains their recovery after use, which often requires additional separation steps and increases the overall cost of treatment.

To overcome this challenge, the development of floating and reusable alginate-based composites represents a promising strategy. Floating adsorbents not only facilitate recovery after treatment but also expand their applicability in dynamic aquatic environments. In this context, the present study aims to design and evaluate floating alginate–bentonite (FAB) and floating alginate–β-zeolite (FAZ) composites for the efficient removal of Hg(II) from aqueous solution. By optimizing synthesis conditions and characterizing their adsorption performance, this work contributes to the development of cost-effective, sustainable, and easily recoverable materials for mercury remediation in contaminated waters.

Material and methods

Preparation of aluminosilicate precursors

For the synthesis of the adsorbent composites, inorganic phases based on aluminosilicates were used, selected for their known cation exchange capacity, thermal stability, and affinity for heavy metals. In this study, purified natural bentonite (B) and hydrothermally synthesized β-zeolite (βZ) were employed as dispersed phases within a SA-based polymeric matrix.

Purification Of bentonite

A natural bentonite from Valle del Cauca, Colombia, classified as sonoite type, was used. A suspension of the clay was prepared at a concentration of 83 g L⁻¹ in deionized water, to which 1.0 wt% sodium hexametaphosphate was added. The mixture was stirred for 24 h. Subsequently, the supernatant was separated by centrifugation at 4000 r/min for 5 min. The recovered supernatant was dried at 60 °C, ground in an agate mortar, and sieved through a 1 mm mesh.

Synthesis of β-zeolite

The hydrothermal synthesis of βZ was carried out following a procedure previously developed and reported by our research group (Ruiz-Bravo et al., 2025). The βZ was characterized by powder XRD, ATR–FTIR and thermogravimetric and differential thermogravimetric (TG–DTG) analysis.

Synthesis of floating alginate/aluminosilicate composites

The synthesis of the alginate/aluminosilicate composites was carried out based on the procedure described by (Wang et al., 2018). Initially, two SA solutions were prepared: one at 2% w/v by dispersing 4 g of SA in 100 mL of deionized water, and the other at 4% w/v by dispersing 8 g in the same volume. Both solutions were stirred at 1000 r/min for 24 h. Subsequently, these solutions were used to prepare suspensions with either B or βZ aluminosilicates, maintaining constant stirring at 1000 r/min for an additional 24 h. The suspensions were formulated by incorporating different aluminosilicate loadings: 0.5 g, 1.0 g, and 1.5 g. Thereafter, 5 g of each suspension were poured into Petri dishes and frozen at −41 °C for 24 h, followed by lyophilization for the same duration to obtain the dried composites.

After completing the previous steps, the composites were subjected to a crosslinking process in 100 mL of a 0.5 mol L⁻¹ CaCl₂·2H₂O solution for 4 h at room temperature, aiming to achieve complete gelation. Afterwards, the composites were rinsed with deionized water to remove any residual calcium ions. The composites were subsequently frozen again at −41 °C for 24 h and lyophilized to obtain a porous sponge-like structure. The materials were cut into small cubes with dimensions of 6 mm × 6 mm (Figure 1) and stored in a desiccator until characterization and subsequent use in experimental procedures. Composites formulated with bentonite were designated as FAB, whereas those prepared with β-zeolite were referred to as FAZ.

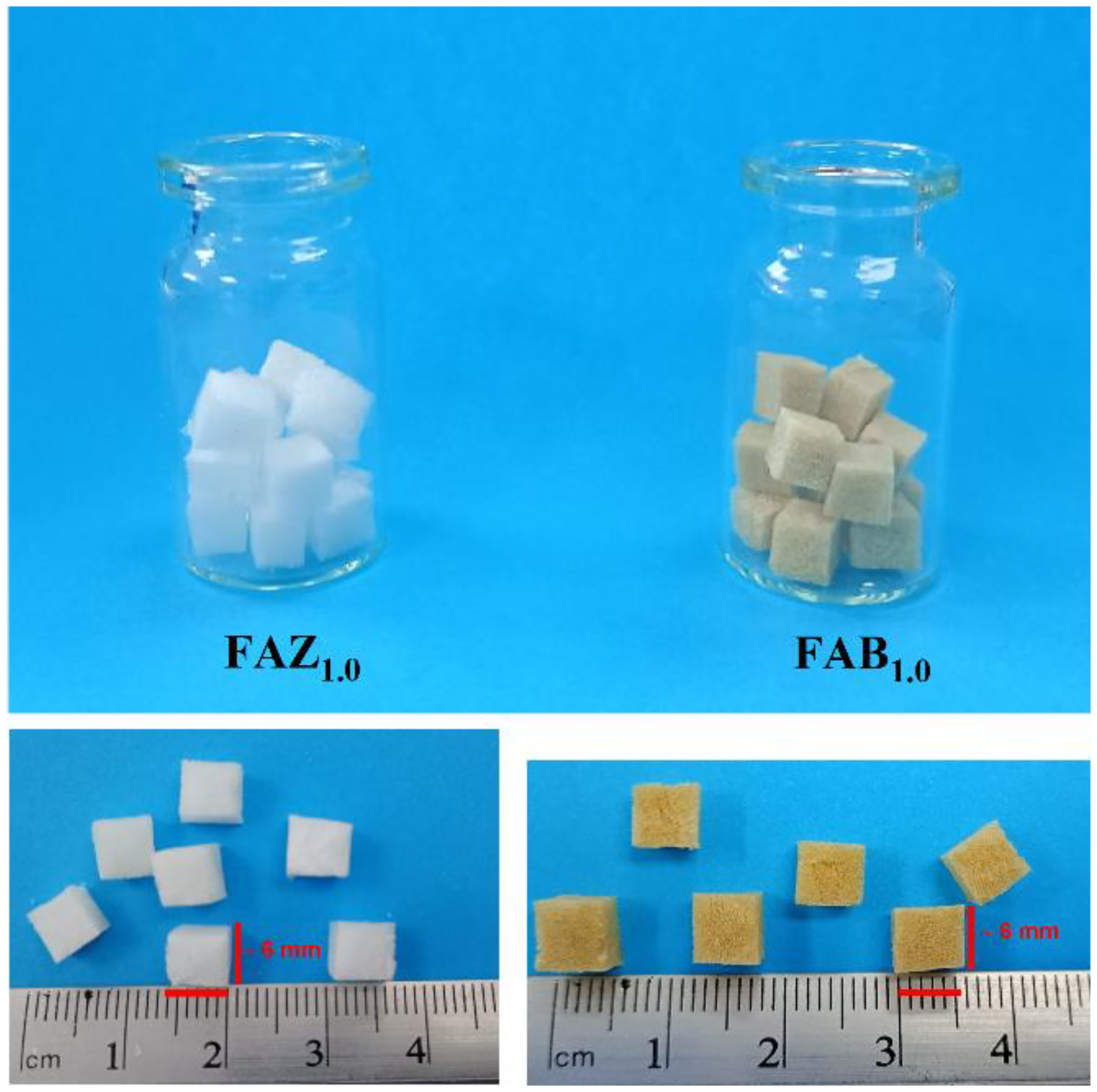

Figure 1.

Macroscopic appearance and dimensions of floating alginate-based composites: FAZ_1.0 (alginate–β-zeolite) and FAB_1.0 (alginate–bentonite). FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite.

Statistical optimization of floating alginate–aluminosilicate composites

A statistical study was conducted to optimize the synthesis process of floating composite materials based on aluminosilicate precursors (B and βZ), which were incorporated as the dispersed phase into a SA polymer matrix. The primary objective was to maximize the material's buoyancy, a key property for its subsequent application in the adsorption of Hg(II) from aqueous media.

A central composite design (CCD) was employed using Design-Expert^® software version 11 to evaluate the combined effect of three independent factors on the response variable, namely the buoyancy percentage (y) of the alginate/aluminosilicate composite. The factors considered were: The biopolymer mass fraction (x₁) was evaluated at two levels (2% and 4% w/w); the aluminosilicate mass (x₂) was analyzed at three levels (0.5, 1.0 and 1.5 g); and the type of aluminosilicate (x₃) was considered as a categorical factor with two levels (B and βZ). This statistical strategy enabled the construction of a second-order polynomial model to describe the relationships among the system variables (Bezerra et al., 2019), identify significant effects (linear, quadratic, and interactive), and predict the optimal buoyancy conditions.

Model fitting was validated through analysis of variance (ANOVA), and its adequacy was assessed using statistical indicators such as the coefficient of determination (R²), the adjusted R², and the Akaike Information Criterion (AIC). In addition, graphical tools provided by the software such as three-dimensional response surfaces, two-dimensional contour plots, and desirability ramps were employed to facilitate visual interpretation and informed decision-making in the optimization process.

The resulting regression equation, corresponding to a quadratic model, is expressed as follows:

y = b_{0} + b_{1} x_{1} + b_{2} x_{2} + b_{3} x_{3} + b_{12} x_{1} x_{2} + b_{13} x_{1} x_{3} + b_{23} x_{2} x_{3} + b_{11} x_{1}^{2} + b_{22} x_{1}^{2} + b_{33} x_{3}^{2}

(1)

where b₀ is the intercept, and b₁, b₂ and b₃ are the linear regression coefficients; b₁₂, b₁₃ and b₂₃ are the interaction coefficients; and b₁₁, b2₂ and b₃₃ are the quadratic coefficients.

Functional evaluation: Buoyancy study

The buoyancy evaluation was conducted based on the procedure developed by Dalponte et al. (2019). A total of 250 mg of the FAB or FAZ composites were added to Erlenmeyer flasks containing 100 mL of deionized water and subjected to constant stirring at 250 r/min at room temperature. After 24 h, the floating and sedimented composites were separated and dried individually. Subsequently, the respective fractions were weighed to calculate buoyancy using the following equation:

Buoyancy % = \frac{W_{f}}{W_{t}} \times 100

(2)

where W_f is the weight of the floating fraction and W_t is the total initial weight of the composite material.

Material characterization

TG–DTA was performed on an SDT 650, TA Instruments, at a heating rate of 10 °C/min from room temperature to 800 °C under nitrogen atmosphere. FTIR–ATR spectra were recorded on a Nicolet IS50, Thermo Scientific spectrometer, in the range of 4000–400 cm⁻¹. XRD patterns were obtained on a Rigaku Miniflex diffractometer, operating at 40 kV and 30 mA, equipped with a D/teX Ultra detector and a Cu Kβ 1.5 nickel filter. Cu Kα_₁ radiation (λ = 1.5405 Å) was used with a scan rate of 10° min⁻¹ and a step size of 0.01° in θ. Diffractograms were recorded over a 2θ range of 2–80. Field emission scanning electron microscope (FE-SEM) analysis was carried out using a Dual Beam FE-SEM Thermo Fisher Scientific Scios 2 LoVac, equipped with field emission (FE-SEM) and ion (FIB) sources. Various detectors were employed for image acquisition, including T1 (backscattered electrons), T2 (secondary electrons), ETD (secondary electrons), STEM 3+, cathodoluminescence, and LVD (low-vacuum secondary electrons). The instrument provides a resolution of 0.7 nm at 30 kV in STEM mode and 1.4 nm at 1 kV in FE-SEM mode. Samples were mounted on graphite tape and coated with a thin gold layer using a Denton Vacuum Desk IV ion coater prior to observation. Nitrogen adsorption–desorption isotherms at −196 °C were obtained on a Micromeritics 3-Flex Sorptometer using 100–200 mg of sample degassed at 150 °C for 16 h under vacuum to ensure complete removal of physisorbed species while preserving the structural integrity of the polymeric matrix, as supported by thermogravimetric analysis. In contrast, the pristine inorganic precursors (B and βZ) were degassed at 300 °C for 12 h prior to analysis, a temperature commonly employed for fully inorganic aluminosilicates to remove adsorbed and interlayer water and to fully activate the porous structure without inducing structural degradation. The BET surface area was calculated following (Rouquerol et al., 2007). Finally, the point of zero charge (pH_pzc) of the biocomposites was determined following the procedure reported by (Kragović et al., 2019; Wasilewska et al.-Kulik, 2025). Briefly, 50 mg of sample were suspended in 50 mL of 0.01 mol L⁻¹ NaNO₃ solutions with initial pH values adjusted between 2 and 10, and shaken for 48 h at 150 r/min before measuring the equilibrium pH. The pHpzc values were obtained from the plot of initial pH versus ΔpH and included as part of the characterization to evaluate the surface charge behavior of the materials as a function of pH.

Kinetic adsorption study

The kinetic adsorption study of Hg(II) in aqueous solution on FAB or FAZ was conducted using 250 mg of the adsorbent material and 100 mL of HgCl₂ aqueous solution (CAS No. 7487-94-7, 99.5% purity, Thermo Scientific Chemicals) at an initial concentration of 200 mg L⁻¹, adjusted to pH ∼ 6.5 with 0.1 M NaOH or HCl. The experiments were carried out in Erlenmeyer flasks under constant agitation in an orbital shaker (Maxshake™ OB2) at 250 r/min and room temperature (22 °C) over a period of 240 min. Aliquots of 100 μL were periodically withdrawn for mercury quantification by differential pulse anodic stripping voltammetry, following the methodology previously reported (Ruiz-Bravo et al., 2025), every 5 min during the first 60 min and subsequently every 30 min until the completion of the 240-min run. All experiments were performed in triplicate.

The amount of Hg(II) adsorbed at time q_t (mg g⁻¹) was indirectly by mass balance, calculated from the difference between the initial Hg(II) concentration solution (C₀) and the residual concentration at time (C_t), according to Equation (3):

q_{t} = \frac{C_{0} - C_{t}}{m} * V

(3)

where

C_{0}

is the initial concentration (mg L⁻¹);

C_{t}

is the concentration at time t (mg L⁻¹); m is the mass of adsorbent used (g) and V is the volume of the aqueous solution (L). Hg(II) concentrations were quantified exclusively in the aqueous phase, and for all experiments the residual Hg(II) concentration was consistently lower than the initial concentration, confirming effective uptake by the adsorbents. The mass balance closed within the experimental uncertainty associated with the analytical method, indicating that no significant mercury losses occurred during the adsorption experiments.

The kinetic data were fitted using nonlinear models (Wang et al., 2024), as described in Table 1.

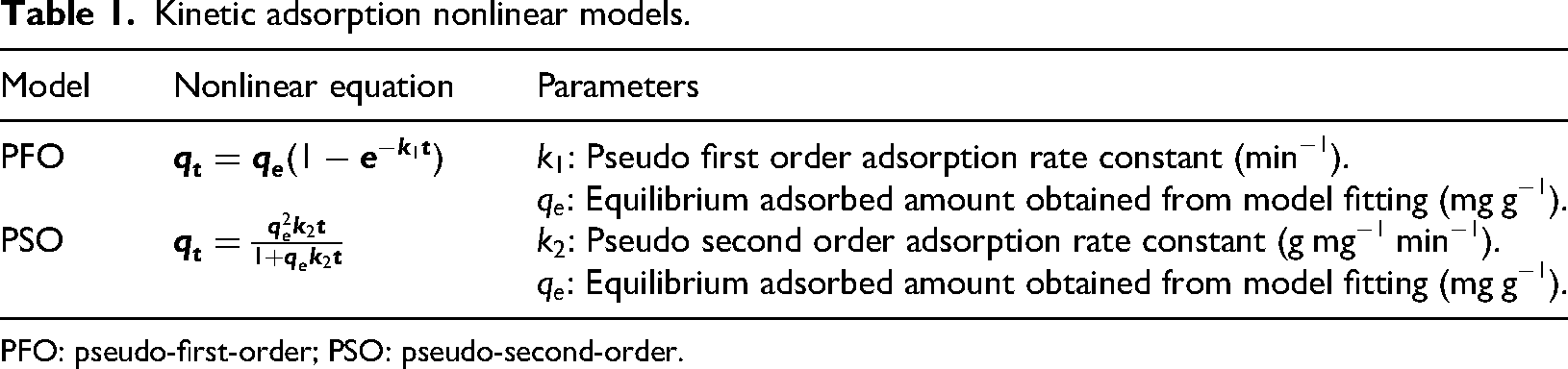

Table 1.

Kinetic adsorption nonlinear models.

Model	Nonlinear equation	Parameters
PFO	$q_{t} = q_{e} (1 - e^{- k_{1} t})$	$k_{1}$ : Pseudo first order adsorption rate constant (min⁻¹). $q_{e}$ : Equilibrium adsorbed amount obtained from model fitting (mg g⁻¹).
PSO	$q_{t} = \frac{q_{e}^{2} k_{2} t}{1 + q_{e} k_{2} t}$	$k_{2}$ : Pseudo second order adsorption rate constant (g mg⁻¹ min⁻¹). $q_{e}$ : Equilibrium adsorbed amount obtained from model fitting (mg g⁻¹).

PFO: pseudo-first-order; PSO: pseudo-second-order.

Evaluation of reusability cycles

To experiment the reusability of the material, three adsorption cycles were carried out following the methodology described in the “Kinetic adsorption study” section. After each cycle, the composites were washed with 0.1 mol L⁻¹ HCl for 2 h to remove the adsorbed Hg(II). Subsequently, they were rinsed with deionized water and dried in an oven at 55 °C for 3 h. After the wash step using HCl, the Hg(II)-containing acidic solutions were collected and stored in appropriate, labeled containers and handled in accordance with institutional safety protocols and local environmental regulations for hazardous mercury-containing waste. No direct discharge to the environment occurred at any stage of the experimental procedure.

Results and discussion

Experimental optimization and statistical analysis

The optimization of composite buoyancy was evaluated using a full factorial CCD with three independent factors: SA mass fraction (x₁), aluminosilicate mass (x₂), and aluminosilicate type (x₃). These factors were evaluated at three coded levels (−1, 0, and +1). The experimental design comprised six distinct experimental conditions, each evaluated in duplicate through independent runs, resulting in a total of 12 experimental trials. Buoyancy values obtained under each condition are summarized in Table 2. The experimental matrix yielded buoyancy values ranging from 67.9% to 99.1%. The highest buoyancy values highest buoyancy values (≈99%) were obtained under conditions corresponding to 4 wt% SA, 1.0 g of aluminosilicate, and the use of βZ (C5 condition, Table 2) indicating an optimal balance between polymer content and inorganic loading. Under these conditions, the formation of low-density porous structures with enhanced macroscopic cohesion was promoted, as also evidenced by visual inspection during experimental handling. In contrast, excessive inorganic loading (4 wt% SA combined with 1.5 g of βZ) resulted in a pronounced decrease in buoyancy (67.9%). Under these conditions, a loss of buoyancy stability was observed, as one of the duplicate runs did not float. This behavior indicates that the system operates near a critical density threshold, where minor variations in microstructure or inorganic distribution can determine whether the composite floats or sinks. The observed reduction in buoyancy is therefore attributed to the increased composite density and partial collapse of the porous structure, which compromises the reproducibility of the floating behavior.

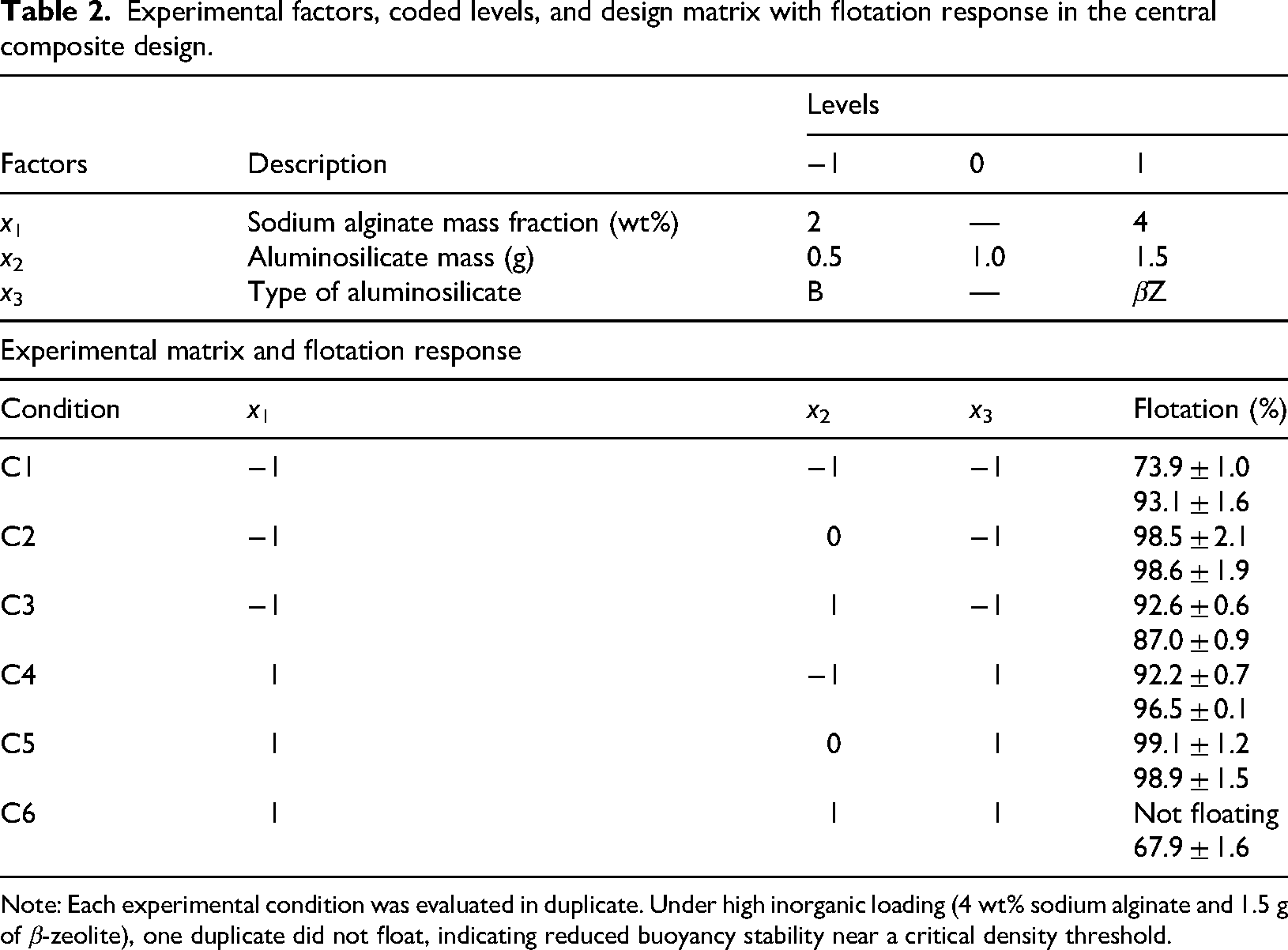

Table 2.

Experimental factors, coded levels, and design matrix with flotation response in the central composite design.

Factors	Description	Levels
Factors	Description	−1	0	1
x ₁	Sodium alginate mass fraction (wt%)	2	—	4
x ₂	Aluminosilicate mass (g)	0.5	1.0	1.5
x ₃	Type of aluminosilicate	B	—	βZ
Experimental matrix and flotation response
Condition	x ₁	x ₂	x ₃	Flotation (%)
C1	−1	−1	−1	73.9 ± 1.0
C1	−1	−1	−1	93.1 ± 1.6
C2	−1	0	−1	98.5 ± 2.1
C2	−1	0	−1	98.6 ± 1.9
C3	−1	1	−1	92.6 ± 0.6
C3	−1	1	−1	87.0 ± 0.9
C4	1	−1	1	92.2 ± 0.7
C4	1	−1	1	96.5 ± 0.1
C5	1	0	1	99.1 ± 1.2
C5	1	0	1	98.9 ± 1.5
C6	1	1	1	Not floating
C6	1	1	1	67.9 ± 1.6

Note: Each experimental condition was evaluated in duplicate. Under high inorganic loading (4 wt% sodium alginate and 1.5 g of β-zeolite), one duplicate did not float, indicating reduced buoyancy stability near a critical density threshold.

The ANOVA for the significant terms of the quadratic model (Table 3) revealed a statistically significant relationship between the independent variables and the flotation of the composites (p < 0.0001), thereby validating the fit of the proposed model. The aluminosilicate mass (x₂) exhibited a significant main effect (p = 0.0010), while the interaction terms x₁·x₂, x₁·x₃, and x₂·x₃ were also highly significant (p < 0.0001), indicating synergistic effects between the alginate fraction and both the type and mass of aluminosilicate. In addition, the quadratic term x₂² was highly significant (p < 0.0001), suggesting a non-linear dependence of flotation on aluminosilicate mass and enabling the identification of an optimal operating region. The model demonstrated robust predictive capacity, with a coefficient of determination R² of 0.9619, adjusted R² of 0.9429, predicted R² of 0.9133, and an AIC value of 119.29, supporting its applicability for system prediction and optimization. Complete ANOVA details, including non-significant terms, are provided in the Supplemental Information (Table S1).

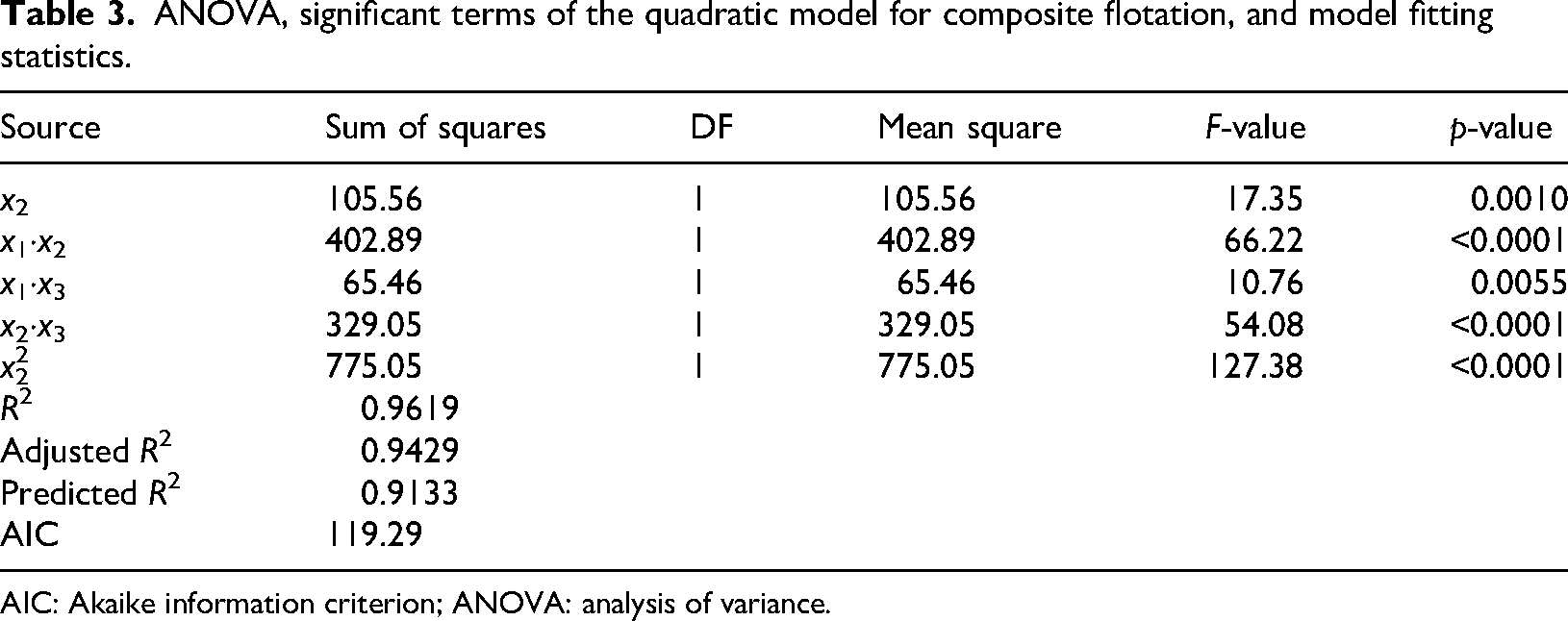

Table 3.

ANOVA, significant terms of the quadratic model for composite flotation, and model fitting statistics.

Source	Sum of squares	DF	Mean square	F-value	p-value
x ₂	105.56	1	105.56	17.35	0.0010
x₁·x₂	402.89	1	402.89	66.22	<0.0001
x₁·x₃	65.46	1	65.46	10.76	0.0055
x₂·x₃	329.05	1	329.05	54.08	<0.0001
x ₂ ²	775.05	1	775.05	127.38	<0.0001
R ²	0.9619
Adjusted R²	0.9429
Predicted R²	0.9133
AIC	119.29

AIC: Akaike information criterion; ANOVA: analysis of variance.

The polynomial equation for flotation (Equation (4)) indicates that this property is primarily influenced by factor interactions rather than by individual effects. The interaction terms x₁·x₂, x₁·x₃, and x₂·x₃ exhibited significant negative coefficients, suggesting that extreme combinations of high polymer fraction, greater aluminosilicate mass, and the use of βZ tend to reduce flotation, possibly due to increased composite density or loss of structural integrity. Conversely, the negative coefficient of the quadratic term x₂² suggests the existence of an optimal aluminosilicate mass, beyond which flotation decreases markedly. These findings underscore the necessity of carefully optimizing the alginate to clay ratio to maximize the functional performance of the composite.

B = 99.04 - 0.49 x_{1} + 0.16 x_{2} - 3.15 x_{3} - 6.15 x_{1} x_{2} - 1.91 x_{1} x_{3} - 5.55 x_{2} x_{3} - 13.02 x_{2}^{2}

(4)

The response surfaces (Figure 2(a) and (b)) and the corresponding contour plots (Figure 2(c) and (d)) for the set of synthesized composites confirm the aforementioned findings. An optimal flotation region was observed under intermediate to high aluminosilicate mass condition (∼1.0 g) combined with a 4% alginate fraction. The surface corresponding to βZ exhibited a steeper slope with respect to mass, consistent with the statistical significance of the x₂·x₃ interaction. Furthermore, the curvature observed in both surfaces is in agreement with the quadratic effect of the x₂² term, reflecting a non-linear relationship that defines an optimal formulation range. These results further support the validity of the employed statistical model and highlight the importance of interaction effects in the design of floating materials for contaminant removal.

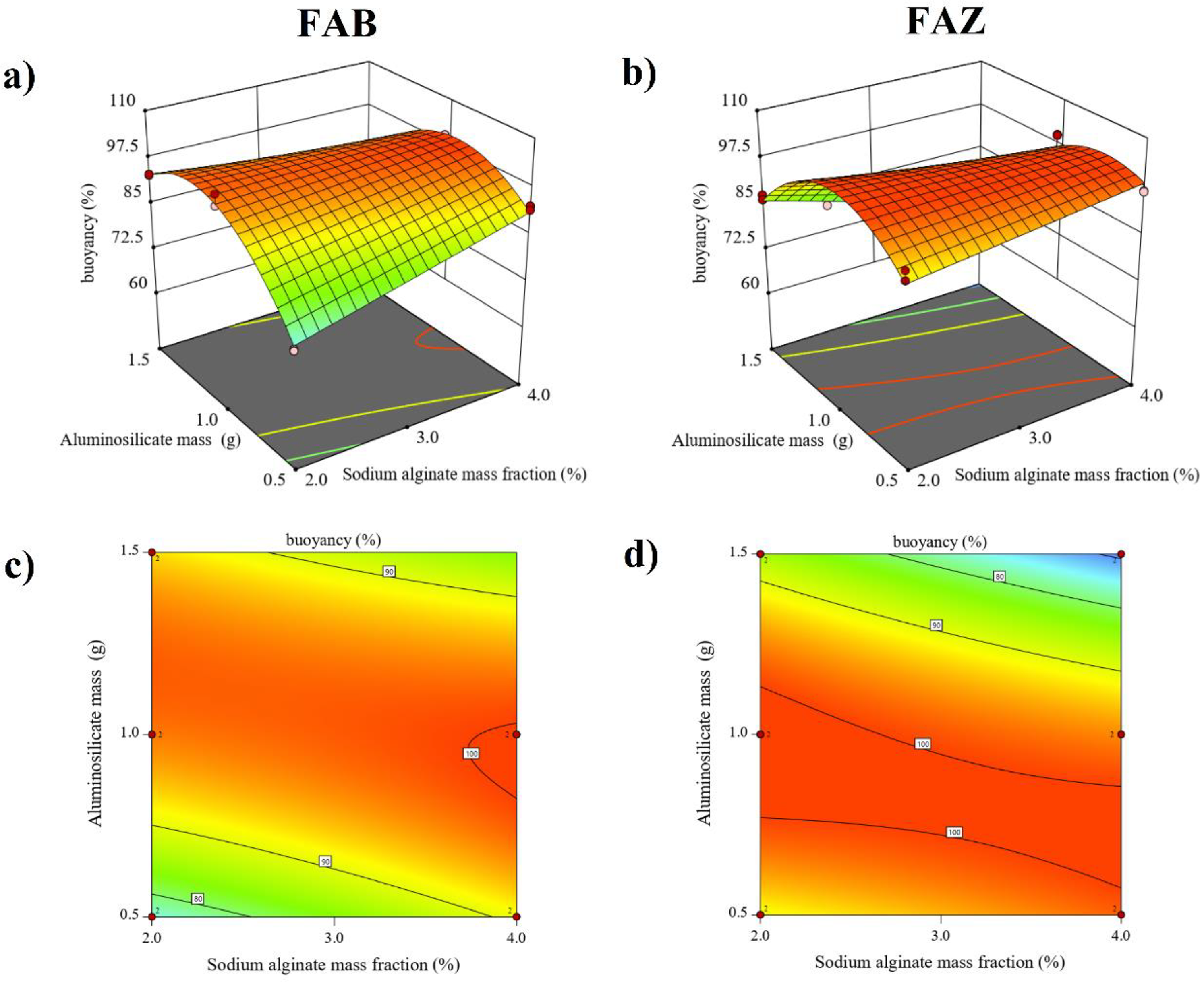

Figure 2.

3D surface plots of (a) FAB and (b) FAZ composites; 2D contourn plots of (c) FAB and (d) FAZ composites. 3D: three-dimensional; 2D: two-dimensional; FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite.

Based on the statistical and graphical analysis, the CCD predicted an optimal formulation corresponding to 4% SA and 1.0 g of aluminosilicate for both bentonite and βZ systems. To validate the statistical model, new composites (FAB_1.0 and FAZ_1.0) were synthesized under these predicted optimal conditions. The experimental buoyancy values (>98%) agreed with the model prediction, confirming the reliability and predictive capability of the optimization. These optimized materials also exhibited physically stable structures and the highest flotation performance compared with the other evaluated formulations.

Thermal, structural, morphological, and surface characterization of the optimized composites

Thermogravimetric and differential thermogravimetric analysis

Thermogravimetric analysis of the FAB_1.0 and FAZ_1.0 composites (Figure 3(a), blue and green lines, respectively) revealed total mass losses of approximately 54.4% and 55.8%. These losses reflect the combined decomposition of the organic fraction (alginate), the removal of adsorbed and structural water, and the partial carbonization of residual material. Although the initial preparation involved a 4 wt% SA solution, most of the water is removed during drying and crosslinking, and not all of the polymer becomes fully integrated into the composite matrix. Consequently, the final solid exhibits a relatively high organic content, a phenomenon widely reported for alginate-based hybrid materials (Baigorria et al., 2020; Bukit et al., 2024; Edathil et al., 2018; Giriyappa Thimmaiah et al., 2022; Liaqat et al., 2022; X. Wang et al., 2022b; Xu et al., 2024).

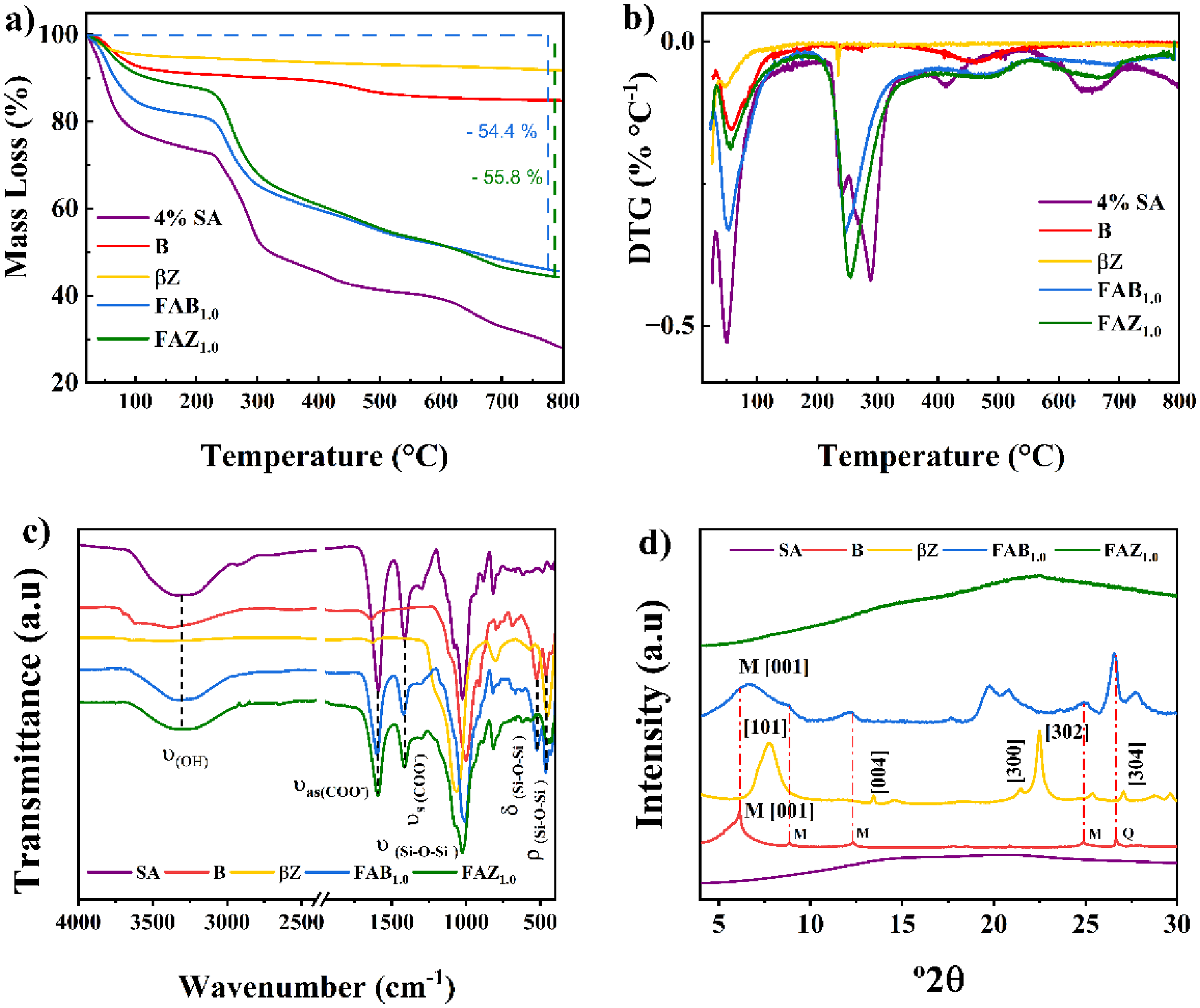

Figure 3.

(a) TG of SA, B, βZ, FAB_1.0, and FAZ_1.0 composites; (b) DTG curves; (c) ATR-FTIR spectra; (d) XRD patterns. XRD: X-ray diffraction; FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite; SA: sodium alginate; TG: thermogravimetric analysis; DTG: differential thermogravimetric analysis.

The main thermal event associated with alginate degradation occurred between 250 and 400 °C, while the ranges of 30–150 °C and 400–550 °C corresponded to water desorption and final carbonization, respectively. Accordingly, the functional organic content (alginate + structural water + carbonaceous residues) was estimated to account for 50%–56% of the total mass, consistent with the observed losses. The remaining 44%–50% of the mass was attributed to the inorganic phase (B or βZ) and calcium salts derived from the crosslinking agent, which remained as stable solids at temperatures above 600 °C. All thermal transitions are summarized in Table S2.

The relatively high proportion of the organic phase is a key factor in conferring flotation capacity to the composite (>98%), as it reduces the apparent density of the material and generates a porous structure. In addition, the presence of alginate functional groups (–COO⁻, –OH) could potentially contribute to the adsorption of metal cations such as Hg(II) through coordinated or electrostatic interactions, as discussed later.

DTG analysis (Figure 3(b)) showed a pronounced decomposition peak around 120 °C, associated with the removal of weakly bound water within the polymeric matrix. In the 270–320 °C range, more intense peaks corresponding to the thermal degradation of SA were identified. In the FAB_1.0 and FAZ_1.0 composites, these peaks shifted slightly toward higher temperatures and displayed lower intensities compared to pure alginate. This behavior indicates a stabilizing effect induced by the inorganic phase, which is attributed to interfacial interactions such as hydrogen bonding between alginate carboxyl groups and aluminosilicate surface sites. These interactions restrict polymer chain mobility and delay thermal decomposition. Similar stabilization effects have been reported for clay–alginate hybrid systems (Coşkuner Filiz et al., 2025; Fernando et al., 2019; Hellal et al., 2023; Pawar et al., 2018; Radoor et al., 2020; Syah et al., 2025) and are consistent with the enhanced macroscopic cohesion observed experimentally in the composites.

FTIR–ATR

The infrared spectrum of SA (Figure 3(c), purple line) exhibited a broad band centered at $υ_{(O H)} \approx 3350 {cm}^{- 1}$ , attributed to the stretching vibrations of hydroxyl groups involved in intra- and intermolecular hydrogen bonding within the alginate chains. In the alginate/aluminosilicate composites (Figure 3(c), blue and green lines), this OH region may additionally include overlapping contributions from surface Si–OH and Al–OH groups associated with the inorganic phases. Bands were also observed at $υ_{a s (C O O^{-})} \approx 1590 {cm}^{- 1}$ and $υ_{s (C O O^{-})} \approx 1412 {cm}^{- 1}$ , which are typical of alginate chains (Wen et al., 2024; Zhang et al., 2020a). In contrast, the infrared spectra of the aluminosilicates (Figure 3(c), red and yellow lines) displayed intense bands in the $υ_{(S i - O - S i)} \approx 1066 - 990 {cm}^{- 1}$ region, associated with the siloxane bonds of the three-dimensional aluminosilicate framework, as well as bands at $υ_{(S i - O - S i)} \approx 796 - 770 {cm}^{- 1}$ related to the stretching vibrations of quartz present in bentonite (Chaabna et al., 2024). Moreover, a contribution from sinolate (Si–O–Al) linkages is expected around ≈960 cm⁻¹. Although this band is not clearly resolved in the spectra, its presence may be masked by a strong and broad Si–O–Al absorption feature, observed as a marked decrease in transmittance overlapping with the Si–O–Si vibrations in the 1110–1000 cm⁻¹ region, as commonly reported for aluminosilicate materials (Kayan, 2015). Furthermore, bending modes at $δ_{(S i - O - A l)} \approx 526 {cm}^{- 1}$ and rocking vibrations at $ρ_{(S i - O - S i)} \approx 469 - 450 {cm}^{- 1}$ were detected, characteristic of the aluminosilicate structure. Bentonite additionally exhibited bands at $υ_{(O H)} \approx 3370 {cm}^{- 1}$ , corresponding to the stretching of physisorbed water, as well as to coordinated Al–OH and Si–OH groups in the clay layers (X. Wang et al., 2022b).

In the FAB_1.0 and FAZ_1.0 composites (Figure 3(c) blue and green lines), characteristic bands of alginate were preserved, although with slight shifts. For the FAB_1.0 composite, bands were identified at $υ_{a s (C O O^{-})} \approx 1596 {cm}^{- 1}$ , $υ_{s (C O O^{-})} \approx 1420 {cm}^{- 1}$ and $υ_{(O H)} \approx 3325 {cm}^{- 1}$ , whereas for the FAZ_1.0 composite, bands were observed at $υ_{a s (C O O^{-})} \approx 1588 {cm}^{- 1}$ , $υ_{s (C O O^{-})} \approx 1415 {cm}^{- 1}$ and $υ_{(O H)} \approx 3323 {cm}^{- 1}$ . The reduction in the intensity of the carboxylate bands and the shift of the OH band toward lower frequencies suggest interactions between the carboxylate groups of alginate and the surface hydroxyl groups of the aluminosilicates, most likely through hydrogen bonding or electrostatic interactions (Kim et al., 2021). These results indicate that during composite formation, the inorganic phases remain structurally present within the materials, and that an effective integration between the polymeric matrix and the aluminosilicates takes place.

X-ray diffraction

The XRD analysis (Figure 3(d)) revealed a contrasting structural behavior between the FAB_1.0 and FAZ_1.0 composites. The FAB_1.0 composite retained diffraction peaks characteristic of bentonite (Figure 3(d), red line) corresponding to montmorillonite and quartz phases (M and Q), indicating partial intercalation of the biopolymer within the montmorillonite layers rather than complete exfoliation. This effect is consistent with the decrease in the basal spacing of the [001] reflection from d₀₀₁ ≈ 1.44 nm to d₀₀₁ ≈ 1.33 nm, suggesting a partial interlayer collapse after the replacement of cations and structural water by alginate chains, as previously reported in other studies (Wang et al., 2022b; Deveci, 2024).

In contrast, the FAZ_1.0 composite exhibited an amorphized pattern, without defined diffraction signals, indicating a complete loss of the crystalline order of βZ within the alginate matrix. This behavior could be attributed to the highly amorphous nature of SA and, in particular, to the effect of the freeze-drying process, which disrupts the regular packing of zeolite crystals and promotes the formation of a highly dispersed three-dimensional porous structure. Similar behavior has been reported in several studies (Chen et al., 2025; Djelad et al., 2016; Kałahurska et al., 2021; Suhaimi et al., 2025), where freeze-drying in zeolite–biopolymer systems suppresses diffraction peaks due to the loss of long-range order, especially when the inorganic particles are nanodispersed or hydrated.

Field emission scanning electron microscopy

FE-SEM micrographs at the macroscale (500 µm) revealed remarkable structural contrasts among the materials (Figure 4(a)–(c)). The SA sponge (SA, Figure 4(a)) exhibited a homogeneous porous network with large, well-defined cavities, which is characteristic of freeze-dried gels without inorganic loading. This open architecture is consistent with the features observed at the microscale (10 µm) (Figure 4(d)) and indicates good pore connectivity. However, such structures typically present limited mechanical strength, as commonly reported for freeze-dried alginate hydrogels (Wang et al., 2022c). In contrast, the FAB_1.0 composite (Figure 4(b)) displayed a denser macrostructure with partially collapsed regions and scarce visible porosity. This morphology is consistent with the homogeneous incorporation of laminar bentonite particles and the rough surface observed at the microscale (Figure 4(e)). The presence of bentonite promotes the formation of a more compact framework, which arises from strong interactions between alginate carboxylate groups and clay surfaces. Similar structural features have been described for alginate–montmorillonite nanocomposites and are associated with improved cohesion of the polymeric matrix (H. Zhang et al., 2020a). The FAZ_1.0 composite (Figure 4(c)) exhibited a markedly heterogeneous macrostructure, characterized by crystalline aggregates and irregular pore distribution. These features correlate with the limited dispersion of βZ particles observed at the microscale (10 µm) (Figure 4(f)). Such morphologies have been previously associated with the poor compatibility of highly crystalline zeolites with polymeric matrices, particularly in the absence of coupling agents or surface functionalization strategies (Cheng et al., 2017).

Figure 4.

Representative FE-SEM images of the floating composite sponges SA, FAB_1.0, and FAZ_1.0 at 500 µm (a–c) and 10 µm (d–f). FE-SEM: field emission scanning electron microscope; FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite; SA: sodium alginate.

Textural properties

The N₂ adsorption–desorption isotherms of the pristine aluminosilicate precursors (B and βZ) and the alginate-based composites (SA, FAB_1.0, and FAZ_1.0) adsorbents exhibited marked differences in their profiles (Figure 5(a) and 5(b)), reflecting substantial variations in porous structure and surface interactions characteristics. B (Figure 5(a)) exhibited a type IV isotherm with a gradual adsorption increase and a narrow hysteresis loop, characteristic of mesoporous materials with slit-shaped pores associated with lamellar clay structures. Its moderate BET surface area, relatively low total pore volume, and an average pore diameter in the mesoporous range (Table 4) are consistent with literature reports for natural or mildly treated bentonites (Vicente et al., 2013). The comparatively high BET constant indicates strong adsorbate–adsorbent interactions, arising from surface hydroxyl groups and exchangeable cations located within the interlayer regions. In contrast, βZ displayed a steep hybrid type I and IV isotherm with pronounced N₂ uptake at low relative pressures, indicative of dominant microporosity combined with secondary mesoporosity (Figure 5(a)). This material exhibited the highest BET surface area and maximum nitrogen uptake among the investigated materials, together with a markedly elevated BET constant (Table 4), confirming the strong energetic heterogeneity and high density of adsorption sites characteristic of crystalline zeolitic frameworks (Thommes et al., 2015). The pore size distribution, centered in the mesoporous range, suggests the presence of intercrystalline mesopores in addition to intrinsic microporous channels.

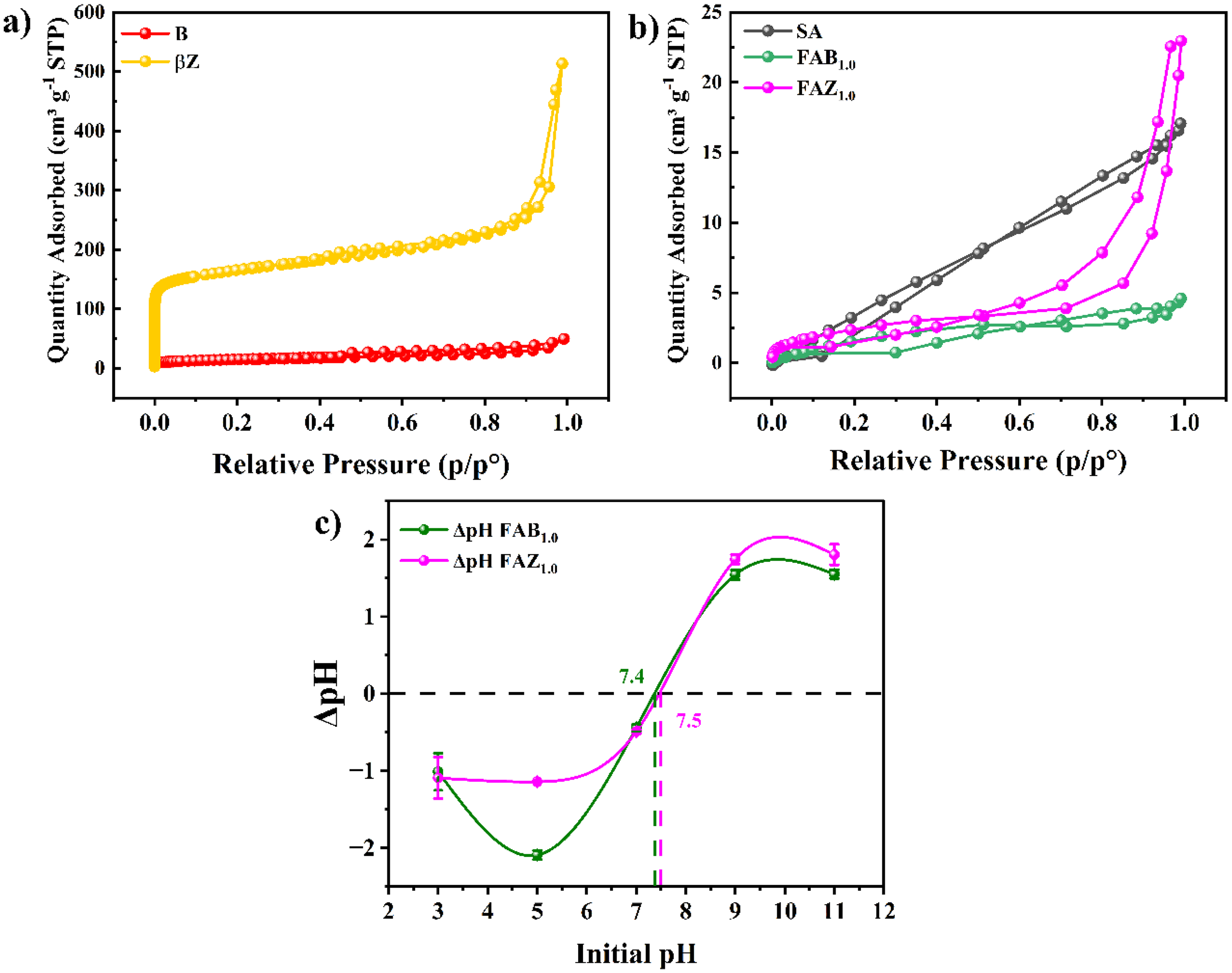

Figure 5.

(a) Adsorption–desorption isotherms of the pristine inorganic precursors (B and βZ); (b) floating composites SA, FAB_1.0, and FAZ_1.0; and (c) Point of zero charge (pH_pzc) of the composites FAB_1.0 and FAZ_1.0. ; FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite; SA: sodium alginate.

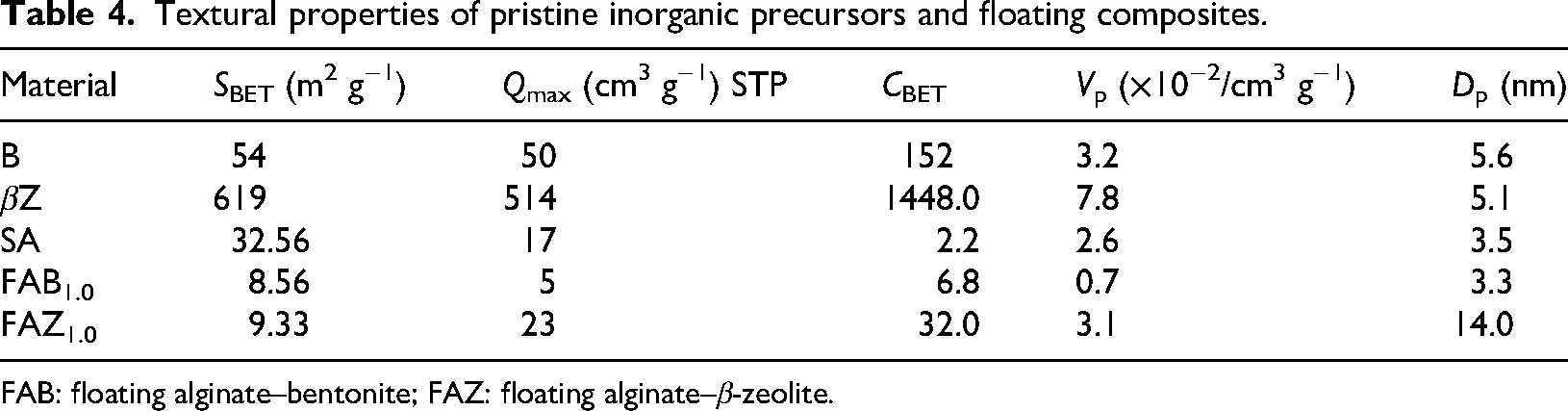

Table 4.

Textural properties of pristine inorganic precursors and floating composites.

Material	S_BET (m² g⁻¹)	Q_max (cm³ g⁻¹) STP	C _BET	V_p (×10⁻²/cm³ g⁻¹)	D_p (nm)
B	54	50	152	3.2	5.6
βZ	619	514	1448.0	7.8	5.1
SA	32.56	17	2.2	2.6	3.5
FAB_1.0	8.56	5	6.8	0.7	3.3
FAZ_1.0	9.33	23	32.0	3.1	14.0

FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite.

The SA material (Figure 5(b)) displayed a type III isotherm according to the IUPAC classification (Rahman et al., 2019), characterized by a convex adsorption curve over the entire relative pressure range and the absence of a well-defined plateau, indicative of weak adsorbate–adsorbent interactions. Narrow hysteresis loop were observed both in the low to mid relative pressure region (P/P₀ ≈ 0.2–0.6) and near saturation (P/P₀ > 0.8), which may be associated with reversible swelling or structural rearrangements of the polymeric alginate network during sorption, as reported for other flexible biopolymeric systems (Fu et al., 2011). This behavior is consistent with the low BET surface area, limited pore volume, and small average pore diameter reported in Table 4, which are characteristic of freeze-dried alginate sponges (Platero et al., 2017).

Upon incorporation of bentonite, FAB_1.0 (Figure 5(b)) exhibited an incipient type IV isotherm with an H3-type hysteresis loop, characteristic of materials containing slit-shaped mesopores or inter-aggregate porosity arising from lamellar structures (Zhang et al., 2020a). Despite the intrinsic mesoporosity of B, FAB_1.0 showed a pronounced decrease in BET surface area and total pore volume relative to both pristine B and SA (Table 4). This behavior strongly suggests partial pore blocking and structural densification of the hybrid matrix, likely caused by alginate infiltration into clay interlayers and collapse of interparticle voids during freeze-drying, as previously reported for alginate–clay composites (H. Zhang et al., 2020a). The average pore diameter of FAB_1.0 remained within the lower mesoporous range, consistent with a compacted hybrid structure.

FAZ_1.0 displayed a type IV isotherm with a pronounced adsorption increase at high relative pressures (P/P₀ > 0.8) and a narrow hysteresis loop, indicative of mesoportous structures with capillary condensation occurring in interparticle voids or slit-like pores (Figure 5(b)). Although the BET surface area of FAZ_1.0 remained low compared to pristine βZ, this material exhibited a larger pore volume and a significantly increased average pore diameter (Table 4), consistent with its higher maximum nitrogen uptake. These results indicate that, unlike B, the rigid zeolitic framework promotes the formation of wide mesoporous domains within the alginate matrix, while preserving accessible adsorption pathways despite partial masking of intrinsic microporosity.

With respect to surface affinity, the BET constants increased systematically with the incorporation of aluminosilicates, following the order SA < FAB_1.0 < FAZ_1.0 (Table 4). This trend reflects a substantial enhancement in adsorbate–adsorbent interaction energy, which can be attributed to the presence of inorganic active sites and stronger solid–gas interactions provided by the aluminosilicate phases (Wang et al., 2022c). Notably, although FAZ_1.0 does not recover the high BET constant of pristine βZ, its intermediate C_BET suggests a balanced contribution of polymeric flexibility and inorganic surface energetics.

The textural results confirm that the combination of alginate with aluminosilicates alters the porous architecture of the floating composite sponges. While hybridization leads to a substantial reduction in BET surface area relative to pristine inorganic precursors, it simultaneously promotes the development of mesoporous domains, enhanced surface affinity, and tailored adsorption capacities. Such a textural redesign is particularly advantageous for environmental remediation and controlled-release applications, where pore size distribution, accessibility, and interaction strength are often more critical than absolute surface area (Panayotova, 2022; Wang et al., 2022c).

Surface charge behavior and point of zero charge (pH_PZC)

The point of zero charge (pHₚ_zc) of the FAB_1.0 and FAZ_1.0 composites, determined by the pH drift method, was found at 7.4 and 7.5, respectively (Figure 5(c)). These values indicate that at pH < pH_pzc, the material surfaces carry a net positive charge due to the protonation of functional groups such as carboxyl (–COOH) moieties from alginate and silanol groups (≡Si–OH) from the inorganic phase. This surface environment modulates the interaction with dissolved mercury. However, according to the Pourbaix diagram of the Hg–H₂O system, free Hg²⁺ ions are stable only at pH < 2 (Powell et al., 2005). At higher pH values, including the range 5–7, the predominant mercury species correspond to neutral or monovalent hydroxyl complexes such as Hg(OH)⁺ and Hg(OH)₂, depending on the redox potential and metal concentration (Ciavatta and Grimaldi, 1968; Ruiz-Bravo et al., 2025). These uncharged or weakly charged species can efficiently interact with electron-donor functional groups (–COO⁻, ≡Si–O⁻) present in the composites through surface complexation mechanisms or coordinated bond formation, even in the absence of a favorable electrostatic gradient (Liu et al., 2021; Hosseinpour et al., 2023).

At pH > pHₚzc, surface functional groups (carboxyl and hydroxyl groups) become fully deprotonated, generating a surface with a high density of negative charge, which could promote the adsorption of cationic species (Salehi, 2025). Nonetheless, under such conditions, anionic mercury species such as Hg(OH)₃⁻ or Hg(OH)₄²⁻ may also form, potentially hindering adsorption depending on the surface affinity of the material. Considering this context, subsequent adsorption experiments were performed at pH 6.5, which on the one hand simulates natural water conditions and, on the other, prevents the formation of non-adsorbable anionic species while enabling specific interactions with Hg(OH)⁺ or Hg(OH)₂, the predominant species under these conditions.

Kinetics of Hg(II) adsorption on floating composites

The kinetic adsorption study of Hg(II) (Figure 6) revealed a behavior characterized by a rapid initial uptake within the first 30 min, likely associated with the abundant availability of surface-active sites and the predominance of electrostatic interactions between Hg(II) ions and functional groups on the adsorbent surface, as commonly reported for alginate and clay-based systems (Crini et al., 2019; Das et al., 2023). In addition, Hg(II) removal is strongly influenced by the porous structure of the adsorbents and the effective hydrated radius of mercury species, which governs mass transfer and accessibility to internal active sites. This initial stage was followed by a slower approach to equilibrium, during which the adsorption capacity gradually reached a plateau. Among the evaluated materials, the floating composite FAB_1.0 exhibited the highest adsorption capacity (≈33 mg g⁻¹), values kept but wording tightened, followed by FAZ_1.0 (≈28 mg g⁻¹) and pristine alginate (≈21 mg g⁻¹). The superior performance of FAB_1.0 is attributed to the high cation-exchange capacity and interlayer accessibility of bentonite, which synergistically interact with alginate carboxylate groups, thereby enhancing the effective retention of metal cations (Gao et al., 2020). In contrast, although the incorporation of β-zeolite in FAZ_1.0 improved Hg(II) adsorption relative to the pure biopolymer; its predominantly microporous framework restricted the diffusion of hydrated Hg(II) ions into internal sites, thus limiting the maximum capacity achieved (Kragović et al., 2018).

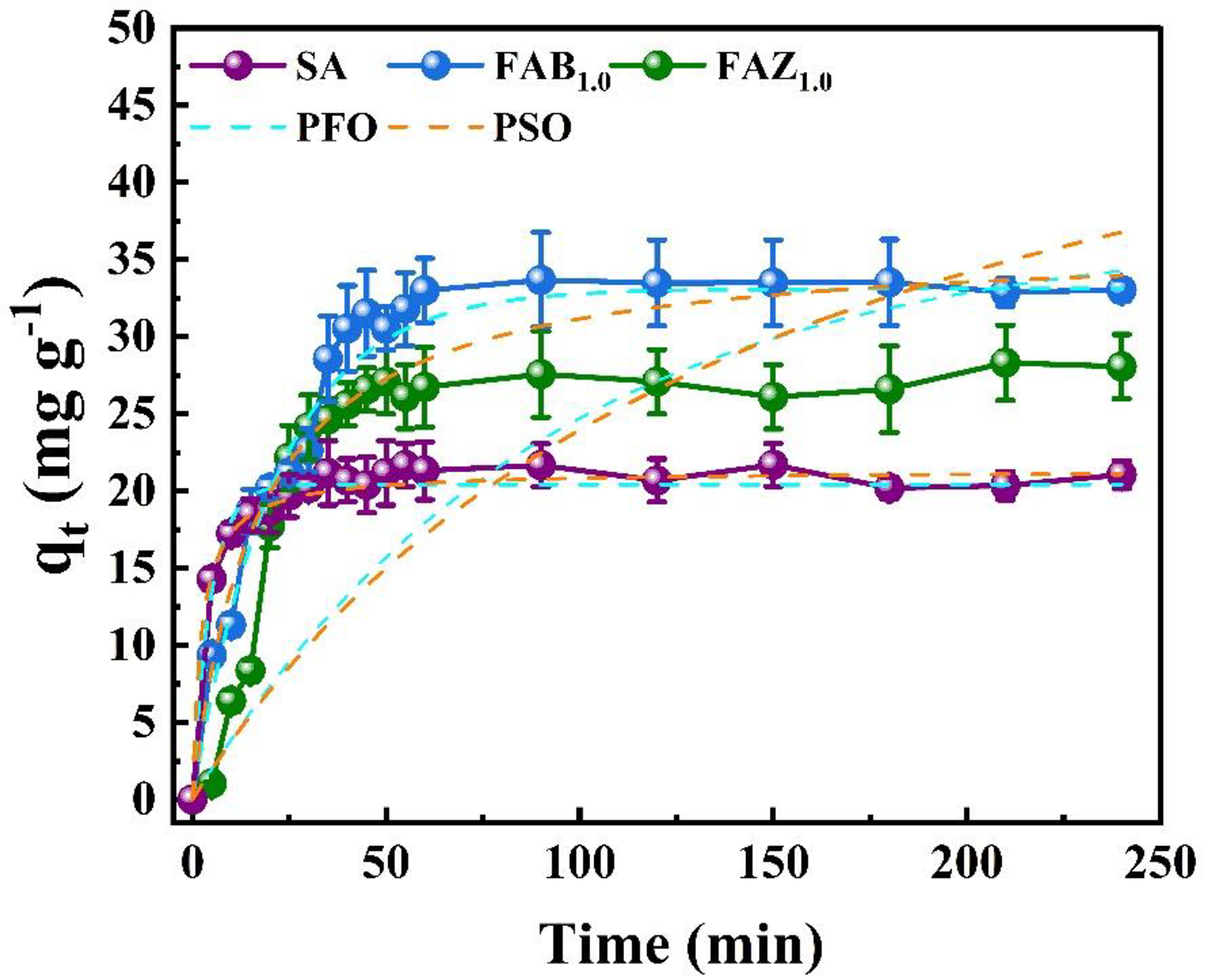

Figure 6.

Adsorption kinetics of Hg(II) onto SA, FAB_1.0, and FAZ_1.0 composites fitted to nonlinear PFO and PSO models. Experimental conditions: [Hg(II)]₀ = 200 mg L⁻¹, pH 6.5, adsorbent dosage of 250 mg per 100 mL solution. PFO: pseudo-first-order; PSO: pseudo-second-order; FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite; SA: sodium alginate.

The experimental kinetic data were fitted to pseudo-first-order (PFO) and pseudo-second-order (PSO) kinetic models through nonlinear regression. Model comparison was performed using R² and AIC values (Table 5), while a detailed statistical evaluation, including adjusted R² and residual analysis, is provided in the Supplemental Information (Table S3 and Figure S1). For SA, both models adequately described the adsorption kinetics; with the PSO model yielding a slightly better statistical fit, suggesting that surface-controlled adsorption dominates with a minor contribution from chemisorption-related processes. In the case of the floating composite FAB_1.0, the PFO model provided the most physically consistent description, indicating that the adsorption rate is primarily governed by surface processes associated with the bentonite component. Finally, FAZ_1.0 exhibited poor agreement between experimental and calculated equilibrium capacities for both kinetic models, together with large parameter uncertainties. Although the explicit PSO model yielded higher R² values, residual analysis revealed systematic, non-random deviations (Figure S1), indicating that the apparent statistical improvement arises from parameter compensation rather than from a physically meaningful kinetic description. These results evidence the presence of diffusional limitations and heterogeneous adsorption sites induced by the incorporation of βZ (Chen et al., 2025). These findings confirm the synergistic rol of aluminosilicates within the alginate matrix and highlight FAB_1.0 as the most kinetically reliable and promising material for Hg(II) removal from aqueous media.

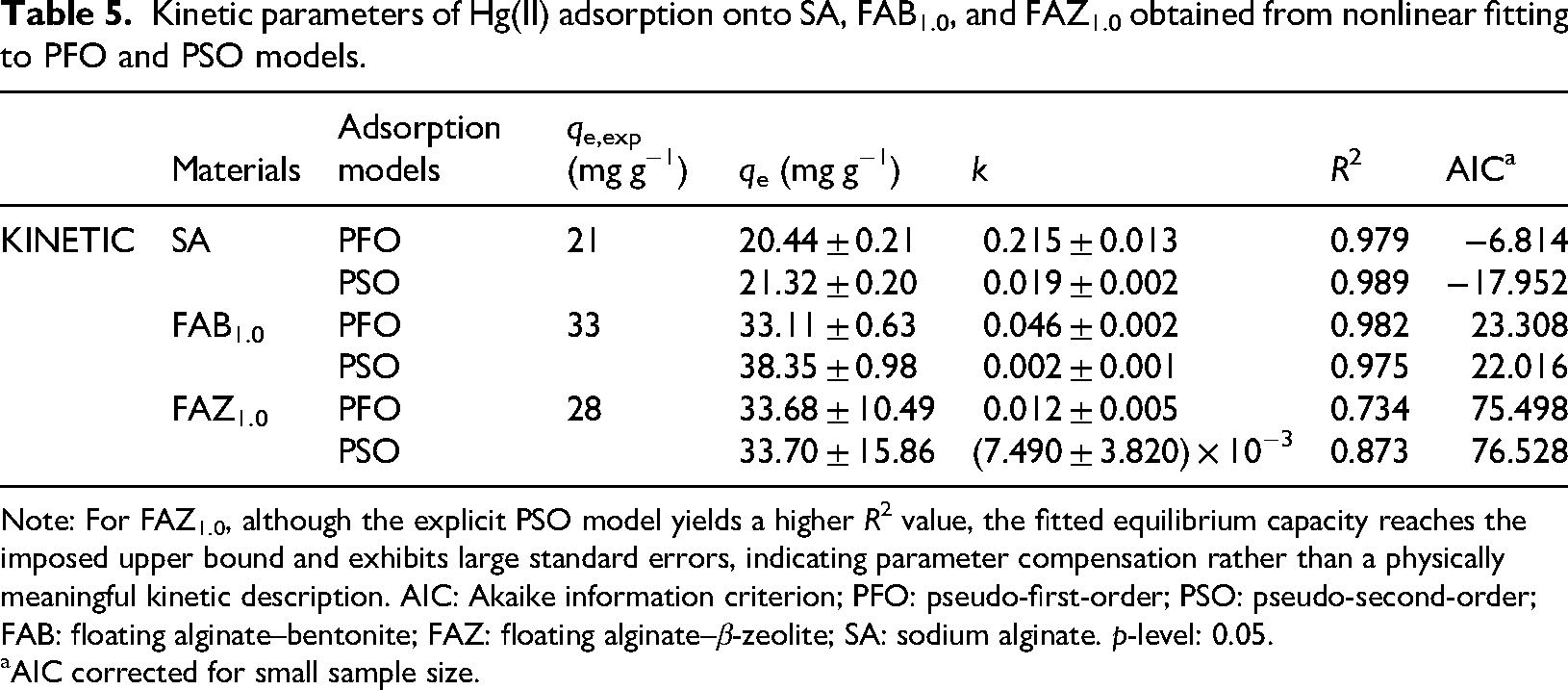

Table 5.

Kinetic parameters of Hg(II) adsorption onto SA, FAB_1.0, and FAZ_1.0 obtained from nonlinear fitting to PFO and PSO models.

	Materials	Adsorption models	q_e,exp (mg g⁻¹)	q_e (mg g⁻¹)	k	R ²	AIC^a
KINETIC	SA	PFO	21	20.44 ± 0.21	0.215 ± 0.013	0.979	−6.814
	SA	PSO	21	21.32 ± 0.20	0.019 ± 0.002	0.989	−17.952
	FAB_1.0	PFO	33	33.11 ± 0.63	0.046 ± 0.002	0.982	23.308
	FAB_1.0	PSO	33	38.35 ± 0.98	0.002 ± 0.001	0.975	22.016
	FAZ_1.0	PFO	28	33.68 ± 10.49	0.012 ± 0.005	0.734	75.498
	FAZ_1.0	PSO	28	33.70 ± 15.86	(7.490 ± 3.820) × 10⁻³	0.873	76.528

Note: For FAZ_1.0, although the explicit PSO model yields a higher R² value, the fitted equilibrium capacity reaches the imposed upper bound and exhibits large standard errors, indicating parameter compensation rather than a physically meaningful kinetic description. AIC: Akaike information criterion; PFO: pseudo-first-order; PSO: pseudo-second-order; FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite; SA: sodium alginate. p-level: 0.05.

AIC corrected for small sample size.

The removal efficiencies obtained for the floating and reusable adsorbent composites developed in this study (FAZ_1.0 and FAB_1.0) fall within a competitive range compared to materials reported in the literature (Table 6). In its first adsorption cycle, FAZ_1.0 achieved 37% removal, outperforming encapsulated organobentonite/SA beads (21%) (Belhouchat et al., 2017). FAB_1.0 reached a removal efficiency of 44%, higher than that of iron oxide/bentonite/activated carbon/SA composite beads (42%) (Gao et al., 2019) and comparable to barium alginate/graphene oxide nanocomposite hydrogels (43%) (Wang et al., 2022a). These results demonstrate that, even in the first adsorption cycle, the composites exhibit efficiencies equivalent to or higher than other reported alginate–clay systems, highlighting their potential not only as high-performance materials but also as promising candidates for reuse in consecutive adsorption cycles.

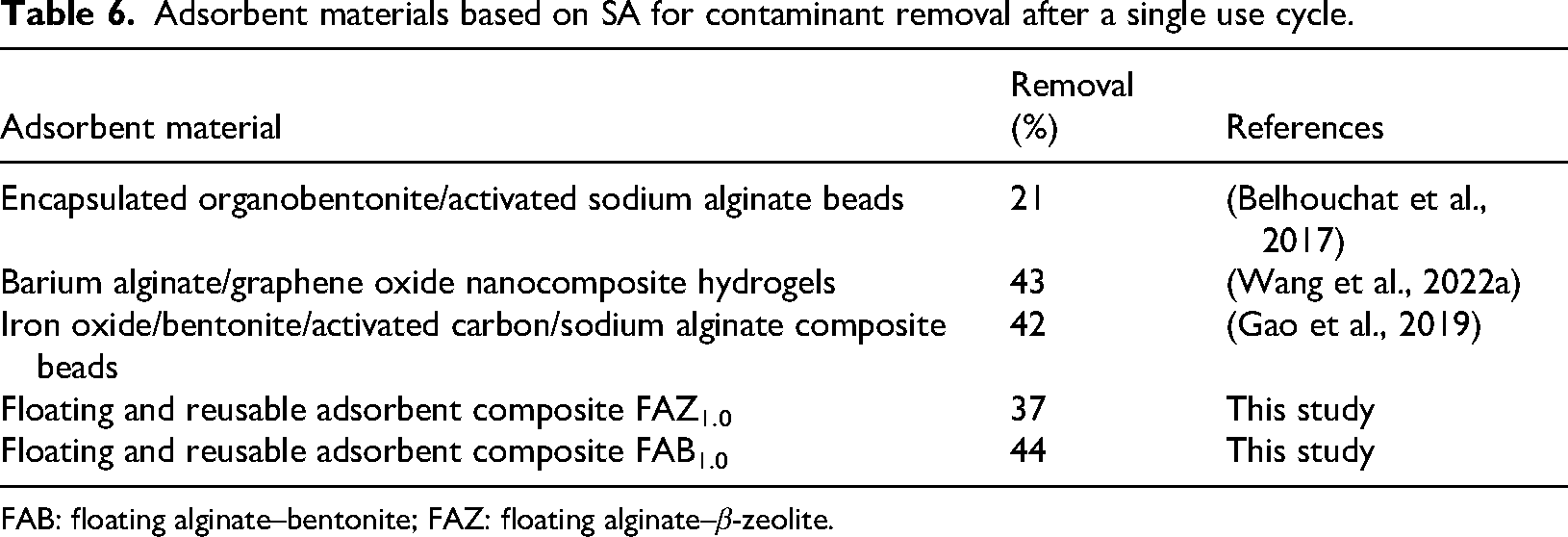

Table 6.

Adsorbent materials based on SA for contaminant removal after a single use cycle.

Adsorbent material	Removal (%)	References
Encapsulated organobentonite/activated sodium alginate beads	21	(Belhouchat et al., 2017)
Barium alginate/graphene oxide nanocomposite hydrogels	43	(Wang et al., 2022a)
Iron oxide/bentonite/activated carbon/sodium alginate composite beads	42	(Gao et al., 2019)
Floating and reusable adsorbent composite FAZ_1.0	37	This study
Floating and reusable adsorbent composite FAB_1.0	44	This study

FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite.

Proposed mechanism for Hg(II) adsorption

Based on the experimental evidence obtained from pHₚzc analysis, FTIR characterization, textural properties, adsorption kinetics, and reuse experiments, a plausible mechanism for Hg(II) adsorption onto the floating alginate–aluminosilicate composites is proposed. At pH values around 6.5, the predominant mercury species correspond mainly to neutral or weakly charged hydroxyl complexes, such as Hg(OH)⁺ and Hg(OH)₂, which can effectively interact with electron-donor functional groups present in the composite matrix. In this context, alginate carboxylate (–COO⁻) and hydroxyl (–OH) groups, together with surface ≡Si–OH and ≡Al–OH sites of the aluminosilicate phases, act as active centers for Hg(II) uptake through surface complexation and electrostatic interactions. Additionally, in the FAB_1.0 composite, cation-exchange processes associated with bentonite contribute significantly to mercury retention. The reversibility observed during acid-assisted regeneration indicates that these interactions are predominantly non-irreversible, consistent with surface complexation and electrostatic attraction rather than permanent chemical bonding. Overall, the synergistic contribution of the polymeric matrix and the inorganic phase accounts for the efficient Hg(II) adsorption and reusability of the floating composites.

Reuse cycles of floating composites

The analysis of the evolution of Hg(II) removal efficiency as a function of the reuse cycles of the evaluated adsorbent materials showed that composites FAB_1.0 and FAZ_1.0 exhibited a progressive increase in each cycle (Figure 7(a)). In particular, FAB_1.0 displayed a sustained increase from 44% in the first cycle to 93% in the third, evidencing a progressive activation effect of the material. In the case of FAZ_1.0, the efficiency rose from 37% to 71%, showing a remarkable improvement although tending to stabilize from the second cycle onwards. In contrast, the pure biopolymer (SA) recorded low and nearly constant values (≈19–26%), confirming its limited reusability. The analysis of the expansion of the performance area of each material (Figure 7(b)) further confirms the superiority of the composites compared to pure alginate.

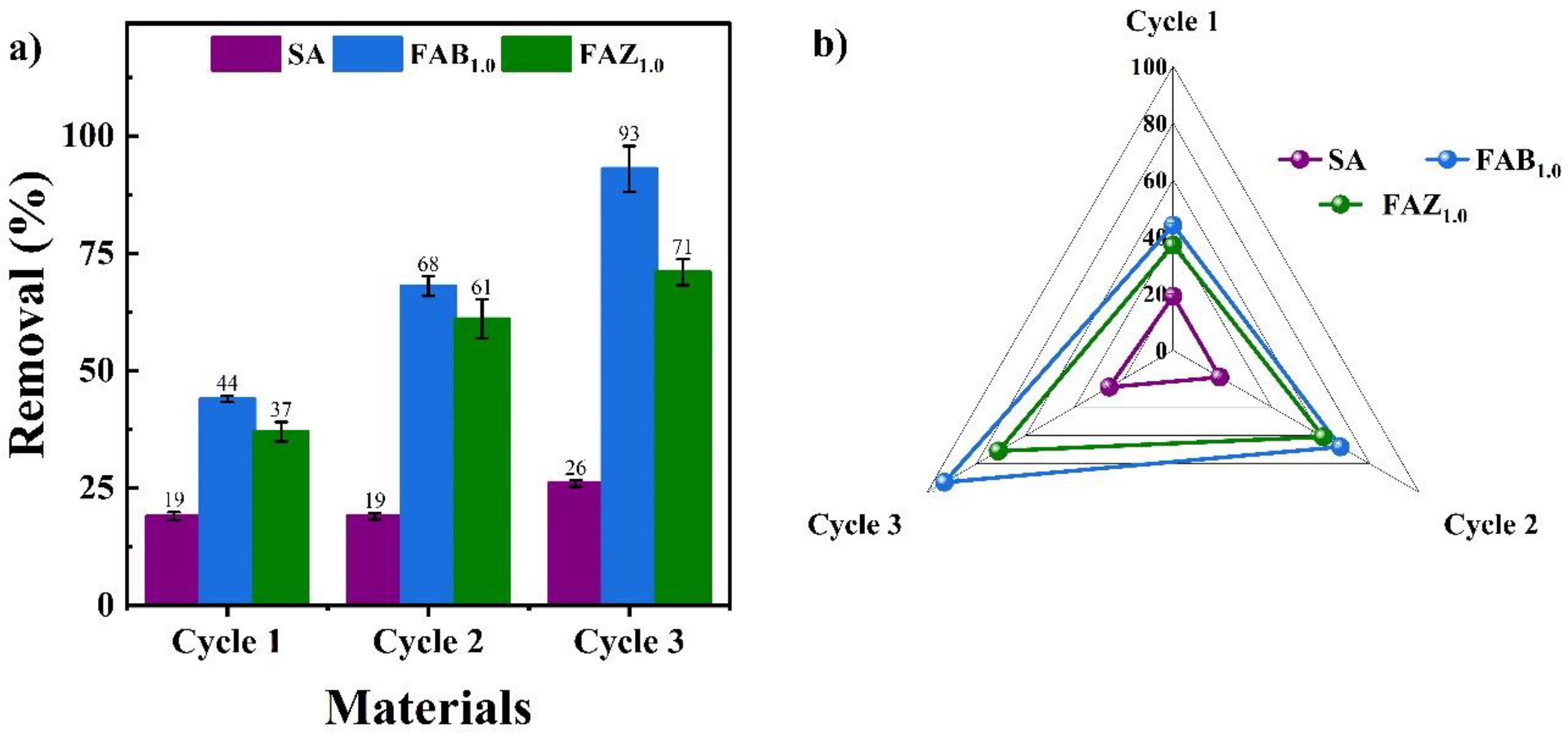

Figure 7.

(a) Removal efficiency of Hg(II) over three reuse cycles for SA, FAB_1.0, and FAZ_1.0; (b) Radar plot comparison of cyclic performance. FAB: floating alginate–bentonite; FAZ: floating alginate–β-zeolite; SA: sodium alginate

The increase in removal efficiency observed in FAB_1.0 and FAZ_1.0 could be directly related to the HCl washing performed between cycles, since the acidic medium protonates the carboxylate groups of alginate and desorbs Hg(II) through proton competition, while also inducing the formation of soluble chloro-complexes (HgCl₂, HgCl₄²⁻). This mechanism has been documented for polymeric and composite materials, where HCl at concentrations between 0.1 and 0.5 M efficiently regenerates adsorption capacity over several cycles, achieving Hg(II) desorption rates above 95% with moderate losses after multiple reuses (Alcalde-Garcia et al., 2023; Alguacil and López, 2020; Gupta et al., 2021). This phenomenon has also been observed in other studies using alginate–clay systems, where acid washing removes residual cations and surface precipitates, thereby improving wetting and pore accessibility for the following cycle; in this way, alginate–bentonite composites have been reported to retain more than 70% of their adsorption capacity after 6 reuse cycles (Tan and Ting, 2014; Wang et al., 2019).

Beyond simple regeneration, the progressive increase in Hg(II) removal efficiency suggests a conditioning of the polymer–aluminosilicate network during the first adsorption–desorption cycle. The composites are produced by freeze-drying Ca-crosslinked alginate matrices containing aluminosilicates; upon contact with aqueous solution, the structure rehydrates and swells. During the initial adsorption step, part of the Ca-alginate network remains relatively contracted, limiting diffusion toward internal adsorption domains located within the polymeric matrix and at the aluminosilicate surface. The subsequent acid washing promotes partial Ca²⁺/H⁺ exchange and relaxation of the crosslinked network, increasing water uptake and pore connectivity. Consequently, previously shielded carboxylate groups and aluminosilicate surface sites (Si–O⁻ and Al–O⁻) become more accessible to Hg(II) ions in the following cycles. Therefore, the observed increase in removal efficiency is attributed not only to desorption of residual Hg(II), but also to a structural conditioning of the adsorbent that improves mass transfer and accessibility of active sites. Similar structural relaxation and swelling effects of Ca-alginate matrices after ionic exchange and regeneration treatments have been widely reported (Lee and Mooney, 2012; Wang and Chen, 2014; Wang et al., 2019; Zhang et al., 2020b).

In this regard, several studies highlight that for aluminosilicates, acid washing must be mild and brief in order to clear the surface without causing structural damage. However, stronger or prolonged treatments with mineral acids may lead to dealumination of βZ or leaching of octahedral sites in clays, thus reducing acidity and CEC (Liu et al., 2018). This improvement pattern through reuse via acid regeneration has also been reported in other inorganic–polymeric and silica/oxide adsorbents, where HCl or HNO₃ effectively restore capacity after each cycle with high desorption efficiency of heavy metals (Zhang et al., 2020c).

In this context, the reuse cycle results of FAB_1.0 and FAZ_1.0 reflect a favorable balance between effective regeneration and structural preservation, which not only explains the progressive increase in Hg(II) removal after reuse cycles but also confirms their potential as stable, reusable, and high-performance adsorbents for the remediation of heavy metal contaminated waters.

While acid-assisted regeneration plays a key role in restoring and even enhancing the adsorption performance of FAB_1.0 and FAZ_1.0 over successive cycles, it also generates Hg(II)-containing acidic effluents that must be properly managed to ensure environmental safety. Therefore, the observed improvement in reusability highlights not only the functional robustness of the composites under mild regeneration conditions, but also the importance of integrating appropriate post-desorption handling strategies to prevent secondary contamination. In this sense, the regeneration step should be considered as part of a closed-loop adsorption–desorption process, in which performance recovery and environmental responsibility are addressed simultaneously.

Conclusions

The statistically optimized synthesis of floating alginate-based composites with bentonite (FAB_1.0) and β–zeolite (FAZ_1.0) allowed the identification of formulation conditions achieving buoyancy close to 99%, validated by a robust quadratic model (R² > 0.94). Phase integration was confirmed by thermal and spectroscopic characterization, evidencing interactions between alginate carboxylate groups and aluminosilicate hydroxyl sites, which conferred cohesion and structural stability.

In adsorption assays, FAB_1.0 exhibited the highest Hg(II) removal capacity (≈33 mg g⁻¹), followed by FAZ_1.0 (≈28 mg g⁻¹) and pure alginate (≈21 mg g⁻¹). Kinetic fitting indicated a surface-controlled mechanism for FAB_1.0, whereas FAZ_1.0 showed diffusional limitations due to the zeolite's microporosity. The reusability of the floating composites, a key highlight of this study, showed increased removal efficiencies up to ∼93% for FAB_1.0 and ∼71% for FAZ_1.0 after three reuse cycles. This behavior was attributed to acid regeneration, which released active sites without compromising the structure. The reproducible adsorption–desorption behavior observed across reuse cycles confirms the stable retention of Hg(II) during each adsorption stage and its controlled release during regeneration, with no indication of uncontrolled metal leaching.

From a large-scale application perspective, the floating composites developed in this study offer clear operational and environmental advantages over conventional adsorbents. Their high buoyancy (>98%) enables straightforward physical recovery by surface collection or decantation, eliminating the need for energy-intensive separation processes such as filtration, centrifugation, or forced sedimentation, which often hinder the scalability of particulate adsorption systems. In addition, the structural stability maintained over multiple reuse cycles, together with effective regeneration under mild acidic conditions, suggests that these materials can operate within cyclic adsorption–desorption schemes with reduced generation of secondary solid waste. From an environmental standpoint, the use of alginate (a renewable biopolymer) combined with abundant and low-cost aluminosilicates, as well as the possibility of integrating controlled post-desorption effluent management strategies, reinforces the sustainability of the proposed approach. Overall, the results demonstrate that the optimized synthesis of FAB and floating – β–zeolite composites represents a promising strategy for Hg(II) removal from waters contaminated by mining activities. The ability to design lightweight, stable, and regenerable materials, with statistically validated performance and comparatively superior efficiency to systems reported in the literature, positions FAB_1.0 in particular as a highly competitive candidate for the treatment of effluents in mining and other high-impact environmental contexts.

Highlights

Statistical design optimized buoyancy (>98%) in floating alginate–clay composites.

Optimized composites exhibited improved Hg(II) removal and cyclic reusability.

Alginate–aluminosilicate interactions enhanced structural stability.

Floating adsorbents enable easy recovery and sustainable Hg(II) remediation.
