Metallurgical developments in steam-methane reformer tube alloys

Fundamentals of steam-methane reforming

The general reaction for steam-methane reforming is illustrated in equation (1), where the hydrocarbon (C_nH_m) used is primarily methane:

C n H m + n H 2 O → n CO 2 + ( m + 2 n 2 ) H 2

(1)

CH 4 + H 2 O → CO + 3 H 2 ( Δ H ∘ 298 = + 206 kJ / mol )

(2)

OPEN IN VIEWER

Figure 1.

Schematic of a hydrogen reformer, showing where reformer tubes are situated.

Following this reaction, the resultant mixture (also known as syngas) composed of mostly hydrogen, carbon dioxide, carbon monoxide and steam and is allowed to further react in a water gas shift reactor:

CO + H 2 O → CO 2 + H 2 ( Δ H ∘ 298 = − 41 kJ / mol )

(3)

The process can be tailored to the thermodynamic equilibrium suiting the feedstock by altering the reforming temperature, pressure, and steam-to-carbon ratio. However, in most cases, higher temperatures favour the production of hydrogen due to the endothermic primary reaction (equation (2)). ⁵

Metallurgical challenges for reformer alloys

The high temperature and pressure, along with carbon-intensive atmospheres, lead to two main modes of degradation of reformer tubes: carburisation and creep. The chemical reaction within the reformer leads to carbon (coke) formation, which often leads to coke deposits on the surface of reformer tubes. This coke deposition combined with the high temperatures, enables carbon diffusion into the bulk alloy, a phenomenon known as carburisation. ⁶ Since modern reformers operate under high temperatures (>1000 °C) and pressures (3–4 MPa), both carburisation and creep become significant degradation mechanisms. Over extended periods, this combination ultimately leads to loss in mechanical integrity, resulting in catastrophic failure of tubes.

Murkin and Brightling ⁷ highlighted the significance of material resilience to degradation, as both historic and current operating temperatures and pressures are limited by the strength and environmental performance of the materials used. Imminent increases in the throughput and efficiency of the reformers are required to satisfy the rapidly growing demands for hydrogen. However, reformer materials have seen limited advancement in the past three decades, inhibiting reformer developments.

Cromarty and Hooper ⁸ reviewed the prospects of increasing the throughput of hydrogen plants and highlighted the limited prospect in increasing feedstock conversion efficiency. Lutz et al. ⁹ provided a detailed thermodynamic analysis that supports this, confirming that reformers are already operating at temperatures and conditions close to the theoretical limits of the reforming reactions.

In addition, premature failures are becoming increasingly common, indicating that existing materials are pushed beyond their design limits.^10–12 It is also more economically favourable to increase the throughput of existing reformers compared to the redesign and construction of new reformers. Therefore, it is preferable that improvements can be implemented in both existing and future reformers.

There are two main approaches for increasing reformer flux without altering the reformer design, explained as followed:

Increase reformer temperature such that the duration required for reaction gases to completely react is reduced. ⁸

Early developments

Early reformers adopted wrought 18Cr-37Ni HT-series alloys for reformer tubes, selected for their high resistance to thermal shock, oxidation and carburisation. HT alloys provided sufficient creep rupture strength for early generations of reformers, but with the major downside of high costs arising from the high Ni-content. At this point, manufacturing also posed an additional challenge; due to hot working limitations, large tube wall thicknesses were required, with the alloy carbon content severely limited. ¹⁵

First-generation alloys

The 1950s saw the biggest advancements in reformer metallurgy, with the simultaneous introduction of centrifugal casting techniques and novel compositions. The lower Ni, and consequently cheaper 25Cr-20Ni-0.4C HK-40 alloy emerged, which possessed a creep strength equivalent to that of HT alloys. ¹⁶ However, wrought HK-40 still posed significant limits on operating conditions, limiting operations to only 1–4 bar absolute pressures, and outlet temperatures of 730–800 °C. ⁷ The simultaneous adaptation of centrifugal casting allowed increased freedom and control in compositional design (primarily C content) as the limits imposed by hot working no longer applied.

Early work carried out by Estruch and Lyth ¹⁷ on centrifugally casted tubes showed that HK-40 can withstand stresses up to 7.1 MPa at 1000 °C, versus a maximum of 4.9 MPa at 982 °C for different variants of HT alloys for 100 000 h creep rupture stress. Centrifugally cast HK-40 possess a grain structure consisting of coarse columnar grains on the outer diameter (OD) that slowly transition into equiaxed grains on the innermost diameter, with a network of intergranular primary M₇C₃ carbides, where M is mostly Cr.

Upon exposure to service conditions, the primary M₇C₃ carbides transform into the more thermodynamically stable M₂₃C₆. The release of C from this transformation, coupled with the rejection of C from the matrix, further leads to extensive secondary intragranular M₂₃C₆ precipitation; this is discussed in further detail in the ‘Physical metallurgy of modern reformer alloys’ section. This secondary precipitation is vital to the increased creep resistance, as the fine carbides act as barriers for dislocation motion, providing significant improvement in strength. ¹⁸ Balanced with the relatively low cost compared to the HT-series alloys, HK-40 quickly became the material of choice for fired tubes.

By the end of the decade, cast HK-40 had completely displaced its predecessors and dominated the market for reformer alloys until the 1970s. The improvement in performance exhibited by HK-40 also permitted harsher operating conditions for the reformers, which were consequently raised to pressures of about 1.6 MPa at 800 °C.

Despite these improvements, HK-40 is prone to degradation due to the coarsening of primary carbides, dissolution of secondary carbides, as well as carbide coalescence. In addition, σ-phase formation is also observed, and is known to lead to the loss of strength and ductility.^19–21 The loss of creep strength due to less dislocation barriers, combined with the loss of creep ductility, ultimately leads to failure of the reformer tube. ²²

Second-generation alloys

In second-generation alloys, two main approaches were used to address the carbide stability problems encountered in HK-40; altering the phase stability of the carbides and strengthening of the overall alloy.

Early 1970s saw the addition of 1.5w.t.%Nb to the HK-40 base composition produced by Inco Limited, with the resultant alloyed named IN519. The added 1.5w.t.%Nb resulted in the precipitation of the MC carbide for improved strengthening, providing up to a 25% strength increase compared to HK-40. ²³ A different approach resulted in the HP-40 alloy, with the nominal composition 25Cr/35Ni. HP-40 was a brief interim composition occurring around the same time as IN519. The increased Ni-content retarded the formation of the embrittling σ-phase, improving strength retention during service, albeit the solid solution strengthening effects from the extra 15w.t.%Ni remained minor, with little improvements in creep strength. ²⁴

However, HP-40 offered drastically improved carburisation resistance compared to both HK-40 and IN519, directly contributing to a better lifespan of reformer tubes. The extra 15w.t.%Ni was found to improve carburisation resistance by approximately 45%. Combined with alterations to the Si content (additions of up to 2w.t.%), the resulting alloy exhibited a 50% increase in overall carburisation resistance compared to HK-40. ²⁵

This second generation of reformer alloys mainly offered extended lifespan, and minor tube wall thickness reductions, with both IN519 and HP-40 displaying highly desirable characteristics individually. Yet industry remained hesitant in adopting these alloys due to their higher costs and relatively minor improvements. Therefore, shortly after in the mid-1970s, came the revolutionary ‘combining’ of the two alloys.

Third-generation alloys

In 1975, the 25Cr/35Ni/1Nb nominal composition was introduced. This composition was later coined HP-Mod and began a period of intense competition in the development of reformer alloys. The creep resistance offered by HP-Mod alloys at 950 °C was advertised to be an impressive 100% increase compared to HK-40. HP-Mod also exhibited superior retention of creep strength up to 1050 °C. ¹⁵ Other manufacturers closely followed suit, producing alloys of similar compositions, which reinforced HP-Mod as the basis of modern-day alloys.

Design approaches then shifted to further stabilise and improve the HP-Mod base alloy with the use of minor alloying additions, with the resultant composition generalised under the HP-Micro term. The minor additions resulted in the alloy being up to twice as strong compared to HK-40, whilst not being twice the price. The significant effects of minor additions also permitted a higher degree of tailoring of alloy properties according to individual users’ needs at a reasonable cost. Over the course of four decades, manufacturers experimented with many elements such as Ti, Mo, Zr and even rare-earth elements such as Y, aiming to unleash the maximum potential of the HP-Mod base composition.

To this day, HP-micro alloys remain the material of choice for reformers. The inimical conditions encountered in present day reformers are often in the range of 3–4 MPa pressures, and temperatures of 900–1000 °C. Figure 2 summarises the evolution in the past three generations that led up to the current compositions. It is important to note that the compositions stated here are examples of compositions readily available.

OPEN IN VIEWER

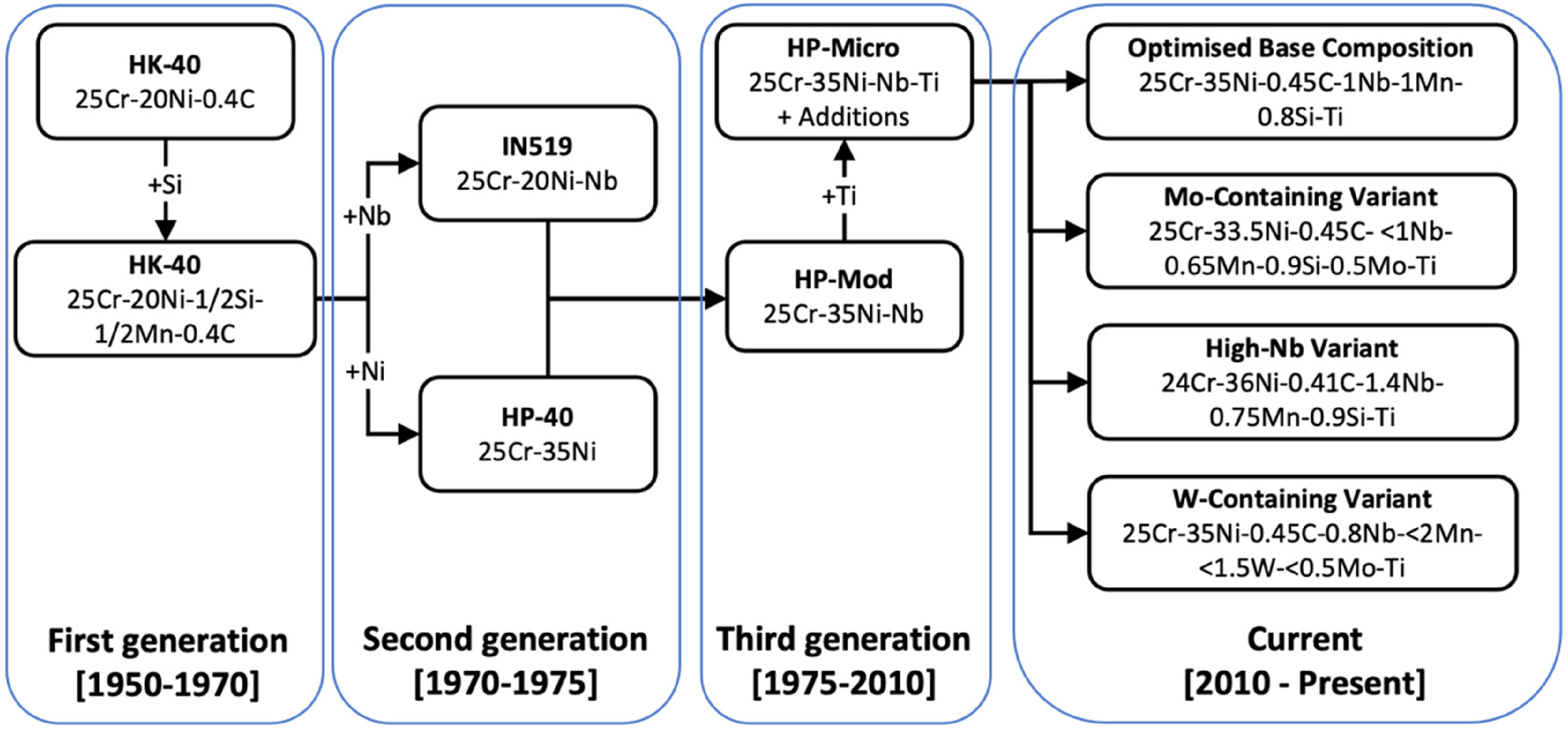

Figure 2.

Flow chart showing evolution of reformer alloys, and examples of variant compositions.^13,26–30

Comparison of the mean stress to rupture in 100 000 h for the three generations of alloy is shown in Figure 3. For every new generation, the mean stress was found to have approximately doubled at all temperatures, enabling the operating conditions currently utilised.

OPEN IN VIEWER

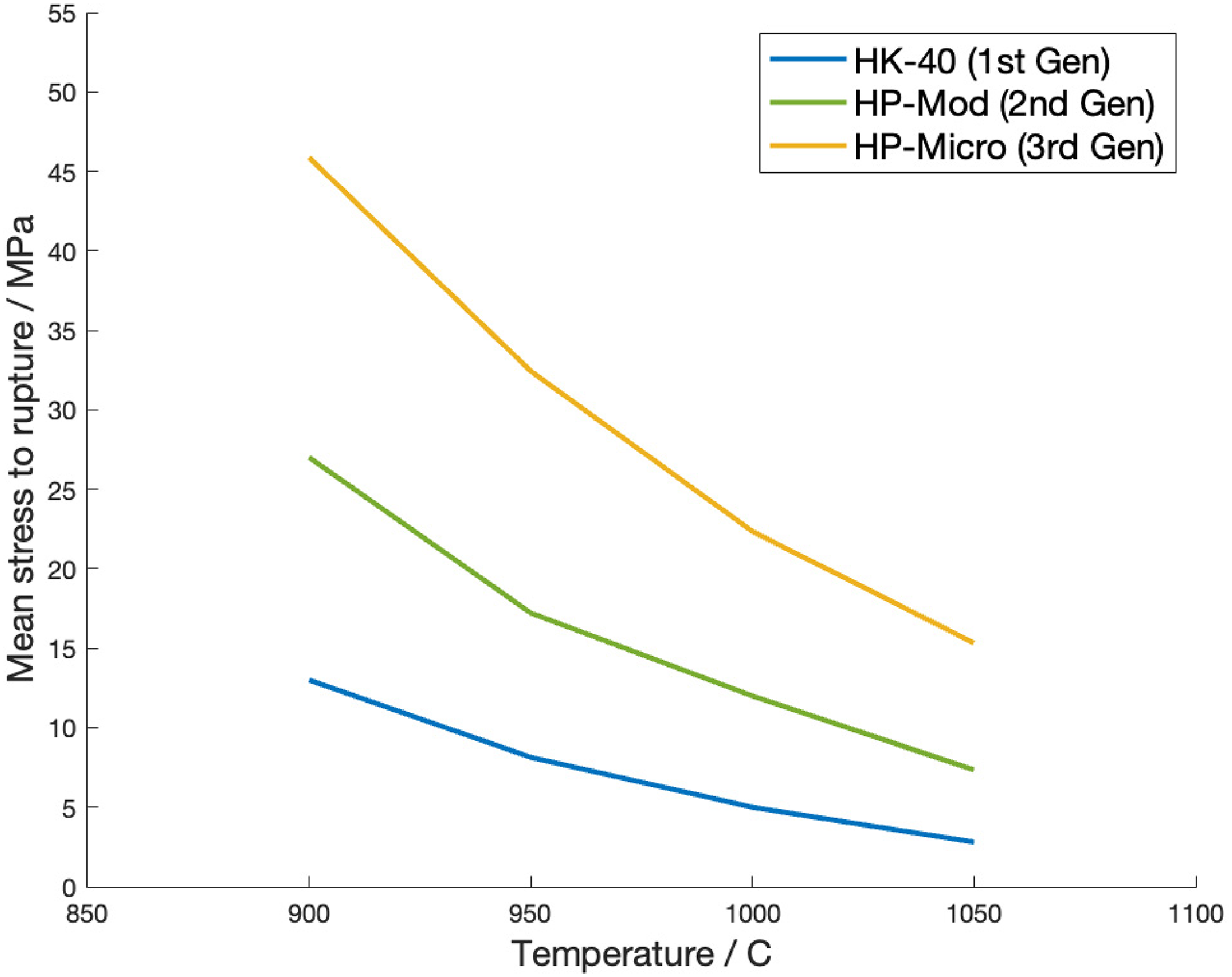

Figure 3.

Comparison of the mean stresses to rupture in 100 000 h for the three generations of reformer alloys.^15,25,27,28

The increase in rupture life at higher stresses is of high significance, particularly in allowing an increase in operating temperatures, and/or subsequent reduction in tube wall thicknesses. The demonstratable increase in rupture strength, illustrated in Figure 4, enables increased catalyst volumes through the reformer assemblies, resulting in improved throughput.

OPEN IN VIEWER

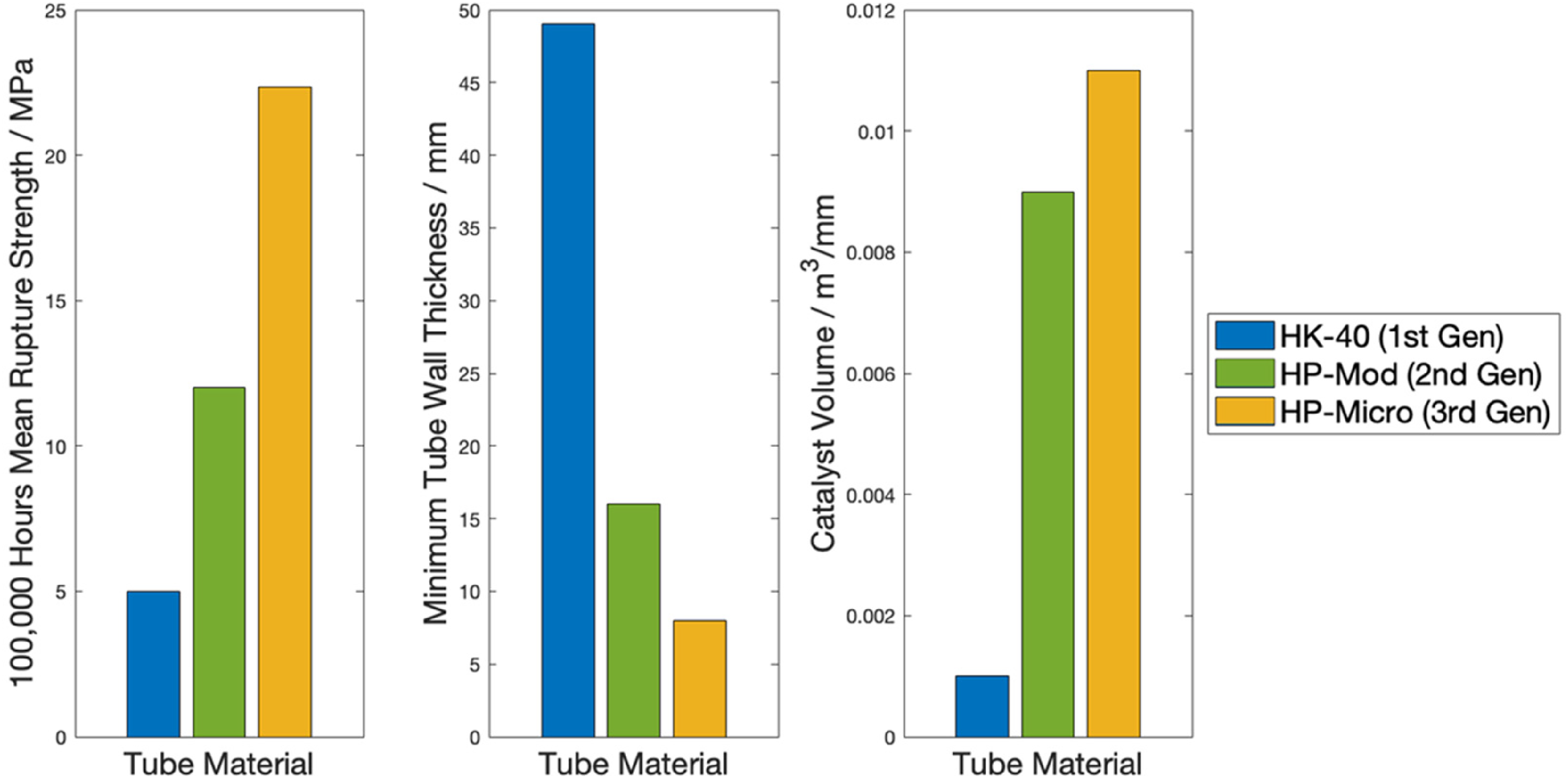

Figure 4.

Comparison of mean rupture strength, minimum tube thickness and maximum allowable catalyst volume. Values calculated based on equation for stress in API530, ³¹ assuming internal pressure of 3 MPa at 1000 °C.^{15,19,25,27–29,32}

Recent developments of third-generation alloys

The developments in composition observed in the third-generation alloys during the years of 1995–2010 contain significant insights that have informed the development of existing alloys. In this 15-year time span, alloy compositions have maintained a nominal composition of 35Ni/25Cr/0.4C/1Mn. However, other alloying elements have also been utilised at varied concentrations. For example, Nb and Si have been considered to be integral additions since the 1970s, but their contents have varied between 0.4–1.5w.t.% and 0.8–1.8w.t.%, respectively. More common minor additions include 0.05–0.5w.t.%Ti, 0.03–0.5w.t.%Mo and 0.08–1.5w.t.% Mn, while impurity elements such as S and P have been minimised below 0.03w.t.%.^32–44

However, the variety of minor additions used complicate the centrifugal casting process, as some elements may suffer from problems such as evaporation. This has likely contributed to the differing strengths achieved in ostensibly highly similar compositions. The detailed effects of elemental additions are examined in more detail in ‘Evolution of alloying additions in reformer alloys’ section.

Centrifugal casting

The adaptation of centrifugal casting techniques was one of the most revolutionary changes made to reformer tube manufacturing. The process allows for a much higher degree of compositional freedom to be achieved, whilst maintaining dimensional flexibility and providing materials with good creep properties deriving from the resultant microstructure. ⁴⁵

In simple terms, centrifugal casting involves solidifying molten metal under centrifugal forces exerted using a rotating mould. Molten metal is fed into a rapidly rotating mould (usually around 1000 RPM). The mould is coated using refractory materials, as this enables easy removal of the casting. ¹⁵ The interior surface is often rough, which is later machined off using boring processes. ⁴⁶ A basic centrifugal casting setup is shown in Figure 5.

OPEN IN VIEWER

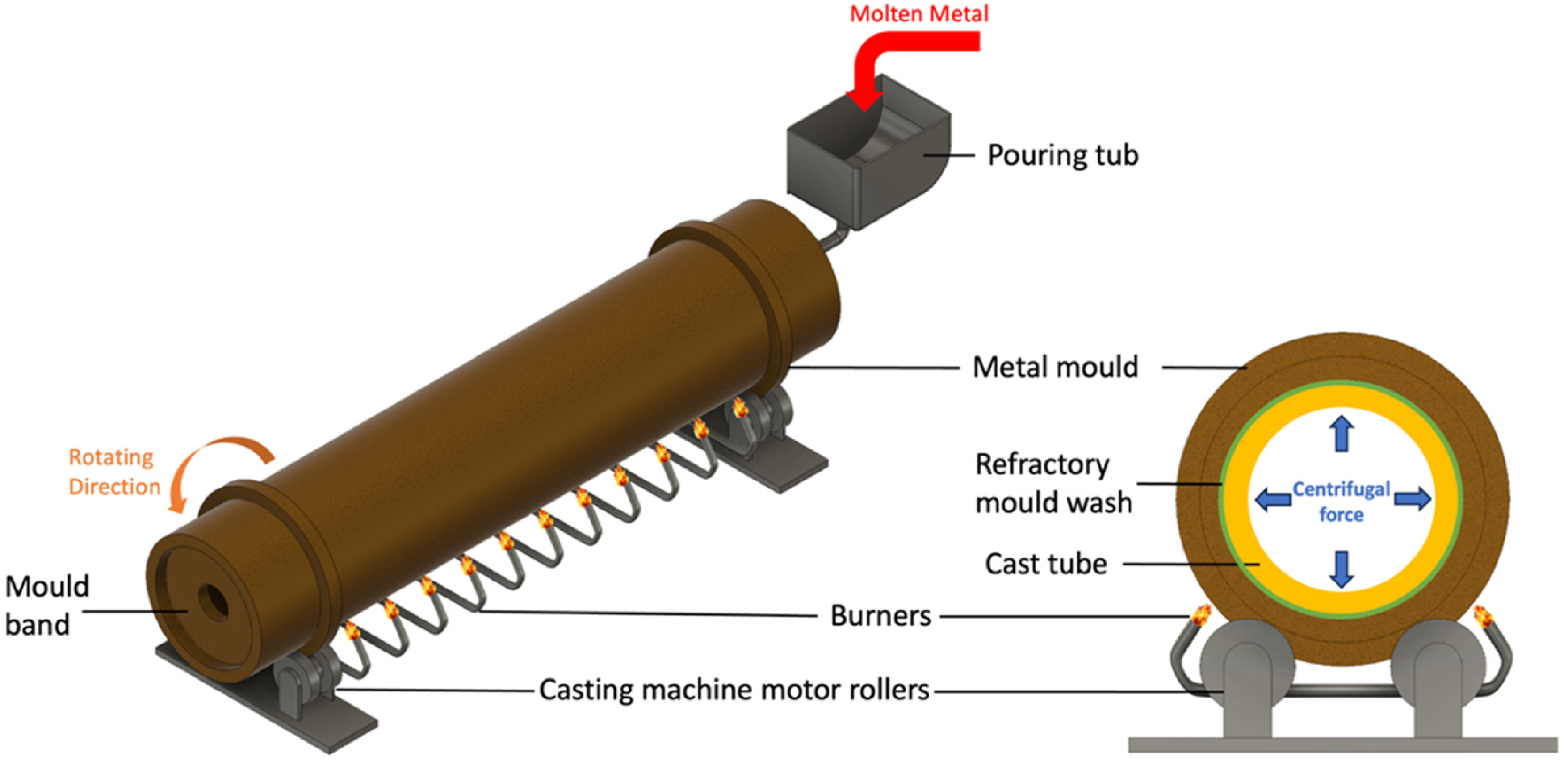

Figure 5.

Schematic showing a typical centrifugal casting setup.

During solidification, the melt experiences a centrifugal force (G-force) of around 100 times gravity, resulting in an even distribution of a uniform thickness of the alloy melt along with the length of the mould. The high pressures developed in the mould cause non-metallic inclusions and evolved gasses to separate out of the melt towards the inner surface, resulting in a clean and dense casting. ⁴⁵

Influence of solidification conditions on resultant microstructure

Heat removal occurs via the mould wall, with solidification beginning on the surface of the casting directly in contact with the refractory-coated mould wall. This leads to true directional cooling and solidification. The initial high cooling rates result in the formation of a very thin layer of fine equiaxed region on the outer diameter (OD). The subsequent reduction in cooling rate due to heating up of the mould and simultaneous reduction in melt temperature, combined with the directional solidification, leads to a region of large columnar grains. Solidification is completed upon the solidification of the internal diameter (ID), consisting of coarse equiaxed grains. ⁴⁷ Figure 6 is an example of the through-wall microstructure from the ID to the OD of a reformer tube.

OPEN IN VIEWER

Figure 6.

EBSD maps of the grain structure at the inner and outer tube regions showing columnar grains near the outer diameter and equiaxed grains near the inner diameter. ⁴⁸ The exact regions from which EBSD data was collected are shown in the optical image. The dashed line shows the grain structure transition, with equiaxed grains accounting for approximately 25% of the wall thickness. Reproduced with permission from Elsevier.

It is believed that for optimal creep properties, columnar grains should account for at least 75–80% of the tube wall cross-section.^13,49 However, consistently achieving this proportion in practice remains challenging. Overall, it has been generally agreed upon and supported by experimental results such as by Buchannan et al. ⁵⁰ and Ray et al., ⁵¹ that higher cooling rates result in more columnar grains.

Interestingly however, a mismatch in the frequencies that columnar microstructures are observed in as-cast tubes, versus tubes analysed post failure, exists in the open literature. Many papers showcase as-cast microstructures often consisting of ∼80% columnar grains. In contrast, the open literature regarding post-failure analyses makes little reference to the presence of columnar grains.^{13,32,48,52,53} This phenomenon can be explained by potential microstructure evolution during service, but studies on recrystallisation or abnormal growth of grains occurring in reformer alloys remain limited. Therefore, there is no direct evidence to whether the ability to control the grain structure in mass-produced tubes is fully understood or achievable in daily practice.

Centrifugal casting remains a relatively labour-intensive casting process, manipulable in a range of ways. Careful control of the process is integral in producing high-quality tube castings, with some examples of key manufacturing variables discussed below.

Casting process control

A key first consideration of the manufacturing process is the type of mould used, as well as the thermal insulation effects resulting from the type or thickness of refractory mould washes, that can directly influence the cooling rates encountered by the melt. ⁵³ Good adhesion of the melt to the mould wall allows efficient and consistent cooling, creating a robust casting with a consistent microstructure along with the tube length.

However, the rotational speed of the mould is arguably the defining characteristic of centrifugal casting, vital to the successful casting of good quality components. ⁵⁴

The rotational speed must be sufficient to create the centrifugal force needed to force the molten metal against the mould wall, preventing ‘raining’ of the liquid metal while it occupies the upper-half of the mould.^45,47 In some cases, though not essential, the rotational speed may also be increased/decreased at certain stages of casting. For example, the rotation speed during pouring may be lower for the melt to ease the melt flow along with the length of the mould, before increasing the rotation speed for solidification. ⁴⁷ Poor control of the rotational speed can lead to problems such as poor surface finishes (too slow), or microstructure inconsistencies for example grain refinement caused by vibrations from excessive rotational speeds, ultimately leading to the rejection of the tube for quality control. ⁵⁵

The centrifugal force developed also affects the flow rate of the melt through the mould length, leading to localised fluctuations of solidification conditions. Banding of the microstructure is an example of a microstructural inconsistency that can arise from the variation of cooling rates due to liquid mobility resulting from viscosity variations, or partitioning effects due to the mobility of elements.

In summary, the rotational speed must be carefully controlled to be high enough to prevent raining, promote good melt to mould adhesion and ensure the even distribution of melt in the mould; all whilst being able to keep the solidification rate within a pre-determined range to give the desired microstructure.

Examples of additional variables during the casting process include pour speeds and the application of electromagnetic fields. Pour speeds and temperature primarily affect the fluid flow within the mould. Generally, lower pouring temperatures reduce the solidification times, and result in grain refinement. However, this is often limited by other practical challenges, such as volatilisation of certain elements.

Electromagnetic fields may also be applied to the melt during solidification and can aid the control of the resultant proportion of columnar grains. ⁵⁶ However, this remains a less common practice within industry due to the added complexity. Overall, centrifugal casting remains a highly complex casting procedure, due to the combined effects arising from small alterations to the casting process.

Strengthening in reformer alloys

The strength and mechanical performance in reformer alloys is governed by the combination of solid solution strengthening and precipitate strengthening. The FCC matrix confers good ductility and toughness and is able to maintain its creep properties at high temperatures owing to low diffusion activation rates. Additional strength is then imparted through solid solution strengthening achieved through alloying, resulting in a chemically complex matrix.

Solid solution strengthening arises by introducing interstitial and/or substitutional atoms within the crystal lattice. Introducing foreign atoms induces lattice distortions and strain fields that in turn interact with the strain field around dislocations, increasing the difficulty for dislocation motion. Common solid solution strengtheners in austenitic steels include N and Mo. ⁵⁷

The typical microstructure and its evolution as a function of exposure to operating conditions of a HP-Micro alloy is illustrated in Figure 7, showing the key differences in the as-cast state versus aged conditions.

OPEN IN VIEWER

Figure 7.

Scanning electron (SEM) and optical (OM) micrographs illustrating microstructure evolution of typical HP-micro alloy: (a) as-cast (OM), showing primary carbide network; (b) as-cast (SEM), showing the differing contrast of chromium and niobium carbides; (c) 1008 h aged at 900 °C (OM), showing extensive secondary precipitation around primary carbides; (d) 160,000 h ex-service aged (SEM) at around 900 °C showing the coarsening and coalescence of primary carbides. ⁶⁴ Reproduced with permission from Elsevier.

During solidification, primary carbides and carbonitrides, most commonly types M₇C₃, M₂₃C₆ and MX (with M denoting metal atoms and X denoting C and/or N), are formed. Generally, carbides are preferred over nitrides or carbonitrides, which have a tendency to adopt needle-like morphologies, leading to the embrittlement of the matrix. ⁵⁸

Very often, metastable M₇C₃ forms at grain boundaries during solidification, with varying morphologies from lamellar to globular. Whereas M₂₃C₆ often results from the transformation of intergranular M₇C₃ due to better thermodynamic stability of M₂₃C₆, or through intragranular precipitation from the C-supersaturated matrix. ⁵⁹

Intergranular carbides inhibit grain boundary sliding, which dominates in high temperature low stress conditions. Skeletal and/or lamellar carbides are especially preferred. This is because skeletal carbides can increase resistance to creep crack growth, while lamellar carbides force cracks to propagate around them, therefore increasing the time to failure.^51,60 In addition, intragranular carbides inhibit dislocation motion within the matrix; in the case of reformer alloys, secondary M₂₃C₆ plays the key role in retarding dislocation climb during deformation.^61–63

MC carbide

The MC phase primarily forms intergranularly and is enriched in strong MC carbide forming elements such as Nb, Ti, Zr and Ta. ⁶⁵ Often considered to be the more thermodynamically stable grain boundary carbide, it provides strength via pinning of grain boundaries, thus suppressing grain boundary sliding.^18,65

However, MC is not immune to degradation brought on by long-term service, with its decomposition often leading to the formation of the complex silicide G-phase or the M₆C η-phase.

G-phase adopts an FCC crystal structure, with a lattice parameter of 11.2 Å, and has the general formula of A₁₆B₆X₇, where A and B denote transition metal elements, and X is a group IV element. ⁶⁶ The Ni₁₆Nb₆Si₇ variant most often observed in reformer alloys was first identified in HK-40 variants by Barbabela et al. ⁶⁷ It is predominantly found on grain boundaries (hence its name), and is only observed after high-temperature exposure.

The M₆C η-phase adopts a diamond cubic structure with a lattice parameter of ∼11.08 Å and has primarily been reported in studies prior to the 1990s. In reformer alloys, it has the tendency to form Nb-Ni-Si rich variants, making its composition similar to G-phase. Distinguishing between η and G-phase has been known to be challenging, due to their similarities in composition and lattice parameters, further complicated by double diffraction effects of the diamond cubic structure.^68,69 Studies by Williiams et al. ⁶⁹ and Kenik et al. ⁷⁰ speculated that η-phase formation can be attributed to the alloys’ carbon content, but lacking support from other studies, this hypothesis remains unconvincing. However, since it is now rarely observed in modern generation alloys, with G-phase much more frequently reported, η-phase has now become a phase of less concern.

What is clear however, is the formation mechanism of G-phase, which arises from the enrichment of Si in NbC. G-phase often nucleates around the NbC interface, and grows inwards into the NbC until the whole carbide is transformed. A key factor that drives the formation of G-phase is the tendency for Si to segregate at interdendritic boundaries.^43,71 This hypothesis was recently validated by work conducted by Vaché et al., ⁷¹ using a combination of TEM and focused ion beam/SEM nanotomography.

A consequence of the transformation of NbC into G-phase is C being rejected into the matrix, resulting in the precipitation of M₂₃C₆ carbides around the G-phase. ⁷² Usually, excess C simply results in the precipitation of M₂₃C₆, which should not be detrimental to creep properties. However, at the point of G-phase formation, the alloy will have been in service for a prolonged duration, with dense dislocation pile-ups present around grain boundary carbides. Preferential nucleation of M₂₃C₆ along with dislocations can therefore result in the formation of elongated (and sometimes needle-like) M₂₃C₆, leading to embrittlement. ⁶⁷

Over the years, the role of G-phase has remained controversial, with its exact effects remaining elusive. De Almeida et al. ⁷³ suggest that the G-phase/matrix interface acts as a preferential site for creep damage. Loss of strength is also exacerbated by the simultaneous dissolution of NbC during the transformation.^10,74

However, some reports in literature have argued that G-phase can be beneficial. ⁷⁵ For example, Tancret et al. ⁷⁶ highlighted the possibility of confusion between the effects of Si versus the effects of G-phase formation; suggesting that G-phase formation is beneficial to the creep strength by reducing the Si-content in the matrix.

Regardless, it is widely agreed that the alloy's Si-content is one of the most influential factors that controls the G-phase formation kinetics, with Si favouring the decomposition of NbC into G-phase. ⁷⁷ In addition, an observation that has not been extensively scrutinised is the morphology changes that accompany G-phase transformation. G-phase is always observed to possess a blocky/spheroidised morphology, and existing literature has yet to investigate the effects of the morphology evolution of NbC prior to transformation on the creep strength.

M₇C₃ and M₂₃C₆ carbides

In most alloys, the M₇C₃ carbide, most commonly enriched in Cr, is the next carbide phase to precipitate following the MC carbide as solidification progresses. Eutectic M₇C₃ often adopts a skeletal Chinese-script morphology and is almost exclusively formed along with grain boundaries.^16,78

Detailed explanation for the formation of M₇C₃ upon solidification during centrifugal casting remains extremely limited, but a general consensus is that it is attributed to the relatively high cooling rates during centrifugal casting limiting solute redistribution. Upon high-temperature exposure, primary M₇C₃ transforms into the more thermodynamically stable M₂₃C₆ carbide, that is, also Cr rich and adopts an FCC crystal structure. ⁶⁶

In recent years, this transformation has been extensively investigated to understand the transformation driving force and its subsequent ramifications. The transformation can be considered in two parts: the transformation of the primary M₇C₃ into M₂₃C₆, and the extensive, intragranular secondary precipitation that follows.

Wang et al. ⁷⁸ closely examined the transformation of the primary M₇C₃ to M₂₃C₆ and provided clear evidence on the mechanism of the first part of the transformation. The transformation begins on the M₇C₃-matrix interface, driven by the thermodynamic stability of M₂₃C₆ compared to M₇C₃. ⁶⁵ In addition, the improved coherency of M₂₃C₆ with the FCC matrix leads to accelerated transformation kinetics. As the M₇C₃ destabilises upon exposure to service conditions, C diffuses out of the carbide and is released into the matrix. This is justified by the small (∼5%) volume shrinkage observed for a given amount of M₇C₃ transforming versus a calculated 56% growth if the diffusion was dominated by Cr diffusion into M₇C₃. Newly formed M₂₃C₆ also exhibits an orientation relationship with the M₇C₃ given by ( 1 1 ¯ 0 ) M 7 C 3 | | ( 1 3 ¯ 1 ) M 23 C 6 and [ 001 ] M 7 C 3 | | [ 1 ¯ 02 ] M 23 C 6 . As the transformation progresses, it results in a carbide with a M₇C₃ core and a M₂₃C₆ envelope, eventually completing when the M₂₃C₆ has grown into and completely engulfed the core. ⁷⁸

C released from the transformation begins the secondary precipitation process. Before examining the detailed mechanisms more closely, regards must be paid to the resultant microstructure. In most reformer alloys (regardless of compositional variations), resultant aged microstructures often exhibit a thin precipitate-free zone (PFZ) directly adjacent to primary carbides, a high-density precipitate zone (HPZ) situated a few microns from primary carbides, and a low-density precipitate zone (LPZ) further into the matrix around the centre of a grain.

Intragranular secondary carbides do not nucleate on any primary carbides, but instead form directly from the matrix. A cube-on-cube orientation relationship exists between intragranular secondary M₂₃C₆ carbides and the matrix, given by [ 211 ] γ | | [ 211 ] M 23 C 6 and [ 1 11 ¯ ] γ | | [ 1 11 ¯ ] M 23 C 6 . ⁵⁹ Roussel et al. ⁷⁹ investigated extensively the mechanics of the process, beginning by highlighting a Cr-depleted and Ni-enriched region in the close vicinity of primary carbides. The lower Cr-content in this region is insufficient for the stable precipitation and growth of nucleated M₂₃C₆ carbides. Consequently, a PFZ (usually 1μm or less) is formed around the grain boundaries, and in grain interiors, where a sufficient Cr concentration allows M₂₃C₆ formation. ⁷⁹ An example of these observations can be seen in Figure 8.

OPEN IN VIEWER

Figure 8.

TEM images (Bright field, high resolution and SAED pattern in (001) zone axis) showing secondary M₂₃C₆ carbides that have nucleated and grown during aging at 750 °C for 112 h in the austenitic matrix with a cube-on-cube orientation relationship. ⁷⁹ Reproduced with permission from Elsevier.

Since C is a fast diffuser, it soon diffuses past the Cr-depleted zone, and secondary precipitation begins in the soon-to-be HPZ. In this region, extensive secondary M₂₃C₆ precipitation occurs intragranularly, heterogeneously nucleating near imperfections such as dislocations and stacking faults. ⁵⁹ Faster-growing M₂₃C₆ then begins to coarsen driven by Ostwald coarsening. Simultaneously, free C atoms continue to diffuse further into the matrix. This ultimately results in the HPZ, which is observed to grow as exposure time increases, with larger precipitates found near primary carbides. ⁷⁹

As secondary precipitation advances, the available C atoms decrease with increasing distance from the region of primary carbides. This results in low number density of precipitates forming, ultimately leading to the LPZ in the centre region of a grain, that can be more pronounced for larger grains.

During service, prolonged exposure to high temperatures leads to the evolution of M₂₃C₆ carbides. Compared to the MC carbide, M₂₃C₆ is more prone to growth and coalescence, leading to larger and more interlaced carbide networks.^16,80 This is undesirable as interlaced carbide networks act as easy crack propagation routes through the alloy bulk. ⁸¹ Moreover, spallation and regeneration of oxide scales can cause localised Cr-depletion, leading to the dissolution of Cr-carbides, resulting in loss of strength. ³⁸

As illustrated, the M₇C₃ to M₂₃C₆ transformation is a complex process, with constant compositional fluctuations, as well as influence from driving forces for coarsening. In addition, in 2019, Tancret et al. ⁷⁶ suggested that the transformation could be a potential cause for the early degradation of creep properties, a hypothesis also proposed by De Almeida Soares et al. ⁷⁵ in the 1990s.

In recent years, there has been little research to show the possibility of directly forming M₂₃C₆ upon solidification.^80,82 This is thought to be achievable by either utilising a lower solidification rate or elements (e.g., Nb) to manipulate carbon availability during solidification.^48,83

Heretofore, achieving primary M₂₃C₆ in as-cast microstructures in order to reduce phase transformation, and therefore the driving force for elemental diffusion, remained a far-fetched idea due to practical casting and cost limitations. However, with the new demand for better performing alloys, this is now becoming a topic that merits more thorough investigation.

Essential additions

Essential additions in reformer alloys have three main functions: to stabilise and maintain the FCC matrix at all temperatures, provide protection against environmental degradation, and to allow the formation of carbide networks for strength. Due to the strong desire for cost reduction in reformer alloys, Fe is used as the base element and engineered to develop the desired characteristics using other alloying additions.

Minor additions

Minor additions were sought in order to further improve the stability and/or morphology of the precipitate phases, in an attempt to increase material performance.
