Inter-observer agreement of color duplex ultrasound of central vein stenosis in hemodialysis patients

Abstract

Purpose

To assess the inter-observer agreement of color duplex ultrasound of central vein stenosis in hemodialysis patients.

Patients and methods

This prospective study was conducted on 35 hemodialysis patients with suspected central vein stenosis. All patients underwent color flow duplex examination of the subclavian, internal jugular and brachiocephalic veins in hemodialysis patients. Image analysis was performed by two reviewers for diameter reduction, peak venous velocity ratio, post-stenotic turbulent flow, waveform changes, and thrombus formation.

Results

There was no significant difference between both observers for diameter reduction (p = 0.105) and for the mean peak systolic velocity ratio (p = 0.515). The overall inter-observer agreement of color duplex ultrasound of central vein stenosis was excellent (k = 0.84, percent agreement = 89.7%, P = 0.001). There was excellent inter-observer agreement of both reviewers for diameter reduction (k = 0.928, percent agreement = 97.14%), peak venous velocity ratio (k = 0.7, percent agreement = 85.7%), waveform changes (k = 0.62, percent agreement = 77.14%), post-stenotic turbulent flow (k = 0.866, percent agreement = 88.6%), thrombus formation (k = 1, percent agreement = 100%).

Conclusion

We concluded that color duplex ultrasound is a reliable and reproducible method for diagnosis of central vein stenosis in hemodialysis patients.

Keywords

Renal dialysis access central vein stenosis hemodialysis fistula color duplex

Introduction

Central venous stenosis frequently occurs in patients with hemodialysis with a history of central venous catheters insertion. Central venous dialysis catheters insertion is the leading cause of central venous stenosis in hemodialysis patients. In addition, as patients live longer, they are subject to interventions as peripheral central line insertions and cardiac devices that increase the incidence of central venous lesions.^1–6 Endovascular intervention is the gold standard treatment of central venous stenosis as color duplex determines the need for angiography and angioplasty. Color duplex ultrasound leads to the reduction in access thrombosis, catheter placement, and access loss.^7–11 The diagnosis of central vein stenosis is based on clinical and imaging findings. Digital subtraction venography is the current gold standard technique for the diagnosis of central vein stenosis but is an invasive procedure with contrast media injection. CT venography is for assessment of fistula but it is associated with contrast medium injection and radiation exposure. MR venography takes long time, needs skill and experience and may be associated with risk of nephrogenic systemic fibrosis in patients with renal impairment.^12–16

Color flow duplex was used for early detection of dysfunctional hemodialysis fistulas, fistula maturation and for diagnosis of central vein stenosis as a cost-effective, non-invasive screening test. Few studies discuss the role of color Duplex in the diagnosis of stenosis of the central veins in patients with hemodialysis.^17–20 However, the previous reports about color flow Duplex in central vein stenosis are overlapping due to operator dependence.^21–26

Patients and methods

Patients

The institutional review board approval and the informed consent of participants were obtained. The prospective study was performed upon 37 patients with failing hemodialysis access. The inclusion criteria were hemodialysis patients with clinical signs suggestive of central vein stenosis. Two patients were excluded from the study as they could not complete the examination. The final patients in this study were 35 patients presented with upper limb swelling (n = 28), dilated veins on the chest wall (n = 24) and prolonged bleeding after dialysis (n = 21).

Technique

All patients underwent duplex ultrasound examination (Logic P5, GE machine, USA) which was done by one radiologist expert in ultrasound for four years (EM). Real-time, color flow map and pulsed waveform were used for all patients. Color duplex ultrasound examination of the subclavian, internal jugular and brachiocephalic veins on the side of the fistula was done. Patients were examined in the supine position with their arms slightly abducted. The internal jugular vein and the subclavian vein were examined through the middle supra-clavicular and distal infra-clavicular windows using 10-MHz phase array probe and small retro-clavicular portion of superior vena cava was evaluated by denoting changes at the proximal vein. The left brachiocephalic vein was quite difficult to be examined because of its longer course, but it was assessed through the supraclavicular space using 5–8 MHz phased array probe and 5–MHz convex probe. Color duplex ultrasound was performed in transverse axis to assess the compressibility of the veins and presence of thrombosis and then in the longitudinal axis. B-mode was used to assess the luminal narrowing, determine diameter reduction and detect thrombus.

Image analysis

Two radiologists (RA, KA), expert in ultrasound with 20, 15 years' experience and who were blinded to the clinical presentation, independently analyzed at a separate session real-time, color flow map and pulsed waveform for all patients. The image analysis was performed for diameter reduction, peak venous velocity ratio, post-stenotic turbulent flow, waveform changes and the presence of thrombus. The vein diameter was measured at and before the stenotic region. The ratio of vein diameter at and before the stenotic region was calculated. The vein velocity was measured before and after the stenotic segment and at the normal vein segment. The thrombosed vein was non-compressible without color flow. The stenosis was significant when diameter reduction ≥50%, velocity ratio ≥2.1, the presence of post-stenotic turbulent color flow and weak continuous flow signals on pulsed wave Doppler study. The stenosis was insignificant when diameter reduction <50%, peak velocity ratio <2, slight post-stenotic turbulent flow and wave changes represented by poor augmentation with wave asymmetry.

Statistical analysis

The statistical analysis of data was done with the Statistical Package for Social Science, version 20 (SPSS Inc., Chicago, Ill, USA). Mann–Whitney U test was used to calculate the median of diameter reduction and the peak systolic velocity ratio. Bland and Altman analysis was used to detect inter-observer agreement for non-parametric continuous variables calculating the mean and difference between two observers with scatter plot for the mean and the difference. Kappa analysis was used to detect the inter-observer agreement for non-continuous variables calculating k coefficient value with 95% confidence intervals (CI). A κ of 1.0 represents perfect agreement, a κ of 0.81 to 1.0 is excellent agreement, and 0.61 to 0.80 is a good agreement. We categorized continuous variables into categorical variables for Kappa analysis. We categorized diameter reduction by grouping more than 50% and peak systolic velocity ratio by grouping more than 2.1.

Results

The final diagnosis was significant stenosis (n = 23) of either subclavian veins (n = 9), internal jugular veins (n = 8), or brachiocephalic veins (n = 6), insignificant stenosis (n = 5) of either internal jugular vein (n = 3) or subclavian vein (n = 2), complete occlusion with thrombosis of internal jugular vein (n = 3) and normal color duplex ultrasound (n = 4). Significant stenosis of the subclavian vein was located above the level of the clavicle and not at an infraclavicular level that confirmed by post-stenotic turbulent flow, accurate demarcation of the vein caliber before and after this segment and velocity measurement. No significant stenosis was detected in the superior vena cava and this was elicited by accurate observation of dilated veins proximal to the obstruction, detection of retrograde flow and velocity measurements.

The median diameter reduction of the central vein reported by the first observer was 53% and by the second observer was 52% with an excellent inter-observer agreement (r = 0.891, P = 0.001). The median peak velocity ratio by the first observer was 2.1 and by the second observer was 2.3 with an excellent inter-observer agreement (r = 0.908, P = 0.001). A Bland and Altman analysis shows a non-statistical significant difference between both observers for diameter reduction (P = 0.105) and for the mean peak systolic velocity ratio (P = 0.515) (Figure 1).

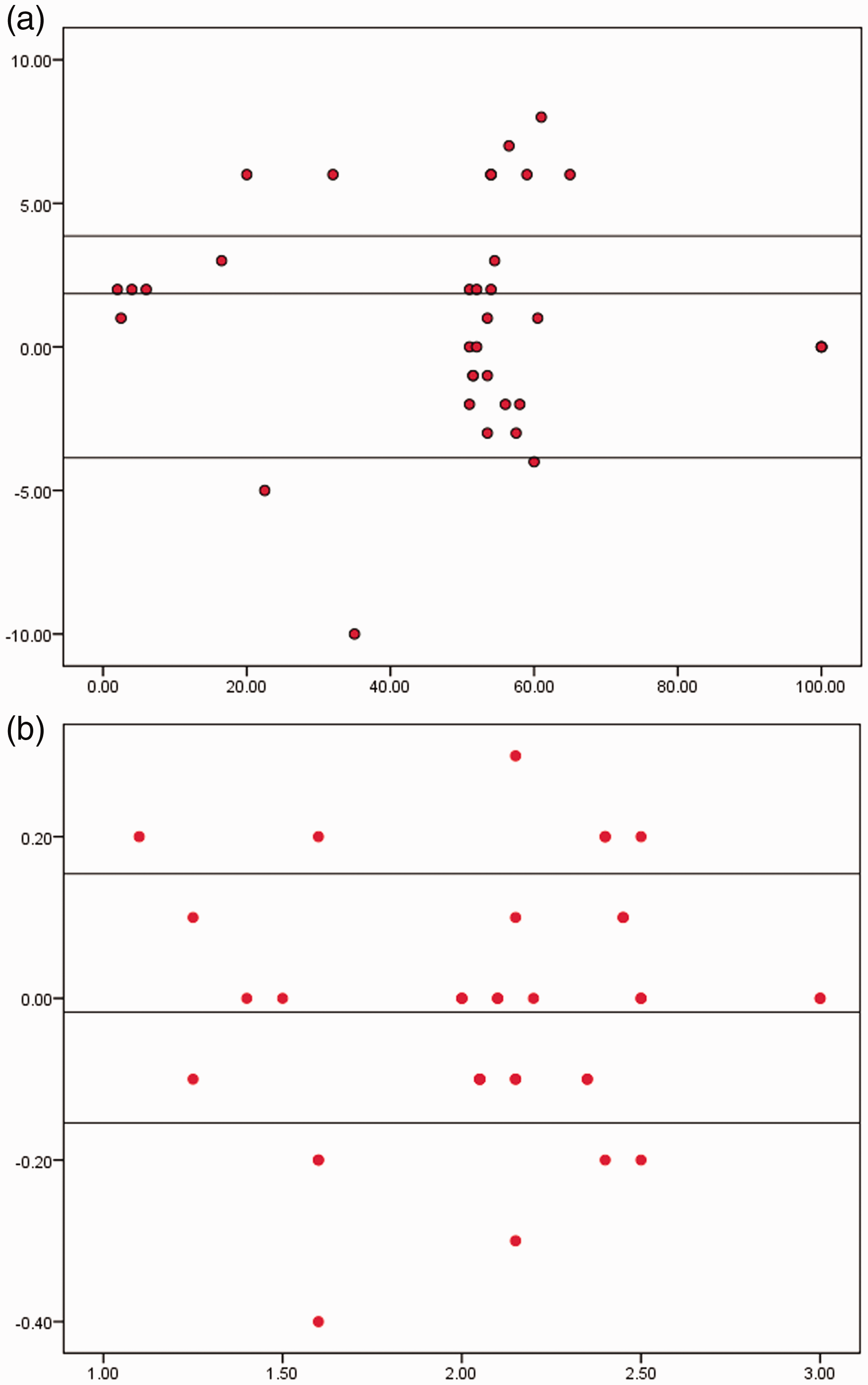

Figure 1.

Scatter diagram for Bland and Altman analysis: (a) scatter diagram for diameter reduction. (b) Scatter diagram for peak venous velocity ratio.

The inter-observer agreement of diameter reduction (Figure 2) was excellent (k = 0.928, percent of agreement = 97.14%). The inter-observer agreement of peak venous velocity ratio (Figure 3) was good (k = 0.7, percent of agreement = 85.7%). The inter-observer agreement of wave changes (Figure 4) was good (k = 0.62, percent of agreement = 77.14%). The inter-observer agreement of venous thrombus (Figure 5) was perfect (k = 1, percent of agreement = 100%). The inter-observer agreement of post-stenotic turbulent mosaic color flow (Figure 6) was good (k = 0.766, percent of agreement = 88.6%). The overall inter-observer agreement of color duplex ultrasound for detection of the central vein stenosis was excellent (k = 0.84, percent agreement = 89.7%). Table 1 shows inter-observer agreement of color duplex ultrasound of central vein stenosis in hemodialysis patients.

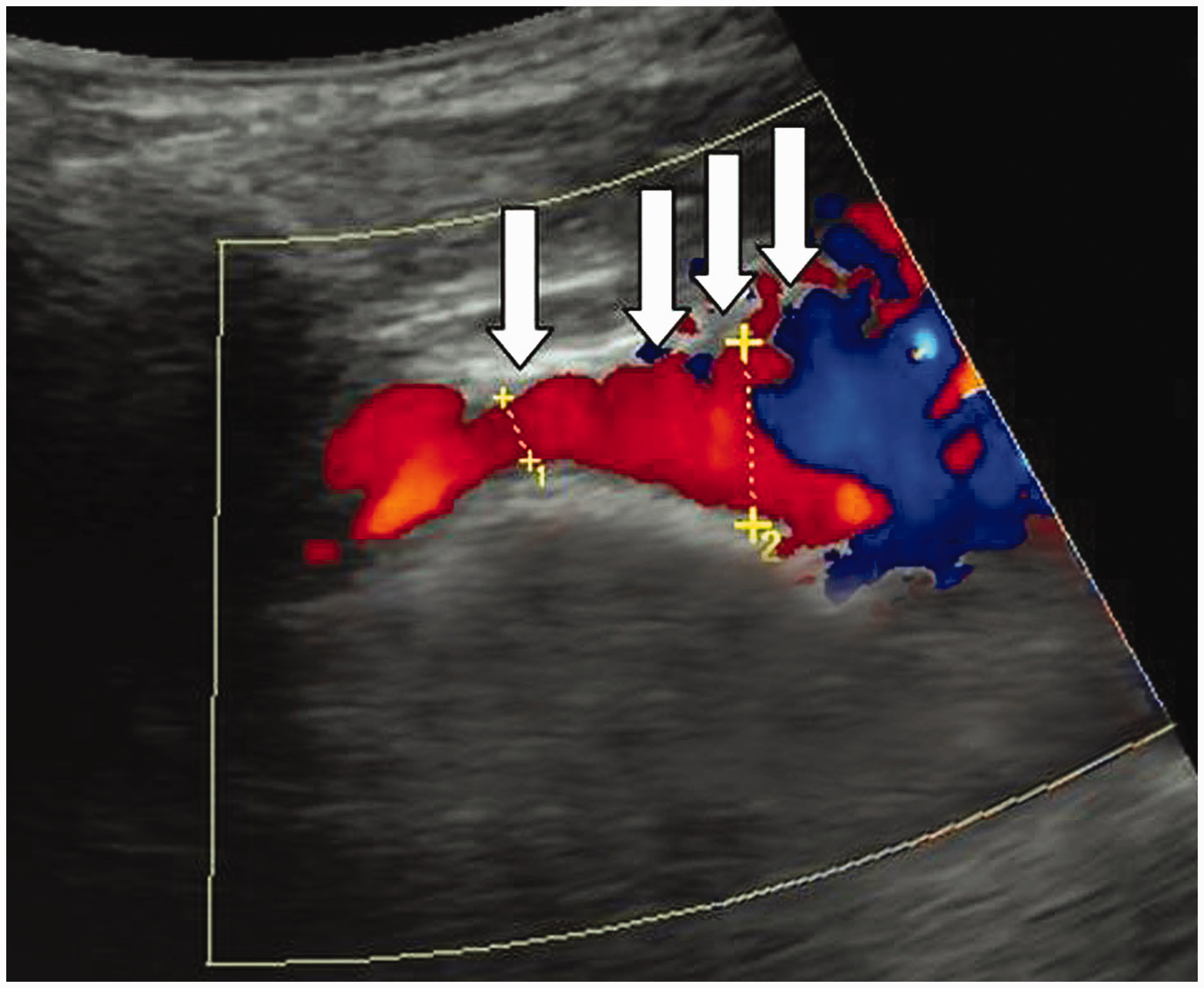

Figure 2.

Diameter reduction: Longitudinal ultrasound image shows more than 50% diameter reduction of the left subclavian vein (arrows).

Figure 3.

Peak velocity changes: Peak venous velocity ratio (>2) across the stenotic segment at left brachiocephalic vein (diameter reduction of more than 50%). (a) Spectrum duplex waveform shows pre-stenotic peak venous velocity is 85 cm/s. (b) Spectrum duplex waveform shows post-stenotic peak venous velocity is 187 cm/s.

Figure 4.

Waveform changes: Spectrum duplex waveform shows continuous weak flow wave at the stenotic segment of the left brachiocephalic vein.

Figure 5.

Thrombosis: Echogenic thrombus with luminal attenuation of the internal jugular vein in a hemodialysis patient with a history of central venous catheter insertion.

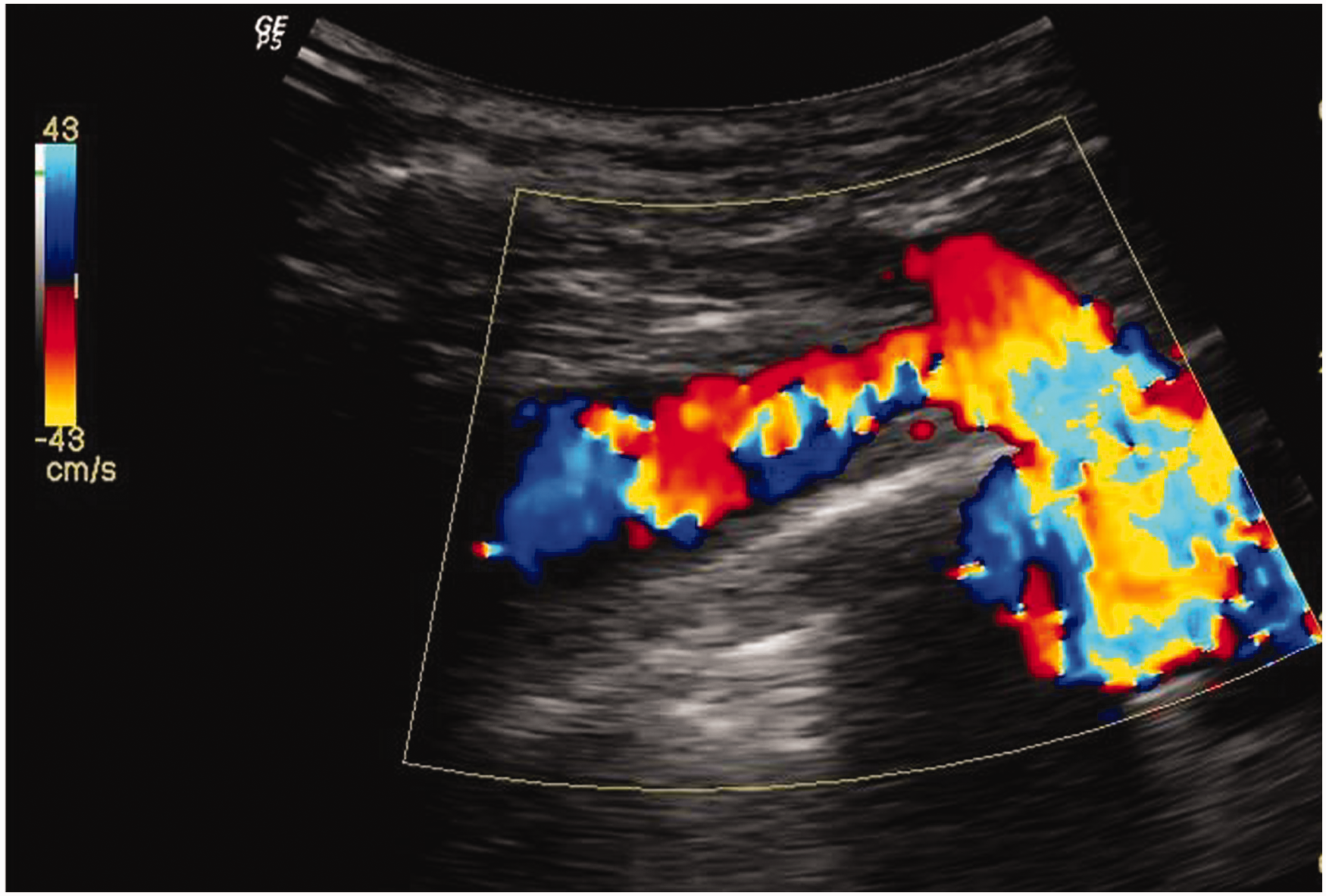

Figure 6.

Post-stenotic turbulent flow: The mosaic color of the right brachiocephalic vein in a hemodialysis patient with subclavian vein stenosis.

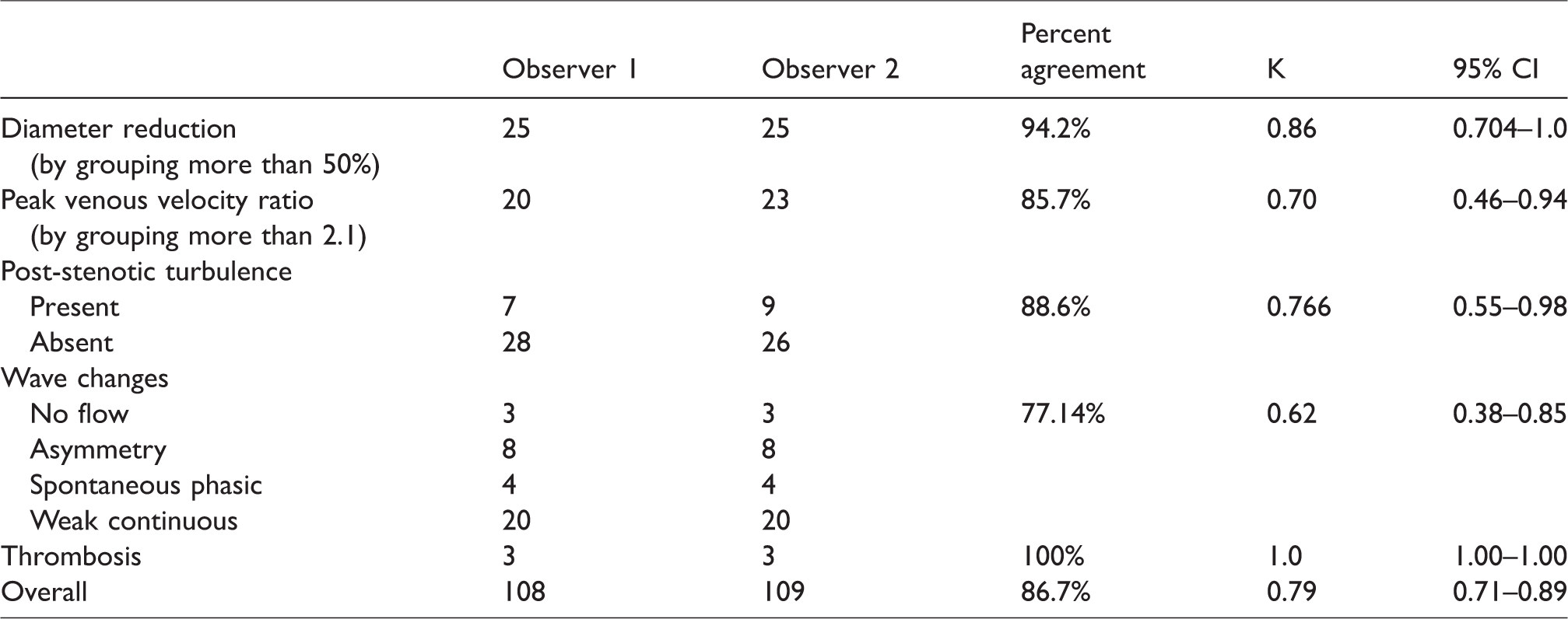

Table 1.

Inter-observer agreement with 95% confidence interval (CI) and percent agreement of color duplex ultrasound of central vein stenosis.

	Observer 1	Observer 2	Percent agreement	K	95% CI
Diameter reduction (by grouping more than 50%)	25	25	94.2%	0.86	0.704–1.0
Peak venous velocity ratio (by grouping more than 2.1)	20	23	85.7%	0.70	0.46–0.94
Post-stenotic turbulence
Present	7	9	88.6%	0.766	0.55–0.98
Absent	28	26
Wave changes
No flow	3	3	77.14%	0.62	0.38–0.85
Asymmetry	8	8
Spontaneous phasic	4	4
Weak continuous	20	20
Thrombosis	3	3	100%	1.0	1.00–1.00
Overall	108	109	86.7%	0.79	0.71–0.89

Discussion

In the current study, the overall inter-observer agreement of color duplex ultrasound for the detection of central vein stenosis was excellent (k = 0.84). One study reported that sensitivity and specificity of color duplex ultrasound, compared with venography, in the assessment of proximal veins of hemodialysis patients, were 80.9%, and 79.3%, respectively, with inter-observer Kappa agreement coefficient of 0.38.²³ Another study added that absence of color signal, direct observation of the lumen stenosis and presence of collateral veins in the upper limb with color-flow duplex ultrasound indicates proximal vein stenosis.²⁵ Previous studies reported that diagnosis of central vein stenosis with color duplex ultrasound is done in the absence of normal respiratory variation in diameter of central veins and polyphasic atrial waveforms.^24,26

In this study, there was no significant difference between both observers for diameter reduction and for peak venous velocity ratio. One study reported that a peak vein velocity ratio of >2.5 across the stenosis is the best criterion to use for the presence of a pressure gradient of =3 mmHg.²⁵

In this study, diameter reduction is significant if there are more than 50% reduction in relation to the normal venous segment. Previous studies reported that direct observation of the lumen stenosis and presence of collateral veins in the upper limb with color duplex ultrasound indicate the presence of proximal vein stenosis. However, each of these symptoms can suggest proximal vein stenosis and their combinations can increase the precision of diagnosis.^23–25

In this study, there is a significant change in peak velocity ratio ≥2.1 in the stenosed venous segment in patients with significant central vein stenosis. Other studies reported that patients with stenosis more than 50% are calculated by diameter reduction and by an area reduction of 75%, and the peak venous velocity ratio is >2.0.²⁵

In this study, color aliasing at the stenotic segment with post-stenotic turbulent flow signals is observed in patients with significant central veins stenosis and the inter-observer agreement of both reviewers is good. One study reported that post-stenotic turbulence in absence of inferior vena cava or superior vena cava obstruction is used for detection of stenosis.²³

This study shows weak slow signals in patients with significant stenosis of the central veins and asymmetry of the venous flow signal in patients with insignificant stenosis. One study reported that changes in cardiac/respiratory phasicity revealed 52.4% sensitivity, 82.8% specificity, 68.8% positive predictive value and 70.6% negative predictive value in the diagnosis of stenosis.²³ Another study added that peak systolic velocity of ≥500 cm/s predicted a 50% or greater stenosis with a sensitivity of 89% and positive predictive value of 99%. The systolic velocity ratio of the fistula is an unreliable parameter in predicting the degree of stenosis in patients with hemodialysis fistula.²⁶

In this study, the inter-observer agreement for detection of complete occlusion with thrombosis is perfect. The previous study reported that the compression ultrasound is the highly accurate test for detection of deep vein thrombosis.²⁷ Another study added that thrombosis and/or complete obstruction of the subclavian vein occur in 35% (15%–50%) and of the internal jugular vein in 3% of patients with hemodialysis.²⁸

There are a few limitations of this study. First, this study used color duplex ultrasound for diagnosis of central vein stenosis. Further studies using advanced ultrasound tools as ultrasound elastography and intravascular ultrasound or combined color duplex with contrast MR angiography^29,30 and CT angiography^31–33 will improve the results. Second, this study included a small number of patients with no follow-up after treatment. Further studies on a large number of patients before and after therapy^34–37 will improve the results.

Conclusion

We concluded that color duplex ultrasound is a reliable and reproducible method for diagnosis of central vein stenosis in hemodialysis patients.
