Insulin differentially affects the distribution kinetics of amyloid beta 40 and 42 in plasma and brain

Abstract

Impaired brain clearance of amyloid-beta peptides (Aβ) 40 and 42 across the blood–brain barrier (BBB) is believed to be one of the pathways responsible for Alzheimer’s disease (AD) pathogenesis. Hyperinsulinemia prevalent in type II diabetes was shown to damage cerebral vasculature and increase Aβ accumulation in AD brain. However, there is no clarity on how aberrations in peripheral insulin levels affect Aβ accumulation in the brain. This study describes, for the first time, an intricate relation between plasma insulin and Aβ transport at the BBB. Upon peripheral insulin administration in wild-type mice: the plasma clearance of Aβ40 increased, but Aβ42 clearance reduced; the plasma-to-brain influx of Aβ40 increased, and that of Aβ42 reduced; and the clearance of intracerebrally injected Aβ40 decreased, whereas Aβ42 clearance increased. In hCMEC/D3 monolayers (in vitro BBB model) exposed to insulin, the luminal uptake and luminal-to-abluminal permeability of Aβ40 increased and that of Aβ42 reduced; the abluminal-to-luminal permeability of Aβ40 decreased, whereas Aβ42 permeability increased. Moreover, Aβ cellular trafficking machinery was altered. In summary, Aβ40 and Aβ42 demonstrated distinct distribution kinetics in plasma and brain compartments, and insulin differentially modulated their distribution. Cerebrovascular disease and metabolic disorders may disrupt this intricate homeostasis and aggravate AD pathology.

Keywords

Alzheimer's disease blood–brain barrier SPECT pharmacokinetics endothelium cerebrovascular disease insulin diabetes

Introduction

Alzheimer’s disease (AD) is characterized by amyloid beta (Aβ) deposits in the brain parenchyma; intraneuronal tangles of hyperphosphorylated tau protein; neurodegeneration in the cortex and hippocampus; and impaired glucose metabolism in the brain.¹ Investigators have been targeting these hallmarks of AD pathology with an expectation to uncover novel therapeutic strategies to halt or even reverse AD progression. Among these, the reduction of brain Aβ burden is widely considered to be a viable therapeutic strategy, and developing methods to promote brain Aβ clearance have been at the forefront of AD research. The two-hit vascular hypothesis of AD, proposed by Zlokovic, posits that Aβ accumulation in the brain is secondary and subsequent to the primary insult sustained by the cerebral vasculature.² There is substantial speculation on the pathological changes that are capable of delivering the first hit to the cerebral vasculature, and some of the likely suspects include hyperinsulinemia and peripheral insulin resistance, that are prevalent in type II diabetes.³

Hyperinsulinemia is believed to engender cerebrovascular dysfunction and dampen cerebrovascular reactivity, which is critical for sustaining neuronal activity.⁴ Clinically, cerebrovascular dysfunction is measured as changes in the cerebral blood flow and alterations in the permeability of the cerebrovascular endothelium, classically referred to as the blood–brain barrier (BBB). The cerebrovascular reactivity is primarily facilitated by the BBB and vascular smooth muscle in the larger vessels. But in the smaller vessels, such as capillaries that are devoid of smooth muscle cells, contractile pericytes take their place.⁵ Moreover, pericytes are believed to restrict vascular permeability and maintain the BBB integrity.^6,7 Hyperinsulinemia could lead to the degeneration of these vascular cells, cause disruptions in cerebrovascular structure and function, and lead to BBB dysfunction.⁸

The BBB endothelium is a quintessential trafficking portal that delivers critical cargo, including glucose and growth factors, from plasma to brain, and clear metabolic byproducts, such as Aβ peptides, from the brain. Previous studies have shown that insulin impacts plasma pharmacokinetics of Aβ peptides and modulates the dynamics Aβ trafficking at the BBB.^9–11 Elucidating the cellular and molecular mechanisms harnessed by insulin in order to influence Aβ trafficking at the BBB in healthy animals is critical to fully realize the consequences of BBB dysfunction triggered by insulin resistance and hyperinsulinemia. Hence, the purpose of this study is to investigate the effect of insulin on the distribution kinetics of two main Aβ isoforms, Aβ40 and Aβ42, in plasma and brain compartments, with an emphasis on the impact of insulin exposure on the Aβ trafficking across the BBB endothelium.

Materials and methods

Reagents and lab supplies

Aβ40 and Aβ42 peptides were synthesized in the Mayo Clinic Proteomics Core (Rochester, MN) or procured from AAPPtec, LLC (Louisville, KY). The ¹²⁵I was obtained from Perkin Elmer Life and Analytical Sciences (Boston, MA). Insulin (Novolin® R or Humulin® R) was purchased from Eli Lilly (Indianapolis, IN). Plastic wares were obtained from Corning life sciences (Tewksbury, MA), USA Scientific (Ocala, FL) or Denville Scientific Inc., (South Plainfield, NJ). Plasmids were obtained from Addgene (Cambridge, MA). All other reagents were purchased from Sigma-Aldrich (St. Louis, MO) unless stated otherwise.

Animals

Wild-type (WT) mice (B6SJLF1) were purchased from Jackson Laboratory, Bar Harbor, ME. They were housed in Mayo Clinic animal care facility under standard conditions and provided access to food and water ad libitum. Male and female mice between ages five and eight months were used. The male and female mice were randomly distributed to various groups. The animal studies were done in a single-blinded fashion. The animal experimenters were provided with minimal details required for the experiment to be performed. In addition, they were blinded from details of the final data analysis and the study conclusions until all animal experiments were completed. All studies were conducted in accordance with the National Institutes of Health guidelines for the care and use of laboratory animals, and protocols approved by the Mayo Clinic Institutional Animal Care and Use Committee. Data in this manuscript are reported according to the ARRIVE guidelines.

Radioiodination of Aβ peptides

As described in our previous publications,^12,13 the Aβ peptides were labeled with ¹²⁵I using the chloramine-T reaction, and the product was dialyzed to remove unconjugated ¹²⁵I. The purity of the ¹²⁵I-labeled protein was determined by trichloroacetic acid (TCA) assay.

Biodistribution of ¹²⁵I-Aβ

B6SJLF1 mouse was anesthetized (1.5% isoflurane with 4 L/min O₂) and its femoral vein/artery and the internal carotid artery were catheterized. Saline (100 µL, control) or insulin (nominal dose of 1 IU, treatment) was administered via internal carotid artery over the course of 5 min. Fifteen minutes following the insulin infusion, 100 µCi of ¹²⁵I-Aβ40 or ¹²⁵I-Aβ42 was administered to each mouse via the femoral vein (note ¹²⁵I-Aβ42: saline (n = 6) and insulin (n = 7); ¹²⁵I-Aβ40 saline (n = 3) and insulin (n = 3)). A 20-µL blood sample was collected from the femoral artery at pre-determined time points (0.25, 1, 3, 5, 7, 10, and 15 min post administration of ¹²⁵I-Aβ); the plasma was separated; TCA precipitated; and the radioactivity of the intact protein was measured in the pellet by a two-channel gamma counter (Cobra II; Amersham Biosciences Inc., Piscataway, NJ). Finally, the mouse was transcardially perfused with excess phosphate-buffered saline (PBS) to flush radioactivity in the blood, and the brain radioactivity was assayed.

The plasma data at each time point were analyzed by Grubb’s test to remove potential statistical outliers. The average plasma data was then computed and then fitted to the following biexponential equation using WinNonlin® (Pharsight, Mountain View, CA)

Cp = A e^{- α t} + B e^{- β t}

(1)

and the primary parameters – A and B intercepts, as well as the α and β rate constants were estimated. The secondary parameters such as the C_max (maximum plasma concentration), plasma clearance (CL), and area under the plasma concentration curve (AUC) were calculated also using WinNonlin.

The influx of ¹²⁵I-Aβ proteins into the brain was determined as described below:

Braininflux = \frac{Brain radioactivity (μ Ci)}{Plasma AUC (\frac{μ Ci}{mL}) * \min}

(2)

To resolve insulin’s impact on the ¹²⁵I-Aβ influx in various brain regions of the left and right brain hemispheres, the experiment was conducted by infusing a higher dose of insulin (4.2 IU) over 15 min via the left internal carotid artery. Then, 100 µCi of ¹²⁵I-Aβ40 or ¹²⁵I-Aβ42 was administered to each mouse via the femoral vein (¹²⁵I-Aβ42: saline (n = 6) and insulin (n = 5); ¹²⁵I-Aβ40 saline (n = 5, one outlier was excluded) and insulin (n = 6, one outlier was excluded)), and the plasma was sampled from the femoral artery for the following 15 min. At the end of the experiment, each hemisphere was dissected into the cortex, hippocampus, caudate putamen, thalamus, brain stem, and cerebellum, and the radioactivity was assayed in the gamma counter.

Dynamic SPECT/CT studies to assess ¹²⁵I-Aβ distribution in plasma and brain compartments

For assessing plasma-to-brain influx, the WT mice (n = 3) were infused with saline or insulin (4.2 IU) for 15 min via the internal carotid artery and then administered with 100 µCi of ¹²⁵I-Aβ40 or ¹²⁵I-Aβ42 through the femoral vein. The animals were immediately imaged for the following 40 min by dynamic SPECT/CT (Gamma Medica, Northridge, CA) as described previously.¹³ The plasma-to-brain influx of ¹²⁵I-Aβ was predicted by Gjedde–Patlak plot,^14–16 which was constructed by plotting

\frac{{Amount}_{brain} (t)}{C_{p} (t)} Vs . \frac{\int_{0}^{t} C_{p} (τ) d τ}{C_{p} (t)}

(3)

The ${Amount}_{brain}$ denotes the brain radioactivity at timet; the $\int_{0}^{t} C_{p} (τ) d τ$ is plasma AUC from the time of injection; and $C_{p} (t)$ is instantaneous plasma activity at time = t. Plasma concentrations were simulated using equation (1), and predicted primary plasma PK parameters. The $\frac{\int_{0}^{t} C_{p} (τ) d τ}{C_{p} (t)}$ is also referred to as exposure time. Slope of the linear portion of the Gjedde–Patlak plot is referred to as the brain transfer rate constant (K_i).

To assess brain-to-plasma clearance, mice were administered with saline or a nominal dose of 4.2 IU insulin (four animals per group) via the internal carotid artery over 15 ± 1 min. At the end of infusion, they were injected with 1 µL of either ¹²⁵I-Aβ40 or ¹²⁵I-Aβ42 (about 3–4 μCi /per animal) into the right hippocampus. The animals were imaged for the following 100 min by dynamic SPECT/CT. The obtained radioactivity counts were normalized to the body weight and the administered radioactivity. Changes in the brain radioactivity (as a percent of initial levels) were plotted on the natural log scale against time and then fitted to a one-phase decay model using Prism version 5 (Graph pad software, La Jolla, CA).

Cell culture

The immortalized human cerebral microvascular endothelial cell line (hCMEC/D3) was a kind gift from P-O Couraud, Institut Cochin, France. These cells were cultured as previously described.¹⁷

Determination of ¹²⁵I-Aβ flux in hCMEC/D3 monolayers

Cells were cultured on Transwell® inserts (Corning, Tewksbury, MA) for seven to nine days to form a polarized monolayer. The monolayer integrity was verified by monitoring the transendothelial electric resistance (TEER). The ¹²⁵I-Aβ transport studies were conducted when TEER values ranged between 80 and 120 Ω/cm².

Cell monolayers were serum-starved overnight using growth media containing low serum (1% v/v fetal bovine serum) before pre-treatment with 100 mIU/mL insulin on the luminal side for 20 min at 37℃. Then ¹²⁵I-Aβ40 or ¹²⁵I-Aβ42 (20 µCi/mL) was pre-mixed with 12.8 µg/mL of activated alpha-2 M for 30 min, and 500 µL of the mixture was added to the luminal compartment at the start of the experiment (t = 0 min). A 20-µL aliquot of the medium was sampled from the abluminal compartment at t = 10, 20, 30, 45, 60 and 90 min and assayed for radioactivity. The cumulative amount of radioactivity reaching the abluminal compartment was plotted against time. The slope of the regression line indicates luminal-abluminal flux of ¹²⁵I-Aβ tracer. The apparent permeability of ¹²⁵I-Aβ was obtained by normalizing the flux with initial donor concentration.

To assess abluminal-to-luminal permeability (A-L), insulin (100 mIU/mL) and ¹²⁵I-Aβ (20 µCi/mL) were added to the abluminal compartment and 20-µL samples were collected from the luminal compartment at various time intervals. A-L permeability was then calculated as described above.

DNA transfections

Cells, cultured on 6-well plates or 35-mm glass bottom culture dishes (MatTek Corp, Ashland, MA), were transfected with 1.5–2 µg of human insulin receptor plasmid (IR, Addgene plasmid #24049, 0.67 or 1.1 µg/µL in 1X Tris-EDTA buffer) using Lipofectamine LTX reagent kit (Invitrogen, Grand Island, NY). The DNA was diluted with 145 µL Opti-MEM™ (Invitrogen) and 2.5 µL of Plus reagent was added. The contents were mixed by pipetting and then transferred to another tube containing 6 µL of Lipofectamine® pre-diluted with 144 µL of Opti-MEM™. The mixture was added to the cells and replaced with fresh growth media after 12 h. Then, cells were allowed to recover for 36 h before the experiment.

Impact of insulin on FITC-transferrin uptake by flow cytometry

The IR transfected cells were exposed to insulin (100 mIU/mL, 20 min) and then treated with 40 µg/mL fluorescein isothiocyanate-conjugated transferrin (FITC-transferrin) for 30 min at 37℃. The cells were harvested, fixed with 2% v/v para-formaldehyde for 15 min, and the intracellular fluorescence was measured using Accuri™ C6 flow cytometer (BD Biosciences, San Jose, CA).

Impact of insulin on Alexa Fluor® 647-conjugated cholera toxin and Alexa Fluor® 633-conjugated transferrin by confocal microscopy

The IR transfected cells were treated with insulin (100 mIU/mL, 20 min) and then treated with Alexa Fluor® 647-conjugated cholera toxin (AF647-CT) (15 µg/mL) or Alexa Fluor® 633-conjugated Transferrin (AF633-Trf) (10 µg/mL) for 30 min. The treatments were removed and then the cells were washed twice with cold Hanks Balanced Salt Solution (HBSS). Subsequently, the cells were treated with an ice cold solution of 0.2 M acetic acid and 0.5 M sodium chloride (pH 2.5) for 5 min (two exchanges, each for 2 min and one exchange for 1 min) to strip the cell membrane-bound fluorescent probes. The cells were then neutralized with ice-cold HBSS, fixed with 4% v/v para-formaldehyde in PBS for 30 min at room temperature and then extensively washed with PBS. The cells were then washed thoroughly with PBS, incubated with 0.2 µg/mL Hoechst 33342 (Life technologies, Grand Island, NY) for 5 min and washed again with PBS. The dishes were air-dried, mounted with ProLong® gold antifade reagent (Life technologies, Grand Island, NY) and then imaged by confocal microscopy (Zeiss LSM 780 laser confocal microscope equipped with C-Apochromat 40X/1.2 W objective).

Impact of insulin on ¹²⁵I-Aβ exocytosis

Polarized hCMEC/D3 monolayers were cultured on 24-mm Transwell® inserts and exposed to 100 mIU/mL insulin for 20 min. Then, both luminal and abluminal chambers were spiked with ¹²⁵I-Aβ40 or ¹²⁵I-Aβ42 (10 µCi) and incubated for 1 h at 37℃. The media was removed, filter surface was washed twice with HBSS to remove non-specifically bound radioactive peptides, and then the cells were fed with growth media containing 1% FBS (control) or 100 mIU/mL insulin (treatment). Then, 50-µL sample aliquots were obtained from the luminal and abluminal chambers at 10, 20, 30, 45, 60 and 90 min, and assayed for radioactivity.

Whole cell lysis, plasma membrane fractionation, and Western blotting

Whole cell lysis

Control or insulin (100 mIU/mL, 20 min)-treated cells were washed with ice-cold Dulbecco’s PBS, dislodged from tissue culture dishes using a cell scrapper, pelleted and then dispersed in radioimmunoprecipitation assay buffer (RIPA, Thermo Scientific, Waltham, MA) containing EDTA-free protease inhibitor cocktail (Roche, Branford, CT). Protein lysates were obtained by a high-speed centrifugation at 9600 g, 5 min, 4℃.

Plasma membrane fractionation, western blotting, and immunocytochemistry

Methods have been detailed in the Supplementary Section.

Statistical analyses

Statistical significance (*p < 0.05, **p < 0.01, ***p < 0.001) of the differences between the mean responses with and without insulin exposure, both in vivo as well as in vitro, was ascertained by Student’s t-test using Prism version 5 (Graph pad software, La Jolla, CA). Significance (*p < 0.05, **p < 0.01, ***p < 0.001) of insulin impact on the influx of ¹²⁵I-Aβ in various brain regions was evaluated by two-way ANOVA followed by Bonferroni’s multiple comparison tests. In dynamic SPECT studies, F-tests were done to compare the statistical significance of the curves obtained with and without insulin exposure.

Results

Effect of insulin on the plasma pharmacokinetics of Aβ peptides in mice

Both ¹²⁵I-Aβ40 (Figure 1(a)) and ¹²⁵I-Aβ42 (Figure 1(b)) displayed biexponential plasma disposition in mice treated with insulin or saline. Maximal plasma concentration (C_max) and area under the curve (AUC) of ¹²⁵I-Aβ40 were found to be significantly lower in insulin pre-injected animals than in control animals (Figure 1(c)). However, the C_max and AUC of ¹²⁵I-Aβ42 significantly increased in insulin-treated mice compared to the control mice (Figure 1(c)). Similarly, ¹²⁵I-Aβ40 clearance increased, but ¹²⁵I-Aβ42 clearance decreased in insulin-treated animals compared to controls (Figure 1(c)).

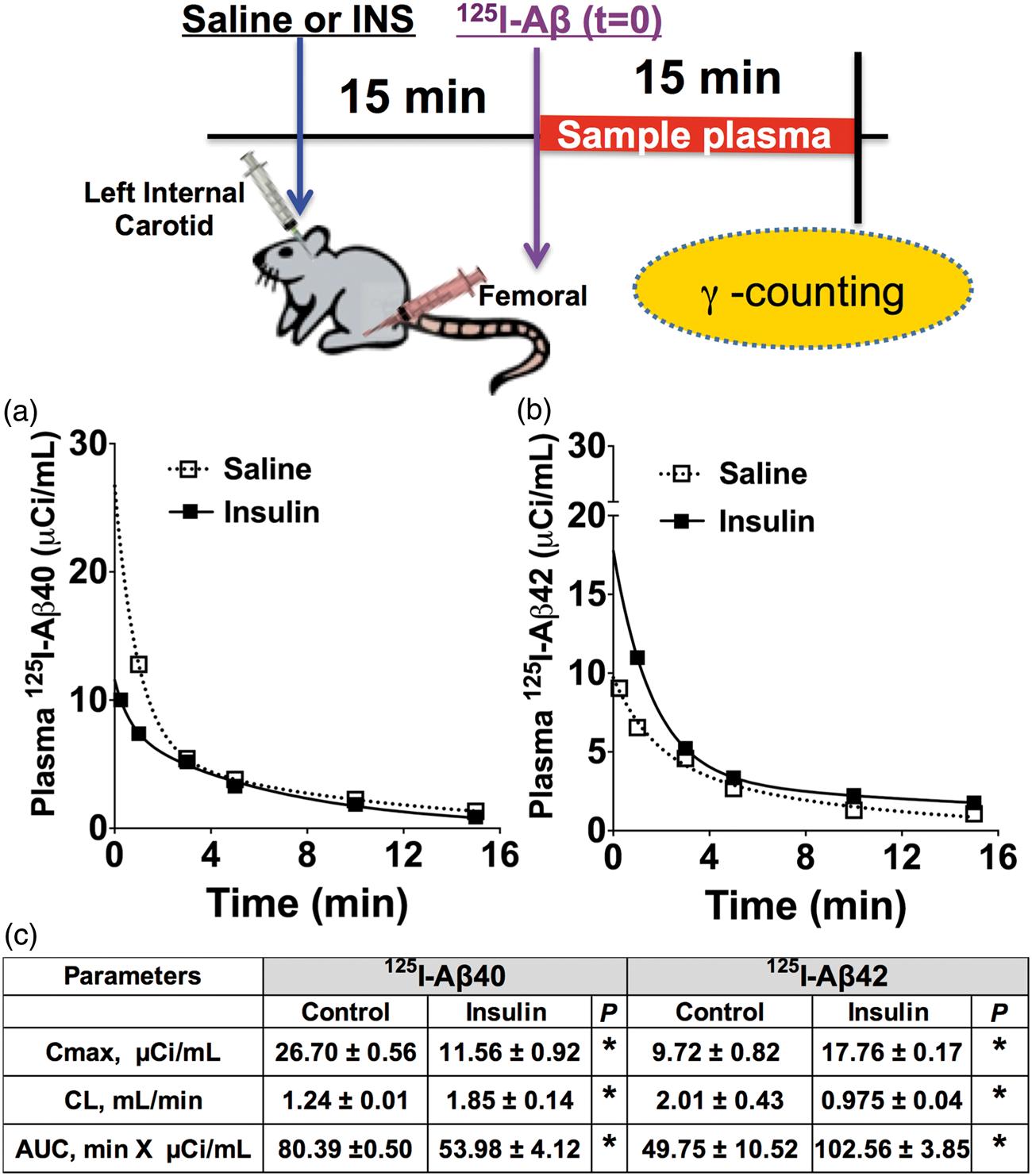

Figure 1.

Plasma clearance of (a) ¹²⁵I-Aβ40 increased and (b) ¹²⁵I-Aβ42 clearance decreased in insulin pre-administered B6SJLF1 mice. Graphs depict the plasma pharmacokinetics of ¹²⁵I-Aβ fitted to a two-compartment model. (c) Predicted plasma pharmacokinetic parameters are presented in the table as mean ± S.E. (Aβ40: saline (n = 3), insulin (n = 3); Aβ42: saline (n = 6), insulin (n = 7)). *p < 0.05: Student’s t-test. AUC: area under the curve; Cmax: maximum plasma concentration; CL: plasma clearance.

Insulin modulates the plasma-to-brain distribution of ¹²⁵I-Aβ40 and ¹²⁵I-Aβ42

The parameter obtained by normalizing the brain uptake of intravenously administered ¹²⁵I-Aβ with its plasma AUC indicates the plasma-to-brain influx. A 15-min infusion of 1 IU insulin via the left internal carotid artery was shown to increase the influx of ¹²⁵I-Aβ40 but reduced the influx of ¹²⁵I-Aβ42 as compared to saline-treated controls (Figure 2(a)). At higher doses (4.2 IU), the effect of insulin was significant in various brain regions of the left and right brain hemispheres (Figure 2(b)). The ¹²⁵I-Aβ40 influx into various brain regions (cortex, hippocampus, thalamus and caudate putamen) of the left hemisphere, which received higher insulin exposure (Supplementary Figure 1), was statistically significant compared to the control mice (Figure 2(b)). In contrast, the influx of ¹²⁵I-Aβ42 significantly decreased in the left hemisphere of insulin pre-injected mice compared to the control mice. Although similar trends were apparent in the right hemisphere, they are not statistically significant (Figure 2(b)).

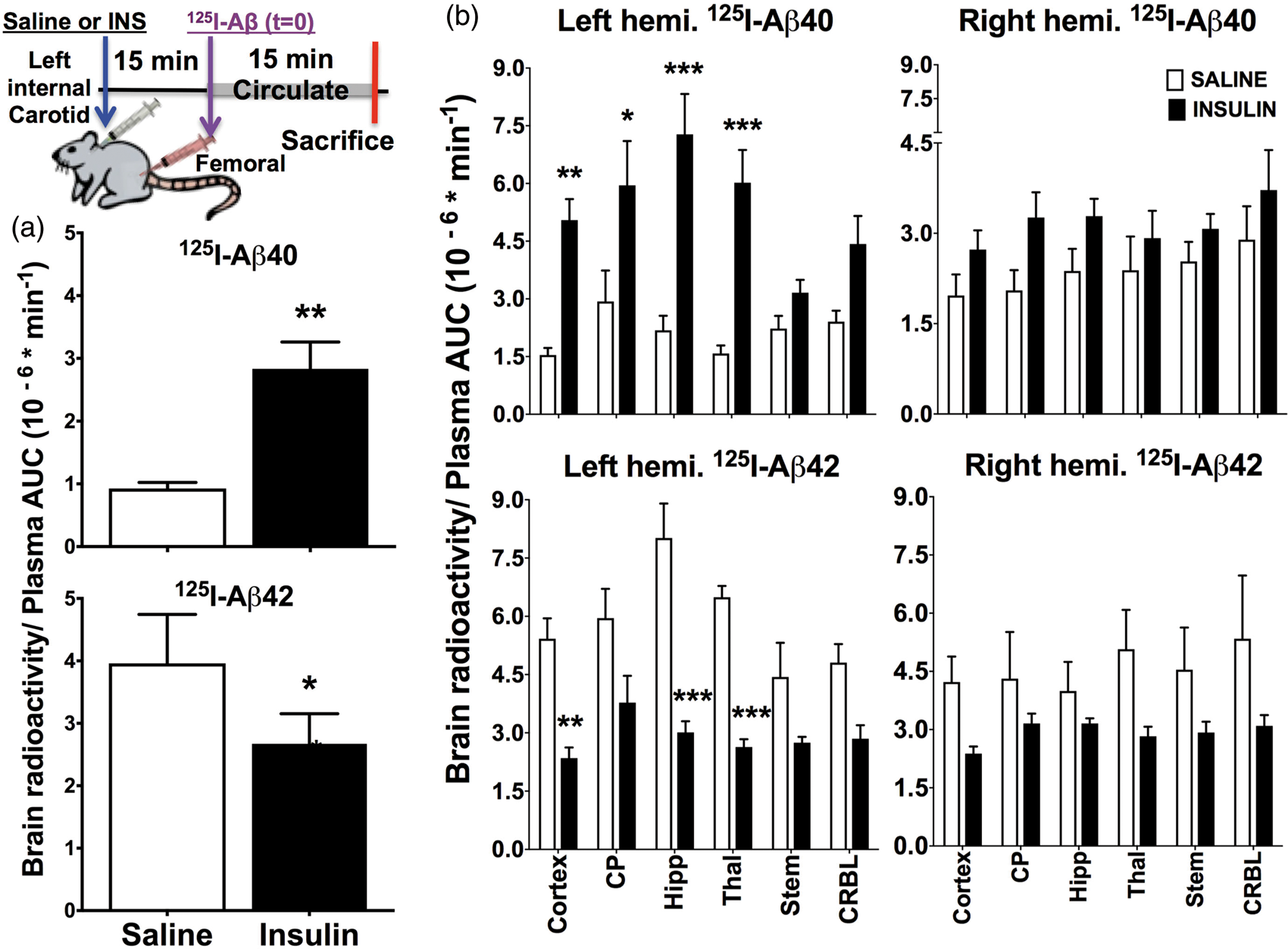

Figure 2.

Brain influx of ¹²⁵I-Aβ40 increased and ¹²⁵I-Aβ42 decreased in insulin-treated B6SJLF1 mice. Normal saline or insulin (INS) was infused into the left internal carotid artery such that the left brain hemisphere received approximately two-fold greater insulin exposure than the right hemisphere. Then ¹²⁵I-Aβ was administered via femoral vein, which is equally distributed to both left and right brain hemispheres. This experimental modality allows us to relate the extent of insulin exposure to changes in the influx of ¹²⁵I-Aβ. (a) The brain influx values of ¹²⁵I-Aβ in mice infused with 1 IU of insulin over 15 min. Data are presented as mean ± S.D. (n = 3); *p < 0.05, Student’s t-test. (b) The brain influx of ¹²⁵I-Aβ into various brain regions of mice infused with 4.2 IU of insulin over 15 min. Data are presented as mean ± S.D. (Aβ40: saline (n = 5), insulin (n = 6); Aβ42: saline (n = 6), insulin (n = 5)). Two-way ANOVA followed by Bonferroni’s multiple comparison test was conducted to evaluate if the differences between saline and insulin-treated mice are significant in various brain regions. *p < 0.05, **p < 0.01, and ***p < 0.001.

These intriguing results were further verified using dynamic SPECT imaging. The plasma-to-brain transfer rate constant (K_i) of ¹²⁵I-Aβ40 was found to be higher (Figure 3(a)), but the K_i of ¹²⁵I-Aβ42 was lower (Figure 3(b)) in the insulin-infused mice compared to saline-infused mice. The K_i of ¹²⁵I-Aβ40 was 4.85 ±0.24 mL * min ^− 1 * 10⁻³ in control mice and it increased to 5.95 ± 0.15 mL * min⁻¹ * 10⁻³ in insulin-treated animals. The K_i of ¹²⁵I-Aβ42 was 9.97 ±0.22 mL * min⁻¹ * 10⁻³ in control mice and it decreased to 7.92 ± 0.18 * mL * min⁻¹ * 10⁻³ in insulin-treated animals.

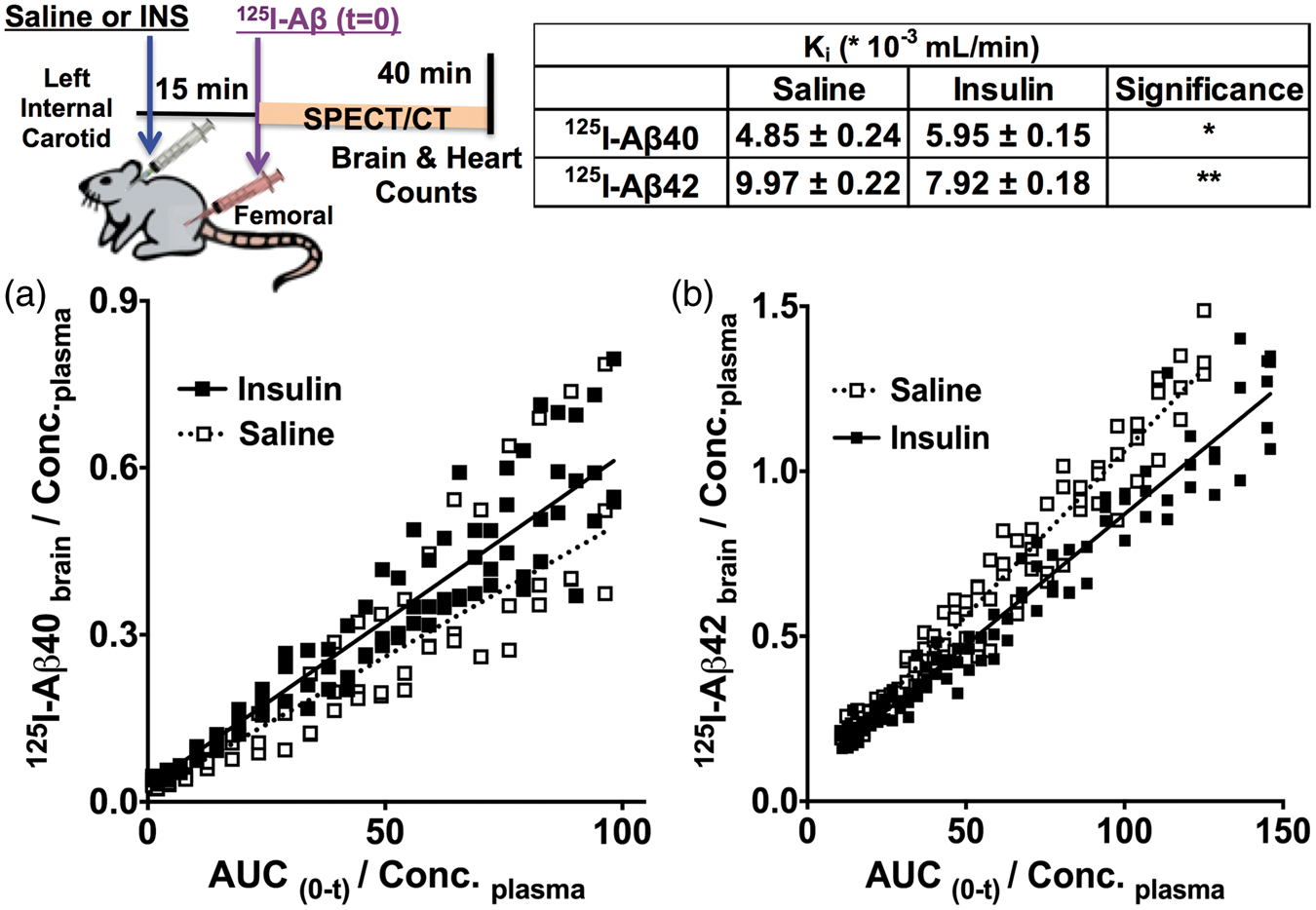

Figure 3.

Determination of plasma-to-brain influx of ¹²⁵I-Aβ proteins by SPECT imaging. Saline or insulin (INS) was infused into the left internal carotid artery, followed by IV bolus administration of ¹²⁵I-Aβ via femoral vein. Dynamic SPECT/CT imaging of mice was pursued immediately after ¹²⁵I-Aβ administration. The brain transfer rate constants (K_i) of (a) ¹²⁵I-Aβ40 and (b) ¹²⁵I-Aβ42 were obtained from the slopes of Gjedde–Patlak plots. The data are presented as mean ± S.D. (n = 3). Significance of the differences between the brain influx (slope) of ¹²⁵I-Aβ in saline and insulin infused mice was evaluated by F-test. ¹²⁵I-Aβ40: F(2,140) = 12.56, p < 0.0001 and ¹²⁵I-Aβ42: F(2,190) = 70.02, p < 0.0001.

Insulin modulates the brain-to-plasma clearance of ¹²⁵I-Aβ40 and ¹²⁵I-Aβ42 in mice

Saline or insulin was infused via the internal carotid artery and then ¹²⁵I-Aβ40 or ¹²⁵I-Aβ42 was injected into the right hippocampus. Change in the injected radioactivity with time was monitored by SPECT/CT imaging (Figure 4(a)). The brain elimination rate constant of ¹²⁵I-Aβ40 was 0.009 ± 0.001 min⁻¹ in control mice but decreased to 0.003 ± 0.001 min⁻¹ in insulin-treated mice (Figure 4(a), panel-i). In contrast, the brain elimination of ¹²⁵I-Aβ42 in the control mice was 0.006 ± 0.001 min⁻¹ but increased to 0.011 ±0.002 min⁻¹ in mice pre-administered with insulin (Figure 4(a), panel-ii). Representative SPECT/CT images are presented in Figure 4(b).

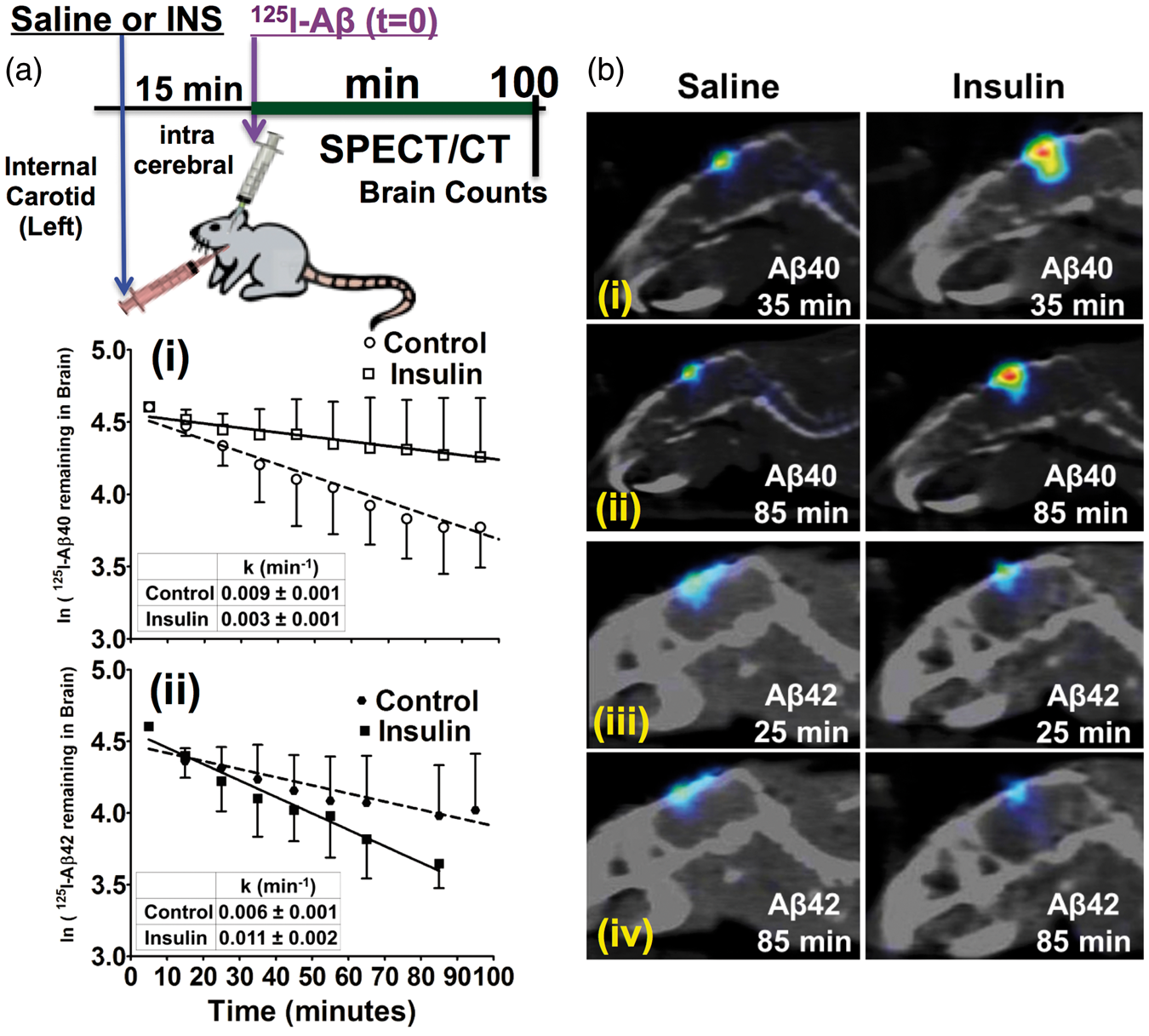

Figure 4.

Brain-to-plasma clearance of ¹²⁵I-Aβ40 decreased, whereas ¹²⁵I-Aβ42 clearance increased with internal carotid administration of insulin in B6SJLF1 mice. (a) Normal saline or insulin (INS) was infused via the left internal carotid artery. Then, ¹²⁵I-Aβ was injected into the right hippocampus and imaged by SPECT/CT. Elimination of (i) ¹²⁵I-Aβ40 and (ii) ¹²⁵I-Aβ42 radioactivity from the injection site was fitted to a one-phase decay equation and the elimination rate constants (k) are presented in the inserted tables. Data are presented as mean ± S.D. (n = 4). F-test was conducted to check if the slopes of saline and insulin treated groups are significantly different. ¹²⁵I-Aβ40: F(1,92) = 12.98, p < 0.001 and ¹²⁵I-Aβ42 F(1,65) = 6.73, p < 0.05. (b) SPECT/CT images showing changes in (i) ¹²⁵I-Aβ40 at 35 min; (ii) ¹²⁵I-Aβ40 at 85 min; (iii) ¹²⁵I-Aβ42 radioactivity at 25 min; and (iv) ¹²⁵I-Aβ42 radioactivity at 85 min.

Insulin alters the transcytosis and exocytosis of ¹²⁵I-Aβ40 and ¹²⁵I-Aβ42 in vitro

Insulin pre-treatment on the luminal side increased the L-A permeability of ¹²⁵I-Aβ40 from 14.4 ±2.7 cm * min⁻¹ *10⁻⁵ measured in untreated hCMEC/D3 monolayers to 20.9 ± 6.2 cm*min⁻¹ *10⁻⁵ (Figure 5(a), panel-i). But the permeability of ¹²⁵I-Aβ42 decreased from 3.39 ± 0.57 cm * min⁻¹ *10⁻⁵ in the control monolayers to 2.32 ± 0.38 cm * min⁻¹ *10⁻⁵ in the insulin-treated monolayers (Figure 5(a), panel-ii). Similarly, insulin treatment on the abluminal side decreased the A-L permeability of ¹²⁵I-Aβ40 from 17.86 ± 1.67 cm*min⁻¹ *10⁻⁵ to 14.46 ±0.43 cm * min⁻¹ *10⁻⁵ (Figure 5(a), panel-iii). But the A-L permeability of ¹²⁵I-Aβ42 increased in the insulin-treated monolayers, from 2.97 ± 0.50 cm * min⁻¹ *10⁻⁵ to 3.51 ± 0.25 cm * min⁻¹ *10⁻⁵ (Figure 5(b), panel-iv). These in vitro observations were in agreement with the results obtained in vivo.

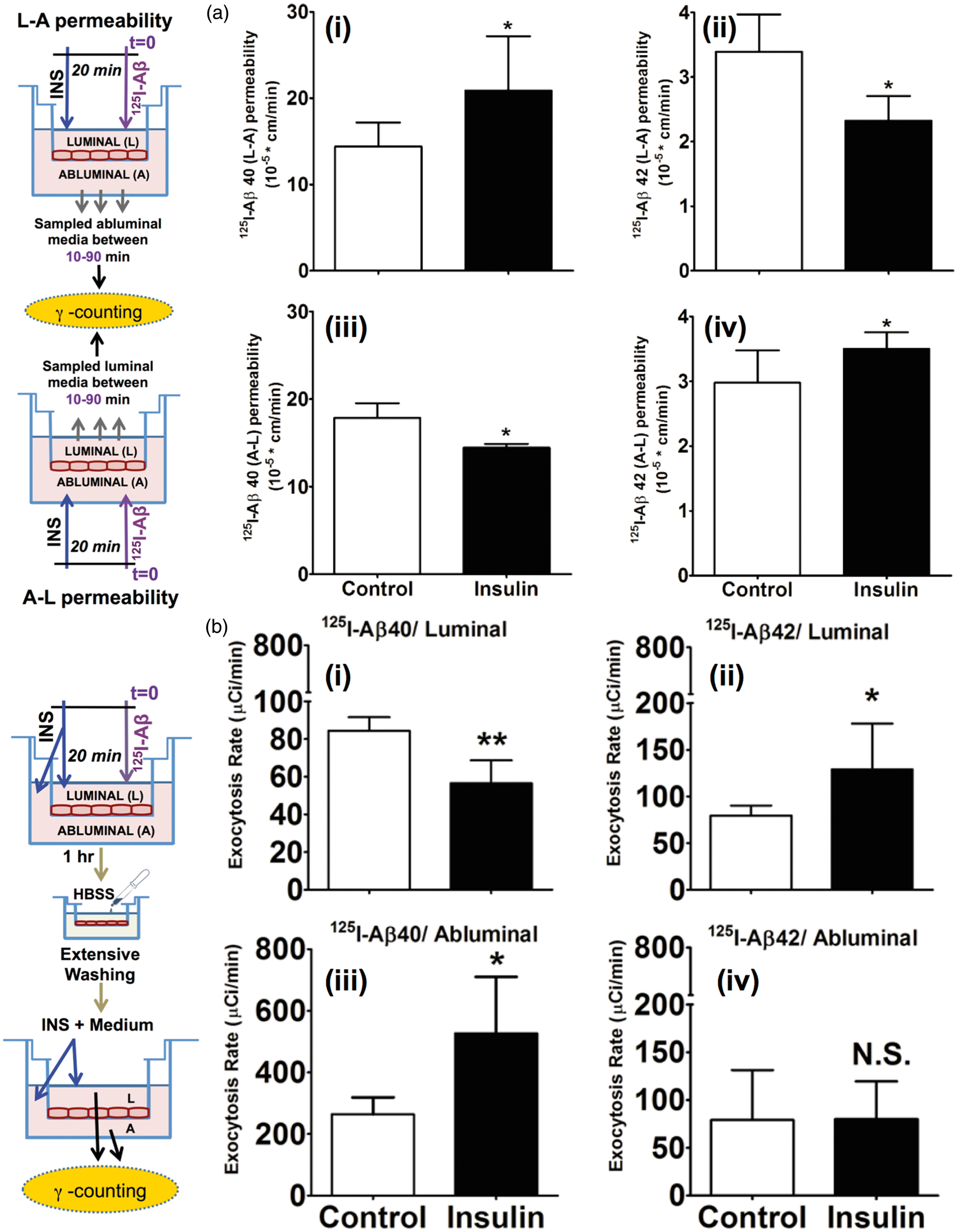

Figure 5.

Insulin modulates ¹²⁵I-Aβ transcytosis and exocytosis in polarized hCMEC/D3 monolayers. (a) The L-A permeability of (i) ¹²⁵I-Aβ40 and (ii) ¹²⁵I-Aβ42 is presented as mean ± S.D. (n = 6). The A-L permeability of (iii) ¹²⁵I-Aβ40 and (iv) ¹²⁵I-Aβ42 is presented as mean ± S.D. (n = 6). *p < 0.05: Student’s t-test. (b) Exocytosis of (i) ¹²⁵I-Aβ40 (control (n = 4), insulin (n = 4)) and (ii) ¹²⁵I-Aβ42 (control (n = 4), insulin (n = 4)) to the luminal (plasma) side. Exocytosis of (iii) ¹²⁵I-Aβ40 (control (n = 4), insulin (n = 3)) and (iv) ¹²⁵I-Aβ42 (control (n = 4), insulin (n = 4)) to the abluminal (brain) side. Data shown is mean ± S.D. *p < 0.05, **p < 0.01: Student’s t-test.

Subsequently, we investigated if the internalized ¹²⁵I-Aβ isoforms are exocytosed differently from the hCMEC/D3 monolayers. ¹²⁵I-Aβ40 was exocytosed to both luminal and abluminal chambers. However, the rate of exocytosis into the abluminal chamber (263.88 ± 54.81 µCi * min⁻¹) was significantly greater than that into the luminal chamber (84.41 ± 7.2 µCi * min⁻¹) (Figure 5(b), control treatments in panels-i and iii; note: Y-axis scales are different in these plots). Upon insulin treatment, the luminal exocytosis rate of ¹²⁵I-Aβ40 decreased to 56.52 ± 12.20 µCi * min⁻¹ (Figure 5(b), panel-i) and the abluminal exocytosis rate increased to 526.70 ± 183.52 µCi * min⁻¹ (Figure 5(b), panel-iii). Although no significant differences were noted between the luminal (79.51 ±10.71 µCi * min⁻¹) and abluminal (79.07 ± 52.37 µCi * min⁻¹) exocytosis rates of ¹²⁵I-Aβ42 (Figure 5(b), control treatments in panels-ii and iv), with insulin treatment, only the exocytosis of ¹²⁵I-Aβ42 to the luminal side significantly increased to 129.11 ±48.85 µCi * min⁻¹ (Figure 5(b), panel-ii).

Insulin exposure triggers Aβ receptor/transporter relocation in hCMEC/D3 monolayers

The fate of putative amyloid receptors/transporters, such as LRP-1, RAGE, SRB-1 and P-gp,^18–20 upon insulin exposure, was investigated in hCMEC/D3 cells. The levels of LRP-1, RAGE and P-gp increased in the plasma membrane fraction of insulin-treated cells compared to that of the control cells, but SRB-1 levels were not affected by the insulin exposure (Figure 6(a), panel-i). However, insulin pre-treatment did not change the whole cell expression levels of these receptors (Figure 6(a), panel-ii).

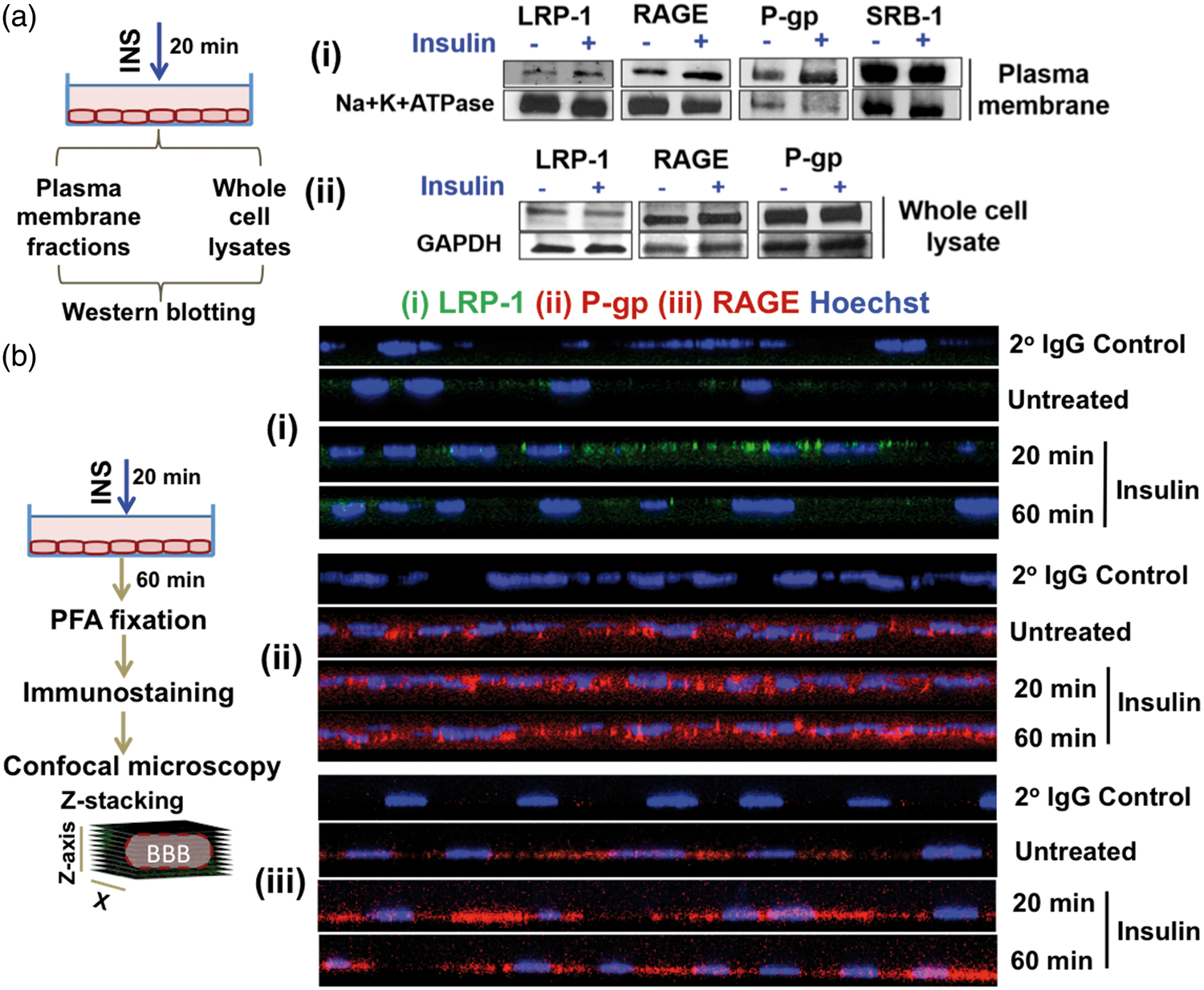

Figure 6.

Insulin pre-treatment augments plasma membrane levels of putative Aβ receptors in polarized hCMEC/D3 cell monolayers. (a) Western blotting. Insulin increased the levels of LRP-1, P-gp and RAGE in the (i) plasma membrane fraction but not in the (ii) whole cell lysates. Loading controls: Na⁺K⁺ATPase (plasma membrane fraction) and GAPDH (whole cell lysates). (b) Immunofluorescence. Insulin exposure increased the expression of (i) LRP-1 (green); (ii) RAGE (red); and (iii) P-gp (red) in polarized hCMEC/D3 monolayers. Cells stained with secondary antibody alone (2° IgG Control) indicated background fluorescence. The cell nucleus is stained by Hoechst dye.

Subsequently, the effect of insulin on the re-distribution of Aβ receptors LRP-1 and RAGE, as well P-gp efflux transporter within hCMEC/D3 monolayers was imaged by confocal microscopy (Figure 6(b), panels i to iii). With insulin pre-treatment, LRP-1 accumulation in the plasma membrane increased and reached the highest levels upon 20 min of insulin exposure. However, the LRP-1 immunofluorescence decreased upon further exposure to insulin for 60 min (Figure 6(b), panel-i). Moreover, insulin pre-treatment for either 20 min or 60 min increased the plasma membrane accumulation of RAGE compared to the untreated controls (Figure 6(b), panel-ii). Similarly, the P-gp accumulation increased with 20 and 60-min insulin exposure (Figure 6(b), panel-iii).

Insulin differentially modulates clathrin and caveolae-mediated endocytosis

Several reports have implicated insulin’s role in intracellular trafficking.^21–23 Reports from our lab have shown that Aβ40 endocytosis is predominantly mediated by clathrin-mediated endocytosis, whereas the uptake of Aβ42 is primarily mediated by caveolae-mediated endocytosis.²⁴ Hence, we investigated the effect of insulin on the cellular endocytosis machinery in hCMEC/D3 cells, overexpressing the insulin receptor (IR-hCMEC/D3). Insulin pre-treatment increased the uptake of AF633-Trf (a classical marker for clathrin-mediated endocytosis) by 84% compared to the control cells as assessed by flow cytometry (Figure 7(a), panels-i and ii); and similar effects were evident in the confocal micrographs (Figure 7(a), panel-iii). However, insulin treatment decreased the uptake of AF647-CT (a marker for lipid rafts involved in caveolae-mediated endocytosis) by IR-hCMEC/D3 cell monolayers (Figure 7(b)).

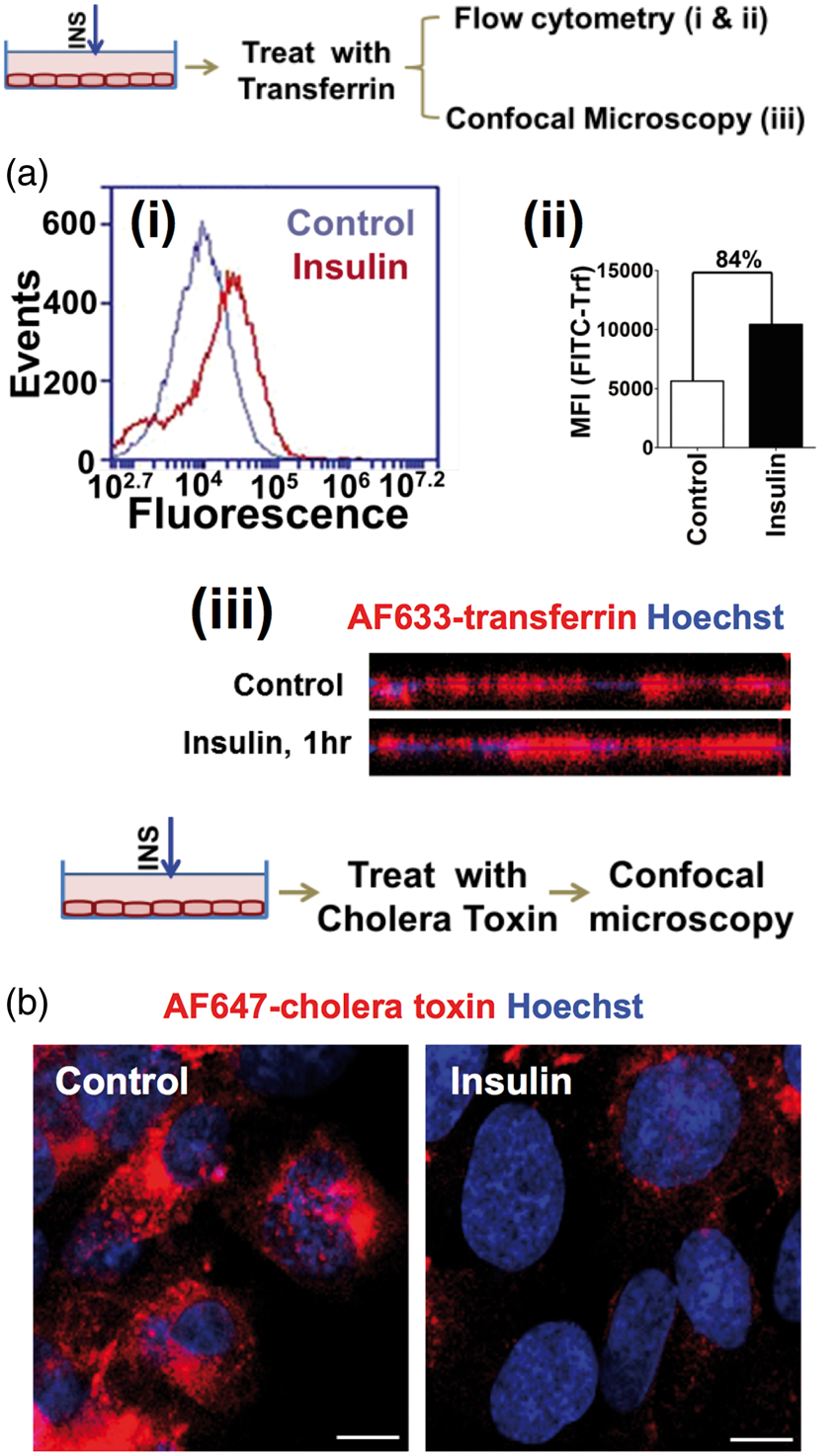

Figure 7.

Insulin modulates endocytosis machinery in polarized hCMEC/D3 cell monolayers. (a) (i) Histogram of FITC-Transferrin (FITC-Trf) treated hCMEC/D3 cells overexpressing insulin receptor (IR-hCMEC/D3) as observed by flow cytometry. (ii) FITC-Trf fluorescence intensity (MFI) in IR-hCMEC/D3 monolayers with and without insulin exposure. (iii) Alexa Fluor® 633-transferrin uptake by confocal microscopy. The z-stack image along x-z axis was presented. The cell nucleus is stained by Hoechst dye. (b) Alexa Fluor® 647-cholera toxin uptake in insulin-treated IR-hCMEC/D3 cells observed by confocal microscopy. Scale bar – 10 µm.

Discussion

Recent clinical trials conducted in a small group of AD patients demonstrated the efficacy of intranasally administered insulin in improving memory and restoring normal amyloid levels in the brain.²⁵ Encouraged by these results, researchers have begun to investigate mechanisms of insulin action in plasma and brain, in the hope of discovering novel molecular targets for AD diagnosis and treatment. These investigations have shown that the peripheral insulin administration alters plasma Aβ clearance and increase Aβ levels in the brain interstitial fluid, whereas the intracerebral insulin administration does not have a detectable impact on the brain Aβ levels.¹⁰ The current study has verified and further resolved these findings by establishing the ability of peripheral insulin to differentially modulate Aβ40 and Aβ42 transcytosis at the BBB and affect their plasma and brain disposition.

Impact of peripheral insulin on plasma ¹²⁵I-Aβ kinetics

Exogenous insulin (1 IU) administration into systemic circulation increased the plasma clearance and decreased the plasma AUC (a parameter indicative of the extent of tissue exposure) of ¹²⁵I-Aβ40 (Figure 1(a) and (c)). This observation agrees with the previous findings that insulin facilitates the hepatic clearance of plasma Aβ40.¹¹ In contrast, the clearance of ¹²⁵I-Aβ42 decreased, and the plasma AUC increased with insulin administration (Figure 1(b) and (c)). The increase in plasma Aβ42 levels was shown to enhance hepatic insulin resistance.²⁶ Thus, changes in plasma insulin levels during the circadian cycles and chronic perturbations observed in metabolic disorders could decrease Aβ42 elimination from the plasma,²⁶ enhance its exposure to peripheral tissues, and beget peripheral insulin resistance which may exacerbate hyperinsulinemia.

Impact of insulin on brain ¹²⁵I-Aβ kinetics

With a 15-min infusion of 1 IU insulin, the plasma-to-brain influx of ¹²⁵I-Aβ40 increased, and that of ¹²⁵I-Aβ42 was reduced (Figure 2(a)). These trends were also verified by SPECT imaging. Gjedde–Patlak plots generated from the SPECT images provided estimates for the plasma-to-brain transfer rate constants (K_i) which are analogous to influx values obtained from the pharmacokinetic experiments. The K_i of ¹²⁵I-Aβ40 was found to be significantly greater than that of ¹²⁵I-Aβ42 (Figure 3). At higher doses (4.2 IU), the effect of insulin was clearly resolved in right and left hemispheres as well as in the brain regions which are affected in AD (cortex, hippocampus, caudate putamen, and thalamus^27,28). Insulin administered via left internal carotid artery significantly increased the influx of ¹²⁵I-Aβ40 into these brain regions but reduced the influx of ¹²⁵I-Aβ42 (Figure 2(b)). Similar trends were apparent in the right hemisphere, but they are not statistically significant. Differences in the magnitude of insulin’s effect on the right and left brain hemispheres could stem from differences in the insulin exposure. We estimated that the insulin infusion via the left internal carotid artery delivers twice as much insulin to the left hemisphere as to the right hemisphere within the experimental time-frame (Supplementary Figure 1). The observed effects of insulin on brain Aβ permeability are unlikely due to systemic pharmacological effects triggered by the insulin administration. If it were so, both hemispheres would have been equally affected.

Higher plasma insulin levels also differentially modulated the brain-to-plasma clearance of ¹²⁵I-Aβ40 and ¹²⁵I-Aβ42; the clearance of intracerebrally injected ¹²⁵I-Aβ40 was inhibited (Figure 4(a), panel (i) and (b), panels (i) and (ii)) but that of ¹²⁵I-Aβ42 was enhanced in insulin-exposed animals compared to the saline-treated controls (Figure 4(a), panel (ii) and (b), panels (iii) and (iv)). These results indicate that insulin spares Aβ40, but clears more toxic and amyloidogenic Aβ42 from the brain. Such changes in Aβ kinetics promoted by insulin could elevate Aβ40 levels and decrease relative Aβ42:40 ratios in the brain, which were shown to decrease amyloidogenesis²⁹ and impart neuroprotection.³⁰ These findings are also in agreement with the recent reports that peripheral insulin administration increased the accumulation of Aβ proteins in the brain interstitial fluid of APP_swe/PS1ΔE9.¹⁰ Although investigators of the study did not differentiate the accumulation of Aβ40 from Aβ42, it is easy to deduce that increase in the accumulation Aβ40, which is 10 times more abundant than Aβ42, could offset the decrease in Aβ42 accumulation, and show a net increase in brain Aβ accumulation.

Owing to beneficial effects reported by the direct nose-to-brain administration of insulin in AD patients,²⁵ it is important to separately consider the effects of luminal versus abluminal insulin exposure on Aβ trafficking. Shiiki et al.⁹ have reported that intracerebral insulin administration in WT rats impaired ¹²⁵I-Aβ40 clearance from the brain. They also claimed that insulin does not affect putative Aβ40 trafficking receptors such as LRP-1, but altered the proteolytic degradation of Aβ40 by the insulin degrading enzyme (IDE).⁹ It was purported that IDE primarily degrades monomeric Aβ40, whereas the degradation of amyloidogenic Aβ42 could follow multiple pathways.³¹ The internal carotid insulin administration employed in this study may not facilitate enough insulin accumulation in the brain to adequately inhibit IDE and engender reduction in Aβ metabolism in the brain. Moreover, the differential impact of plasma insulin observed on the cerebral clearance of Aβ40 and Aβ42 suggests the substantial involvement of other clearance pathways. Recently, Stanley et al.¹⁰ have reported that intracerebral insulin administration to APP_swe/PS1ΔE9 did not change brain Aβ levels significantly. Differences in the observations made by these two groups could be due to the inability of intracerebrally injected insulin to rejuvenate already disrupted Aβ clearance pathways in APP_swe/PS1ΔE9 model and/or due to the opposing effects of insulin on the brain clearances of Aβ40 and Aβ42. Stanley et al.¹⁰ did not differentiate between Aβ40 and Aβ42 when they assessed brain Aβ accumulation by microdialysis. Thus, increase in Aβ40 levels in the brain interstitial fluid (assessed) could be counteracted by the decrease in Aβ42 levels, and diminish the magnitude of overall effect.

Insulin modulates Aβ distribution between plasma and brain compartments, most likely by acting on the neurovascular unit, which constitutes neurons, glia (microglia and astrocytes), and vascular cells (BBB endothelium, pericytes, and vascular smooth muscle cells).² Insulin signaling is known to extend throughout these constituents of the neurovascular unit and is believed to regulate neurovascular function.^32,33 Although several pathways may be involved in clearing Aβ from the brain, the vascular clearance – mediated by the BBB endothelium, a highly specialized trafficking portal, and pericytes that modulate BBB signaling/trafficking – is the most predominant.³⁴ Insulin signaling pathways are shown to be critical for the functional coordination and communication between the endothelium and pericytes (reviewed by Richards et al.⁸). The deleterious consequences of hyperinsulinemia and insulin resistance – often observed in metabolic disorders – on the endothelium as well as pericytes^35,36 were shown to cause BBB dysfunction, which may impair brain Aβ clearance and also promote the influx of plasma Aβ into the brain (reviewed by Winkler et al.³⁷).

Based on these observations made in vivo and the literature evidence, we hypothesized that insulin regulates Aβ trafficking at the BBB in L-A and A-L directions, and maintains Aβ40:Aβ42 ratios in plasma and brain compartments. Elucidating the mechanisms by which insulin conducts these functions in healthy subjects is critical to deciphering those pathological changes triggered by insulin resistance and hyperinsulinemia which are believed to aggravate AD pathology. Hence, the BBB trafficking of Aβ proteins in L-A and A-L directions and insulin’s role in shepherding these processes was investigated in polarized hCMEC/D3 cell monolayers, which is a widely used human BBB model.¹⁷ However, due to a lack of pericytes in this model, the impact of endothelial and pericytic interactions on Aβ trafficking and insulin’s role in coordinating such interactions cannot be captured.

Insulin affects Aβ trafficking at the BBB endothelium

In agreement with our in vivo observations, the luminal uptake and L-A permeability of Aβ40 was enhanced, and that of Aβ42 was reduced in hCMEC/D3 monolayers exposed to luminal insulin (Figure 5(a)). In contrast, the A-L permeability of ¹²⁵I-Aβ40 was decreased, but the permeability of ¹²⁵I-Aβ42 was increased upon abluminal insulin exposure. However, the A-L permeability differences between control and insulin-treated monolayers are modest, which is likely due to the lack of pericytes in the model. Despite this limitation, the agreement between in vitro and in vivo findings confirm the earlier reports that the BBB plays a pre-eminent role in maintaining plasma and brain Aβ levels.³⁸ Moreover, our current findings suggest that insulin may modulate Aβ trafficking and regulate Aβ42:Aβ40 ratios in plasma and brain. Shifts in Aβ42:Aβ40 ratios observed in familial AD patients were claimed to be due to mutations in APP and/or PS1 genes.³⁹ However, the current manuscript suggests a possibility that aberrant Aβ42:Aβ40 ratios could arise due to perturbation in Aβ trafficking at the BBB. Thus, pathological conditions such as diabetes and obesity which are characterized by hyperinsulinemia, hyperlipidemia, and insulin resistance could engender pathological shifts in Aβ42:Aβ40 ratios.

We further investigated the effect of insulin on various stages of the transendothelial trafficking, primarily endocytosis and exocytosis, in hCMEC/D3 monolayers. The Aβ endocytosis on the luminal side of the BBB is mediated by the RAGE receptor, expressed on the luminal membrane.⁴⁰ RAGE is known to play a central role in insulin resistance and is implicated in vascular complications associated with diabetes.⁴¹ The endocytosis of Aβ proteins on the abluminal side is handled by LRP-1, which is expressed on the abluminal membrane of the BBB.^42,43 LRP1 is also expressed on the pericyte membrane and aid in the endocytosis of Aβ proteins that are eventually degraded in the lysosomes. In addition, P-gp is expressed on the luminal membranes and is implicated in the brain Aβ clearance.¹⁹ Upon luminal insulin exposure, the LRP-1, RAGE, and P-gp immunofluorescence transiently increased in the polarized hCMEC/D3 monolayers (Figure 6(b)). The western blots have shown that the luminal insulin exposure did not alter the cellular levels of these receptors/transporters in hCMEC/D3 endothelial monolayers, whereas the plasma membrane distribution of RAGE, LRP-1, and P-gp increased (Figure 6(a)). Similar studies were conducted on hepatocytes, where the luminal insulin exposure for various lengths of time was shown to induce the translocation of intracellular LRP-1 to the plasma membrane of hepatocytes and altered the peripheral clearance of Aβ40.¹¹ However, a manifestation of this phenomenon in the BBB endothelium has been addressed for the first time in the current study.

The Aβ endocytosis mediated by LRP1 and RAGE could progress via clathrin and/or caveolae-mediated pathways. Several studies have demonstrated the impact of insulin on these endocytotic processes in a variety of cells.^21,23 Further, insulin was shown to differentially modulate clathrin versus caveolae-mediated endocytosis of various ligands. For instance, in adipocytes, insulin treatment decreased the endocytosis of cholera toxin B, which is internalized by caveolae-mediated endocytosis.⁴⁴ In contrast, the endocytosis of transferrin⁴⁴ and α-2 macroglobulin,⁴⁵ which is mediated by clathrin-mediated endocytosis, increased. In this study, we have shown that luminal insulin exposure enhanced the uptake of FITC-transferrin by BBB endothelial cells (Figure 7(a)), but reduced the uptake of AF647-cholera toxin B (Figure 7(b)), a caveolae-mediated endocytosis marker. This differential modulation of endocytotic processes by insulin could extend beyond the specific ligands and may affect the endocytosis of other proteins such as Aβ. We previously reported that Aβ40 uptake by endothelial cells is predominantly clathrin-mediated, whereas Aβ42 endocytosis is caveolae-mediated.^24,46 Hence, differential effects of insulin observed on the luminal uptake of Aβ40 and Aβ42 could be due to the ability of insulin to selectively enhance clathrin-mediated endocytosis and inhibit caveolae-mediated uptake.

However, effects of insulin on Aβ endocytosis do not entirely explain its differential impact on the brain clearances of Aβ40 and Aβ42. Insulin increases the expression of the endothelial LRP-1 receptor, which is purported to endocytose Aβ peptides on the abluminal side. Although Aβ40 has higher affinity to the LRP-1 receptor than does Aβ42,⁴⁷ it is not evident how insulin could decrease Aβ40 clearance from the brain. To resolve this dilemma, we also investigated the effect of insulin exposure on the exocytosis of Aβ internalized by the endothelial cells. Insulin preferentially promoted the exocytosis of the internalized ¹²⁵I-Aβ40 to the abluminal side, whereas the internalized ¹²⁵I-Aβ42 was exocytosed to the luminal side (Figure 5(b)). While this may, to some extent, reconcile differential effects of insulin on ¹²⁵I-Aβ40 and ¹²⁵I-Aβ42 transcytosis at the BBB, the mechanism of endothelial exocytosis modulated by insulin to manifest these trafficking changes remains to be investigated.

The current study points out the impact of plasma insulin on Aβ trafficking between plasma and brain compartments in healthy WT mice. Higher plasma insulin levels are observed in type-2 diabetes (T2DM) patients along with peripheral insulin resistance, and this could possibly affect the dynamic equilibrium between plasma and brain Aβ levels. However, T2DM is also associated with hyperglycemia, hyperlipidemia, hypertension, as well as cerebrovascular pathologies resulting from the destructive remodeling of endothelium, pericytes, and smooth muscle cells. Owing to the lack of understanding of how these comorbidities influence AD pathology, the current findings may not be sufficient to establish a causal link between AD and T2DM. Further studies employing relevant T2DM and AD models are warranted to fully realize the pathological consequences of T2DM sequelae on Aβ clearance and AD severity.

In summary, we have shown that intravenous insulin administration reduced the clearance and enhanced the plasma accumulation of Aβ42, which was previously shown to trigger peripheral insulin resistance. Moreover, systemic administration of exogenous insulin differentially modulated the bi-directional trafficking of Aβ40 and Aβ42 at the BBB and altered Aβ levels in the plasma and brain compartments. By invoking temporal and spatial changes in putative Aβ receptors and cellular transport machinery within the BBB endothelium, insulin promotes ¹²⁵I-Aβ40 accumulation in the brain but clears amyloidogenic ¹²⁵I-Aβ42. Hence, there may be an intricate signaling/trafficking apparatus at the BBB responsive to fluctuations in insulin levels, arising from the circadian cycles and nutritional status (e.g. fasting), and Aβ burden. Disruption of this regulatory network in cerebrovascular disease and metabolic disorders may exacerbate amyloidosis and insulin resistance, aggravate AD and CAA pathologies, and accelerate cognitive decline. Further studies are needed to verify these pathological consequences in WT and AD transgenic mouse models that manifest hyperinsulinemia and insulin resistance.

Footnotes

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: Support of Minnesota Partnership for Biotechnology and Medical Genomics grant is acknowledged.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Authors’ contributions

SKS, KMA, GLC, VS, RSO, TD performed the experiments, collected the data, participated in the data analysis. SKS, JFP, VJL, KKK made substantial contributions to conception and study design; data analysis and interpretation and, in drafting the manuscript. KKK managed the overall study. The final manuscript was reviewed, revised and approved by all the authors.

Supplementary material

Supplementary material for this paper can be found at the journal website:
